USER MANUAL CBJF-2D10A Vevor
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

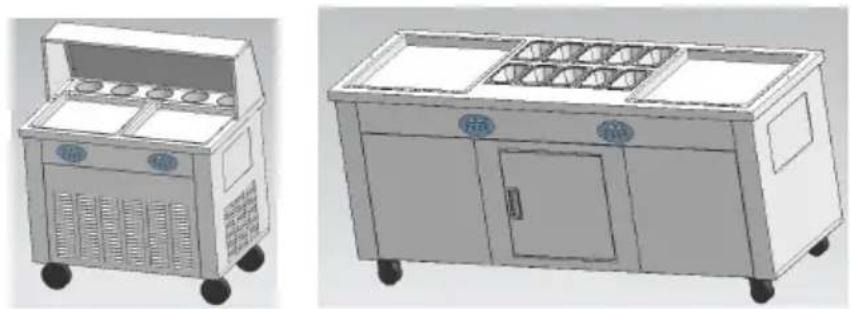

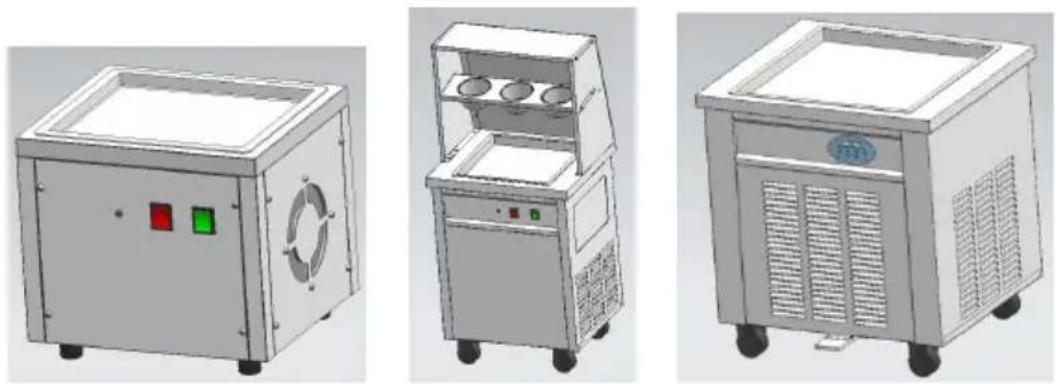

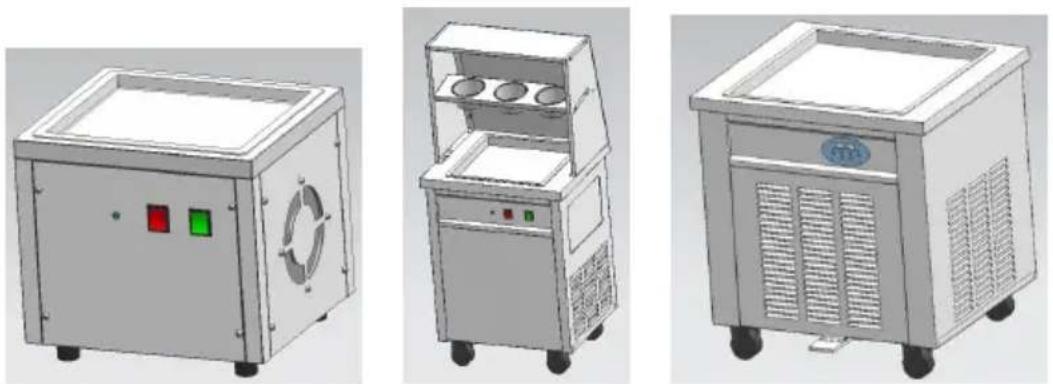

MODELU: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5 B CBJF -2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELL: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5 B CBJF -2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
* WARNING (normale Modelle )
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technique Assistance et certificat de garantie electronique www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELE : CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5B CBJF - 2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500 CBJF-2D5 BCBJF - 2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
* WAARSCHUWING (slimme modellen)
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELL: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5 B CBJF -2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELO: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5 B CBJF- 2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELLO: CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500CBJF-2D5 B CBJF -2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate www.vevor.com/support
Fried ice cream machine manual
MODEL:CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500 CBJF-2D5B CBJF-2D10A
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and doses not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:CBJF-1DC280 CBJF-1DC-350 CBJF-1DA500 CBJF-2D5B CBJF-2D10A
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
| Warning-To reduce the risk of injury, user must re instructions manual carefully. | |
| This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that n cause undesired operation. | |
| This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices |
Fried ice cream machine manual
i.The main purpose
CBJ series ice frying machine is mainly used to make fried milk cub ice cream rolls.
ii.Install
After installing the components that need to be installed, thoroughly in the machine.
Place the machine in a ventilated and dry location, and ensure that grilles on each side of the machine are at least 300mm away from obstacles. The ambient temperature should not be too high. The ambient temperature of the floor-standing model should not exceed 35^ , and the ambient temperature of the tabletop model should not exceed 30^ . Otherwise Will affect the cooling effect.
Connect the power supply with reliable grounding according to the vol requirements on the nameplate on the machine; the machine must us
independent dedicated socket.
iii.Use and operation
Clean
Pour a small amount of water into the ice pan and wipe it clean with it is strictly forbidden to rinse directly with water.
Ingredients
Use special powder or slurry and prepare it according to the instructive the packaging bag.
Take the ingredients according to the proportion and weight according the table, pour it into the container and mix evenly; then pour boiling stir quickly and completely dissolve it into a thin paste. After cooling, be poured into the machine to make ice cream rolls and milk cubes.
| Raw materiai I | Whol e milk powd er | Non- dairy creamer | White sugar | Maltod extrin | Whe y pow der | Stabilizer | Essence | Boiling water |
| content | 8% | 12% | 15.2 % | 2.4% | 2% | 0.24 % | 0.16 % | 60 % |
1)Operate
A: Ordinary type
Turn on the power, press the "COLD" switch to the on position, the "running" indicator light will light up, and enter the refrigeration state; strictly prohibited to continuously press the "ice frying switch" to turn machine on and off.
B: Intelligent
Turn on the power, the power indicator light is on, the left digital tull displays the current temperature, and the right digital tube displays the current voltage; press the "COOL" and "FRESH" button (with built-in fiftype) once, the corresponding indicator light lights up, and the machine enters the refrigeration state; after use, Press the "COOL" and "FRES
buttons again to turn off the machine.
The built-in fridge (model CBJF-2D10A) can store food that needs to refrigerated, and the temperature is automatically constant between 5 - 10^ .
Frost slowly begins to form in the fried ice pan. When the ice pan frost and the temperature reaches the production temperature, the "refrigeration" indicator light flashes and the ingredients can be poured production. When the temperature reaches the set temperature, the refrigeration unit stops working and the machine enters Constant temperature state;
Defrost function: If the pan sticks and the scraper cannot move during cooling process, you can step on the "foot defrost" switch or press the "defrost" button once with your hand.
According to the needs, the cooling temperature and temperature hysteresis can be changed. Press the "Set" button for 3 seconds, the digital tube will display "F1" and the right digital tube will display the set temperature. Press the "UP" or "DOWN" key to change; Press the button again. The left digital tube displays "C1" and the right digital to displays the current set temperature return difference. Press the "Add" "Minus" key to change it; if there is no operation for 8 seconds, the parameters will be automatically saved.
Preparation method: Turn on the power and start the frying ice trays slowly begin to frost. After the ice tray is full of frost, pour a certain of prepared slurry into it and stir-fry continuously with an ice shovel slurry becomes sticky. If it becomes thick, use an ice shovel to even spread it on the ice tray (about 2-20mm) and freeze it for a few min the temperature is too low and the shovel won't stick to the pan, y use the "foot pedal" Defrost" switch or press the "Defrost" button by defrost for 3-10 seconds each time before making; after use, press the "Frost" button again to turn off the machine.
5. Things to note
1) During the transportation of the machine, the tilt is not allowed to be 45 degrees.
2) The power supply voltage requires rated voltage and must be reliab grounded; it cannot share the same socket with other electrical applia
3) There should be enough space of more than 200mm on the side of inlet and outlet air grille to ensure heat dissipation of the machine.
4) Dust the machine condenser regularly, and the interval should not exceed 3 months
5) When the machine is working, do not touch the pot surface directly your hands to prevent frostbite.
6) Do not use the machine directly in a place exposed to direct sunlight. It will directly affect the cooling effect.
7) After use, unplug the power supply and clean the machine. The suction can be wiped with a wet towel; it is strictly forbidden to rinse it directly water.
| Fault | reasons | Methods of exclusion |
| The machine alarms and does not work | 1. If the power supply voltage is too high or low, it will display YH YL and alarm. | 1. Unplug the power plug and adjust the voltage. Restart |
| 2. The refrigeration sensor is faulty, display FP, and alarms; the machine does not maintain a constant temperature and does not stop. | 2. Replace the sensor | |
| 3. The fresh-keeping sensor is faulty and displays FB. And alarm; the machine does not maintain a constant temperature and does not stop. | 3. Replace the sensor | |
| 4. The switch or control | 4. Check the line and | |
| board connection wire falls off | restore it | |
| 5. The switch or controller is broken | 5. Replace the switch or controller is broken. | |
| 6. Compressor overload protection | 6. After power outage, it automatically recover for 30-60 minutes and then turn on again. | |
| Poor cooling effect, no cooling | 1. Use directly under sunlight | 1. Change the placement location |
| 2. Is the air grille in out of the machine blocked? | 2. Leave more than 200r of space for air inlet and outlet. | |
| 3. The ambient temperature is too high | 3. Change the placement location | |
| 4. The condenser is too dirty | 4. Clean the condenser | |
| 5. The compressor, capacitor and protector are broken. | 5. Replace the compressor capacitor or protector | |
| 6. Refrigerant leakage | 6. Check for leaks, repair leaks, and refill refrigerant | |
| There is loud noise and vibration | 1. The machine is pl a unevenly | 1. Place it stably |
| 2. The fan blade touch other accessories | 2. Calibrate the fan blade | |
| 3. Machine parts are loose | 3. Reinstall |
8) If the machine malfunctions and alarms, please contact a professional to find out the cause before using it.
iv.Common faults and troubleshooting methods
v.Packing List
| No. | item | quantity | Remark |
| 1 | Fried ice cream machin | 1 set | |
| 2 | manual | 1 pc | |
| 3 | Fried ice scraper | 2-4 pcs | 2 handfuls/pot |
| 4 | 250ml measuring cup | 1 | Floor style |
| 5 | clipper | 1 pc | Floor style |
* WARNING (ordinary models)
9)Connect the power supply according to the voltage requirements on machine nameplate, and it must be reliably grounded; it cannot share same socket with other electrical appliances.
10) There should be enough space of more than 200mm on the side inlet and outlet air grille to ensure heat dissipation of the machine.
11) Ambient temperature requirements for use: The ambient temperature the floor-standing model should not exceed 35^ , and the ambient temperature of the tabletop model should not exceed 30^ .
12)It is strictly prohibited to use the machine under direct sunlight or closed space, as it will directly affect the cooling effect.
13) Dust the machine condenser regularly, and the interval should not exceed 3 months.
14) If the machine suddenly stops cooling during use, it needs to be powered off for 30-60 minutes and then restarted.
15) Do not switch the machine on and off continuously. If the machine is not cool when it is switched on and off continuously, it needs to be off for 30-60 minutes and then restarted.
16) If the machine malfunctions and alarms, please contact a profession to find out the cause before using it.
* WARNING (smart models)
1) Connect the power supply according to the voltage requirements on machine nameplate, and it must be reliably grounded; it cannot share same socket with other electrical appliances.
2)There should be enough space of more than 200mm on the side of inlet and outlet air grille to ensure heat dissipation of the machine.
3) Ambient temperature requirements for use: The ambient temperature the floor-standing model should not exceed 35^ , and the ambient temperature of the tabletop model should not exceed 30^ .
4) It is strictly prohibited to use the machine under direct sunlight or in closed space, which will directly affect the cooling effect.
5) Dust the machine condenser regularly, and the interval should not exceed 3 months.
6) The machine shuts down with an alarm, displays YH/YL, and the voltage is too high/low; it is necessary to unplug and adjust the voltage to r
7) The machine alarms and does not stop, displays FP/FB, and the refrigeration/fresh-keeping temperature sensor is faulty and needs to be replaced.
8) The machine suddenly stops cooling during use. It needs to be powered off for 30-60 minutes and then restarted.
9) Do not switch the machine on and off continuously. If the machine not cool when it is switched on and off continuously, it needs to be off for 30-60 minutes and then restarted.
10) If the machine malfunctions and alarms, please contact a profession to find out the cause before using it.
