CIBT1924N - Ice Maker Vevor - Free user manual and instructions

Product Type	Commercial Ice Bucket (Ice Bin)
Brand	Vevor
Model	CIBT1924N
Dimensions (L x W x H)	700 x 580 x 650 mm
Capacity	61.6 liters
Cold Retention Time	Up to 24 hours
Exterior Material	Brushed Stainless Steel
Insulation	Double-wall with high-density polyurethane foam
Lid	With sealing gasket to prevent cold loss
Anti-condensation Protection	XPE foam on sides and bottom
Included Accessories	Filter set (cup, gaskets, sieve, siphon, screws, key)
Recommended Use	Storage of ice cubes, bottles, beverages for bars, restaurants, parties
Maintenance	Clean after each use, drain water during prolonged inactivity
Installation	Under-counter built-in (mounting kit included)
Safety	Small parts: keep away from children; use on stable surface
Weight (estimated)	Approximately 25-30 kg (not specified, estimated based on dimensions)
Warranty	Technical support and electronic warranty certificate via www.vevor.com/support

Frequently Asked Questions - CIBT1924N Vevor

How do I install my Vevor CIBT1924N ice bucket?

Follow the installation steps in the manual: place the gasket and siphon in the basin hole, then install the filters and tighten with the key. Then position the lid and accessories. Make sure the product is level.

What is the maximum ice capacity of the CIBT1924N?

The bucket can hold up to 61.6 liters of ice. However, the weight capacity varies by ice density (approximately 10 kg of ice takes up less volume than 10 kg of water).

How long does ice stay cold in this bucket?

Thanks to the double-wall polyurethane insulation and sealed lid, cold retention can reach up to 24 hours under normal use conditions.

How do I clean my Vevor ice bucket?

After each use, empty melted water and clean the interior with a soft cloth and soapy water. Rinse well and dry. To avoid bacteria, do not leave standing water.

Can I use the ice bucket to chill bottles?

Yes, the bucket is designed to keep wine, beer, cocktails and other beverages cool. It is ideal for bars, parties and barbecues.

Why is there condensation on the outside of the bucket?

The bucket is equipped with anti-condensation XPE foam on the sides and bottom, which reduces fogging. If condensation persists, check that the lid is properly closed and the insulation is intact.

How can I get spare parts for my CIBT1924N?

Contact Vevor technical support at www.vevor.com/support. Parts such as gaskets, filters and keys are available as accessories.

Can this ice bucket be installed under a counter?

Yes, the CIBT1924N model is designed to be built-in under a counter. Ensure you respect the cutout dimensions specified in the manual (approximately 930x389 mm).

What is the difference between the CIBT1924, CIBT1924N and CIBT1924C models?

The models mainly differ in lid type and dimensions. The CIBT1924N measures 700x580x650 mm, while the CIBT1924C is lower (590 mm). The standard CIBT1924 is 625 mm high. Refer to the manual for exact diagrams.

What should I do if my ice bucket smells bad?

Clean the interior thoroughly with diluted white vinegar or baking soda, then rinse abundantly. Let it air dry. Avoid storing ice for too long without renewal.

USER MANUAL CIBT1924N Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Underbar Ice Bin

MODEL : CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 CIBT1924N /CIBT1924C

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: CIBT1912/CIBT1924 /CIBT1930 /CIBT1936/CIBT1924N CIBT1924C

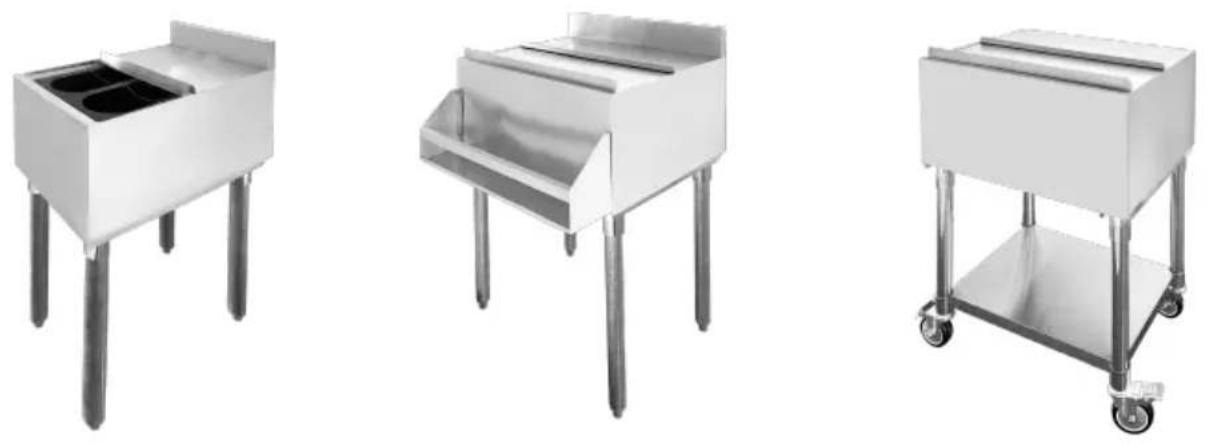

Three types of lid, the picture is for reference only, please refer to actual.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING!

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING!

This product contains small parts. If swallowed, it will pose a chokin hazard. Keep these small parts away from children when assembling!

WARNING!

While assembling and using this product, keep work area clean and lighted, and keep spectators and children out of the work area.

Assemble only according to commercial ice caddy parameter. Improper assembly can create hazards.

Use as intended only.

Keep away from sharp points, blades and other items, so as not to scr the product.

NOTE:

1. The shown is for illustration purposes only. It may not represent the of the finial purchased.
2. Please follow the installation steps to mount this drop in commercial caddy. Wrong installation steps may cause some damage trouble.
3. Installation is easy. Handle it gently, please.

SAVE THESE INSTRUCTIONS

PRODUCT DESCRIPTION

1. Designed in brushed stainless steel, this built-in ice bucket is durable. Double layer design to achieve better insulation effect. The interior is insulated with high density polyurethane and the lid is sealed with a adhesive strip to prevent heat loss and ensure your ice stays cool for long time.

2. The ice bucket with lid is a versatile and essential accessory to the can keep wines, beers, cocktails and juices fresh and pleasant after long-term use. It is a great choice for terraces, backyards, poolside a restaurants, perfect for any casual occasion such as dinner, sports pa barbecue.

3. The side and bottom of the product are wrapped with XPE sponge, not only increases the thermal insulation effect, but also prevents the and bottom from condensation, which leads to the problem of dripping water on the surface.

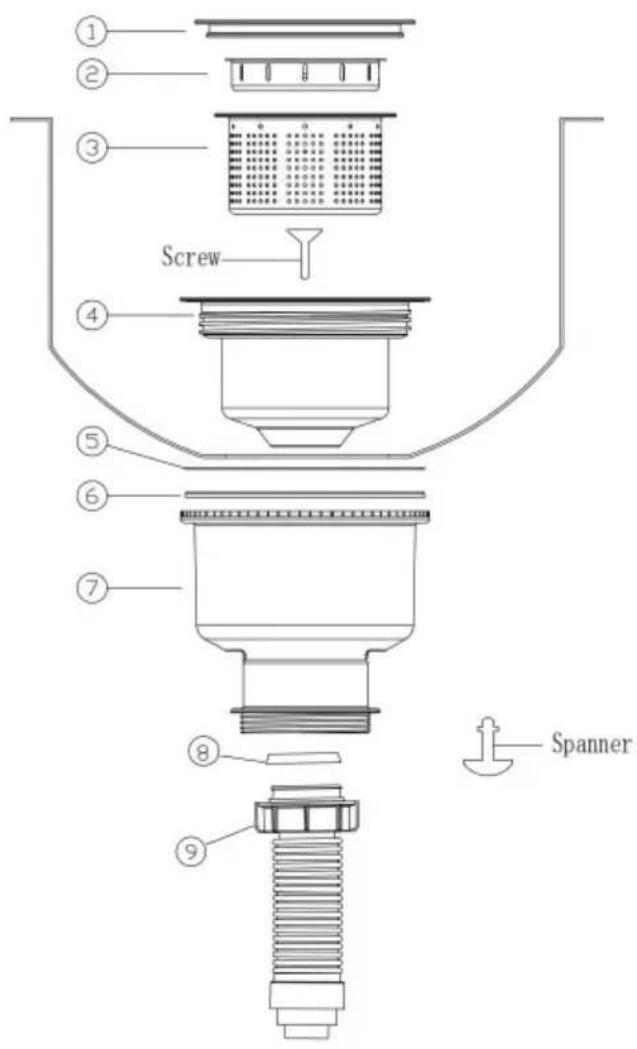

LIST OF ACCESSORIES

Filter components
Name	Qty	Picture	Name	Qty	Picture
Cup	1		Seal ring 1	1
Lid	1		Seal ring 2	1

Screen	1		Screw	1
exhalentsiphon	1		Spanner	1

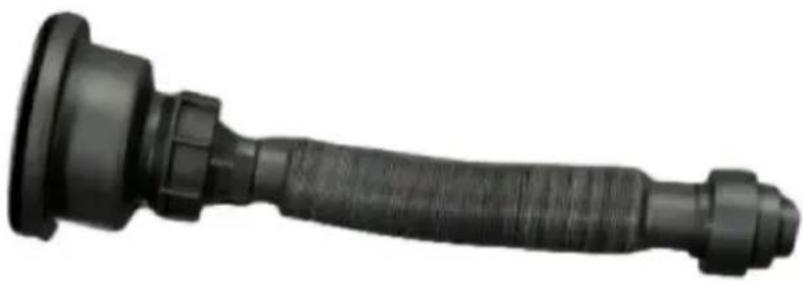

Black plastic mechanical component with threaded end and flange (no visible text or symbols)

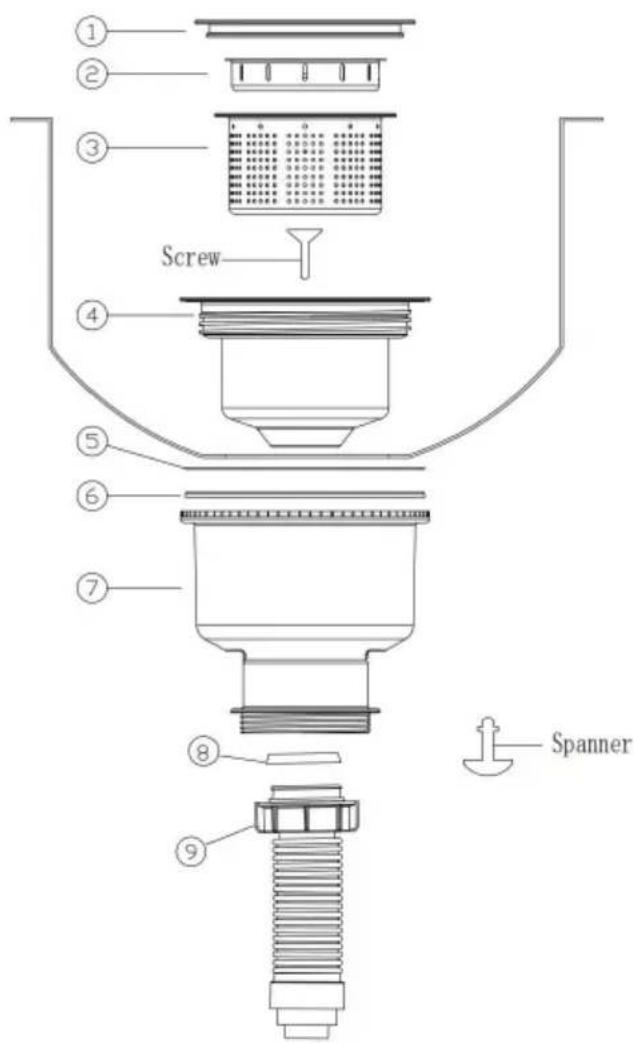

Installation steps:

1: Place No. 4 part in the basin hole, and install No. 5/6/7 part on part.
2: Tighten the screw with the key, and tighten the 8/9 part on the
3: Place part No. 1/2/3 in part No. 4 to complete the installation.

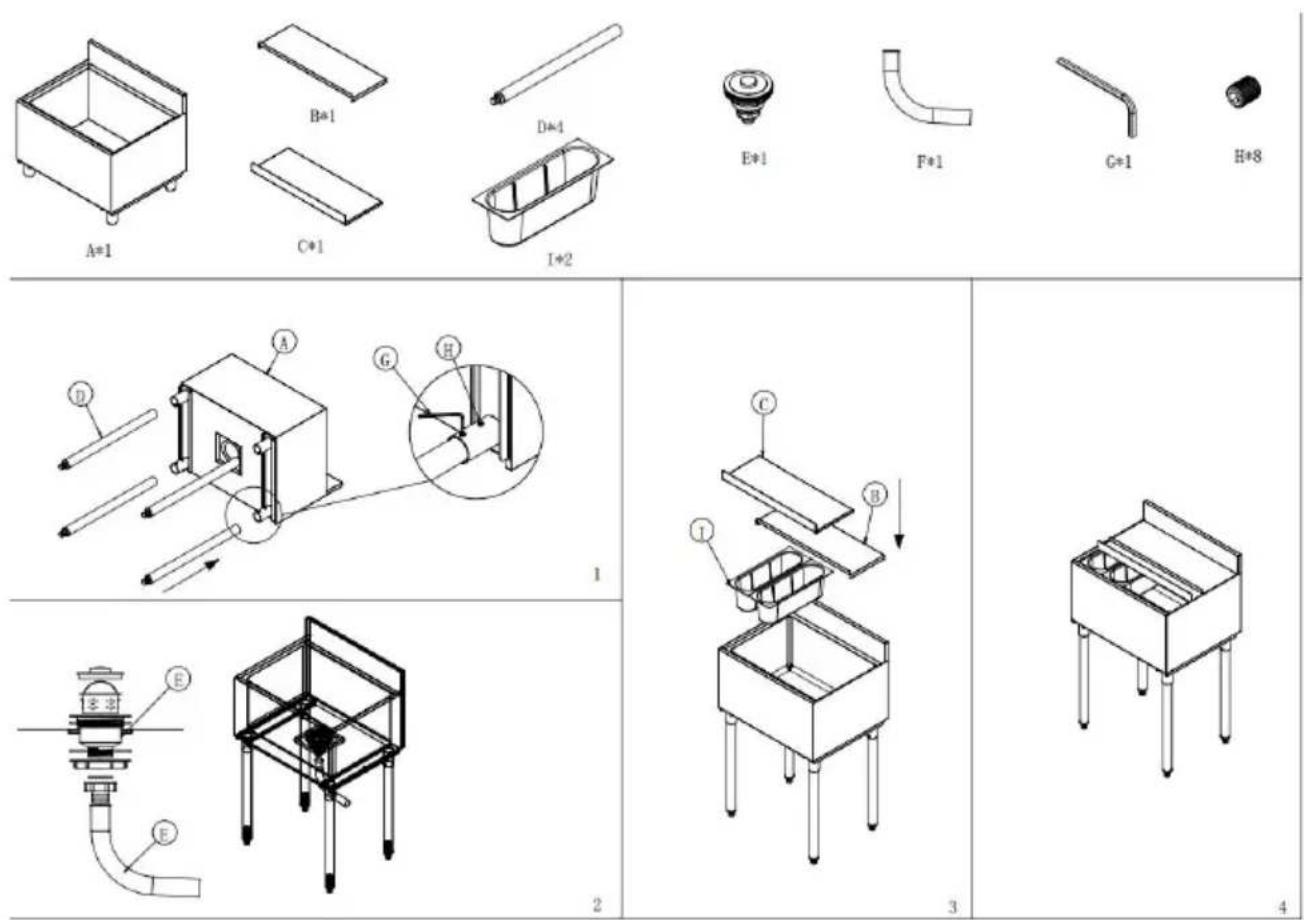

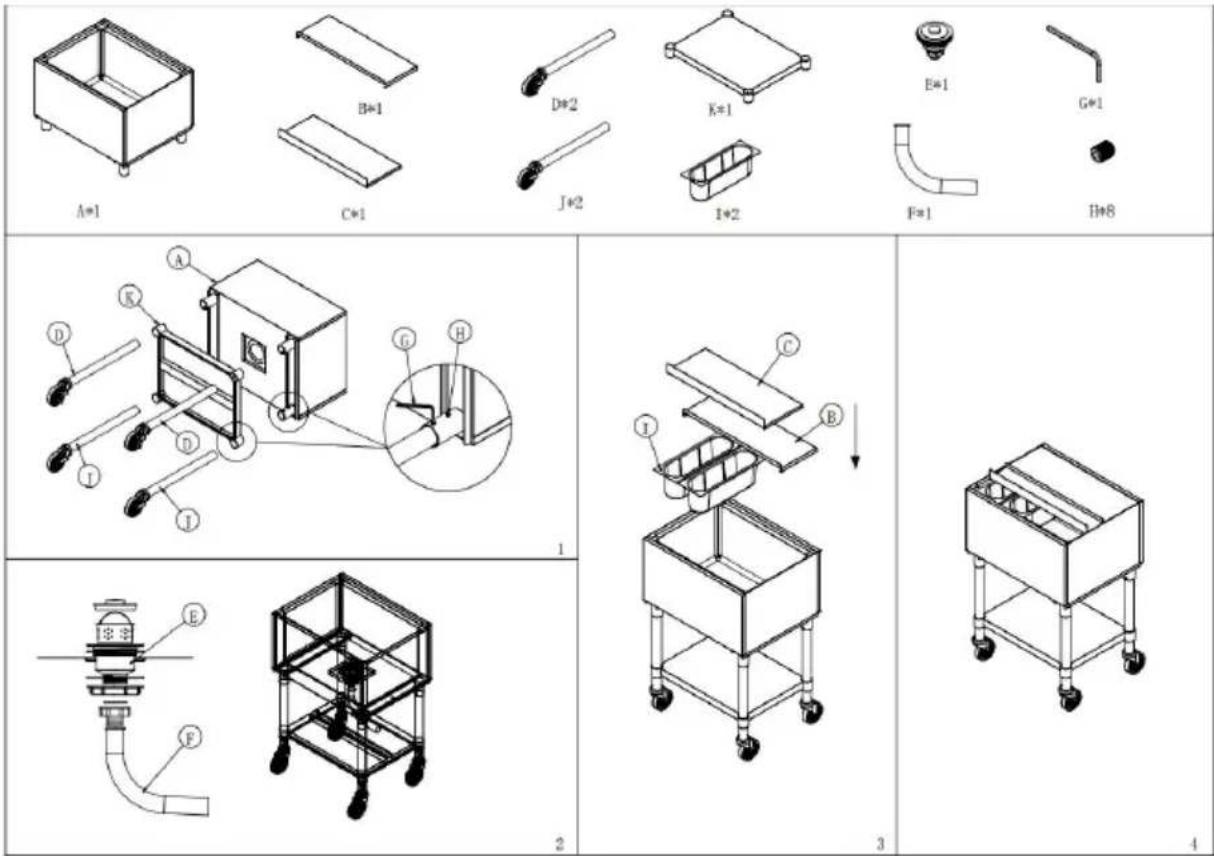

CIBT1912/CIBT1924 /CIBT1930 /CIBT1936 components and Installation steps:

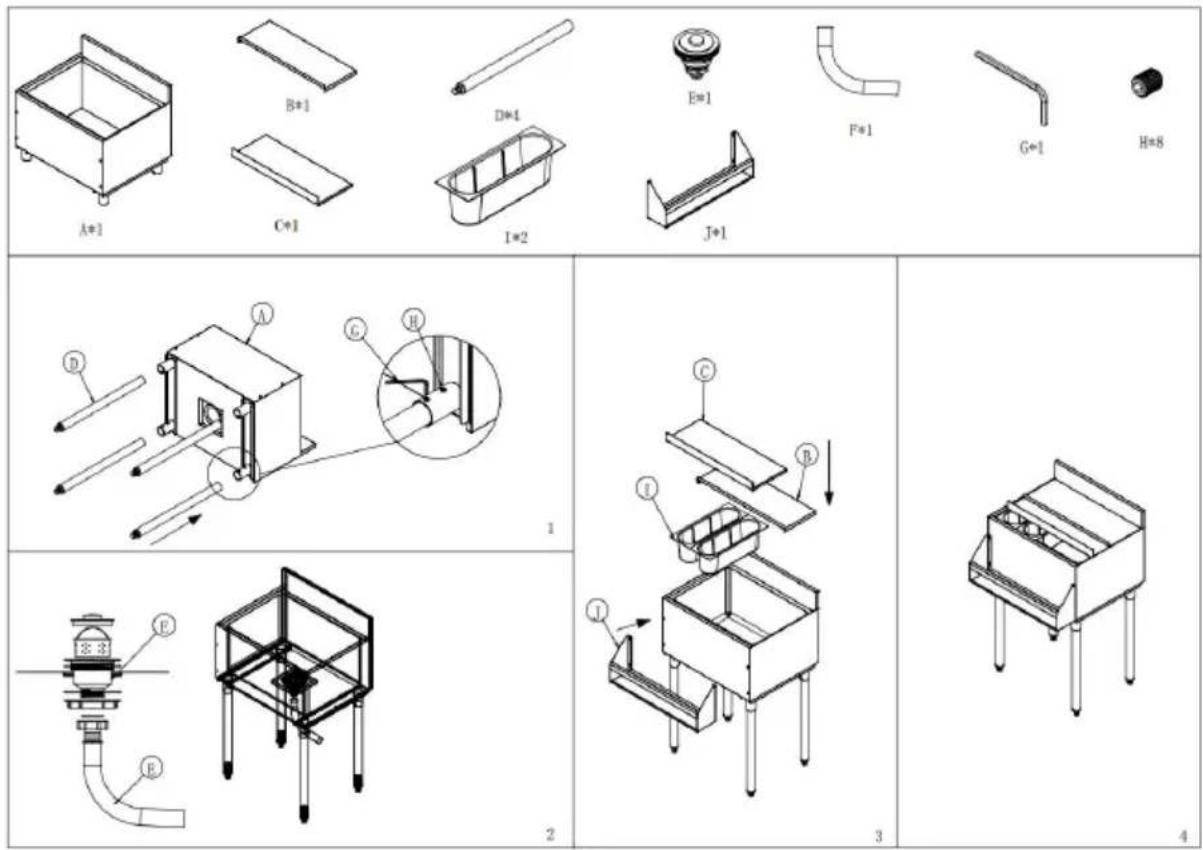

CIBT1924N components and Installation steps:

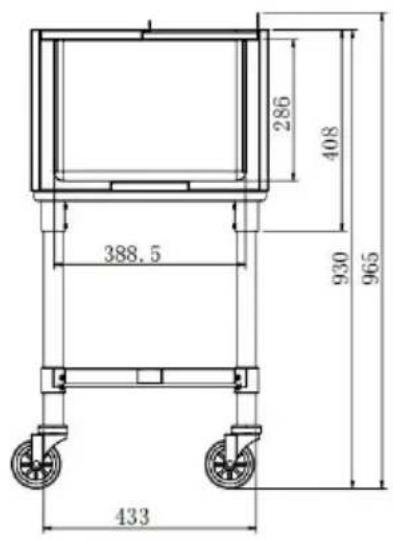

CIBT1924C components and Installation steps:

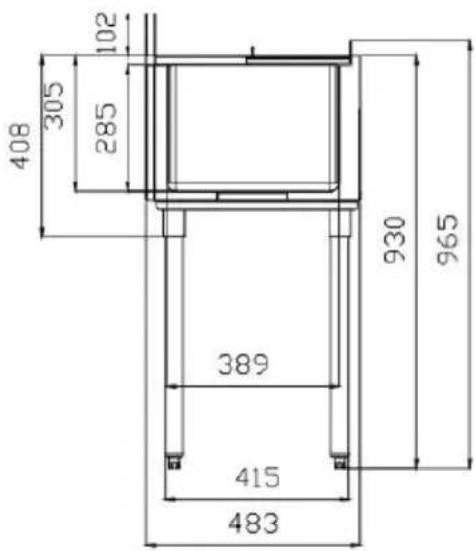

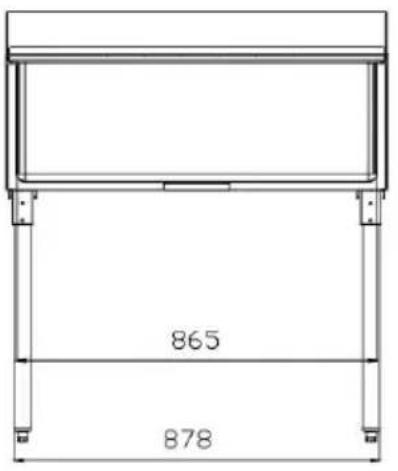

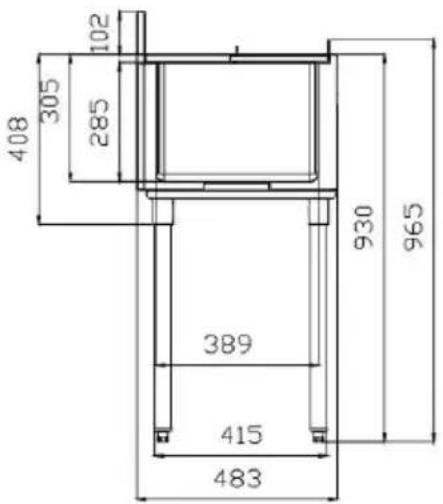

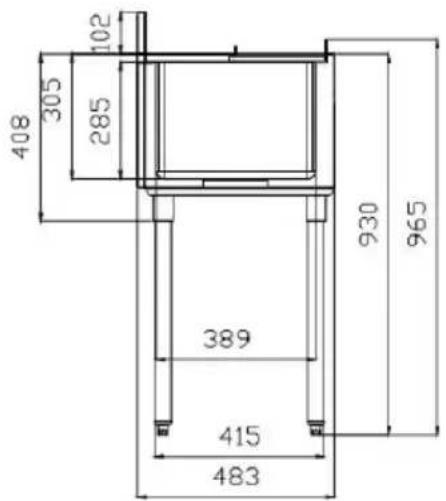

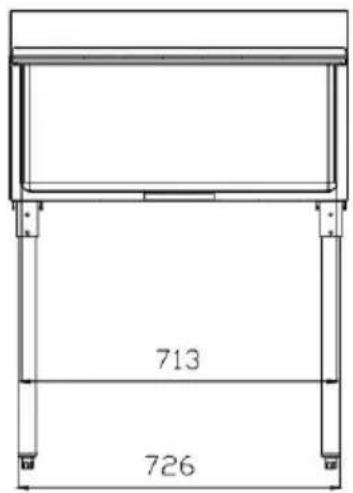

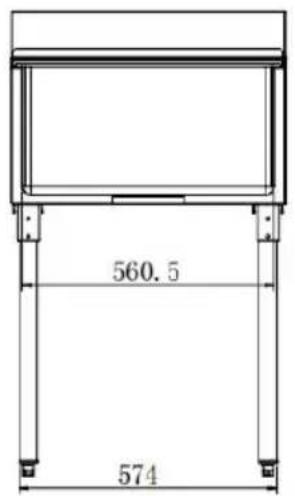

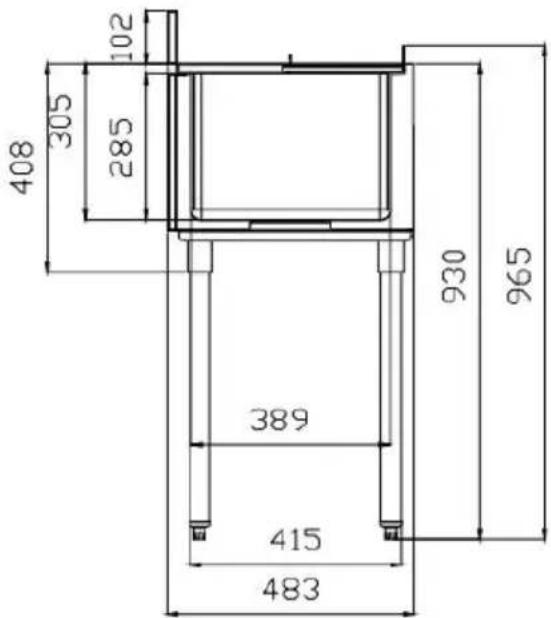

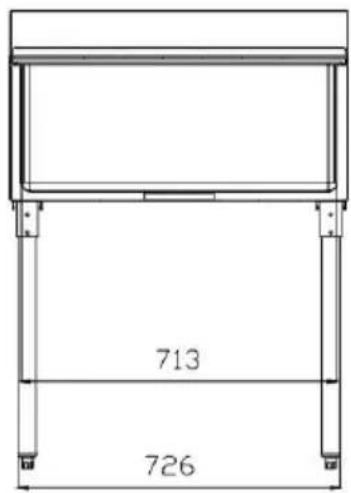

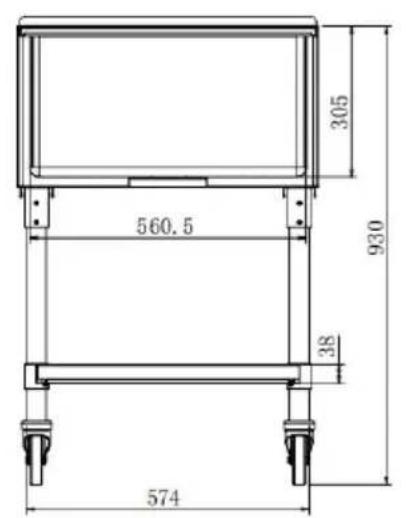

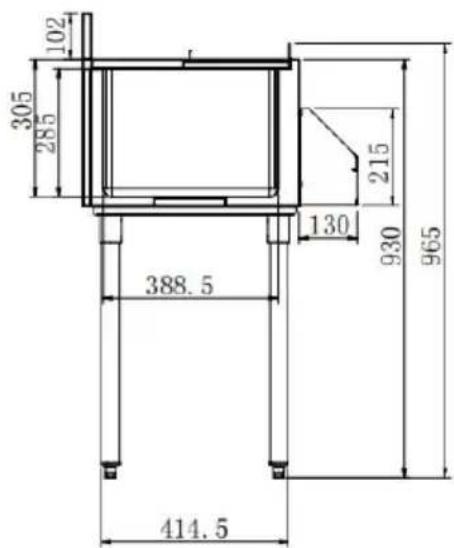

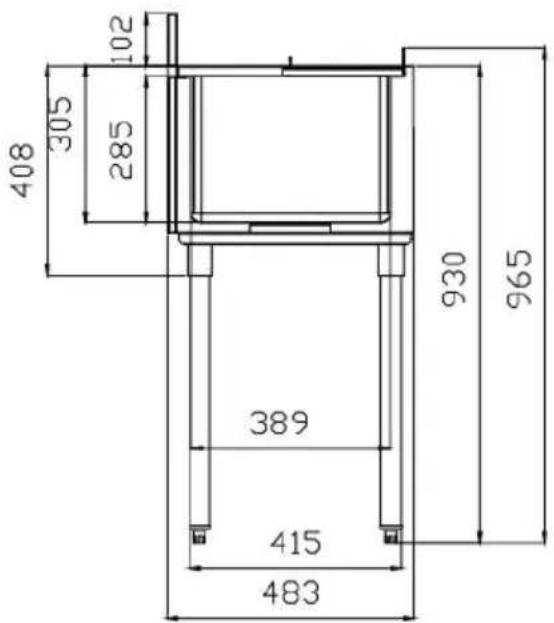

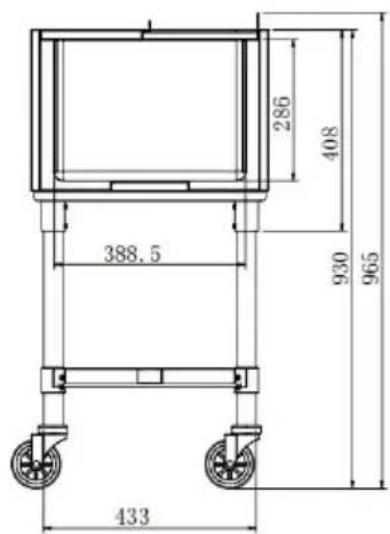

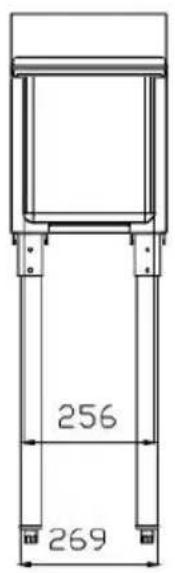

DIMENSIONS AND SPECIFICATIONS

Model	Overall size (L*W*H mm)	Product capacity (L)	Holding time
CIBT1912	690*390*615	28	Can provide 24H insulation effect.
CIBT1924	700*580*625	61.6
CIBT1930	850*580*620	78.4
CIBT1936	995*575*620	95.3
CIBT1924N	700*580*650	61.6
CIBT1924C	700*580*590	61.6

CIBT1912

CIBT1924

CIBT1930

CIBT1936

CIBT1924N

CIBT1924C

NOTE:

1. The product capacity data in the table is calculated by the density water, and there will be some errors in practice, which is a normal phenomenon.
2. Because the volume and density of ice is different from that of water loading capacity of the two is also different. For example, when 10kg can fill the ice bucket, if replaced with water, it takes 23kg of water ice bucket.

*The picture is for reference only, please refer to the actual object.

CLEANING AND MAINTENANCE

1. In order to prevent the growth of bacteria, please take care of the water after each use of the ice tank.
2. If it is not used for a long time, please empty the water inside the and keep it dry to avoid odor or bacteria.
3. When using the ice tank for a long time, please pay attention to price or replacing ice and water in time.
