USER MANUAL XRJ3LX1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SLUSH MACHINE

MODEL: XRJ3LX1 XRJ3LX2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

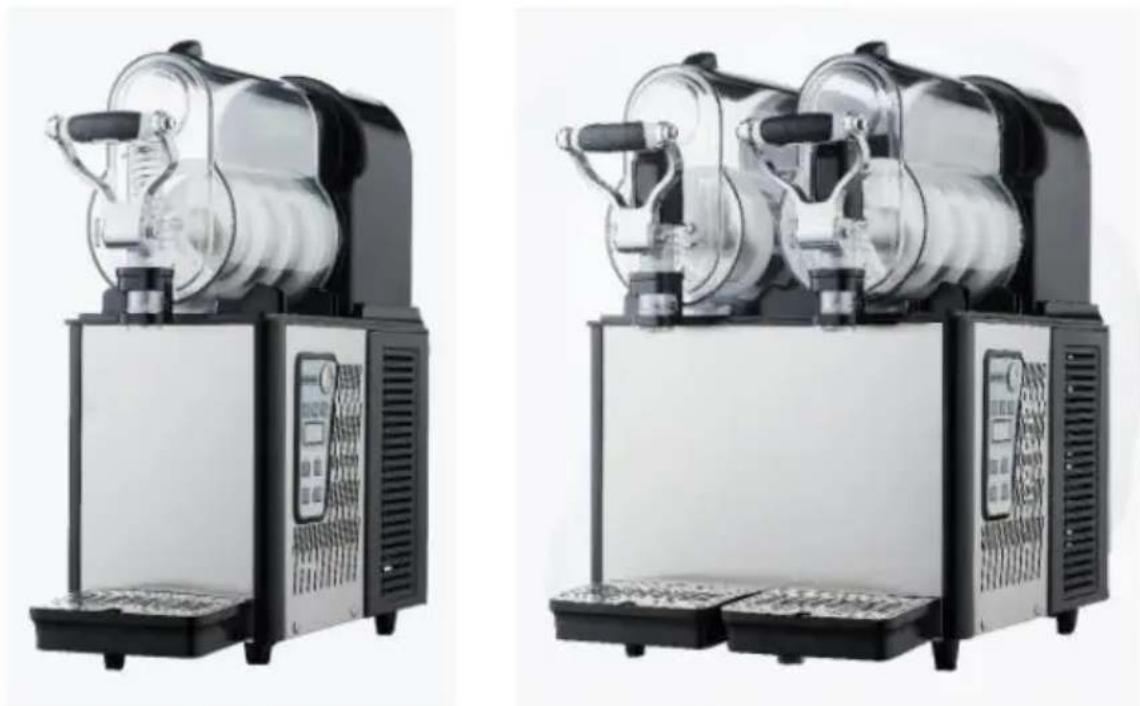

MODEL: XRJ3LX1 XRJ3LX2

Two identical industrial slurry machines shown from front and side views, no visible text or labels.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

	Warning-To reduce the risk of injury,user must read instructions manual carefully.
	CAUTION: Changes or modifications not expressly appro by the party responsible for compliance could void the authority to operate the equipment!This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, in interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliant could void the user's authority to operate the product.Note: This product has been tested and found to comp the limits for a Class B digital device pursuant to Part FCC Rules, These limits are designed to provide reason protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frec energy, and if not installed and used in accordance wi instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or tele reception,which can be determined by turning the produ and on, the user is encouraged to try to correct the i by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receivConnect the product to an outlet on a circuit differen to which the receiver is connected.• Consult the dealer or an experienced radio/TV technic assistance.
	This product is subject to the provision of European Di 2012/19/EC.The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union.This applies to the pro and all accessories marked with this symbol.Products m as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

Instructions

Thank you very much for choosing this slush machine.Slush machine kind of machine and equipment widely used in the food industry and catering industry,it is mainly through the frozen juice,milk or yogurt and other beverages frozen into a sorbet,and will be cut into fine particles through the scraper,made of soft taste snow ice!Please read all of the instructions before using it.The information will help you achieve the possible results.

Contents

1. Introduction

1.1 Manufacturer

1.2 Operator

1.3 Manual distribution

1.3.1 Function and content

1.3.2 Who to read manual

1.3.3 How to keep manual

1. Machine description

2.1 Usage

2.2 Main Component

2.3 Technical data

2.4 Control panel

1. Safety manual

2. Transportation and storage

4.1 Packing

4.2 Transportation

4.3 Storage

1. Installation

5.1 Parts list

5.2 Position to install

5.3 Handling package material

5.4 Connect power

1. Operation

6.1 Preparing material and stirring evenly

6.2 Starting a 1-bowl Slush Machine Model: XRJ 3L*1

6.3 Starting a 2-Bowl Slush Machine

6.4 Dispensing slush

6.5 Emergency

7.1 Empty Bowl

7.2 Disassembling the dispensing tap

7.3 Move out bowl and cover

7.4 Clean and disinfect parts

7.6 Clean step

7.7 Cleaning drip tray

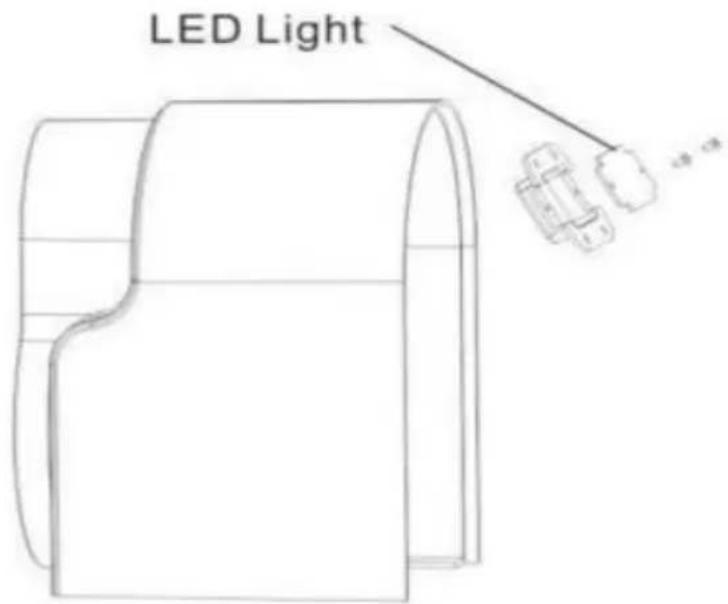

7.8 Replace bulb

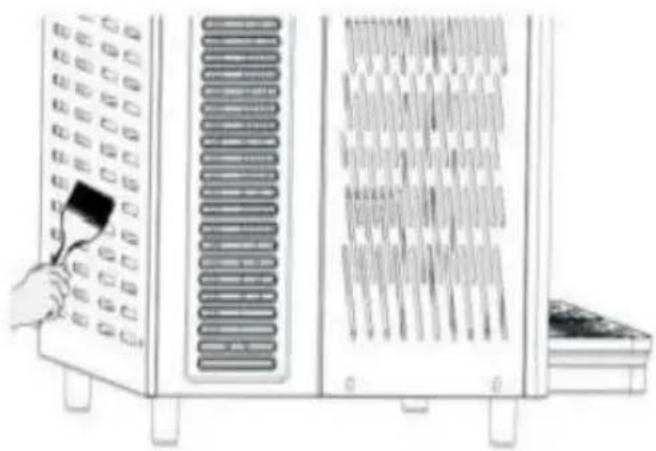

7.9 Clean condenser

7.9.1 Cleaning condenser of one-bowl slush machine

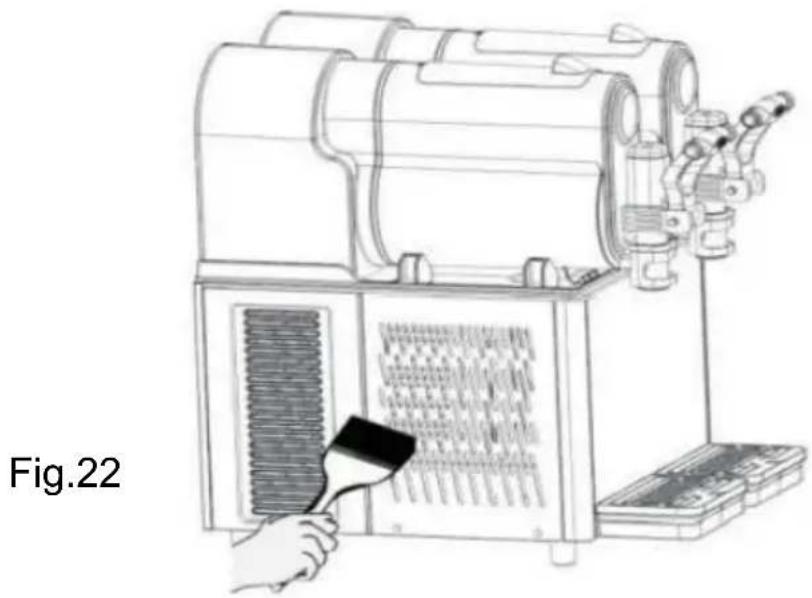

7.9.2 Cleaning condenser of two-bowl slush machine

7.10 Scheduled maintenance

1. Waste treatment

2. Troubleshooting

9.1 Fault Codes and Solutions For Slush Machine

9.1.1. When the temperateness is connected, "LL" is displayed
9.1.2 The temperateness is short-circuited and it displays "LL"
9.1.3 When the grid voltage is too high, the machine stops working to generate an alarm code "E1 Err"
9.1.4. When the grid voltage is too low, the machine stops working ar generates an alarm code "E2 Er"
9.1.5. The measured motor current is too high, the current channel generates an alarm and protects shutdown, the display code is E3 E

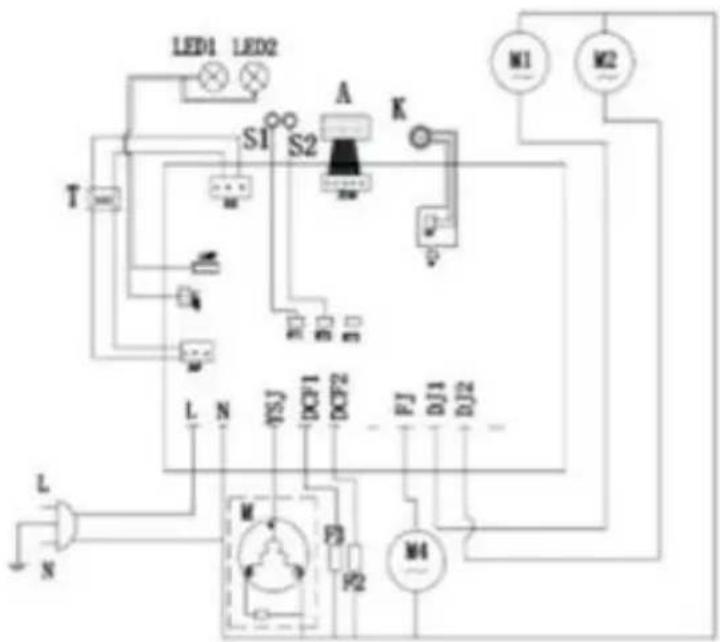

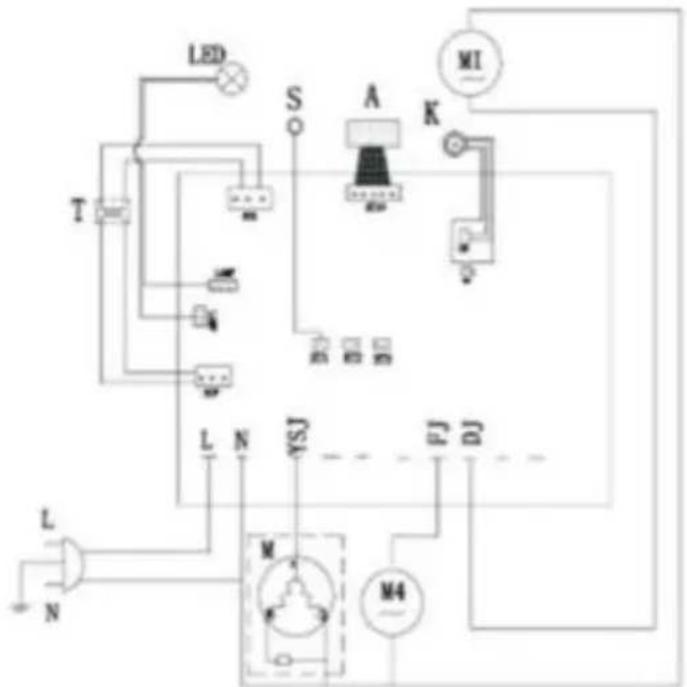

10. Intelligent electronic valve system

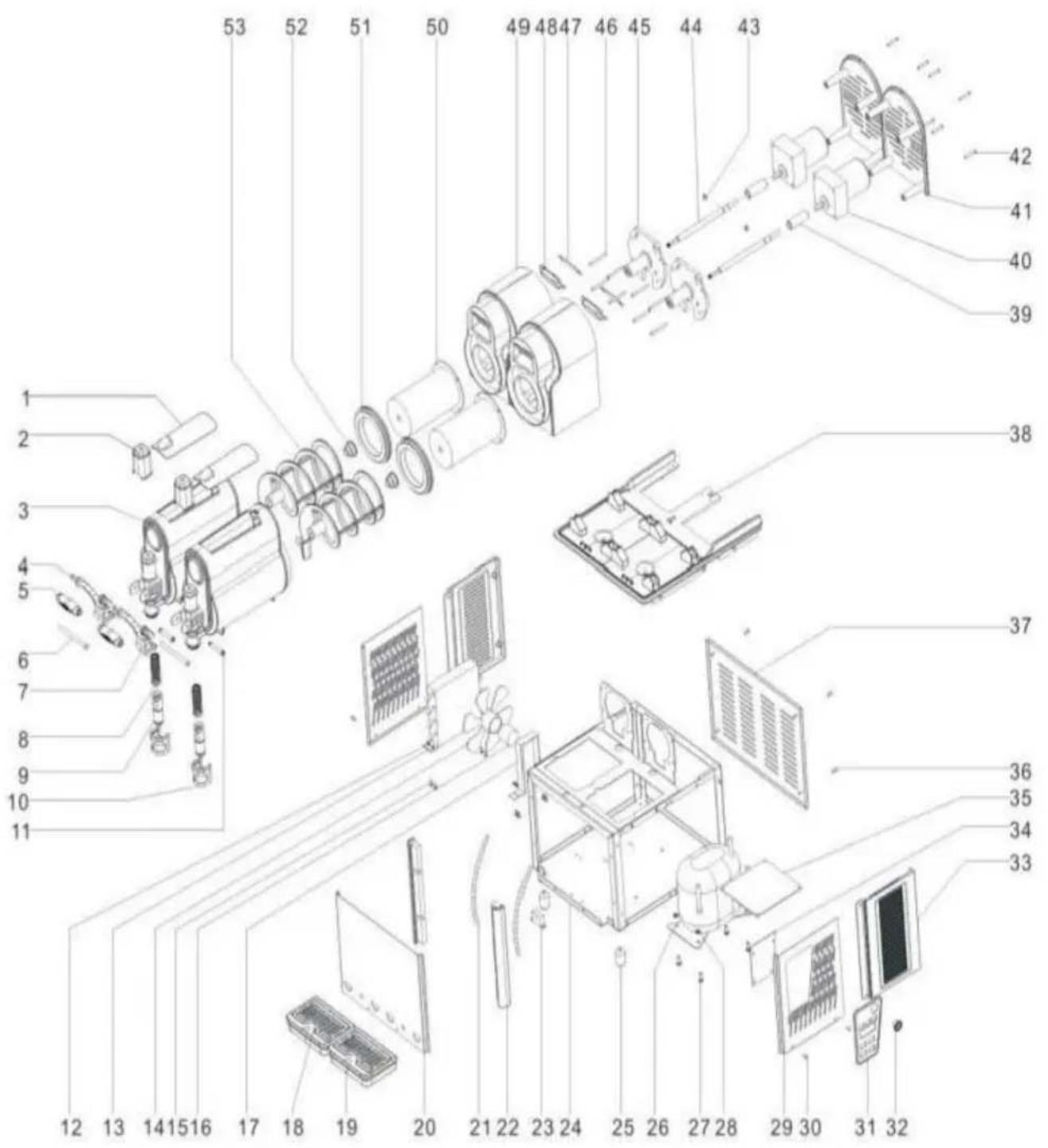

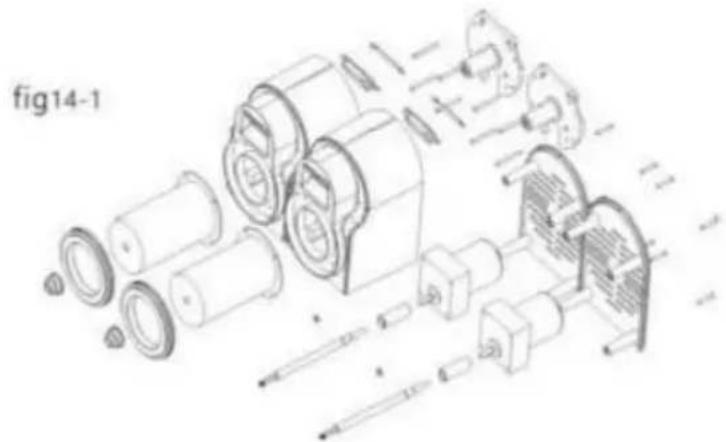

11.Slush machine explosive diagram

1. Introduction

1.1 Manufacturer

The manufacturer's details are shown on the identification plate

1.2 Operator

Based on different applications. there are two types of persons.

User

In accord with Health standard people trained compel techniques,

Know all to distribute slush have below ability after reading this manu

Place and change slush machine Properly dispensing the products

Cleaning the slush machine

Specialized technical people

Studied this manual and trained how to install, use and maintain this machine;

When serious fault, can repair the slush machine and know this manual well

Master all information of the manual and can explain the diagrams and graphs correctly;

Know important hygienic knowledge well, prevent accident concurring, know technical and safety standard

Have experience to serve this kind of slush machine.

Master treatment measure to emergency. ind separated safety device a use the machine correctly

People are banned to use the machine who do not accord with above requirement

1.3 Manual distribution

Users have to read this manual carefully before using.

1.3.1 Function and content

Offer vital information of using and installing

1.3.2 Who to read manual

Users and specialized technical people.

This manual is an inseparable part of the machine.

So it needs to be delivered to the purchaser when sold.

1.3.3 How to keep manual

Manual has to be placed nearby the machine and keep intact and c

2. Machine description

2.1 Usage

This machine is specially used for making slush. If used to make da other foods, bowl material temperature needs to be tested and abide by the machine's current regulation and standard

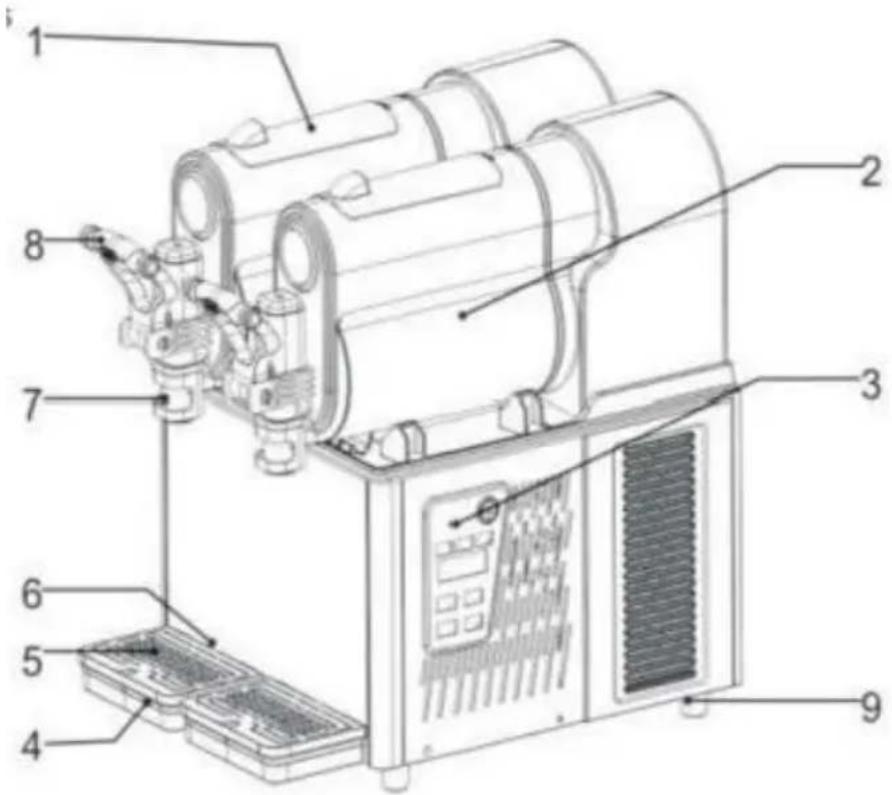

2.2 Main Component

1.Bowl roof2.Bowl3.Control panel4.Drip tray5.Drip tray cover

6.Drain hose7.Tap8.Handle9.Machine foot

Technical diagram of a mechanical device with numbered components for identification

In this manual, the items mean as below

XRJ3LX1, one-bowl slush machine

XRJ3LX2, two-bowl slush machine

2.3 Technical data

Mode	XRJ3LX1	XRJ3LX2
SizeL*D*H (CM)	20X51x52	36X51x51.5
Net weight (kg) (Bowl empty	See nameplate
Power (w)	See nameplate
Liquid Temperature	Min:20°C/68 °F Max:32°C/89 °F
Bowl	1	2
Bowl (L)	3	6
Operating Noise	<65 decibel
Climate	N

Any change or increase has to be approved and executed by Manufacture.

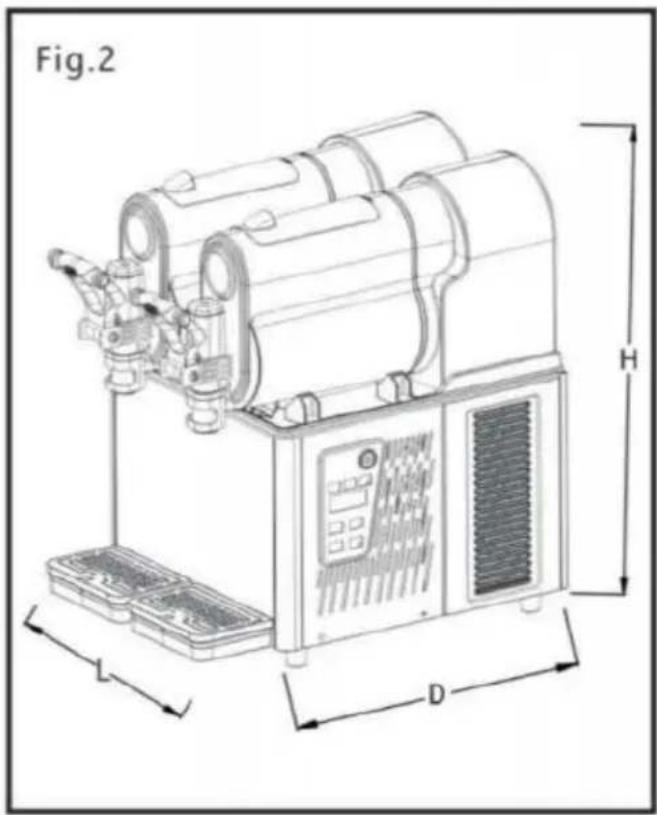

Fig.2 H D

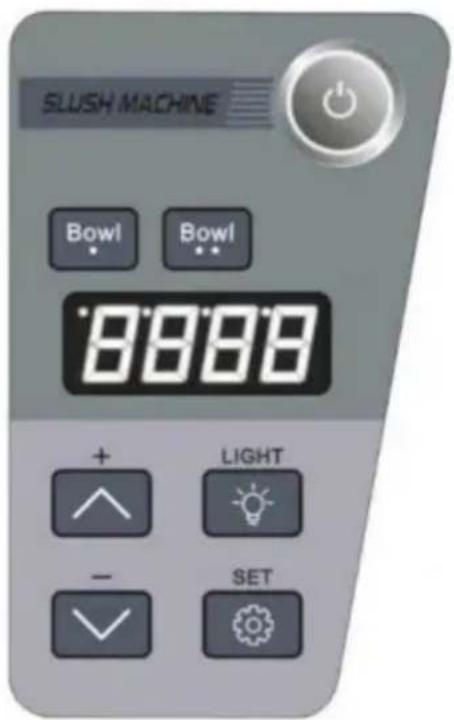

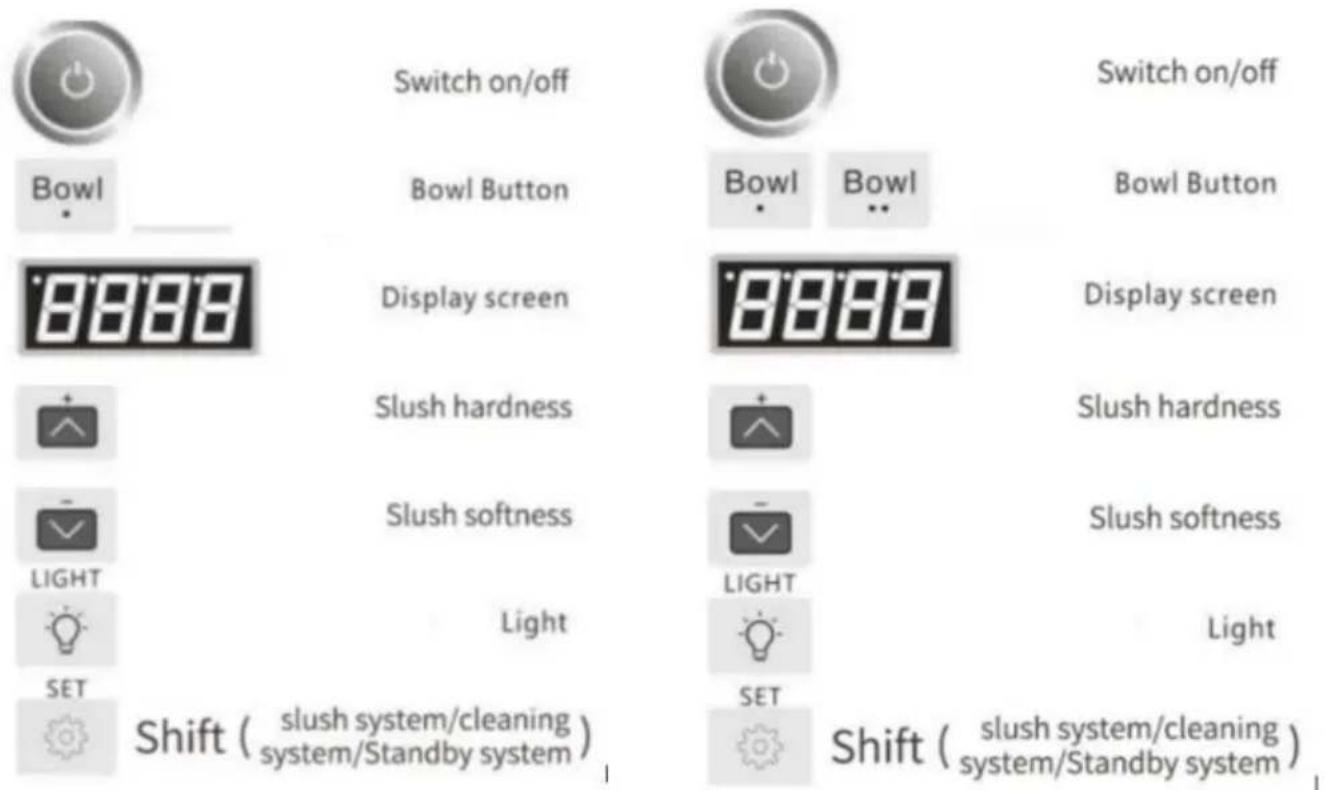

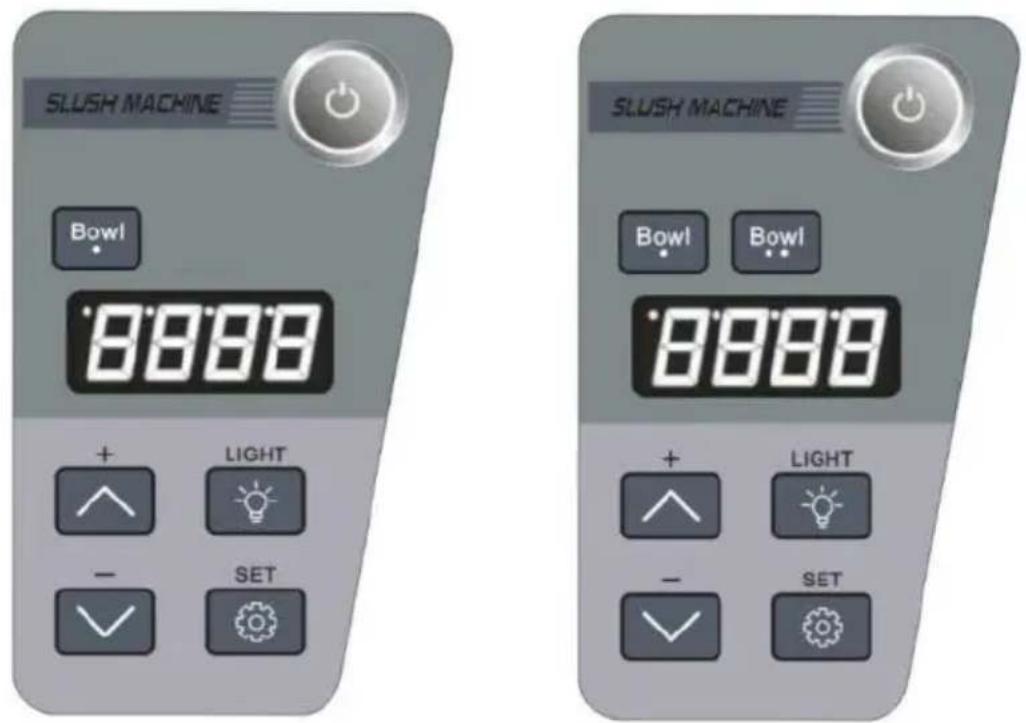

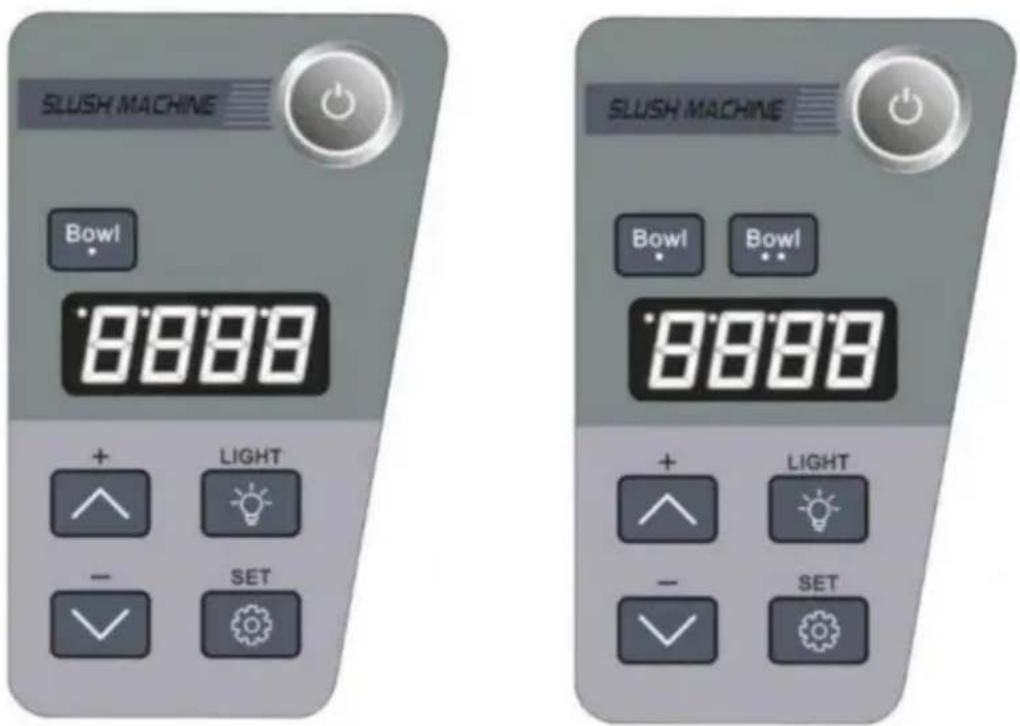

2.4 Control panel

Fig.3

SLUSH MACHINE Bowl 8:88:8 + LIGHT - SET 8:88:8 + LIGHT - SET 8:88:8 Bowl Bowl 8:88:8

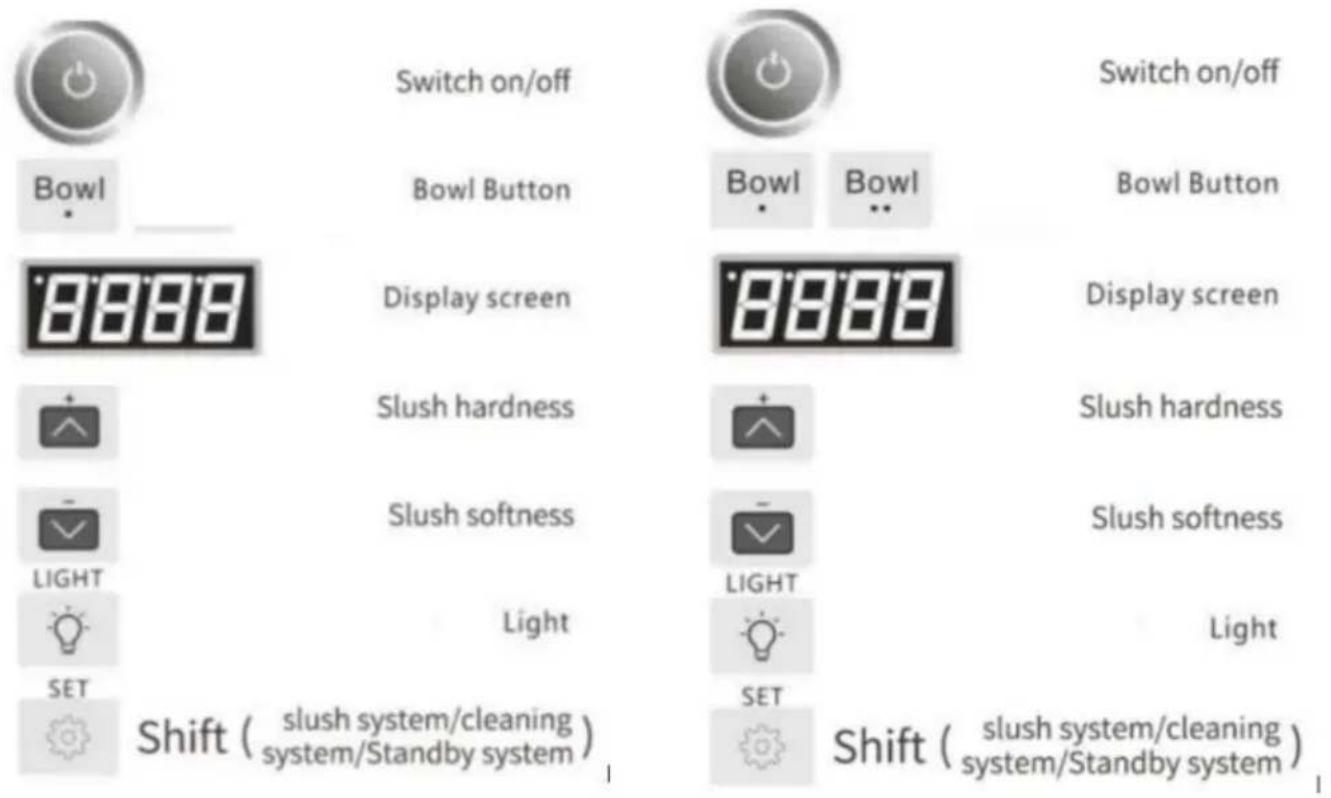

Switch on/off Bowl Button 8888 Display screen Slush hardness Slush softness LIGHT Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button 8888 Display screen Slush hardness Slush softness LIGHT Light SET Shift ( slush system/cleaning system/Standby system )

3. Safety manual

Slush machine parts and condenser's installation, slush machine troubleshooting exclusion and maintenance to be operated by manufacturer professional people who have related experience. Without experienced people monitoring or guiding, slush machine cannot be used by disabled, sense disable, mental disable people who's lack of experience and knowledge. Children need to betaken care when playing nearby the machine. When machine's wire broken, they have to be replaced by manufacturer professionals or people who have related experience. When machine scraped, it has to be delivered and handled by related authority institution

4. Transportation and storage

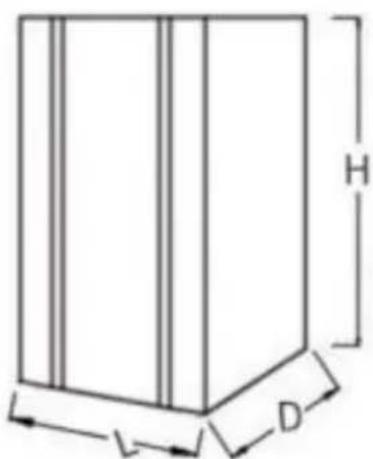

4.1 Packing

Wooden box,contoured foam&collect.

Packing size (approximate)

	Width(L)	Depth(D)	Bight(H)
XRJ3LX1	310mn	700mm	720mm
XRJ3LX2	460mm	695mm	740mm

Simple line drawing of a 3D rectangular prism with labeled dimensions H and D (no text or symbols beyond labels)

Fig.4

Remarks: packing size and weight are approximate.

4.2 Transportation

Keep up ward and carried by two people at least.

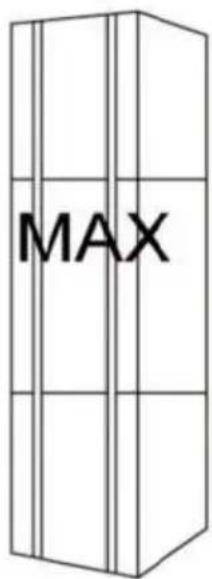

4.3 Storage

Notice: please do not exceed three layers.

MAX

Fig.5

5. Installation

The slush machine has to be installed indoor with hard and plain ground under enough light and ventilation (Ground inclination can't be more than degree)

5.1 Parts list

After cleaning and disinfecting all indicated parts in manual have to be coated with lubricating oil.

5.2 Position to install

Installation position have to be planed in advance;

Installation place have to be hard and plain

Installation condition is enough light and ventilation and clean; Power socket is also needed;

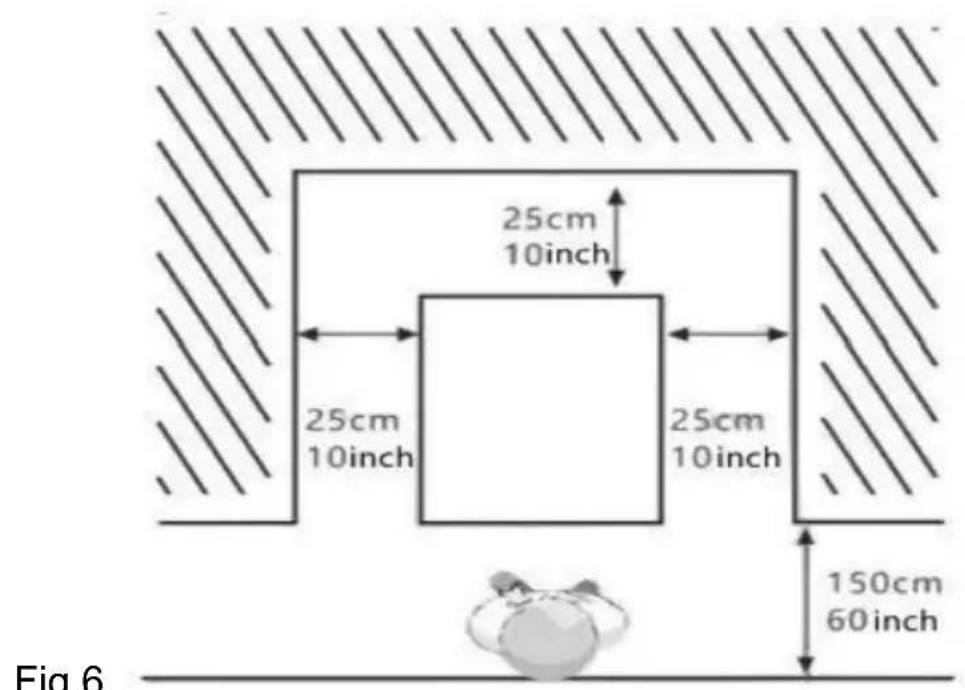

Installation distance from other objects see below fig.6

25cm 10inch 25cm 10inch 25cm 10inch 150cm 60inch Fig.6

Fig.6

5.3 Handling package material

Handling packing material separately under local rules and we suggest keep it to repack and ship in future.

5.4 Connect power

Ensure slush machine is off before connecting power. Then plug in to connect power.

Data can be referred from machine back nameplate.

Warning: Socket has to be placed within user touching distance in or unplug quickly when emergency without using other tools.

6. Operation

Warning

Frozen Drink(Percentage of juice powder: ≥10%)	SLS 0132°F~44.6°F (0°C~7°C)
Slushy(Percentage of sugar: ≥15%)	SLS 02 - SLS 0528°F~23°F (-2.2°C~-5.2°C)
Margarita Wine Slush(Percentage of liquor :10%-45%)	SLS 06 - SLS 1521°F~9°F (-6.2°C~-13°C)

Note:

1. The liquor generally refers to be 40% alcohol by volume.

2. The SLS xx will blink when the gear is adjusted and the machine automatically save the setting after 5

seconds. After that the display stops flashing and the temperature of liquid in the cylinder is displayed in the form of Fancy Celsius,e.g.xx

1. When the temperature inside bowls is very low, there will be frosting the outside of the bowls, which is normal.

2. At low temperatures,the spout may freeze.Just cast a brush toward spout and the slush/margarita wine slush/ice cream will flow out prop

6.1 Preparing material and stirring evenly

Only water is prohibited

Attention

Operate under Manufacturer direction;

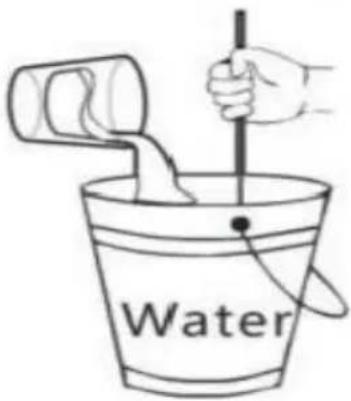

Dilute and stir concentrated liquid with water in a container

Mixture sugar content should>15%

lower content will damage the augers and gear motors

Water

Fig.7

If you need to make alcohol slush, pour appropriate percentage of all into the container according to your needs

Remove the lid as below steps

1. Lift the top lid;
2. Pour the material into bowls

Warning

Hot liquid can not be put in (hot liquid means degree exceed 40°C) Material level can not exceed maximum height level

1. Close the top lid after pouring the material

Two warning symbols: one with an exclamation mark, the other with a circular hazard symbol.

1. Warning: Before connecting power or starting mach put material into bowl
2. Material can not just be water.
3. Warning: Banning petting hand in bowl machine is working

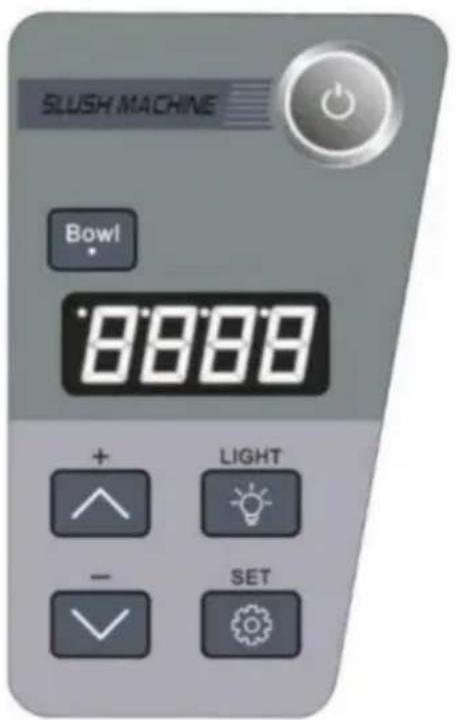

6.2 Starting a 1-bowl Slush Machine Model:XRJ3LX1

The following controls are on the panel:

A. Main Switch: It is used to switch on/off the power supply to the whole machine.

B.Light Switch: It is used to switch on/off the light.

C. Clean Function: Add appropriate water in advance, then clicking the "SET" switch", until the display shows "CLEAN" that means open Clean System. After cleaning,

click the SET switch once more, the display shows"OFF" that means close Clean System. When the cracks aren't clean, use the provided towel to clean any remaining dirt and wipe up any water stain.

D.Slush/Margarita Wine Slush/Ice Cream/Frozen Drink Function: Keep

clicking the SET switch display shows SLS that is used to switch on Slush System.

Then you can click "+" to make slush/ice cream

harder and can also click _ to make slush/ice cream softer. The machine will automatically save the setting after 5 seconds.

6.3 Starting a 2-Bowl Slush Machine Model: XRJ3LX2

The following controls are on the panel:

A. Main Switch: It is used to switch on/off the power supply to the whole machine.

B.Light Switch: It is used to switch on/off the light

C. Clean Function: Add appropriate water in advance,

then click bowl 1 or bowl2 to select the bowl you want to

operate.then keep clacking the "SET" switch, until the display shows "CLR" that means open

Clean System. After cleaning, click the SET switch once more, the display shows "OFF" that means close Clean System. Ditto for operat the other bowl. When cracks aren't clean, use the provided towel to remaining dirt and wipe up any water stain.

D.Slush/Margarita Wine Slush/Ice Cream /Frozen Drink Function: First

click bowl1 or bowl 2 to select bowl you want to operate.

Then keep clicking the SET switch until the display shows SLS that is used to switch on Slush System. Then you can click "+" to make

slush/ice cream harder and can also click "_" to make slush/ice cream softer. The machine will automatically save the setting after 5 seconds. Ditto for operating the other bowl.

6.4 Dispensing slush

Pull down handle land slush will outflow from the bowl

Attention: f distribute slush first time or after a long stop,pleas extrude and waste a little and then distribute customers.

6.5 Emergency

Warning: when emergency,machine should be turned off by pow button and cut off power.

If frozen,cut off power and ask for specialized people to handle. If fir

nearby area and ask for professionals.

7. Cleaning and maintenance

Before cleaning or maintaining external parts, please ensure mai switch is off and unplug.

Any cleaning or maintaining protection supplies needs to wear(gloves.glasses chanson)based on local safety standard

When cleaning or maintaining. operate as below.

Wear protective gloves against an accident.

• Do not use solvent or flammable substance
• Do not use tough or metal sponge to clean machine or parts
• Do not spray liquid to nearby area.

- Do not wash parts in the bow!.

- Do not dry parts in furnace or microwave oven.

- Do not immerse the machine in water

- Do not spray the water to the machine directly.

- Warm water and approximate cleaner can be used (abiding local la rules)

"After finishing, make sure that all protective covers and guards that I been removed or opened and sent back in place and properly secure. Cleanliness and hygiene have to be taken carefully and forcibly based local standard to ensure qualified slush

Cleanliness and hygiene have to be taken carefully and forcibly based on local standard to ensure qualified slush Bowl needs to be cleaned everyday at least and abiding local laws and regulations And cleaning times may be added based on different products More information, please consult manufactures. If machine will not be confused

day continuously please clean distributing taps with clean rag.

Even though machine's components stainless steel, plastic and rubber easy to clean as well as its shape, it is still necessary to prevent and fungi reproduction due to halfway cleaning. When the plug is not out or the total switch is in the downstate. Do not clean maintenance machine.

7.1 Empty Bowl

Before cleaning bowl, empty bowl

If it is the first time to use, no need to make it empty .

This manual just explains one bowl as sample

Other bowl's operations are the same based on related their buttons. Please set the bowl to "clean state", then pour material from bowl.

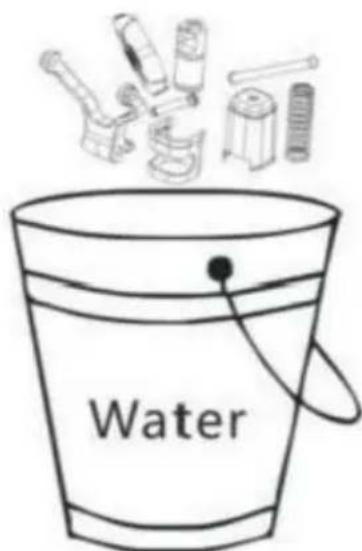

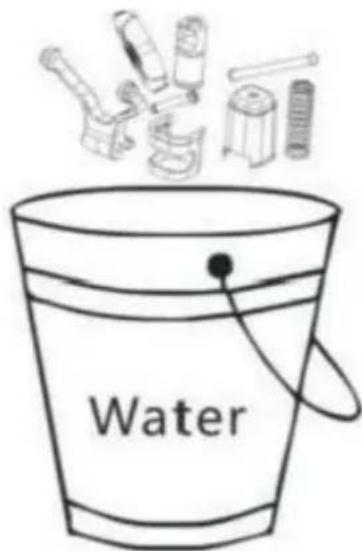

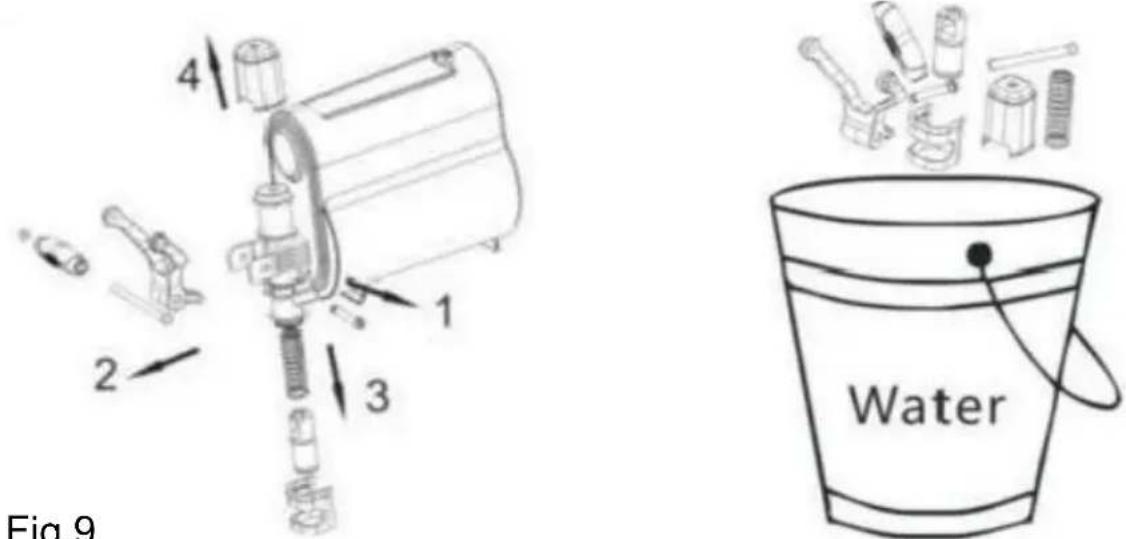

7.2 Disassembling the dispensing tap

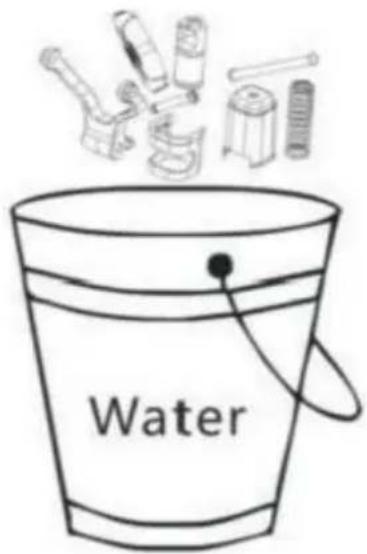

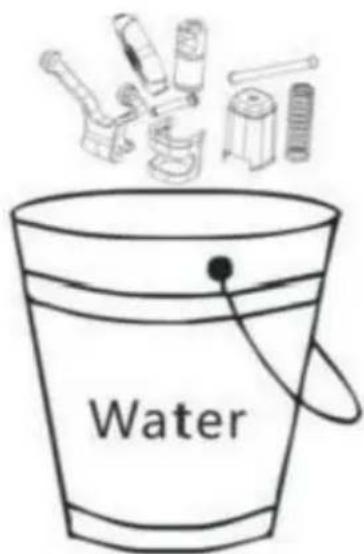

Fig.9 1 2 3 4 Water

Fig.8 Fig.9

Do not disassemble taps when there are products or liquid in bowls.

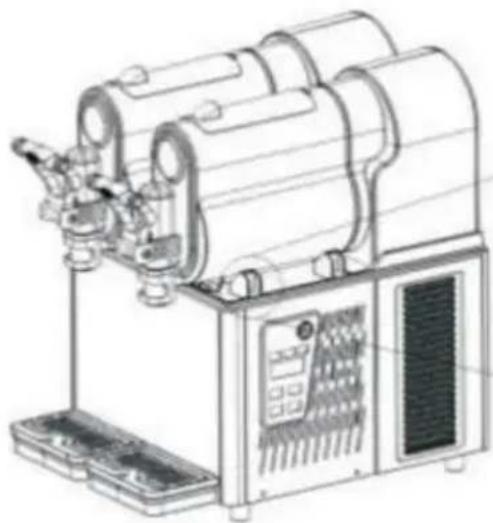

7.3 Move out bowl and cover

Move out every bowl to clean the machine.

Move out the bowl as below steps

1. Lift the top cover upward and take it out. Pull the tank upward an outward to completely remove it from its seat.

2. Screwing off the nut.

3.Takeout stirrer and the seal of stirrer. See Fig.10.

Technical line drawing of a laboratory instrument with control panel and base unit (no text or symbols)

Fig.10

7.4 Clean and disinfect parts

All dismantled parts should be cleaned thoroughly

Importance: Cleaning way has abide by local current hygiene standard.

Please operate as below instructions:

Pour water in the container.mix sanitizer with water (Add 2% sodium hypocrite to water)

Sponge with sanitizer clean bowl, cover and evaporator thoroughly clear with water thoroughly

Add sanitizer to another container.

Put dismantled parts in sanitizer 30 minutes. Reclean with water thoroughly.

Make the parts dry.

Assemble machine under 7.5instruction.

Sponge with sanitizer clean the roof and heartstrings the immaterial.

Simple line drawing of a rectangular object with a small cutout on the side (no text or symbols)

Fig.11

Retain 30 minutes

Clean bottom surface with water 2-3 times by the sponge. Put covert clean area and dry it by rag

Ban cleaning by water or disinfecting before taking away the cover

7.5 Reset cleaned parts

All disinfected parts have to be reassembled carefully. some parts need be lubricated to work normally.

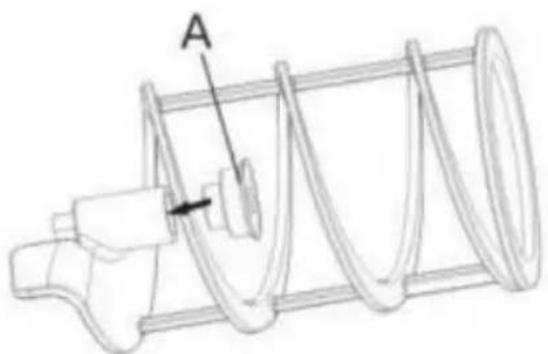

Gasket (A) on stirrer. see Fig.12

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Fig.12

Importance: Check gasket in regular if broken. Please replace new one. Replace gasket(A) once at least one year

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig.13

After gasket (A) is installed in, coat the inside of gasket (A) with the p grease.see Fig.13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Fig.14

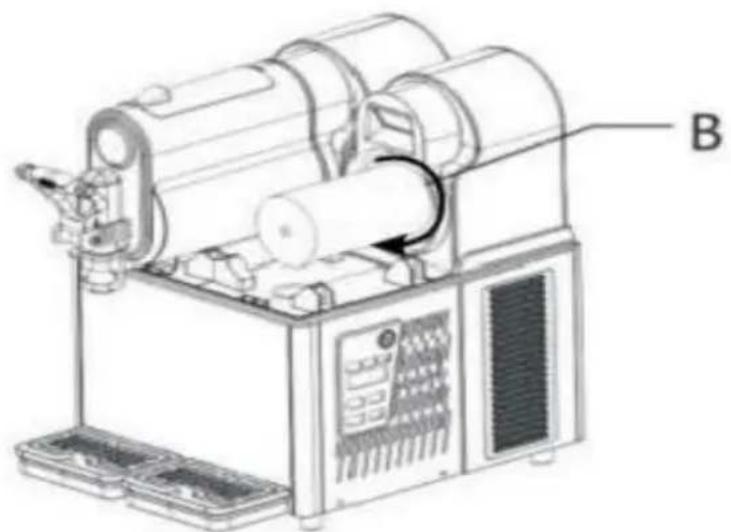

Install seal(B), lubricate entire surface with grease as arrow

marks.see Fig.14

Put stirrer into thank

Attention: Adjust the stirrer to appropriate location.

See fig.14-1

Replace the seal ring. When motor part leaks, you need to replace the ring Take out the motor bracket

connected to the motor and then replace the head seal ring (washer axis, seal of axis). When replacing. You need to add some grease. Then install the motor bracket connected to the motor.

fig14-1

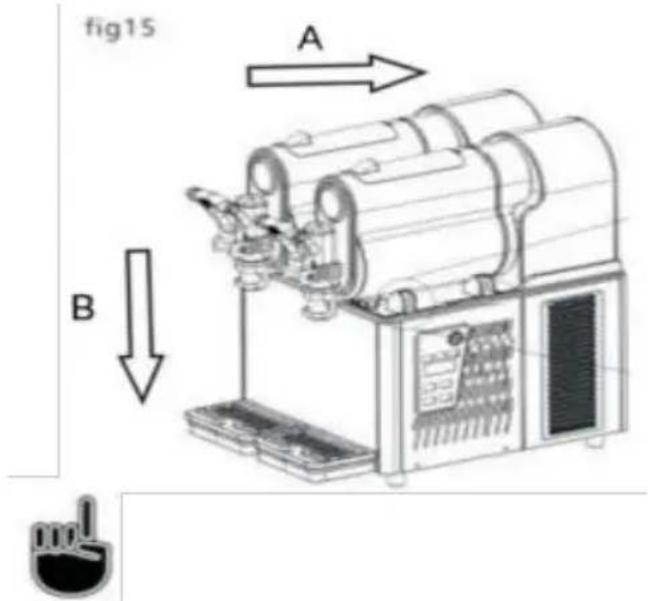

Fixed the stirrer and install the bowls as Fig.15

fig15 A B

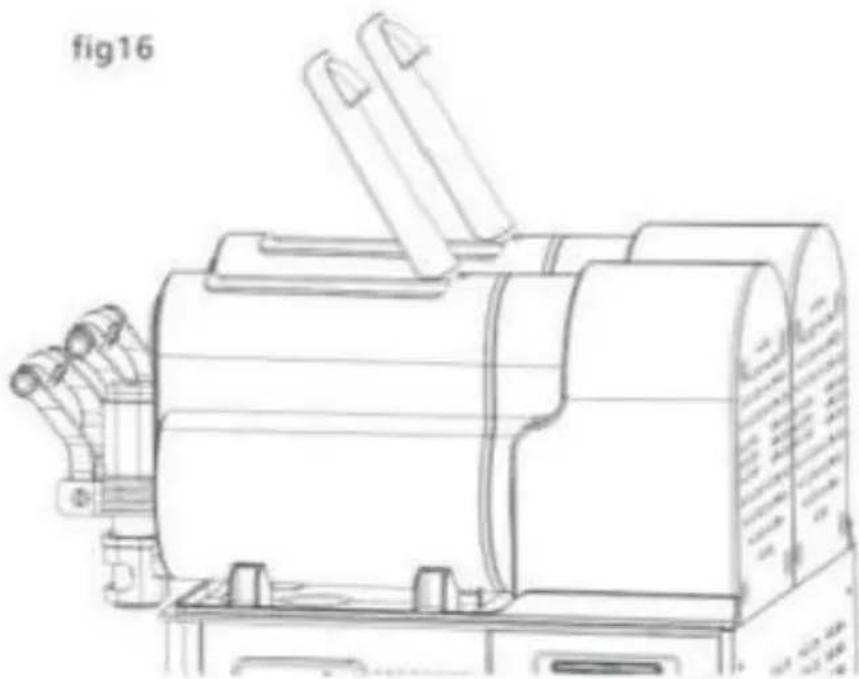

Attention:Adjust the bowls to appropriate location. Install the roof as Fig16

Line drawing of a mechanical device with multiple ports and a cylindrical body (no text or symbols)

Press down top roof until it fits in .

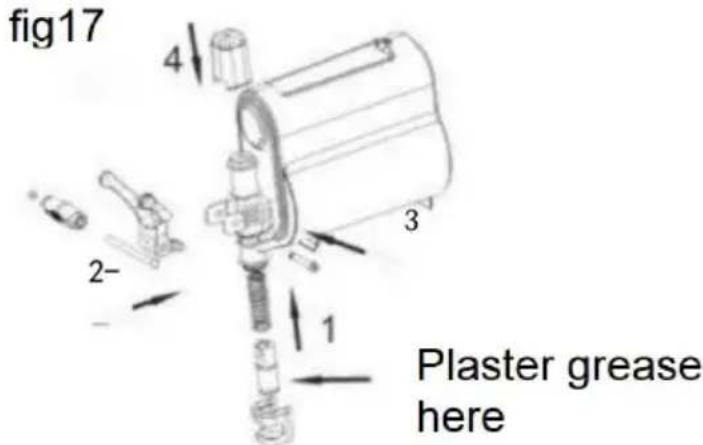

Install taps as below instructions as Fig.17

1. Lubricate totally with grease.
2. Insert screw when taps are steady.

fig17 4 2- 3 1 Plaster grease here

Attention: I install all parts under figures' instructions. Please a grease well to prevent liquid leakage.

7.6 Clean step

Before using this machine, below cleaning steps are needed

1. Fill bowl with water fully.

2.Start machine only in cleaning mode and stir for 5minutes

Stop machine and open tap to clean containers.

7.7 Cleaning drip tray

Drip tray should be emptied and cleaned everyday

Attention:All machine drip trays should be cleaned. drip tray ne to be emptied and cleaned.

Takeout drip tray by lifting from top.

Wash the tray and grid separately with lukewarm water. Dry all of the components. Fit the tray back in place and press to secure it to the Reposition grid on top of the tray

When machines stopped, clean by wet rag and dry the parts.

7.8 Replace bulb

Only when machine power handoff unplugged bulb can be repla According to below figure, open the small back panel, replace the LED bulb, after assembled put the panel back, confirm closed well.

LED Light

Fig.19

7.9 Clean condenser

Only professionals can clean condenser. They know all operating steps well using approximate device and abide by local law and regulation Condenser needs to be cleaned in regular.

Warning: Machine sharp surface may hereafter dismantling safety protection parts. Dirty condenser will weaken machine function.

Condenser can be seen after taking out safety protection parts.

Even though only one plate (front or back or side) is not installed the machine is also banned to use. Operator banned to clean condenser Protection parts need to be positioned by Screwdrivers

7.9.1 Cleaning condenser of one-bowl slush machine

Safety protection parts need screwdrivers to fasten and dismantle.

1. Loose side panel screw.
   2.Take out side panel
2. Dismantle safety protection parts. Brush dust from condenser surfac

with dry brush as Fig21

Illustration of a hand holding a pen next to a rack-mounted device with grid panels (no visible text or symbols)

Fig.21

After cleaning condenser, reposition safety protection parts

7.9.2 Cleaning condenser of two-bowl slush machine

According to the following instructions: 1. Loose 3crews of the back p

1. Loose 5screws of the side plate.

2. Take out the side panel.

Dismantle safety protection parts.

Brush dust from condenser surface with dry brush as below.

Line drawing of an industrial machine with a hand holding a brush, no text or symbols present

7.10 Scheduled maintenance

This machine needs to be maintained by professionals in regular (at year).

Regular maintenance can ensure machine and its parts in good safety state

Any broken partnered to be replaced with original manufacturer When any parts machine are malfunctioned or broken machine is banned to The user can not maintain the machine himself

8. Waste treatment

Electronic waste need to be handled according to 2002/96/EC

But wastes need to be dismantled and classified and useful parts should be recycled

Above rubbish bin reminds people classifying. rubbish. Treating wastes correctly protectorate our environment.

9. Troubleshooting

Trouble	Potential problems	Solution
Can not turn on the machin	No input power	Insert the plug into appropriate socket
	Not pressed the switch	Press the switch
Outlet leaking	Outlet without Vaseline	Add Vaseline on ou
	Outlet broken	Change the outlet
Bowl leaking	The bowl not be installation suitable position	Check the bowl position
	No Vaseline on bowl's seal	Add Vaseline on se ring
	Bad seal ring	Change the seal ri
The stirrer no working	Not turn on the main swit	Turn on the main switch
	Bowl inside freezing	Run off the main switch and let the melting
The machine not making slush	not turn on the main swit	Turn on the main switch
	Not turn to the"SLS"mode	Turn to the"SLS"mode"
	Heartsickness is not suitable	Adjust the slush thickness
	Condenser too dirty/poor ventilation	Clean the condense
	Slush machine approach in hot position	Put the machine to cool position
The stirrer makes noisy	Stirrer's seal ring installation badly	Check and replace the seafaring
	No Vaseline on seal ring or ring broken	Add Vaseline or change the seal rim
No slush coming out from the outlet	Bowl inside freezing melting	Turn off the main switch and let ice r

9.1 Fault Codes and Solutions For Slush Machine

9.1.1. When the temperateness is connected, "LL" is displayed. Check whether the temperature sensor is installed well or the connect wire is damaged or broken, replace the temperature sensor.

9.1.2 The temperateness is short-circuited and it displays "LL" Check whether the temperature sensor is installed properly, or the connecting wireless damaged and connected together, or the temperature measured by the temperature sensor exceeds replace the temperature sensor.

9.1.3 When the grid voltage is too high, the machine stops working and generates an alarm code "E1 Err" 9.1.4.When the grid voltage is too low, the machine stops working and generates an alarm code "E2 Er"

1. It is recommended that customers buy a voltage stabilizer, so the v can be used

within a reasonable range

1. Change voltage alarm parameters without generating voltage alarm I. In the power-on state, long press the "Settings" button for 3 second enter the setting menu, and the window flashes as

II. Then click the "Settings" button, the window flashes as

II. Then click the "Slush softness" button to set the value to 0 IV. Wait until the display does not flash, indicating that the setting is successful

9.1.5. The measured motor current is too high, the current chann generates an alarm and protects shutdown, the display code is E Err.

1. If the mixing shaft is blocked and shutdown protection is caused, automatically restart after
   5 minutes
2. If the motor is broken and rotates very slowly or cannot rotate, y to placer new motor
3. So change motor current alarm parameters and stop if no alarm degenerate, and then check whether the motor is rotating

I. In the working state, long press the "Setting" button for 3 seconds to the setting menu, the window flashes as

II. Then click the "Setting" button, the window flashes as

III. Then click the "Setting" button, the window flashes as

IV. Then click the "slush softness" button to set evaluate to 0

V. Wait until display does not flash, indicating that the setting is such

10. Intelligent electronic valve system

Electrical diagram-XRJ3LX1

LED T S A K MI L N VSJ PJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

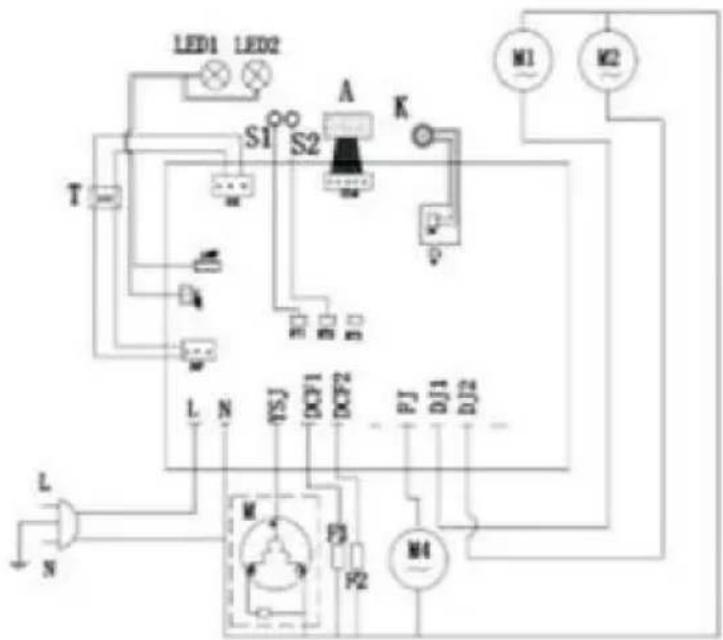

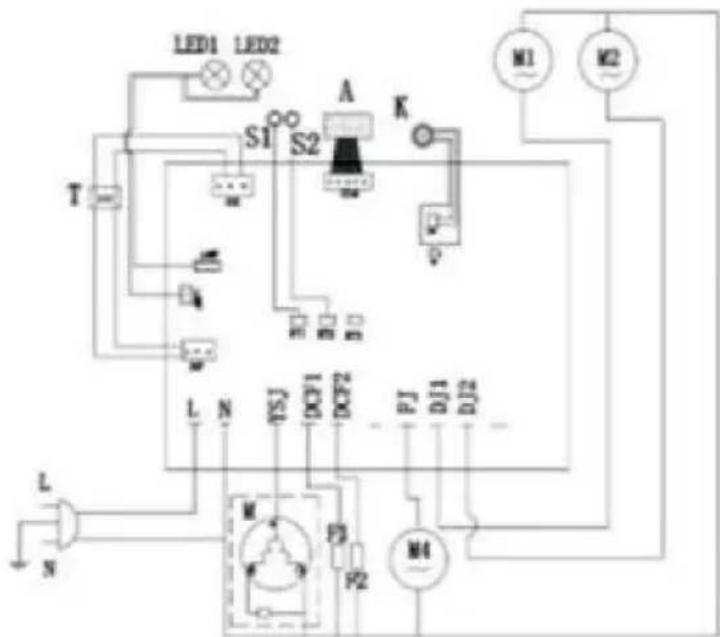

Electrical diagram-XRJ3LX2

LED1 LED2 S1 S2 A K T L N 75J DCF1 DCF2 FJ DJ1 DJ2 M N M1 M2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

11.Slush machine explosive diagram

Exploded view diagram of a device with numbered parts for identification

Code	Parts Name	Code	Parts Name
1	Roof	29	Panel
2	The roof for handle	30	Side plate fixing screw
3	Tank	31	Control panel
4	The main Pin of the ha	32	Switch
5	Handle	33	Back panel
6	Pin of the handle	34	PCB board
7	Wrench bracket	35	Drainboard
8	Spring	36	Plate nut
9	Plunger	37	Backboard
10	The cover of handle	38	Base panel for 2 tank
11	Vice-Pin of the handle	39	Copper bush
12	Hex nut	40	Motor
13	Condenser	41	The back panel for motc
14	Fan	42	Back mountaineering
15	The fixed bolt for fan n	43	Spring
16	Fan motor	44	Stirring Rods
17	The holder for fan mo	45	The holder of motor
18	The roof of Terawatt	46	Motor fixed screw
19	Drip tray	47	The main board for ligh
20	Front panel	48	Lamp shade
21	Pipe	49	The holder for stirrer
22	Jambe	50	Evaporator
23	Transformer	51	Tank seal ring
24	Main body frame	52	Seal of mixing auger
25	Rubber fool	53	Mixing auger
26	Compressor	54
27	The screw compress	55
28	The Nut of compresso	56

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Modern microwave oven with a black and silver casing, no visible text or symbols

Exterior view of a modern industrial slurry grainer with dual motors and control panels (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

2.2 Composant principal 2.3

Données techniques

2.4 Panneau de

Transport 4.3 Stockage 5.

Installation

2.2 Composant principal

Technical diagram of a mechanical device with numbered components for identification

Fig.2 H D

SLUSH MACHINE Bowl 8.888 + LIGHT - SET SUSH MACHINE Bowl 8.888 + LIGHT - SET

Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a 3D rectangular prism with labeled dimensions H and D (no text or symbols beyond labels)

Fig.4

Two warning symbols: one with an exclamation mark, the other with a gear icon inside a triangle.

Technical diagram of a mechanical device with numbered parts and labeled components

Fig.8

Fig.9

Water

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Fig.10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Fig.11

Laisser reposer 30

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Fig.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig.13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Fig.14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a handle, labeled 'fig16' (no text or symbols on the diagram itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Fig.19

Illustration of a hand holding a small object next to a rack-mounted electronic device (no visible text or symbols)

Fig.21

Line drawing of an industrial machine with a hand holding a brush, showing internal components and wiring (no text or symbols)

LED T S A K M1 L N YSJ FJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

Technical diagram of a mechanical device with numbered components for identification

Fig.2 H D

SLUSH MACHINE Bowl 8888 + LIGHT - SET

SLUSH MACHINE Bowl Bowl 8:88:8 + LIGHT - SET

Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a 3D rectangular prism with labeled dimensions H and D (no text or symbols beyond labels)

Abb.4

Two warning symbols: one with an exclamation mark, the other with a gear icon inside a triangle.

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Abb.9

Water

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Abb.10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Abb.11

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Abb.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Abb.13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Abb.14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a base, labeled 'fig16' (no text or symbols on the diagram itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Abb.19

7.9 Kondensator reinigen

Illustration of a hand holding a small object next to a rack-mounted electronic device (no visible text or symbols)

Line drawing of an industrial machine with a hand holding a brush, showing internal components and wiring (no text or symbols)

LED T S A K M1 L N VSJ EJ DJ M M4 L N

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

MACCHINA PER GRANITO

MODELLO: XRJ3LX1 XRJ3LX2

Technical diagram of a mechanical device with numbered components for identification

Fig.2 H D

SLUSH MACHINE Bowl Bowl 8:00:00 + LIGHT - SET

Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a 3D rectangular prism with labeled dimensions H and D (no text or symbols beyond labels)

Figura 4

Two warning symbols: one with an exclamation mark, the other with a gear icon inside a triangle.

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Figura 8

Figura 9

Water

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Figura 10

7.4 Pulire e disinfettare le parti

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Figura 11

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Figura 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Figura 13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Figura 14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a base, labeled 'fig16' (no text or symbols on the diagram itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Figura 19

Illustration of a hand holding a small object next to a panel with grid-like structures (no text or symbols visible)

Figura 21

Line drawing of an industrial machine with a hand holding a brush and inspecting internal components (no text or symbols)

LED T S A K M1 L N VSJ EJ DJ M M4 L N

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Modern kitchen grimmer with digital display unit (no visible text or symbols)

Exterior view of a modern industrial slurry grainer with dual cylindrical units and control panels (no visible text or symbols)

www.vevor.com/support

Technical diagram of a device with numbered components for identification

Fig.2 H D

2.4 Panel de control

Fig.3

SLUSH MACHINE Bowl 8888 + LIGHT - SET 8888 + LIGHT - SET 8888 Bowl Bowl 8888

Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a rectangular frame with vertical divisions and labeled dimensions H and D (no text or symbols beyond labels)

Figura 4

A. Interruptor principal

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Figura 8

Water

Figura 9

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Figura 10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Figura 11

Conservar durante 30

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Figura 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Figura 13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Figura 14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a base, labeled 'fig16' (no text or symbols on the device itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Figura 19

Illustration of a hand holding a small object next to a rack-mounted electronic device (no visible text or symbols)

Figura 21

Illustration of a hand using a brush to clean or inspect the internal structure of an industrial machine (no text or symbols visible)

Figura 22

LED T S A K M1 L N VSJ EJ DJ M M4 L

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

Two identical black-and-white photos of a modern, stainless steel slurry blower unit with control panel and control buttons (no visible text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Technical diagram of a device with numbered components for identification

Fig.2 H D

SLUSH MACHINE Bowl Bowl 8:88:8 + LIGHT - SET

Switch on/off Bowl Button Bowl Bowl Bowl Switch on/off 8888 Display screen 8888 Display screen + Slush hardness Slush hardness - Slush softness Slush softness LIGHT LIGHT Light SET Shift ( slush system/cleaning system/Standby system ) SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a rectangular frame with vertical divisions and labeled dimensions H and D (no text or symbols beyond labels)

Ryc.4

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Water

Ryc.8 Ryc.9

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Ryc.10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Ryc.11

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Ryc.12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Ryc.13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Ryc.14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with no visible text or symbols

fig17 4 2- 3 1 Plaster grease here

LED Light

Ryc.19

Illustration of a hand holding a small object next to a vertical panel with grid patterns (no text or symbols visible)

Line drawing of an industrial machine with a hand holding a tool, no visible text or symbols on the device itself

LED T S A K M1 L N YSJ FJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a mechanical device with numbered components for identification

Fig.2 H D

SLUSH MACHINE Bowl Bowl 8:88:8 + LIGHT - SET

Switch on/off Bowl Button Bowl Bowl Bowl Switch on/off 8888 Display screen 8888 Display screen + Slush hardness Slush hardness - Slush softness Slush softness LIGHT LIGHT Light SET Shift ( slush system/cleaning system/Standby system ) SET Shift ( slush system/cleaning system/Standby system )

Simple line drawing of a rectangular frame with vertical divisions and labeled dimensions H and D (no text or symbols beyond labels)

Afbeelding 4

Alleen water is verboden

Aandacht

Two warning symbols: one with an exclamation mark, the other with a gear icon inside a triangle.

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Afbeelding 9

Water

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Afbeelding 10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Afbeelding 11

Houd 30 minuten vast Reinig

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with pulleys and gears (no text or symbols)

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Afbeelding 14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a base, labeled 'fig16' (no text or symbols on the diagram itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Afbeelding 19

7.9 Condensor reinigen

Illustration of a hand holding a small object next to a rack-mounted electronic device (no visible text or symbols)

Line drawing of an air conditioning machine with a hand holding a paintbrush, no text or symbols present

LED T S A K M1 L N YSJ FJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

www.vevor.com/support

SLUSH MASKIN

MODELL: XRJ3LX1 XRJ3LX2

Manuell distribution

Dispensering slush Machine 6.4 Dispensering

slush Machine 7.2

Demontering av

utmatningskranen

1.3 Manuell distribution

Technical diagram of a device with numbered components for identification

Fig.2 H D

2.4 Kontrollpanel Fig.3

SLUSH MACHINE Bowl 8888 + LIGHT - SET

SLUSH MACHINE Bowl Bowl 8:88:8 + LIGHT - SET

Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system ) Switch on/off Bowl Button Display screen Slush hardness Slush softness Light Light SET Shift ( slush system/cleaning system/Standby system )

3. Säkerhetsmanual

Simple line drawing of a rectangular frame with vertical divisions and labeled dimensions H and D (no text or symbols beyond labels)

Fig.4

Two warning symbols: one with an exclamation mark, the other with a gear icon inside a triangle.

Rent system. After rengöring,

Technical diagram of a mechanical device with numbered parts and directional arrows indicating assembly or assembly steps.

Fig. 8

Fig. 9

Water

Technical line drawing of a mechanical device with control panel and base unit (no text or symbols)

Fig. 10

Simple line drawing of a rectangular object with a small protrusion on the side (no text or symbols)

Fig. 11

Behåll 30 minuter

Technical line drawing of a mechanical component with helical ends and a labeled section A (no text or symbols beyond label)

Fig. 12

Technical line drawing of a mechanical assembly with pulley and shaft (no text or symbols)

Fig. 13

Technical line drawing of a mechanical device with labeled component B (no text or symbols beyond label)

Fig. 14

Exploded view diagram of a mechanical assembly (no text or labels visible)

Line drawing of a mechanical device with multiple ports and a handle, labeled 'fig16' (no text or symbols on the diagram itself)

fig17 4 2- 3 1 Plaster grease here

LED Light

Fig. 19

Illustration of a hand holding a small object next to a rack-mounted electronic device (no visible text or symbols)

Fig. 21

Line drawing of a hand using a tool to clean or inspect the internal components of an industrial machine (no text or symbols visible)

LED T S A K M1 L N YSJ FJ DJ M N M4

M Compressor

M4 Cooling fan

M1/M2/M3 AC geared motor

K Main switch

A Touchpad

T Transformer

LED LED light board

S Temperature sensor

F Electromagnetic valve

Electrical diagram-XRJ3LX2

LED1/LED2 LED light board

S1/S2 Temperature sensor

Exploded view diagram of a household air conditioner unit with numbered parts for identification

www.vevor.com/support
