USER MANUAL 9JYZ-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

INSTRUCTIONS FOR MILKING MACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

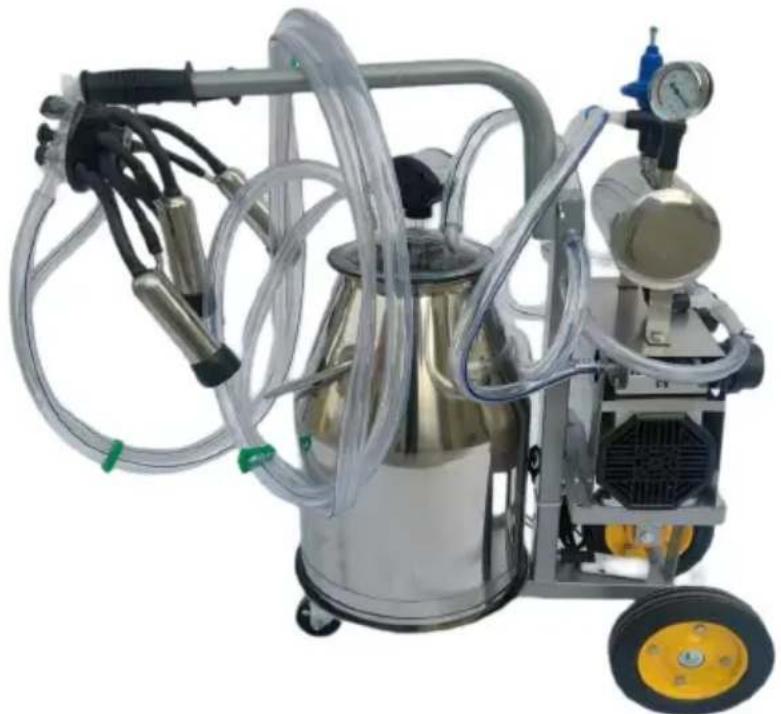

MILKING MACHINE

MODEL:9JYZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Safety Warnings and Precautions

Symbol	Symbol Description
	Warning - To reduce the risk of injury, users must read the man carefully.
	Alternating current
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to accident. To reduce the risk of injury, fire, or electrocution, please follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this product.
	Note
	FCC information:This device complies with Part 15 of the FCC Rules. Operation to the following two conditions:(1)This device may not cause harm interference, and (2)this device must accept any interference receiv including interference that may cause undesired operation.
	Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken t collection point for recycling electrical and electronic devices.

WARNING: When using the machine, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment.

WARNING: Read all instructions before using this tool and Save all warnings and instructions for future reference!

WARNING: Do not touch the power switch and other electrical parts wit wet hands.

WARNING: The power supply connected to this equipment must be equipped with a leakage protector.

1. Keep the work area clean. Cluttered areas invite injuries.
2. Observe work area conditions. Do not use the machine in damp or wet locations. Don't expose to rain. Keep the work area well-lighted. Do not use machine in the presence of flammable gases or liquids.
3. Keep children away. Children must never be allowed in the work area. Do let them handle machines, tools, or extension cords. This machine can be used to use children aged 8 years and above and persons with reduced physical, sensory mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way to understand the hazards involved. Children shall not play with the appliance.
   Children shall not do cleaning and user maintenance without supervision.
4. Store idle equipment. When not in use, the machine must be stored in a location to inhibit rust. Always lock up machines and keep them out of reach children.
5. Do not force the machine. It will do the job better and more safely at the which it was intended. Do not use inappropriate attachments to exceed the machine's capacity.
6. Do not modify this machine or use it for an unintended purpose.
7. Dress properly. Do not wear loose clothing or jewelry, as they can be ca moving parts. Protective, electrically non-conductive clothes, and non-skid footwear are recommended when working. Wear restrictive hair covering to

contain long hair.

1. Maintain machines with care. Keep them sharp and clean for better and s performance. Follow instructions for lubricating and changing accessories. Inspect machine cords periodically and, if damaged, have them repaired by an authorized technician. The handles must be kept clean, dry, and free from oil grease at all times.

2. Disconnect power. Unplug the machine when not in use.

3. Avoid unintentional starting. Be sure the switch is in the Off position when in use and before plugging in.

4. Stay alert. Watch what you are doing, and use common sense. Do not any machine when you are tired.

5. Check for damaged parts. Before using any machine, any damaged part should be carefully checked to determine that it will operate properly and per its intended function. Check for alignment and binding of moving parts, any broken parts or mounting fixtures, and any other condition that may affect pro operation. Any damaged part should be properly repaired or replaced by a qualified technician. Do not use the machine if any switch does not turn On Off properly.

6. Guard against electric shock. Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerator enclosures.

7. Replacement parts and accessories. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. Only use accessories intended for use with this machine. Approved accessories are available from VEVOR.

8. Do not operate the machine if under the influence of alcohol or drugs. I warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not operate the machine

Note: The performance of this machine (if powered by line voltage) may vary depending on variations in local line voltage. Extension cord usage may also affect machine performance.

Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that

may occur. It must be understood by the operator that common sense is caution are factors that cannot be built into this product, but must be supplied by the operator.

Safety Precautions:

Before using this equipment, you must know its performance and safety point
1. The using voltage and power should be according to the requirement of the equipment. The power should have a reliable earthing protection line and other safety protection measurements. If you use the three-phase vacuum pump, please pay attention to the turning direction of the motor.
2. The daily maintenance, disassembling, and cleaning in certain periods should be according to the regulation of the instruction manual. Use suitable tools to install or disassemble the equipment to avoid damage.
3. The machine is equipped with a steam separator to prevent liquid from flow into the vacuum pump and damaging the vacuum pump. The vacuum gauge pressure regulating valve are more intuitive when installed on the steam separator.

Laboratory apparatus with a metallic cylindrical tank, blue pressure regulator, and a pressure gauge (no visible text or symbols)

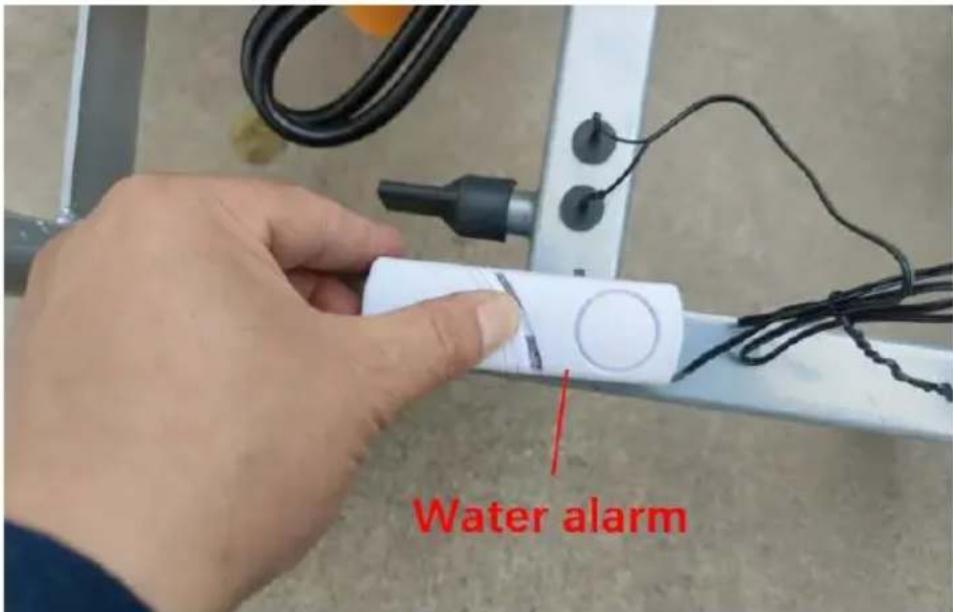

1. The milking machine is equipped with a water alarm. When the alarm goes off, it means that water has entered the shelf and needs to be stopped immediately.

Water alarm

SPECIFICATIONS

Model	9JYZ-1
Input Voltage	North America: 120V 60Hz
	European Union: 220~240V 50Hz
Material of Bucket	Stainless Steel
Milking Bucket	25 L
Pulsation Times	60~80/min
Operating Vacuum Degree	0.045~0.05MPa
Power	550W
Working Temperature	-10°C~40°C
Noise Level	≤80dB
Color	Silver

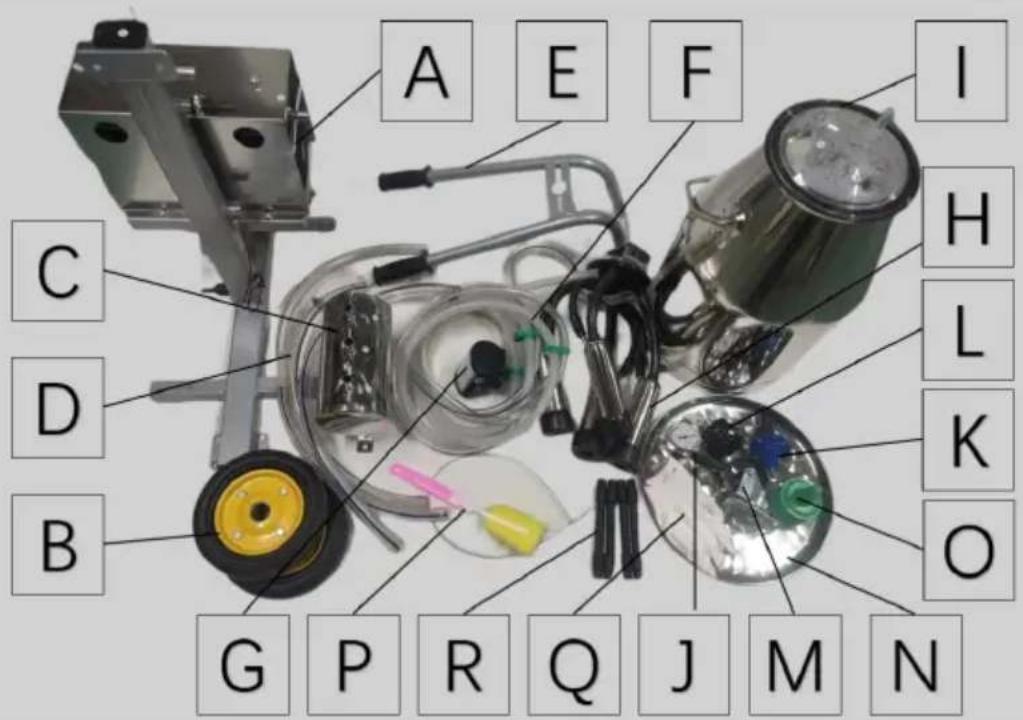

Parts list

Number	Product name	Quantity
A	Host	1
B	Big wheel	2
C	Steam separator	1
D	PVC air pipe	3
E	Handle	1
F	Long tube	1
G	Pulsator	1
H	Milking cup group	1
I	Milk pail	1
J	Vacuum meter	1
K	Regulating valve	1
L	Silencer	1
M	Universal wheel	1
N	Chassis	1
O	Baby comforter	4
P	Complimentary brush	1
Q	Complimentary gloves	1
R	Complimentary short air pipe	4

A E F I C H D L B K O G P R Q J M N

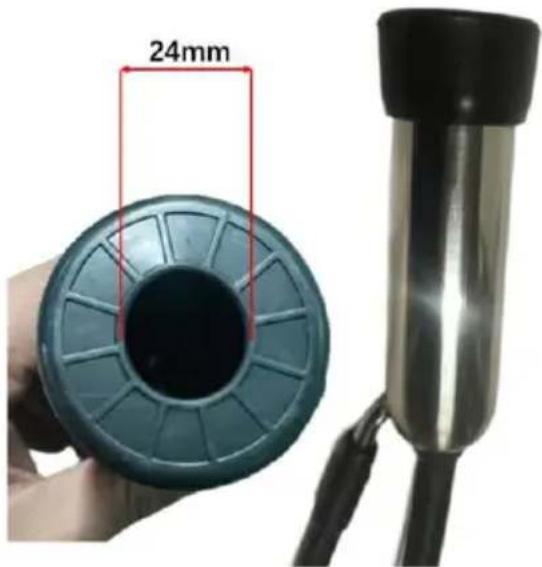

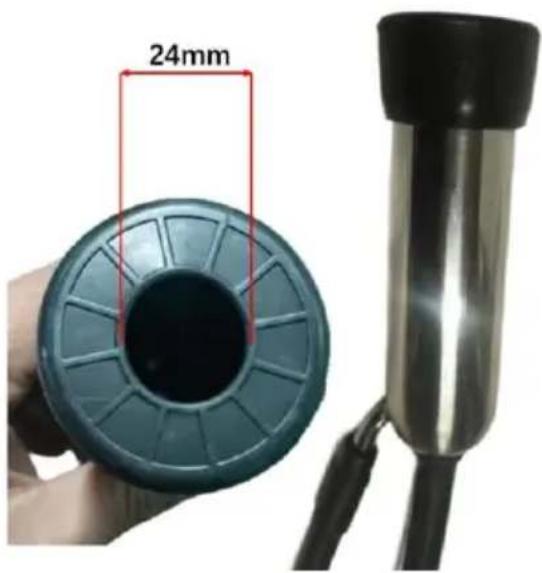

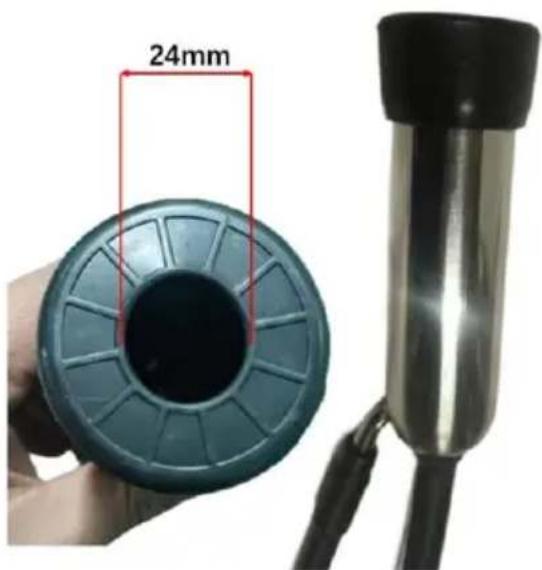

Cow milking cup

Close-up of a hand holding a cylindrical mechanical component with a 24mm dimension label (no other text or symbols visible)

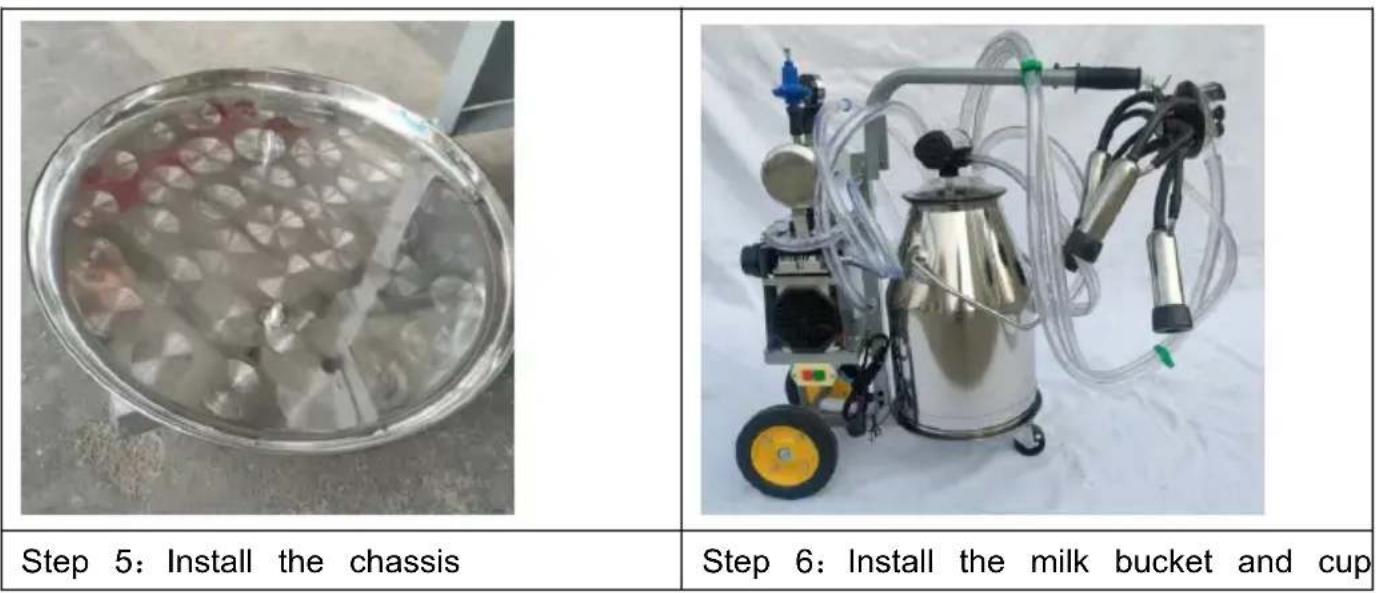

Assembly Diagram

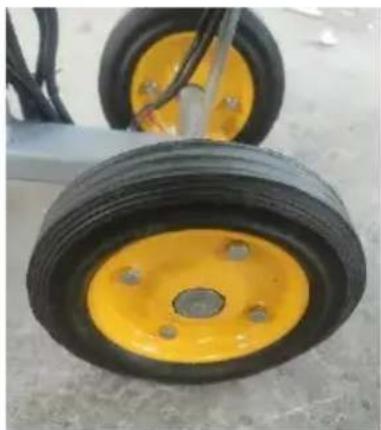

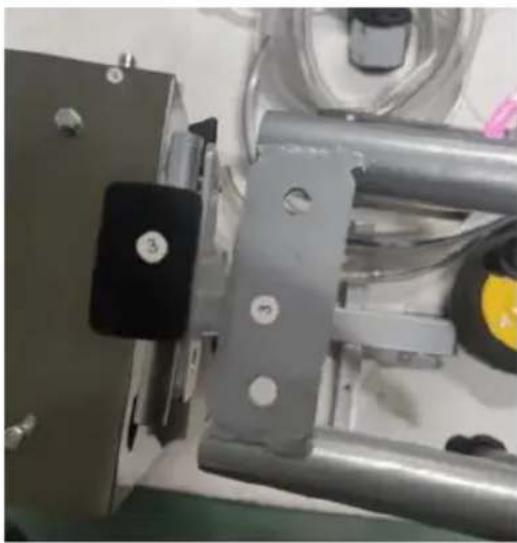

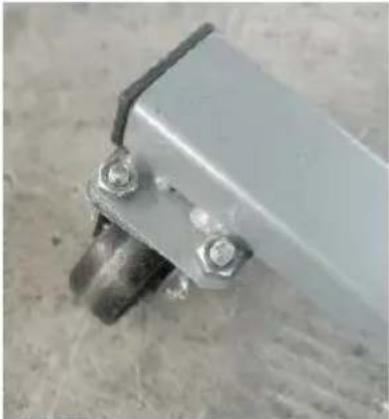

Step 1 Install the big wheel	Step 2: Install the universal wheel

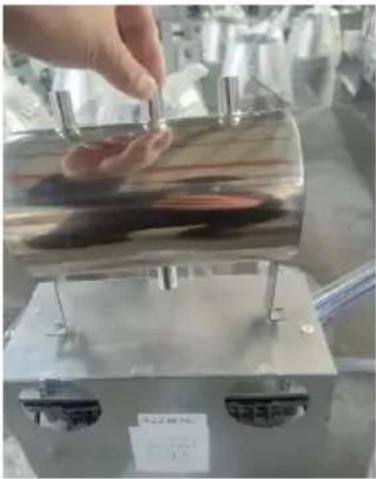

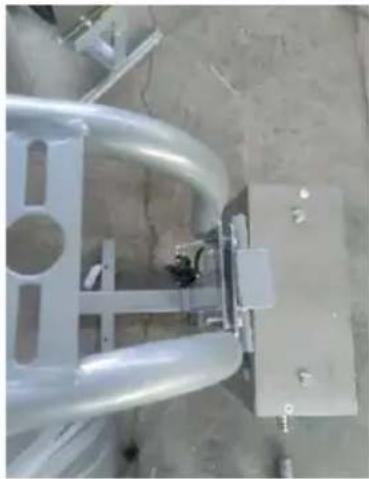

Step 3: Install the handle	Step 4: Install the steam separator

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Note:

1. During installation, connect the components with the same number (The label is only for illustration).
2. Users need to prepare a wrench of 12-14.

The correct method and order of milking:

1. Milking operation method

(1) Turn on the power of the milking machine. Next, turn off the vacuum swv vacuum tank, and start the vacuum pump. Then the finger of the vacuum ga rise stably.

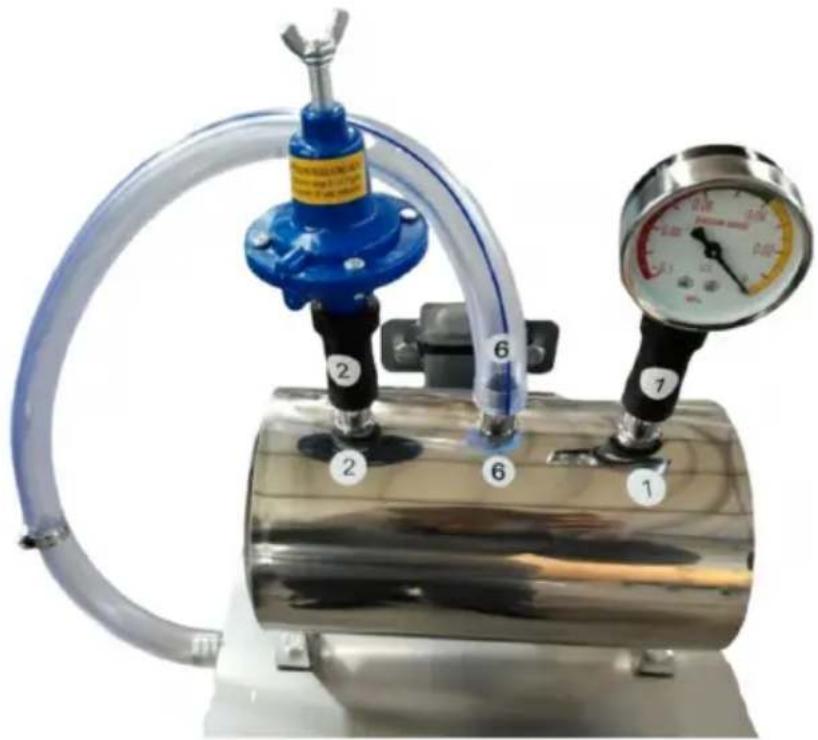

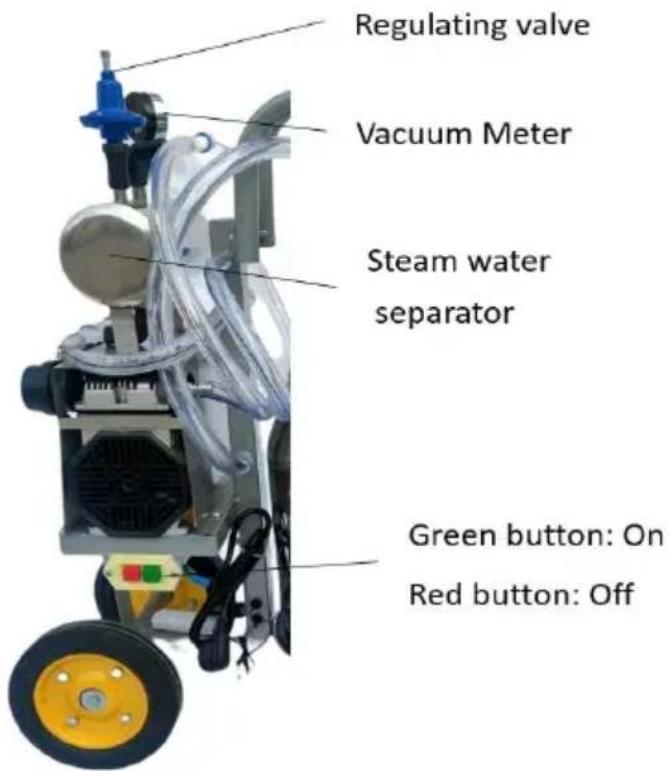

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

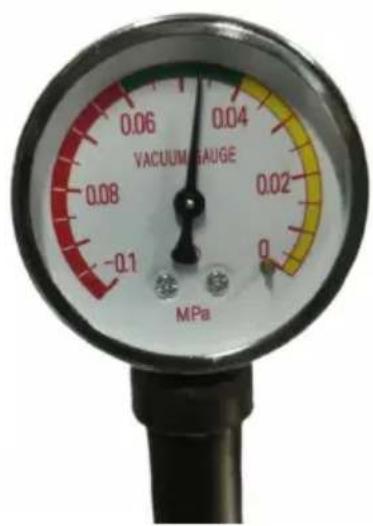

(2) The vacuum pressure becomes big by adjusting the “pressure regulating valve” clockwise; The vacuum pressure becomes small by adjusting the “press regulating valve” anti-clockwise. Adjust the vacuum pump to the normal vacuum degree position(0.045\~0.05MPa), turn on the switch of the vacuum pump, then you can start to milk.

VACUUM GAUGE MPa

2. The order of milking

(1) The preparation of milking

a. Clean the breast and teat of the cow, then dry it. You had better clean with the water with a biocide.

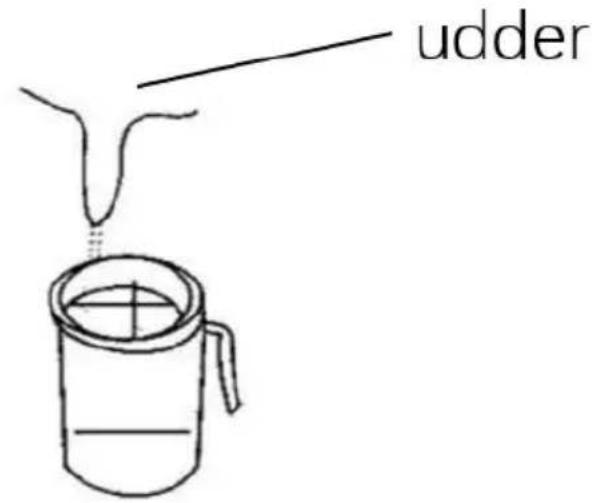

b. Before covering the milk cup, you should milk by hand 2-3 times. Then p teat in the special cup to observe if the teat is normal.

c. Clean and make the breast and teat of the cow dry. After confirming the normal, you should cover the claw in 1 minute.

udder

(2) The method of covering milk cup

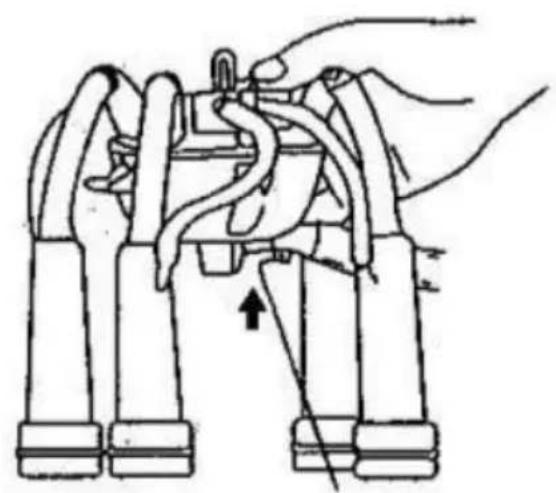

a. First, hold the claw horizontally, and make the 4 pieces of milking lining naturally. Then, the milking lining liner can close the 4 mouths of claws with gravitation of stainless steel cup. Next, hold the claw horizontally, put the claw under the breast of the cow and open the switch of the claw by the forefin the hand, which should always hold the claw horizontally. (If the claw is dec it will make the milking lining liner in the declining side air escape to influer normal performance of the milking machine.)

Technical line drawing of a mechanical assembly with hands and a directional arrow (no text or symbols)

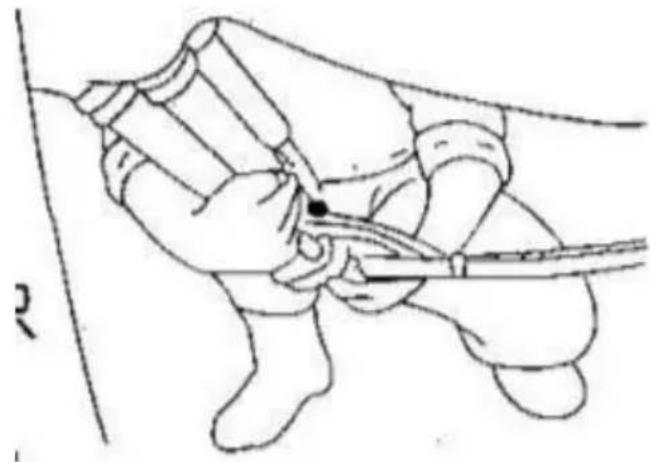

b. Hold the head of the milk cup with the thumb, third finger, and last finger other hand, and leave the forefinger and middle finger to guide the teat put the milking lining liner. Make the stainless steel cup upright. Before doing it,

should disassemble the rubber pipe of the bottom of the milking lining liner to ensure the stainless steel cup will not air escape when putting it upright, the cover the milking lining liner on the teat quickly. (If the cow has one teat, you cannot milk, you should use the special rubber teat cap in the mouth of the cup to avoid air escape.)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

(3) Milking process

a. The milking time of each cow is different, and it usually costs 3-5 minute milk. When seeing the four teats are almost finished milking, hold the claw v one hand, and pull the claw ahead, so that it can make the milk left in the the back breast clean. Pull the claw ahead again. If you find there is no m you can take the cup off.

Illustration of a hand holding a tool and a bowl, with arrows indicating motion or force direction (no text or symbols)

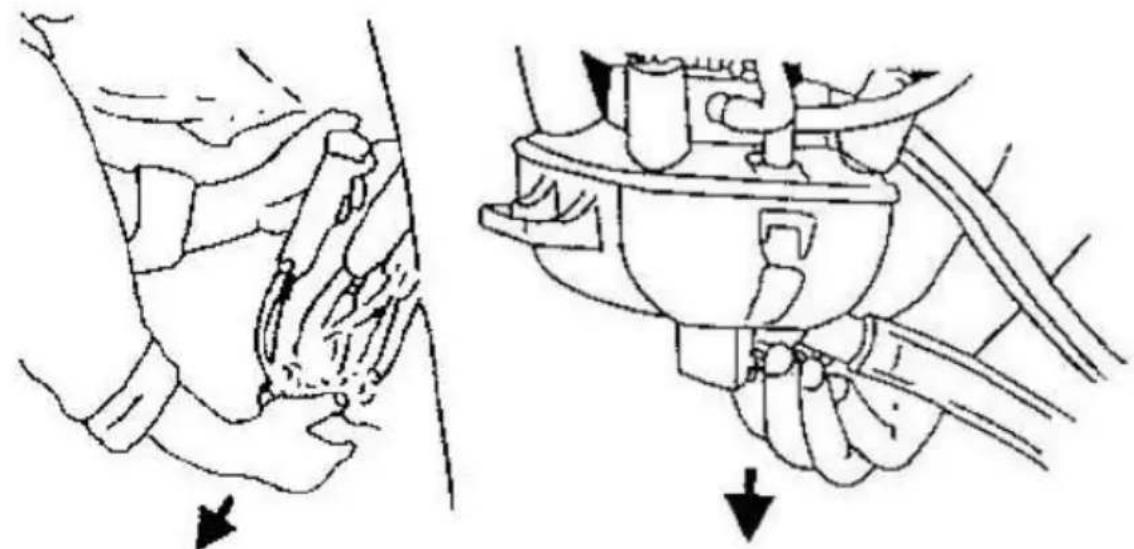

(4) The method of taking the cup off

a. When the four teats are finished milking, you should take the cup off at When taking it off, you should pull the switch of the claw down and close vacuum.

b. One hand to close the vacuum switch of the claw, and the other hand to the four milk cups pull out declining.

Illustration of a person using a tool to adjust or install a component, no text or symbols present

Note:

1. Please don't milk after finishing milking, or the breast of the cow will be sick.
2. You cannot pull down the claw upright, or the rest vacuum of the claw is damage the teat. You should pull declining so that the air of the teat will be reducing the vacuum of the claw, then hold it down naturally.

The difference between milking by machine and milking by hand:

1. Improve the sanitation of milk.

Milking by machine: Absorb the milk directly in a disinfectant seal milk barrel avoid pollution.

Milking by hand: Shoot the milk in the milk barrel in the air, and the milk polluted by dust in the cow or air.

1. Improve the efficiency of milking.

Milking by machine: It will cost 3-4 minutes to milk.

Milking by hand: It will cost 10-15 minutes to milk.

It will save 2/3 time to milk by machine instead of by hand.

1. Improve the output.

According to several years of using the milking machine, it has been proven to milk by machine instead of hand can improve by 5% output.

Reasons:

(1) Milking by machine can milk four teats at 1 time, and the rhythm of the style and strength are unified so that it can make the cow adjustable to it.

good for the growth of cows to improve the output.

(2) When milking by hand, because the strength and rhythm of the milker are unified, and he only can milk two teats at 1 time, the cow will not feel sat it will influence the normal growth of the cow, then the output of milk will rise.

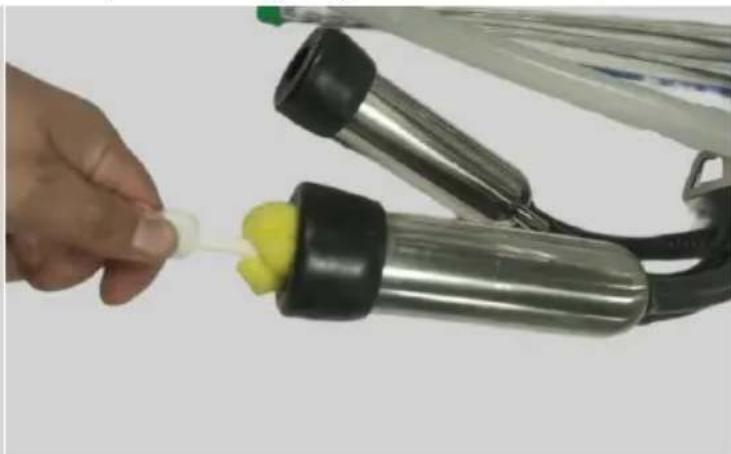

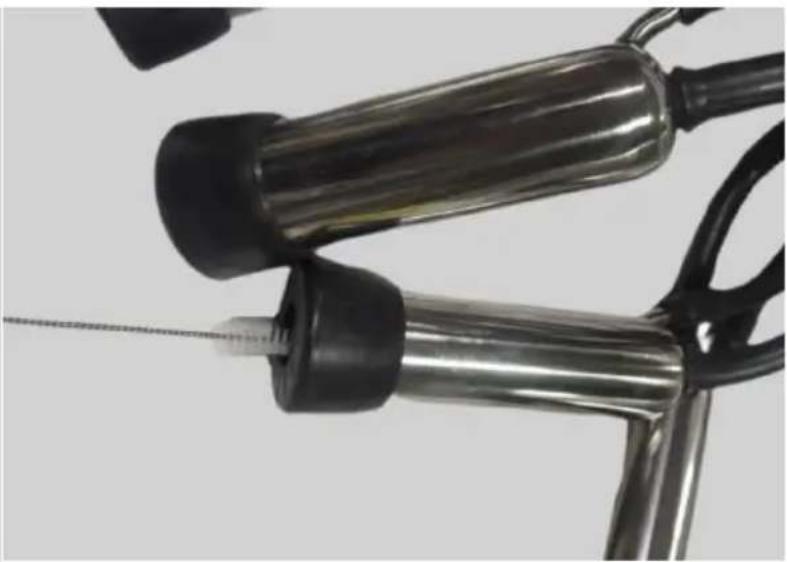

Cleaning method:

After finishing the milking, you must start to clean. If you don't clean the mi equipment at once, the bacilli will propagate quickly.

The cleaning order (daily cleaning):

1. Clean the claw, milk pipe, and milk barrel with water.

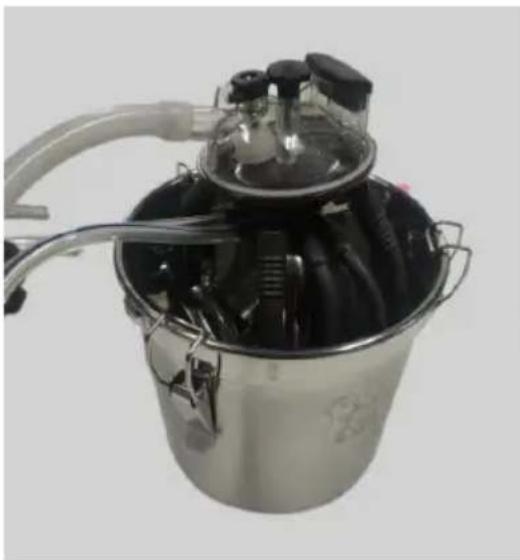

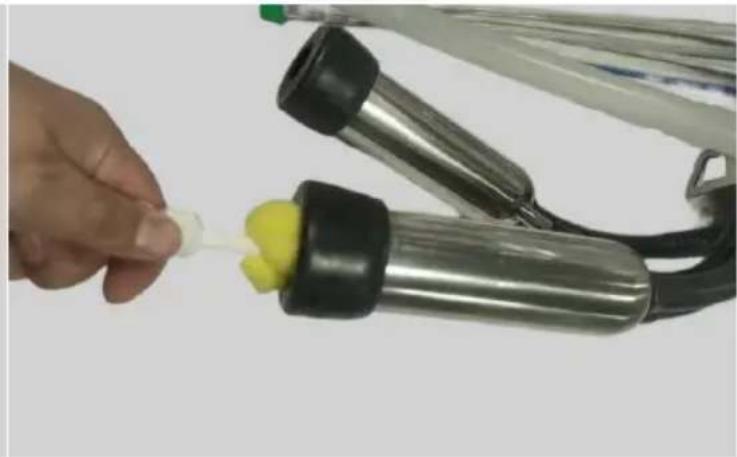

2. Cleaning preparation: Use a big pot with full water, put and claw in the on the vacuum pump, and absorb the water into the milk barrel from the cl. Turn off the vacuum switch of the vacuum tank, open the cover of the milk then pour the water.
3. Circulation cleaning of cleaning agent: Pour the cleaning agent with the cc thickness to about 70^ water and homogenize, put the claw in the pot, and the vacuum switch to absorb the hot cleaning agent into the milk barrel. After absorption, pour the cleaning agent back into the pot, then circulate the absorption until the temperature falls to 40^ .
4. Clean with normal temperature water 2-3 times, absorb the water from the into the milk barrel, and clean the cleaning agent in the equipment.
5. Pour the water, dry it, and put the milking equipment in a clean and airla place for the next use.
6. Normally, the alkalescence and acidity cleaning agents are used circularly. 3-day alkalescence, then 1-day acidity cleaning agent.

Illustration of a pink-handled spatula holding a yellow, textured object inside a circular frame (no text or symbols)

Hand inserting a small yellow object into a metallic pump device (no text or symbols visible)

Close-up of a stainless steel milk feeding can with tubing and internal components (no visible text or symbols)

Close-up of a bicycle wheel handle and lever mechanism (no text or symbols visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODELO:9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with transparent tubing, blue pressure gauge, and stainless steel tank (no visible text or symbols)

Water alarm

ESPECIFICACIONES

A E F I C H D L B K G P R Q J M N

Cow milking cup

Close-up of a cylindrical mechanical component with a 24mm dimension label, shown from front and side (no text or symbols on the component itself)

Diagrama de montaje

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Nota:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands connecting components (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object, with two arrows indicating direction (no text or symbols present)

Illustration of a hand holding a tool, possibly a medical or surgical instrument, with no visible text or symbols.

Nota:

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODELL: 9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with a transparent tubing, blue pressure regulator, and a digital pressure gauge (no visible text or symbols)

Water alarm

SPECIFIKATIONER

Modell	9JYZ-1
Inspänning	Nordamerika: 120V 60Hz
	Europeiska unionen: 220~240V 50Hz
Material av hink	Rostfritt stål
Mjölkningshink	25 L
Pulsationstider	60~80/min
Driftsvakuumgrad	0,04 5~0,05 MPa
Kraft	550W
Arbetstemperatur	-10°C~40°C
Ljudnivå	≤80dB
Färg	Silver

Lista över delar

A E F I C H D L B K O G P R Q J M N

Cow milking cup

Close-up of a hand holding a cylindrical mechanical component with a 24mm dimension label (no other text or symbols visible)

Monteringsdiagram

Steg 1: Installera det stora hjulet	Steg 2: Installera universalhjulet
Steg 3: Installera handtaget	Steg 4: Installera ångseparatorn

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Notera:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

( 3 ) Mjölkning bearbeta

Illustration of a hand holding a tool and a bowl, with arrows indicating motion or force direction (no text or symbols)

Illustration of a person using a tool to adjust or install a component, no text or symbols present

Notera:

Two-panel image showing a pink plastic tool and a hand holding a small transparent object next to a metallic medical device (no text or symbols visible)

Close-up of a stainless steel milk feeding can with tubing and internal components (no visible text or symbols)

Close-up of a bicycle wheel handle and lever mechanism (no text or symbols visible)

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Importerad till AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWC NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

INSTRUCTIES VOOR MELKMACHINE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODEL: 9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with transparent tubing, blue pressure gauge, and stainless steel tank (no visible text or symbols)

Water alarm

SPECIFICATIES

A E F I C H D L B K G P R Q J M N

Cow milking cup

Close-up of a cylindrical mechanical component with a 24mm dimension label, shown from front and side (no text or symbols on the component itself)

Montageschema

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Opmerking:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

( 3 ) Melken proces

Illustration of a hand holding a small object, with two arrows indicating direction (no text or symbols present)

Illustration of a hand holding a tool with a ruler, no text or symbols present

Opmerking:

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODÈLE : 9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with a metallic cylindrical tank, blue pressure regulator, and a pressure gauge (no visible text or symbols)

Water alarm

CARACTÉRISTIQUES

A E F I C H D L B K O G P R Q J M N

Cow milking cup

Close-up of a mechanical component with a 24mm dimension label, shown from front and side (no text or symbols on the component itself)

Schéma d'assemblage

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Note:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with hands operating a component (no text or symbols visible)

( 3 ) Traite processus

Illustration of a hand holding a tool and a bowl with arrows indicating force or movement (no text or symbols)

Line drawing of a person using a tool to adjust or install a component, no text or symbols present

Note:

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODELL:9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with a metallic cylindrical tank, blue pressure regulator, and a pressure gauge (no visible text or symbols)

Water alarm

SPEZIFIKATIONEN

A E F I C H D L B K G P R Q J M N

Cow milking cup

Close-up of a mechanical component with a 24mm dimension label, shown from front and side (no text or symbols on the component itself)

Montagediagramm

Close-up of a mechanical assembly with metallic components and wiring (no visible text or symbols)

Notiz:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands connecting components (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with arrows indicating motion or force, alongside a close-up of the object inside a bowl (no text or symbols present)

Illustration of a hand holding a tool with a small object, no text or symbols present

Notiz:

Illustration of a yellow spatula with a pink handle, resting on a circular frame (no text or symbols)

Hand inserting a small yellow object into a metallic pump dispenser (no text or symbols visible)

Metallic cylindrical milk feeding can with tubing and central lid (no visible text or symbols)

Close-up of a bicycle handle with metal components and black connectors (no visible text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODEL: 9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with a transparent tubing, blue pressure gauge, and stainless steel cylindrical container (no visible text or symbols)

Water alarm

SPECYFIKACJE

A E F I C H D L B K G P R Q J M N

Cow milking cup

Close-up of a cylindrical mechanical component with a 24mm dimension label, shown from front and side (no text or symbols on the component itself)

Schemat montażu

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Notatka:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

( 3 ) Dojenie proces

Illustration of a hand holding a tool and a bowl with arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a tool, possibly a tool or device, with no visible text or symbols.

Notatka:

Import do AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Apartament 250, 9166 Anah Place, Rancho Cucamonga, Kalifornia 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILKING MACHINE

MODELLO:9J YZ-1

Industrial vacuum cleaner with transparent tubing and control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Laboratory apparatus with a transparent tubing, blue pressure regulator, and a digital pressure gauge (no visible text or symbols)

Water alarm

SPECIFICHE

A E F I C H D L B K G P R Q J M N

Cow milking cup

Close-up of a hand holding a cylindrical mechanical component with a 24mm dimension label (no other text or symbols visible)

Close-up of a mechanical assembly with metallic components and a transparent cylindrical component (no visible text or symbols)

Nota:

Regulating valve Vacuum Meter Steam water separator Green button: On Red button: Off

Diagram of a mechanical assembly with hands connecting components (no text or symbols)

Diagram of a mechanical assembly with hands and a directional arrow indicating motion (no text or symbols)

( 3 ) Mungitura processi

Illustration of a hand holding a small object, with two arrows indicating direction (no text or symbols present)

Illustration of a hand holding a tool with a small object, no text or symbols present

Nota:

Importato in AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOC NSW 2122 Australia

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

[e-mail]

01772418127

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE
