Portable Buddy MHBE150FAT - Portable electric heater Mr. Heater - Free user manual and instructions

Product type	Portable electric heater
Brand	Mr. Heater
Model	Portable Buddy MHBE150FAT
Voltage	120 V AC, 60 Hz
Current	12.5 A
Maximum power	1500 W
Low power	1000 W
Dimensions (L x D x H)	10.35 x 6.14 x 13.82 inches (26.3 x 15.6 x 35.1 cm)
Weight	1.75 kg (3.9 lb)
Operating modes	Fan only, low heat, high heat
Thermostat	Adjustable thermostat with automatic temperature maintenance
Tip-over safety	Automatic shut-off when tipped over
Overheat safety	Automatic shut-off with manual reset
Power indicator	Indicator light
Safety distance (combustible materials)	At least 91 cm (3 ft) in front, sides, top and back
Usage	Indoor use only, on a flat and dry surface
Electrical connection	Directly into wall outlet, do not use extension cord
Maintenance	Clean with a soft, damp cloth, mild detergent if necessary
Storage	In a cool, dry place, original packaging
Warranty	1 year
Country of origin	Not specified (manufactured for Mr. Heater)

Frequently Asked Questions - Portable Buddy MHBE150FAT Mr. Heater

How to turn on the Portable Buddy MHBE150FAT heater?

Plug the device directly into a 120 V outlet. Turn the power knob clockwise to select the mode: fan only, low heat (1000 W) or high heat (1500 W). Adjust the thermostat according to your preference.

How to adjust the thermostat on this heater?

Turn the thermostat knob clockwise to the maximum. When the room reaches the desired temperature, slowly turn the knob counterclockwise until the heating element clicks off. The thermostat will then automatically maintain that temperature.

What safety features are built into the MHBE150FAT?

The device has an automatic shut-off when tipped over (switch at the bottom) and overheat protection with manual reset. In case of overheating, unplug the device and wait 15 to 30 minutes for it to cool down before reusing.

What safety distance should I maintain around the heater?

Maintain a distance of at least 91 cm (3 feet) between the front, sides, top, back of the device and any combustible material (furniture, curtains, bedding, etc.).

Can I use an extension cord with this heater?

No, you must plug the device directly into a wall outlet. Never use an extension cord, power strip, or multiple outlet to avoid the risk of overheating and fire.

What to do if the heater does not turn on?

Check that the plug is properly inserted and the outlet works. Make sure the device is upright on a flat surface. Turn the thermostat knob clockwise to the maximum. If the problem persists, consult the troubleshooting section of the manual.

How to clean the Portable Buddy MHBE150FAT?

Turn off and unplug the device, let it cool down. Clean the housing with a soft, damp cloth, optionally with a mild detergent. Dry completely before reuse. Do not use alcohol, gasoline, or abrasive products, and never immerse the device in water.

Why does the heater turn off and on by itself?

This is normal: the thermostat automatically adjusts operation to maintain the set temperature. If you want to avoid these cycles, adjust the thermostat to a different position or switch to fan-only mode.

What is the warranty on the Mr. Heater MHBE150FAT?

The device is covered by a limited one-year warranty from the date of purchase against defects in materials and workmanship. For claims, contact customer service at 800-251-0001.

Where can I download the full manual?

You can download the manual for free in PDF format on notice-facile.com or on the official Mr. Heater website. The manual is available in French and includes all safety, use, and maintenance instructions.

USER MANUAL Portable Buddy MHBE150FAT Mr. Heater

Black portable electric heater with a grid-patterned front panel and brand logo (no visible text or symbols on body)

Languages included

• English
• Spanish
• French

⚠ WARNING: Read and understand this entire owner's manual, including all safety information, to avoid electric shock, or serious personal injury.

⚠ WARNING: Keep this owner's manual for future reference.

[Non-Text]

Definitions: Safety Guidelines &

IMPORTANT INSTRUCTIONS.

The definitions below describe the level of severity for each signal word. Please read the manual and pay attention to these symbols.

Danger: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
⚠ Warning: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

1. Read ALL instructions before using this unit.
2. ⒶWARNING: Risk of Electric Shock. DO NOT open or try to repair the heater yourself.
3. This heater may get hot when in use. To avoid burns, DO NOT let bare skin touch hot surfaces. If provided, use handle(s) when moving this heater. DO NOT place it against walls, furniture, curtains, etc.
4. Keep combustible materials, such as furniture, pillows, bedding, paper, clothes, and curtains at least 3 ft from the front of the heater and keep them away from the sides, top, and rear. DO NOT place towels or other objects on the heater.
5. Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
6. DO NOT operate any heater with a damaged cord or after the heater malfunctions, has

been dropped or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical adjustment, or repair.

1. This heater is not intended for use in bathrooms, laundry areas, showers or swimming pools and similar locations. NEVER locate heater where it may fall into a bathtub or other water container. To protect against electrical hazards, DO NOT immerse in water or other liquids.
2. DO NOT touch the control panel or plug with a wet hand.
3. DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
4. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.

5. To prevent a possible fire, DO NOT block the air intakes or exhaust in any manner. DO NOT use on soft surfaces, like a bed, where openings may become blocked.

6. A heater has hot and arcing or sparking parts inside. DO NOT use in areas where gasoline, paint, explosive and/or flammable liquids are used or stored. Keep unit away from heated surfaces and open flames.

7. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
8. To avoid fire or shock hazard, plug the unit directly into a 120 V AC electrical outlet.
9. To disconnect heater, turn controls to OFF, then remove plug from outlet. Pull firmly on the plug, DO NOT unplug by pulling on the cord.
10. Always unplug the unit before moving or cleaning, or whenever the heater is not in use.
11. Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. The use of attachments not recommended or sold by unauthorized dealers may cause hazards.
12. Always use on a dry, level surface. Use on floor only.
13. DO NOT use outdoors.

14. ⚠WARNING: To reduce the risk of fire or electric shock, DO NOT use this unit with any solid-state speed control device.

15. DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts.

16. Always use the product in an up-right position.
17. Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature, headache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to experience symptoms related to hyperthermia, turn off the heater and seek medical attention.
18. To avoid excessive room temperatures which can cause hyperthermia: DO NOT leave product running unattended in a confined space around infants, or individuals with reduced physical, sensory, or mental capabilities.
19. ⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Wash hands after handling.

SAVE THESE INSTRUCTIONS.

CONTENTS

WARNINGS....2

SPECIFICATIONS....4

SAFETY FEATURES 4

PRODUCT DIAGRAM....5

INSTRUCTIONS FOR USE 5

MAINTENANCE AND STORAGE 6

TROUBLESHOOTING....6

WARRANTY 8

SPECIFICATIONS

VOLTAGE RATING 120 V	(60HZ) 12.5 Amps
POWER CONSUMPTION	1500 W
UNIT SIZE 10.35 in. W x	6.14 in. D x 13.82 in. H
UNIT WEIGHT 3.9 lbs.

SAFETY FEATURES

Tip-Over Safety Feature

This heater is equipped with a shut-off safety feature. Once the heater is tipped over, an internal switch will automatically shut the heater off. Once the heater is restored to an upright position, the heater will reset.

Overheat Safety Feature

This heater is equipped with an overheat safety feature. When the heater's internal components reach a certain temperature that could cause overheating and possible fire, the heater will automatically shut off.

- A thermal overload protector is built in to prevent overheating.

• When an "overheat" temperature is reached, the heater will automatically shut off. Operation can resume only when the user resets the unit.
• To reset the unit, unplug the heater, ensure the power is turned off, and wait 15 to 20 minutes for the unit to cool down.
• Follow INSTRUCTIONS FOR USE to return heater to operating mode.

⚠ WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage.

IN THE BOX

• Portable Buddy Electric Heater
• User Manual

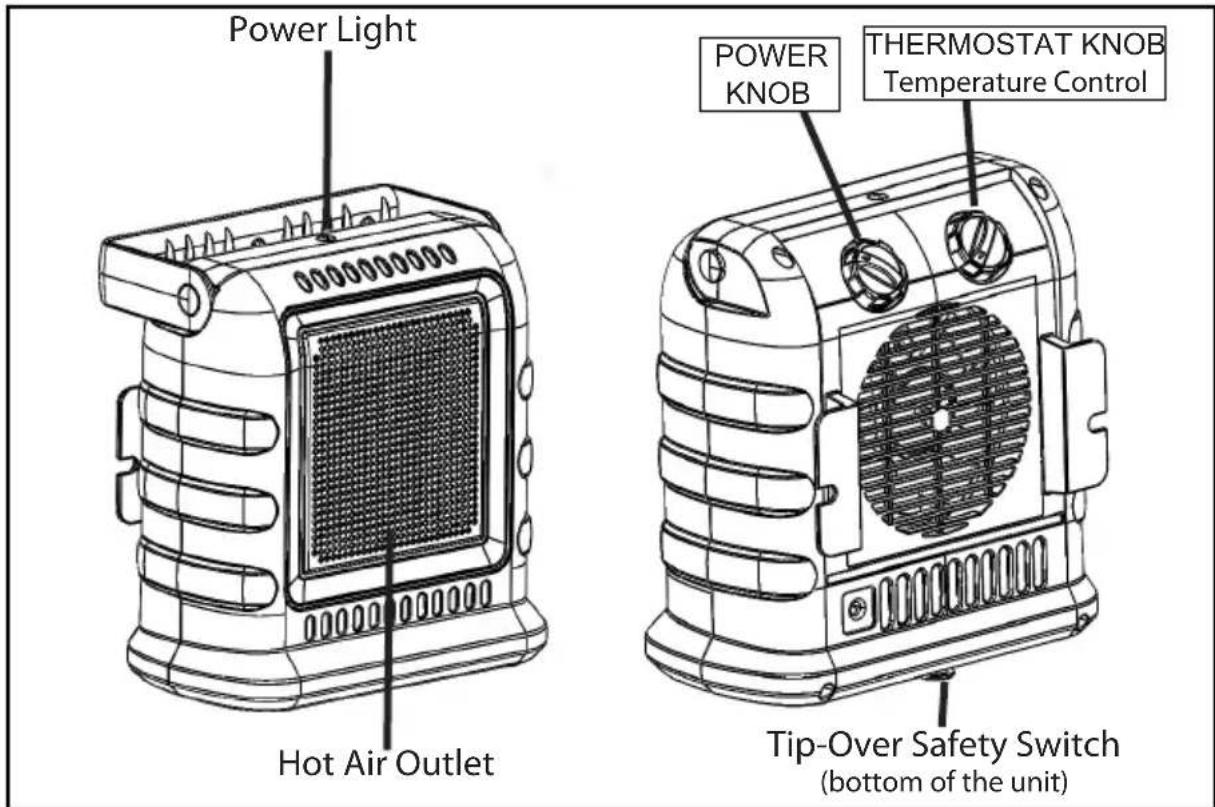

PRODUCT DIAGRAM

CLEARANCE TO COMBUSTIBLES

Keep electrical cords, drapery, furniture and other combustibles at least 3 feet (.914 M) from the front of the heater and away from the sides, top, and rear.

Clearance To Combustibles
Front 3'
Top 3'
Sides 3'
Rear 3'

INSTRUCTIONS FOR USE

1. Place the product on a firm, level surface.
2. Plug the unit directly into a 120 V AC electrical outlet.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT AND FULLY INSERT.

1. Rotate the POWER KNOB clockwise to select between (fan only), (low heat) or (high heat). LOW position operates the heater at 1000 watts conserving energy and HIGH position operates the heater at a maximum 1500 watts.
2. Turn the THERMOSTAT KNOB clockwise to the highest setting.
3. When the room reaches a comfortable temperature, slowly turn the THERMOSTAT KNOB counter-clockwise until the heating element clicks OFF (the Power Light will not be shut OFF).

4. This is the point at which the Thermostat setting equals the room temperature. At this setting, the Thermostat will automatically turn the heater ON and OFF to maintain the selected temperature.

5. Turn the POWER KNOB to OFF and unplug the heater when finished using.

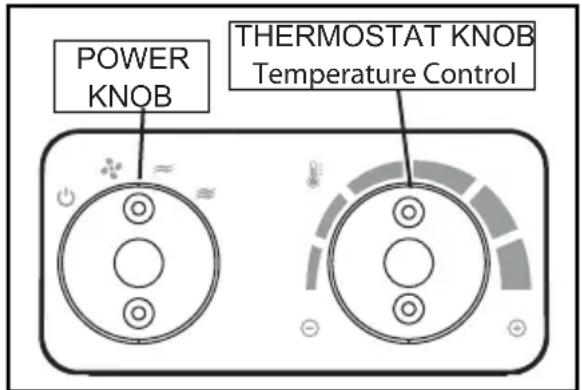

POWER KNOB THERMOSTAT KNOB Temperature Control

NOTICE: When the heat function is used for the first time, a slight order may be present. This is normal and should not occur again unless the heater is not used for an extended period of time.

NOTICE: It is normal for the heater to cycle ON and OFF as it maintains the preset temperature. To prevent the unit from cycling, you need to change the thermostat setting.

MAINTENANCE

1. Turn the POWER OFF.
2. Unplug the unit and let it cool completely.
3. To keep the heater clean, the outer shell may be cleaned with a soft, damp cloth. A mild detergent can be used if necessary.
4. After cleaning, dry the unit with a soft cloth.
5. Wait until the unit is completely dry before use.

⚠ WARNING:

• DO NOT let liquid enter the heater.
- DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This may cause damage or deterioration to the surface of the heater.
• DO NOT immerse the heater in water.

STORAGE

Store the heater in a cool, dry location when not in use. To prevent dust and dirt build-up, use the original packaging to repack the unit.

TROUBLESHOOTING

If the heater will not operate, please check the following:

1. Check if the power cord is plugged into an electrical outlet. If not, plug in unit to appropriate outlet.
2. Check if electricity to the outlet is working.
3. Ensure power is turned to ON position.
4. Make sure heater is placed on a flat solid surface.
5. See SAFETY FEATURES section for additional information.
6. Turn the THERMOSTAT KNOB clockwise. The heater only works when the set temperature is higher than room temperature.

NOTICE: The product is equipped with an overheat safety feature protector which will switch off the heater in case of accidental over heating (ex. Obstruction of air intake and outlet grills, motor turning slowly or not at all).

NOTICE: It is normal for the heater to cycle ON and OFF as it maintains the preset temperature. To prevent the unit from cycling, you need to change the thermostat setting.

THIS PAGE INTENTIONALLY LEFT BLANK ESTA PÁGINA INTENCIONALMENTE SE DEJA EN BLANCO CETTE PAGE A ÉTÉ INTENTIONNELLEMENT LAISSÉE VIERGE

Mr HEATER

OPERATING INSTRUCTIONS AND OWNER'S MANUAL

MODEL#

MHBE150FAT

READ INSTRUCTIONS CAREFULLY: YOUR SAFETY IS IMPORTANT TO YOU AND TO OTHERS. Read and follow all instructions. Place instructions in a safe place for future reference. Do not allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.

FOR INFORMATION REGARDING SERVICE:

Please call Toll-Free 800-251-0001 • WWW.MRHEATER.COM

Our office hours are 8:00 AM – 5:00 PM, EST, Monday through Friday.

Please include the model number, date of purchase, and description of problem in all communication.

LIMITED WARRANTY:

The company warrants this product to be free from imperfections in material or workmanship, under normal and proper use in accordance with instructions of The Company, for a period of one year from the date of delivery to the buyer. The Company, at its option, will repair or replace products returned by the buyer to the factory, transportation prepaid within said one year period and found by the Company to have imperfections in material or workmanship.

If a part is damaged or missing, call our Technical Support Department at 800-251-0001.

Address any Warranty Claims to the Service Department, Mr. Heater, Inc., 4560 W. 160TH ST., CLEVELAND, OHIO 44135. Include your name, address and telephone number and include details concerning the claim. Also, supply us with the purchase date and the name and address of the dealer from whom you purchased our product.

The foregoing is the full extent of the responsibility of the Company. There are no other warranties, express or implied. Specifically there is no warranty of fitness for a particular purpose and there is no warranty of merchantability. In no event shall the Company be liable for delay caused by imperfections, for consequential damages, or for any charges of the expense of any nature incurred without its written consent. The cost of repair or replacement shall be the exclusive remedy for any breach of warranty. There is no warranty against infringement of the like and no implied warranty arising from course of dealing or usage of trade. This warranty will not apply to any product which has been repaired or altered outside of the factory in any respect which in our judgment affects its condition or operation.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives your specific legal rights, and you may have other rights which vary from state to state.

Mr. Heater, Inc. reserves the right to make changes at any time, without notice or obligation, in colors, specifications, accessories, materials and models.

PRODUCT REGISTRATION: Thank you for your purchase.

Please log in to http://www.egiregistration.com to register your product.

INSTRUCCIONES DE USO Y MANUAL DEL PROPIETARIO

	BUDDY PORTÁTILCALENTADOR ELÉCTRICO	Modelo
		MHBE150FAT

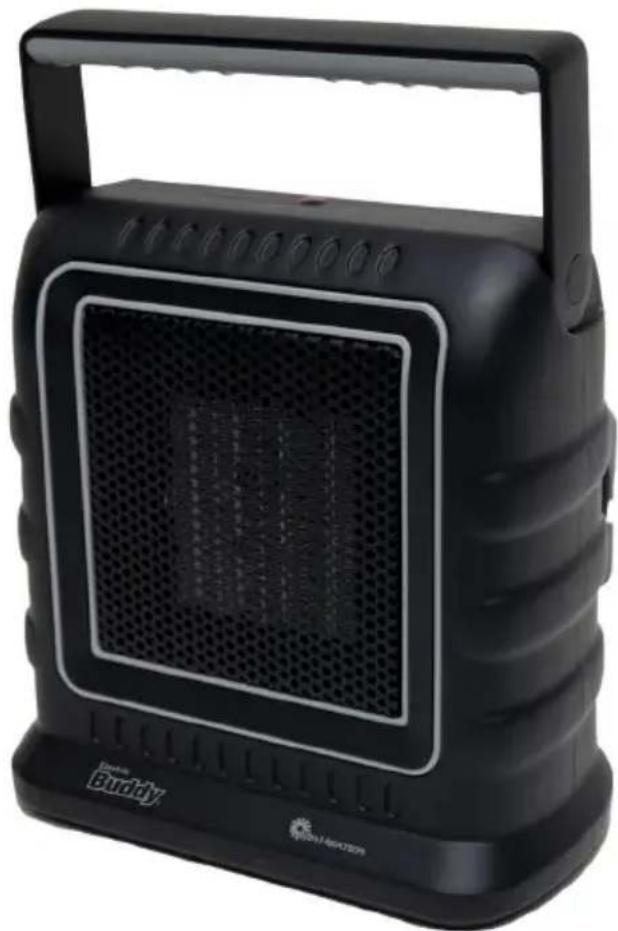

Black portable electric heater with a grid-patterned front panel and brand logo (no visible text or symbols on the device body)

Idiomas incluidos

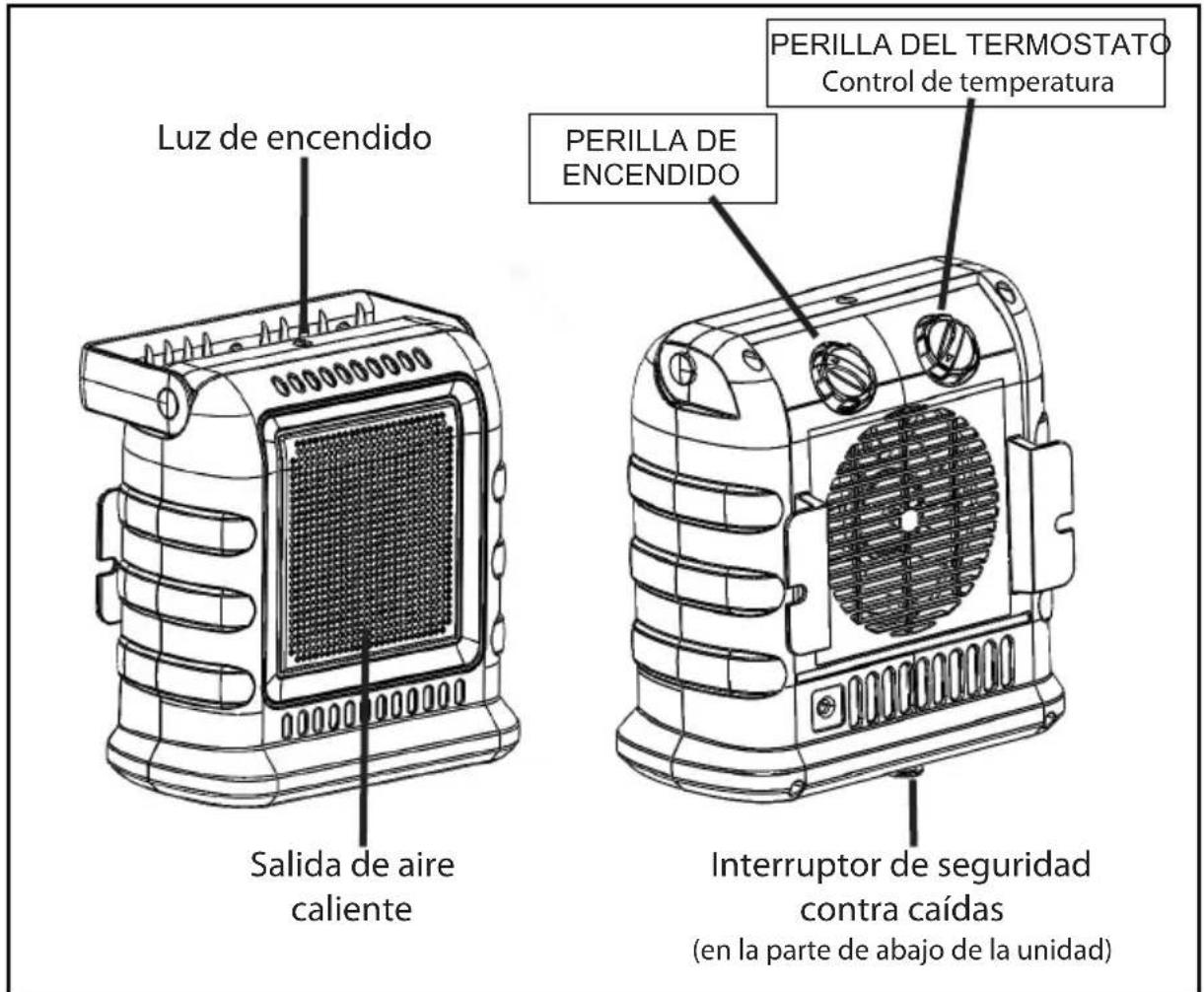

DIAGRAMA DEL PRODUCTO

Black portable electric heater with a mesh grille and handle, no visible text or symbols on the device body.

Langues incluses

• English
• Español
• Français

Black and white striped pattern with no text or symbols

DIAGRAMME DU PRODUIT 5

MODE D'EMPLOI 5

ENTRETIEN ET RANGEMENT 6

DÉPANNAGE 7

GARANTIE 8

SPÉCIFICATIONS

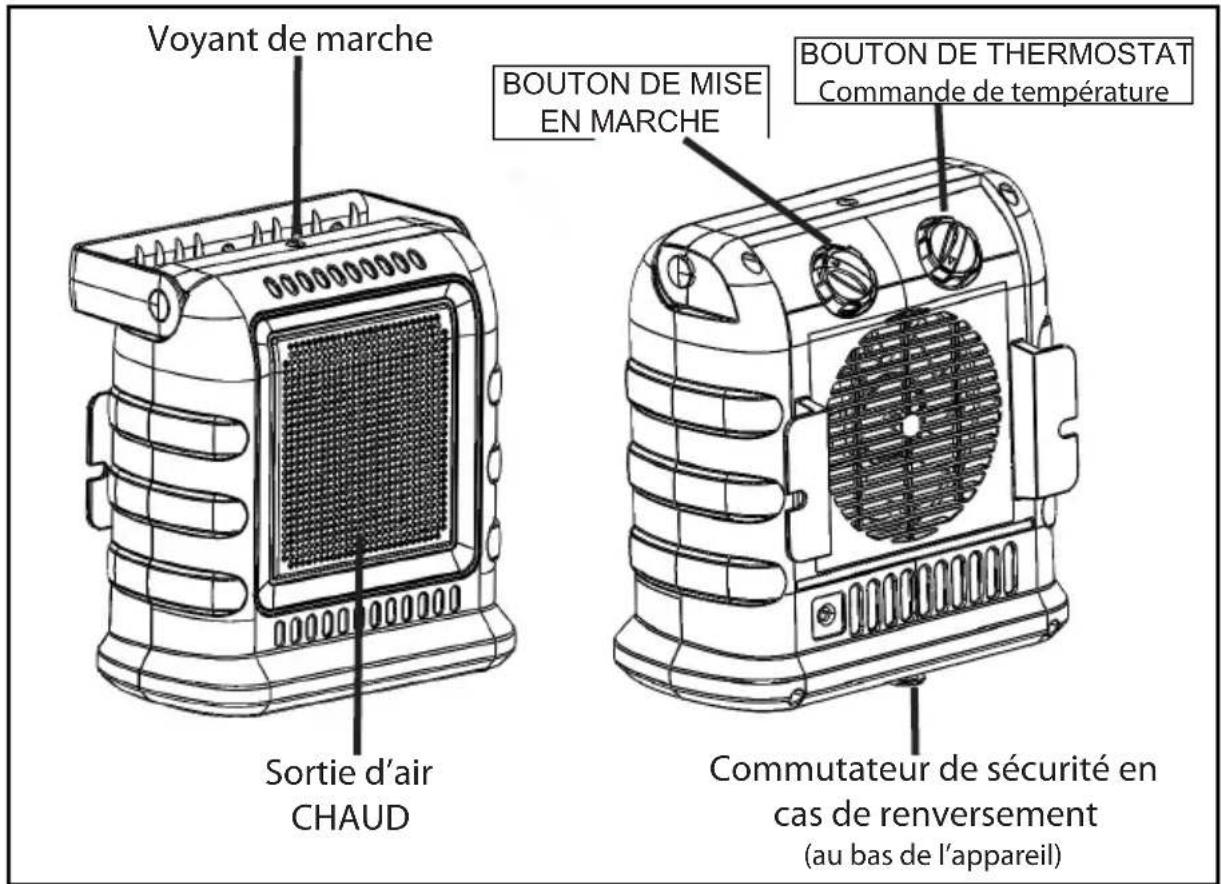

DIAGRAMME DU PRODUIT

160 TH ST., CLEVELAND, OHIO 44135.
