Operating and installation instructions:

Original √ Translation

MKZ SALES

3 IMPASSE DES JARDINIERS

77400 LAGNY SUR MARNE

Linärie Contact

Contact@linarie.fr

www.linarie.fr

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

Dax

Induction Hob

LIN60I3Z

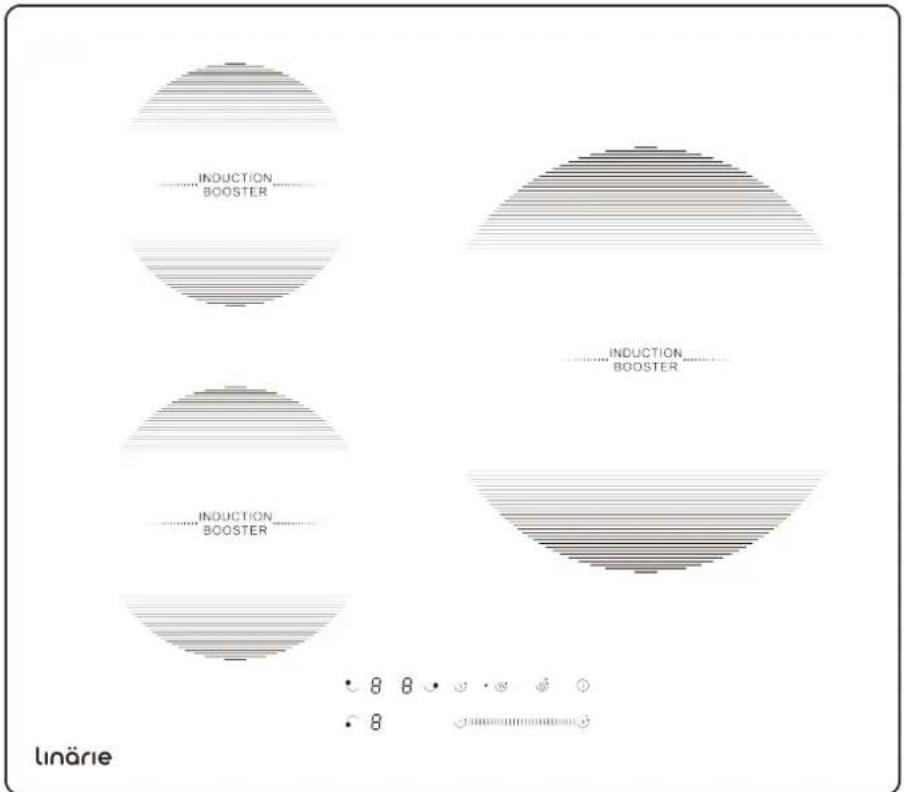

Linarie Dax LIN60I3Z - LIN60I3Z - 1

text_image INDUCTION BOOSTER INDUCTION BOOSTER INDUCTION BOOSTER linäre

CONGRATULATIONS

Congratulations and thank you for choosing Linärie to introduce a new comfort of cooking in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.

This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.

For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.

Record Model & Serial Number

Model

Serial Number

Register your product www.linarie.com.au

Linarie Dax LIN60I3Z - CONGRATULATIONS - 1

IMPORTANT

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury and property damage. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linärie's manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Correct Conditions of Use

  • The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
  • The appliance is not suitable for outdoor use, non-stationary installation.
    • This product is used for cooking and extracting.

Linarie Dax LIN60I3Z - Correct Conditions of Use - 1

The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.

Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au

TABLE OF CONTENTS

Safety warnings....2

Congratulations....2

Product Over view....3

User Interface....3

A Word on Induction Cooking....3

Before using your New Ceramic Hob....3

Using the Touch Controls....4

Choosing the right Cookware....4

Using your Ceramic Hob....5

If the display flashes alternately with the heat setting....5

When you have finished cooking....5

Using the Boost function....5

Using Cooking Functions....6

Using the Pause function—Stop&Go....6

Using Child Lock Function....6

Over-Temperature Protection....6

Detection of Small Articles....6

Auto Shutdown Protection....6

Using the Timer....7

Using the Timer as a Minute Minder....7

Setting the timer to turn one or more cooking zones off....7

Failure Display and Inspection....8

Installation....9

Before you install the hob, make sure that....10

When you have installed the hob, make sure that....10

Before locating the fixing brackets....10

locating the fixing brackets....10

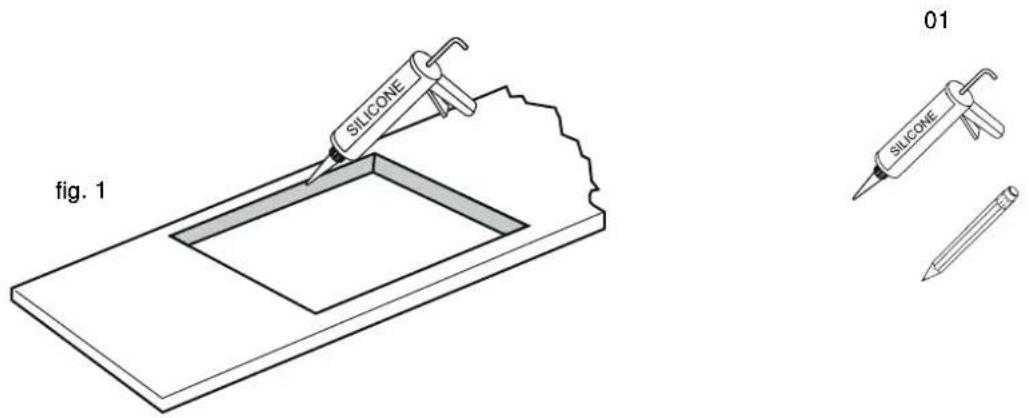

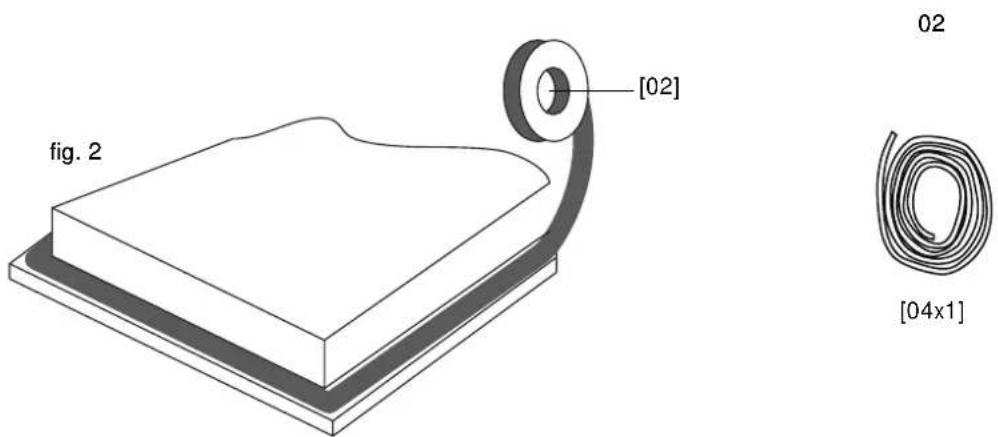

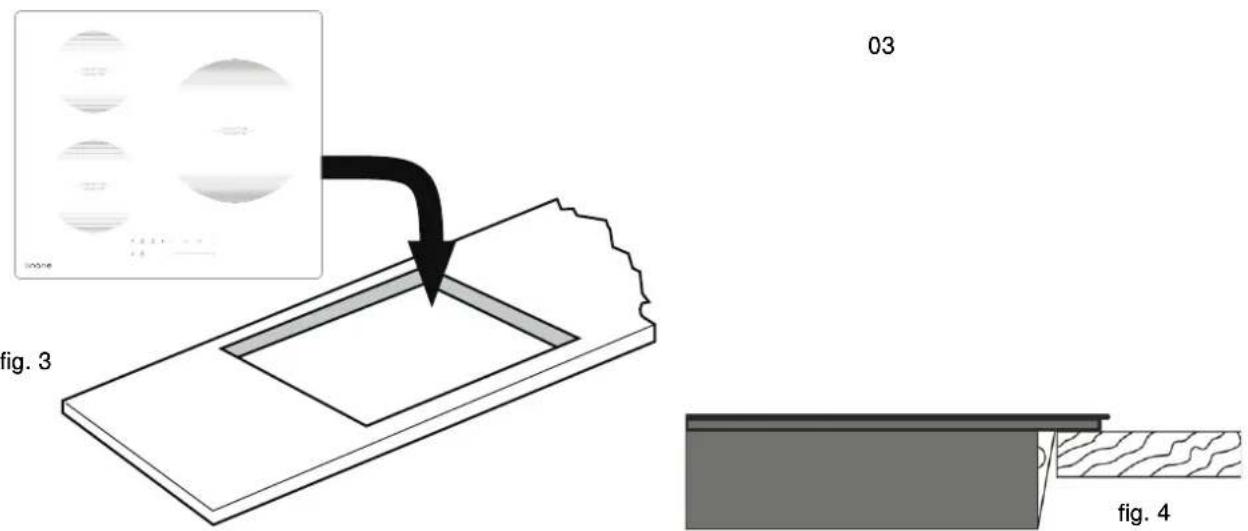

Installation Diagram....11

Cautions....12

Connecting the hob to the mains power supply....12

Warranty & After sales service....13

Safety warnings

Your safety is important to us. Please read this information before using your cooktop.

- The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glassceramic or similar material which protect live parts.

- Warning: a steam cleaner is not be used

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• After use, switch off the hob element by its control and do not rely on the pan detector.

- that the appliance is not intended to be operated by means of external timer or separated remote-control system.

- Danger of fire: Do not store items on the cooking surfaces.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- Warning: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

• Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- Power cord can't accessible after installation.

Congratulations

on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Over view

Top View

Linarie Dax LIN60I3Z - Product Over view - 1

text_image PRODUCTION MINIMUM PRODUCTION MINIMUM • 8 • 8 • 10 • 8 • 10 linäre

Heating zone Power

Heating ZoneRated Output
Max. Power(220-240V~ 50/60Hz)
1500/2000W
1200/1500W
2300/3000W
Total Rating Power6500W

User Interface

Linarie Dax LIN60I3Z - User Interface - 1

text_image 8 8 8 · ① 8
Reference Description
A8 88Zone select key
B1ON/OFF key
CPower Regulating Key
DBoost control key
EStop&go/Child lock key
FTimer key
GKeep warm key

A Word on Induction Cooking

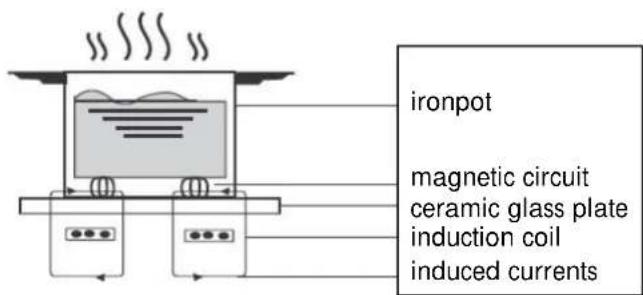

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Linarie Dax LIN60I3Z - A Word on Induction Cooking - 1

text_image ironpot magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Ceramic Hob

  • Read this guide, taking special note of the "Safety Warnings" section.
  • Remove any protective film that may still be on your Ceramic hob.

Using the Touch Controls

  • The controls respond to touch, so you don’t need to apply any pressure.
  • Use the ball of your finger, not its tip.
  • You will hear a beep each time a touch is registered.
  • Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Linarie Dax LIN60I3Z - Using the Touch Controls - 1

text_image Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

Choosing the right Cookware

Linarie Dax LIN60I3Z - Choosing the right Cookware - 1

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

  • You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
    • If you do not have a magnet:

  • Put some water in the pan you want to check.

  • If does not flash in the display and the water is heating, the pan is suitable.
  • Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Linarie Dax LIN60I3Z - Choosing the right Cookware - 2

Do not use cookware with jagged edges or a curved base.

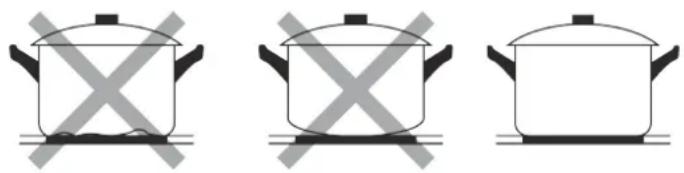

Linarie Dax LIN60I3Z - Choosing the right Cookware - 3

natural_image Three identical cooking pots with crossed-out handles, shown in side-by-side illustrations (no text or symbols)

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Always center your pan on the cooking zone.

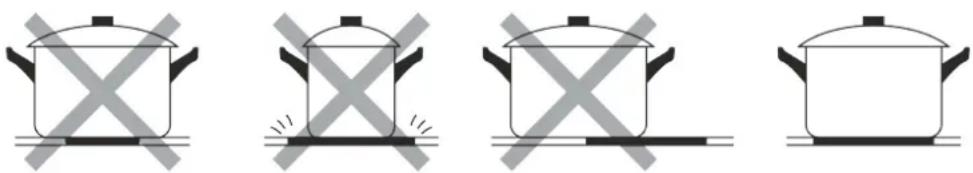

Linarie Dax LIN60I3Z - Choosing the right Cookware - 4

natural_image Four identical cooking pots with crossed handles and a horizontal line, shown in sequence (no text or symbols)

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Linarie Dax LIN60I3Z - Choosing the right Cookware - 5

natural_image Two identical line drawings of a cooking pot with crossed arrows indicating pressure or flow direction (no text or symbols)

Using your Ceramic Hob

To start cooking

  1. Touch the ON/OFF control for 3 seconds. After power on, the buzzer beeps once, all displays show “—”, indicating that the induction hob has entered the state of standby mode.

  2. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry.

Linarie Dax LIN60I3Z - To start cooking - 1

Linarie Dax LIN60I3Z - To start cooking - 2

natural_image Line drawing of a cooking pot on a stand (no text or symbols)
  1. According to the heating zone where the pan is placed, select a relevant zone select key by pressing “ √” key (A). The symbol 0. selected will stay fully it.

  2. Adjust heat setting by touching the slider regulating key(C) control.

- If you don’t choose a heat setting within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

Linarie Dax LIN60I3Z - To start cooking - 3

If the display flashes ≥slant U ≤slant alternately with the heat setting

This means that:

  • you have not placed a pan on the correct cooking zone or,
  • the pan you're using is not suitable for induction cooking or,
  • the pan is too small or not properly centered on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

  1. Touching the relevant zone select key(A) that you wish to switch off.

  2. Press the “—” key will decrease the power to “0” level.

  3. Beware of hot surfaces

“H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activated the boost function

  1. Select the heating zone by touching the zone select key (A).
  2. Touching the boost control key(D) for 3 seconds, the zone indicator show "P." and the power reach Max

Cancel the Boost function

  1. Touching the relevant zone select key(A) that you wish to cancel.
  2. Touching the slider regulating key(C) to cancel the Boost function, then the cooking zone will revert to level 9.

  3. The function can work in any cooking zone.

  4. The cooking zone returns to level 9 after 5 minutes.

Using Cooking Functions

You can choose 3 handy cooking functions by pressing the cooking functions key(G) 🤨 each time moves from one function to the other.

Linarie Dax LIN60I3Z - Using Cooking Functions - 1

- Melt or defrost (about 50°C)

Linarie Dax LIN60I3Z - Using Cooking Functions - 2

- Heating or keeping warm (about 70°C)

Linarie Dax LIN60I3Z - Using Cooking Functions - 3

- Simmering, temperature close to boiling, useful for slow cooking

Using the Pause function - Stop&Go

Pause function can be used at any time during cooking. It allows to stop the induction hob and come back to it keeping all the settings

  1. Make sure that the cooking zone is working.
  2. Touch Shortly the Stop&Go (E) 📋. All the cooking zone displays will show “ ll”. The operation of the induction hob will be deactivated except the Stop&Go (E), ON/OFF (B) and Child lock (E).
  3. To cancel the pause status, touch Stop&Go (E), and touch any button except the Stop&Go (E), ON/OFF (B) then the cooking zones will go back to the power level which you set before.

Using Child Lock Function

  • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
  • When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the Child lock control(E) 📋 for 3 seconds. The timer indicator will show “Lo” from A and C heating zones

To unlock the controls

  1. Make sure the Induction hob is turned on.
  2. Touch and hold the Child lock control for a while
  3. You can now start using your Induction hob.

Linarie Dax LIN60I3Z - To unlock the controls - 1

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminum), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

Power level1~34~67~89
Default working timer (min)36018012090

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minute.

Linarie Dax LIN60I3Z - Auto Shutdown Protection - 1

People with a heart pace maker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

  • You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
  • You can set it to turn one cooking zone off after the set time is up.
  • You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

  1. Make sure at least one cooking is turned on. Note: you can use the minute minder even if you're not selecting any cooking zone.
  2. Touch the Timer key(F) ⚙. The minder indicator will start flashing and "10" will show in the timer display.
  3. Set the time by touching the “-” or “+” control of the timer

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.

Touching the “-” or “+” together, the timer is cancelled, and the timer indicator will turn off.

  1. When the time is set, it will begin to count down immediately. The display will show the remaining time.
  2. Buzzer will bips for 30 seconds and the timer indicator will turn off when the setting time finished.

Setting the timer to turn one or more cooking zones off

If the timer is set on one zone:

  1. Select the relevant cooking zone which is working by touching the zone select key (A).
  2. Press the Timer key(F) ⚙, the relevant heating zone indicator flashes, and you can set the timer at this point.
  3. Using the “ + ” and “ -” buttons, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.

Touching the “ - ” or “ + ” together, the timer is cancelled, and the timer indicator will turn off.

  1. When the time is set, it will begin to count down immediately. The heating zone indicator LED will show the remaining time and the A and C zones' s indicator flash

The relevant cooking zone will flash the remaining timer and power level alternately.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

Linarie Dax LIN60I3Z - Setting the timer to turn one or more cooking zones off - 1

  1. When cooking timer expires, the corresponding cooking zone will be switch off automatically and the machiner will beep for 30 sec.. Other cooking zone will keep operating if they are turned on previously.
  2. When using “the timer as an alarm” and “the timer to switch off the zones together, the display will show the remaining time of alarm as first priority. Press cooking zone to show the remaining time of switch off timer.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Error MessagePossible CauseWhat to do
UNo pot or pot not suitable;Replace the pot;
ER03Water or pot on the glass over the controlClean the user interface
F1EThe connection between the display board and the left mainboard is fail (the cooking zone which indicator showing "E")1. Connection cable not correctly plugged or defective;2. Replace the Mainboard.
F3ECoil temperaturesensor failure.(the cooking zone which indicatorshowing "E")Replace the coil sensor
F4EMainboard temperature sensor failure.(the cooking zone which indicatorshowing "E")Replace the mainboard
E1ETemperature sensor of the ceramicglass plate is highPlease restart after the induction hob cools down.
E2ETemperature sensor of the IGBT is highPlease restart after the induction hob cools down.
E3EAbnormalsupply voltage(toohigh)Please inspect whether powersupply is normal;Power on after the powersupply is normal.
E4EAbnormalsupply voltage (too low)Please inspect whether powersupply is normal;Power on after the powersupply is normal.
E5ETemperature sensor failure(the cooking zone which indicatorshowing "E")Connectionable not correctly plugged or assemble defective;

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the supplier.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L(mm)W(mm)H(mm)D(mm)A(mm)B(mm)X(mm)
590520555056549550 mini

Under any circumstances, make sure the Ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760~mm .

A(mm) 760

B(mm) 50 mini

C(mm) 20 mini

D Air intake

E Air exit 5mm

Before you install the hob, make sure that

  • the work surface is square and level, and no structural members interfere with space requirements
    • the work surface is made of a heat-resistant material
  • if the hob is installed above an oven, the oven has a built-in cooling fan
  • the installation will comply with all clearance requirements and applicable standards and regulations
  • a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

  • the isolating switch will be easily accessible to the customer with the hob installed
  • you consult local building authorities and by-laws if in doubt regarding installation
  • you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

  • the power supply cable is not accessible through cupboard doors or drawers
  • there is adequate flow of fresh air from outside the cabinetry to the base of the hob
  • if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
    • the isolating switch is easily accessible by the customer

Before locating the fixing brackets

- The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

locating the fixing brackets

- The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Installation Diagram

Linarie Dax LIN60I3Z - Installation Diagram - 1

text_image SILICONE fig. 1 01 SILICONE

Cut the worktop to the dimensions shown (fig. 1) using suitable equipment.Seal the edge of the worktop with silicone or PTFE and allow to dry before installingthe hob.

Linarie Dax LIN60I3Z - Installation Diagram - 2

text_image fig. 2 [02] 02 [04x1]

Spread the gasket supplied along the bottom edge of the hob, ensuring that the ends overlap.

Linarie Dax LIN60I3Z - Installation Diagram - 3

text_image 03 fig. 3 fig. 4

Do not use glue to fix the hob to the worktop. Once the gasket is in place, position the hob in the cut-out in the worktop. Apply slight downward pressure on the hob to press it into the worktop, making sure that it is sealed around the outer edge (fig. 4)

Cautions

  1. The ceramic hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
  2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
  3. The ceramic hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
  4. The wall and induced heating zone above the table surface shall withstand heat.
  5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 1

text_image Safety warning sign showing cross and check symbols for a person with a battery

All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE ARTHED.

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 2

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

  1. the domestic wiring system is suitable for the power drawn by the hob.
  2. the voltage corresponds to the value given in the rating plate
  3. the power supply cable sections can withstand the load specified on the rating plate. To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 3

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 4

text_image L2 N2 N1 L1 Black Brown Green/Yellow Blue N L

N (Blue)

L (Brown/Black)

(Green/Yellow)

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 5

text_image 220-240V ① ② ③

220-240V 1N\~

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 6

text_image L2 N2 N1 L1 Black Brown Green/Yellow Blue N L2 L1

N (Blue)
L (Brown/Black)
(Green/Yellow)

Linarie Dax LIN60I3Z - Connecting the hob to the mains power supply - 7

text_image 220- 240V

220-240V/380-415V 2N\~

  • If the power cable is damaged or to be replaced, the operation must be carried out by the after-sale agent with dedicated tools to avoid any accidents.
  • If the appliance is being connected directly to the main power supply, the unipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
  • The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
    • The cable must not be bent or compressed.
    • The cable must be checked regularly and replaced by authorized technicians only.

DISPOSAL OF THE APPLIANCE

Linarie Dax LIN60I3Z - DISPOSAL OF THE APPLIANCE - 1

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive

2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

ARRANTY AFTER SALES SERVICE

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

In the event of a fault which you cannot remedy yourself, please contact Linärie.

arranty

The manufacturer's warranty for this appliance is 2 years.

After sales service

The contact details for Linärie are given at the beginning and of these instructions.

When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.

Record model serial number

Model:

Serial Number:.

Register your product www.linarie.com.au

Replacement of spare parts

Incorrect components can lead to personal injury or damage to the appliance. Use only genuine original Linärie spare parts.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

LIKE TO KNOW MORE?

For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:

Australia

hello@linarie.com.au

www.linarie.com.au

Follow Us

@Linarie.Appliances

Linarie Dax LIN60I3Z - LIKE TO KNOW MORE? - 1

© Linärie

Operating and installation instructions: Original √ Translation

Mart Online Services Pty Ltd. ACN 657 824 050

Linärie Contact hello@linarie.com.au www.linarie.com.au

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Linarie

Model : Dax LIN60I3Z

Category : Cooker
