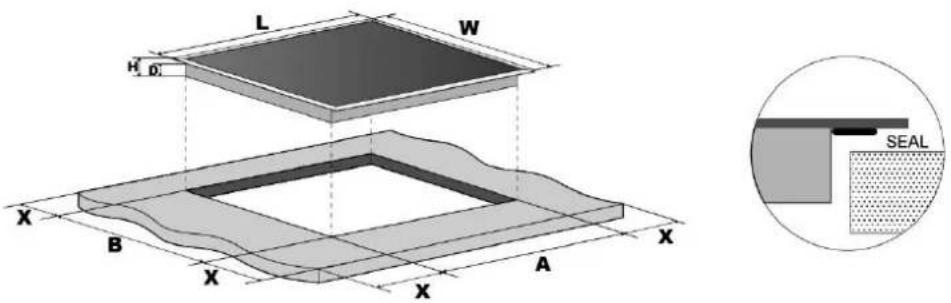

L W H 0' X B X A X SEAL

L(mm)	L(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900	520	52	43	860	490	50 minimum

Safety warning sign showing cross and check symbols for a person with a battery

N L N L N (Blue) L (Brown) ⊕ (Green/Yellow) 220-240V~

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions:

Original √ Translation

MKZ SALES

3 IMPASSE DES JARDINIERS

77400 LAGNY SUR MARNE

Linärie Contact

[e-mail]

www.linarie.fr

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

Melle

Ceramic Hob

LIN90C5Z

Linäre Proveni-12 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 Proveni-12 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0 8.0

Operation, Installation & Instruction Manual

CONGRATULATIONS

Congratulations and thank you for choosing Linärie to introduce a new comfort of cooking in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.

This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.

For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.

Record Model & Serial Number

Model

Serial Number ....

Register your product www.linarie.com.au

IMPORTANT

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury and property damage. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linărie's manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Correct Conditions of Use

• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• The appliance is not suitable for outdoor use, non-stationary installation.
• This product is used for cooking and extracting.

The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.

Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au

TABLE OF CONTENTS

Safety warnings	2
Product Over view	3
User interface	3
Product functions	3
Special functions	3
Before using your New Ceramic Hob	4
Using the Touch Controls	4
Choosing the right Cookware	4
Using your Ceramic Hob	5
Using Child Lock Function	5
Using The pause function:Stop&Go	6
Using the Keep Warm Function	6
Care and maintenance	7
Appliance cleanliness	7
Trouble shooting	8
Technical Specification	8
Installation	9
Before you install the hob,make sure that	10
When you have installed the hob,make sure that	10
Installation Diagram	11
Cautions	12
Connecting the hob to the mains power supply	12
This appliance requires a 32 Amp Miniature Circuit Breaker	12
DISPOSAL OF THE APPLIANCE	13
WARRANTY&AFTER SALES SERVICE	13

Safety warnings

Your safety is important to us. Please read this information before using your cooktop.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. children being supervised not to play with the appliance.

- A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

- A board is to be installed underneath the hob.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

- Warning: a steam cleaner is not be used.

- That the appliance is not intended to be operated by means of external timer or separated remote-control system.

- Danger of fire: Do not store items on the cooking surfaces.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

• Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

Product Over view

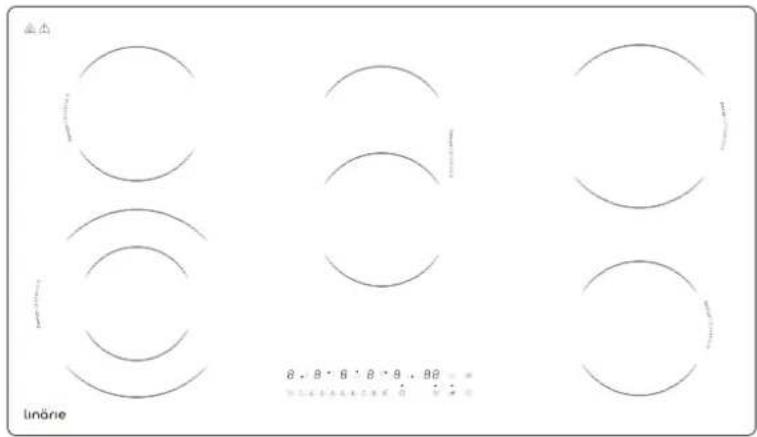

Top View

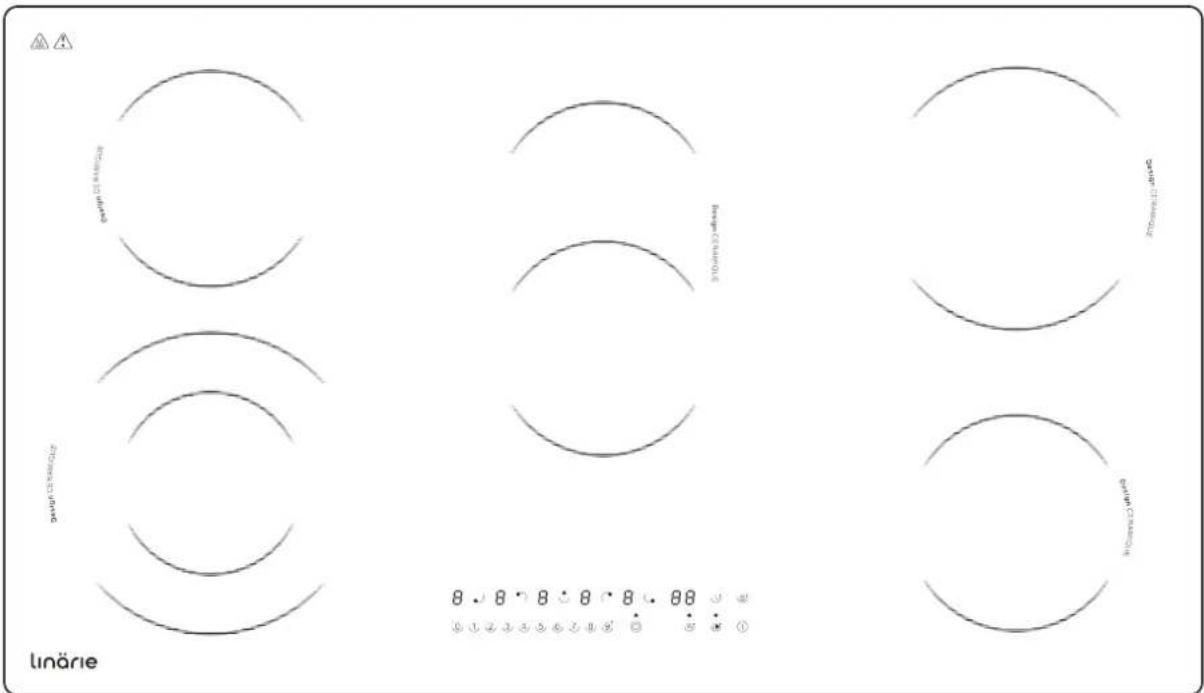

linörie 8. 8' 6' 8' 9. 88

Heating zone Power

Heating Zone	Power
	2200/1100
	1200W
	2000/1100
	1800W
	1200W

User interface

8 8 8 8 8 8 8 8 ① ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨+ ◎ ◎ ◎ ◎

Reference Description
A	8 ∪ 8 ∩ 8 ∪ 8 ∪	Zone select key
B	1	ON/OFF key
C	0 1 2 3 4 5 6 7 8 9+	Power Regulating Key(Level 0~9)
D	-0	Timer regulating key(reduce)
E	9+	Timer regulating key(increase)
F	◎	Child lock key
G	▶	Pause function
H	◎	Timer key
I	◎◎	Keep warm function

Product functions

The ceramic hob caters for all kind of cooking, with its radiant heat cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family.
The ceramic hob is extremely user-friendly, durable and safe.

Special functions

Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

Residual heat indicator

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you that it is too hot to touch the surface.

Auto Shutdown Protection

Auto shut down is a safety protection function for your ceramic hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:.

Power level	1~2	3~4	5	6~9
Default working timer (min)	360	300	240	90

Protection against unintended operation.

If the electronic control detects a button being held down for about 10 seconds, the controller sends an audible error signal warning the sensor to detect the presence of the object and displays the error code ER03. It will shut down automatically. When the object is removed, it will stop displaying and buzzing, and it can be rebooted.

Before using your New Ceramic Hob

• Read this guide, taking special note of the "Safety Warnings" section.
• Remove any protective film that may still be on your Ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don’t need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

Choosing the right Cookware

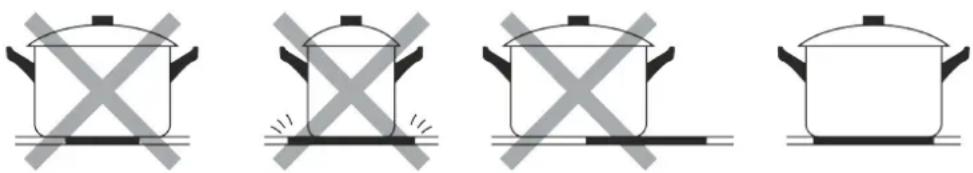

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed handles, shown in sequence (no text or symbols)

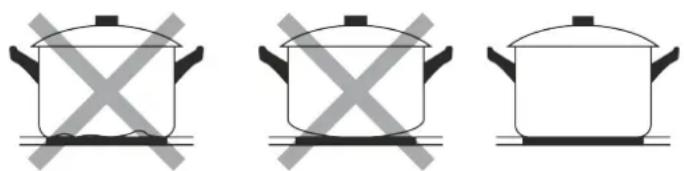

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Always center your pan on the cooking zone.

Four identical illustrations of a cooking pot with crossed handles, shown in different orientations (no text or symbols)

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

Two cooking pots with crossed arrows indicating pressure or movement (no text or symbols)

Using your Ceramic Hob

To start cooking

1. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface Of the cooking zone are clean and dry.

2. Touch the ON/OFF key for 3 seconds.

After power on, the buzzer beeps once, all displays show "0", indicating that the ceramic hob has entered the state of standby mode.

Line drawing of a cooking pot on a stand (no text or symbols)

1. According to the heating zone where the pan is placed, select a relevant zone select key by pressing key (A). The symbol 0. selected will be flashing.

2. Select heating by touching the power level key (C), you can adjust the power by pressing the power level button as you want.

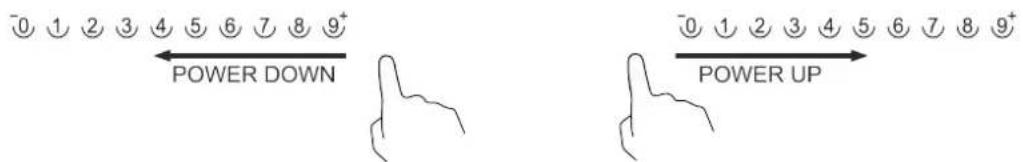

0 1 2 3 4 5 6 7 8 9+ POWER DOWN 0 1 2 3 4 5 6 7 8 9+ POWER UP

1. The power level will start at 0. Pressing the " + " will count up the power levels from 0 to 9 in numerical order. Pressing the " -" key will take the power straight from 9 to 0.

2. If you don't choose a heat setting within 60 seconds, the ceramic hob will automatically switch off. You will need to start again at step 2.

3. You can modify the heat setting at any time during cooking.

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the child lock key(F) 📋 To unlock the controls for 3 seconds. The timer indicator will show “Lo”

To unlock the controls

1. Touch and hold the key lock control for a while.
2. You can now start using your Ceramic hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

1. Select the relevant cooking zone which is working by touching the zone select key (A).

2. Press timer key(I) " ", timer indicator flashes, and you can set the timer at this point.

3. You can realize the setting of timing from 1 to 99 minutes by selecting the power level regulating key (I)

4. When the time is set, it will begin to count down immediately. The indicator will return to show power level after 5 seconds. The red dot next to power level indicator will illuminate indicating that zone has set timer.

5. If you need to check the remaining time, you can operate step 1 and step 2 again.

6. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

7. If you are not selecting any cooking zone at step 1. In this case, the timer will not turn any cooking zone off when the set time is up. The timer will work as minute minder under this operation.

Using The pause function: Stop & Go

The pause function can be used at any time during cooking. Allows Stop the induction hob and restore cooking without losing any adjustments.

1. Make Sure the cooking zone is running.

2. Press the Stop & Go 🎨 button. The Cooking zone indicators will show "II". The ceramic hob Will Be deactivated, except for the Stop & Go 🎨 , ON/OFF and Safe. ⏱

3. To Cancel the pause, press the Stop & Go will return to the power level you previously set.

Using the Keep Warm Function

When using the Keep Warm Function, all previous multi-ring setting will be recognized automatically.

Touch the cooking zone selection button that you want to cook the food by continuously heating with the settled low power.

Touch key(J) " 🔊" and the cooking zone indicator will show below icon:

1. Showing "A B" "B B" "B B" alternatively, which means the selected heating zone is under level A / b / c warm keeping and with only inner ring is on.

2. Showing "A B" "B B" "B B" alternatively, which means the selected heating zone is under level A / b / c warm keeping and with both middle and inner ring is on.

3. Showing "A B" "B B" "B B" alternatively, which means the selected heating zone is under level A / b / c warm keeping and with all rings working.

Care and maintenance

Warning

Alwaysswitchofftheelectricitysupplybeforeperformingmaintenancework. Intheeventofafault, contactcustomerservices.

Care

Damaged power cables should be replaced by a competent person or qualified electrician.

For domestic use only.

Never place an empty pan on the hob as this will cause an error message to appear on the control panel.

When a cooking zone has been on for a long time, the surface remains hot for some time afterwards so do not touch the ceramic surface.

For sealed foods, please do not heat them before opening removing the lid so as to avoid any dangers of explosion due to heating expansion.

If the surface of the hob is cracked, disconnect from power supply to avoid any possibility of electric shocks.

Do not place rough or uneven pans on the hob, as they could damage the ceramic surface.

Avoid banging pots and pans down on the hob. The ceramic surface is tough but not unbreakable.

Do not put detergents or flammable materials beneath the hob.

Appliance cleanliness

Caution

• Avoid rubbing with any abrasive or with the base of the pans, etc, as this will wear the markings on the top of the ceramic hob over time.
• Clean the ceramic hob on a regular basis to prevent the buildup of food residue.

The appliance should be cleaned after use.
The surface of the ceramic hob may be easily cleaned in the following way:

Type of dirt	Cleaning method	Cleaning materials
Lime scale	Apply white vinegar to the surface, then wipe it dry with soft cloth	Special ceramic cleaner
Burnt-on stains	Clean with damp cloth and dry it with a soft cloth	Special ceramic cleaner
Light stains	Clean with damp cloth and dry it with a soft cloth	Cleaning sponge
Melted plastics	Use a scraper suitable forceramic glass to remove residue	Special ceramic cleaner

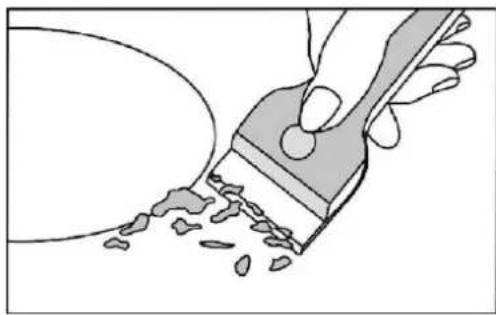

By means of a scraper immediately remove any aluminum foil bits, food spills, grease splashes, sugar marks and other high sugar content food from the surface in order to avoid damaging the hob. Subsequently clean then surface with some towel and appropriate product, rinse with water and dry by means of a clean cloth. Under no circumstance should sponges or abrasive cloths be used, also avoid using aggressive chemical detergents such as oven sprays and spot removers.

Illustration of a hand using a paintbrush to brush residue in a container (no text or symbols)

Trouble shooting

Before calling the customer services, please check that the appliance is correctly connected, any of the following cases are not covered by the guarantee

Damage caused by improper use, storage or maintenance.
Damage caused by unauthorized dismantling and repair.
Damage caused by misuse.
Use of the glass ceramic hob for commercial purposes.

If an abnormality comes up, the ceramic hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause	What to do
ER 03	Water or pot on the glass over the control	Clean the user interface
H	When in standby state "H" and "0" repeatedly display, when off: always display "H"	High temperature notice is the normal notice. It will disappear automatically when the temperature drops.
E	The temperature inside the produce was too high	Please contact the supplier to reconnect the thermocouple.
E7	The glass surface of the appliance is too hot	Stop and cooling the appliance

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob and please contact the supplier.

Technical Specification

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Cooking Hob	LIN90C5Z
Cooking Zones	4 Zones
Supply Voltage	220-240V~
Installed Electric Power	8400W(230V~)
Product Size L×W×H(mm)	900X520X52
Building-in Dimensions A×B (mm)	860x490

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H 0' X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900	520	52	43	860	490	50 minis

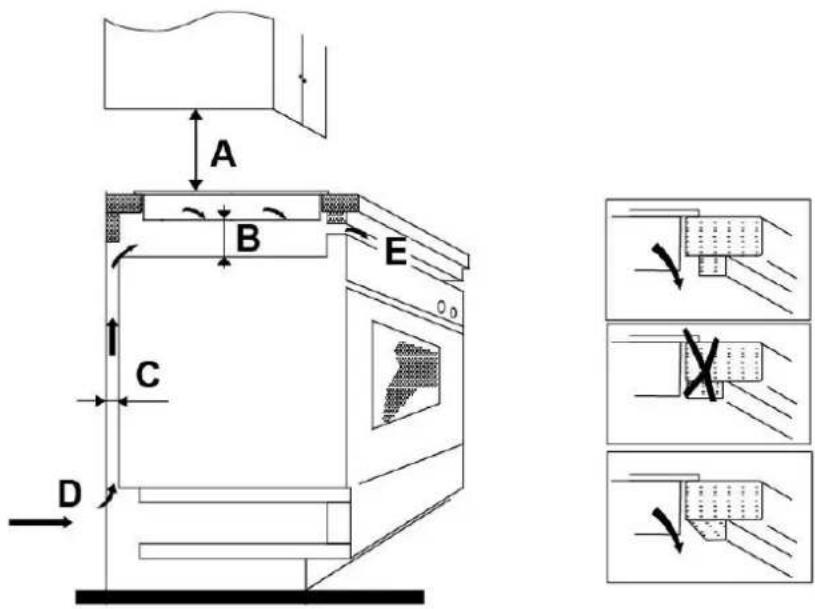

Under any circumstances, make sure the Ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 650 mm.

A B E C D

A(mm)	B(mm)	C(mm)	D	E
650	50 minis	20 minis	Air intake	Air exit 5mm

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
  • the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
  • there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
• the isolating switch is easily accessible by the customer

Installation Diagram

SILICONE fig. 1 01 SILICONE

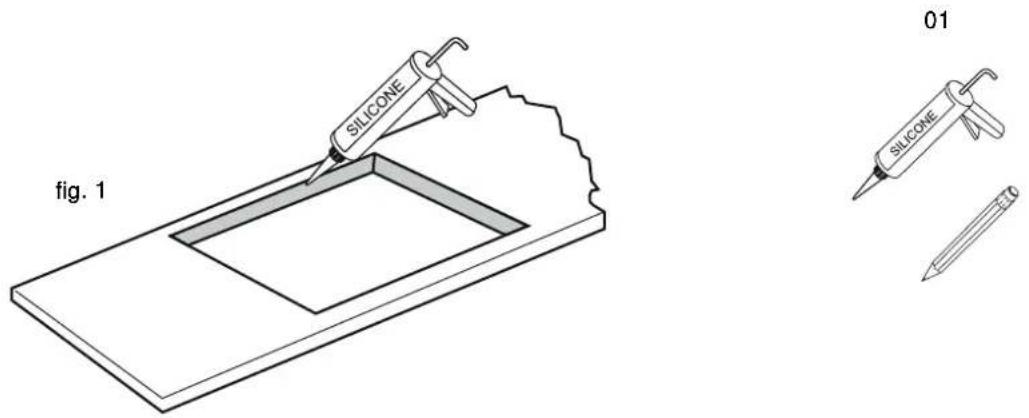

Cut the worktop to the dimensions shown (fig. 1) using suitable equipment.Seal the edge of the worktop with silicone or PTFE and allow to dry before installingthe hob.

fig. 2 [02] 02 [04x1]

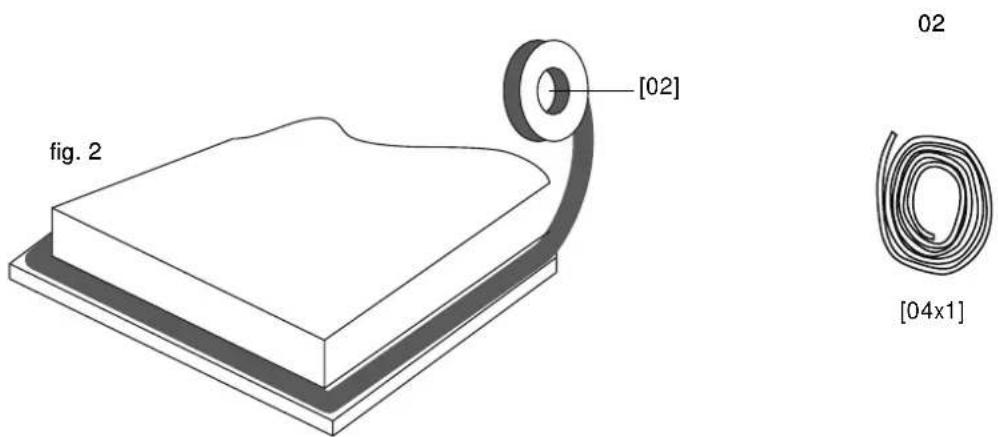

Spread the gasket supplied along the bottom edge of the hob, ensuring that the ends overlap.

03 fig. 3 fig. 4

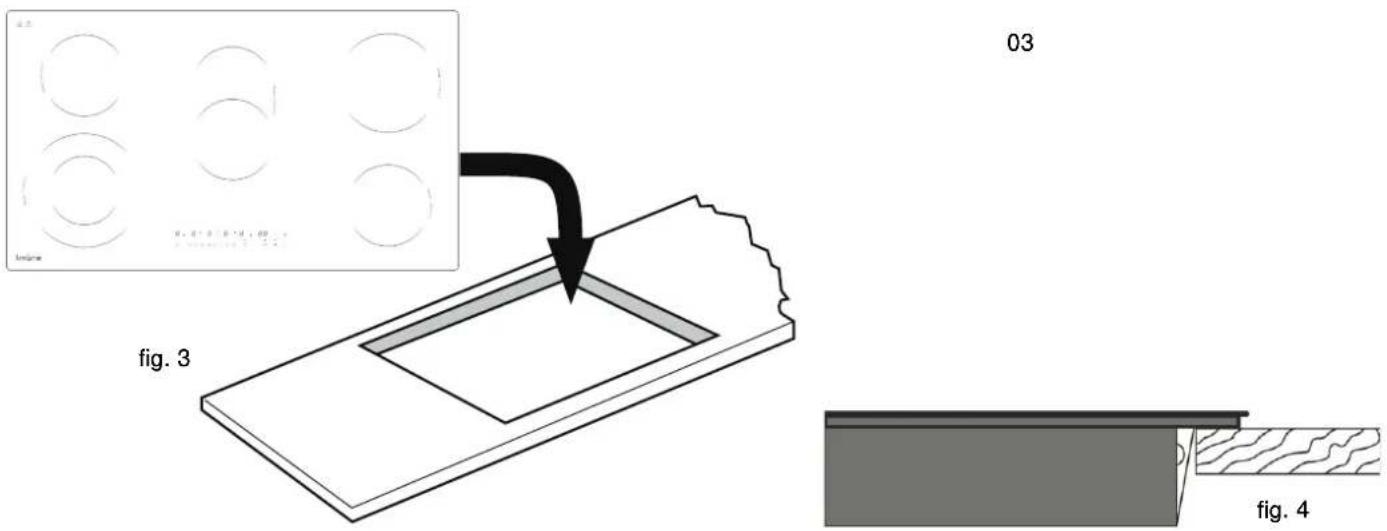

Do not use glue to fix the hob to the worktop. Once the gasket is in place, position the hob in the cut-out in the worktop. Apply slight downward pressure on the hob to press it into the worktop, making sure that it is sealed around the outer edge (fig. 4)

Cautions

1. The ceramic hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
3. The ceramic hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

Safety warning sign showing cross and check symbols for a person with a battery

All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE ARTHED.

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate. To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

This appliance is supplied with a 3 core mains cable colored as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow=E or Earth

N L N L N (Blue) L (Brown) ⊕ (Green/Yellow) 220-240V~

This appliance requires a 32 Amp Miniature Circuit Breaker.

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
  • The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.

DISPOSAL OF THE APPLIANCE

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive

2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WARRANTY & AFTER SALES SERVICE

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

In the event of a fault which you cannot remedy yourself, please contact Linärie.

Warranty

The manufacturer's warranty for this appliance is 2 years.

After sales service

The contact details for Linärie are given at the beginning and of these instructions.

When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.

Record model & serial number

Model:

Serial Number:

Register your product www.linarie.com.au

Replacement of spare parts

Incorrect components can lead to personal injury or damage to the appliance. Use only genuine original Linărie spare parts.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

LIKE TO KNOW MORE?

For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:

Australia

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions: Original √ Translation

Mart Online Services Pty Ltd. ACN 657 824 050

Linärie Contact [e-mail] www.linarie.com.au

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.
