USER MANUAL Rigny LIN39I2F Linarie

Diagram showing two hand positions on a line with checkmark and cross symbols indicating correct and incorrect states.

Three identical cooking pots with crossed-out kitchen panes, shown in different orientations (no text or symbols)

Four identical cooking pots with crossed handles and a horizontal line, shown in side-by-side illustrations (no text or symbols)

Two identical line drawings of a cooking pot with crossed handles and directional arrows, no text or symbols present.


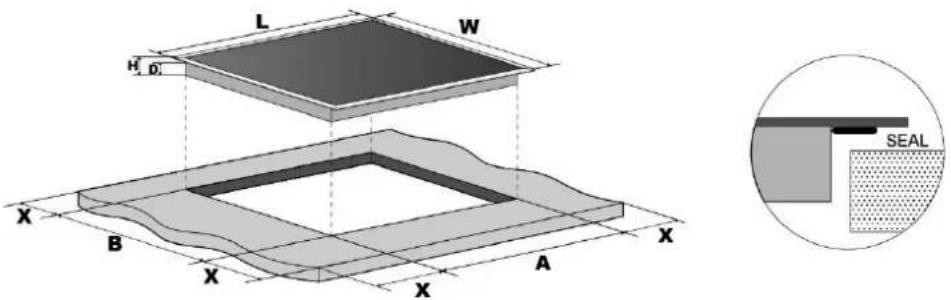

L W H D' X B X A X SEAL

L(mm)	L(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900	350	60	54	875	325	50 mini

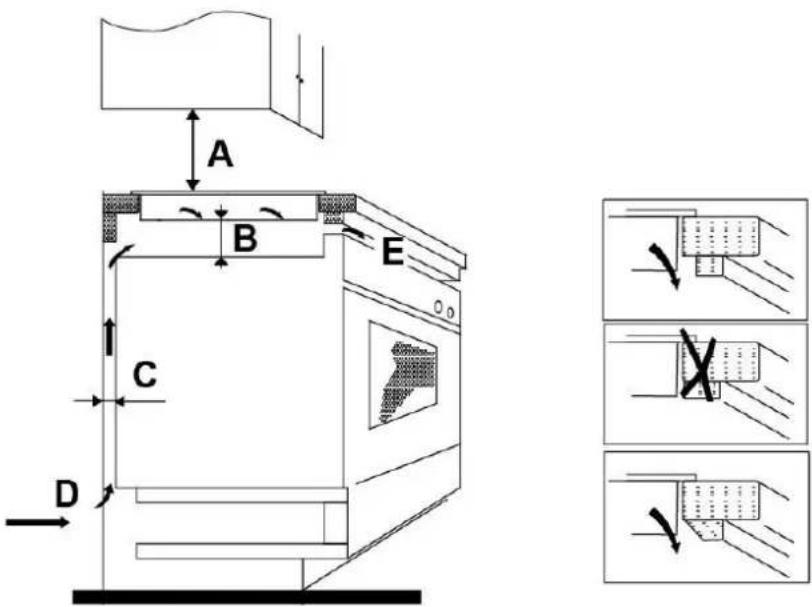

A B C D E O O

Safety warning sign showing correct and incorrect conditions for a person with a box hazard symbol

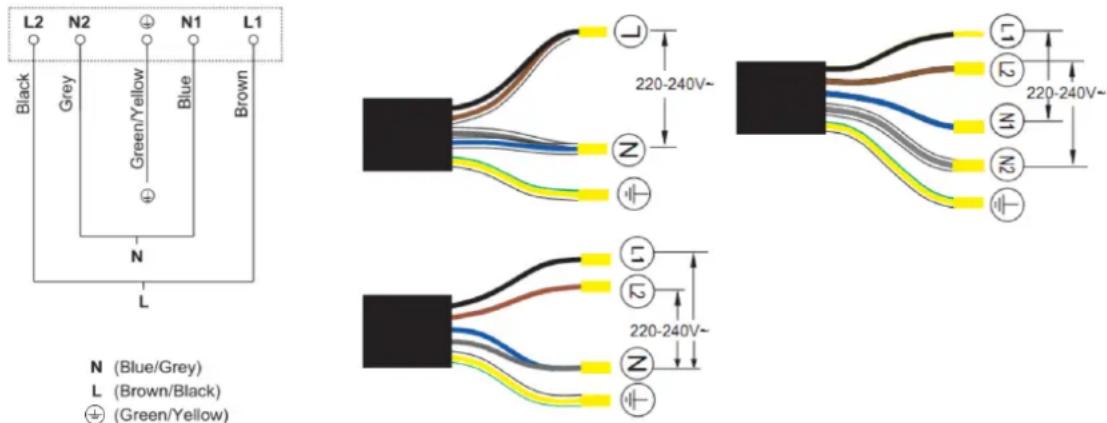

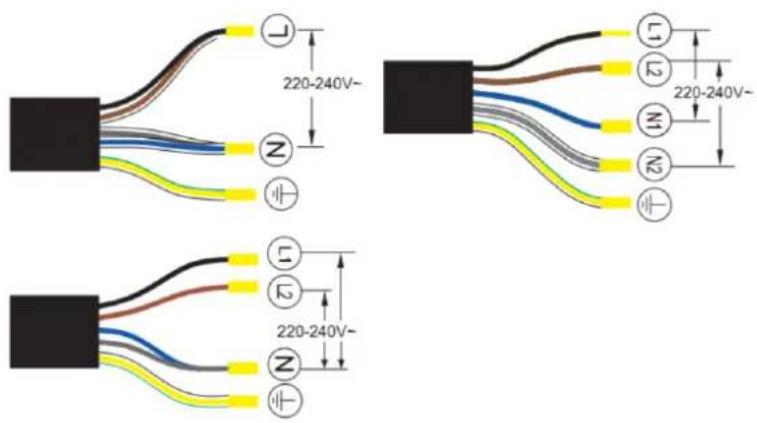

L2 N2 N1 L1 Black Grey Blue Brown Green/Yellow N L N (Blue/Grey) L (Brown/Black) (Green/Yellow)

220-240V~ 220-240V~ 220-240V~ 220-240V~

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions:

Original √ Translation

MKZ SALES

3 IMPASSE DES JARDINIERS

77400 LAGNY SUR MARNE

Linärie Contact

[e-mail]

www.linarie.fr

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

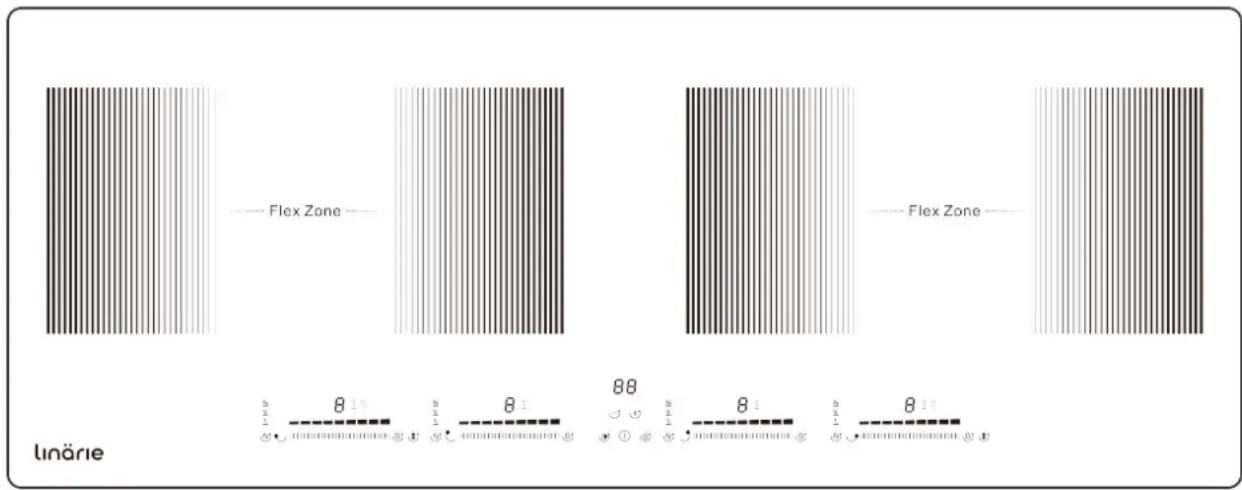

Rigny

Induction Hob

LIN39I2F

Flex Zone 88 8 8 8 8 Linäre

Operation, Installation & Instruction Manual

CONGRATULATIONS

Congratulations and thank you for choosing Linärie to introduce a new comfort of cooking in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.

This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.

For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.

Record Model & Serial Number

Model

Serial Number

Register your product www.linarie.com.au

IMPORTANT

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury and property damage. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linärie's manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Correct Conditions of Use

• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• The appliance is not suitable for outdoor use, non-stationary installation.
  • This product is used for cooking and extracting.

The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.

Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au

TABLE OF CONTENTS

Safety warnings 2

Product Over view 3

Heating zone Power.... 3

User interface....4

A Word on Induction Cooking....5

Before using your New Ceramic Hob.... 5

Using the Touch Controls....5

Choosing the right Cookware....6

Product functions....6

Special functions....6

Using your Ceramic Hob 7

Using the Boost function 7

Using Cooking Functions....8

Using Child Lock Function....8

Using the Timer....8

Using the Timer as an alarm....8

Setting the timer to switch off zones....9

Using the Pause function....9

FLEXIBLE AREA....9

To deactivate the smart flex function:.... 10

Normal Flex Zone Function: 10

Touse the flex zone Function.... 10

Failure Display and Inspection.... 10

Installation 11

Before locating the fixing brackets.... 12

locating the fixing brackets....12

Installation Diagram 13

Cautions 14

Connecting the hob to the mains power supply 14

Safety warnings

Your safety is important to us. Please read this information before using your cooktop.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. children being supervised not to play with the appliance.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• Warning: a steam cleaner is not be used

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

• After use, switch off the hob element by its control and do not rely on the pan detector.

- The appliance is not intended to be operated by means of external timer or separated remote-control system.

- Danger of fire: Do not store items on the cooking surfaces.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision.

- WARNING: The appliance and its accessible parts become hot during use.

- Care should be taken to avoid touching heating elements.

• Children less than 8 years of age shall be kept away unless continuously supervised.

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

- Power cord can't accessible after installation.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

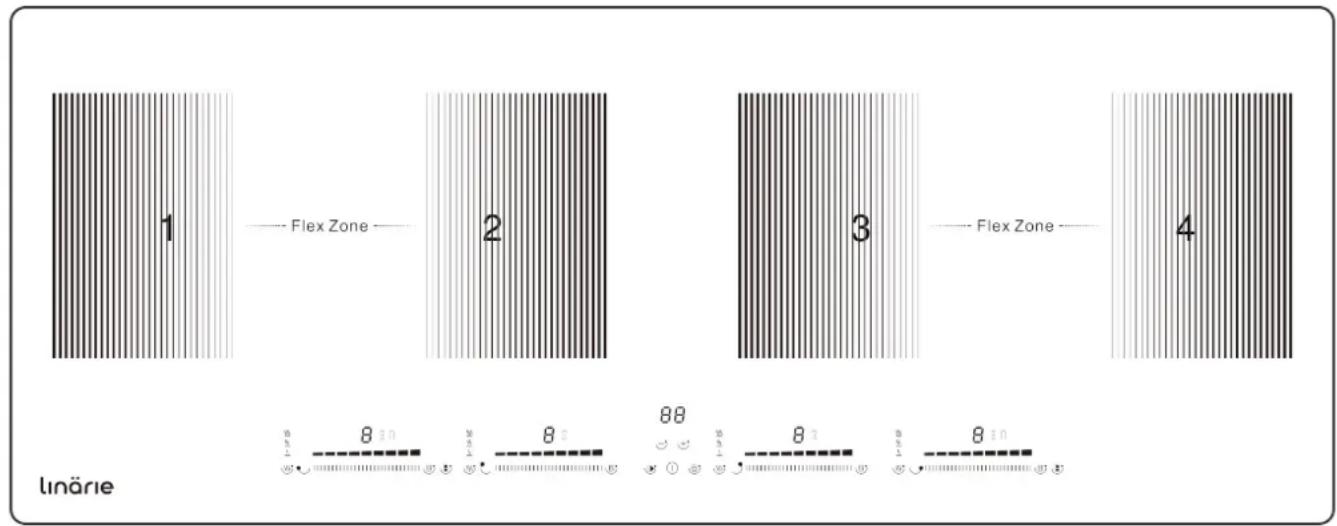

Product Over view

Top View

1 Flex Zone 2 3 Flex Zone 4 linäre

Heating zone Power

Heating Zone	L9/LP/Lb
1	1800 / 2100 /2300W
2	1200/1500/1800W
3	1200/1500/1800W
4	1800/2100/2300W
Frequency	50/60Hz~
Total	7400W

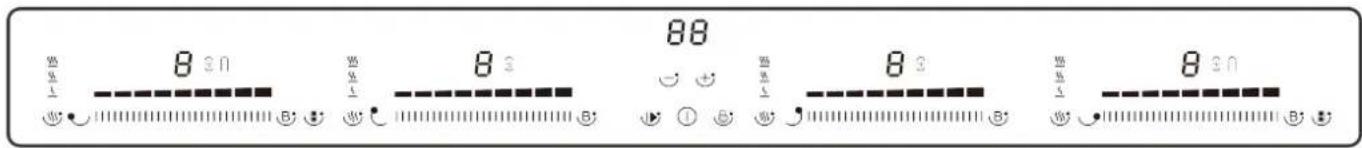

User interface

8 30 8 3 88 8 3 8 30

Reference		Description
A		Zone select key
B		ON/OFF key
C		Power slider regulating key
D		Timer control keys & Timer setting indicator
E		Boost control key
F		Child lock key
G		Pause key
H		Flex zone
I	[24K5]	Cooking functions key
J		Timer setting indicator
K		Power level indicator
L	[SWI]	Timer Indicator
M	[SIGN1]	Cooking functions indicator

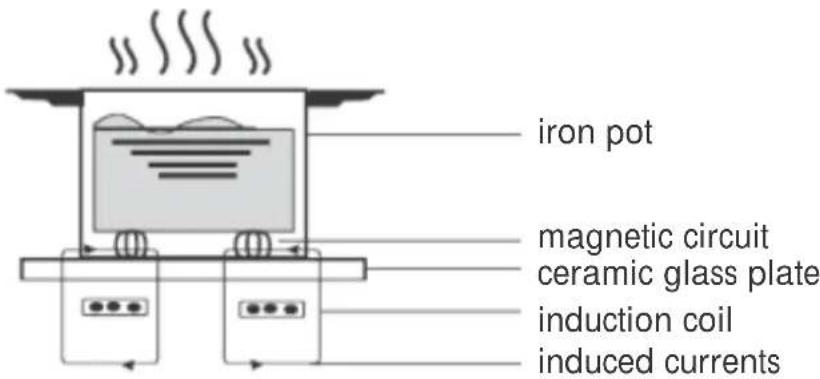

A Word on Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

iron pot magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Ceramic Hob

• Read this guide, taking special note of the "Safety Warnings" section.
• Remove any protective film that may still be on your Ceramic hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
  • Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

Choosing the right Cookware

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.
2. If does not flash in the display and the water is heating, the pan is suitable.
3. Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Choosing the right Cookware

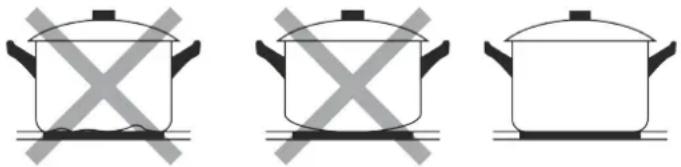

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected.

Always center your pan on the cooking zone.

Simple line drawing of a cooking pot with crossed x marks, no text or symbols present

Always lift pans off the ceramic hob - do not slide, or they may scratch the glass.

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

Product functions

The ceramic hob caters for all kind of cooking, with its radiant heat cooking zones and its electronic touch controls and multi-functions, making it the ideal choice for the modern family.
The ceramic hob is extremely user-friendly, durable and safe.

Special functions

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table: .

Power level	1~3	4~6	7~8	9
Default working timer (min)	360	180	120	90

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minute.

People with a heart pace maker should consult with their doctor before using this unit.

Using your Ceramic Hob

To start cooking

1. Touch the ON/OFF key (B) for 3 seconds. After power on, the buzzer beeps once, all displays show “ – ”, indicating that the induction hob has entered the state of standby mode.

2. Place a suitable pan on the cooking zone that you wish to use.

- Make sure the bottom of the pan and the surface. Of the cooking zone are clean and dry.

Line drawing of a cooking pot on a stand (no text or symbols)

1. According to the heating zone where the pan is placed, adjust heat setting by touching the slider regulating key (C) control.

POWER DOWN

POWER UP

- If you don't choose a heat setting within 20 seconds, the induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

If the display flashes ≥slant U ≤slant alternately with the heat setting

This means that:

- You have not placed a pan on the correct cooking zone or,

- The pan you're using is not suitable for induction cooking or,

- The pan is too small or not properly centred on the cooking zone. No heating takes place unless there is a suitable pan on the cooking zone. The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the slider regulating key(E) to decrease the power to “0” level.

2. Beware of hot surfaces “H” will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activated the boost function

1.1. Touching the relevant zone boost control key(E) Ⓑ for 1 sec, the zone indicator show “P1”.

1. If you want to enter Max power, pls touch and hold for 3 sec., the zone indicator show “P2” and the power reach Max.

Cancel the Boost function

Touching the slider regulating key(C) to cancel the Boost function, then the cooking zone will revert to the power level you wish.

• The function can work in any cooking zone.
• The cooking zone returns to level 9 after 5 minutes automatic.

Using Cooking Functions

You can choose 3 handy cooking functions by pressing the cooking functions key(G) ⚙ each time moves from one function to the other.

Power level indication Cooking function indication		Function
A	S	Melt or defrost (About 50°C)
B	SS	Heating or keeping warm (About 70°C)
C	SSS	Simmering,temperature close to boiling ,useful for slow cooking
D	N/A	Fry, oil temperature will keep (About 210°C)
E	N/A	Automatic boiling function (About 100°C)

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the child lock key(F) 📋 for 3 seconds. The indicator above the child lock key will be on and the timer indicator will show "Lo"

To unlock the controls

1. Touch and hold the key lock control for a while.
2. You can now start using your Ceramic hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as an alarm

1. After selecting the cooking zone and the power level required, the dot next to power level indicator will flash for 5 seconds.

6

1. When the dot stops flashing, touch the timer control key(D) ⊕ or ⊙, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or ”+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or ” +” control of the timer to decrease or increase by 10 minutes.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time, and the dot next to timer indicator will keep on flashing.

Buzzer will bips and the timer indicator will turn off when the setting time finished.

Setting the timer to switch off zones

1. Selecting the relevant cooking zone by touching the power slider regulating key to set the power lever you required the dot next to power level indicator will flash for 5 seconds.
2. Before the dot stops flashing, touch the timer control key(D) ⊕ or ⊙, you can realize the setting of timing from 1 to 99 minutes.
3. When the time is set, it will begin to count down immediately. The timer setting indicator will show the remaining time and the timer indicator ⚫ will flash for 5 seconds.
4. After that, if the indicator Ⓧ will keep on flashing meaning that the timer setting indicator shows the relevant zone remaining time until the timer expires; or else the indicator Ⓧ will keep on lighting until the timer expires.
5. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.
6. When using "the timer as an alarm" and "the timer to switch off the zones" together, the timer setting indicator will show the remaining time of alarm as first priority. Press power slider regulating key(C) of relevant cooking zone to show the remaining time of switch off timer.

Using the Pause function

The hob have a handy restart function to pause and restart the cooking process if you're interrupted.

1. When the hob is on and working, press the pause key(G) 🖼️, all burner will stop working, and all LED indicator will show the symbol "// " .
2. Press the pause key(G) 🖼 again, and touch any key except, all setting will restart at the previous setting.

FLEXIBLE AREA

The hob have a handy restart function to pause and restart the cooking process if you're interrupted.

• This area can be used as a single zone, according to the cooking needs anytime.
• Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, a cookware is moved from one zone to the other one within the flexible area, and keeping the same power level of the zone where the cookware originally was placed. The part that is not covered by cookware is automatically switched off.
• Important:
  Make sure to place the cookware centered on the front/rear single cooking zone. The ideal recipe is an oval or rectangular saucepan, or a grill pan.

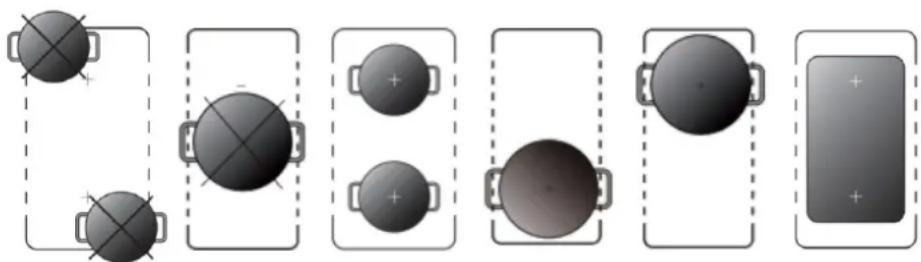

Examples of good pot placement and bad pot placement.

To deactivate the smart flex function:

1. When the smart flex function is working/ active, press the flex zone button(H) 📋 for 3 sec.and adjust the power manually. Then the smart flex function will be deactivated and the hob will work under normal flex zone function with same power level for all flex zone area.

2. Or you can press any slider to change the power level, it will simultaneously to deactivate smart flex function, the hob will work on individual burner and flex function is OFF.

Normal Flex Zone Function:

To activate the normal flex zone function:

1. Press the flex zone button(H) 📁 simultaneously to activate the smart flex zone function.

2. Adjust the power manually by slider then the smart flex function will be deactivated and the hob will work under normal flexzone function with same power level for all flex zone area.

To use the flex zone Function

1. To activate the flexible area as a single big zone, press the flex zone button for 3 sec.

2. The digital tube shows & .

3. According to the heating zone where the pan is placed, adjust heat setting by slider.

1. If the pot is moved from the front to the rear part (or viceversa), the flexible area detects automatically the new position, keeping the same power.

Failure Display and Inspection

Before calling the customer services, please check that the appliance is correctly connected, any of the following cases are not covered by the guarantee

Damage caused by improper use, storage or maintenance.
Damage caused by unauthorized dismantling and repair.
Damage caused by misuse.
Use of the glass ceramic hob for commercial purposes.

If an abnormality comes up, the ceramic hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause	What to do
	Nopot or pot not suitable	Replace the pot.
ER03	Water or pot on the glass over the control	Clean the user interface.
F1E	The connection between the display board and the left mainboard is fail (the cooking zone which indicator showing “E”)	1.Connection cable not correctly plugged or defective;2.Replace the Mainboard.
F3E	Coil temperature sensor failure. (the cooking zone which indicator showing “E”)	Replace the coil sensor.
F4E	Mainboard temperature sensor failure. (the cooking zone which indicator showing “E”).	Replace the mainboard.
E1E	Temperature sensor of the ceramic glass plate is high	Please restart after the induction hob cools down.
E2E	Temperature sensor of the IGBT is high	Please restart after the induction hob cools down.
E3E	Abnormal supply voltage (too high)	Please inspect whether power supply is normal; Power on after the power supply is normal.
E4E	Abnormal supply voltage (too low)	Please inspect whether power supply is normal; Power on after the power supply is normal.
E5E	Temperature sensor failure(the cooking zone which indicator showing “E”)	Connection cable not correctly plugged or assemble defective.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic hob and please contact the supplier.

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H D X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
900 3	50	60	54	875 3	25	50 mini

Under any circumstances, make sure the Ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B C D E

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
  • the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
• you consult local building authorities and by-laws if in doubt regarding installation
• you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
  • there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob
  • the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Installation Diagram

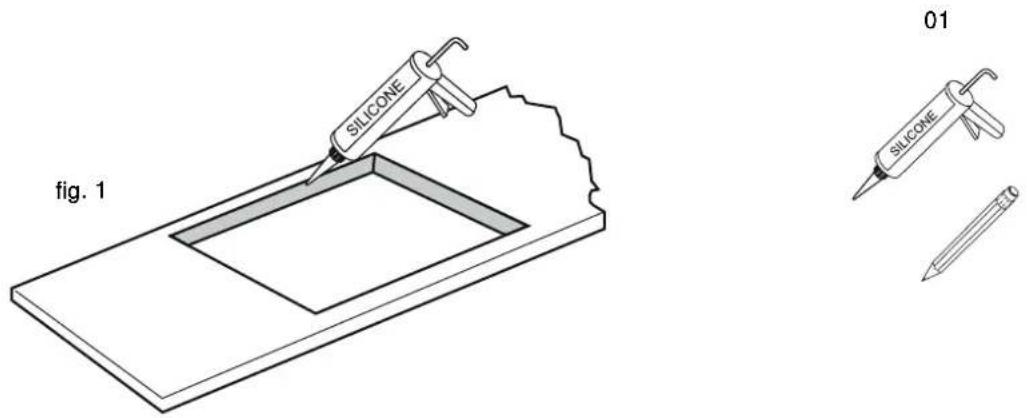

SILICONE fig. 1 01 SILICONE

Cut the worktop to the dimensions shown (fig. 1) using suitable equipment.Seal the edge of the worktop with silicone or PTFE and allow to dry before installingthe hob.

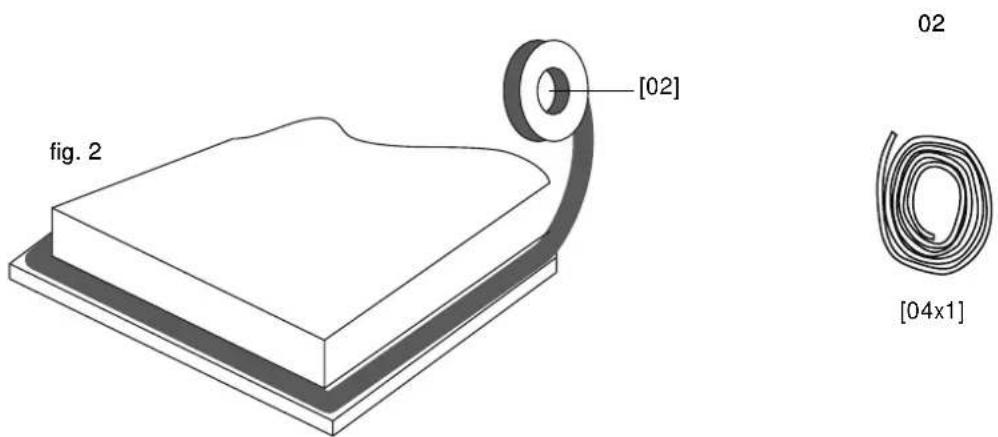

fig. 2 [02] 02 [04x1]

Spread the gasket supplied along the bottom edge of the hob, ensuring that the ends overlap.

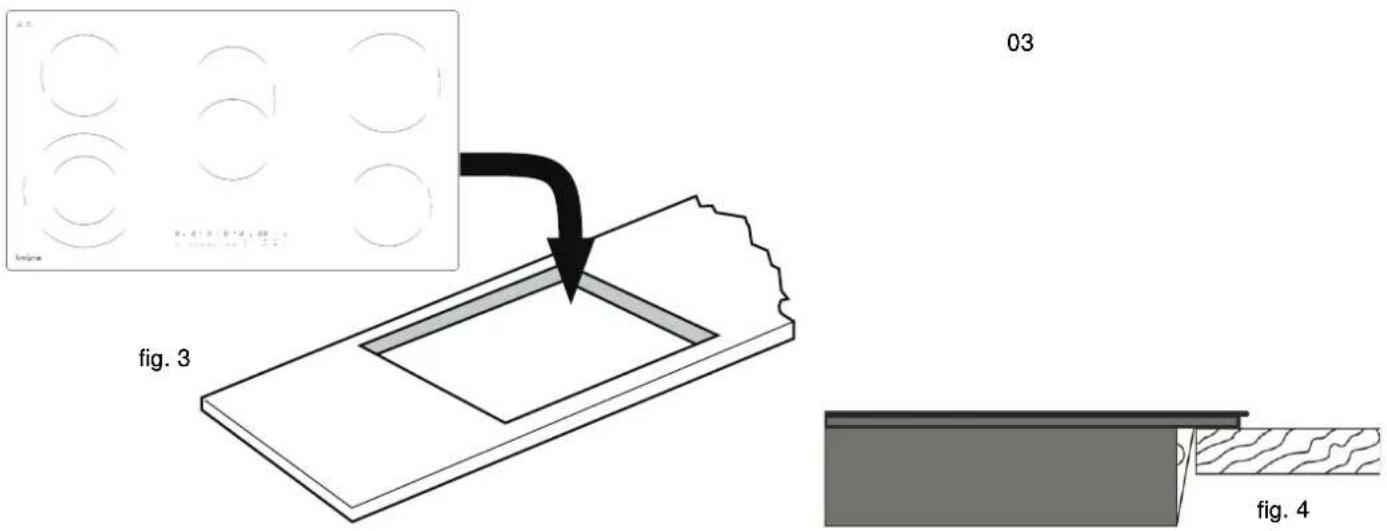

03 fig. 3 fig. 4

Do not use glue to fix the hob to the worktop. Once the gasket is in place, position the hob in the cut-out in the worktop. Apply slight downward pressure on the hob to press it into the worktop, making sure that it is sealed around the outer edge (fig. 4)

Cautions

1. The ceramic hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
3. The ceramic hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

Safety warning sign showing cross and check symbols for a person and a box, with a lightning bolt symbol indicating hazard.

All installation work must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate inside the cooker hood. Warning: THIS APPLIANCE MUST BE ARTHED.

This hob must be connected to the mains power supply only by a suitably qualified person. Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate.
   To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

L2 N2 N1 L1 Black Grey Blue Brown N L N (Blue/Grey) L (Brown/Black) ⊕ (Green/Yellow) 220-240V~ 220-240V~ 220-240V~ 220-240V~ Z ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉳ ㉴ ㉵ ㉶ ㉷ ㉸ ㉹ ㉺ ㉻ ㉼ ㉽ ㉾ ㉿ ㉒ ㉓ ㉔ ㉕ ㉖ ㉗ ㉘ ㉙ ㉚ ㉛ ㉜ ㉝ ㉞ ㉟ ㉟a ㉟b ㉟c ㉟d ㉟e ㉟f ㉟g ㉟h ㉟i ㉟j ㉟k ㉟l ㉟m ㉟n ㉟o ㉟p ㉟q ㉟r ㉟s ㉟t ㉟u ㉟v ㉟w ㉟x ㉟y ㉟z

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
• The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.

This appliance requires a 32 Amp Miniature Circuit Breaker.

DISPOSAL OF THE APPLIANCE

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive

2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WARRANTY & AFTER SALES SERVICE

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

In the event of a fault which you cannot remedy yourself, please contact Linärie.

Warranty

The manufacturer's warranty for this appliance is 2 years.

After sales service

The contact details for Linärie are given at the beginning and of these instructions.

When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.

Record model & serial number

Model:

Serial Number:

Register your product www.linarie.com.au

Replacement of spare parts

Incorrect components can lead to personal injury or damage to the appliance. Use only genuine original Linărie spare parts.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

LIKE TO KNOW MORE?

For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:

Australia

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions: Original √ Translation

Mart Online Services Pty Ltd. ACN 657 824 050

Linärie Contact [e-mail] www.linarie.com.au

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.
