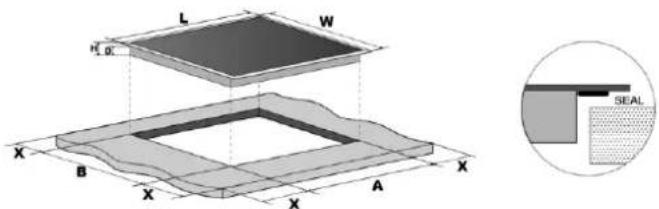

L W H X B X A X SEAL

L(mm)	L(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
290	520	60	56	265	495	50 mm au moins

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or discharge.

GARANTIE ET SERVICE APRÈS-VENTE

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions:

Original √ Translation

MKZ SALES

3 IMPASSE DES JARDINIERS

77400 LAGNY SUR MARNE

Linärie Contact

[e-mail]

www.linarie.fr

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.

Craon

Induction hob

LIN30I2Z

INDUCTION BOOSTER INDUCTION BOOSTER 88 8 8 linärie

Operation, Installation & Instruction Manual

CONGRATULATIONS

Congratulations and thank you for choosing Linärie to introduce a new comfort of cooking in your home. We are sure you will find your new appliance a pleasure to use and a great asset to your kitchen.

This appliance complies with all relevant safety requirements in Australia. Inappropriate use can, however, lead to personal injury and damage to property.

In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage. This user manual which provides you with all required instructions related to safety, installation, use and maintenance of the appliance.

For future reference, please store this booklet in a safe place and ensure that all users are familiar with the contents. Pass them on to any future owner of the appliance.

Record Model & Serial Number

Model

Serial Number

Register your product www.linarie.com.au

IMPORTANT

Adherence to the directions for use in this manual is extremely important for health and safety. Failure to strictly adhere to the requirements in this manual may result in personal injury and property damage. Products must be used, installed and operated in accordance with this manual. You may not be able to claim on Linärie's manufacturer's warranty in the event that your product fault is due to failure to adhere this manual.

Correct Conditions of Use

• The appliance is intended for use in the home and similar environments only. It is not intended for commercial use.
• The appliance is not suitable for outdoor use, non-stationary installation.
  • This product is used for cooking and extracting.

The electricity connection must be made by a qualified specialist. Installation must comply with the valid standards, regulations and laws. All safety and warning information and the operating and installation instructions must be complied with.

TABLE OF CONTENTS

SAFETY WARNINGS .... 3

PRODUCT OVERVIEW 4

ABOUT INDUCTION COOKING ....5

Using the Touch Controls....5

Choosing the right Cookware....6

Using your Induction Hob 7

Using the Boost function 7

Using Child Lock Function....8

Using the Timer....8

Using the Timer as a Minute Minder....9

Failure Display and Inspection....10

INSTALLATION 11

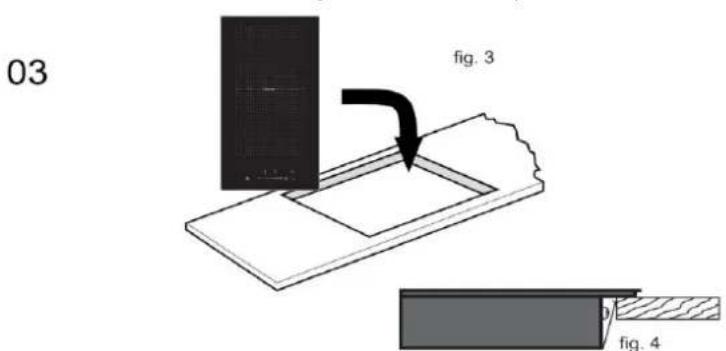

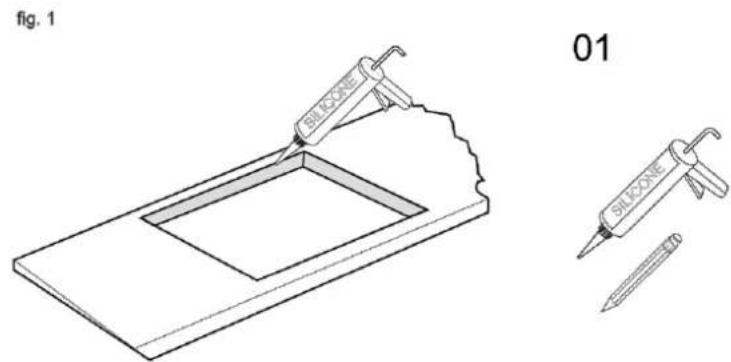

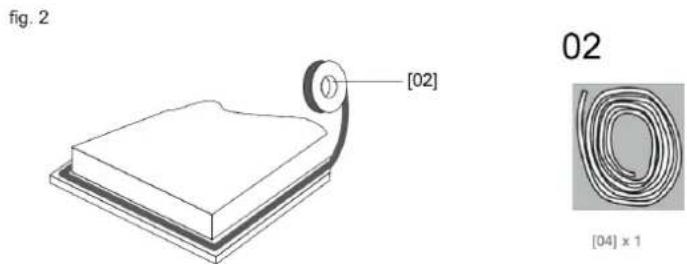

locating the fixing brackets....12

WARRANTY & AFTER SALES SERVICE 14

Additional information on products, accessories, warranty, replacement parts and services can be found at www.linarie.com.au

Safety Warnings

Your safety is important to us. Please read this information before using your cooktop.

√ The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. children being supervised not to play with the appliance.

√ Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

√ Warning: a steam cleaner is not be used.

√ Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

√ After use, switch off the hob element by its control and do not rely on the pan detector.

√ that the appliance is not intended to be operated by means of external timer or separated remote-control system.

√ Danger of fire: Do not store items on the cooking surfaces.

√ CAUTION: The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.

√ WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in a fire.

√ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

√ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. children shall not play with the appliance. cleaning and user maintenance shall not be made by children without supervision.

√ WARNING: The appliance and its accessible parts become hot during use.

√ Care should be taken to avoid touching heating elements.

√ Children less than 8 years of age shall be kept away unless continuously supervised.

√ WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

√ NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

√ CAUTION: The cooking process has to be supervised. A short-term cooking process has to be supervised continuously.

√ WARNING: Danger of fire: do not store items on the cooking surfaces.

√ WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

√ Power cord can't accessible after installation.

Product Overview

Top View

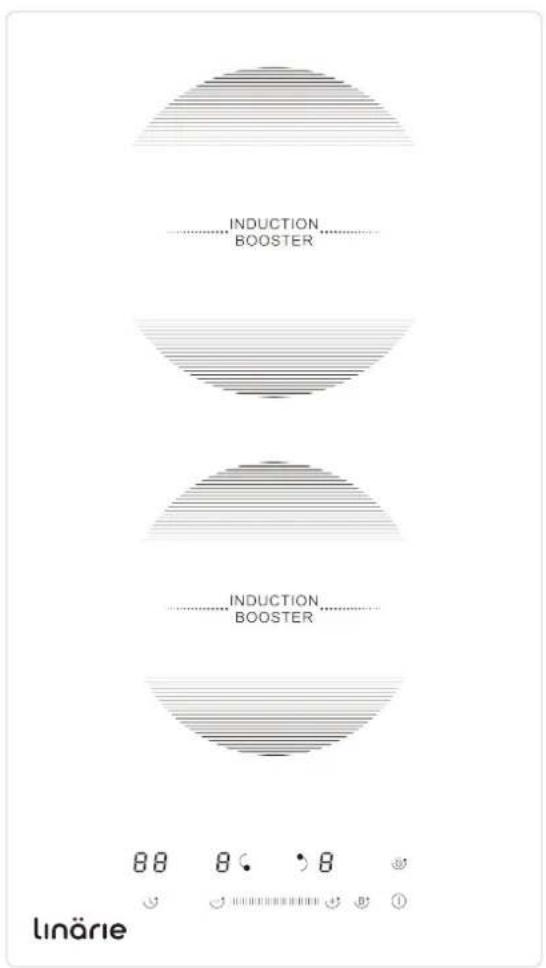

INDUCTION BOOSTER INDUCTION BOOSTER linärle

User interface

Pure electrical circuit lines without any symbols

Reference		Description
A		Zone selects key
B		Child lock key
C		ON/OFF key
D Power/Timer slider regulating key
E		Boost control key
F		Timer key/Pause key

Heating zone Power

Heating Zone	Maxpower (220-240V~ 50/60Hz)
	LIN30I2Z
	1500/1800W (Booster)
[KADB]	1200/1500W (Booster)
Total Rating Power	3500W

About Induction Cooking

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

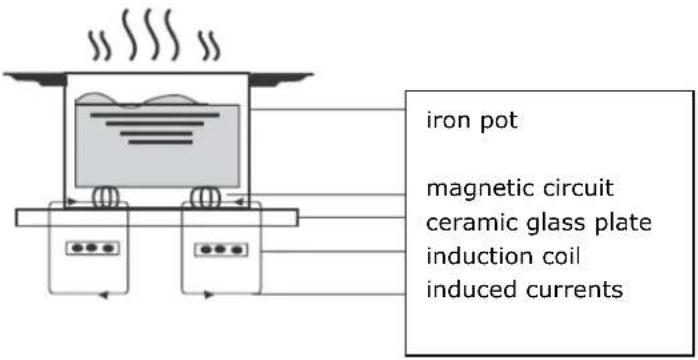

iron pot magnetic circuit ceramic glass plate induction coil induced currents

Before using your New Induction Hob

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.

• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with checkmark and cross symbols, likely indicating correct and incorrect states.

Choosing the right Cookware

- Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

- You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.

• If you do not have a magnet:

1. Put some water in the pan you want to check.

2. If does not flash in the display and the water is heating, the pan is suitable.

- Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Do not use cookware with jagged edges or a curved base.

Three cooking pots with crossed X marks, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob. Always center your pan on the cooking zone.

Four identical cooking pots with crossed X marks, shown in different orientations (no text or symbols)

Always lift pans off the Induction hob – do not slide, or they may scratch the glass.

Diagram showing two cooking pots with crossed arrows indicating heating or cooling process, likely illustrating a cooking or cooking setup.

Using your Induction Hob

To start cooking

1. Touch the ON/OFF key (A) for 3 seconds.

After power on, the buzzer beeps once, all displays show “−”, indicating that the induction hob has entered the state of standby mode.

1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and

the surface of the cooking zone are clean and dry.

1. According to the heating zone where the pan is placed, select a relevant zone select key by pressing "" key. The symbol 0. selected will stay fully it.

2. Adjust heat setting by touching the slider regulating key(D) control.

- If you don't choose a heat setting within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.

- You can modify the heat setting at any time during cooking.

If the display flash ≥slant ≤slant alternately with the heat setting

This means that:

- you have not placed a pan on the correct cooking zone or,

- the pan you're using is not suitable for induction cooking or,

- the pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the relevant zone select key(A)" that you wish to switch off.

2. Press the "-"key will decrease the power to "0" level, or press the "+" and "-" at the same time, the power level will decrease to 0 straight away.

3. Beware of hot surfaces" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Active the boost function

1. Select the heating zone by touching the zone select key (A).

2. Touching the boost control key(F), the zone indicator shows "P" and the power reach Max.

Cancel the Boost function

1. Touching the relevant zone select key(A) that you wish to cancel.

2. Touching the slider regulating key(D) to cancel the Boost function, then the cooking zone will revert to level 9.

- The function can work in any cooking zone.

- The cooking zone returns to level 9 after 5 minutes.

Using Child Lock Function

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the keylock control for 3 seconds. The timer indicator will show "Lo"

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminum), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically goes on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off you're cooking. The default working times for various power levels are shown in the below table:.

Power level	1~3	4~6	7~8	9
Default working timer (min)	360	180	120	90

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes.

People with a heart pace maker should consult with their doctor before using this unit.

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure at least one cooking is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Touch the Timer key(F). The minder indicator will start flashing and "10" will show in the timer display.

2. Set the time by touching the "- "or" +" control of the timer

Hint: Touch the "- "or" +" control of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.

Touching the “-” and “+” together, the timer is cancelled, and the timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time.

2. Buzzer will blip for 30 seconds and the timer indicator will turn off when the setting time finished.

Setting the timer to turn one or more cooking zones off

If the timer is set on one zone:

1. Select the relevant cooking zone which is working by touching the zone select key (A).

1. Press the Timer key(F), the timing indicator flashes, and you can set the timer at this point.

2. Using the "+" and "-" buttons, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or “+” control of the timer once will decrease or increase by 1 minute.

Touch and hold the"- "or "+" control of the timer will decrease or increase by 10 minutes.

Touching the"- "and "+" together, the timer is cancelled, and the timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically. Other cooking zone will keep operating if they are turned on previously.

2. when using "the timer as an alarm" and "the timer to switch off the zones" together, the display will show the remaining time of alarm as first priority. Press cooking zone to show the remaining time of switch off timer.

Failure Display and Inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause	What to do
U	No pot or pot not suitable;	Replace the pot;
ER03	Water or pot on the glass over the control	Clean the user interface
F1E	The connection between the display board and the left mainboard is fail (the cooking zone which indicator showing “E”)	1.Connection cable not correctly plugged or defective;2.Replace the Mainboard.
F3E	Coil temperature sensor failure. (the cooking zone which indicator showing “E”)	Replace the coil sensor
F4E	Mainboard temperature sensor failure. (the cooking zone which indicator showing “E”)	Replace the mainboard
E1E	Temperature sensor of the ceramic glass plate is high	Please restart after the induction hob cools down.
E2 E	Temperature sensor of the IGBT is high	Please restart after the induction hob cools down.
E3 E	Abnormal supply voltage (too high)	Please inspect whether power supply is normal; Power on after the power supply is normal.
E4 E	Abnormal supply voltage (too low)	Please inspect whether power supply is normal;Power on after the power supply is normal.
E5 E	Temperature sensor failure (the cooking zone which indicator showing “E”)	Connection cable not correctly plugged or assemble defective;

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the supplier: [e-mail]

Installation

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H, G: X B X A X SEAL

L(mm)	W(mm)	H(mm)	D(mm)	A(mm)	B(mm)	X(mm)
290	520	60	56	265	495	50mm minimum

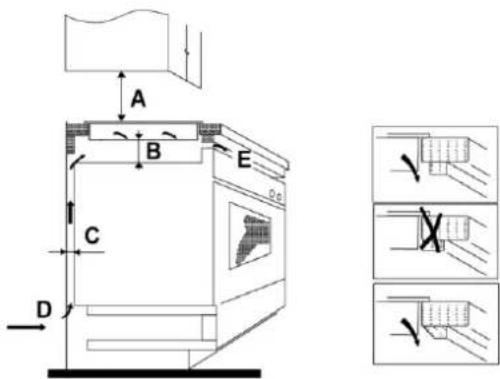

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B C D E

A(mm)	B(mm)	C(mm)	D	E
760	50mm minimum	20mm minimum	Air intake	Air exit 5mm

Before you install the hob, make sure that

• the work surface is square and level, and no structural members interfere with space requirements
  • the work surface is made of a heat-resistant material
• if the hob is installed above an oven, the oven has a built-in cooling fan
• the installation will comply with all clearance requirements and applicable standards and regulations
• a suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements)

• the isolating switch will be easily accessible to the customer with the hob installed
- you consult local building authorities and by-laws if in doubt regarding installation
- you use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• the power supply cable is not accessible through cupboard doors or drawers
• there is adequate flow of fresh air from outside the cabinetry to the base of the hob
• if the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob to avoid touching the bottom of the hob.
  • the isolating switch is easily accessible by the customer

Before locating the fixing brackets

The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

locating the fixing brackets

- The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

fig. 1 01

Cut out worktop to supplied dimensions shown (fig. 1) with suitable equipment. Seal the cutedge of the worktop using silicone or PTFE and allow to dry prior to fitting the hob.

fig. 2 [02] 02 [04] x 1

Stretch out the supplied seal along the underside edge of the hob, ensuring the ends overlap.

03 fig. 3 fig. 4

Do not use adhesive to fix the hob into the worktop. Once the seal is fitted position the hob into the cutout in the worktop. Apply gentle downwards pressure onto the hob to push it into the worktop ensuring a good seal around the outer edge (fig.4)

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. the domestic wiring system is suitable for the power drawn by the hob.
2. the voltage corresponds to the value given in the rating plate
3. the power supply cable sections can withstand the load specified on the rating plate.
   To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.
   The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

Connecting the hob to the mains power supply

Power plug option (default, limited to max. input power of 3500W)

As shown in illustration, please plug the power cord into the outlet.

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains a monopolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
  • The cable must not be bent or compressed.
• The cable must be checked regularly and replaced by authorized technicians only.
  This appliance requires a 16 Amp Miniature Circuit Breaker.

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WARRANTY & AFTER SALES SERVICE

Observe all safety and warning information during operation (see the "General Safety Instructions" section).

In the event of a fault which you cannot remedy yourself, please contact Linärie.

Warranty

The manufacturer's warranty for this appliance is 2 years.

After sales service

The contact details for Linärie are given at the beginning and of these instructions.

When contacting Linärie, please quote the model and serial number of your appliance. These can be found on the data plate, after removing the grease filter.

Record model & serial number

Model:

Serial Number:

Register your product www.linarie.com.au

Replacement of spare parts

Incorrect components can lead to personal injury or damage to the appliance. Use only genuine original Linärie spare parts.

Modifications, additions or alterations to the appliance can lead to safety risks. If spare parts or accessories from other manufacturers are used, the warranty will be invalidated, and Linärie cannot accept liability.

Please check www.linarie.com.au for more information.

LIKE TO KNOW MORE?

For further information on all Linärie appliances, or to obtain detailed dimension and installation information, phone or email our Customer Care team or visit our website:

Australia

[e-mail]

www.linarie.com.au

Follow Us

@Linarie.Appliances

© Linärie

Operating and installation instructions: Original √ Translation

Mart Online Services Pty Ltd. ACN 657 824 050

Linärie Contact [e-mail] www.linarie.com.au

The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised.

These operating and installation instructions have been drawn up with the greatest of care. But it cannot be ruled out that subsequent technical modifications have not yet been incorporated or the relevant content has not yet been adapted. Please accept our apologies in this eventuality. An updated version can be requested from our team. Subject to printing errors and mistakes.

© Linärie

All rights reserved.
