USER MANUAL HFK-3301-24 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

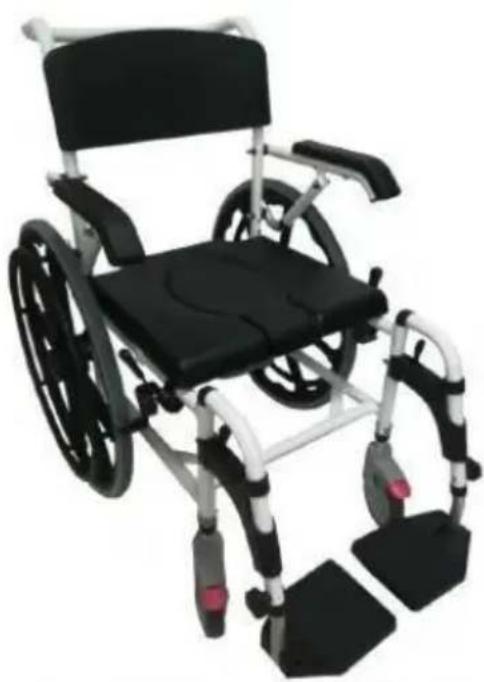

Bathroom Wheelchairs

MODEL: HFK-3301-24

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HFK-3301-24

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Note: When you open the packing box, please take care to prote the spare parts in the box. If assembled on the ground, put the or carpet on the ground first to prevent scratching. Please pay attention to distinguish the spare parts, and then put them well.

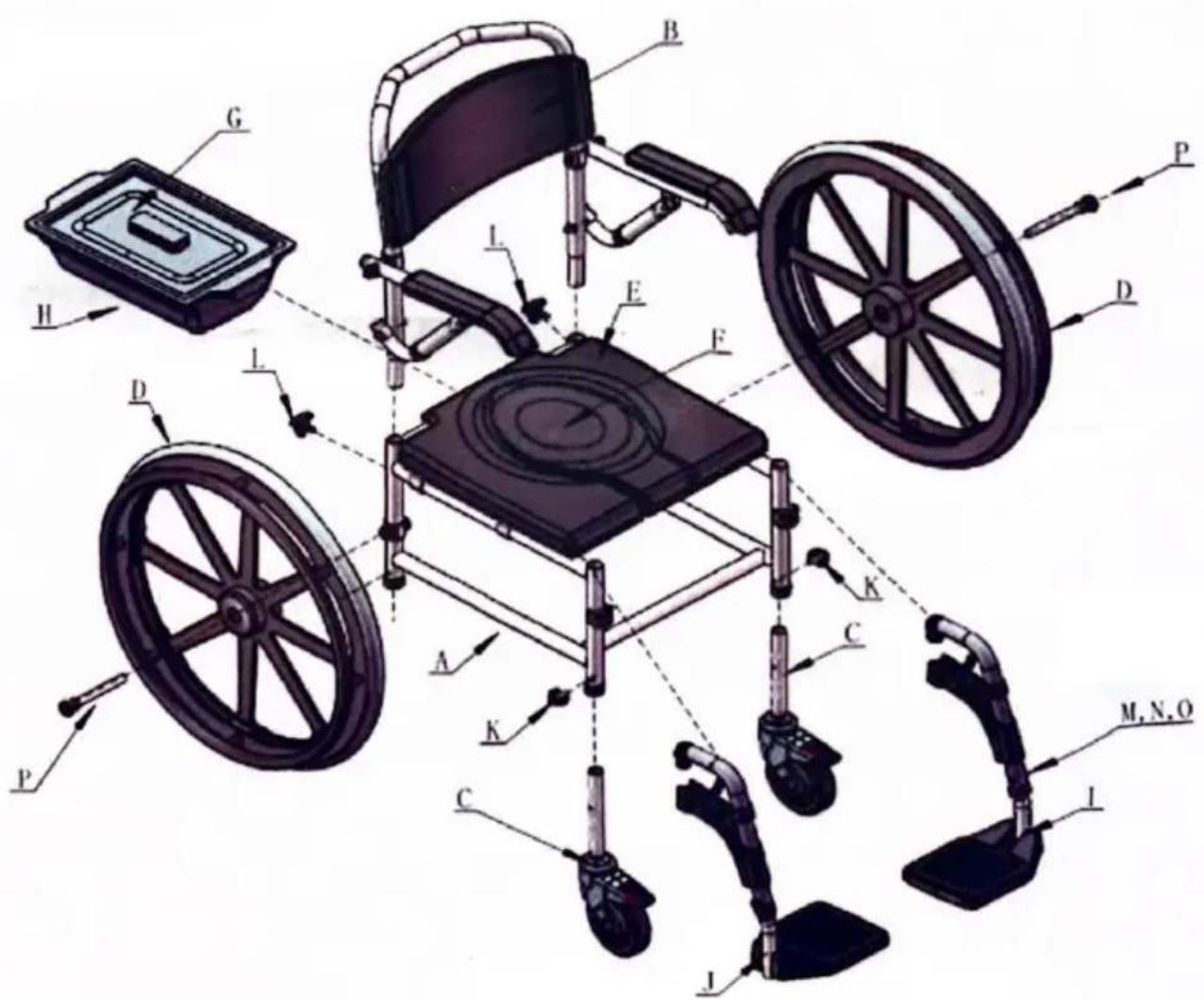

Part List
No.	Picture	Name	QTY.
A		Main Frame	1
B		Backrest Set	1
C		Casters	2+2
D		Drive Wheels	2
E		Seat Pad Set	1
F		Seat Lid	1
G		Bucket Lip	1
H		Bucket	1
I		Left Footrest	1
J		Right Footrest	1
K		C-shaped Buckle (Installed on Main Frame)	2
L		M8 Screw (Installed on Main Frame)	2
M		M6 Screw (Installed on Footrest)	2
N		Shim-Screw (Installed on Footrest)	2
O		Screw (Installed on Footrest)	2
P		Quick Release Device	2
Q		Blet	1
Tip: “+” is extra spare parts.

Assembly Description

1. Open the carton, take out all the parts, and check whether all the p are intact.

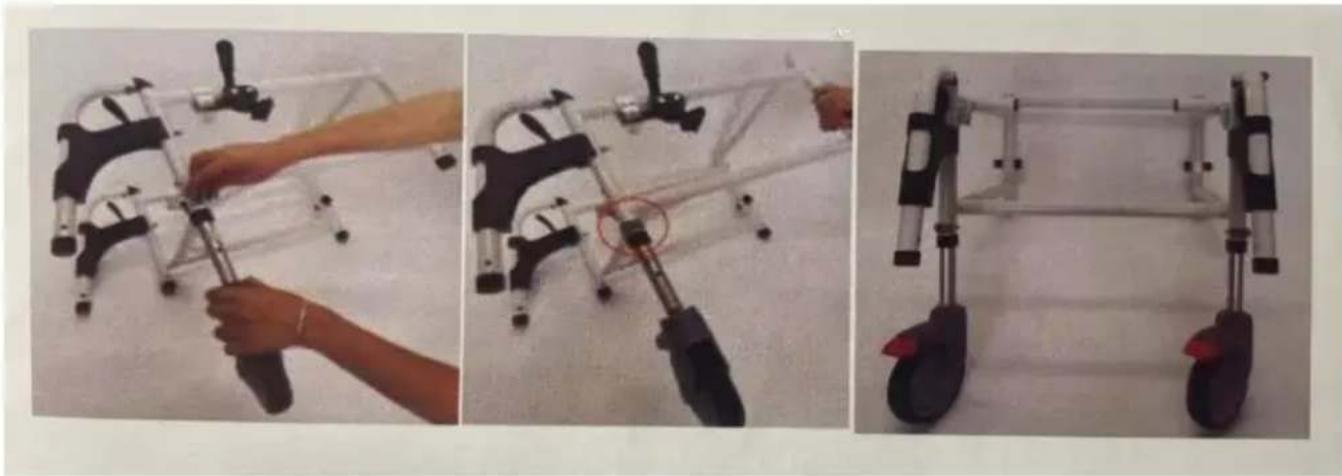

Caster assembly: lay down the mainframe and insert the caster moun rod into the white tube, then press c-clip to fix it. Repeat this step another caster. (Accessories to use: C-shaped buckle)

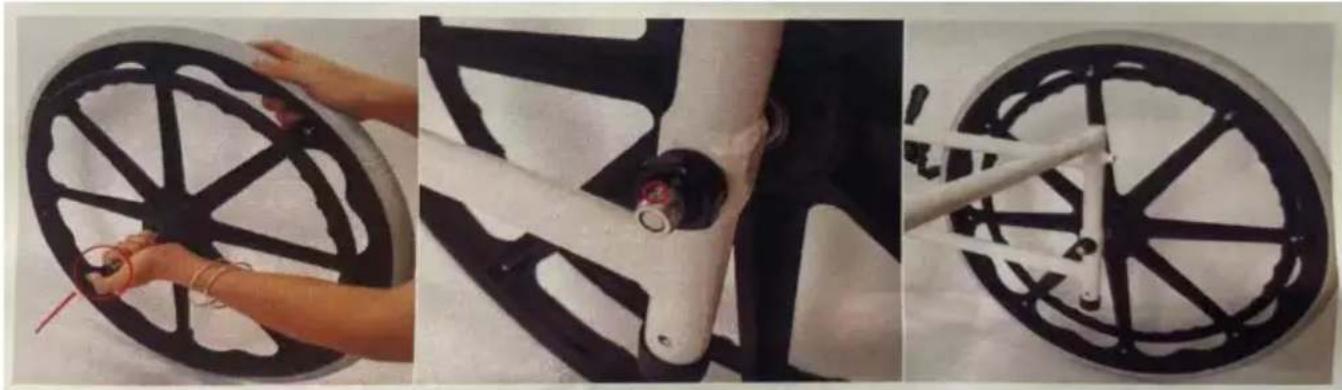

2.Drive wheel assembly: firstly press the quick release device and slic into the center of the drive wheel, then insert it into the hole in the the mainframe. Make sure that the push pin has been locked and th hand-wheel is on the outside. (To remove the rear wheel, press and the quick release device at the center of the wheel.)

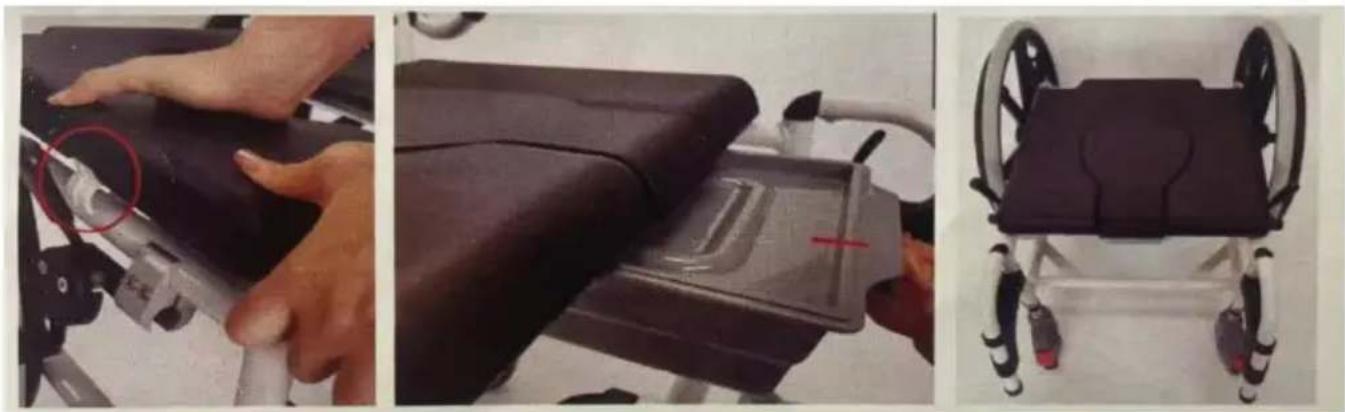

1. Seat assembly: after installing all the front and rear wheels, put the product upright. Install the seat and slide the bucket in place.

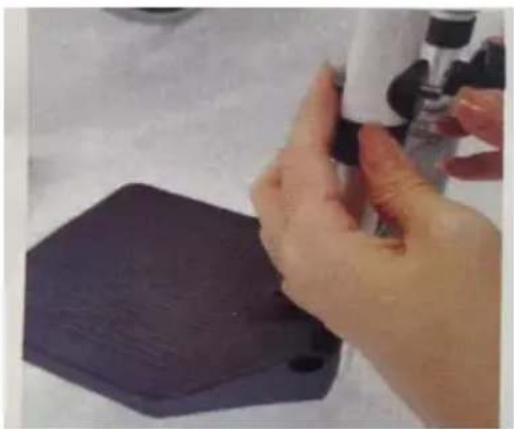

4.Footrest assembly: align the left and right foot removal components the pipe holes in front of the seat frame, then press down and lock (Accessories to use: screw, shim screw, M6 screw)

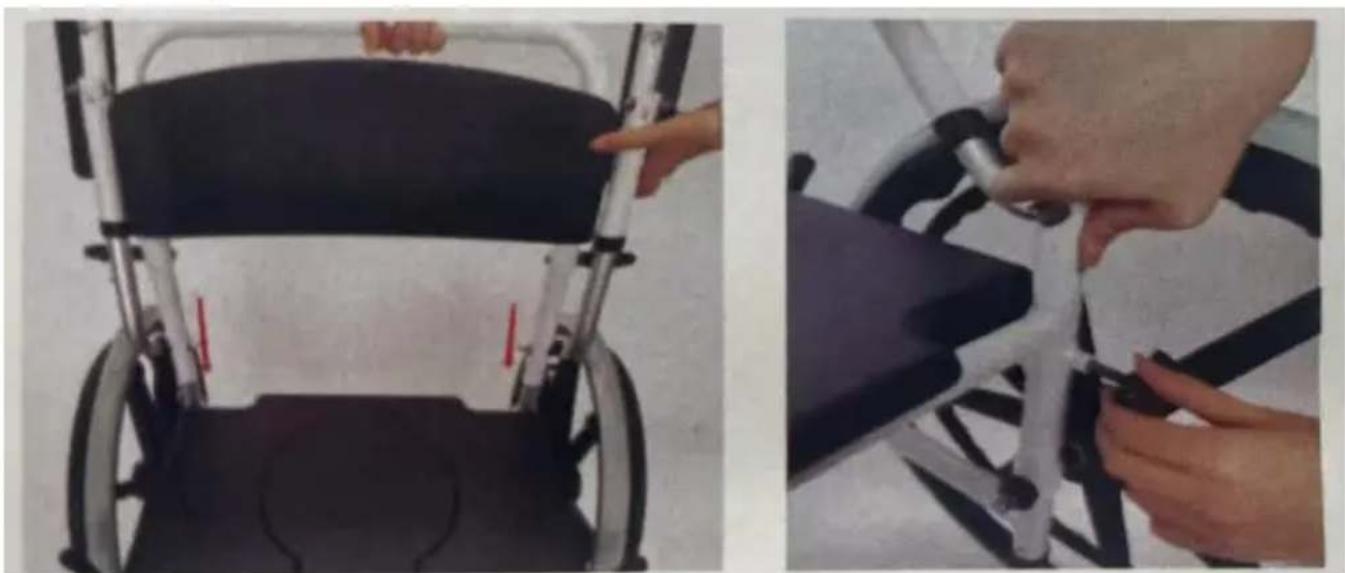

5.Backrest assembly: align the backrest set with the pine holes in the and then press M8 screw to fix it.

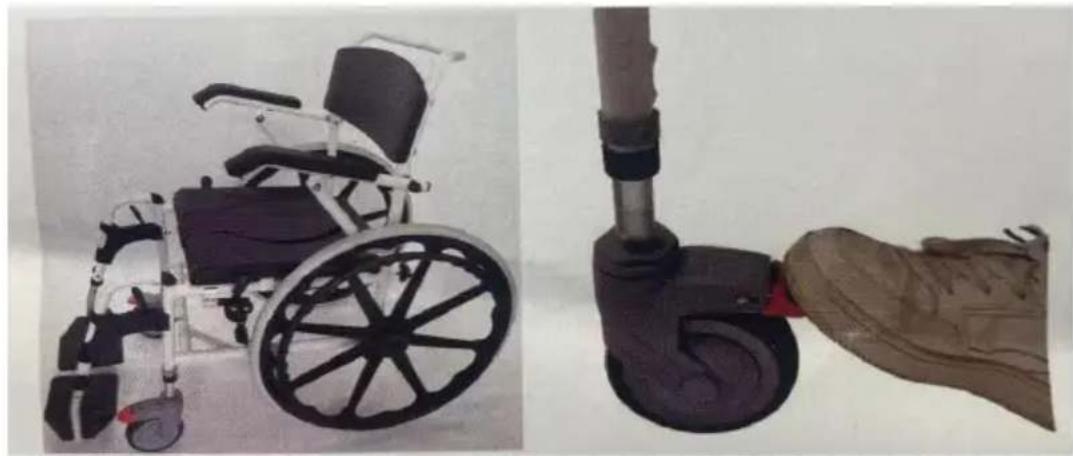

1. At this point, congratulations on completing all installation steps of the product. Press the red brake on the front wheel or pull up the brake on the rear wheel to fix the brake.

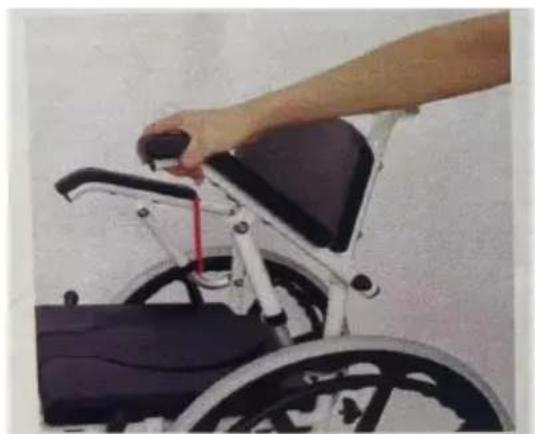

7.The armrests are foldable.

Change Wheel

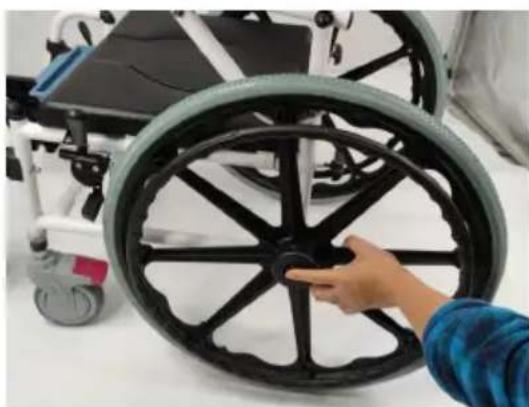

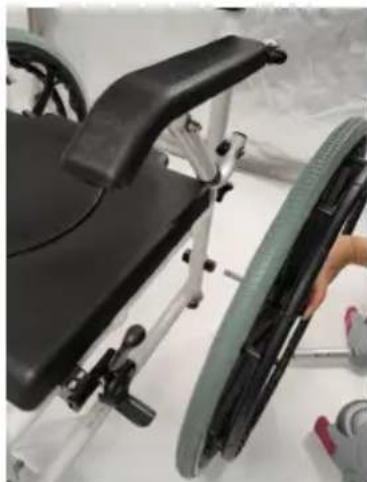

1. Press and hold the quick release device at the center of the driv then pull out the wheel.

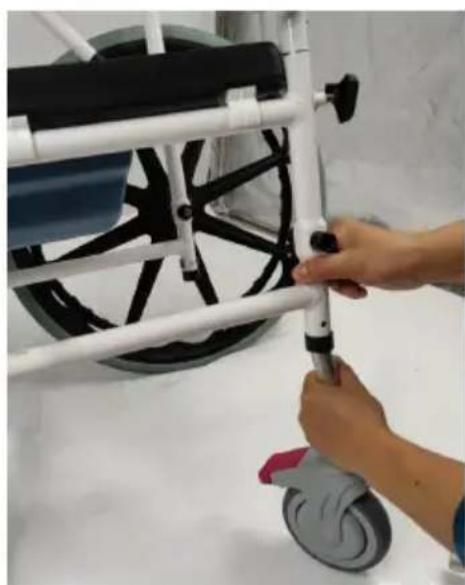

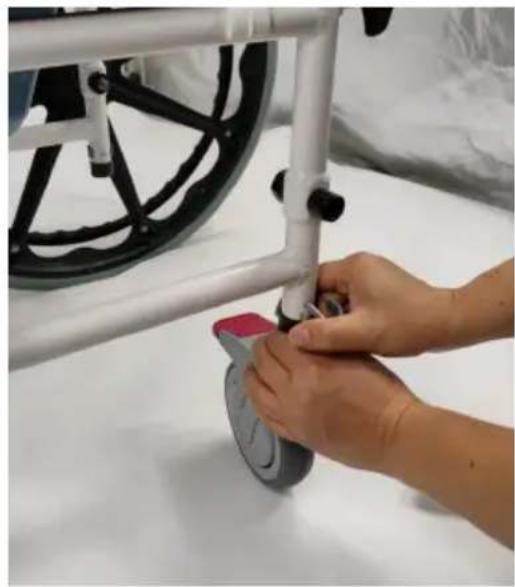

1. Insert the caster mounting rod into the tube and install the latch.

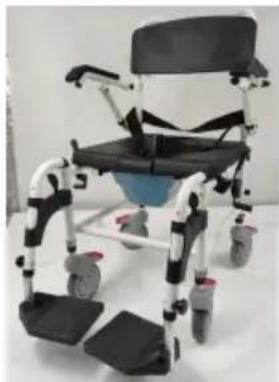

1. Follow the preceding steps on the other side to complete the replacement.

Warning: Drive wheels and rear casters cannot be installed simultaneously on the wheelchair! Otherwise interference will occur when turning around.

Post-installation inspection:

(1) Please refer to the manual diagram to check whether the installation is correct.
2) Verify that all accessories are fully assembled.
3) Check whether there is any looseness. If so, be sure to re-tighten
4) Check whether the appearance of all parts is skewed and make adjustments.

Safety Warning:

1. Make sure to depress the brakes before use.
2. Check whether the backrest and foot pads are safe before use.
3. Make sure that the wheels, casters and the feetrests are aligned!
4. Check whether the bucket is firmly fixed in its position, if necessary cover the softseat.
5. When using, make sure that the armrest is folded up. Prevent being trapped!
6. Make sure that the foot pads are folded when the patient is using shower and toilet. Otherwise, there is a danger of tripping and injury!
7. The maximum allowable load is 300LBS!
8. Do not use the wheelchair, if you find the chair is damaged, please contact your professional dealer!
9. Don't stand on the footrests. Don't lean on the armrests! Otherwise there is a danger of falling!
10. Do not stand on the wheelchair, and do not let unattended children it! Prevent injuries!

Clean:

1. Clean the wheelchair regularly with a mild soap solution and clean Wipe drywith a soft cloth. Do not use any corrosive cleaners.
2. The detachable seat can be cleaned under running water and thermal sterilized. The toilet must be cleaned and disinfected in the same way each use. Use a commercially available disinfectant to disinfect the seat
3. Do not use high-pressure or steam cleaners for cleaning!
4. If the wheels are dirty, clean the wheels with a soft brush or clo mild soap solution and then dry them with the cloth.

Multi-purpose:

The shower wheelchairs are for daily use. Can be used by multiple people. When used by multiple people, clean and disinfect thoroughly before use prevent the spread of germs (contamination). Please use professional disinfectants when disinfecting.

Product Storage:

When using in the bathroom, you must ensure good ventilation to avoid accumulation. It must be dried after use. Be sure to wipe it dry and pad plastic bag and cardboard box before store it. Store it in a dry place, at sunlight.
