USER MANUAL FS908LAJPQF25-46 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Self-Propelled Wheelchair

MODEL: FS908LAJPQF25-46

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Self-Propelled Wheelchairs

MODEL: FS908LAJPQF25-46

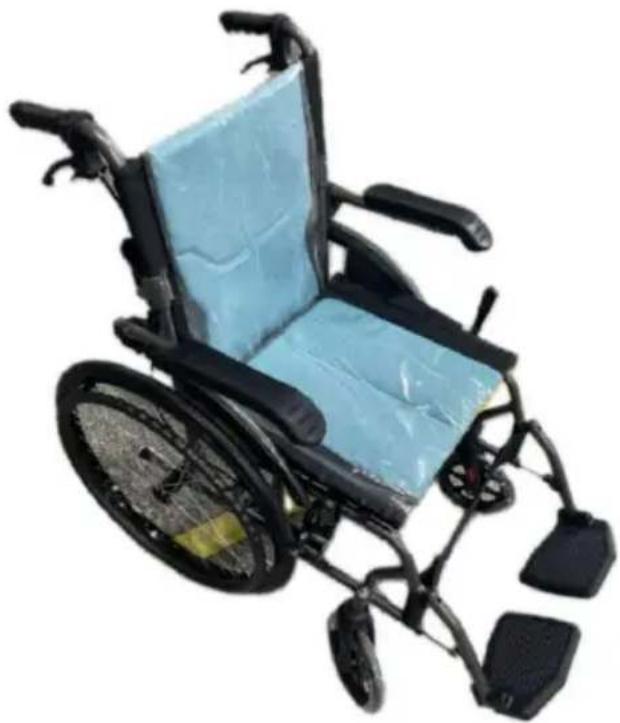

Exterior view of a light blue and black wheelchair with visible legs and feet (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

CAUTIONS FOR OPERATION

1. Do not drive the wheelchair on a slope more than 8km/h
   2.Do not use the wheelchair on the bumpy road surface,
2. The locks are only used for parking the wheelchair on the ground.
3. Do not use the hand lock to stop the chair when it is moving.

Part List
NO.	Pictuer	Name	QTY.
1		Wheelchair	1
2		Support Tube	2

Product Installation

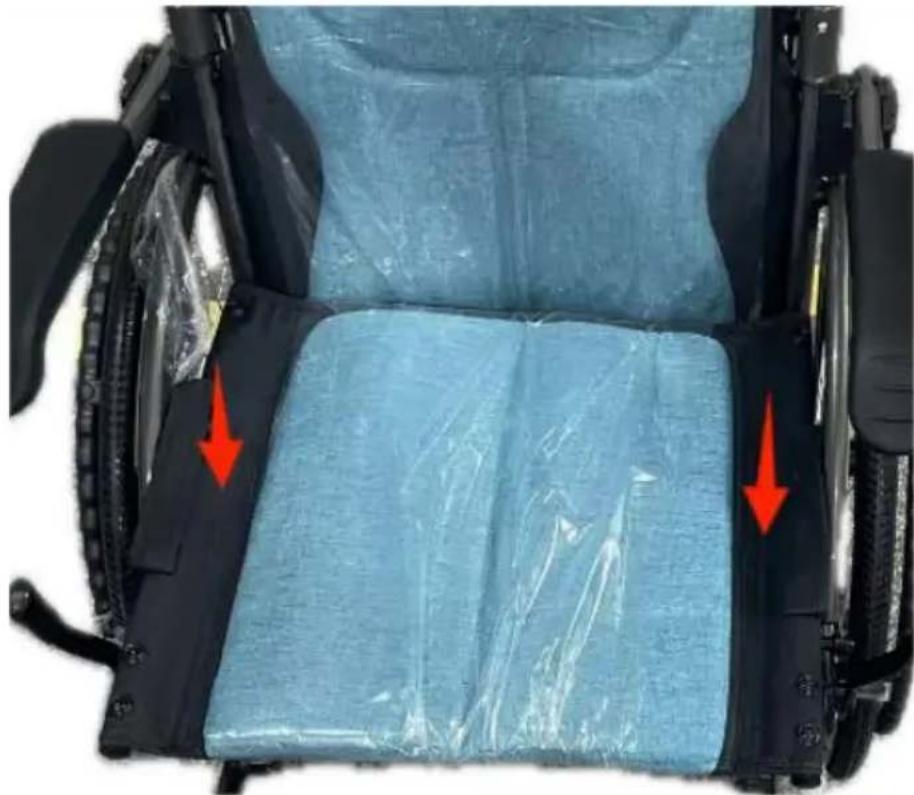

Step 1:

Press down hard, unfold the wheelchair.

Interior view of a car's seat with blue plastic cover and red arrows indicating specific areas (no text or symbols)

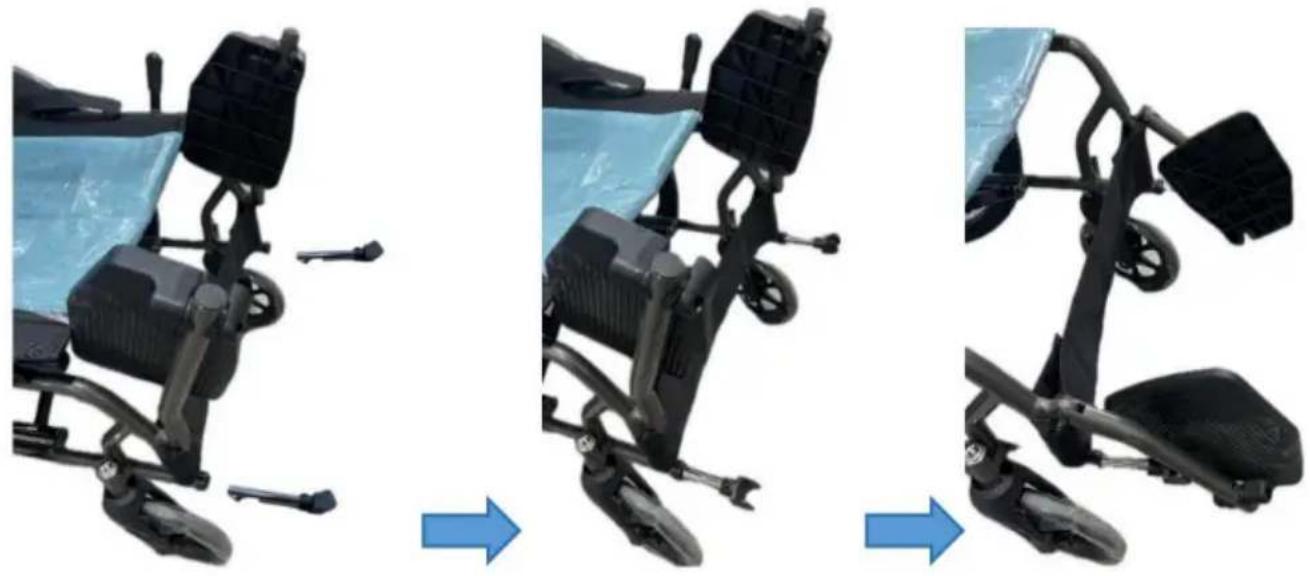

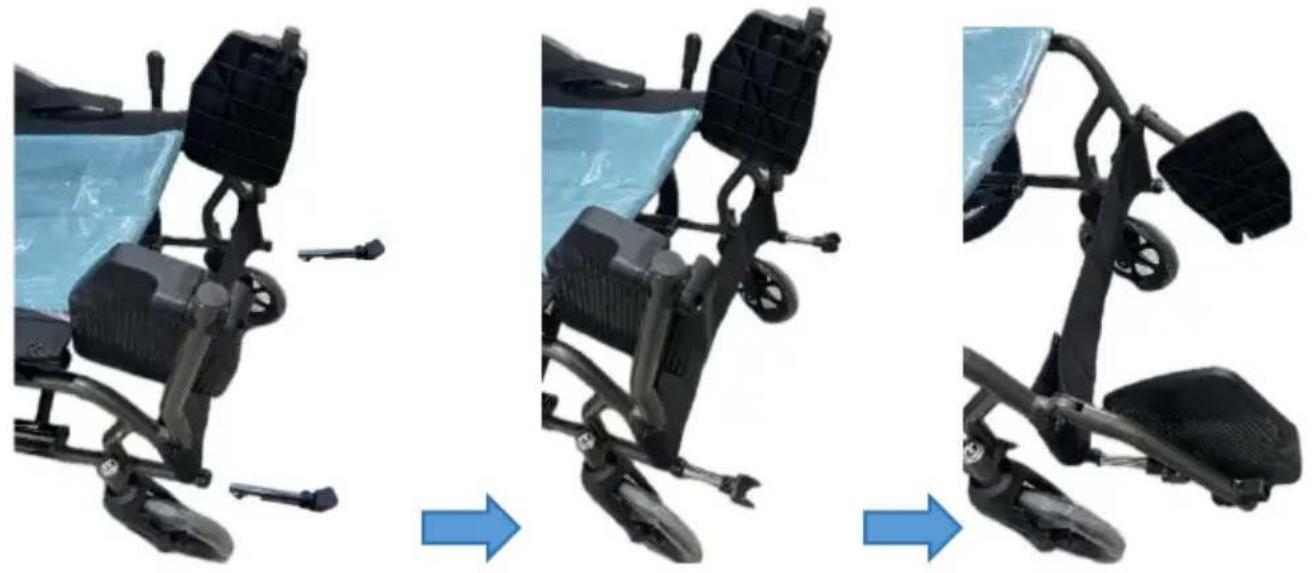

Step 2:

Assembled support tube.

Three-panel image showing a wheelchair device before and after assembly, with no visible text or symbols.

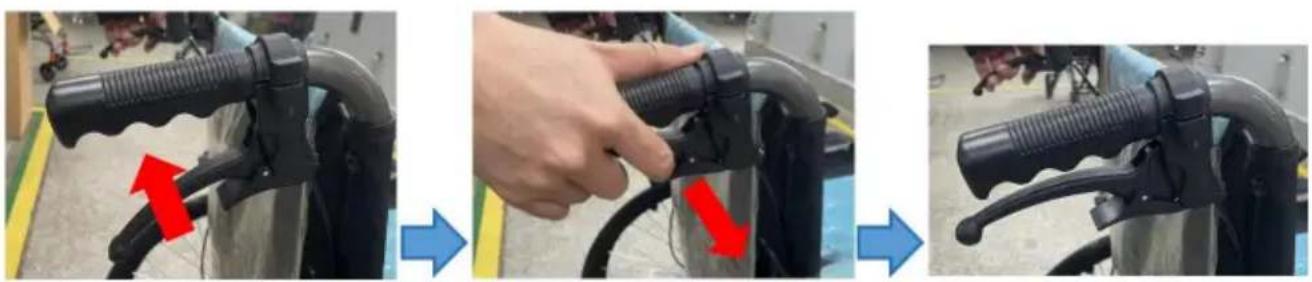

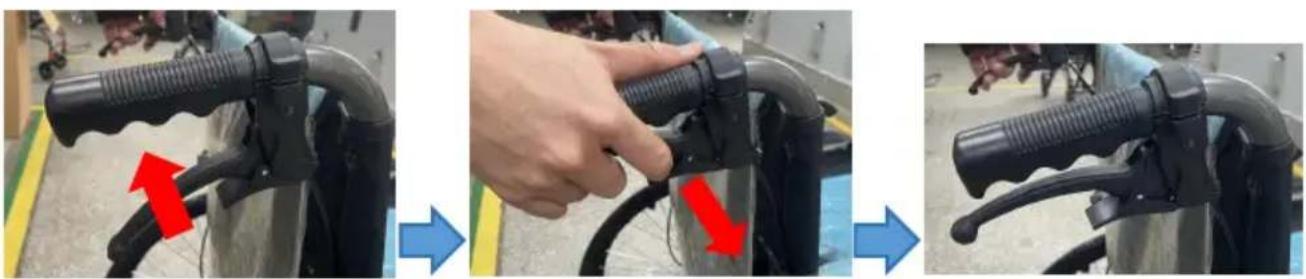

Brake Introduction

1.Hold the brake.

Three-panel photo showing a hand adjusting a flexible hose with red arrows indicating adjustment (no text or symbols present)

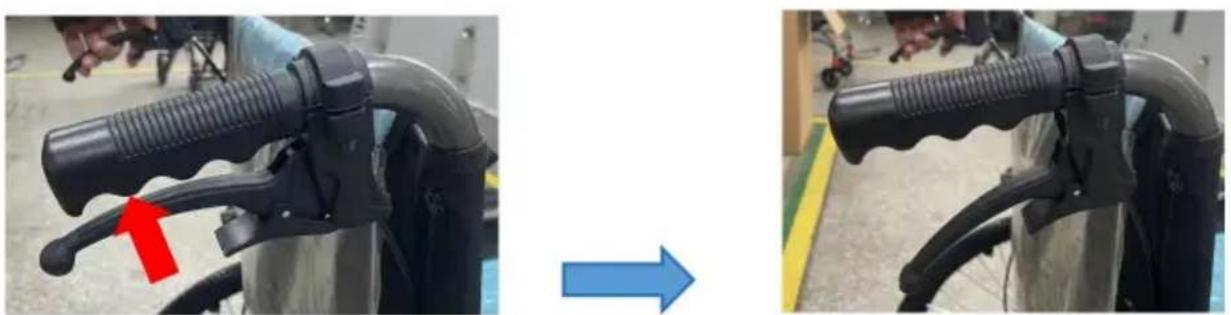

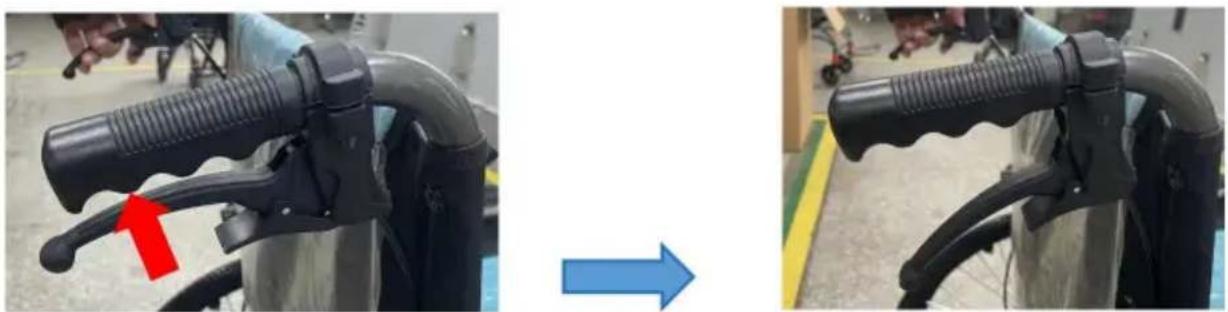

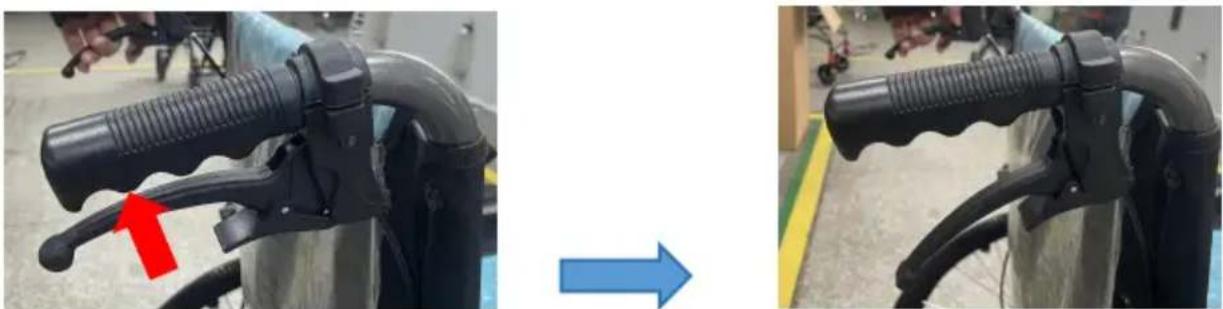

1. Release brake.

Two-panel photo showing a black mechanical device with a red arrow pointing to a cable or connector, before and after change (no text or symbols visible)

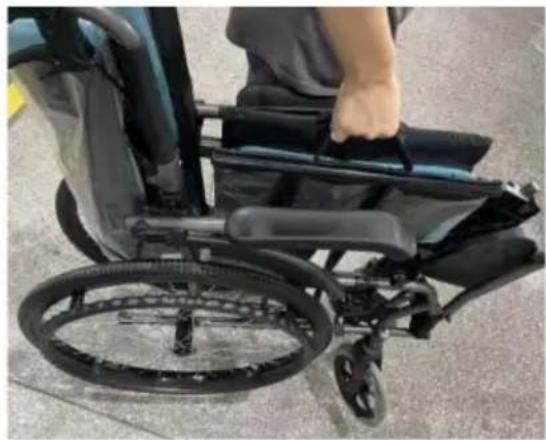

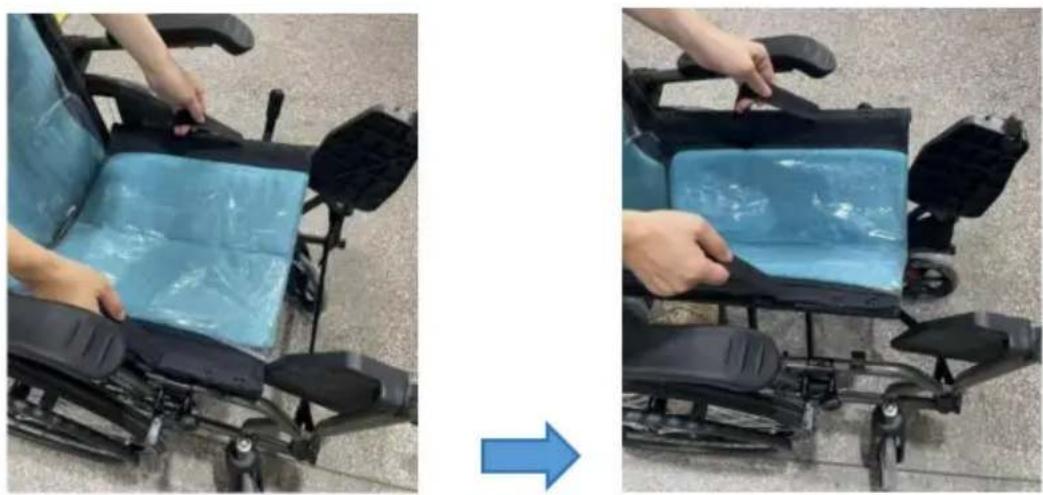

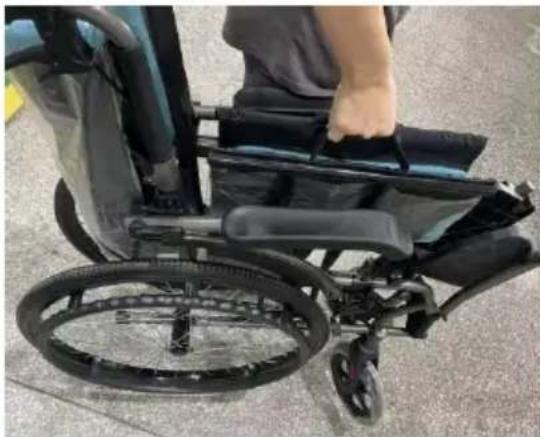

Product Folding

Person in a wheelchair with black seat and wheels, no visible text or symbols

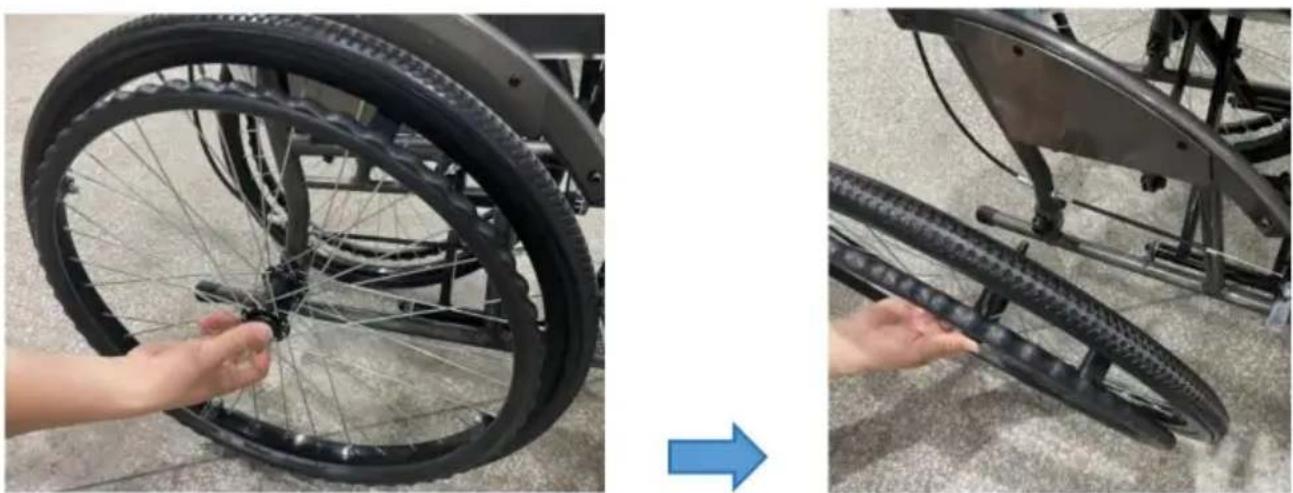

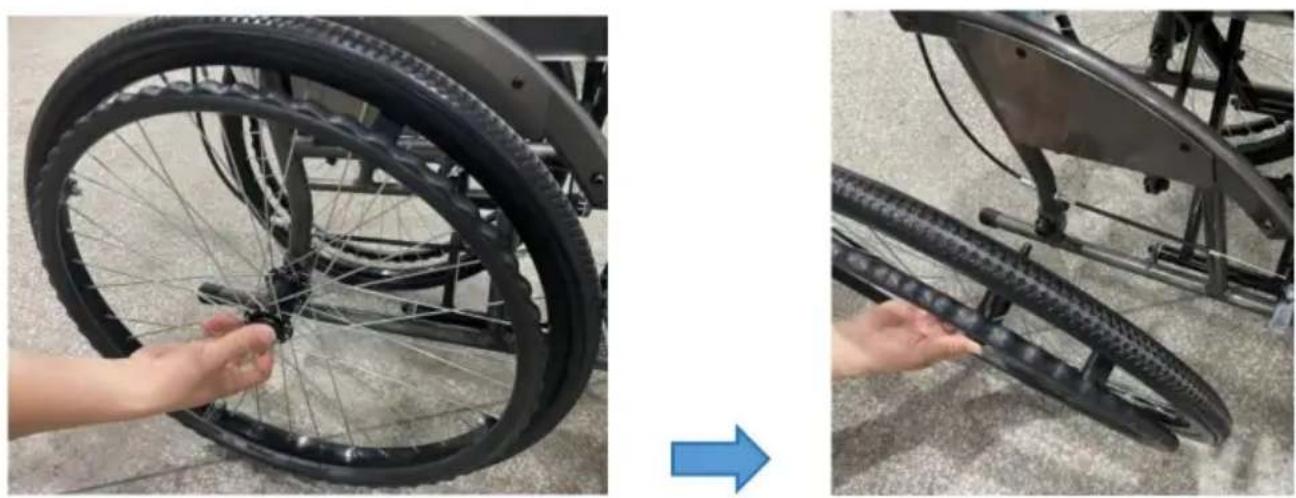

Rear Wheel Removable

Product Maintenance:

1. Do not scratch or scratch the surface of the product to prevent damage.
2. Daily cleaning and maintenance with the neutral synthetic detergent, wipe with wet cloth, then wipe with dry cloth.
3. Do not contact with strong acid or alkali to prevent corrosion.

Product Storage:

Packaged commode chairs should be stored at the temperature not exceeding -10°C\~40°C and a relative humidity not exceeding 80%. No corrosive gases, the room is well ventilated and clean. During transportation, it should be protected from moisture, light, and heat sources.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
