USER MANUAL FS800LBJF4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

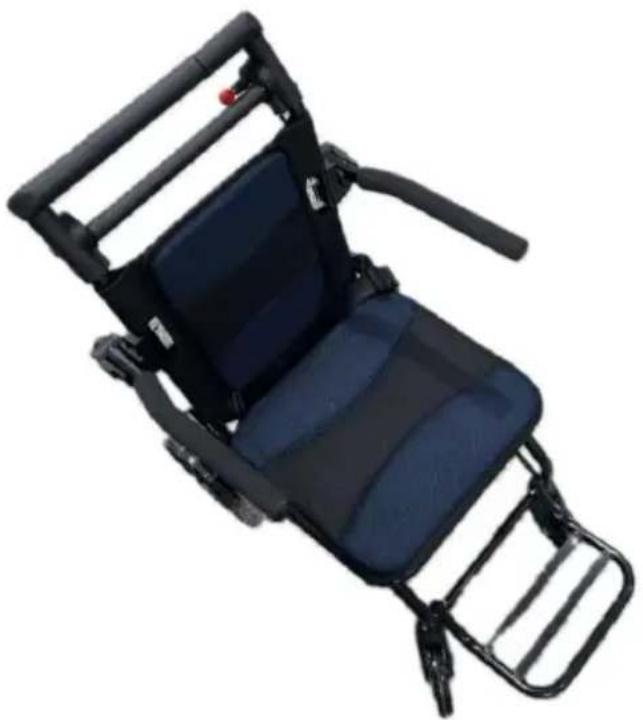

Travel Wheelchair

MODEL: FS800LBJF4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Self-Propelled Wheelchairs

MODEL: FS800LBJF4

Top-down view of a dark blue and black car chassis seat with side brackets and wheels (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

CAUTIONS FOR OPERATION

1.Do not drive the wheelchair on a slope more than 8km/h
2.Do not use the wheelchair on the bumpy road surface,
3. The locks are only used for parking the wheelchair on the ground.
4. Do not use the hand lock to stop the chair when it is moving.

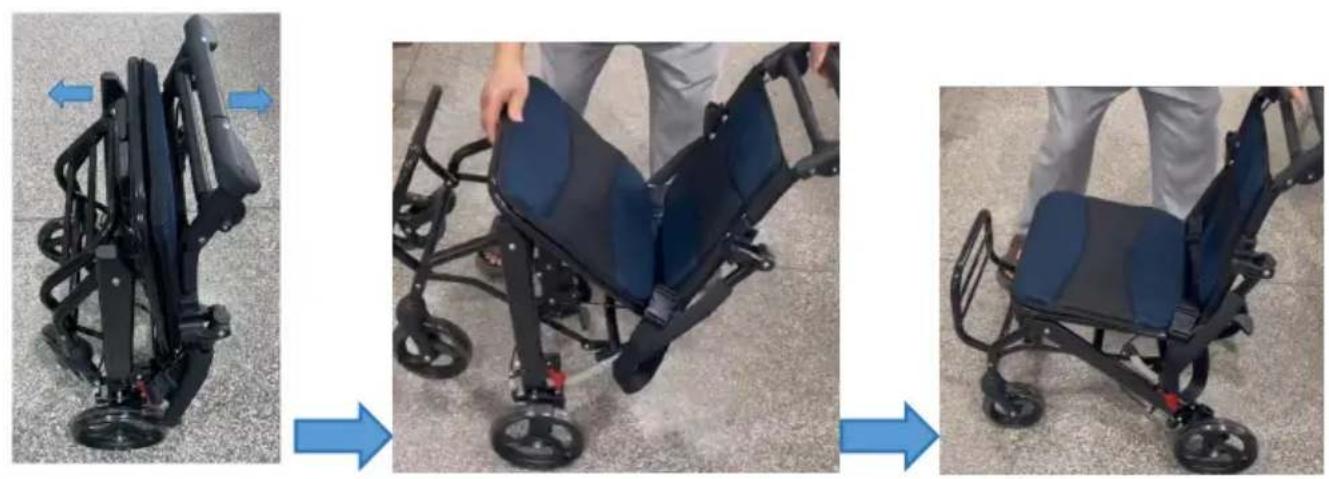

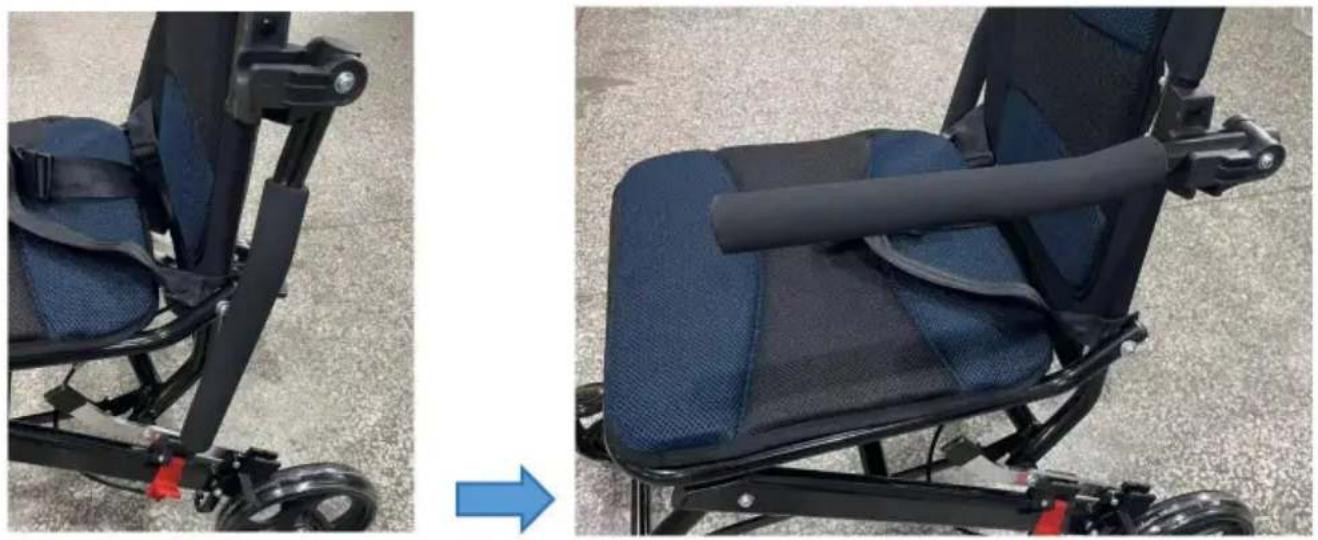

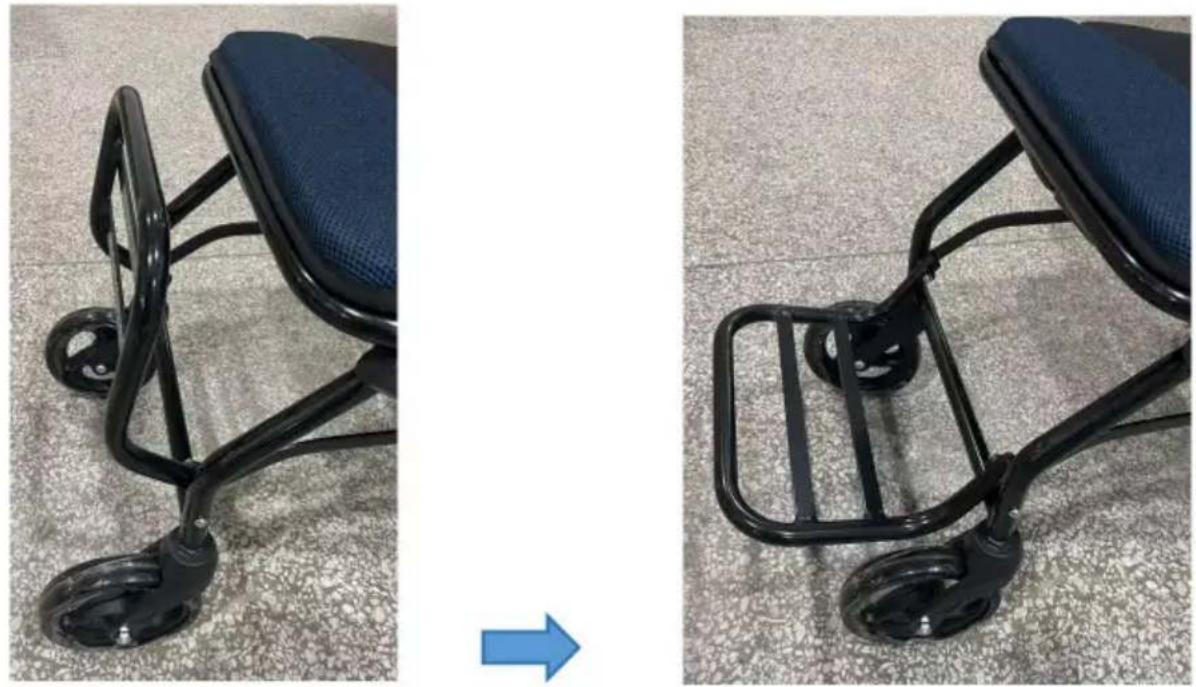

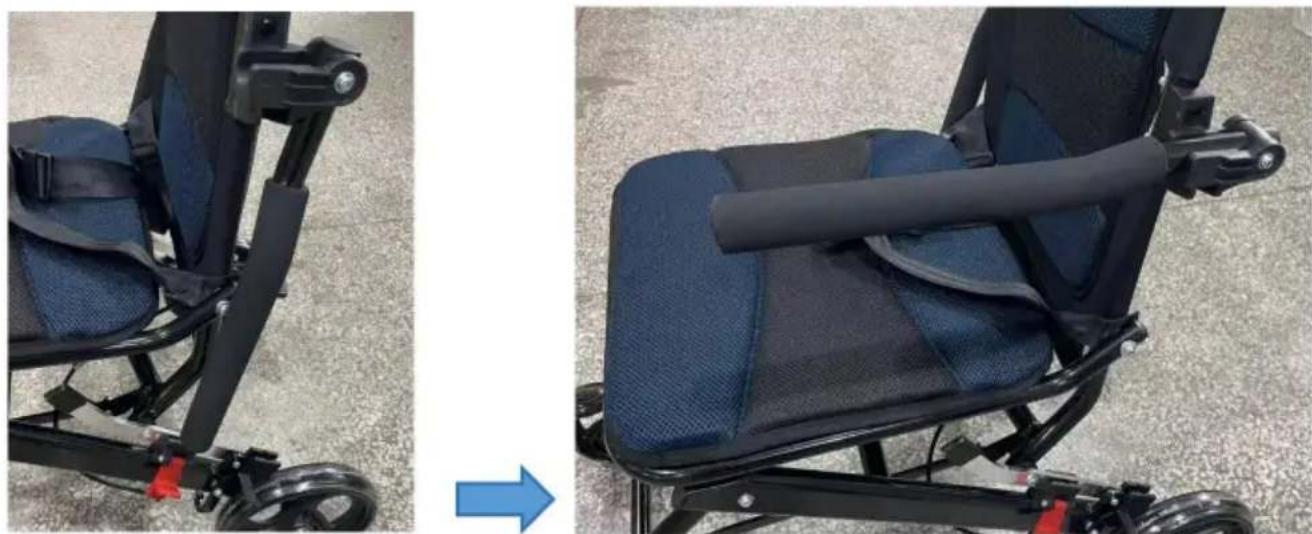

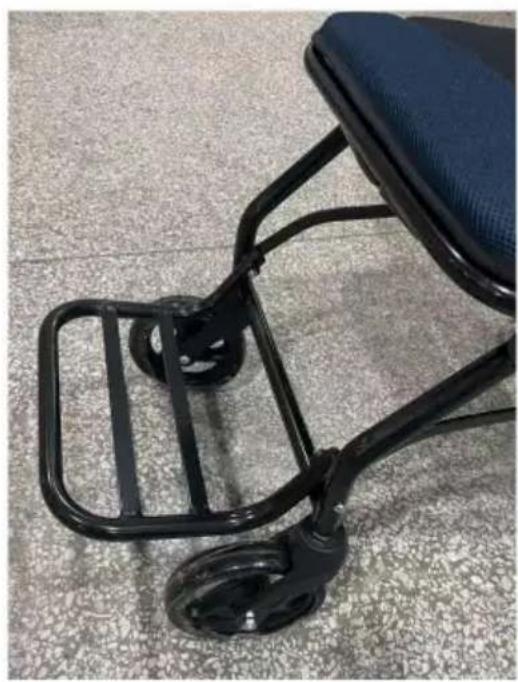

Unfold Wheelchair

Step 1:

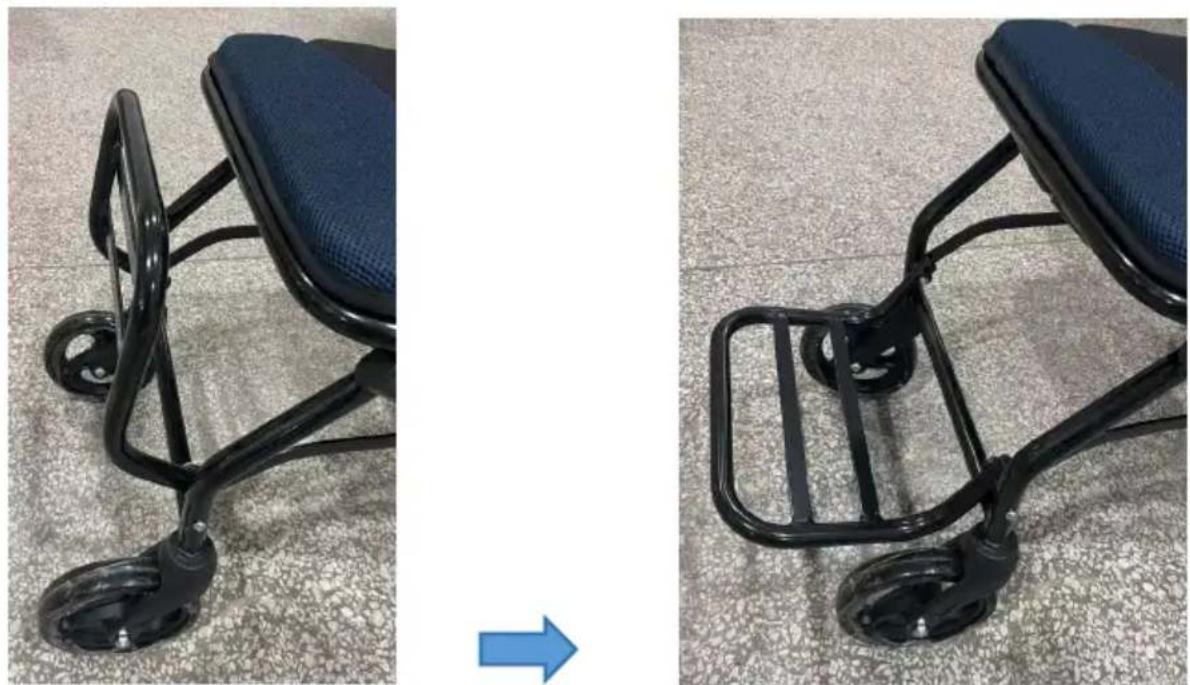

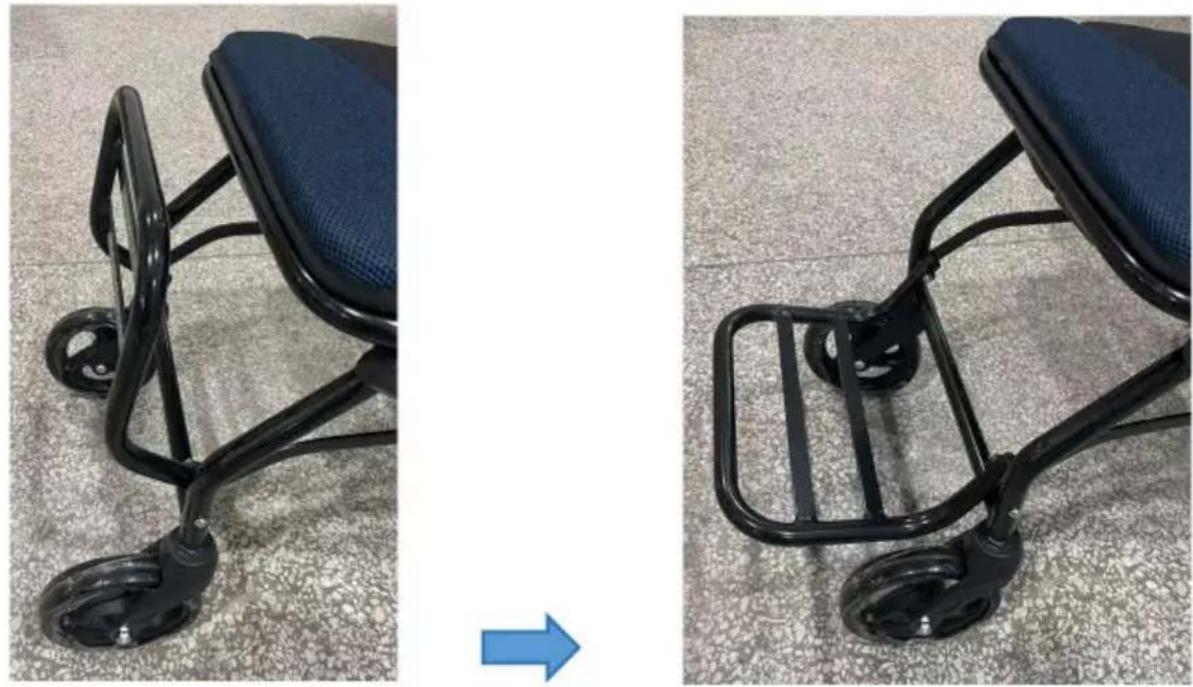

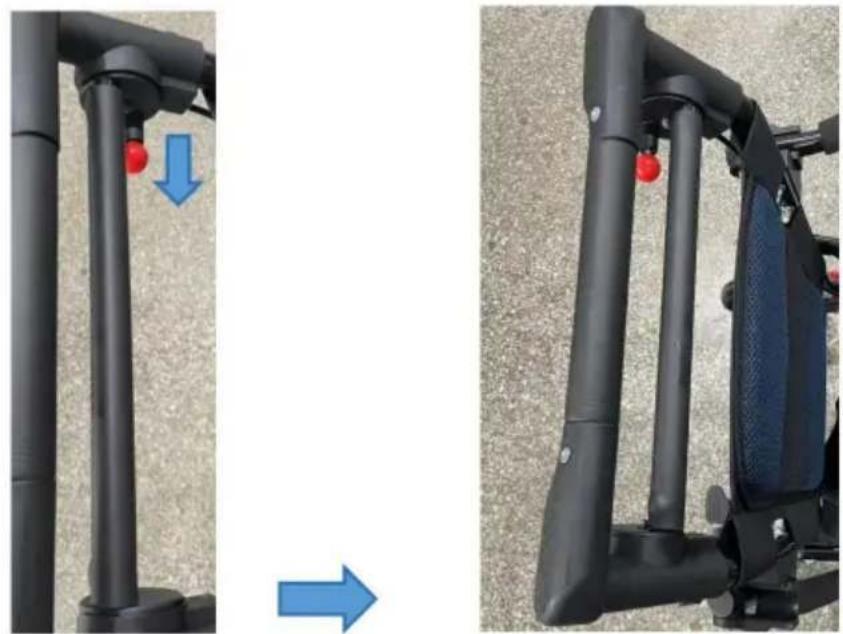

Step 2:

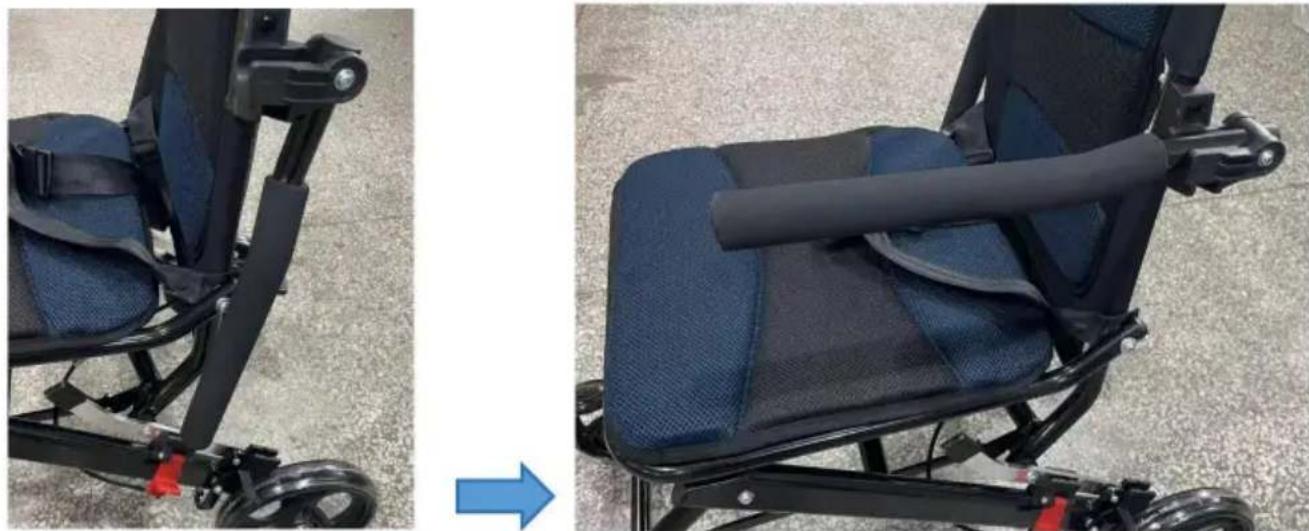

Step 3:

Side-by-side comparison of a child's stroller seat and backrest, showing blue cushion and black seat with a blue handle (no text or symbols visible)

Same operation on the other side.

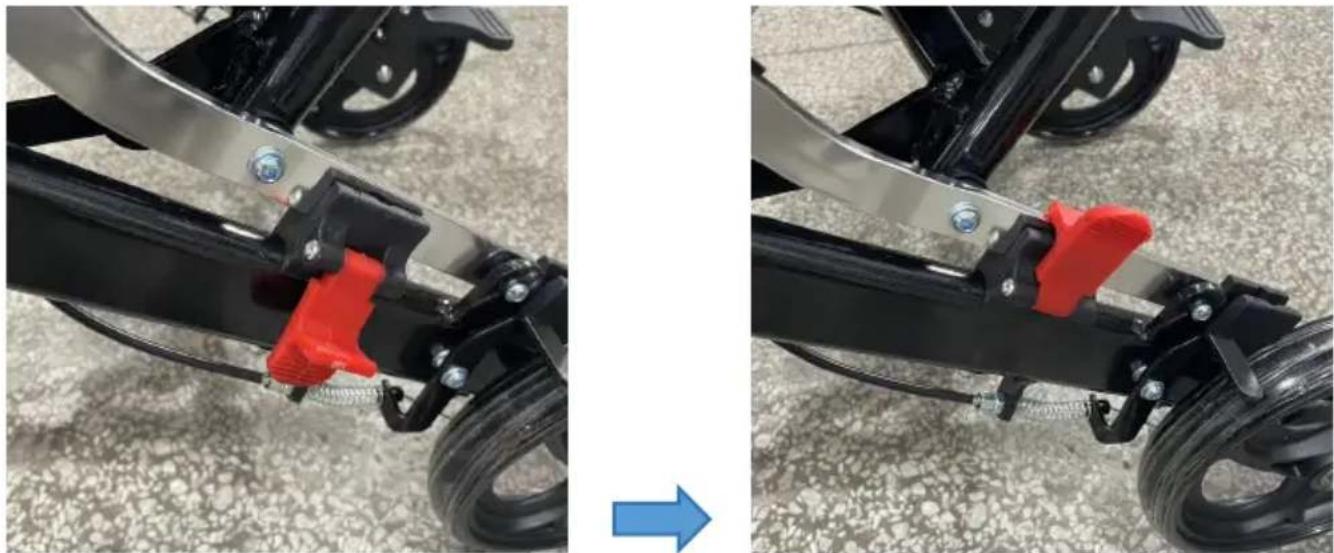

Step 4:

Close-up of a black bicycle chassis with red and silver components, showing structural details and a blue arrow indicating direction (no text or symbols)

Same operation on the other side.

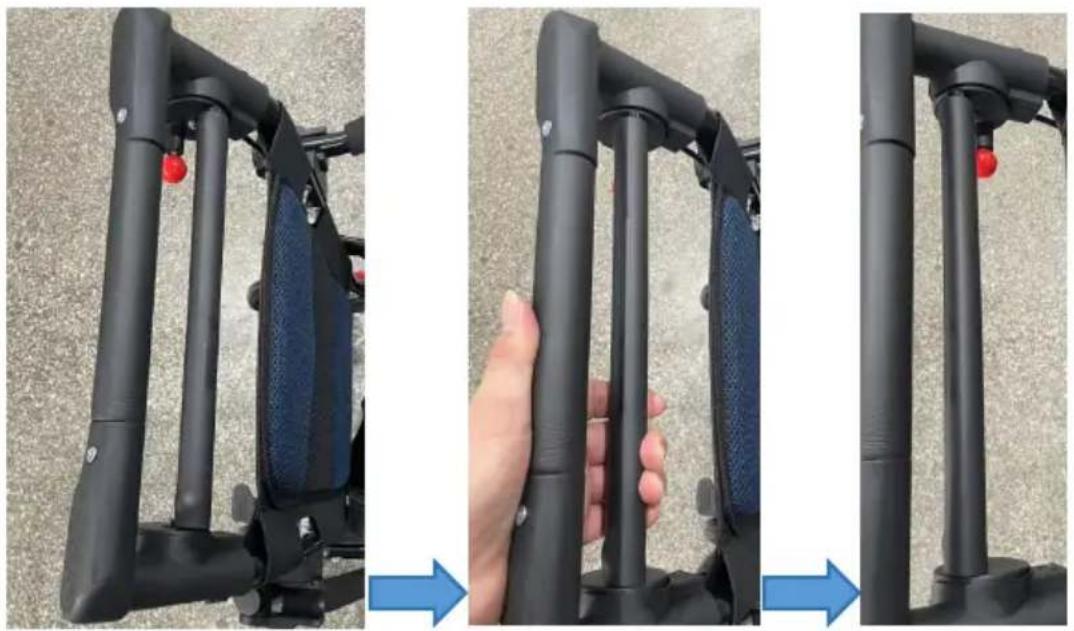

Brake introduction

1.Hold the brake.

Three-panel image showing a hand holding a black cylindrical device with blue mesh cover, before and after adjustment (no text or symbols visible)

2. Release brake.

Two-panel image showing a black bicycle seat with red buttons and blue arrows indicating movement, no text or symbols present.

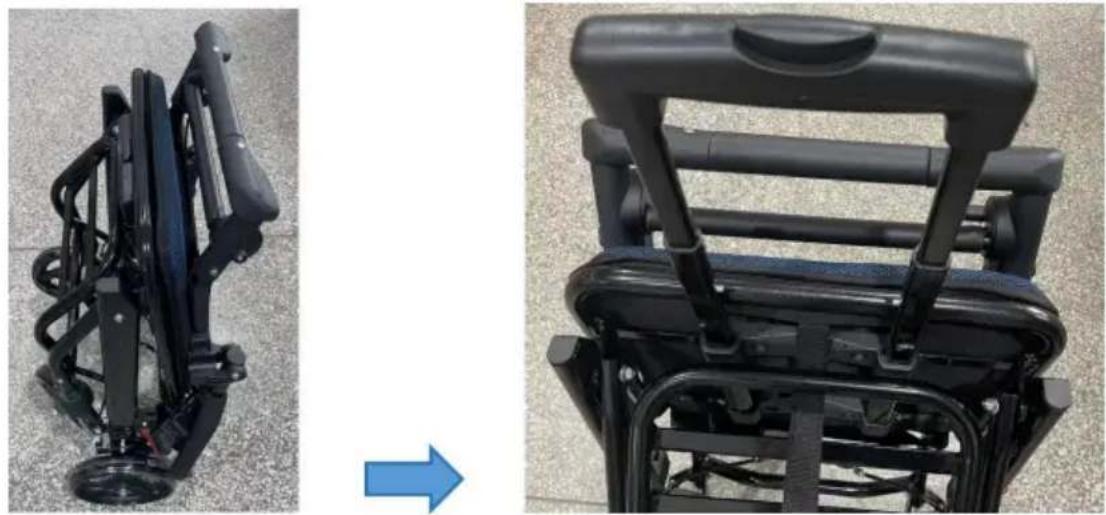

Product Folding

This action is the opposite of the unfold action.

After folding, bind the straps tightly.

Step 1:

Pull the pull rod out.

Side-by-side comparison of a black bicycle seat with visible mechanical components and a blue arrow indicating transformation (no text or symbols)

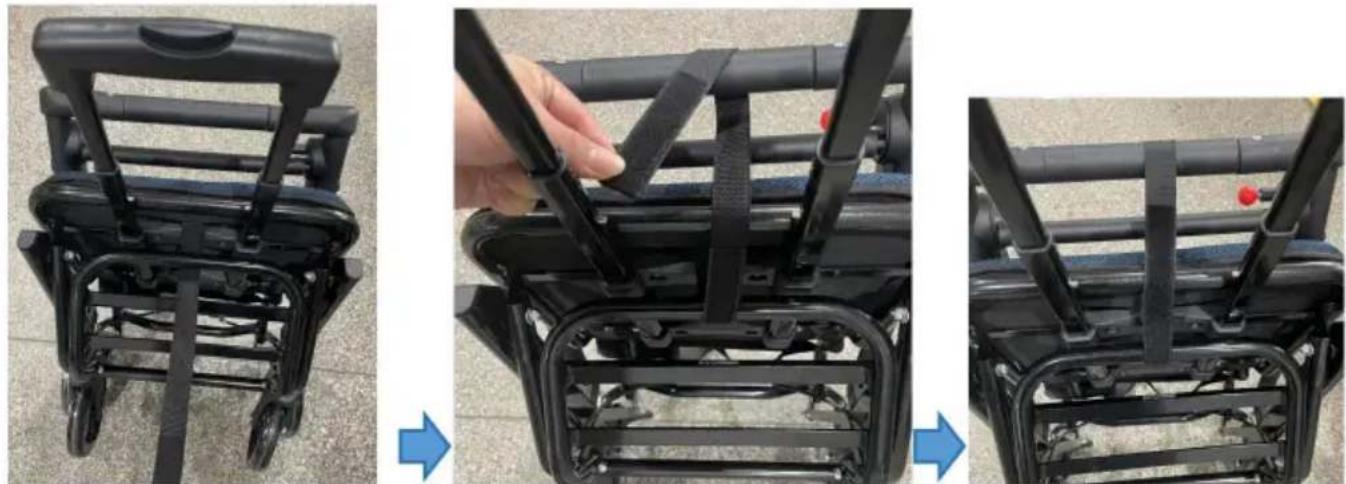

Step 2:

Bind the straps tightly

Three-panel photo showing a black bicycle seat frame with attached straps, being adjusted for size and positioning (no text or symbols visible)

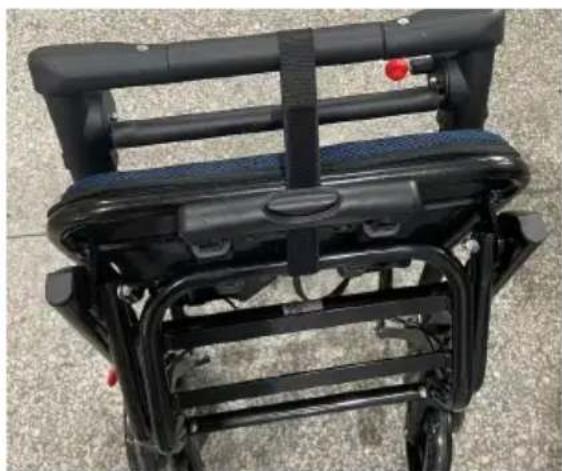

Step 3:

Bring the pull bar back.

Black bicycle seat with blue cushion and black frame, mounted on wheels (no visible text or symbols)

Product Maintenance:

1. Do not scratch or scratch the surface of the product to prevent ma damage.
2. Daily cleaning and maintenance with the neutral synthetic detergent, wipe with wet cloth, then wipe with dry cloth.
3. Do not contact with strong acid or alkali to prevent corrosion.

Product Storage:

Packaged commode chairs should be stored at the temperature not exceeding -10°C\~40°C and a relative humidity not exceeding 80%. No corrosive gases, the room is well ventilated and clean. During transportation, it should be protected from moisture, light, and heat sources.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
