USER MANUAL KS100B-1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

KEBAB SLICER

MODEL:KS100E-1 KS100B-1

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

KEBAB SLICER

MODEL:KS-100E-1 KS-100B-1

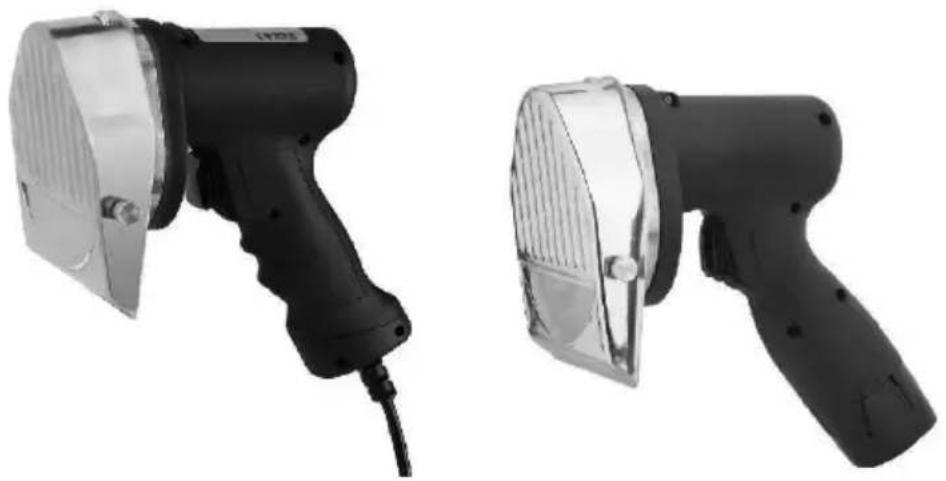

Two black-and-white photo of a handheld electric shaver tool, shown from front and side views (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This product is of protection class II. That means it is with enhanced or double insulation.
	This product is of protection class III.
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

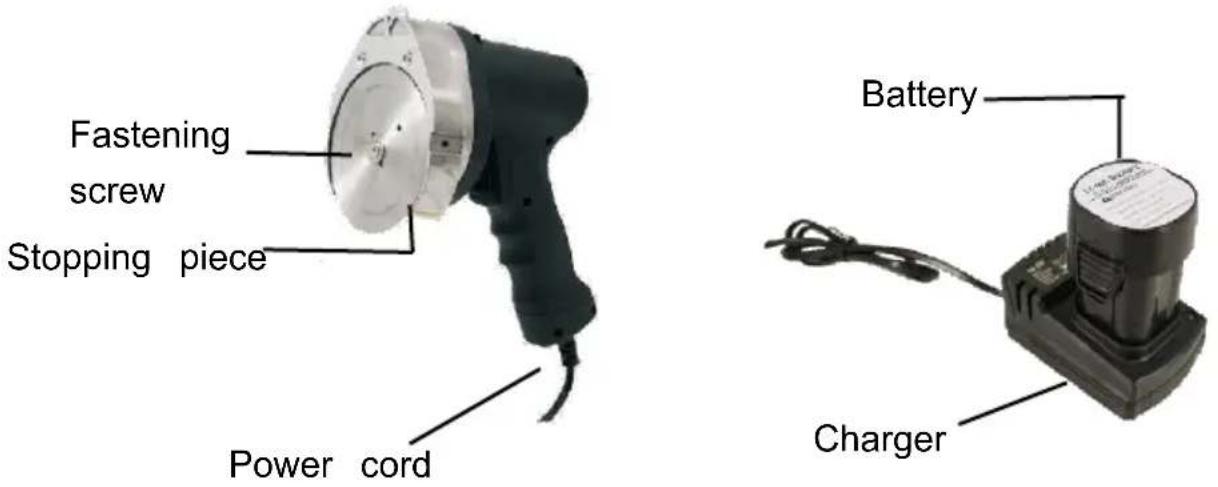

1 PRODUCT DESCRIPTION

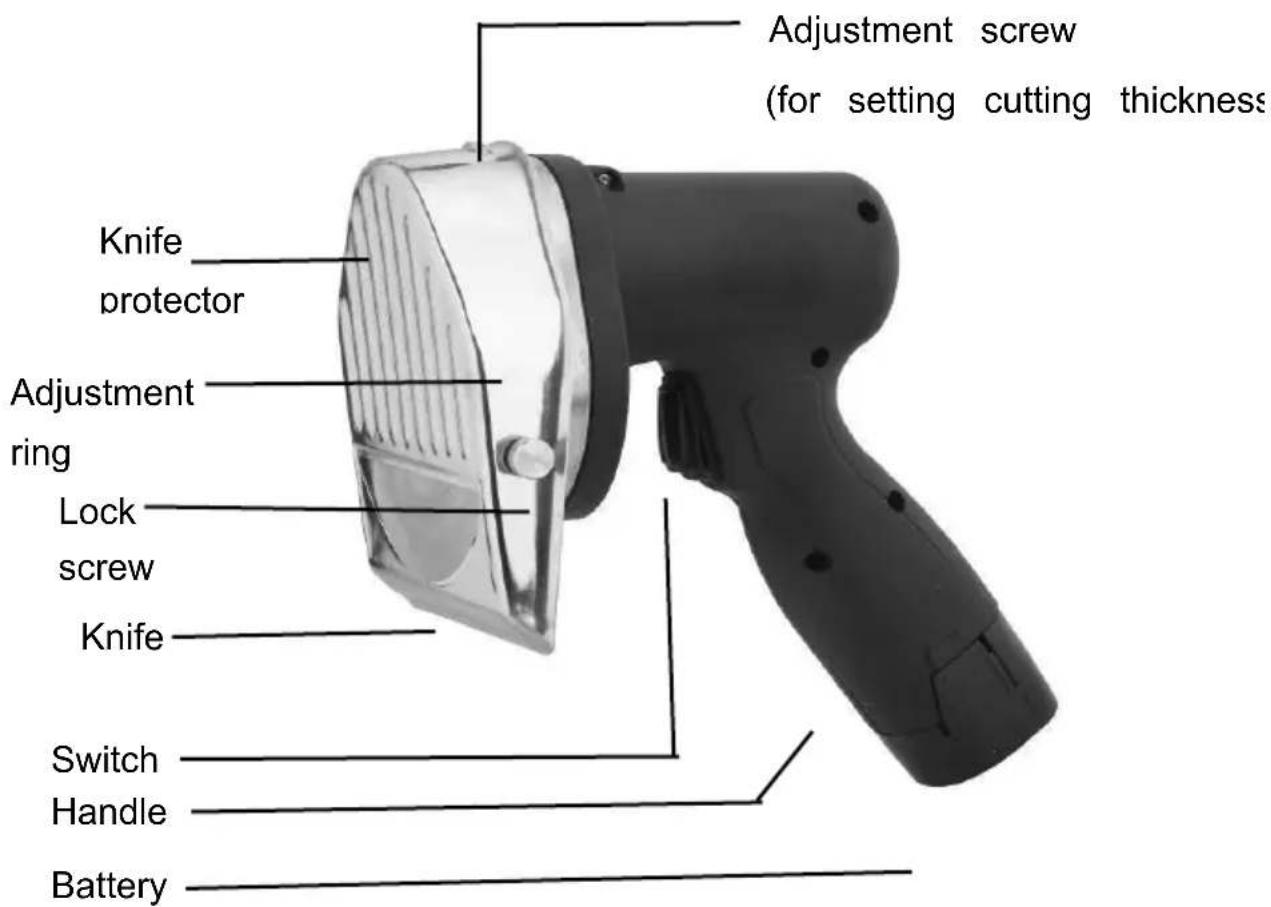

KS100B-1 & KS100E-1 with knife protector

Fastening screw Stopping piece Power cord Battery Charger

Adjustment screw (for setting cutting thickness) Knife protector Adjustment ring Lock screw Knife Switch Handle Battery

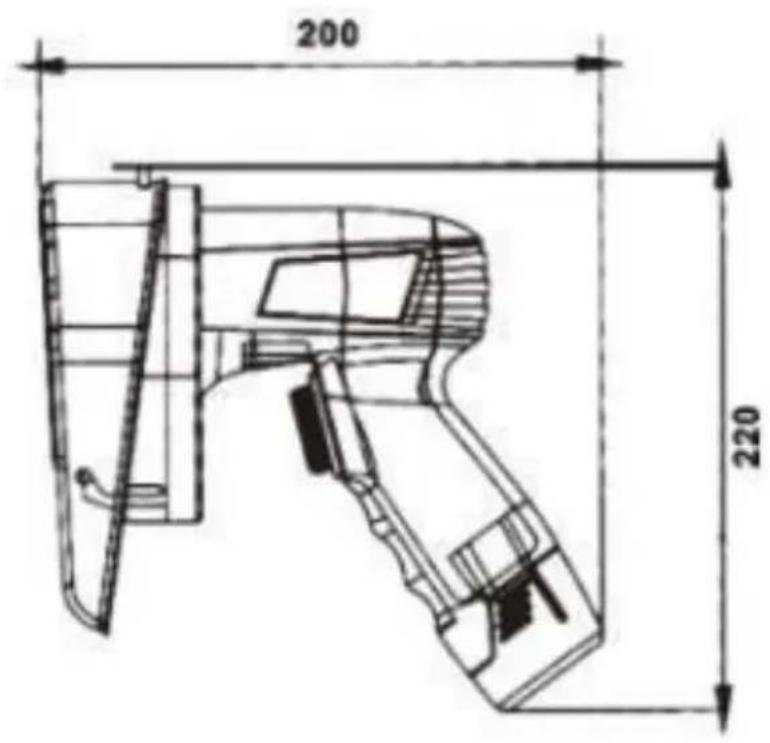

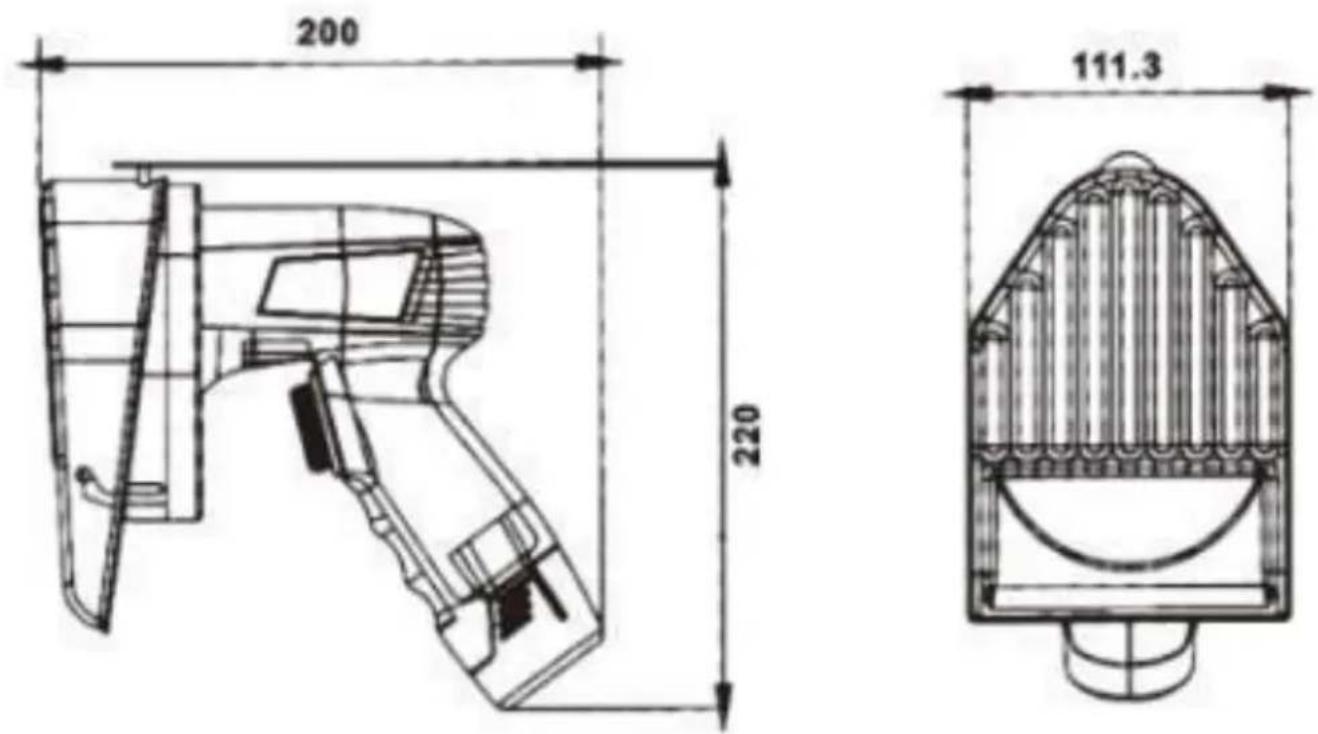

200 220

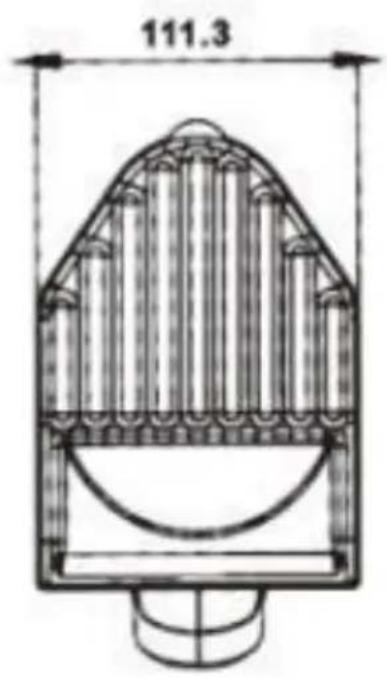

111.3

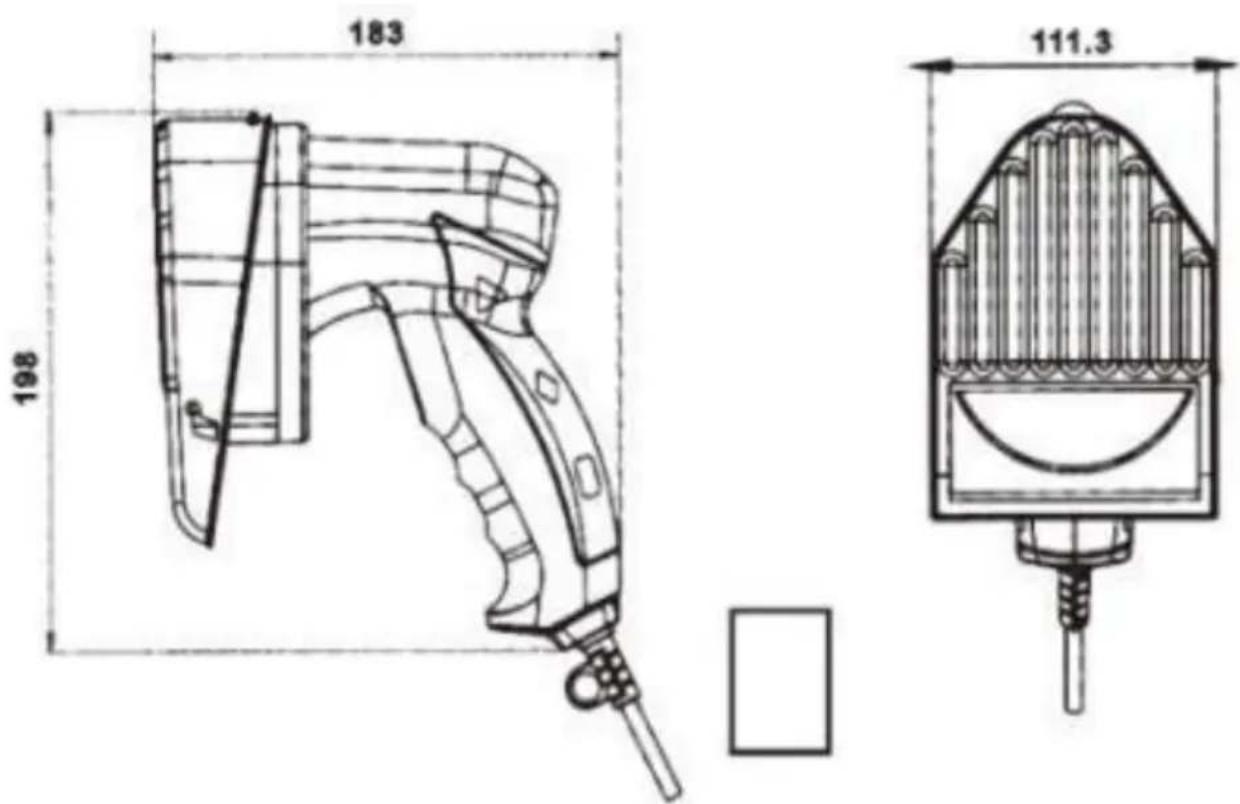

183 198 111.3

1) Technical data of units

MODEL	VOLTAGE	RATED POWER	KNIFE SIZE	CUTTING THICKNESS	MEASUREMENT
KS100B-1	16.8V Battery	80W	Dia.100 mm	0-8MM	200*111*220 mm
KS100E-1	100~240V/50~60Hz	80W	Dia.100 mm	0-8MM	183*111*198 mm

2) Technical data of charger Input: 100-240V/50-60HZ Output: 16.8Vdc/1.3A
3) Technical data of battery

Capacity:2000mAh

SAFETY INSTRUCTIONS

PROPER USE

KS100E-1is dedicated to cutting grilled meat The KS100E-1is designed professional use in catering and must not be operated by children. Use original KS100E-1parts. The use of any other non-original parts is

dangerous and may cause serious damage to the machine.

CAUTION

Failure to follow the instructions below may result in electric shock, fi serious injury.

• All instructions must be read.
• Keep these instructions in a safe place.

WORKPLACE

• Keep your workplace clean and tidy.
• The KS100E-1 must be placed away from gas flames or other heat sources to prevent melting of the housing or cables.
• Please observe the relevant hygiene regulations of your country.

ELECTRICAL SAFETY

Original power plugs and sockets can reduce the risk of electric shock
- The power plug of KS100E-1 must match the socket.
- The power plug must not be changed in any way.

If the supply cord is damaged, it must be replaced by the manufacture service agent or similarly qualified persons in order to avoid a hazard

This appliance can be used by children aged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undersh the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

Please avoid the following situations that will increase the risk of electric shock.

- Avoid machine contact with products like pipes, radiators, stoves or refrigerators.

Water permeating an electrical device increases the risk of electric sh

- Keep the KS100E-1 away from moisture.

Damaged or tangled cable increases the risk of electric shock.

- Do not use the power cord for other purposes, such as carrying hanging the KS100E-1 or unplugging it from the outlet.

- Keep the power cord away from heat, oil, sharp edges, or moving equipment parts. Replace damaged power cords only by the manufacturer or an authorized service technician.

SAFETY OF PERSONS

WARNING

Cutting hazard!

The knife is very sharp.

• Always work carefully. Observe the instructions.
- Only use the knife with a correctly mounted knife protector and adjustments ring.
- Do not use the KS100E-1 with a defective knife protector or a de adjustments ring
- Do not wipe defective parts.

Do not use tools or spanners to adjust equipment components that a operation, this could result in injury.

• Before turning on the KS100E-1, remove the adjustment tool or sp
- Before making adjustments to the unit, replacing accessories, or pu away the KS100E-1, unplug the power supply from the outlet.

Many accidents are caused by improperly maintained power tools.

• Carefully maintain the KS100E-1.
• Check whether moving device parts function faultlessly and do not

Whether parts are broken or so damaged that the functioning of the0012-03isimpaired.

• Before using the KS100E-1, have the damaged parts repaired.
• Keep original packaging for safe storage and safe transport.

HYGIENE

Unwashed hands can harbor germs and transfer those germs to food.

• Check scraper for cleanliness and proper functioning on a daily ba
• Replace defective scrapers immediately.
• Wash your hands before and after touching food

SERRVICE

- Only qualified service personnel should perform repairs on the KS100E-1 and only original parts should be used.

REPLACEMENT OF THE CIRCULAR KNIFE

WARNING

Risk of death,

Due to unintended starting up of the

- Disconnect the KS100E-1 from the KS100E-1 power supply

WARNING

Risk of injury,

The knife is sharpDeep cuts can be caused

- Remove the knife carefully

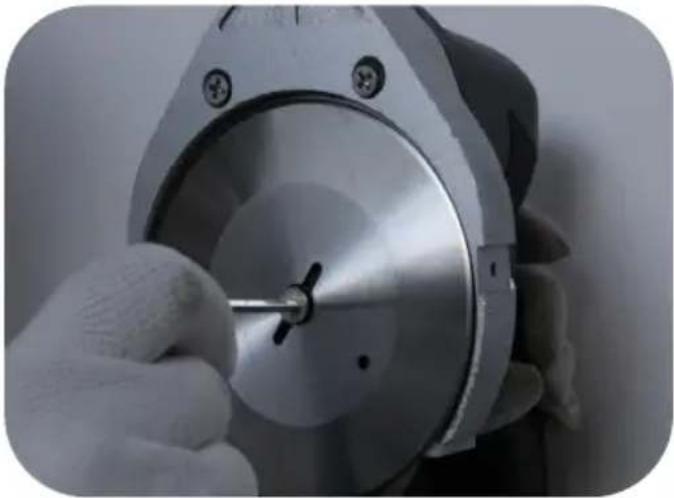

1Remove the lock screw and adjustment ring	2Remove the knife protector
3Remove knife	CAREFULMalfunction!Incorrect installation of the knifePrevents correct functioning of the KS100E-1.► Always install the knife v the sharpened side toward t motor

4

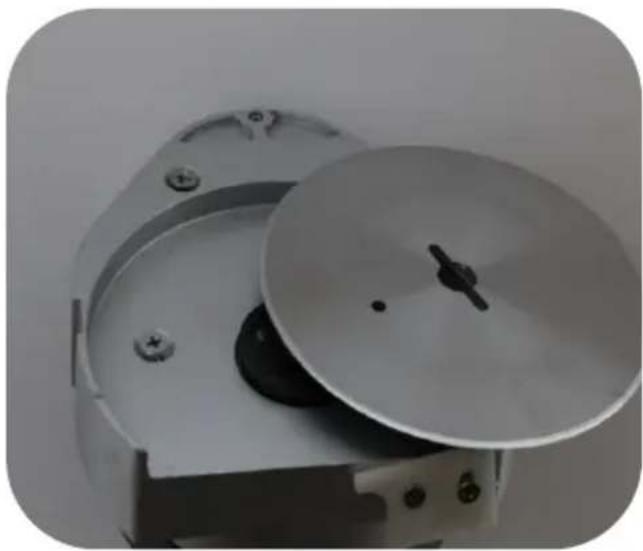

Close-up of a white hard drive with a circular spool and metallic components (no visible text or symbols)

Insert the new knife, screw on the retention disk and fastening screw

5

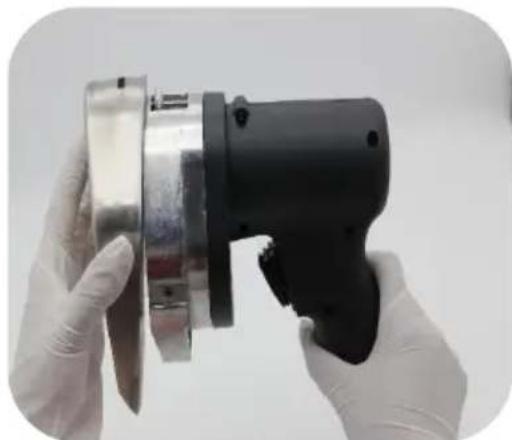

Close-up of gloved hands holding a black handheld device with metallic casing (no visible text or symbols)

Attach the knife protector and lock screw

CUTTING

CUTTING MEAT

The meat is grilled from the outside in. The meat inside is still raw.
The cutting thickness can be set between 0.5mm and 8mm.

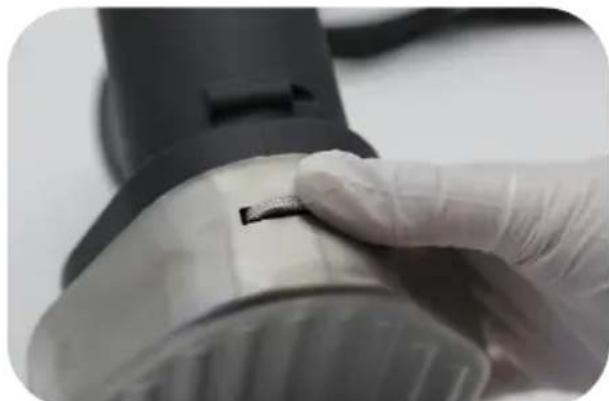

▶ To do this, turn the adjusting screw to the left(larger) or right (smaller).

Close-up of a hand holding a small metallic tool with a textured grip, no visible text or symbols

Risk of injury!

• Check that the knife guard is properly installed.
• Ensure a secure stand
  • Always work from top to bottom
• Only cut grilled meat

- The KS100E-1 is only turned on when it is used to cut kebabs.

HYGIENE/CLEANING HYGIENEINSTRUCTIONS

General Hygiene Instructions

• Wash your hands before and after touching food.
  • Cover open wounds with a waterproof plaster.
• Avoid touching food with bare hands.
• Clean and sanitize all equipment daily. Handing Food

Heat the meat to at least 70^ C

• Store meat at below 5C or freeze( below-18C)
• Avoid contact between raw and cooked food

CLEANING

Detergent

• Boiling water
• Dish washing detergent
• Fat solvents
• Disinfectant

WARNING

Electric shock, device damage!

Moisture can damage the electrical device of the KS100E-1.

This can lead to electric shock injuries.

- Do not clean the KS100E-1 in the dishwasher.

CLEANING PROCEDURE

WARNING

Risk of death

Due to the unintentional start of theKS100E-1!

- Disconnect the KS100E-1 from the power supply.

WARNING

Risk of death

The knife is sharp. It can cause very deep wounds

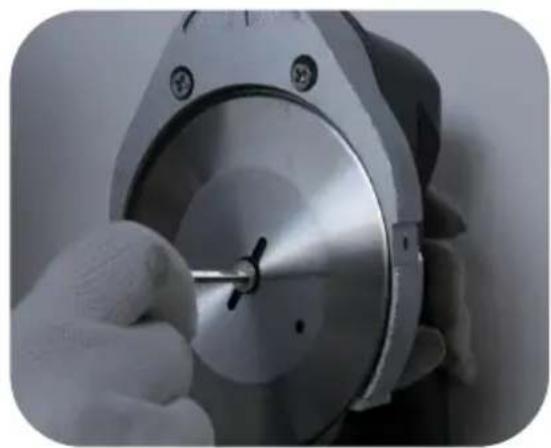

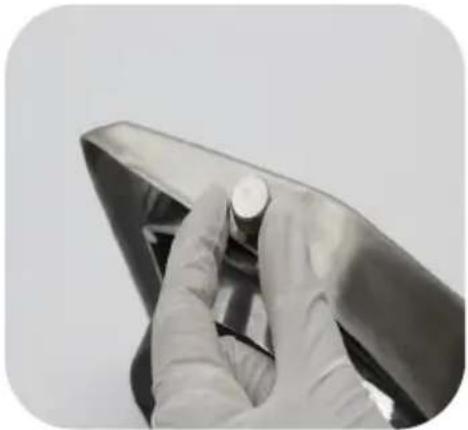

Close-up of a gloved hand holding a metallic mechanical component with a small cylindrical part inserted (no visible text or symbols)

1
Remove knife

CLEANING PROCEDURE

1. Remove the knife carefully

2. Use cleaning tools such as sponges and brushes to remove heavy dirt from knives and protective covers.

3. Spray all surfaces with a fs solvent

4. Spray on the disinfectant and it take effect for at least minutes.

5. Rinse clean KS100E-1,knives Protectors and cleaning aids

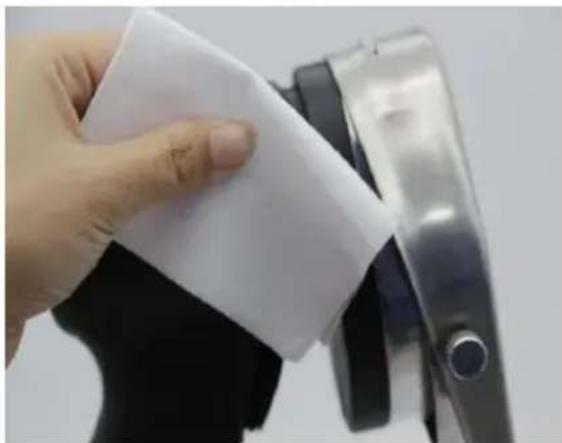

Close-up of a hand holding a white sheet over a black fabric, with scissors cutting through the process (no text or symbols visible)

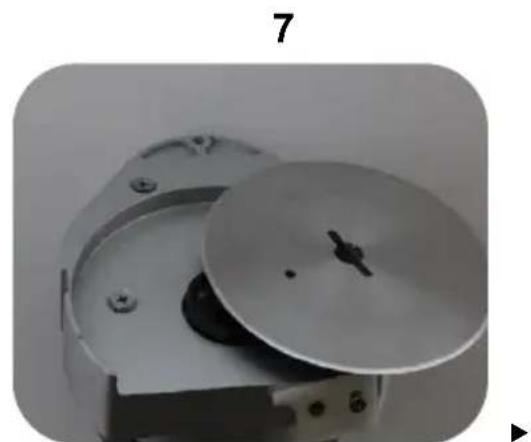

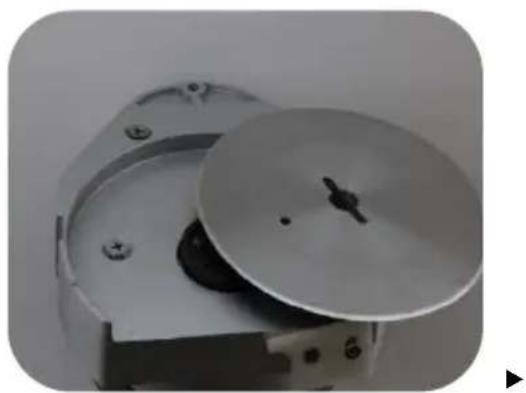

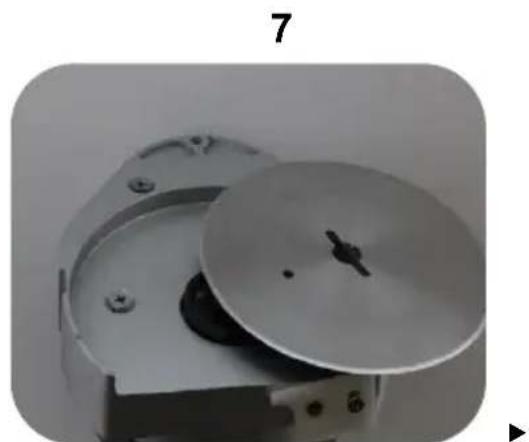

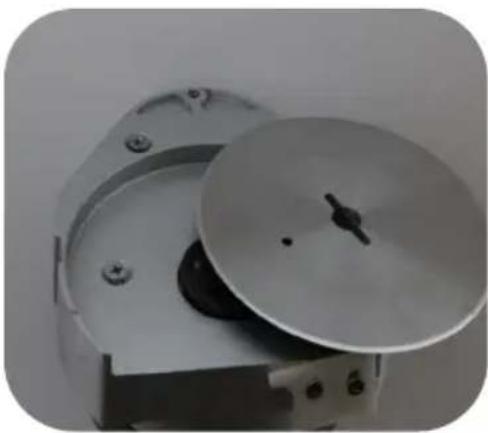

Close-up of a mechanical disc component with a circular lid and mounting holes (no visible text or symbols)

Insert the new knife, screw on fixing plate and fastening screw

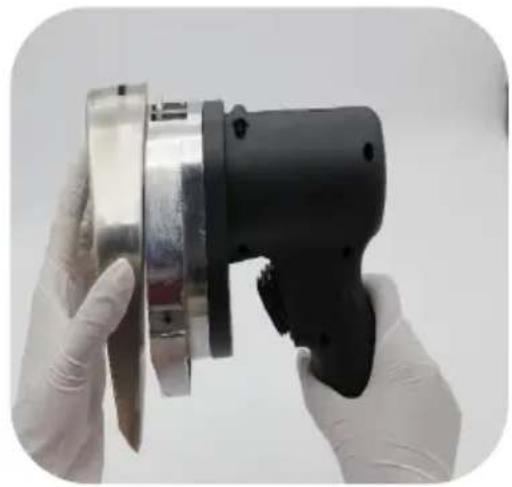

Close-up of gloved hands holding a black handheld device with metallic casing (no visible text or symbols)

Install the knife protector and locking screw.

Before sharpening. clean the knife and KS100E-1. After the share process.clean and sanitize again.

Sharpening the knife

1

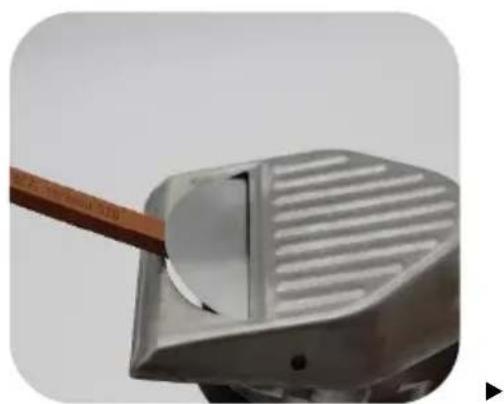

Close-up of a white plastic tray with a wooden stick inserted, showing a circular opening (no text or symbols visible)

Sharpen the toothless circular knit from the bottom at a very flat an about1 to 2 seconds.

2

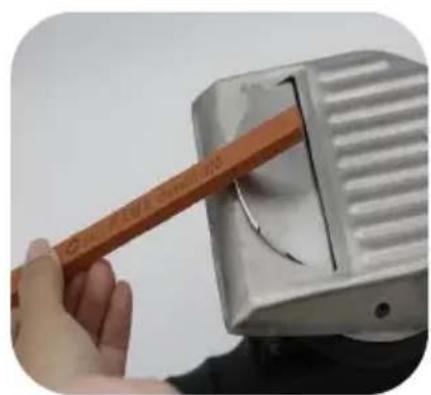

Hand using a wooden pencil to cut a curved line inside a white industrial machine (no text or symbols visible)

Briefly deburr from the top side

3	4
Deburring of the ground part from front side.	Clean the knife
5	6
Insert the new knife,screw on the plate and fastening screws.	Install the knife protector ar locking screw.

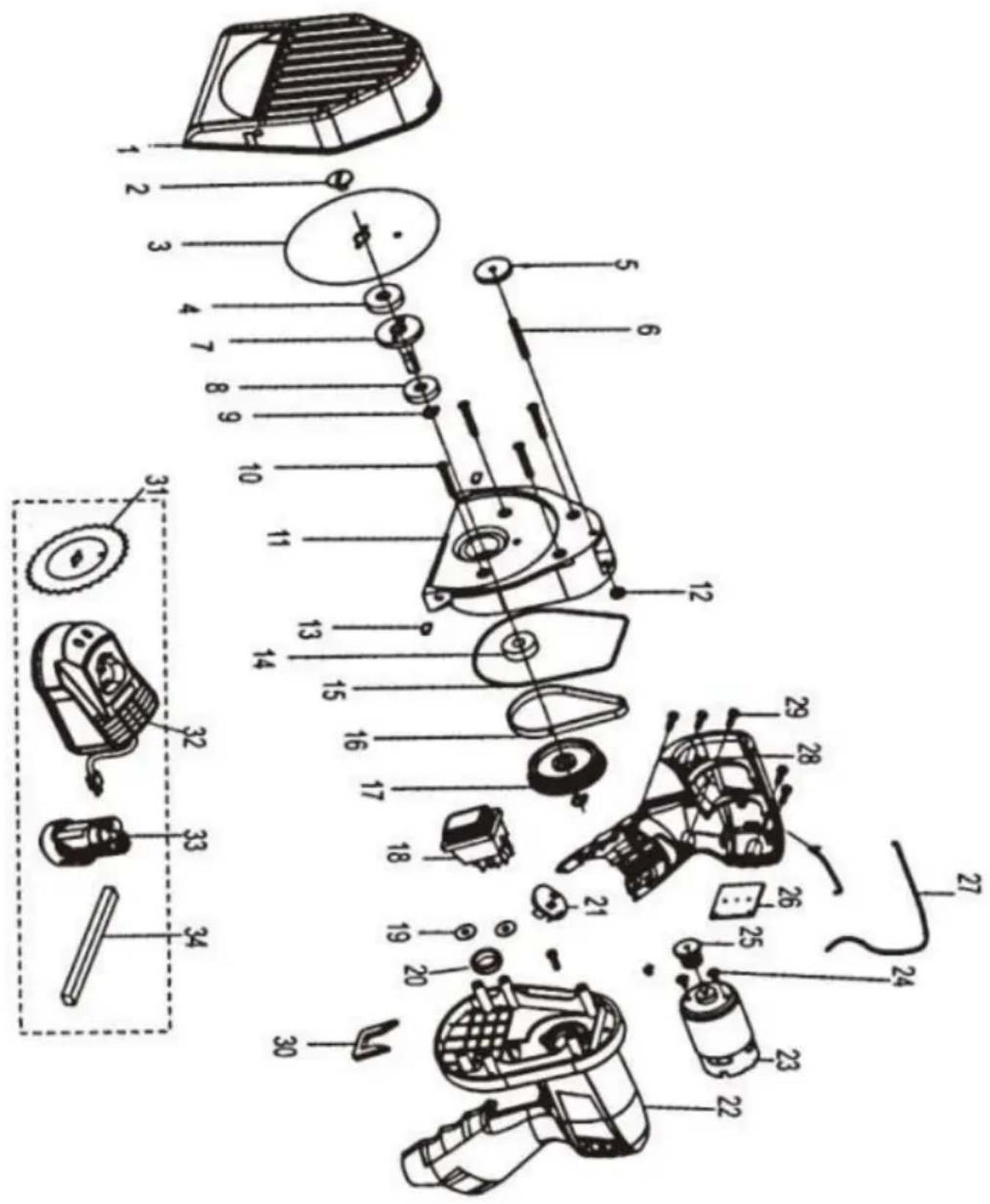

Exploded view diagram of a mechanical device with numbered parts for identification

1	Knife protector	18	Switch
2	Fastening screw	19	Barrier chip
3	Knife	20	Fixed ring
4	Oil seal	21	Terminal
5	Adjustment screw	22	Right housing
6	Bolt	23	Motor
7	Output axis	24	Screw
8	Bearing	25	Motor gear
9	circlip	26	Circuit board
10	Screw	27	Sealing
11	Gear box	28	Left housing
12	Screw	29	Screw
13	Dowel pin	30	Housing Bolt
14	Bearing	31	Serrated knife
15	Seal ring	32	Charger
16	Belt	33	Li-ion battery
17	Pulley	34	Sharpening stone

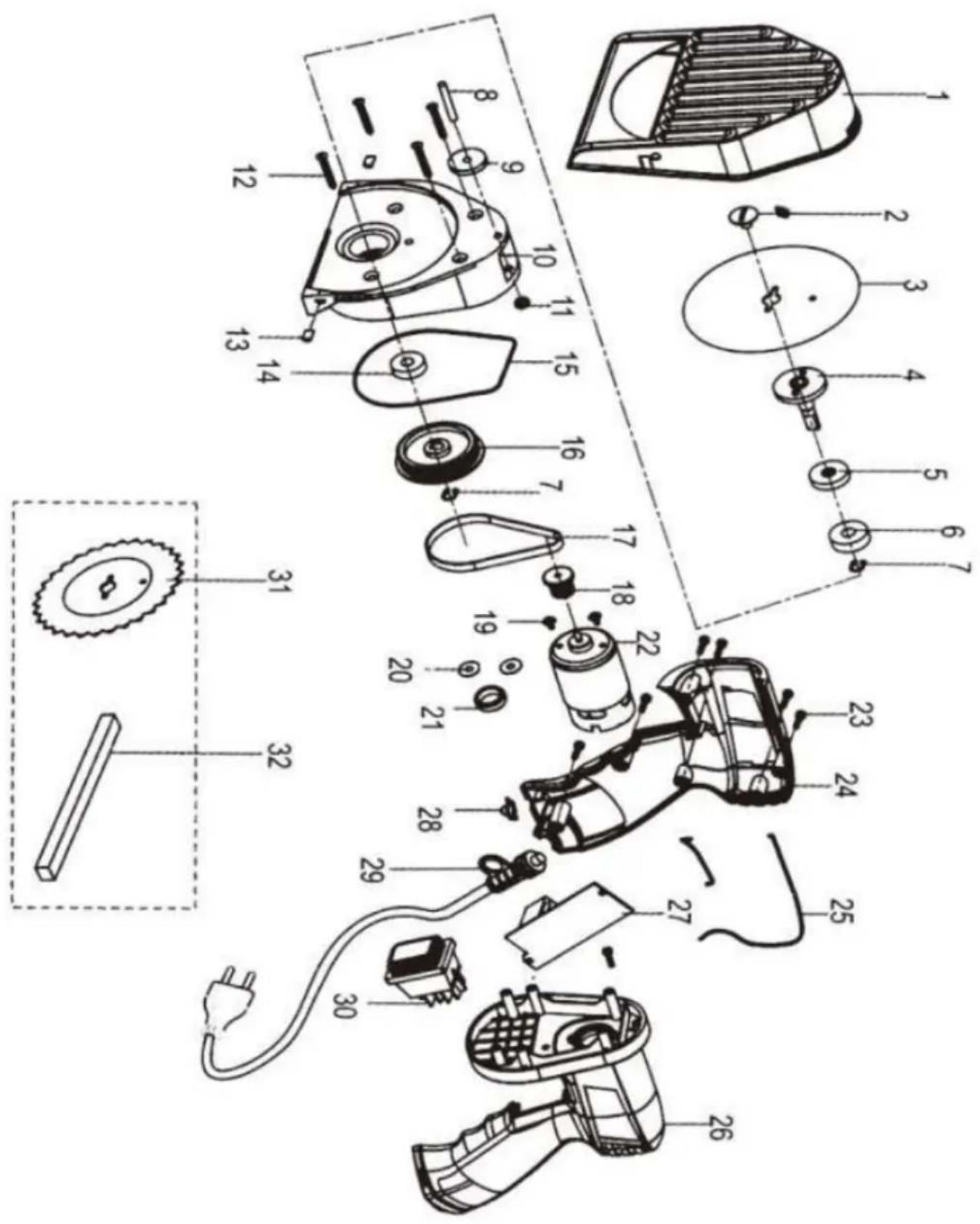

Exploded view diagram of a handheld device with numbered parts for identification

1	Knife protector	17	Belt
2	Fastening screw	18	Motor gear

3	Knife	19	Screw
4	Output axis	20	Barrier chip
5	Oil seal	21	Fixed ring
6	Bearing	22	Motor
7	Circlip	23	Screw
8	Bolt	24	Left housing
9	Adjustment screw	25	Sealing
10	Gear box	26	Right housing
11	Screw	27	Circuit board
12	Screw	28	Reset cap
13	Dowel pin	29	Power cord
14	Bearing	30	Switch
15	Seal ring	31	Serrated knife
16	Pulley	32	Sharpening stone

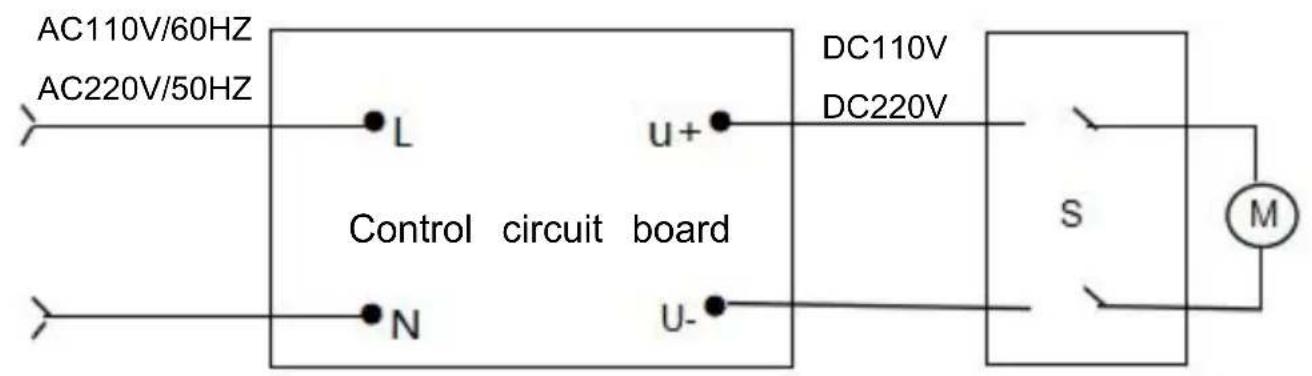

Circuit Diagram

AC110V/60HZ AC220V/50HZ L u+ Control circuit board N U- DC110V DC220V S M
