USER MANUAL 120858 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRUCK TENT

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Line drawing of a vehicle's front view showing a covered canopy and wheel rim (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property. Avoid children using the product. And this product is not a toy. Do it children to play.

Keep all flame and heat sources away from the tent fabric. The fabr burn if left in contact with any flame source. The application of any substance to the tent fabric may render the flame-resistant properties ineffective.

Avoid injury, children should not play around inside the product or to. This product is not recommended during thunderstorms.

SETUP PRECAUTIONS

1. Do not use candles, matches, or open flames of any kind in or tent.
2. Do not cook inside the tent.
3. Build campfires downwind and several meters away from the tent. sure to fully extinguish fires before leaving a campsite or before retire the night.
4. Exercise extreme caution when using fuel-powered lanterns or heated inside or around the tent. Use battery-operated lanterns whenever possible.
5. Do not refuel lamps, heaters, or stoves inside the tent.
6. Extinguish or turn off all lanterns before going to sleep
7. Do not smoke inside the tent Do not store flammable liquids insid tent
8. NEVER run the vehicle engine when the tent is attached
9. Do not install the tent when the temperature is below 0^ C/ 32^ F or when

your vehicle is wet, it may cause damage

1. Allow adequate ventilation inside the tent at all times
2. Do not attempt to drive the vehicle with the tent attached
3. To prevent carbon monoxide from entering the vehicle and tent a do not run the engine, do not cook inside the tent, and do not use heater in the tent. Carbon monoxide is dangerous to your health.
4. Engine must be off and exhaust must be fully cooled before tent installation and use

SAVE THESE INSTRUCTIONS

CAMPSITE SELECTION

1. Select a smooth, level campsite clear of rocks, branches, and other hard or sharp objects.
2. Avoid areas with overhead power lines and tree limbs.
3. Park the vehicle in the chosen campsite.
4. Turn the engine off and engage the parking brake.

HOW TO STORE

1. Clean and dry the tent.
2. Fold all of the components into the tent.
3. Roll the tent, using the pole bag as a guide.
4. Secure with the tent tie straps and insert into the carrying bag.
5. Store in a cool, dry place.

SPECIFICATION

Model	120904	120736	120858
Tent Style	5.0-5.2ft	5.5-6.0ft	6.4-6.7ft
Awning	Yes	Yes	Yes
Colour	Grey	Grey	Grey
Seasons	3 Season, Summer, Fall, Spring
Material	Body: oxford cloth 210D/PU2000Bottom: oxford cloth210D/PU2000

PART LIST

No.	Name	Picture	QTY
1	Tent Bag		1
2	Hook		19
3	Rain fly		1
4	Tent		1
5	Main pole ( A )		2
6	Foyer pole ( B )		1
7	Top pole (C)		1
8	Pole Bag		1

TRUCK TENT ASSEMBLE

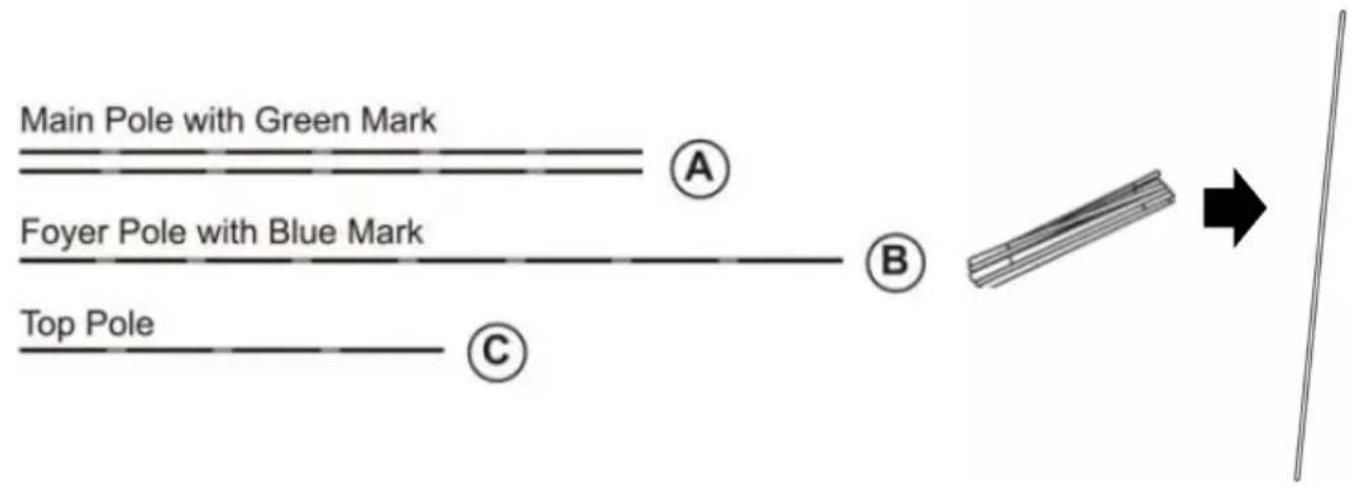

STEP1. Connect the four bundles of tent poles to distinguish the A/B poles.

Main Pole with Green Mark Foyer Pole with Blue Mark Top Pole A B C

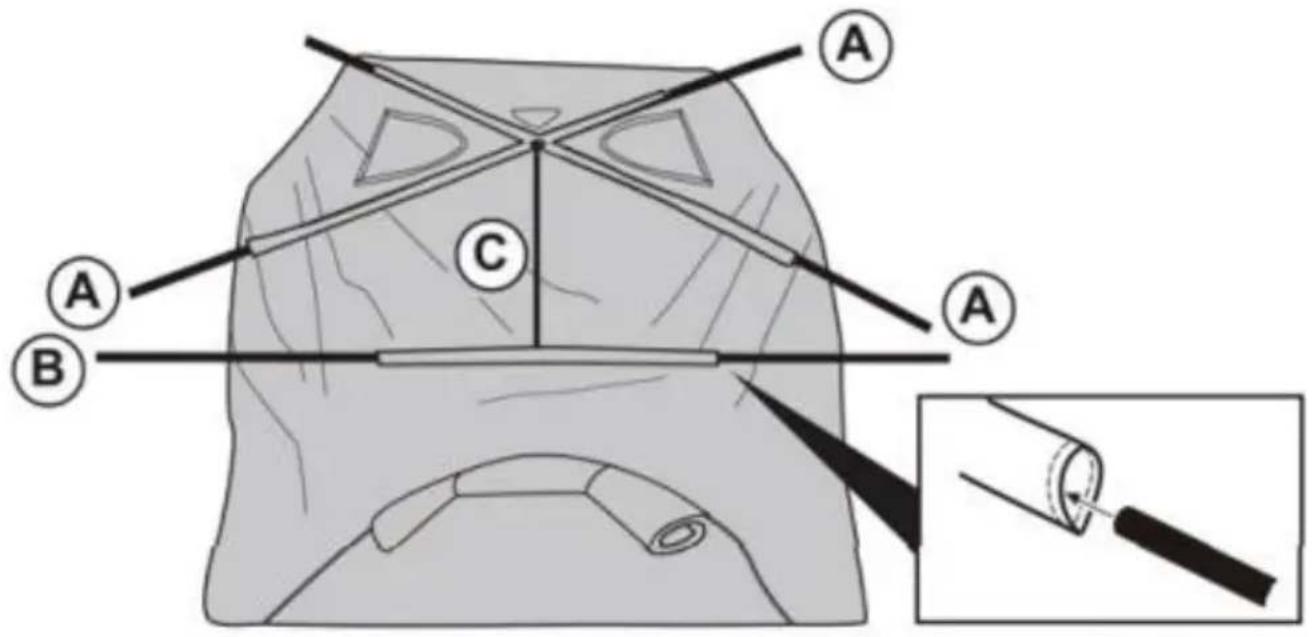

STEP2. Insert the A/B/C poles into the corresponding sleeve.

A A C B A B

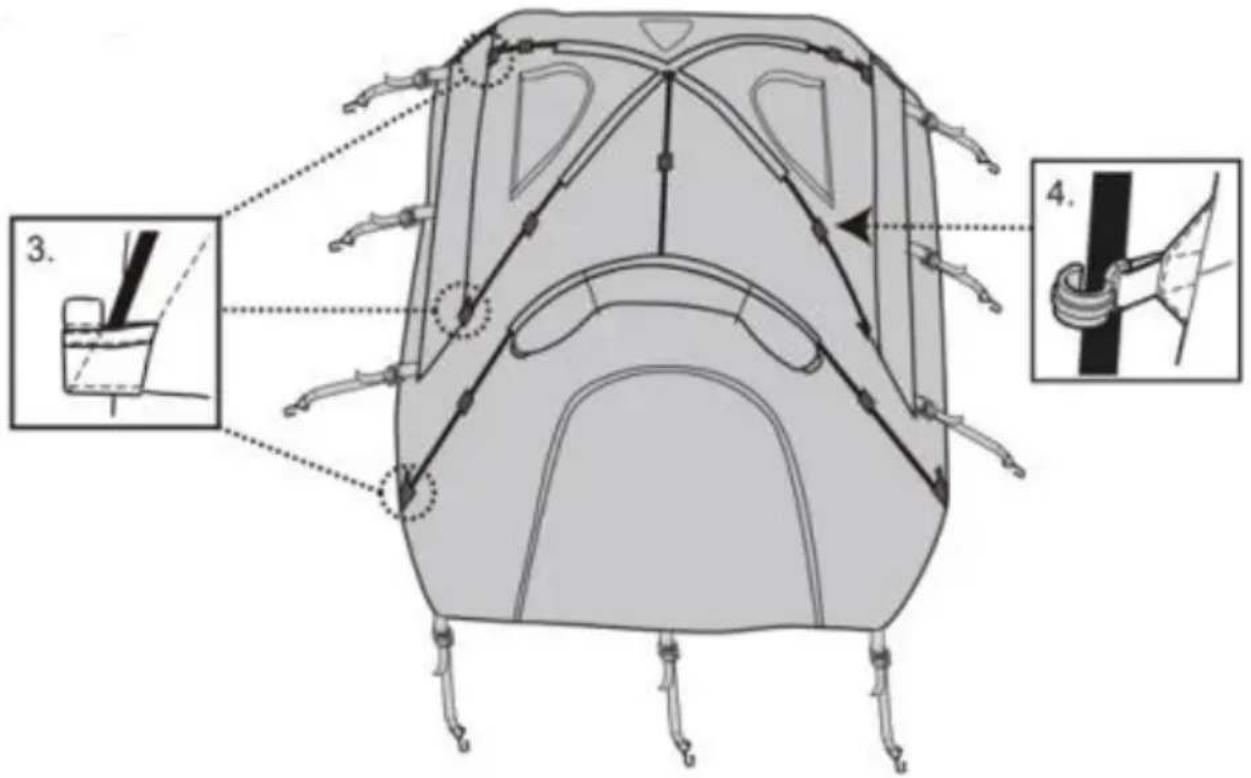

STEP3. Insert both ends of the tent pole into the corresponding sleeve

Technical diagram of a mechanical device with labeled parts and zoomed-in detail view

STEP4. Hang all hooks.

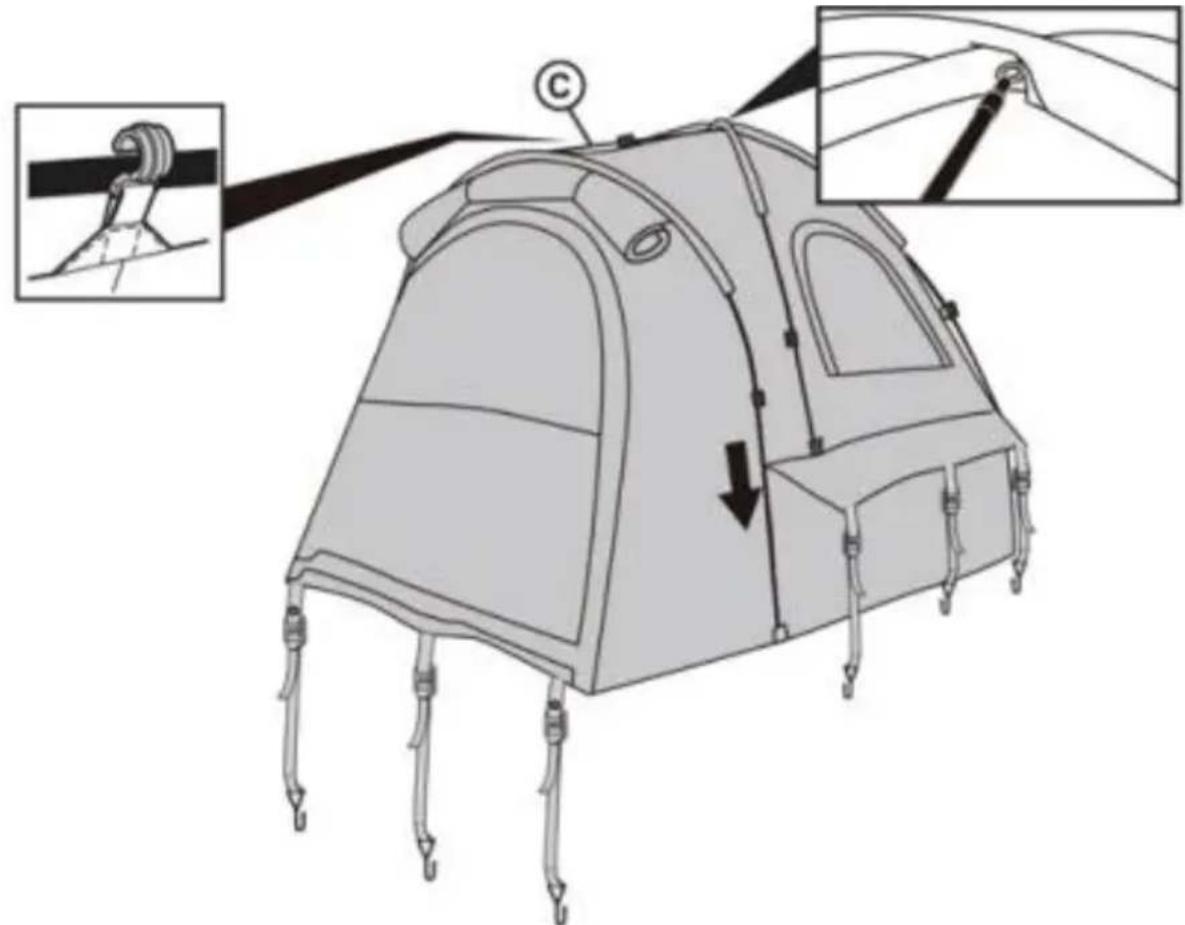

STEP5. Insert C poles into C pole's sleeve.

Technical diagram of a portable device with labeled parts and instructional arrows indicating assembly steps

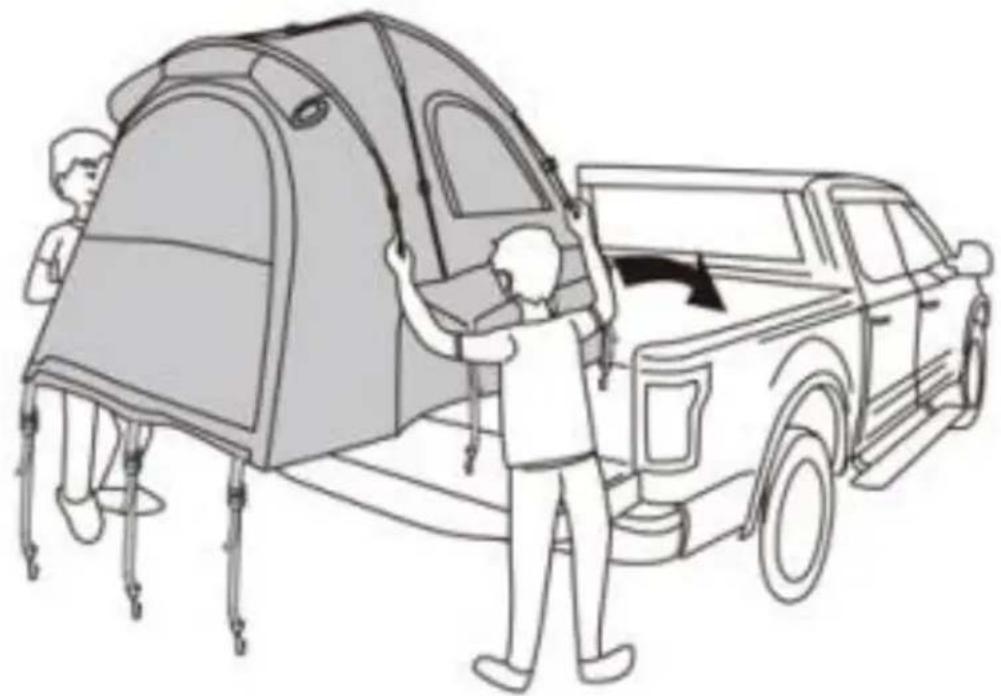

STEP6. Install the pole-mounted tent on the rear compartment with th door facing outward.

Line drawing of two people loading a large tent onto a pickup truck (no text or symbols)

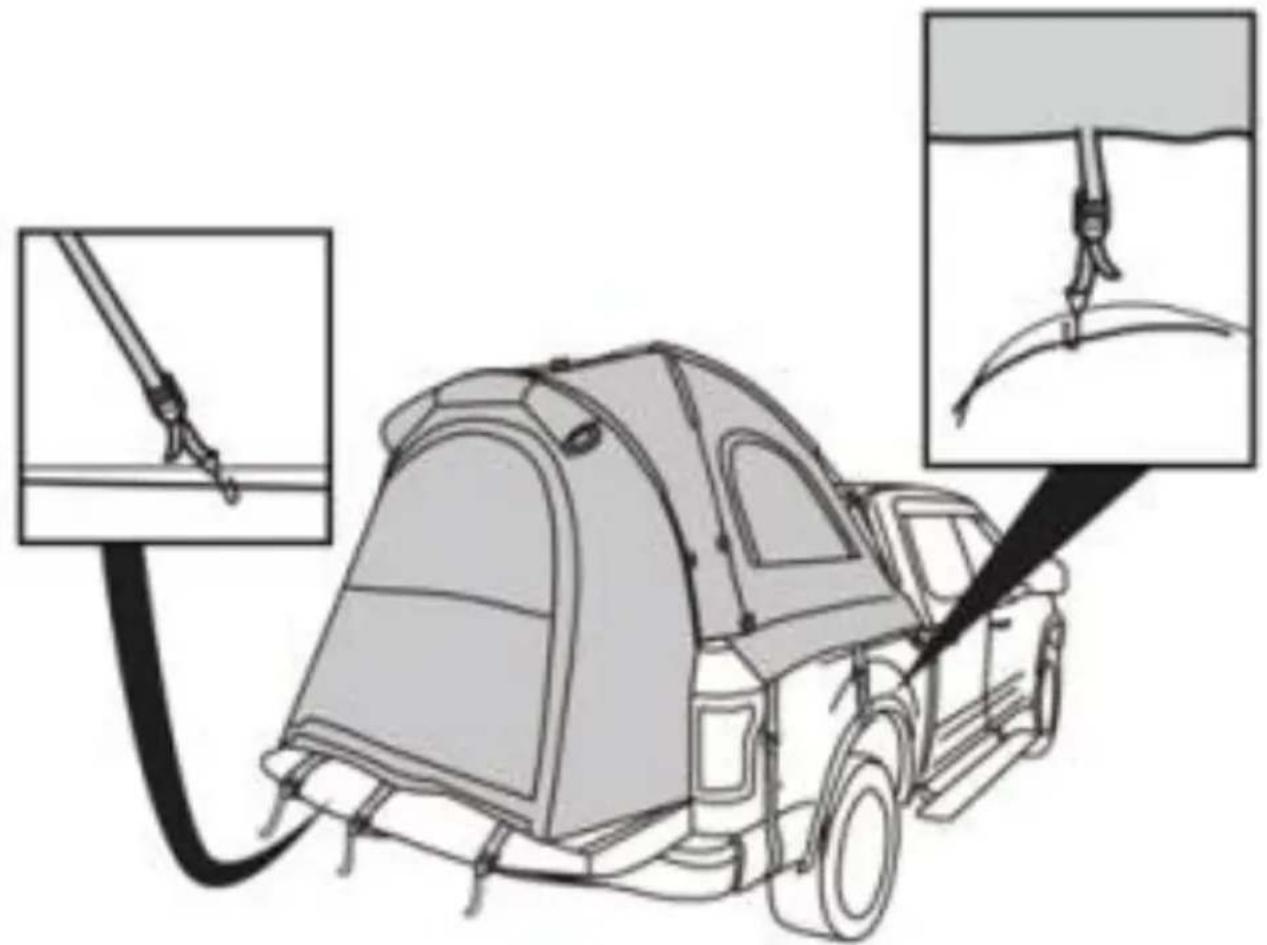

STEP7. Use hooks to fix the tent on the truck and tighten the strap complete the assembly.

Illustration of a portable car being lifted by a cable, with two inset diagrams showing the same setup (no text or symbols present)

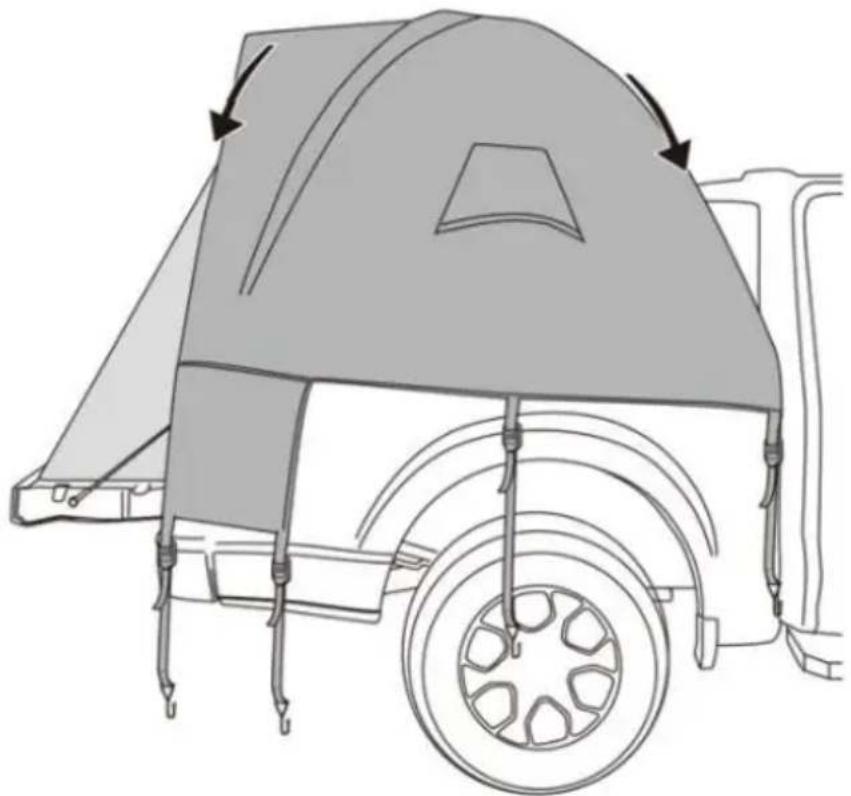

STEP8. Put the cover on top of the tent that has been installed on truck.

Line drawing of a vehicle's rear cargo cart with visible tire, canopy cover, and side-mounted sensors (no text or symbols)

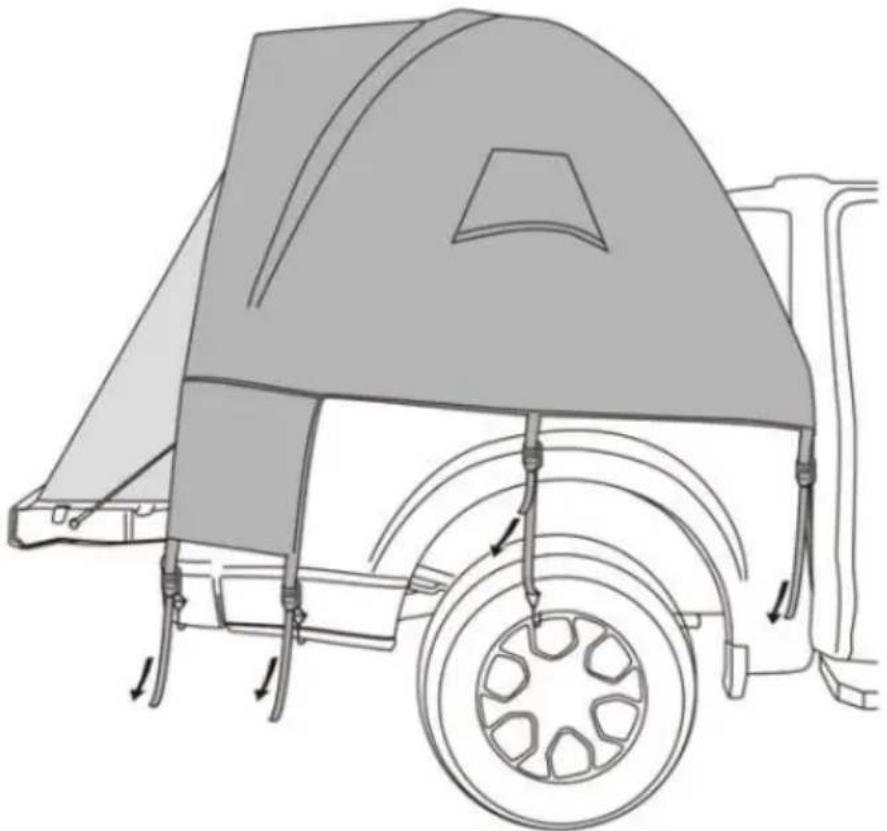

STEP9. Use hooks to fix the cover on the truck and tighten the to Complete the assembly just as STEP 7.

Line drawing of a vehicle's front view showing a curved ramp, tire, and wheel assembly (no text or symbols)

TENT CARE TIPS

1) We highly recommend seam sealing your tent prior to camping as water may penetrate the needle holes in the fabric. This is common tents and is not a defect.
2) Condensation maybe formed at the interior surface of your tent. It caused by water vapor from your breath, perspiration, or any wet iter the tent. Water in the tent is no leakage through the tent fabric.
3) The water-resistant coating may wear down overtime. It is suggested spray a water-resistant coating on to the tent and rainfly every few y
4) Avoid spraying insect repellent, hairspray, etc., inside or near your as they may be harmful to the tent fabric and cause leakage.
5) Do not leave your tent set up in direct sunlight longer than necessary left in sunlight for prolonged periods of time, the fabric will fade and weaken.
6) If zippers stick, lubricate with silicon. Never force a zipper as this bend and prevent the zipper from closing.
7) NEVER roll up or pack away a wet/damp tent. This will cause m Make sure your tent is completely dry before storing. Store your Tent in a dry place.
8) To clean, hand wash with a sponge using mild soap. Never use washing machine or detergent.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
