USER MANUAL FRB-1E5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

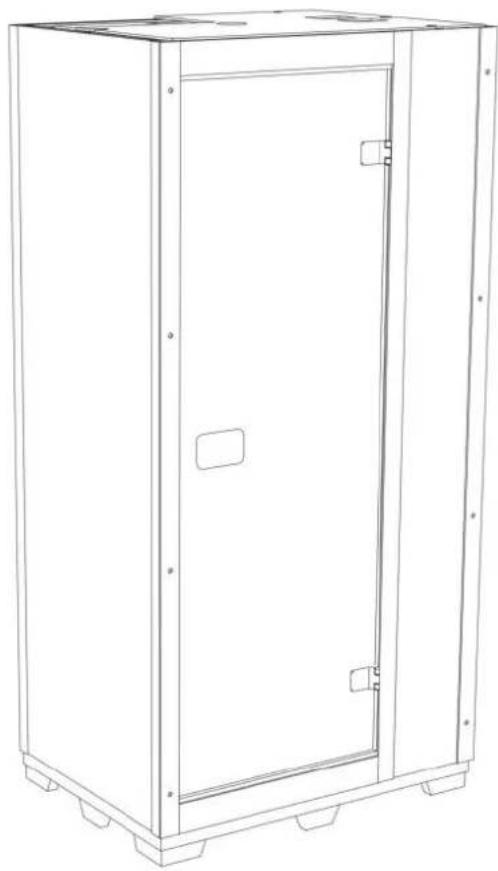

WOOD SAUNA

MODEL: FRB-1E5

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by it represents an estimate of savings you might benefit from buying certain us compared to the major top brands and does not necessarily mean categories of tools offered by us. You are kindly reminded to verify when you are placing an order with us if you are actually saving comparison with the top major brands.

MODEL: FRB-1E5

Line drawing of a rectangular industrial cabinet or enclosure with visible door and mounting base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to conta us:Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before VEVOR reserves a clear interpretation of our user manual. The appearance of shall be subject to the product you received. Please forgive us that we won't again if there are any technology or software updates on our product.

Recommendations

Read this manual carefully before using your sauna for the first time.

We recommend you keep it in a safe place for future reference.

- Wood is a living element, to maintain its original appearance, it is important to treat the the wood against moisture.

Use a saturator only on the outside of the sauna.

• Install the sauna on a perfectly flat and hard surface.

- The sauna must remain in a dry area. Do not use it near a source of water (bath, da swimming pool).

- Do not use liquid cleaning products. Disconnect the sauna before cleaning and use a we

- Protect the sauna's electrical cable to avoid it being crushed or pinched.

- Prior to replacing certain components, ensure that they are specified by the manufacturer they have the same features

as the original parts. Incorrect replacement can cause a fire, a short circuit or damage to We strongly recommend

using a qualified technician.

• To avoid the risk of burns or electric shocks, do not use any metal tools.

- Do not put animals in the sauna.

- Do not leave the sauna switched on without supervision.

- Do not leave the sauna switched on for more than 3 hours at a time to avoid premature deterioration of the equipment. After 3

hours continuous usage, switch off the sauna for at least one hour.

• We recommend that you do not install a locking system on the sauna door.

- Check compliance of your electrical installation prior to connecting your sauna to the power

IMPORTANT:

Please read the safety instructions carefully before installing and using your sauna cabin. The essential for your safety, so please adhere strictly to them.

Beware of hyperthermia, heat stroke or heat exhaustion which can be caused or aggravated noncompliance with the safety instructions. Symptoms are fever, a rapid pulse, dizziness, fair lethargy and numbness in all or part of the body. The effects are: reduced awareness of the ignorance of imminent risks, loss of consciousness.

The sauna must not be used by:

•Children under 6 years of age.

•People with severe reactions to sunlight.

•Elderly or disabled people.

•People with previous medical conditions such as heart disease, high or low blood pressure, circulation problems or diabetes without prior medical advice.

•Pregnant women. Excessive temperature can endanger the foetus.

- Persons suffering from dehydration, open sores, eye disorders, burns or sunstroke.

Children between 6 and 16 years of age may use the sauna provided that they are contin supervised by a responsible adult and that the temperature does not exceed 60^ C ( 140^ F). In the event of problems involving health, medication or injury to muscles or ligaments, do

the sauna without previously consulting a doctor and obtaining approval.

If surgical implants are worn, do not use the sauna without previously consulting a doctor; obtaining his approval. Do not use the sauna after strenuous activity.

Wait 30 minutes for your body to cool down.

Do not spend more than 40 minutes in the sauna at any one time. Do not consume alco before or during the session.

Do not sleep in the sauna when it is in operation.

To avoid the risk of overheating, connect your sauna to a sufficiently powerful electrical out not connect other electrical equipment to the same wall socket.

To avoid any risk of electrocution or damage to the sauna, do not use it:

•During thunderstorms.

- If the electrical cable is damaged, it must be replaced by a qualified person.

- If the electrical cable overheats, it must be checked by a qualified person.

- If you have to change a bulb, wait until the sauna is switched off and cooled down.

Dry your hands before connecting or isconnecting the electricity. Never work with wet hands Do not switch the electricity or the heating system rapidly on or off as this could damage electrical system. Do not try to repair the sauna by yourself without the agreement of the distributor or manufacturer.

Unauthorized attempts to repair it will invalidate the manufacturer's warranty.

Do not use any type of detergent inside the sauna.

Do not pile up or store objects inside or on top of the sauna.

Do not place flammable materials or chemical agents near the sauna.

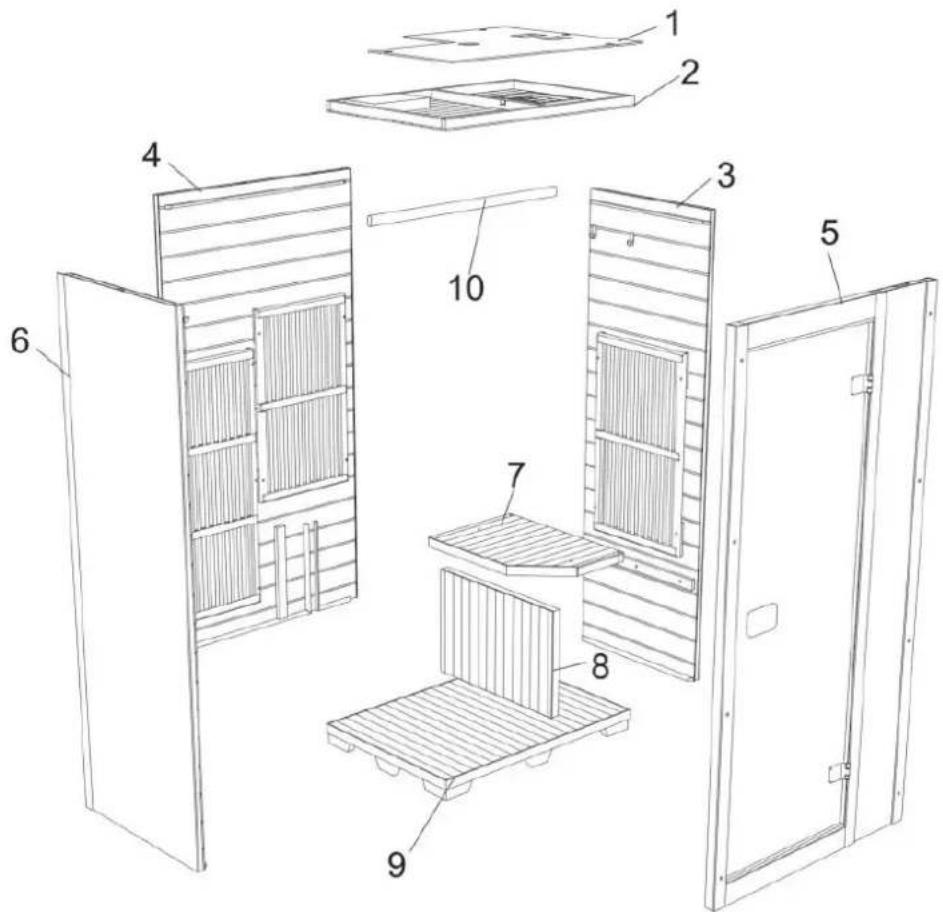

Technical diagram of a modular kitchen or storage unit with numbered components for identification.

1	Duster cover *1	5	Front board *1	9	Bottom board *1
2	Top board *1	6	Left board *1	10	Clothes rail *1
3	Right board *1	7	Bench *1
4	Back board *1	8	Bench front board *1

Screw(3*25)* 10

Screw(4*50)* 10

Wooden stoppers*23

Screw(5*40)* 20

Hexagen Wrench*1

Handles with Screws

Model	Power (W)	Voltage (V)	Frequency (Hz)	Plug Type
FRB-1E5	1140	AC 220-240	50	European Standard
		AC 220-240	50	Ausstandard
		AC 120	60	American Standard

INSTALLATION PROCEDURE

CAUTION:

1) No plumbing or plumbing fixtures should be placed in the sauna.
2) Keep all liquids away from the heating panels.
3) Install sauna on a completely level surface.
4) Install sauna in an area that is dry.
5) Flammable objects and Corrosive chemical substances should be kept far away from the s

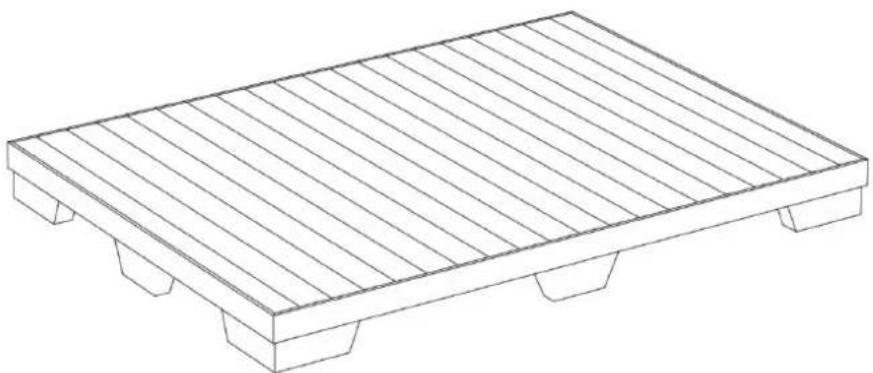

Step 1

Line drawing of a rectangular metal plate with slats and supports (no text or symbols)

Take out the base plate and place it on a flat ground for installation.

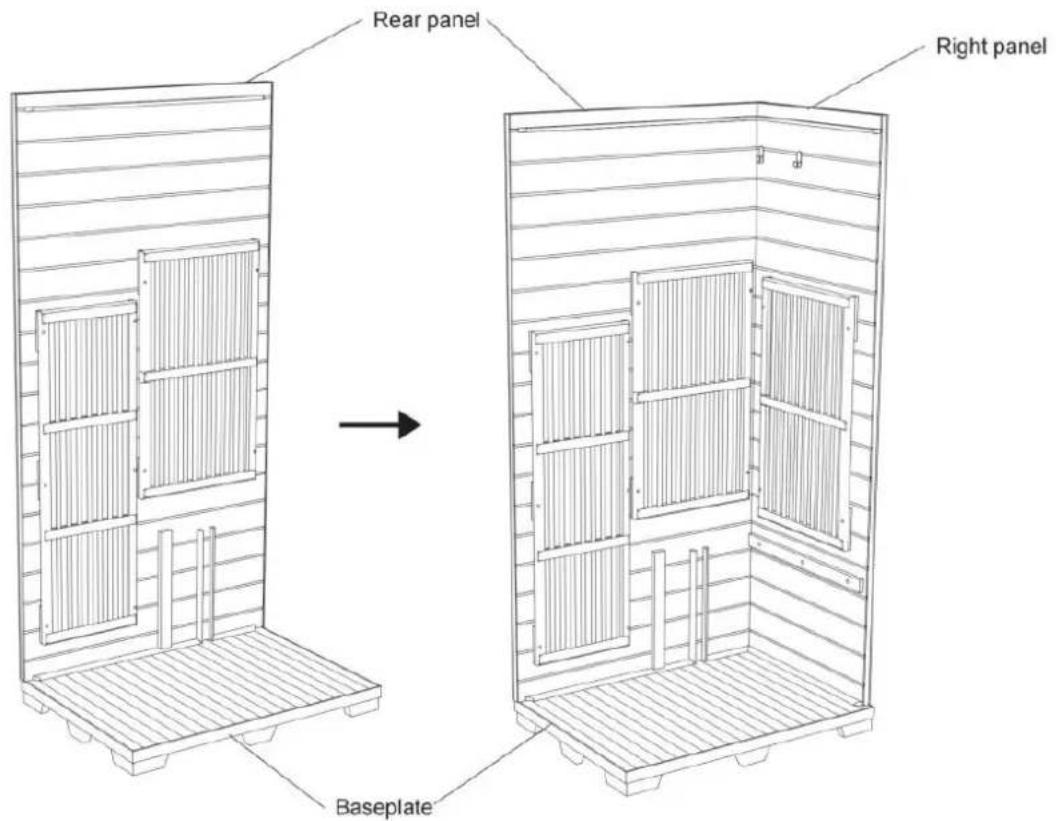

Step 2

Rear panel Right panel Baseplate

Take out the rear panel and right panel stand it at the corresponding position behind the I

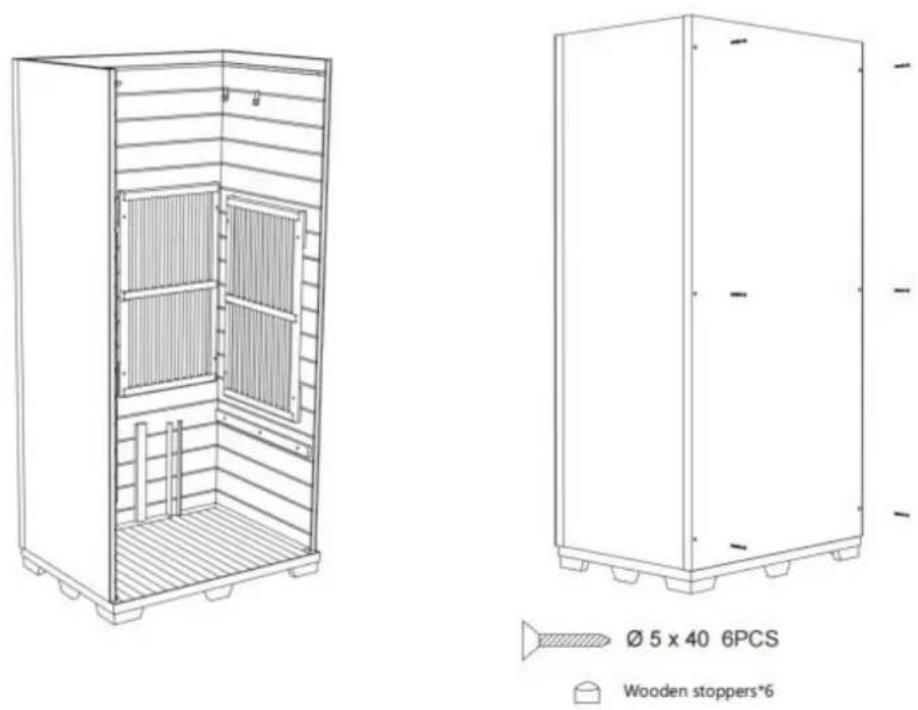

Step 3

Ø 5 x 40 6PCS Wooden stoppers*6

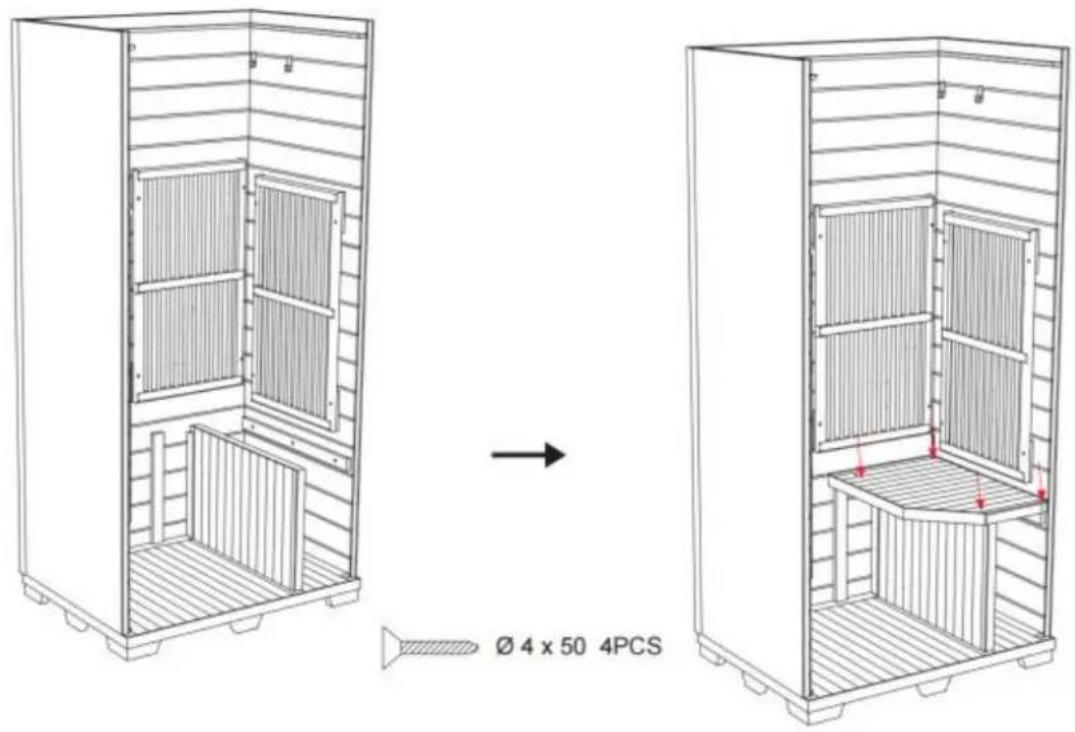

Step 4

Ø 4 x 50 4PCS

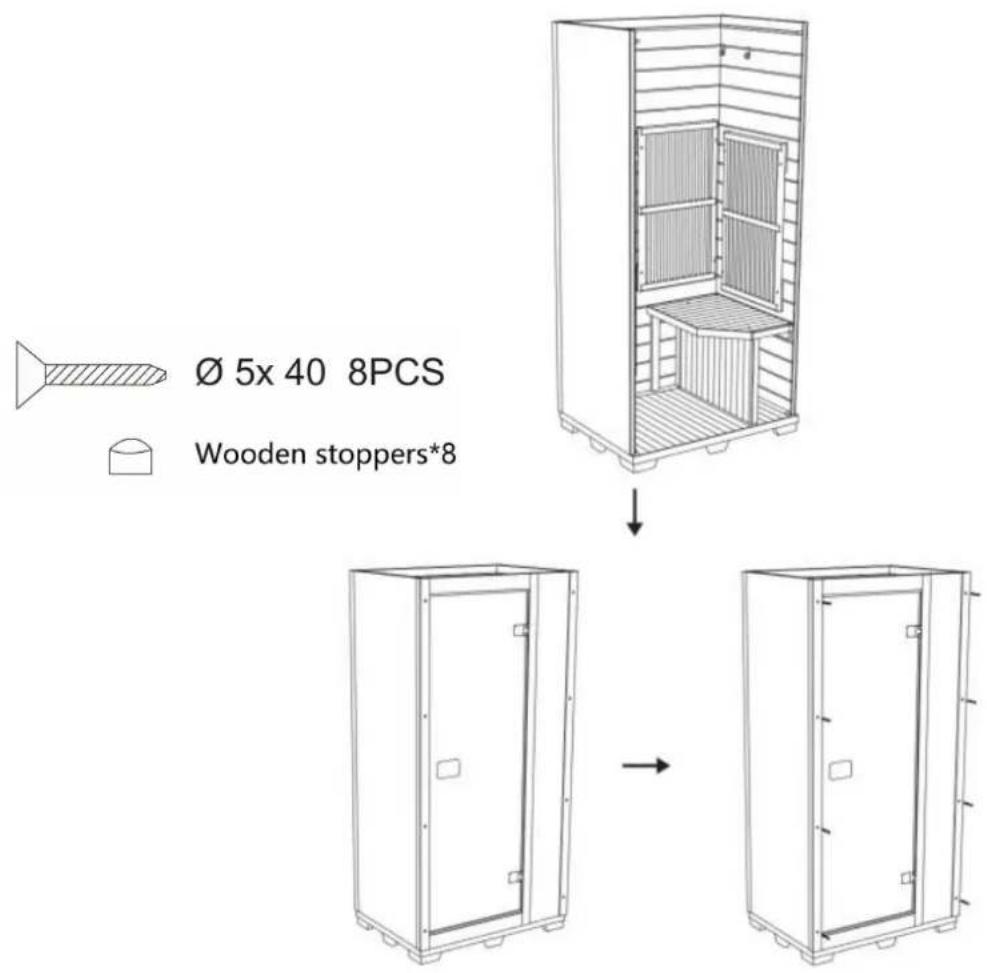

Step 5

Ø 5x 40 8PCS Wooden stoppers*8

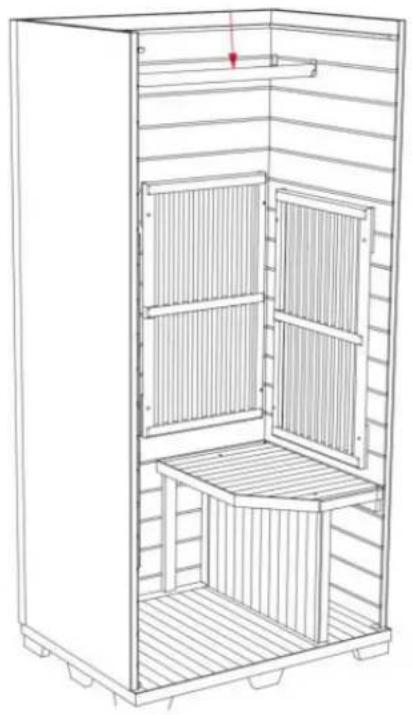

Step 6

Line drawing of a cabinet interior with open doors and internal compartments (no text or symbols)

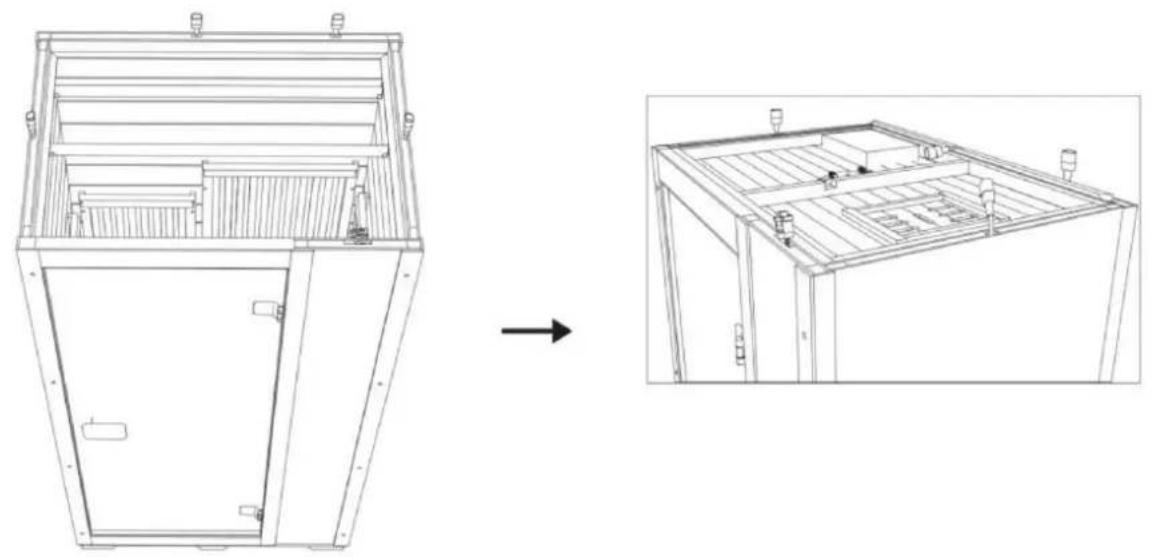

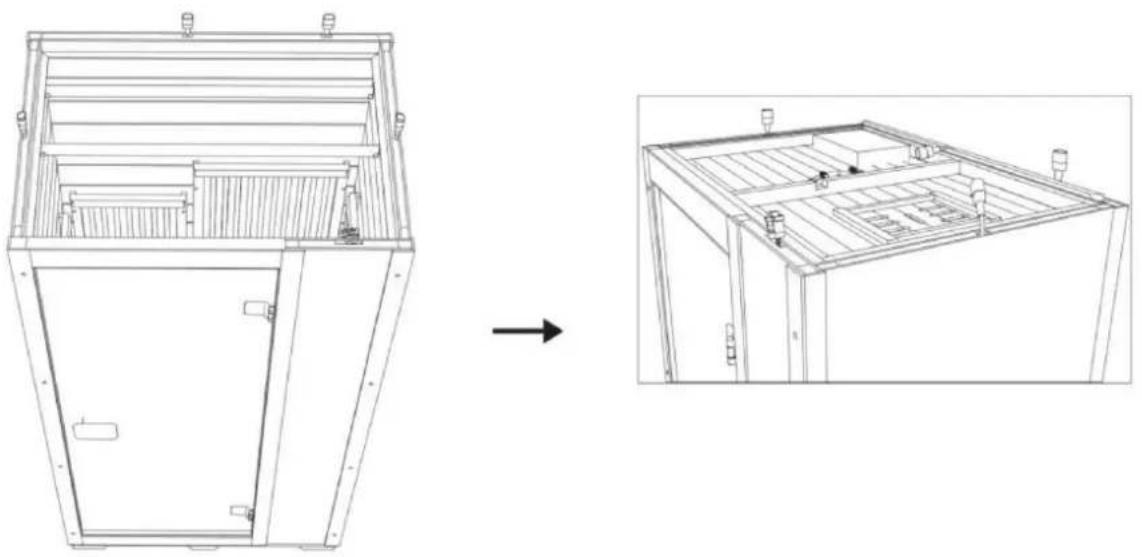

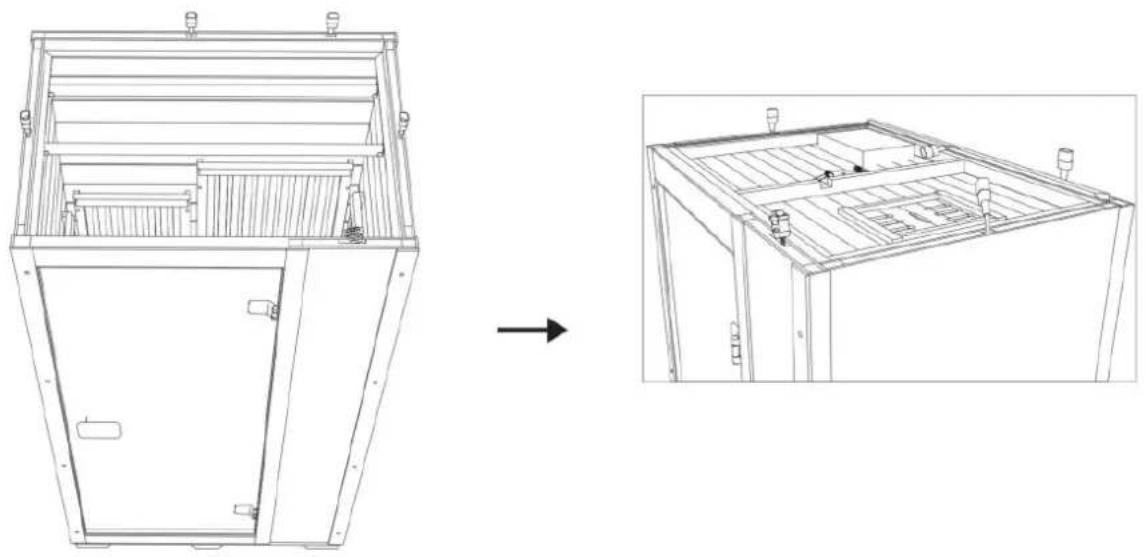

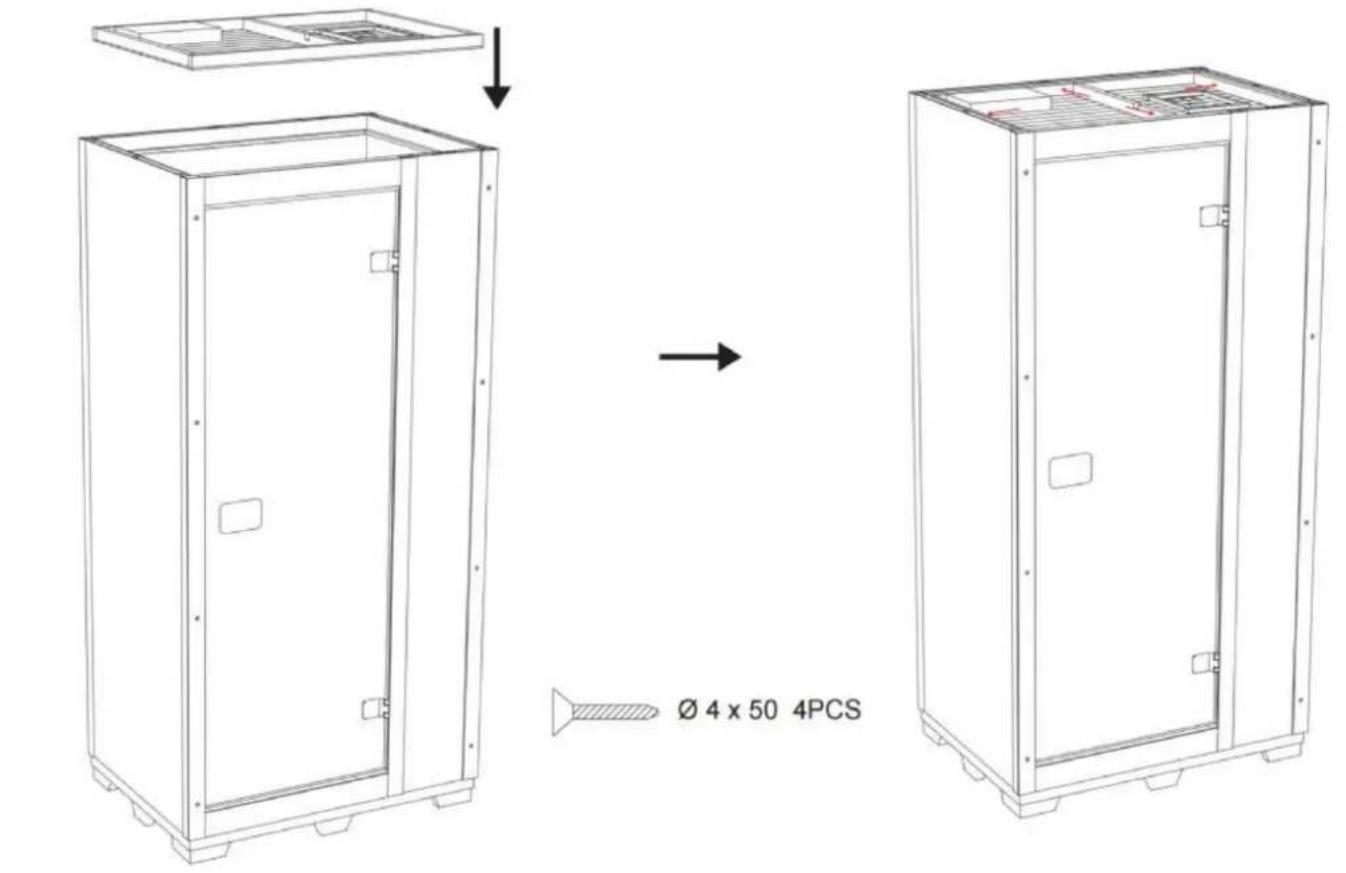

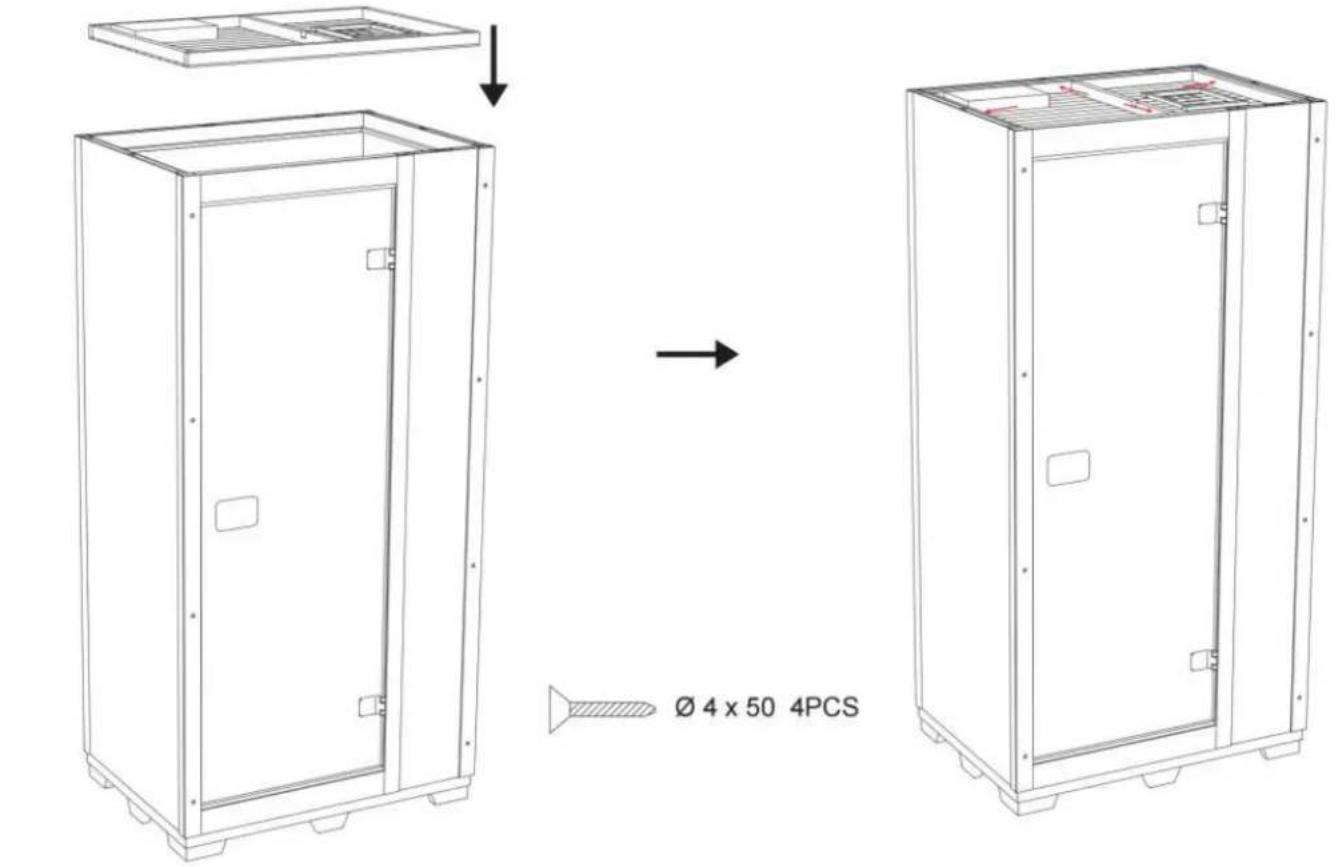

Step 7

Technical line drawing of a cabinet or enclosure showing front and side views (no text or symbols)

Install the top plate.

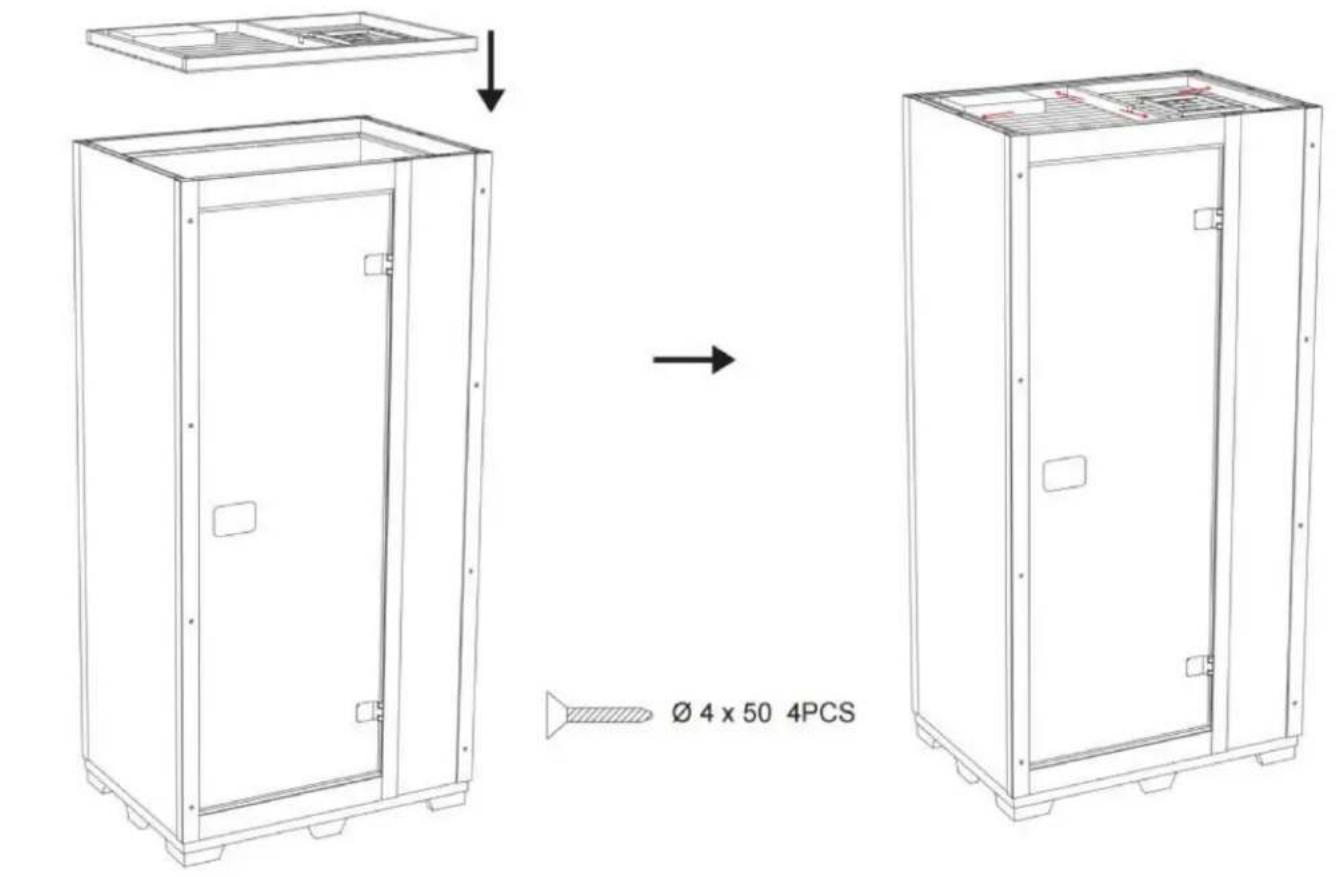

Step 8

Ø 4 x 50 4PCS

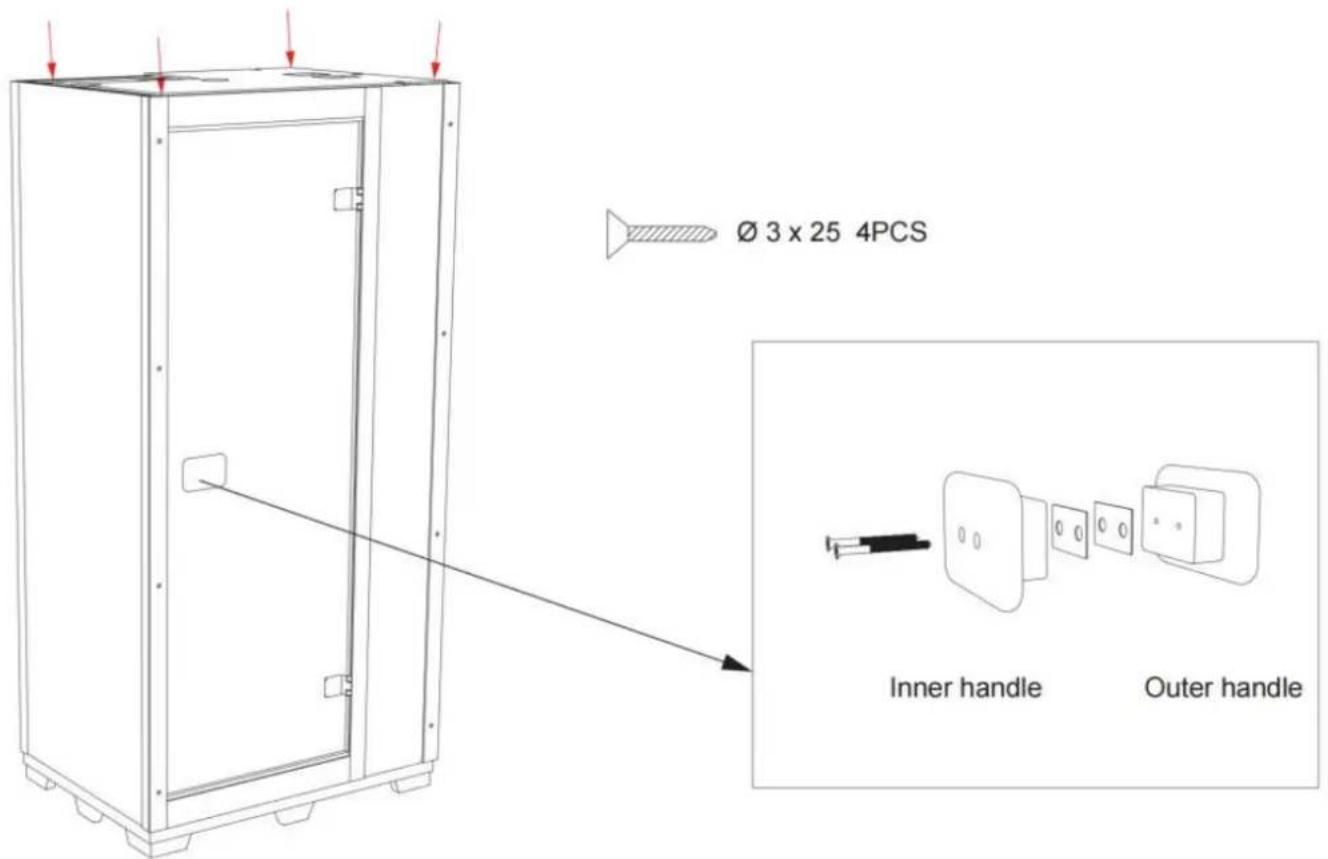

Step 9

Ø 3 x 25 4PCS Inner handle Outer handle

Operation

1. Precautions

a. Check all the circuitry and the plug meet all requirements.

b. Set the temperature and time to a comfortable level.

c. Drink a cup of water before the sauna session.

d. After 2 hours of continuous use, shut the sauna down for one hour.

e. To avoid burns, do not touch the heating element.

f.WARNING: Covering the heater or infrared emitter causes fire risk!

2.Operation

a.Plug the sauna into a outlet which is stated in nameplate.Do not share the outlet with an otherappliances.

Sauna should be unplugged when not in use.

b. After your sauna session, turn off, and unplug the power cable.

c.DO NOT OPERATE THE SAUNA UNSUPERVISEDTO REDUCE THE RISK OF FIRE.

Note:

When the environmental temperature is low, the heating time will take longer.

It is also possible the sauna temperature display is not able to reach its maximum tempera

This is normal and does not in any way affect the performance of the infrared heaters or

benefits. the sauna temperature sensor only measures the heat radiated by the heating elen

It does not measure the infrared heaters penetrating heat and this is where most of the h

benefits are.

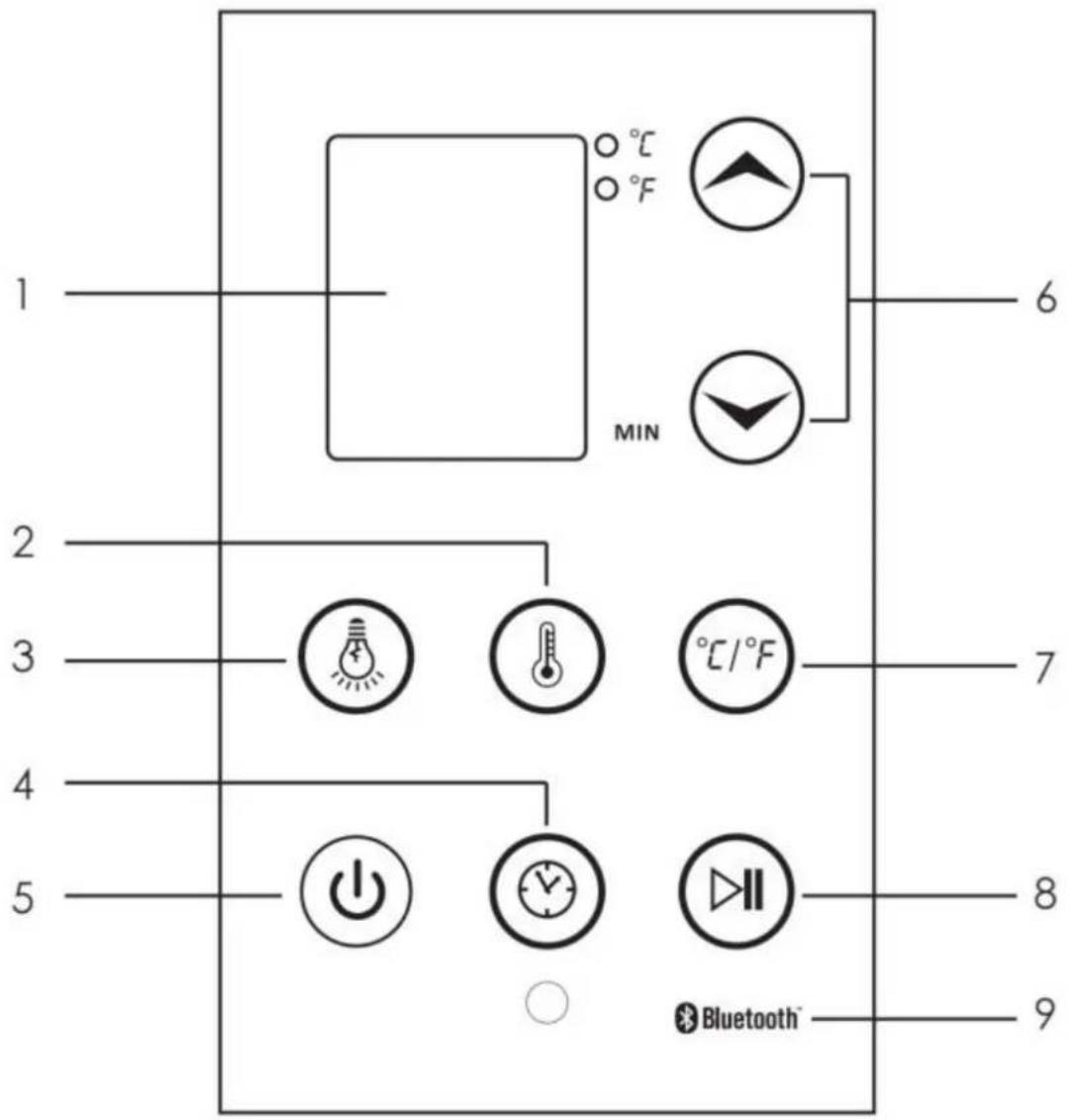

Control panel operation

1 MIN 2 3 4 5 6 7 8 9 Bluetooth

1	Display screenFor temperate and timer displa	6	Adjust buttonPress ^' and V" to adjust the temperature se and the timer setting.
2	Temperature buttonPress the key to temperature adjustment state.	7	Temperature typePress to change the temperature display between °C/°F.
3	Light buttonPress the key to turn on/off t light.	8	Pause/PlayPress to control the working functions of the sauna.
4	Time buttonPress the key to time adjustm state.	9	BluetoothControl panel can be connected to devices t music.
5	Power buttonPress the key to turn on/off t sauna.

Maintenance

Before using	1.Please be sure to follow the instruction manual beforeoperations;2.Prepare a towel on the seat bench to prevent sweatfrom dripping or avoid affecting the quality andbeauty of wood.
After using	1.Please unplug the power plug in time;2.Open the door to let the heat and humid water vapordissipate and sauna cabin dry.
Stain on wood	1.The outer cabin can be wiped with a wrung wet towel;The inner cal wiped by small vacuum cleaner.2.Do not use organic solvents to decontaminate,such asgasoline,alcohol,etc.wipe the sauna surface;3.Do not use sharp objects in sauna cabin to preventscratching woods.
Stain on glass	1.Wipe the glass with soft paper;2.Stubborn stains can be wiped with a damp cloth,thendry with a dry 3.Do not scratch the surface with a sharp object to preventscratching
Transportation and storage	1.Avoid water,snow and intense impact during thetransportation;2.Do not store it in a humid environment;3.The northern climate is relatively dry,often wipe theproduct with a wru towel;4.The climate in the south is relatively humid and can beventilated and frequently.

Trouble shooting

Number	Problems	Possible reasons	Countermeasure
1	Indicator light for powersupply not working	The connector is not connected properly.	Check the connector or replace new one.
		No power supply input.	Chick the circuitry (especially weather there is power supply input).
		Indicator light is broken.	Replace the circuitry panel.
2	Indicator light for function is not working	The heating indicator light broken.	Replace the relevant control panel.
		The circuit board or components are broken.	Replace the circuit board.
		The temperature sensor is broken.	Check if the connect is looser and replace it.
3	Infrared Heater not heating up	The heater is broken.	Replace with a new one Of t same specifications.
		The wire junction or the heater's wire is loosen.	Check and make them tight.
		The temperature sensor is broken.	Check if junction of the temperature sensor is loosen a replace it.
		The circuit board of the relay is not work.	Replace the circuit board.
4	Odor from the sauna	The circuit's problems.	1) There is eyewinker around, remove it.2) Some heater's temperature over high,cut off the power supply,replace it.3) Parts on the circuity is bro
5	Light bulb is not working	Light bulb is burned out.	Replace the light bulb.
		Light bulb wiring is loose	Replace the lamp holder.
		Problems with electrical control panel.	Repair or replace it.
6	Sauna is not powe up	Power cord is unplug.	Plug back power cord to outlet
		Outlet has no power.	Check outlet or circuit breaker.
		Power supply or circuit panel is broken.	Replace the power supply or related circuitry board.
7	Music Player doesn’t work	Power connector is loose damage.	Check connector or replace it.
		DC power supply is no power to the music playe	Check DC power supply wiring replace the power supply.
		Music player is defective.	Replace the music player.
8	Speaker does not work	The speaker is broken.	Replace with a new one of the same specifications.
		The speaker wire is loose	Reconnect the speaker wire.
		The power indicator light music player is off	Turn on the switch to start w
