USER MANUAL D60TW-G Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

REFRIGERATED SEASONING TABLE

MODEL:D40TW-G、D48TW-G、D55TW-G、D60TW-G、D71TW-G、D27TW-G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:D40TW-G、D48TW-G、D55TW-G、D60TW-G、D71TW-G、D27TW-G

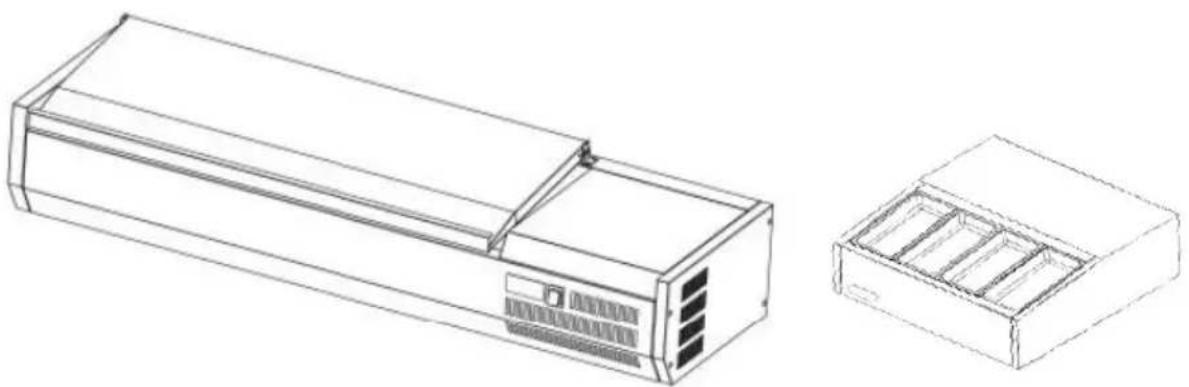

Technical line drawing of a rectangular electronic device with internal components and a separate 3D box (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Content

I. Main Technical Parameters
II. Cautions
III. Precautions for use
IV. Common faults and troubleshooting
V. Non-faults
VI. Electrical Schematic Diagram
VII. After-Sale Service
VIII. Appendix with Shipment

Preface

Dear users:

1. Welcome to use Sushi FG showcase series manufactured by our company. It is designed for sites like various food, cuisine stores and mainly used for refrigeration and show of articles. The refrigeration temperature is 2^ C below.
2. The product is designed scientifically and properly in structure, ene electricity saving, clean and better fresh keeping with direct cooling structure design, featuring fast cooling and uniform temperature inside.

The glass case is made of closely lapped hot-bent safety glass sheet thoroughly transparent. Product of this series features good-looking appearance, practicality, proper design, fast refrigeration, low power consumption, low noise, healthiness and uniform temperature.

1. All the materials, components and refrigeration units for the product from internationally professional famous brand manufacturer in order to ensure their quality.
2. The product adopts direct cooling copper tube polyurethane integral foam, safe, electricity saving, nice-looking, widely applied and making the counter face temperature more uniform.
3. This product has humanized design and increases the display function of the commodities. It is nice and decent so that it plays a certain adornment effect in using occasions.
4. The executive components of refrigeration system and the controlling components of electrical equipment are abroad brand-name products, as to ensure the operation of the product is stable and reliable. The reasonable system design improves the heat exchanging efficiency. Thus the cooling inside the cabinet is faster and the temperature is lower, is more energy-efficient.

In order to use our product better and prolong the service life of it, carefully read the operation manual of this product before using.

I. Main Technical Parameters

Model	Storage temperature	voltage/frequency	Input total power	Refrigerant	Dimensions (length×width ×height mm)	Net weight (kg)
D40T W-G	2°C~8°C	220V~240V 50Hz	140W	R290	955*404*280	31.5
D48T W-G			140W		1130*404*280	35
D55T W-G			150W		1305*404*280	39
D60T W-G			155W		1480*404*28 0	43
D71T W-G			165W		1655*404*28 0	22.5
D27T W-G			145W		760*670*280	26

II. Cautions

1. Must use separate single-phase triple-pole power socket with the earth port (E) reliably earthed. Note: do not take running water or gas as the earthing terminal. Or once electric system has troubles, there is no earthing protection, which will threaten personal and property safety. Remember that our company will not bear any responsibilities for accidents and losses caused by electric damage due to non-compliance with the abovementioned requirement when operating and using.
2. Do not directly put the power line on the passage. There should trough plate with certain strength for shielding or groove with cover pl avoid damage from heavy load and sharp tools.
3. Never put hazards which are volatile, corrosive, radioactive, flammatic explosive, poisonous and polluting the food in the cabinet.
4. Do remember to cut off the power before cleaning the product or changing lamp. Do not rinse it in case of electrical appliance being a with damp, soaking or having other accidents.
5. Once the product has electric and refrigeration system troubles, non-professional electricians and personnel without sufficient refrigeration technology and rich experience shall not randomly fiddle with, disassen and repair it in case of causing more serious accidents and even data which will lead to more losses.

III. Precautions for use

1. Push and place gently when carrying with inclination not exceeding

degrees.

1. The product should be placed in the area which is ventilated, coo kept away from heat and dust. Direct sun exposure should be avoided case of affecting refrigeration effect and the ground should be even a firm. Distance of the cabinet's periphery from walls and other objects should be no less than 10 cm in order to ensure good radiating of condenser. The showcase should be put in specified area in order to prevent displacement due to external force
2. The showcase should be operating for a period of time to confirm refrigeration system in normal condition before use at each time. After temperature inside is reduced to normal one, food can be put into refrigeration tray for refrigeration.
3. Do not put too much over hot food in the showcase's surface in generating over charge instantaneously.
4. For long-term discontinuation, take internal and external cleaning well for the product. Then dry and place it in dry, cool ventilated place, a frequently check to beware the rats. When restarting the equipment, s check the electrical lines to see that whether be bit and damaged by rats. After strict inspection and making sure, the equipment can be restarted to use.
5. Non-professionals shall not randomly open and replace members, electrical elements in the freezer and refrigeration units.
6. Ask professional maintenance personnel to replace damaged power to avoid danger.
7. If you cannot repair the failure by yourself, please ask for profess personnel to work out in a timely manner, or inform our technical pe to repair the failure.

IV. Common Faults and Troubleshooting

If you think the product has troubles, just check and do troubleshooting per following form. If still fails, please contact our company or sales department. Non-professionals should not randomly dismantle and

maintain product structures, electrical elements and refrigeration system. Check and troubleshooting must be done by professional technicians of accident will be easily caused, leading to bigger losses. Once the process is found to be electrified, please cut off power immediately and then professionals for check and repair.

Common Troubleshooting

Faults	Fault Causes	Scope of Examination	Troubleshooting
Compressor or not working	Power off	Check by multimeter	Switch on
	Plug loose	Check	Plug in tightly
	Starter relay socket loose	Dismount shroud for check	Plug the pin tight
Over high temperature Inside the showcase	The storied goods are too much inside the showcase.		Reduce food
	Ambient temperature too high	Test by thermometer	Change ambient temperature
Too loud noise	The showcase is not placed stable.	Check	Placed stable
	Fan and compressor castors footing loose	Check	Fasten the footing screws

V. Non-faults

1. When the compressor operates, the surface will be hot. In normal compressor operation, the surface temperature will be high. This is no phenomenon. Do not touch with hands.

2. There is moisture condensation on the glass surface. With high environment temperature and humidity, it is easy for dewdrop to appe the external surface of the glass. Please wipe it dry timely using sof cloth or start heating wire demisting function.

3. The room temperature is lower than the controlling temperature of temperature controller so that the compressor breaks down. Because t room temperature is lower than the temperature of the temperature controller, so the data collected by the temperature sensor is not end start the compressor.

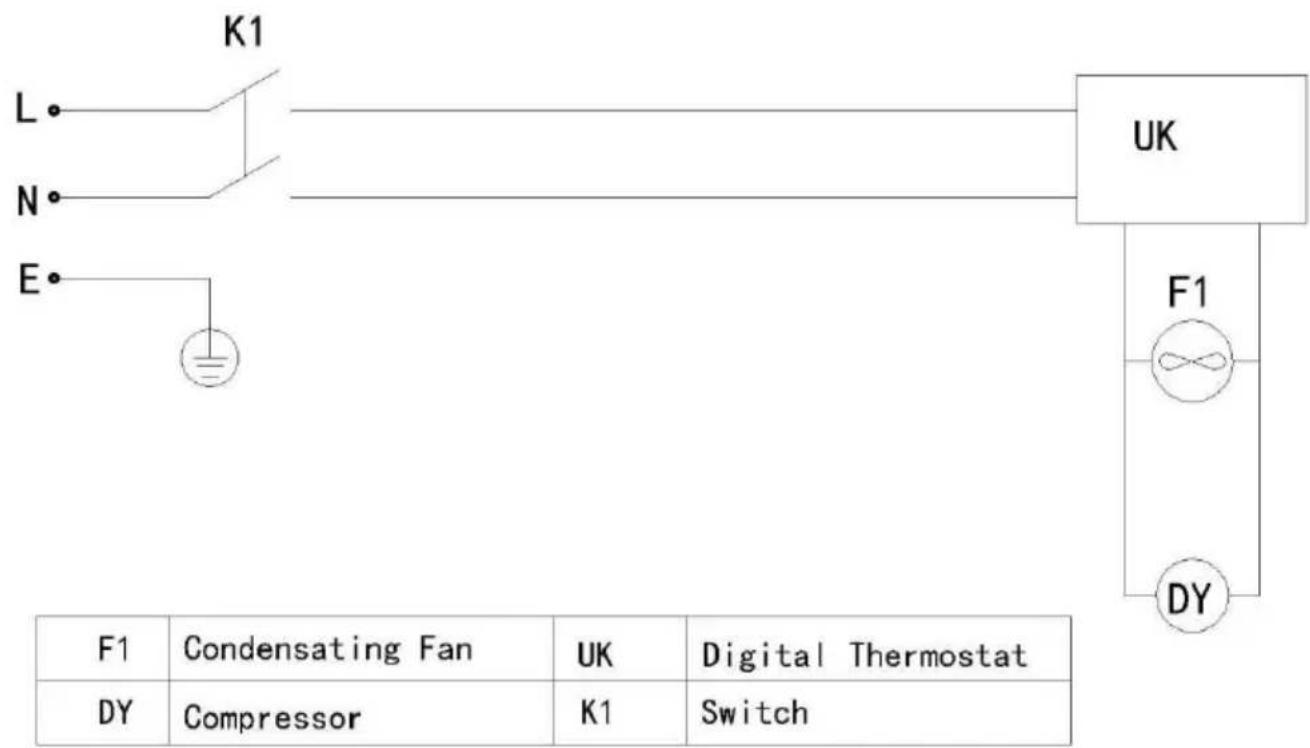

VI Electrical schematic diagrams

VII. After-Sale Service

On the condition that user follows the user manual, the product will one-year warranty since the delivery date and our company will be responsible for replacement and repair of the damaged components caused by poor quality during the period (glass damage excluded).

Proper fees will be charged after repairing damaged products cau by following reasons:

1. Not follow user manual.
2. Randomly use unmatched components for replacement.
3. Voltage fluctuation value exceeds permissible scope or other natural factors.

VIII. Appendix with Shipment

1. 1 product instruction.
   2.1 quality certificate and warranty card.

Made In China
