USER MANUAL 120838 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

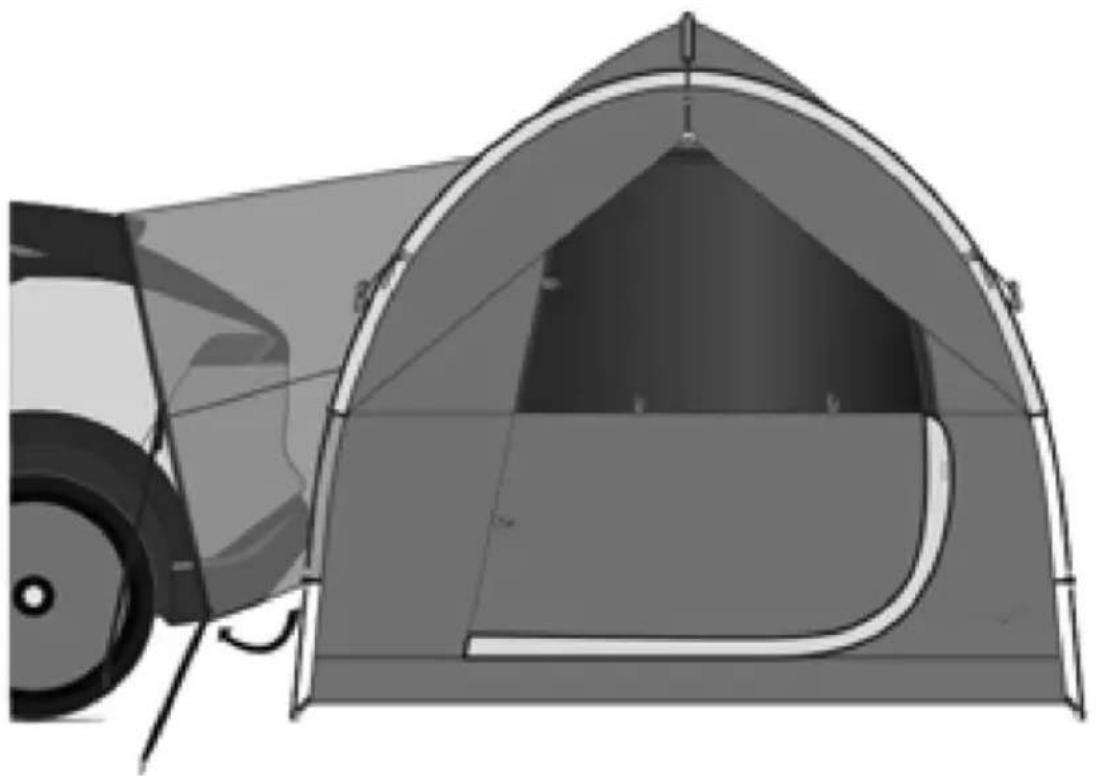

TRUCK TENT

MODEL: 120838

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: 120838

Illustration of a small tent with a tractor beside it, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property. Avoid children using the product. And this product is not a toy. Do it children to play.

Keep all flame and heat sources away from the tent fabric. The fabr burn if left in contact with any flame source. The application of any substance to the tent fabric may render the flame-resistant properties ineffective.

Avoid injury, children should not play around inside the product or to. This product is not recommended during thunderstorms.

SETUP PRECAUTIONS

1. Do not use candles, matches, or open flames of any kind in or tent.
2. Do not cook inside the tent.
3. Build campfires downwind and several meters away from the tent. sure to fully extinguish fires before leaving a campsite or before retire the night.
4. Exercise extreme caution when using fuel-powered lanterns or heated inside or around the tent. Use battery-operated lanterns whenever possible.
5. Do not refuel lamps, heaters, or stoves inside the tent.
6. Extinguish or turn off all lanterns before going to sleep.
7. Do not smoke inside the tent Do not store flammable liquids insid tent.
8. NEVER run the vehicle engine when the tent is attached.
9. Do not install the tent when the temperature is below 0^ C/ 32^ F or when

your vehicle is wet, it may cause damage.

1. Allow adequate ventilation inside the tent at all times.
2. Do not attempt to drive the vehicle with the tent attached.
3. To prevent carbon monoxide from entering the vehicle and tent a do not run the engine, do not cook inside the tent, and do not use heater in the tent. Carbon monoxide is dangerous to your health.
4. Engine must be off and exhaust must be fully cooled before ten installation and use.

SAVE THESE INSTRUCTIONS

CAMPSITE SELECTION

1. Select a smooth, level campsite clear of rocks, branches, and other hard or sharp objects.
2. Avoid areas with overhead power lines and tree limbs.
3. Park the vehicle in the chosen campsite.
4. Turn the engine off and engage the parking brake.

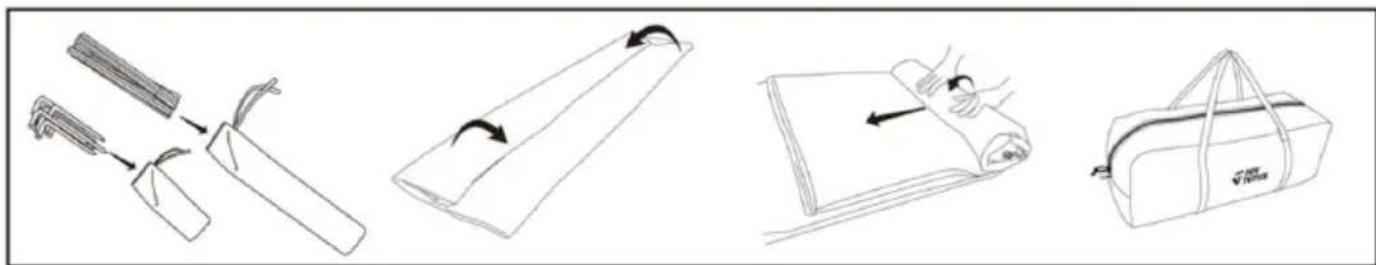

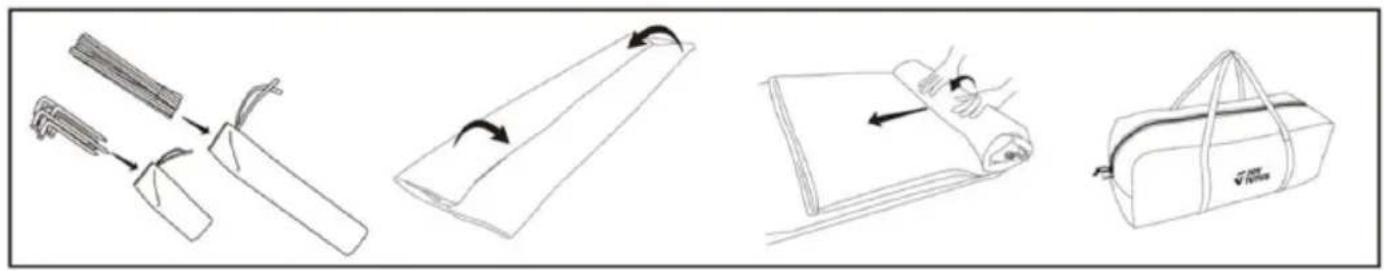

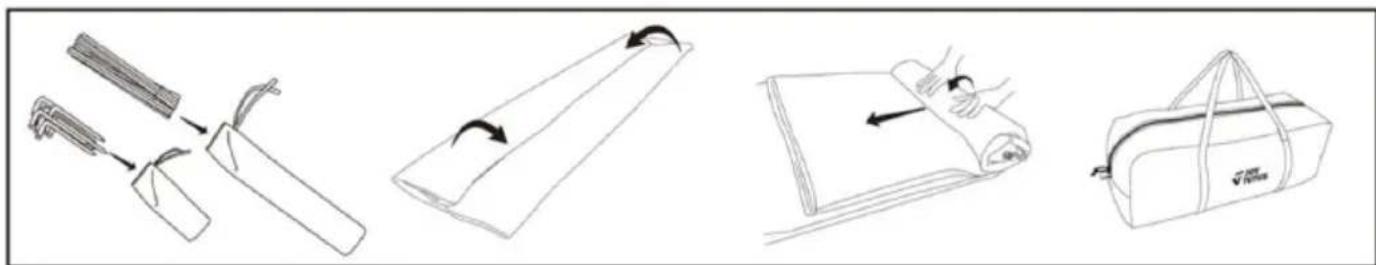

HOW TO STORE

1. Clean and dry the tent.
2. Fold all of the components into the tent.
3. Roll the tent, using the pole bag as a guide.
4. Secure with the tent tie straps and insert into the carrying bag.
5. Store in a cool, dry place.

SPECIFICATION

Tent Style	8*8ft (Rear model of the car,)
Awning	Yes
Colour	Grey
Seasons	3 Season, Summer, Fall, Spring
Material	Body: Polyester fabric 210T/PU2000Bottom: PE

PART LIST

No.	Name	Picture	QTY
1	Tent Bag		1
2	Hook		4
3	Tent Body		1
4	Rainfly		1
5	Main pole		2
6	Cross pole		1
7	Wind Rope		4
8	Ground Nail		11

TENT CARE TIPS

1) We highly recommend seam sealing your tent prior to camping as water may penetrate the needle holes in the fabric. This is common tents and is not a defect.
2) Condensation maybe formed at the interior surface of your tent. It caused by water vapor from your breath, perspiration, or any wet iter the tent. Water in the tent is no leakage through the tent fabric.
3) The water-resistant coating may wear down overtime. It is suggested spray a water-resistant coating on to the tent and rain fly every few
4) Avoid spraying insect repellent, hairspray, etc., inside or near your as they may be harmful to the tent fabric and cause leakage.
5) Do not leave your tent set up in direct sunlight longer than necessary left in sunlight for prolonged periods of time, the fabric will fade and weaken.
6) If zippers stick, lubricate with silicon. Never force a zipper as this bend and prevent the zipper from closing.
7) NEVER roll up or pack away a wet/damp tent. This will cause m Make sure your tent is completely dry before storing. Store your tent dry place.
8) To clean, hand wash with a sponge using mild soap. Never use washing machine or detergent.

TIPS BEFORE ASSEBMLE

1. Ensure that the stretchable poles are kept in the same horizontal direction while you pull awards the top pole's section.
2. Make sure to pull up all the retractable parts of the tent pole in directions until the yellow button pops up!
3. The poles will get stuck if they are crooked, so please keep them straight when pulling up, please handle with care.
4. Secure the tent stakes at each corner of the tent to ensure great stability.

TRUCK TENT ASSEMBLE

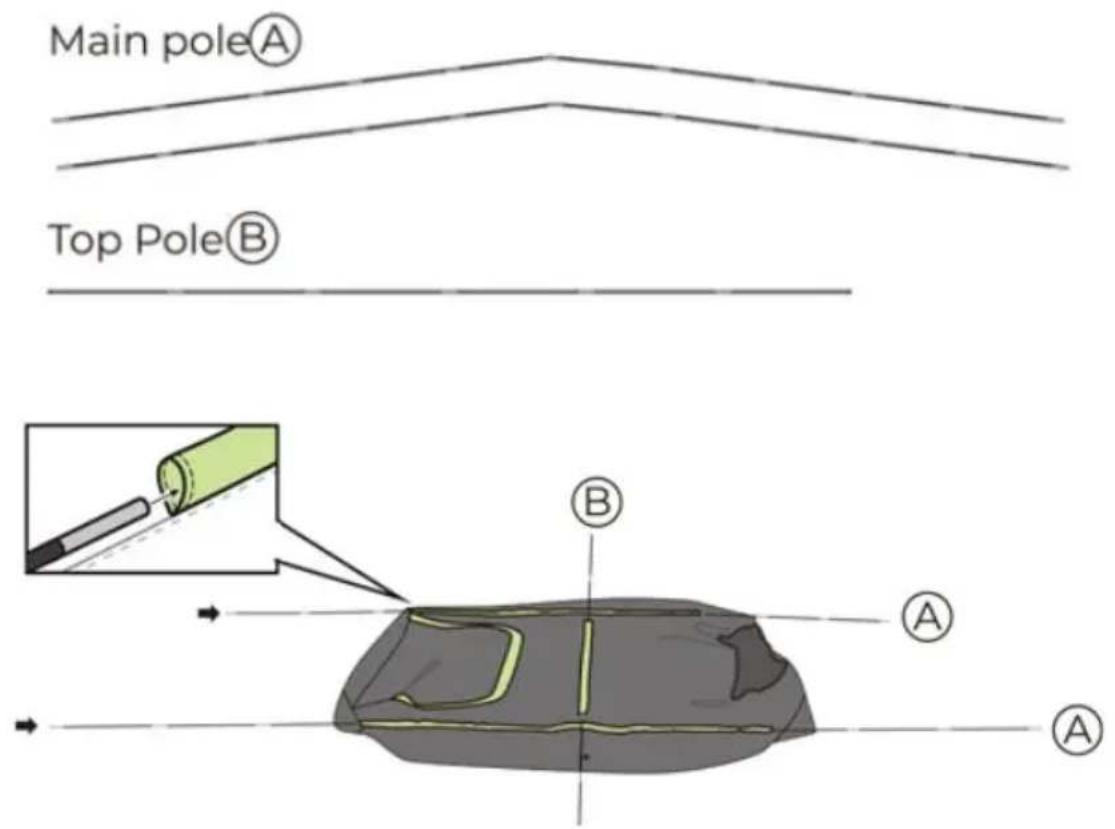

STEP1. 1.Join all sections into tent poles A/B and insert them into the corresponding pole positioning sleeve on the tent.

Main pole® Top Pole® B A A

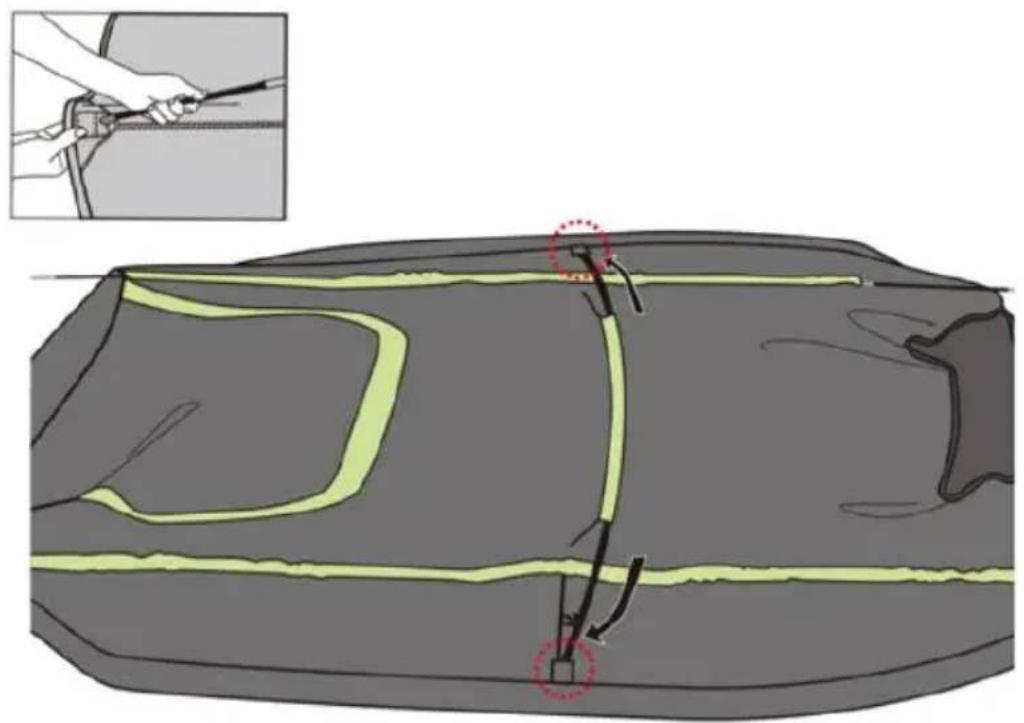

STEP2. Insert the end of B pole into the pole positioning slot.

Illustration of a cable or cable fastening technique on a vehicle, showing tool path and component placement (no text or symbols)

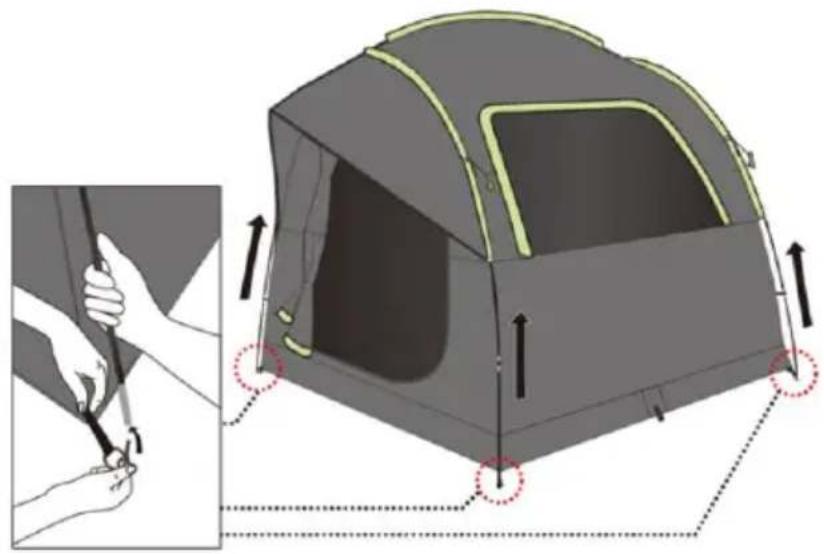

STEP3. Place one end of the pole pin into the leading ferrule and Lift the tent up by bending the A pole end until the pole pin of the could be fixed on the leading ferrule.

Illustration of a camping tent with hands using a tool to adjust the interior space (no text or symbols present)

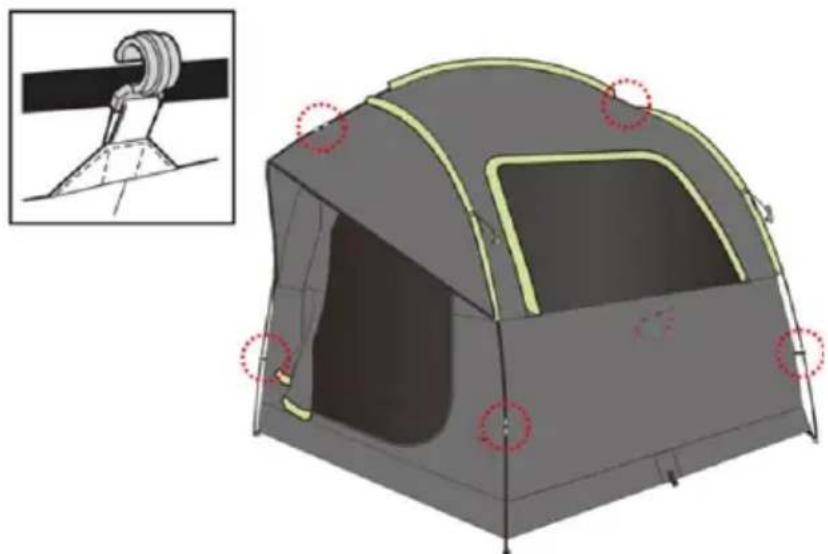

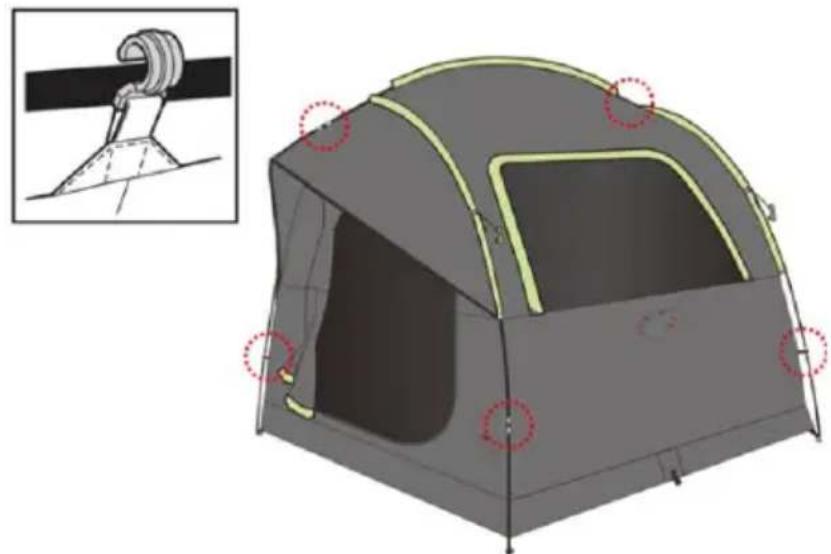

STEP4. Hang all the hooks on the tent poles.

3D model of a camping tent with highlighted windows and red circular annotations, shown with an inset diagram of a cable being inserted (no text or symbols present)

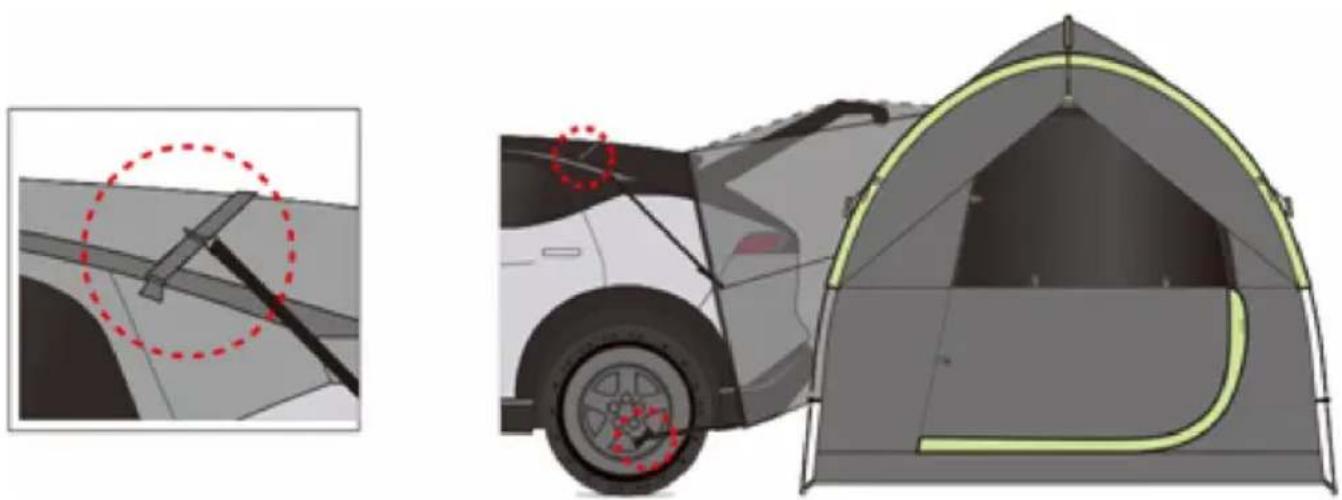

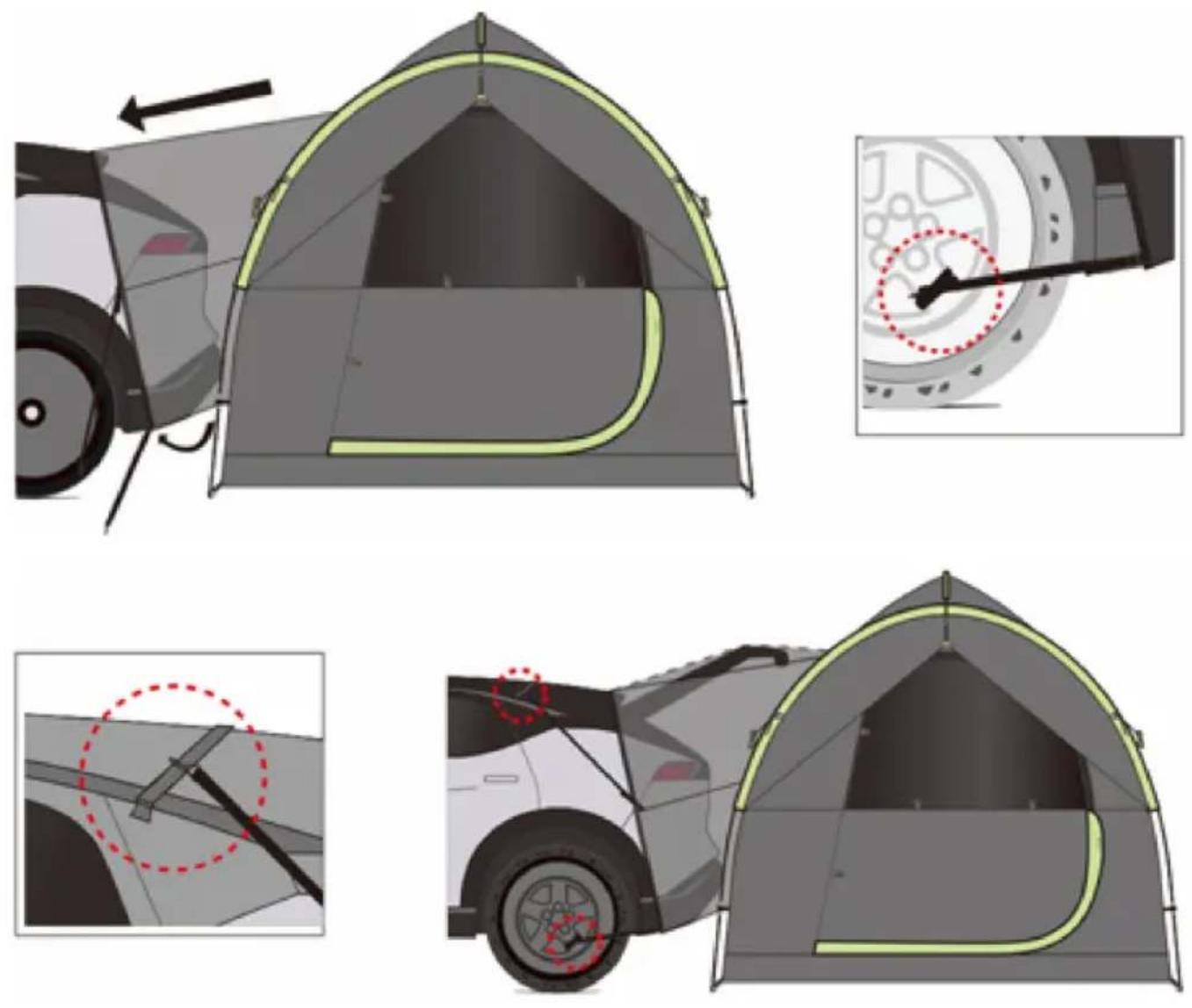

STEP5. Move the tent close to the rear of the SUV and spread the tent cover onto the car rear before lifting the car boot.

Use the hooks to secure the tent on the SUV and tighten the straps complete the connection.

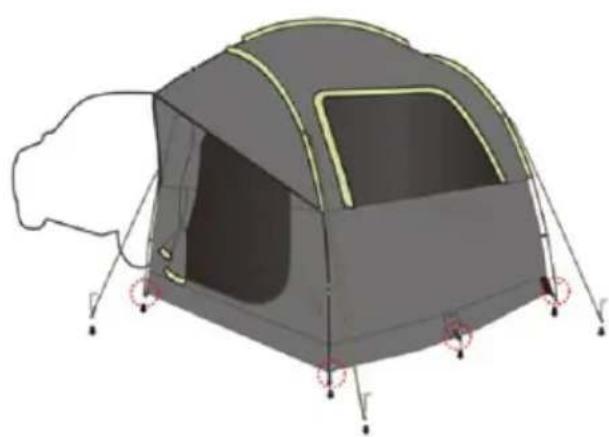

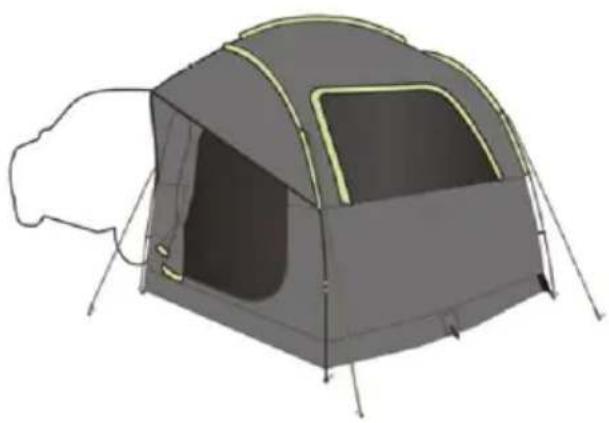

STEP6. Fix four corners and two Middle sides of the tent with Grour Fasten the four wind proof Ropes tightly on the ground With ground

3D illustration of a camping tent with visible windows and side supports (no text or symbols)

Illustration of a camping tent with a large head and visible interior space (no text or symbols)

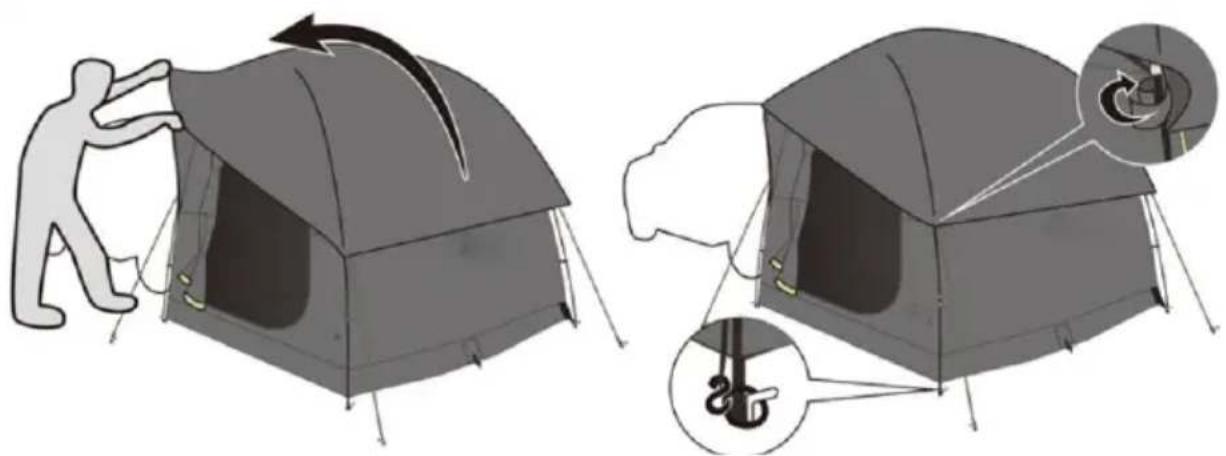

STEP7. Lay the Rainfly flat on the top of the tent, making sure that

arched entrance is facing towards the front of the vehicle. The fly sh Velcro at its four corners, wrap and stick them on to the tent poles. the S-shaped hooks at the four corners of the fly sheet on to the g peg rings.

Illustration of two different camping tents with a person adjusting the canopy, showing structural changes (no text or symbols present)

Line drawings of four different clothing or packaging items: a pencil, a bag, a box, and a bag with a hand placed on it (no text or symbols present)

TENT CARE TIPS

1) We highly recommend seam sealing your tent prior to camping as may penetrate the needle holes in the fabric. This is common with ter is not a defect.
2) Condensation may be formed at the interior surface of your tent, caused by water vapor from your breath perspiration, or any wet item the tent. Water in the tent is no leakage through the tent fabric.
3) The water-resistant coating may wear down over time. It is suggested to spray a water-resistant coating onto the tent and rain fly every few years.
4) Avoid spraying insect repellent, hair spray, etc., inside or near your as they may be harmful to the tent fabric and cause leakage.

5) Do not leave your tent set up in direct sunlight longer than necessary left in sunlight for prolonged periods of time, the fabric will fade and weaken.
6) If zippers stick. lubricate with silicon, Never force a zipper as this bend and prevent the zipper from closing.
7) NEVER roll up or pack away a wet/damp tent. This will cause m Make sure your tent is completely dry before storing.Store your tent i dry place.8) To clean, hand wash with a sponge using mild soap. No use a washing machine or detergent.
