USER MANUAL YF-280 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
MEATBALL FORMING MACHINE
MODEL:YF-280
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
MEATBALL FORMING MACHINE
MODEL:YF-280
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
| Warning-To reduce the risk of injury, user must re instructions manual carefully. | |
| Indoor Use Only | |
| CORRECT DISPOSAL This product is subject to the provision of European E 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices |
IMPORTANT SAFEGUARDS
Basic safety precautions should be followed when using electrical appliances, including the following.
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
- There shouldn't be anything else on the counter.
- There is no abnormal phenomenon after the power is switched on
- It must be placed on the horizontal plane in order to avoid danger-shaking back and forth during use.
- Do not plug the power cord into the socket when not in use. Plug unplug the power cord after use and before cleaning or maintenance.
- Please unplug the power of the machine before cleaning, assembling, disassembling.
- Do not place the product in the reach of children. Children should supervised to ensure that they do not play with the appliance.
- This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I
of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be done by children without supervi
8. Don't unplug the machine before it stops operation.
9. If the supply cord is damaged, it must be replaced by the manufacturer's service agent or similarly qualified persons in order to avoid a hazard
10. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
11. WARNING! Putting the main body into the water to clean is strict prohibited. It only can be scrubbed with a wet towel. The machine m fully cool before cleaning.
12. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).
13. Avoid power cords damage. Do not squeeze, bend or friction it. away from heat sources and open fires. The power cord does not tc blade.
14. The power cord should be laid fiat. Do not pull the power cord make the product fall down, which may cause damage.
15. Do not use the product on wet ground. Do not touch the product power cord plug with wet hands.
16. Do not disassemble the product at will. Do not let something ent insert into the product, which may cause damage.
17. Only accessories provided by the seller or manufacturer can be used for the product. We will not be responsible for any failure caused by use of accessories from other manufacturers, which are not covered by warranty.
18. Do not use the product on uneven, damp, or heat-resistant surfaces to avoid damage or failure.
19. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger.
- When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.
- Do not leave the product to work with no one watching. If the I is overheating, please stop working immediately and unplug the power
- Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.
- Please store the plastic bags and not allow children to play with prevent a risk of suffocation.
- It is prohibited to put the main body of the machine and the point into any liquid.
SAVE THESE INSTRUCTIONS

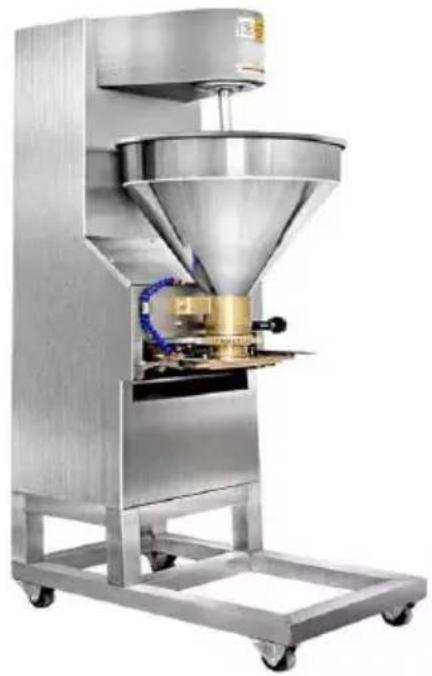

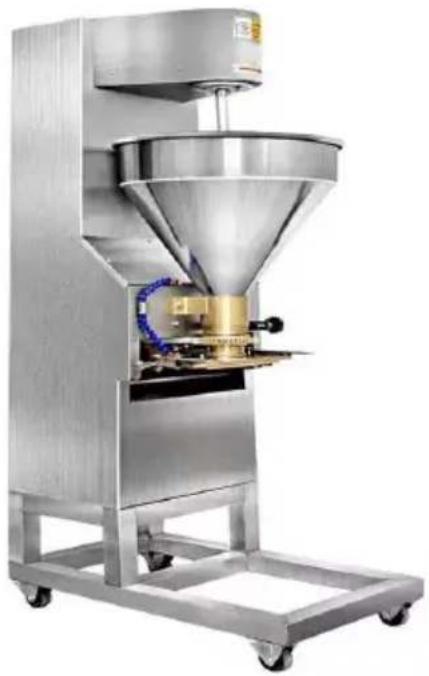

1. Machine introduction
It is made of stainless steel or copper, conforming to the hygiene standards has a beautiful shape and small volume, saves power, and is highly efficient. Meanwhile, it can produce about 280 pills per minute. (larger medium-size, and miniature models can be chosen).
2. Specifications
| Model | YF-280 |
| Motor Power | 1100W |
| Quantity of output per minute | 280pills |
| External dimension | 745*440*1350mm |
| Weight | 64kg / 90kg |
3.Installation
(1). Check power supply voltage is consistent with the nameplate in max Power lines have adequate capacity, There are not equipped with the appropriate leakage circuit breakers and capacity of the correct fuse.
(2) The power cord is either a green yellow line or a green line. The ground wire must be connected reliably to meet the grounding device's electricity requirements.
(3). Do not make the machine by the rain, water droplets, or placed in special wet areas to prevent electrical failure or leakage.
4.Use and Maintenance
(1). Machines to be placed in a stable place, connected to the power ground to ensure safety, the machine equipped with electrical power of 1100W.
(2). The machine should be cleaned before use, this machine is a cor mechanical way of working, First make the meat into a pulp.
(3).Steel sets out the meat in a meat right volume adjustment switch, be used for transfer meatballs roundness (when the meat is excessive meatballs variable length and meat over the amount of hours, meatba change bian, when the barrel over the amount of meat paste hours, machine does not work).Note: You can only adjust the mechanical rot
(4). Place a pot of hot water under the meatball output hole (so that meatballs are half cooked/harthened)
(5). The machine is equipped with six sets of big, middle and small n can be transposed, method: It is to mold within a gear head and ste. sliding board out to replace.
(6).After the meatballs processing should pusher rod, into the hopper, and the plate taken out clean.
(7).Used for a period of time to check the machine is available inside spring, If the blade does not move, the spring needs to be replaced
5.Maintenance
(1). Before and after each use, the machine should be cleaned to ens food hygiene.
(2). Use half a year, has cast some of the drive chain lubricant.
(3). Use of the environment should be away from flammable and exp liquids and gases, clean body of water injection and sink when the was strictly prohibited.
(4). Such as the replacement power cord, you must disconnect the po supply, type of oil used YZW corrosion sets of soft lines, the nominal cross-sectional area of not less than 1.5mm2
(5). Belt is damaged and should be replaced on time.
(5).Warning: To ensure safety and carry out maintenance, you must fire cut off the power. The professionals have to deal with.
6. Failure and their treatment:
| Fault | Reason | Solution |
| The machine could not start | 1, The voltage is too low 2, Electrical line fault | 1, Check the power supply voltage 2, Repair electrical lines |
| Work,a sudden stop or intermittent movement | 1,The voltage is too low 2, Belt slipping | 1,Check the power supply voltage 2, Adjusting the belt |
| Running noise is too large | Poor lubrication | At filing grease in the bevel gear |
7.Spring replacement:
| Spring photo |
| The spring ends on the hoo |
| The other end hangs on the i hook |

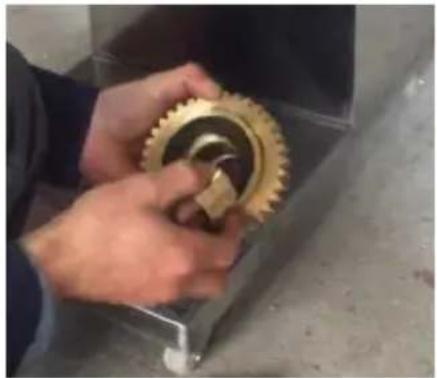

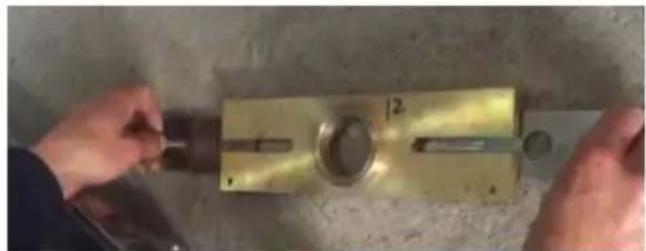

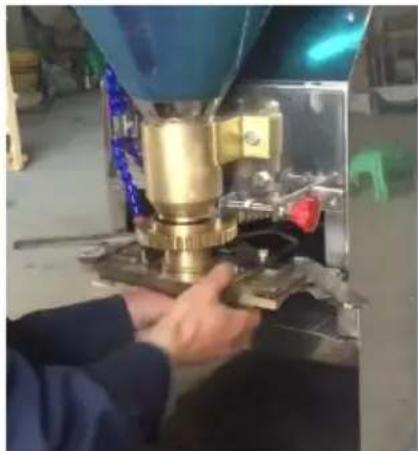

8. Replace the blades and copper molds:
The copper die goes into center slot of the gear
Insert the blade into the hd
Place the tool handle assembly back on the fixir bracket and lock the left a right handles

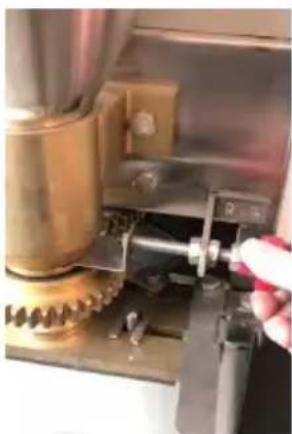

9.Adjusting circle
This handle is used to adjust shape of the meatballs
10.Remove and replace the mixing slurry
| Fixing sleeve lifted upward | |
| Remove the mixing slurry fro the spindle |
Address : Baoshanqu Shuangchenglu 803long 11hao 1602A- 1609shi Shanghai
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom
SHUNSHUN GmbH
Romeracker 9 Z2021, 76351
