T100 - Industrial laser Vevor - Free user manual and instructions

Product Type	Industrial CO2 Laser Tube
Brand	Vevor
Model	T100
Laser Medium	CO2
Rated Power	100 W
Tube Diameter	Φ80 mm
Tube Length	1450 mm
Trigger Voltage	24 kV
Operating Voltage	17 kV
Recommended Operating Current	6-24 mA
Wavelength	9.3-10.6 μm
Laser Beam Diameter	5-7 mm
Lifespan (at >70% utilization)	10,000 hours
Recommended Cooling Water Flow	13-15 L/min
Recommended Cooling Water Temperature	15-25 °C
Recommended Operating Temperature	20-30 °C
Laser Safety Class	Class 4
Materials to Avoid	Combustible materials or volatile fumes
Required Personal Protection	Laser safety goggles
Maintenance of the Semi-Transparent Mirror	Alcohol-soaked cotton swab, gentle circular motions
Recommended Coolant	Distilled water
Electronic Warranty	www.vevor.com/support

Frequently Asked Questions - T100 Vevor

What are the risks associated with using this Class 4 laser?

The Class 4 laser can cause serious injury or property damage. Do not use it near combustible materials or volatile fumes. Always wear appropriate safety goggles and do not place any part of your body in the laser path.

How do I properly install the T100 laser tube?

Connect the positive electrode to the laser output, the negative electrode to the power supply, and connect the cooling hoses: water inlet to the laser output, water outlet (return) to the cooling circuit. Ensure that the water flow is 13-15 L/min and the water temperature is 15-25°C.

What is the lifespan of the T100 laser tube?

The T100 laser tube has a lifespan of 10,000 hours at over 70% utilization. To extend its life, do not exceed the rated power and let the tube rest after a few hours of continuous work.

How do I maintain the laser tube?

Clean the tube surface with a soft, dry cloth. For the semi-transparent mirror, use an alcohol-soaked cotton swab with gentle circular motions. Never clean the tube when it is hot. Use distilled water to avoid contaminants.

Can I use the laser unattended?

No, never leave the laser unattended while it is operating. It must be constantly monitored to prevent accidents.

What materials can I cut or engrave with this laser?

The CO2 laser can process various materials such as wood, acrylic, leather, paper, etc. However, some materials emit toxic gases or are flammable. Research each material before use.

What to do if the laser tube does not ignite?

First check the power supply and high voltage connections. Make sure the cooling circuit is working correctly (water flow and temperature). If the problem persists, contact technical support at www.vevor.com/support.

What is the operating voltage of the T100?

The trigger voltage is 24 kV and the operating voltage is 17 kV. The recommended current is between 6 and 24 mA.

How to dispose of the laser tube at end of life?

The product is subject to the European Directive 2012/19/EC. Do not dispose of it with household waste. Take it to a collection point for recycling of electrical and electronic equipment.

Can I use tap water for cooling?

It is strongly recommended to use distilled water to avoid accumulation of contaminants that could block the cooling circuit and damage the tube.

USER MANUAL T100 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CO2 LASER TUBE

MODEL: C70/T90/T100/T130

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

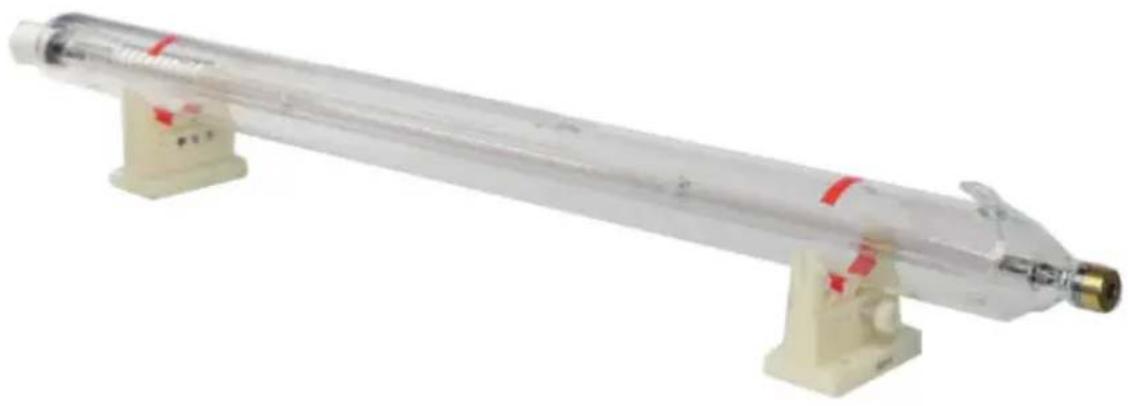

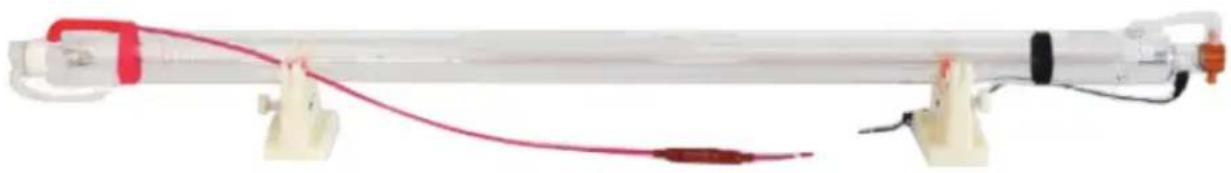

CO2 LASER TUBE

MODEL: C70

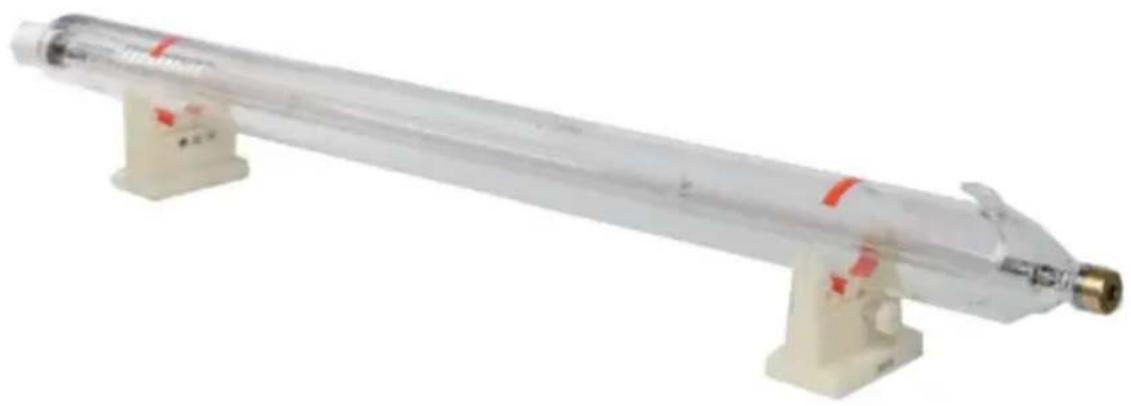

Experimental setup with a transparent cylindrical tube connected to a red wire, supported by two stand holders (no text or symbols visible)

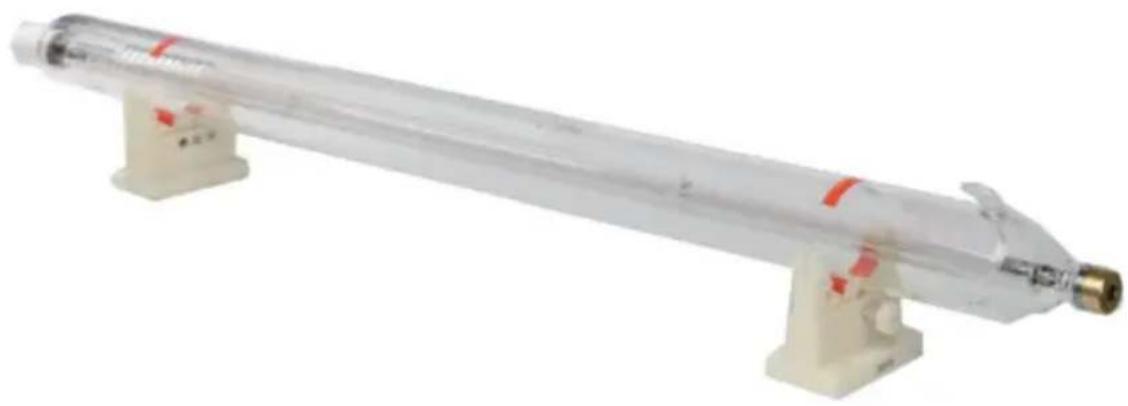

MODEL:T90/T100/T130

Transparent cylindrical scientific instrument with red markings, mounted on beige stands (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. ONLY use in full compliance with all applicable local and national laws and regulations.
2. This is a class 4 laser which can lead to serious injuries or property damage if used improperly.

CAUTION:

Exposure to direct or scattered laser radiation causes skin and eye damage, including blindness.

AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED LASER

1. DO NOT use this laser around combustible materials or volatile fumes as they might ignite.
2. Ensure that the laser tube's electrodes and emission lens are kept clean and dust-free.
3. DO NOT place any body part in the path of the laser.
4. ALWAYS wear appropriate personal protective equipment such as protective eyewear when operating this laser. It is also recommended to secure the worksite or erect protective screens around the laser path to prevent injury to passersby.
5. ALWAYS use EXTREME caution around the tube's high voltage electrical connections.
6. The working area MUST be equipped with appropriate firefighting equipment.
7. Certain materials can emit gases or radiation when exposed to lasers. It is the buyer's responsibility to research your working materials before exposing them to the laser so appropriate precautions and equipment can be used.
8. DO NOT leave this laser unattended during operation.
9. Do NOT permit minors or untrained personnel to use this laser. ONLY allow trained technicians to make or adjust its electrical connections.
10. DO NOT use this laser in overly hot or humid environments.
11. DO NOT disassemble this laser without proper training.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model C70 T90	T100 T130
Laser Medium	CO2 CO2	CO2 CO2
Power 60W 90W	100W 130W
Pipe Diameter	Φ55mm	Φ80mm	Φ80mm	Φ80mm
Length	1250mm	1250mm	1450mm	1650mm
Trigging voltage 19KV	22KV	24KV	27KV
Working Voltage	16KV	15KV	17KV	19KV
Recommended Current	5-18mA	6-22mA	6-24mA	6-28mA
Wavelength	9.3-10.6 μm
Laser Beam Diameter	4-6mm			5-7mm
Life Span(>70% Use)	5000-6000H	10000H
Recommended Water Flow Rate	2-10L/min		13-15L/min
Recommended Water Temperature	15-25°
Recommended Operational Temperature	20-30°

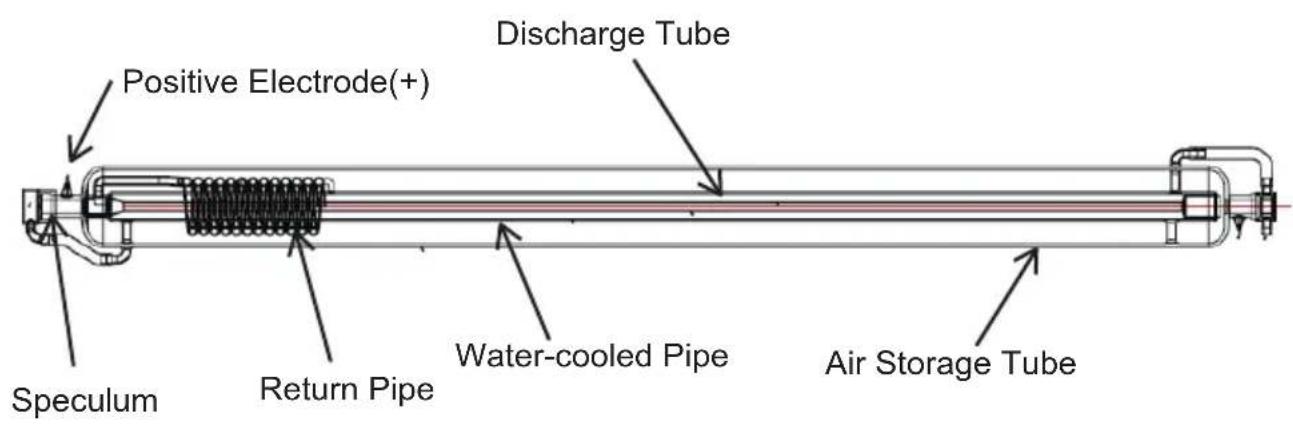

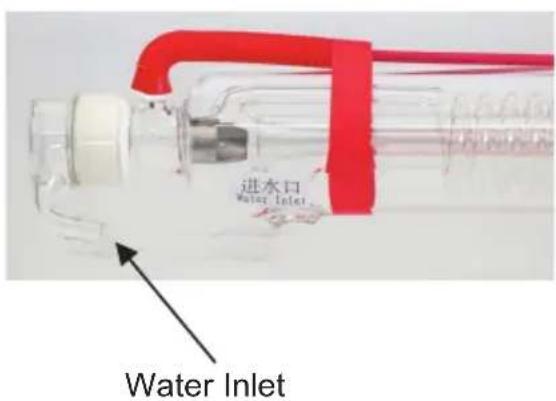

STRUCTURE DIAGRAM

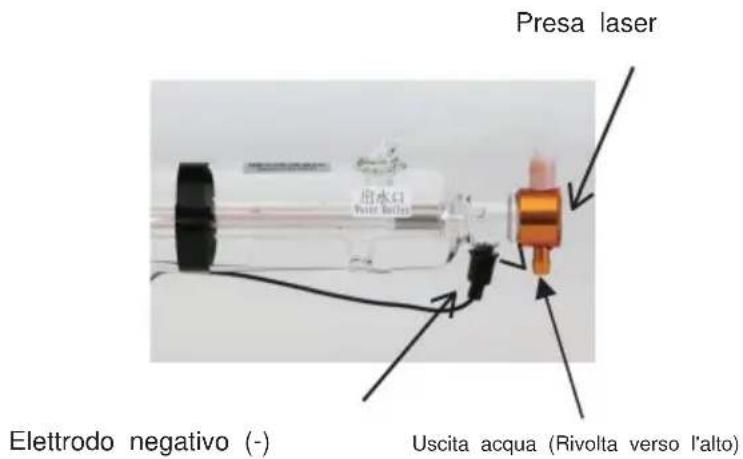

MODEL: C70

STRUCTURE DIAGRAM

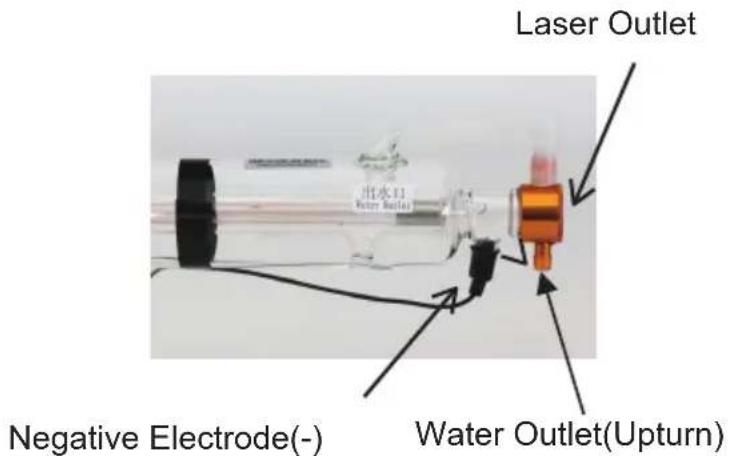

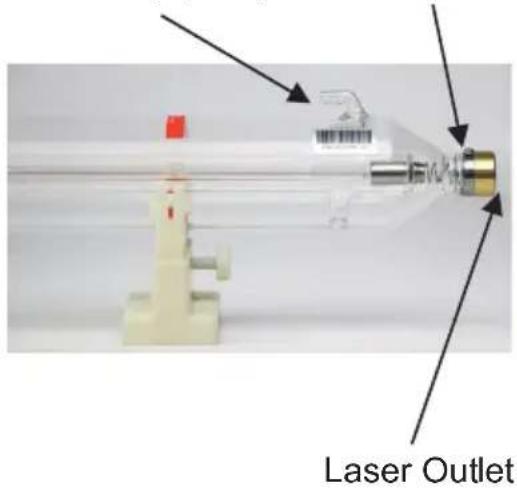

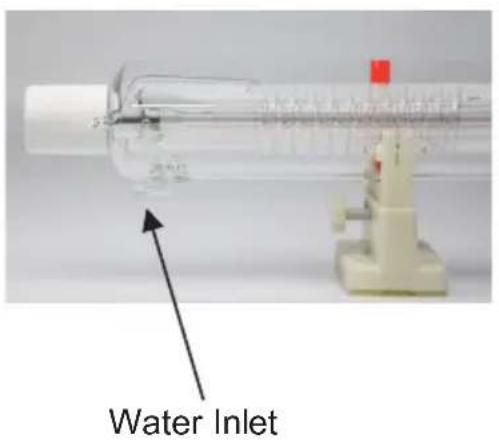

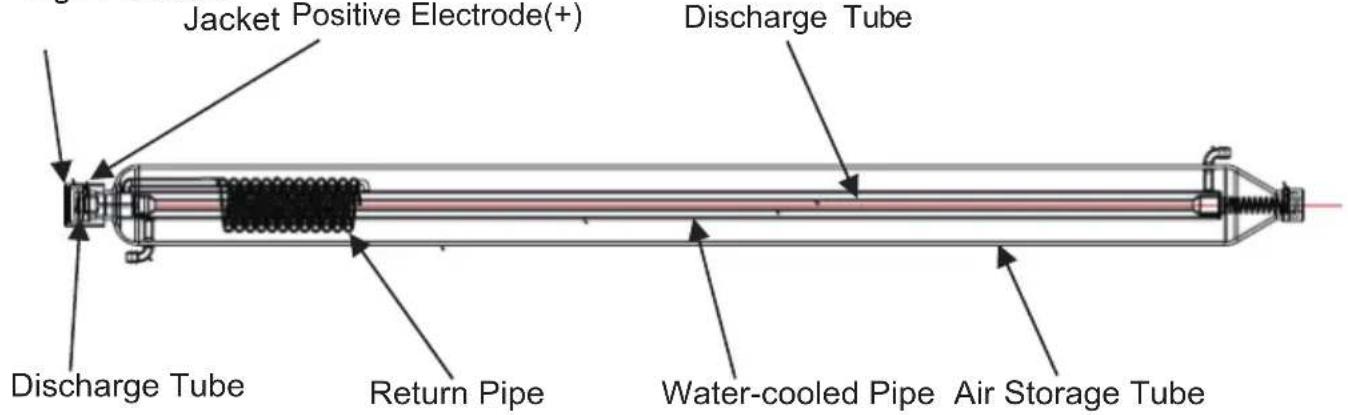

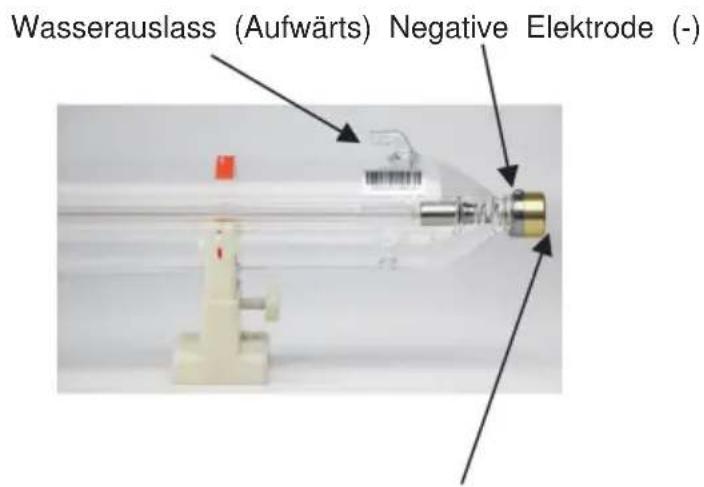

MODEL: T90/T100/T130

High Pressure

Water Outlet(Upturn)

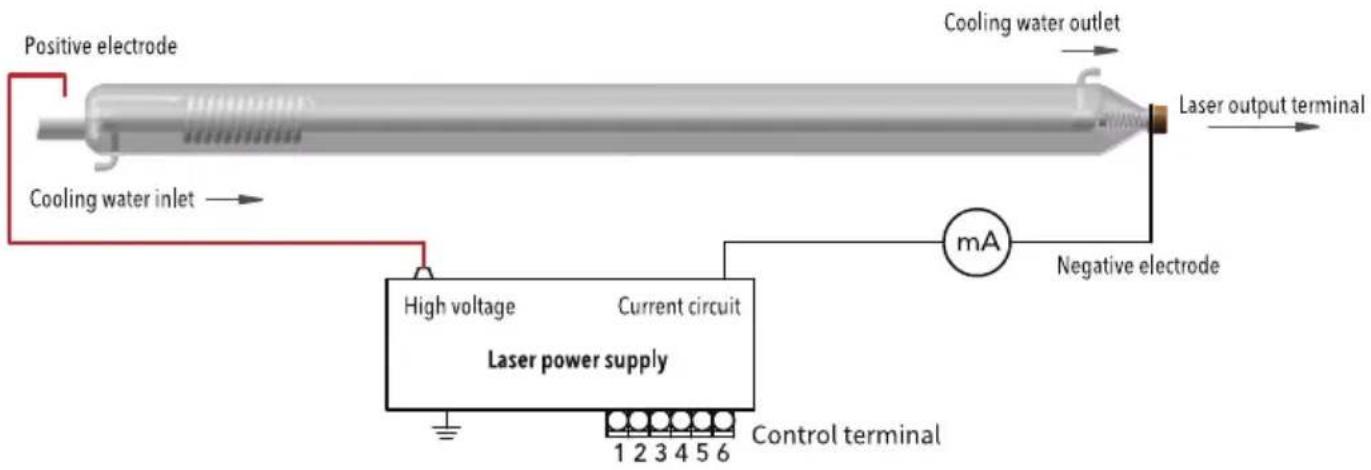

INSTALLATION

MAINTENANCE

1. Remove any dust or debris from the surface of the tube if it becomes noticeable. Use a soft dry cloth for most surfaces. Use a cotton swab soaked in alcohol for the semitransparent mirror at the end of the tube, cleaning in gentle circular motions. Only clean the tube when it is fully cooled, never when it remains warm from use. Never use cleaning solutions that might leave residue on the glass or mirror.
2. ALWAYS keep a constant flow of cool but not ice-cold water during use. Use of distilled water to avoid contaminant build-up is highly recommended. Visually confirm the water has filled the cooling pathway and all air bubbles have been removed before activating the laser.
3. For best results, never exceed the tube's rated power and allow the tube to rest after every few hours of continuous work.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Experimental setup with a transparent cylindrical tube connected to a red wire, supported by two white supports and a power outlet (no text or symbols visible)

Transparent cylindrical scientific instrument with red markings, mounted on a white base (no visible text or symbols)
