USER MANUAL T130 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CO2 LASER TUBE

MODEL: C70/T90/T100/T130

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CO2 LASER TUBE

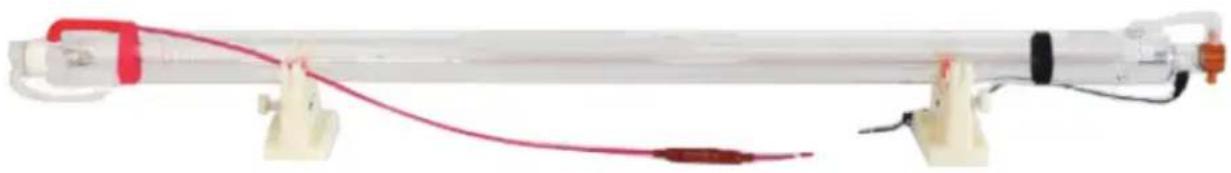

MODEL: C70

Experimental setup with a transparent cylindrical tube connected to a red wire, supported by two stand holders (no text or symbols visible)

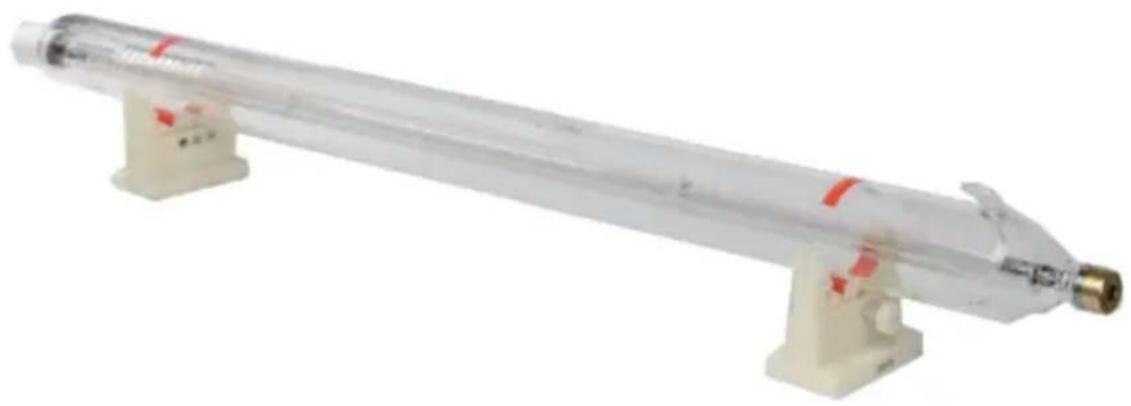

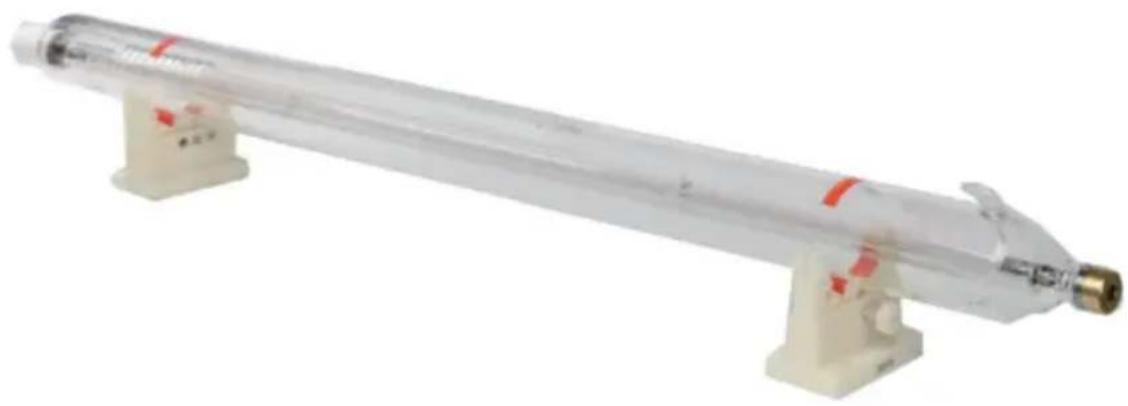

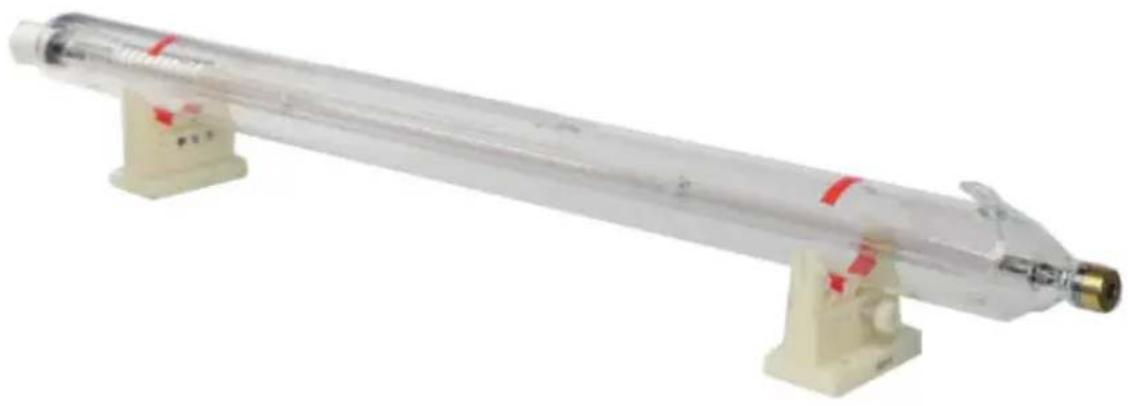

MODEL:T90/T100/T130

Transparent cylindrical scientific instrument with red markings, mounted on beige stands (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. ONLY use in full compliance with all applicable local and national laws and regulations.
2. This is a class 4 laser which can lead to serious injuries or property damage if used improperly.

Yellow triangular warning sign with black radiating lines and a sunburst symbol in the center.

CAUTION:

Exposure to direct or scattered laser radiation causes skin and eye damage, including blindness.

AVOID EYE OR SKIN EXPOSURE TO DIRECT OR SCATTERED LASER

1. DO NOT use this laser around combustible materials or volatile fumes as they might ignite.
2. Ensure that the laser tube's electrodes and emission lens are kept clean and dust-free.
3. DO NOT place any body part in the path of the laser.
4. ALWAYS wear appropriate personal protective equipment such as protective eyewear when operating this laser. It is also recommended to secure the worksite or erect protective screens around the laser path to prevent injury to passersby.
5. ALWAYS use EXTREME caution around the tube's high voltage electrical connections.
6. The working area MUST be equipped with appropriate firefighting equipment.
7. Certain materials can emit gases or radiation when exposed to lasers. It is the buyer's responsibility to research your working materials before exposing them to the laser so appropriate precautions and equipment can be used.
8. DO NOT leave this laser unattended during operation.
9. Do NOT permit minors or untrained personnel to use this laser. ONLY allow trained technicians to make or adjust its electrical connections.
10. DO NOT use this laser in overly hot or humid environments.
11. DO NOT disassemble this laser without proper training.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model C70 T90	T100 T130
Laser Medium	CO2 CO2	CO2 CO2
Power 60W 90W	100W 130W
Pipe Diameter	Φ55mm	Φ80mm	Φ80mm	Φ80mm
Length	1250mm	1250mm	1450mm	1650mm
Trigging voltage 19KV	22KV	24KV	27KV
Working Voltage	16KV	15KV	17KV	19KV
Recommended Current	5-18mA	6-22mA	6-24mA	6-28mA
Wavelength	9.3-10.6 μm
Laser Beam Diameter	4-6mm			5-7mm
Life Span(>70% Use)	5000-6000H	10000H
Recommended Water Flow Rate	2-10L/min		13-15L/min
Recommended Water Temperature	15-25°
Recommended Operational Temperature	20-30°

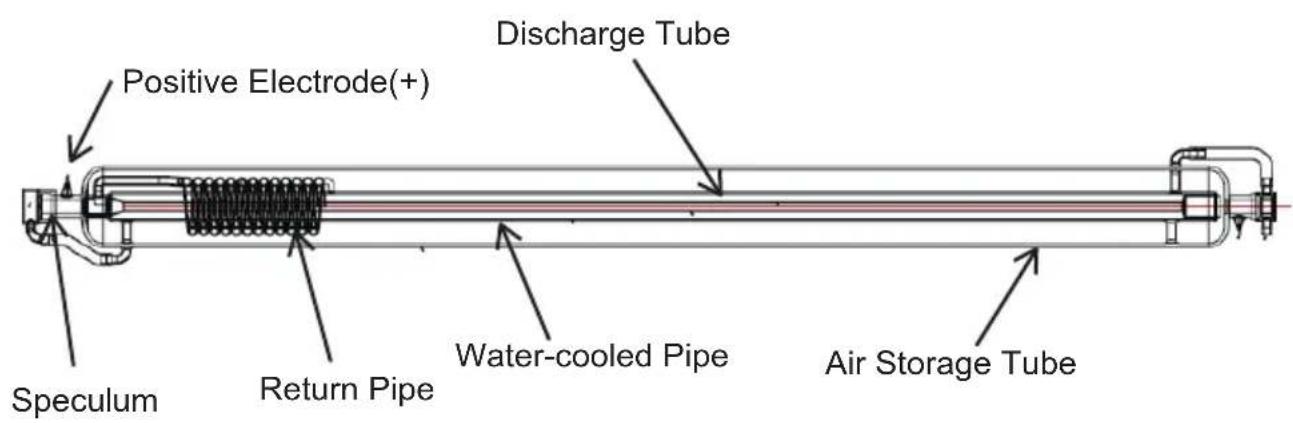

STRUCTURE DIAGRAM

MODEL: C70

Positive Electrode(+) Discharge Tube Speculum Return Pipe Water-cooled Pipe Air Storage Tube

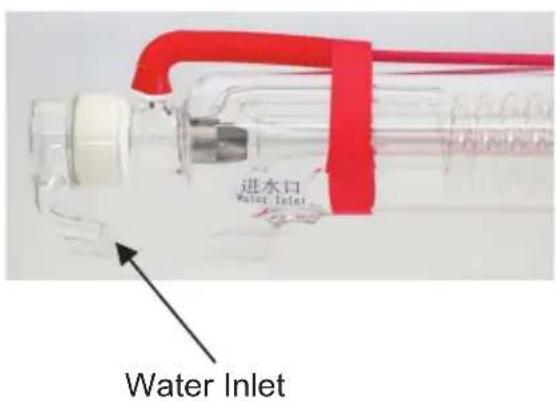

进水口 Water Inlet Water Inlet

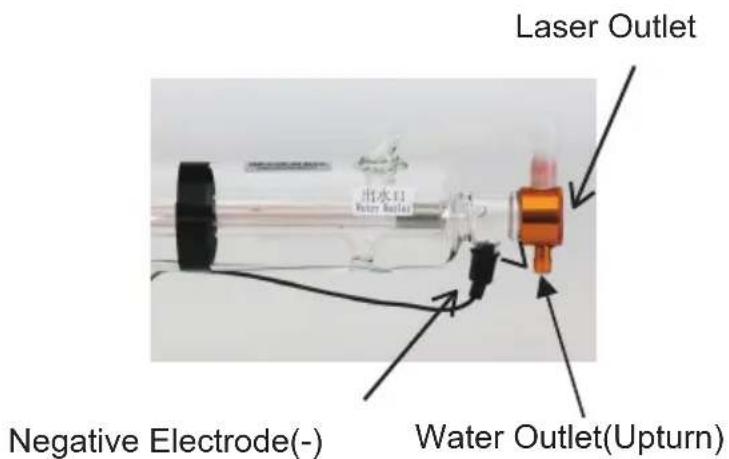

Laser Outlet Negative Electrode(-) Water Outlet(Upturn)

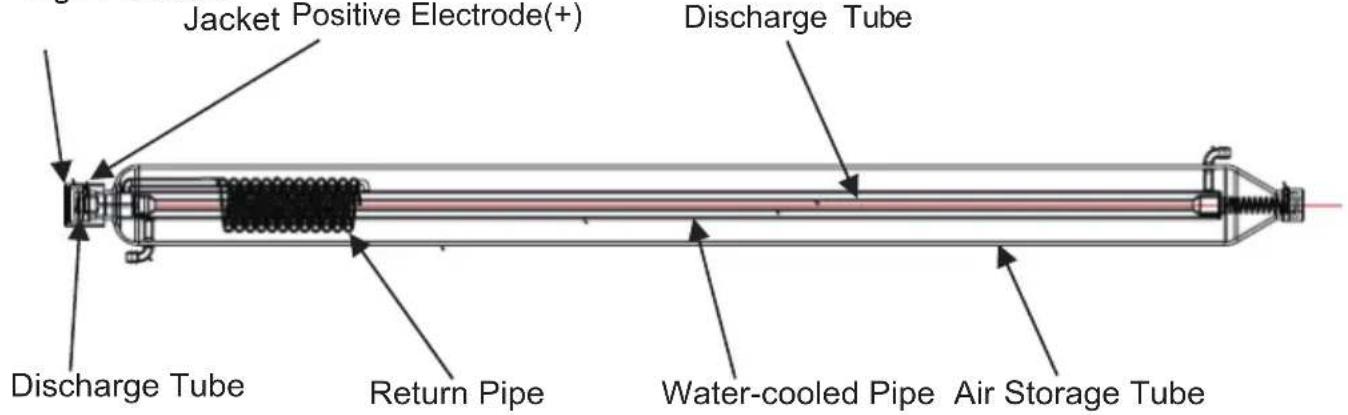

STRUCTURE DIAGRAM

MODEL: T90/T100/T130

High Pressure

Jacket Positive Electrode(+) Discharge Tube Discharge Tube Return Pipe Water-cooled Pipe Air Storage Tube

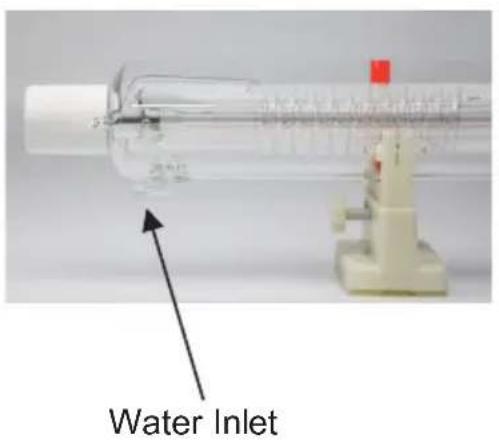

Water Inlet

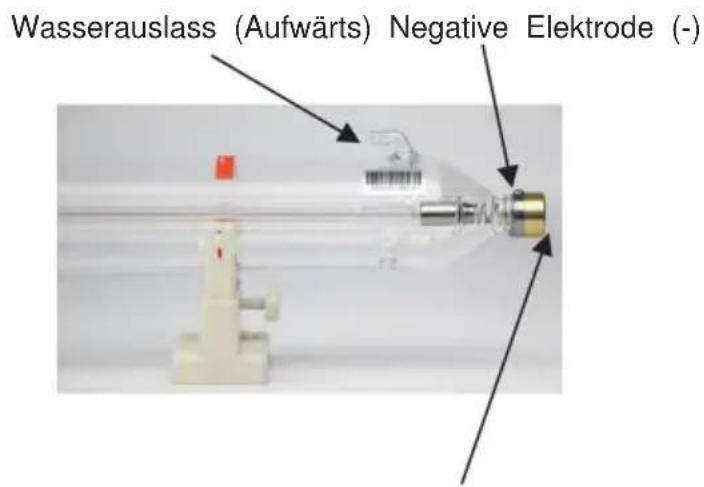

Water Outlet(Upturn)

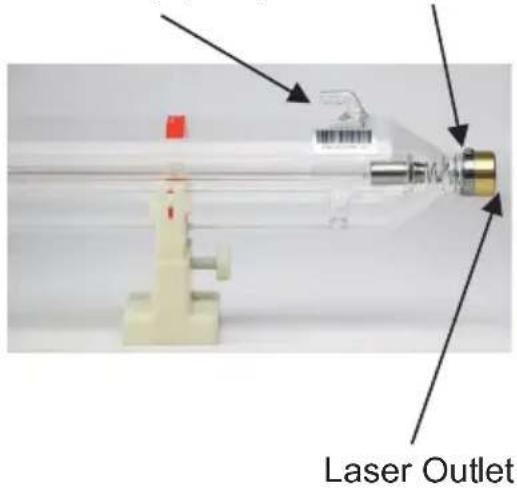

Laser Outlet

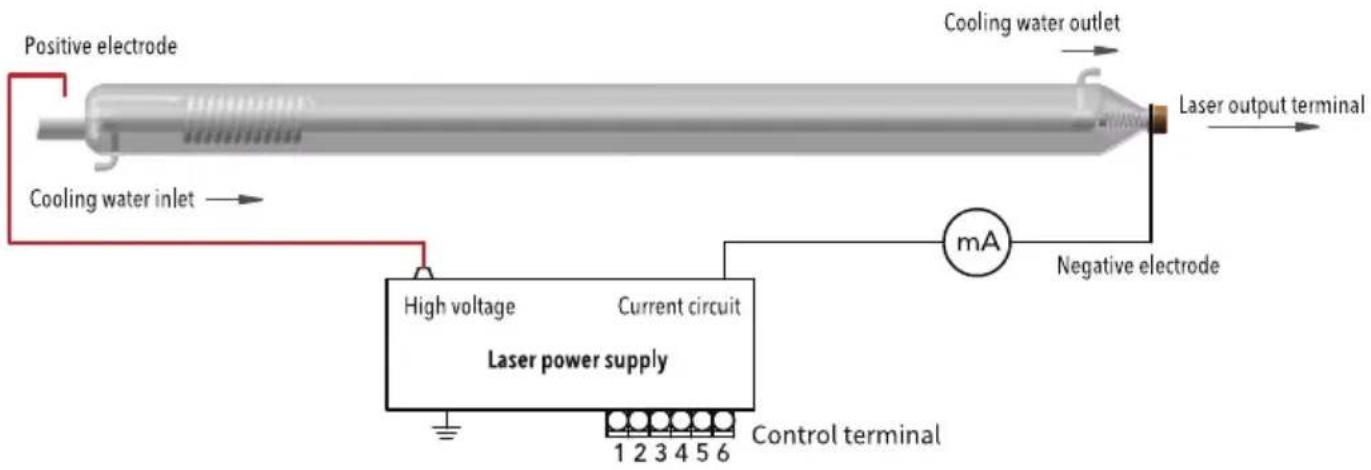

INSTALLATION

MAINTENANCE

1. Remove any dust or debris from the surface of the tube if it becomes noticeable. Use a soft dry cloth for most surfaces. Use a cotton swab soaked in alcohol for the semitransparent mirror at the end of the tube, cleaning in gentle circular motions. Only clean the tube when it is fully cooled, never when it remains warm from use. Never use cleaning solutions that might leave residue on the glass or mirror.
2. ALWAYS keep a constant flow of cool but not ice-cold water during use. Use of distilled water to avoid contaminant build-up is highly recommended. Visually confirm the water has filled the cooling pathway and all air bubbles have been removed before activating the laser.
3. For best results, never exceed the tube's rated power and allow the tube to rest after every few hours of continuous work.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices
