USER MANUAL RC-1803I Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

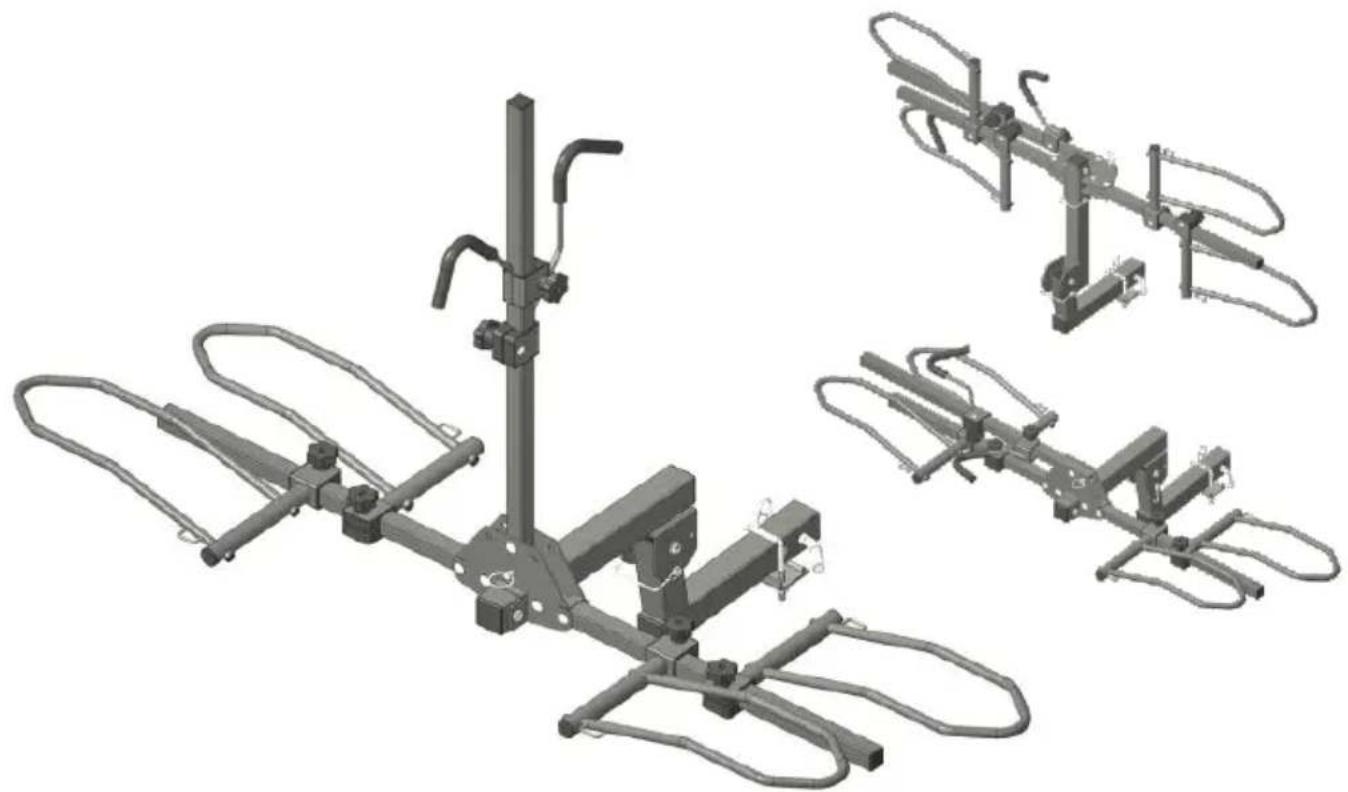

HITCH BIKE RACK

MODEL: RC-1803I

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HITCH BIKE RACK

MODEL: RC-1803I

Technical illustration of three mechanical device assemblies with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model	RC-1803I
Capacity (Bicycles)	2
Maximum Load	160 lbs
Vehicle Service Type	Car, SUV, Truck, Trailer

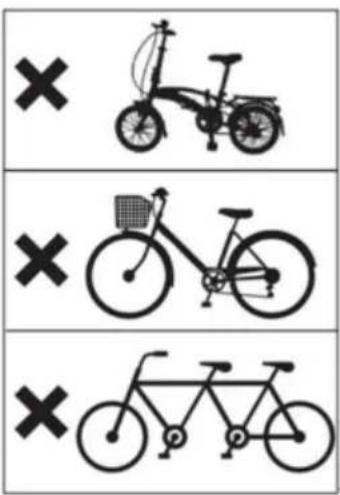

Applicability(Bicycles)	All Bicycles (Except Tandem Bicycle)
Mounting Size	2 inch
Color	Black

PACKING LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

No	Picture	Part Number	Qty	No	Picture	Part Number	Qty
A		Support Frame	1	B		Beam	1
C		Transverse Tube 30*30*650	2	D		Vertical Pipe 30*30*850	1
E		Wheel Frame-01	2	F		Wheel Frame-02	2
G		Frame Hook-01	1	H		Frame Hook-02	1
I		Bandage 25*500	4	J		Bandage25*25 00	1
K		Safety Pin - Short	1	L		Safety Pin - Long	1
M		Connecting Seat	1	N		Flat Washer M8*25	6
O		Lock nut M10	7	P		Spring Washer M8	6
Q		Hexagonal Bolt M10*55	5	R		Square Neck Bolt M8*70	6
S		Outer Hexagonal Bolt M10*70	1	T		Outer Hexagonal Screw M10*80	1
U		Fixed Pivot Pin	1	V		R-Pin	1
W		Steel Ball Bolt	1	X		Pressing Plate Screw M10	1
Y		Pressing Plate	1	Z		Spring Washer M10	2
AA		Hexagon Nut M10	2	A B		Flat Washer M10	16
AC		Plastic Clamp Block	12	AD		Knob Nut M8	6
AE		Small Rope	8

SAFETY INSTRUCTIONS

Read these instructions carefully and retain them for future use. If product is passed to a third party, then these instructions must be included.

When using the product, basic safety precautions should always be followed 1 reduce the risk of injury, including the following:

DANGER

Risk of accidents!

• Any rear overhang on a vehicle must not exceed 60 % of the wheelbase c 12.14 ft (3.7 m), whichever is less.
• The maximum dimensions for any vehicle, including its load, are 8.2 ft (2.5 in width and 14 ft(4.3 m) in height. A vehicle fitted with a bicycle carrier, with any bicycles, must not exceed these limits. (Take into consideration the proportionality of the load to the vehicle size.)
• When installed with this product, the vehicle's speed must under no circumstances exceed 75 mph (120 kph). Always observe applicable speed limits and other traffic regulations.

WARNING

Risk of damage!

• When the product is installed, with or without bicycles loaded, collision, damage to property and/or personal injury may result. Beware of the increase in dimensions (length/ width/height) of the vehicle before reversing and driving into garages, closed parking lots, a car wash, under bridges, subways or tunnels.
• Failure to properly install this product and/or load the bicycles onto the pro may cause damage to the vehicle and/or the bicycles and may result in personal injury.
• Off-road driving is not recommended, especially when the product is loaded. This may result in damage to the vehicle, bicycles, or the product.

Road Safety

CAUTION Risk of accidents!

• Risk of accidents! Sudden brakes, abrupt starts and sharp turns must be avoided as much as possible.
• The maximum speed of driving over speed bumps must not exceed 6.2 m _1 (10 kph).
• If it is not possible to stay within thr 3.94 ft (1.2 m) limit beyond the real vehicle, a warning signal must be carried on the outermost part of the bid
• A warning signal must be, during the day, a brightly colored flag or piece material, with each side at least 12" (30 cm) long, and; if driving at nigh light that can be seen for at least 656 ft (200 m).

- Once the product is fitted, navigating parameters ( bends and braking) of vehicle changes, especially when it is loaded (in particular crosswind sensitivity). Driving routines should be adjusted. The vehicle's driving characteristics and braking behavior change when loads are carried on the product.

- When carrying loads on the product, the driving speed has to be adjusted according to outside conditions such as road surfaces, side winds, general traffic situations, etc. It is recommended to keep to the applicable speed I for any road!

- Disable the automatic tailgate opening system when using this product if the vehicle is equipped with this function. Operate the tailgate manually.

- Open the tailgate according to the instructions when bicycles are loaded on product.

Product Safety

• Assembly must be carried out according to the instructions.
• Keep children and pets away while assembling the product.
• Do not use this product if any parts are missing, damaged, or worn.

• This product should be installed, maintained and operated only by an experienced adult. If in doubt, consult a professional.

• This product is designed such that, with proper assembly, mounting and operation cause no damage to the vehicle.

• Do not over-tighten the fasteners.
• This product is designed to be fitted directly on a vehicle and has a 2-inch hitch.
• This product is not designed to resist extreme weather conditions, especially seacoast air.

NOTICE

• Check the clearance. It is the responsibility of the driver to ensure there is sufficient clearance. This is dependent on the vehicle, the load, and the rear clearance should allow for the distance away from the rear wheels and the movements imposed by driveway ramps and speed bumps. It should be between 12" and 15" (30 and 38 cm).
• Do not use this product for purposes other than carrying bicycles. Do not modify any components of the product.
• Do not exceed the maximum load capacity, or carry more bicycles than recommended for each model.
• Always use the safety strap to attach the bicycles to this product. Replace safety strap at the first sign of wear.
• Ensure there is a safe distance between the bicycles and the ground, especially when entering a driveway. This product is for carrying standard-b frames. Do not transport tandem or recumbent bicycles.
• Do not transport bicycles with attachments such as baby seats, panniers, wheel covers, full bicycle covers, or motors.
• All loose or removable parts and accessories of bicycles (e.g. toolbars, baby carriers, pumps, etc.) must be removed before loading onto this product.
• Do not let children climb on or play with the product.
• For fuel economy and the safety of other road users, this product must be dismantled from the vehicle when not in use.
• Keep a safe distance between the exhaust pipe and the bicycle(s) so that exhaust heat cannot affect the bicycle(s) or the straps. Make sure bike tire

not directly behind the exhaust pipe.

• Use extra protections to protect the bicycles and the tailgate from scratches necessary.
• Always position the biggest/heaviest bicycle closest to the vehicle first, and then place others outwards in order of size.
• The vehicle should be in good condition in the area where the product is located.
• Do not mount to any type of trailer or RV, including Class B vehicles.

Inspection

• Regularly examine the product for corrosion, wear and tear. Stop using the product at the first sign of damage or if parts become detached.
• Regularly ensure that all hardware, screws, strap, knobs, and hubs of this products are securely tightened.
• After each new installation of this product on the vehicle and after each n loading, the product and loads must be checked after a short driving time (maximum 30 minutes on a bad road or 31.1 mi(50 km) on a normal road re-tightened if necessary.
• The screw connections between this product and the vehicle must be checked for a firm seat at regular intervals - at the latest after every 310.7 mi (5 and tightened if necessary, particularly during longer journeys. In case of road conditions, the check of the screw connections should be repeated every 2 hours.
• Before any journey, all connections of the screws, the basic rack and attachments, and other supports must be checked for firmness and tightness Tighten if necessary.
• After breaks, during which the vehicle with this product is left without supervision, all accessible fastenings of the product and the load must be checked for strength and functionality (examination for harmful external influences)!

Before First Use

- Check the product for transport damages.

• Remove all the packing materials.
• Clean the vehicle before installation, especially those parts that come into contact with this product.
• Clean the surface of this product before installing this product.

INSTALLATION INSTRUCTION

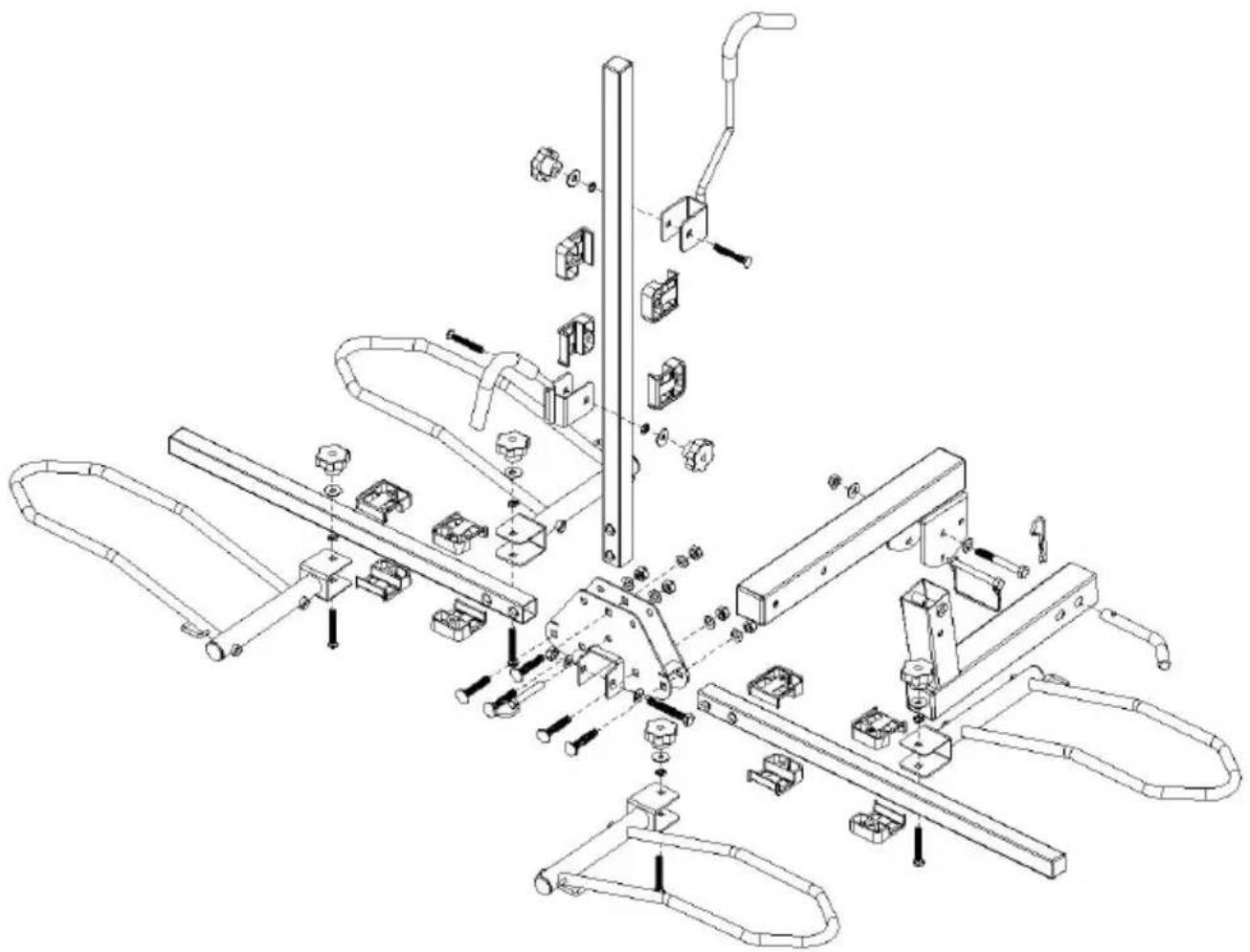

Exploded view diagram of a mechanical assembly with components and mounting points (no text or labels)

Required tools:

1× Protective Gloves

1× 200mm Adjustable spanner

1. Assembly Procedures

1

Technical line drawing of a mechanical assembly with two parallel rods and a bracket component, showing a change in assembly (no text or symbols present)

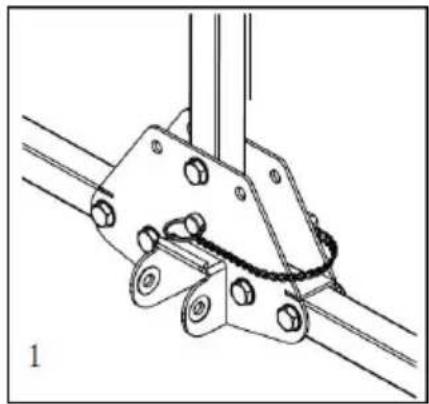

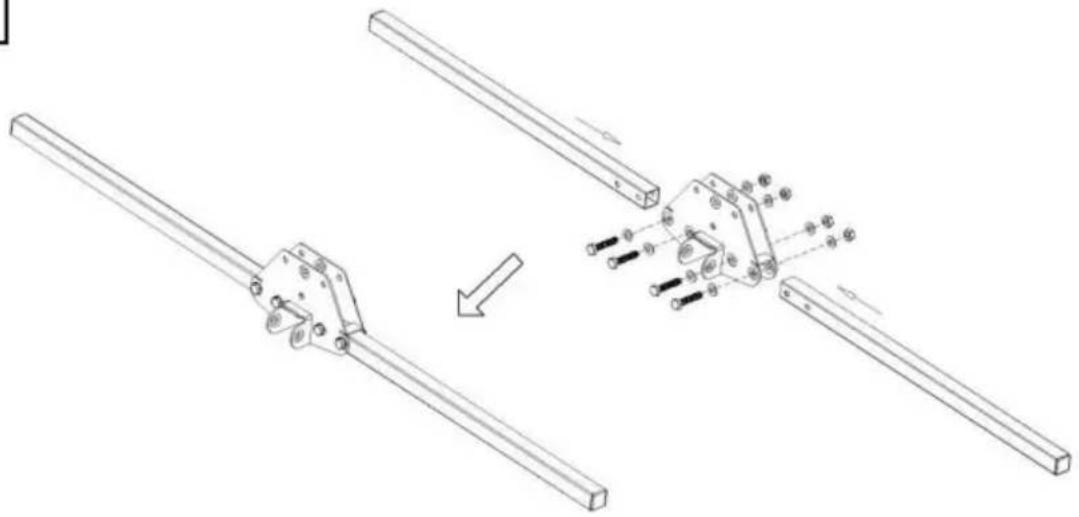

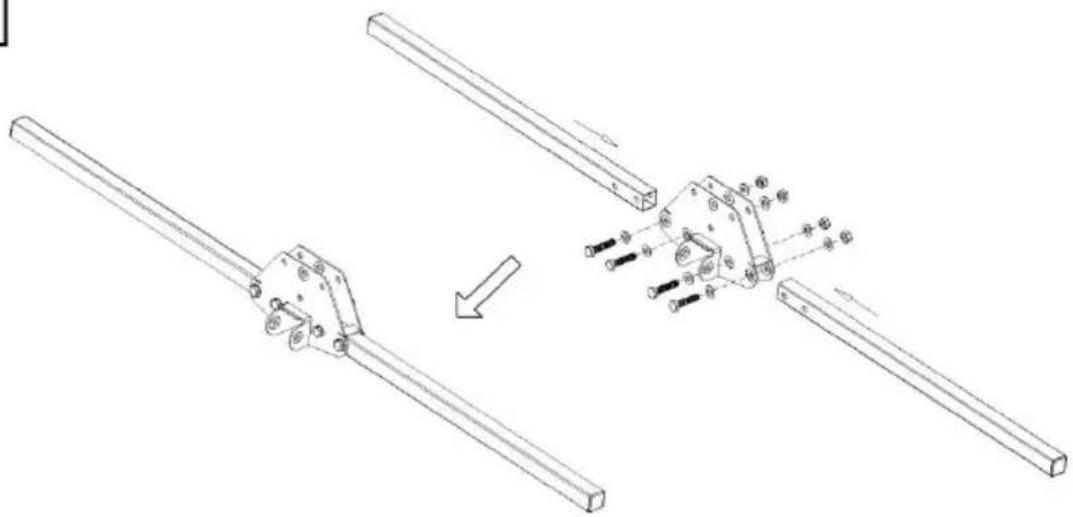

Assemble parts Cx2, M, Qx4, Ox4, and ABx8, as shown in the figure tighten all nuts using a 17mm wrench tool.

2

Technical line drawing of a mechanical assembly with two parallel rods and a bracket, showing alignment and adjustment (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with mounting holes and chains (no text or symbols)

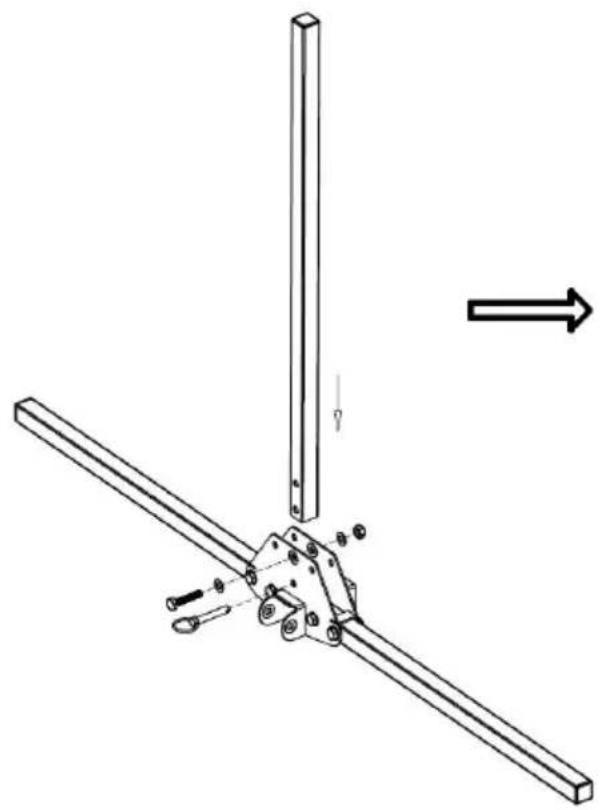

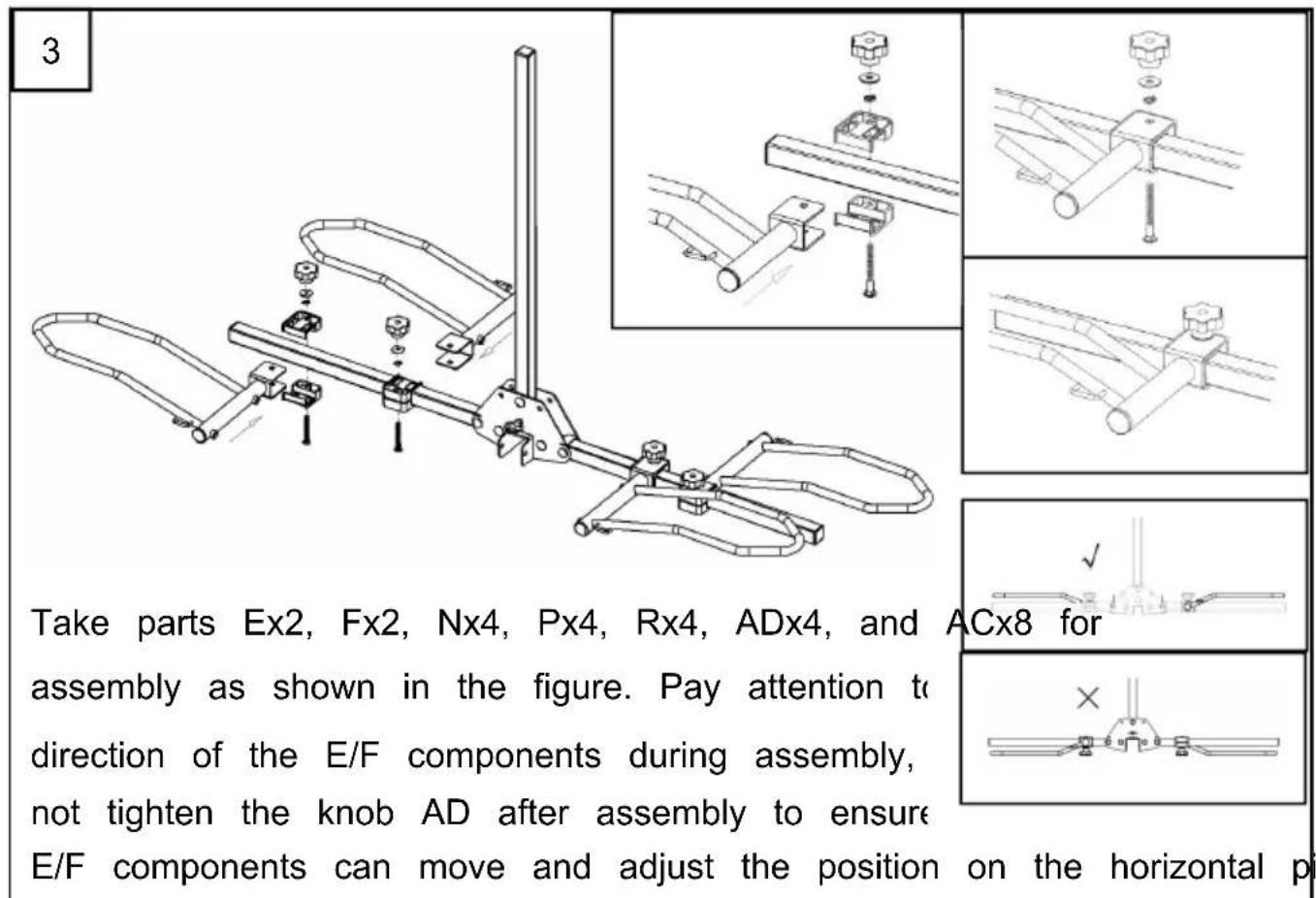

Install part D as shown in the figure into the assembly in step 1, as Q, OABx2, and tighten the nut with a 17mm wrench tool. Insert the the hole as shown in the figure.

4 O AB S K B

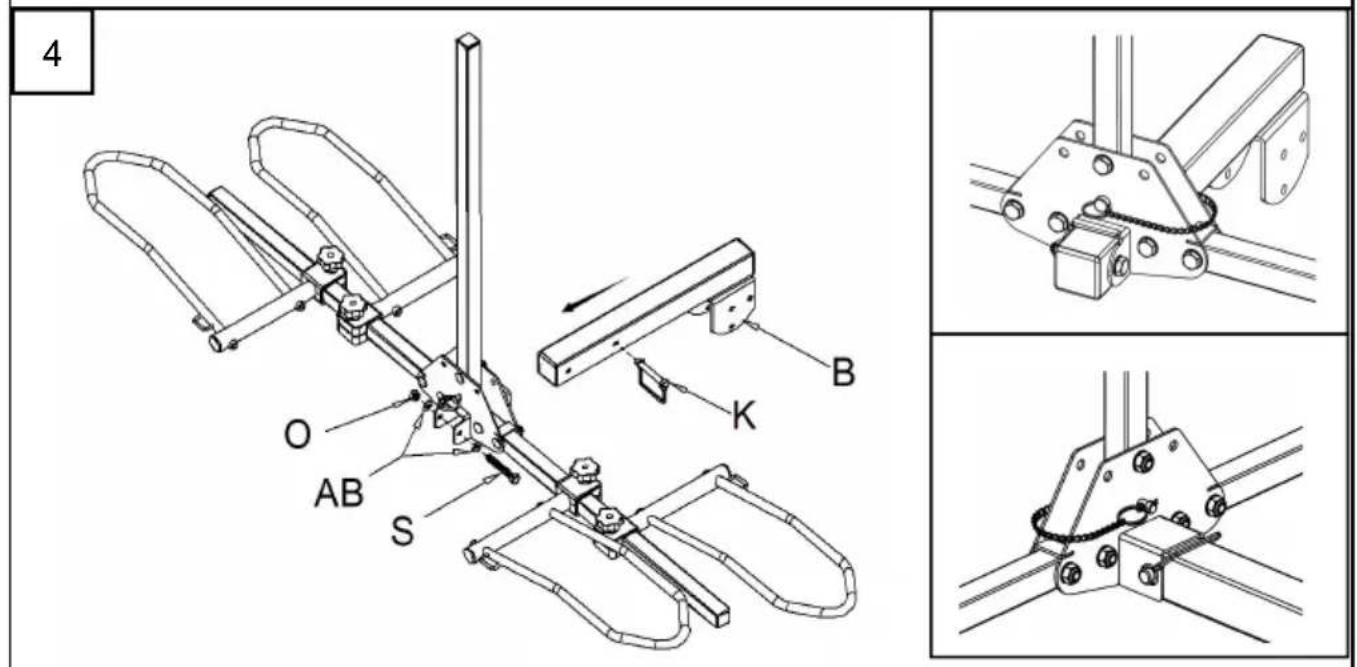

Take parts B, O, ABx2, S, K and assemble them on the assembly in shown in the figure. After tightening the nut O, loosen it by half a tu with a K pin.

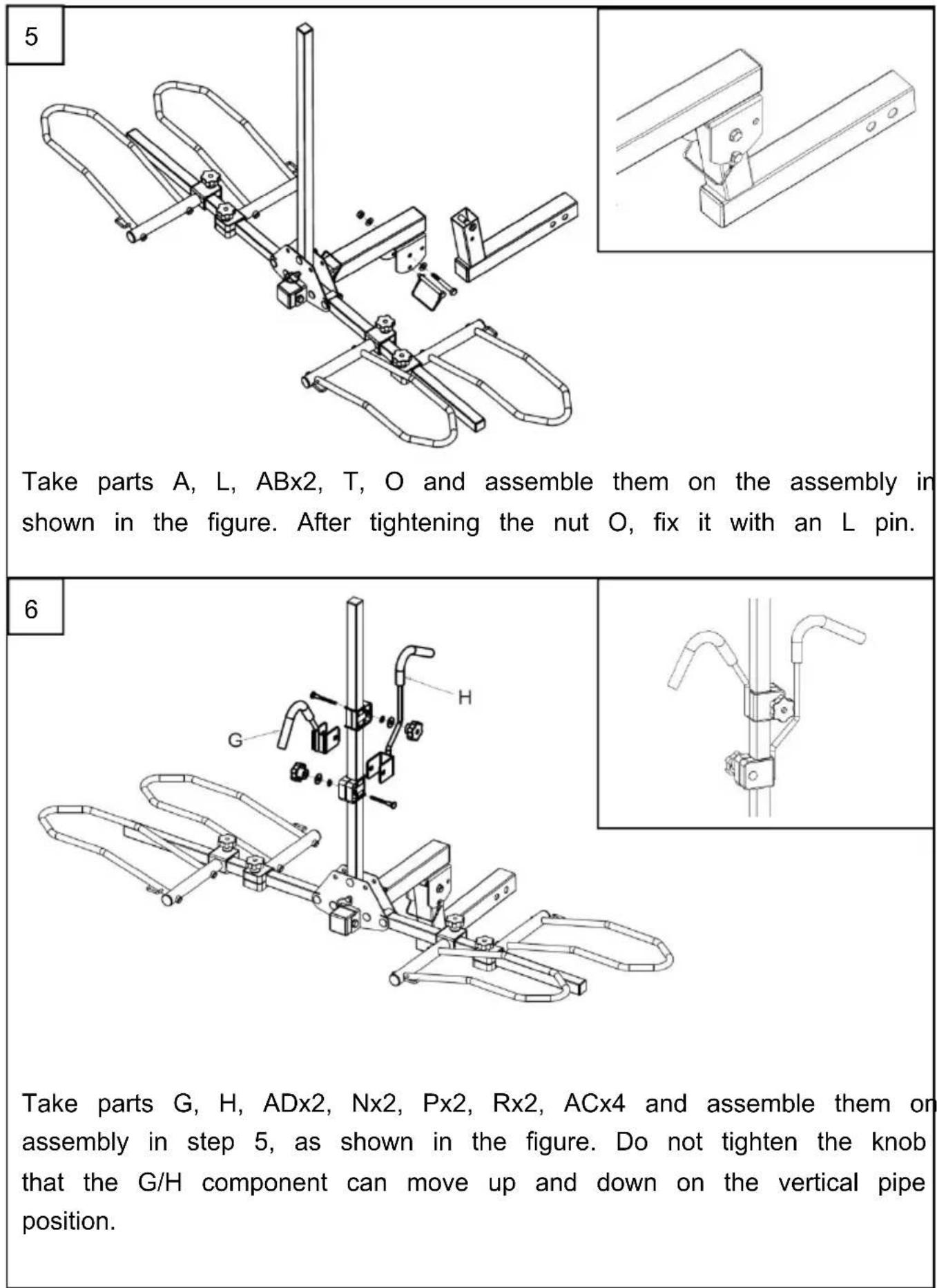

Take parts A, L, ABx2, T, O and assemble them on the assembly in shown in the figure. After tightening the nut O, fix it with an L pin.

Take parts G, H, ADx2, Nx2, Px2, Rx2, ACx4 and assemble them or assembly in step 5, as shown in the figure. Do not tighten the knob that the G/H component can move up and down on the vertical pipe position.

2. Installation Procedures

7

Line drawing of a car tire assembly with a mounted lift tool and wheel, showing no text or symbols.

Technical diagram showing a mechanical component with an arrow indicating direction and a 2° angle标注.

Pure technical line drawing of a mechanical assembly with no text or symbols

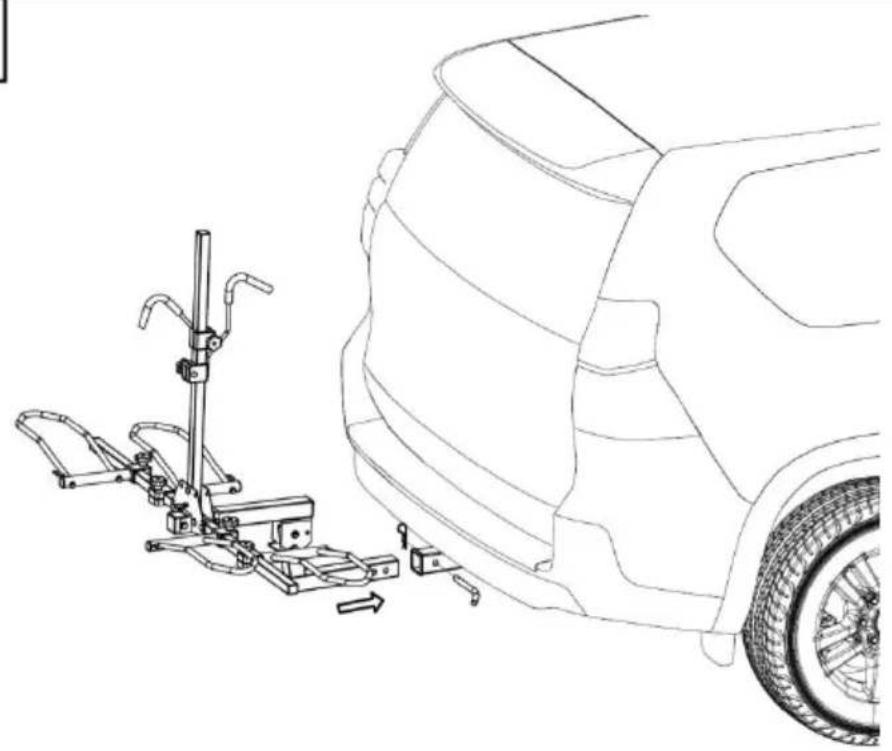

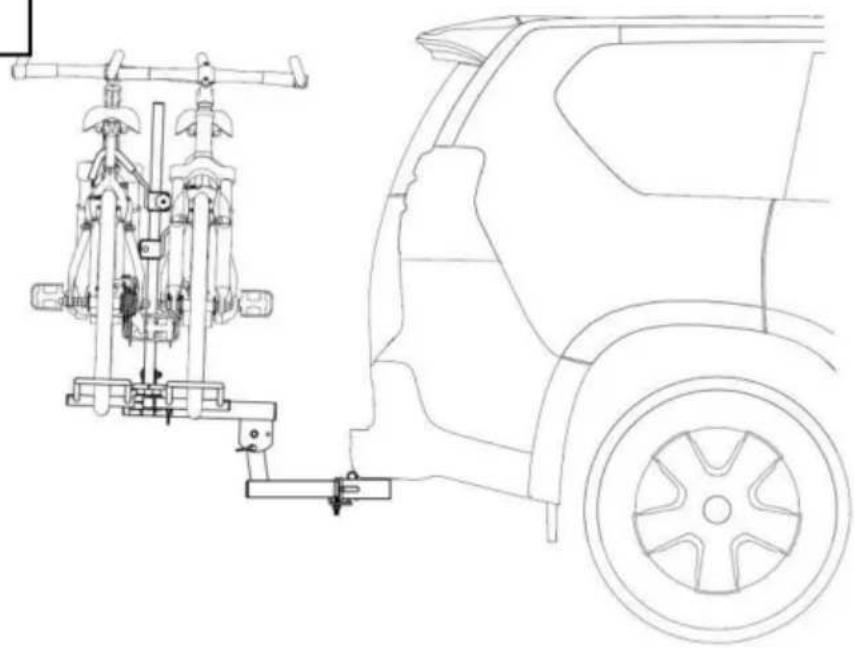

Install the product from step 6 onto the fixed bracket at the rear of the shown in the picture, take the U-pin through the pin hole, and use the penetrate the circular hole of the U-pin to ensure that the pin does not

8

Technical line drawing of a car tire assembly with mounting bracket (no text or symbols)

Technical line drawing of a mechanical assembly with mounting bracket and support structure (no text or symbols)

Technical line drawing of a mechanical support structure with mounting feet (no text or symbols)

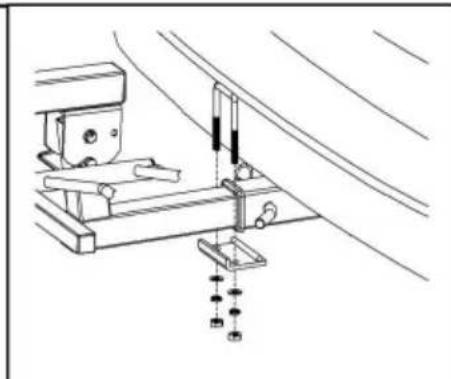

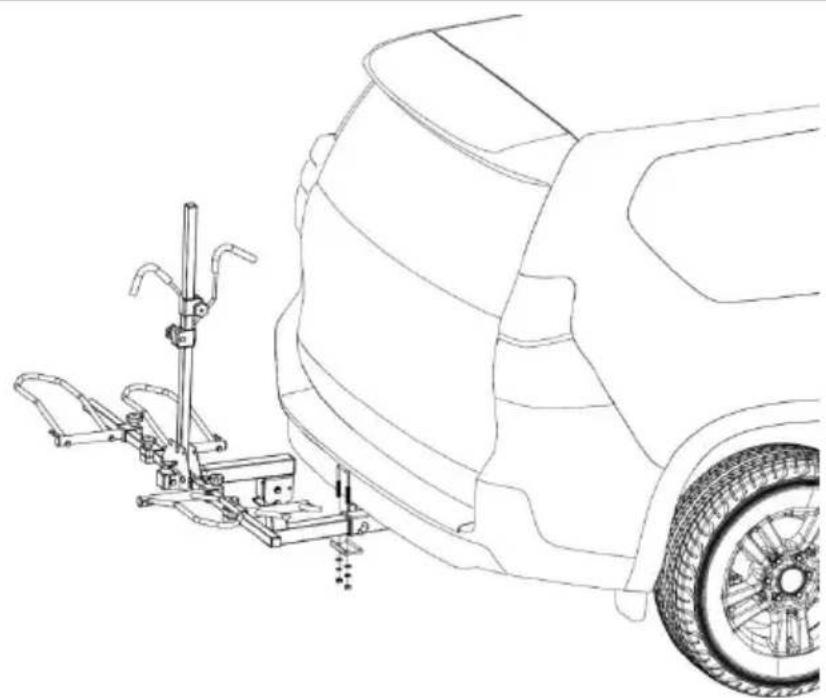

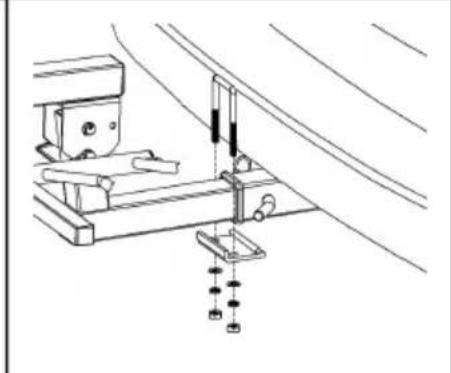

After completing step 7, remove the X, Y, Z, AA, and AB accessories, the figure for clearance assembly, and ensure that the AA nut is tighter wrench tool.

9

Line drawing of a car's front view showing bicycle wheel assembly and suspension components (no text or symbols)

Mechanical assembly diagram showing a hand operating a bicycle frame with no visible text or symbols

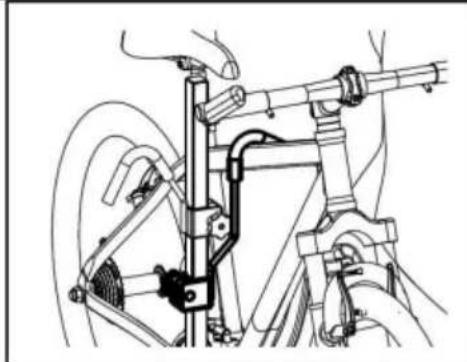

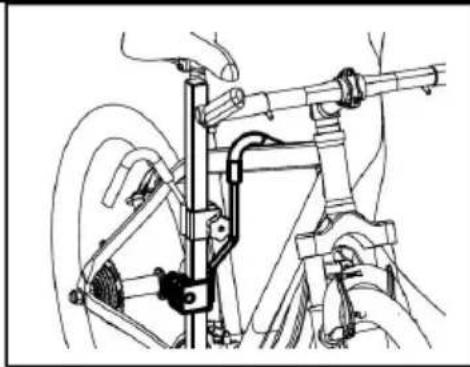

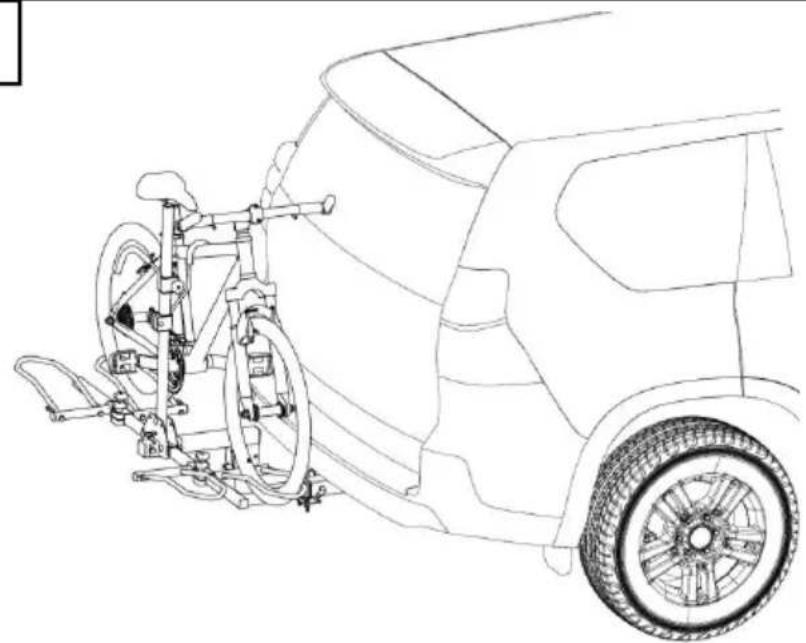

Roughly adjust the distance between the two wheel frames E and F act the actual wheelbase of the front and rear wheels of the bicycle. First, bicycle on the inner side of the frame as shown in the figure, and fix the crossbeam of the bicycle. Fine adjust the distance between E and F, the wheels just fall into the wheel frame, and tighten the locking knob hook.

Technical line drawing of a mechanical assembly with hoses and components, showing internal components and assembly details (no text or symbols)

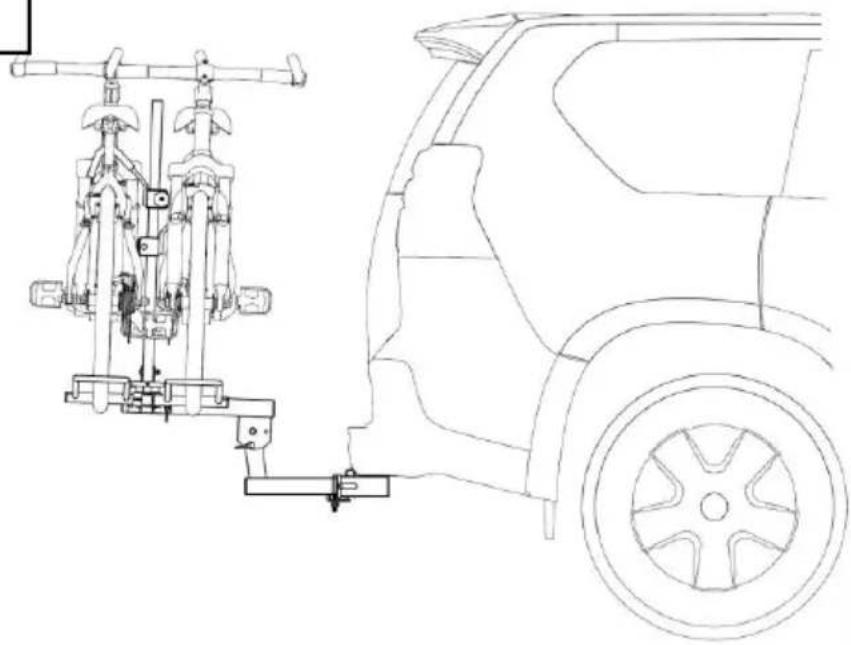

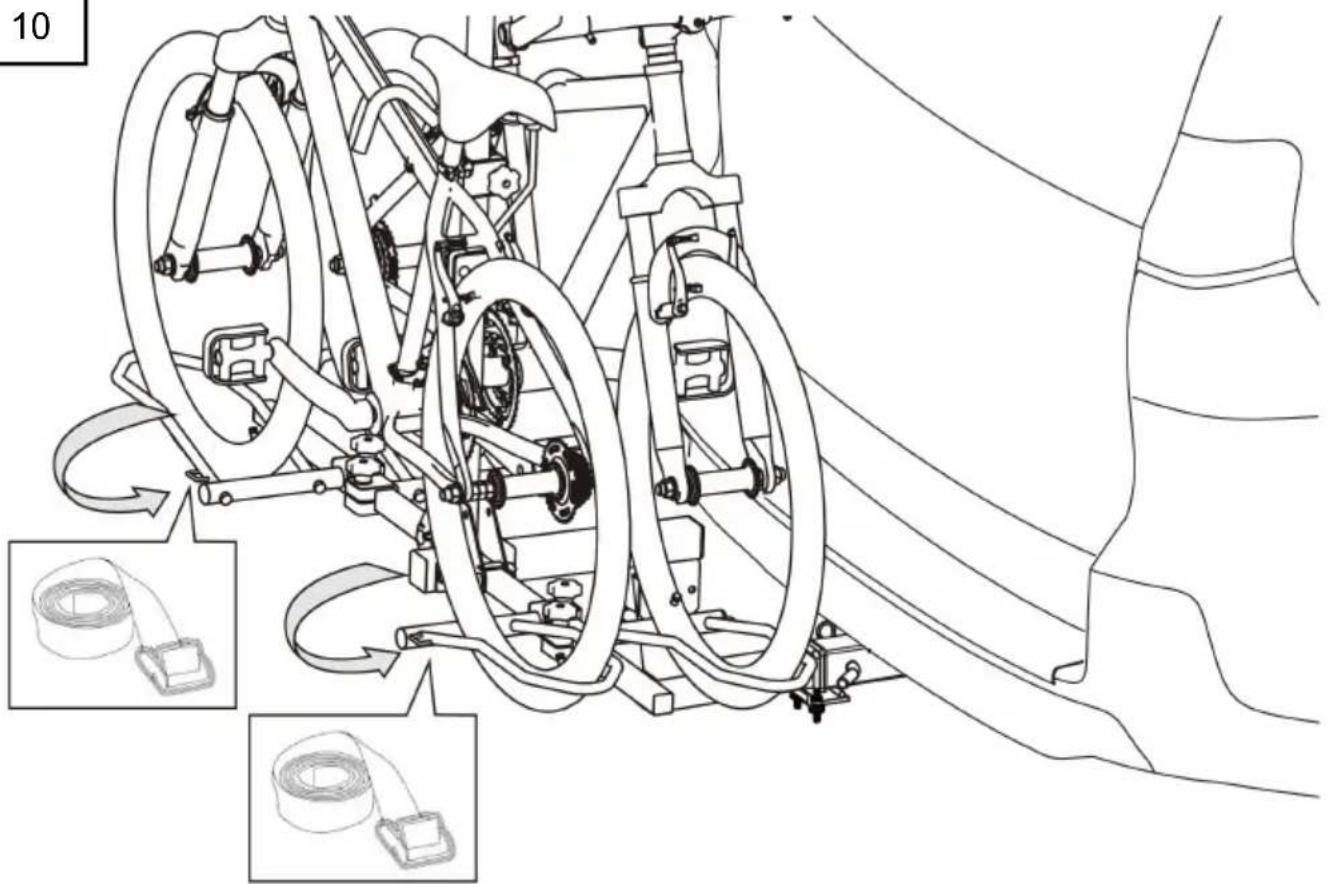

Follow the method in step 9 to place the second bicycle on the frame, locking knobs on E, F, and G. Use straps I to fix the front and rear bicycle to the frame, and then use straps J to tie the crossbeams of t bicycles together.

11

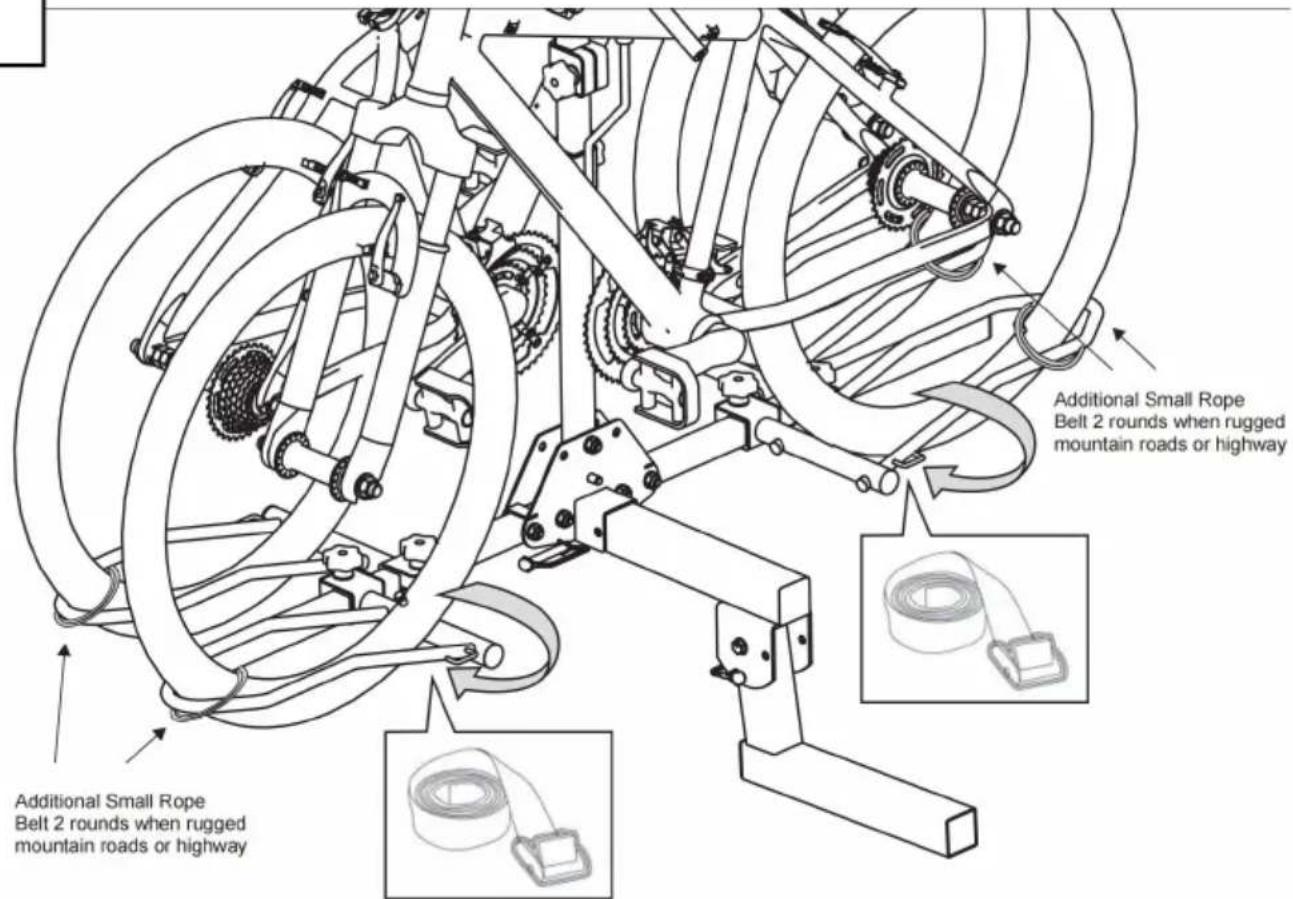

Additional Small Rope Belt 2 rounds when rugged mountain roads or highway Additional Small Rope Belt 2 rounds when rugged mountain roads or highway

12

Technical line drawing of a vehicle's rear suspension system with mechanical components and wheel rim (no text or labels)

Note: The maximum bearing capacity is 80 lbs x2!

Max

80 lbs

(36 kg)

13

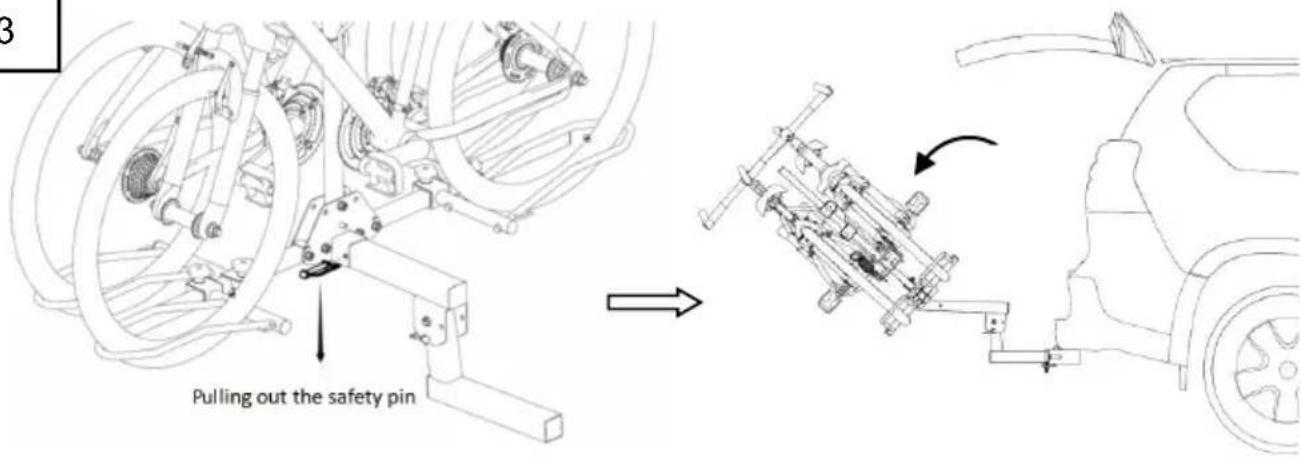

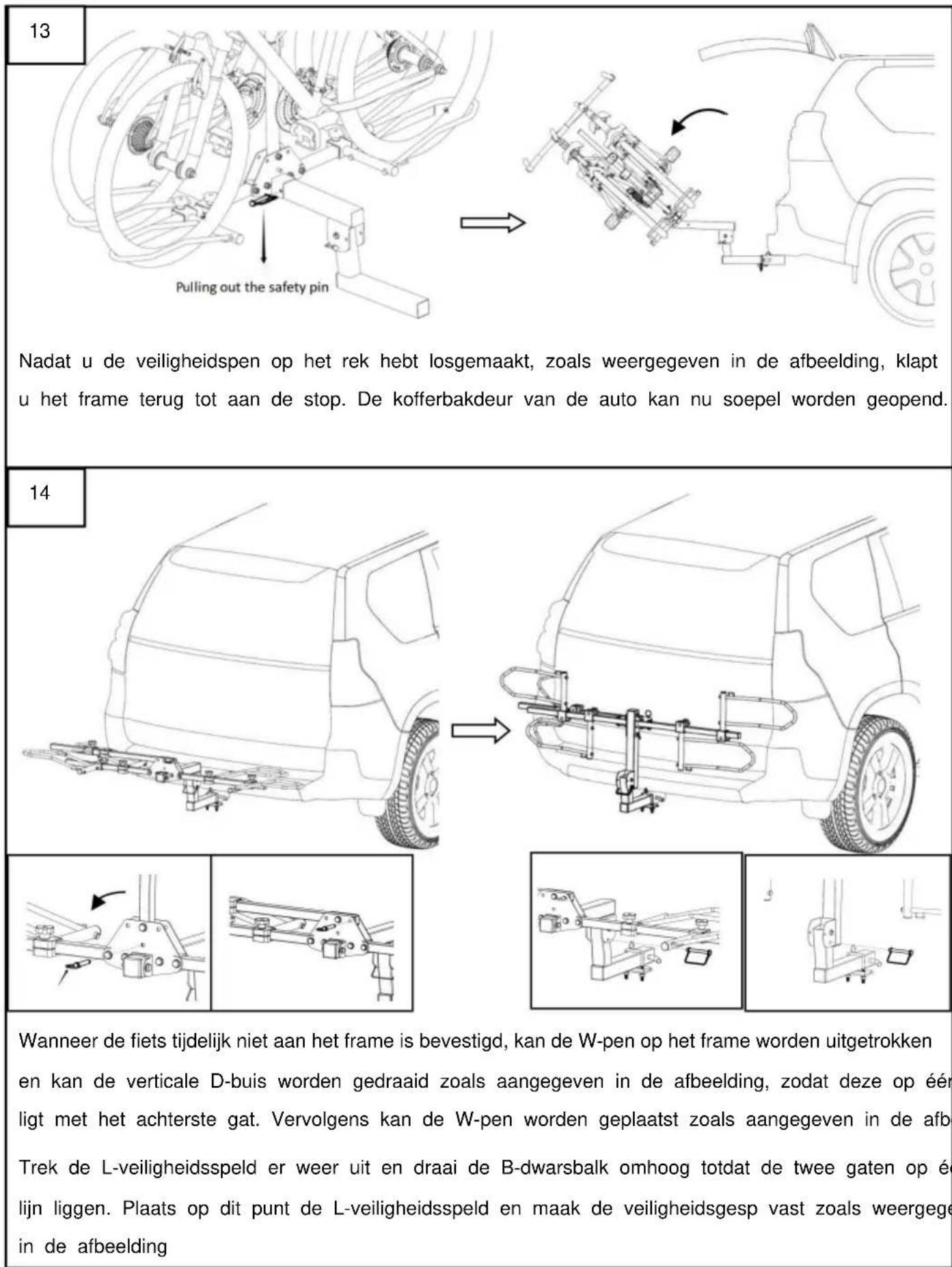

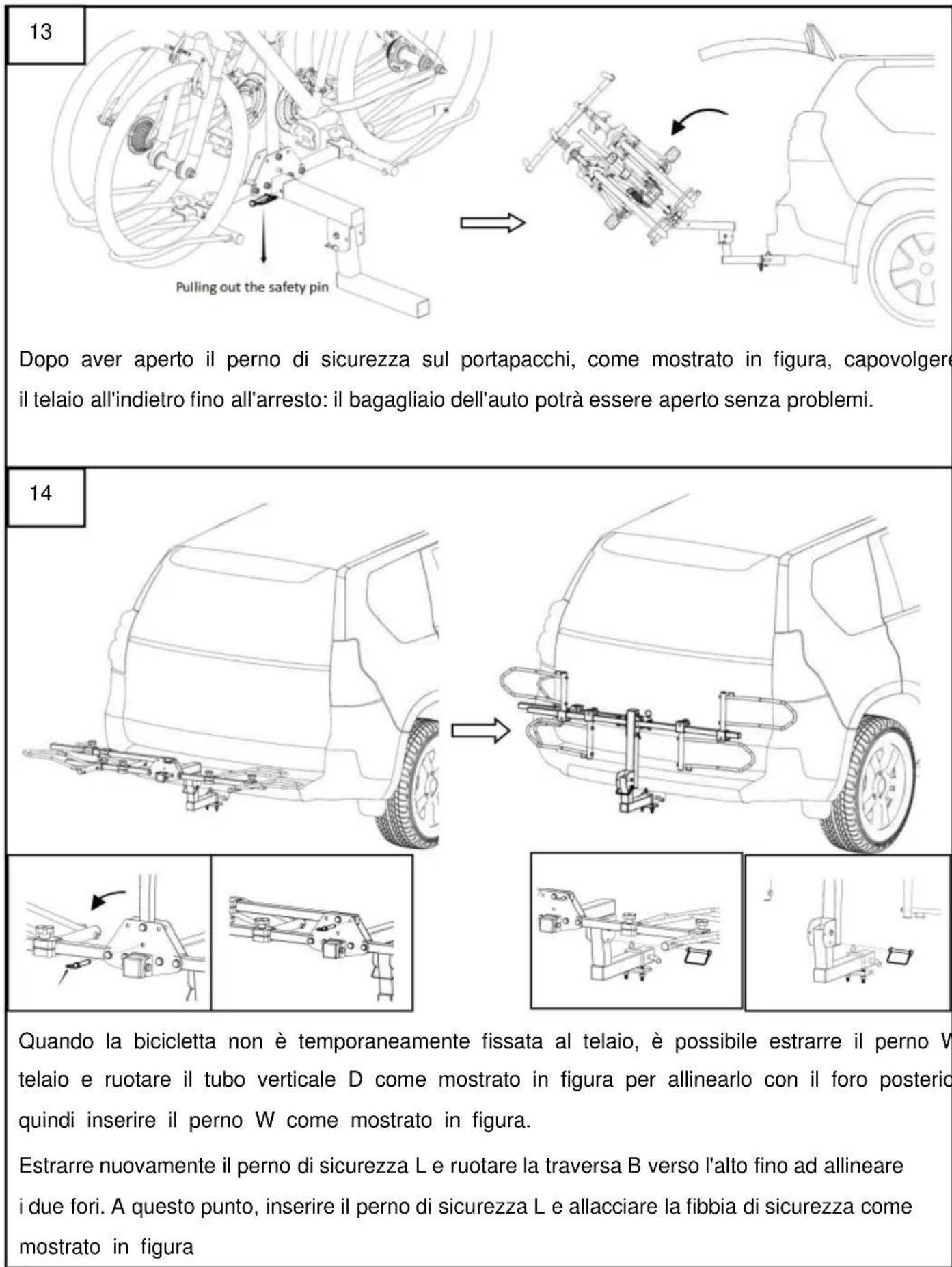

3 Pulling out the safety pin

After opening the safety pin on the rack, as shown in the figure, flip the backwards to the stop, and the trunk door of the car can be opened s

14

Technical line drawing showing vehicle assembly with a side view and a side-mounted bracket (no text or symbols)

Mechanical linkage diagram showing a lever mechanism with no visible text or symbols

Technical line drawing of a mechanical linkage or bracket assembly (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

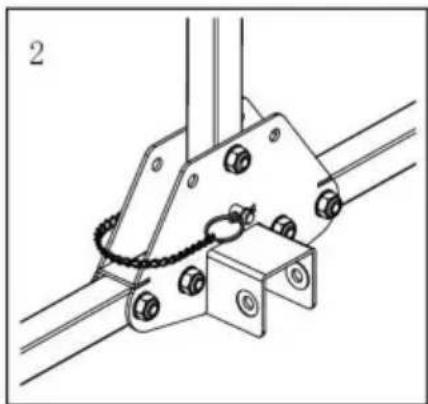

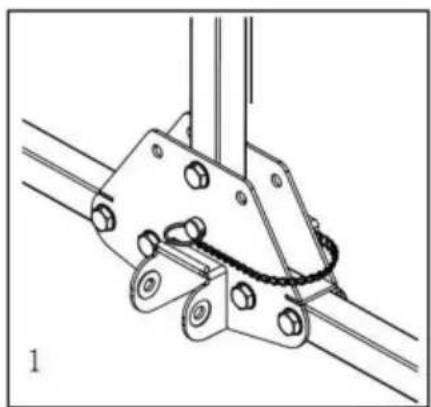

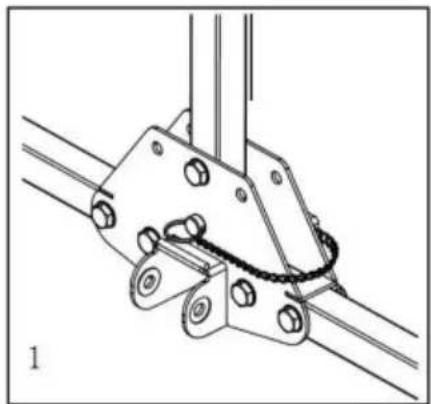

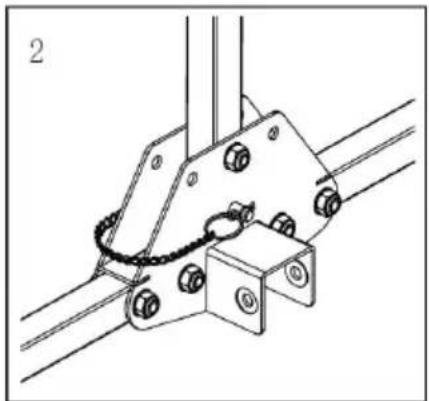

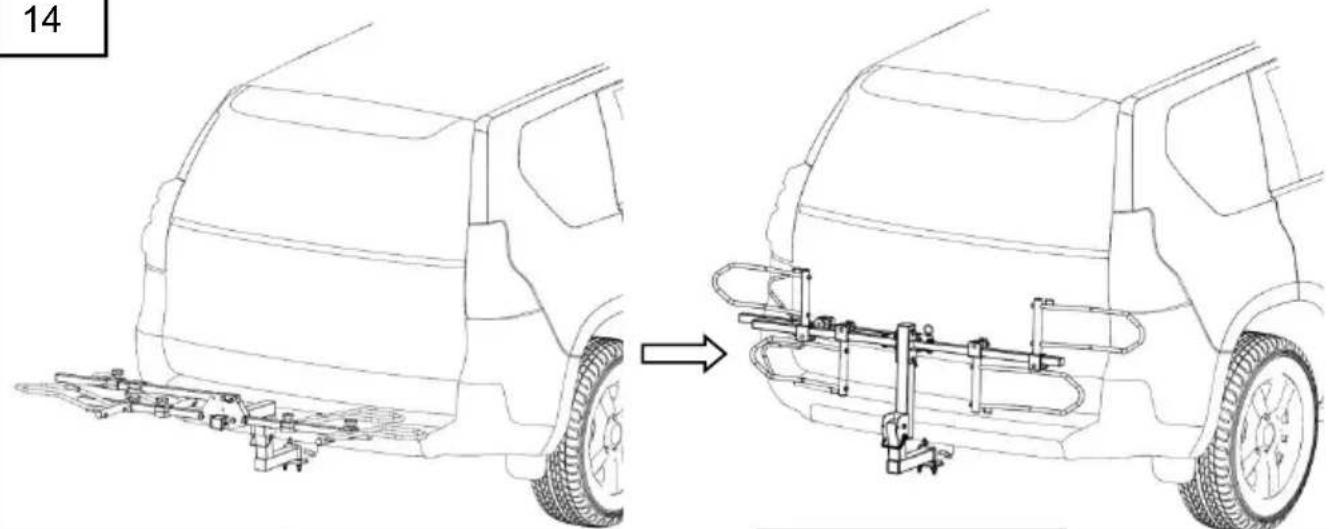

When the bicycle is temporarily not attached to the frame, the W pin of can be pulled out, and the D vertical pipe can be rotated as shown in align with the rear hole, and then the W pin can be inserted as shown. Pull out the L safety pin again and rotate the B crossbeam upwards un holes are aligned. At this point, insert the L safety pin and fasten the k as shown in the figure

CAUTION

- Risk of damage! Do not take the product through a car wash.

Cleaning

- When cleaning vehicles and products, use only water-soluble cleaners.

- Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

Maintenance

- This product must always be cleaned and maintained, especially in winter.

- Screws, nuts and locks (if fitted) must be lubricated at regular intervals.

- Store the product in a cool and dry place away from children and pets, is its original packaging.

Made in China
