Product Type	Teleprompter
Brand	Vevor
Model	TP2A
Beam Splitter Glass Size	8.8 inches (22.35 cm)
Main Material	ABS
Maximum Reading Distance	1.98 m (6.5 ft)
Transmission/Reflection Ratio	70/30
Minimum Shooting Focal Length	28 mm
Compatible Lenses (Diameter)	49/52/55/58/62/67/72/77 mm
Tablet Compatibility	Up to 8 inches
Smartphone Compatibility	Yes (magnetic clamp)
Mobile App	VEVOR TELEPROMPTER (iOS and Android)
Remote Control	Bluetooth, estimated range 10 m
App Functions	Play/pause, speed adjustment, font, color, background, mirror, vertical/horizontal screen, loop
Remote Control Power	Button cell battery (not included)
Tripod Mount	Yes (standard thread)
Cold Shoes	2 slots for microphone or light
Tablet Clamp	Included
Magnetic Smartphone Clamp	Included
Lens Adapters	Foam rings for different diameters
Cleaning	Soft dry cloth, avoid abrasive products
Compliance	FCC Part 15, WEEE directive
Warranty	Via www.vevor.com/support

Frequently Asked Questions - TP2A Vevor

How to install the Vevor TP2A teleprompter?

Attach the lens adapter to your camera, then install the teleprompter onto the camera. Place the tablet or smartphone on the provided clamp and mount the assembly on a tripod. Make sure the VEVOR TELEPROMPTER app is open in full screen.

How to connect the Bluetooth remote control?

Turn on the remote control by holding the power button (about 2 seconds). Enable Bluetooth on your phone, open the app, and the connection will be automatic. The LED indicator shows pairing status.

What if the remote control does not connect to my Android?

Check that location permission is enabled for the app. Ensure the remote is not already connected to another device. Restart the remote and the app, then try again.

What if the remote control does not control the app?

Close other background apps. Disable Bluetooth on other nearby phones. Ensure the connection is made through the app, not through the phone's Bluetooth settings.

How to download the VEVOR TELEPROMPTER app?

On iOS, search for 'VEVOR TELEPROMPTER' in the App Store. On Android, search for it in Google Play. Download and install the app for free.

How to adjust text size and scroll speed?

In the reading interface, tap the screen to show the function menu. Use the icons to adjust font size, spacing, color, background, and scroll speed.

How to use mirror mode?

The app has a mirror icon in the function menu. Enable it to horizontally flip the image, which is useful for natural reading through the beam splitter glass.

How to mount a microphone or light on the teleprompter?

The teleprompter is equipped with two cold shoes on top. You can attach a compatible microphone or fill light.

What is the compatibility with camera lenses?

The teleprompter is compatible with lenses of diameter 49, 52, 55, 58, 62, 67, 72, and 77 mm. Use the provided foam rings to adapt the lens.

How to clean the teleprompter glass?

Use a soft dry cloth to clean the beam splitter glass. Avoid abrasive products or solvents that could damage the coating.

USER MANUAL TP2A Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TELEPROMPTER

USER MANUAL

MODEL: TP2A

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TELEPROMPTER

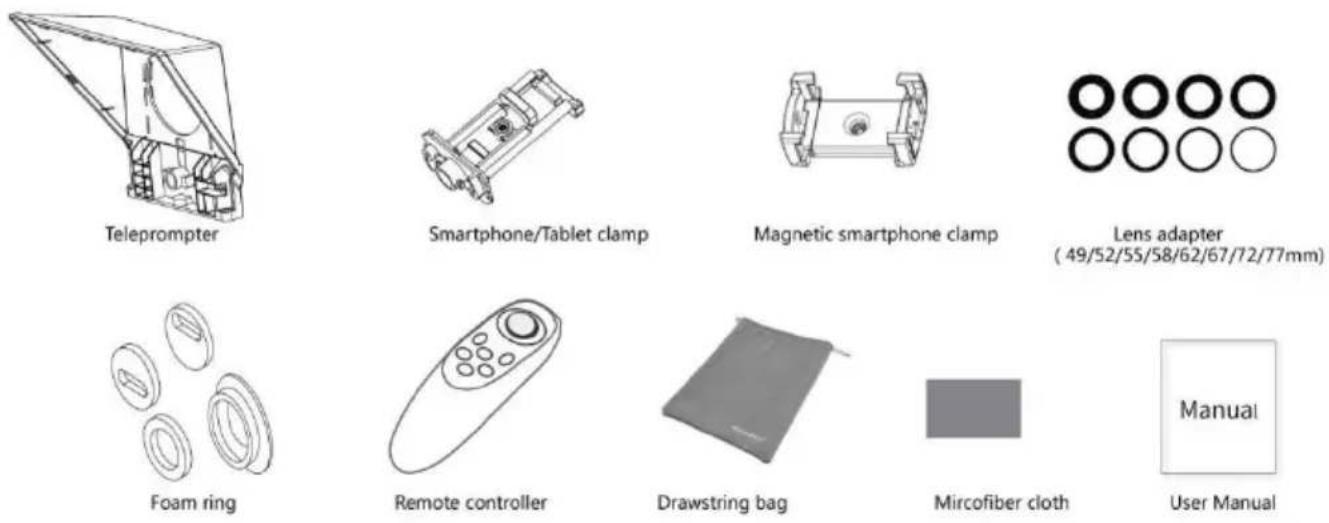

Packaging List

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) this device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

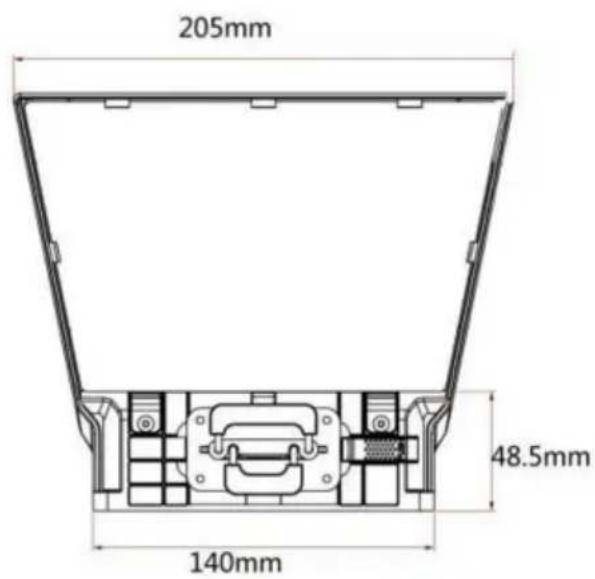

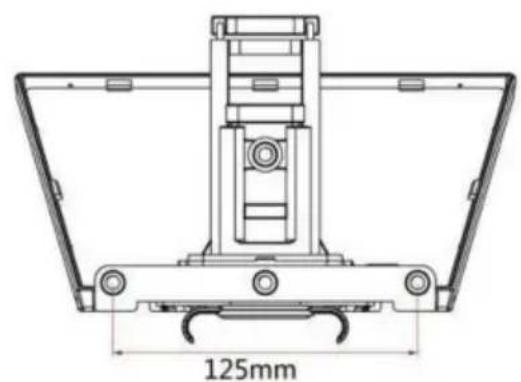

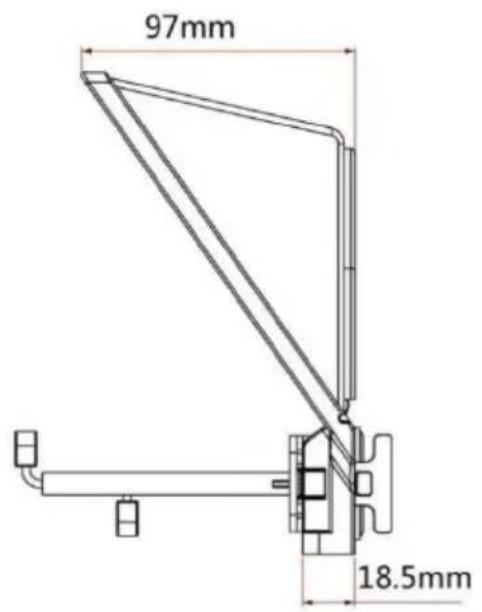

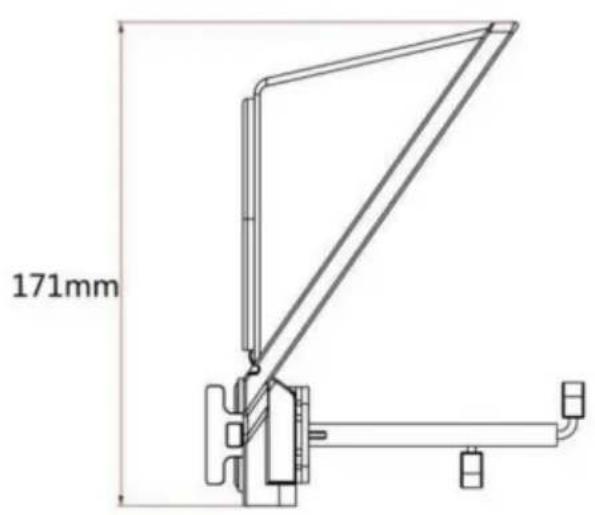

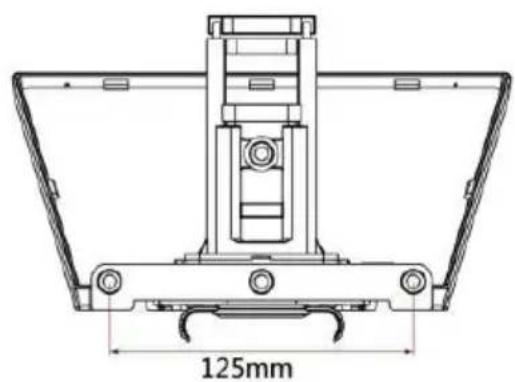

STRUCTURE

PARAMETERS

Beam splitter glass size: 8.8-inch

Main material: ABS

Farthest reading range: 6.5FT

Transmission/ reflection ratio: 70/30

Shooting focal length: More than 28mm

Compatible lens: 49/52/55/58/62/67/72/77mm

INSTRUCTIONS

1. Tablet /Smartphone Prompting, DSLR Camera Recording Supports below 8" for tablet

Take out a suitable lens adapter to install on your camera

Install the teleprompter on the camera

Install the phone/tablet clamp

Push the "PUSH" to lock the phone/tablet clamp

Put the tablet on the tablet clamp

Install the whole set on the tripod. The two cold shoe seats on the teleprompter can mount a microphone, fill light, etc.

Turn on the camera and make sure it is full screen.

2. Tablet Prompting, Smartphone Recording

Choose a foam ring and put the phone lens adapter on it.

Make sure it is put on well.

Install it on the back of the teleprompter.

Take out the magnetic phone clamp.

Put it on the middle of the phone.

It can be sucked on the right side small iron piece to meet horizontal shooting.

It can also be sucked on the below small iron piece to meet vertical shooting.

Install the phone/tablet clamp on the teleprompter.

Push the PUSH to lock it.

Put the tablet on it.

Install the whole set on the tripod. The two cold shoe seats on the teleprompter can mount a microphone, fill light, etc.

Turn on the recording of the phone and make sure it is full screen.

APP DOWNLOAD

iOS APP Download

iOS users search "VEVOR TELEPROMPTER" in the App Store to download.

Android APP Download

Android users search "VEVOR TELEPROMPTER" in Google Play to download.

APP INSTRUCTION

After installing the app and entering it,

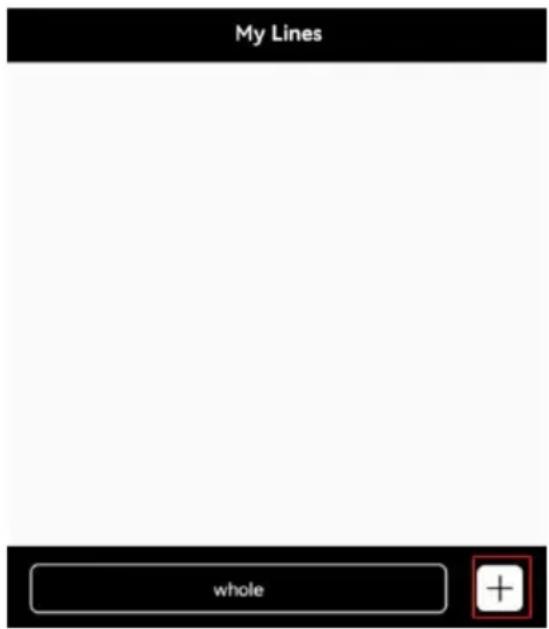

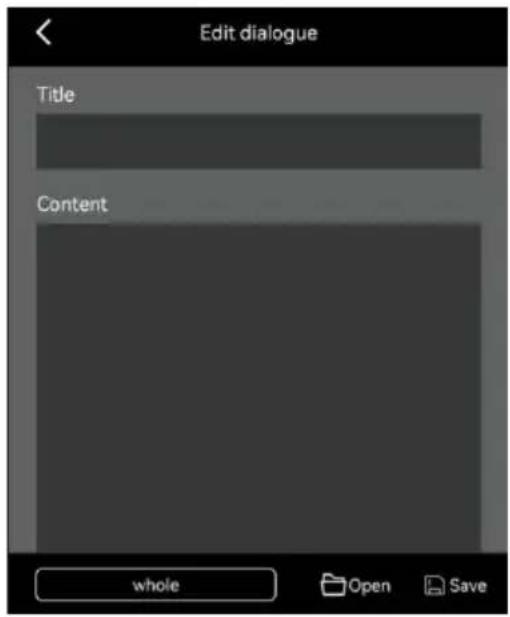

Tap "+" to enter the Edit dialogue.

You can edit the title and content directly, or click "Open" to import text from the phone, then click Save.

Click "Whole" to manage all files.

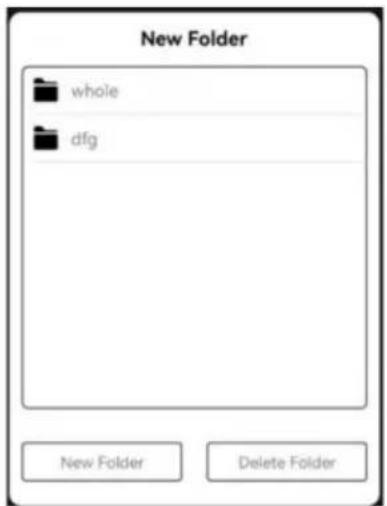

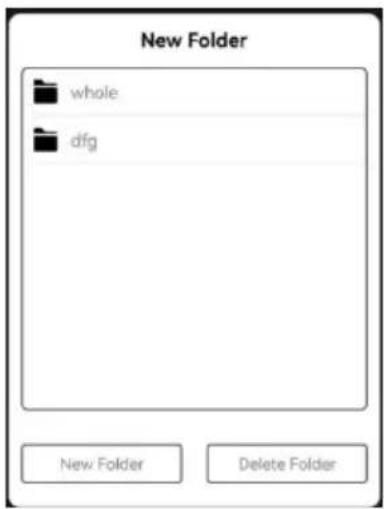

Click "Folder Management" to create a new folder or delete a folder.

After saving, click the text to enter the play interface.

You can also tap the icon to edit the text or tap the icon to manage the

TP10 is a folding and portable teleprompter featuring a 10-inch standard beam splitter that allows you to clearly read scrolling...

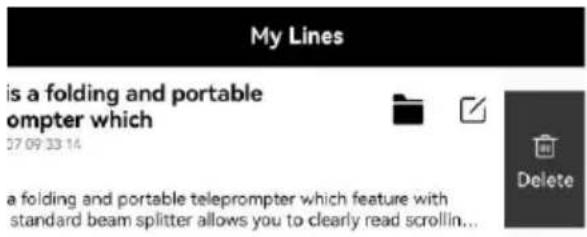

If you want to delete the file, swipe left at the corresponding file location and tap "Delete".

After entering the play interface and tapping a position, the function menu will show at the bottom. Tap again to hide the function menu.

Play/Pause

Adjust font size, word spacing, space color, background.

Adjust browse speed

Loop play

Vertical/horizontal screen switch

Mirror

TP10 is a folding and portable teleprompter which features a 10-inch standard beam splitter, allowing you to clearly read scrolling text while looking directly into the camera. Perfect for vlog, live broadcast, online class, video recording, interviews, video studio, news and presentation. No need to recite the script, confidence and charming! It can be prompted via smartphone or tablet while DSLR camera or phone is shooting. Supports wide angle lens, Android/iOS app, Bluetooth remote control, easy to operate, making video production more efficient. Use with exquisite special storage case, more convenient to carry. It is ideal for video, program creator.

REMOTE CONTROLLER

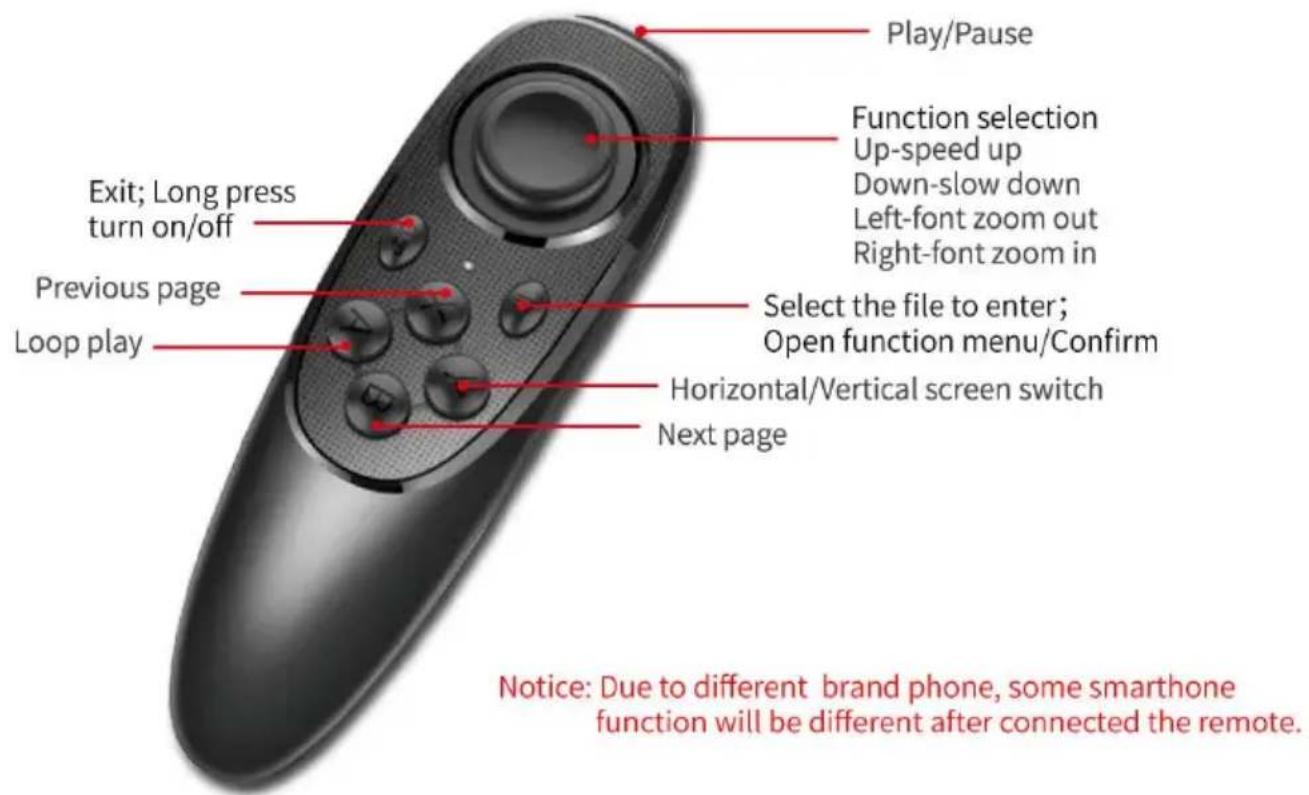

Remote Button Instruction

Remote Use Instruction

1. Power on: Keep pressing the power button until the light turns on (about 2 seconds).
2. Power off: Keep pressing the power button until the light turns off (about 5 seconds).

Notice: If power on without connecting anything, it will power off after 5 minutes. If connected to the phone, it will power off after 30 minutes.

3. iOS Connection

Turn on the Bluetooth of the phone first, then turn on the APP, and power the remote controller last. LED lights on, auto into pairing mode, allowing the Bluetooth pair. The APP will show automatically connected to VEVOR-xx,

the connection is successful.

What can I do if my iPhone cannot connect with the remote controller?

Please go to the Bluetooth connection of your phone, check if the remote control had been connected by iPhone;

then follow the below steps to reconnect: 1) disconnect iPhone Bluetooth, and switch off the remote controller; 2) turn on iPhone Bluetooth, open the APP and switch on the remote controller.

4. Android Connect

After power on, LED light on, auto into pairing mode. Turn on the Bluetooth of the phone, then turn on the APP, will show the Bluetooth connected automatically.

FAQ

FAQ: The remote controller cannot connect to the Android phone, how can

1. Please check Location Permission on your phone, the connection needs that permission.
2. Please check if the remote controller has been connected with your phone.
3. Please check if there is Bluetooth signal from the remote controller. (Check other apps to detect the Bluetooth)
4. Reboot the remote controller, reopen the app.

FAQ: The remote controller has been connected to my Android phone, but it is not controlling the app.

1. Please close other apps running in the background on your phone.
2. Please turn off Bluetooth on other phones at the worksite, to make sure the Android phone is the only device connected to the remote controller.
3. Please make sure that every time you connect to your phone, it is done through the settings on your phone.

★ As we are improving product features and product performance, if there is an

on the specification without prior notice.
