USER MANUAL TP16 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TELEPROMPTER

USER MANUAL

MODEL:TP16

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TELEPROMPTER

PACKAGING LIST

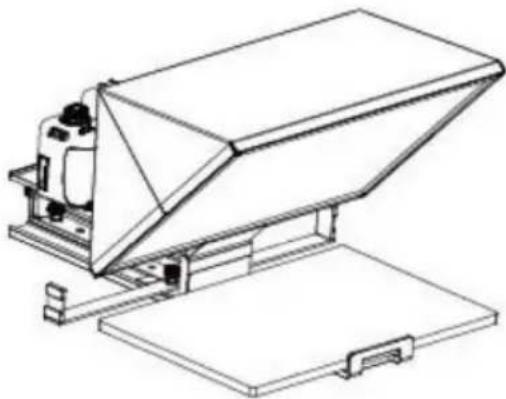

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1 x TP16 Main Body

Simple line drawing of a hand holding a triangular object (no text or symbols)

1 x Sun Hood

2 x Expansion Clamp

7 x 1/4 Customized Screws

1 x Remote Controller

1 x Microfiber Cloth

1 x User Manual

Simple line drawing of a rectangular briefcase with a handle (no text or symbols)

1 x Carrying Case

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. C is subject to the following two conditions:(1)This device cause harmful interference, and (2)this device must acce interference received, including interference that may caus undesired operation.
	This product is subject to the provision of European Dir 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products n as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

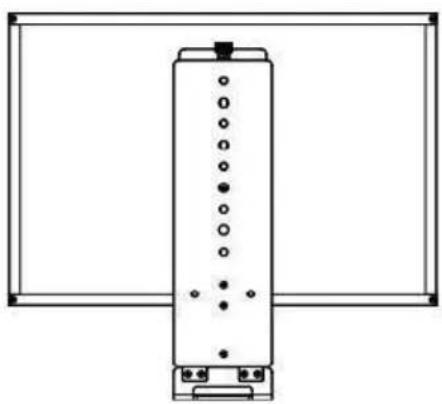

STRUCTURE

90mm

320mm

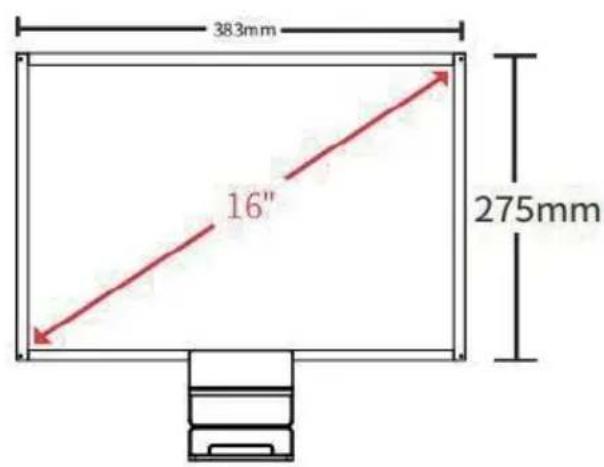

383mm 16" 275mm

Technical line drawing of a vertical mechanical assembly with a 60mm dimension label (no text or symbols beyond the measurement)

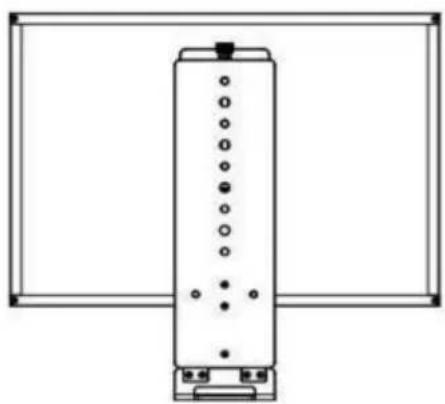

Pure diagram of a vertical cylindrical device with circular holes and mounting base, no text or symbols present

PARAMETERS

Beam splitter glass size: 16-inch

Main material: Aluminum alloy 6063

Farthest reading range: 10FT

Transmission/ reflection ratio: 70/30

Shooting focal length: More than 24mm

Compatible tablet: 60-255mm

INSTRUCTIONS

135°

1. Raise the glass and position it at the 45^ angle

Line drawing of a lampshade setup with a handle and lever (no text or symbols)

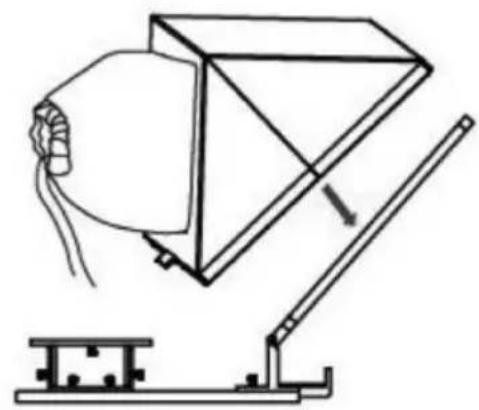

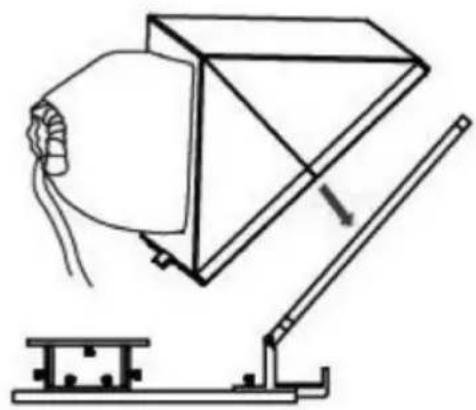

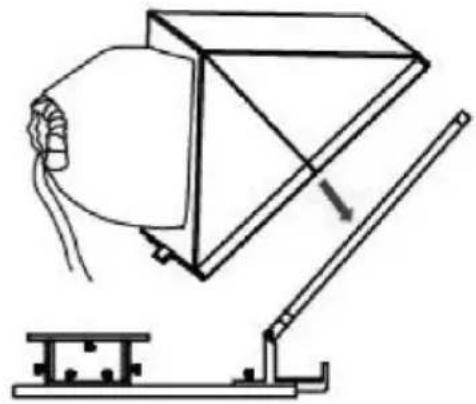

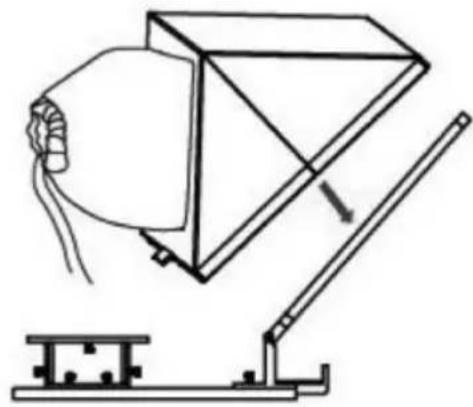

1. Attach the sun hood to the glass. Be sure the hood is securely attached on four sides

Pure mechanical diagram showing a device with no text, numbers, or symbols

1. Adjust the height via loosen and thighten the screws

Simple line drawing of a mechanical setup with a central component and a base, enclosed in a circle (no text or symbols)

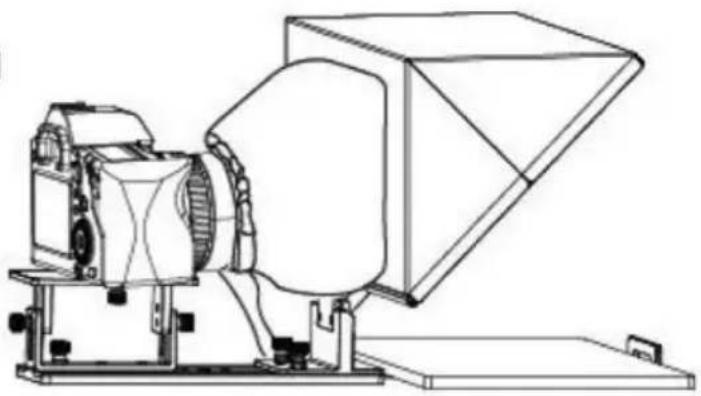

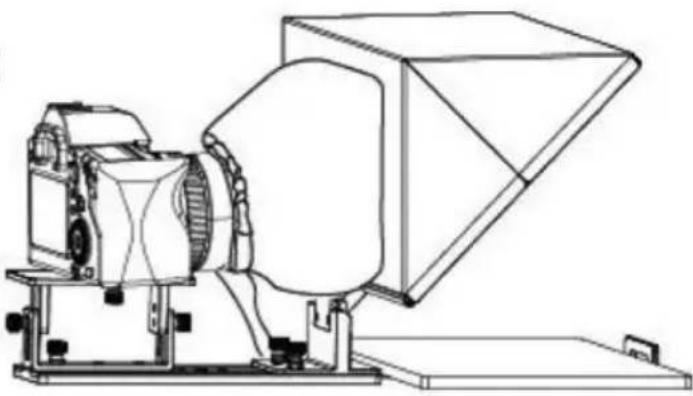

1. Mount the camera and fix it with the customized 1/4" screws

Technical line drawing of a mechanical device with no visible text or symbols

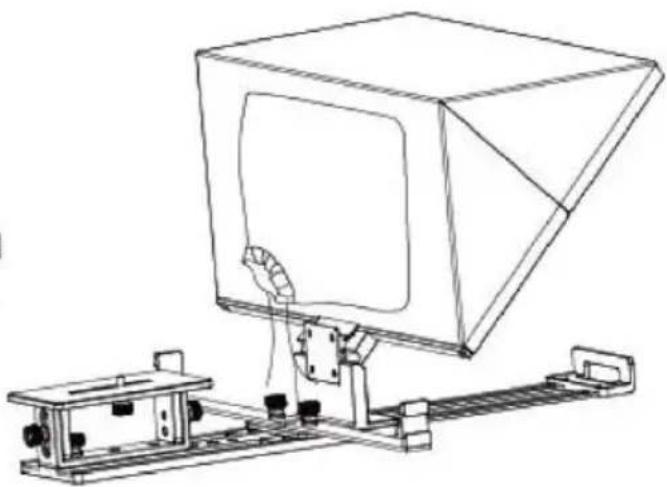

1. Zip the hood to complete installation

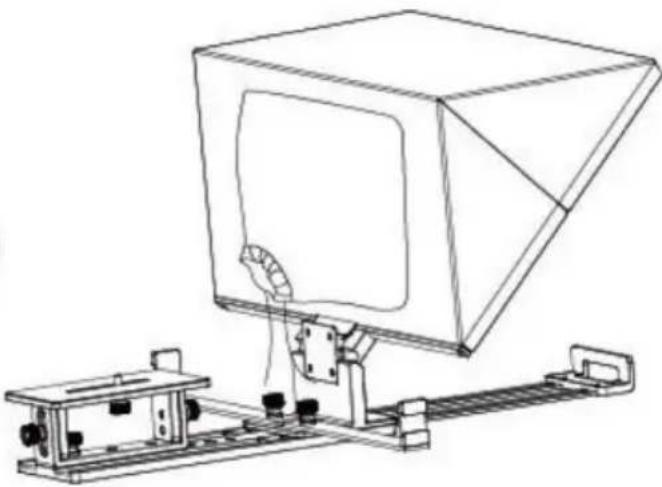

Install the teleprompter on a tripod or light stand first according to your necessary.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Expansion Clamps installed according to the fixed slot

Mechanical assembly diagram showing two cylindrical components mounted on a platform (no text or labels visible)

Technical line drawing of a mechanical testing setup with a monitor and support frame (no text or symbols)

Fix the expansion clamps with provided special screws

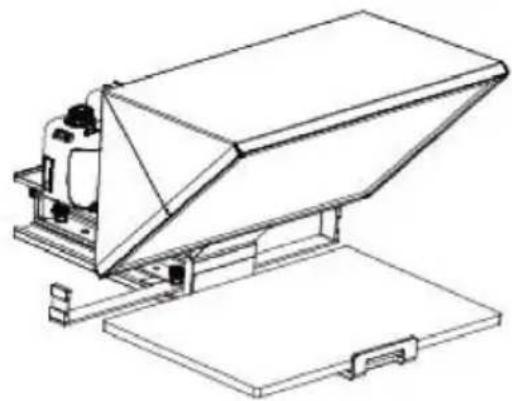

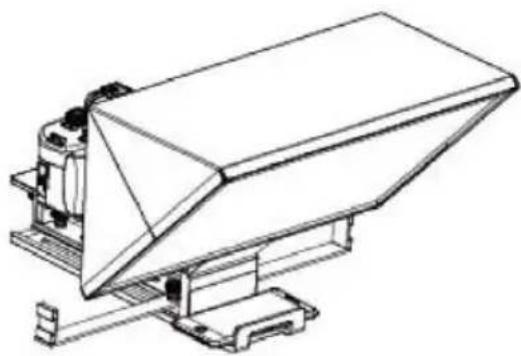

Teleprompting Equipment Installation:

Technical line drawing of a mechanical device with a triangular frame and base platform (no text or symbols)

Max. supported width is 255mm

Technical line drawing of a mechanical device with a triangular component mounted on a base (no text or symbols)

Min. supported width is 60mm

APP DOWNLOAD

iOS APP Download

iOS user search “VEVOR TELEPROMPTER” in App Store download

Android APP Download

Android user search “VEVOR TELEPROMPTER” in Google Play to download

APP INSTRUCTION

After installed app and enter ap

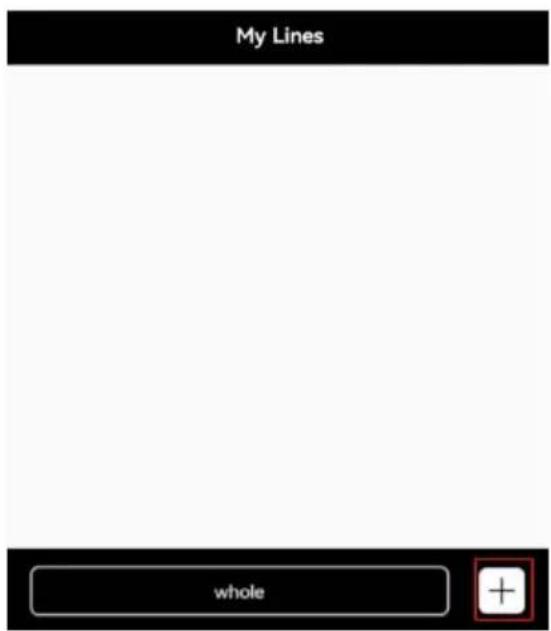

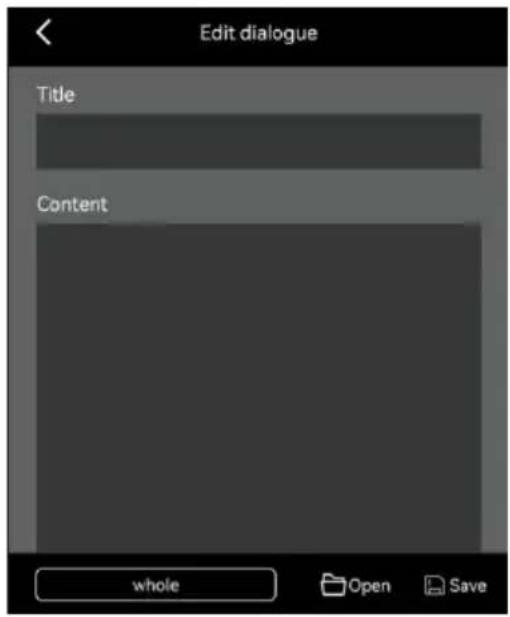

Tap “+” to enter Edit dialogue

My Lines whole

You can edit the title and content directly or click “open” to import the text from the phone, then click save

Click "whole", you can manage the whole files

Edit dialogue Title Content whole Open Save

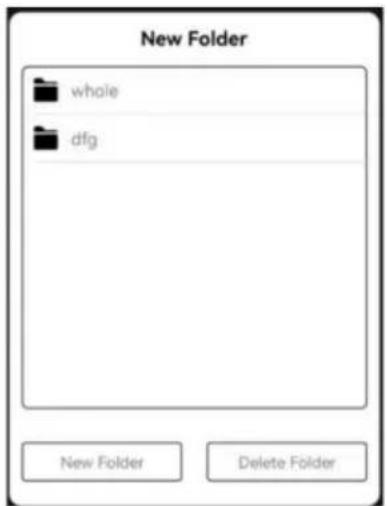

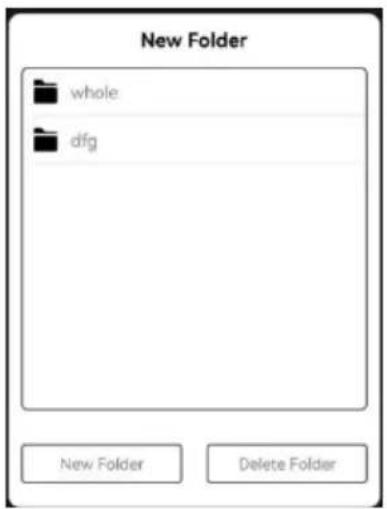

Click "Folder Management", you can set new folder or delete folder

whole dfg Folder Management

New Folder whole dfg New Folder Delete Folder

After saved, click the text to enter play interface.

You can also tap icon to edit the text or tap icon to manage the file

My Lines TP10 is a folding and portable teleprompter which 2024-08-07 09:33:14

TP10 is a folding and portable teleprompter which feature with 10-inch standard beam splitter allows you to clearly read scrollin...

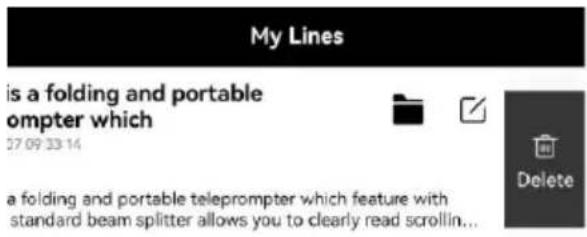

If you want to delete the file, plea swipe left at the corresponding file location and tap "Delete"

My Lines is a folding and portable ompter which 27.09.33.14 a folding and portable teleprompter which feature with standard beam splitter allows you to clearly read scrollin... Delete

After entered the play interface and tap position, the function menu will show on the bottom, tap again hide the function menu

Play/Pause

Adjust font size, word space, space, Color, background.

: Adjust browse speed

: Loop play

Vertical/horizontal screen switch

: Mirror

TP10 is a folding and portable teleprompter which feature with 10-inch standard beam splitter allows you to clearly read scrolling text while looking directly into the camera, perfect for vlog, live broadcast, online class, video recording, interviews, video studio, news and presentation. No need to recite the script, confidence and charming! It can be prompted via smartphone or tablet while DSLR camera or phone is shooting. Supports wide angle lens, Android/iOS app, Bluetooth remote control, easy to operate, make the video production more efficient. Use with exquisite special storage case, more convenient to carry. It is ideal for video, program creator.

REMOTE CONTROLLER

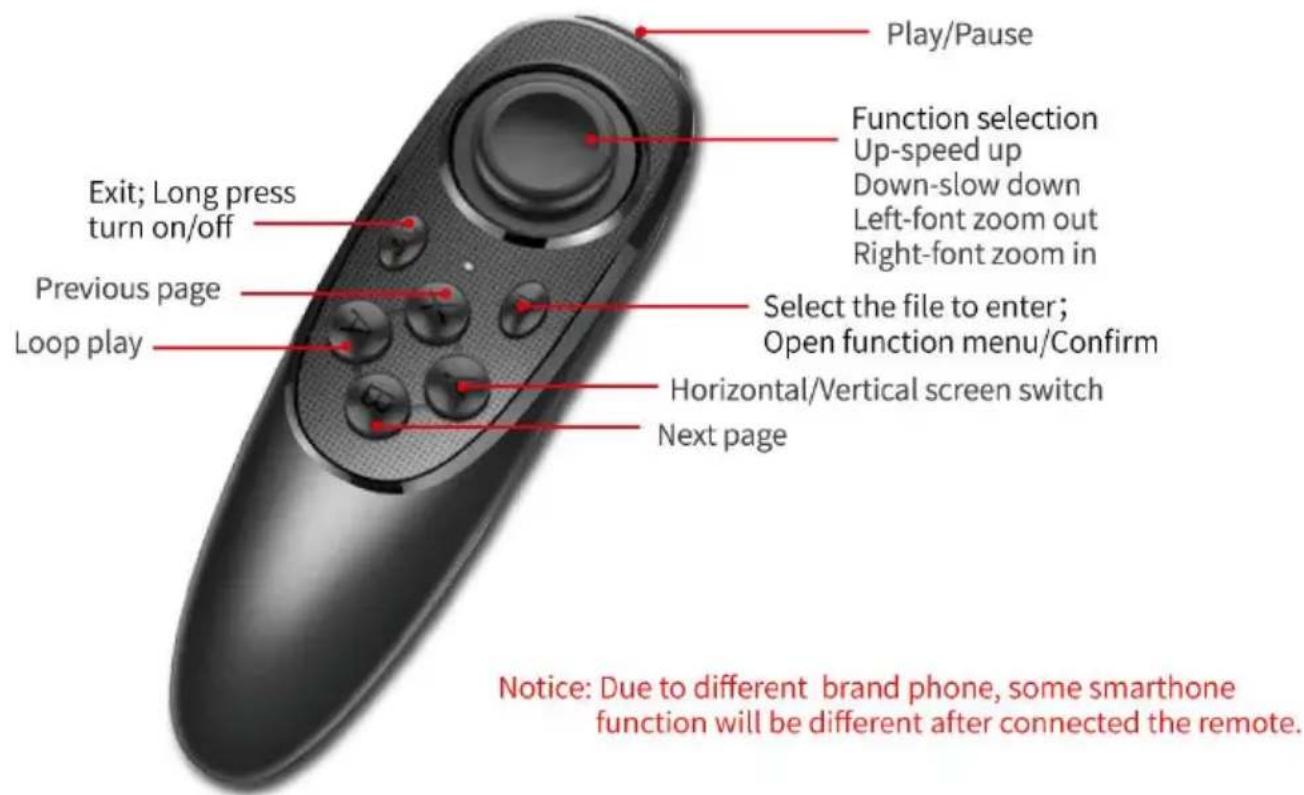

Remote Button Instruction

Play/Pause Function selection Up-speed up Down-slow down Left-font zoom out Right-font zoom in Exit; Long press turn on/off Previous page Loop play Select the file to enter; Open function menu/Confirm Horizontal/Vertical screen switch Next page Notice: Due to different brand phone, some smartphone function will be different after connected the remote.

Remote Use Instruction

1. Power on: Keep press power button, until the light on (about 2 second
2. Power off: Keep press power button, until the light off (about 5 second

Notice: if power on without connect anything, it will power off after 5 min if connected the phone, it will power off after 30 minutes.

3. iOS Connection

Turn on the Bluetooth of the phone first, then turn on APP, and power remote controller last. LED lights on, auto into paring mode, allowing the Bluetooth pair. The APP will show automatically connected to VEVOR-xx, the connection is successful.

What can I do if my iPhone can not connect with remote controller?

Please go to Bluetooth connection of your phone, check if remote control had been connected by iphone;

then follow below steps to reconnect: 1) disconnect iphone Bluetooth, an switch off remote controller; 2) turn on iPhone Bluetooth, open APP and switch on remote controller.

4. Android Connect

After power on, LED light on, auto into paring mode. Turn on the Bluetooth the phone, then turn on APP, will show the Bluetooth connected automati

FAQ

FAQ: The remote controller can not connect the Android phone, how can

1. Please check Location Permission on your phone, the connection need on permission.
2. Please check if the remote controller has been connected with your pl
3. Please check if there is Bluetooth signal from remote controller.(check other app to detect the Bluetooth)
4. Reboot the remote controller, reopen the app.

FAQ: The remote controller has been connected my Android phone, but it is not control the app.

1. Please close other app at background on your phone.
2. Please turn of Bluetooth on other phones on worksite, to make sure Android phone is the only device to connect the remote controller.
3. Please make sure that every time to connect with your phone is by setting on you phone.

★ As we are improving product features and product performance, so if there is an on the specification without prior notice.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
