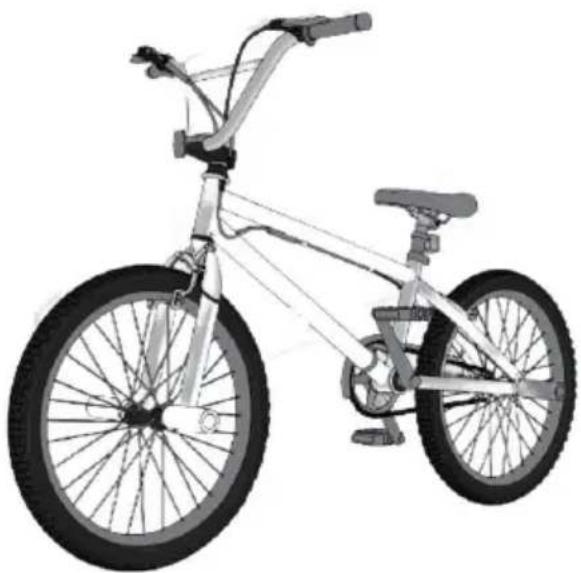

BMX Bike

MODEL:SS24001;SS24002; SS24003;SS24004;SS24005

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SS24001;SS24002;SS24003;SS24004;SS24005

Illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

Note: The product picture is for reference, the actual details shall prevent

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

Meanings of Warnings:

This symbol is important. See the word

"CAUTION"or"WARNING" which follows it.

The word "CAUTION" is before mechanical instructions. If you do obey these instructions, mechanical damage or failure of a part the bicycle can occur.

The word "WARNING" is before personal safety instructions. If you do not obey these instructions, injury to the rider or to others occur.

CHOKING HAZARD. Small Parts. Not for children under 3 years Adult assembly is required.

Continuous adult supervision is required.

Do not add a motor to the product.

Do not tow or push the product.

Do not modify the product.

Replace worn or broken parts immediately with original equipment. If anything does not operate properly, discontinue use.

WARNING-FREEWHEEL(RIM) BRAKES:

Some models do NOT have a foot (pedal) brake.

Ensure your child understands and can operate the hand

brakes.

Always use both hand brakes when stopping the bike.

When stopping, apply front and rear brakes evenly. An unstable condition can occur if the front brake is used too hard resulting injury to the rider or others.

WARNING:

This bicycle is made to be ridden by one rider at a ti general transportation and recreational use. It is not mad to withstand the abuse of stunting and jumping.

If the bicycle was purchased unassembled, it is the owner's responsibility to follow all assembly and adjustment instructions exactly as written in this manual, and any"Special Instructions" supplied and to make sure all fasteners and components are securely tightened.

NOTE: Periodically check that all fasteners and components are securely tightened. If the bicycle was purchased assembled, it is owner's responsibility, before riding the bicycle for the first time, make sure the bicycle has been assembled and adjusted exactly written in this manual, and any "Special Instructions" supplied and make sure all fasteners and components are securely tightened.

NOTE: If product is assembled, please proceed to the follow sections:

Testing Seat Clamp and Post Clamp Tightness.

Testing Stem and Handlebar Tightness.

WARNING:

CHOKING HAZARD-small parts.

Not for children under 3 years.

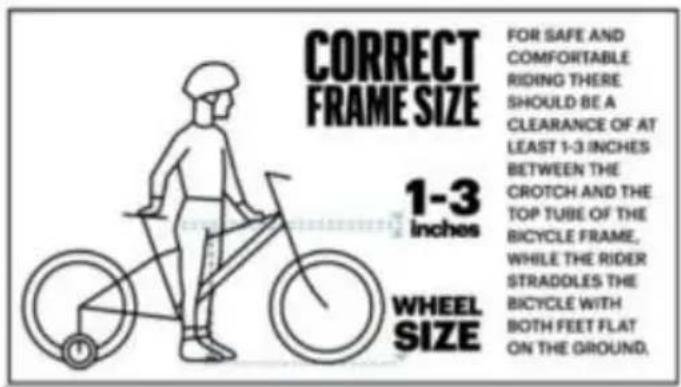

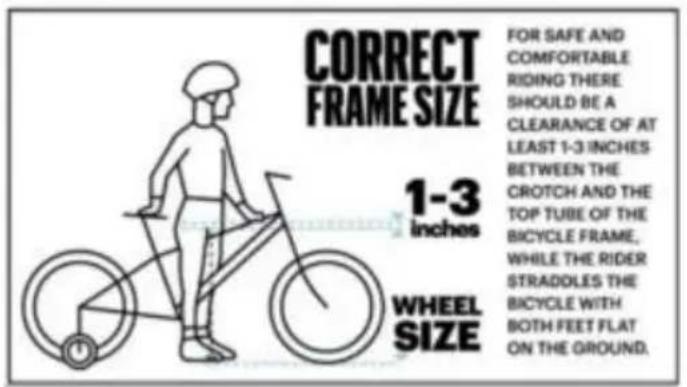

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE. SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADDLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 inches WHEEL SIZE

Rules of the Road

WARNING: Failure of the rider to obey the following "Rules of Road" can result in injury to the rider or to others.

• Obey all traffic regulations, signs, and signals
  ● Always wear a bicycle helmet that meets safety standards, as well as local safety standards
• Ride on the correct side of the road, in a single file, and ir straight line.
• If possible, avoid riding at night, dusk, dawn and any other t of poor visibility.
• If you must ride at night or at times of poor visibility:
  ● Purchase, install, and use a headlight and taillight.
• All states require headlights for nighttime riding, and taillights required in some states.
• Battery-powered lights or flashing safety lights are also recommended.

Reflectors: For your own safety, do not ride the bicycle if the reflectors are incorrectly installed, damaged, or missing. Make sure the front and rear reflectors are vertical. Do not allow the visibility the reflectors to be blocked by clothing or other articles. Dirty reflectors do not work well. Clean the reflectors, as necessary, is soap and a damp cloth. Make yourself more visible to motorists

• Wear light-colored or reflective clothing, such as a reflective v and reflective bands for your arms and legs.
• Use reflective tape on your helmet.
• Do not let anything cover the reflectors.

Use extra caution in wet weather:

Ride slowly on damp surfaces because the tires will slide more easily.

Allow increased braking distance in wet weather.

Avoid these hazards to prevent loss of control or damage t your wheels:

Be aware of drain grates, soft road edges, gravel or sand, pot or ruts, wet leaves, or paving.

Cross railroad tracks at a right angle to prevent the loss of co-Avoid unsafe actions while riding.

• Do not carry any passengers.
• Do not carry any items or attach anything to your bicycle that could hinder your vision, hearing, or control.

Always maintain focus and attention while riding. This means no riding with both hands off the handlebar. By doing so, you're ensuring that you're fully in control of your bicycle and ready to respond to any situation that may arise.

• Do not add a motor to the product.
• Do not tow or push the product.
• Do not modify the product.

Replace worn or broken parts immediately with original equipment. If anything does not operate properly, discontinue use.

NOTE: Bikes under 20"not intended for use on roads.

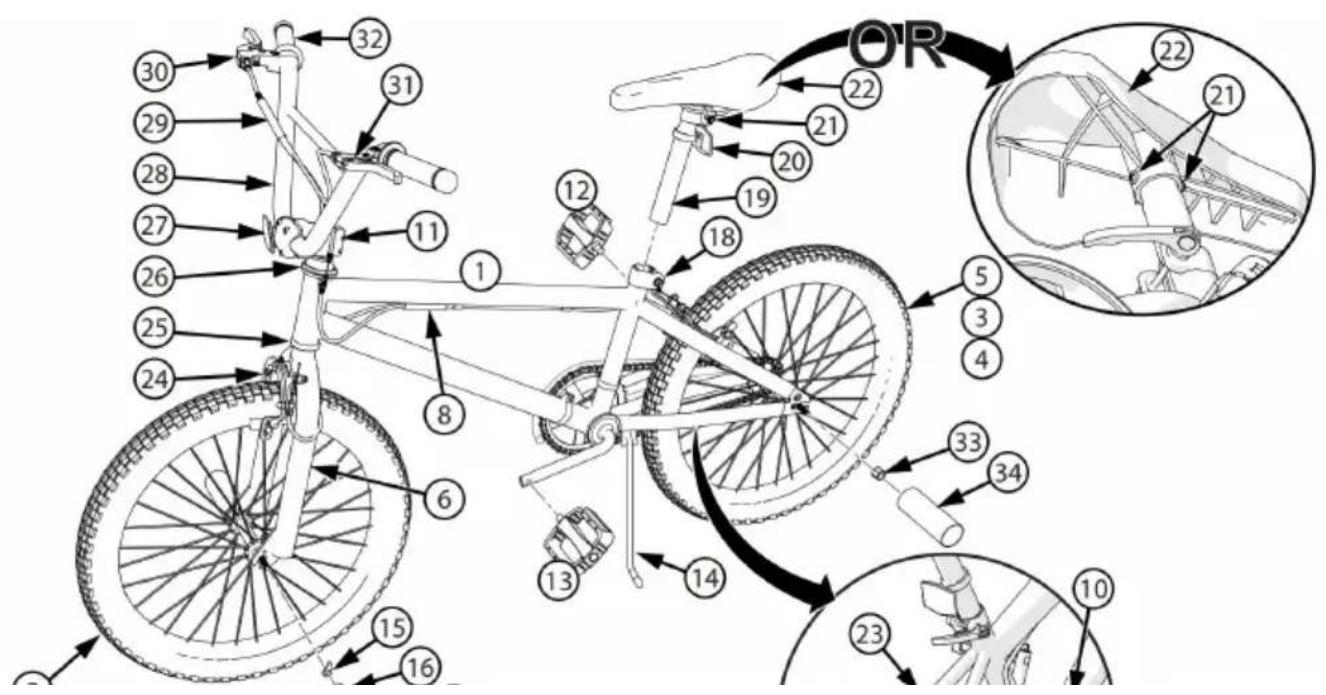

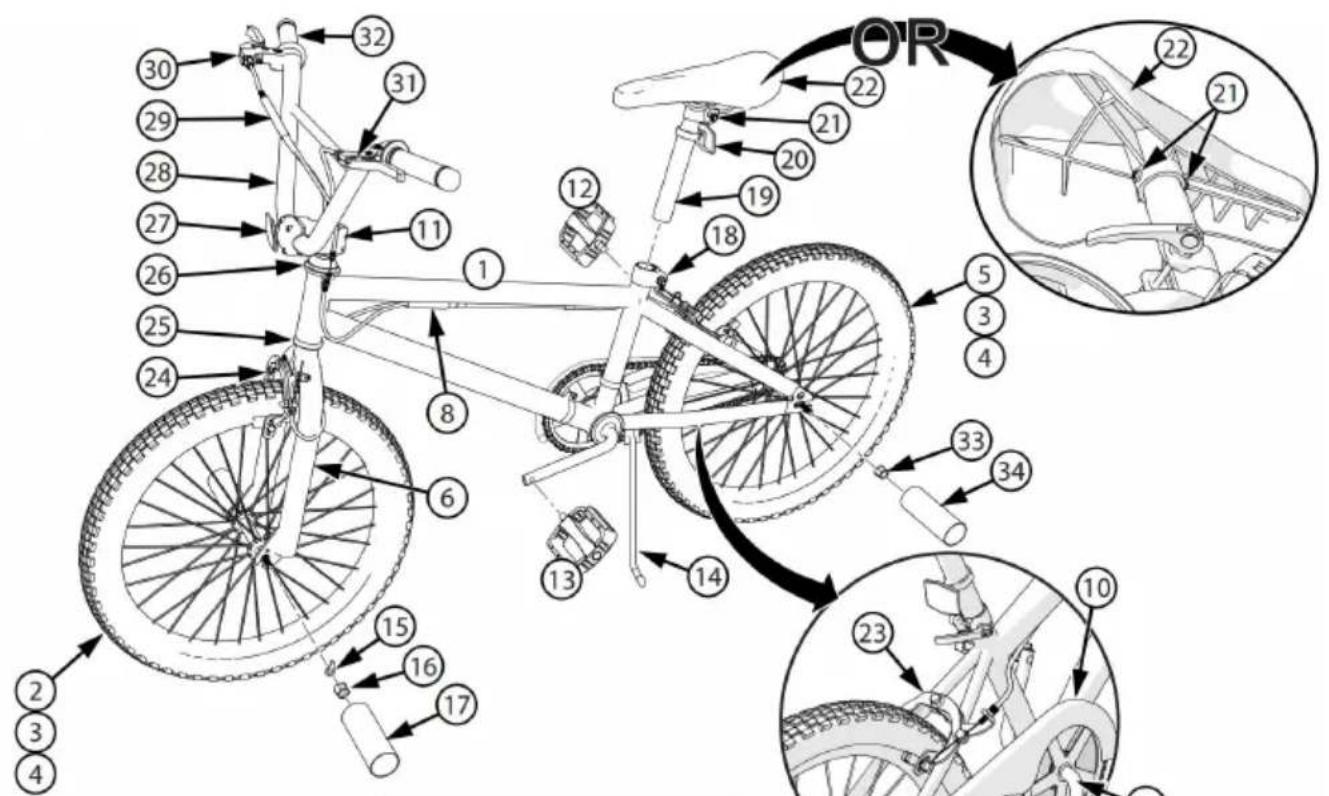

Part Assembly View&List

OR NOTE: All features, components and accessories are not included on all models.

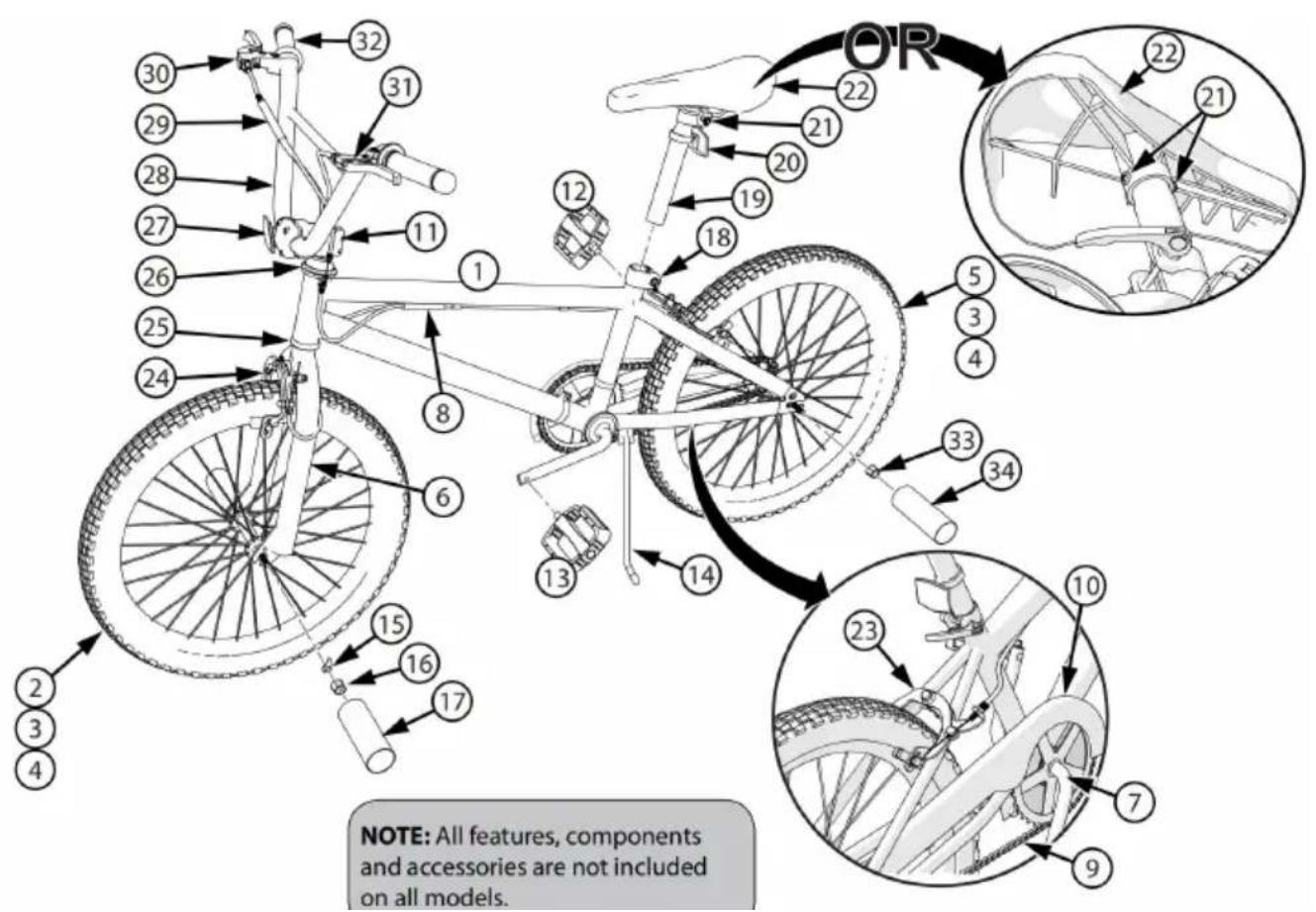

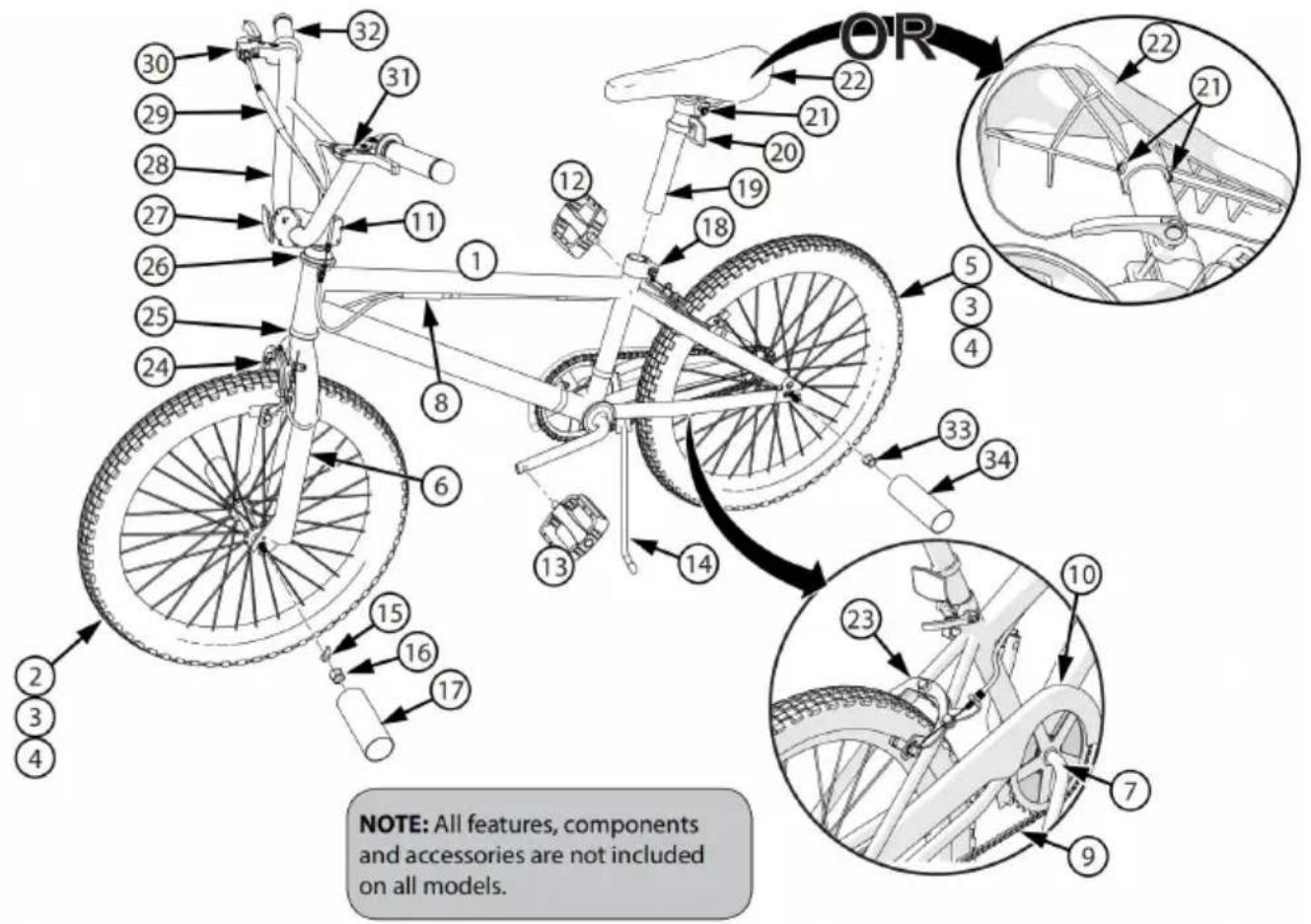

NO.	Description	NO.	Description
1	Frame	19	Seat Post
2	Front Wheel Assembly	20	Rear Reflector
3	Tire(x2)	21	Seat Post Hardware
4	Tube(x2)	22	Seat
5	Rear Wheel Assembly	23	Rear Brake
6	Fork	24	Front Brake
7	Crank and Spindle Set	25	Head Set Bearings
8	Lower Brake Cable Coupler (various models)	26	Gyro Head Set
9	Chain	27	Front Reflector
10	Chain Guard	28	Handlebars
11	Handlebar Stem	29	Upper Brake Cable Coupler (various models)
12	Right Pedal	30	Right Brake Lever
13	Left Pedal	31	Left Brake Lever
14	Kick Stand	32	Grips (x2)
15	Wheel Retainer(x2)	33	Rear Axle Nut(x2)
16	Front Axle Nut (x2)	34	Rear Pegs (various models)
17	Front Pegs (various models)	35	Bell(not shown-if equipped)
18	Seat Post Clamp

Introduction to Assembly

This manual has been made for several different bikes:

Some illustrations may vary slightly from the actual product.

Follow instructions completely.

If the bicycle has parts not described in this manual, look for separate"Special Instructions" supplied with the bike. Models may have different accessories such as bags, baskets, reflectors, cup holders, ra etc.

Not all features, components, and accessories are included in all mod Use the Index page to locate specific sections of this manual. Please through this entire manual before beginning assembly or maintenance. If you are not confident with assembling this unit, it is highly recommend to refer to a local bike shop. Your safety and the proper functioning bicycle are of utmost importance.

WARNING:

Keep small parts away from children during assembly.

NOTE: All of the directions (right, left, front, rear, etc,) in th

manual are as seen by the rider while seated on the bicycle.

Do not dispose of the carton and packaging until you complete the assembly of the bicycle.

This can prevent accidentally discarding parts of the bicycle.

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Simple line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a flat head and ridged shaft (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

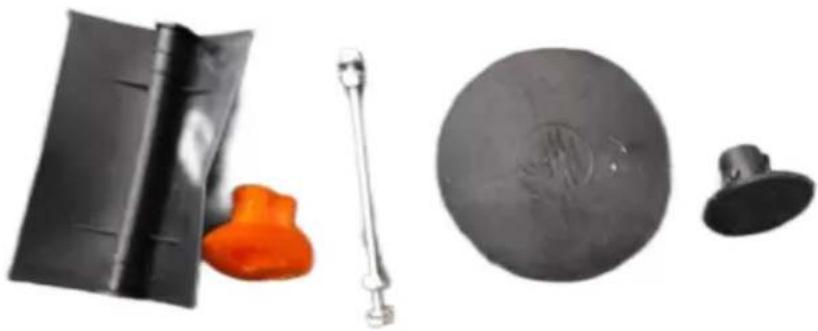

Packing material protection accessories

NOTE: These packaging protective accessories are disposable and they are not used to assemble products

Collection of black plastic components including a rolled-up sheet, orange foam, metal rod, and circular base (no text or symbols visible)

Step 1:

Installing the Front Wheel

NOTE: See Brake Section to loosen and Re-attach front Brakes (if equipped)

If the Axle Nuts (A) are already attached to the front wheel axle, re them with an open-end or adjustable wrench.

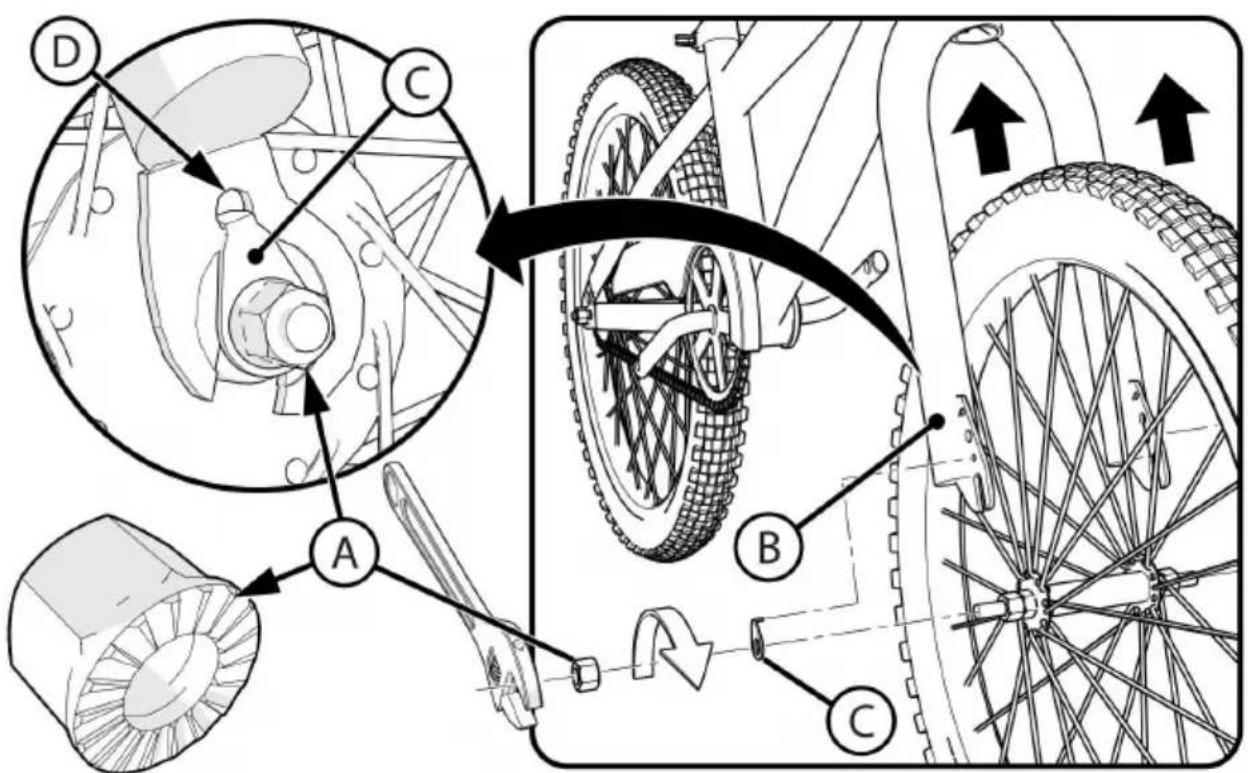

Set the wheel into the front fork (B).Install wheel retainers C) making the tabs are in the fork D) tab holes.Attach the front wheel with the Nuts.Put the wheel in the center of the fork and tighten the Axle Nu securely. Always refer to the torque table for the recommended torque guides you in achieving the correct torque for the Axle Nuts.

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

NOTE: Ensure wheel spins freely without contacting fork or fender. WARNING: Do not use Nuts ^ without serrations to attach the front WARNING: Failure to obey these steps can allow the front wheel to while riding. This can cause injury to the rider or to others.

Step 2:

Handlebar and Stem Installation - No Gyro Brake

NOTE: Check which Stem style your bike has and use one of following installation

guides.

WARNING: To prevent steering system damage and possible loss of control, the "MIN-|N" (minimum insertion) mark (A) on the Sten must be below the top of the lock nut (B)

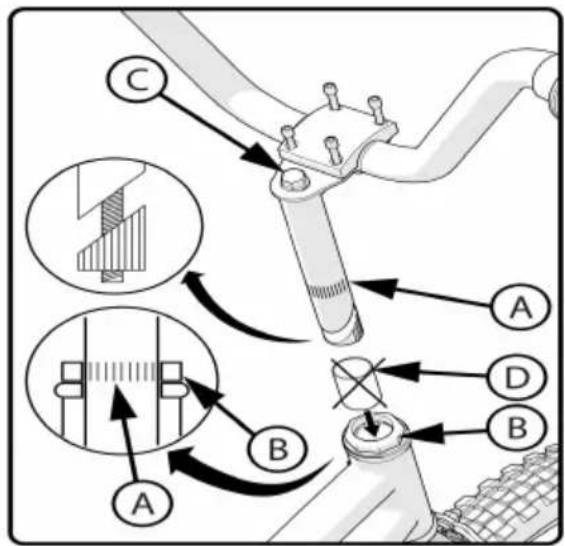

QUILL TYPE STEM:

NOTE: Remove plastic Cap (D) from the end of the Stem.

1. Insert the Stem into the fork.
2. Point the Stem towards the front of the bike.

a. With the Stem aligned with the front tire, securely tighten the Bolt (C). See the Torque Chart for recommended torque.
b. Proceed to the Handlebar installation on the next page.

THREADLESSTYPE STEMS:

NOTE: Thread less stems are preinstalled.

Proceed to the Handlebar installation on the next page.

WARNINGS:

Do not over-tighten the stem bolt (C). Over-tightening the stem can damage the steering system and cause a loss of control. S cautious and attentive during the installation process.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and a schematic inset showing a cross-section of a component.

Step 3:

Handlebar Installation-continued

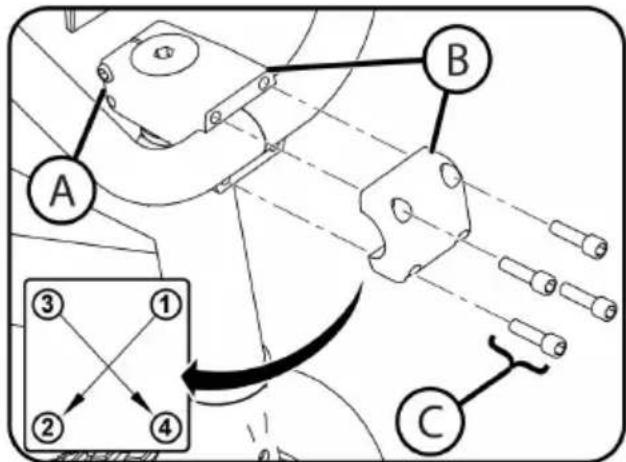

Four Bolt Clamp Top Mount: Adjust the Handlebar into a comfortable position. Tighten Clamp Screws evenly according to pattern.

NOTE: Do not over-tighten. See the Torque chart for recommended to

Diagram showing a hand using a tool to adjust or install a mechanical component, with labeled parts and directional arrows.

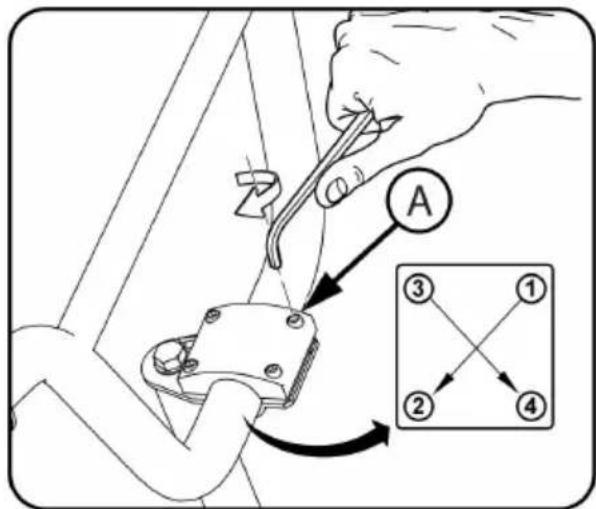

Four Bolt Clamp, Front Mount:1. Adjust the Handlebar into a comfortable riding position. Tighten Clamp Screws(A) Check tightness of side Stem Bolts(B)

NOTE: Do not over tighten. see Torque chart for recommended torque
        direction LR
        ① --> ②
        ② --> ③
        ③ --> ④
    end
    subgraph Component 2
        direction LR
        ① --> ②
        ② --> ④
    end
    subgraph Component 3
        direction LR
        ① --> ②
        ② --> ④
    end

Two Bolt Stem:

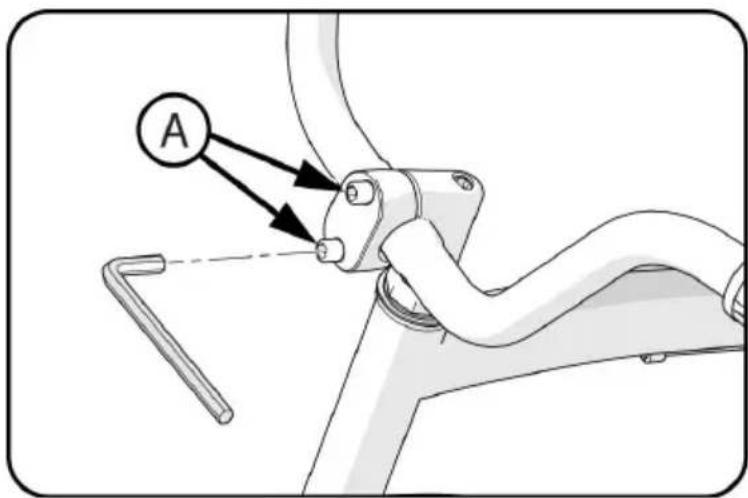

1. Adjust the Handlebar into a comfortable riding position. Tighten Clamp Screws (A)

NOTE: Do not over tighten.See Torque Chart for recommended torque

A

WARNING: If the Handlebar Clamp in not tight enough, the handlebar slip in the stem. This can cause damage to the handlebar or stem, cause loss of control.

Step 4:

Stem and Handlebar Setup -Gyro Brake

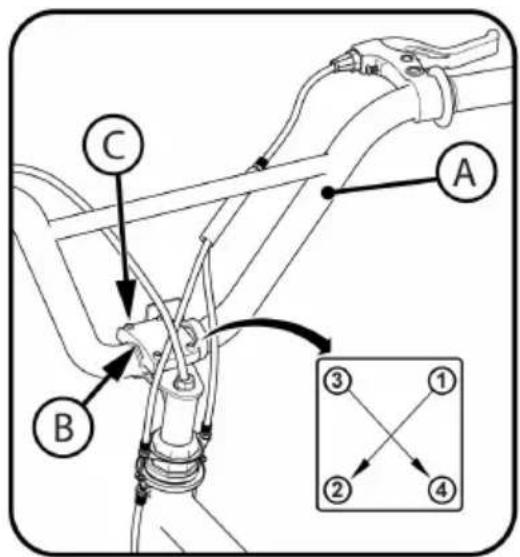

Note: The Handlebar Stem Clamp may be preinstalled from the factor Carefully unpack the Handlebar (A damages.

Install the Handlebar u Clamp and Clamp Screws (C)

Rotate the Handlebar into a comfortable riding position.

Tighten Clamp Screws (G) securely. See the Torque Chart for recommended torque.

C B A ③ ① ② ④

Step 5:

Gyro Stem and Brake Setup

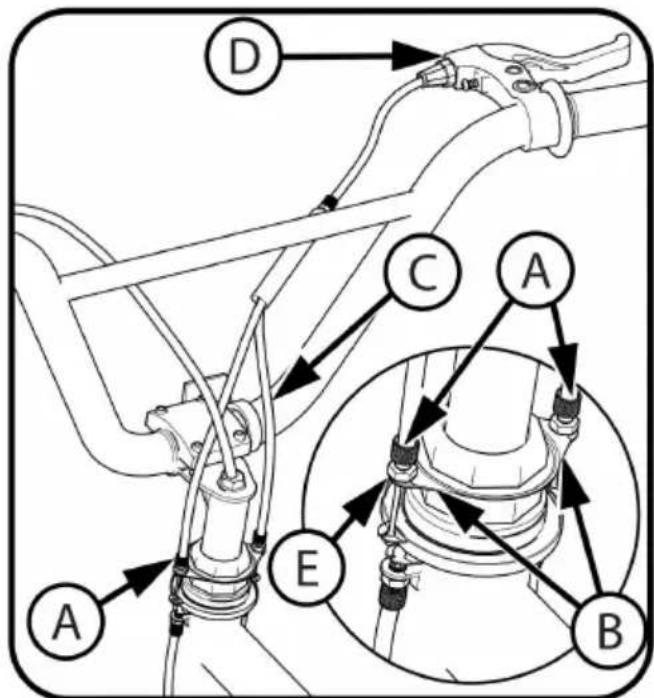

Make sure Rear Brake Cable Sheath (A) is fully inserted into the adjustment Housing at the Caliper and Hand Lever(B)

Ensure Housing Nut and Housing (B, C) are adjusted all the way in towards the Hand Lever.

Rotate Housing(B) Groove away from Cable Groove(D) and tighten Housing Nut (C)

A B D C

Step 6:

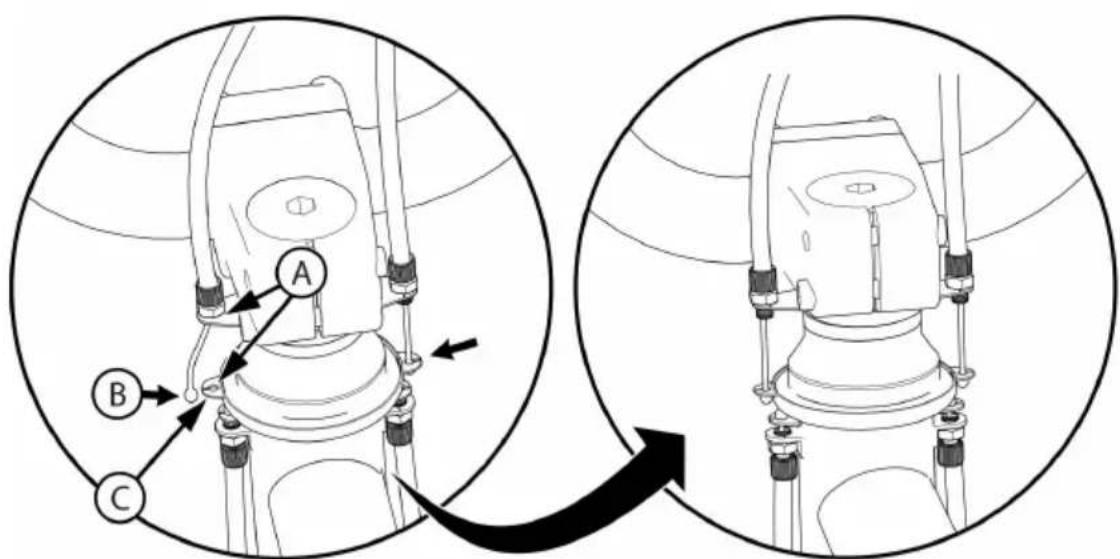

Gyro Stem and Brake Setup- continued

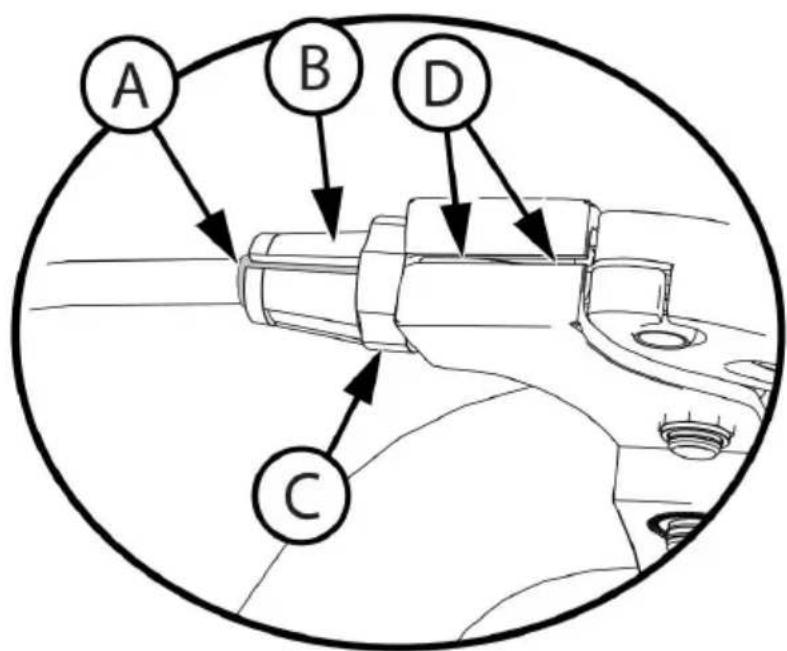

Install the two Cable Adjusters into the Gyro Plate (B) making sure that Shorter Cable(C)is on the same side as the Brake Levers(D)

Turn the Cable Adjusters and Nuts the (E) all the way into the Gyro hand tight.

A B C D E

Squeeze the two sides the Gyro Plate Slot (C) Repeat for other sides of the Gyro Plates (A) together and insert the Cable End (B) into

Technical diagram showing mechanical assembly with labeled parts A, B, and C, illustrating a step-by-step assembly.

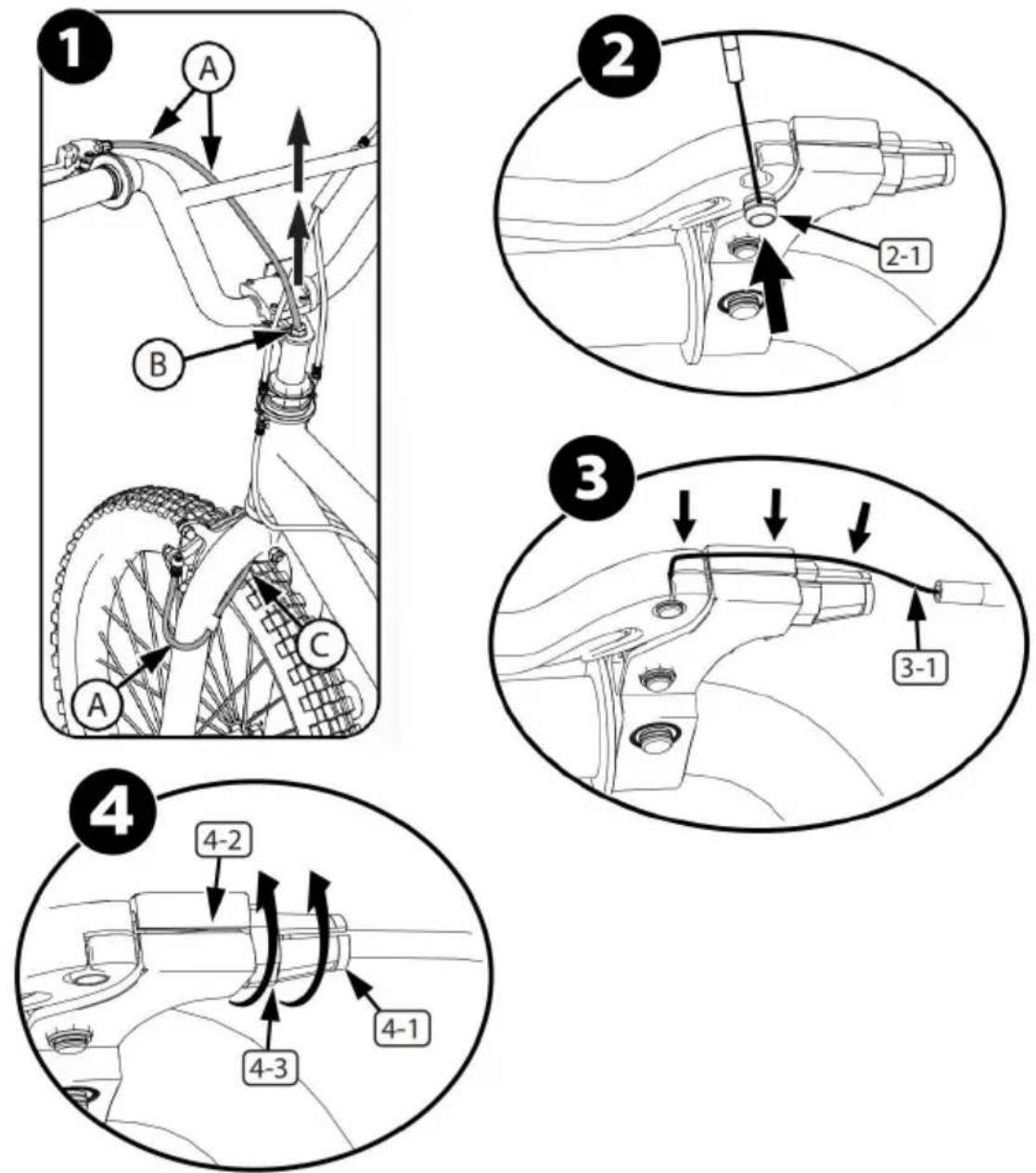

Gyro Brake Setup-Front Brake Cable Install

• Pull the Front Brake Cable A up through the Stem Nut (B) so that routed as shown.
• Ensure the Brake Cable does not touch the Tire (C)

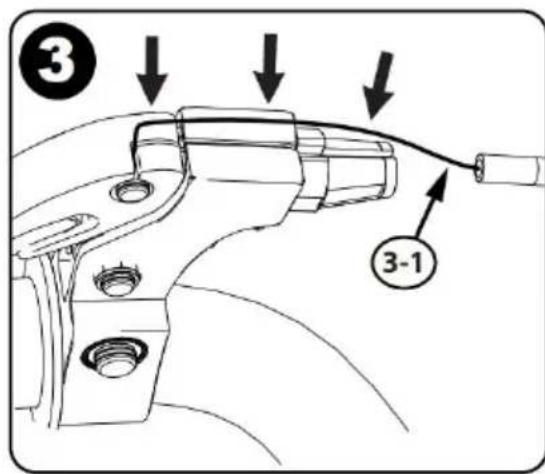

• Insert Cable Barrel (2-1) into Brake Lever.

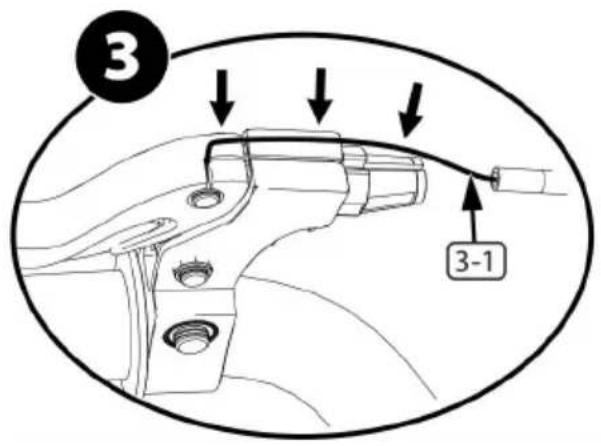

• Insert Brake Cable (3-1) into Groove as shown.
  ● Ensure Housing Nut and Housing (4-3, 4-1)
  ● are adjusted all the way in towards the Hand Lever.

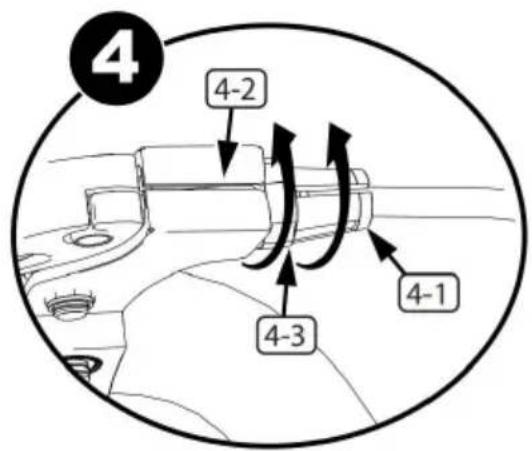

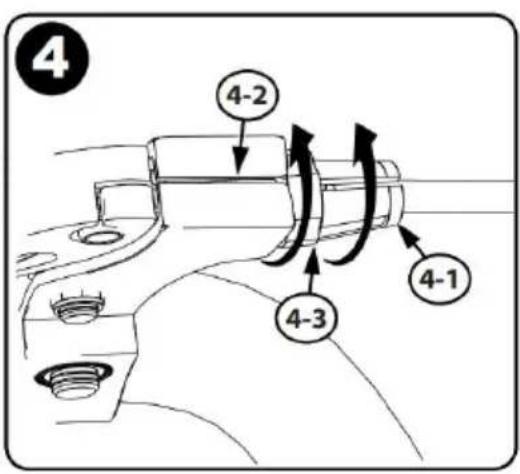

• Rotate Housing (4-1) Groove away from
  ● Cable Groove (4-2) and tighten Housing Nut (4-3).

Step 7:

Gyro Brake Setup - Front Brake Cable install -continued

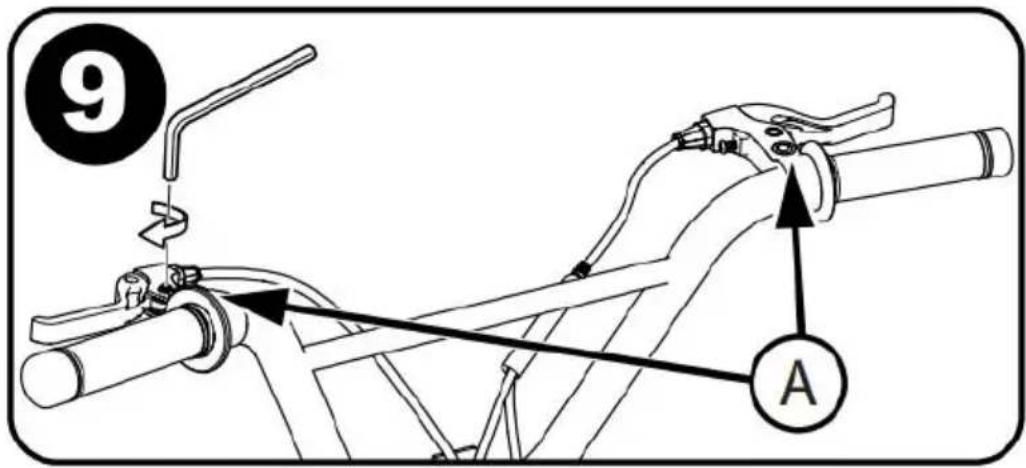

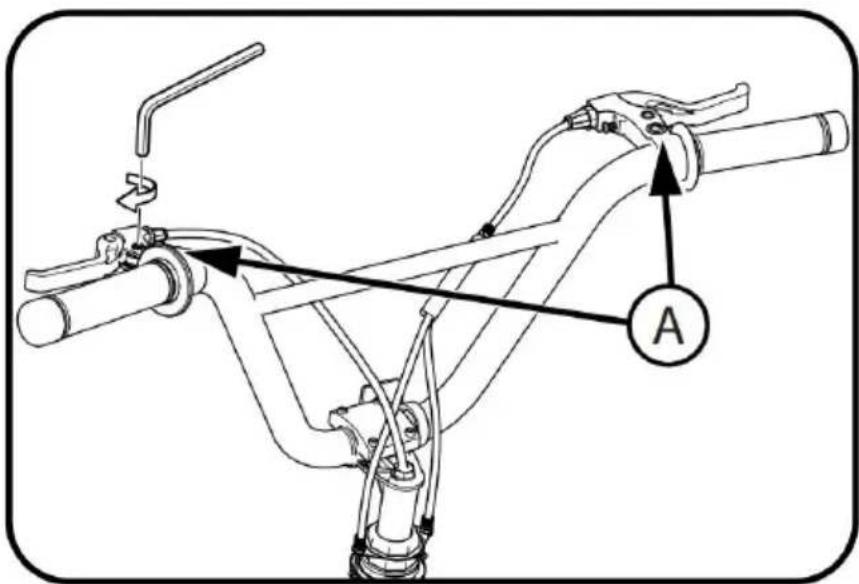

Rotate Brake Levers (A) into a comfortable riding position and tighten securely.

Technical diagram of a bicycle suspension system with labeled components and directional arrows

Step 8:

Testing Stem and Handlebar Tightness

To test the tightness of the stem:

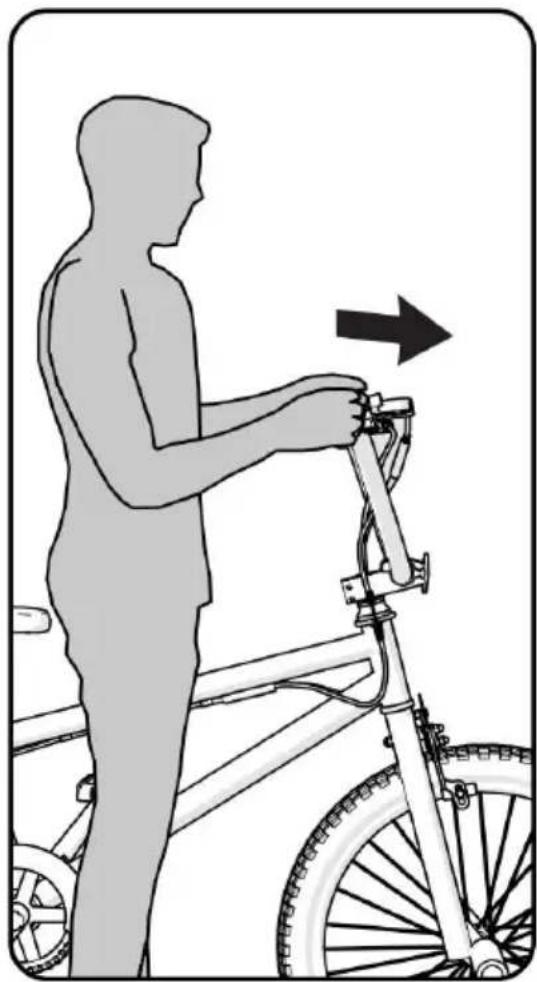

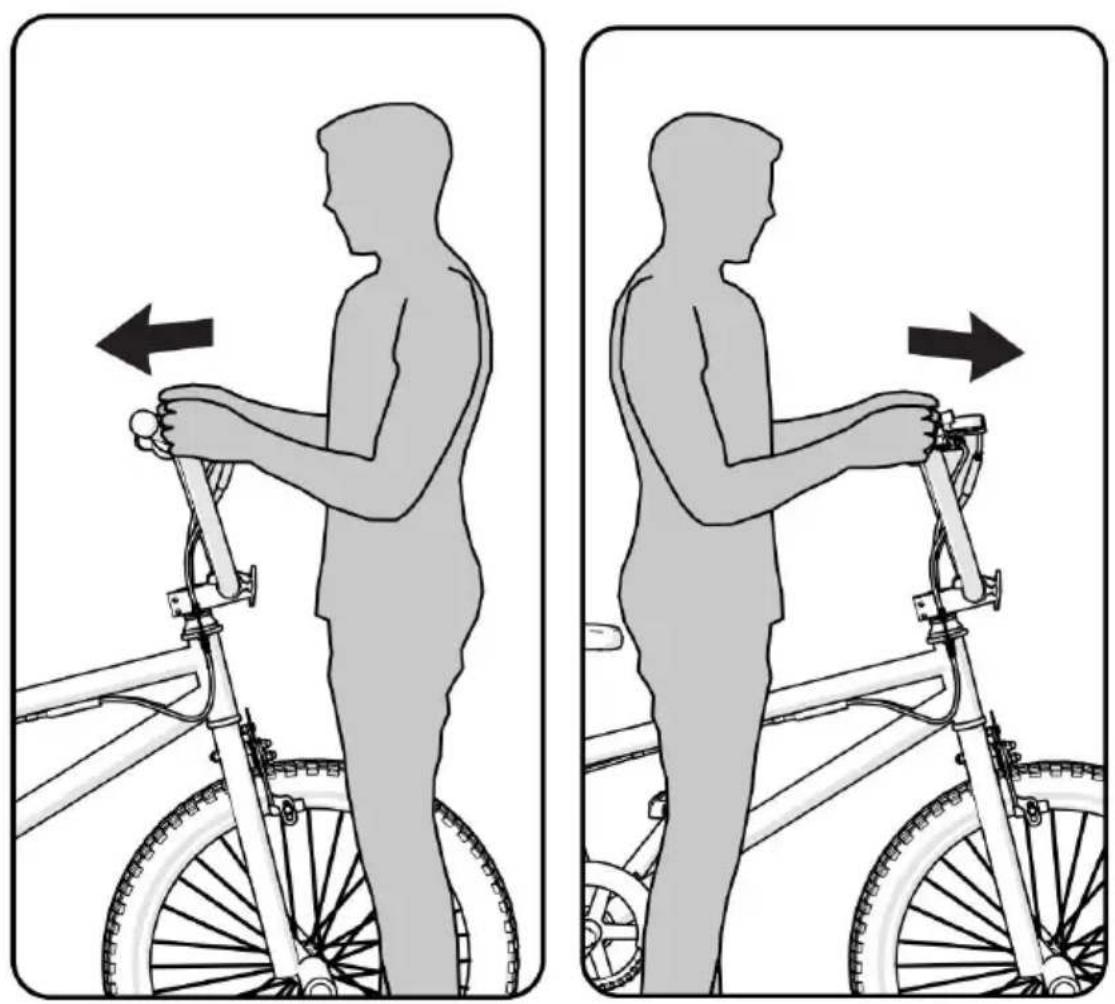

Straddle the front wheel between your legs. Try to turn the front wheel turning the handlebar. If the handlebar and stem turn without turning front wheel, realign the stem with the wheel and tighten the stem both tighter than before (about 1/2 revolution only at a time).

Repeat this test until the handlebar and stem do not turn without tur the front wheel. This thorough approach ensures the stem is securely tightened.

To test the tightness of the handlebar clamp:

Hold the bicycle stationary and try to move the ends of the handlebar forward and backward.

CAUTON: Do not exceed 100 lbs (45 kg) push force.

If the handlebar moves, loosen the bolt(s) of the handlebar clamp.

Illustration of a person standing on a bicycle, showing posture changes with arrows indicating movement direction (no text or symbols)

Step 9:

Seat Installation

WARNING: To prevent the Seat (A) coming loose and possible loss control, the "MIN-|N" (minimum insertion) mark (B) on the Seat Post m be below the top of the Seat Tube (C).

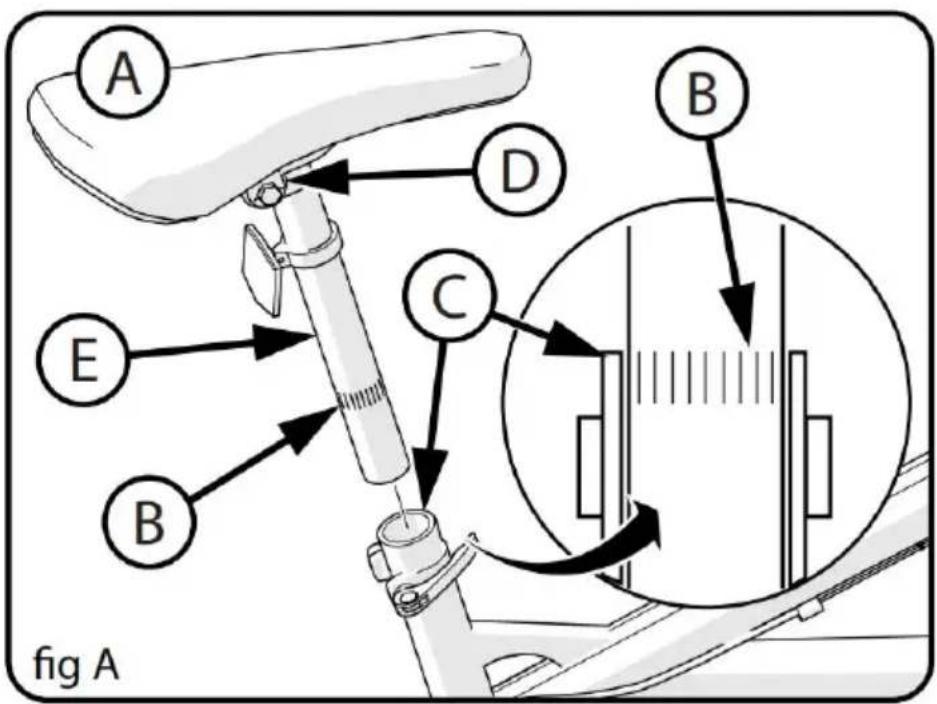

SEAT AND SEAT POST SETUP:

1. If needed, loosen Nuts on Seat Clamp (D) and rotate Seat into r position.
2. Ensure the Seat Post E) is fully through the TOP Seat Clamp (D
3. Tighten the Seat Clamp so the Seat does not move on the seat
4. If the Seat Clamp has a Nut on each side, tighten both nuts equi
5. Point the Seat forward and put the Seat Post E) into the Seat T and proceed to next step.

A D B C E B fig A

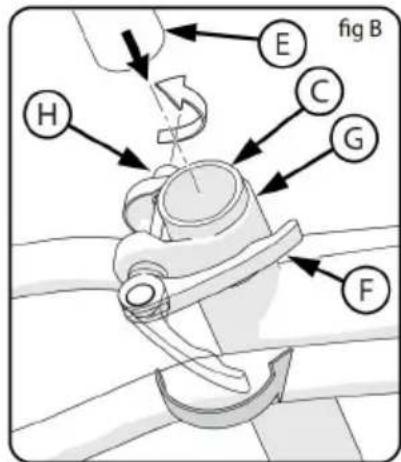

TIGHTEN THE QUICK RELEASE LEVER:NOTE: The words "open" an "close" are on opposite sides of the quick release lever.

CAUTION: Operate the Quick Release Lever (F) by hand o Do not use a hammer or any other tool to tighten the qui release lever.

1. Move the Quick Release Lever (F) to the "open" position so the w "open" is pointing away from the Seat Post Clamp (G)

WARNING: It would help if you used muscular force to Mov the quick-release lever to the "close" position. The clamping force is too light if you quickly r the lever to the"close" position. If the clam force of the Quick Release Lever is too I seat post can loosen while riding. This ca injury to the rider or others.

2.Open and close the Quick Release Leve one hand while you turn the Adjusting Nu with the other hand.

fig B E C G H F

1. Tighten or loosen the adjusting nut by hand, so that you first feel resistance to the quick release lever when it perpendicular to the bicy frame.
   4.Push the Quick Release Lever to the "close" position.
2. When in the "close" position, make sure the Quick Release Lever Is against the Seat Post Clamp (G).
3. The tightening torque of the Quick Release Lever should be tight e so that the seat does not move during normal operation.

Seat Bolt Mount (various models)

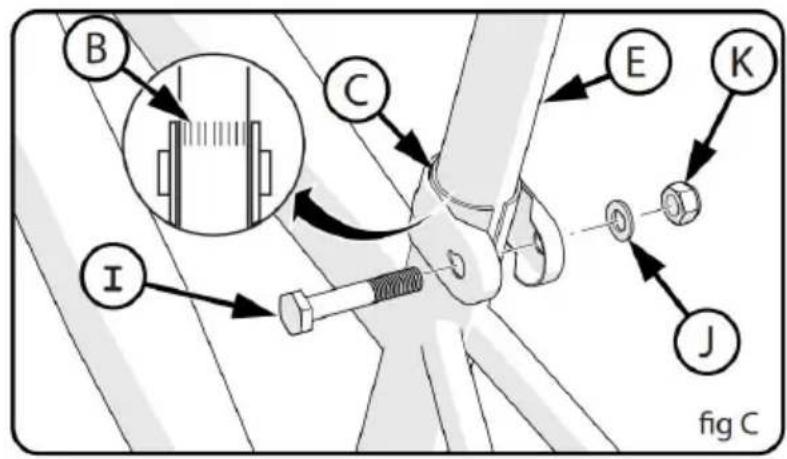

• Some models have a Bolt (I), Washer (J) and Nut (K) instead of a Release Lever.
• If needed, loosen the nut enough to insert the Seat Post (E)
• Point the seat forward and insert Seat Post to the Mini-mum insert marks(B)
  ● Tighten Nut securely so it supports the rider without moving.

B C E K I J fig C

STEP:10

Testing Seat clamp and Post Clamp Tightness To test the tightness of the seat clamp and the post clamp Try to turn the seat side-to-side and to move the front of the seat down.

If the seat moves in the Seat Clamp:

- Loosen the Seat Clamp Nut.

Put the seat in the correct position and tighten the Seat Clamp tighter before.

• Do this test again, until the seat does not move in the Seat Clan If the Seat Post moves in the Seat Tube Clamp:
• Loosen the Seat Clamp Lever.. Put the Seat Post in the correct position and tighten the Seat Clamp Nut tighter than before. If necessary, tighten or loosen Hand Nut so that Quick Release tigh securely.
• Do this test again, until the Seat Post does not move in the Sea Clamp.

STEP:11

Pedal Installation

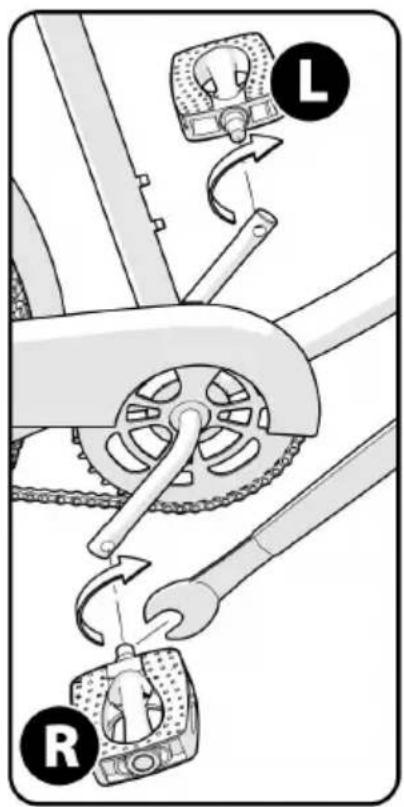

CAUTION: There is a RIGHT pedal marked( R) and a LEFT pedal r (L)

NOTE: A Pedal Wrench is preferred for attaching Pedals. A thin open wrench can also be used.

The pedal marked (R) has right-hand threads. Tighten it in a clockwise direction. The pedal marked (L) has left-hand threads.

Tighten it in a counterclockwise direction (anti-clockwise).

Turn the right pedal marked (R) into the right side of the crank arm left pedal marked (L) into the left side of the crank arm.

Tighten the pedals: Make sure the threads of each pedal are fully into crank arm.

WARNING: Ensure pedals are secure in crank arms so they not loosen. Periodically check tightness.

Diagram illustrating bicycle wheel and gear mechanism with labeled parts L and R

STEP:12

Reflector Installation (as equipped)

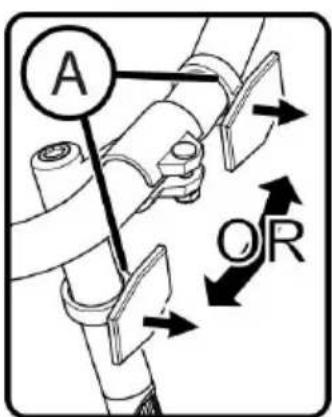

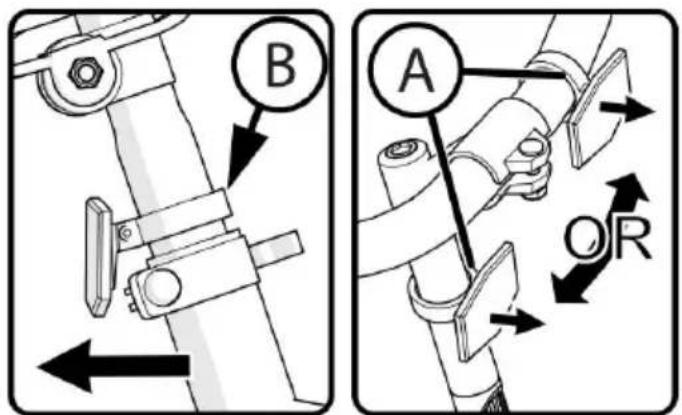

Reflector installation:

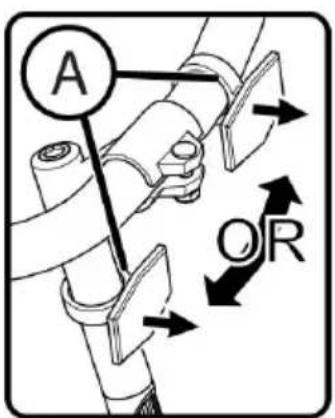

1. Position FRONT Reflector (A so it points straight forward.
2. Tighten Clamp Screw.

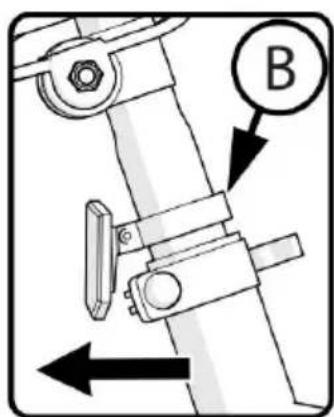

3. Position Seat Post Reflector (if equipped) (B) so it points straight backwards. Tighten Clamp Screw.

NOTE: Do not over-tighten. This will damage the Clamp.

B A OR

STEP:13

Pegs Installation-Threaded (if equipped)

NOTES

Front and rear pegs may be different sizes. The pegs are optional. You choose not to install them on the axles. Pegs can be installed on the rear or on one side. The same procedure is used to install pegs on front and rear axles. Front wheel axle is shown.

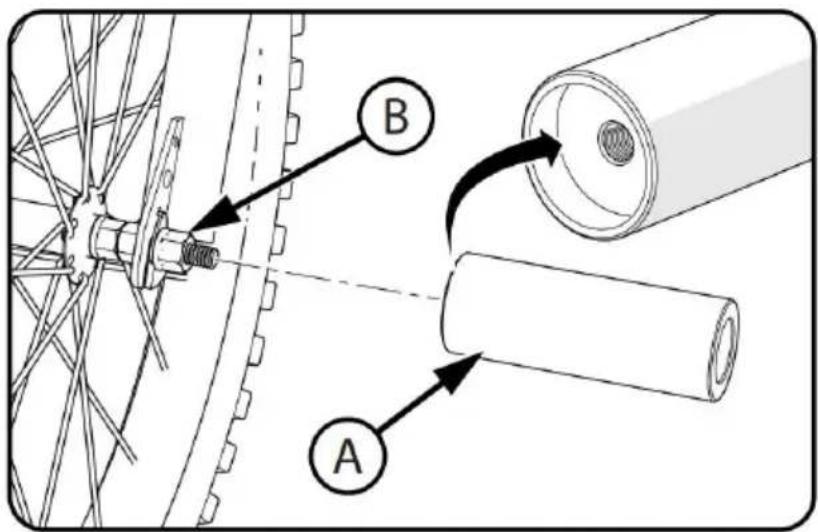

Threaded pegs:

No additional tools are necessary to install the pegs. Put a peg on each of the axle.

Make sure the peg(A) is fully seated against the frame or fork.Tighter peg securely.Pegs will go over the axle nuts(B)

Technical diagram showing bicycle wheel assembly with labeled components A and B, including a cylindrical component and mechanical assembly.

WARNINGS:

Do not ride beyond your capabilities.

Pegs should be installed by an adult.

Check before each ride.

Ensure there is no damage to the frame, fork, or wheels during insta and use.

Ensure the chain is correctly adjusted after installation.

Ensure wheels are correctly aligned after installation.

If damaged, stop use and replace.

Remember, failure to obey these steps can lead to serious consequer such as the front wheel loosening while riding, potentially causing inju the rider or others. Your role in safety is crucial.

STEP:14

Handlebar Bell (various models)

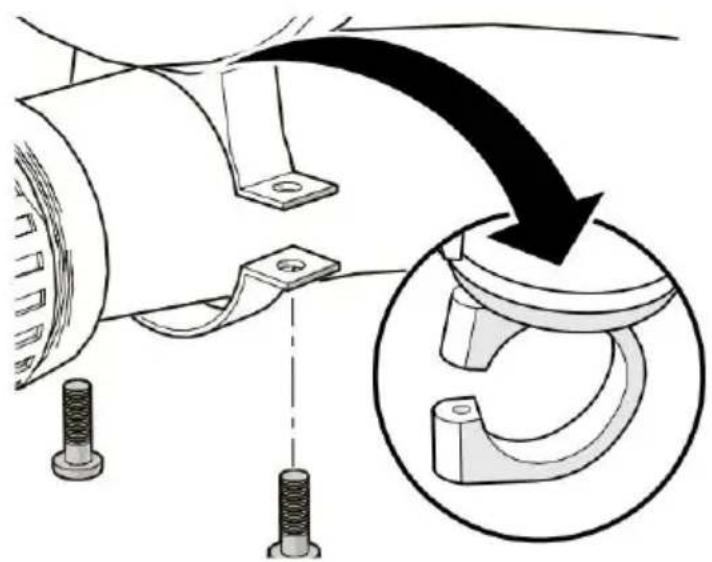

Installation:

1. Remove screws from Bell.
2. Position Bell on handlebar within easy reach, with hands on the handlebar grips.
3. Install screws and tighten.

NOTE: Bell may attach with 1 or 2 screws.

Diagram of a mechanical component with threaded pins and a magnified inset showing a curved component (no text or symbols)

Repair and Service

WARNING:

Inspect the product frequently. Failure to inspect the product a make repairs or adjustments, as necessary, can result in injury the rider or others. Ensure all parts are correctly assembled and adjust as written in this manual and any "Special Instructions."

Immediately replace any damaged, missing, or badly worn parts with original equipment. Ensure all fasteners are correctly tightened as written in this manual and any "Special instructions." Parts that are not tight enough can be lost or operate poorly. Over-tightened parts can be damaged. Make sure any replacement fasteners are the correct size a type.

NOTE: Have a bicycle service shop make any repairs or adjustments which you do not have the correct tools or if the instructions in this or any"Special instructions" are not sufficient.

Coaster Brakes(various models)

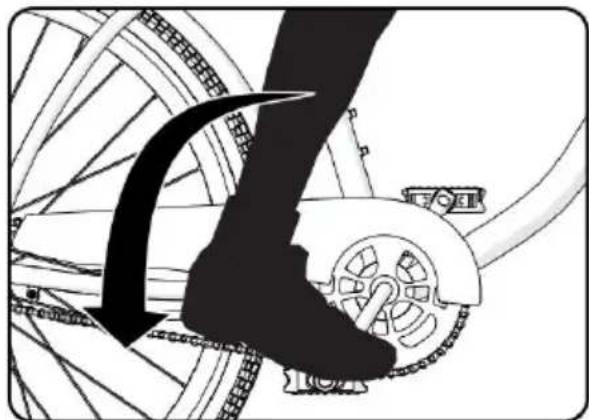

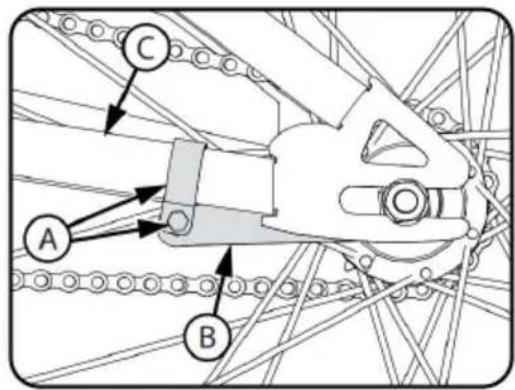

These models are equipped with a rear 'coaster' brake that is operated rotating the crank backward.

Operate the coaster brake as follows: Push the pedals backward to me the chain backward The chain activates the coaster brake mechanism is inside the rear wheel hub.

As you push the pedals backward with increasing force, the braking of the coaster brake increases.

Illustration of a person's foot pressing down on a bicycle wheel (no text or symbols)

If your bicycle has a caliper brake(s) in addition to the coaster brake always use the coaster brake as the main brake to stop the bicycle.

WARNING: if you do not obey the following instructions, injury the rider or to others can occur :When you ride the bicycle time, test the coaster brake and practice using it at a low speed in level area that is free of obstructions.Every time the bicycle is ridden, sure the clamp (A) on the brake arm (B) is securely attached to the stay (C) of the bicycle frame. The coaster brake will not work correct brake arm is not attached to the chain stay.

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

WARNING:

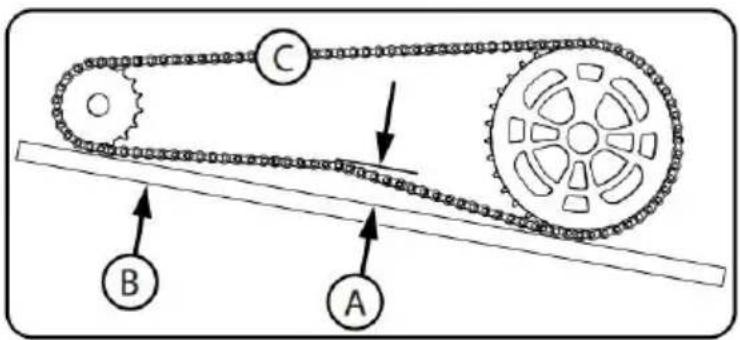

The chain must remain on the sprockets. If the chain comes the sprockets, the coaster brake will not operate. Do not attend chain repairs. If there is a problem with the chain, have a bicycle shop make any repairs.

Diagram of a belt drive system with labeled components A, B, and C, showing pulleys and belt path.

Adjustment:

The chain must be at the correct tightness. If too tight, the bicycle will difficult to pedal. If too loose, the chain can come off the sprockets. When the chain (c) is at the correct tightness, you can rotate the crank from you can pull it no more than one-half inch (A) away from a straight line as shown.

Adjust the tightness of the chain as follows:

Loosen the axle nuts of the rear wheel.

Move the rear wheel forward or backward as necessary.

NOTE: Make sure the rear wheel is in the center of the bicycle frar. Hold the wheel in this position and tighten securely.

Inspection of the Bearings

Maintenance

Frequently check the bearings of the bicycle. Lubricate the bearings according to the lubrication chart or any time they do not pass the tests.

Head Tube Bearings

The fork should turn freely and smoothly at all times. With the front off the ground, you should not be able to move the fork up down, or side-to-side in the head tube.

Crank Bearings

The crank should turn freely and smoothly at all times and the front sprockets should not be loose on the crank. You should not be able move the pedal end of the crank from side-to-side.

Wheel Bearings

Lift each end of the bicycle off the ground and slowly spin the raise by hand. The bearings are correctly adjusted if: The wheel spins freely easily. The weight of the spoke reflector, when you put it toward the rear of the bicycle, causes the wheel to spin back and forth several times. There is no side-to-side movement at the wheel rim when you to the side with light force.

Gyro Bearings

With the front wheel off the ground the Gyro Handlebar/Stem/Wheel system should rotate freely and smoothly 360 degrees without binding hitting any cables.

Caliper Rim Brake System Setup (various models)

● WARNING: You must adjust the front brakes before you ride the bicycle.

NOTE: FRONT AND REAR BRAKE SETUP IS THE SAME.

Step One: Put the brake shoes B) in the correct position:

• Loosen the Screw (A) of each Brake Shoe (B)
• Adjust each Brake Shoe so it is flat against the rim and aligned with the curve of the rim.

Make sure each Brake Shoe does not rub the tire.

If the surface of the Brake Shoe has arrows, make sure the arrows toward the rear of the bicycle.

Hold each Brake Shoe in position and tighten the Screw.

Step Two: Test the tightness of each Brake Shoe:

Try to move each Brake Shoe out of position.

If a Brake Shoe moves, do Step 1 again, but tighten the nut tighter before. Do this test again, until each Brake Shoe does not move.

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

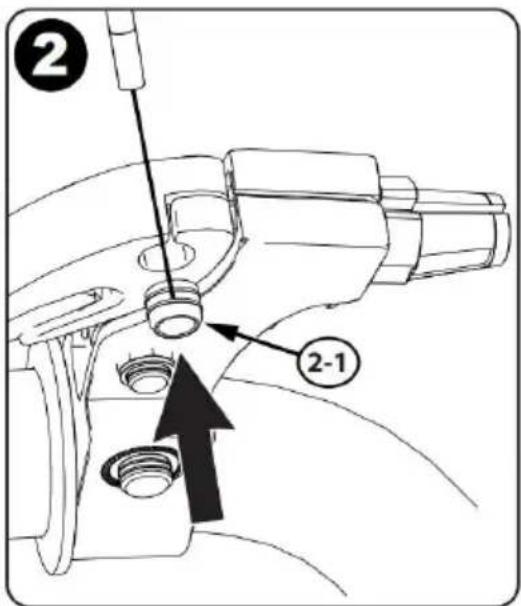

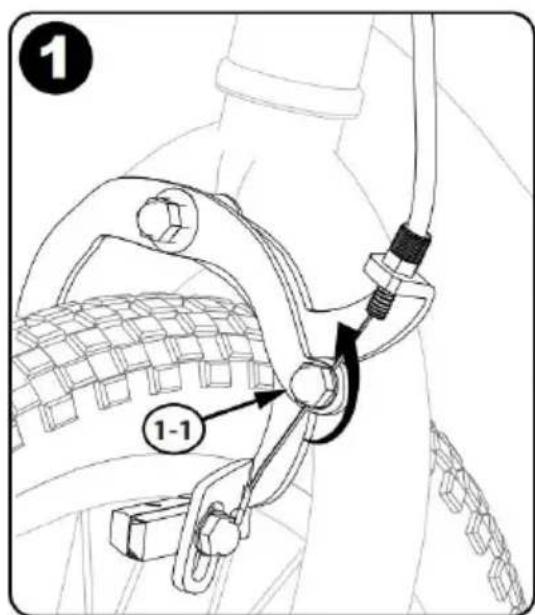

Step 1: Loosen Cable Nut 1-1 so that the cable is loose.

Step 2: Insert Cable Barrel 2-1 into Brake Lever.

Step 3: Insert Brake Cable 3-1) into Groove as shown.

Step 4: Rotate Housing (4-1) Groove away from Cable Groove(4-2) tighten Housing Nut (4-3)

1 1-1

2 2-1

③ 3-1

4 4-2 4-3 4-1

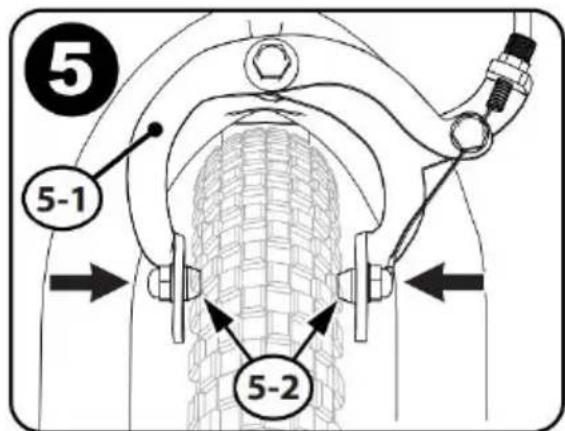

Step 5: Squeeze Brake Arms (5-1)so that Brake Pads(5-2) are agains Rim.

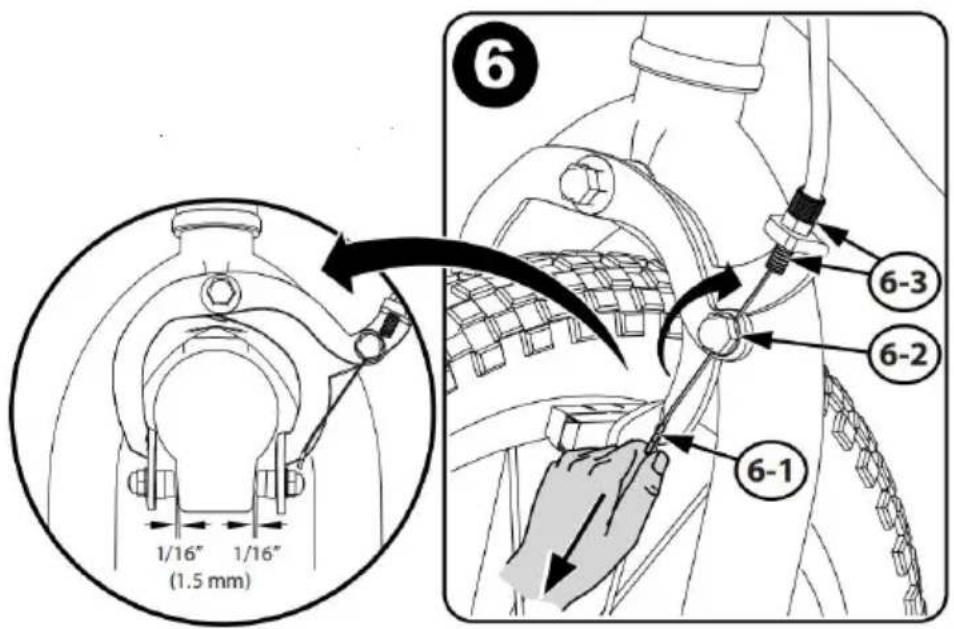

Step 6: Pull Brake Cable (6-1) tight. Tighten Cable Nut (6-2) Adjust C Nut(6-3) for 1/16in (1.5mm) Brake Pad clearance.

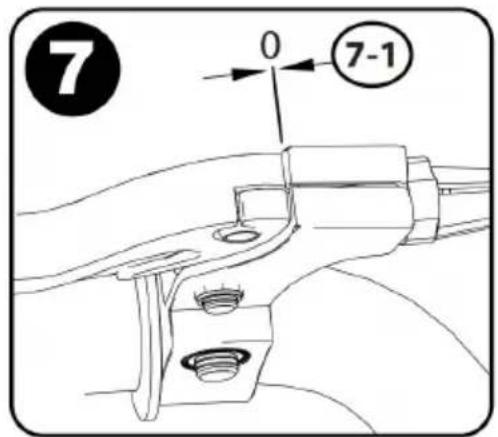

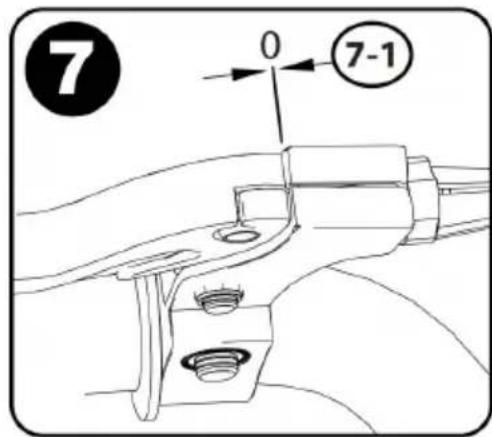

Step 7: Make sure the Brake Lever is not loose (7-1)

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6 6-3 6-2 6-1

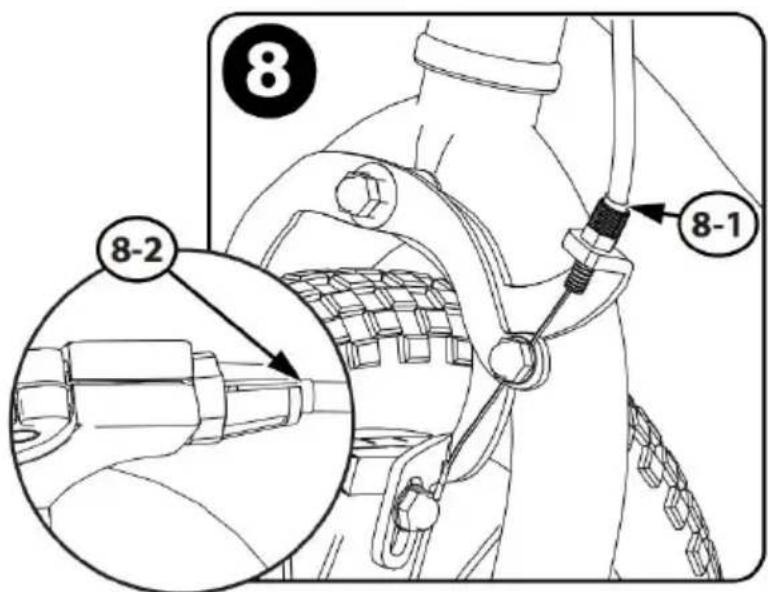

Step 8: Make sure the cable sheaths are fully inserted into the adjustment housing at the Caliper (8-1) and Hand Lever (8-2)

8 8-2 8-1

Step 9: Rotate Brake Levers (A) comfortable riding position and tighten securely.

9 A

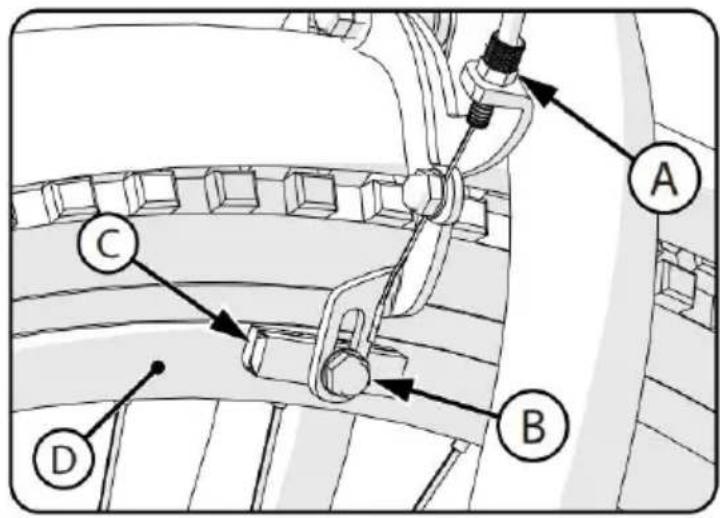

Brake Pad Replacement

1. If necessary, loosen brake cable Adjustment Bolt (A)
2. Loosen and remove brake pad Bolt/

Screws (B)

1. Remove old Brake Shoe (C)
2. Install new Brake Shoe, making sure it is pointing forward and lined evenly with the Wheel Rim (D)
3. Tighten brake pad Bolt/Screw according to Torque Chart.

WARNING: Replace Brake Pad with same model and type as original

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Maintenance:

Frequently check the tire inflation pressure because all tires lose air in over time. For extended storage, keep the weight of the of the tires. Do not use unregulated air hoses to inflate the tires or tubes. An unregulated hose can suddenly over-inflate tires and cause them to be Replace worn tires.G: Do not ride or sit on the unit if a tire is under This can damage the tire, inner tube, and rim.

Inflating the Tires:

Use a hand or a foot pump to inflate the tires. Service station meter-regulated air hoses are also acceptable. The maximum inflation pressure is shown on the tire sidewall. If two inflation pressures are tire sidewall, use the higher pressure for on-road riding and the lower pressure for off-road riding. The lower pressure will provide better tire traction and a more comfortable ride.

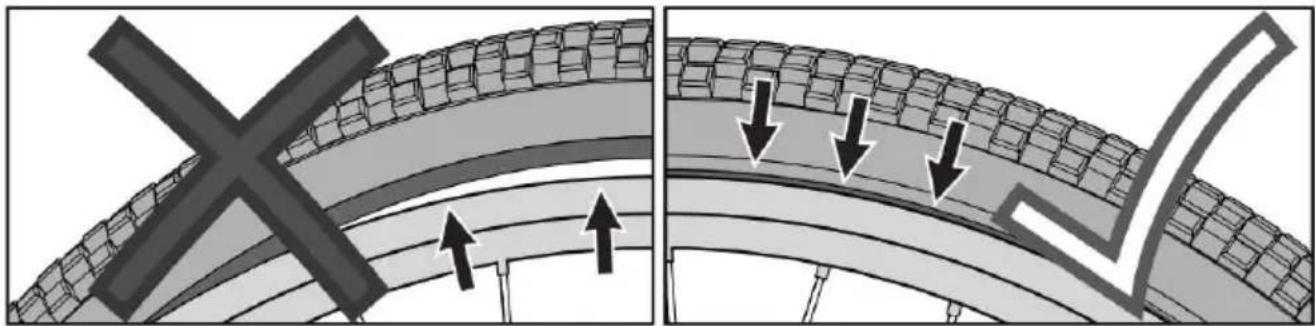

Before adding air to any tire, make sure the edge of the tire (the b the same distance from the rim, all around the rim, on both sides o If the tire does not appear to be seated correctly, release air from t tube until you can push the tire's bead into the rim where necessary air slowly and stop frequently to check the tire seating and the press until you reach the correct inflation

pressure.

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

WARNING:

Do not over-lubricate. If oil gets on the wheel rims or the brake should reduce brake performance, and a longer distance to stop the bicycle necessary. Injury to the rider or others can occur.

The chain can throw excess oil onto the wheel rim. Wipe excess oil chain.

Keep all oil off the surfaces of the pedals where your feet rest. Wash all oil off the wheel rims, brake shoes, and pedals using soap hot water.

And the tires.

Rinse with clean water and dry completely before riding the bicycle. Lubricate the bicycle using light machine oil (20W) according to the following table.

Lubrication Table

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE: SS24001 ;SS24002;SS24003;SS24004;SS24005

Illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

⚠ WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 Inches WHEEL SIZE

Rules of the Road

Part Assembly View&List

Diagram of a bicycle with numbered parts and labeled parts, including a highlighted 'OR' component.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a flat blade and threaded end (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black mechanical components including a rolled-up sheet, orange foam, a metallic rod, and a circular base with engraved markings (no text or symbols visible)

Étape 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or movement.

Technical diagram showing mechanical assembly with labeled component C and a magnified inset illustrating a structural detail.

Étape 3:

Installation du guidon-suite

Technical diagram showing a hand using a tool to adjust or install a mechanical component, with labeled parts and a magnified inset showing four numbered components.
        direction LR
        A1["③"]
        A2["②"]
        A3["④"]
        B1["①"]
        C1["③"]
    end
    subgraph Section 2
        direction LR
        B1
        C1
    end
    subgraph Section 3
        direction LR
        B2["①"]
        C2["③"]
        D1["④"]
    end

Technical diagram showing mechanical assembly steps with labeled components A, B, and C, including directional arrows indicating movement.

Technical diagram of a bicycle suspension system with labeled components and directional arrows

Étape 8 :

Illustration of a person standing on a bicycle, showing posture changes with arrows indicating movement (no text or symbols)

Étape 9 :

Fig B E C G H F

B C E K I J fig C

ÉTAPE : 10

Diagram illustrating bicycle wheel assembly with labeled components and directional arrows

ÉTAPE : 12

Technical diagram showing mechanical assembly with labeled component B and directional arrows

A OR

( A )

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and gear mechanism.

AVERTISSEMENTS:

Technical diagram of a mechanical component with threaded pins and a magnified inset showing a curved component (no text or symbols)

Repair and Service

AVERTISSEMENT:

Coaster Brakes(various models)

Illustration of a person's foot and foot wearing a bicycle brake system, with no visible text or symbols.

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

AVERTISSEMENT:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley and belt drive mechanism.

Ajustement:

Inspection of the Bearings

Entretien

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Entretien:

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

AVERTISSEMENT:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

CHOKING HAZARD-small parts.

Not for children under 3 years.

CORRECT FRAME SIZE 1-3 inches WHEEL SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADDOLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND.

Rules of the Road

Part Assembly View&List

30 31 32 29 28 27 26 25 24 1 1 8 6 15 16 17 2 3 4 12 18 19 20 21 22 22 21 5 3 4 33 34 14 23 10

NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a pointed tip and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black plastic components including a flat sheet, orange rubber pad, metal rod, and circular cap (no text or symbols visible)

Schritt 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and a schematic diagram showing internal structure.

Schritt 3:

Diagram showing a hand using a tool to adjust or install a component, with labeled parts and directional arrows indicating assembly or repair.

Technical diagram showing mechanical assembly steps with labeled components A, B, and C, including directional arrows indicating motion.

Diagram of bicycle suspension system with labeled components and directional arrows

Schritt 8:

Illustration of a person standing on a bicycle, showing two different postures with arrows indicating movement direction (no text or symbols)

Schritt 9:

Sitzinstallation

Fig B E C G H F

B C E K I J fig C

SCHRITT:10

Diagram illustrating bicycle wheel and gear mechanism with labeled parts L and R

SCHRITT:12

Technical diagram showing bicycle wheel assembly with labeled components A and B, including a cylindrical component and mechanical assembly.

WARNHINWEISE:

Technical diagram showing a mechanical assembly with springs and a magnified inset of a curved component (no text or symbols)

Repair and Service

WARNUNG:

Coaster Brakes(various models)

Illustration of a person's foot pressing down on a bicycle wheel (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

WARNUNG:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley, belt, and belt conveyor system.

Einstellung:

Inspection of the Bearings

Wartung

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Wartung:

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

WARNUNG:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

⚠ WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 Inches WHEEL SIZE

Rules of the Road

Part Assembly View&List

OR NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a pointed tip and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black mechanical components including a rolled-up sheet, orange foam, a metallic rod, and a circular base with engraved markings (no text or symbols visible)

Passo 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and directional arrows indicating motion or movement.

Passaggio 3:

Diagram showing a hand using a tool to adjust or install a component, with labeled parts and directional arrows indicating assembly or repair.
        direction LR
        A1["③"]
        A2["②"]
        A3["④"]
        B1["①"]
        C1["③"]
    end
    subgraph Section 2
        direction LR
        B1
        C1
    end
    subgraph Section 3
        direction LR
        B2["①"]
        C2["③"]
        D1["④"]
    end

Technical diagram showing mechanical assembly steps with labeled components A, B, and C, including directional arrows indicating motion.

Diagram of bicycle suspension system with labeled components and directional arrows

Passaggio 8:

Illustration of a person standing on a bicycle, showing posture changes with arrows indicating movement (no text or symbols)

Passaggio 9:

B C E K I J fig C

PASSO:10

Diagram illustrating bicycle wheel and gear mechanism with labeled parts L and R

PASSO:12

Technical diagram showing mechanical assembly with labeled component B and directional arrows

A OR

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and gear mechanism.

AVVERTENZE:

Diagram of a mechanical component with threaded pins and a magnified inset showing a curved mechanical part (no text or symbols)

Repair and Service

AVVERTIMENTO:

Coaster Brakes(various models)

Illustration of a person's foot and foot wearing a bicycle brake system, showing wheel and gear mechanism (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

AVVERTIMENTO:

Diagram of a belt drive system with labeled components A, B, and C, showing pulleys and belt path

Regolazione:

Inspection of the Bearings

Manutenzione

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Manutenzione:

Diagram showing a cross-shaped object on the left and a curved track with arrows indicating flow or movement (no text or symbols)

Lubrication

AVVERTIMENTO:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black-and-white illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

⚠ WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 Inches WHEEL SIZE

Rules of the Road

Part Assembly View&List

OR NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a flat tip and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black mechanical components including a rolled-up sheet, orange foam, a metallic rod, and a circular base with engraved markings (no text or symbols visible)

Paso 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and directional arrows indicating motion or movement.

Paso 3:

Diagram showing a hand using scissors to adjust or install a component, with labeled parts and a numbered diagram inset.
        direction LR
        A1["③"]
        A2["②"]
        A3["④"]
        B1["①"]
        C1["③"]
    end
    subgraph Section 2
        direction LR
        B1
        C1
    end
    subgraph Section 3
        direction LR
        B2["①"]
        C2["③"]
        D1["④"]
    end

Technical diagram showing mechanical assembly steps with labeled components A, B, and C, including directional arrows indicating motion.

Technical diagram of a bicycle suspension system with labeled components and directional arrows

Paso 8:

Illustration of a person standing on a bicycle, showing posture changes with arrows indicating movement (no text or symbols)

Paso 9:

B C E K I J fig C

PASO:10

Diagram illustrating bicycle wheel assembly with labeled components and directional arrows

PASO:12

Technical diagram showing mechanical assembly with labeled component B and directional arrows

A OR

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and a gear-like structure.

ADVERTENCIAS:

Technical diagram of a mechanical assembly with threaded components and a magnified inset showing a curved component (no text or symbols)

Repair and Service

ADVERTENCIA:

Coaster Brakes(various models)

Illustration of a person's foot pressing down on a bicycle wheel, showing mechanical components and motion arrows (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

ADVERTENCIA:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley, belt, and belt conveyor system.

Ajustamiento:

Inspection of the Bearings

Mantenimiento

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

ADVERTENCIA:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black-and-white illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

CHOKING HAZARD-small parts.

Not for children under 3 years.

CORRECT FRAME SIZE 1-3 inches WHEEL SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADDLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND.

Rules of the Road

Part Assembly View&List

OR NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a pointed tip and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of mechanical components including a black plastic sheet, orange rubber pad, a metallic rod, a circular base with engraved markings, and a black cap (no text or symbols visible)

Krok 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and directional arrows indicating motion or movement.

Krok 3:

Diagram showing a hand using a tool to adjust or install a component, with labeled parts and directional arrows indicating assembly or repair.

Technical diagram showing mechanical assembly steps with labeled components A, B, and C, including directional arrows indicating motion.

Technical diagram of a bicycle suspension system with labeled components and directional arrows

Krok 8:

Silhouette of a person riding a bicycle with a directional arrow indicating left motion (no text or symbols)

Silhouette of a person using a bicycle to adjust the seat, with an arrow indicating motion (no text or symbols)

Krok 9:

Fig B E C G H F

B C E K I J fig C

KROK:10

Diagram illustrating mechanical assembly steps with labeled components L and R, showing gear and tool mechanisms.

KROK:12

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and gear mechanism.

OSTRZEŻENIA:

Diagram of a mechanical component with springs and a magnified inset showing a curved bracket (no text or symbols)

Repair and Service

OSTRZEŻENIE:

Coaster Brakes(various models)

Illustration of a person's foot using a bicycle brake pedal mechanism (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

OSTRZEŻENIE:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley and belt drive mechanism.

Modyfikacja:

Inspection of the Bearings

Konserwacja

Head Tube Bear i ngs

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Konserwacja:

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

OSTRZEŻENIE:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

BMX-fiets

MODEL: SS24001 ;SS24002; SS24003;SS24004;SS24005

Black-and-white illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

⚠ WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 Inches WHEEL SIZE

Rules of the Road

Part Assembly View&List

OR NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a flat tip and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black plastic components including a rolled-up black object, orange flame, metal rod, and circular cap (no text or symbols visible)

Stap 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or assembly.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and directional arrows indicating motion or movement.

Stap 3:

Diagram showing a hand using a tool to adjust or install a mechanical component, with labeled parts and directional arrows.
        direction LR
        A1["③"]
        A2["②"]
        A3["④"]
        B1["①"]
        C1["③"]
    end
    subgraph Section 2
        direction LR
        B1
        C1
    end
    subgraph Section 3
        direction LR
        B2["①"]
        C2["③"]
        D1["④"]
    end

Twee boutsteel:

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including directional arrows indicating motion or assembly.

Line drawing of a hand holding a tool, no text or symbols present

3 3-1

4 4-2 4-3 4-1

Stap 7:

Diagram of a bicycle suspension system with labeled components and directional arrows

Stap 8:

Illustration of a person standing on a bicycle, showing posture changes with arrows indicating movement direction (no text or symbols)

Stap 9:

Fig B E C G H F

B C E K I J fig C

STAP: 10

Diagram illustrating bicycle wheel and gear mechanism with labeled parts L and R

STAP: 12

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and gear mechanism.

WAARSCHUWINGEN:

Technical diagram of a mechanical component with threaded pins and a magnified inset showing a curved component (no text or symbols)

Repair and Service

WAARSCHUWING:

Coaster Brakes(various models)

Illustration of a person's foot pressing down on a bicycle wheel (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

WAARSCHUWING:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley and belt drive mechanism.

Aanpassing:

Inspection of the Bearings

Onderhoud

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

Stap 1: Draai kabelmoer 1-1 los zodat de kabel vastzit loszittend.

Stap 2: Steek kabelton 2-1 in de remhendel.

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Onderhoud:

Diagram showing a car tire under load with arrows indicating force direction (no text or symbols present)

Lubrication

WAARSCHUWING:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Illustration of a bicycle with front wheel, rear wheel, and suspension (no text or symbols)

⚠ WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

CORRECT FRAME SIZE FOR SAFE AND COMFORTABLE RIDING THERE SHOULD BE A CLEARANCE OF AT LEAST 1-3 INCHES BETWEEN THE CROTCH AND THE TOP TUBE OF THE BICYCLE FRAME, WHILE THE RIDER STRADLES THE BICYCLE WITH BOTH FEET FLAT ON THE GROUND. 1-3 inches WHEEL SIZE

Rules of the Road

Diagram of a bicycle with numbered parts and labeled parts, including a highlighted OR mechanism diagram.

NOTE: All features, components and accessories are not included on all models.

Introduction to Assembly

Tools Needed (not included)

Small Adjustable Wrench (Jaws must open at least 9/16 inch.)

Line drawing of a double-ended wrench (no text or symbols)

Open-end Wrenches

Flat-blade Screwdriver

Line drawing of a screwdriver with a flat head and ridged handle (no text or symbols)

Phillips Screwdriver

Slip-Joint Pliers

Metric Allen Wrenches

Packing material protection accessories

Collection of black mechanical components including a flat plate, orange bulb, metal rod, and circular base (no text or symbols visible)

Steg 1:

Technical diagram illustrating bicycle wheel assembly with labeled components A, B, C, D and directional arrows indicating motion or movement.

Technical diagram illustrating mechanical assembly steps with labeled components A, B, C, D and a schematic inset showing structural changes.

Steg 3:

Technical diagram showing a hand using a tool to adjust or install a component, with labeled parts and directional arrows indicating assembly or repair.

Technical diagram showing mechanical assembly with labeled parts A, B, and C, including directional arrows indicating movement or assembly.

Gyrobromsinstallation - Frambromskabelinstallation

Diagram of a bicycle suspension system with labeled components and directional arrows

Steg 8:

Illustration of a person standing on a bicycle, showing two sequential poses with arrows indicating movement direction (no text or symbols)

Steg 9:

Sätesinstallation

Fig B E C G H F

B C E K I J fig C

STEG:10

Diagram illustrating mechanical assembly with labeled parts L and R, showing gear and wrench mechanisms

STEG:12

Reflektorinstallation (som utrustad)

Reflektorinstallation:

22.Positionera FRONT reflektor (A)

Technical diagram showing mechanical assembly with labeled component B and directional arrows

A OR

så det pekar rakt fram.

Technical diagram showing mechanical assembly with labeled components A and B, including a cylindrical component and a gear-like structure.

WARNINGAR:

Diagram of a mechanical component with threaded pins and a magnified inset showing a curved mechanical part (no text or symbols)

Repair and Service

WARNING:

Coaster Brakes(various models)

Illustration of a person's foot and wheel on a bicycle pedal, showing mechanical components (no text or symbols)

Technical diagram of a mechanical linkage system with labeled components A, B, and C

Chain Adjustment

WARNING:

Diagram of a belt drive system with labeled components A, B, and C, showing pulley and belt drive mechanism.

Justering:

Inspection of the Bearings

Underhåll

Head Tube Bear i ngs

Technical diagram showing mechanical assembly with labeled parts A and B, likely illustrating a linkage or mounting mechanism.

Caliper Rim Brake System Setup-continued

5 5-1 5-2

7 0 7-1

1/16" 1/16" (1.5 mm) 6-3 6-2 6-1

8 8-2 8-1

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Tires

Underhåll:

Diagram showing a car tire under load with arrows indicating direction, no text or symbols present

Lubrication

WARNING:

What	When	How
Brake Levers	every six months	Put one drop of oil on the pivot point of each brake lever.
Caliper Brakes	every six months	Put one drop of oil on the pivot point of each caliper brake.
Brake Cables	every six months	Put four drops of oil into both ends of each cable.Allow the oil to soak back along the cable wire.
Pedals	every six months	Put four drops of oil where the axles go into the pedals.
Chain	every six months	Put one drop of oil on each roller of the chain.Wipe all excess oil off the chain.
Gyro Head	every six months	Put 4 drops of oil around the Gyro Head Bearings.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
