USER MANUAL NLD45 Vevor
Affordable. Reliable. Home Improvement.
CAR REFRIGERATOR
USER MANUAL
MODEL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
SMART CONTROL- FRIDGEAPP INSTRUCTIONS
First Step: Turn on the Bluetooth on your smart device; start the AP click "Search" to find nearby fridges.
Second Step: Click fridge icon for Bluetooth pairing (the APP will prom you to pair the fridge by pressing the set button on the fridge's panel when connecting the fridge for the first time). After pairing, the will switch to the main interface allowing you to control the fridge.

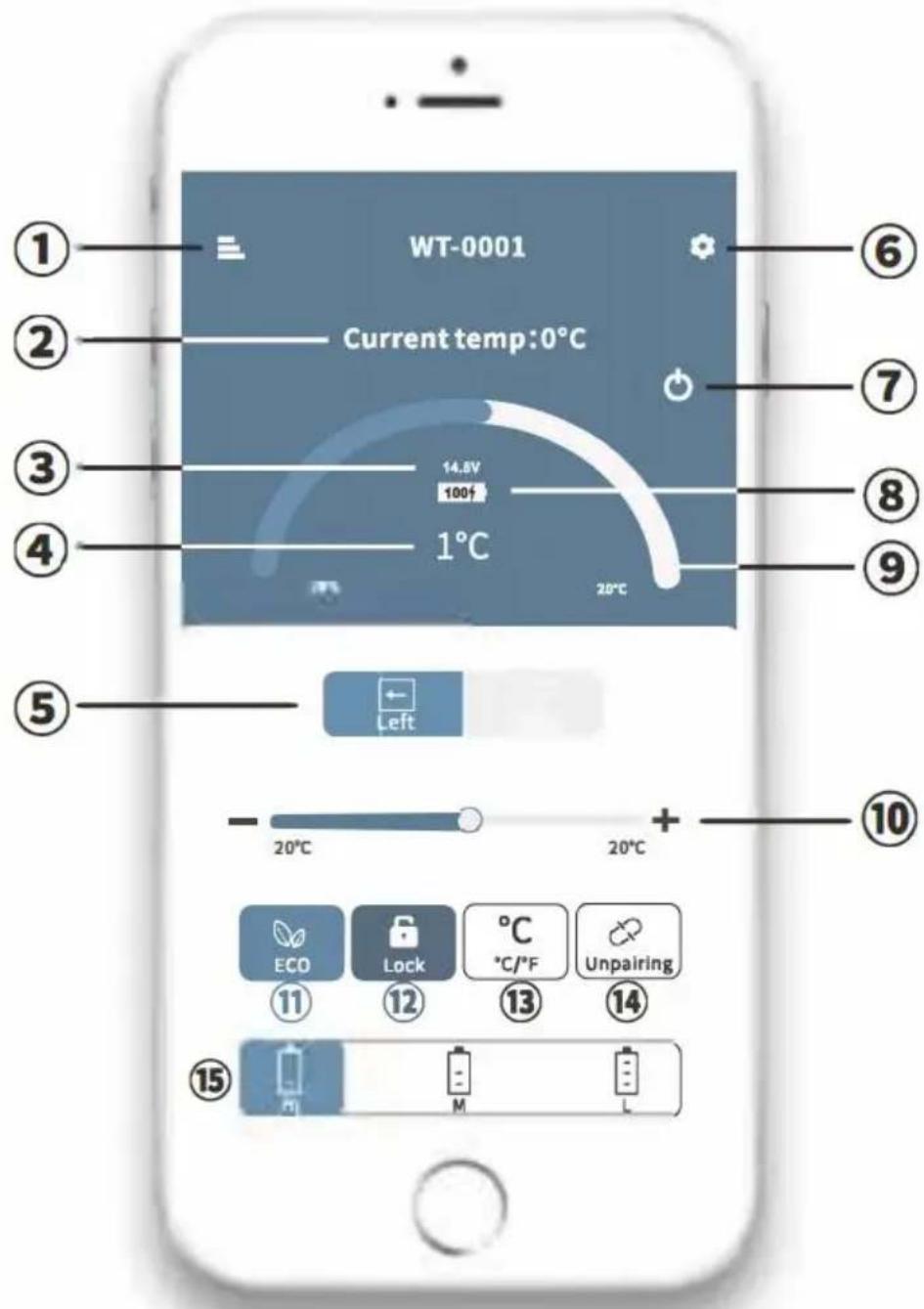

| ①MENU ②Current temperature ③Current voltage ④Target temperature ⑤Switch Left/Right compartment ⑥SET ⑦ON/OFF | ⑧Current battery ⑨⑩Temperature control ⑪ECO(Energy-saving) / MAX(Fast-cooling) ⑫Lock / Unlock ⑬Celsius / Fahrenheit ⑭Un pairing the device and return to set ⑮Battery protection mode: High / Medium /Low |
Note:
*Click the lock icon on the APP to lock/unlock the control panel on the fridge, if locked, the fridge can only be controlled by the APP.
Downloading the "CAR FRIDGE FREEZER" Application
IOS
Android
Scan the QR code on the left or search for the "CAR FREEZER" APP in the APP Store (for Apple devices) or Goo (for Android devices).
MODEL:NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
| Warning-To reduce the risk of injury, user must re instructions manual carefully. | |
| This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices |
Attentions
Before using the refrigerator, please read this manual carefully and keep it properly
1.Before using the refrigerator, clean it inside and outside with a dam cloth.
2. Do not fill the refrigerator with corrosive liquids. Do not directly pour liquids into the refrigerator.
3. When the refrigerator is not used for a long time, please disconnect power supply and keep it dry.
4. Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety.
5.Shut down the refrigerator and battery before pulling by the trolley (battery).
Connect the Power Supply
- Find the DC power cord in the kit. Connect DC plug to the power the car refrigerator.
- Well place the refrigerators in the car (back-up, seats...).
3.Lay out power cords per your car's interior space. Insert the cigarlighter plug (one side of the power cord) into the car cigarette lighter
Adapter Connect the car cigarette lighter
DC12/24V
Connect the car refrigerator
- The refrigerator can be connected to more than one energy source.
2.The refrigerator can connect directly to the DC12V/24V power supply
3.If the refrigerator is used an AC100-240V power supply, an AC加拿大 should be adopted.
Car Refrigerator Operation

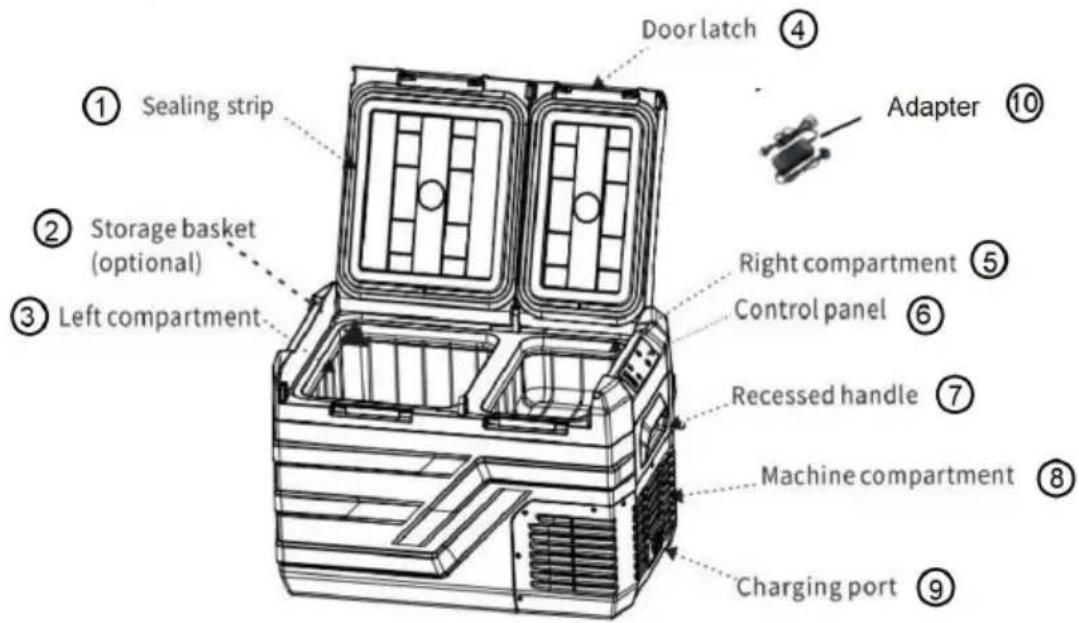

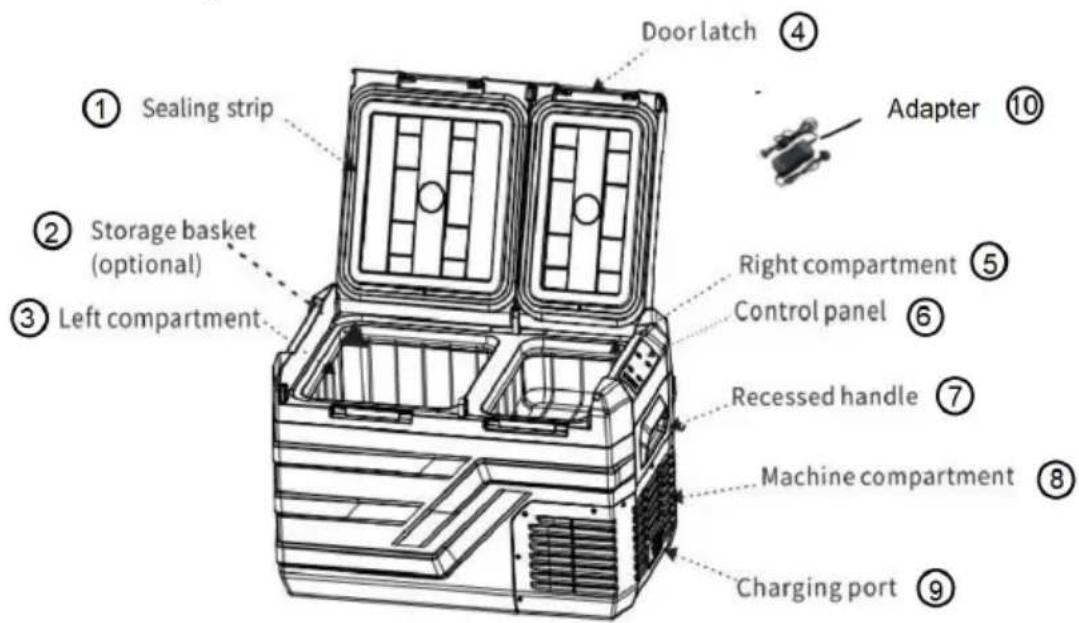

Component Diagram
Reverse door opening direction
The door opening direction can be changed according to actual needs, please follow the instructions below:

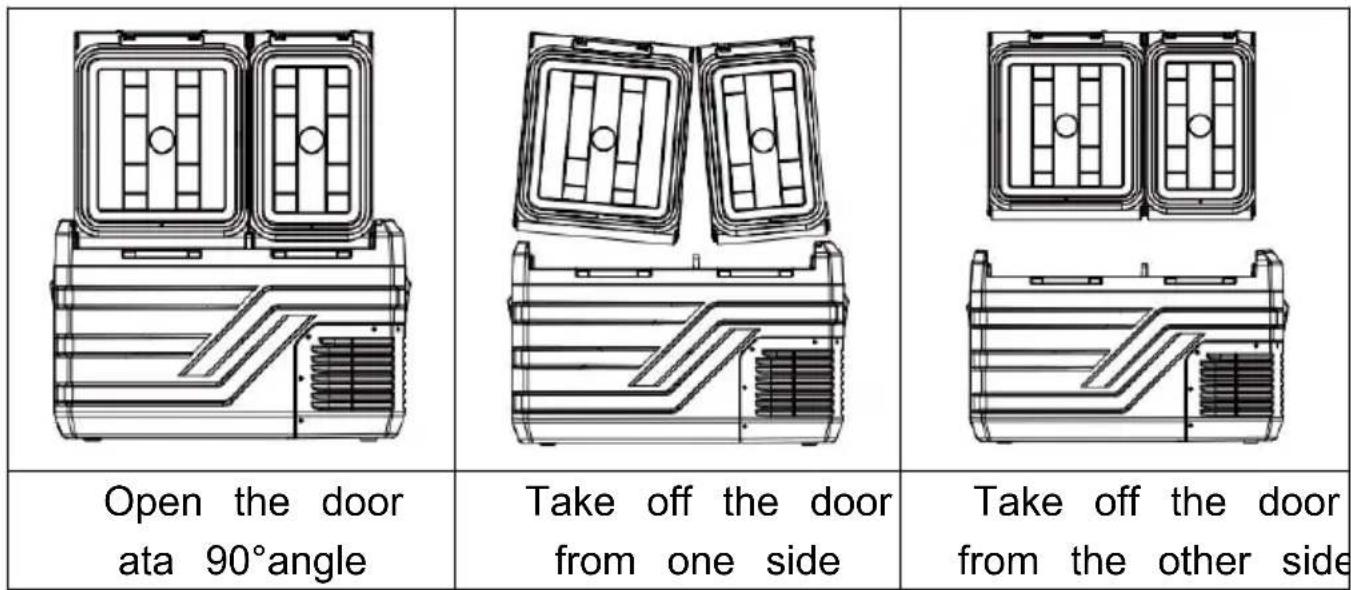

Door Disassembly:

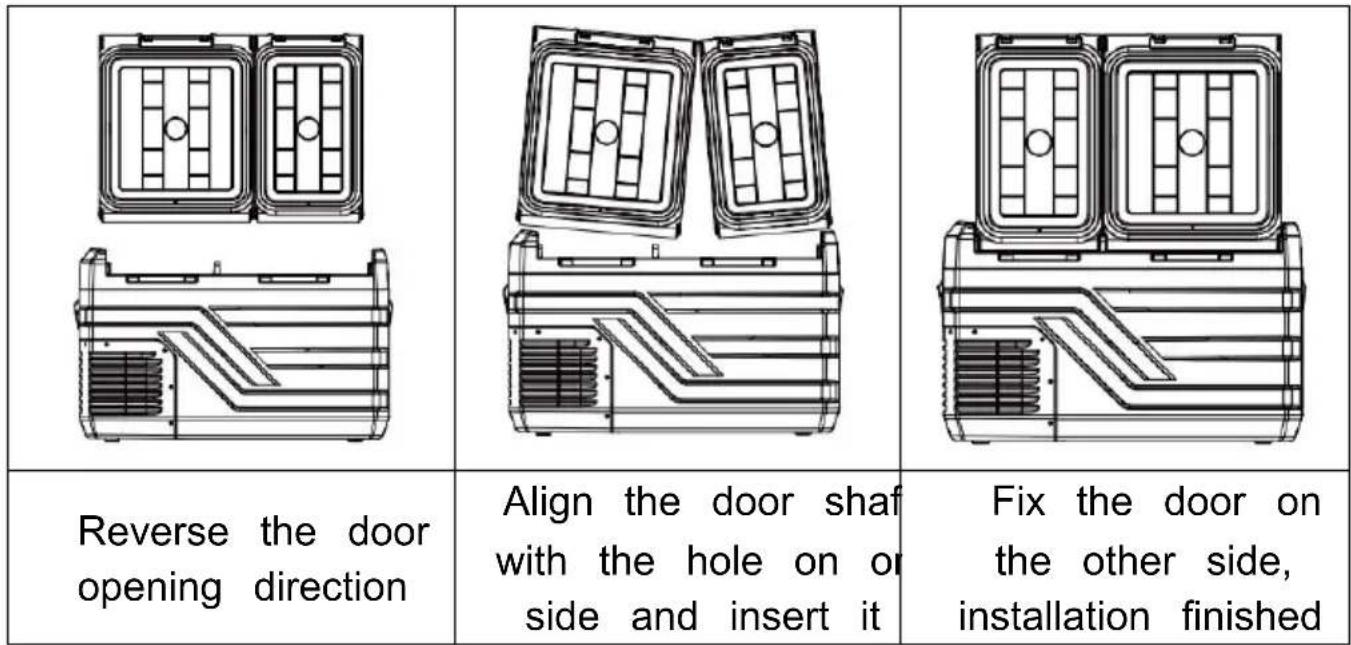

Door Installation:

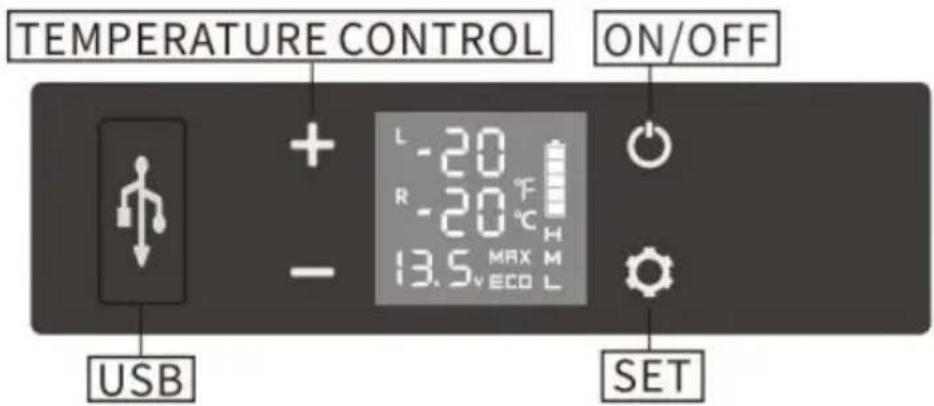

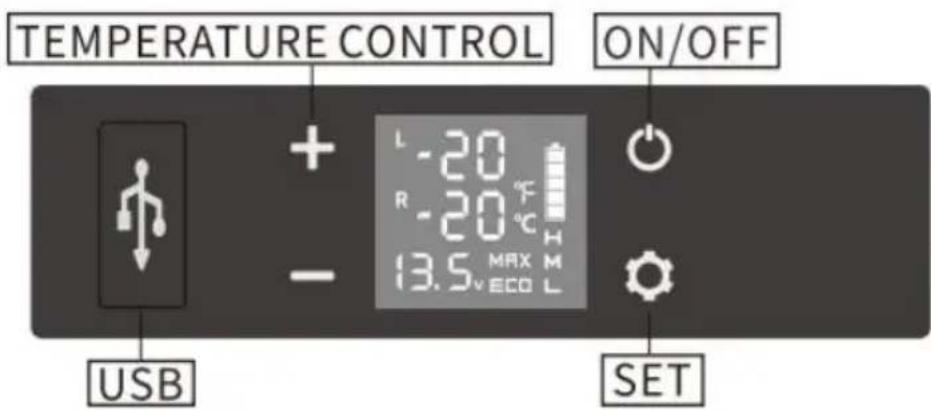

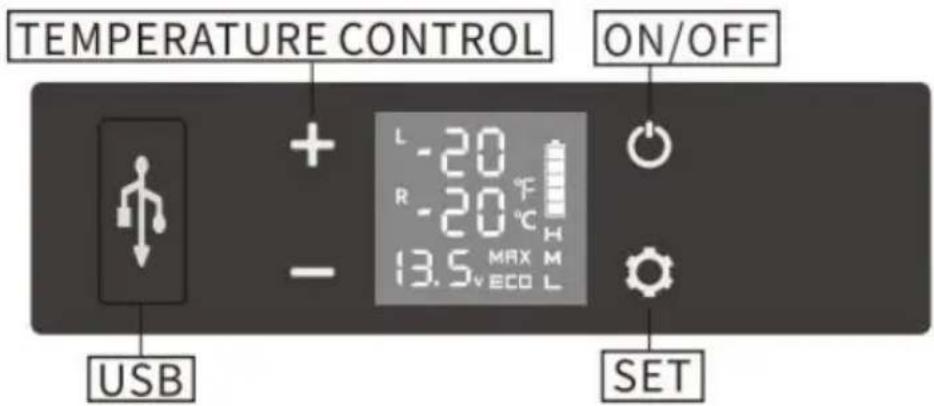

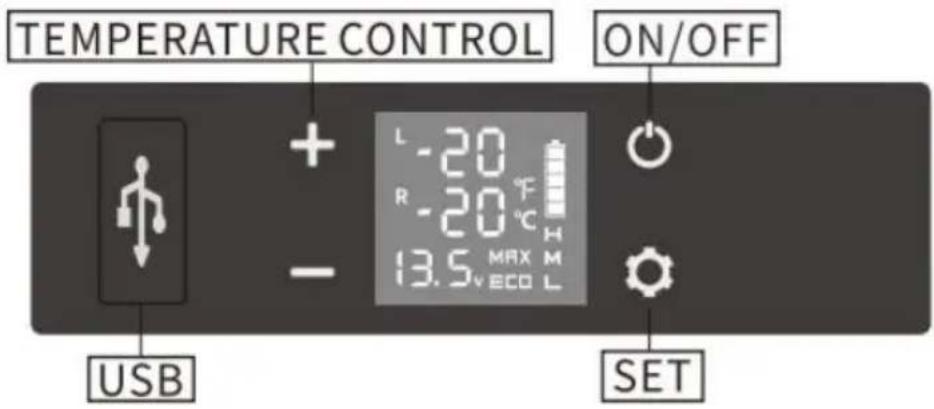

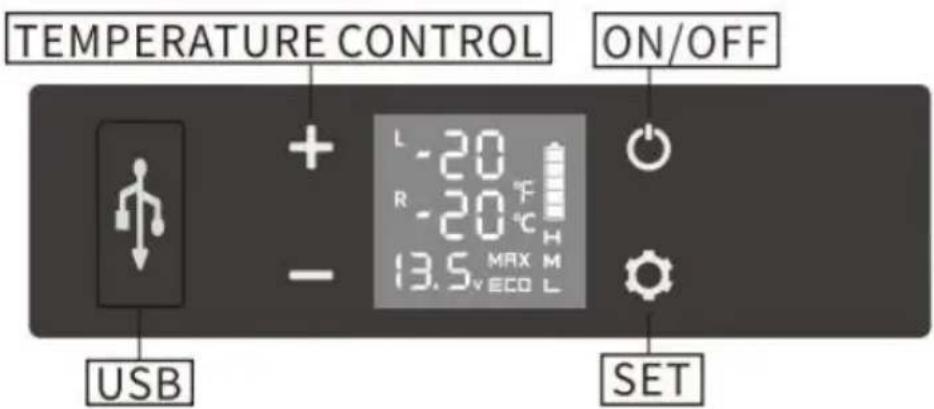

Function and operation
*Note: the right compartment is on the side where the compressor ·Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).
-
Display Screen Initialization: connect to the power supply, the buzzer will make a long beep, and the display will be on for 2 seconds then the normal operating mode.
-
Power ON/OFF: press to switch ON/OFF.
-
Temperature Setting(only for NLD series):under the running
state,press or ,the screen will flash,then press or again to
adjust the temperature of the freezer compartment. When the screen stops flashing, the temperature displayed is the current temperature of the compartments, it'll take a while to reach the set temperature.
Note: Only the temperature of the freezer compartment is adjustable, a the temperature of the fridge compartment changes with the freezer compartment (The temperature of the fridge compartment is always above 0^ / 32^ ).
Temperature Reference (Based on 25^ / 77^ ambient temperature):
| Setting Temperature of Left Compartment | 5°C/41°F | -8°C/17.6°F | -18°C/-0.4°F | -20°C/-4°F |
| Temperature Reference the Right Compartment | 15°C/59°F | 10°C/50°F | 5°C/41°F | 4°C/39.2°F |
- Temperature Setting(only for NLS series): under the running state, long press and at the same time for three seconds to switch ON/OFF the left compartment, long press and at the same time for three seconds to switch ON/OFF the right compartment, two compartments cannot be switched OFF at the same time.
When both left and right compartments are set in running state, press + or to enter left compartment temperature setting, press to
increase temperature,press to decrease temperature,and press to switch left/right compartment.The setting will be saved after stop operation for 3 seconds.Note:the temperature displayed is the current temperature. the compartments,it'll take a while to reach the set temperature.Temperature setting range:-20~20°C(-4~68°F).
- Cooling Mode: under the running state,press to switch MAX(fast cooling mode)and Eco(energy saving mode).(*Factory setting is MAX.)
·Battery Protection Mode: under the running state, long press for 3 seconds until the left screen flashes, then press again to switch High(H), Medium(M) and Low(L) ("Factory setting is Medium).
Voltage Reference:
| INPUT MODE | DC 12V | DC 24V | ||
| CUT OUT | CUT IN | CUT OUT | CUT IN | |
| L | 8.5V | 10.9V | 21.3V | 22.7V |
| M | 10.1V | 11.4V | 22.3V | 23.7V |
| H | 11.1V | 12.4V | 24.3V | 25.7V |
*the voltage is theoretical value,there may be a deviation in different
sceneries.
*Due to the different output voltages between vehicles, H should be set when the product is connected to car power, and M or L should be set. It is connected to a portable battery or other back-up battery.
-
Temperature Unit Setting: switch OFF the fridge,long press for three seconds until E1 displays,then switch to E5 by pressing again.Under F mode,press or to select Celsius or Fahrenheit.
-
Reset: switch OFF the fridge,long press for three seconds until E1 displays,under E1 mode,long press at the same time for three seconds to reset it.
Recommended temperature for common food:
| Drinks | Fruits | Vegetable | Delicatessen | Wine | Ice cream | Meat |
| 5℃/41 F | 5~8℃/41 ~46F | 3~10℃/37 ~50F | 4℃/39F | 10℃ /50F | -10℃/1 4°F | -18℃/ 0°F |
Things to note
Cleaning:
- Switch off and unplug the device first to avoid electric shock.
- Use wet cloth to clean the device and dry it.
- Do not soak the fridge in water and do not wash it directly.
- Do not use abrasive cleaning agents during cleaning as these can damage the device.
Storage:
If the device will not be in use for a long time, please follow the ins
- Switch off and unplug the device.
Take out all the items stored in the device.
·Wipe off excess water with a soft rag.
- Put the fridge in a cool and dry place.
- Leave the lid slightly open to prevent odors from forming.
Recommended storage environment:
ambient temperature: 25^ , ambient humidity: ≤ 75% .
Defrosting:
Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in goodtime to avoid this.
- Switch off and unplug the device first to avoid electric shock.
Take out all the items stored in the device. - Keep the lid open.
Wipe off the defrosted water.
Never use hard or pointed tools to remove ice or to loosen ob which have frozen in place.
Troubleshooting methods
Advice: If abnormal situations cannot be resolved through a simple face analysis, please get in touch with professional customer service for assistance.
| Issues | Cause/Suggestions |
| Refrigerator does not work | ·Check if the switch is on. ·Check if the plug and socket are connecte ·Check if the fuse has been burnt. Check if the power supply is malfunctioned ·Switch on/off the fridge frequently may cause start delay of the compressor |
| Refrigerator compartments are too warm | ·The door is opened frequently. ·A large amount of warm or hot food was recently ·The refrigerator has been disconnected for time |
| Food is frozen | ·The temperature was set too low |
| There is"water flow" noise from inside the refrigerator | ·It's a normal phenomenon,caused by the flocr refrigerant. |
| There are waterdrop around the refrigerator casing o door gap | ·It's a normal phenomenon,the moisture will condense to water when it touches a cold surface of the refrigerator. |
| The compressor is slightly noisy when starting | It's a normal phenomenon,the noise will be reduced after the compressor works stably |
| Code F1displayed | ·Possible cause:low voltage to fridge. Adjust the battery protection from High to M or from Medium to Low |
| Code F2 displayed | ·Possible cause:condenser fan is overloaded. Disconnect power to fridge for 5 minutes & If the code shows again,contact manufacture service |
| Code F3 displayed | ·Possible cause:the compressor starts too frequently Disconnect power to fridge for 5 minutes & If the code shows again,contact manufacture service |
| Code F4 displayed | ·Possible cause:compressor not kicking in Disconnect power to fridge for 5 minutes & |
| If the code shows again,contact manufacturer service | |
| Code F5 displayed | ·Possible cause:overheating of the compressor &electronics Disconnect power to fridge for 5 minutes &re-start. If the code shows again,contact manufacturer service |
| Code F6 displayed | ·Possible cause:no parameter can be detecte the controller Disconnect power to fridge for minutes &re-start If the code shows again,contact manufacturer service |
| Code F7 or F8 displayed | ·Possible cause:temperature sensor is faulty Contact manufacturer for service |
Packing List
| No. | Item | Qty | Remark |
| 1 | Refrigerator | 1 set | |
| 2 | Cigarette wire | 1 set | |
| 3 | Power adapter | 1 set | |
| 4 | Manual | 1 pcs |
Use Suggestions
- If equipped with a backup battery, you can maintain any temperature set under any circumstances without worries.
- When placing ice cream, please adjust the temperature to the lowest must be powered on for a long time.
-
Prevent the health problems of drinking bottled water caused by hot temperatures.
-
Frozen food, rare seafood, and vehicle-mounted refrigerators let froz fresh food accompany the journey.
- Healthcare products, insulin, and imported drugs need to be refrigerate and the precise temperature control of onboard refrigerators will escort health along the way.
- The tea leaves are effectively kept fresh in the car refrigerator, and can drink fresh and delicious tea anytime during the self-driving tour.
- The best storage temperature of red wine is 10^ - 18^ (50 - 64.4 F).
The precise temperature control of the car refrigerator can effectively ensure the storage temperature of red wine.
- The storage time of high-grade fruit in the car at high summer temperatures will be at least 2 hours. The storage time is shorter than the air conditioner is turned on. Using a car refrigerator can effectively preserve high-grade fruit.
- The coating of high-grade sunglasses will fall off under the high temperature in summer. The car refrigerator is an ideal place to place
- High-grade cosmetics quickly deteriorate under high temperatures in the car. Carry cosmetics with the car; the car refrigerator will be you choice.
Safety Precautions
WARNING!
Do not operate the appliance if it is visibly damaged.
- Do not block the gaps of the fridge with things like pin, wire, etc.
- Do not expose the appliance to rain or soak it in water.
- Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)
-
Do not store any explosive substances like spray cans with a flamm propellant.
-
Ensure the supply cord is dry and not trapped or damaged. Do not multiple portable socket-outlets or portable power supplies at the rear the appliance.
-
Check the voltage specification on the type plate corresponds to that the energy supply. The appliance is only to be used with the power unit provided with the appliance.
-
Do not use electrical appliances inside the food storage compartments the appliance, unless they are of the type recommended by the manufacturer.
-
Once unpacked and before turning on, the appliance must be placed at level surface for more than 6 hours.
-
Make sure that the appliance stays horizontally when it is running. The angle must be less than 5^ for longtime running and be less than 45^ for short time running.
-
Keep the ventilation openings in the unit casing or in the built-in str free of obstacles.
-
Keep the applianceable on the ground or in the car;Do not drain up down.
-
When positioning the appliance, ensure the supply cord is not trapped damaged.
-
Do not locate multiple portable socket-outlets or portable power suppli at the rear of the appliance.
-Risk of child entrapment. Before you throw away your old refrigerator freezer: *Take off the doors.
*Leave the shelves in place so that children may not easily climb ins
- Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer.
CAUTION!
- Repairs may only be carried out by qualified personnel. Incorrect repairs may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.
- The installation of DC power in the boat must be handled by qualified electricians.
- Children shall not play with the appliance. Cleaning and user mainte
shall not be made by children without supervision. - The appliance can be used by children aged from 8 years and above, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they've been given supervision or instruct concerning use of the device in a safe way and understand the hazards. NOTICE!
- Disconnect the power supply before each cleaning and maintenance a. after every use.
- Do not use sharp tools to defrost;Do not damage the refrigerant circ
- Risk of child entrapment. Before you throw away your old refrigerator freezer:take off the doors:leave the shelves in place so that children are not easily climb inside.
- Check if the cooling capacity of the appliance is suitable for storing food or medicine. Food may only be stored in its original packaging or suitable containers.
- If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
The appliance is intended to be used in household and similar applications such as:
-Staff kitchen areas in shops, offices and other working environments;
-Camping,Farm houses and by clients in hotels,motels and other residential environments;
-Bed and breakfast type environments;
-Catering and similar non-retail applications. -
To avoid contamination of drink, please respect the following instruction
-
Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.
-
Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
-Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with or drip onto other food;
-Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with or drip onto other food.
-If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould develop within the appliance.
Please according to local regulations regarding disposal of the applian for its flammable refrigerant and blowing gas.
WARNING: This appliance contains flammable foaming agent cyclopentane:
1) Please avoid contact fire when you transport and use it.
2) Please ask a professional for servicing when the machine breaks or
3) Please send it to your local appointed disposal station when you it.
WARNING: During use, service, and disposal of the appliance,
please pay attention to a symbol similar to the left side, which is lost in the rear of the appliance (rear panel or compressor) and with yellow orange color. It's a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please be far away from source during use, service, and disposal.
VEVOR
Affordable. Reliable. Home Improvement.
RéFRIGÉRATEUR DE VOITURE MANUEL D'UTILISATION
MODELE: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
INSTRUCTIONS POUR SMART CONTROL -
FRIDGEAPP
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODELE : NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
AUTOKÜHLSCHRANK
BENUTZERHANDBUCH
MODELL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODELL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Komponentendiagramm
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
FRIGORIFERO PER AUTO
MANUALE D'USO
MODELLO: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
ISTRUZIONI SMART CONTROL-FRIDGEAPP
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODELLO: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
REFRIGERADOR DE COCHE

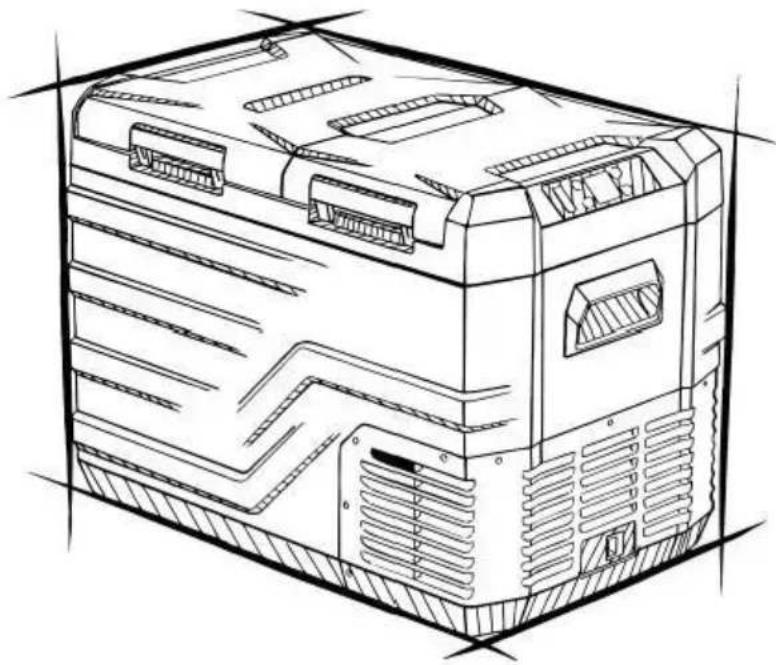

MANUAL DEL USUARIO
MODELO: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Affordable. Reliable. Home Improvement.

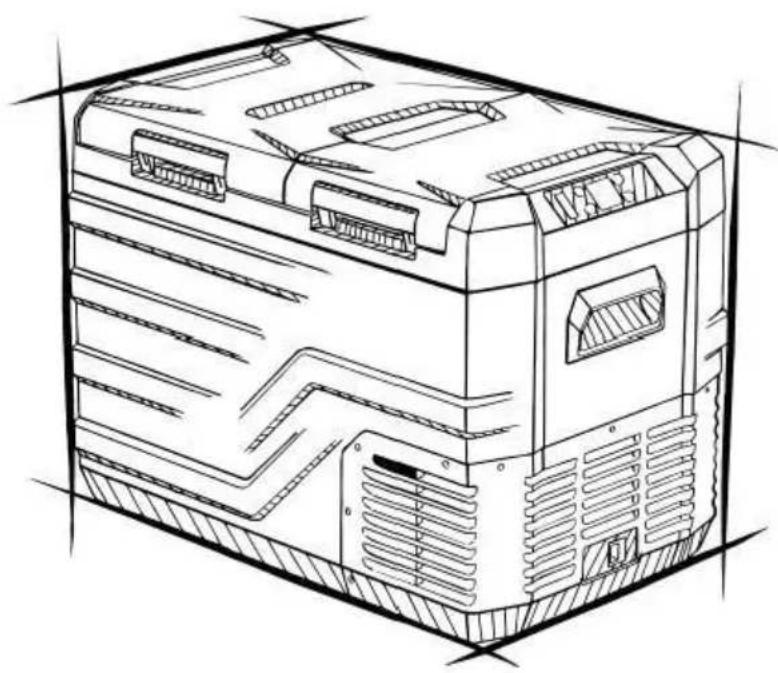

Car Refrigerator
MODELO: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
LODÓWKA SAMOCHODOWA INSTRUKCJA OBSŁUGI
MODEL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
INTELIGENTNE STEROWANIE - INSTRUKCJA
OBSŁUGI APLIKACJI LODÓWKI
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODEL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Diagram komponentów
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.
AUTOKOELKAST
GEBRUIKERSHANDLEIDING
MODEL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
SMART CONTROL - FRIDGEAPP-INSTRUCTIONS
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODEL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Componentdiagram
Function and operation
Troubleshooting methods
Affordable. Reliable. Home Improvement.

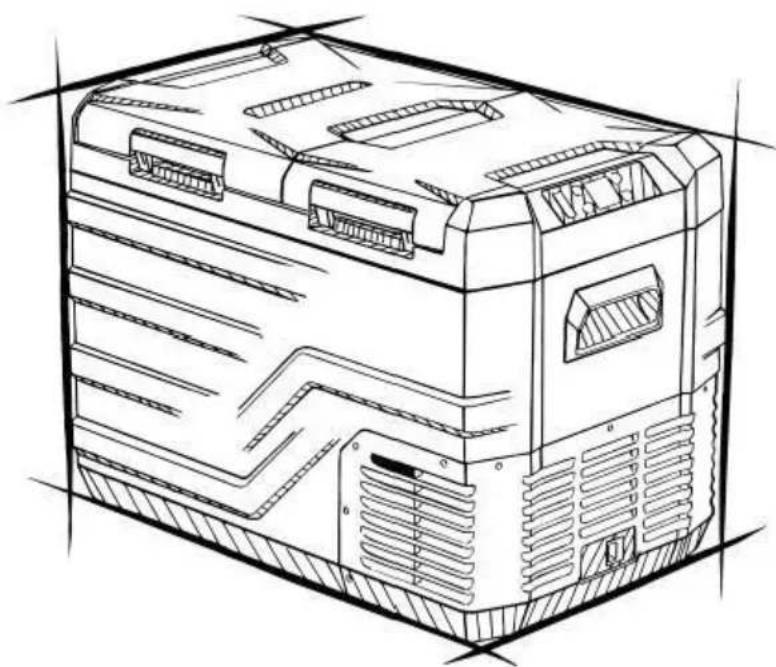

BILKYLSKÄP
ANVÄNDARMANUAL
MODELL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
SMART KONTROLL - INSTRUKTIONER FÖR
KYLSKÄPSAPPEN
Ladda ner appen "BILKYL OCH FRYS"
iOS
Android
Skanna QR-koden till vänster eller sök after appen "CAR FREEZER" i APP Store (for Apple-eheter) aller Google Store Android-eheter).
VEVOR
Affordable. Reliable. Home Improvement.
Car Refrigerator
MODELL: NLD35 NLD45 NLD55 NLS35 NLS45 NLS55
Connect the Power Supply
Car Refrigerator Operation
Koponentdiagram
Function and operation
