USER MANUAL FF-23 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
GREASE PUMP USER MANUAL
MODEL: FF-23A , FF-23
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR
TOUGH TOOLS, HALF PRICE
GREASE PUMP
MODEL:FF-23A,FF-23
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING
- Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
- Failure to follow the safety rules and other basic safety precautions result in serious personal injury.
GENERAL SAFETY RULES
1.Wear goggles. During operation, dust, sparks and dust are hard to the gas.
2.There will be noise when the product works. It is recommende bring earplugs.
3. Be extremely careful and use common sense during the opera. Never use alcohol, drugs, or prescription drugs Ring down to operate the device. Read the instructions on the medication you taking to see if they will affect you The judgment and reaction If you have any questions, do not operate this device.
4. Minors should not operate this product to avoid accidents or injuries.
5. The air pressure of the air source is kept stable, so as not the work and life of the product.
6.Dress appropriately. Never wear loose long hair, and keep hair clothing away from this product.
7. The intake pressure shall not exceed the pressure specified in manual.
8.Disconnect the air source when servicing or replacing the device
Cautions
- If there is any quality problem and it cannot be repaired by non-professional personnel, please contact the dealer or the manufacturer for help.
- When using, please put the butter gun lightly; do not put it ground at will, because the head of the gun is sharp, to prevent injury or the residual butter outflow inside.
- Don't point the gun at a person's face when used.
- After use, wipe the pump head and the butter gun clean. Check regularly whether the machine is complete and working properly.
- Butter wire tubes shall not be kinked, twisted or stretched.
- Excessive pressure causes damage to the butter gun head a equipment.
- Defective accessories should be replaced immediately.
- Every time the butter gun is replaced, the gas source needs be closed without pressure.
- Do not leave the device unattended when the device is turned off and always close it before leaving the work area and wait for the device to stop completely.
SAVE THESE INSTRUCTIONS
MODEL AND PARAMETERS
| Model | FF-23A | FF-23 |
| Oil Volume | 740g/min | 740g/min |
| Pressure Ratio | 50:1 | 50:1 |
| Output Pressure | 30-40MPa | 30-40MPa |
| Air supply Pressure | 0.6~0.8Mpa | 0.6~0.8Mpa |

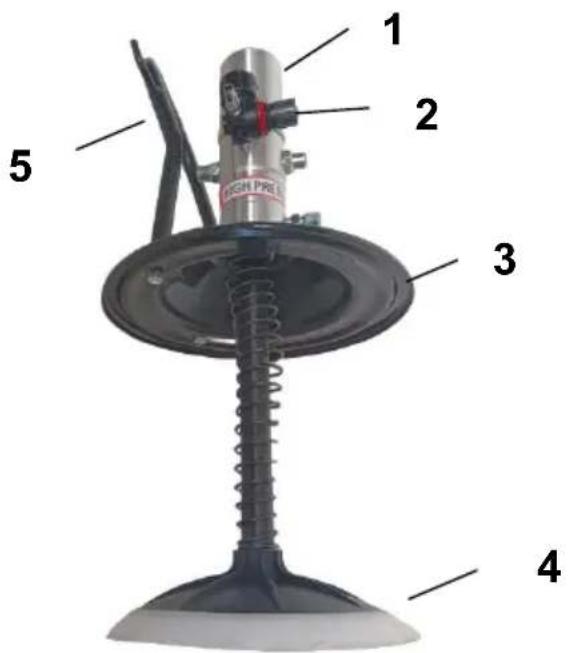

FF-23A
1.Grease Pump 2.Pressure Valve and Inlet 3.Grease Bucket Cap 4.Suction Cup 5.Handle

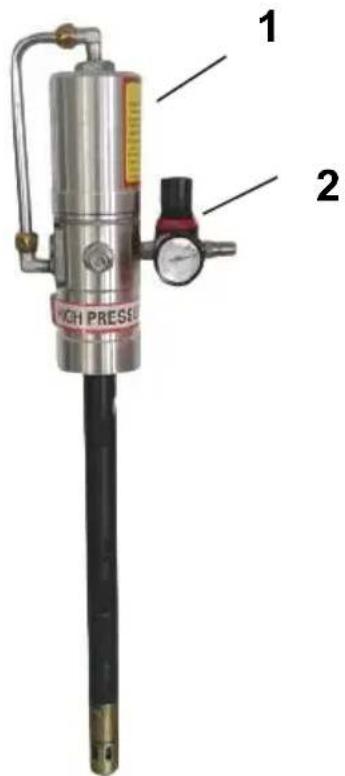

FF-23:
1.Grease Pump 2. Pressure Valve and Inlet
OPERATING INSTRUCTIONS

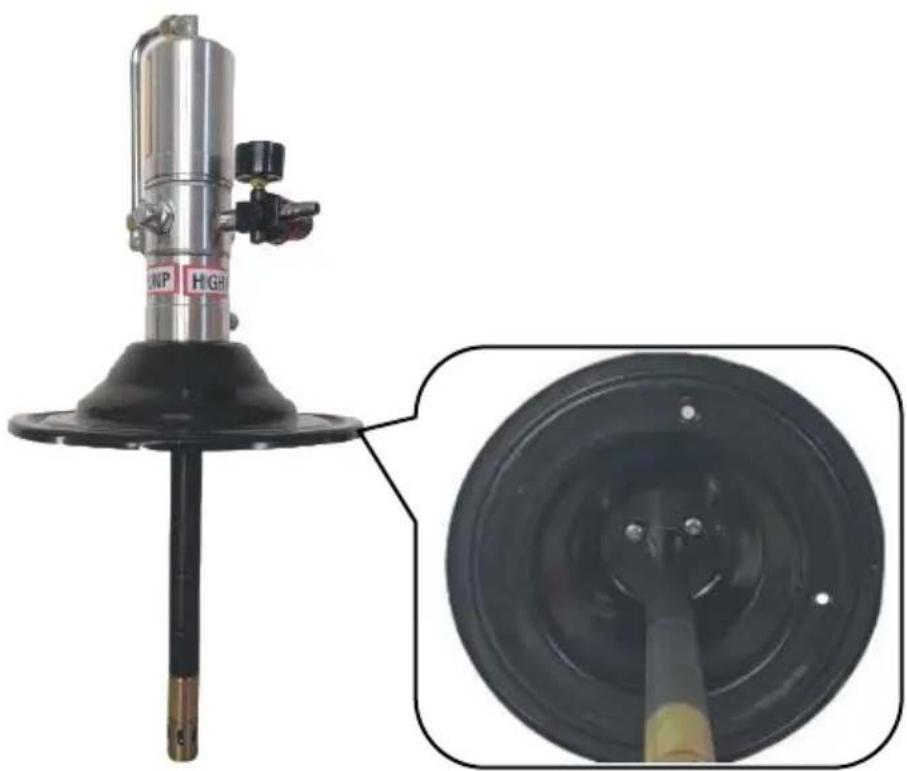

Step1: Install the grease bucket cap.Tighten the bolts on the back.

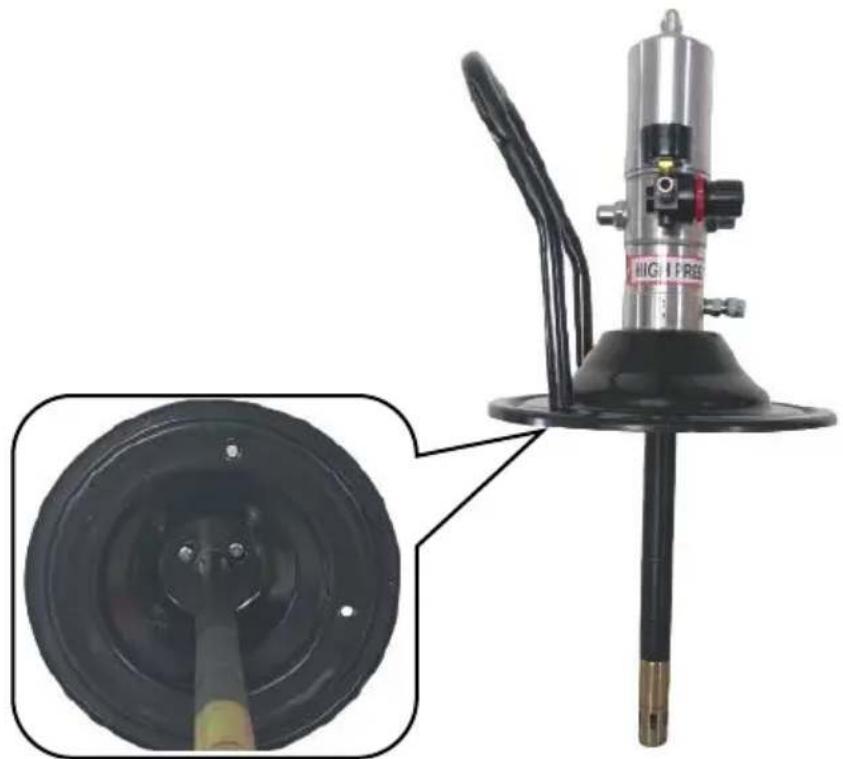

Step2: Install the handle.Tighten the bolts on the back.

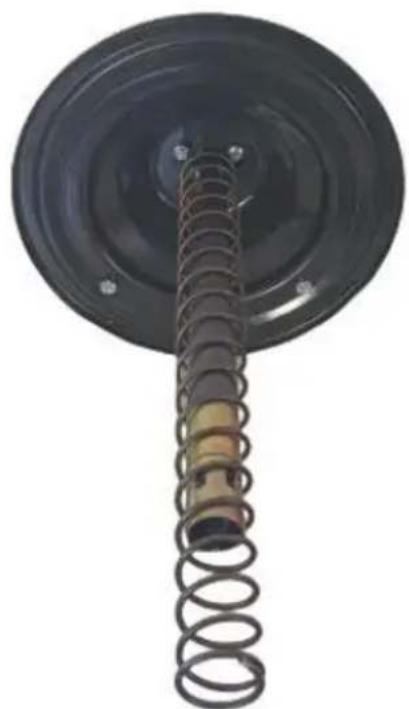

Step3: Install the spring.

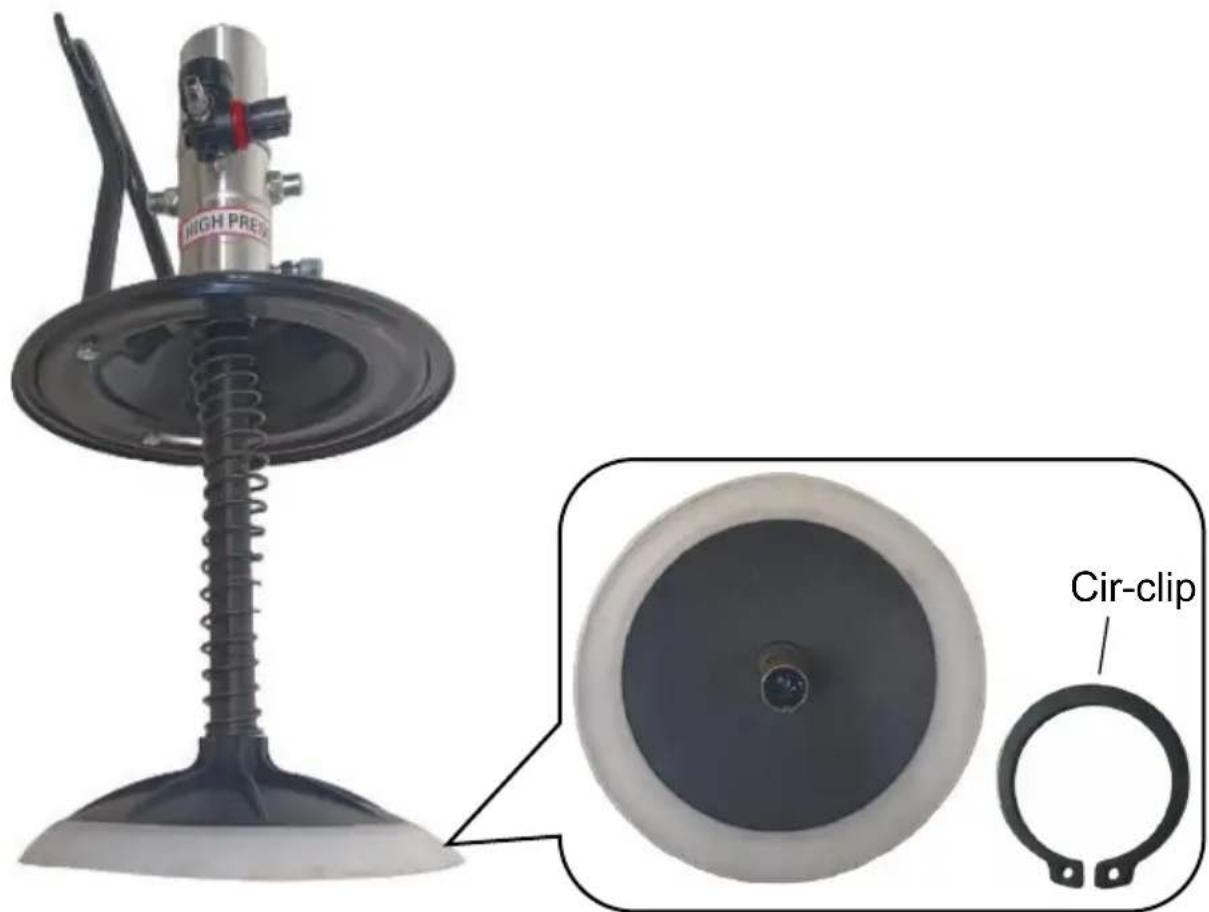

Step4: Install the suction cup, press down on the suction cup and lock with the cir-clip.

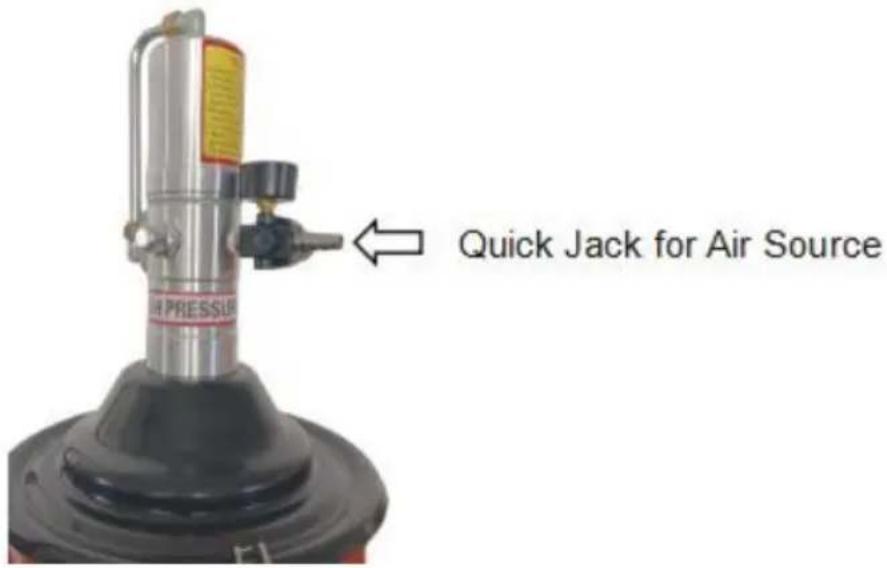

Step5: Connect the hose to the oil pump inlet and the oil gun to the end of the hose.Access the air source and adjust the intake pressure through the pressure valve.
Note: Wrap a few loops of raw material around the joint as needed.
MAINTENANCE
- The air entering the pump needs to be filtered to avoid dan the pump.
- When using the hose, avoid excessive bending and overloading the hose, as this can lead to damage.
- After using the product, please disconnect the gas source, and then clean the grease gun.
- Do not overload or idle the pump to avoid damage
- If the product is not used for a long time, please clean it thoroughly.
TROUBLESHOOTING
| Problem | Possible Cause | Possible Solution |
| Pump not working | The internal slide is loos | Install the charging plate and tighten the screws |
| outlet blocked | Check and clean the out | |
| grease viscosity is too high | Choose the right viscosity grease. 1~2# in Winter, 2# in Spring and Autumn, 2~3# in Summer. | |
| The oil output is abnormal | 1. The internal slide is n in the right place 2. Intake air pressure is often abnormal | 1. Adjust the internal slide position. 2. Make sure the air sup is normal and adjust the pressure valve |
| Grease leaks out | Check the seal ring for w | Replace the seal ring |
