USER MANUAL 1A-FS201 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

COMMERCIAL SLICER

MODEL:1A-FS201

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

COMMERCIAL SLICER

MODEL:1A-FS201

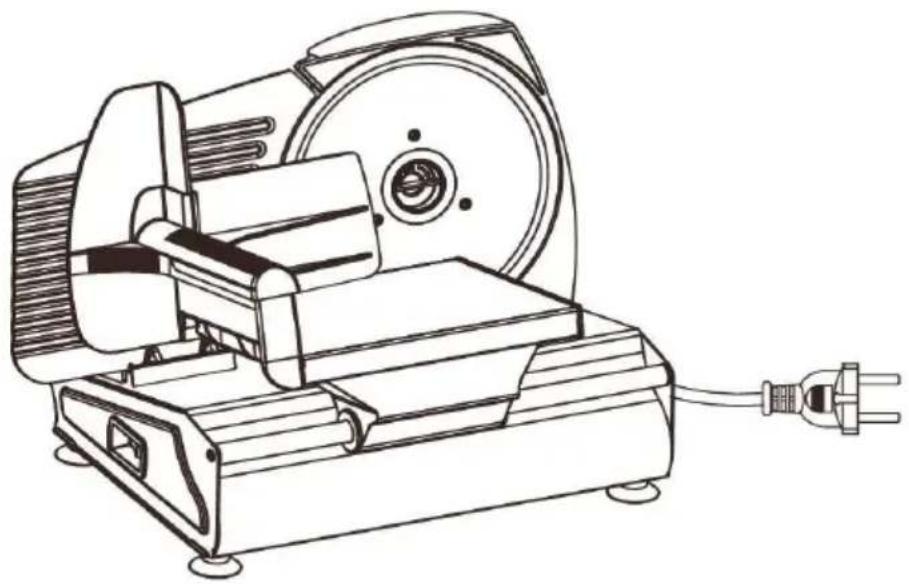

Technical line drawing of a mechanical device with a power outlet, showing internal components and mounting base (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

DESCRIPTION

This appliance is designed for slicing foodstuff, e.g. meat, cheese, vegetables, bread, etc.
The appliance is only intended for household indoor use. The appliance is not intended for any commercial or industrial use.
Do not use the appliance for other purposes. Any other use might to damage of the appliance or personal injury.
The manufacturer will accept no liability for damage or injuries resulting from improper use or non-compliance with this manual.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. CAREFULLY READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING.

2. The slicer must be connected to a 220V AC electricity supply.

3. Disconnect the power cord on the slicer; for cleaning, if the process appears to be malfunctioning; or when you're finished operating to appliance. To disconnect the device from the electricity supply, always pull directly on the plug - never pull the plug out using the power.

4. Indoor use only. Never allow this device to be exposed to rain or moisture. Do not submerge the appliance in water for any reason, the device should fall into water, ensure the device is disconnected from a power source, then and only then, remove the device from water. Afterwards, have the slicer examined by an authorized service center before further use.

5. Do not use the slicer if your hands are wet or if you are standing wet floor. Do not use the slicer if it is wet or moist.

6. The slicer is designed exclusively for domestic use and not for

commercial purposes.

1. Set up and store the slicer out of reach of children.

2. Do not leave the slicer unattended while the appliance is plugged

3. Always ensure that the slicer is safely set up or installed before begin operating.

4. The sliding feed table and piece holder should always be in place while appliance is in use, unless this is not possible due to the shape of the food. Do not use the slicer to slice through bones frozen food.

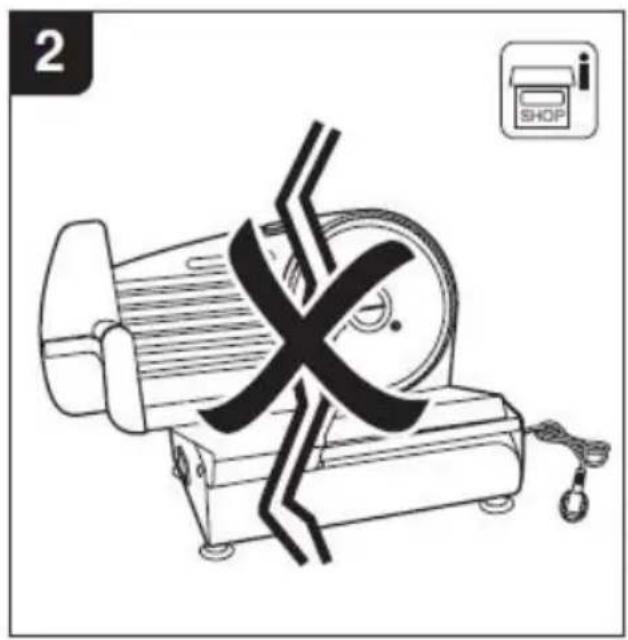

5. Do not use the slicer if it is damaged in any way. Have the sl repaired immediately at an authorized service center by qualified personnel.

6. Only use the slicer with the accessories supplied by the manufac

7. No claims under the guarantee or liability for damages will be ad if they result from improper or incorrect use of the slicer.

8. Switch off before reaching near the blade.

9. If the supply cord is damaged, it must be replaced by the manufacture of its service agent, or similarly qualified persons in order to avoid a hazard.

10. Always disconnect the appliance from the supply if it is left unatt before assembling, disassembling, or cleaning.

11. Keep the appliance and its cord out of reach of pets and children

12. Each operator should thoroughly read through this owner's manual before attempting to use this appliance. The operator should always be aware of the safety procedures mentioned in this manual.

13. This appliance is NOT intended for use by people (including child with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person response for their safety. Children should be supervised to ensure that they not play with the appliance.

14. Children shall not play with the appliance. The slicer is not a to SAVE THESE INSTRUCTIONS

OPERATION

WARNING! The appliance is suitable for a short time operation only. to operating times and speed settings for accessories within this instrument manual. Let the appliance sufficiently cool down if the housing becomes too hot. Only operate the appliance again, after it has cooled. Do not overload the appliance.

WARNING! Danger of injury! Care shall be taken when handling the sharp cutting blade, especially during assembly, disassembly and clean. Keep hands or fingers away from the rotating cutting blade. Always use food holder and food guide handle during operation.

Note: The cutting blade continues to rotate for a few seconds, after appliance is switched off. Wait until the cutting blade comes to a cor stop before removing the foodstuffs.

Note: Only slice food that is thawed, unpacked and free from bones. not slice frozen food, bones or extremely hard foodstuff.

Note: Always set the slice thickness selector to the position O after each use, during storage and transport.

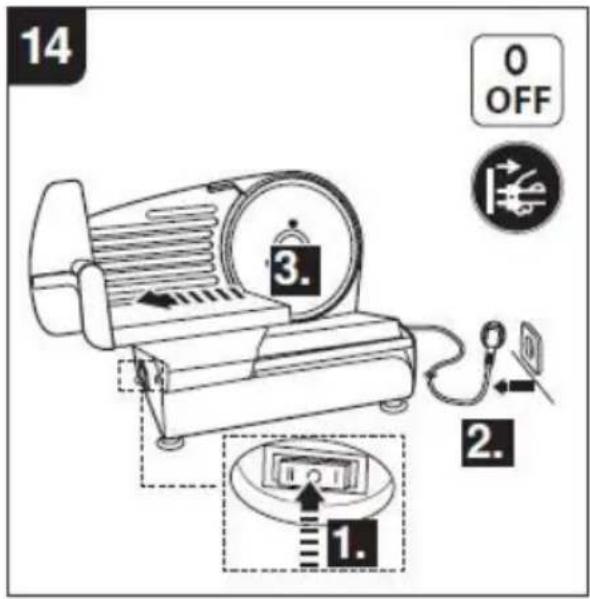

Note: During breaks from slicing, set the on/off switch to position O and wait until the cutting blade comes to a complete standstill.

Before First Use

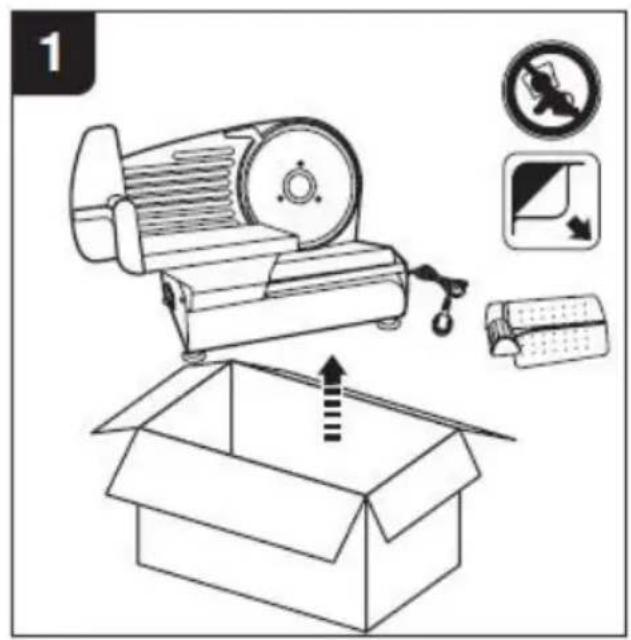

Carefully, take the slicer out of its packaging. Remove all the packag material and keep it together with the packaging. Clean the slicer bef comes into contact with any food.

Setting up the slicer

1. Never set the slicer up on a hot surface or near an open flame.
2. Make sure that the power cord does not pass over hot or sharp

3. Do not allow the power cord to become kinked or trapped. Do not around the slicer.

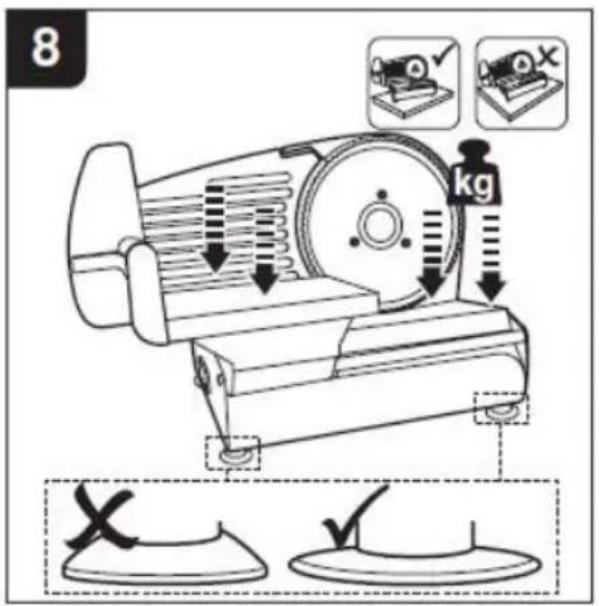

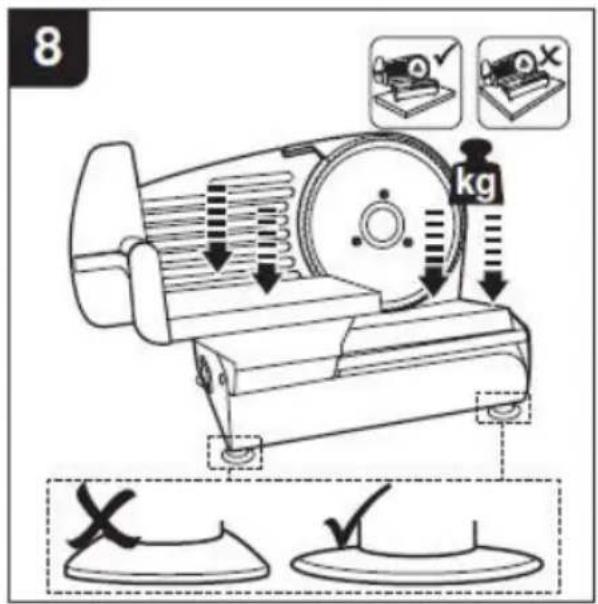

4. Set up the slicer on a flat, non-slip surface close to an electrical

5. Unwind the required length of power cord and plug the appliance i

proper electrical outlet.

- Push the piece holder (5) on to the sliding feed table (4).

Slicing

1. Never touch the blade while the slicer is on. Once the slicer is down, wait until the blade has stopped spinning before working near the blade.
2. Always use the piece holder (except perhaps for very large pieces food). Press the piece of food to be sliced forward using the piece holder.
3. Use the slicer only for slicing normal household foods and no other purposes. Do not use the slicer for slicing frozen foods, bones, fo with large kernels, or packaged foods.
4. Never use the slicer for more than 10 minutes continuously.
5. The cutting blade (3) continues to rotate after the slicer has been switched off.

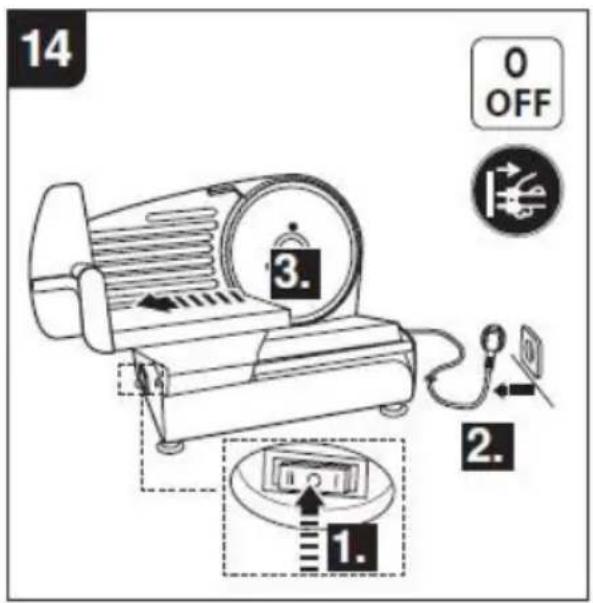

6. When finished using the appliance, always return the Thickness Selector to "0" before storing. Failure to do so may result in serious injury or chipping of the blade.

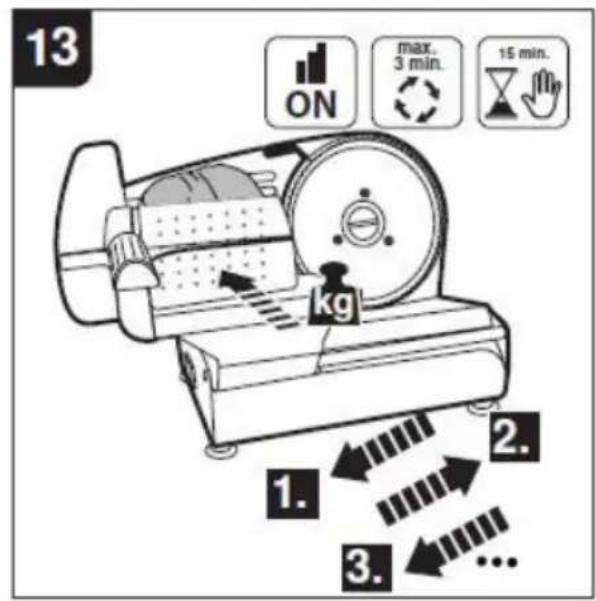

Operating the slicer

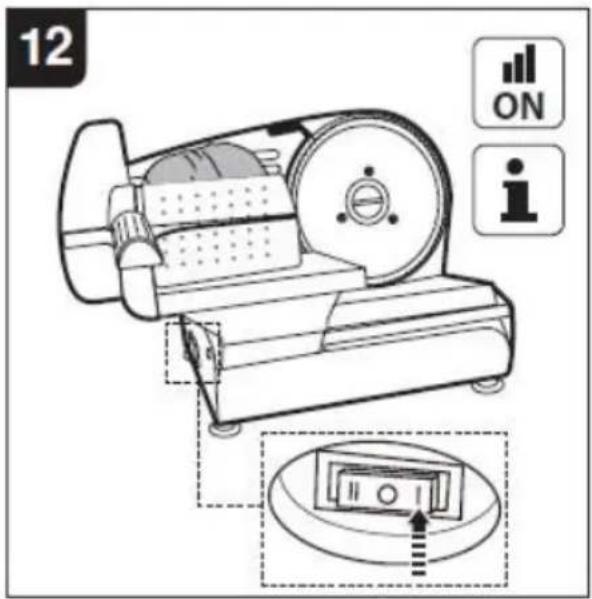

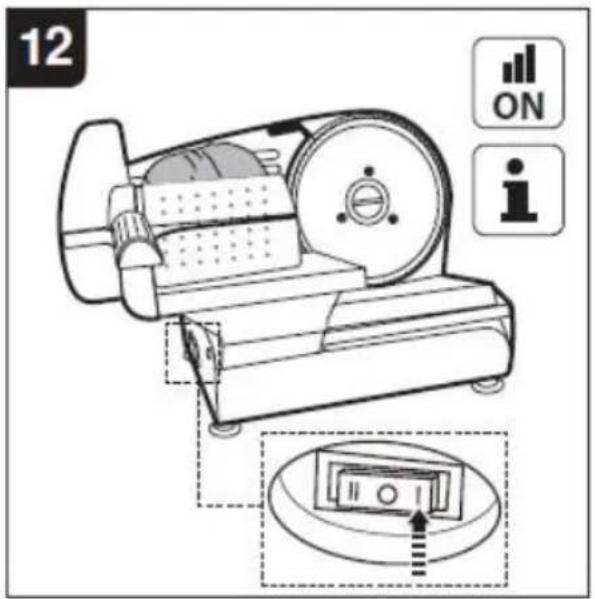

Switch the power to “ON” to power up the slicer. Ensure you do no for more than 10 minutes continuously.

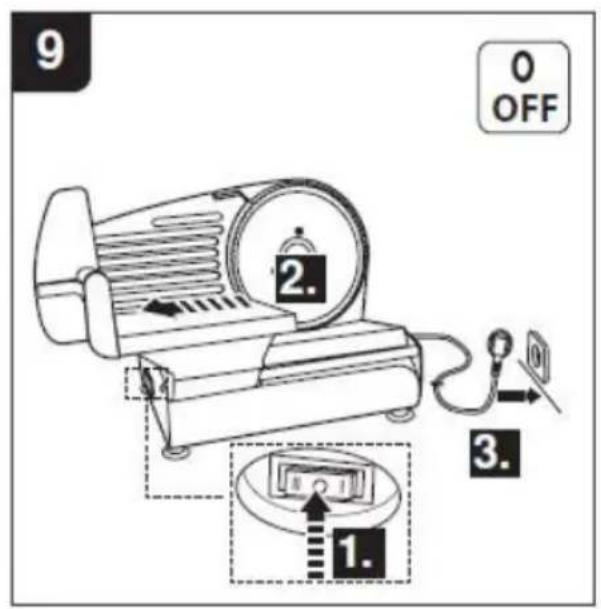

During breaks from slicing, move the switch quickly to the “OFF” pos and wait until the cutting blade comes to a complete standstill.

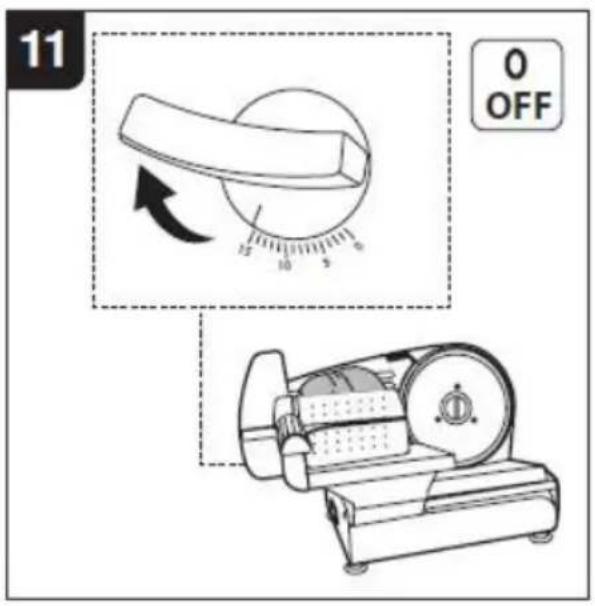

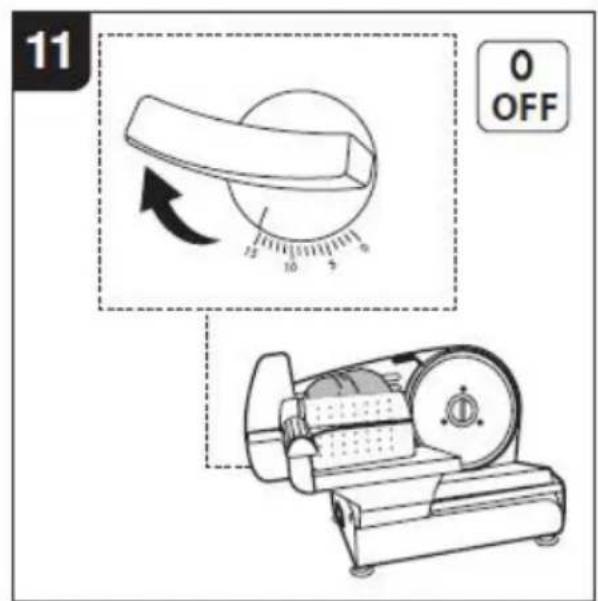

The slice thickness can be set between 0 and approximately 15mm. The required slice thickness using the knob (7). The settings on the s do not correspond with the slice thickness in mm. For safety reasons blade is covered when set to thickness level "0".

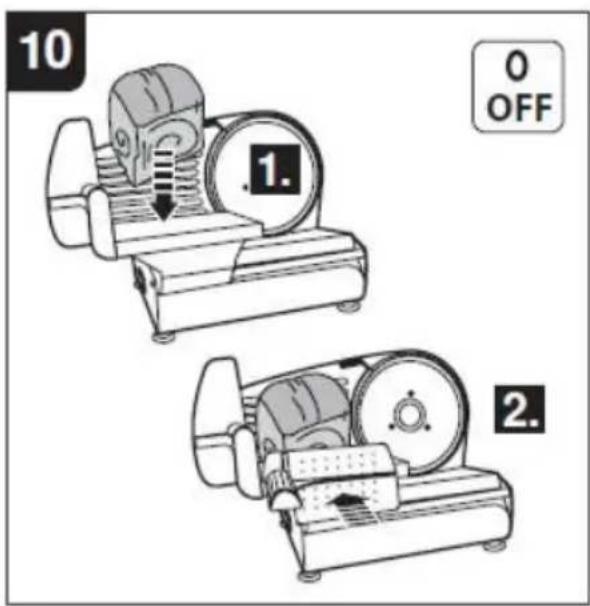

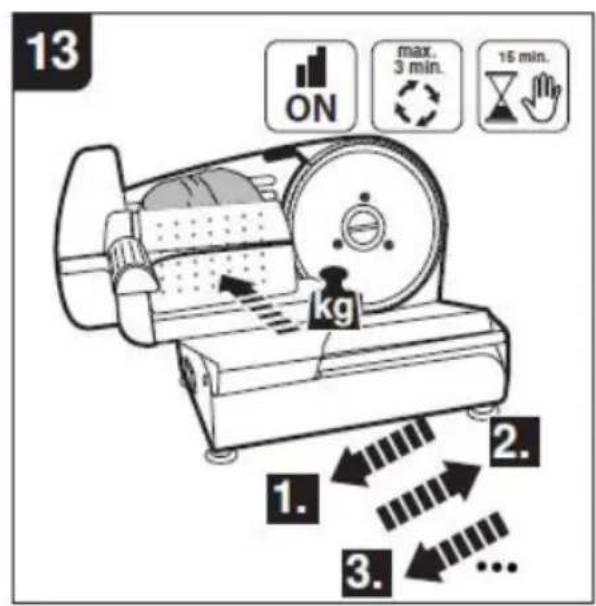

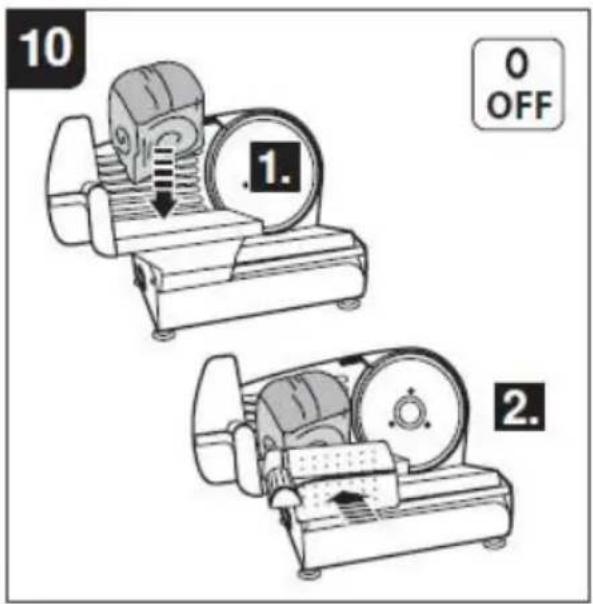

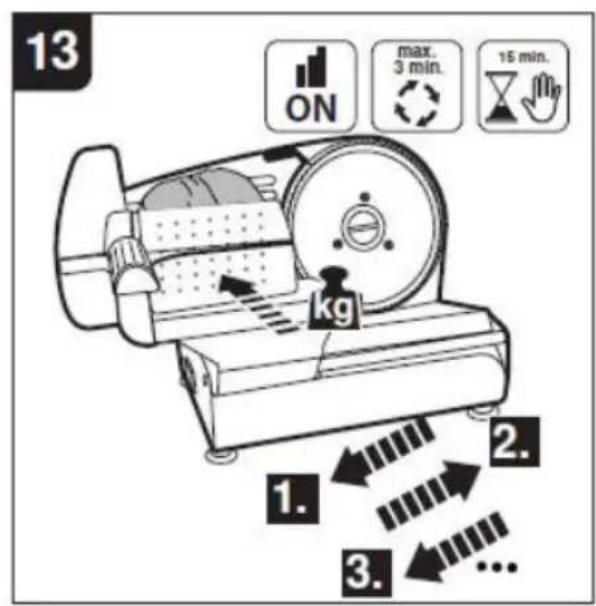

Place the food to be sliced on to the sliding feed table. Lightly, pres

food with the piece holder (5) against the food support plate (8). Sw device on and guide the food back and forth along the cutting blade while applying light, downward pressure on the piece holder (5). After the slicer, always set thickness to "0" so that the sharp blade is co\ The cutting blade (5) is ideally for cutting wafer-thin slices boiled ham cold-cuts. To safeguard your fingers, always use the sliding feed table and the piece holder (5).

AFTER USE

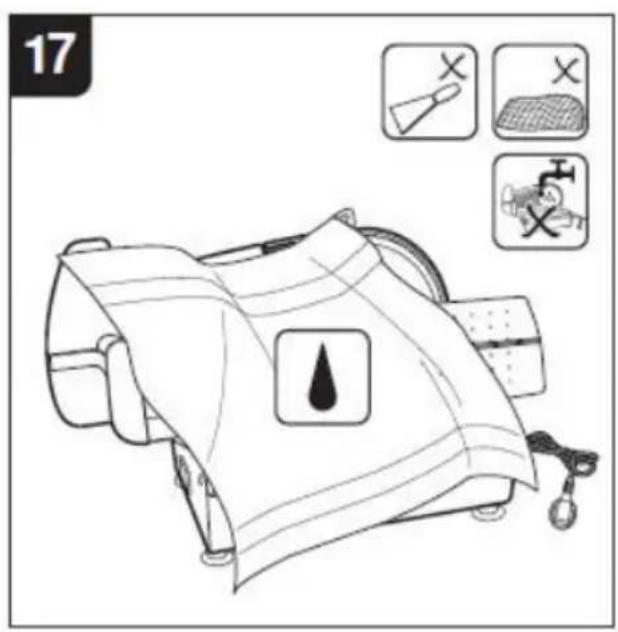

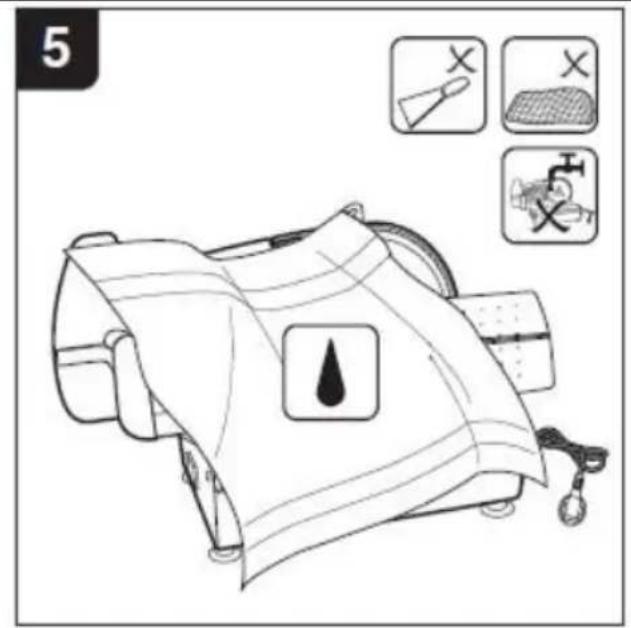

Cleaning

Note: Clean the appliance regularly to keep it in a safe and hygienic working condition.

Before cleaning, unplug the appliance and let it cool down complet
Do not clean the appliance with steel wool, strong chemicals, alkal abrasive or disinfecting agents as they may damage its surface.
Do not immerse the appliance in water or other liquids. Never hold appliance under running water. Make sure that no water enters the appliance while cleaning it and that the electrical parts do not be wet or damp.

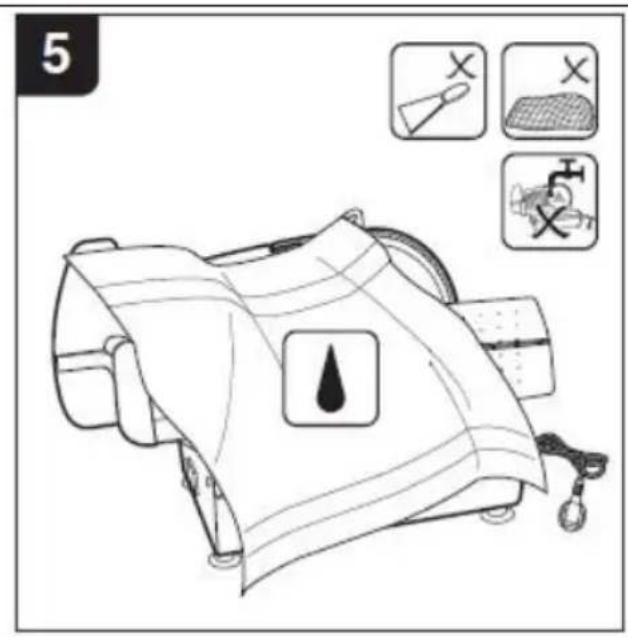

✿ Clean the inside and outside of the appliance with a soft damp cl Wipe with a dry soft cloth.

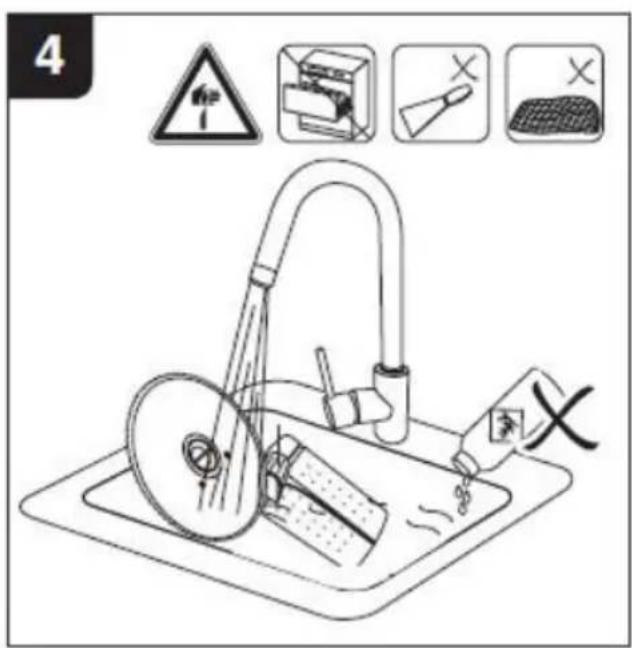

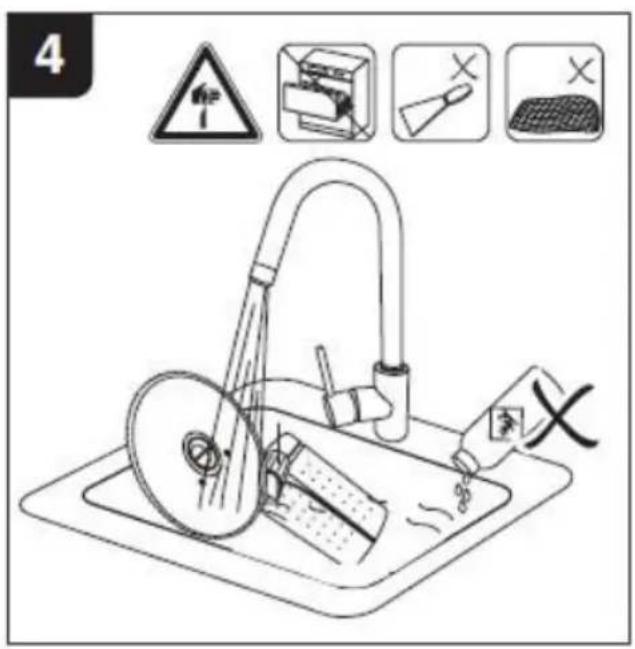

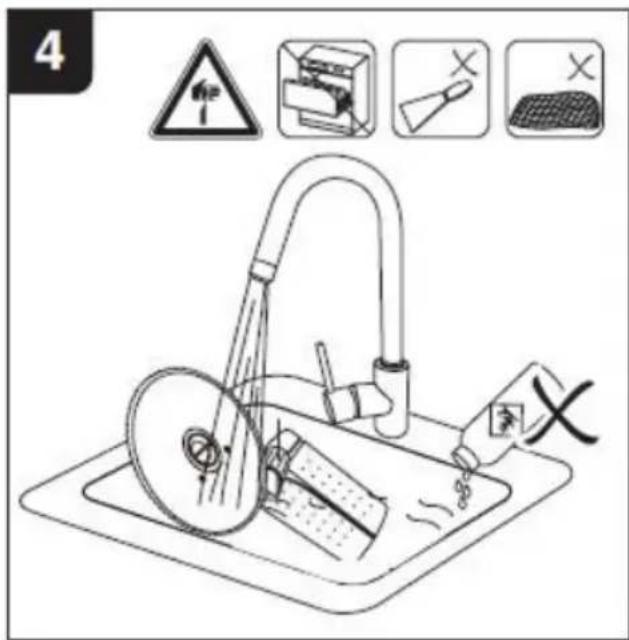

Clean the cutting blade and food holder with a soft sponge in wa soapy water. Wipe with a dry soft cloth.

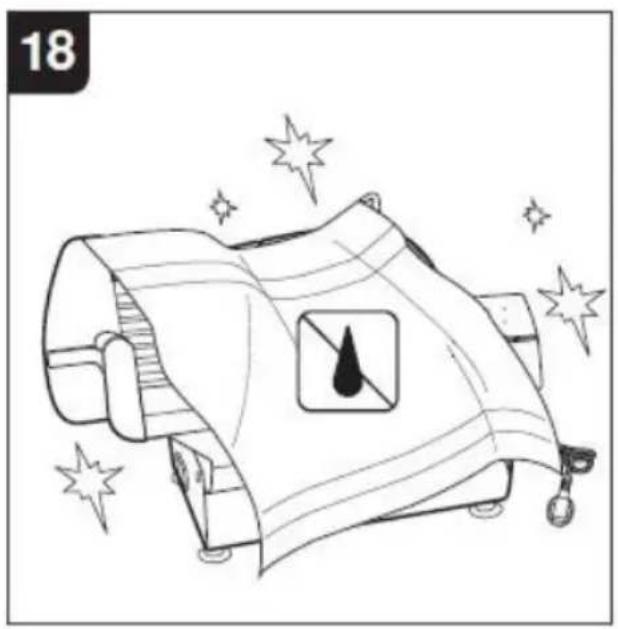

✨ The appliance may only be used again after it is dried completely.

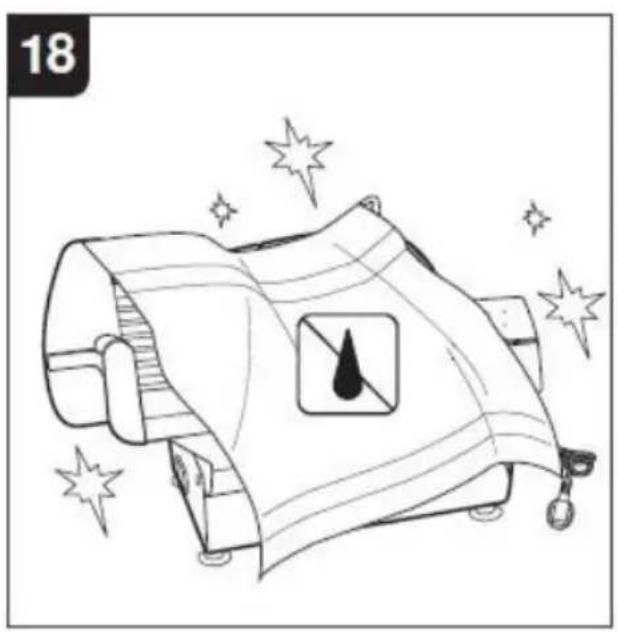

Storage

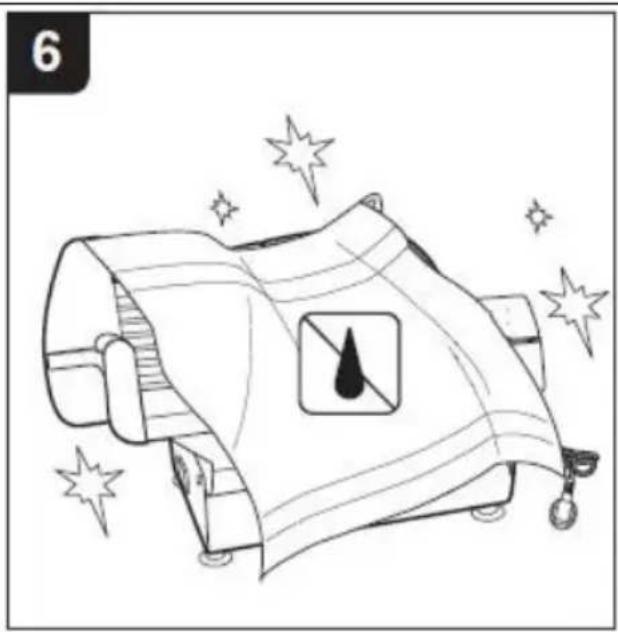

Before storage, always make sure that the appliance is completely and cooled down.
Store the appliance in a cool, dry place, protected from moisture at out of the reach of children.

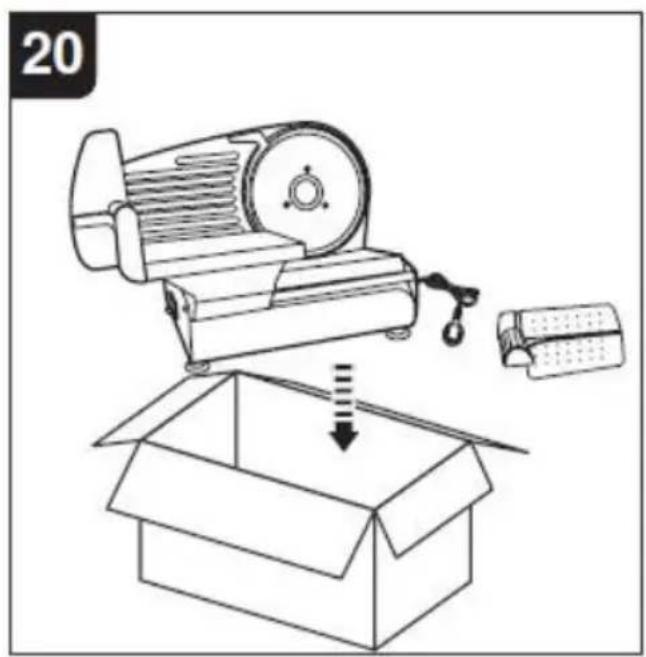

✧ Preferably store the appliance in its original packaging.

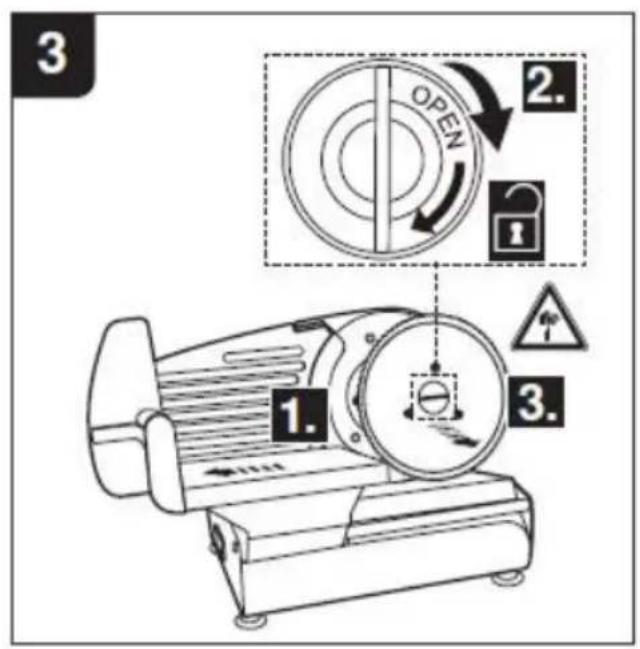

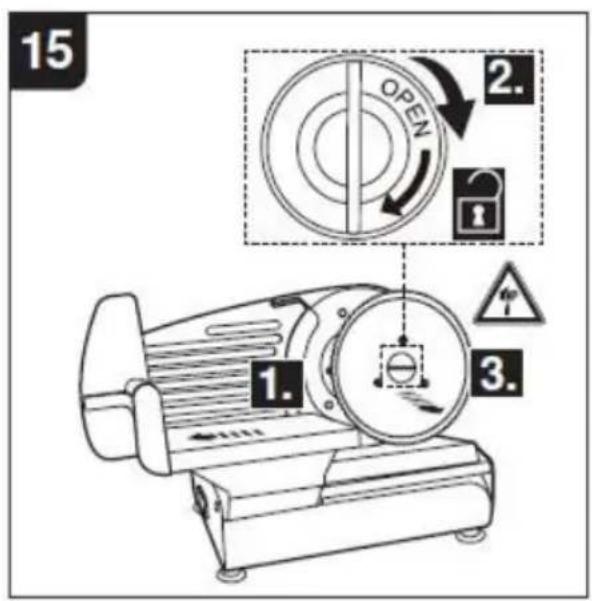

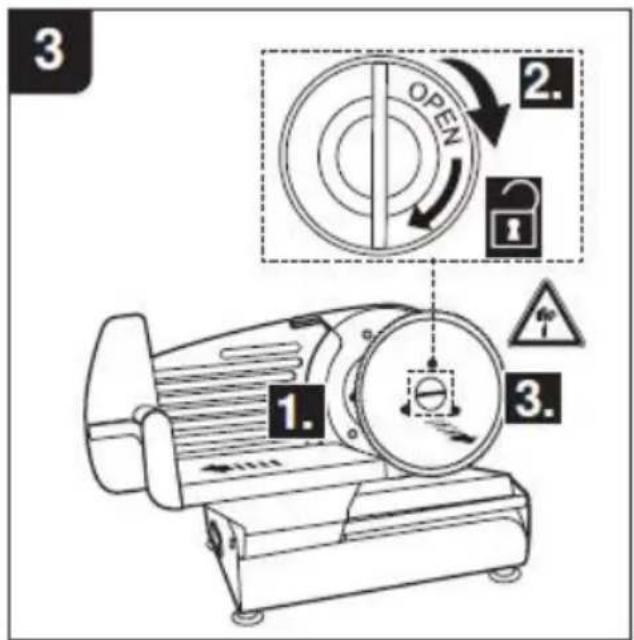

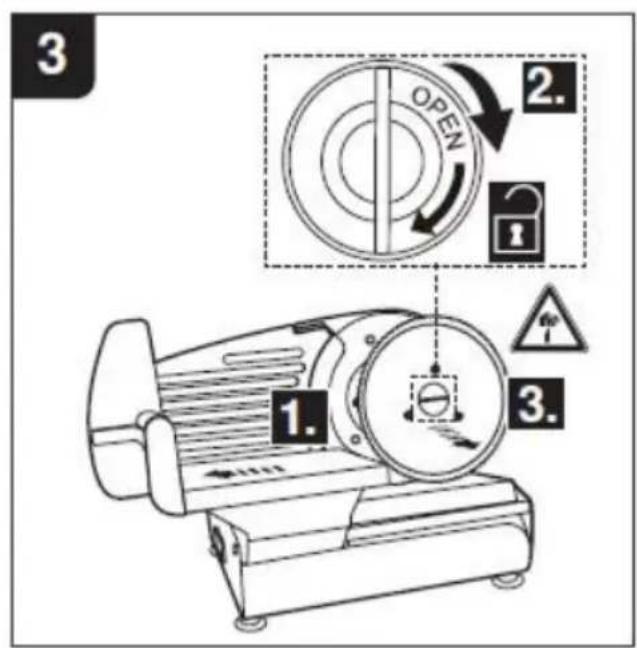

Removing the Cutting Blade

Rotate the locking piece in blade center clockwise, then pull out the blade. When taking out the blade, make sure that you handle it center. Hand-wash the blade in warm, soapy water (not in the dishwasher!). Clean the housing behind the blade with a dry cloth or brush. Do NOT submerge the appliance in liquid!

1

2 SHOP

3 OPEN 2. 1. 3.

4

5 X X T

Illustration of a decorative lamp with a water droplet symbol and sparkles (no text or symbols)

7 1. 2. 3. OPEN

8 kg

9 0 OFF 2. 3. 1.

10 1. 0 OFF 2.

11 0 OFF

12 ON i

13 ON max. 3 min. 15 min. kg 1. 2. 3.

14 0 OFF 3. 2. 1.

15 2. OPEN 3. 1. 2. 3.

16 X

17

Illustration of a stylized lamp with a droplet symbol and sparkles, no text or symbols present

19 3. OPEN 2. 1. 2.

Line drawing of an open box with a motor, showing mechanical components and a downward arrow (no text or symbols)
