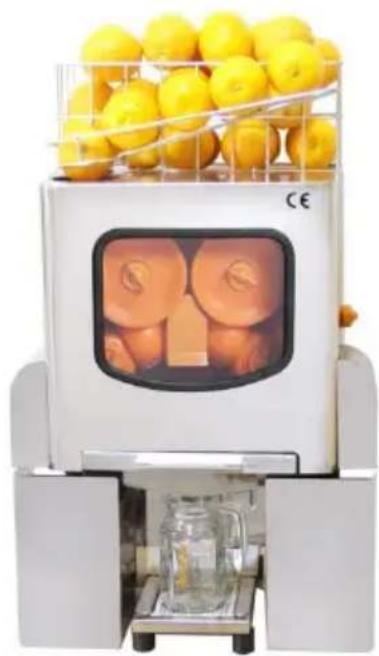

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of European Dire 2012/19/EC. The symbol showing a wheelie bin crosse through indicates that the product requires separate refu collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products ma as such may not be discarded with normal domestic wast must be taken to a collection point for recycling electrical electronic devices

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. There shouldn't be anything else on the counter.
2. There is no abnormal phenomenon after the power is switched on.
3. It must be placed on the horizontal plane in order to avoid danger due to shaking back and forth during use.
4. Do not plug the power cord into the socket when not in use. Please unplug the power cord after use and before cleaning or maintenance.
5. Please unplug the power of the machine before cleaning, assembling disassembling.
6. Do not place the product in the reach of children. Children should be supervised to ensure that they do not play with the appliance.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack

of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Don't unplug the machine before it stops operation.

2. If the supply cord is damaged, it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard

3. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.

4. WARNING! It is strictly prohibited to put the main body into the water clean. Only can be scrubbed with wet towel. The machine must be fully cool before cleaning.

5. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).

6. Avoid power cords damage. Do not squeeze, bend or friction it, keep away from heat sources and open fires. Power cord do not touch the black

7. Power cord should be laid fiat. Do not pull the power cord and make product fall down, which may cause damage.

8. Do not use the product on wet ground. Do not touch the product or power cord plug with wet hands.

9. Do not disassemble the product at will. Do not let something enter a insert into the product, which may cause damage.

10. Only accessories provided by the seller or manufacturer can be used for the product. We will not be responsible for any failure caused by the of accessories from other manufacturers, which are not covered by warranty.

11. Do not use the product on uneven, damp, not heat-resistant surfaces avoid damage or failure.

12. Do not place the product directly on the fire or near the source of fire, otherwise the product will be damaged or even result in danger.

13. When the plug is plugged into the socket, it must be plugged to the

otherwise it will cause the components overheating and burning due to poor contact.

1. Do not leave the product to work with no one watching. If the mach is overheating, please stop working immediately and unplug the power.
2. Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.
3. Please store the plastic bags and not allow children to play with their prevent a risk of suffocation.
4. It is prohibited to put the main body of the machine and the power into any liquid.

SAVE THESE INSTRUCTIONS

The juicer is made up of stainless steel shell, trans-parent plastic cover, food-grade plastic parts (Convex ball and Concave ball) and remaining collector. The structure is well-organized and rational. It is anti-corrosion, easy to wash. It could produce fresh and delicious juice in a few seconds after operation. It is an ideal machine to make juice and widely used in entertainments, restaurants and hotels.

4080mm oranges suitable for the juicer. The operation is simple and convenient. The juicer is small and easy to operate, it can produce instantly. The juice is original and tasty, green and trendy.

Please Read the Direction Before Operation:

1. Technical Parameters:

Auto Orange Juicer

1. Power Supply: 220V 50\~60HZ/110V 60Hz
   2.Power: 120W
2. Size of orange: 40-80mm
3. Output: 20 Oranges/Minute

2. Before operation:

1. The power supply must have the safety grounding system, and the

machine connection parts shall not be changed by self.

1. Check whether all parts are installed well. This product is equipped with safety system, only after the machine mask is correctly installed, it can work (whether the safety switch button is compressed), and otherwise it is difficult to start the machine.

2. Before first time using the product, please thoroughly clean the parts which contact with the food.

3. Operation process:

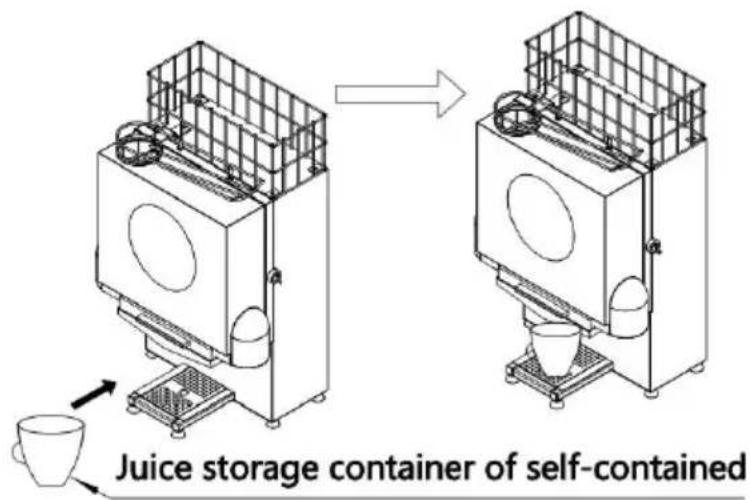

1. Put the juice storage container on the tray of the base (orange juicer 2000E user should self provide the juice container).

Juice storage container of self-contained

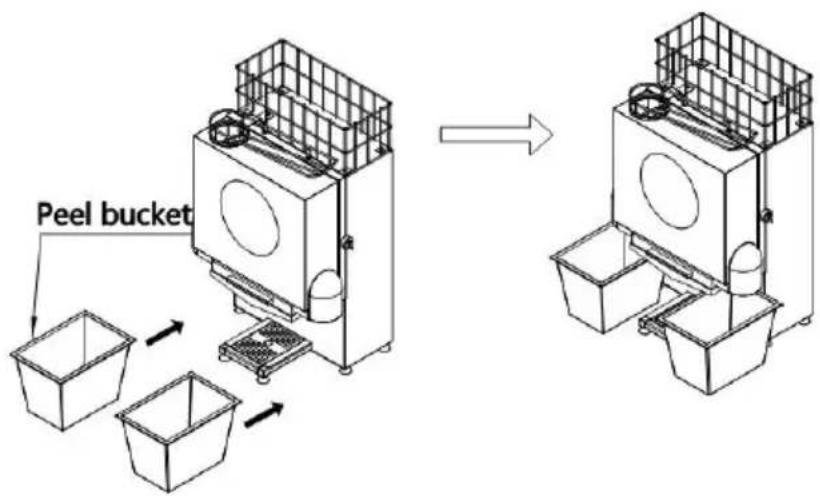

1. Put the fruit peel bucket in the two sides of the bottom of the machir body.

Peel bucket

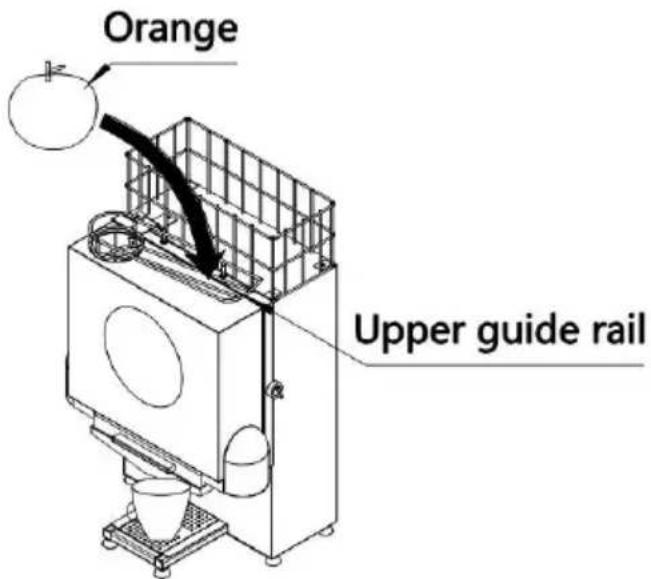

1. Pour the cleaned orange into the machine fruit basket.

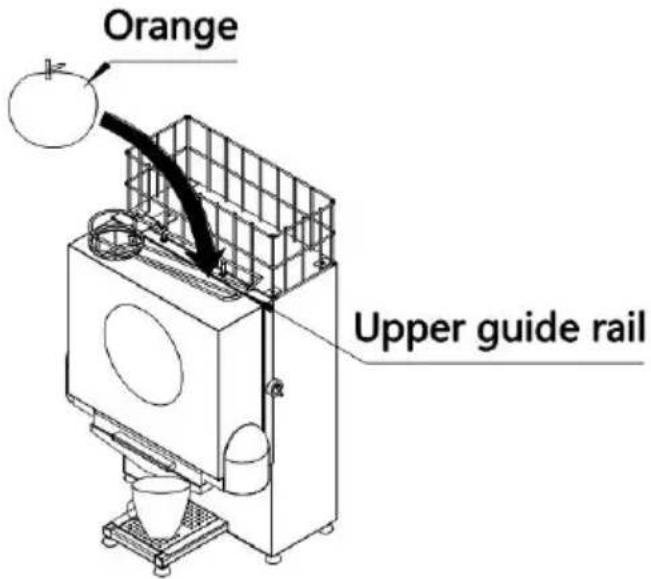

Orange Upper guide rail

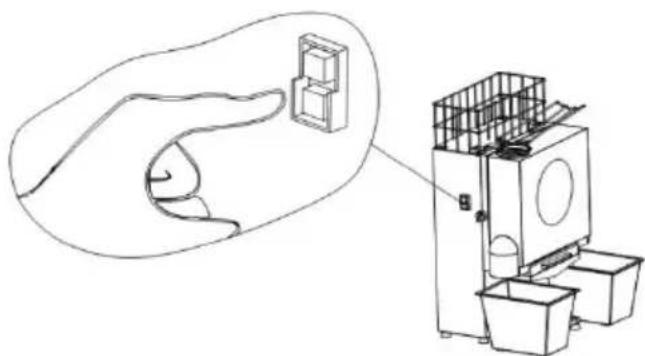

1. Switch on the machine and prepares work.

Illustration of a power outlet with a cable and plug, showing an upward arrow (no text or symbols)

1. Pressing the start switch (white 220V) or( green 110V) can feed the orange continuously into the feeding port (2000E needs artificial feeding), after out of the juice, the fresh orange juice will be discharged, and the peel is automatically separated to enter into the fruit peel bucket.

Line drawing of a hand interacting with a device, showing a magnified view of the hand (no text or symbols present)

1. When feeding, please do not insert the fingers or other objects into th

feeding port. If the juice storage container or the fruit peel bucket is filled, switch off the power supply and then clean it.

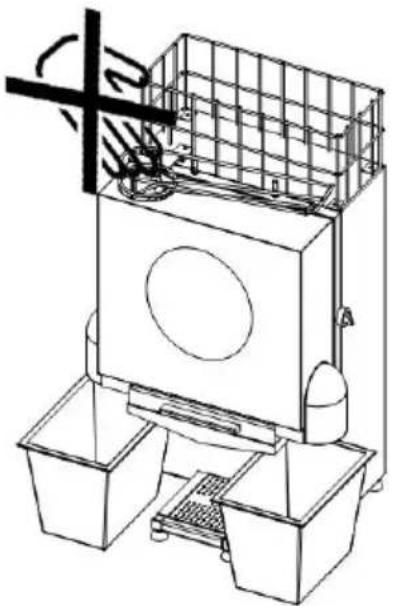

Line drawing of a kitchen appliance with a cage and side buckets (no text or symbols)

Prohibition sign with a hand holding a device and a diagonal line, indicating no protection or disapproval.

1. After the use of this machine is completed, turn off the switch, discon the power supply.

Hand holding a plug with three wires, no text or symbols visible

4. Maintenance and cleaning:

1. Before cleaning the product, the start switch must be turned off, disconnect the power supply, wait until the machine stops completely.

2. Clean the product immediately after using.

3. The external of the main body can be wiped with wet cloth, please d wash it with water directly, and the unloaded parts can be directly put into the water to clean.

4. Refer the following the steps below to disassembly the parts to clean: (1) Unscrew the cover screw, take down the cover.

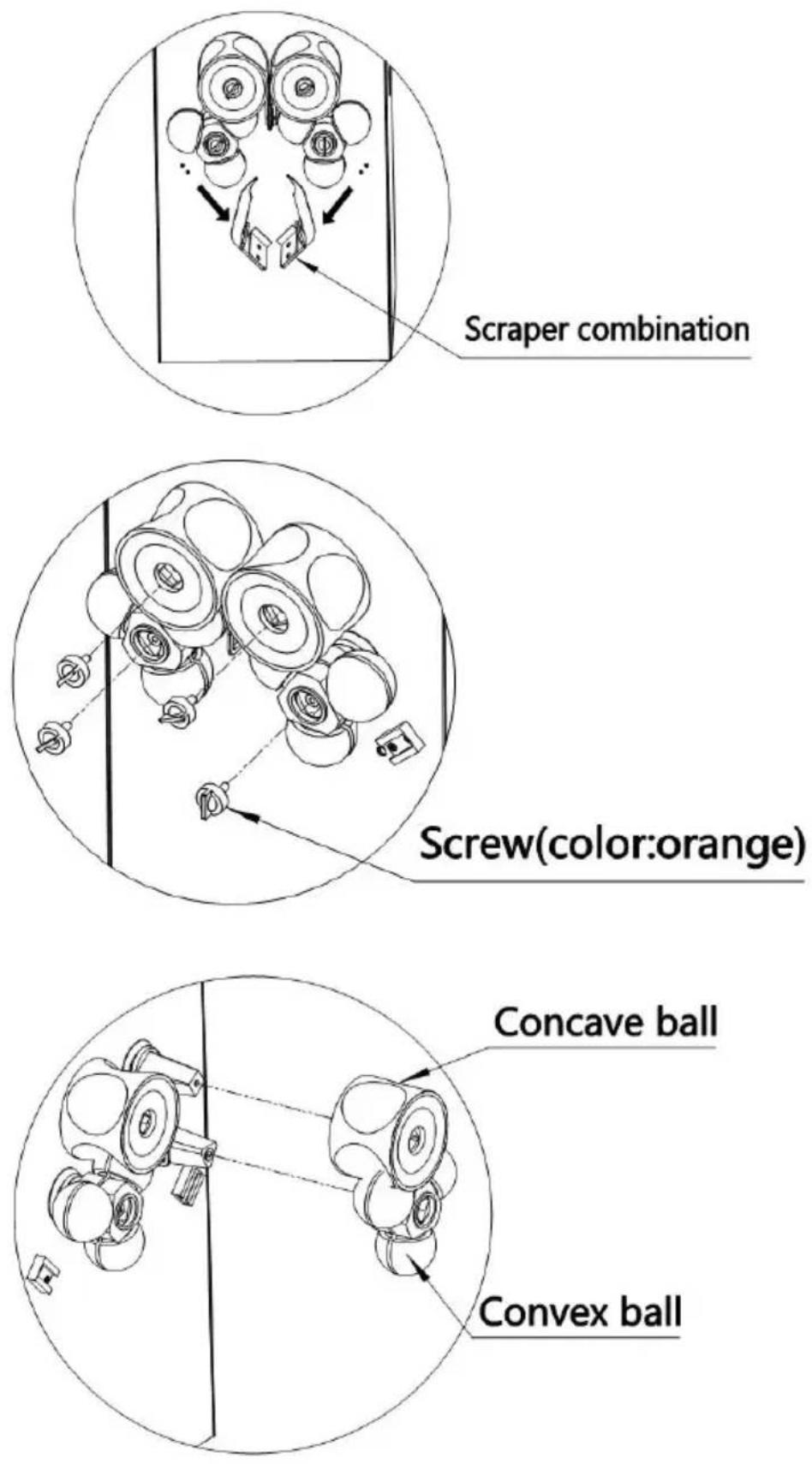

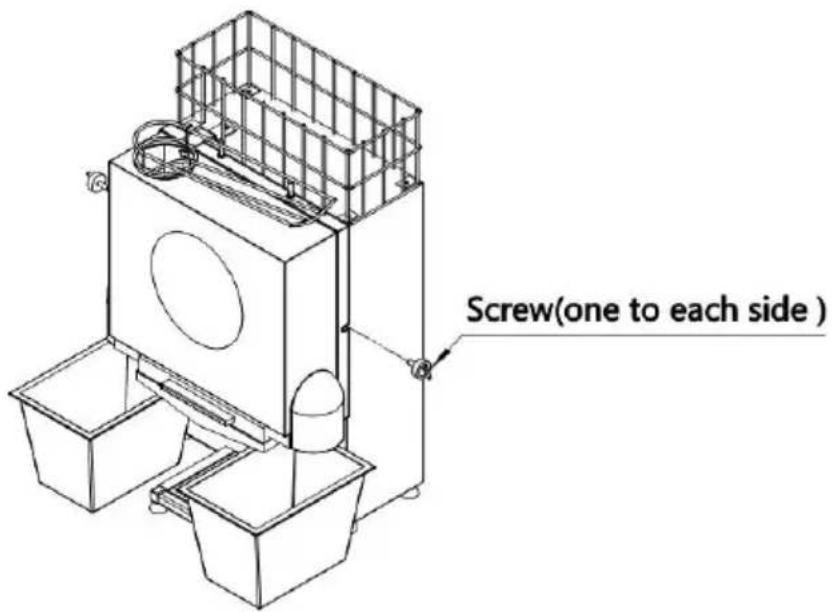

Screw(one to each side)

(2) In turn take down the knife combination (be careful the blade cutting hand), two groups of scraper combinations, unscrew the four screws, take down the two groups of concave and convex balls (each group of the concave and convex balls needed to be taken out at the same time).

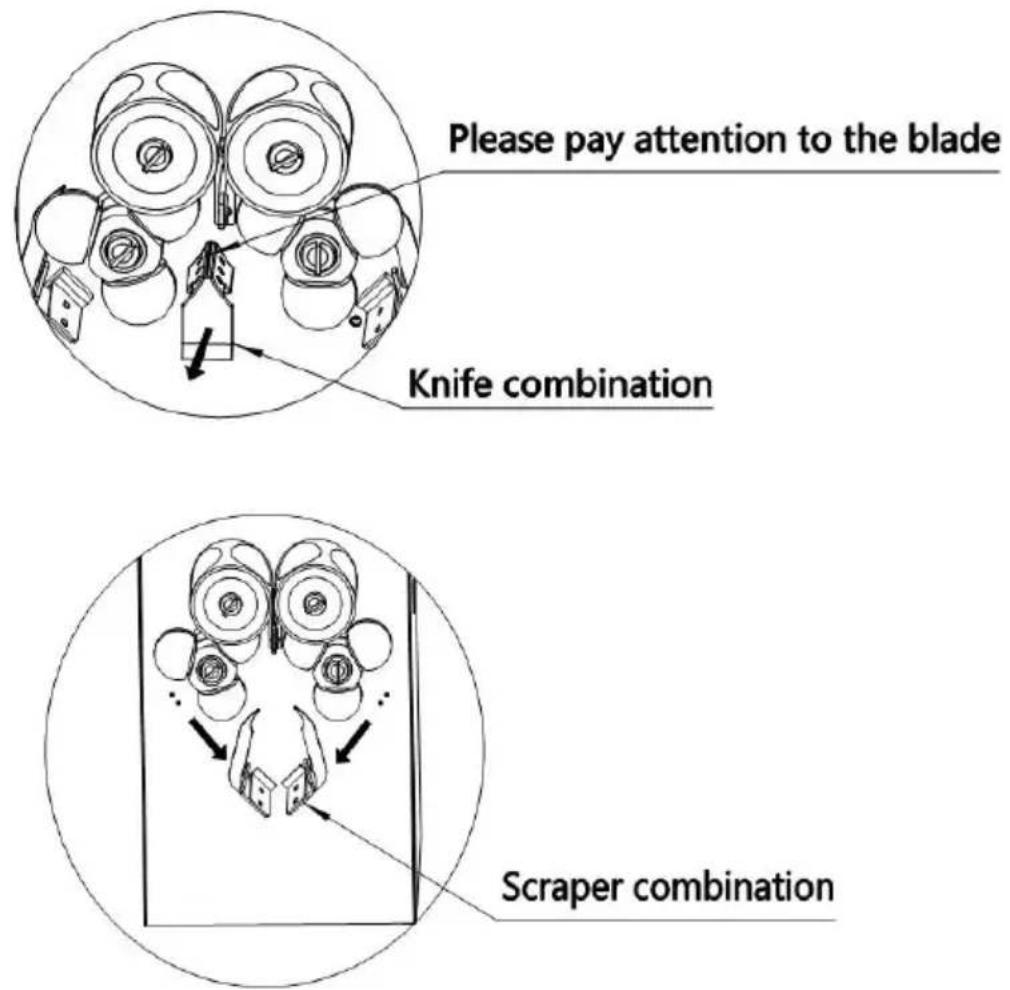

Please pay attention to the blade Knife combination Scraper combination

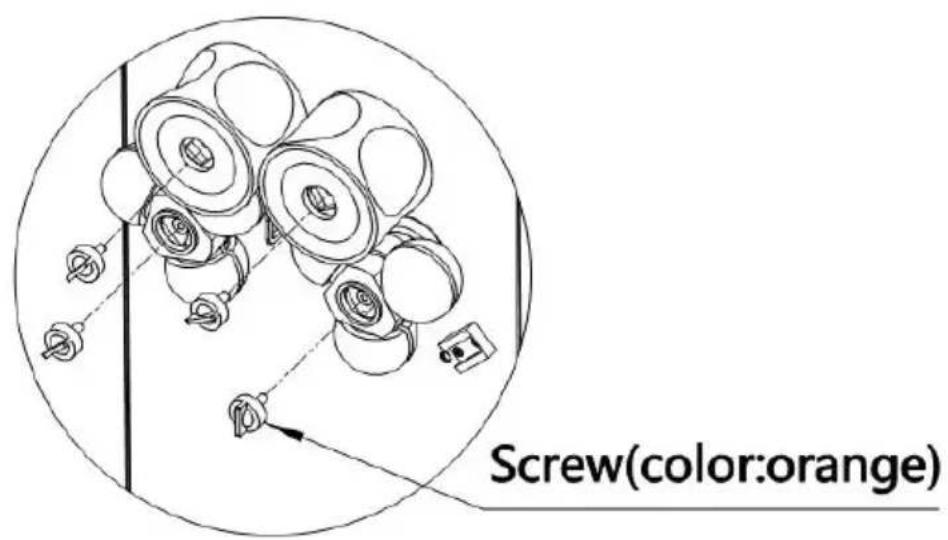

Screw(color:orange)

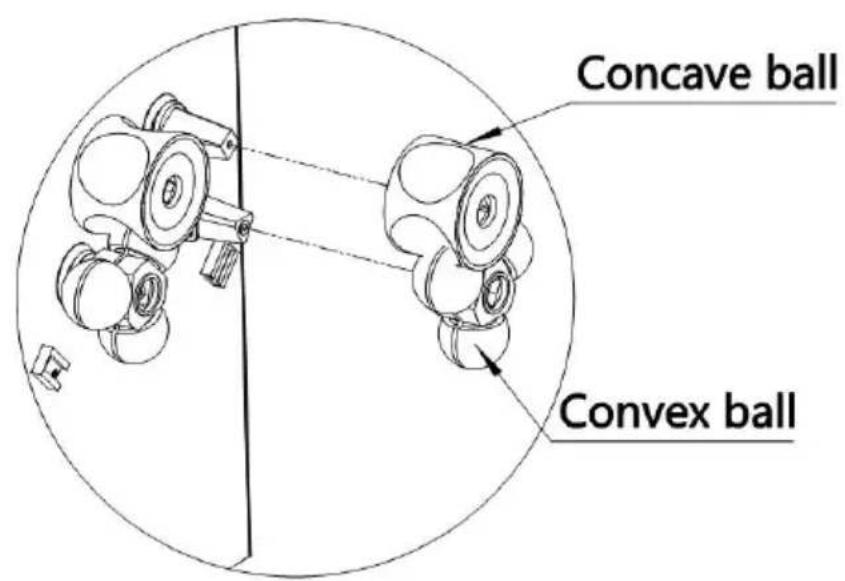

Concave ball Convex ball

(3) After the cleaning of the product is completed, re-install each part in the opposite order (especially pay attention whether the safety switch button is pressured).

5. Production troubleshooting and maintenance instruction

(1)Electrical fault

1. The safety switch does not work:

(1) Check whether the safety switch is in good condition;
(2) Check whether the safety switch is in the closed state.

For orange juicer 2000E, pressure safety switch button form the top of the cover.

2. The starting switch does not work:

(1) Check whether the starting switch is in good condition;
(2) Check whether the starting switch socket end is plugged.

3. Motor does not work:

(1) Check whether the socket at the two sides of the power line is tightened;
(2) Check whether the fuse is in good condition;
(3) Check whether the terminal in the motor switch box is solid connection.
(2) Mechanical failure:

1. The motor output shaft end bevel gear wheel transmission mesh

(1) Check whether the size of bevel gear wheel is damaged;
(2) Check whether the meshing positions of the big and small bevel gear wheel are correct, the adjustable small bevel gears wheel is rising to the correct meshing position and tighten the hex screws on the gear (when the small bevel gear wheel on the motor shaft position is moved down).

2. The damage of transmission cylindrical gear

(1) The size of transmission cylindrical gear is divided into a pair of large cylindrical gear
(Z = 52) , a pair of small cylindrical gear (Z = 39) .
(2) Iron gear is generally is tooth form damage
(3) If the cylindrical gear transmission has abnormal sound, it can be judged that the cylindrical gear is damaged, in the initial stage of the ge-damaged, the machine work must be stopped immediately, the damaged gear must be replaced, otherwise it will affect the relative position of the working parts of machine, thus aggravates the damage of the gear, and until damage the electrical machine and the working surface of the and concave and convex balls.

Replace the method of cylindrical gear:

A. Remove the damaged cylindrical gear and the elated parts according to the assembly sequence

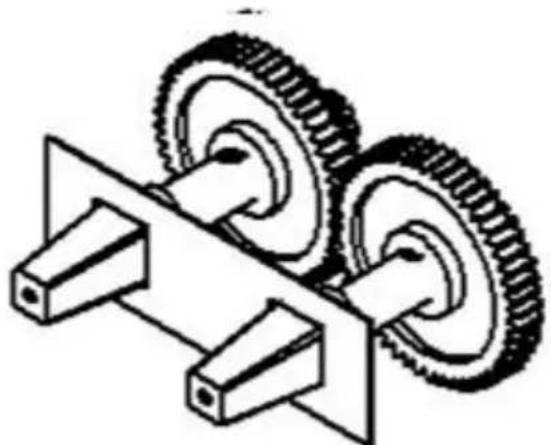

B. Use two square hole templates lock the upper two of four corner angle shaft parallels( figure 1), and then install two big cylindrical gears

Mechanical gear assembly diagram showing two connected gears mounted on a base (no text or labels)

(figure 1)

C. Remove the two square hole templates.

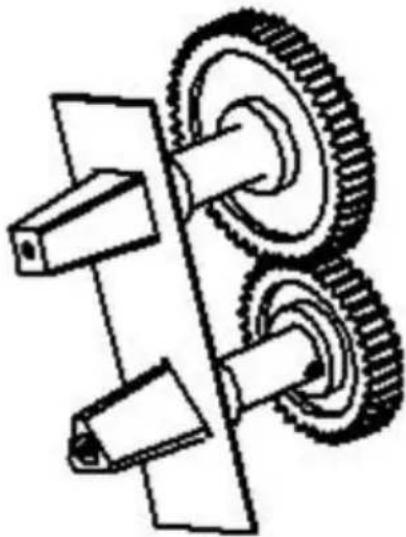

D. Use one square and a triangle template to lock the left (or right) up to four corner angle shaft and lower triangular shaft (figure 2) under the ridge axis, and then install the small cylindrical gear.

Mechanical gear assembly diagram showing interlocking gears and shafts (no text or labels)

(figure 2)

E. The installation method of the other side of the small cylindrical gear the same as D.

Address : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODÈLE : NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

Orange Upper guide rail

Illustration of a plug inserted into an outlet with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand interacting with a washing machine, showing a close-up of the hand and its internal components (no text or symbols)

Line drawing of a kitchen appliance setup with a grid basket and buckets (no text or symbols)

Prohibition sign with pictogram of a hand holding a device, crossed out by a diagonal line

Hand holding a plug with three pins, next to an open electrical outlet (no text or symbols visible)

Screw(one to each side )

Please pay attention to the blade Knife combination

Mechanical gear assembly diagram with two pulleys and two shafts (no text or labels)

(Figure 1)

Mechanical gear assembly diagram with no visible text or symbols

(Figure 2)

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODELL: NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

Orange Upper guide rail

Pure electrical outlet diagram showing a plug inserted into a socket with a cable, no text or symbols present

Line drawing of a hand interacting with a device, showing a magnified view of the hand and its internal components (no text or symbols present)

Line drawing of a kitchen appliance with a grid basket and two buckets (no text or symbols)

Prohibition sign with pictogram of a hand holding a device, crossed out by a red circle

Hand holding a power outlet plug with three wires inserted (no text or symbols visible)

Screw(one to each side)

Please pay attention to the blade Knife combination

Mechanical gear assembly diagram with two pulleys and two shafts (no text or labels)

(Abbildung 1)

Mechanical gear assembly diagram showing interlocking gears and shafts (no text or labels)

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODELLO: NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

Orange Upper guide rail

Illustration of a plug inserted into an outlet with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand interacting with a washing machine, showing a close-up of the hand and its internal components (no text or symbols)

Line drawing of a kitchen appliance setup with a grid basket and buckets (no text or symbols)

Prohibition sign with pictogram and diagonal line, indicating no liability or violation

Hand holding a power outlet with wires, no text or symbols visible

Screw(one to each side )

Please pay attention to the blade Knife combination

Mechanical gear assembly diagram showing two connected gears mounted on a base (no text or labels)

(Figura 1)

Mechanical gear assembly diagram showing interlocking gears and shafts (no text or labels)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODELO: NS-2000E-3

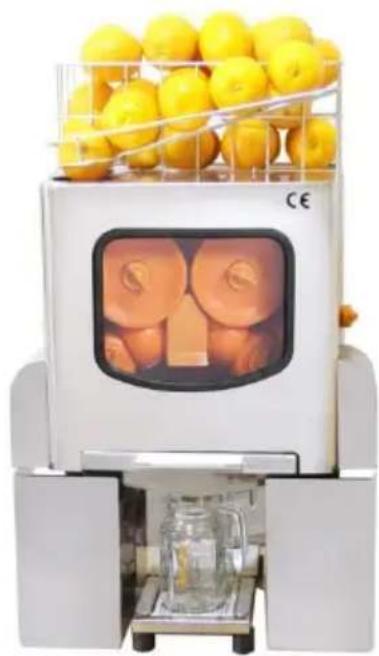

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

Orange Upper guide rail

Illustration of a plug inserted into an outlet with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand interacting with a washing machine, showing a close-up of the hand and its internal components (no text or symbols)

Line drawing of a kitchen appliance setup with a grid basket and two buckets (no text or symbols)

Prohibition sign with pictogram of a hand holding a device against a red circle, indicating no prohibition or disapproval.

Hand holding a power plug with three pins, no text or symbols visible

Screw(one to each side )

Please pay attention to the blade Knife combination

Mechanical gear assembly diagram showing two connected gears mounted on a base (no text or labels)

(Figura 1)

Mechanical gear assembly diagram with no visible text or symbols

(Figura 2)

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODEL: NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

Orange Upper guide rail

Illustration of a plug inserted into an outlet with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand interacting with a washing machine, showing a close-up of the hand and its internal components (no text or symbols)

Line drawing of a kitchen appliance setup with a grid basket and buckets (no text or symbols)

Prohibition sign with pictogram of a hand holding a device against a red circle, indicating no prohibition or disapproval.

Hand holding a power outlet plug with three pins, no text or symbols visible

Screw(one to each side)

Please pay attention to the blade Knife combination Scraper combination

Screw(color:orange)

Concave ball Convex ball

Mechanical gear assembly diagram with two pulleys and two blocks (no text or labels)

(rysunek 1)

Mechanical gear assembly diagram showing two connected components with no visible text or symbols

(Rysunek 2)

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SAP MACHINE

MODEL: NS-2000E-3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODEL: NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

1. Giet de schoongemaakte sinaasappel in de fruitmand van de machine

Orange Upper guide rail

Illustration of a plug inserted into an outlet with a blue arrow indicating direction (no text or symbols)

Line drawing of a hand interacting with a washing machine, showing a close-up of the hand and its internal components (no text or symbols)

Line drawing of a kitchen appliance setup with a grid basket and buckets (no text or symbols)

Prohibition sign with pictogram of a hand holding a device against a red circle, indicating no prohibition or disapproval.

Hand holding a power outlet with wires, no text or symbols visible

Screw(one to each side)

Please pay attention to the blade Knife combination

Mechanical gear assembly diagram with two pulleys and two shafts (no text or labels)

(Figuur 1)

Mechanical gear assembly diagram showing interlocking gears and shafts (no text or labels)

(Figuur 2)

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODELL: NS-2000E-3

White industrial machine with fruit basket and glass jar, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Juice storage container of self-contained

Peel bucket

1. Häll den rengjorda apelsinen i maskinens fruktkorg .
