Product Type	Sugar Cane Juice Extractor
Brand	Vevor
Model	YF-L100
Rated Power	800 W
Voltage / Frequency	220-240 V~ 50/60 Hz or 115 V~ 60 Hz
Working Efficiency	300 kg/h
Input Size	62 mm (2.4 inches)
Body Material	Stainless Steel
Roller Material	Stainless Steel
Number of Rollers	3 or 4 (depending on version)
Pressure Regulation	Automatic Sizing Function
Transmission	5 gears for energy saving
Approx. Dimensions (L x W x H)	50 x 30 x 40 cm
Approx. Weight	20 kg
Included Accessories	Juice collection tray with stainless steel filter, cup tray, pusher
Maintenance	Lubricate gears and chain every 2 months
Safety	Emergency stop, unplug before cleaning, never immerse
Use	Hotels, restaurants, supermarkets, juice shops

Frequently Asked Questions - YF-L100 Vevor

How to install the juice collection tray?

Insert the juice collection tray (with its stainless steel filter) into the designated slot on the machine. Make sure it is firmly locked in place.

Can the machine be used without the filter?

No, the filter is essential to retain the pulp and obtain clear juice. Using it without the filter may damage the appliance and reduce juice quality.

How to clean the extractor after use?

First unplug the appliance. Disassemble the removable parts (tray, filter, cup tray) and wash them with warm soapy water. Do not immerse the motor. Dry all parts before reassembling.

What is the required voltage for the YF-L100 model?

The YF-L100 is available in 220-240 V~ 50/60 Hz or 115 V~ 60 Hz versions depending on the country. Check the rating plate before connecting.

Can I use an extension cord?

No, using an extension cord is not recommended. Always plug directly into a grounded wall outlet.

How to reverse the rotation direction of the rollers?

Press the stop button to turn off the machine, then press the FW button for forward rotation. Do not change direction while the machine is running to avoid damage.

What is the maximum capacity of the machine?

The working efficiency is 300 kg per hour. Do not exceed this capacity to prevent overheating.

Can other foods besides sugar cane be inserted?

No, this extractor is designed exclusively for sugar cane. Inserting other foods may damage the rollers and void the warranty.

How to lubricate the gears?

Every two months, remove the chain guard and apply suitable lubricating oil to the gears and chain. Be careful not to get oil on the electrical base.

What should I do if the machine does not start?

Check that the outlet is functional and the switch is set to ON. Ensure the power cord is not damaged. If the problem persists, contact Vevor customer service.

USER MANUAL YF-L100 Vevor

Sugarcane Juice Machine

Model: YF-L90/YF-L80/YF-L100

VEVOR

Sugarcane Juice Machine

MODEL: YF-L90/YF-L80/YF-L100

YF-L90 YF-L80 YF-L100

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

	Warning-To reduce the risk of injury, user must r instructions manual carefully.
	Keep children away from the machine for fear of o

This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal waste, but must be taken to a collection point for electrical and electronic devices.

WARNING: Before operating this device, please read this instruction manual completely and keep it handy for future reference.

Always follow basic safety precautions when using these devices. These include:

READ ALL OPERATING INSTRUCTIONS AND PRODUCT SAFETY LABELS! FAILURE TO FOLLOW ALL INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE!

1. CHECK FOR DAMAGED PARTS: Before using the machine, check whether all parts work normally and perform the expected functions. Check for alignment, binding, and installation of moving parts, and any other conditions that may affect the operation. If any parts are damaged, contact the Customer Service number shown in this manual.

1. Always unplug the power cord from the outlet when not in use, before putting on or taking off parts or accessories, and before cleaning.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
3. Wait until all moving parts have stopped and turn off power before removing any part from the machine.
4. DO NOT operate the electrical equipment with a damaged cord or plug, or after the unit malfunctions. DO NOT ATTEMPT TO REPLACE THE

CORD. Call Customer Service to arrange to return the machine for examination, repair, or adjustment. 6. DO NOT pull the power cord to disconnect. 7. DO NOT USE WITH EXTENSION CORD. Always plug directly into a grounded wall receptacle. 10. To reduce the risk of unintentional starting, check that the control is OFF before plugging the cord into wall outlet. To disconnect, turn the controller to OFF, then remove plug from wall outlet. 11. NEVER plug the machine in where water may flood the area. 12. To protect against risk of electrical shock, DO NOT submerge the machine in water or other liquids. Be sure the grinder is disconnected from the power source before cleaning. 13. The use of attachments or parts not specifically recommended or sold by the manufacturer for this product will void the warranty and may cause fire, electric shock or injury. 14. DO NOT use the machine for other than intended use. 15. The Manufacturer disclaims any responsibility in the case of improper use of the machine. Improper use of the machine voids the warranty. 16. DO NOT REMOVE WARNING LABELS FROM THE

MACHINE. Doing so will void the product warranty and may result in serious personal injury.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
2. Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAVE THESE INSTRUCTIONS!

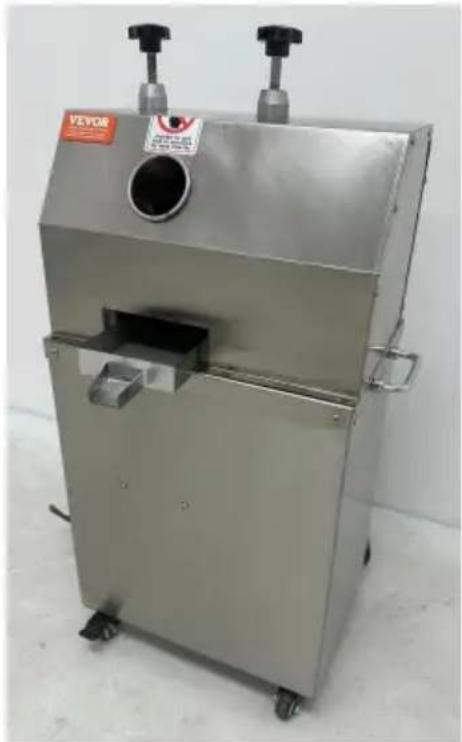

PRODUCT PRESENTATION

This type of Sugarcane Juice extractor is very popular with users all over the world. It is designed with 5-grade gear transmission for less power consumption, driven by durable motor and controlled by pressing button. It has 3-4 stainless steel rollers, can crush the cane to very perfect. With a stainless steel body and 3-4 castors, this particular model offers better appearance and convenient use to juice shop owner anywhere. It also can be used in hotel, restaurant, supermarket etc.

SIZE OF PRODUCT

Model	Voltage / frequency	Power rating	Pressure governing	Work efficiency	Inlet size	Accessory
YF-L80	AC115V 60Hz	750W	manual operation	300kg/h	62mm (2.4inch)	bark knife* 2pcs
	220-240V ~ 50/60Hz	750W		300kg/h	62mm (2.4inch)
YF-L90	AC115V 60Hz	800W	NO	300kg/h	62mm (2.4inch)
	220-240V ~ 50/60Hz	800W	NO	300kg/h	62mm (2.4inch)
YF-L10 0	AC115V 60Hz	800W	Automatic sizing function	300kg/h	62mm (2.4inch)
	220-240V ~ 50/60Hz	800W		300kg/h	62mm (2.4inch)

NOTE: Work efficiency: It can crush 300kg of sugar cane per hour.

PAY SPECIAL ATTENTION TO

- The machine must be turned off before SHIFTING direction. Failure to follow this safety rule will damage the unit seriously and void your warranty.

• Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.
• Always keep children away from this machine, PROHIBIT children to operate the machine.
• Never touch the RUNNING Parts or insert ware into the machine. • Always unplug when assembling or disassembling the unit.
• Never insert hands inside the entrance, use a food pusher when the rolled into the feed entrance if necessary.
• Press the Off switch once to turn off the machine. Press the FW switch to turn on the machine in the forward direction. Pressing it multiple times may damage the machine.
• Do not insert anything except the cane; failure to follow this rule will damage the machine.

INSTRUCTION

Before Use

1. Make sure that the voltage and frequency indicated on the nameplate are the same as your local supply. And the external earthing wire must be reliably connected.
2. Electrical connection must be made by a qualified person in accordance with codes and regulations.
3. Ensure that the switch is off before plugging in the unit.

Assembly

1. Insert the juice collection pan (with a stainless steel filter) into the entrance correctly.
2. Assemble the cup tray on the motor housing with two screws (screw into the hole of the body).
3. Tighten the two locking knobs on top of the body, but not too tight for better working effect.

warranty.

Step 1. Wash the cane first.

Step 2. Cut the cane into short pieces.

Step 3. Plug in the machine.

Step 4. Turn on the unit before inserting the cane into the entrance.

Step 5. After use, clean the unit and unplug it.

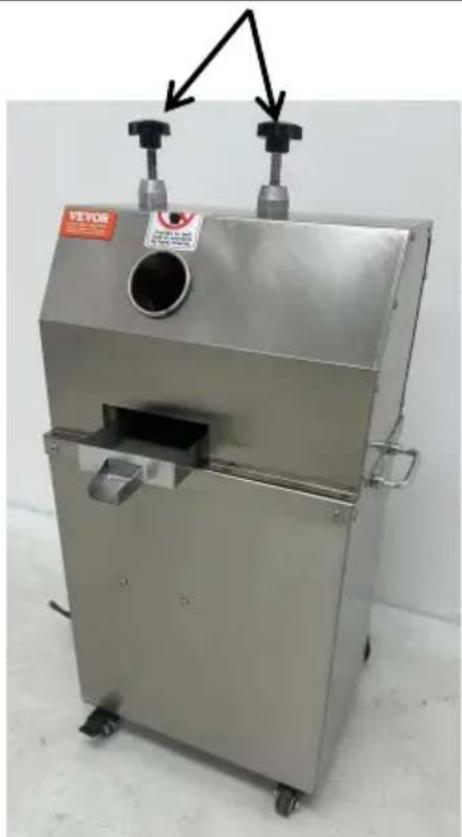

Please check the height of the two pressure adjusting rods before juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

1. Adhere to the regular maintenance schedule. Disassemble the guard every other month to apply lubricating oil to the chain gear.
2. The body is equipped with a grounding screw. If the end of the grounding screw is rusted or has oil dirt, it should be cleaned in time.
3. Strictly follow the steps for maintenance.
4. Pay attention to prevent oil and water from entering the base, and clean it.
5. After the end of the work, perform timely cleaning and maintenance.

VEVOR

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

YF-L90 YF-L80 YF-L100

PRODUCT PRESENTATION

Please check the height of the two pressure adjusting rods before juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

YF-L90 YF-L80 YF-L100

PRODUCT PRESENTATION

Please check the height of the two pressure adjusting rods before juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

Model YF-L90 Model YF-L80 Model YF-L100

PRODUCT PRESENTATION

Please check the height of the two pressure adjusting rods before juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

YF-L90 YF-L80 YF-L100

PRODUCT PRESENTATION

Please check the height of the two pressure adjusting rods for juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

YF-L90 YF-L80 YF-L100

PRODUCT PRESENTATION

Please check the height of the two pressure adjusting rods for juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE

Sugarcane Juice Machine

Model: YF-L90 / YF-L80 / YF-L100

VEVOR

Sugarcane Juice Machine

MODEL: YF-L90 / YF-L80 / YF-L100

YF-L90 YF-L80 YF-L100

PRODUCT PRESENTATION

Assemble or disassemble.

Please check the height of the two pressure adjusting rods before juicing, otherwise it will affect the juicing effect.

CARE AND MAINTENANCE
