NS-2000E-4P - Juicer Vevor - Free user manual and instructions

Product Type	Juice extractor (automatic citrus press)
Brand	Vevor
Model	NS-2000E-4P
Power Supply	220 V ~ 50 Hz
Power	120 W
Suitable Orange Size	40 to 80 mm diameter
Output	Up to 20 oranges per minute
Main Materials	Stainless steel housing, transparent plastic lid, food-grade plastic parts
Functions	Automatic feeding, automatic tap, fruit counter (reset by pressing ON for 3s)
Safety	Safety switch (front cover), automatic stop if cover or tap is incorrectly installed (display E1/E2)
Maintenance	Clean immediately after use; wipe main body with a damp cloth, removable parts washable with water
Spare Parts	Peeler included; replaceable bevel and spur gears
Warranty	Electronic warranty certificate available at www.vevor.com/support
Usage	Indoor only, on a horizontal surface

Frequently Asked Questions - NS-2000E-4P Vevor

What types of fruit can I use with this extractor?

The juicer is designed for oranges with a diameter of 40 to 80 mm. It is not suitable for hard or unpeeled fruits.

How do I start the machine?

Ensure the front cover is properly installed (safety switch pressed) and the automatic tap is in place. Plug in the power, press the ON button, then press the tap to start extraction.

What to do if the display shows E1 or E2?

E1 indicates the front cover is not correctly installed. E2 indicates the automatic tap is not correctly installed. Check their position and reinstall them.

How to clean the appliance?

Unplug the appliance and wait for it to stop completely. Wipe the main body with a damp cloth. Removable parts (lid, filter, etc.) can be washed with water. Never immerse the motor unit in water.

Can I use accessories not provided?

No, only accessories provided by the manufacturer or seller are recommended. Using third-party accessories may damage the appliance and void the warranty.

What to do if the machine does not turn on?

Check that the cover is firmly closed (safety switch pressed), the tap is in place, the plug is connected, and the fuse has not blown. If the problem persists, contact technical support.

How to reset the counter?

Hold the ON button pressed for 3 seconds. The counter returns to 0000.

Is it safe to leave the machine running unattended?

No, never leave the machine unattended. If it overheats, stop it immediately and unplug it.

How to replace the gears?

If abnormal noise occurs, the bevel or spur gears may be damaged. Refer to the manual for disassembly steps and use templates for alignment. It is recommended to contact a professional.

Where can I find the full manual?

The full manual in PDF format is available free of charge on notice-facile.com. You can also download it from the Vevor support website: www.vevor.com/support.

USER MANUAL NS-2000E-4P Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

JUICE MACHINE

MODEL:NS-2000E-4P

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODEL:NS-2000E-4P

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Indoor Use Only
	CORRECT DISPOSALThis product is subject to the provision of European Dire 2012/19/EC. The symbol showing a wheelie bin crosse through indicates that the product requires separate refu collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products ma as such may not be discarded with normal domestic wast must be taken to a collection point for recycling electrical electronic devices

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. There shouldn't be anything else on the counter.
2. There is no abnormal phenomenon after the power is switched on.
3. It must be placed on a horizontal surface to avoid danger due to shaking back and forth during use.
4. Do not plug the power cord into the socket when not in use. Please unplug the power cord after use and before cleaning or maintenance.
5. Please unplug the power of the machine before cleaning, assembling, or disassembling.
6. Do not place the product within the reach of children. Children should be supervised to ensure that they do not play with the appliance.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1. Do not unplug the machine before it stops operation.
2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
3. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by qualified maintenance personnel.
4. WARNING! It is strictly prohibited to put the main body into water for cleaning. Only can be scrubbed with a wet towel. The machine must be fully cool before cleaning.
5. Please check that the specified supply voltage in the product is consistent with the supply voltage (AC only).
6. Avoid power cord damage. Do not squeeze, bend, or friction it, keep away from heat sources and open fires. Power cord do not touch the black
7. Power cord should be laid flat. Do not pull the power cord and make product fall down, which may cause damage.
8. Do not use the product on wet ground. Do not touch the product or power cord plug with wet hands.
9. Do not disassemble the product at will. Do not let something enter or insert into the product, which may cause damage.
10. Only accessories provided by the seller or manufacturer can be used for the product. We will not be responsible for any failure caused by the use of accessories from other manufacturers, which are not covered by warranty.
11. Do not use the product on uneven, damp, not heat-resistant surfaces to avoid damage or failure.
12. Do not place the product directly on the fire or near the source of fire, otherwise the product will be damaged or even result in danger.
13. When the plug is plugged into the socket, it must be plugged to the

otherwise it will cause the components overheating and burning due to poor contact.

1. Do not leave the product to work with no one watching. If the machine is overheating, please stop working immediately and unplug the power.
2. Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.
3. Please store the plastic bags and do not allow children to play with them to prevent a risk of suffocation.
4. It is prohibited to put the main body of the machine and the power into any liquid.

SAVE THESE INSTRUCTIONS

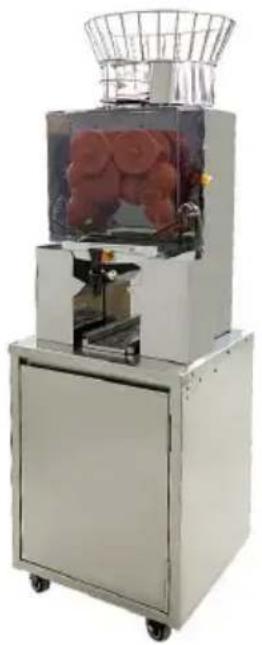

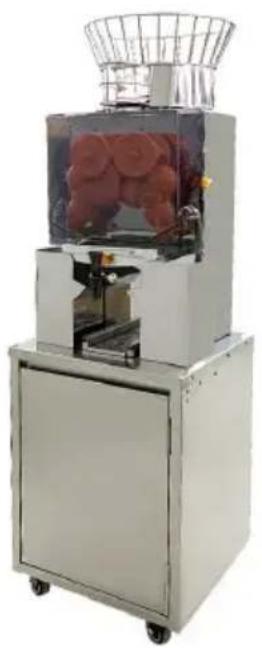

The juicer is made up of stainless steel shell, transparent plastic cover, food-grade plastic parts (Convex ball and Concave ball) and remaining collector. The structure is well-organized and rational. It is anti-corrosion, easy to wash. It could produce fresh and delicious juice in a few seconds after operation. It is an ideal machine to make juice and widely used in entertainments, restaurants and hotels.

Oranges with a diameter of 40 to 80 mm are suitable for the juicer. The operation is simple and convenient. The juicer is small and easy to operate, it can produce juice instantly. The juice is original and tasty, green and trendy.

Please Read the Direction Before Operation:

1. Technical Parameters:

Auto Orange Juicer

1. Power Supply: 220V 50HZ 2.2.Power: 120W
2. Size of orange: 40-80mm
3. Output: 20 Oranges/Minute

2. Before operation:

1. The power supply must have the safety grounding system, and the

machine connection parts shall not be changed by self.

1. Check whether all parts are installed well. This product is equipped with safety system, only after the machine mask is correctly installed, it can work (whether the safety switch button is compressed), and otherwise it is difficult to start the machine.
2. Before first time using the product, please thoroughly clean the parts which contact with the food.

3. Operation process:

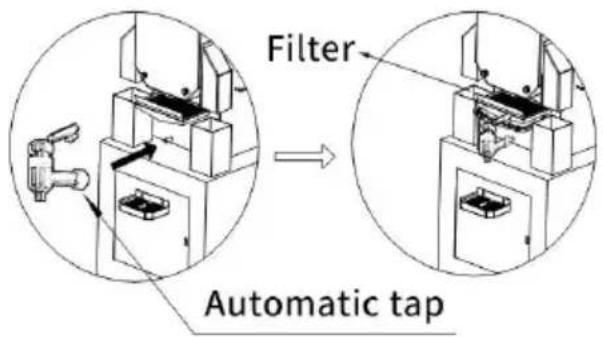

1. Put the juice filter on the tray of the base and screw the automatic ta

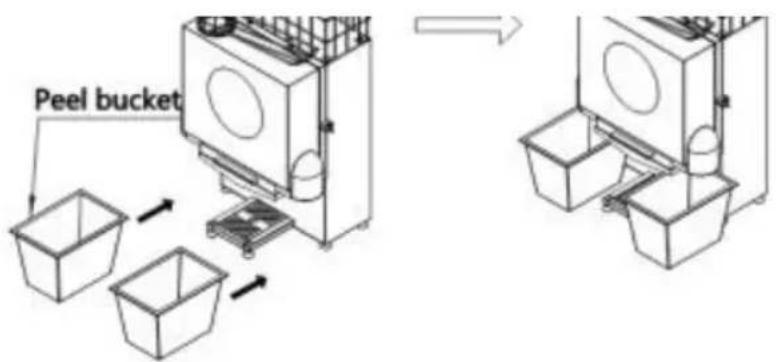

1. Put the fruit peel bucket in the two sides of the bottom of the machir body.

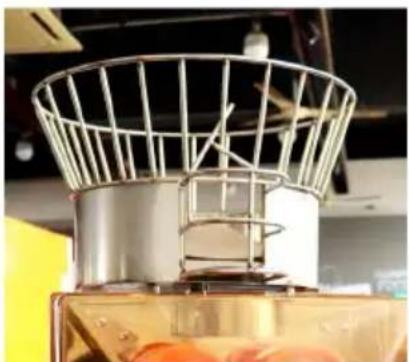

1. Pour the cleaned orange into the machine fruit basket.

1. Switch on the machine and prepares work.

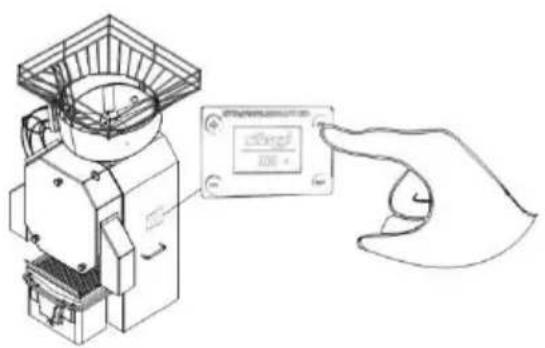

5.(1) Press the ON button, then press the automatic tap. The oranges are continuously fed into the feeding port (2000E-4 is automatically feeding). After the juice is extracted, the fresh orange juice will be

(2) Release the tap, and the machine will stop working. Press the OFF button, then switch it off.

Counter:

The counting function shows how many fruits have been processed. When the switch is turned on, it will return to 0000 if you keep pressing the "ON" button for 3 seconds.

(1) If the screen shows E1, it means the front cover is not installed correctly.

(2) If the screen shows E2, it means the tap is not installed correctly.

1. When feeding, please do not insert your fingers or other objects into the feeding port. If the juice storage container or the fruit peel bucket is filled, switch off the power supply and then clean it.

1. After using this machine, turn off the switch and disconnect the power supply.

4. Maintenance and cleaning:

1. Before cleaning the product, the start switch must be turned off, disconnect the power supply, and wait until the machine stops completely.
2. Clean the product immediately after using.
3. The external parts of the main body can be wiped with a wet cloth. Please do not wash it with water directly. The unloaded parts can be directly put in water to clean.

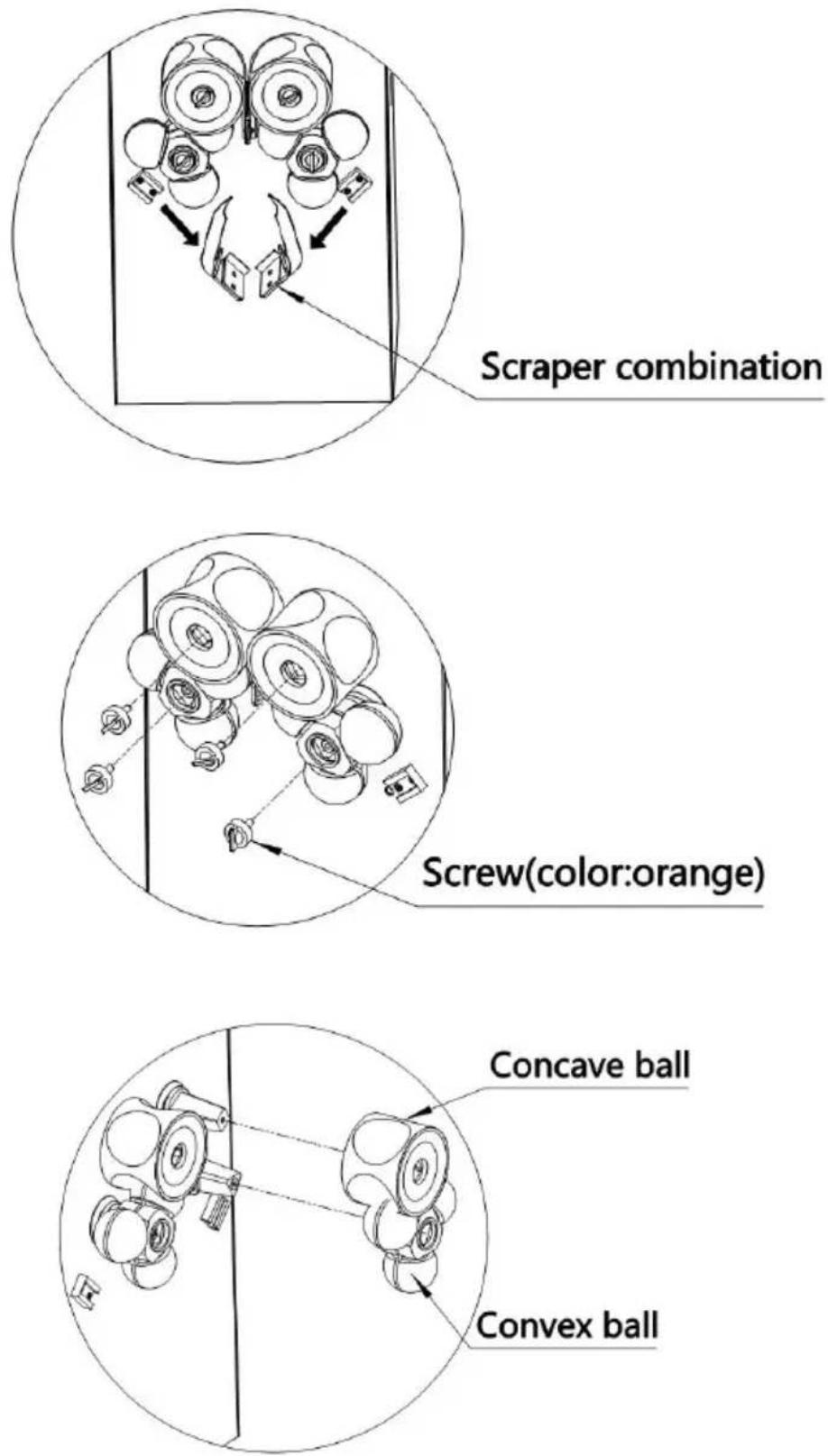

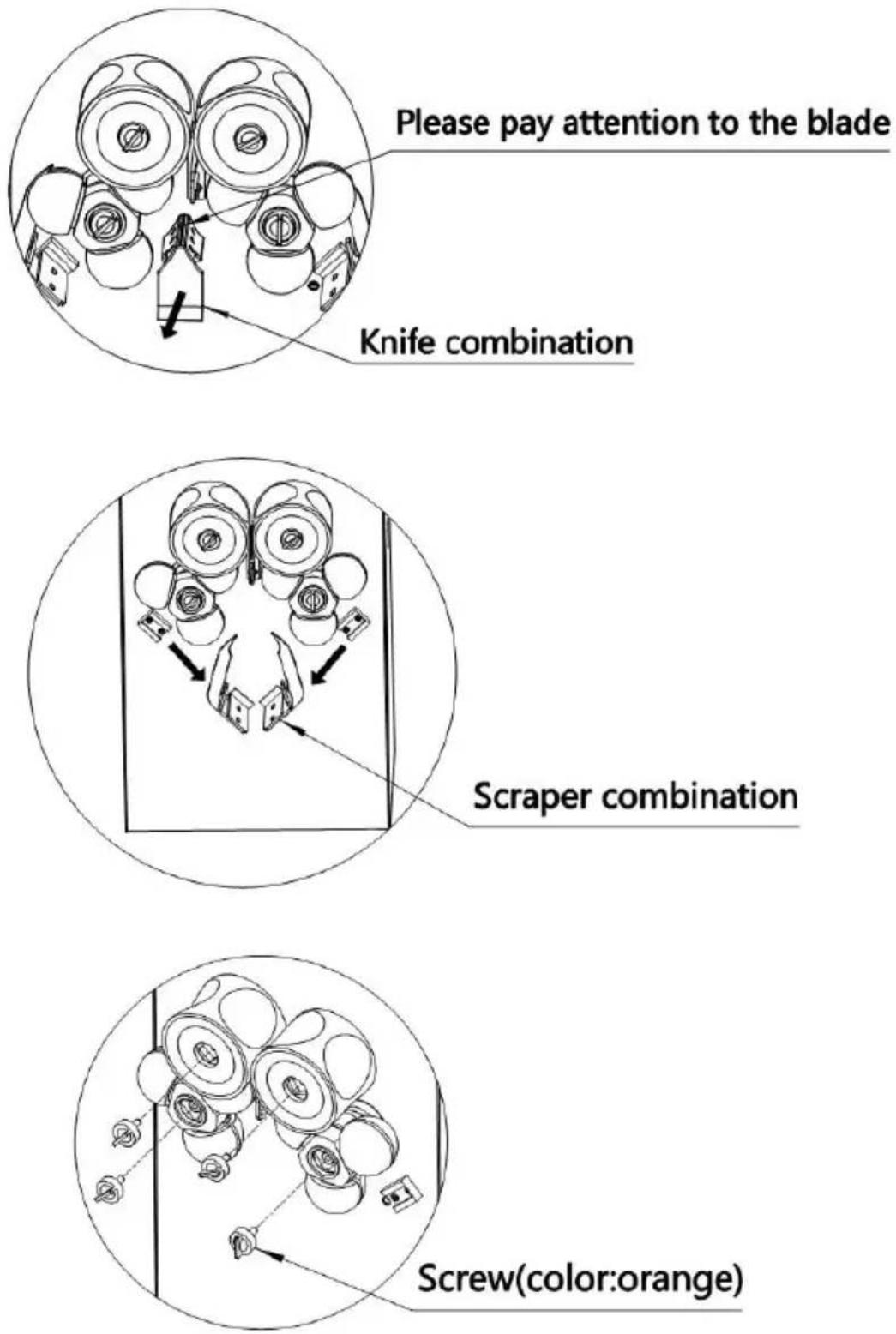

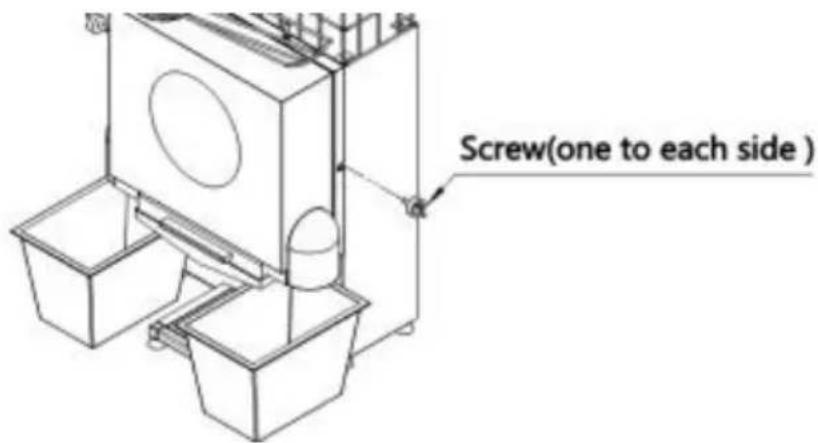

4. Refer to the following steps to disassemble the parts for cleaning: (1) Unscrew the cover screw and remove the cover.

(2) Then remove the knife assembly (be careful not to cut your hand on the blade), the two scraper assemblies, unscrew the four screws, and remove the two sets of concave and convex balls (each set must be taken out simultaneously).

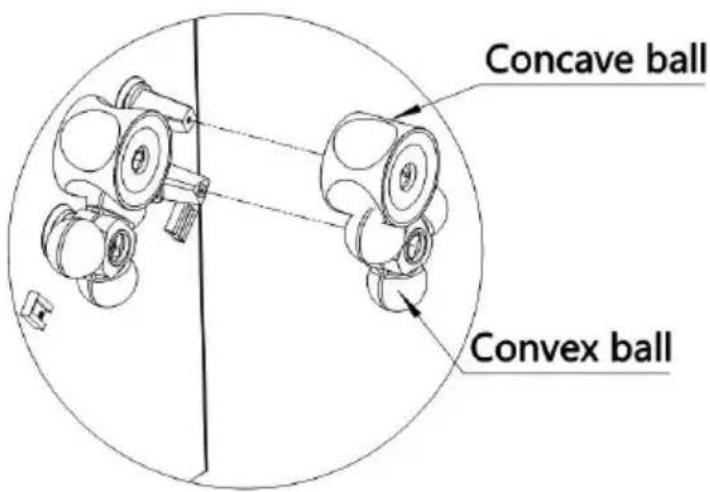

(3) After cleaning the product, reassemble each part in reverse order (especially ensure the safety switch button is pressed).

5. Troubleshooting and maintenance

(1) Electrical faults

1. The safety switch does not work:

(1) Check if the safety switch is in good condition; (2) Check if the safety switch is in the closed position.

For the orange juicer 2000E, press the safety switch button from the top of the cover.

1. The start switch does not work:

(1) Check if the start switch is in good condition; (2) Check if the start switch socket is plugged in.

1. The motor does not work:

(1) Check if the sockets on both sides of the power cord are tightened; (2) Check if the fuse is in good condition; (3) Check if the terminals in the motor switch box are securely connected. (2) Mechanical faults:

1. The bevel gear at the end of the motor output shaft meshes with the transmission:

(1) Check whether the size of the bevel gear wheel is damaged; (2) Check whether the meshing positions of the big and small bevel gear wheels are correct. Adjust the small bevel gear wheel to the correct meshing position and tighten the hex screws on the gear (when the small bevel gear wheel on the motor shaft position is moved down).

1. Damage of transmission cylindrical gear

(1) The transmission cylindrical gear is divided into a pair of large cylindrical gears (Z = 52) and a pair of small cylindrical gears (Z = 39). (2) Iron gears generally suffer tooth form damage. (3) If the cylindrical gear transmission has abnormal sound, it can be judged that the cylindrical gear is damaged. In the initial stage of gear damage, the machine work must be stopped immediately, and the damaged gear must be replaced. Otherwise, it will affect the relative position of the working parts of the machine, thus aggravating the damage of the gear, and until damage to the electrical machine and the working surface of the concave and convex balls.

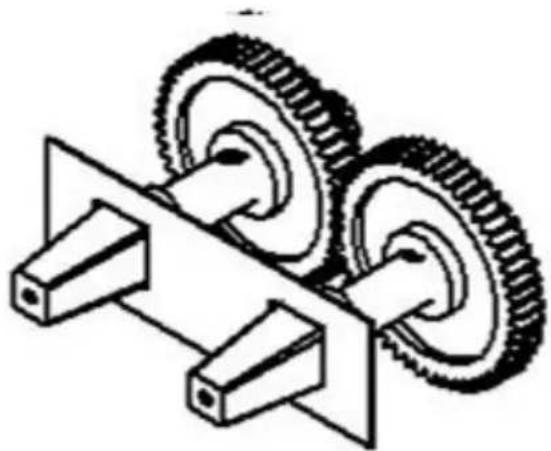

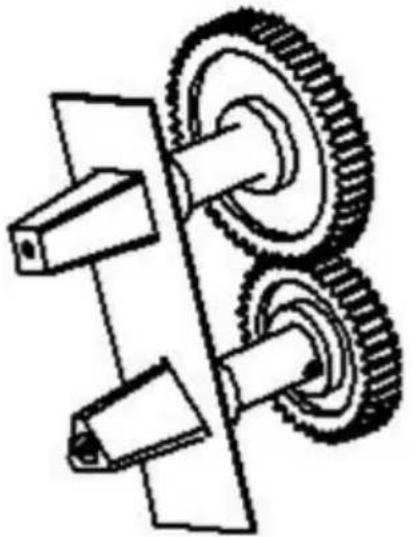

Method for replacing the cylindrical gear:

A. Remove the damaged cylindrical gear and the related parts according to the assembly sequence. B. Use two square hole templates to lock the upper two of the four corner angle shaft parallels (figure 1), and then install the two big cylindrical gears.

(figure 1)

C. Remove the two square hole templates.

D. Use one square and a triangle template to lock the left (or right) upper four corner angle shaft and lower triangular shaft (figure 2) under the ridge axis, and then install the small cylindrical gear.

(figure 2)

E. The installation method of the other side of the small cylindrical gear is the same as D.

6. Free Spare Parts

1. Peeler

2. Screw and spanner

3. Sensor

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

UK

REP

EC

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions

Preston, United Kingdom

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

JUICE MACHINE

MODEL: NS-2000E-4P

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Please pay attention to the blade.

Knife combination

Scraper combination

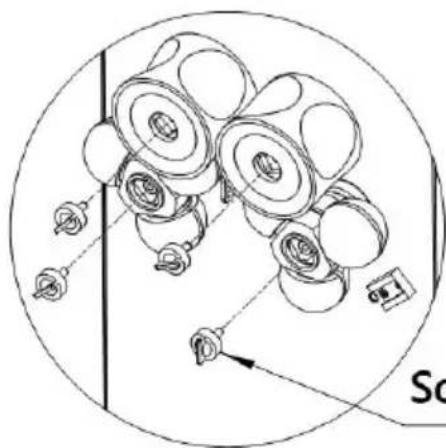

Screw (color: orange)
