YF-SY80 - Juicer Vevor - Free user manual and instructions

Product type	Manual sugar cane juicer
Brand	Vevor
Model	YF-SY80
Main use	Press sugar cane to obtain juice
Roller material	Stainless steel
Number of rollers	3
Pressure regulation	Manual (adjustment rod)
Working efficiency	50 kg of sugar cane per hour
Input size	62 mm (2.4 inches)
Operating mode	Manual (handle)
Included accessories	2 peeling knives, juice tray, pulp bucket
Maintenance	Lubrication of transmission parts every 2 months; cleaning after each use
Safety	Do not touch moving parts; keep children away; use on stable surface
Body material	Stainless steel and other alloys
Power supply	None (manual)
Country of origin	China
Warranty	Manufacturer standard
Repairability	Spare parts available through dealer; contact customer service for repair
Compatibility	Sugar cane only
Weight	Approximately 15 kg (estimation)
Dimensions (L x W x H)	Approximately 45 x 30 x 35 cm (estimation)

Frequently Asked Questions - YF-SY80 Vevor

How to use the Vevor YF-SY80 juice extractor?

First clean all parts that come into contact with food. Cut one end of the sugar cane to facilitate pressing. Adjust the pressure rod according to the desired thickness. Open the juice valve, place the juice tray and pulp bucket. Turn the handle in the positive direction to press the cane. In case of jamming, reverse the handle to remove the cane.

What type of sugar cane to use?

Use fresh and clean sugar canes. Cut off the ends and remove the peel if necessary (peeling knife provided). The input size is 62 mm, make sure the stems do not exceed this diameter.

How to adjust the roller pressure?

The adjustment is manual. Use the pressure adjustment rods on the left and right sides. Adjust the height of the rods to change the roller spacing according to the desired cane thickness.

What maintenance is required for the extractor?

After each use, clean all parts thoroughly. Every two months, remove the protective cover and lubricate the chain, gears and other transmission parts with lubricating oil. Ensure that no oil or water enters the base.

Can I use the device for other fruits or vegetables?

No, this extractor is specially designed for sugar cane. Using other foods could damage the rollers or cause malfunction.

What to do in case of jamming?

Immediately stop turning the handle. Reverse the direction of rotation (turn the handle counterclockwise) to remove the stuck cane. If the problem persists, unplug the device (if applicable) and manually remove the debris.

Is the device safe for children?

No, keep children away during use. Moving parts pose a risk of injury. Wear gloves during cleaning and maintenance.

How to clean the extractor after use?

Disassemble removable parts (juice tray, pulp bucket, knives). Wash them by hand with soapy water and dry thoroughly. Wipe the body with a damp cloth. Never immerse the base in water.

Where can I find spare parts?

Contact your local dealer or Vevor customer service. Parts such as rollers, gears, peeling knives and the protective cover are available.

What is the production capacity of the extractor?

The working efficiency is approximately 50 kg of sugar cane per hour under normal use. This may vary depending on the adjusted pressure and the quality of the cane.

USER MANUAL YF-SY80 Vevor

Affordable. Reliable. Home Improvement.

Sugarcane Juice Machine

MODEL: YF-SY80

VEVOR

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODEL: YF-SY80

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

	Warning-To reduce the risk of injury, user must r instructions manual carefully.
	Keep children away from the machine for fear of o
	This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate r collection in the European Union. This applies to the and all accessories marked with this symbol. Produ marked as such may not be discarded with normal d waste, but must be taken to a collection point for n electrical and electronic devices

WARNING

1. NEVER REACH INTO the Machine, doing so could cause serious ir
2. NEVER use any accessories or parts from other manufacturers. Doir so will VOID YOUR WARRANTY.
3. Thoroughly clean all parts that will come into contact with food before using the machine. Wash all parts by hand and dry thoroughly.
4. TIE BACK loose hair and clothing and roll up long sleeves before operating the machine. REMOVE ties, rings, watches, bracelets or other jewelry before operating.

SAVE THESE INSTRUCTIONS

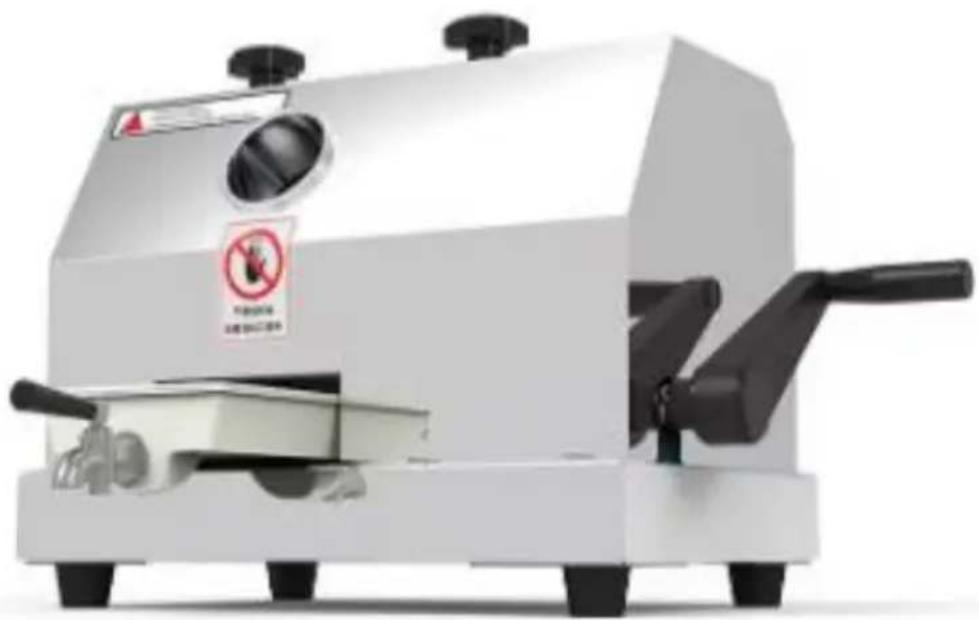

PRODUCT PRESENTATION

This product is a small hand-operated sugarcane juicer, which has the advantages of small portability, labor saving and high juice yield. Thro stainless steel roller press sugarcane juice, suitable for fruit shops, co drink shops, station docks, parks, markets, residential areas and other places to squeeze and sell.

SIZE OF PRODUCT

Model	YF-SY80
Pressure governing	manual voltage regulation
Work efficiency	It can crush 50kg of sugar cane per
Inlet size	62mm(2.4 inch)
Operating mode	manual manipulation
Accessory	bark knife*2pcs

1. Check the machine before use, the left and right pressure adjusting height is consistent. Whether the handle rotates smoothly, whether the machine has the sound of holding, (regularly disassemble the protective cover and add lubricating oil to the chain, gear and other transmissio parts)
2. Clean the cane and cut one end of the cane to make it easy for to be smoothly pressed by the roller.
3. Adjust the top pressure rod, according to the required pressed suga cane thickness to adjust the best gap of the roller.
4. Open the juice valve, place the juice tray and the slag bucket, and pressing the cane.
5. Juicer roller can be positive, reverse, juice using a positive turn, wr phenomenon of the card machine can reverse the handle to withdraw sugar cane.

PAY SPECIAL ATTENTION TO

1. Cleaning, maintenance, moving the machine, be sure to wear gloves
2. When using this product, do not let children near.
3. Please put the machine in a stable place to use.
4. Do not touch the moving parts of the machine with your hand.
5. If there is a fault during use, it should be stopped immediately and checked.

6. Such as product failure in order to avoid danger, please do not op repair without authorization, please timely contact the company or loca dealers.

7. Do not extend your fingers into the body.

8. Do not put nails, needles and other metal objects into the running machine, so as not to damage the parts.

CARE AND MAINTENANCE

1. Adhere to the regular maintenance system, disassemble the guard e' other month to apply lubricating oil to the chain gear.
2. The body is equipped with a grounding screw, such as the end of grounding screw rust or oil dirt, should be cleaned in time.
3. Strictly follow the steps for maintenance.
4. Pay attention to prevent oil and water intrusion into the base and I clean.
5. After the end of the work, timely cleaning, maintenance work.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODÈLE: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODELL: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODELLO: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODELO: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODEL: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Suikerrietsapmachine

MODEL: YF-SY80

VEVOR

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODEL: YF-SY80

PRODUCT PRESENTATION

PAY SPECIAL ATTENTION TO

Affordable. Reliable. Home Improvement.

Sockerrörsjuicemaskin

MODELL: YF-SY80

VEVOR

Affordable. Reliable. Home Improvement.

Sugarcane Juice

Machine

MODELL: YF-SY80

PRODUCT PRESENTATION

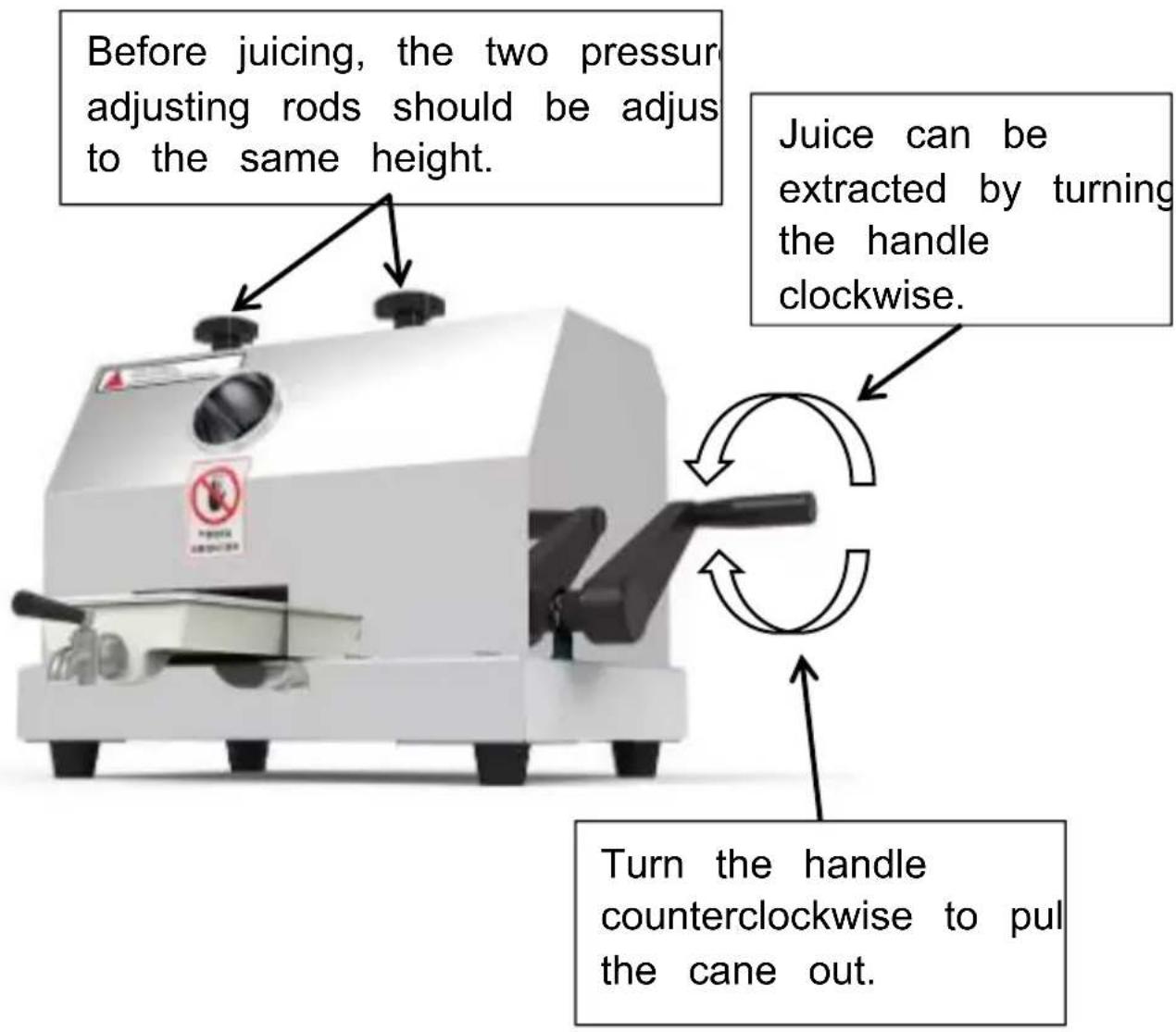

Before juicing, the two pressure-adjusting rods should be adjust to the same height.

Turn the handle counterclockwise to pul the cane out.

PAY SPECIAL ATTENTION TO
