CORDLESS PRESSURE WASHER

MODEL:XS-002

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS PRESSURE WASHER

MODEL:XS-002

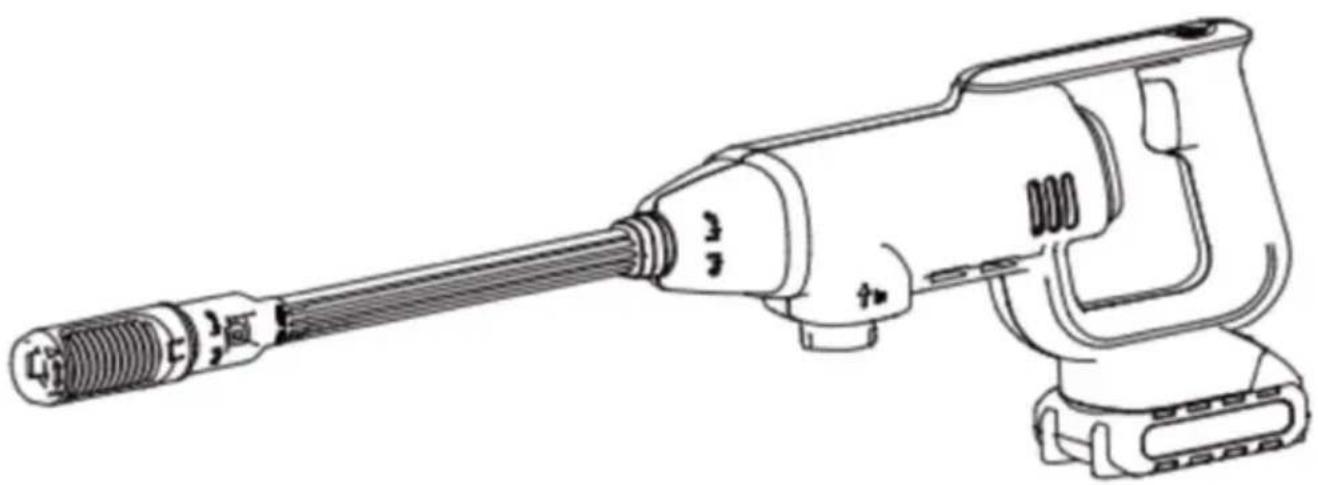

Line drawing of a handheld electric tool with threaded shaft and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model		XS-002
MAX Working Pressure		580PSI
MAX Flow Rate		4L/min
Rated Power		220W
Usable Laundry Detergent		Neutral Detergent
Battery	Battery Type	Lithium Battery
	Voltage	DC21V
	Capacity	4000mAh
Charger	Input Voltage	AC 100-240V 50/60 Hz
	Output Voltage	DC21V 0.75A
	Charging Time	5 hours
Min.Suction Height		3M
FCC statement:This device complies with Part 15 of the FCC Rules. Operation is subfollowing two conditions:(1)This device may not cause harmful interferenc(2)this device must accept any interference received, including interferenmay cause undesired operation.

PRODUCT INTRODUCTION

Based on the principle of user experience first, quality first, the pursuit of convenience, fast, portable, energy-saving and other superior characteristics, for the majority of car-loving people and home cleaning and washing and custom development of a product. At the same time, the product is not limited by p supply, with strong and stable battery.Product can be carried with you, multi-s application, anytime, anywhere for you to save time, save cleaning costs, high efficiency to bring DIY washing fun and quality experience.

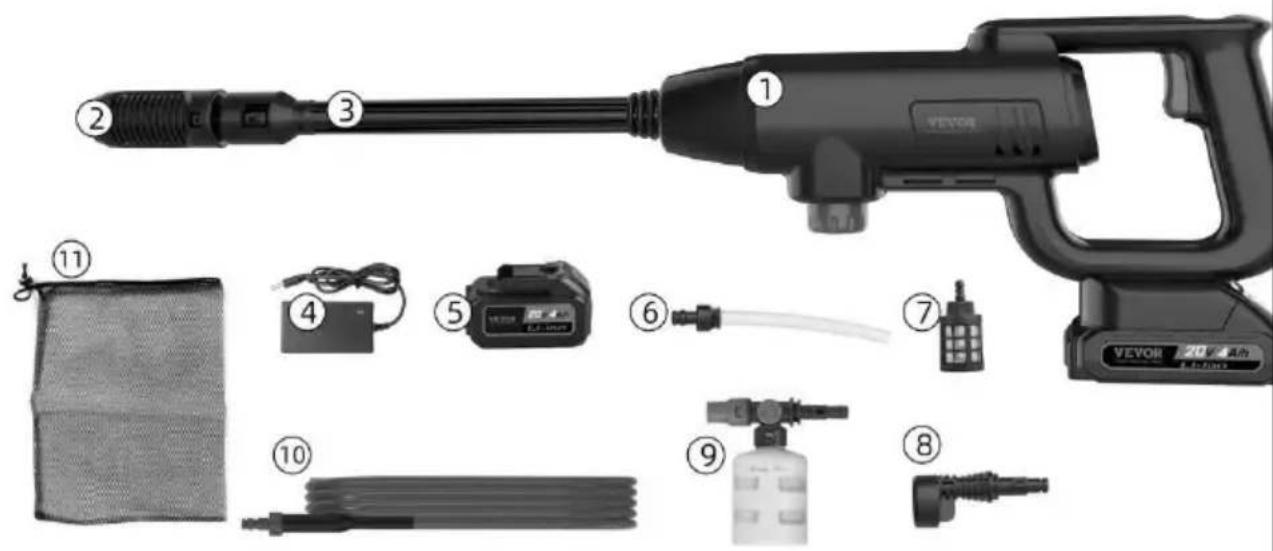

PACKING LIST

XS-002

VEVOR ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑩ ⑪

1. Fuselage Shell
2. Universal Sprinkler Head
3. Nylon Extension Rod
4. Charger
5. 4.0Ah Battery

6. Coke Bottle Connector

7. Filter Screen

8. Multi-Functional Six-In-One Sprinkler He
9. Foam Pot
10. 6M Water Inlet Pipe
11. Mesh Storage Bag

SAFETY & WARNING

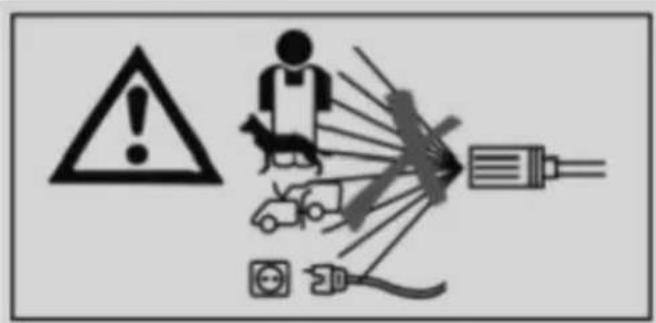

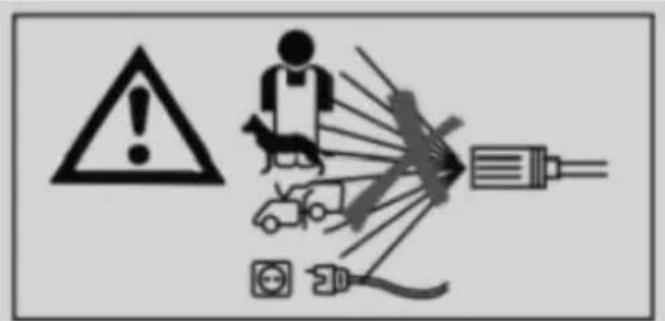

Warning symbol and hazard warning illustration showing a person sitting on a chair, with warning symbols including an exclamation mark, car, plug, and plug plug.

When using electrical appliances, base safety precautions should always be followed including the following:

READ ALL INSTRUCTIONS

1. Use shall not direct water flow to the crowd and live components.
2. Ensure that children are not exposed to the range area when the battery is charged.

3. Battery pack and charger are hit by drop collision or wet visible state shot stopped immediately!

4. Must charge the battery pack in the presence of someone!

5. Chargers must choose the original factory (without authorization or the original factory's proposal to prohibit the use of other charging accessories or charging methods.

6. Charging environment is prohibited in high temperature or unattended or accessible locations for children.

7. Unscheduled product inspection, charger, battery pack, car washing machine mainframe, if abnormal or damaged or malfunction do not modify or disasserr

8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety precautions for battery pack:

1. Do not disassemble, open or shred battery sets.
2. It is forbidden to expose battery pack to heat source or high temperature sunlight.
3. Do not short circuit the battery pack (positive and negative connection), do put the battery pack in the box drawer to avoid short circuit between them other metal items.
4. Do not remove the battery or battery pack from the original package befo
5. Prohibit battery packs from falling or mechanical impact.

6. Once the battery leaks, do not touch the leaking liquid directly into the skin. In case of accidental contact, rinse the contact area immediately with pl of water and consult a doctor in time.

7. Shall not use non-original charger and battery pack. (Causes machine malfunction or accidental personal injury)

8. Pay attention to the positive and negative signs on the battery pack to e proper connection.
9. Keep the machine and battery pack group away from children.
10. Ensure clean and dry battery pack. (If dust or residual water should be immediately wiped with clean cloth or natural air drying, do not use hair dry hot air gun drying)
11. The battery pack must be charged before use, using the correct charger referring to the manufacturer's operating instructions or the original equipment instructions
12. Not using the machine, do not charge the battery pack for a long time, attention to the green light is full of electricity, red light is in charge.
13. In case of long-term storage of unused machines, battery packs should be subjected to several charge/discharge cycles to achieve optimal performance.
14. The use of battery pack groups at room temperature 5(20) performs best.
15. This product is only suitable for home doors and windows, courtyard, ver garden cleaning operations, not for commercial operations or main frequency f operations, not higher than the battery group use time or high frequency forc use.
16. Remove the battery pack whenever possible when not using the machine, disconnect from the mainframe and place it in a dry place not accessible to children.
17. Battery pack group due to other human damage or collision, high temper damage, reasonable treatment and recovery, do not discard the contaminated environment.

SAVE THESE INSTRUCTIONS

INSTALLATION GUIDELINE

Open the box to check whether the machine is in good condition and wheth the corresponding model for purchase. Then take out the attachment one by and place it in the plane. Install and use according to the operation procedu

Note : If there is water in the machine, please don't get upset. The prod not second-hand. In order to ensure that you receive a product that is perfect condition, each of our products undergoes a pumping test before leaving the factory.

Step 1: Install/Remove the battery.

(After receiving the product, please charge the battery pack first. The red light is the charging state, and the green light is the full state. Charging time is 6-7 hours. please do not overcharge)

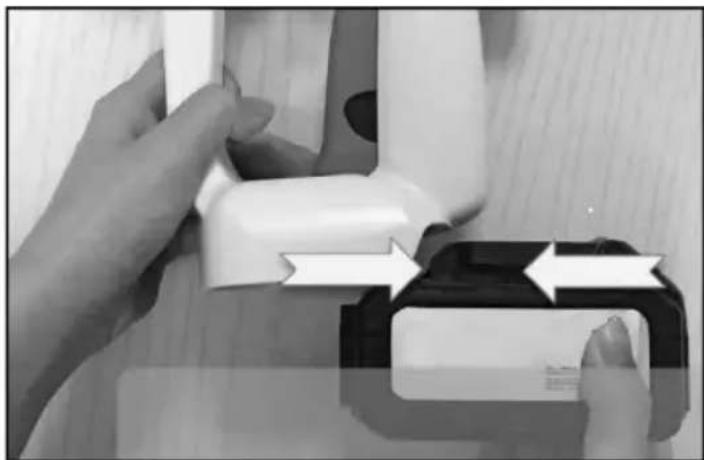

(1) Install the battery. As shown in the picture, snap the battery onto the bc

Close-up of hands holding a white object with directional arrows, next to a black rectangular object (no visible text or symbols)

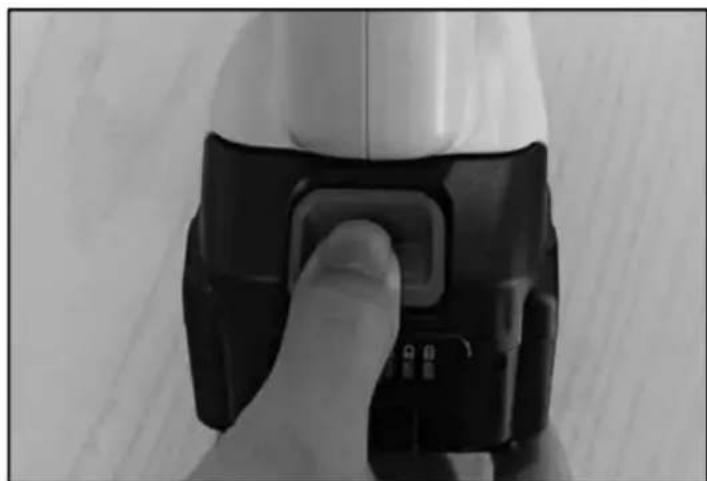

(2) Remove the battery. Press the blue button to push out the battery.

Close-up of a hand pressing a black rubber pad on a wooden surface (no text or symbols visible)

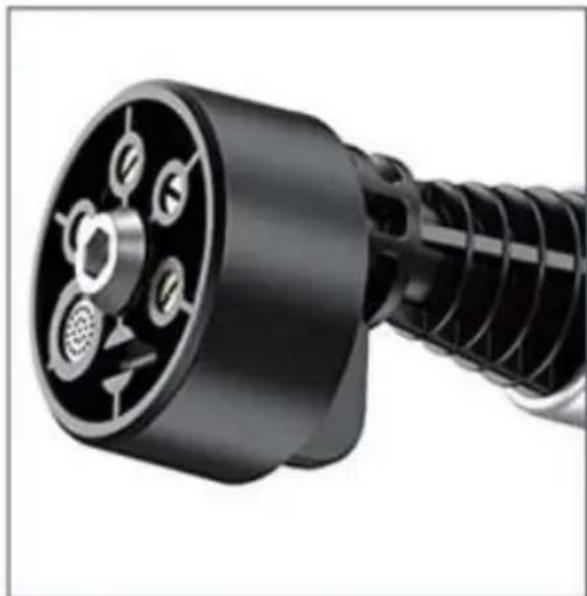

Step 2: Installation/Disassembly of Nozzles.

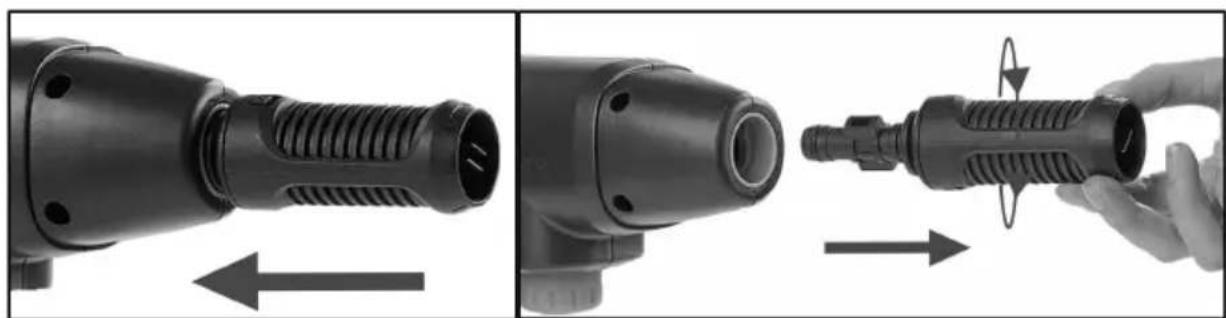

(1) Attach nozzles directly to the body without using extension pole and rotat firmly.

Two-panel image showing a hand holding a black tool, with arrows indicating the process (no text or symbols present)

Tips: 6-in-1 nozzle is the same installation operation.

Close-up of a black mechanical component with internal gear-like structure (no visible text or symbols)

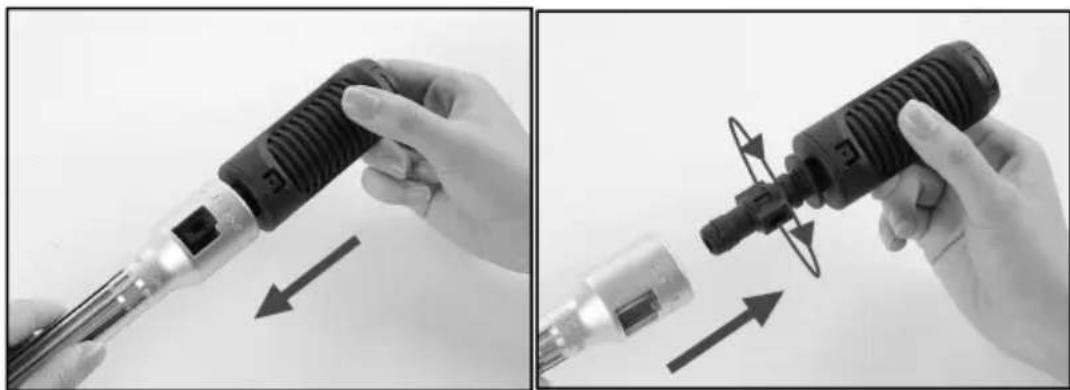

(2) Disassembly of Nozzern the nozzle 180^ counterclockwise and force the nozzleout.

Two-step diagram showing a black handheld device being adjusted to form a cylindrical tool, with no visible text or symbols.

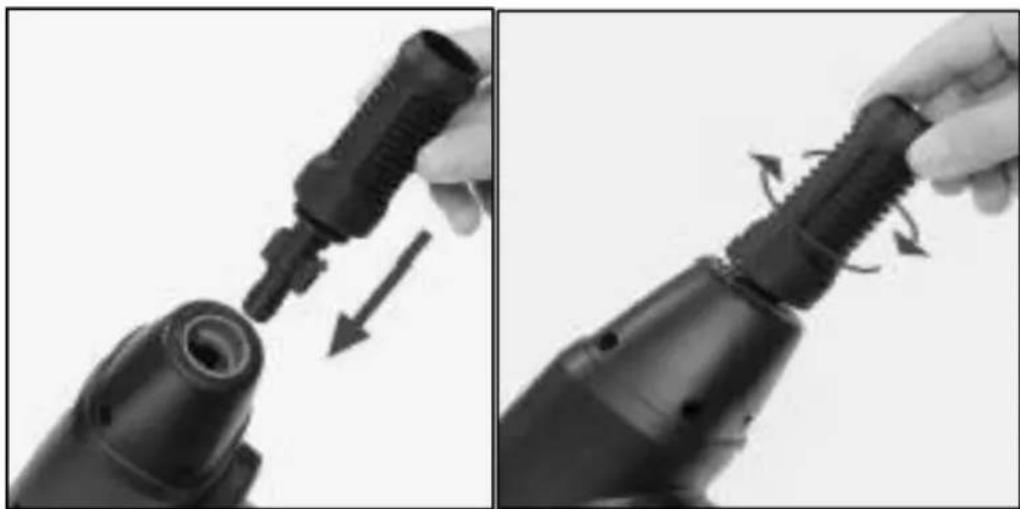

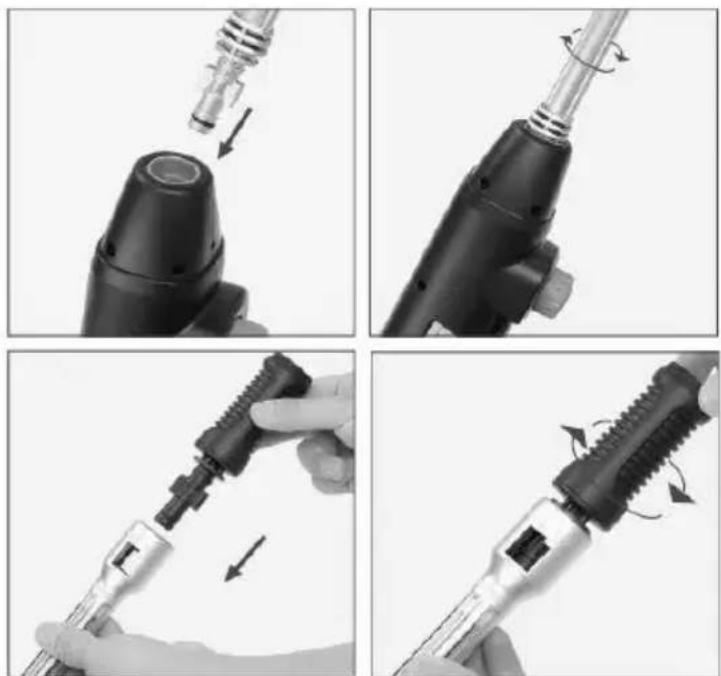

(3) Nozzle installation with extension pole and rotate it firmly. First install the extension pole on the body, and then turn the nozzle on the extension pole.

Tips: 6-in-1 nozzle is the same installation operation.

Close-up of a black mechanical component with four circular features and threaded shaft (no visible text or symbols)

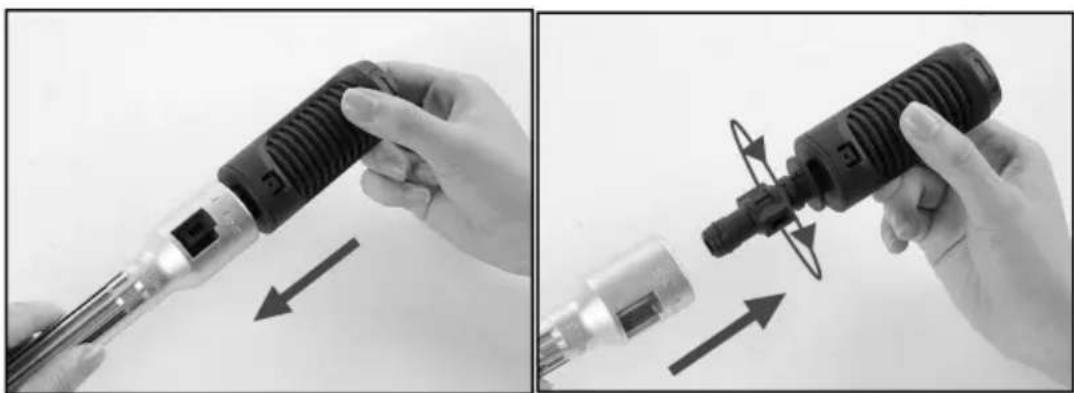

(4) Disassembly of the Nozzle with Extension Pole. Turn the extension pole counterclockwise, pull the extension lever out of the body with force, and the remove the nozzle from the extension pole.

Tips: There should be a pressing action when removing, then rotate the and extension lever simultaneously.

Two-step diagram showing a tool being inserted into a hose, with arrows indicating direction of movement (no text or symbols present)

Two-step black-and-white photo showing hands using a soldering iron to adjust a mechanical component, with arrows indicating direction (no text or symbols)

Tips: 6-in-1 nozzle is the same installation operation.

Close-up of a black mechanical component with threaded end and internal slots (no visible text or symbols)

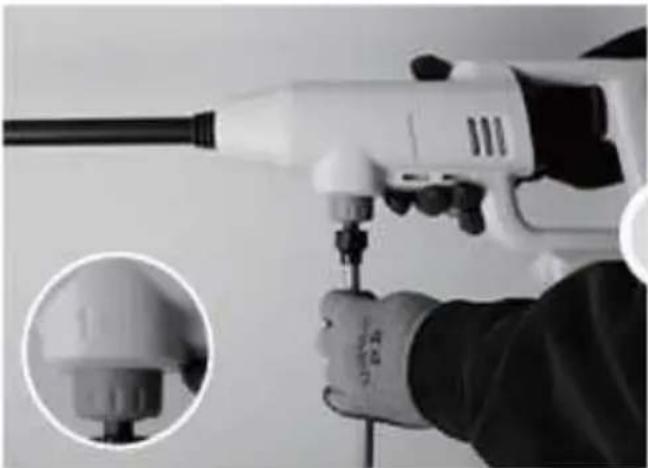

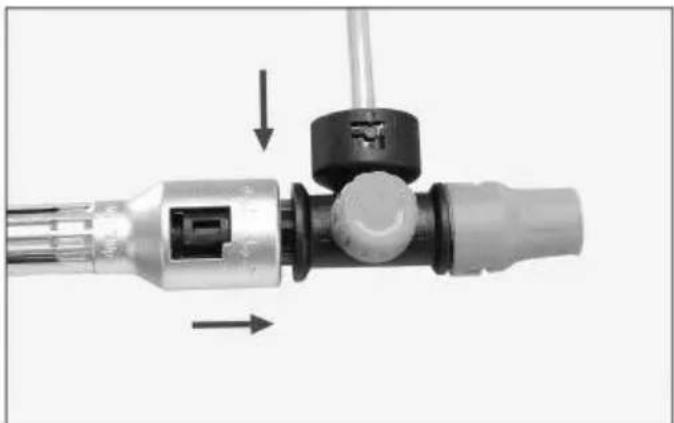

Step 3: Inset theinlethoseconnector into thebodyas shown.

(The connector contains a sealing ring to check if it is in good condition.)

Note: If it is not installed in place, the pressure washer will not absorb

Close-up of a hand using a power tool to adjust a plug, with an inset close-up showing the plug detail (no text or symbols visible)

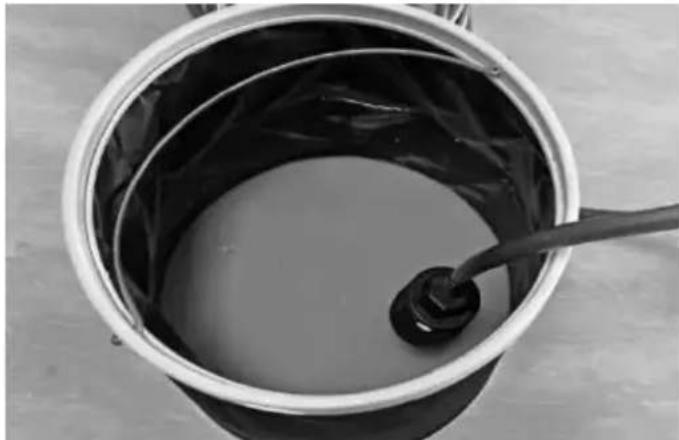

Step 4: Put the filter net ontheother end of the inlethose into watersource

The filter must be completely immersed in water. If the filter floats on the surface, air will enter the water pipe and the machine cannot be used normally.

Note: Shaking the filter continuously in the water will remove the air pipe.

Top-down view of a bucket containing liquid with a spoon, no text or symbols visible

Step 5: Install the foam pot: Insert the foam pot into the barrel and rot shown.

Close-up of a medical or laboratory device with metallic tubing and a black component, showing directional arrows (no text or symbols visible)

Step 6: After using the product and cleaning, please remove battery pac accessories in storage box and place it in cool and dry place.

Note: The installation tutorial video of the pressure washer can be found. Amazon.com. If you have any questions, please feel free to contact us.

TROUBLE-SHOOTING

Frequently Asked Questions	Cause analysis	Solutions
Normal operation of machine without water suction	1. Machine is too high above water	Down to below 1.5 m ground
	2. Filter screen foreign body clogging	Remove filter and clear
	Failure of connection of 3. Intake pipe to mach or rupture of intake pi	Check and replace water pipes,please contact customer service
	4. Intake pipe bending clamp	Straighten out intake pipes and reconnect
	5. The pump froze because of the cold weather	Restart after thawing
Sudden increase in effluent pressure or abnormal water type	The head of the water gun was blocked by foreign body	Use a needle to clear nozzle or replace the n gun head
Machine does not sta	1. Battery pack not Installed	reinstallation
	2. Battery pack is dea	Charge or replace new battery pack
	3. Battery pack is brok	Replacement of battery pack
Battery pack not charged	Charger mismatch or broken	Replacement of matching charger
Machine pressure discontinuity	Air in 1.pump	Check that joints and pipes are in good condition
	2. Machine in low volta mode	Normal at low pressure no treatment required
Machine automatic stop	1. Battery pack is dea	Charge or replace batte pack
	2. Gun head blocked, current protection	To clear or replace th head
Leakage Inside machine	Chemical acid source assembly cause	Avoid using chemical sources

REPAIR AND MAINTENANCE

1. Each time before use, please check if the machine and parts are damaged there is damage stop using the machine, contact the supplier or manufacturer to replace the parts.
2. Intake pipes and filters must be cleaned after each use and bags should kept to avoid oxidation for easy use in the future.
3. After the use of the mainframe, the empty machine should run for a few seconds to drain the residual water from the machine, avoid oxidation dirt air weather ice, and store in a dry cool place.
4. Waste disposal: for damaged accessories and packaging materials must be classified and recovered, do a good job of marking.
5. Do not store in the trunk of the car high temperature weather to avoid f caused by high temperature. Warning: do not use chemical acid and muddy must use clean, impurity-free clear water.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the

European Union. This applies to the product and all accessories marked with symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

BATTERY DISPOSAL

Li-Ion battery This product has been marked with a symbol relating to 'separate collection' for all battery packs and battery pack. It will then recycled or dismantled in order to reduce the impact on the environn Battery packs can be hazardous for the environment and for human health since they contain hazardous substances

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC
