QD-XDP14 - Pressure washer Vevor - Free user manual and instructions

Brand	Vevor
Model	QD-XDP14
Product type	Rotating surface cleaner for pressure washer
Maximum pressure	4000 PSI / 276 bar
Minimum pressure	1500 PSI / 104 bar
Maximum flow rate	6 gal/min (22.7 L/min)
Power supply	Pressurized water via a pressure washer
Recommended use	Cleaning outdoor surfaces: concrete, asphalt, paved paths, pool decks
Package contents	Surface cleaner, lower and upper handle, high pressure hose, pressure gun, screws, nuts, hex keys, Teflon tape, O-rings, replacement nozzles, cleaning needle, quick adapter kits (M22-14 and M22-15)
Material	Steel, reinforced plastic, rubber O-rings
Main features	Rotating nozzles for uniform cleaning, ergonomic handle, quick connection
Safety	Mandatory wearing of safety glasses (ANSI Z87.1 standard), non-slip shoes, gloves, dust mask. Do not exceed rated pressure. Keep people at a distance.
Maintenance and cleaning	Clean the nozzles with the provided needle after each use. Check spare parts. Drain and store dry.
Spare parts and repairability	Replacement nozzles, O-rings, adapter kits available. Repairable with genuine Vevor parts.
Recommended operating pressure	Minimum 2000 PSI from the pressure washer for optimal performance
Weight (estimated)	Approximately 7.5 kg
Dimensions (L x W x H)	Approximately 50 x 40 x 30 cm

Frequently Asked Questions - QD-XDP14 Vevor

How to assemble the QD-XDP14 surface cleaner?

Insert the high pressure gun into the top tube of the handle, secure with nuts and screws. Align the holes of the lower handle with the cover, insert the long pins and secure with clips. Attach the upper handle with the short pin. Connect the hose to the trigger and the swivel fitting.

What minimum pressure is required to use this surface cleaner?

The cleaner requires a pressure washer of at least 2000 PSI (138 bar) for optimal operation. It supports up to 4000 PSI.

How to connect the surface cleaner to the pressure washer?

Connect the high pressure discharge hose of your washer to the gun of the surface cleaner. Use the provided quick adapters (M22-14 or M22-15). Make sure all connections are secure.

Why does the surface cleaner vibrate excessively?

Excessive vibration is often due to a clogged nozzle. Clean or replace the nozzles. Also check that the spray bar rotates freely. If the problem persists, contact customer service.

How to clean clogged nozzles?

Turn off the pressure washer and shut off the water. Press the trigger to release pressure. Remove the nozzle with a wrench, use the provided cleaning needle to unclog, then rinse backwards with a garden hose. Reassemble and tighten firmly.

Can I use this surface cleaner on wooden surfaces?

It is not recommended to use on soft surfaces like wood as the pressure can damage them. Use only on hard, flat surfaces: concrete, asphalt, pavers, etc.

Why is the spray streaky or uneven?

This usually indicates a clogged nozzle or too fast cleaning. Clean the nozzles and slow down your walking pace. If the pattern persists, check that the spray bar is not damaged.

What safety equipment should I wear?

Always wear ANSI Z87.1 approved safety glasses, non-slip shoes, gloves, and a dust mask. Keep people and children away from the work area.

How to properly store the surface cleaner after use?

Turn off the pressure washer, shut off the water supply, release pressure by pressing the trigger. Disconnect the hoses, drain them, wipe down the unit and store it in a dry, safe place out of reach of children.

The surface cleaner does not rotate, what to do?

Check that the spray bar is not blocked. If the retaining ring is dislodged, do not use the unit and contact customer service. Make sure the pressure washer pressure is sufficient (min 2000 PSI).

USER MANUAL QD-XDP14 Vevor

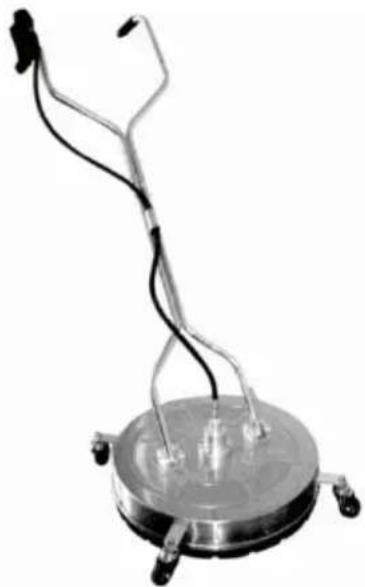

PRESSURE WASHER SURFACE CLEANER

MODEL: QD-XDP01 \ QD-XDP03 \ QD-XDP14 \ QD-XDP15

MODEL: QD-XDP01 \ QD-XDP03 \ QD-XDP14 \ QD-XDP15

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning: To reduce the risk of injury, the user must read the instructions manual carefully.

INTRODUCTION

Congratulations on the purchase of your new Rotary Surface Cleaner! You can be assured this Cleaner was constructed and designed with quality and performance in mind. Each component has been rigorously tested to ensure the high level of acceptance.

This surface cleaner is designed for high-pressure cleaning of various

outdoor surfaces such as concrete, asphalt, paving stone walkways, pool decks, etc. Connect the rotary surface cleaner to your pressure washer, pull the trigger, and walk behind for fast and efficient cleaning!

IMPORTANT SAFETY INFORMATION

Max. Pressure(PSI/BAR)	4000 / 276
Min. Pressure(PSI/BAR)	1500 / 104
Max. Flow Rate(gal/min)	6

A WARNING

Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage.

Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage.

• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this tool. Always be aware of the environment and ensure the tool is used safely and responsibly.
• Do not allow persons to operate or assemble the product until they read this manual and have developed a thorough understanding of how it works.
• Do not modify this product in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the product. There are specific applications for which the product was designed.
• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will do the job better and safely at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.

WORK AREA SAFETY

- Inspect the work area before each use. Keep the work area clean, clutter-free, and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put you in danger close to other cutting tools and rotating parts.

- Do not use the product where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite the flammable liquids, gases, or dust.

- Do not allow the product to come into contact with an electrical source. The tool is not insulated and contact will cause electrical shock.

- Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the product.

- Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may be hidden from your view and may cause personal injury and/or property damage if contacted.

PERSONAL SAFETY

- Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.

- Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose jewelry or long hair can be caught in moving parts. Air vents on the tool often cover moving parts and should be avoided.

- Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side shields or, when needed, a face shield. Use a dust mask in dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection system, and hearing protection when appropriate. This applies to all persons in the work area.

- Do not overreach. Keep proper footing and balance at all times.

- Do not use the tool when tired or under the influence of drugs, alcohol, or medication.

medication.

• Remove keys or wrenches before connecting the tool to an air supply or power supply, or turning on the tool. A left wrench or key attached to a rotating part of the tool may cause personal injury.
• Secure the work with clamps or a vise instead of your hand when practical. This safety precaution allows for proper tool operation using hands.

CLEANER USE AND CARE

• Do not force the cleaner. Tools do a better and safer job when used in the manner for which they are designed. Plan your work, and use the correct tool for the job.
• Check for damaged parts before each use and before connecting the cleaner to a pressure washer. Carefully check that the cleaner will operate properly and perform its intended function. Replace damaged or worn products immediately. Never operate the cleaner with a damaged part.

Store the cleaner when it is not in use. Store it in a dry, secure place out of the reach of children. Inspect the cleaner for good working condition before storage and re-use.

Use only replacement parts that the distributor recommends.

Parts that may be suitable for one cleaner may create a risk of injury when used with another cleaner.

• Never use a part with a lower operating pressure than the cleaner.
• Do not leave the cleaner unattended when it is pressurized.
• Do not turn the cleaner over when it is pressurized by connection to an operating pressure washer to avoid high-pressure spraying water that could cause personal injury.

• DO NOT exceed the rated PSI capacity. - Keep body parts clear of nozzle heads and away from skirt while operating machine. - DO NOT lift machine from surface or point nozzle heads at people operating. - Wear the proper safety gear including ANSI Z87.1 approved safety glasses.

• Use only on hard level surfaces.
• No alterations shall be made to this product.
• Only attachments and/or adapters supplied by the manufacturer shall be used. Not for use by or around children.

Part List
Code	Name	Picture	QTY.

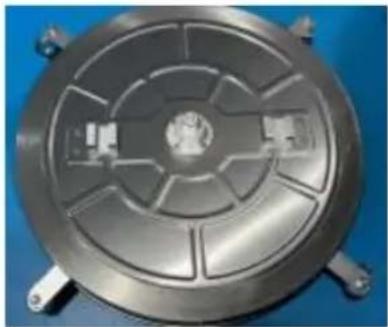

1	Pressure Washer Surface Cleaner		1
2	Lower Handrail		1
3	Upper Handrail		1
4	Pin (long)		2
5	Pin(short)		1
6	R-pin		3
7	High-pressure Pipe		1
8	Pressure Gun		1
9	Screw		2+2
10	Nut		2+2
11	Hex Key		1
12	Teflon Tape		1
13	O-rings (large)		2
14	O-rings (small)		2
15	Replacement Nozzles		2
16	Through-hole Needle		1
17	Wrench 19		1
18	Wrench 24		1
19	Quick Adapter Kit (M22-14)		1
20	Quick Adapter Kit (M22-15)		1
Tip: "+" is extra spare parts .

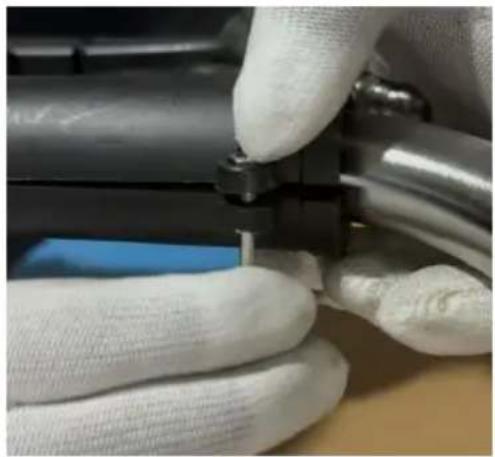

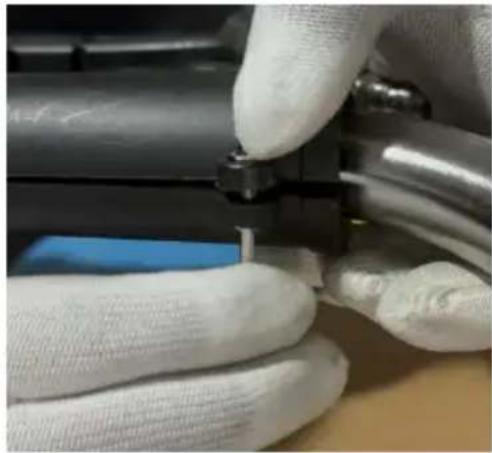

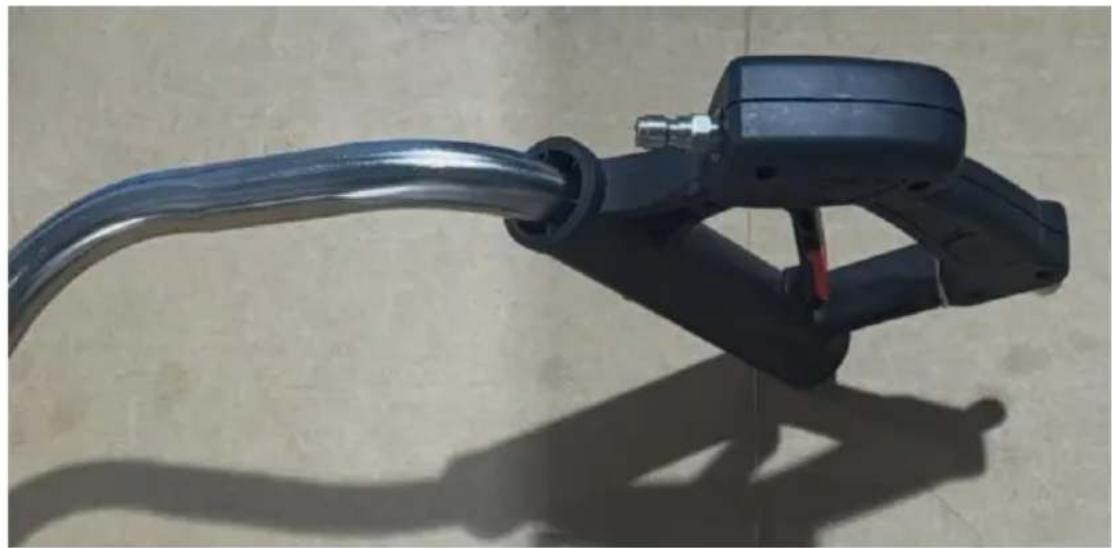

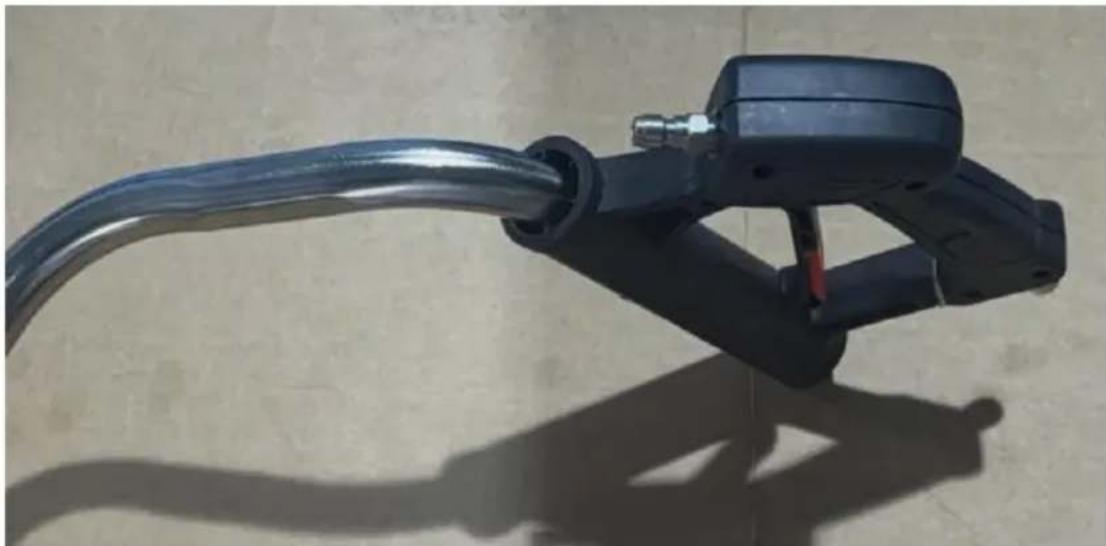

Mounting high-pressure gun

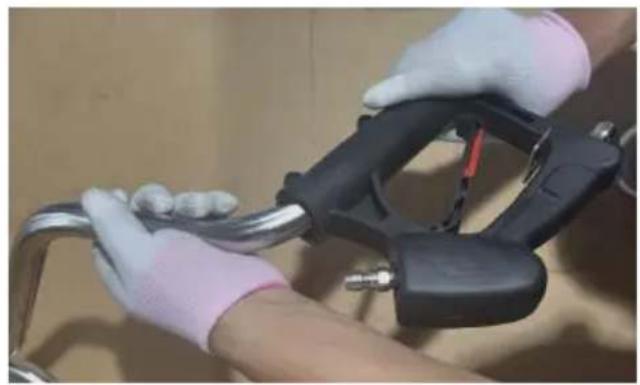

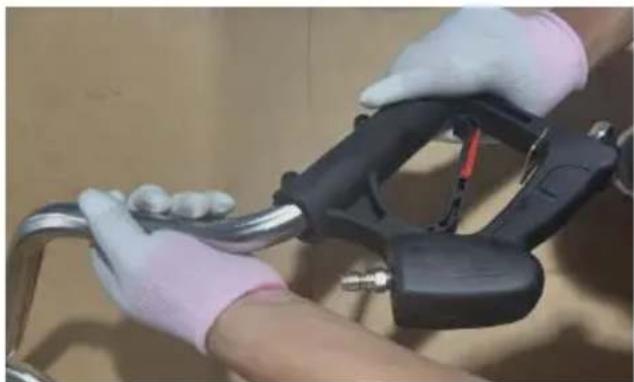

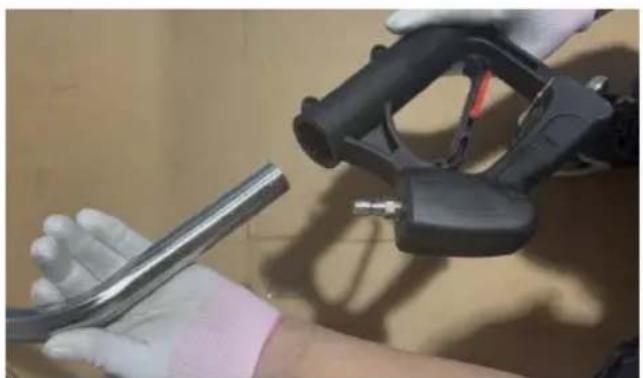

Step 1: Insert the high-pressure gun into the upper handrail tube.

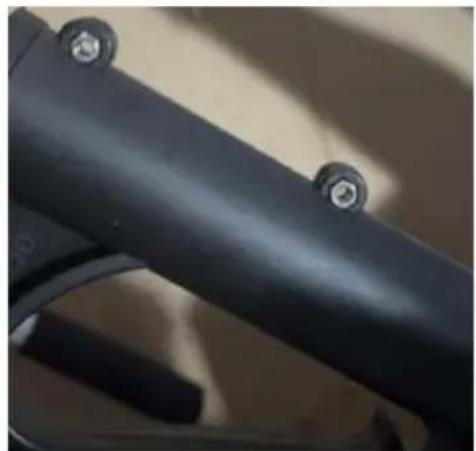

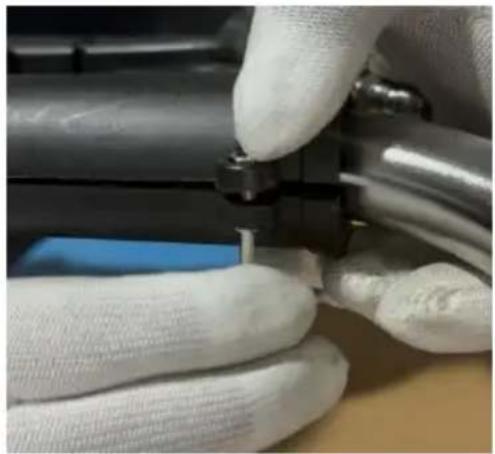

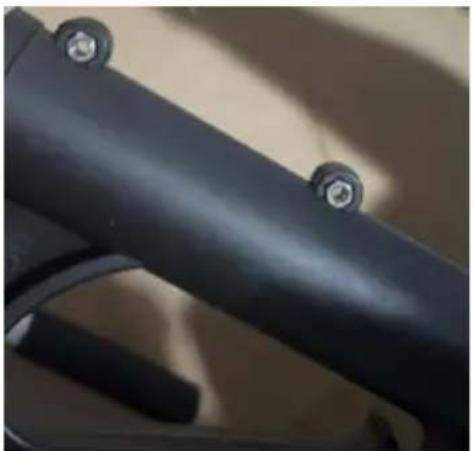

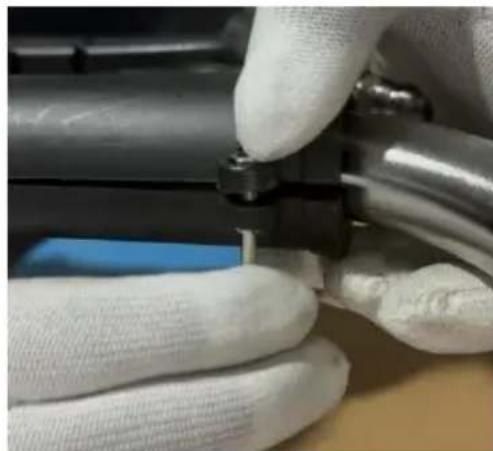

Step 2: Put in nuts and screws and tighten.

Step 3: Done!

Figure 1

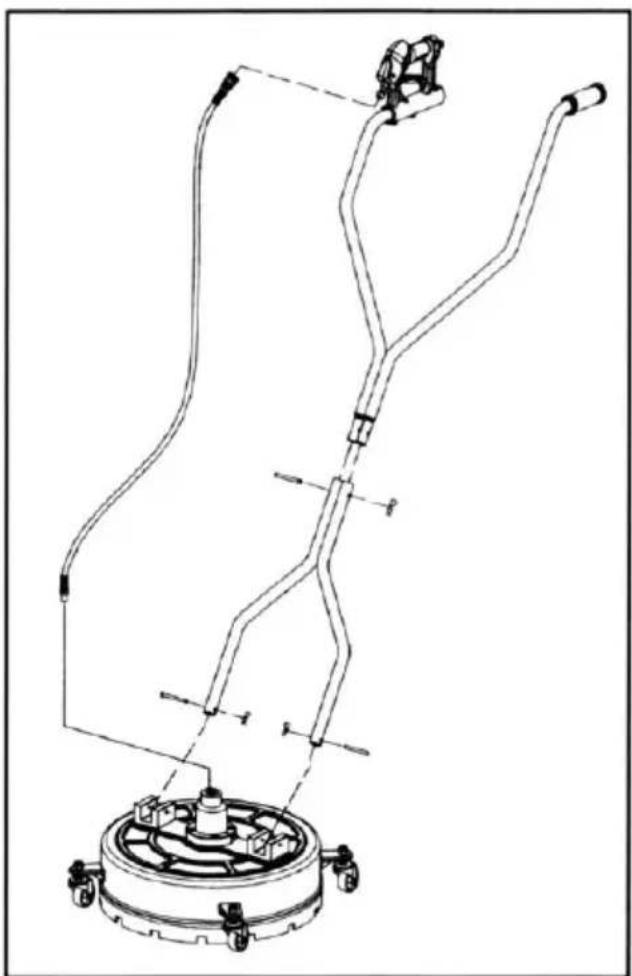

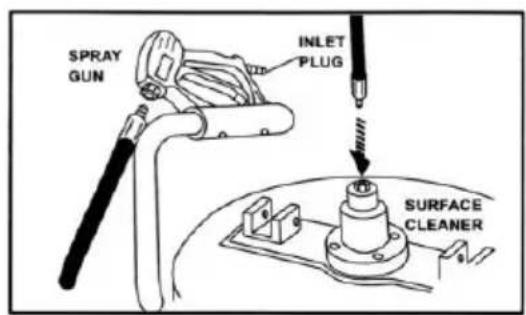

UNIT ASSEMBLY (See Figure 1.)

1. Line up the holes on the lower part of the handle with the holes on the assembly. Insert the long pins through the handle and cover holes, and attach to the clips.

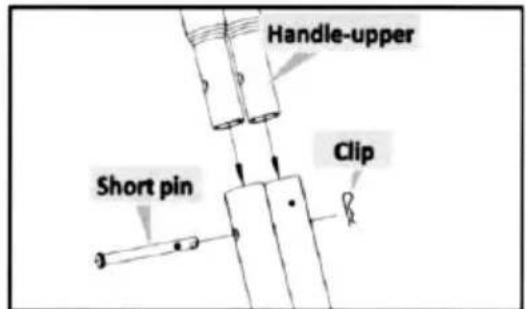

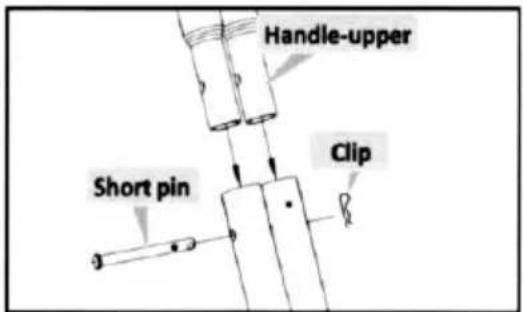

2. Attach the upper handle by lining up the upper and lower handle holes. Push the short pin through the aligned hole and attach it to the clip.

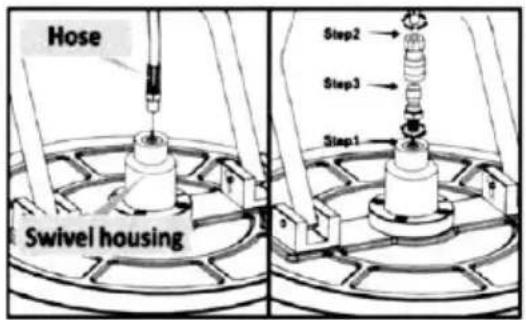

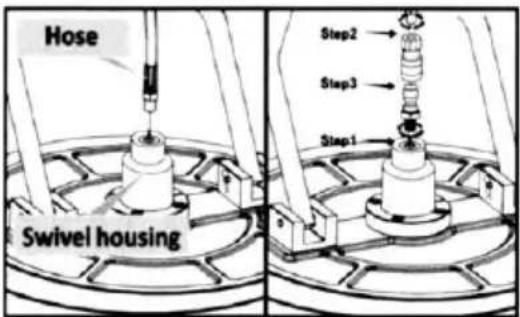

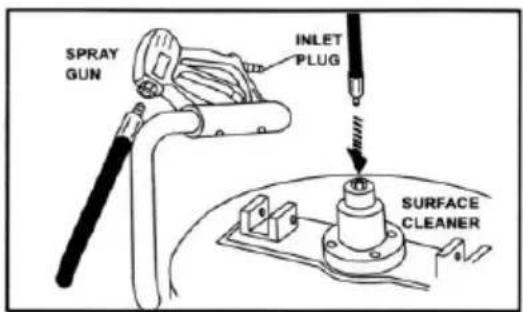

3. Connect the hose to the trigger handle and to the swivel located at the unit base. Tip: Package includes 1/4" quick connect set for quicker connection.

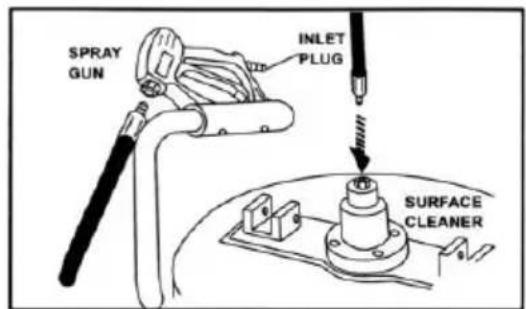

SET-UP

1. Locate the high pressure discharge hose on your pressure washer.

Ensure it is securely connected to the water outlet of the pressure washer. Quick connect the other end of the high pressure discharge hose to the gun on the Rotary Surface Cleaner.

1. Connect the water supply hose, one end to your pressure washer, the other end to a pressurized water supply.

1. Clear any loose debris from the area to be cleaned.
2. Never attempt to clean a surface with objects that protrude from the surface being cleaned. Striking any raised obstacle during operation will damage the machine. If contact does occur and results in vibration when operating the machine, STOP cleaning and check the spray bar.

START-UP

1. Lock the trigger gun on the Rotary Surface Cleaner in the "OFF" position (move the lever on the gun handle to a 90° angle so it rests against the handle grip).
2. Ensure all connections are secure.
3. Unlock the trigger gun and squeeze the trigger while starting the pressure washer.
4. Water will begin flowing from the nozzles of the surface cleaner. Ensure nozzles are not clogged and spray pattern is not erratic.

Turn the pressure washer and water supply off and change nozzles before proceeding if problems exist.

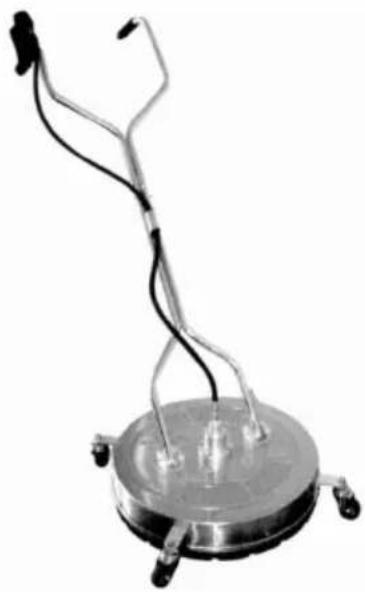

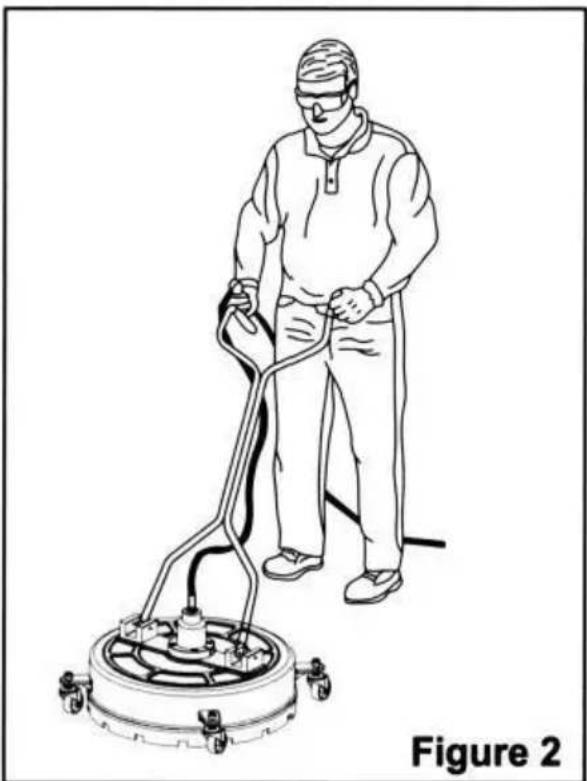

1. Walk slowly behind the unit, cleaning as you go. If striping occurs, slow down the pace. Do not allow the machine to remain stationary on soft surfaces such as wood.

SHUT-DOWN

1. Turn the Pressure Washer off.
2. Turn the water supply off.
3. Squeeze the trigger gun to relieve water pressure.
4. Disconnect and drain the water hose and wipe down the unit. Store it in a dry environment.

AFTER EACH USE

Perform the following inspections after each use to clean the cleaner and ready it for the next use.

• Clean out any dirt or foreign material from under the housing and casters. If necessary, use a cloth or sponge to wash the surface clean and rinse it with tap water.
• Check for loose parts and any damage.

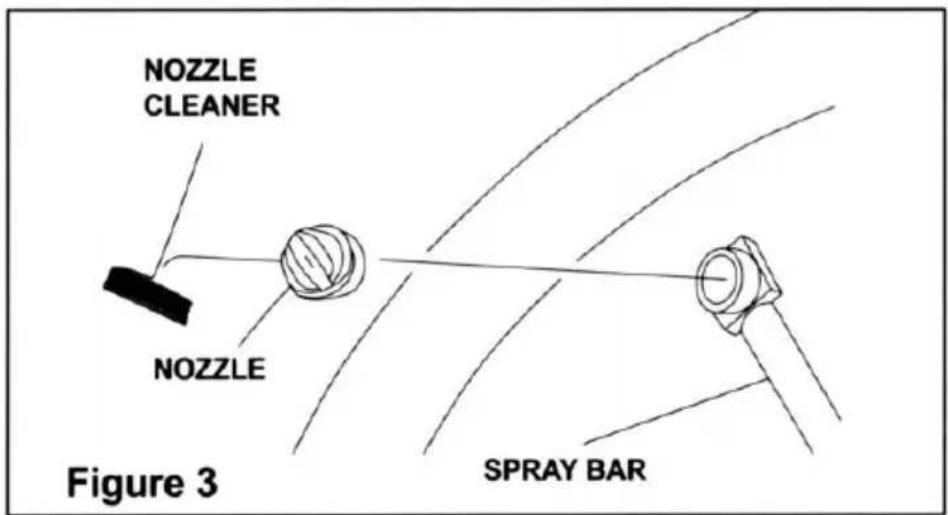

NOZZLE CLEANING

See Figure 3.

Excessive pump pressure (a pulsing sensation felt while squeezing the trigger) OR inadequate cleaning power may be the result of a clogged or dirty nozzle.

Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure and disconnect the surface cleaner from the high-pressure hose.

1. Turn off the pressure washer and shut off the water supply. Pull the trigger to release water pressure and disconnect the surface cleaner from the high-pressure hose.
2. Using a garden hose, flush debris out of the nozzle by back flushing (running) the water through the nozzle backward or from the outside to the inside.
3. Reconnect the nozzle to the spray bar and tighten it securely.

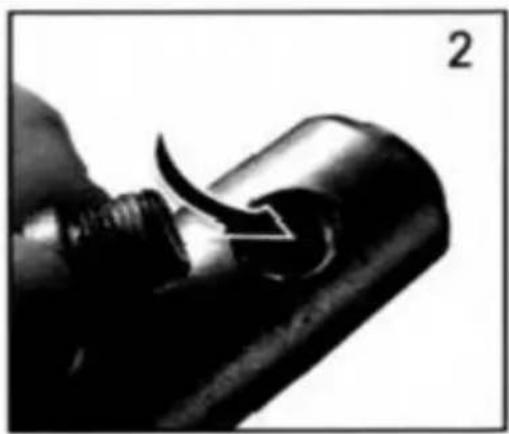

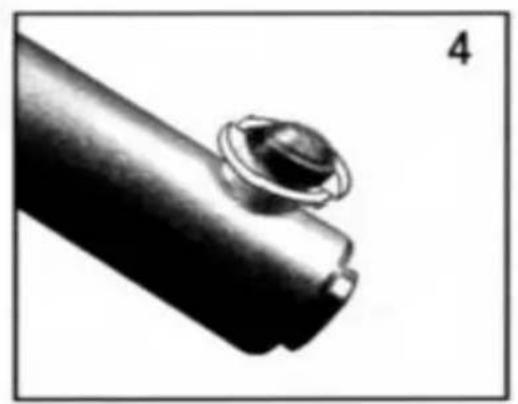

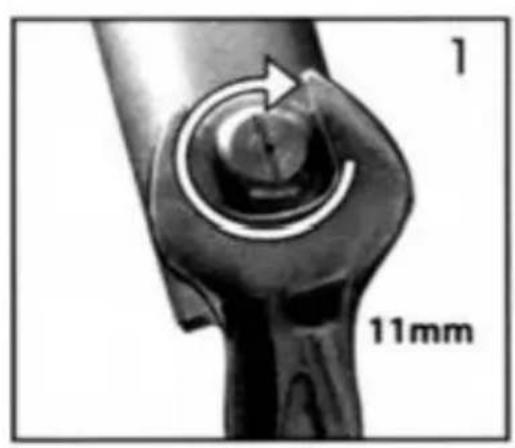

NOZZLE REPLACEMENT

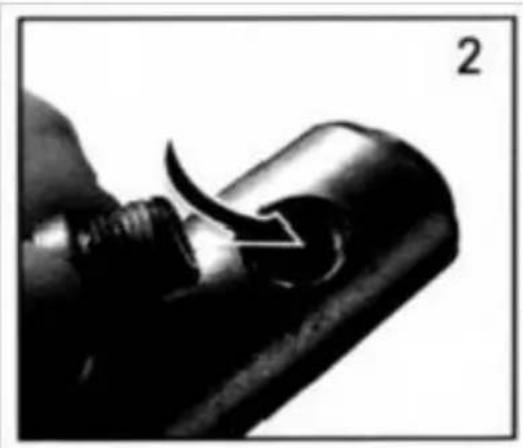

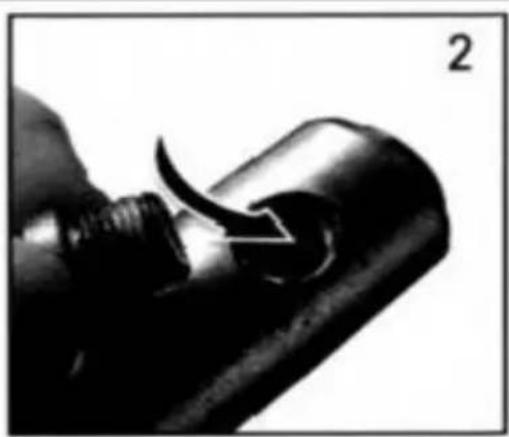

1. Remove the nozzle from the spray bar with an appropriate wrench.

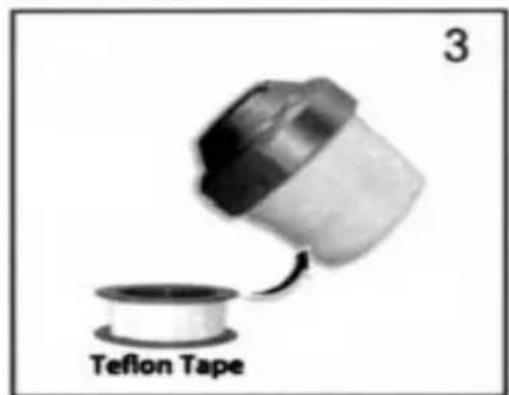

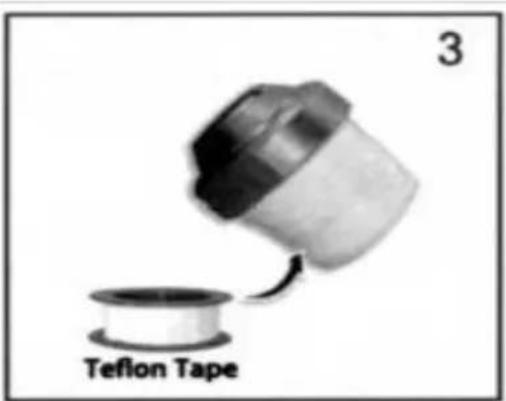

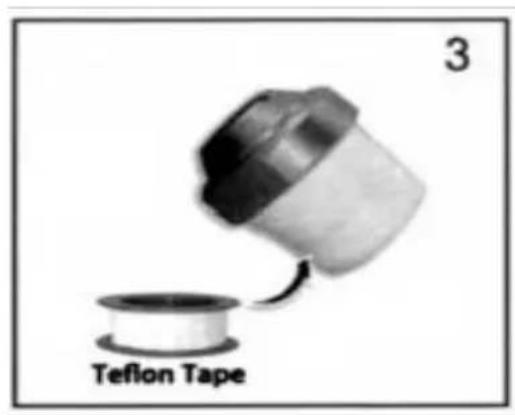

2. Rinse the mounting holes with fresh water to clean impurities. 3. Cover the new nozzle's thread with the attached Teflon tape.

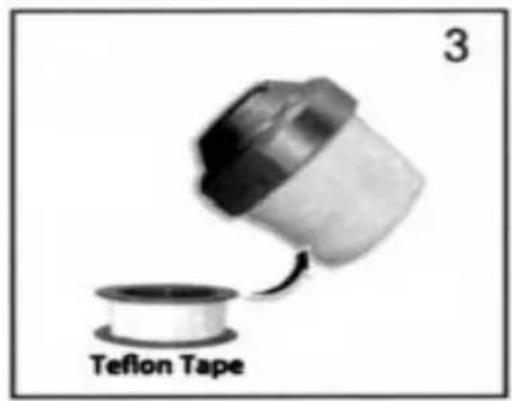

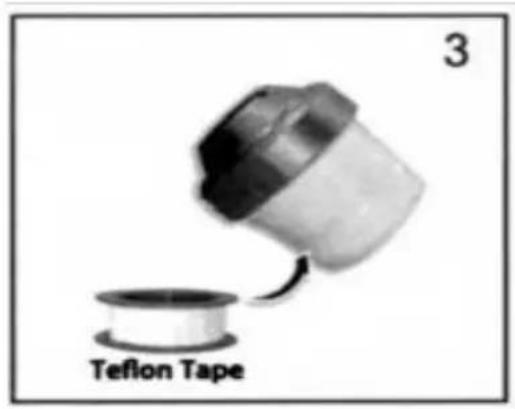

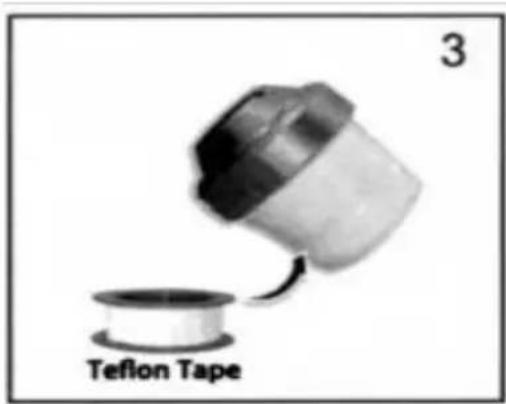

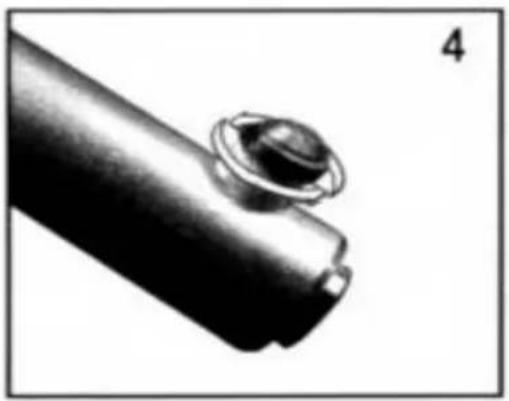

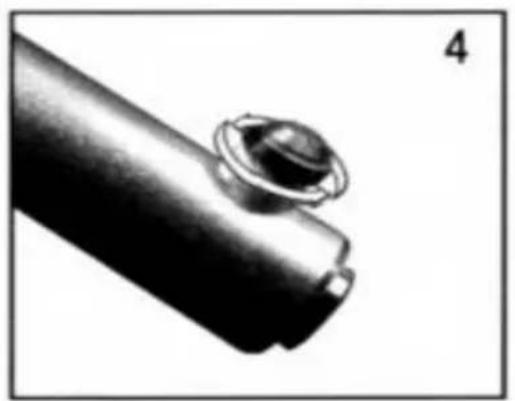

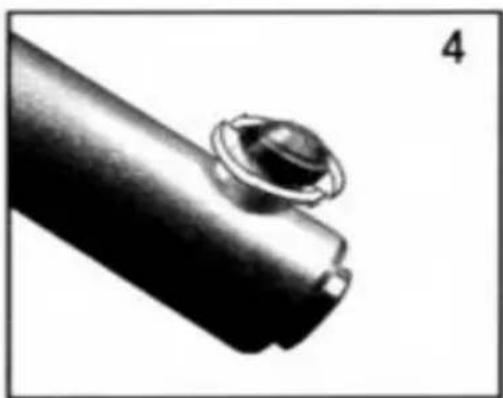

3. Align the nozzle opening, reinstall the nozzles to the spray bar. Tighten securely.

Note: If the nozzle is difficult to remove, please heat it with a hot blowtorch before removing.

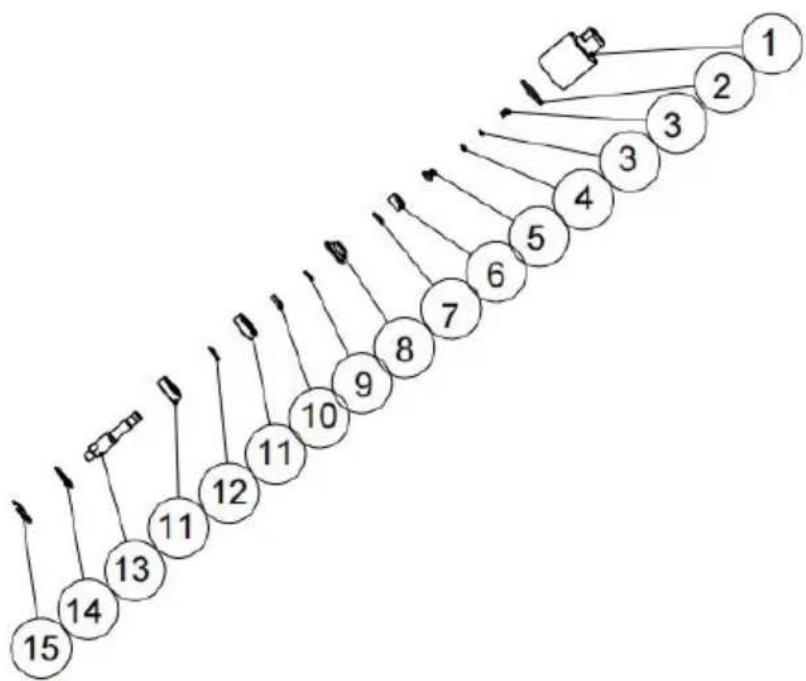

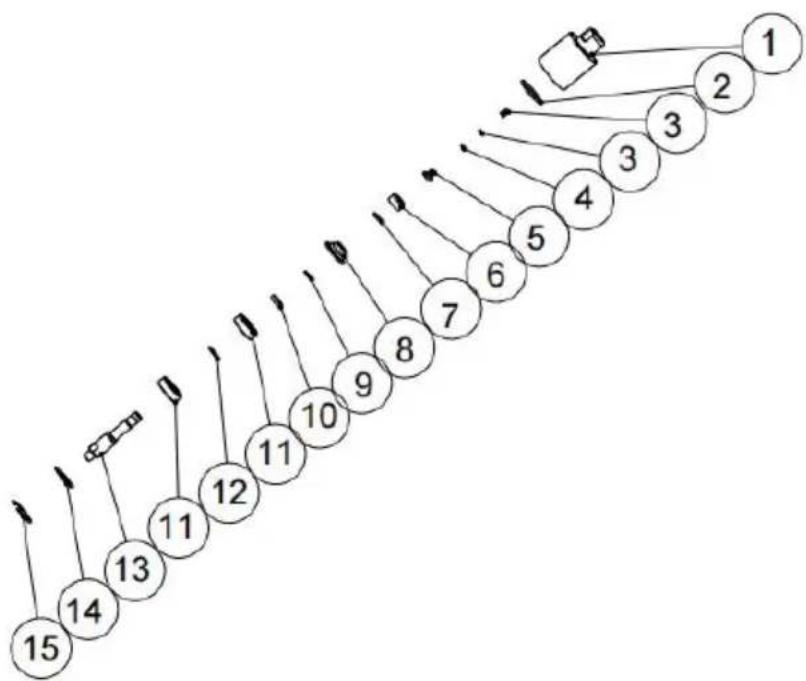

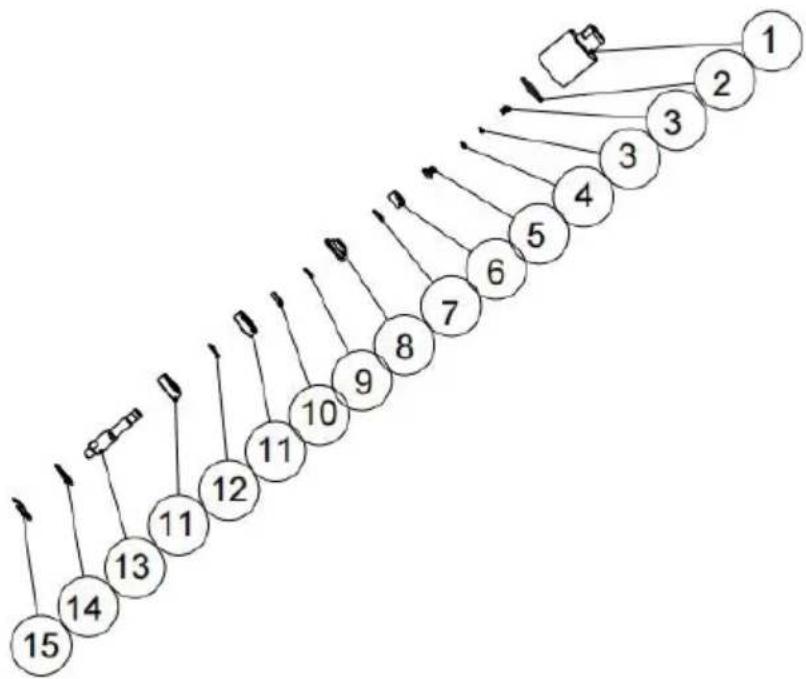

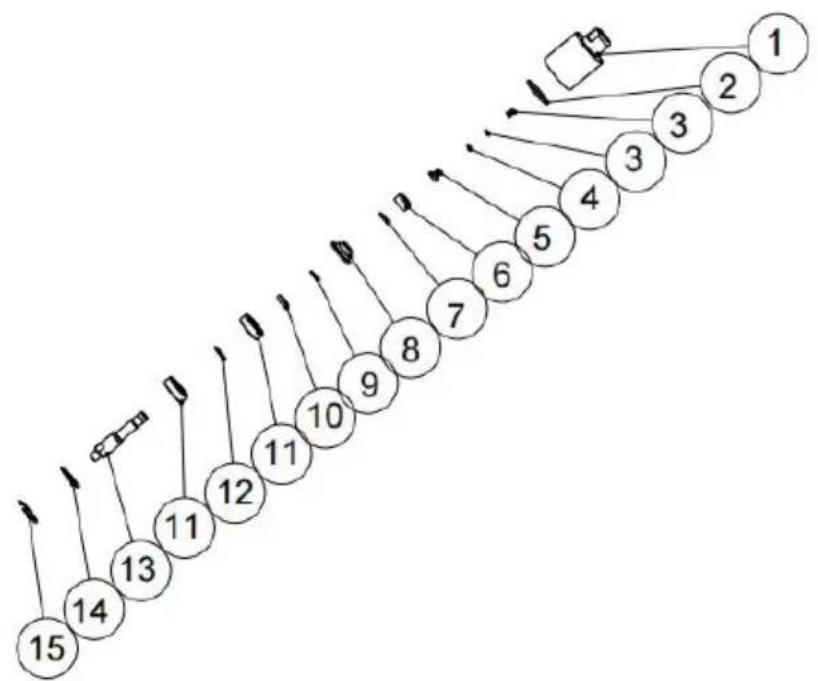

No.	Name	Qty	No.	Name	Qty
1	Shaft Housing	1	9	Circlip for shaft D15	1
2	O - ring 40.94*2.6	1	10	Spacing Collar	1
3	Compression Spring	1	11	Deep Groove Ball Bearing S6302RS	2
4	O - ring 5.28*1.7	2	12	Washer	1
5	Flanged Drive Hub	1	13	Shaft	1
6	Shaft End Cap	1	14	Washer	1
7	O - ring14.2*2.4	1	15	Circlip for hole	1
8	Bushing	1

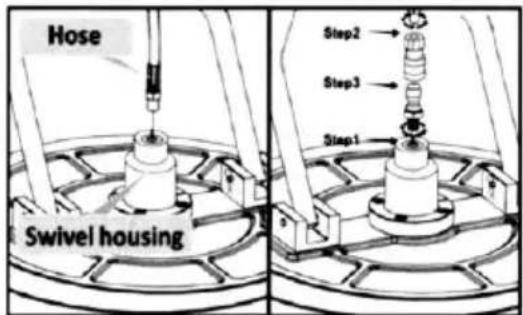

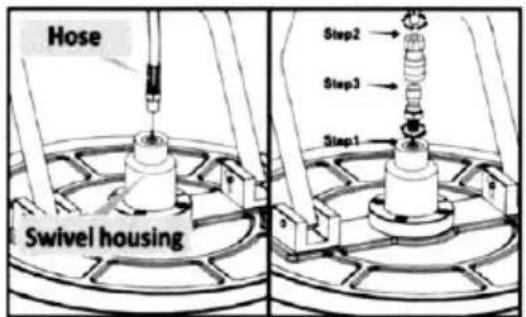

TROUBLESHOOTING
PROBLEM	PROBABLE CAUSE	CORRECTIVE ACTION
Missing parts	Damaged package	Contact our Customer Servi for help.
Inadequate cleaning power	Not enough PSI from pressure washer	Ensure unit produces a minimum pressure washer 2,000 PSI.
	Nozzle obstructed or wo	Clean or replace the nozzl
Spray bar will no rotate	Defective, snap ring dislodged	Do not use! Contact our Customer Servi for help.
	Unstable connection, the spray bar fell off
	Seal malfunction, water shooting from swivel
Excessive vibration of surface cleaner	Nozzle clogged	Clean or replace the nozzl
Streaked cleaning pattern	Nozzle clogged	Clean or replace the nozzl
	Cleaning too fast	Slow down pace.
