USER MANUAL QD-QXQ01 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DUAL-PURPOSE PRESSURE WASHER CLEANER

MODEL:QD-QXQ01

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

PRESSURE WASHER SURFACE CLEANER

MODEL:QD-QXQ01

Simple line drawing of a three-wheel pushpin with orange wheels and metal handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SPECIFICATIONS

Max. Pressure(PSI/BAR)	4000 / 276
Min. Pressure(PSI/BAR)	1500 / 104
Max. Flow Rate(gal/min)	6.2

IMPORTANT SAFETY INFORMATION

A WARNING

Read and understand all instructions. Failure to follow all instructions result in serious injury or property damage.

- The warnings, cautions, and instructions in this manual cannot cover possible conditions or situations that could occur. Exercise common set and caution when using this tool.

Always be aware of the environment and ensure the tool is used sa responsibly.

• Do not allow persons to operate or assemble the product until they read this manual and have thoroughly understood how it works.
• Do not modify this product in any way. Unauthorized modification m impair the function and/or safety and could affect the product's life.
• There are specific applications for which the product was designed.
• Use the right tool for the job.DO NOT attempt to force small equipment for the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will do the job better and safely at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.

WORK AREA SAFETY

- Inspect the work area before each use. Keep work area clean, dry clutter, and well lit. Cluttered, wet, or dark work areas can result in ir

Using the product in confined work areas may put you dangerously c other cutting tools and rotating parts.

- Do not use the product where there is a risk of causing a fire or explosion; e.g., in the presence of flammable liquids, gases, or dust. product can create sparks, which may ignite the flammable liquids, ga or dust.

- Do not allow the product to come into contact with an electrical so. The tool is not insulated and contact will cause electrical shock.

- Keep children and bystanders away from the work area while operate the tool. Do not allow children to handle the product.

- Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may I hidden from your view and may cause personal injury and/or property damage if contacted.

PERSONAL SAFETY

- Stay alert, watch what your actions, and use common sense when operating the tool. Do not use the tool while you are tired or under influence of drugs, alcohol, or medication. A moment of inattention who operating the tool may result in serious personal injury.

- Dress properly. Do not wear loose clothing, dangling objects, or jewel. Keep your hair, clothing and gloves away from moving parts. Loose of jewelry, or long hair can be caught in moving parts. Air vents on the often cover moving parts and should be avoided.

- Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side sh or when needed, a face shield. Use a dust mask in dusty work con Also use non-skid safety shoes, hardhat, gloves, dust collection system and hearing protection when appropriate. This applies to all persons in work area.

- Do not overreach. Keep proper footing and balance at all times.

- Do not use the tool when tired or under the influence of drugs, a medication.

- Remove keys or wrenches before connecting the tool to an air sup power supply, or turning on the tool. A left wrench or key attached rotating part of the tool may cause personal injury.

- Secure the work with clamps or a vise instead of your hand when

practical. This safety precaution allows for proper tool operation using hands.

CLEANER USE AND CARE

• Do not force the cleaner. Tools do a better and safer job when u manner for which they are designed. Plan your work, and use the co tool for the job.
• Check for damaged parts before each use and before connecting the cleaner to a pressure washer. Carefully check that the cleaner will or properly and perform its intended function. Replace damaged or worn p immediately. Never operate the cleaner with a damaged part.
• Store the cleaner when it is not in use. Store it in a dry, secure p the reach of children. Inspect the cleaner for good working condition be storage and re-use.
• Use only replacement parts that are recommended by the distributor Parts that may be suitable for one cleaner may create a risk of inju used with another cleaner.
• Never use a part with a lower operating pressure than the cleaner.
• Do not leave the cleaner unattended when it is pressurized.
• Do not turn the cleaner over when it is pressurized by connection operating pressure washer to avoid high-pressure spraying water that could cause personal injury.

• DO NOT exceed the rated PSI capacity.
- Keep body parts clear of nozzle heads and away from skirt while operating machine.
- DO NOT lift machine from surface or point nozzle heads at people operating.
- Wear the proper safety gear including ANSI Z87.1 approved safety glasses.
- Use only on hard level surfaces.
- No altercations shall be made to this product.
- Only attachments and/or adapters supplied by the manufacturer shall used.

- Not for use by or around children.

PartList
Code	Name	Picture		QTY.
1	Rod			1
2	Wheel			2
3	Nut			2
4	Elbow Extension Rod			1
5	Extension Rod			2
6	Teflon Tape			1
7	O-rings (φ2.4*φ9)			2
8	O-rings (φ1.8*φ5.5)			2
9	Replacement Nozzles			2
10	Through-hole Needle			1
11	Wrench			1
12	Cleaning Glove			1

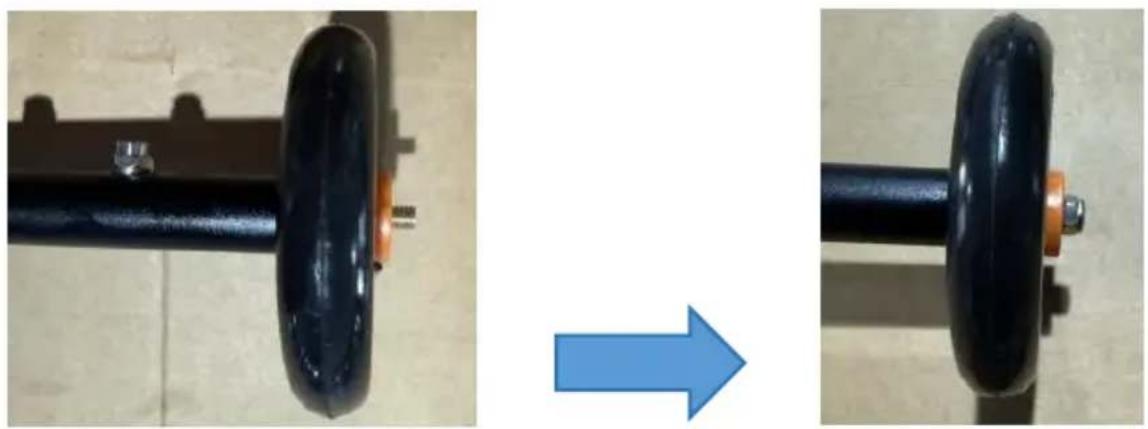

Step1:Assembled wheel.

Two views of a black mechanical component with a blue arrow indicating direction (no text or symbols)

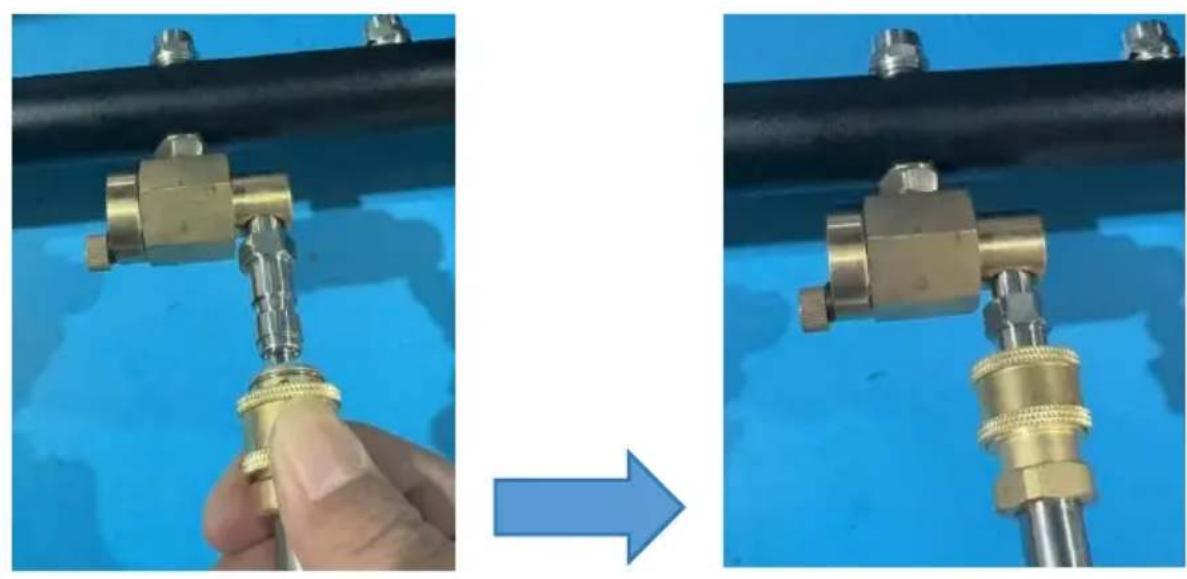

Step2:Assembly extension rod.(PS:Three extension rods can be freely matched as needed

Two-step installation of a mechanical pipe fitting, showing hand holding a brass connector and connected to a blue surface (no text or symbols visible)

Close-up of a brass mechanical valve assembly with a yellow arrow pointing to the connector (no text or symbols visible)

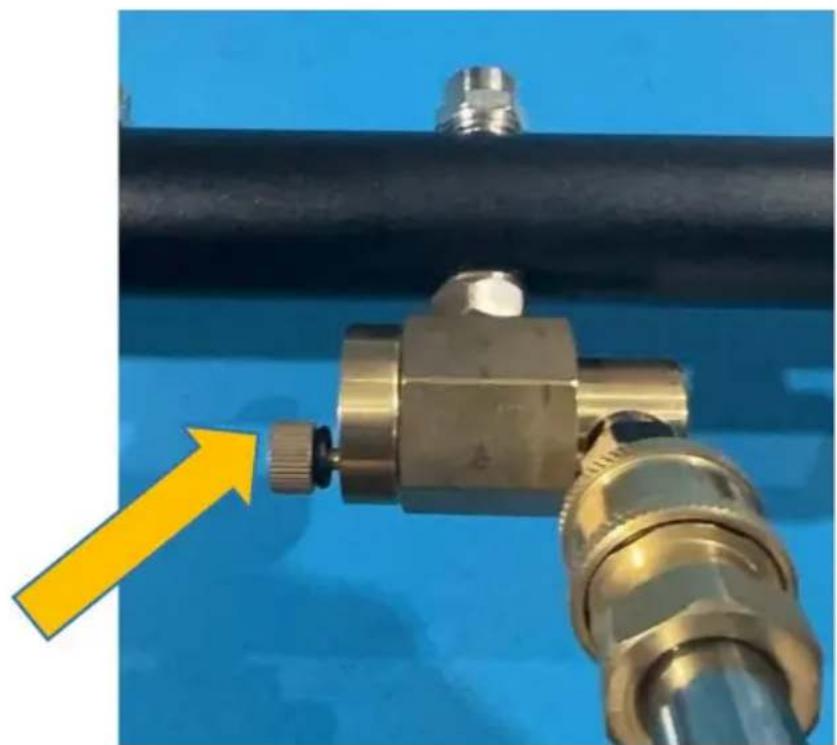

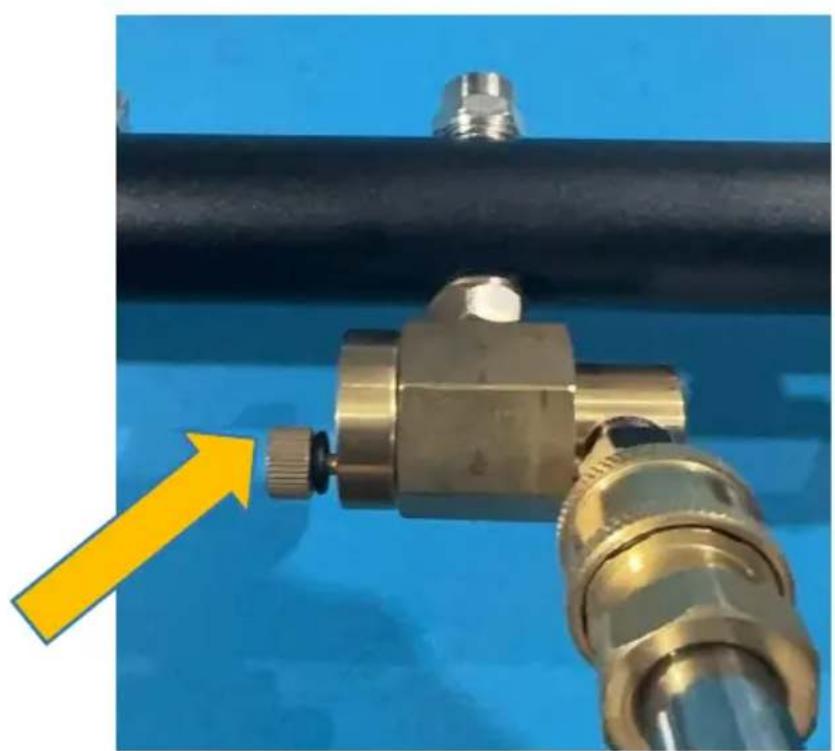

Switch Mode

1. Pull out the nut of the pivoting coupler at the end of cleaner.
2. Rotate the coupling. The nut will lock automatically. To adjust the requ Angle.

SHUT- DOWN

1. Turn the Pressure Washer off.
2. Turn the water supply off.

3. Squeeze the trigger gun to relieve water pressure.

4. Disconnect pressure washer handle and wipe down unit. Store the un a dry environment.

AFTER EACH USE

Perform the following inspections after each use to clean the cleaner ready it for the next use.

- Clean out any dirt or foreign material from under the housing and casters. If necessary, use a cloth or sponge to wash the surface cle and rinse it with tap water.

- Check for loose parts and any damage.
