USER MANUAL XS-00B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CORDLESS PRESSURE WASHER

MODEL:XS-003/XS-00B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CORDLESS PRESSURE WASHER

MODEL:XS-003/XS-00B

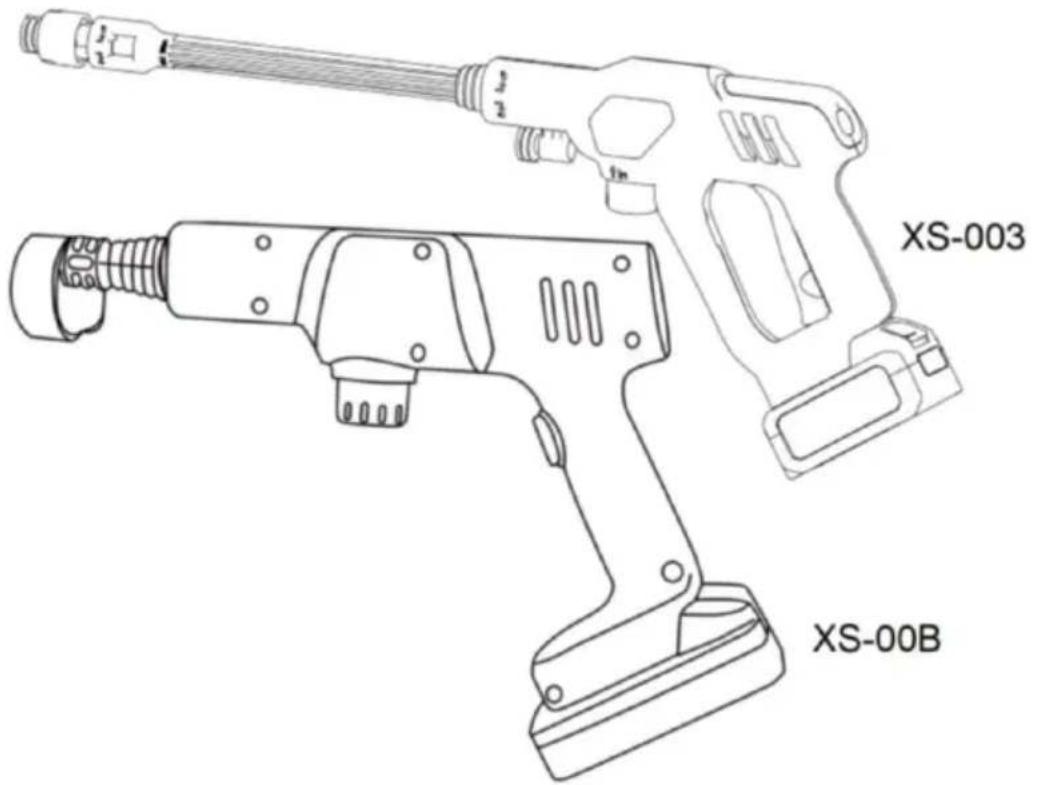

XS-003 XS-00B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model		XS-003	XS-00B
MAX Working Pressure		652PSI	652PSI
MAX Flow Rate		4L/min	3.5L/min
Rated Power		250W	200W
Usable Laundry Detergent		Neutral Detergent
Battery	Battery Type	Lithium Battery
	Voltage	DC21V
	Capacity	4000mAh
Charger	Input Voltage	AC 100-240V 50/60 Hz
	Output Voltage	DC21V 0.75A
	Charging Time	5 hours
Min.Suction Height		3M
FCC statement:This device complies with Part 15 of the FCC Rules. Operation is sub following two conditions:(1)This device may not cause harmful interference(2)this device must accept any interference received, including interferenc may cause undesired operation.

PRODUCT INTRODUCTION

Based on the principle of user experience first, quality first, the pursuit of convenience, fast, portable, energy-saving and other superior characteristics, for the majority of car-loving people and home cleaning and washing and custom development of a product. At the same time, the product is not limited by p supply, with strong and stable battery.Product can be carried with you, multi-s application, anytime, anywhere for you to save time, save cleaning costs, high efficiency to bring DIY washing fun and quality experience.

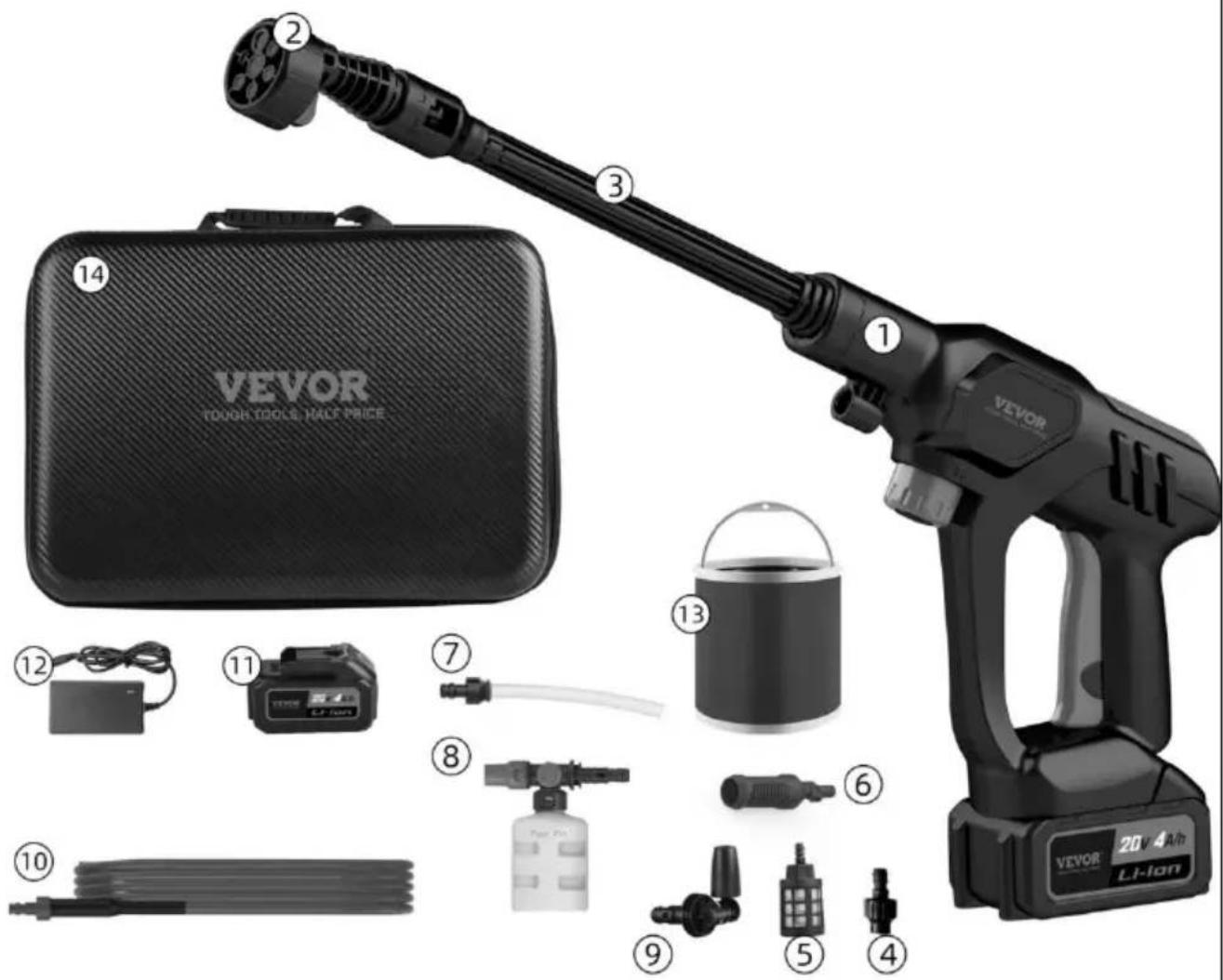

XS-003

VEVOR TOUOK TOOLS HALF PRICE ① ② ③ ④ ⑫ ⑬ ⑭ ⑦ ⑧ ⑨ ⑤ ④ ⑥ ⑤ ④ VEVOR 20.4V/m Li-ion

1. Fuselage Shell
2. Multi-Functional Six-In-One Sprinkler Head
3. Nylon Extension Rod
4. Water Inlet Connector
5. Filter Screen
6. Universal Sprinkler Head

7. Coke Bottle Connector

8. Foam Pot

9. Rotate The Gun Head
10. 6m Water Inlet Pipe
11. 4.0Ah Battery
12. Charger
13. 11 Liters Of Water Bucket
14. Carbon Fiber Storage Bag

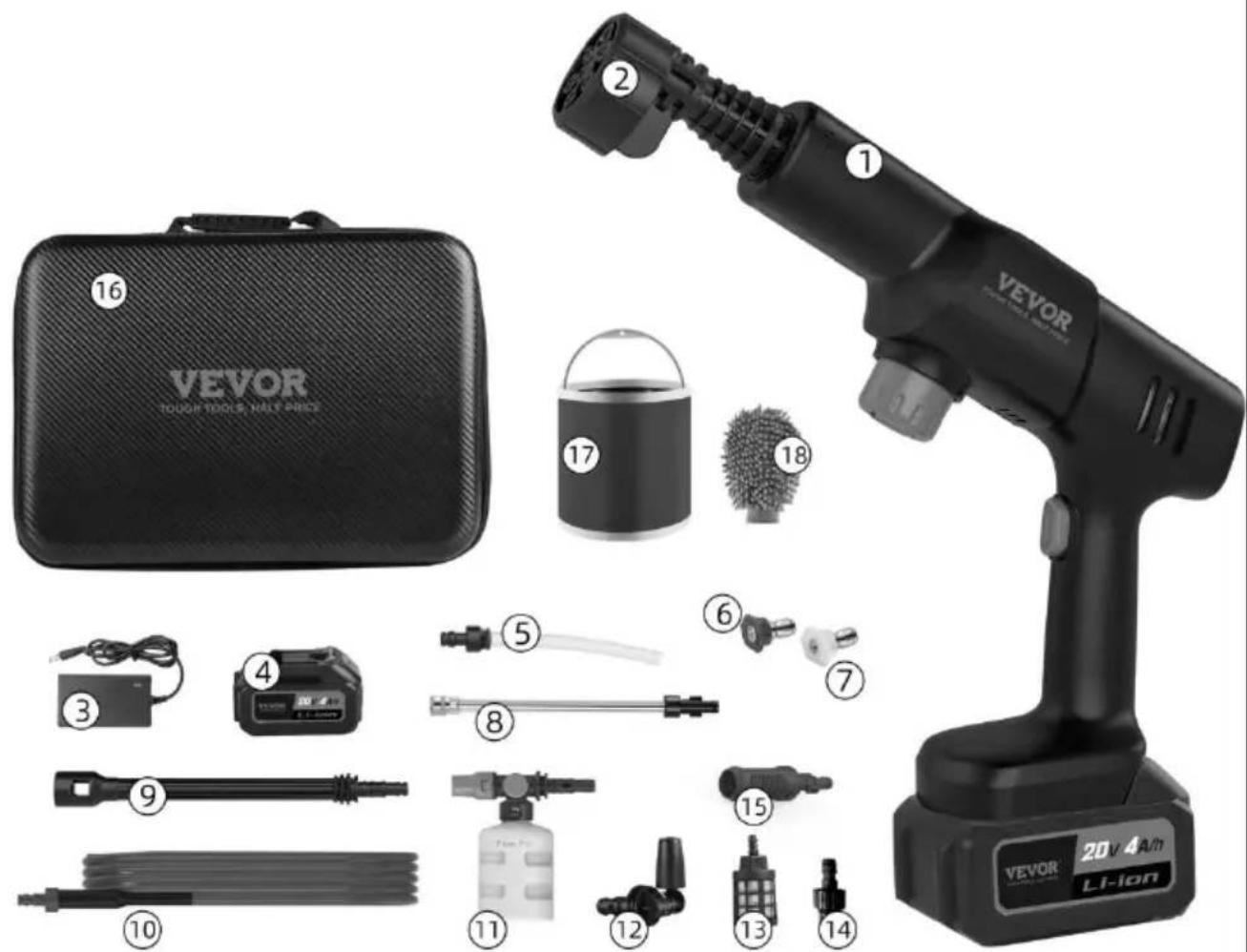

XS-00B

VEVOR TOUGH TOOLS, HALF PRICE 16 17 18 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑭ ⑮ ⑯ VEVOR 20V 4A/0h Li-ion

1. Fuselage Shell
2. Multi-Functional Six-In-One Sprinkler Head
3. Charger
4. 4.0Ah Battery
5. Coke Bottle Connector
6. 0 Degree Sprinkler
7. 40 Degree Sprinkler Head
8. Stainless Steel Extension Bar

9. Nylon Extension Rod

10. 6M Water Inlet Pipe

11. Foam Pot
12. Rotate The Gun Head
13. Screen Filter
14. Water Inlet Connector
    15.Universal Sprinkler Head
15. Carbon Fiber Storage Bag
    17.11L Bucket
16. Gloves

SAFETY & WARNING

Warning symbol and hazard icon depicting electrical hazard, safety warning, and electrical hazard symbols

When using electrical appliances, base safety precautions should always followed including the following:

READ ALL INSTRUCTIONS

1. Use shall not direct water flow to the crowd and live components.
2. Ensure that children are not exposed to the range area when the battery is charged.
3. Battery pack and charger are hit by drop collision or wet visible state shot stopped immediately!

4. Must charge the battery pack in the presence of someone!

5. Chargers must choose the original factory (without authorization or the original factory's proposal to prohibit the use of other charging accessories or charging methods.

6. Charging environment is prohibited in high temperature or unattended or accessible locations for children.

7. Unscheduled product inspection, charger, battery pack, car washing machine mainframe, if abnormal or damaged or malfunction do not modify or disasserr

8. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Safety precautions for battery pack:

1. Do not disassemble, open or shred battery sets.
2. It is forbidden to expose battery pack to heat source or high temperature

sunlight.

1. Do not short circuit the battery pack (positive and negative connection), do put the battery pack in the box drawer to avoid short circuit between them other metal items.

2. Do not remove the battery or battery pack from the original package befo

3. Prohibit battery packs from falling or mechanical impact.

4. Once the battery leaks, do not touch the leaking liquid directly into the skin. In case of accidental contact, rinse the contact area immediately with pl of water and consult a doctor in time.

5. Shall not use non-original charger and battery pack. (Causes machine malfunction or accidental personal injury)

6. Pay attention to the positive and negative signs on the battery pack to e proper connection.

7. Keep the machine and battery pack group away from children.

8. Ensure clean and dry battery pack. (If dust or residual water should be immediately wiped with clean cloth or natural air drying, do not use hair dry hot air gun drying)

9. The battery pack must be charged before use, using the correct charger referring to the manufacturer's operating instructions or the original equipment instructions

10. Not using the machine, do not charge the battery pack for a long time, attention to the green light is full of electricity, red light is in charge.

11. In case of long-term storage of unused machines, battery packs should be subjected to several charge/discharge cycles to achieve optimal performance.

12. The use of battery pack groups at room temperature performs best.

13. This product is only suitable for home doors and windows, courtyard, ver garden cleaning operations, not for commercial operations or main frequency f operations, not higher than the battery group use time or high frequency forc use.

14. Remove the battery pack whenever possible when not using the machine, disconnect from the mainframe and place it in a dry place not accessible to children.

15. Battery pack group due to other human damage or collision, high temper damage, reasonable treatment and recovery, do not discard the contaminated environment.

SAVE THESE INSTRUCTIONS

INSTALLATION GUIDELINE

Open the box to check whether the machine is in good condition and wheth the corresponding model for purchase. Then take out the attachment one by and place it in the plane. Install and use according to the operation procedu

Note : If there is water in the machine, please don't get upset. The prod not second-hand. In order to ensure that you receive a product that is perfect condition, each of our products undergoes a pumping test before leaving the factory.

Close-up of a hand holding a black handheld device next to a white handheld device (no visible text or symbols)

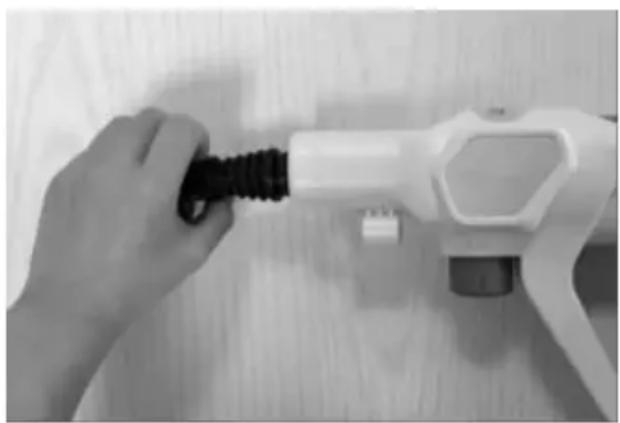

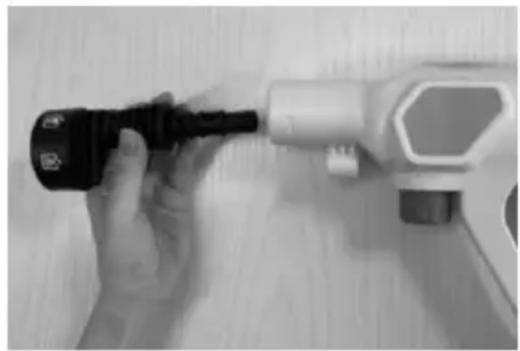

1. Align the groove and clip the 6-i nozzle into the washer

Close-up of a hand holding a black threaded connector next to a white plastic electrical plug (no text or symbols visible)

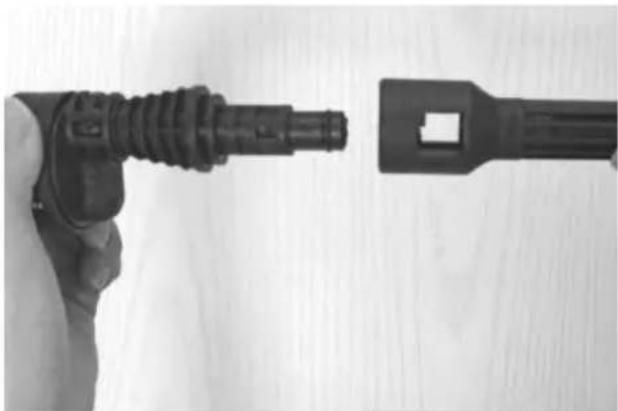

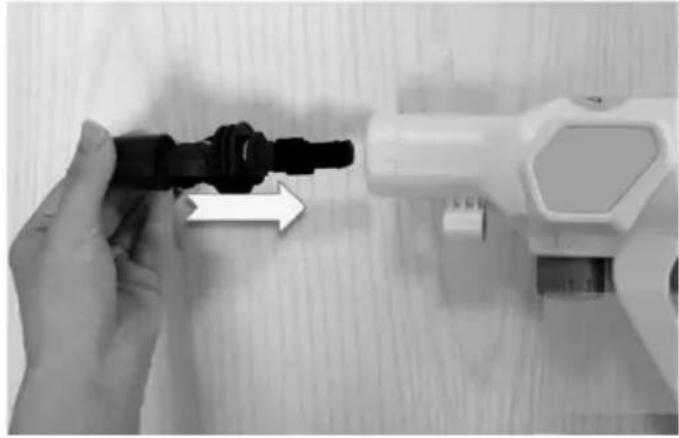

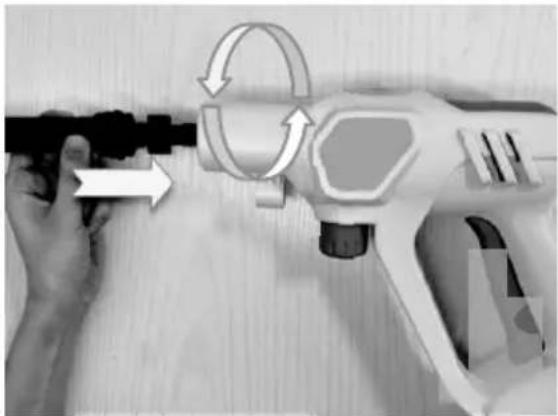

1. Press the locking nozzle into the groove and twist it to achieve spraying

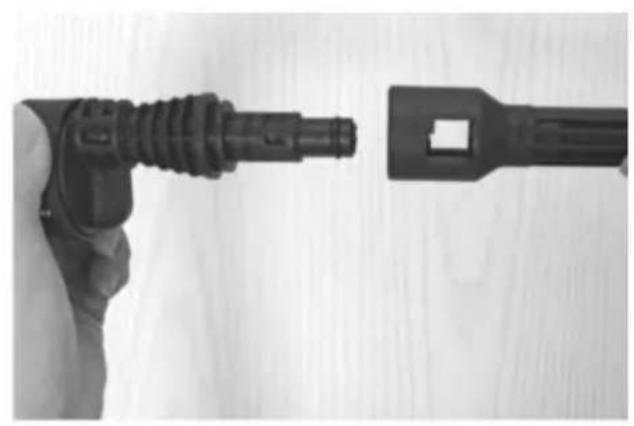

3.If angle adjustable nozzle or foam is to be used, the connection metho the same as step 01-02.	4.Press the nozzle into the groove twist it to achieve self-locking

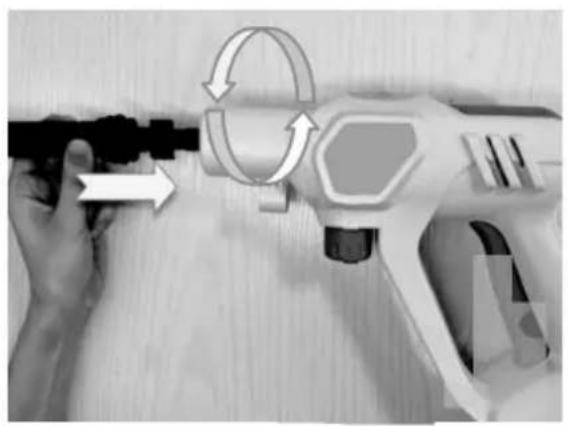

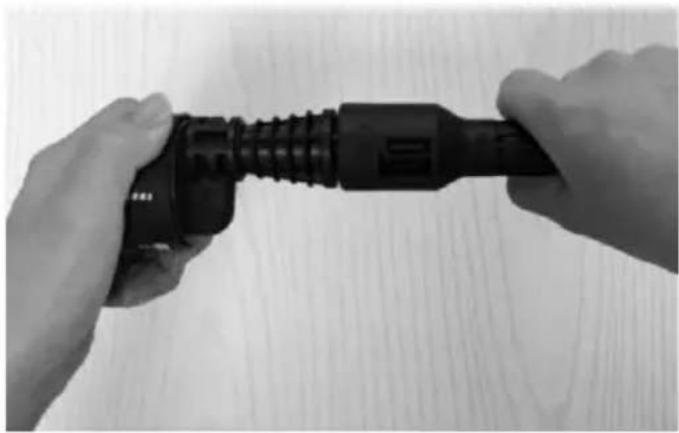

5. Press the nozzle into the groove twist it to achieve self-locking.	6. The extension rod is applicable nozzles, including foam tank joints, the connection method is the same that in step 04-05.

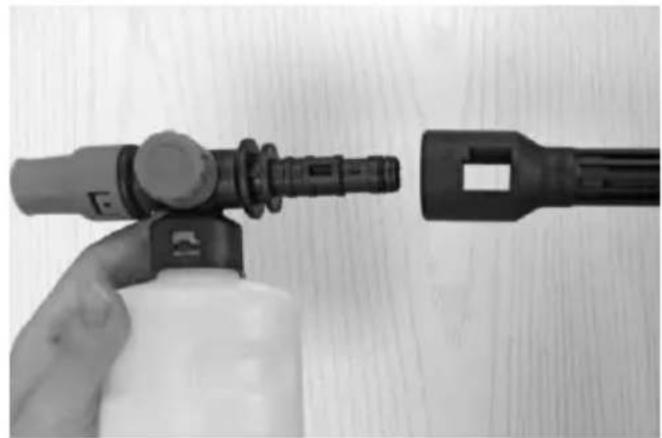

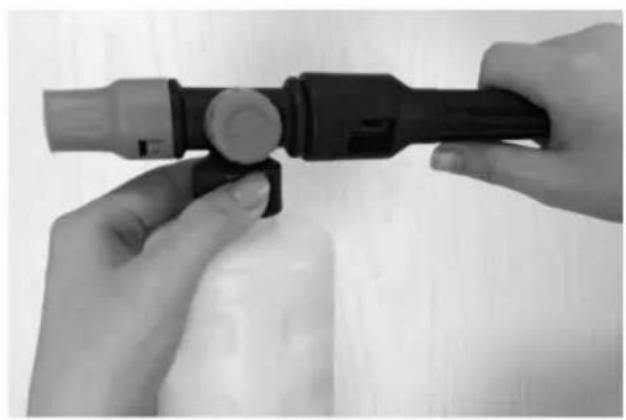

7. Align the groove and clip the foa into the extension joint.	8. Press the foam tank connector the groove in the hose and twist self-locking.

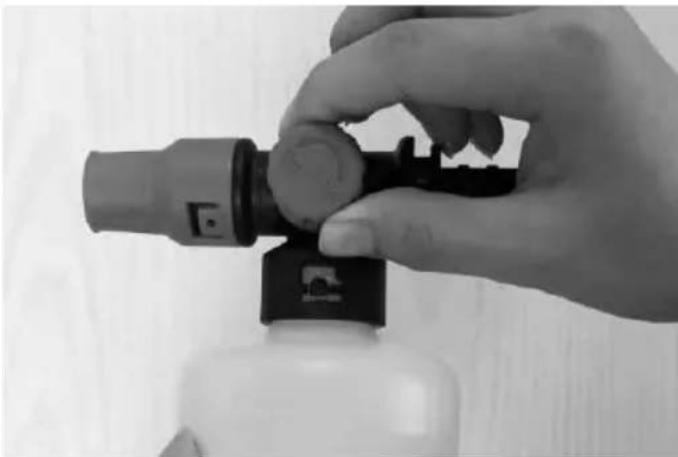

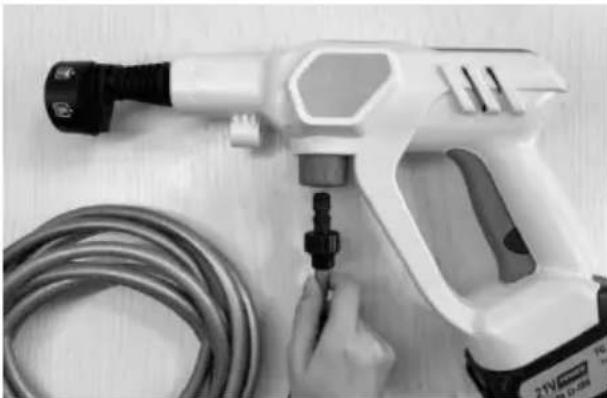

9. The foam volume can be adjuste turning the button on the adapter	10. Connect the quick connector to pressure washer. (Loosen the lock and engage upwards to remove the pipeline)

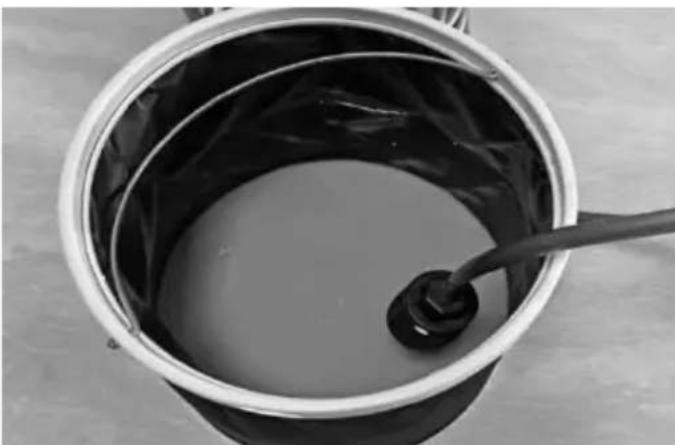

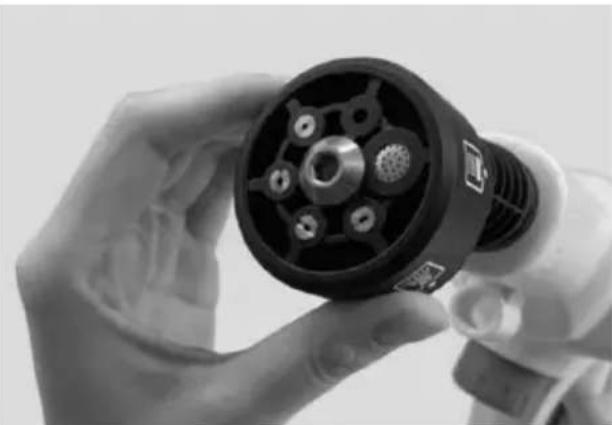

11. Inject water into the bucket a immerse the filter holder in water	12.If you choose a six-in-1 nozzle, can twist the nozzle to change t spraying mode.

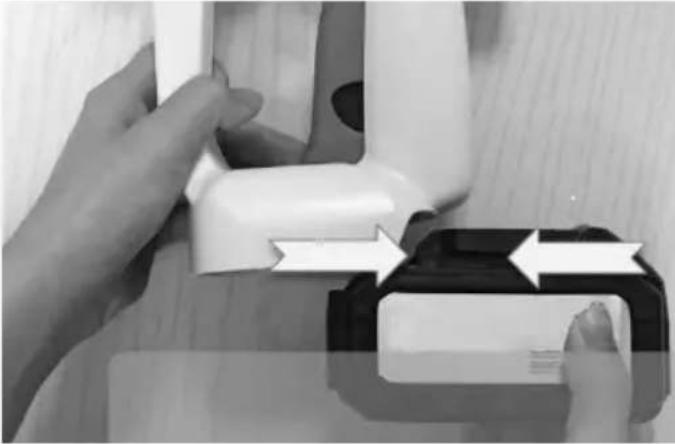

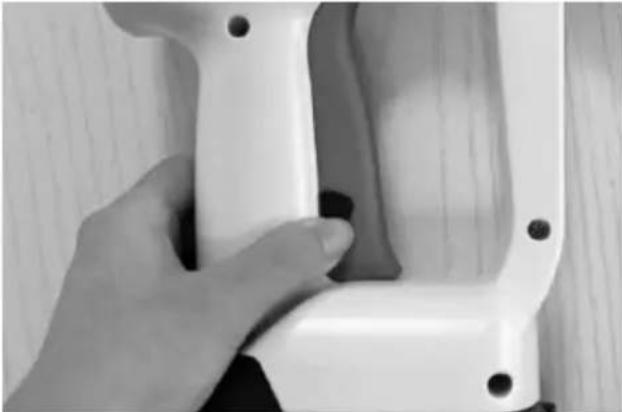

13. Connect the battery to the clea machine.	14. Press the black safety lock buto disconnect the cleaning machine

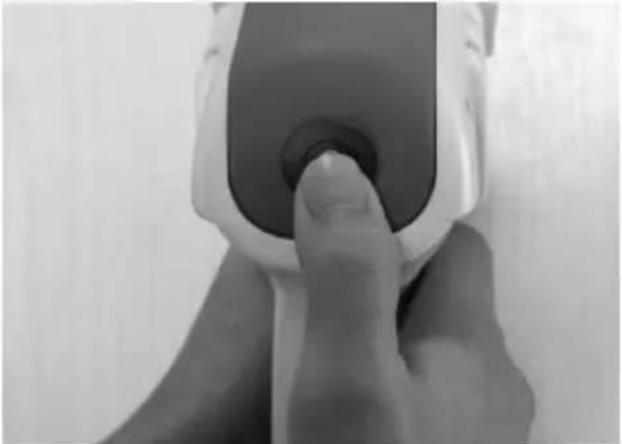

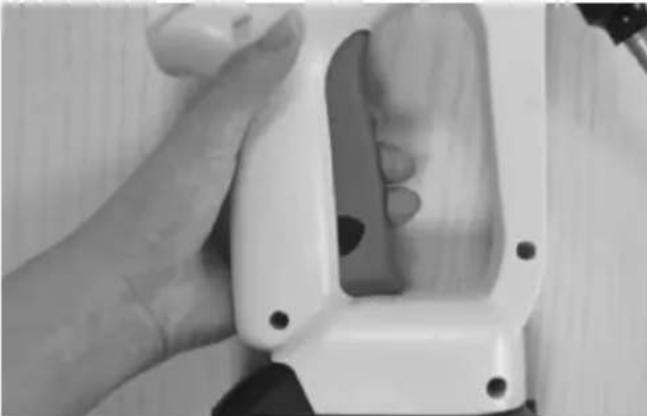

15. Press and hold the start switch operate.	16. Press this button to switch betthree gear modes. (TIPS: XS-002 dhave this function.)

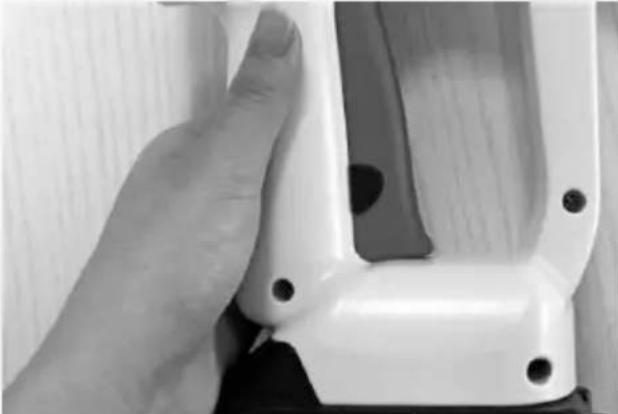

17. After completing the work, press safety lock button back. (TIPS: XS-00and XS-00B don’t have this function	18. Press the button to remove battery.

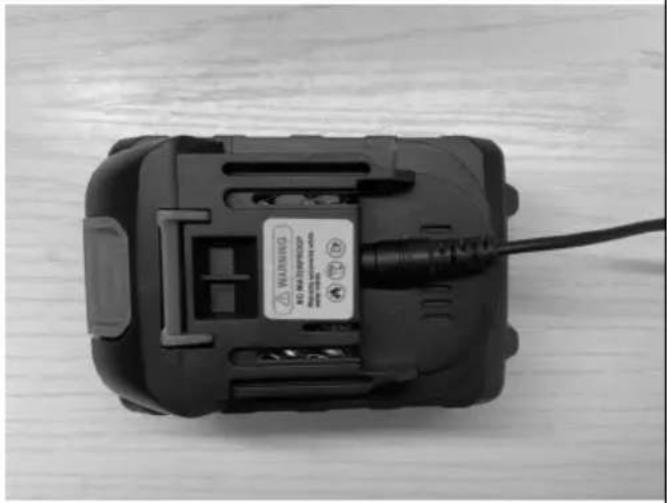

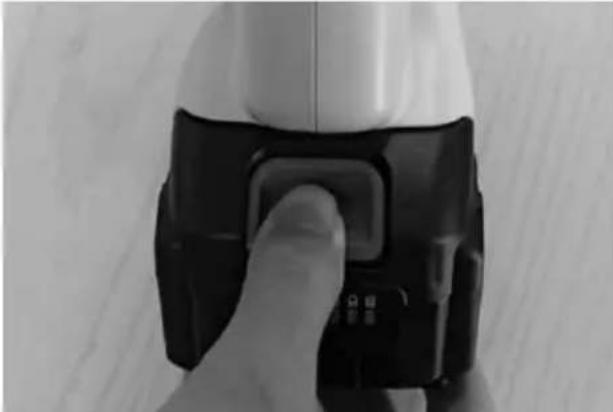

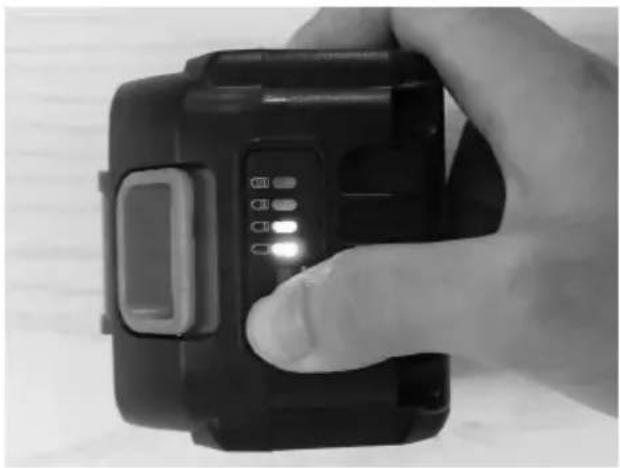

19. Press the red button to display battery level.	20.Plug in the power to charge.

TROUBLE-SHOOTING

Frequently Asked Questions	Cause analysis	Solutions
Normal operation of machine without water suction	1. Machine is too high above water	Down to below 1.5 m ground
	2. Filter screen foreign body clogging	Remove filter and clea
	Failure of connection of 3. Intake pipe to machi or rupture of intake pip	Check and replace water pipes,please contact customer service
	4. Intake pipe bending clamp	Straighten out intake pipes and reconnect
	5. The pump froze because of the cold weather	Restart after thawing
Sudden increase in effluent pressure or abnormal water type	The head of the water gun was blocked by a foreign body	Use a needle to clean the nozzle or replace the new gun head
Machine does not star	1. Battery pack not installed	reinstallation
	2. Battery pack is dea	Charge or replace new battery pack
	3. Battery pack is brok	Replacement of battery pack
Battery pack not charged	Charger mismatch or broken	Replacement of matching charger
Machine pressure discontinuity	Air in 1.pump	Check that joints and pipes are in good condition
	2. Machine in low volta mode	Normal at low pressure no treatment required
Machine automatic stop	1. Battery pack is dea	Charge or replace battery pack
	2. Gun head blocked, current protection	To clear or replace the head
Leakage Inside machine	Chemical acid source of assembly cause	Avoid using chemical sources

REPAIR AND MAINTENANCE

1. Each time before use, please check if the machine and parts are damaged

there is damage stop using the machine, contact the supplier or manufacturer replace the parts.

1. Intake pipes and filters must be cleaned after each use and bags should kept to avoid oxidation for easy use in the future.
2. After the use of the mainframe, the empty machine should run for a few seconds to drain the residual water from the machine, avoid oxidation dirt an weather ice, and store in a dry cool place.
3. Waste disposal: for damaged accessories and packaging materials must be classified and recovered, do a good job of marking.
4. Do not store in the trunk of the car high temperature weather to avoid fire caused by high temperature. Warning: do not use chemical acid and muddy must use clean, impurity-free clear water.

CORRECT DISPOSAL

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories may with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices

BATTERY DISPOSAL

Li-Ion battery This product has been marked with a symbol re to ‘separate collection’ for all battery packs and battery pack. then be recycled or dismantled in order to reduce the impact environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
