Royal 24110 - Coffee machine TREBS - Free user manual and instructions

USER MANUAL Royal 24110 TREBS

Modern coffee maker with clear glass filter and black filter, accompanied by a ceramic coffee pitcher on a base (no visible text or symbols)

Filter Coffee Expert Manual Manual de experto en filtros de café Handleiding filterkoffie-expert Filter Coffee Expert – manual Manuel approfondi sur le café filtre Filter Coffee Expert: manuale d’uso Filterkaffee-Expertenhandbuch Filtre Kahve Uzmanı Kullanma Kılavuzu

Index

English 3

Español 8

Nederlands 13

Svenska....18

Français 23

Italiano 28

Deutsch 33

Türkçe 38

English

IMPORTANT SAFETY REGULATIONS

Please read all safety regulations carefully before using the product.

1. This appliance is intended for use in households and similar areas, any professional usage is considered to be improper use and may result in personal injury or damage to property. Trebs is not liable for damage caused by improper use.
2. Never submerse the appliance in water or any other liquid.
3. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
4. Do not use the appliance if the plug, main cord or the appliance itself is damaged.
5. Regularly check the cable for any damage. If the cable is damaged, it must be replaced by the manufacturer or supplier. The cable may only be repaired by a qualified person to prevent dangerous situations.
6. No parts of this appliance may be replaced by the user.
7. When in operation, or directly afterwards some parts including the water tank may be hot. Steam may erupt when opening the water tank lid. Always allow to device to cool down before re-using the device.
8. This product is not suitable for children younger than 8 years old.
9. This product is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or with a lack of knowledge and experience, unless they're under the supervision of or have received instructions regarding the device from a person responsible for their safety.
10. Do not place the appliance on a hot surface and do not let the mains cord come into contact with hot surfaces.
11. Always unplug the appliance when problems occur and during cleaning.
12. Don't use any electrical extension cord for this appliance.
13. Always make sure the appliance is positioned safely on a flat surface before operation.
14. Do not touch the glass jug, heating plate, water nozzle or filter funnel while in operation, these areas are hot.
15. Do not use the glass jug in the microwave or oven.
16. Always use cold water to make coffee.

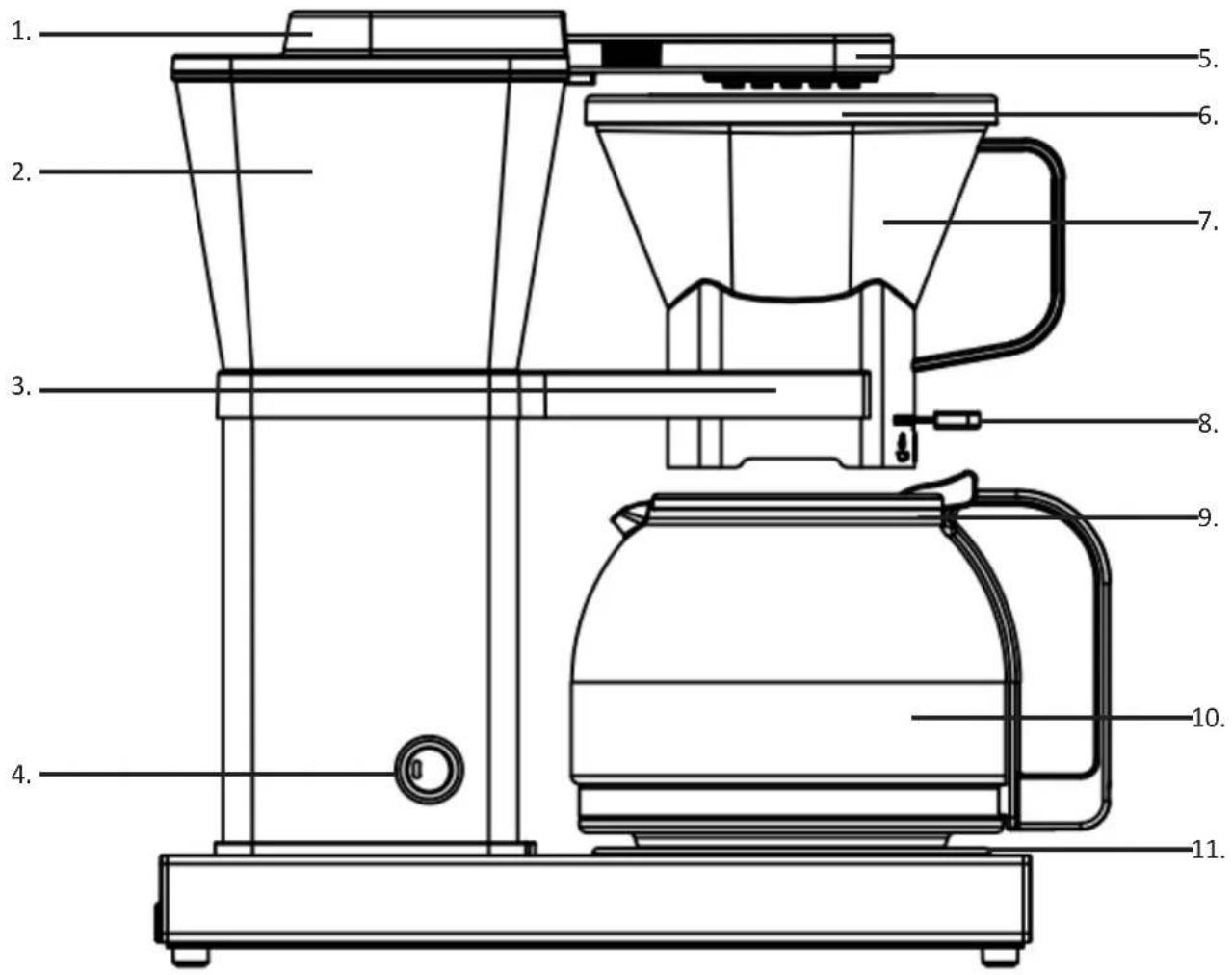

COMPONENTS

Technical diagram of a coffee maker with numbered parts for identification

1. Watertank lid

2. Watertank (1.3L/12 Cups max)

3. Filter holder

4. On/Off switch

5. Shower nozzle

6. Coffee filter lid

7. Removable coffee filter funnel

8. Sneak a cup (30 sec)

9. Glass jug lid

10. Glass jug

11. Warming plate

BEFORE FIRST USE

Check if all accessories are complete and undamaged.

Flush the coffeemaker twice before first use by filling the water tank (2) to 10 cups with cold water, insert the power plug and allow the coffeemaker to operate by pressing the On/Off touch switch (4). This will clear out any remaining debris in the coffeemaker.

OPERATION INSTRUCTIONS

1. Make sure the device is clean, placed on a straight surface, plugged in and the sneak a cup function is set to open (8) disabled.
2. Fill the Glass jug (10) with cold water using the cup indication on the glass jug (10).
3. Open the water tank lid (1) and pour the needed water from the Glass jug (10) into the water tank (2), while keeping an eye on the Water tank indicator not to exceed MAX.
4. Fill the removable coffee filter funnel (7) with a fitting coffee filter (Size #4).
5. Add the necessary amount of ground coffee to the removable coffee filter funnel (7).
6. Place the coffee filter lid (6) on top on the removable coffee filter funnel (7).
7. Make sure the removable coffee filter funnel (7) is placed in the correct position within the filter holder (3), sneak a cup function (8) is set to open, the Water tank lid is closed (1) and the Glass jug (10) is correctly placed on the warming plate (11).
8. When ready, push the On/Off switch (4) to start operation.
9. After operation, the coffee maker will remain active for 40 minutes before the device is automatically turned off. During this period the warming plate (11) will remain hot.
   The coffee maker can also be turned off manually by pressing the On/Off switch (4) once.

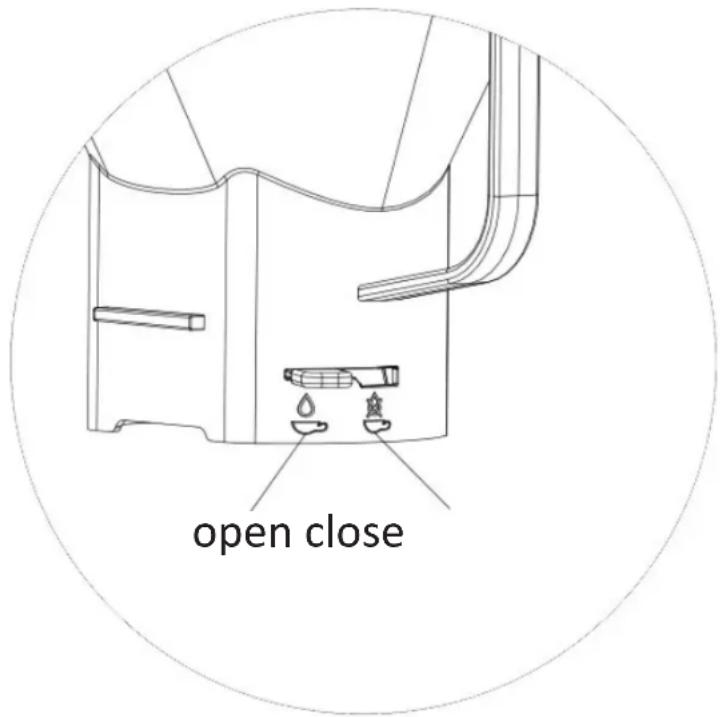

SNEAK A CUP FUNCTION - NON DRIP STOP

The Trebs 24110 Coffeemaker is equipped with the sneak a cup function, which allows the user to pour a cup of coffee while the device is still operational.

Simply switch Non drip stop (8) to close before removing the glass jug (10) from the warming plate (11).

This gives an estimated 30sec opportunity to (re)fill your cup.

Always make sure that the Sneak a cup function is returned to its open position to continue the flow of coffee.

open close

PRE - INFUSION FUNCTION

The Trebs 24110 coffeemaker is equipped with a pre-infusion function to achieve a better quality brew. The pre-infusion function schedules a short interval in water distribution to allow the dry ground coffee to reach an optimal state of saturation. This makes sure that the coffee aroma is fully extracted into each cup.

Press and hold the On/Off switch (4) five seconds to switch between the default mode and the pre-infusion mode. After five seconds the light will start blinking, indicating that the pre-infusion mode has been activated.

Press the On/Off switch (4) once more shortly to begin operation in pre-infusion mode (visible by a blinking On/Off switch (4))

The device can be switched back to its default mode by pressing the On/Off switch (4) another five seconds. The default mode is indicated by a steady light on the On/Off switch (4).

The chosen mode remains active until manually switched or the device is unplugged, upon start up the default mode will be active.

CLEANING AND MAINTENANCE

Proper periodical cleaning and descaling will ensure years of service from the coffee brewer.

Always unplug the device and make sure the device has cooled down before the surface is cleaned.

Use a soft damp cloth without abrasive cleansers to clean the outside/warming pad.

To maintain the working efficiency of the Coffee maker and coffee quality, it is necessary to descale the coffee maker periodically. The frequency of descaling depends on the quality of the water used and the amount of mineral built up during usage. Trebs recommends descaling the device every two months.

1. Prepare a descaler mixture of water and descaler, suggested ratio is 4:1. Actual ratio depends on the brand and concentration of the descaler used.
2. Pour the descaler mixture in the water tank (2) and close the water tank lid (1).
3. Make sure the removable coffee filter funnel (7) is placed correctly in the coffee maker and place the glass jug (10) in the correct position in the filter holder (3).
4. Start operation by pressing the On/Off switch (4) and allow the coffee maker to run 1 cup of the descaling/water mixture.
5. After 1 cup, turn the coffee maker off by pressing the On/Off button (4).
6. Allow the coffee maker to cool off for 15 minutes and repeat step 4 – 5 until the water tank (2) is completely empty.
7. After cleaning, it is important to rinse the device thoroughly by operating the device with clean water at least three times.

DISCARDING OLD EQUIPMENT

Old electric and electronic devices often contain valuable materials. However, they also contain harmful substances that were necessary for their functionality and safety. If these are placed with the non-recyclable waste or disposed of incorrectly, they can be harmful to human health and the environment. Never place your device with the non-recyclable waste.

REMARK

• Use the collection points available in your community and recycle old electric and electronic devices. Contact your town hall, the local waste disposal company or your dealer for more information.
• Make sure that your old device, until it's picked up, is safely stored out of reach of children.

WARRANTY

• We provide a warranty of 24 months for this product. The warranty starts on the date of purchase and is intended for faults due to production or the used materials.
• Your statutory warranty rights in accordance with § 439 ff. BGB-E will remain unaffected by this.
• The warranty does not apply to damages as a result of improper handling or use, nor to malfunctions that only have a minor effect on the functionality or value of the product. Normal wear and tear, transport damage, to the extent that we are not responsible for this, as well as damages caused by repairs not performed by us, are also excluded from the warrant.
• This device is designed for household use and has the right performance levels.
• Any use in commercial situations is only covered by the warranty if the device is not put under a heavier strain that in a household situation. The device is not intended for additional commercial use.
• In the case of well-founded complaints, we will repair the defective device at our discretion or replace it with a device that shows no problems.

All possible manufacturing faults must be reported within 14 days of delivery. All further claims are excluded.

When invoking the warranty, please contact us first before sending us the product (you must always provide us with proof of purchase).

TECHNICAL DETAILS

• Model: 24110 Ground coffee maker
• Voltage: 220V-240V; 50Hz
• Power consumption: 1560 W
• Capacity: 1,3 Liters, 10 cups
• Product dimensions: 32.9x15.8x32.9 cm
• Weight: 3.1 kg

SERVICE

If you have any further questions regarding the product after having read the user's manual, please contact the Trebs customer service:

CE Regulations

Hereby, Trebs B.V., Thermiekstraat 1a, 6361 HB Nuth, The Netherlands, declares that this product is in compliance with the essential EU directive requirements.

The declaration of conformity may be consulted via [e-mail]

CE

Español

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification

1. Vattentankens lock

2. Vattentank (1,3 l/max. 12 koppar)

3. Filterhållare

4. På/Av-knapp

5. Vattenmunstycke

6. Kaffefiltrets lock

7. Borttagbar kaffefiltertratt

8. En kopp mitt i bryggandet (30 sek)

9. Glaskannans lock

10. Glaskanna

11. Värmeplatta

FÖRE FÖRSTA ANVÄNDNING

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification

Technical diagram of a coffee maker with numbered parts for identification
