Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Specifications 19 Safety Instructions 20 Icon Overview 22 Installation 23 Operation 25 Device Control by Smartphone 27 Product Information 30 Disposal Considerations 31 Declaration of Conformity 31

TECHNICAL SPECIFICATIONS

Article number 10046463, 10046464
Power supply 220-240 V~ / 50 Hz
Power 2000 W
Measurements 47.5 x 26.5 x 83.0 cm (WxHxL)
Mounting freestanding or wallmounted
WLANFrequencyMax. radio-frequency power	2,4 GHz<20 dBm

SAFETY INSTRUCTIONS

- Read the manual before using the heater. Keep the manual and ensure that it remains with the heater if you pass it on to a new owner.

- Before use, check that the heater and all accessories supplied are complete and undamaged.

- The heater must be installed in accordance with the installation instructions. The heater must be plugged into a socket that meets the following requirements AC 230V, frequency 50/60Hz.

- The heater is for indoor use only. Do not use it outdoors!

- Do not leave the heater unattended while it is in use. Keep the heater out of the reach of children: risk of burns.

- Do not use an external controller with the heater. Do not leave the heater unattended.

- Do not use the heater near flammable or explosive materials: risk of fire or explosion.

- It is strictly forbidden to insert objects into the heater's protective grille: risk of electric shock.

- Do not touch the metal housing as it becomes hot when the heater is in use: risk of burns. Allow the heater to cool before switching it off and storing it.

- Unplug the heater if it is not to be used for an extended period of time.

- Ensure that the electric heater is in good condition and undamaged before each use. Do not connect or use the heater if the casing, cord or plug is damaged.

- The heating element may be damaged if the heater is dropped or knocked. Check that the element is undamaged before each use. Do not use the heater if the element is broken.

- Disconnect the plug from the socket when moving or cleaning the heater. When disconnecting, first turn off the switch and then pull out the plug. Do not pull on the cable.

- Unauthorised dismantling of the electric heater is strictly prohibited. If the heater is damaged, contact a qualified service technician.

- The product is intended for domestic use only.

- During use, do not touch the surface of the appliance with bare skin: risk of burns.

- Do not use the socket of the heater together with other appliances: risk of fire due to excessive load.

- WARNING: Never cover the heater. Covering the heater increases the risk of overheating and fire.

- Do not place the heater directly underneath an electrical outlet.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person to avoid danger.

- Do not use an extension cord as it may overheat and cause a fire hazard.

- This heater is not intended for use in bathrooms, laundry rooms or similar areas where moisture may be present. Never place the heater where it may fall into a bathtub or other water container.

• Do not use the heater near a bath, shower or swimming pool.
• Children under the age of 3 should be kept away from the heater unless supervised at all times.
• Children between the ages of 3 and 8 may only switch the appliance on and off when it is in its intended normal operating position and they have been supervised or instructed in the safe use of the appliance and understand the hazards involved. Children over the age of 3 and under the age of 8 should not connect, adjust, clean or service the appliance.
• This appliance may be used by children 8 years of age or older and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. Do not allow children to clean or service the appliance without supervision.
• WARNING: Some parts of this product can become very hot and cause burns. Special care should be taken where children and vulnerable persons are present.

CAUTION

Risk of burns! Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

ICON OVERVIEW

Symbol Function
	On-/Off-button
	WIFI-Symbol
	heating symbol
	low temperature
	high temperature
	frost protection mode
	temperature selection button
	increase button
	decrease button
	timer button
	childlock-button

INSTALLATION

• Before installation, check that all parts are complete and that the product is undamaged.
• If you wish to use the electric heater as a freestanding unit, please attach the feet supplied with the heater according to the instructions below. Ensure that the heater is mounted on a level, stable and clean surface.

Freestanding installation

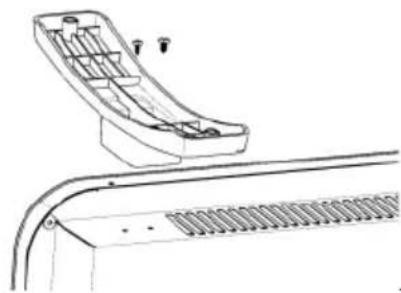

1. Place the product upside down on a soft cotton cloth or carpet.
2. Attach the feet to the base of the heater using the screws provided. Align the holes in the base with the holes in the feet, insert the screws through the holes and tighten with a screwdriver.

Technical line drawing of a vehicle chassis with handle and side panel (no text or symbols)

Wall mounted installation

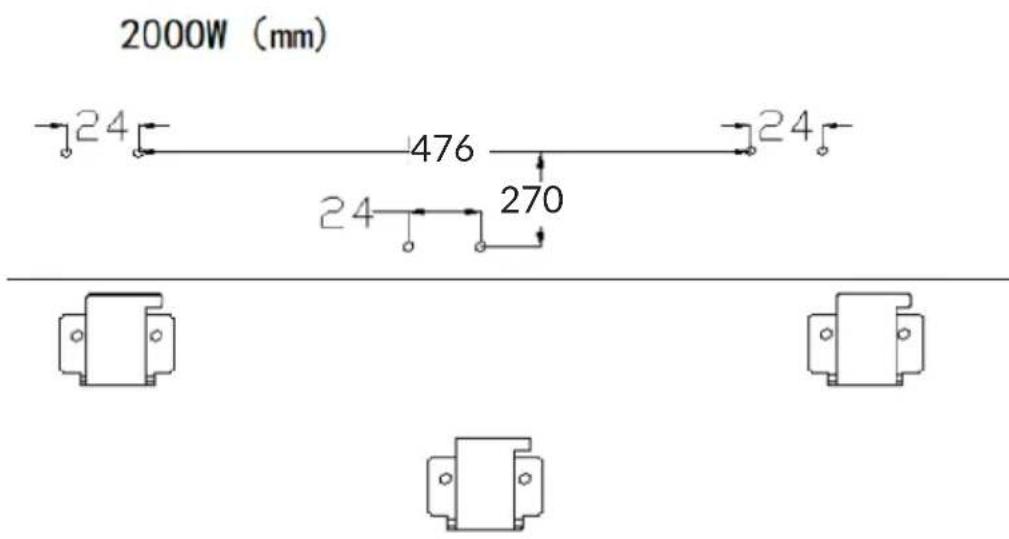

1. Take 2 brackets, 4 expansion screws and 4 screws out of the box and fix 2 brackets to the wall according to the distance between the holes of the brackets as shown in the picture below.

2000W (mm) 24 476 24 270

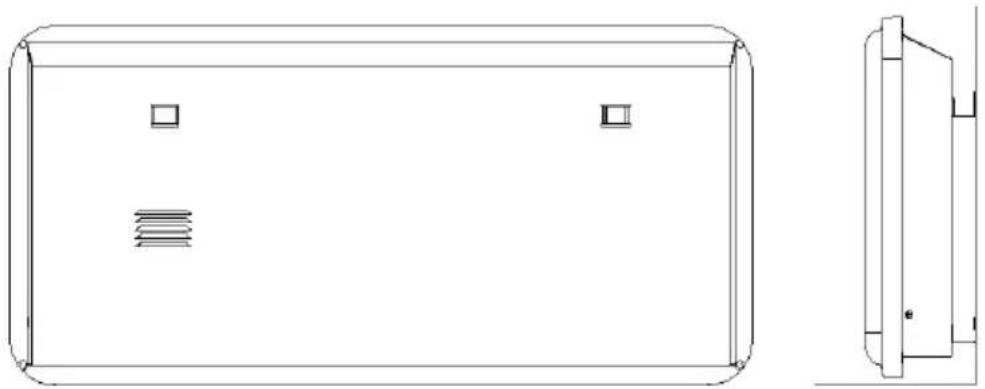

1. Holding the side of the product, look at the position of the wall hole on the back cover and slide the wall to the top of the slot, i.e. the installation of the wall is complete, as shown in the picture below.

Technical line drawing of a rectangular enclosure with side and top views, showing internal structure and mounting points (no text or symbols)

Note: Before drilling, check that there are no cables or other pipes on the wall to avoid damage. Remember that the screws on the wall must be tight and secure to ensure the safe installation of the electric heater on the wall. Please observe the safety distance mentioned below.

• During installation, the heater must be kept away from flammable materials, gas and water.
• When wall mounted, the heater must be at least 15 cm above the floor. Hanging heaters must be at least 50 cm from the ceiling.

OPERATION

• When the switch is turned on, the buzzer sounds and the unit enters standby mode. The WIFI icon flashes and the display shows the indoor temperature.
• When you press the ON/OFF button, the heating icon in the unit and the low temperature icon will light up at the same time.
• To change the heating cycle, press the Increase or Decrease button to make adjustments. The unit can operate in low, high and frost protection modes.
• If the ambient temperature is below 5^ C, the antifreeze mode is activated and the low heat icon is displayed. When the ambient temperature is ≥ 7^ C the heating wire stops heating, the power icon goes out and only the antifreeze icon is lit.
• Temperature selection button: When the number is flashing, the temperature can be adjusted. Press the increase or decrease button, adjust and select the desired temperature within the temperature range of 5 °C to 50 °C. When the temperature reaches the set temperature, the unit will stop heating and when the temperature falls below the set temperature, the unit will start working again.
• Use the timer buttons: The display symbol lights up in white. Press the increment or decrement key to select the desired operating time within the range of 1 to 24 hours. The machine will stop working when the preset time is reached.
• Schedule time: In Standby mode, press the temperature selection button. The timer icon will light up. Select from 1 to 24 hours and the appliance will start when the set time is reached. The set temperature is 25^ C, i.e. if the ambient temperature is below the set temperature, the unit will start working and if the ambient temperature is above the set temperature, the unit will go into standby.
• Child lock button: When you press and hold the increase button, the child lock icon lights up. At this time, all buttons on the interface are unavailable. When you press the Increase key again, the child lock icon will go out, indicating that all the buttons on the interface can be used normally again.
• Window opening function: In all heating modes, if a window is opened and the temperature drops by 5°C or more within 5 minutes, the product will automatically stop heating and the white indicator in the window open mode will light up. The window opening function icon on the display will light up. If it is necessary to restore the heating operation, first unlock it (if locked), then press and hold the increment and decrement buttons for 5 seconds to return to the operating mode before opening the window.
• Pressing and holding the temperature selection button for 3 seconds will access the four preset programme modes: P0/P1/P2/P3. The number "P0" flashes on the screen. Press the increase and decrease buttons and

the timer function will be activated after 5 seconds by default. The timer icon on the screen lights up in green and the weekly timer heating mode is on. Press and hold the temperature selection button for 3 seconds to exit the weekly mode.

P1 Monday to Sunday

01:00 24:00 00:00 08:00

P2 Weekdays

01:00 09:00 24:00 00:00 05:00 19:00

Weekends

01:00 11:00 16:00 24:00 00:00 08:00 13:00 20:00

P3 Weekdays

01:00 09:00 16:00 24:00 00:00 05:00 12:00 18:00

Weekends

01:00 24:00 00:00 05:00

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Blumfeldt app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Blumfeldt device:

1. Download the Blumfeldt app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Blumfeldt device is to be connected to.
3. Open the Blumfeldt app.
4. Sign in to your account. If you do not have an account, sign up in the Blumfeldt app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

QR code with a green logo in the center, likely linking to a digital service or website.

QR code with a green logo in the center, likely linking to a digital service or website.

Troubleshooting connection problems

If your Blumfeldt device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your device is plugged into an electric socket.

2. The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).

3. The WiFi access point does not operate on 2.4 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

1. Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Blumfeldt app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

2. Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Blumfeldt app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

WIFI reset

This heater offers 2 type of the wifi connection modes: EZ mode and AP mode. When the wifi signal is flashing rapidly, the heater is under the EZ mode, while under AP mode the wifi signal will flash slowly. When you have any issue with one connection mode, try another connection mode.

You can swift between two connection mode by bellow operation:

Turn on the heater, press and hold the “+” button for 3 seconds until the screen shows “---”, press and hold the “Timer” button for 5 seconds, the Wifi connection mode will be changed.

Activate/deactivate WIFI function

Power on the heater, press and hold the “+” button for 3 seconds until the screen shows “---”, then press and hold “-” button for 10 seconds to

deactivate the WIFI function of this heater and the WIFI sign on the screen will disappear, long press “-” button for 10 seconds to activate it on again.

PRODUCT INFORMATION

Model identifier: 1004	6463, 10046464
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Heat output Type of heat input, for electric storage local space heaters only (single select)
Nominal heat output P	nom	1 kW	manual heat	heat	charge control, with integrated thermostat			no
Minimum heat output (indicative)	Pmin	0 kW	manual heat	heat	charge control with room and/or outdoor temperature feedback			no
Maximum continuous heat output	Pmax c	2 kW	electronic heat	heat	charge control with room and/or outdoor temperature feedback			no
					fan assisted heat output no
Auxiliary electricity consumption Type of heat output/room temperature control
At nominal heat output	elmax	N/A	kW		single stage heat output and no room temperature control			no
At minimum heat output	elmin	N/A	kW		two or more manual stages, no room temperature control			no
In standby mode	elsB	N/A	kW		with mechanic thermostat room temperature control			no
					with electronic room temperature control			no
					electronic room temperature control plus day timer			no
					electronic room temperature control plus week timer			yes
					Other control options (multiple selections possible)
					room temperature control, with presence detection			no
					room temperature control, with open window detection			yes
					with distance control option			yes
					with adaptive start control			no
					with working time limitation			yes
					with black bulb sensor			no
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

DECLARATION OF CONFORMITY

C€

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited PO Box 42 272 Kensington High Street London, W8 6ND United Kingdom

Hereby, Chal-Tec GmbH declares that the radio equipment type Swiftwave is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use. berlin/10046463

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Smart Flow is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10046463
