USER MANUAL ERMLL3-01B ErgoAV

Large Fixed TV Mount Instruction Manual

ERMLL3

Rev00

English 02-27

Français 28 à 53

Español 54 a 79

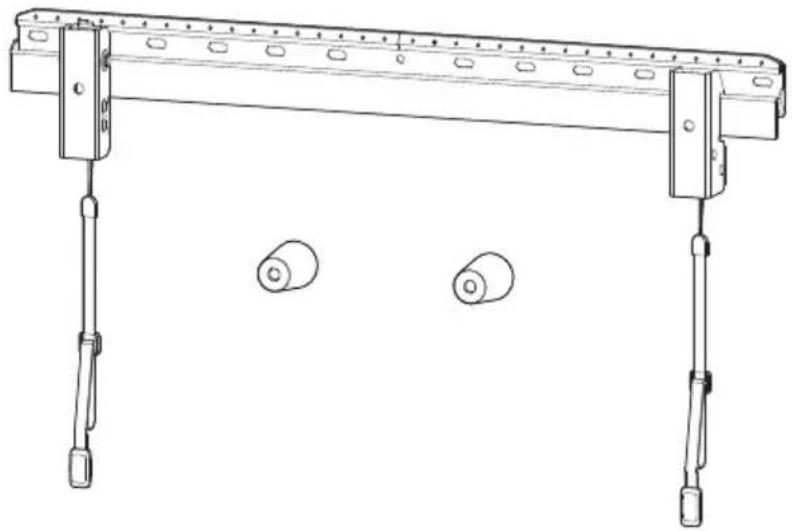

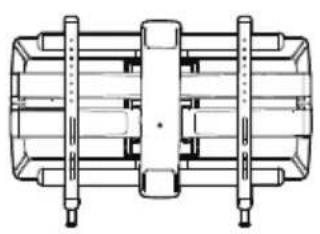

Technical line drawing of a mechanical support frame with two vertical connectors and three cylindrical components below (no text or symbols)

Thank you for choosing ErgoAV!

At ErgoAV, our goal is to add value to your AV experience by providing the highest quality products and services in the industry. We offer a 5-year warranty. If you have any questions or concerns, please contact us.

ErgoAV

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

[phone]

Mon-Fri 8am - 8pm (CST)

[e-mail]

www.ergoav.com

BEFORE GETTING STARTED, LET'S MAKE SURE THIS MOUNT IS COMPATIBLE

1

Check VESA

Pattern

Compatibility

Max: 23.6" 600mm ↑ Max: 15.7" 400mm

Compatible VESA Patterns:

100 x 100mm 200 x 200mm 200 x 400mm 400 x 300mm

200 x 100mm 200 x 300mm 300 x 200mm 400 x 400mm

Maximum/Minimum:

600 x 400mm (23.6 x 15.7") 400 x 200mm 600 x 400mm

100 x 100mm (3.9 x 3.9")

If this mount is not compatible, please contact product support.

2

Check Max Load

Wood Studs / Concrete / Concrete Block Walls:

135 lbs (61kg)

Drywall: 100 lbs (45kg)

If your TV weighs more, this mount is NOT compatible.

WARNING

DO NOT exceed the Max Load. Use with products heavier than the Max Load may result in failure of the mount and its accessories, causing possible damage and/or injury.

3

Verify Wall Type

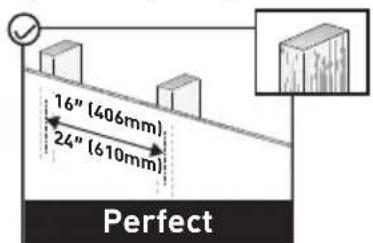

Wood Studs (with Drywall)

16" (406mm) 24" (610mm) Perfect

Drywall

24" [610mm]24" [610mm] Perfect

Concrete and Concrete Block Walls

Perfect

02

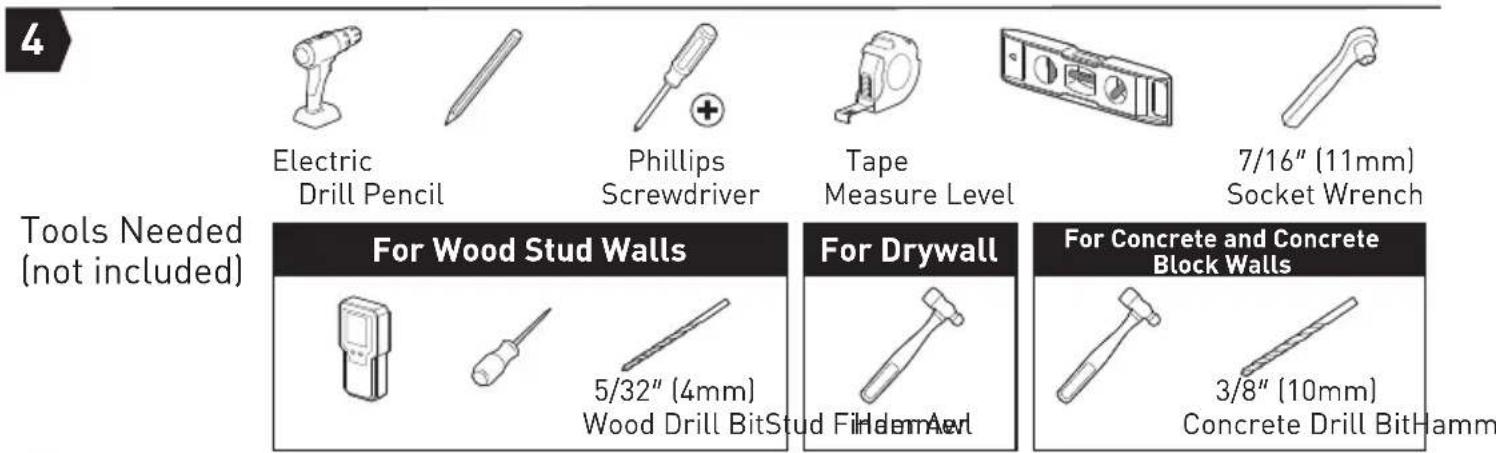

4 Electric Drill Pencil Phillips Screwdriver Tape Measure Level 7/16" (11mm) Socket Wrench Tools Needed (not included) For Wood Stud Walls For Drywall For Concrete and Concrete Block Walls 5/32" (4mm) Wood Drill BitStud Fillem Aed 3/8" (10mm) Concrete Drill BitHamm

5 Important Safety Information

DANGER: Please carefully read all instructions before attempting installation. If you DO NOT understand the instructions or have any questions or concerns, please call technical support or email customer service. CAUTION: Avoid the risk of personal injury and property damage! WARNING: All fasteners must be firmly tightened! • This mount can only be installed on wood studs, drywall, concrete and concrete block walls. • The wall must be capable of supporting four times the weight of the TV and mount combined. • This product contains small parts that may pose a choking hazard. • DO NOT use this product for any purpose that is NOT explicitly specified in this manual. DO NOT exceed the maximum weight capacity. We are not liable for damage or injury caused by incorrect assembly, improper mounting, or inappropriate use. • Use this mounting system only for its intended purpose as described in these instructions. DO NOT use attachments not recommended by the manufacturer. • DO NOT use outdoors. • Route cords and cables properly to avoid mechanical damage. SAVE THESE INSTRUCTIONS

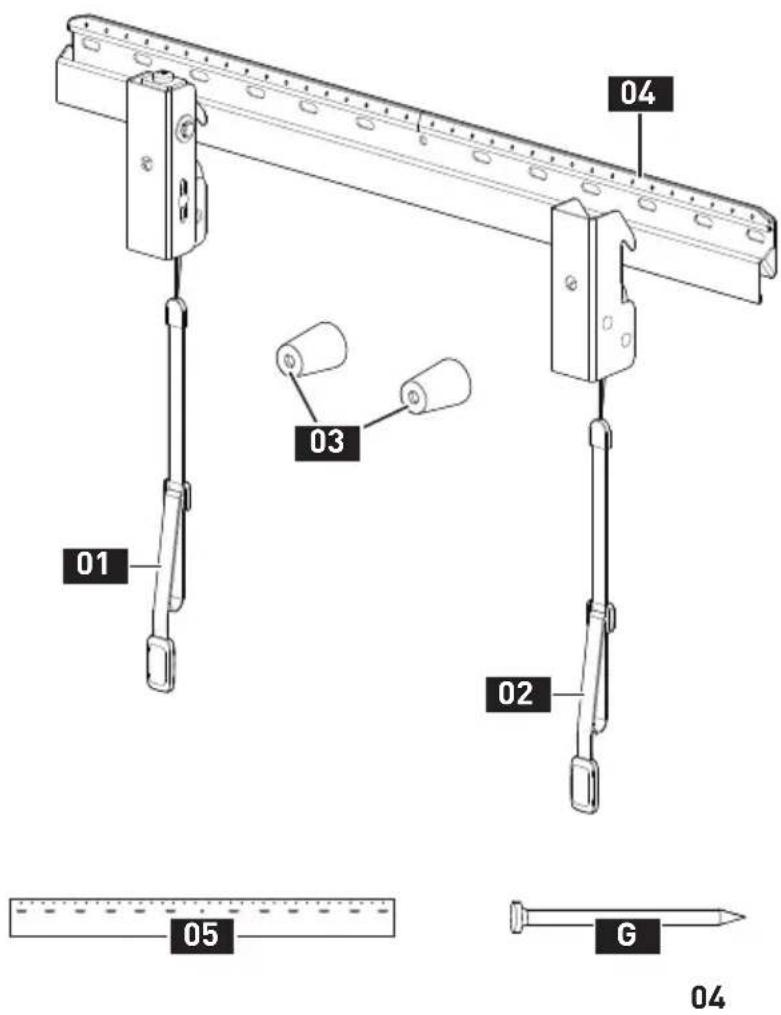

01 02 03 04 05 G 04

01 Adjustable TV Bracket
02 TV Bracket
03 Bumper
04 Wall Plate
05 Wall Plate Template
G Steel Nail

INSTALLATION

Supplied Parts and Hardware for Step 1

Not all hardware included in this package will be used.

Line drawing of a handheld electronic device with ports and connectors (no text or symbols)

Adjustable TV Bracket

01 k 1

Technical line drawing of a mechanical tool or bracket with no visible text or symbols

TV Bracket

02 x 1

Bumper

03 x 2

M4/M5
Washer

B1×4

M6/M8
Washer

B2×4

L2.5mm
Spacer

F1 k 8

L10mm
Spacer

F2×4

L22mm
Spacer

F3 k 4

M4

M4 x 12mm

TV Bolt

C1×4

M4 x 30mm

TV Bolt

C2 < 4

M6

M6 x 15mm

TV Bolt

D1×4

M6 x 35mm

TV Bolt

D2×4

M8

M8 x 15mm

TV Bolt

E1<4

M8 x 35mm

TV Bolt

E2 k 4

Close-up illustration of a threaded bolt with a flat head and threaded shaft (no text or symbols)

M8 x 50mm

TV Bolt

E3 4

STEP 1 Attach the TV Brackets to Your TV

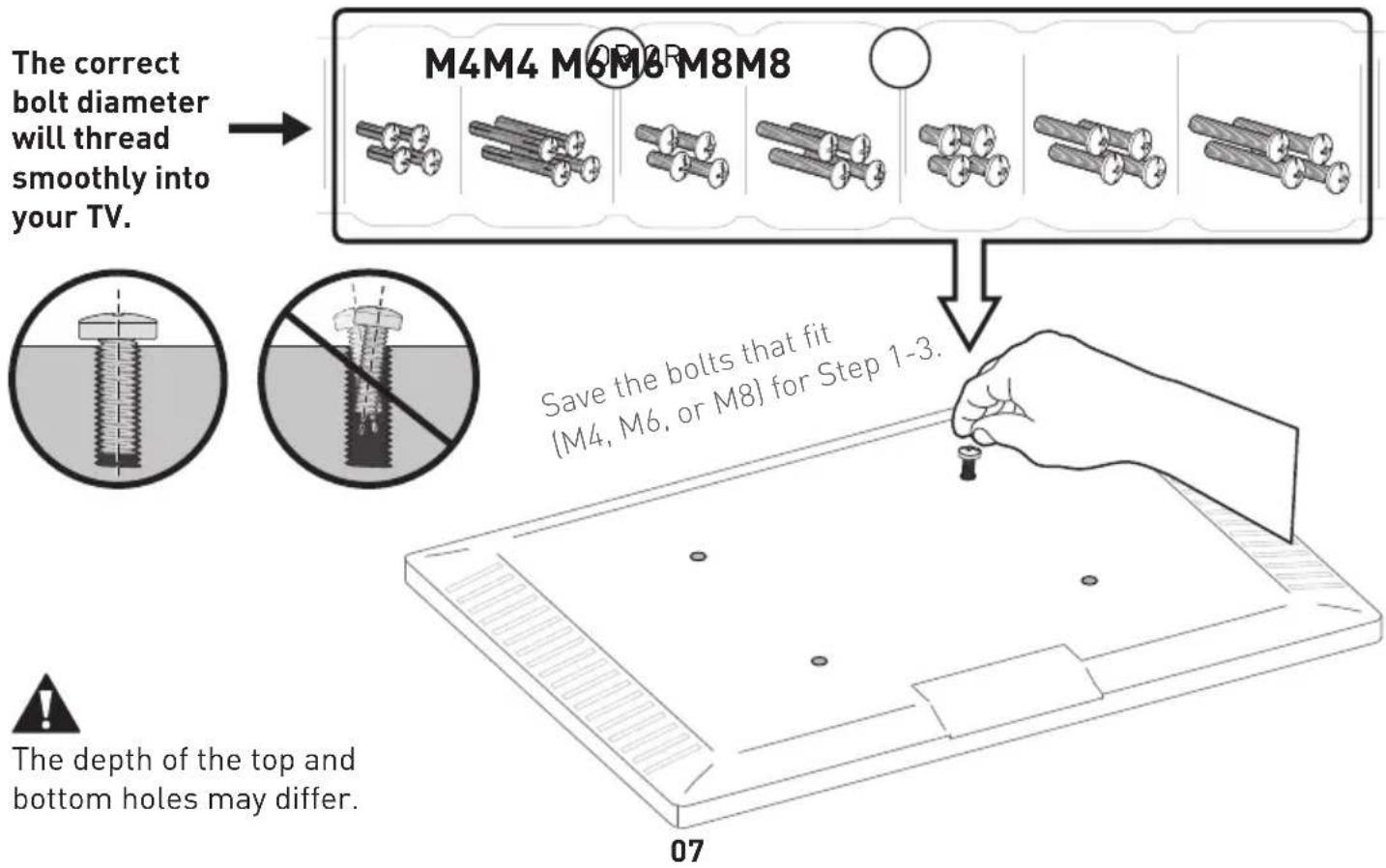

1-1 Select TV Bolts

The correct bolt diameter will thread smoothly into your TV. M4M4 M6M8M8 Save the bolts that fit (M4, M6, or M8) for Step 1-3. The depth of the top and bottom holes may differ. 07

The depth of the top and bottom holes may differ.

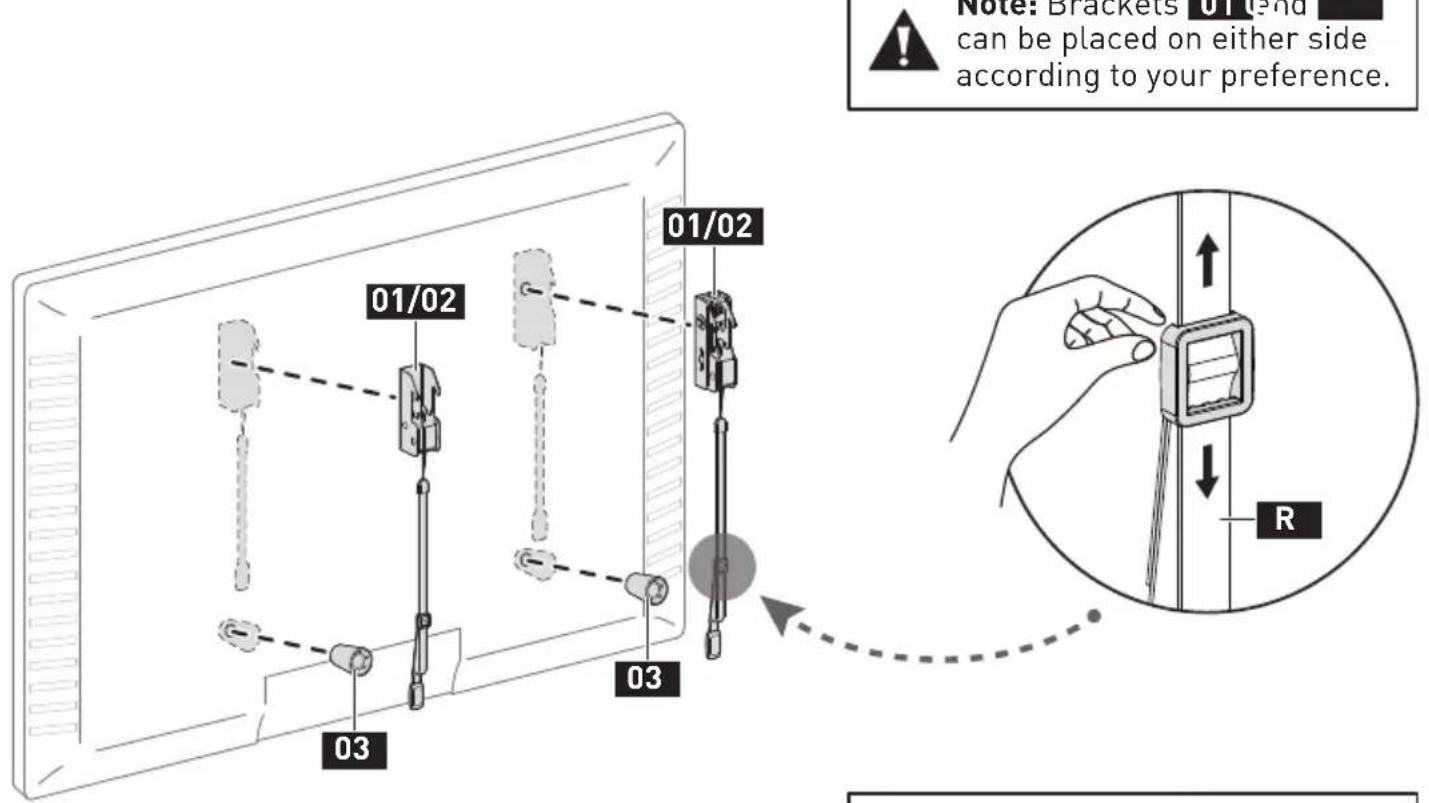

1-2 Position the TV Brackets

Note: Brackets 01/02 can be placed on either side according to your preference. 01/02 01/02 03 03 R

Note: Brackets 01 tend can be placed on either side according to your preference.

Note: If cords R are blocked by the TV, adjust the slider buckles to make them longer.

1-3 Secure the TV Brackets

For Flat-Back TV, go to Option A on page 10.

For Bump, Curved TV, Recessed Holes and Cables, go to Option B on page 11 to 12.

WARNING:

• DO NOT turn the bolt past the bottom of the hole.
• If the bolt is too short, it may not adequately support the TV.
• If the bolt is too long, it could damage the TV.
• At least 4–5 turns into the threading is required.
• The depth of the bottom holes may be different from the top holes.

Prohibition sign showing a battery plug without any text or symbols

Prohibition sign showing a dam or reservoir with no text or symbols

Too Short Too Long

DO NOT overtighten

Prohibition sign of a screwdriver crossed out by a diagonal line, enclosed in a circle (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and alignment indicators

09

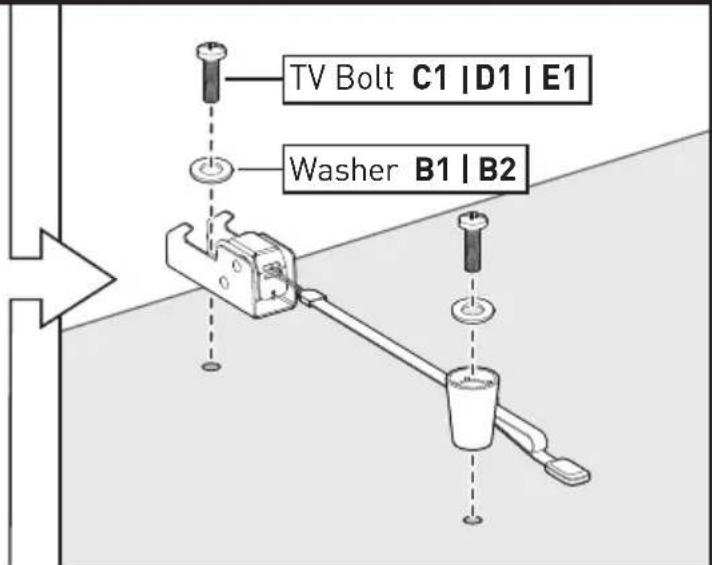

Option A

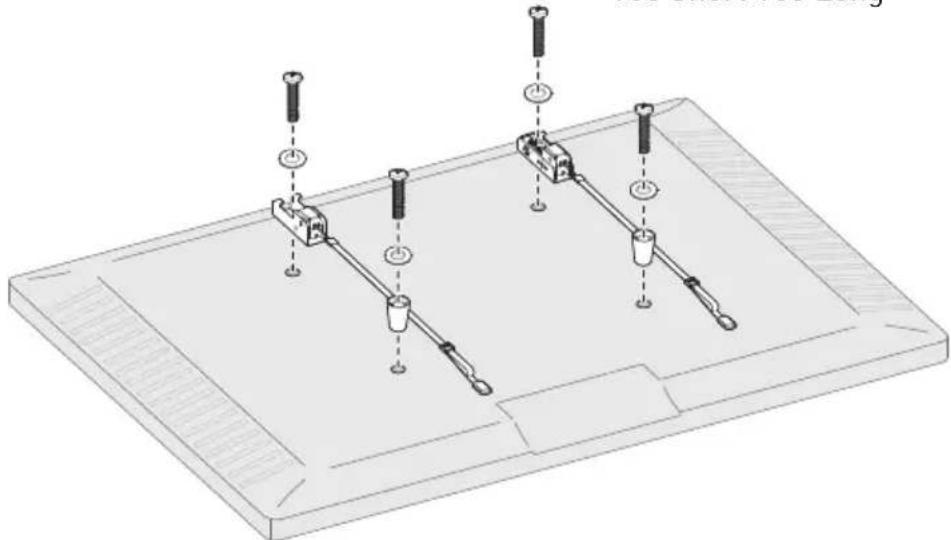

Use short TV bolts with washers.

Flat-Back TV

Simple line drawing of a mechanical setup with a tool and two blocks on a base (no text or symbols)

TV Bolt C1 |D1 |E1 Washer B1 |B2

Go to Step 2 on Page 13

Option B

Use long TV bolts with washers and spacers to create extra space between the TV and brackets.

Bump

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

TV with Mounting Restrictions

Diagram illustrating a mechanical or fluid system with two components: a horizontal beam and a container with internal structures, each with an upward arrow indicating direction.

Curved TV

Simple line drawing of a mechanical device mounted on a curved surface with no text or symbols

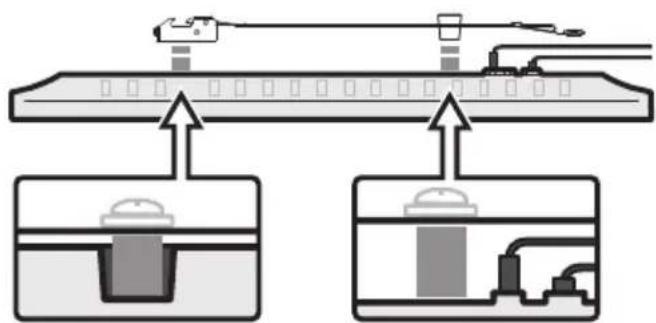

Recessed Holes Protruding Cables

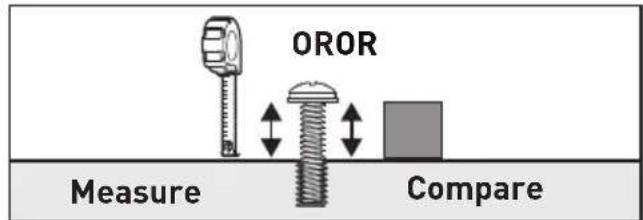

OROR Measure Compare

You can use a tape measure to measure the protruding bolts or hold spacers next to them to choose the right spacer combination.

Note:

There are many possible spacer combinations that can be used.

[phone]

Mon-Fri 8am - 8pm (CST)

[e-mail]

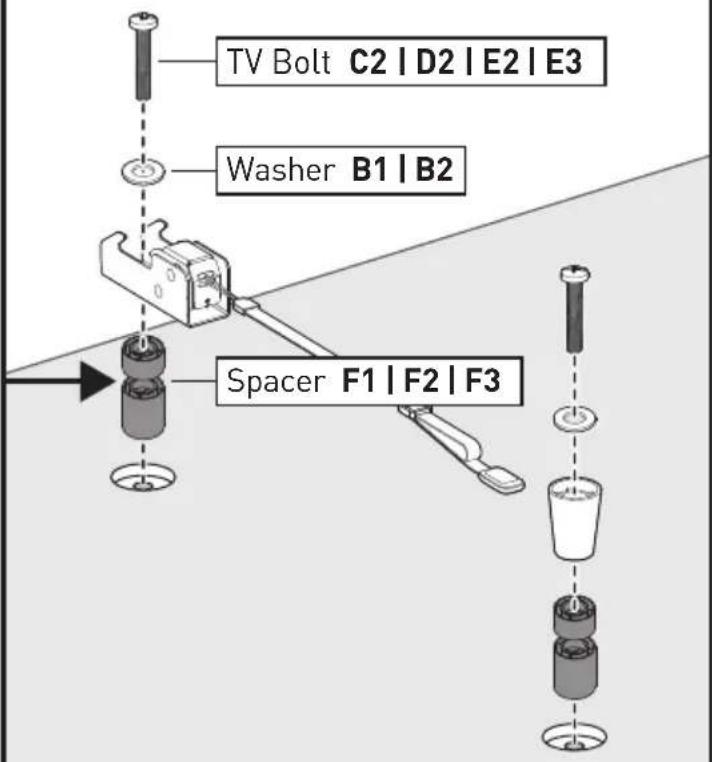

TV Bolt C2 | D2 | E2 | E3 Washer B1 | B2 Spacer F1 | F2 | F3

Supplied Parts and Hardware for Step 2

Technical line drawing of a mechanical component with evenly spaced holes and a central rod (no text or symbols)

Wall Plate

04 x 1

Wall Plate Template

05 k 1

ST 1/4 x 2 3/4"
Lag Screw

A1×2

∅2.3 x 30mm
Steel Nail

G 34

CAUTION!

DO NOT use these nails on concrete and concrete block walls.

Wall Anchor

A2×2

CAUTION!

This anchor is for concrete and concrete block walls ONLY. DO NOT use them in drywall or wood studs.

STEP 2 Mount the Wall Plate on the Wall

For mounting on wood stud walls, go to Option A on page 14 to 16.

For mounting on drywall, go to Option B on page 17 to 19.

For mounting on concrete and concrete block walls, go to Option C on page 19 to 22.

Option A

For Wood Stud Installation

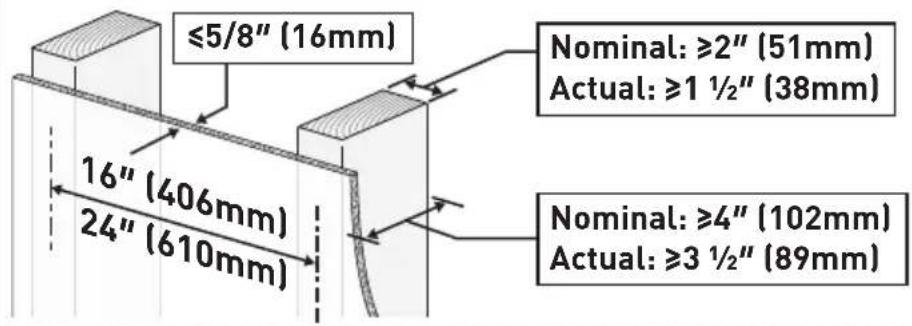

≤5/8" (16mm) Nominal: ≥2" (51mm) Actual: ≥1 ½" (38mm) 16" (406mm) 24" (610mm) Nominal: ≥4" (102mm) Actual: ≥3 ½" (89mm)

Tools Needed (Not Included)

5/32" (4mm)

7/16" [11mm]

Wood Drill BitStud Fender AwlSocket Wrench

Electric Drill Pencil Tape Measure

WARNING:

• Avoid the risk of personal injury or property damage! Tighten the lag screws A1 only until they are pulled firmly against the wall plate (DO NOT overtighten). DO NOT use a drill; only use a socket wrench.
• DO NOT use wall anchors A2 for this mounting option.

A2

Wall Anchor

16" (406mm) 24" (610mm) Mark Center

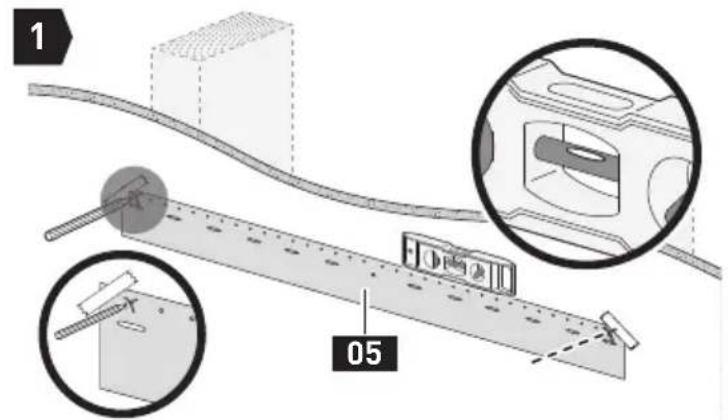

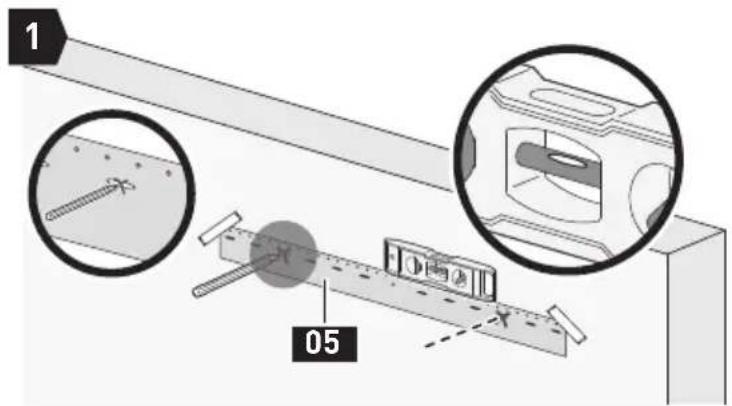

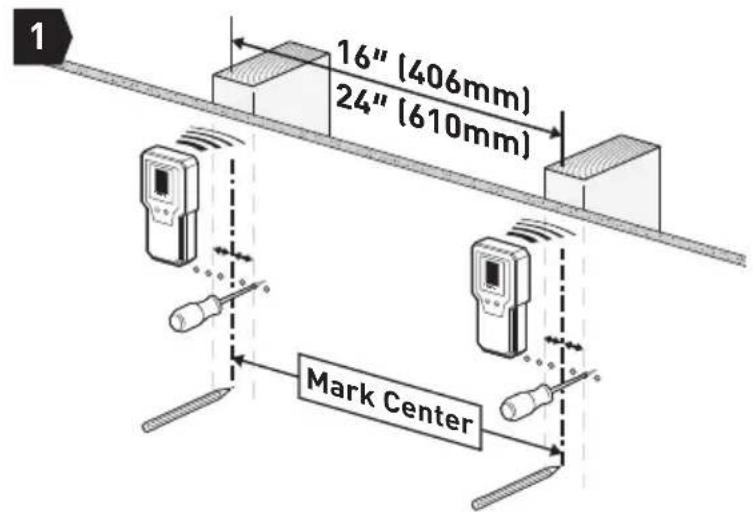

Find Studs and Mark Holes

Simple line drawing of a mechanical setup with two bottles and a central component, enclosed in a circle (no text or symbols)

2 05

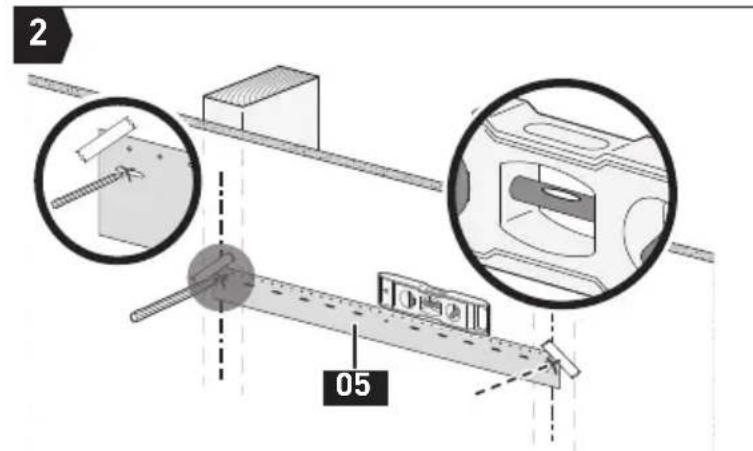

Mark 2 Hole Positions

3

Note: Be sure to use the specified drill bit.

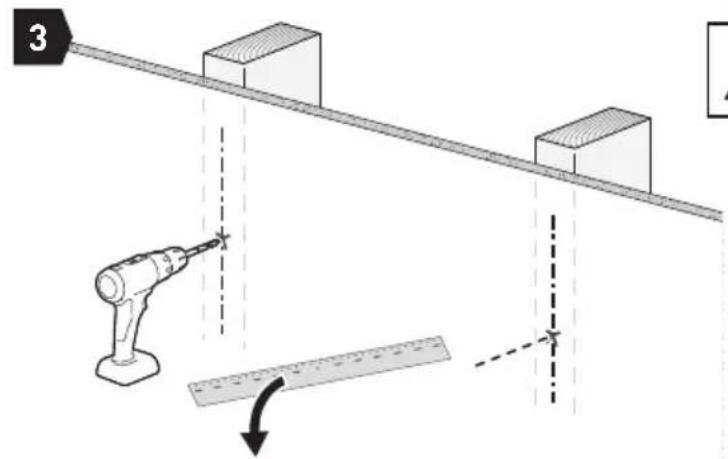

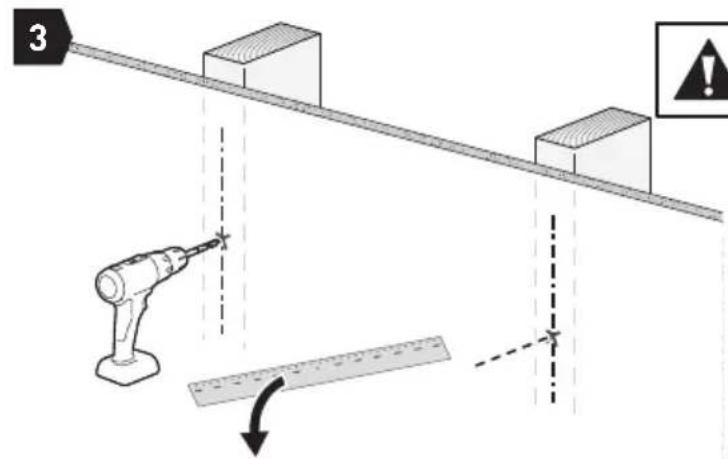

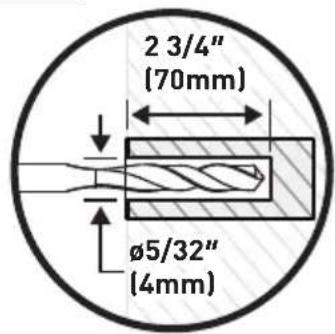

Drill 2 Holes

2 3/4" (70mm) Ø5/32" (4mm)

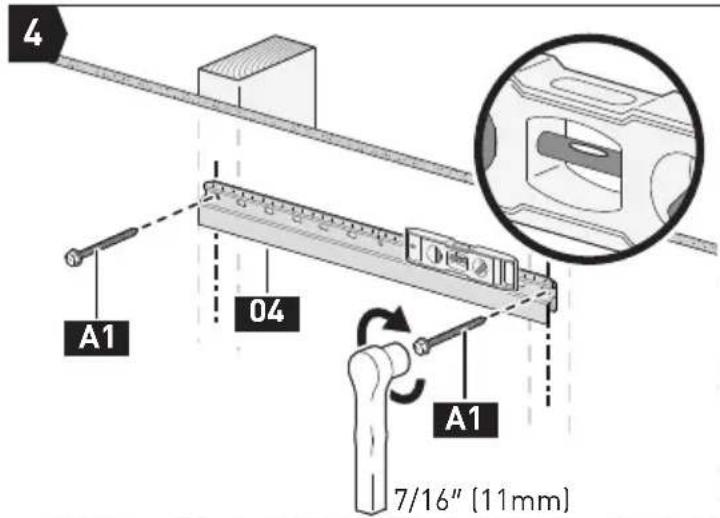

4 A1 O4 A1 7/16" (11mm)

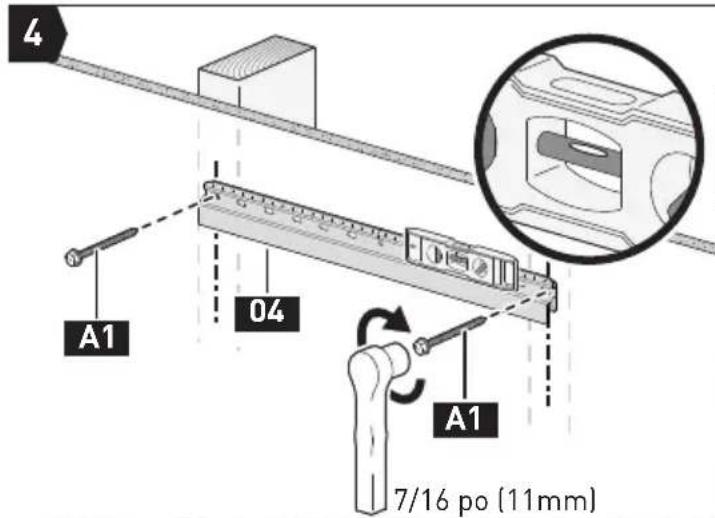

Secure the Wall Plate

HEAVY! You may need assistance with this step.

No crossed-out robot diagram without any text or symbols

Go to Step 3 on Page 23

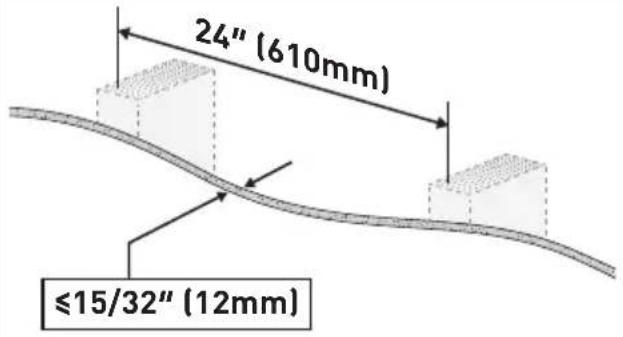

Option B

For Drywall Installation

24" (610mm) ≤15/32" (12mm)

Technical diagram of a mechanical assembly with two vertical posts mounted on a base plate (no text or symbols)

Tools Needed (Not Included)

Hammer

WARNING:

• Drywall must be of sound construction with no water damage. If water damage occurs, remove the TV immediately.
• If any of the nails encounter excessive resistance (metal objects), please stop and contact us.
• DO NOT mount to patched areas, drywall seams, or uneven walls.
• DO NOT reuse the nails after removal. Do not use store-bought nails.
• DO NOT use lag screws A1 for wall anchors for this mounting option.
• Your TV MUST be centered on the wall plate.

A1

A2
Lag Screw Wall Anchor

1 05

Mark 2 Hole Positions

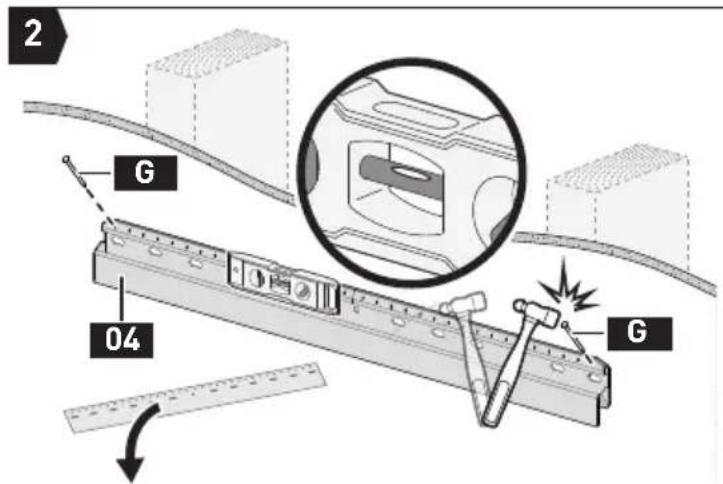

2 G 04 G

Install 1 Nail on Each Side

HEAVY! You may need assistance with this step.

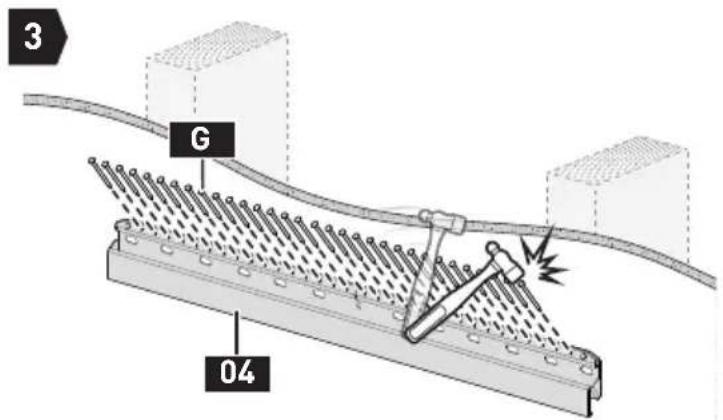

3 G 04

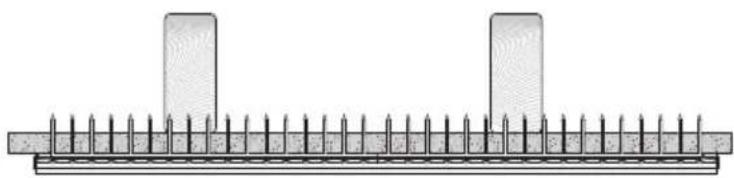

Install the Remaining 32 Nails

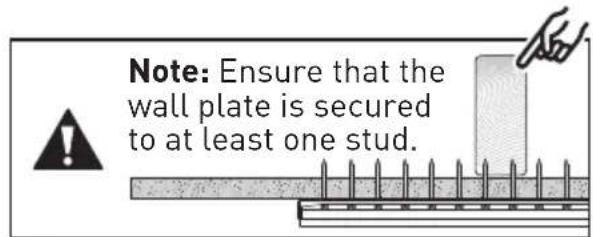

Note: Ensure that the wall plate is secured to at least one stud.

Go to Step 3 on Page 23

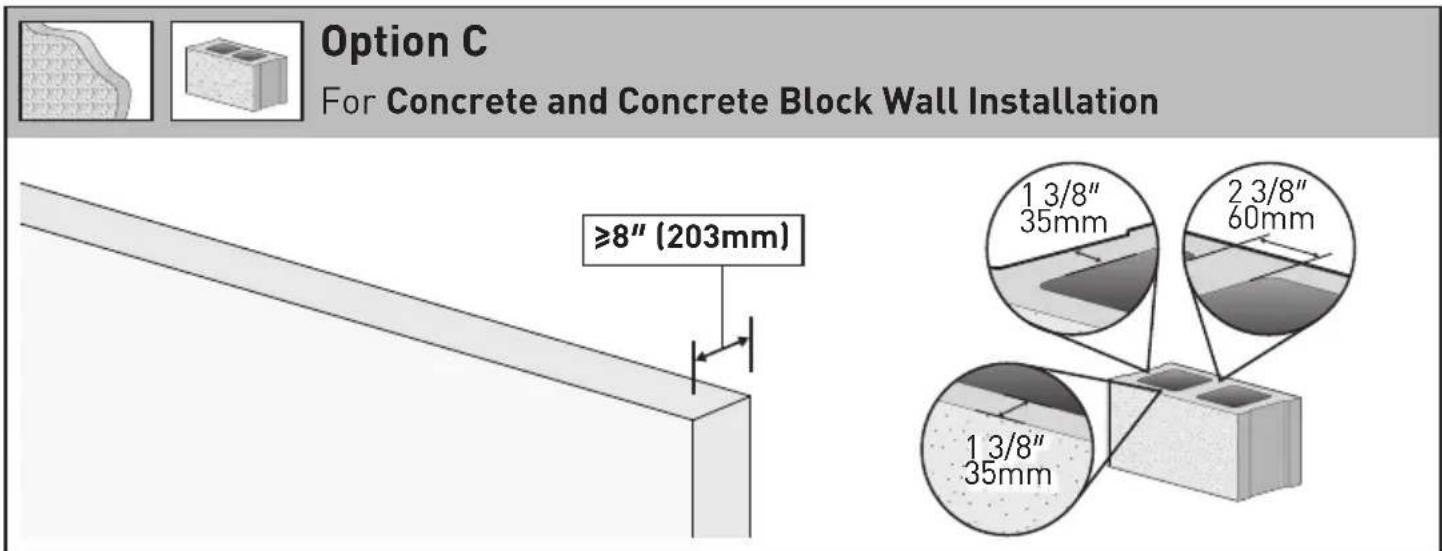

Option C For Concrete and Concrete Block Wall Installation ≥8" (203mm) 1 3/8" 35mm 2 3/8" 60mm 1 3/8" 35mm

Tools Needed (Not Included)

3/8" (10mm)

7/16" (11mm)

Concrete Drill BitHambevElectricDricketWrcnTape Me

WARNING:

• Avoid the risk of personal injury or property damage! Tighten the lag screws A1 only until they are pulled firmly against the wall plate (DO NOT overtighten). Do not use a drill; only use a socket wrench.
• Use wall anchors A2 for this mounting option.

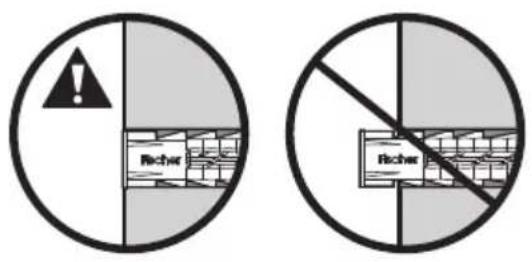

• Mount the wall plate directly on the concrete surface.
• Minimum concrete block size: 8" x 8" x 16" (203 x 203 x 406mm)

A2

Wall Anchor

1 05

Mark 2 Hole Positions

Drill 2 Holes Note: • Be sure to use the specified drill bit. • Never drill into the mortar between blocks. 3" (75mm) Ø3/8" (10mm) 21

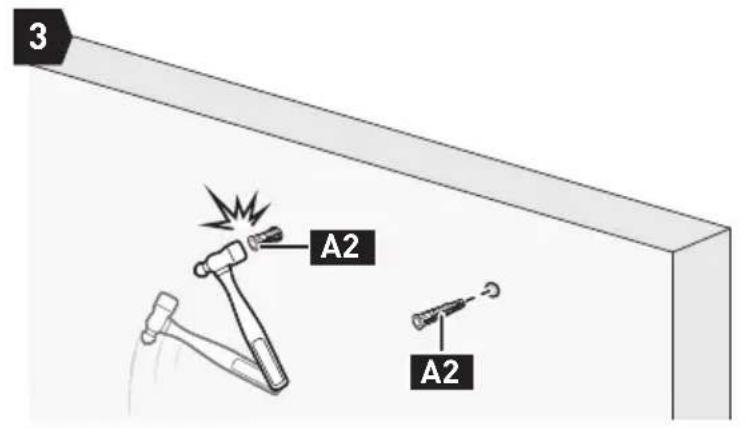

3 A2 A2

Tap Wall Anchors In

4 A1 A1 04 7/16" (11mm)

Secure the Wall Plate

HEAVY! You may need assistance with this step.

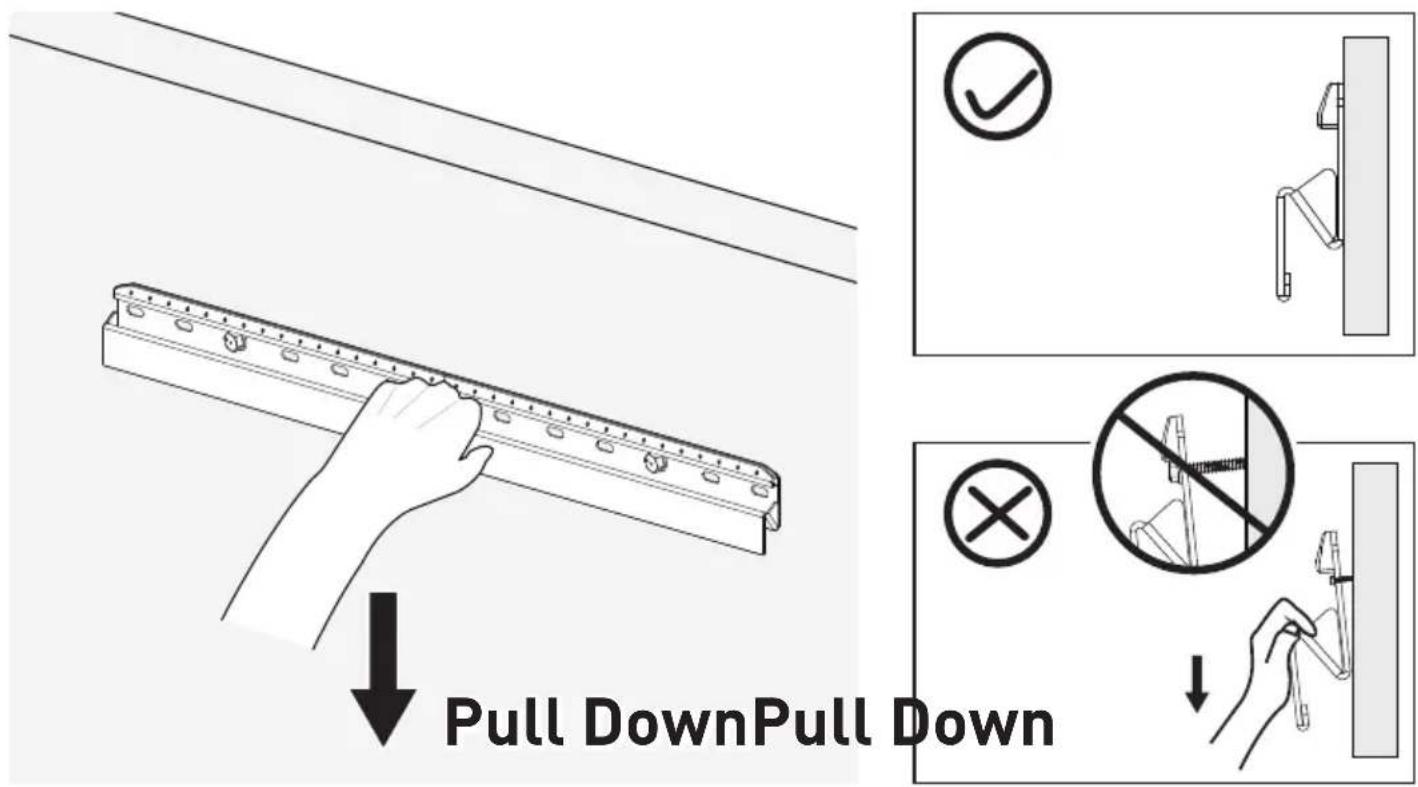

STEP 3 Verify Wall Plate is Firmly Mounted

Pull Down Pull Down

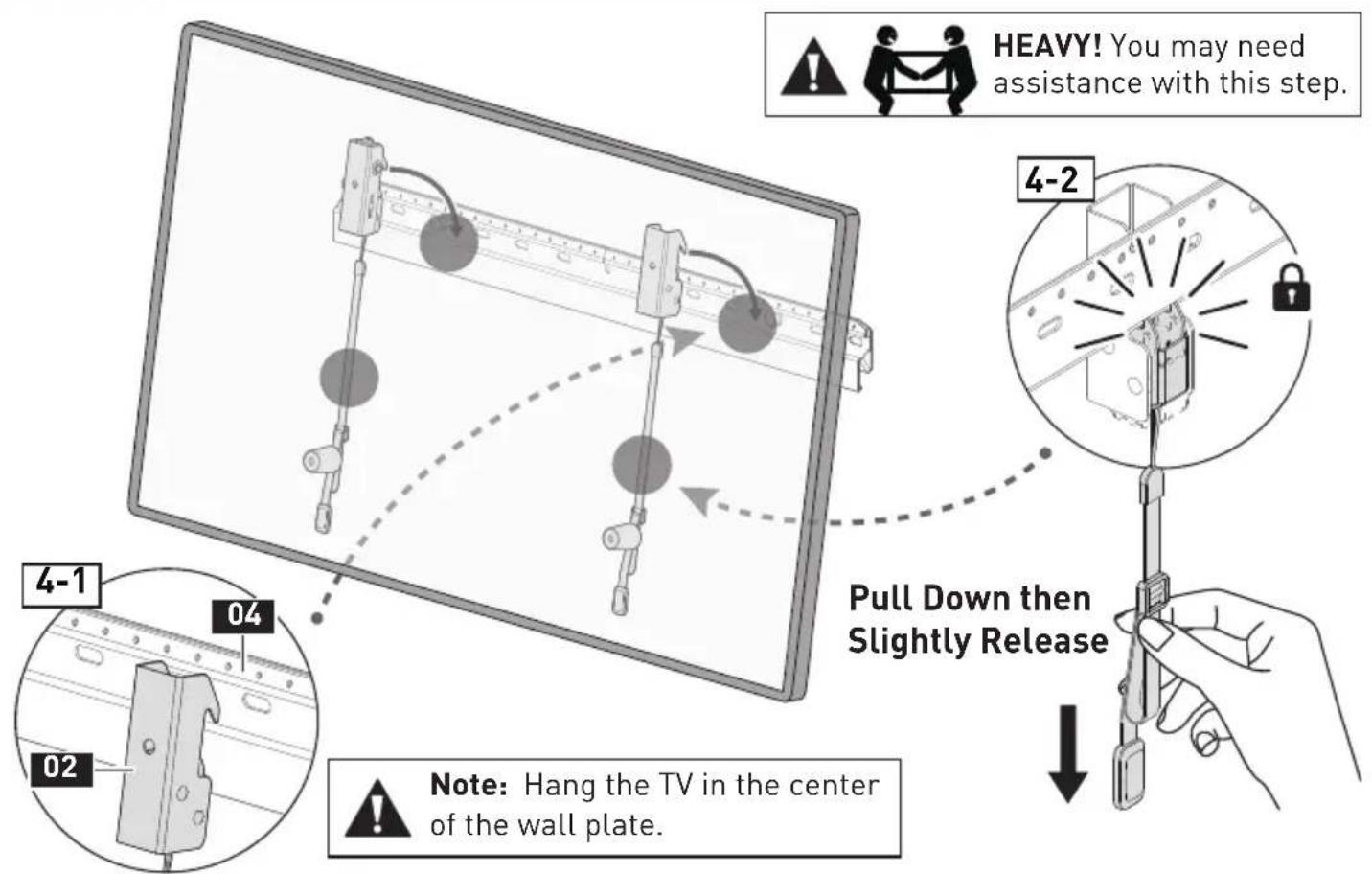

STEP 4 Hang the TV on the Wall Plate

HEAVY! You may need assistance with this step. 4-2 Pull Down then Slightly Release 4-1 04 02 Note: Hang the TV in the center of the wall plate.

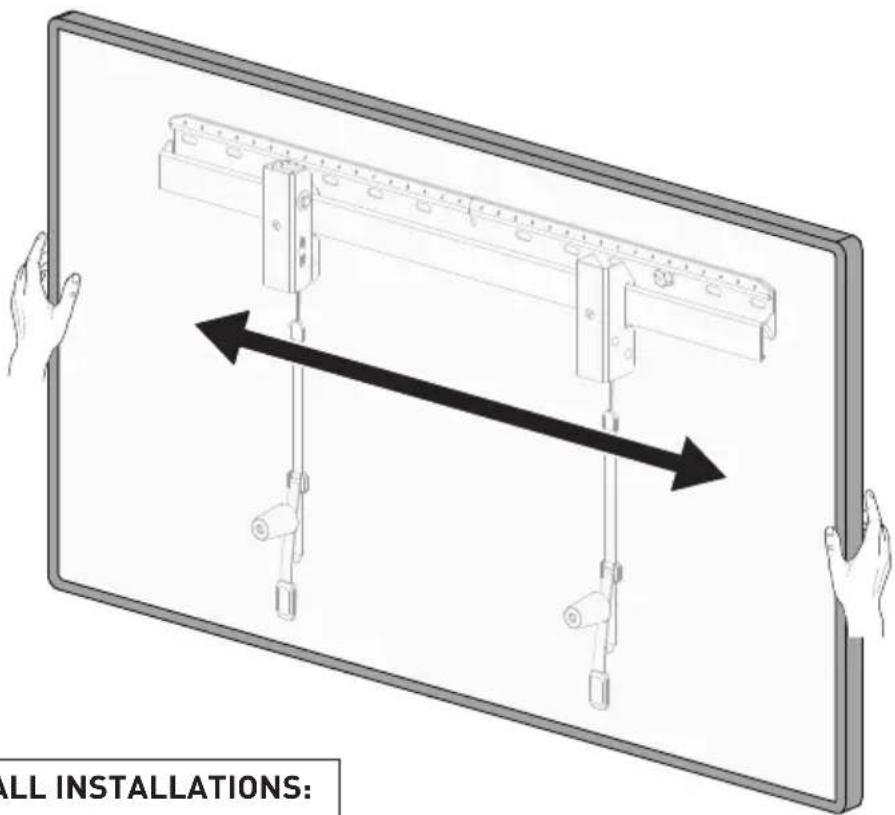

STEP 5 Side-to-Side Shift

ALL INSTALLATIONS:

FOR DRYWALL INSTALLATIONS:

DO NOT slide the TV side-to-side.

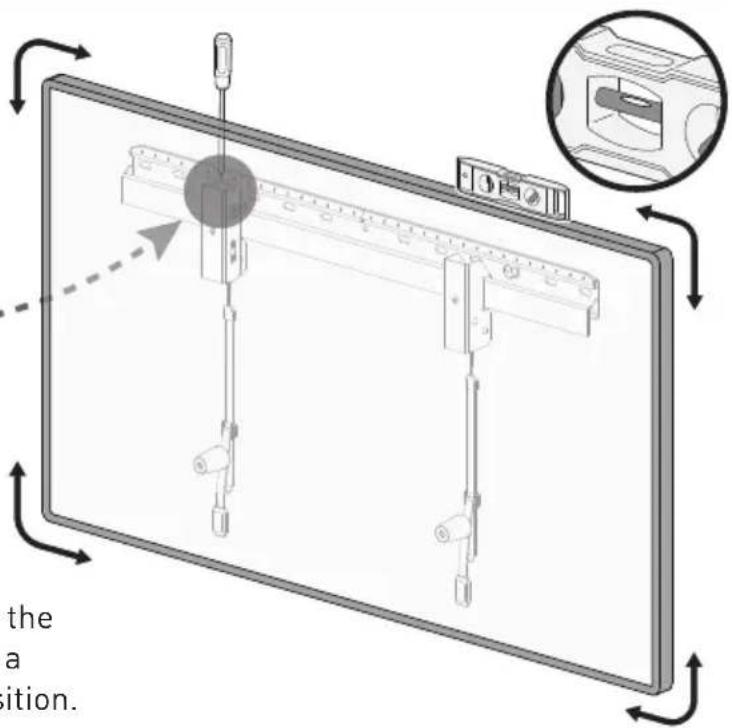

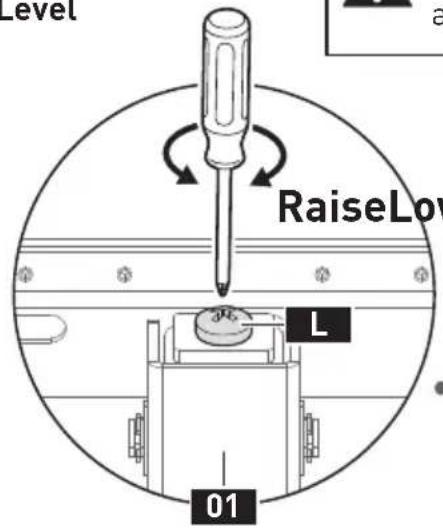

STEP 6 Level Adjustment

Note: If your Phillips screwdriver is not long enough to turn the bolt L, please remove the TV to adjust the bolt L. After adjusting, hang up the TV and test to ensure the TV is level.

Level RaiseLo L 01

the a ition.

Turn the bolt L located at the top of the adjustable TV bracket 01 clockwise to raise the TV, or counterclockwise to lower the TV. Use a level to test and adjust the TV to the level position.

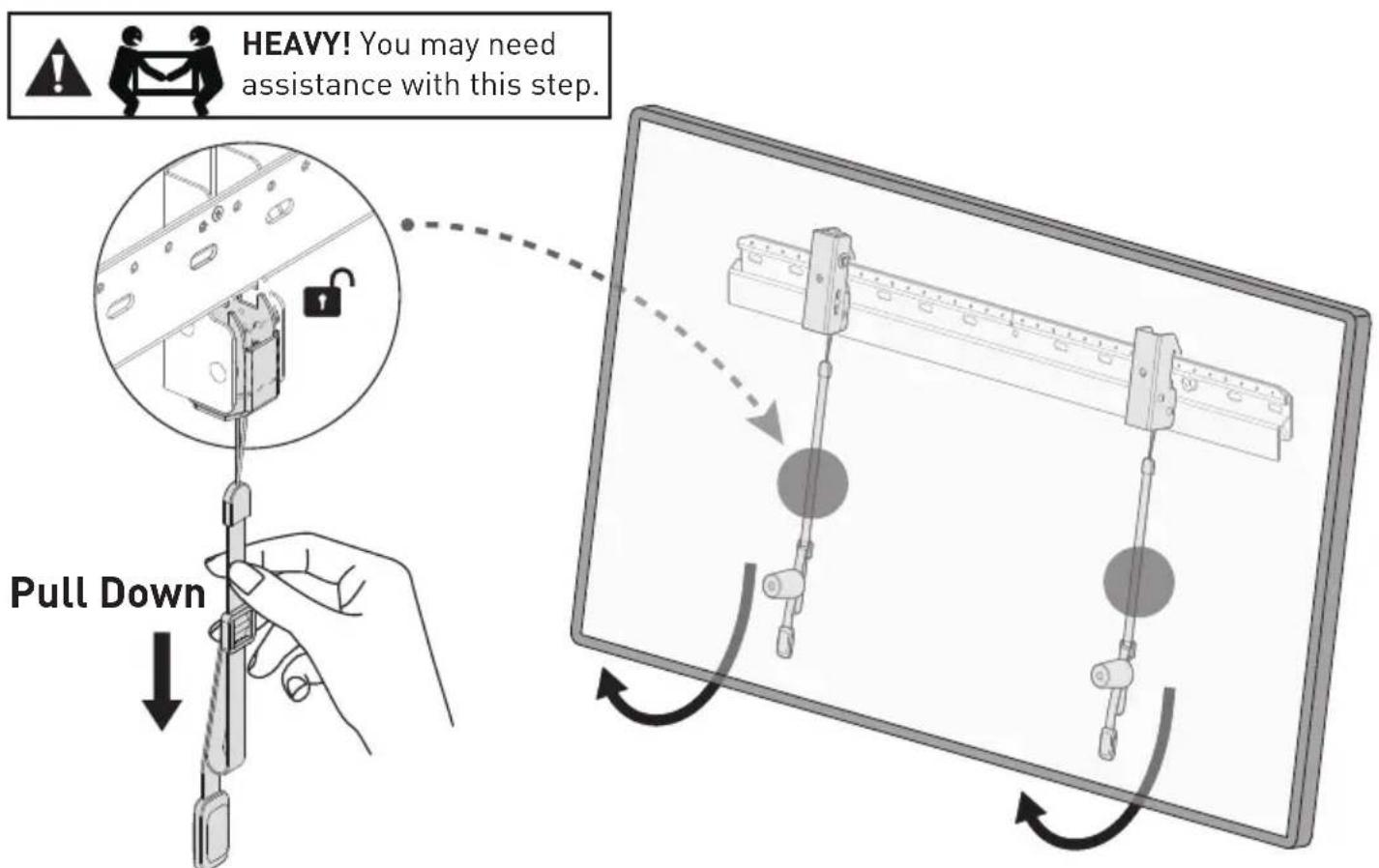

STEP 7 How to Remove the TV

HEAVY! You may need assistance with this step. Pull Down

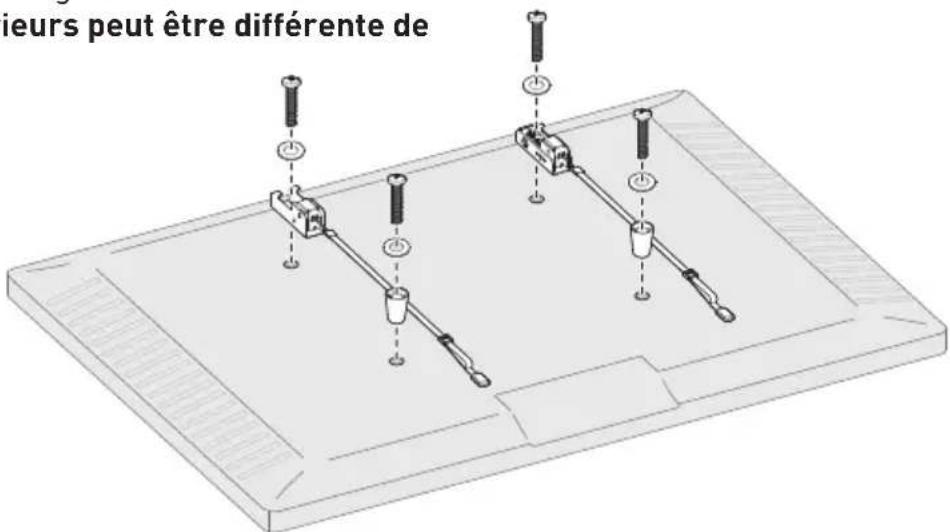

AVANT DE COMMENCER, ASSUREZ-VOUS QUE CE SUPPORT EST COMPATIBLE

1

Line drawing of a handheld device with a handle and connector (no text or symbols)

Technical line drawing of a mechanical clamp or bracket (no text or symbols)

Close-up illustration of a threaded bolt with a flat head and threaded shaft (no text or symbols)

Cross-sectional diagram of a bolt with a central screw and cap, shown in cross-section (no text or labels)

Cross-sectional diagram of a bolt with no text or symbols

33

Symbol of a floating object with a circular background and diagonal line crossing through it (no text or labels)

Trop court Trop long

NEPAS trop serrer

No crossed-out diagram of a tool without any text or symbols

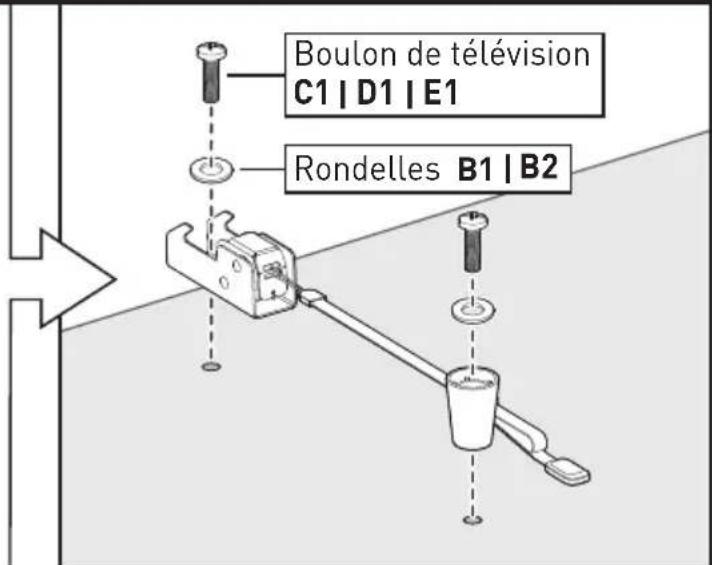

Simple line drawing of a mechanical setup with a tool and two components on a base (no text or symbols)

Simple line drawing of a mechanical device with a lever and base, no text or symbols present

Téléviseur incurvé

Simple line drawing of a mechanical device mounted on a curved platform with no text or symbols

Diagram illustrating a mechanical or fluid system with two components: a horizontal beam and a container with internal structures, each with an upward arrow indicating direction.

OUOU Mesurer Comparator

Technical line drawing of a mechanical component with evenly spaced holes and a central shaft (no text or symbols)

Plaque murale

04 x 1

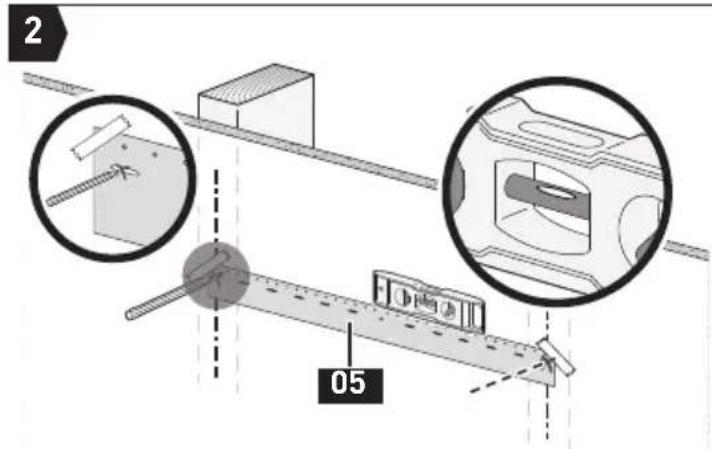

Diagram of a mechanical device with two hanging bottles and a central screen, enclosed in a circle (no text or symbols)

2 05

Marquez les positions des 2 trous

3

2 3/4 po (70mm) Ø5/32 po (4mm)

4 A1 O4 A1 7/16 po (11mm)

Fixer la plaque murale

No crossed-out diagram of a mechanical device without any text or symbols

Technical diagram of a mechanical assembly with two vertical supports and a base plate (no text or symbols)

No sign depicting a robot without any text or symbols

Line drawing of a handheld electronic device with ports and connectors (no text or symbols)

Soporte de TV Ajustable

01 k 1

Pure mechanical component diagram without any text, numbers, or symbols

Soporte de TV

02 x 1

Amortiguador

03 x 2

M4/M5 Arandela

B1×4

M6/M8 Arandela

B2×4

L2.5mm Separator

F1 k 8

L10mm Separator

F2×4

L22mm Separador

F3×4

M4

M4 x 12mm Pernos del televisor

C1×4

M4 x 30mm Pernos del televisor

C2 k 4

M6

M6 x 15mm Pernos del televisor

D1×4

M6 x 35mm Pernos del televisor

D2×4

M8

M8 x 15mm Pernos del televisor

E1×4

M8 x 35mm Pernos del televisor

E2 k 4

Close-up illustration of a threaded bolt with a flat head and threaded shaft (no text or symbols)

M8 x 50mm Pernos del televisor

E3 4

Cross-sectional diagram of a bolt with a central hub and concentric circles (no text or labels)

Cross-sectional diagram of a bolt with no text or symbols

Prohibition sign showing a battery plug without any text or symbols

Prohibition sign showing a prohibition symbol over a water surface with a floating object (no text or numbers present)

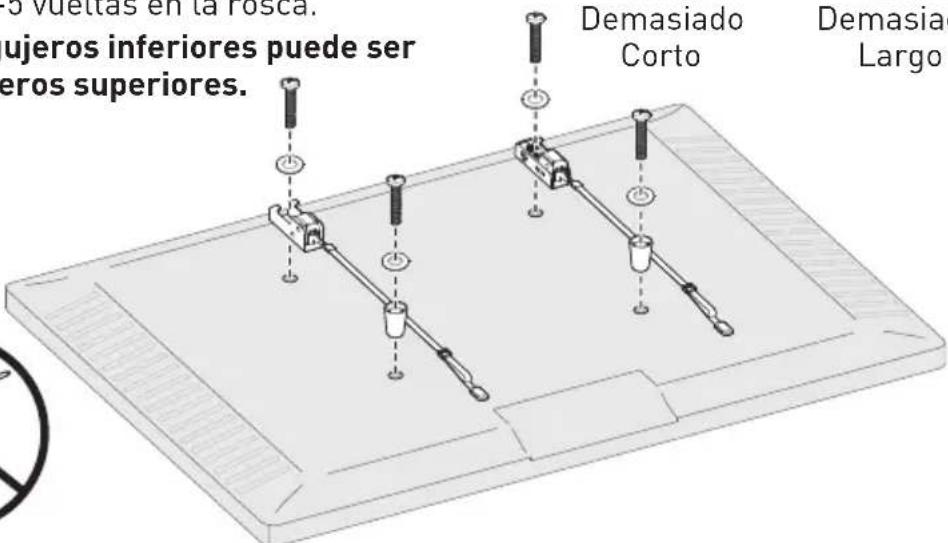

Demasiado Largo

Prohibition sign with a crossed tool and prohibition symbol

Simple line drawing of a mechanical setup with a lever and weights on a rectangular base (no text or symbols)

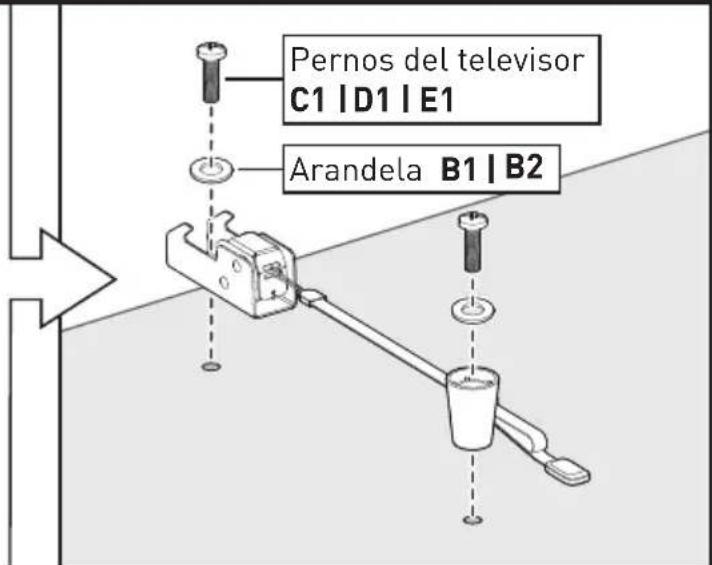

Pernos del televisor C1 |D1 |E1 Arandela B1 |B2

Simple line drawing of a laboratory setup with a tray, ruler, and two devices (no text or symbols)

Televisor curvo

Simple line drawing of a mechanical device mounted on a curved platform with no text or symbols

Diagram illustrating a mechanical or fluid system with two components: a horizontal beam and a container with a dome-shaped component, both connected to a vertical rod.

Technical line drawing of a mechanical component with evenly spaced holes and a central shaft (no text or symbols)

Placa de Pared

04×1

Plantilla de Placa de Pared

05 x 1

ST 1/4 x 2 3/4 pulg Tornillo de retraso

A1×2

∅2.3 x 30mm Clavo de Acero

G 34

¡PRECAUCIÓN!

Diagram of a mechanical setup with two cylindrical components and a central rod, enclosed in a circle (no text or labels)

2 05

No sign depicting a disassembled robot, crossed out by a diagonal line through a circle (no text or symbols)

Diagram of a structural support system with two vertical supports and a horizontal base (no text or symbols)

At ErgoAV, our goal is to provide the high-quality audio video solutions and product support that you need. If you have any questions, concerns, or feedback, please let us know!

Technical line drawing of a mechanical coupling or assembly (no text or symbols)

TV Mounts

Simple line drawing of a vertical cylindrical structure with base and top (no text or symbols)

Speaker Stands

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central shaft (no text or symbols)

Computer Monitor Mounts

ErgoAV

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

[phone]

Mon-Fri 8am - 8pm (CST)

[e-mail]

www.ergoav.com
