USER MANUAL ERMTM2-01B ErgoAV

TV Mount Instruction Manual

(A)

English pages 02–14 French pages 15–27 Spanish pages 28–40

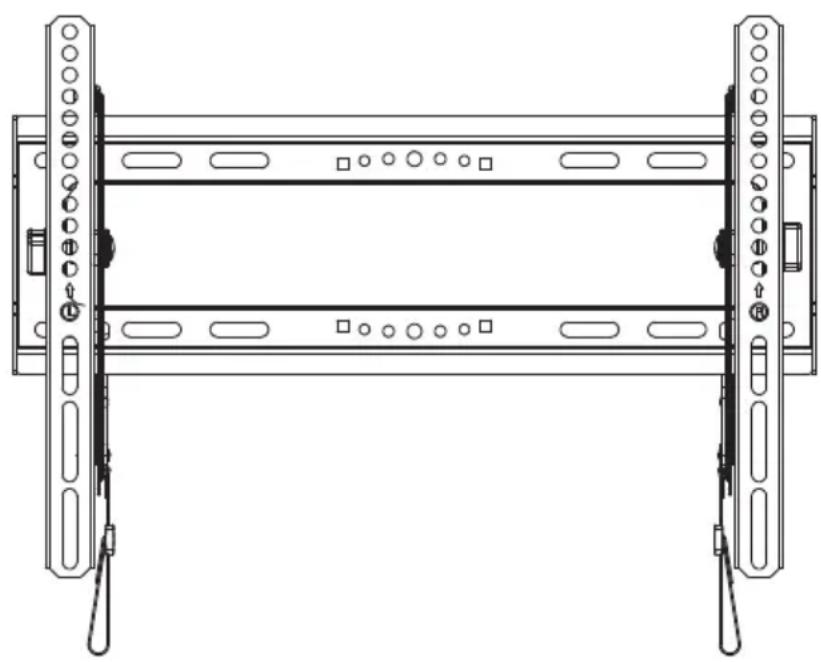

Technical line drawing of a dual-panel electronic device with slots and connectors (no text or symbols)

Model: ERMTM2-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

address: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

▲DANGER! Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].
⚠CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

• Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, and solid concrete walls. – DO NOT install into drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS

Weight Restrictions

If your TV weighs more, do not use this product.

WARNING

DO NOT exceed the maximum weight indicated. This mounting system is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the mount and its accessories, causing damage and or injury.

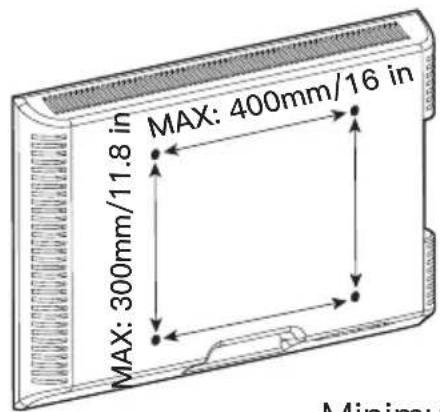

Check the VESA Pattern of Your TV before the Installation

MAX: 300mm/11.8 in MAX: 400mm/16 in Minimu

75 mm ≈ 3 in

100 mm ≈ 4 in

200 mm ≈ 7 7/8 in

300 mm ≈ 11 13/16 in

400 mm ≈ 15 3/4 in

Minimum VESA pattern: 75mm/3 in (W)x75mm/3 in (H)

If your TV VESA is greater than 400x300 mm/16x11.8 in or less than VESA 75x75mm/3x3 in, this mount is NOT compatible.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

Stud Finder Tape A Measure Pencil Electric Drill Level

7/32 in (5.5mm) Wood Drill

1/2 in (13mm) Socket Wrench

Phillips Screwdriver

(Needed for concrete installs)

3/8 in (10mm) Concrete Drill

Hammer

Verify Your Wall Construction

CAUTION

DO NOT install into drywall alone

Simple line drawing of a wooden fence with four vertical posts and a circular detail (no text or symbols)

Wood Studs (with Drywall)

Diagram showing a layered structure with an inset close-up of a textured surface (no text or symbols)

Solid Concrete Wall

If you are not sure of the wall construction, please contact our Technical Support line at [phone] or customer service at [e-mail].

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail]

- Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

Technical line drawing of a door handle assembly with a close-up inset showing the left side (no text or symbols)

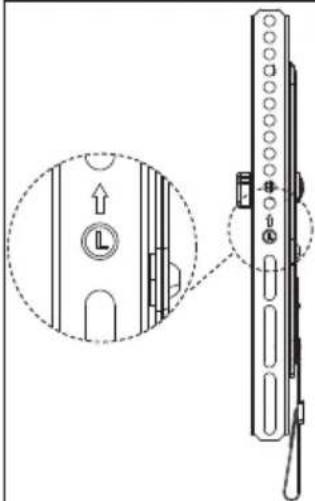

Left TV Bracket

02 x1

Technical diagram of a mechanical device with an inset close-up showing a circular component labeled 'R' (no text or symbols present)

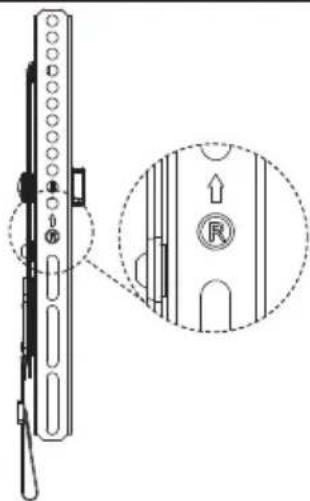

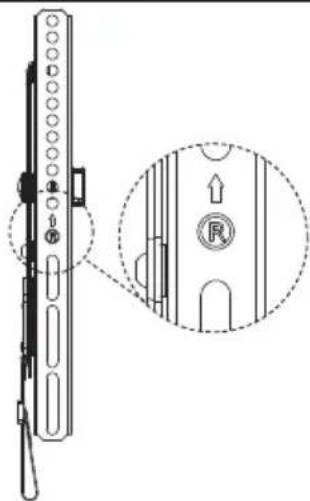

Right TV Bracket

03 x1

Washers

M4/M5 M6/M8

B1

x4

B2

x4

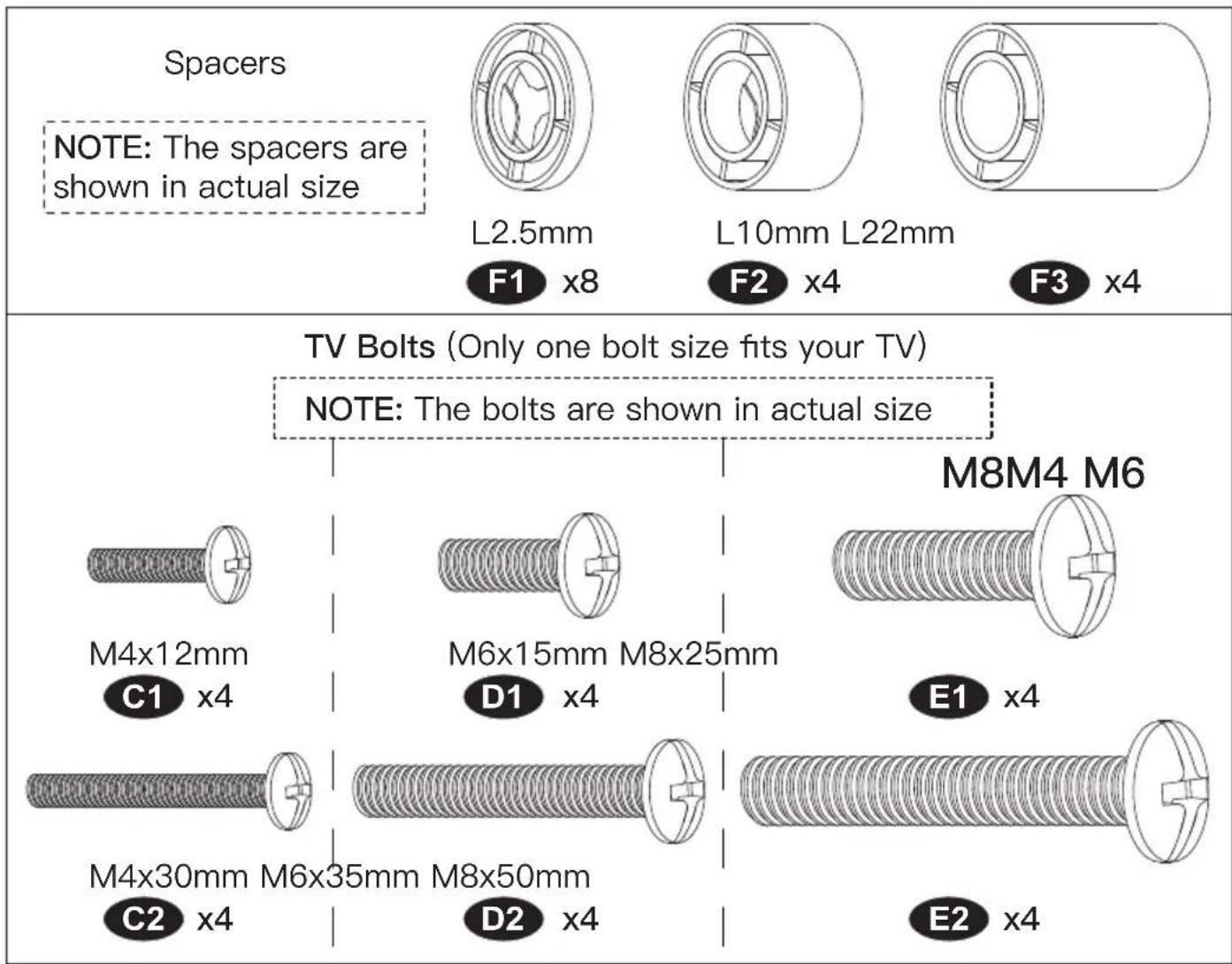

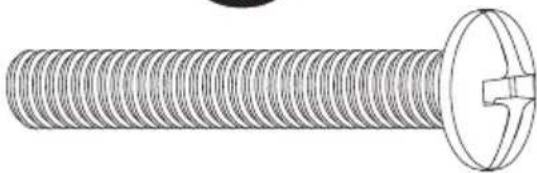

Spacers NOTE: The spacers are shown in actual size L2.5mm F1 x8 L10mm L22mm F2 x4 F3 x4 TV Bolts (Only one bolt size fits your TV) NOTE: The bolts are shown in actual size M8M4 M6 M4x12mm C1 x4 M6x15mm M8x25mm D1 x4 E1 x4 M4x30mm M6x35mm M8x50mm C2 x4 D2 x4 E2 x4

Step 1 Secure the TV Brackets to the TV

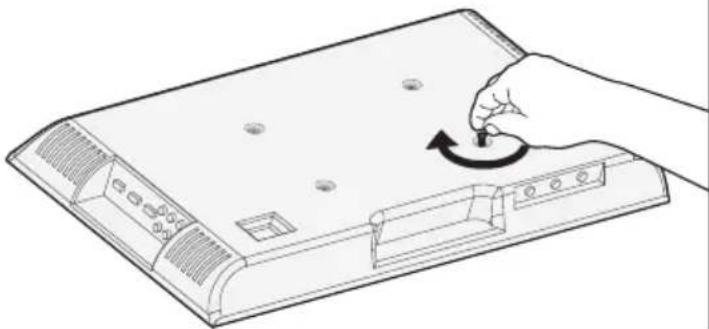

Select TV Bolts

Only one bolt size fits your TV.

M4 M6 M8

OR

Line drawing of a hand pressing a button on a flat electronic device (no text or symbols)

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Note: Please do not over tighten the TV bolts to avoid damaging your TV.

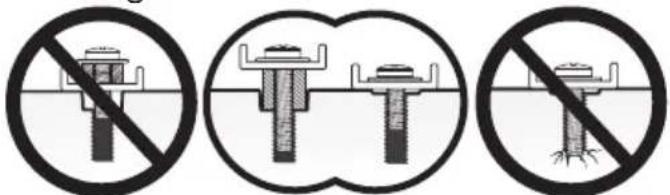

Three circular diagrams showing no symbols for a mechanical or electrical component, with no text or labels present.

Too short Correct Too long

PLEASE NOTE: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

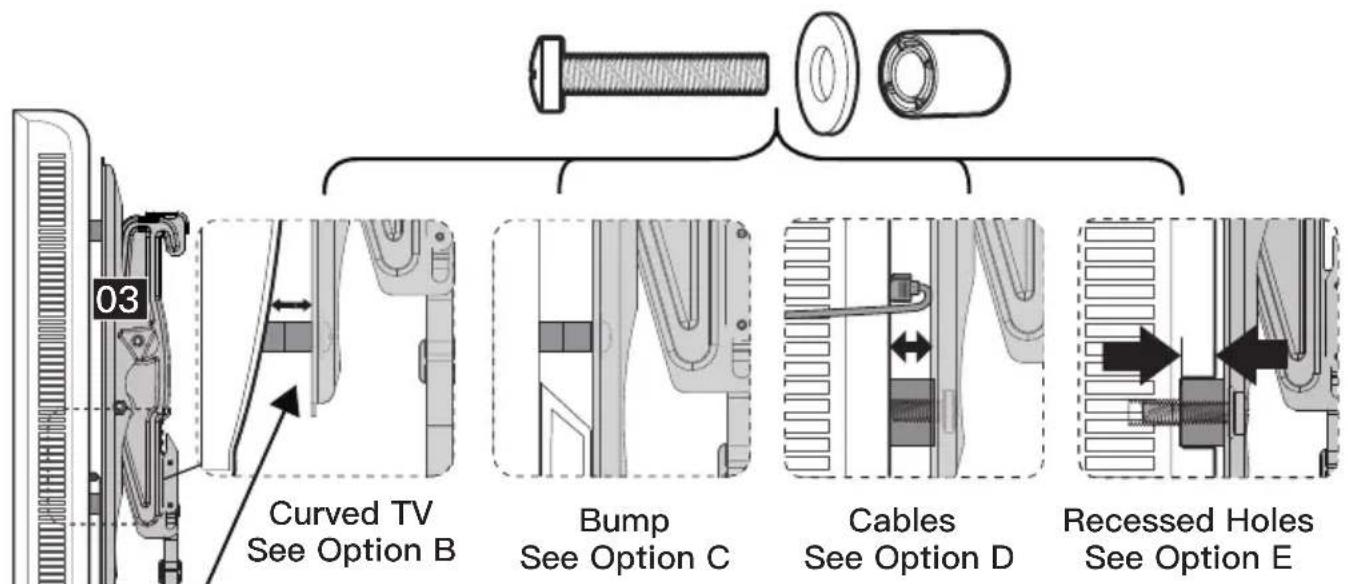

Parts Needed if You Have a TV as Shown Below


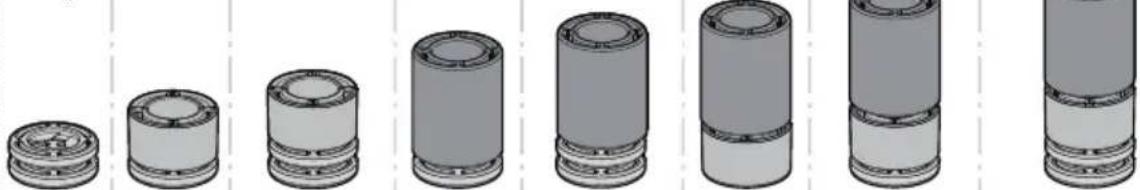

Spacers

Illustration of cylindrical mechanical components with no visible text or symbols

F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

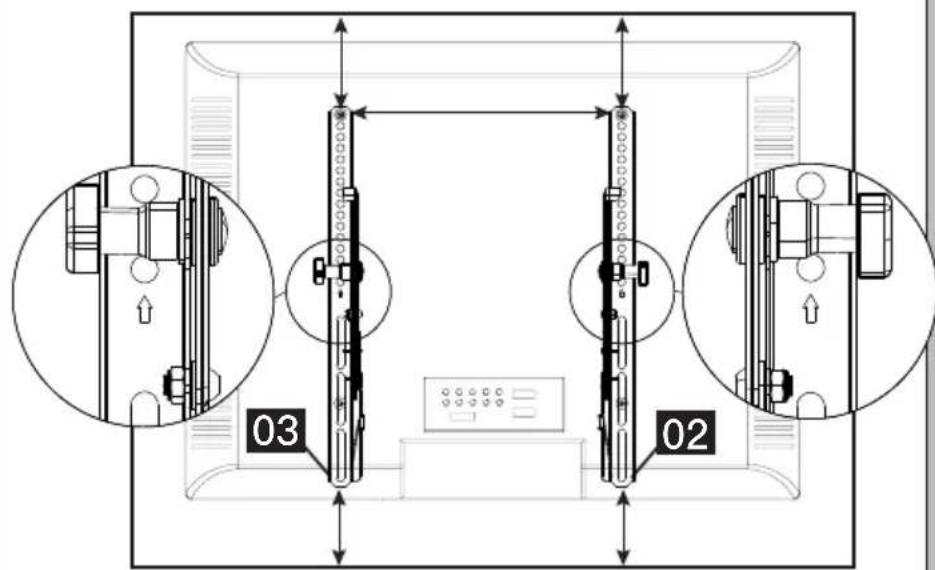

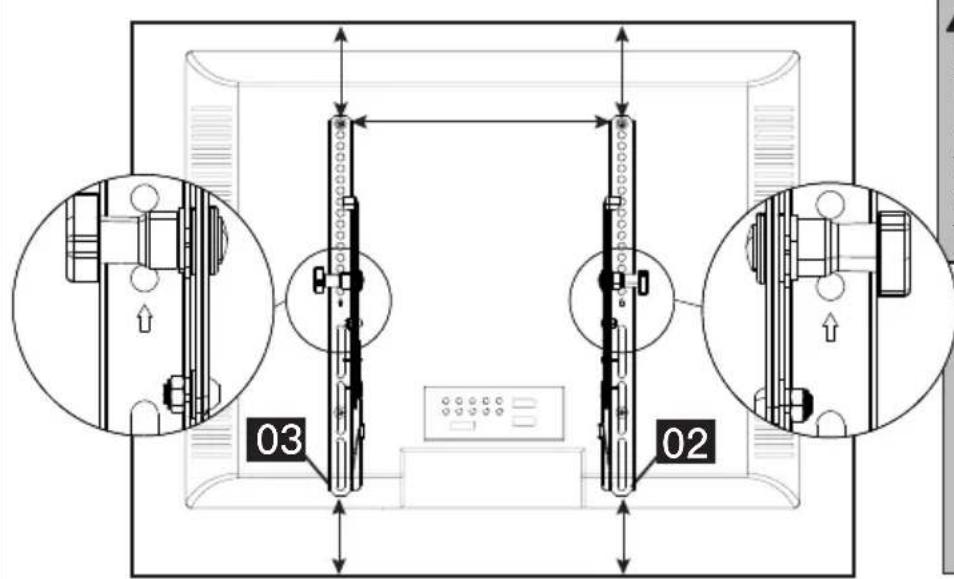

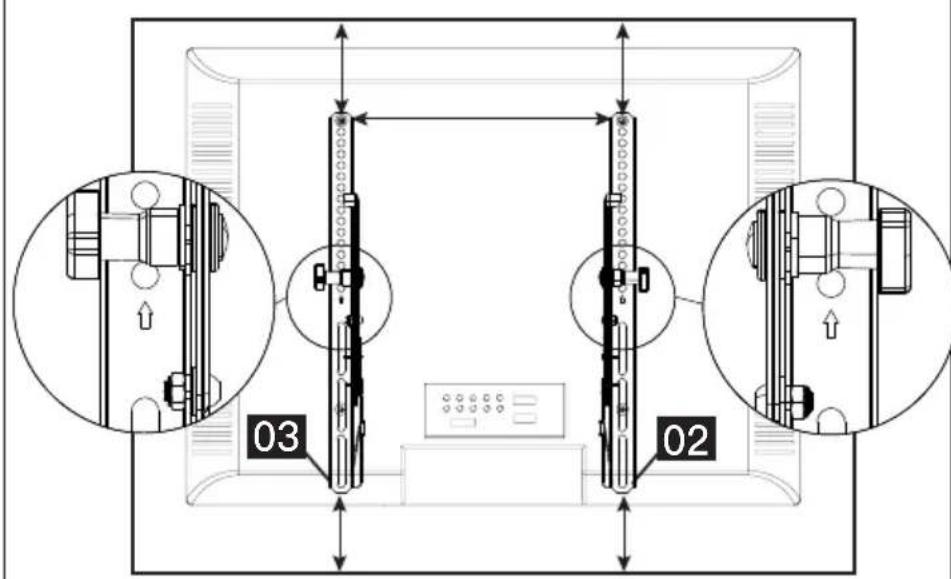

CAUTION: When attaching the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

⚠️ PLEASE NOTE: The bolt hole locations on your TV may vary in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

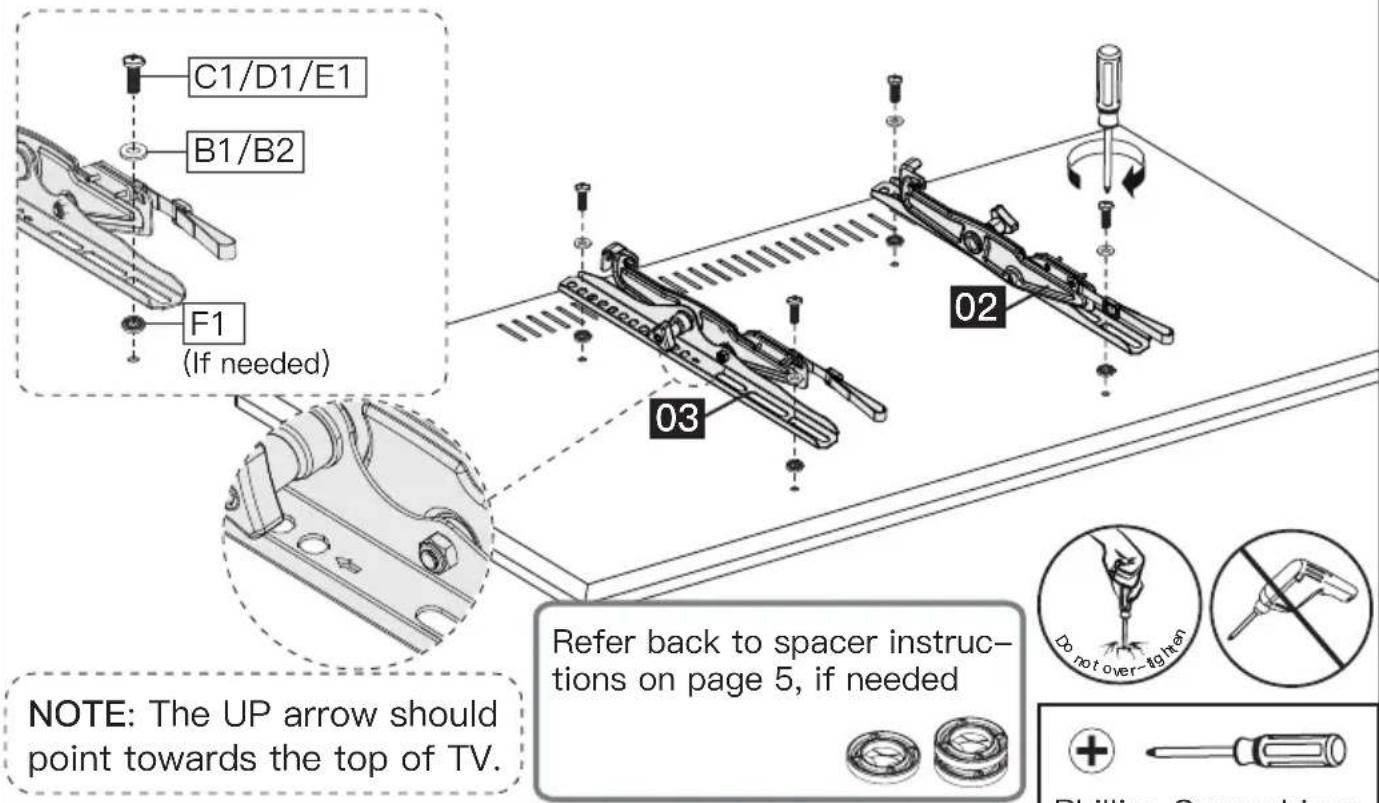

Option A (For Flat Back TV)

C1/D1/E1 B1/B2 F1 (If needed) 02 03 Refer back to spacer instruc- tions on page 5, if needed NOTE: The UP arrow should point towards the top of TV. do not over-tighted Phillips 2.48 machines

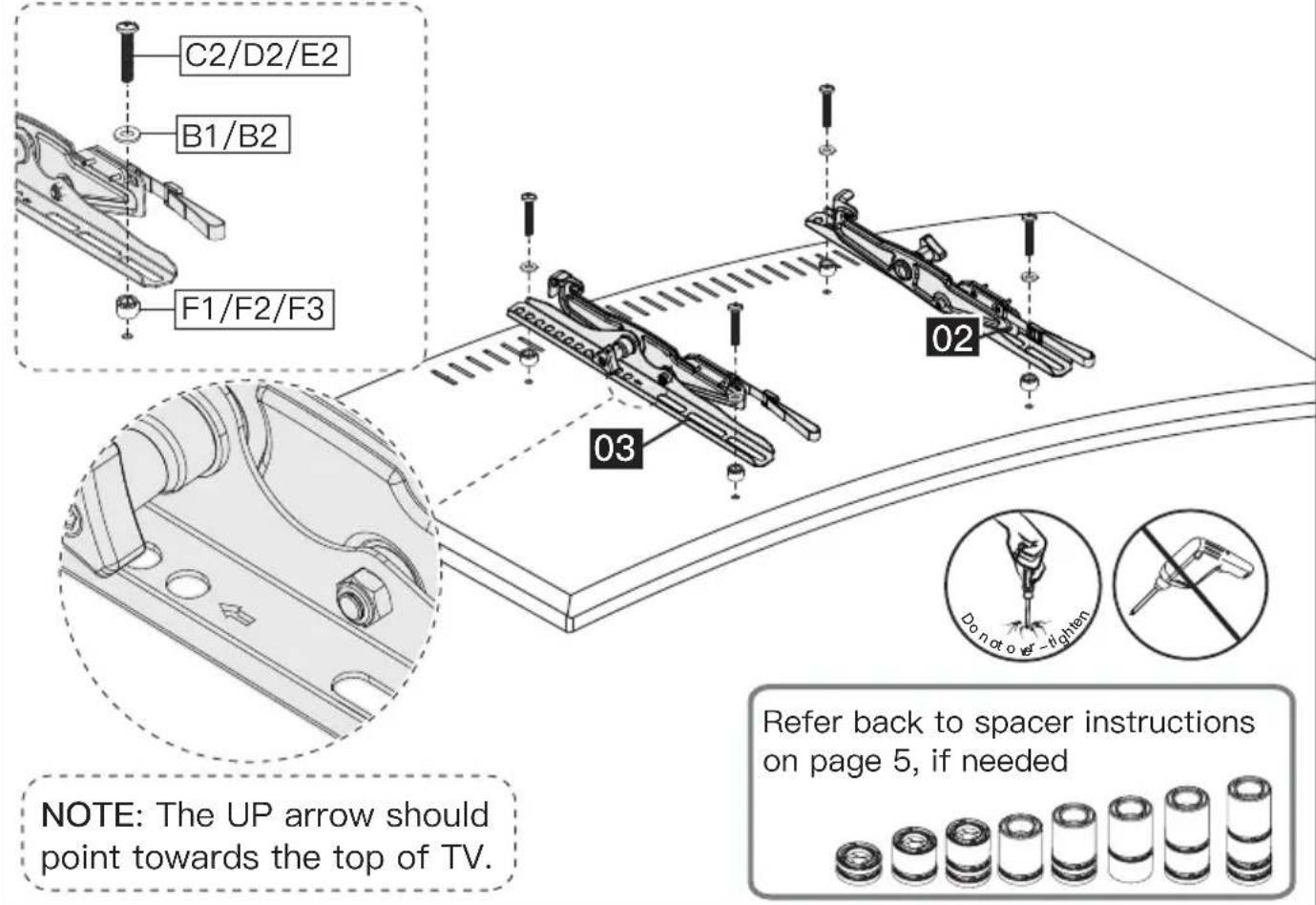

Option B (For Round Back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

C2/D2/E2 B1/B2 F1/F2/F3 02 03 Refer back to spacer instructions on page 5, if needed NOTE: The UP arrow should point towards the top of TV. Do not go - righten

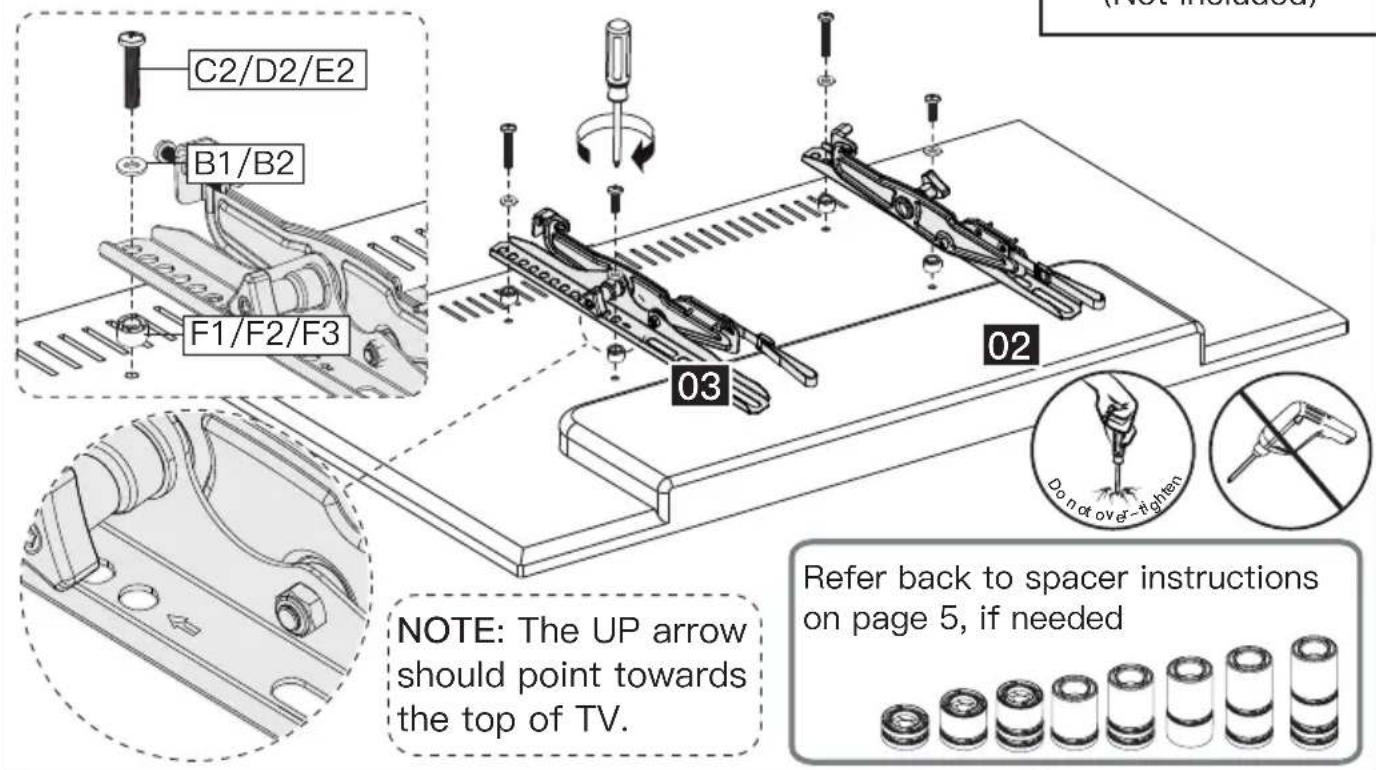

Option C (For TV with A "Bump")

Spacers must be tall enough so there is no gap between TV bracelet and bump on the back of the TV.

Phillips Screwdriver (Not Included)

C2/D2/E2 B1/B2 F1/F2/F3 03 02 NOTE: The UP arrow should point towards the top of TV. Refer back to spacer instructions on page 5, if needed

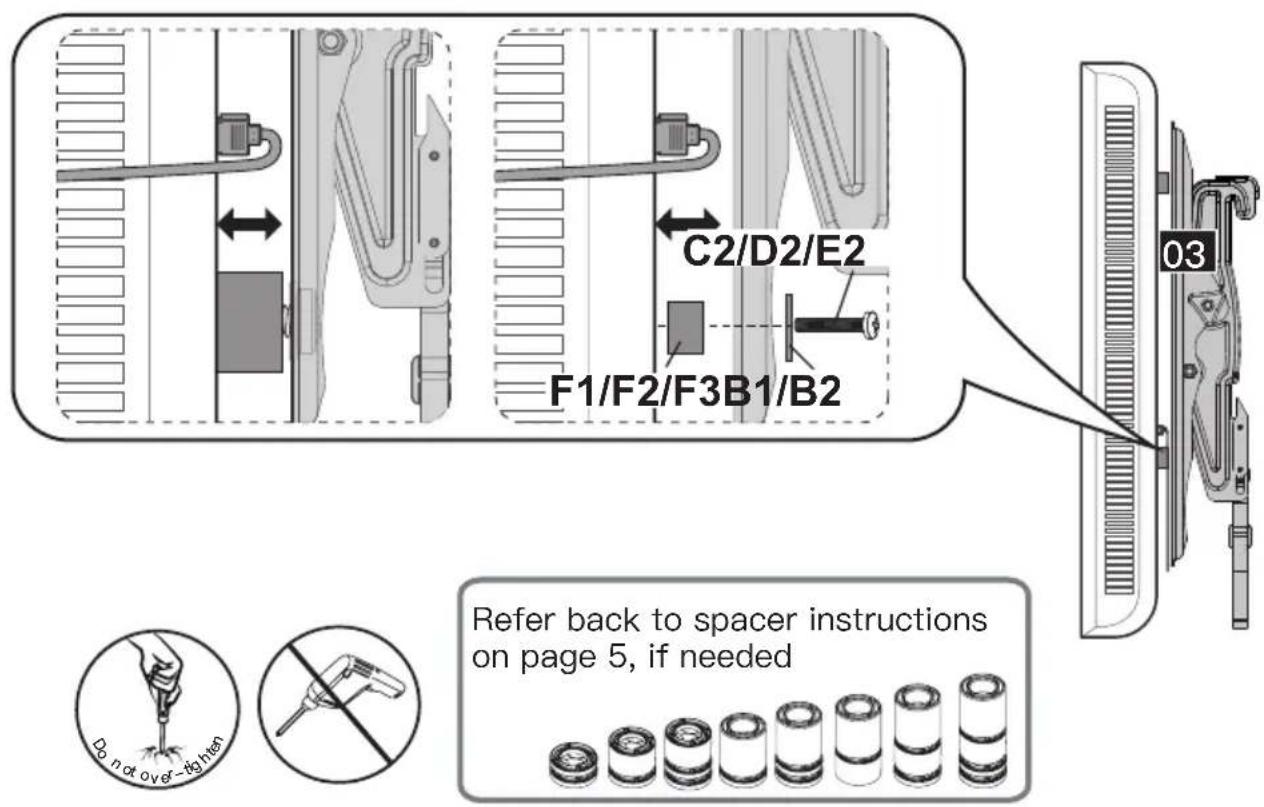

Option D (For TV with Cable Interference)

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

C2/D2/E2 F1/F2/F3B1/B2 03 Refer back to spacer instructions on page 5, if needed Do not over-fighten Refer back to spacer instructions on page 5, if needed

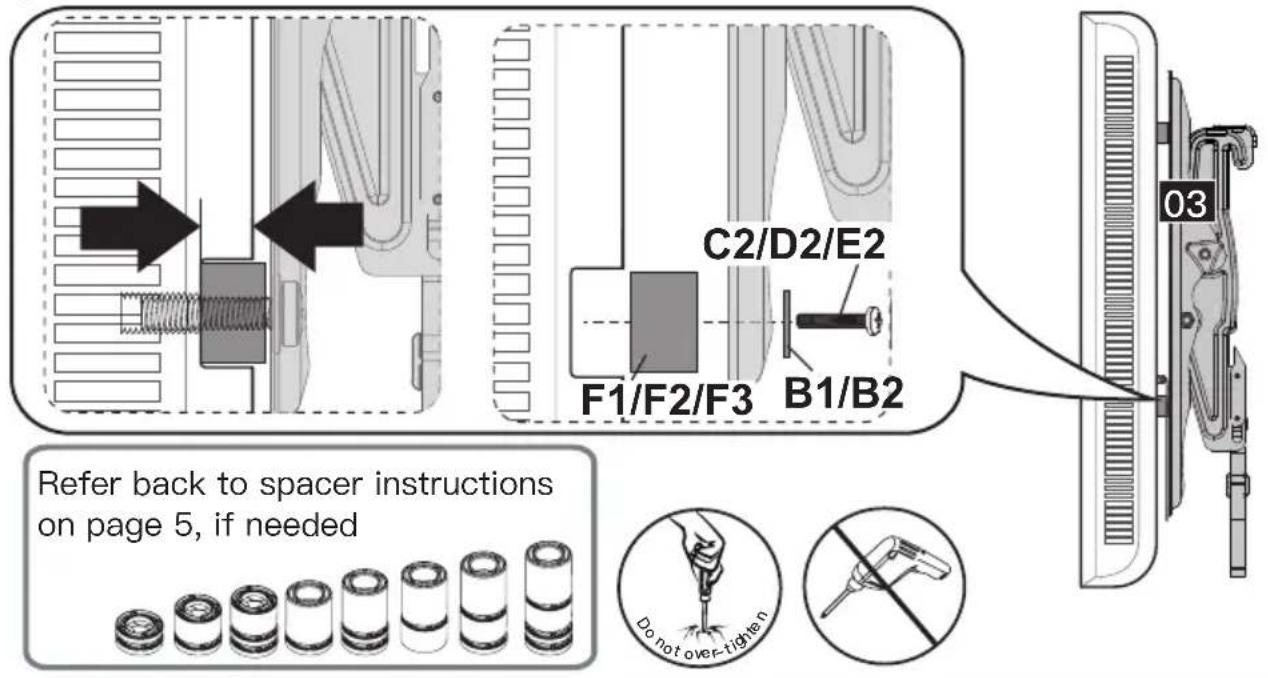

Option E (For TV with Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

Phillips Screwdriver (Not Included)

C2/D2/E2 F1/F2/F3 B1/B2 03 Refer back to spacer instructions on page 5, if needed Do not over-tighten

Supplied Parts and Hardware for Step 2

Technical line drawing of a rectangular electronic component with mounting holes and a central slot (no text or symbols)

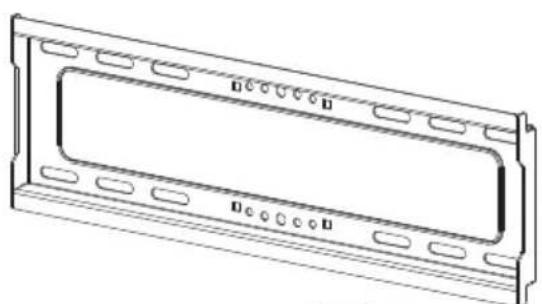

Wall Plate 01 x1

Complete step 1: In each's myocardial resection and follow-up Step 1: Step 2: Step 3: Step 4: Step 5: Step 6: Step 7: Step 8: Step 9: Step 10: Step 11: Step 12: Step 13: Step 14: Step 15: Step 16: Step 17: Step 18: Step 19: Step 20: Step 21: Step 22: Step 23: Step 24: Step 25: Step 26: Step 27: Step 28: Step 29: Step 30: Step 31: Step 32: Step 33: Step 34: Step 35: Step 36: Step 37: Step 38: Step 39: Step 40: Step 41: Step 42: Step 43: Step 44: Step 45: Step 46: Step 47: Step 48: Step 49: Step 50: Step 51: Step 52: Step 53: Step 54: Step 55: Step 56: Step 57: Step 58: Step 59: Step 60: Step 61: Step 62: Step 63: Step 64: Step 65: Step 66: Step 67: Step 68: Step 69: Step 70: Step 71: Step 72: Step 73: Step 74: Step 75: Step 76: Step 77: Step 78: Step 79: Step 80: Step 81: Step 82: Step 83: Step 84: Step 85: Step 86: Step 87: Step 88: Step 89: Step 90: Step 91: Step 92: Step 93: Step 94: Step 95: Step 96: Step 97: Step 98: Step 99: Step 100:

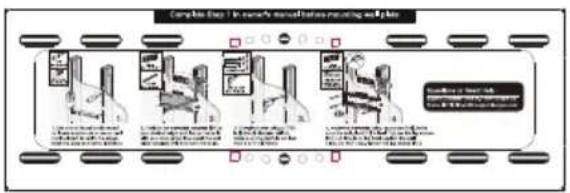

Wall Plate Template 04 x1

Note: The lag screw is shown in actual size

A1 x4

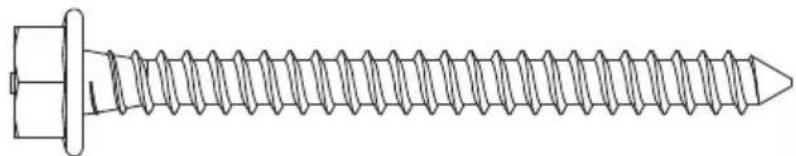

Lag Screw 5/16 X 2 3/4 in

Technical line drawing of a screw with threaded head and mounting bracket (no text or symbols)

A2 x4

Wall Anchor 10X60mm

CAUTION!

This anchor is for concrete walls ONLY. DO NOT use them in drywall or wood studs.

Step 2 Attach the Wall Plate [01] to the Wall

For wood stud installation, follow STEP 2A.

For concrete installation, follow STEP 2B.

Step 2A Wood Stud Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against the wall plate [01].

DO NOT USE ANCHOR [A2] FOR THIS STEP.

Ensure the wall plate is securely fastened to the wall before continuing to the next step.

Wall Anchor

● Nominal wood stud size: common 2 x 4 in (51 x 102 mm)
● Stud center must be verified.

2A-1

Stud finder (Not Included)

Awl (Not Included)

OR 16 in (406mm)

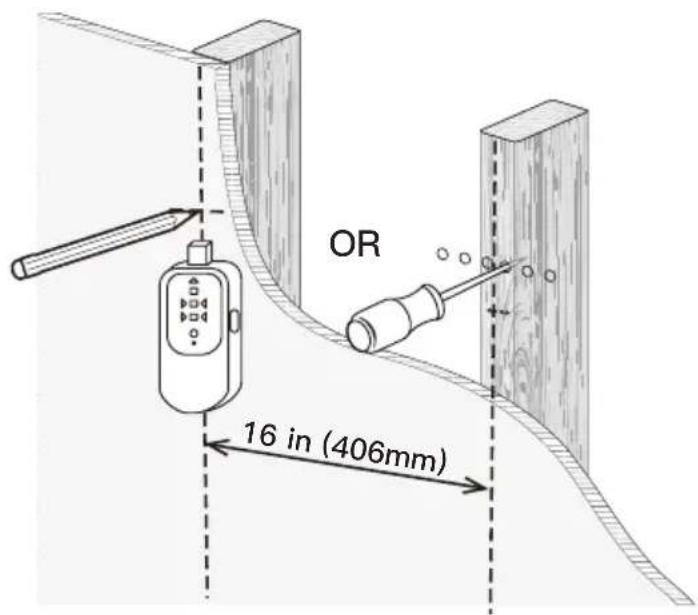

Use a stud finder (not included) to locate wood studs or use an awl (not included) to verify the edges. Mark the edge and center locations.

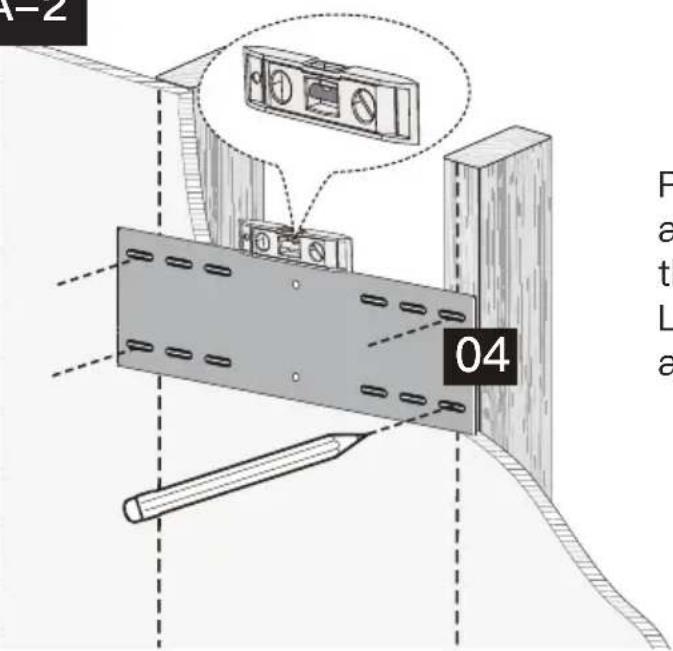

2A-2

A-2 04 P a th L a

Position the wall plate template [04] at your desired height and line up the holes with your stud center line. Level the wall plate template [04] and mark the holes.

Level ( Included)

Pencil (Not Included)

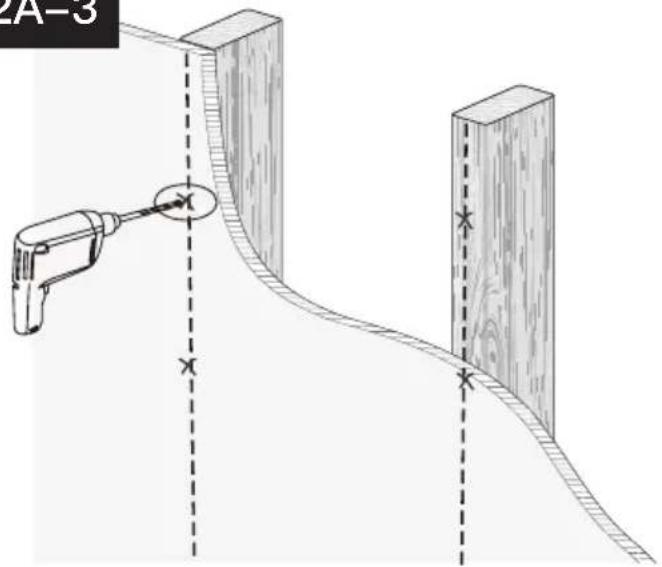

2A-3

A-A-3

Drill pilot holes using a 7/32 in (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4 in (70mm).

2 3/4 in (70mm) 7/32 in (5.5 mm)

Electric drill (Not Included)

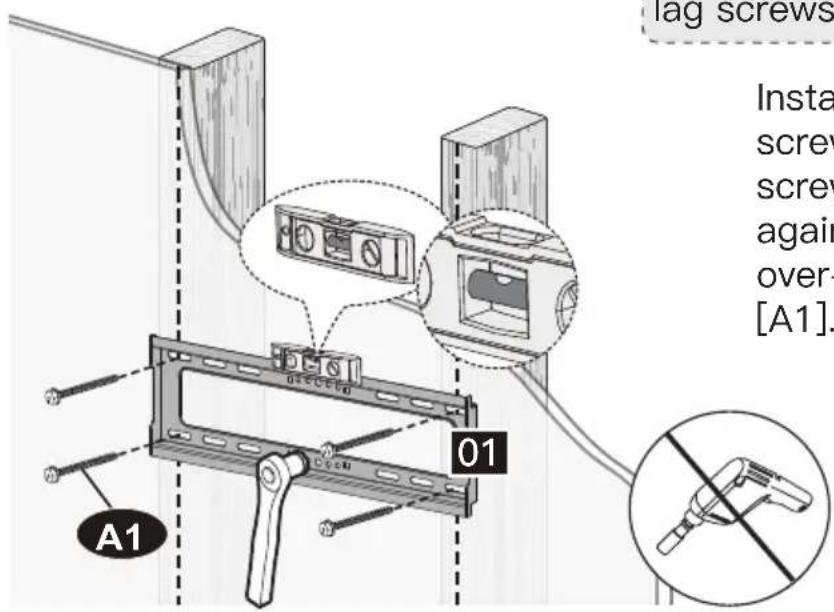

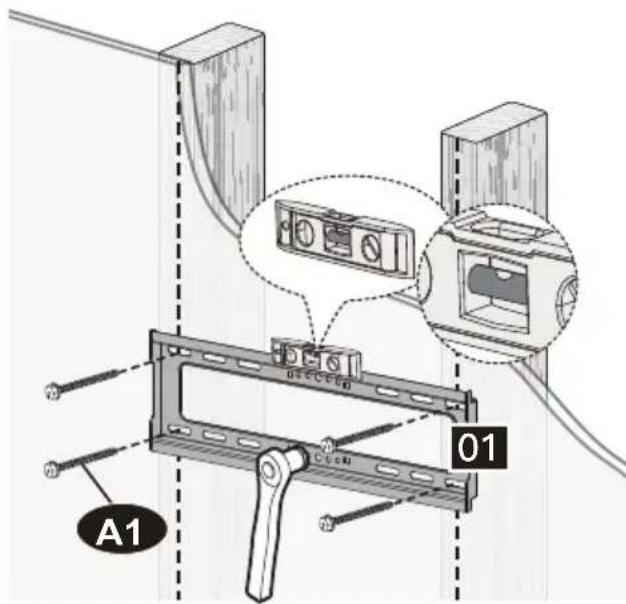

2A-4

lag screws Insta screw screw again over- [A1]. 01 A1

Note: Do not use a drill to tighten the lag screws. Only use a socket wrench.

Install the wall plate using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate. DO NOT over-tighten the lag screws [A1].

Level (Not Included)

1/2 in (13mm) Socket Wrench (Not Included)

Step 2B Solid Concrete Wall Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

●Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate.
●Ensure the wall plate is securely fastened to the wall before continuing to the next step.
● Mount the wall plate directly onto the concrete surface without any covering.
● The thickness of the concrete wall must exceed 5.5 in (140 mm).

Wall Anchor

2B-1

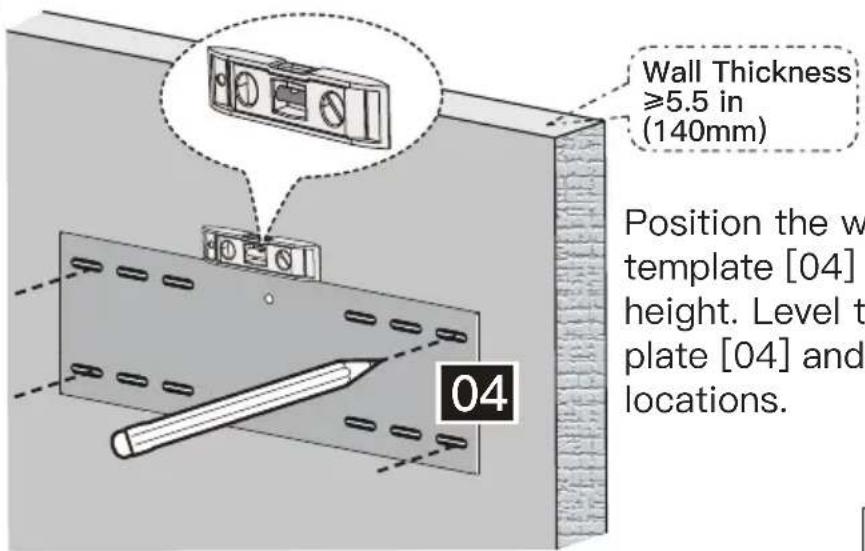

Wall Thickness ≥5.5 in (140mm) Position the w template [04] height. Level t plate [04] and locations. 04

Position the wall plate template [04] at your desired height. Level the wall plate template [04] and mark the pilot hole locations.

Level (Not Included)

Pencil (Not Included)

2B-2

Diagram showing a tool interacting with a rectangular block, marked with 'X' and cross symbols (no text or labels present)

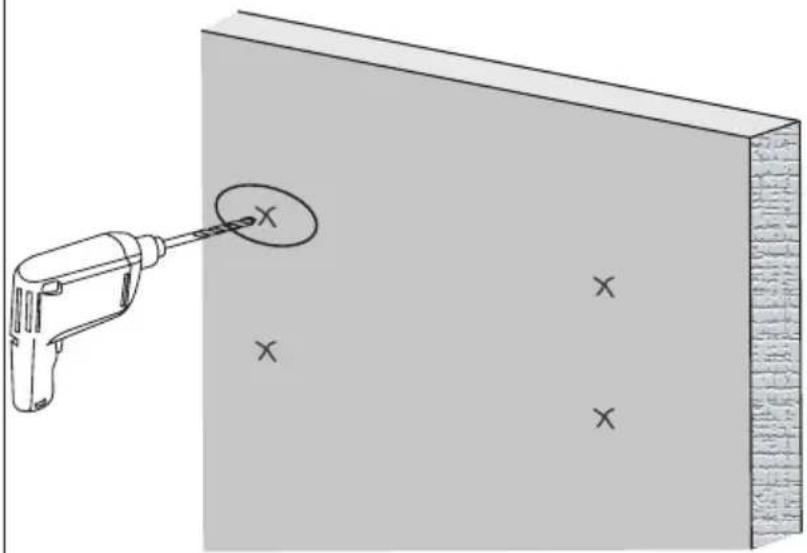

Drill 4 pilot holes using a 3/8 in (10mm) diameter drill bit. Make sure the depth is not less than 3 in (75mm).

Electric Drill (Not Included)

3 in (75mm) 3/8 in (10mm)

2B-3

Hammer
(Not Included)

A2

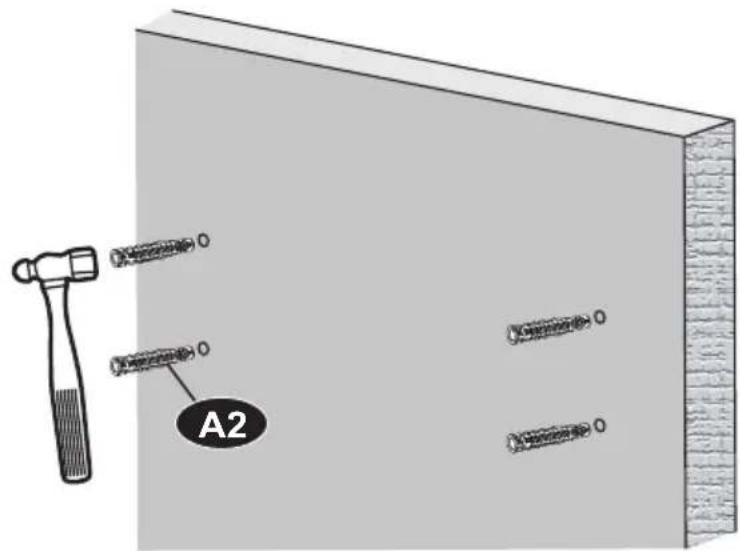

Use the hammer to knock anchors [A2] into the wall. Be sure the anchors [A2] are seated flush with the concrete surface.

2B-4

01 A1

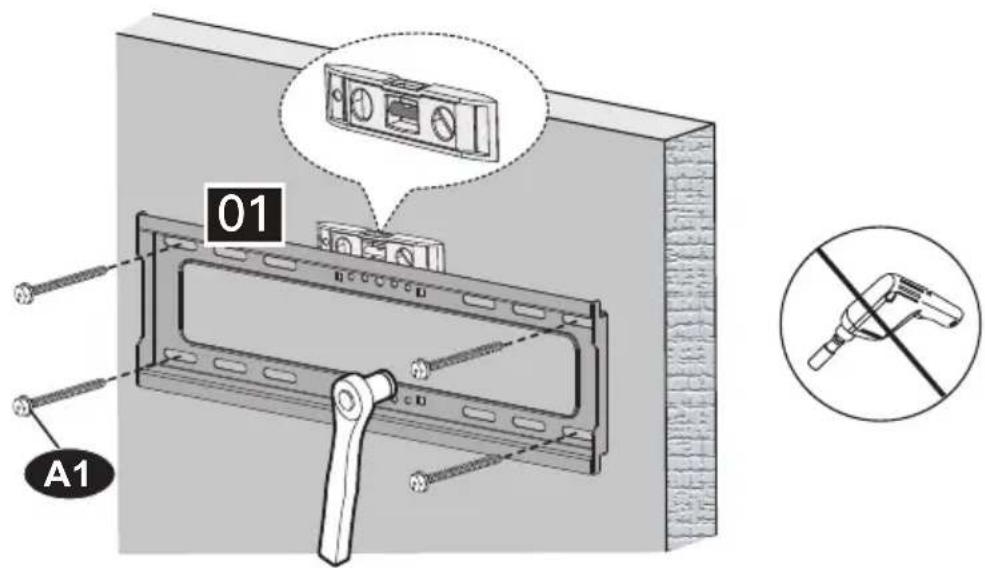

Install the wall plate [01] using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate [01]. DO NOT over-tighten the lag screws [A1].

Note: Do not use a drill to tighten the lag screws. Only use a socket wrench.

Level
(Not Included)

1/2 in (13mm)
Socket Wrench
(Not Included)

Step 3 Secure the TV onto the Wall Plate

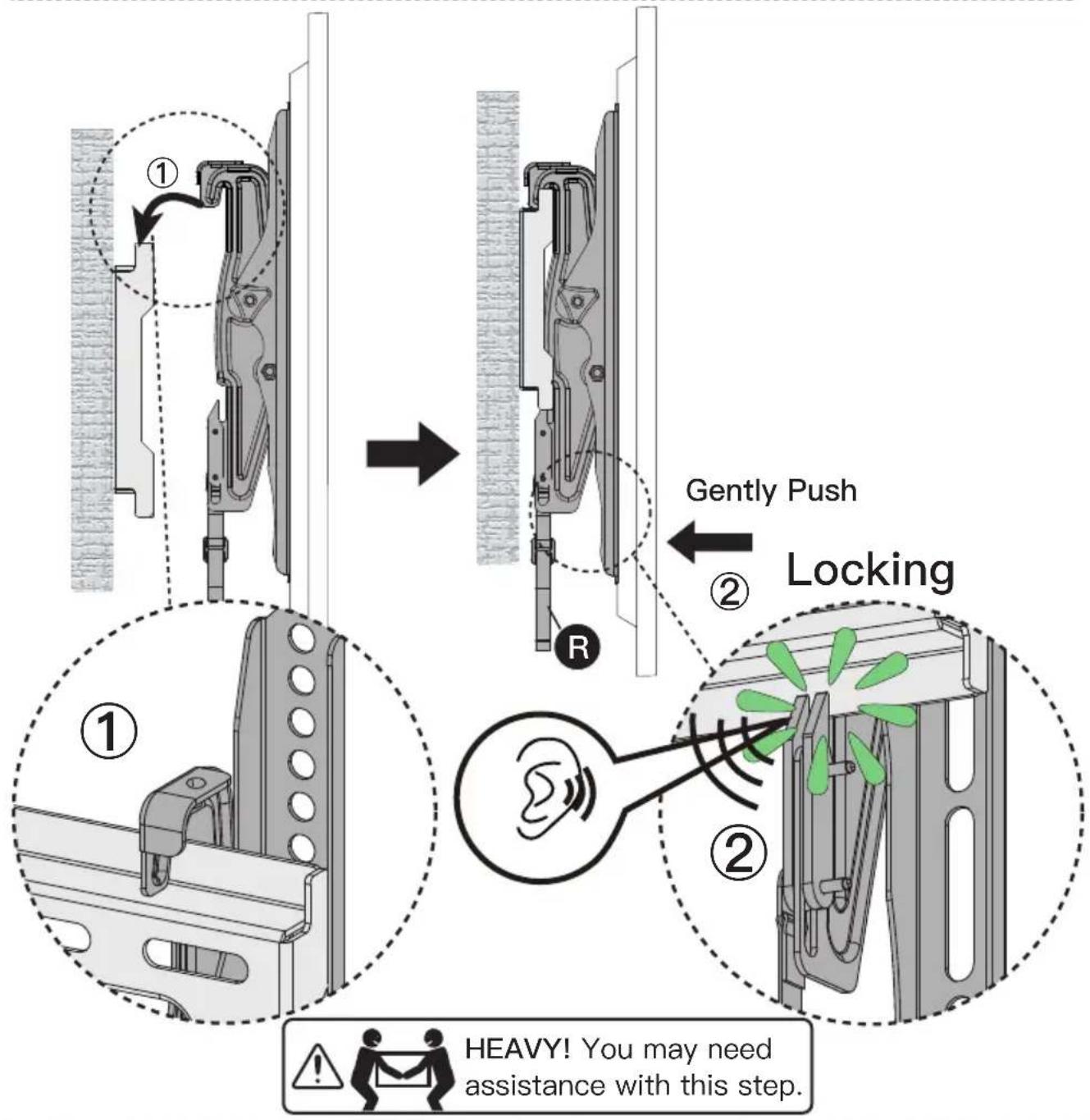

To Hang TV onto the Wall Plate

1. Hang the TV with brackets [02] and [03] onto the wall plate [01].
2. Gently press the bottom of the TV towards the wall until you hear the safety locks "click" into place on both sides of the mount.

Caution: to avoid potential injury and person property damage, two people should assist in removing the TV from the mount.

1. Verify that all cables are disconnected from the back of the TV and the TV is unplugged from wall.
2. While gently applying pressure to the front of the TV towards the wall, pull down on the safety straps until they are full disengaged.
3. While keeping the straps in the disengaged position, move the bottom of the TV away from the wall and lift the TV off the wall plate.

Supplied Hardware for Step 4

3/16 in (5mm)

Allen Key

x1

Step 4 Adjustment

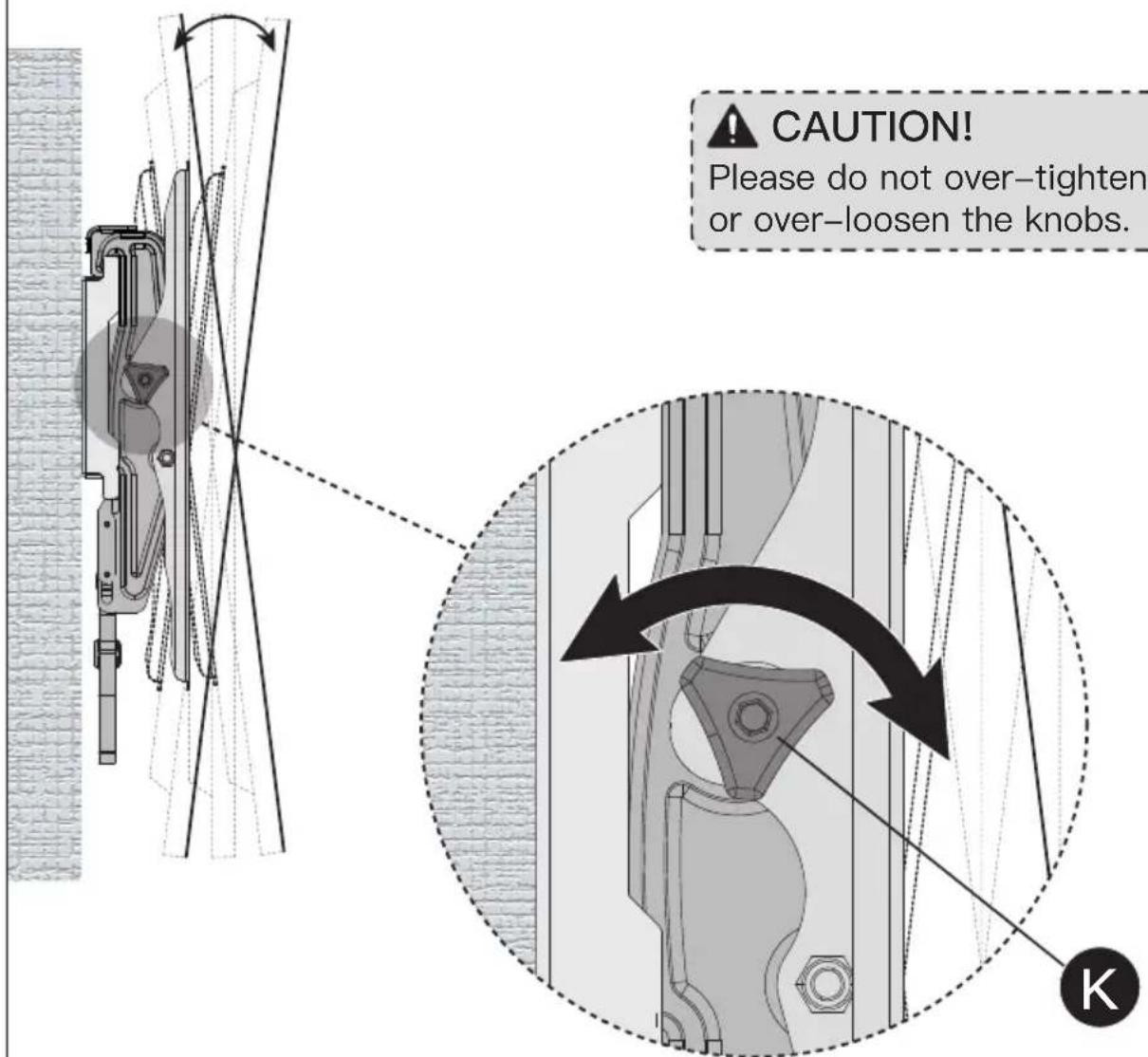

Tilt Adjustment

1. Use tension knobs on the sides of the TV Brackets to allow adjustment of the TV to desired position.
2. After making any adjustments, always re-tighten the tension knobs to hold TV in place and avoid unwanted movement.

CAUTION! Please do not over-tighten or over-loosen the knobs.

3/16 in (5mm)

Allen Key

Diagram showing a wooden fence structure with a magnified inset of a rectangular block (no text or symbols)

Diagram showing a corner joint with a magnified cross-section of a textured material (no text or symbols)

Mur en béton massif

Technical line drawing of a door handle assembly with a close-up inset showing the left side (no text or symbols)

Support TV gauche

02 x1

Technical diagram of a mechanical device with an inset close-up showing internal components (no text or symbols)

Support TV droit

03 x1

Rondelle

M4/M5 M6/M8

B1

x4

B2

x4

Diagram of two mechanical components with no visible text or symbols

Correct

Trop long

Sequence of 3D mechanical components with cylindrical bodies, shown in progressive stages (no text or symbols)

F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

Technical line drawing of a rectangular electronic component with mounting holes and a central slot (no text or symbols)

Plaque murale 01 x1

Complete first 10-month consolidation meeting and plan 1. The first procedure is to be completed, then the second is to be completed, and the third is to be completed, with each procedure's name and type of treatment indicated by icons and labels.

Modèle de mur 04 x1

OU 16 pouce (406mm)

2 3/4 pouce (70mm) 7/32 pouce (5.5 mm)

Foreuse (Non inclus)

2A-4

A1 01

Diagram showing a drill bit interacting with a rectangular block, marked with 'X' and 'X' symbols (no text or labels present)

Minimum VESA pattern: 75mm/3 in (W)x75mm/3 in (H)

Diagram showing a wooden fence with a curved path and a magnified inset of a rectangular block (no text or symbols)

Diagram showing a corner joint with a magnified cross-section of a textured material (no text or symbols)

Pure technical line drawing of a cylindrical mechanical component with no text or symbols

L10mm L22mm

F2 x4

Pure technical line drawing of a cylindrical mechanical part with flanges (no text or symbols)

F3 x4

Technical line drawing of a threaded screw with a flanged head (no text or symbols)

E1 x4

M4x30mm M6x35mm M8x50mm

C2 x4

Illustration of a threaded screw with a flanged end (no text or symbols)

D2 x4

Technical line drawing of a bolt with threaded head and flange (no text or symbols)

E2 x4

Diagram of two mechanical fasteners or fasteners in a circular frame, no text or symbols present

Correcto

Demasiado largo

Illustration of cylindrical mechanical components with no visible text or symbols

F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

PRECAUCIÓN:

Technical line drawing of a rectangular electronic component with mounting holes and a central slot (no text or symbols)

Placa de pared 01 x1

Complete follow-up of new's myocardial infarction procedure.

Diagram showing a drill bit interacting with a wooden block, marked with 'X' and cross symbols (no text or labels present)

At ErgoAV, we strive to provide the highest valued products. We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

Simple line drawing of a vertical cylindrical structure with base and wheels (no text or symbols)

Speaker Stands

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central base (no text or symbols)

Computer Monitor Mounts TV Stand

Technical line drawing of a mechanical support structure with mounting feet and structural elements (no text or symbols)

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

WWW.ERGOAV.COM
