ERMTX1-01B - TV wall mount ErgoAV - Free user manual and instructions

Product type	TV wall mount
Brand	ErgoAV
Model	ERMTX1-01B
Compatible VESA standard	200x100 mm to 600x400 mm (WxH)
Maximum load capacity	50 kg (estimated based on standard characteristics)
Material	High-strength steel
Wall plate dimensions	Approximately 600 mm wide, 400 mm high
Distance from wall	Variable depending on thickness of spacers used
Tilt angle	Adjustable up to 10° (estimated)
Rotation	No (fixed mount with tilt)
Compatible wall types	Wood studs (2x4) and solid concrete wall
Number of fixing points	4 lag bolts for wood studs or 4 anchors for concrete
Fasteners included	M4, M6, M8 bolts with spacers (L2.5mm)
Cable management	3 cable ties included
Tools required (not included)	Stud finder, level, drill, drill bits (wood 5.5 mm, concrete 10 mm), 13 mm socket wrench, Phillips screwdriver, hammer drill (for concrete)
Maintenance and cleaning	Wipe with a dry, soft cloth. Do not use abrasive products.
Package weight	Approximately 3 kg (estimated)
Warranty	Standard manufacturer warranty (refer to manual)

Frequently Asked Questions - ERMTX1-01B ErgoAV

What is the maximum weight that this ErgoAV ERMTX1-01B wall mount can support?

The recommended maximum weight is 50 kg. Never exceed this limit to avoid risk of fall or injury.

What is the VESA compatibility of this mount?

The mount is compatible with VESA standards from 200x100 mm to 600x400 mm (width x height).

Can I install this mount on drywall alone?

No, it is strictly forbidden to install this mount on drywall alone. It must be fixed to wood studs or a solid concrete wall.

What tools are needed for installation?

You will need a stud finder, a level, a drill, a 5.5 mm wood drill bit (for studs) or a 10 mm concrete drill bit (for concrete), a 13 mm socket wrench and a Phillips screwdriver.

Does this mount allow tilting the TV?

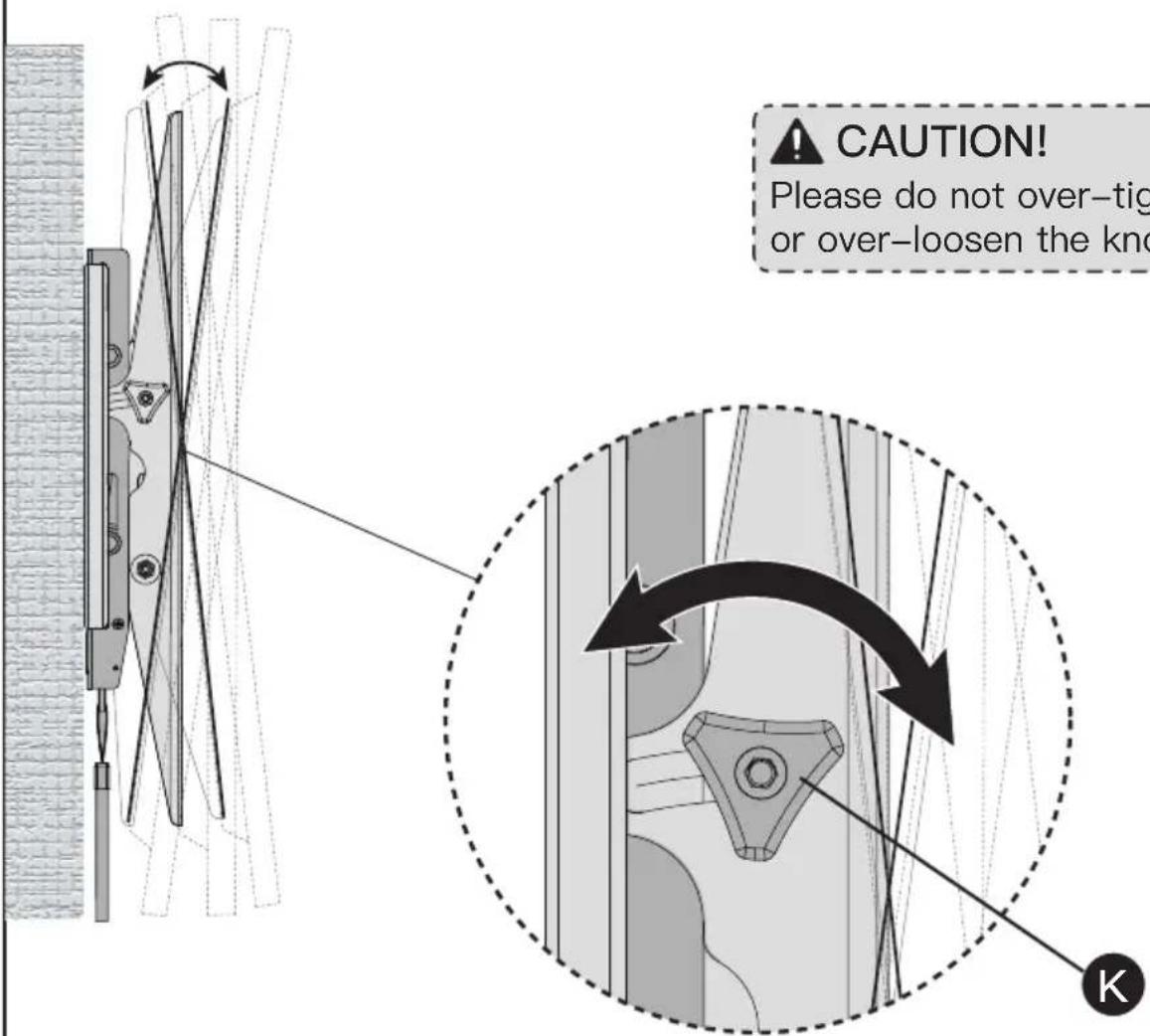

Yes, the mount has tension knobs on the sides allowing tilt adjustment after installation. You must tighten the knobs once the desired position is achieved.

How to fix the mount on a concrete wall?

Drill 4 holes of 10 mm diameter to a depth of at least 75 mm, insert the wall anchors [A2] using a hammer, then screw in the lag bolts [A1] with a socket wrench. Do not use a drill for tightening.

What if my TV has a curved back or protruding cables?

Use the provided spacers (F1, F2, F3) to create extra space between the TV and the brackets, to avoid any interference. Refer to options B, C or D in the manual.

How to remove the TV from the mount?

Pull the safety straps while applying slight pressure on the front of the TV, then lift the bottom of the TV to unhook it. It is recommended to have two people for this operation.

Is this mount delivered with all necessary bolts?

Yes, the mount includes a selection of M4, M6 and M8 bolts as well as spacers. Only one bolt size fits your TV; follow the instructions to choose the correct length.

Can I use this mount outdoors?

No, this mount is designed for indoor use only. Do not expose to moisture or weather.

USER MANUAL ERMTX1-01B ErgoAV

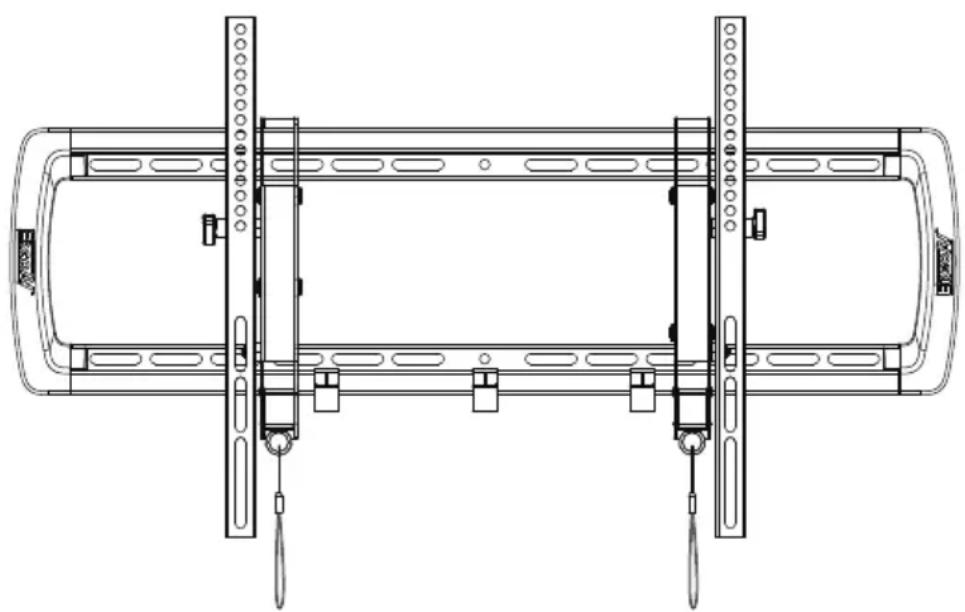

Tilt TV Mount Instruction Manual

(A)

English pages 02–15 French pages 16–29 Spanish pages 30–43

Technical line drawing of a vehicle suspension system with vertical brackets and support structures (no text or symbols)

Model: ERMTX1-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

phone [phone]

email: [e-mail]

website: www.ergoav.com

address: 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

Important Safety Information

▲ DANGER! Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].
⚠️CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

• Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, and solid concrete walls. – DO NOT install into drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS.

Weight Restrictions

If your TV weighs more, do not use this product.

WARNING

DO NOT exceed the maximum weight indicated. This mounting system is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the mount and its accessories, causing damage and or injury.

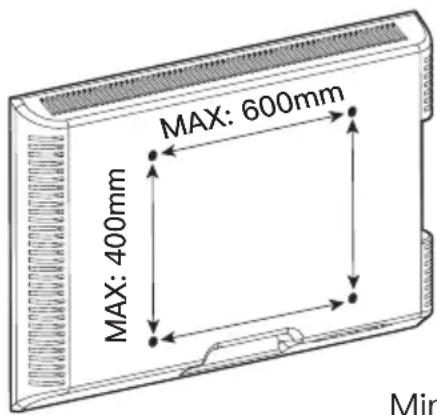

Check the VESA Pattern of Your TV before the Installation

MAX: 600mm MAX: 400mm Mir

$$ 1 0 0 \mathrm{mm} \approx 4 \text { in } $$

$$ 2 0 0 \mathrm{mm} \approx 7 7 / 8 \text {in} $$

$$ 4 0 0 \mathrm{mm} \approx 1 5 3 / 4 \mathrm{in} $$

$$ 6 0 0 \mathrm{mm} \approx 2 3 5 / 8 \text {in} $$

Minimum: 200mm x 100mm / 7 7/8" x 4" (W x H)

Maximum: 600mm x 400mm / 23 5/8" x 15 3/4" (W x H)

If your TV's VESA Pattern is smaller than 200mm x 100mm or greater than 600mm x 400mm, this mount is NOT COMPATIBLE with your TV. Please contact our Technical Support at (877) 419–7832 or [e-mail] to find a compatible mount.

Tools Needed (Not Included)

Stud Finder

Awl

Tape Measure

Pencil Electric Drill Level

7/32 in (5.5mm) Wood Drill

1/2 in (13mm) Socket Wrench

Phillips Screwdriver

(Needed for concrete installs)

3/8 in (10mm) Concrete Drill

Hammer

Verify Your Wall Construction

CAUTION

DO NOT install into drywall alone

Diagram showing a staircase with four vertical posts and a checkmark icon (no text or symbols)

Wood Studs (with Drywall)

Diagram showing a geological cross-section with a magnified inset of a layered rock or sediment (no text or symbols)

Solid Concrete Wall

If you are not sure of the wall construction, please contact our Technical Support line at [phone] or customer service at [e-mail].

Supplied Parts and Hardware

Warning: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail]

- Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

Left TV Bracket 02 x1

Right TV Bracket
03 x1

Spacers
NOTE: The spacers are shown in actual size.

L2.5mm

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols)

L10mm

Simple line drawing of a cylindrical mechanical part with a flanged top and side grooves (no text or symbols)

L22mm
F1 x8
F2 x4
F3 x4

Washer

M4/M5
B1 x4

M6/M8
B2 x4

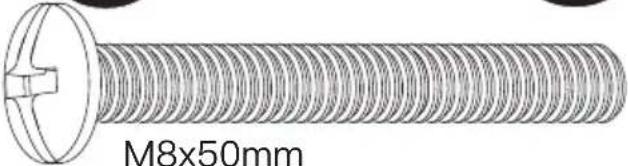

TV Bolts [Only one bolt size fits your TV]NOTE: The bolts are shown in actual size
M4
	M4x12mm	M4x30mm
	C1 x4	C2 x4
M6
	M6x15mm	M6x35mm
	D1 x4	D2 x4
M8
	M8x15mm	M8x35mm
	E1 x4	E2 x4
	E3 x4

Step 1 Secure the TV Brackets to the TV

Select TV Bolts

Only one bolt size fits your TV.

M6 M8M4 OR OR ○ ○ ○

Line drawing of a hand pressing down on a flat-screen computer cover with a circular arrow indicating rotation (no text or symbols)

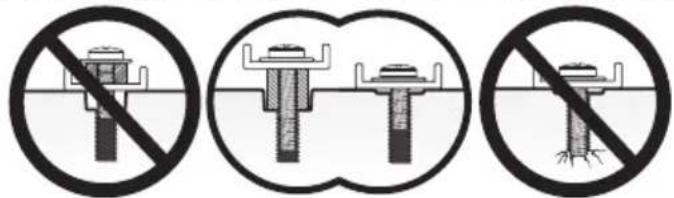

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Note: Please do not over tighten the TV bolts to avoid damaging your TV.

Three circular diagrams showing prohibition symbols for a mechanical or electrical component, with no accompanying text.

Too short Correct Too long

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

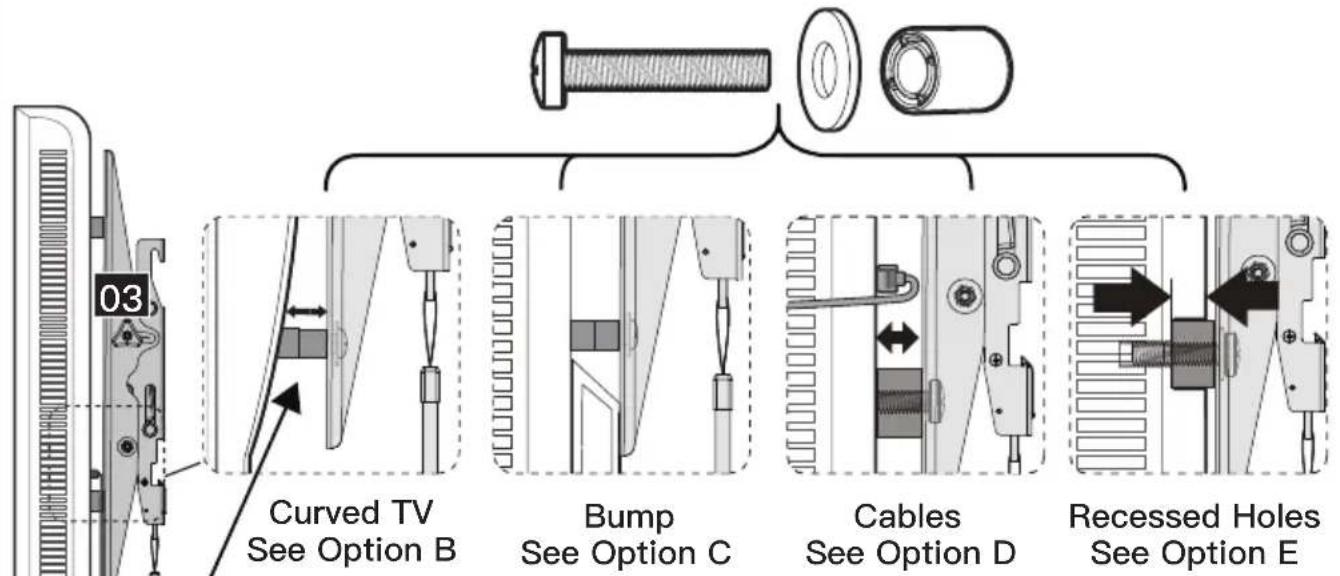

Parts Needed if You Have a TV as Shown Below


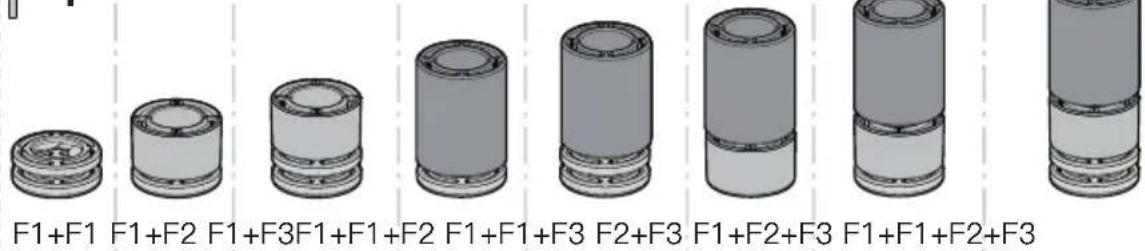

Spacers

F1+F1 F1+F2 F1+F3 F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

CAUTION: When attaching the TV mount to the back of the TV, make sure the drawstring ends at the end of the TV and is centered on the back of the TV.

PLEASE NOTE: The bolt hole locations on your TV may vary in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

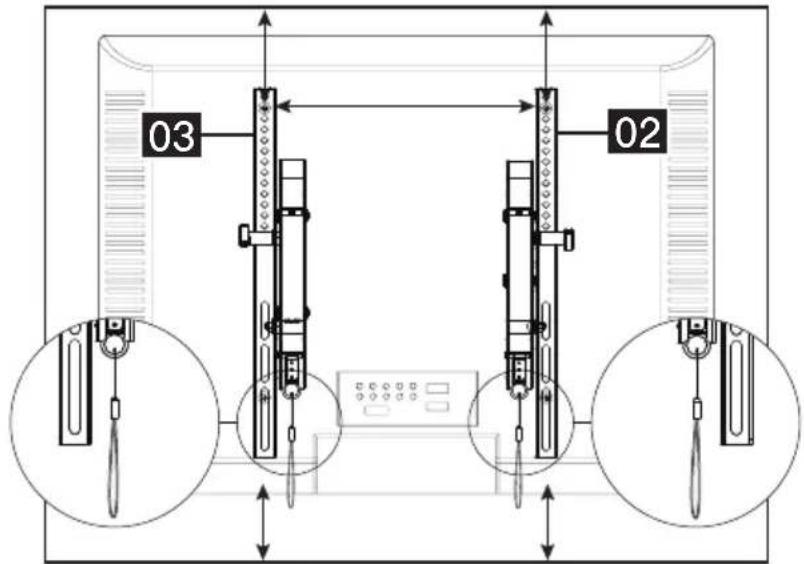

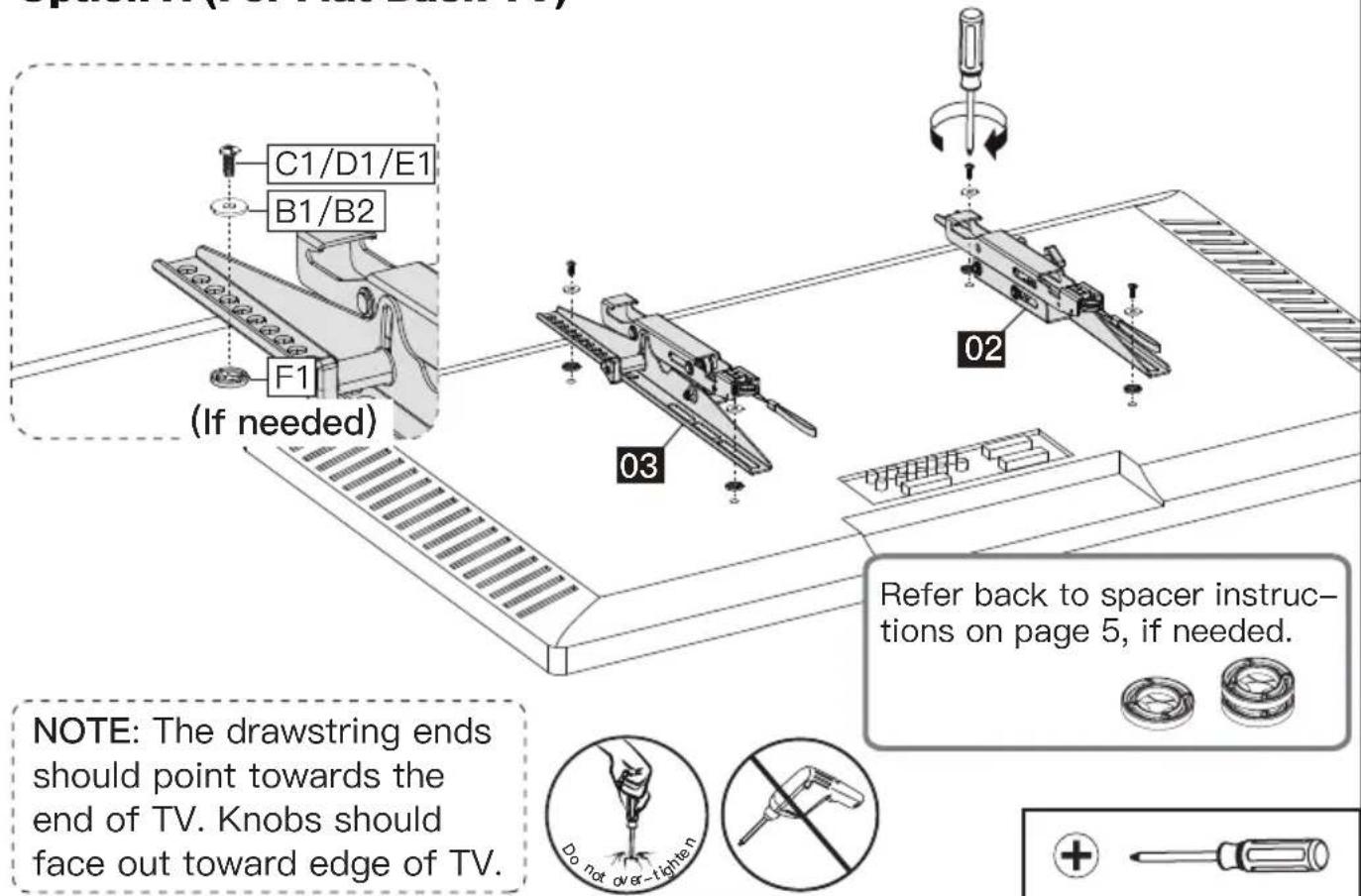

Option A (For Flat Back TV)

C1/D1/E1 B1/B2 F1 (If needed) 02 03 Refer back to spacer instruc- tions on page 5, if needed. NOTE: The drawstring ends should point towards the end of TV. Knobs should face out toward edge of TV. Do not over-fighten + -

NOTE: The drawstring ends should point towards the end of TV. Knobs should face out toward edge of TV.

Phillips Screwdriver (Not Included)

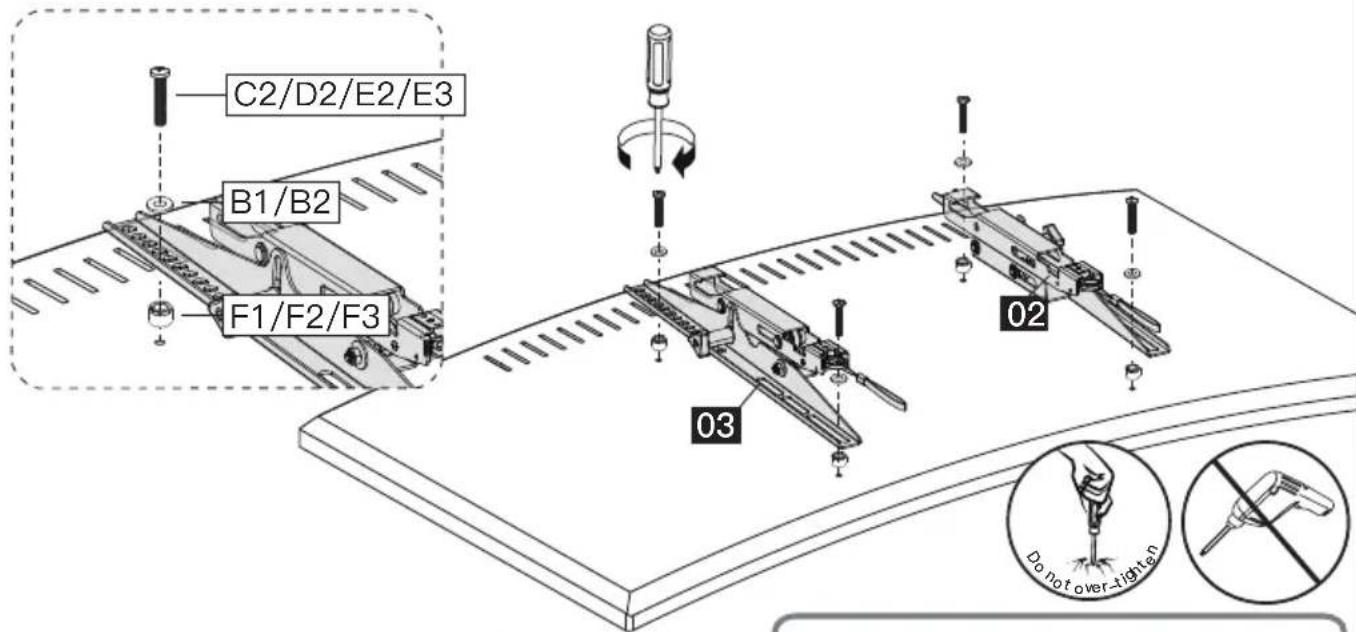

Option B (For curved back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

C2/D2/E2/E3 B1/B2 F1/F2/F3 02 03 Do not over-tighten

NOTE: The drawstring ends should point towards the end of TV. Knobs should face out toward edge of TV.
Refer back to spacer instructions on page 5, if needed.

Row of cylindrical mechanical components with no visible text or symbols

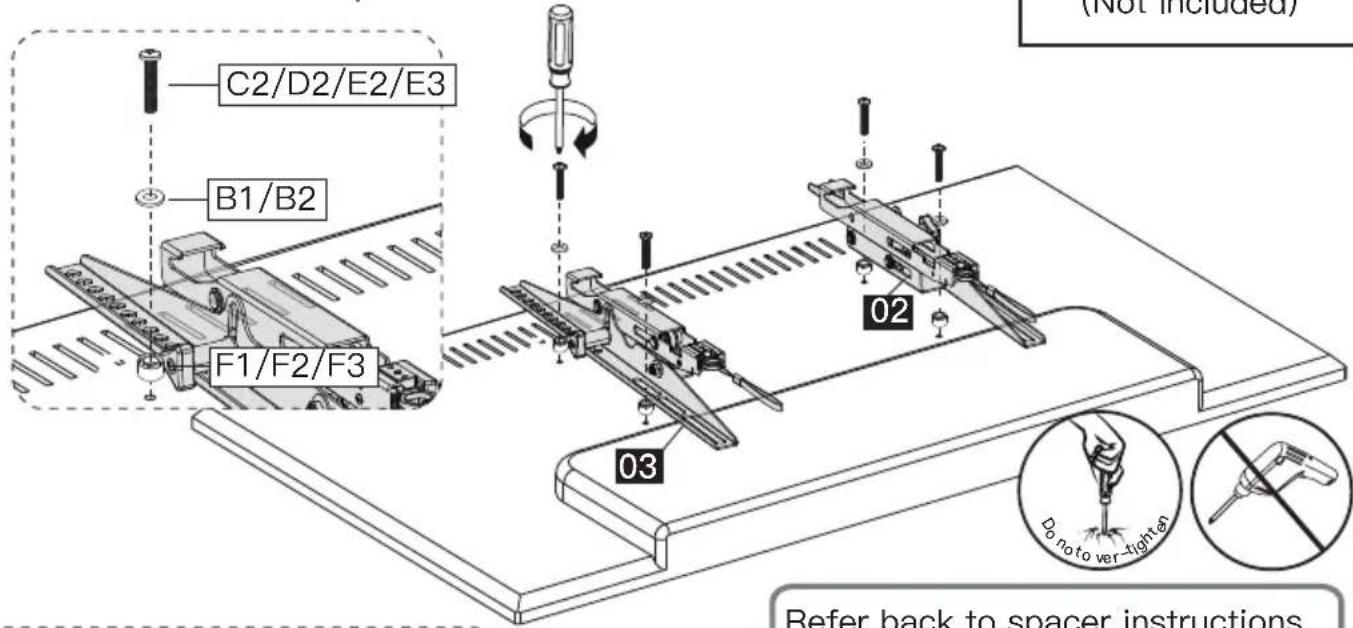

Option C (For TV with A "Bump")

Spacers must be tall enough so there is no gap between TV brackett and bump on the back of the TV.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 B1/B2 F1/F2/F3 02 (Not Included) 03 Refer back to spacer instructions

NOTE: The drawstring ends should point towards the end of TV. Knobs should face out toward edge of TV.

Refer back to spacer instructions on page 5, if needed.

Row of cylindrical mechanical components with no visible text or symbols

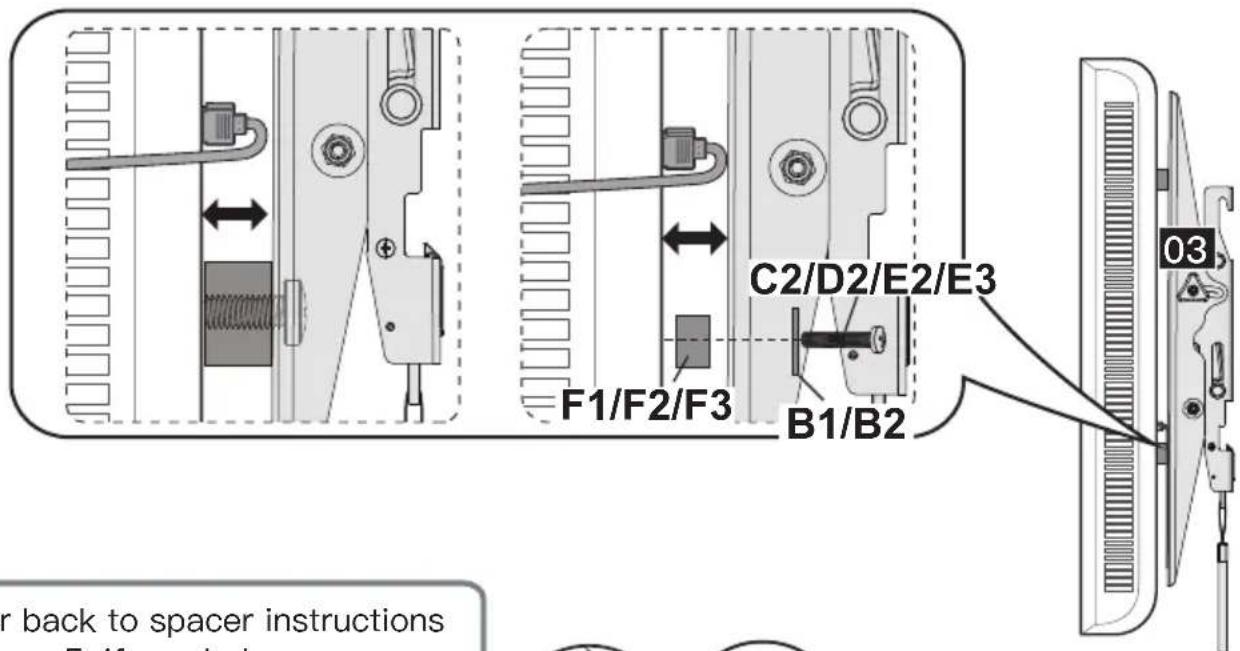

Option D (for TV with Cable Interference)

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 F1/F2/F3 B1/B2 03 or back to spacer instructions on F1 if enabled

Refer back to spacer instructions on page 5, if needed.

Row of cylindrical mechanical components with no visible text or symbols

Do not over-fighten

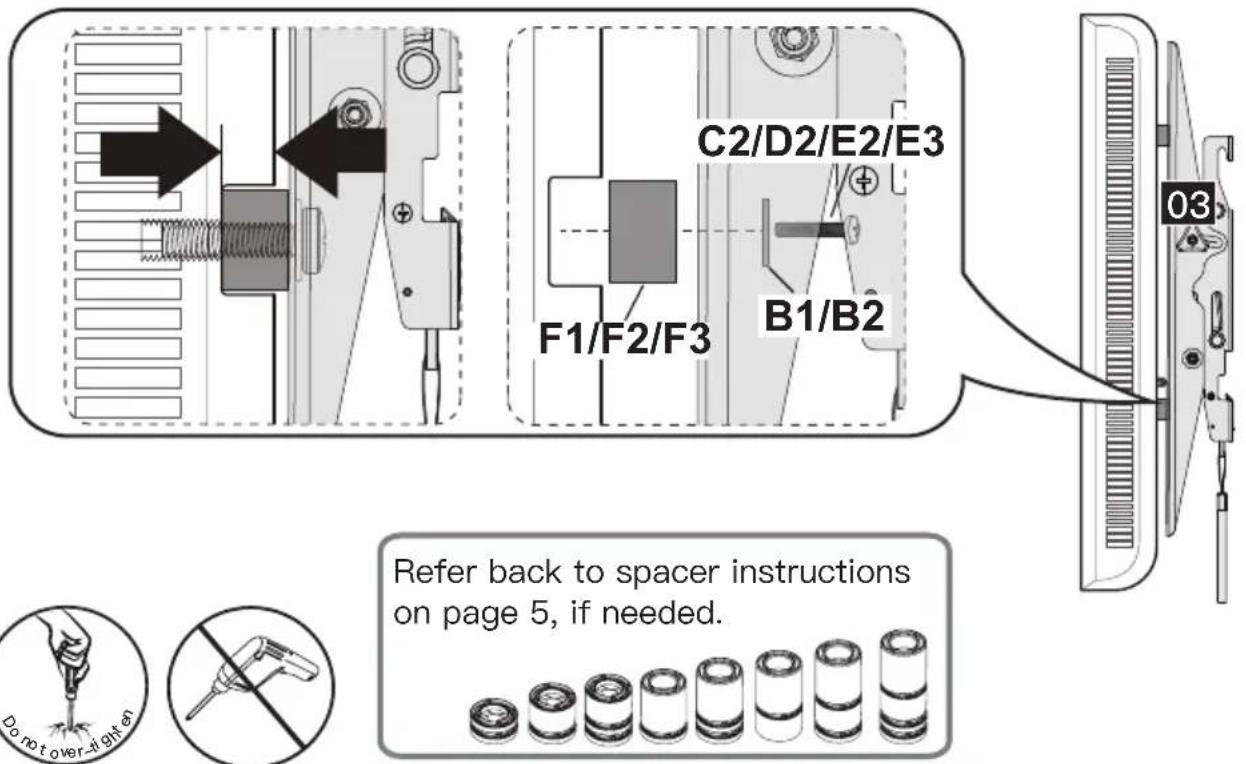

Option E (For Recessed Holes)

The spacer needs to fill in the recessed holes on the back of the TV so that the TV brackets are as close to the TV as possible.

Phillips Screwdriver (Not Included)

C2/D2/E2/E3 F1/F2/F3 B1/B2 03 Refer back to spacer instructions on page 5, if needed. Do not over-If get out

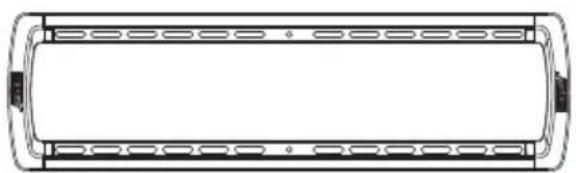

Supplied Parts and Hardware for Step 2

Pure technical line drawing of a rectangular device with internal grid pattern (no text or symbols)

Wall Plate 01 x1


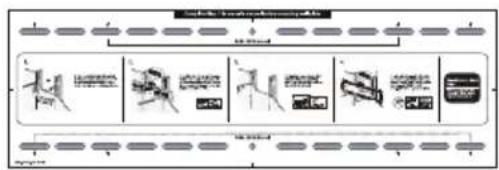

Wall Plate Template 04 x1

Note: The lag screw is shown in actual size

A1

x4

Technical line drawing of a screw with threaded head and nut (no text or symbols)

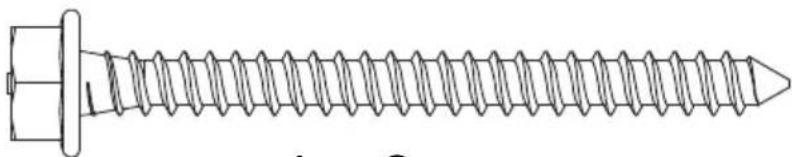

Lag Screw 5/16X2 3/4 in

A2

x4

Wall Anchor 10X60mm

CAUTION!

This anchor is for concrete walls ONLY. DO NOT use them in drywall or wood studs.

Step 2 Attach the Wall Plate [01] to the Wall

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B

Step 2A Wood Stud Option

WARNING:

Do not use a drill for tightening the Lag Screws [A1]! Only use a socket wrench. Avoid potential personal injury or property damage! DO NOT over-tighten the Lag Screws [A1]. Tighten the Lag Screws [A1] only until they are pulled firmly against the Wall Plate [01].

DO NOT USE ANCHOR [A2] FOR THIS STEP.

Ensure the wall plate is securely fastened to the wall before continuing to the next step.

Wall Anchor

● Nominal wood stud size: common 2 x 4 in (51 x 102 mm)
● Stud center must be verified.

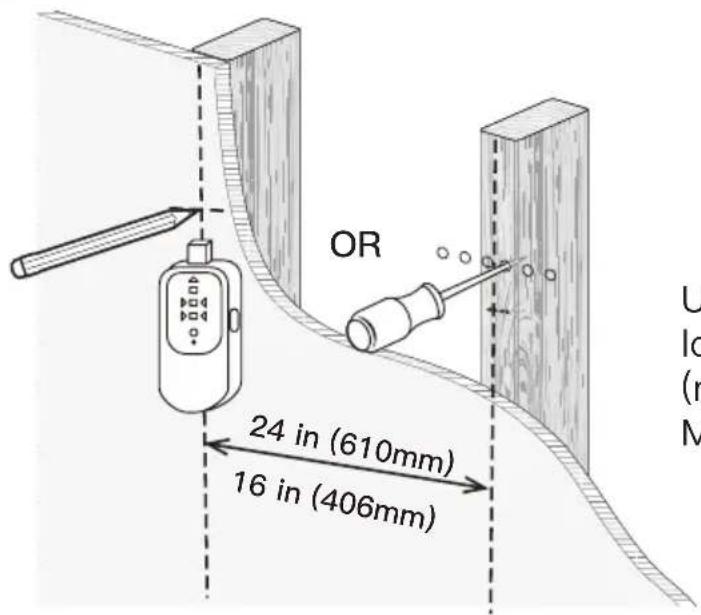

2A-1

OR 24 in (610mm) 16 in (406mm)

Stud finder (Not Included)

Awl (Not Included)

Use a stud finder (not included) to locate wood studs or use an awl (not included) to verify the edges. Mark the edge and center locations.

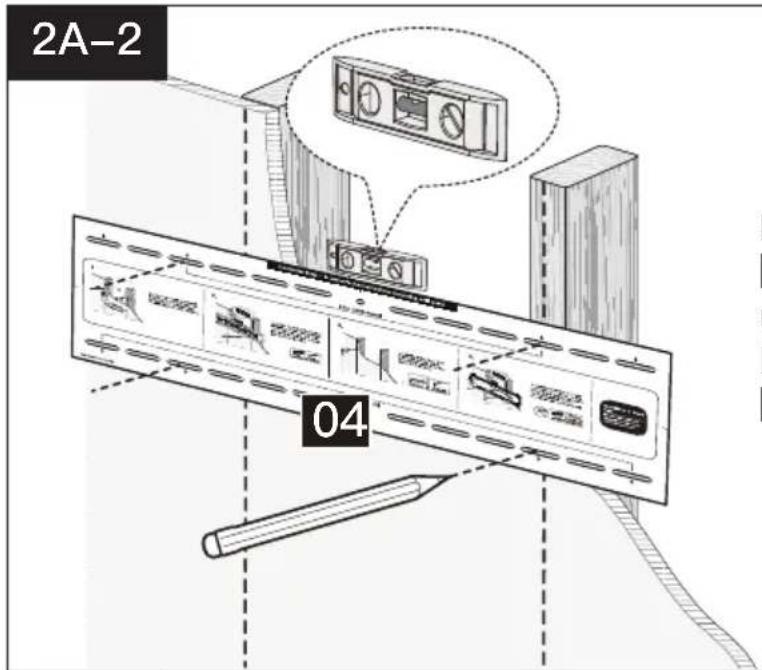

2A-2 04

Position the Wall Plate Template [04] at your desired height and line up the holes with your stud center line. Level the Wall Plate Template [04] and mark the holes.

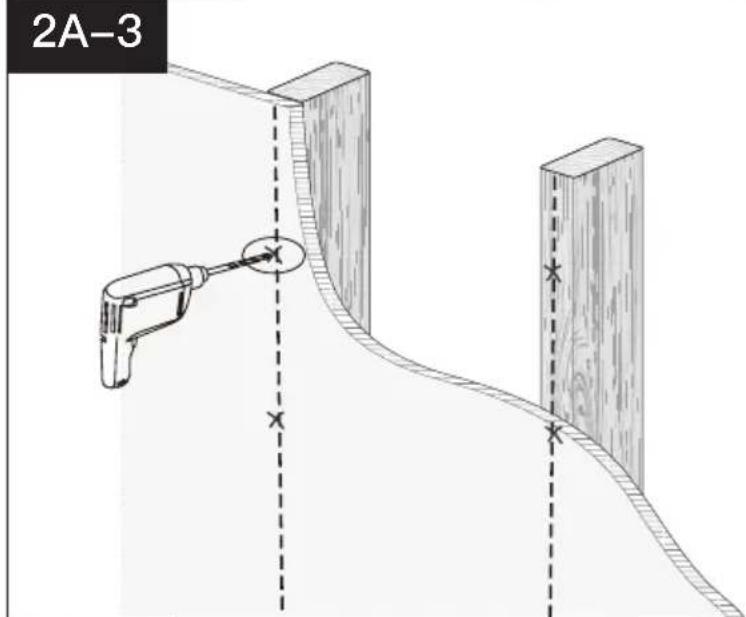

2A-3

Drill pilot holes using a 7/32 in (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4 in (70mm).

2 3/4 in (70mm) 7/32 in (5.5 mm)

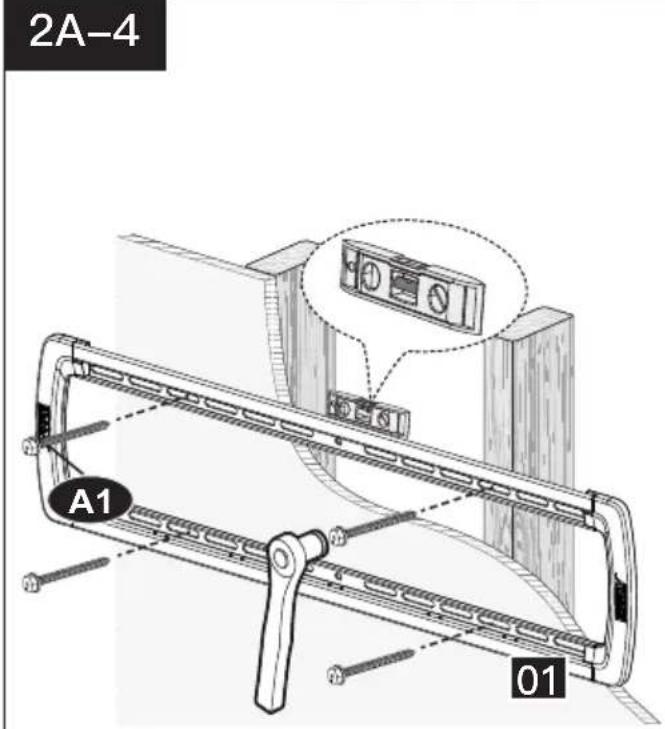

2A-4 A1 O1

Note: Do not use a drill to tighten the lag screws. Only use a socket wrench.

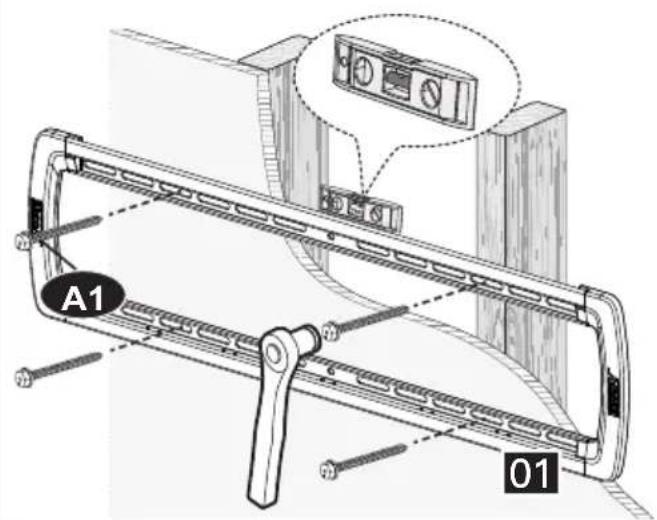

Install the Wall Plate [01] using Lag Screws [A1]. Tighten the Lag Screws [A1] is pulled firmly against the Wall Plate [01]. DO NOT over-tighten the Lag Screws [A1].

Symbol of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or labels)

Level (Not Included)

1/2 in (13mm) Socket Wrench (Not Included)

Step 2B Solid Concrete Wall Option

WARNING:

Do not use a drill for tightening the Lag Screws [A1]! Only use a socket wrench.

• Avoid potential personal injury or property damage! DO NOT over-tighten the Lag Screws [A1]. Tighten the Lag Screws [A1] is pulled firmly against the Wall Plate [01].
  ● Ensure the wall plate is securely fastened to the wall before continuing to the next step.
  ● Mount the wall plate directly onto the concrete surface without any covering.
  ● The thickness of the concrete wall must exceed 5.5 in (140 mm).

Wall Anchor

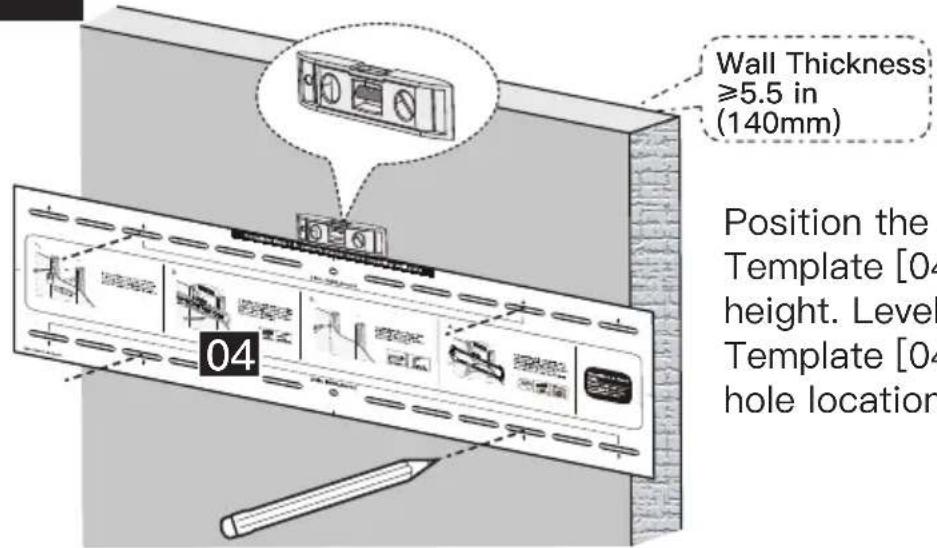

2B-1

Wall Thickness ≥5.5 in (140mm) Position the Template [04 height. Level Template [04 hole location] 04

Position the Wall Plate Template [04] at your desired height. Level the Wall Plate Template [04] and mark the pilot hole locations.

Level (Not Included)

Pencil (Not Included)

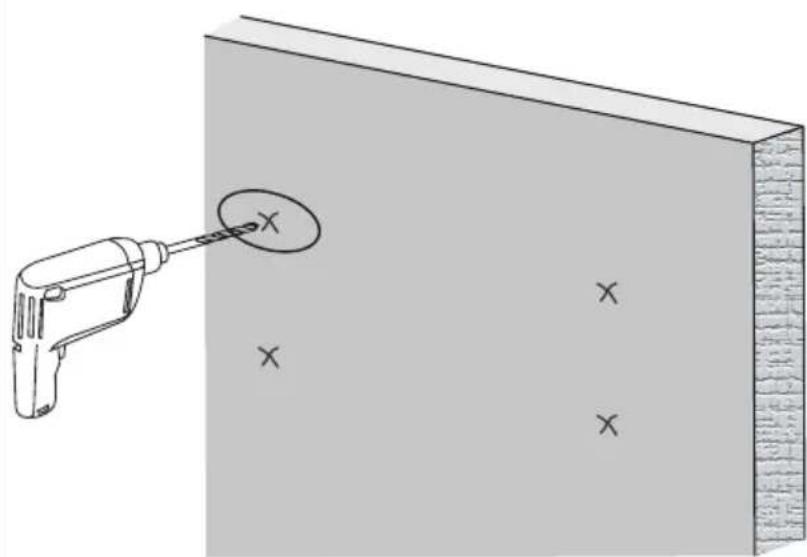

2B-2

Diagram showing a drill bit interacting with a rectangular block, marked with X symbols (no text or labels present)

Drill 4 pilot holes using a 3/8 in (10mm) diameter drill bit. Make sure the depth is not less than 3 in (75mm).

Electric Drill (Not Included)

3 in (75mm) 3/8 in (10mm)

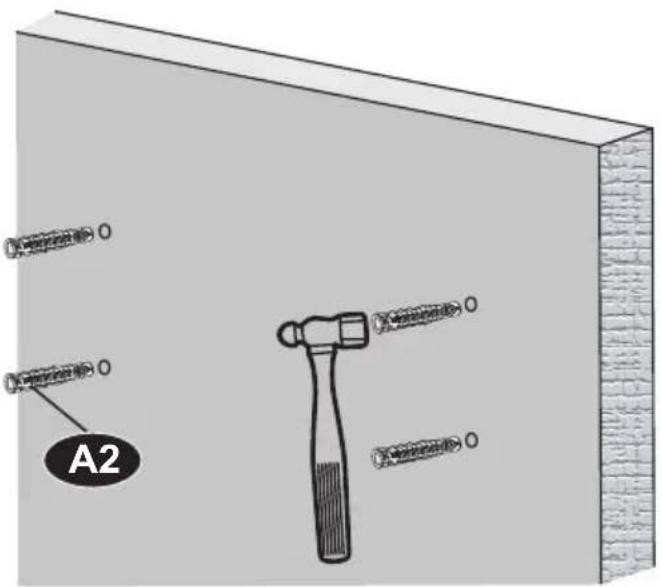

2B-3

Hammer (Not Included)

A2

Use the hammer to knock Wall Anchors [A2] into the wall. Be sure the Wall Anchors [A2] are seated flush with the concrete surface.

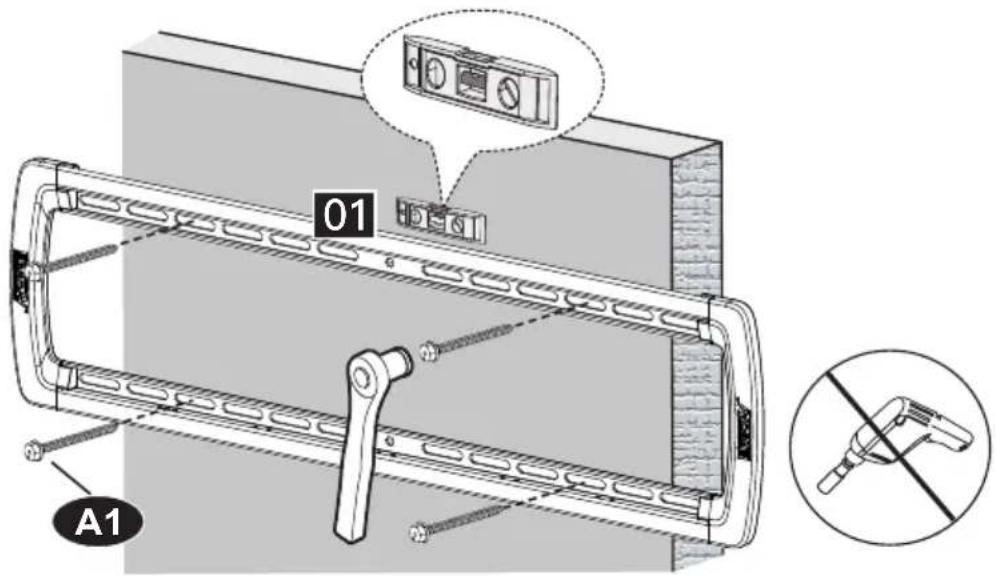

2B-4

01 A1

Install the Wall Plate [01] using Lag Screws [A1]. Tighten the Lag Screws [A1] is pulled firmly against the Wall Plate [01]. DO NOT over-tighten the Lag Screws [A1].

Note: Do not use a drill to tighten the Lag Screws [A1]. Only use a socket wrench.

Level (Not Included)

1/2 in (13mm) Socket Wrench (Not Included)

Supplied Hardware for Step 3

Cable Clips 05 x3

Step 3

Insert Cable Clips [05] on the top or bottom of the Wall Plate [01] as needed.

Technical line drawing of a rectangular electronic device with internal components and wiring, shown from top and side views (no text or symbols)

Route Cables

Step 4 Secure the TV onto the Wall Plate

To Hang TV onto the Wall Plate [01]

1. Hang the TV with Brackets [02] and [03] onto the Wall Plate [01].
2. Gently press the bottom of the TV towards the wall until you hear the safety locks "click" into place on both sides of the mount.

① Gently Push Locking ② ① R

HEAVY! You may need assistance with this step.

Caution: to avoid potential injury and person property damage, two people should assist in removing the TV from the mount.

1. Verify that all cables are disconnected from the back of the TV and the TV is unplugged from wall.
2. While gently applying pressure to the front of the TV towards the wall, pull down on the safety straps until they are full disengaged.
3. While keeping the straps in the disengaged position, move the bottom of the TV away from the wall and lift the TV off the wall plate.

Supplied Hardware for Step 5

3/16 in (5mm)

Allen Key

x1

Step 5 Adjustment

Tilt Adjustment

1. Use tension knobs on the sides of the TV brackets to allow adjustment of the TV to desired position.
2. After making any adjustments, always re-tighten the tension knobs to hold TV in place and avoid unwanted movement.

CAUTION! Please do not over-tig or over-loosen the kno K

3/16 in (5mm)

Allen Key

Diagram showing a wooden fence structure with a magnified inset of its side (no text or symbols)

Diagram showing a corner joint with a magnified cross-section of a textured surface (no text or symbols)

Mur en béton massif

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols)

L10mm

Simple line drawing of a cylindrical mechanical component with a central ring and mounting holes (no text or symbols)

L22mm

F1 x8

F2 x4

F3 x4

Rondelle

03 x1

M4/M5

B1 x4

M6/M8

B2 x4

M4
C1 x4
C2 x4
M6
D1 x4
D2 x4
M8
E3 x4

M6 M8M4 OU OU

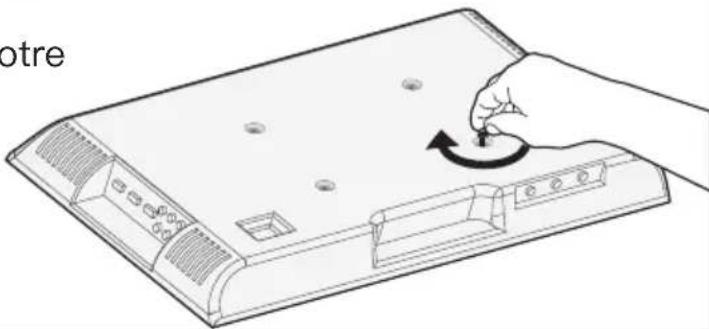

Line drawing of a computer monitor with a hand holding a scroll wheel (no text or symbols)

Diagram of two mechanical components with no visible text or symbols

Correct

Trop long

Top-down schematic of a rectangular device with internal compartments and mounting holes (no text or symbols)

Plaque murale 01 x1

Modèle de mur 04 x1

Technical line drawing of a screw with threaded head and mounting bracket (no text or symbols)

Diagram showing a tool interacting with wooden posts and a curved path, with no text or symbols present.

2 3/4 pouce (70mm) 7/32 pouce (5.5 mm)

Foreuse
(Non inclus)

2A-4

A1 O1

Symbol of a crossed tool with a diagonal line crossing through it, enclosed in a circle (no text or labels)

Niveau
(Non inclus)

Diagram showing a tool interacting with a rectangular block, marked with 'X' symbols (no text or labels present)

Diagram of a hammer fastening a wall with screw holes, labeled A2 (no text or symbols on the diagram itself)

Diagram showing a wooden fence with a magnified inset of a rectangular block (no text or symbols)

Diagram showing a corner joint with a magnified cross-section highlighting a textured surface (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal cavities and mounting holes (no text or symbols)

L10mm

F1 x8

F2 x4

Simple line drawing of a cylindrical mechanical part with a central ring and two side protrusions (no text or symbols)

L22mm

F3 x4

Arandela

M4/M5

B1 x4

M6/M8

B2 x4

Diagram of two mechanical components with threaded fasteners, enclosed in a circular frame (no text or symbols)

Correcto

Prohibition sign with crossed-out factory diagram and Chinese characters

Demasiado largo

Row of cylindrical mechanical components with no visible text or symbols

Technical line drawing of a cylindrical device with horizontal perforated panels (no text or symbols)

Placa de pared 01 x1

Plantilla de pared 04 x1

Technical line drawing of a screw with threaded head and mounting bracket (no text or symbols)

Tornillo de retraso

5/16X2 3/4 pulg

x4

Anclas de pared 10X60mm

PRECAUCIÓN!

Diagram showing a tool interacting with wooden posts and a curved pipe, with alignment markers (no text or symbols)

Prohibition sign showing a crossed tool symbol (no text or numbers present)

Diagram showing a drill bit interacting with a rectangular block, marked with X symbols (no text or labels present)

At ErgoAV, we strive to provide the highest value products. We want to support your purchase.

If you have questions, concerns, or feedback please let us know!

ErgoAV Customer Care

Phone [phone]

[e-mail]

Simple line drawing of a two-decker cabinet with legs and a side panel (no text or symbols)

Simple line drawing of a vertical column with base and legs, no text or symbols present

Technical line drawing of a Y-shaped mechanical assembly with two vertical connectors and a central shaft (no text or symbols)

Computer Monitor MountsSpea

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

www.ergoav.com
