USER MANUAL ERMTM1-01B ErgoAV

TV Wall Mount Instruction Manual

(A)

English pages 02–14 French pages 15–27 Spanish pages 28–40

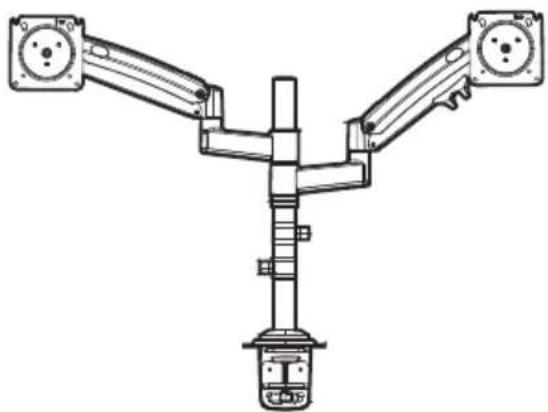

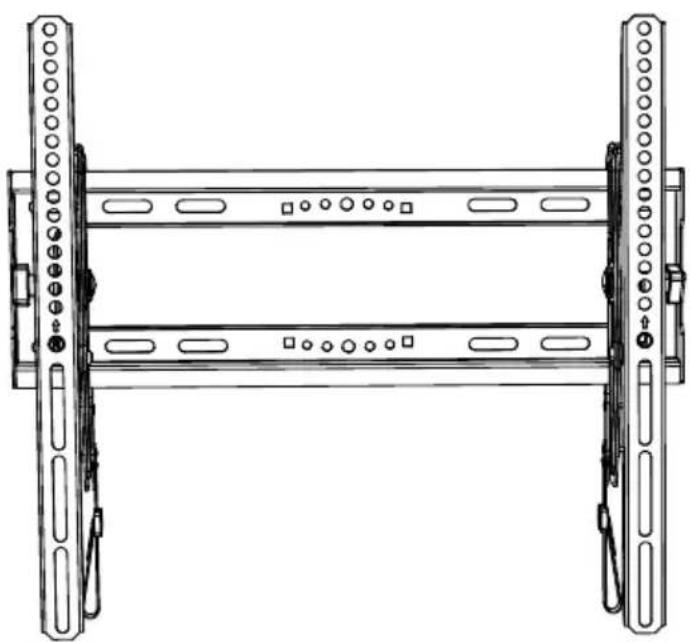

Technical line drawing of a dual-panel mechanical structure with mounting brackets and circular components (no text or symbols)

Model: ERMTM1-01B

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

email: [e-mail]

website: www.ergoav.com

address: 9501 Louisiana Ave N, #200 Brooklyn Park, MN 55445

IMPORTANT SAFETY INFORMATION

▲ DANGER! Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or customer service at [e-mail].
⚠️CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.

• Do not use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We are not liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.
• This product is designed for use in wood stud, and solid concrete walls. – DO NOT install into drywall alone.
• The wall must be capable of supporting four times the weight of the TV and mount combined.
• Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
• Do not use outdoors.
• Route cords and cables properly to avoid mechanical damage.
• SAVE THESE INSTRUCTIONS

Weight Restrictions

If your TV weighs more, do not use this product.

WARNING

DO NOT exceed the maximum weight indicated. This mounting system is intended for use only within the maximum weights indicated. Use with products heavier than the maximum weights indicated may result in failure of the mount and its accessories, causing damage and or injury.

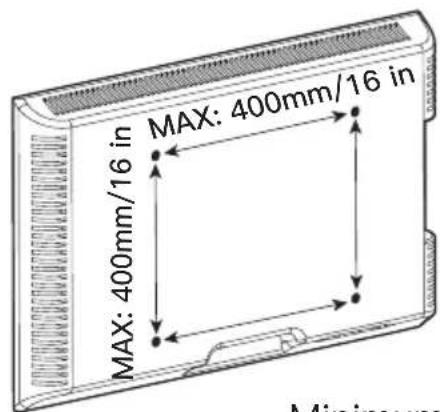

Check the VESA Pattern of Your TV before the Installation

MAX: 400mm/16 in MAX: 400mm/16 in Minimum

$$ 1 0 0 \mathrm{mm} \approx 4 \text { in } $$

$$ 2 0 0 \mathrm{mm} \approx 7 7 / 8 \text {in} $$

$$ 4 0 0 \mathrm{mm} \approx 1 5 3 / 4 \text { in } $$

Minimum VESA pattern: 200mm/8 in (W)x100mm/4 in (H)

If your TV VESA is greater than 400x400 mm/16x16 in or less than VESA 200x100mm/8x4 in, this mount is NOT compatible.

If this mount is NOT compatible, please contact our Technical Support line at [phone] or customer service at [e-mail] to find a compatible mount.

Tools Needed (Not Included)

Stud Finder

7/32 in (5.5mm)

Wood Drill

Awl

Tape Measure

1/2 in (13mm)

Socket Wrench

Phillips Screwdriver

Pencil Electric Drill Level

(Needed for concrete installs)

3/8 in (10mm)

Concrete Drill

Hammer

Verify Your Wall Construction

CAUTION

DO NOT install into drywall alone

Diagram showing a wooden fence structure with a magnified inset of a rectangular block (no text or symbols)

Wood Studs (with Drywall)

Diagram showing a geological cross-section with a magnified inset of a layered rock or sediment (no text or symbols)

Solid Concrete Wall

If you are not sure of the wall construction, please contact our Technical Support line at [phone] or customer service at [e-mail].

Supplied Parts and Hardware

Warning: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or customer service at [e-mail]

- Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware for Step 1

Technical diagram of a mechanical component with an inset close-up view showing internal components (no text or symbols)

Left TV Bracket

02 x1

Technical diagram of a mechanical component with an inset close-up showing internal detail (no text or symbols)

Right TV Bracket ^1

03 x1

Spacers

NOTE: The spacers are shown in actual size.

L2.5mm

Technical line drawing of a cylindrical mechanical component with internal cavities (no text or symbols)

L10mm

Simple line drawing of a cylindrical mechanical part with a flanged top and side grooves (no text or symbols)

L22mm

F1 x8

F2 x4

F3 x4

Washer

M4/M5

B1 x4

M6/M8

B2 x4

TV Bolts [Only one bolt size fits your TV]NOTE: The bolts are shown in actual size
M4
	M4x12mm	M4x30mm
	C1 x4	C2 x4
M6
	M6x15mm	M6x35mm
	D1 x4	D2 x4
M8
	M8x25mm	M8x50mm
	E1 x4	E2 x4

Step 1 Secure the TV Brackets to the TV

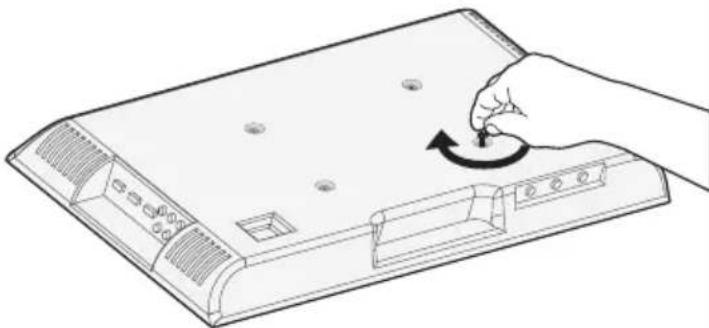

Select TV Bolts

Only one bolt size fits your TV.

M6 M8M4 OR OR ○ ○ ○

Line drawing of a computer monitor with a hand holding a scroll wheel (no text or symbols)

Bolt length: Verify adequate thread engagement with bolts or bolts/spacers combination. We recommend thread engagement by at least 5 turns.

-Too short will not hold the TV.

-Too long will damage the TV.

Note: Please do not over tighten the TV bolts to avoid damaging your TV.

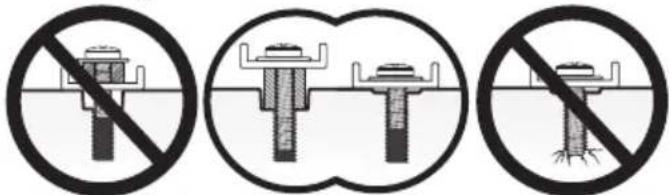

Three circular diagrams showing prohibition symbols for a food or beverage item, with no text present.

Too short Correct Too long

Please Note: When using the spacers it is important to note that they can be used in multi-layers (meaning stacked). If you have any difficulty understanding how to install the TV bolts or spacers, please contact our Technical Support line at [phone] or customer service at [e-mail].

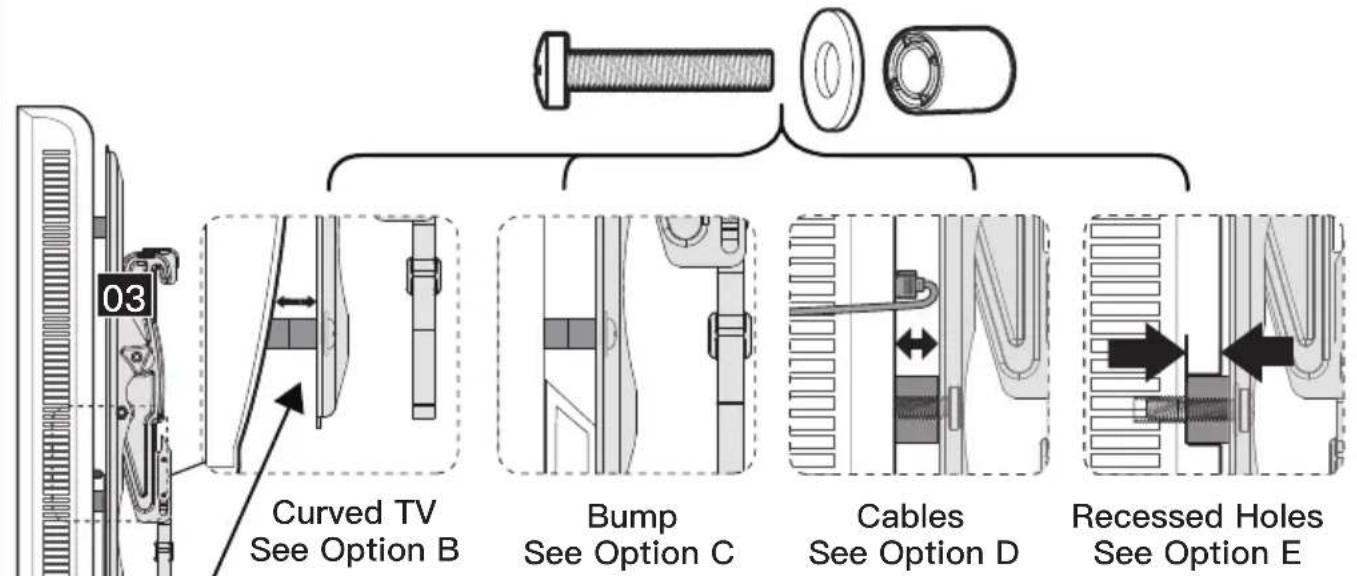

Parts Needed if You Have a TV as Shown Below

03 Curved TV See Option B Bump See Option C Cables See Option D Recessed Holes See Option E

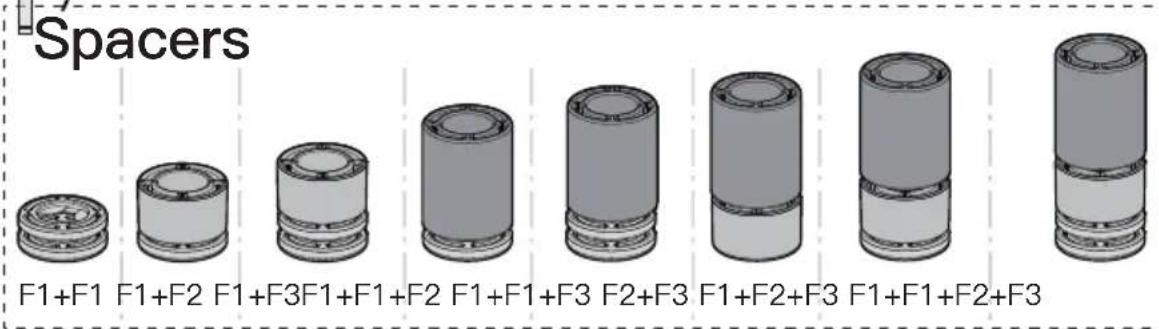

Spacers F1+F1 F1+F2 F1+F3 F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

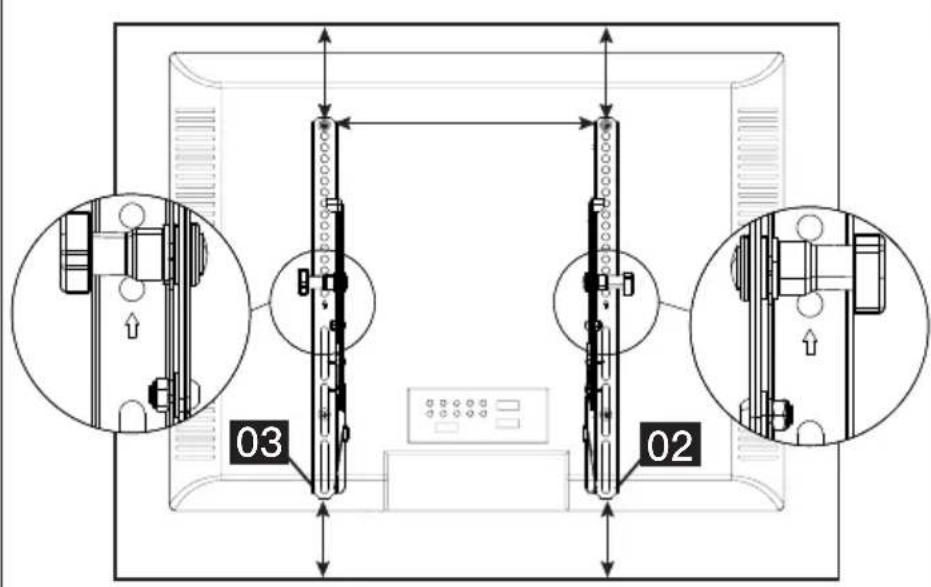

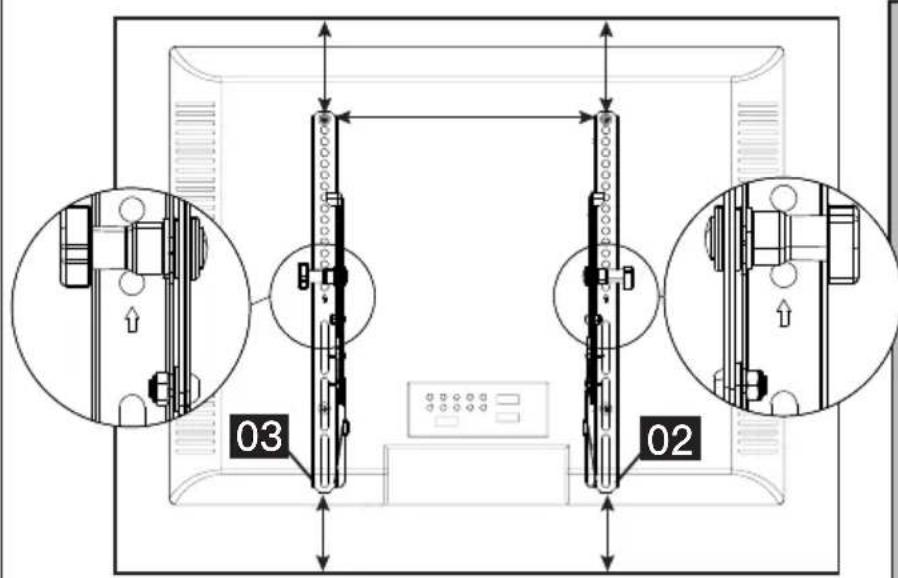

CAUTION: When attaching the TV brackets to the back of the TV, ensure the Up Arrows are pointing to the top of the TV and are equally centered on the back of the TV.

⚠️ PLEASE NOTE: The bolt hole locations on your TV may vary in accordance of the manufacturers design of the TV. We are only illustrating possible locations of the bolt holes.

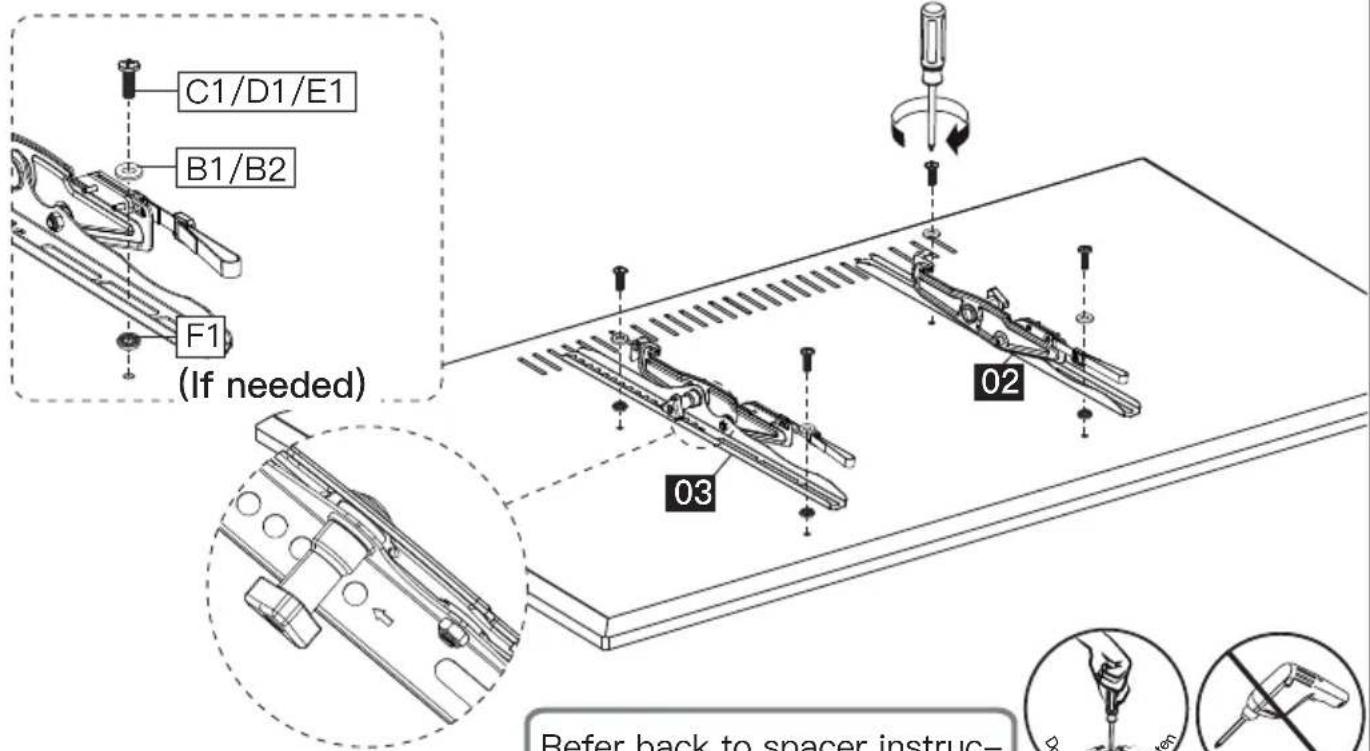

Option A (For Flat Back TV)

C1/D1/E1 B1/B2 F1 (If needed) 02 03 Refer back to spacer instruc-

NOTE: The UP arrow should point towards the top of TV.
Refer back to spacer instructions on page 5, if needed

Do not over-fighten

Phillips Screwdriver (Not Included)

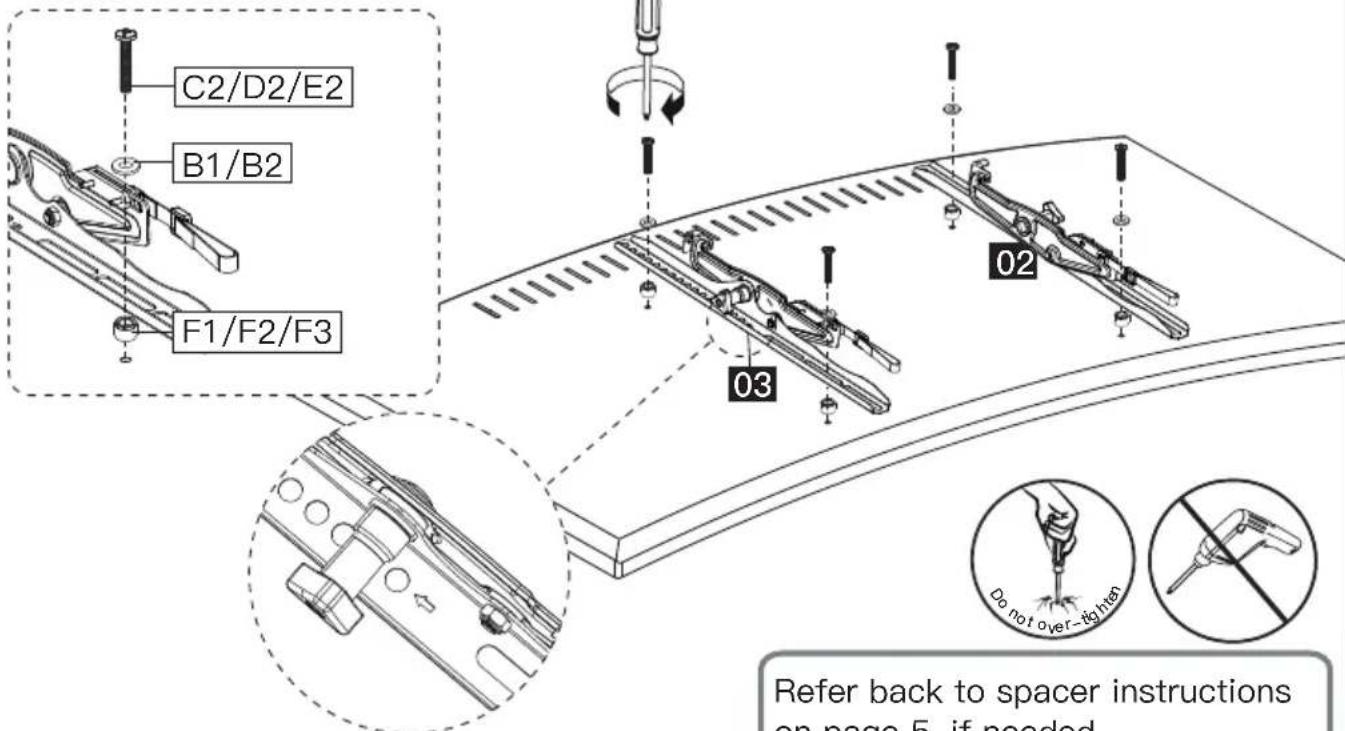

Option B (For Round Back TV)

Spacers must be tall enough so that the curve on the back of the TV will not interfere with the mounting plate.

C2/D2/E2 B1/B2 F1/F2/F3 02 03 Refer back to spacer instructions on page 5, if needed. Do not over-father

NOTE: The UP arrow should point towards the top of TV.
Refer back to spacer instructions on page 5, if needed

Row of cylindrical mechanical components with no visible text or symbols

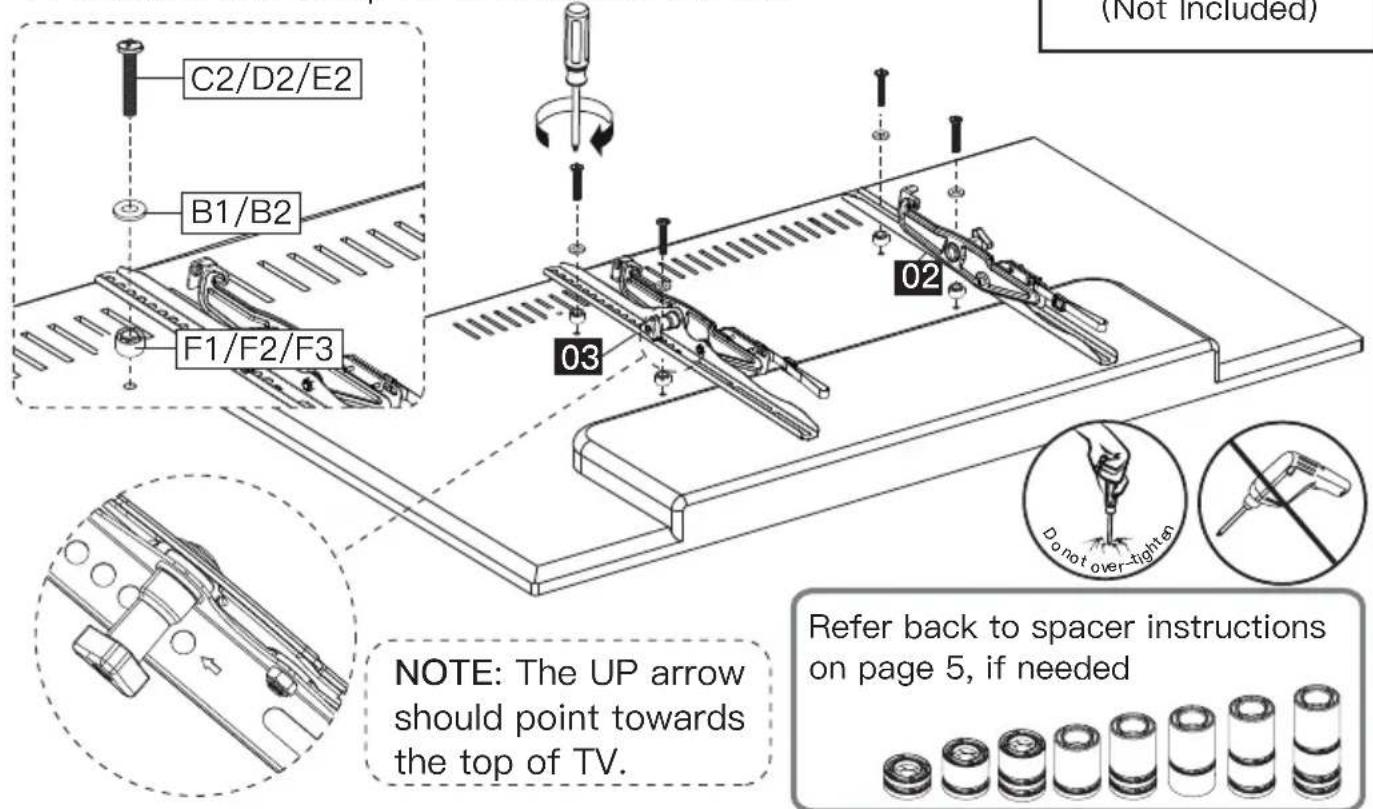

Option C (For TV with A "Bump")

Spacers must be tall enough so there is no gap between TV bracket and bump on the back of the TV.

Phillips Screwdriver (Not Included)

C2/D2/E2 B1/B2 F1/F2/F3 (Not Included) 03 02 NOTE: The UP arrow should point towards the top of TV. Refer back to spacer instructions on page 5, if needed

Option D (for TV with Cable Interference)

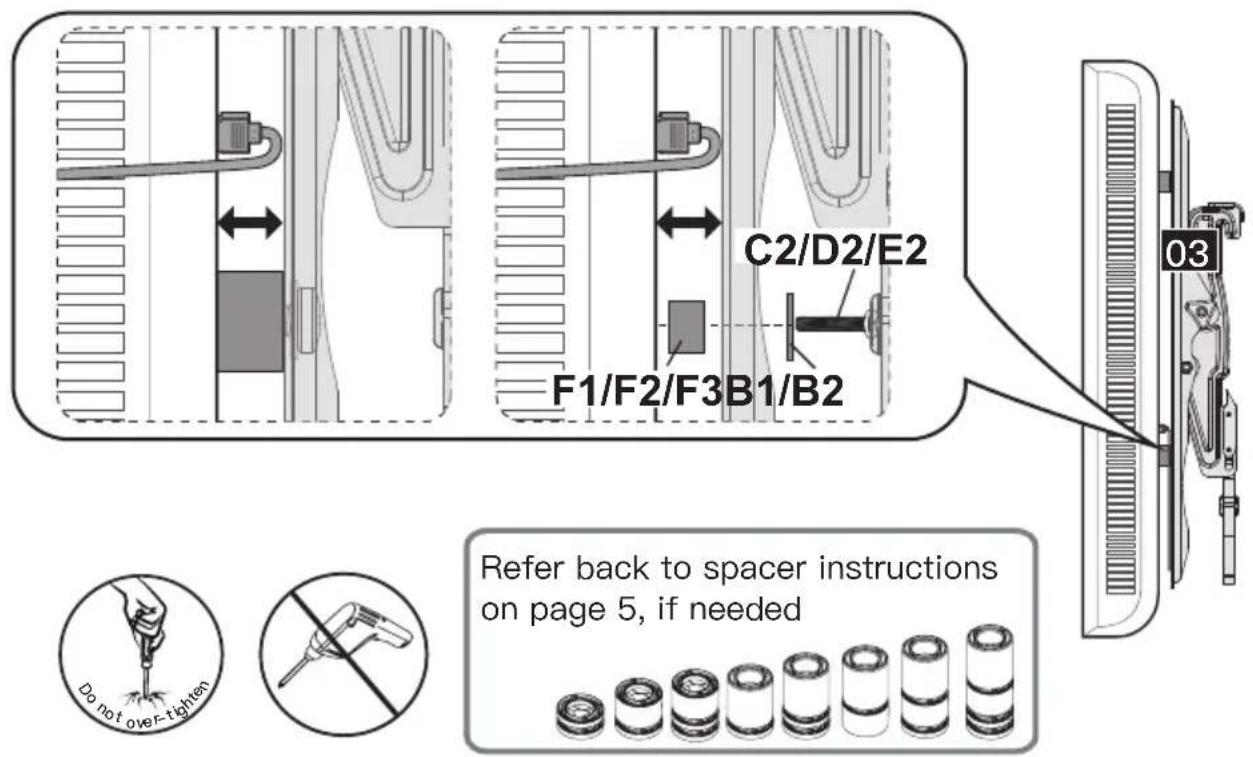

For cable interference, use spacers [F1], [F2] and [F3] to create extra space between the TV and TV brackets.

Phillips Screwdriver (Not Included)

C2/D2/E2 F1/F2/F3B1/B2 03 Refer back to spacer instructions on page 5, if needed Do not over-tighten Refer back to spacer instructions on page 5, if needed

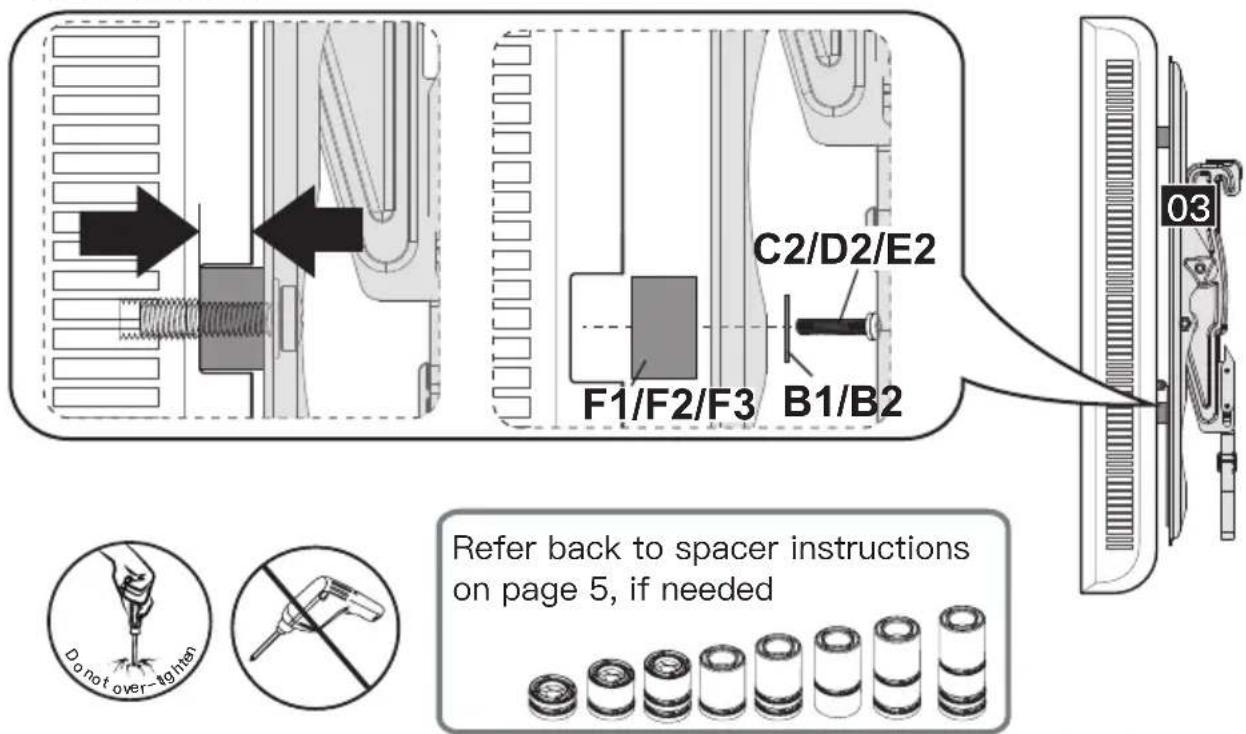

Option E (For Recessed Holes)

The spacer need to fill in the recessed holes on the basis of the TV so that the TV brackets are as close to the TV as possible.

Phillips Screwdriver (Not Included)

C2/D2/E2 F1/F2/F3 B1/B2 03 Refer back to spacer instructions on page 5, if needed Do not over -ftine Refer back to spacer instructions on page 5, if needed

Supplied Parts and Hardware for Step 2

Line drawing of a rectangular electronic device with mounting holes and a central rectangular panel (no text or symbols)

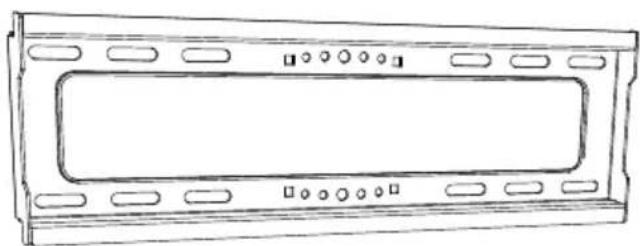

Wall Plate 01 x1

Complex Step 1: In mya's revascular imaging and CTAs Step 1: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 2: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 3: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 4: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 5: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 6: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 7: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 8: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 9: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 10: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 11: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 12: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 13: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 14: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 15: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 16: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 17: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 18: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 19: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 20: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 21: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 22: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 23: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 24: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 25: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 26: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 27: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 28: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 29: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 30: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 31: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 32: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 33: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 34: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 35: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 36: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 37: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 38: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 39: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 40: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 41: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 42: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 43: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 44: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 45: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 46: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 47: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 48: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 49: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 50: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 51: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 52: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 53: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 54: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 55: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 56: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 57: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 58: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 59: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 60: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 61: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 62: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 63: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 64: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 65: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 66: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 67: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 68: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 69: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 70: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 71: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 72: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 73: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 74: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 75: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 76: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 77: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 78: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 79: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 80: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 81: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 82: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 83: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 84: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 85: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 86: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 87: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 88: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 89: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 90: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 91: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 92: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 93: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 94: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 95: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 96: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 97: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 98: In mya's revascular imaging, it is performed using a CTAs for the following steps: Step 99: In mya's revascular imaging, it is performed using a CTAs for the following steps:

Wall Plate Template 04 x1

Note: The lag screw is shown in actual size

x4

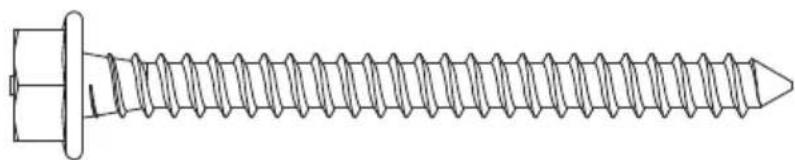

Lag Screw 5/16X2 3/4 in

Technical line drawing of a screw with threaded head and mounting flange (no text or symbols)

A2

x4

Wall Anchor 10X60mm

CAUTION!

This anchor is for concrete walls ONLY. DO NOT use them in drywall or wood studs.

Step 2 Attach the Wall Plate [01] to the Wall

For wood stud installation, follow STEP 2A

For concrete installation, follow STEP 2B

Step 2A Wood Stud Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] only until they are pulled firmly against the wall plate [01].

DO NOT USE ANCHOR [A2] FOR THIS STEP.

Ensure the wall plate is securely fastened to the wall before continuing to the next step.

Wall Anchor

● Nominal wood stud size: common 2 x 4 in (51 x 102 mm)
● Stud center must be verified.

2A-1

OR 16 in (406mm)

Stud Finder (Not Included)

Awl (Not Included)

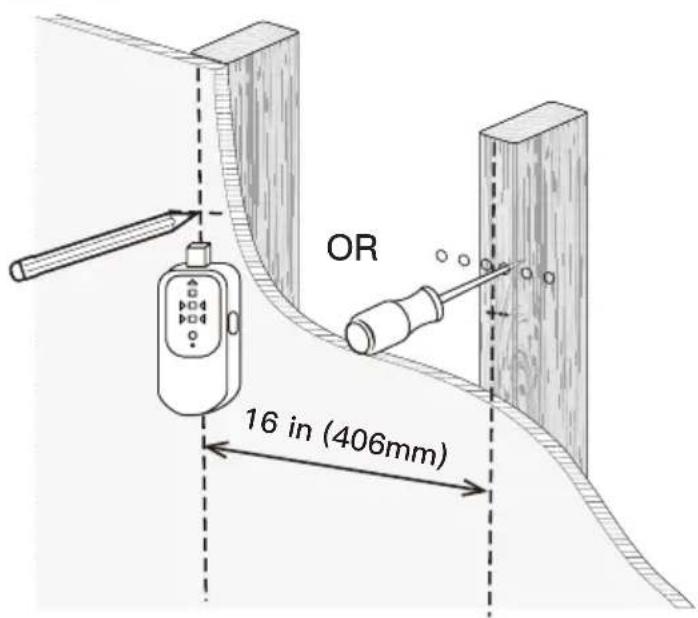

Use a stud finder (not included) to locate wood studs or use an awl (not included) to verify the edges. Mark the edge and center locations.

2A-2

04

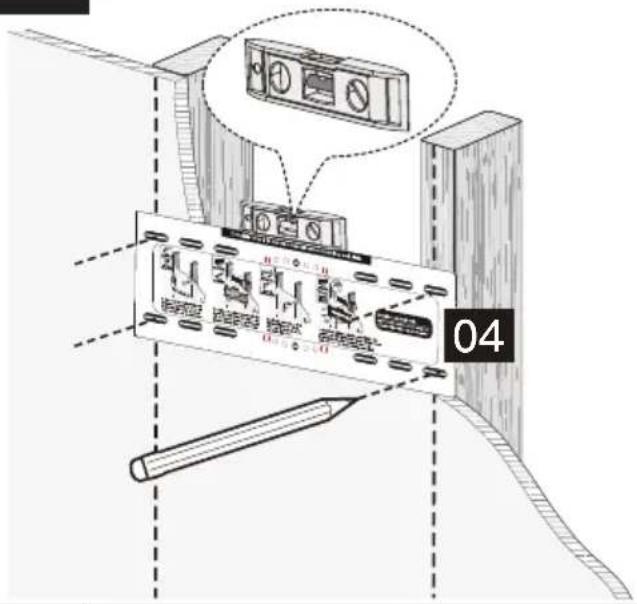

Position the wall plate template [04] at your desired height and line up the holes with your stud center line. Level the wall plate template [04] and mark the holes.

Level
(Not Included)

Pencil
(Not Included)

2A-3

Diagram showing a tool interacting with wooden posts and a curved path, with no text or symbols present.

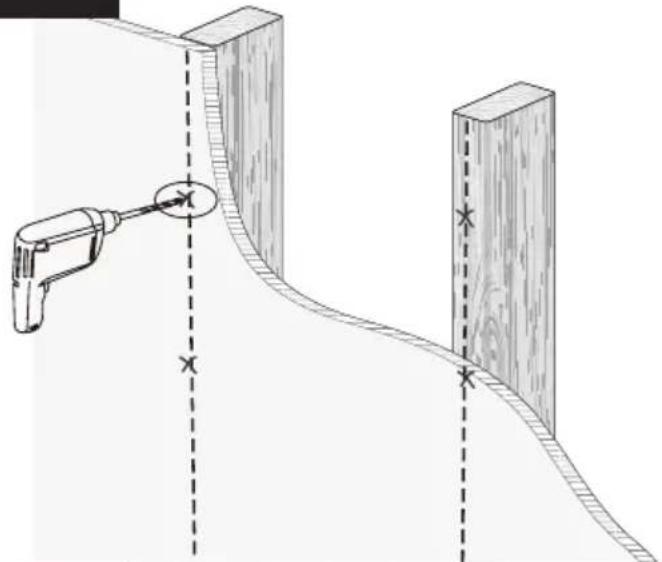

Drill pilot holes using a 7/32 in (5.5mm) diameter drill bit. Make sure the depth is not less than 2 3/4 in (70mm).

7/32 in (5.5 mm)
2 3/4 in (70mm)

Electric Drill
(Not Included)

2A-4

A1 01

Note: Do not use a drill to tighten the lag screws. Only use a socket wrench.

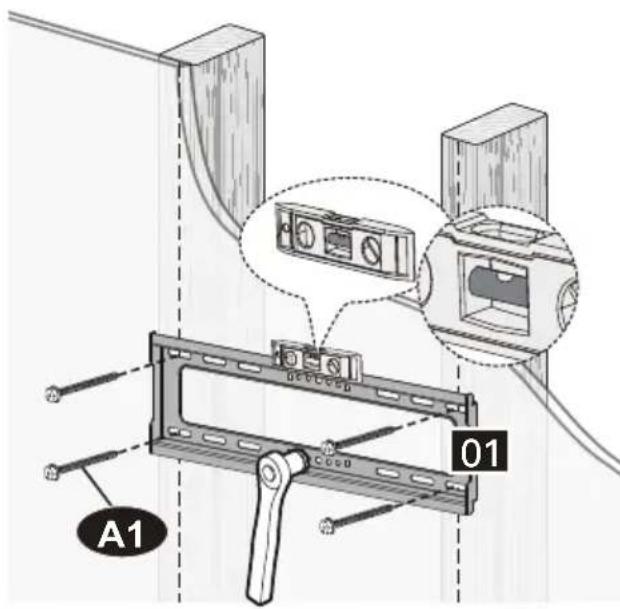

Install the wall plate using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate. DO NOT over-tighten the lag screws [A1].

Symbol of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or labels)

Level
(Not Included)

1/2 in (13mm)
Socket Wrench
(Not Included)

Step 2B Solid Concrete Wall Option

WARNING:

Do not use a drill for tightening the lag screws! Only use a socket wrench.

●Avoid potential personal injury or property damage! DO NOT over-tighten the lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate.
● Ensure the wall plate is securely fastened to the wall before continuing to the next step.
● Mount the wall plate directly onto the concrete surface without any covering.
● The thickness of the concrete wall must exceed 5.5 in (140 mm).

Wall Anchor

2B-1

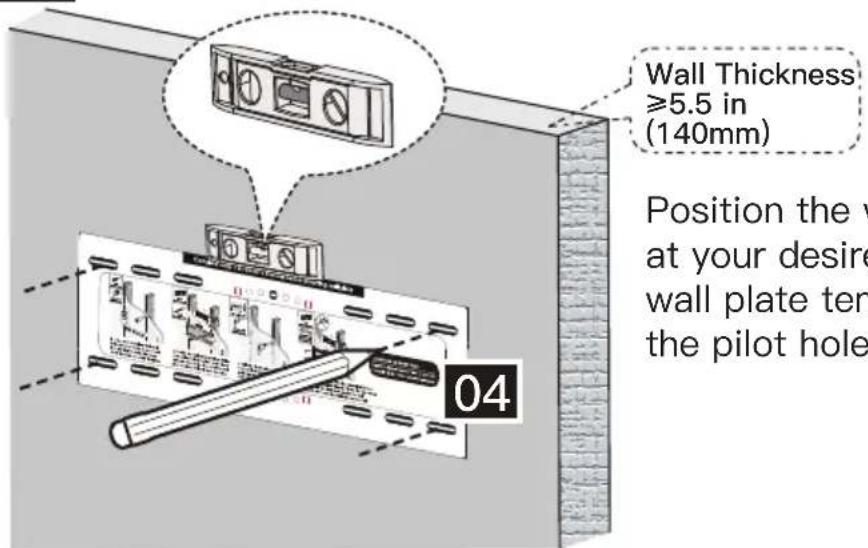

Wall Thickness ≥5.5 in (140mm) Position the v at your desire wall plate ten the pilot hole 04

Position the wall plate template [04] at your desired height. Level the wall plate template [04] and mark the pilot hole locations.

Level (Not Included)

Pencil (Not Included)

2B-2

Diagram showing a drill bit interacting with a rectangular block, with no text or symbols present.

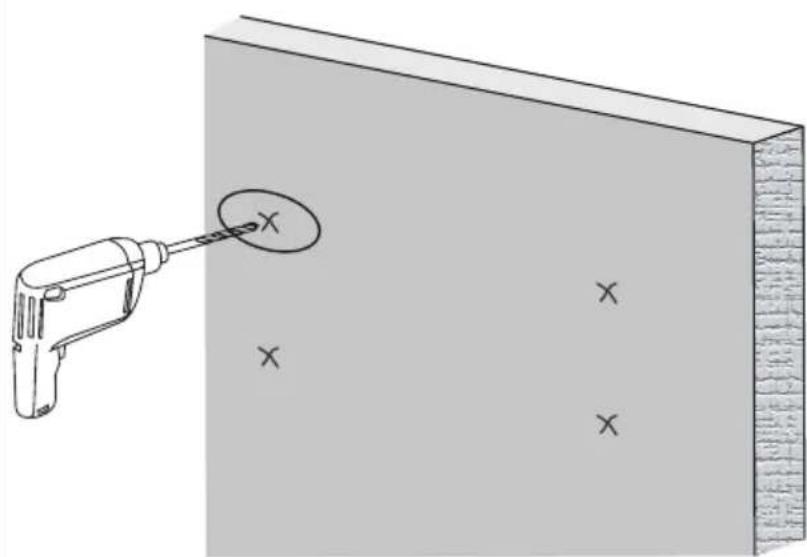

Drill 4 pilot holes using a 3/8 in (10mm) diameter drill bit. Make sure the depth is not less than 3 in (75mm).

Electric Drill (Not Included)

3 in (75mm) 3/8 in (10mm)

2B-3

Hammer (Not Included)

A2

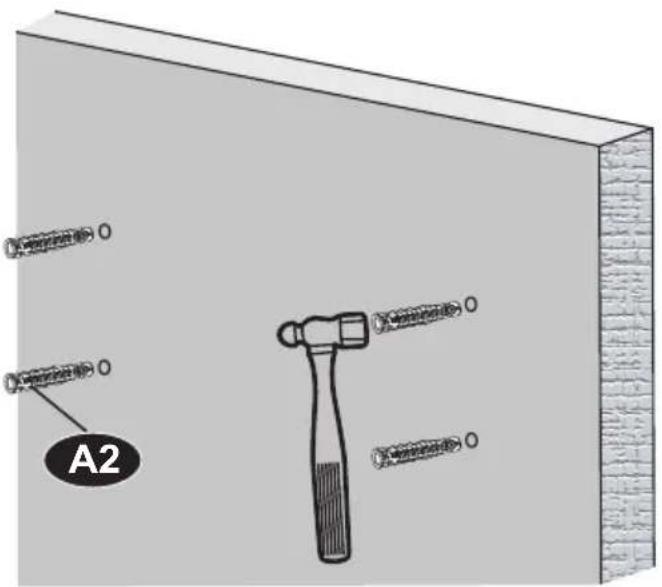

Use the hammer to knock anchors [A2] into the wall. Be sure the anchors [A2] are seated flush with the concrete surface.

2B-4

01 A1

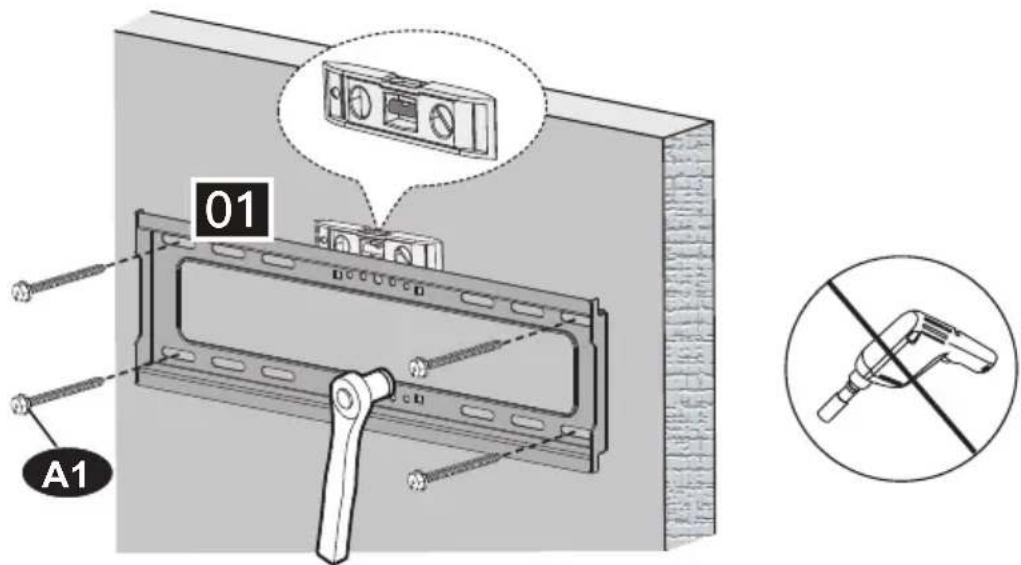

Install the wall plate [01] using lag screws [A1]. Tighten the lag screws [A1] is pulled firmly against the wall plate [01]. DO NOT over-tighten the lag screws [A1].

Note: Do not use a drill to tighten the lag screws. Only use a socket wrench.

Level (Not Included)

1/2 in (13mm) Socket Wrench (Not Included)

Step 3 Secure the TV onto the Wall Plate

To Hang TV onto the Wall Plate

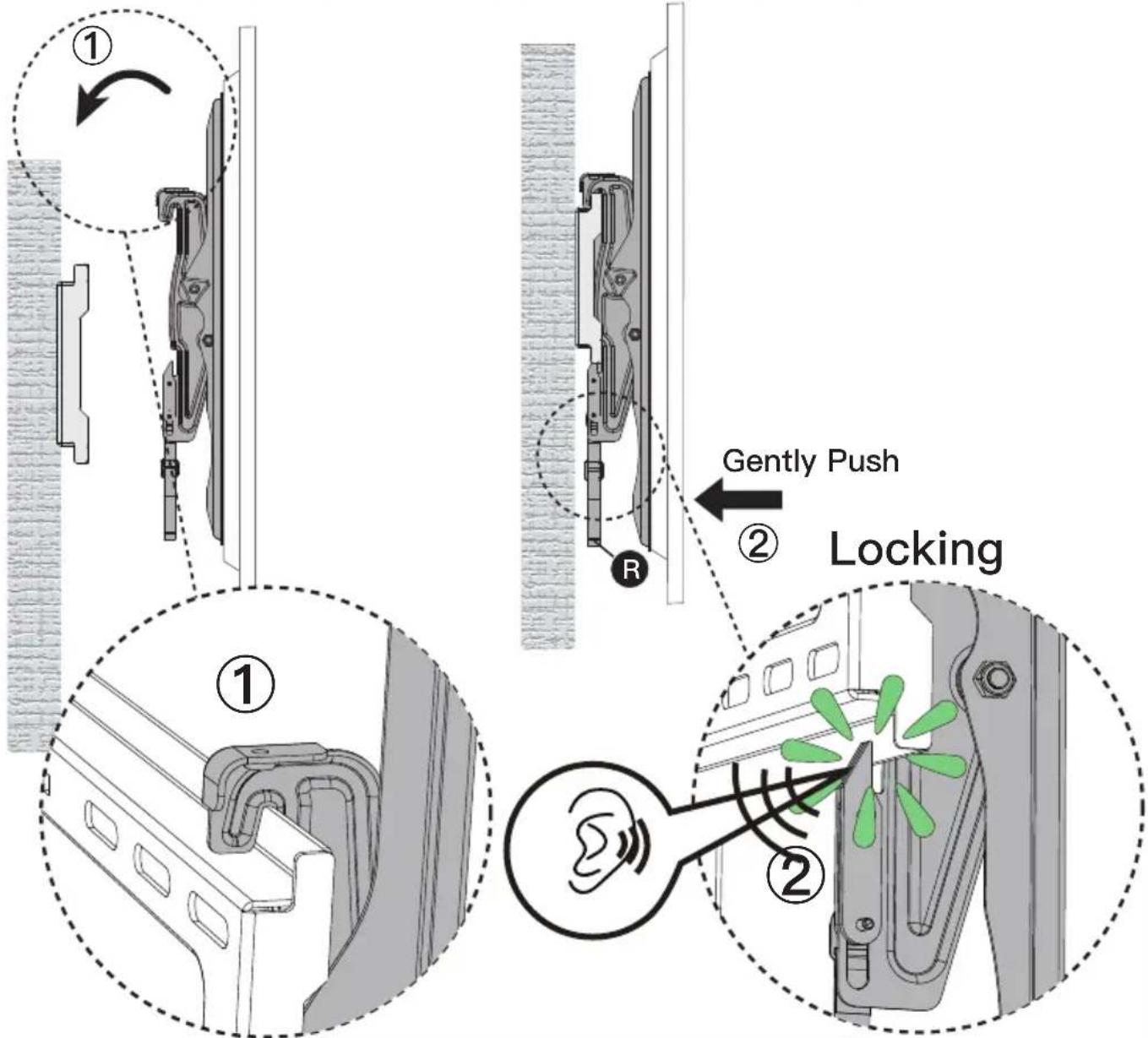

1. Hang the TV with brackets [02] and [03] onto the wall plate.
2. Gently press the bottom of the TV towards the wall until you hear the safety locks "click" into place on both sides of the mount.

Gently Push Locking

HEAVY! You may need assistance with this step.

Caution: to avoid potential injury and person property damage, two people should assist in removing the TV from the mount.

1. Verify that all cables are disconnected from the back of the TV and the TV is unplugged from wall.
2. While gently applying pressure to the front of the TV towards the wall, pull down on the safety straps until they are full disengaged.
3. While keeping the straps in the disengaged position, move the bottom of the TV away from the wall and lift the TV off the wall plate.

Supplied Hardware for Step 4

3/16 in (5mm)

Allen Key

x1

Step 4 Adjustment

Tilt Adjustment

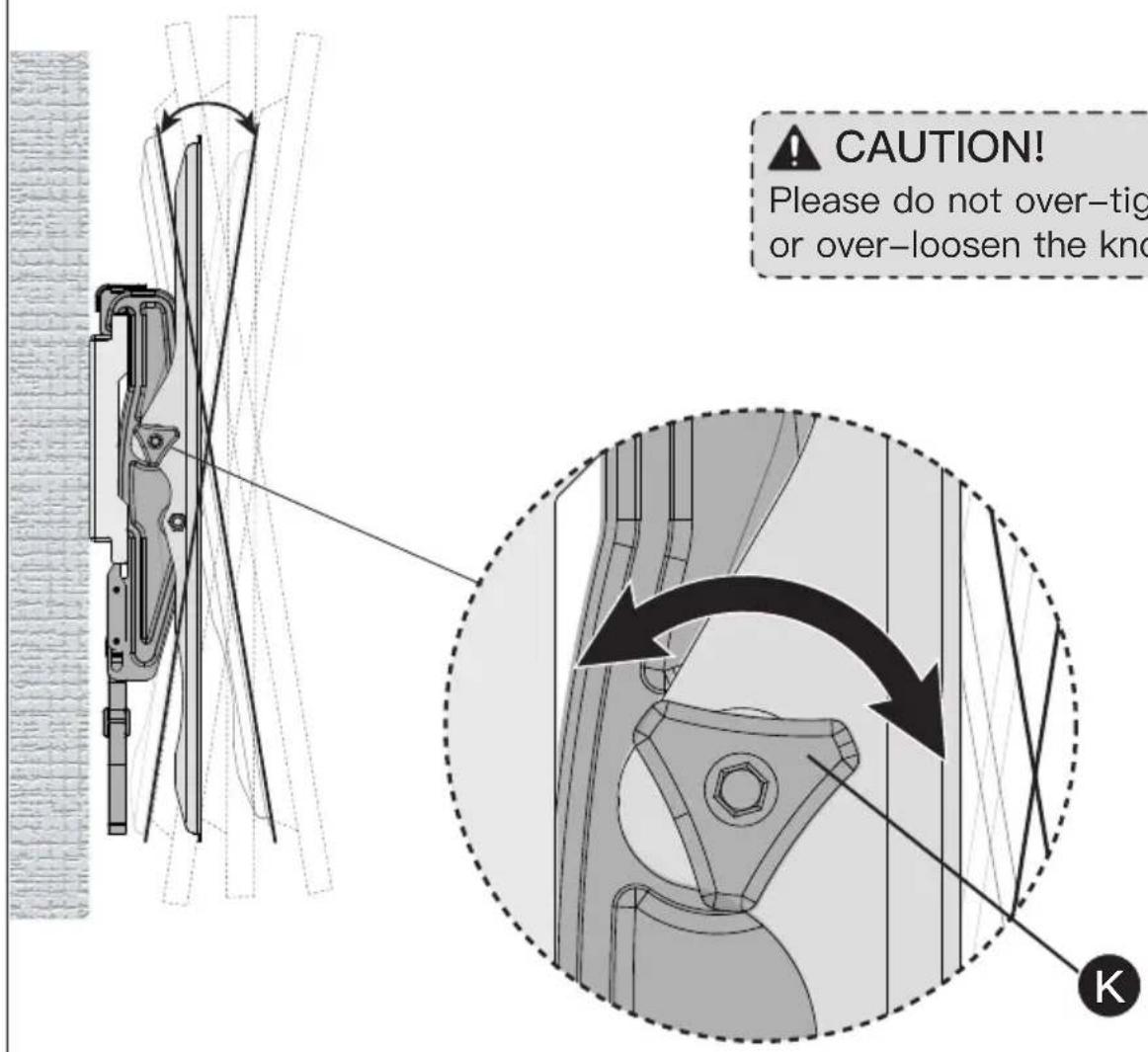

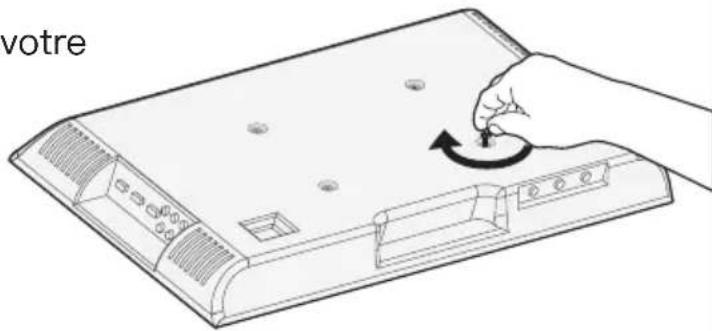

1. Use tension knobs on the sides of the TV Brackets to allow adjustment of the TV to desired position.
2. After making any adjustments, always re-tighten the tension knobs to hold TV in place and avoid unwanted movement.

CAUTION! Please do not over-tig or over-loosen the kno K

3/16 in (5mm)

Allen Key

Diagram showing a wooden fence structure with a magnified inset of a rectangular block (no text or symbols)

Diagram showing a corner joint with a magnified cross-section of a textured material (no text or symbols)

Mur en béton massif

Technical diagram of a mechanical component with an inset close-up view showing internal components (no text or symbols)

Support TV gauche

02 x1

Technical diagram of a mechanical component with an inset close-up showing internal detail (no text or symbols)

Support TV droit

03 x1

Technical line drawing of a cylindrical mechanical component with internal cavities (no text or symbols)

L10mm

Simple line drawing of a cylindrical mechanical part with a flanged top and side grooves (no text or symbols)

L22mm

F1 x8

F2 x4

F3 x4

Rondelle

M4/M5

B1 x4

M6/M8

B2 x4

Illustration of a metallic screw with a circular head and threaded shaft (no text or symbols)

M6x35mm

D2 x4

M8

Technical line drawing of a bolt with threaded shaft (no text or symbols)

M8x25mm

E1 x4

Technical line drawing of a threaded screw with a flanged head (no text or symbols)

M8x50mm

E2 x4

M6 M8M4 OU OU

votre

Prohibition sign with a crossed-out robot and diagonal line, indicating no use or prohibition of the robot.

Trop court

Diagram of two mechanical components with no visible text or symbols

Correct

Prohibition sign with crossed-out screw and valve symbol, indicating no protection or resistance

Trop long

Sequence of 3D mechanical components with cylindrical bodies, shown in progressive stages from top to bottom (no text or symbols)

F1+F1 F1+F2 F1+F3F1+F1+F2 F1+F1+F3 F2+F3 F1+F2+F3 F1+F1+F2+F3

03 02

Nepastrop server

Tournevis Phillips (Non inclus)

Line drawing of a rectangular electronic device with mounting holes and a central rectangular panel (no text or symbols)

Plaque murale 01 x1

Complex Step 1: In mya's mechanical drawing or retraction Step 1 Step 2 Step 3 Step 4 Surgical Drawing In mya's mechanical drawing or retraction

Modèle de mur 04 x1

Line drawing of a tire-fond with threaded screw and nut (no text or symbols on the diagram itself)

5/16X2 3/4 pouce

x4 Ancre de mur 10X60mm

ATTENTION!

OU 16 pouce (406mm)

Diagram showing a tool interacting with wooden posts and a curved path, no text or symbols present

No smoking symbol with crossed-out tool inside circle (no text or numbers)

Niveau
(Non inclus)

Diagram showing a wall-mounted device with labeled components and a magnified view of the component, marked as 04.

Diagram showing a drill bit interacting with a wall, marked with 'X' symbols (no text or labels present)

Diagram showing a wooden fence structure with a magnified inset of a rectangular block (no text or symbols)

Diagram showing a wall corner with a checkmark and an inset close-up of a textured surface (no text or symbols)

Technical diagram of a mechanical component with an inset close-up showing a detail (no text or symbols)

Technical diagram of a vertical mechanical component with an inset close-up showing internal features (no text or symbols)

Technical line drawing of a cylindrical mechanical component with internal cavities (no text or symbols)

L10mm

Simple line drawing of a cylindrical mechanical part with a flanged top and side grooves (no text or symbols)

L22mm
F1 x8
F2 x4
F3 x4

Arandela

M4/M5
B1 x4

M6/M8
B2 x4

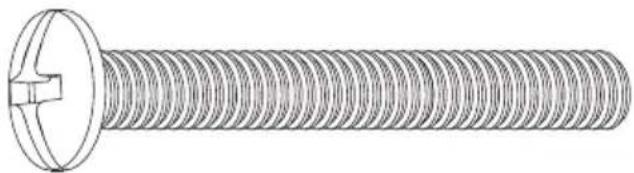

Illustration of a metallic screw with a circular head and threaded shaft (no text or symbols)

M6x35mm

D2 x4

M8

Technical line drawing of a bolt with threaded head and mounting hole (no text or symbols)

M8x25mm

E1 x4

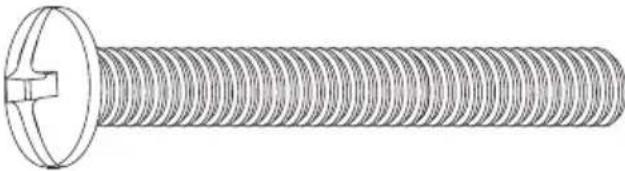

Technical line drawing of a threaded screw with a flanged head (no text or symbols)

M8x50mm

E2 x4

Prohibition sign with a crossed-out robot and prohibition symbol

Demasiado corto

Diagram of two mechanical components with no visible text or symbols

Correcto

Prohibition sign with crossed-out tool symbol and Chinese text

Demasiado largo

Line drawing of a rectangular electronic device with mounting holes and a central rectangular panel (no text or symbols)

Placa de pared 01 x1

Complex Step 1: In my heart valve surgery, it is a step to be performed using the procedure.

Plantilla de pared 04 x1

Technical line drawing of a threaded screw with hexagonal head and threaded shaft (no text or symbols)

Tornillo de retraso

5/16X2 3/4 pulg

A2

x4

Anclas de pared 10X60mm

PRECAUCIÓN!

Diagram showing a tool interacting with wooden posts and a curved path, no text or symbols present

Symbol of a handheld device crossed out by a diagonal line, enclosed in a circle (no text or labels)

Diagram showing a drill bit interacting with a rectangular block, marked with 'X' symbols (no text or labels present)

At ErgoAV, we strive to provide the highest valued products.

We want to support your purchase.

If you have questions, concerns,

or feedback please let us know!

ErgoAV Customer Care

Phone [phone] M-F 8am to 8pm CST

[e-mail]

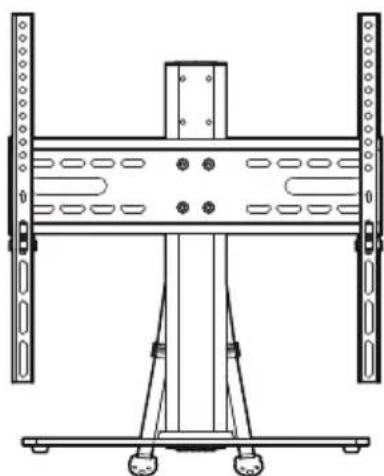

Simple line drawing of a vertical cylindrical structure with base and legs, no text or symbols present

Technical line drawing of a Y-shaped mechanical assembly with two arms and a central shaft (no text or symbols)

Technical line drawing of a mechanical support structure with mounting feet and structural elements (no text or symbols)

Speaker Stands Computer Monitor Mounts TV Stand

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

WWW.ERGOAV.COM
