USER MANUAL VPL-XW5100 SONY

© 2025 Sony Corporation

About This Manual

This Setup Guide explains the installation and basic operations for projecting pictures.

Before operating the unit, please read this manual thoroughly and retain it for future reference.

Refer to "About Indicators" as necessary.

For details on the operations, refer to the Help Guide (Web operating instructions).

Step 1

Preparing Page 9

Step 2

Installing the Unit ...... Page 10

Step 3

Connecting the Unit ...... Page 12

Step 4

Projecting...... Page 13

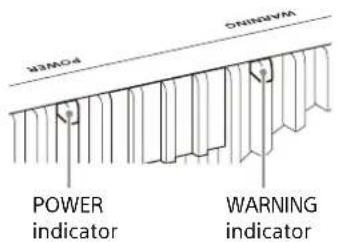

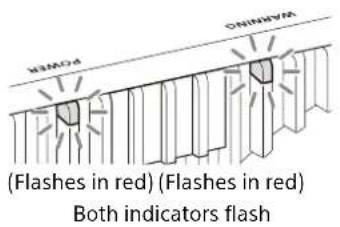

About Indicators......Page 14

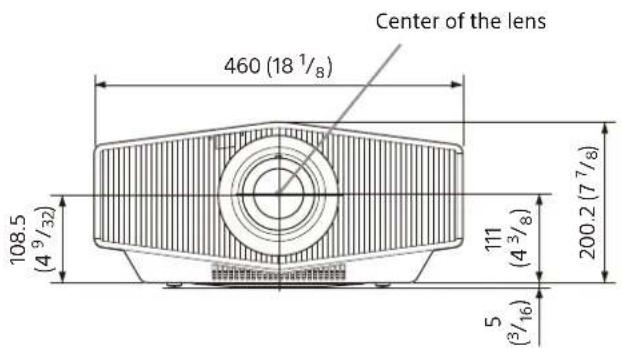

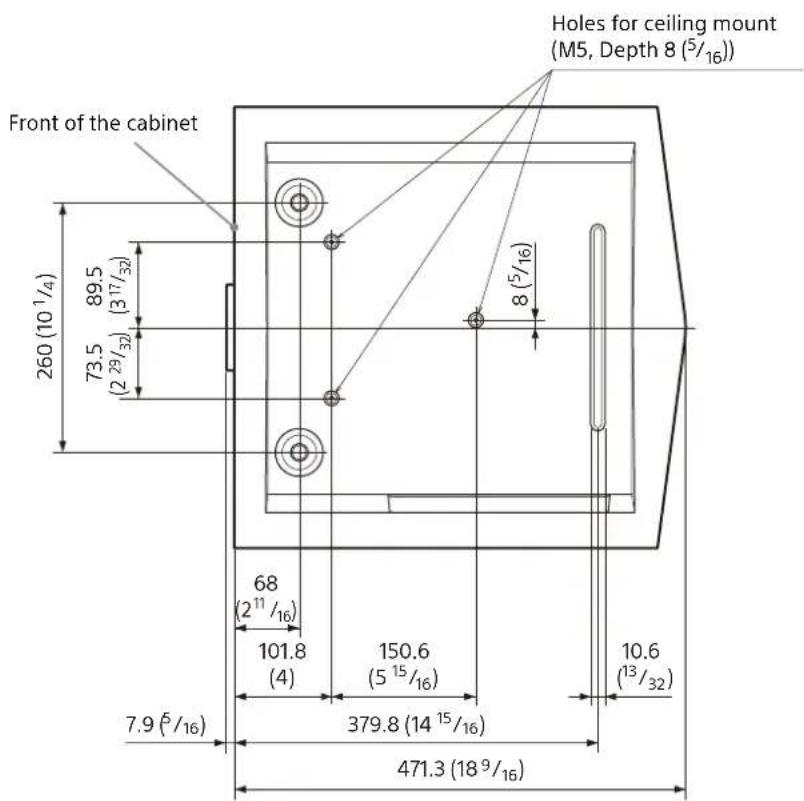

Dimensions......Page 15

Manuals supplied

Setup Guide (this document)

Explains the installation and basic operations for projecting pictures.

Help Guide (Web operating instructions)

Explains the features of the unit and how to use in detail. You can view the Help

Guide on a smartphone or computer.

https://rd1.sony.net/help/vpl/xw8100/en/

English

When using the product, do not use it for purposes other than those described in the instruction manual.

WARNING

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

WARNING

When installing the unit, incorporate a readily accessible disconnect device in the fixed wiring, or connect the power plug to an easily accessible socket-outlet near the unit. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off, or disconnect the power plug.

CAUTION

For safety, do not connect the connector for peripheral device wiring that might have excessive voltage to the following port:

• LAN

WARNING

1. Use the approved Power Cord (2-core mains lead) / Appliance Connector / Plug that conforms to the safety regulations of each country/region if applicable.
2. Use the Power Cord (2-core mains lead) / Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere).

If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel.

IMPORTANT

The nameplate is located in the following location on the unit.

- Side

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.
• When you dispose of the battery or the product, you must obey the law in the corresponding area or country. Do not dispose of the battery or the

product in a fire or a hot oven, or mechanically crush or cut the battery. It may explode or cause a fire. Do not subject the battery to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

- Do not place the battery in a high temperature place, such as under direct sunlight or near fire. It may ignite, explode, or cause a fire. Do not immerse or wet the battery in water or seawater. This may cause an electric shock.

CAUTION

The following size and number of batteries are required for the remote control.

• Size: AA (R6/LR6)
• Number of battery(ies): Two pieces To avoid risk of explosion, use only the following type of battery.
  • Manganese and Alkaline batteries

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

For kundene i Norge

Dette utstyret kan kobles til et IT-strømfordelingssystem.

IEC 60825-1:2014 CLASS 1 LASER PRODUCT

• This product complies with EN 60825-1:2014+A11:2021.
• This product complies with EN 50689:2021.
- This product is designed to project images on a wall or screen.

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015.

WARNING: Do not look into the lens while in use.

Caution

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Caution

The use of optical instruments with this product will increase eye hazard.

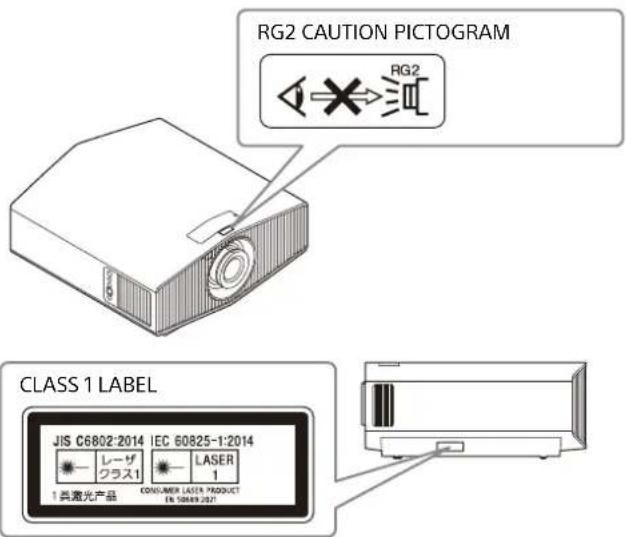

Location information of the labels

Light source specifications

4.8 W laser diodes × 14

Wavelength: 449 - 461 nm

Beam divergence angle from lens of this unit

Zoom maximum: = 39.9^

Zoom minimum: = 25.5^

α Laser emission port

Do not place any object in front of the lens that may block the light during projection. Heat from the light may damage the object.

Simple 3D diagram of a rectangular block with a shaded side and a prohibition symbol above (no text or labels)

For the customers in the UK

STATEMENT OF COMPLIANCE

Model No.: VPL-XW5100

Name and address of the manufacturer's authorised representative: Sony Europe B.V., The Heights, Brooklands, Weybridge, Surrey KT13 0XW, United Kingdom

This statement of compliance is issued under the sole responsibility of the manufacturer: Sony Corporation, 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan

Object of the statement: Video Projector

The object of the statement described above is in compliance with the applicable security requirements in Schedule 1 of S.I. 2023 No. 1007 (Product Security)

Where applicable, references to the relevant standards used in relation to which compliance is declared: -

Defined support period for security updates: 2029-05-31

Additional information: Note(s): -

Signed for and on behalf of: Sony Europe B.V.

Abstract line drawing of a stylized flower or butterfly with curved strokes (no text or symbols)

Kris De Pauw

Vice President

Weybridge, 2025-01-31

Reference Number: 2024GB00487

Reduction in the Use of Hazardous Substances in Electrical & Electronic Equipment (Applicable in Republic of India)

This product and its components, consumables, parts or spares comply with the hazardous substances restriction of India's E-Waste (Management) Rules. The maximum allowable concentrations of the restricted substances are 0.1% by weight in homogenous materials for Lead, Mercury, Hexavalent Chromium, Polybrominated Biphenyls (PBB) and Polybrominated Diphenyl Ethers (PBDE), and 0.01% by weight in homogenous materials for Cadmium, except for the exemptions specified in Schedule II of the aforesaid Rules.

For the customers in the U.S.A.

SONY LIMITED WARRANTY - Please visit www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Canada

SONY LIMITED WARRANTY - Please visit www.sony.com/psa/warranty for important information and complete terms and conditions of Sony's limited warranty applicable to this product.

For the customers in Europe

Sony Europe B.V. - Standard Warranty and Exceptions on Standard Warranty. Please visit https://pro.sony/support-services/primesupport/support-professional-solutions-europe-standard-product-warranty for important information and complete terms and conditions.

Precautions

On safety

• Check that the operating voltage of your unit is identical with the voltage of your local power supply.
• Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by qualified personnel before operating it further.
• Unplug the unit from the wall outlet if it is not to be used for several days.
• To disconnect the cord, pull it out by the plug. Never pull the cord itself.
• The wall outlet should be near the unit and easily accessible.
• The unit is not disconnected to the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• Do not look into the lens while in use.
• Do not place your hand or objects near the ventilation holes. The air coming out is hot.

On preventing internal heat build-up

After you turn off the power with the I/⏻ (Power) button, do not disconnect the unit from the wall outlet while the cooling fan is still running.

Caution

This unit is equipped with ventilation holes (intake/exhaust). Do not block or place anything near these holes, or internal heat build-up may occur, causing picture degradation or damage to the unit.

On repacking

Save the original shipping carton and packing material; they will come in handy if you ever have to ship your unit. For maximum protection, move the lens position to the center and repack your unit as it was originally packed at the factory.

On inspection of light source related parts

Since the unit uses a laser, when adjusting or inspecting the light source related parts, particular attention and a safe environment are necessary. Be sure to consult with qualified Sony personnel (charged).

Note on leaving unused for long periods

If the unit is not used for a long period of time, malfunction or a drop in performance can occur. To avoid this, periodically turn on the power and operate the unit.

On LCD Projector

The LCD projector is manufactured using high-precision technology. You may, however, see tiny black points and/or bright points (red, blue, or green) that continuously appear on the LCD projector. This is a normal result of the manufacturing process and does not indicate a malfunction.

Also, when you use multiple LCD projectors to project onto a screen, even if they are of the same model, the color reproduction among projectors may vary, since color balance may be set differently from one projector to the next.

On condensation

If the room temperature where the projector is installed changes rapidly, or if the projector is moved suddenly from a cold to a warm place, condensation in the projector may occur. As the condensation may cause malfunction, be careful in adjusting temperature settings of the air conditioner. If condensation occurs, leave the projector turned on for about two hours before use.

Notes on security

• SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM A FAILURE TO IMPLEMENT PROPER SECURITY MEASURES ON TRANSMISSION DEVICES, UNAVOIDABLE DATA LEAKS RESULTING FROM TRANSMISSION SPECIFICATIONS, OR SECURITY PROBLEMS OF ANY KIND.
• Depending on the operating environment, unauthorized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely.
• From a safety standpoint, when using the unit connected with the network, it is strongly recommended to access the Control window via a Web browser and change the access limitation settings from the factory preset values. Also, it is recommended that you set a password with a sufficiently long character string that is hard to guess by others, and that you store it safely.

- Do not browse any other website in the Web browser while making settings or after making settings. Since the login status remains in the Web browser, close the Web browser when you complete the settings to prevent unauthorized third parties from using the unit or harmful programs from running.

- When connecting this product to a network, connect via a system that provides a protection function, such as a router or firewall. If connected without such protection, security issues may occur.

Do not place this product close to medical devices

This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device.

SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND RESULTING FROM THE USE OF THIS UNIT FOR PURPOSES OTHER THAN GENERAL HOME USE, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY.

Notes on Installation and Usage

Unsuitable installation

Do not place the unit in the following situations, which may cause malfunction or damage to the unit.

Near walls

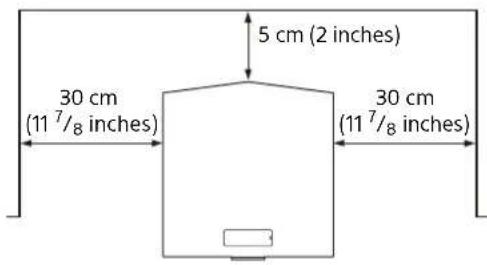

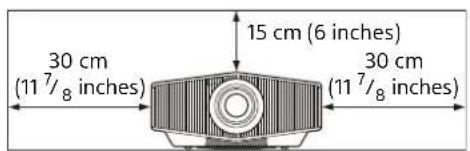

To maintain the performance and reliability of the unit, leave space between walls and the unit as illustrated.

5 cm (2 inches) 30 cm (11 7/8 inches) 30 cm (11 7/8 inches)

30 cm (11 7/8 inches) 15 cm (6 inches) 30 cm (11 7/8 inches)

Note that the wall on the ventilation holes side may become hot.

Air from air conditioners or the ventilation holes of this unit or other devices, may cause oscillation on the screen. Be sure not to install this unit in the area where the air from air conditioners or the ventilation holes of these devices reach to the front side of this unit.

Poorly ventilated location

Leave space of more than 30 cm (11 ^7/_8 inches) around the unit.

Line drawing of a mechanical device emitting steam, with no text or symbols present.

Hot and humid

Illustration of a fire extinguisher emitting smoke next to a portable air conditioner and a server (no text or symbols)

Locations subject to direct cool or warm air from an air-conditioner

Installing the unit in such a location may cause a malfunction of the unit due to moisture condensation or rise in temperature.

Simple line drawing of a exhaust pipe with a circular component and a grid-patterned cover (no text or symbols)

Near a heat or smoke sensor

Malfunction of the sensor may occur.

Simple line drawing of a toilet with a stopper and exhaust pipe, no text or symbols present

Very dusty and extremely smoky locations

Illustration of a hand using a cigarette to lift a block with smoke, no text or symbols present

Unsuitable Conditions

Do not do any of the following while using the unit.

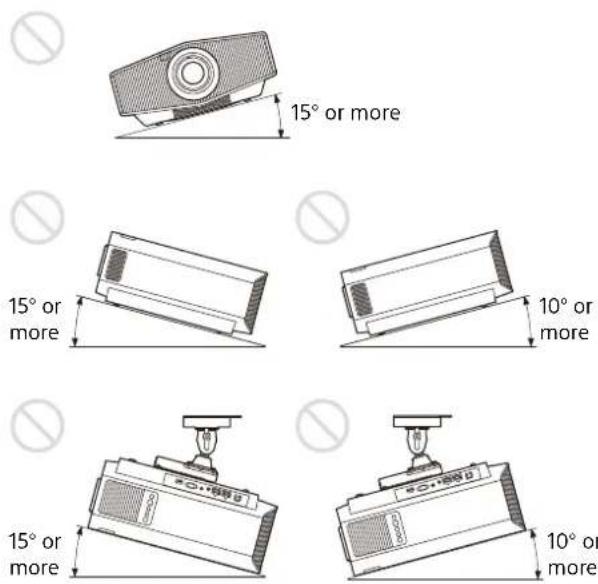

Tilting front/rear and left/right

Avoid using the unit tilted at an angle, as shown in the following illustrations.

Do not install the unit anywhere other than on a level surface or on the ceiling. Installing the unit in such a location may result in uneven color uniformity.

If the unit is tilted up or down, the image on the screen may be trapezoidal. Position the unit so that the lens is parallel to the screen.

When installing the unit at high altitudes

When using the unit in a location at an altitude of 1,000 m (approx. 3,280 feet) or higher, appropriately set "High Altitude Mode" in the Setup 📋enu. Failing to do so could have adverse effects, such as reducing the reliability of certain components.

Safety precautions for installing the unit on a ceiling

• Never mount the projector on the ceiling or move it by yourself. Be sure to consult with qualified Sony personnel (charged).
• When installing the unit on a ceiling, be sure to use a safety wire, etc., to prevent the unit from falling. Entrust the installation to an experienced contractor or installer.

For dealers

Be sure to secure the cabinet cover firmly when installing to the ceiling firmly.

License Notice

Refer to "Notice on the Software" in the Help Guide and read the contents of the license.

Step 1

Preparing

Checking the Supplied Accessories

Check the carton to make sure it contains the following items:

• Remote control RM-PJ28 (1)
• Size AA batteries (2)
- Lens cap (1)
When you purchase the projector, a lens cap is on the lens.
- AC power cord (1)
- Setup Guide (this manual) (1)

Inserting the Batteries into the Remote Control

Push and slide to open.

Insert the batteries ● side first.

Mechanical assembly diagram showing a lever mechanism with a downward force arrow (no text or symbols)

Caution when handling the remote control

• Handle the remote control with care. Do not drop it, and do not step on or spill liquids on it.
• Do not place the remote control in a location near a heat source, a place subject to direct sunlight, or a damp room.

Removing the lens cap

Remove the lens cap before you use the projector.

Step 2

Installing the Unit

1 Position the unit so that the lens is parallel to the screen.
2 After connecting the AC power cord to the unit, plug the AC power cord into a wall outlet.

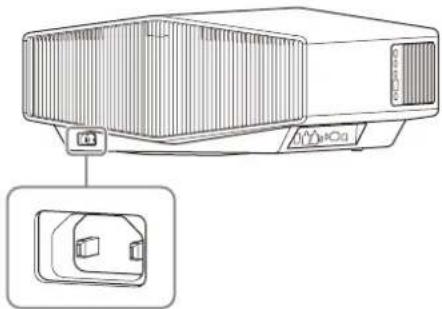

Rear of the unit

Technical line drawing of a computer monitor with an icon indicating the front panel (no text or symbols present)

Front of the unit

Lights in red.

Note

After connecting the AC power cord to the unit, the POWER indicator may blink in orange.

You may not be able to control the unit while the indicator is blinking, but this is not a malfunction. Wait until it stops blinking and remains lit in red.

3 Press the I/⏻ (Power) button to turn on the unit.

Front of the unit

The POWER indicator flashes in green, then it lights in green.

4 Press the LENS button on the control panel or the PATTERN button on the remote control to display a test signal for performing adjustments.

PATTERN RESET MENU

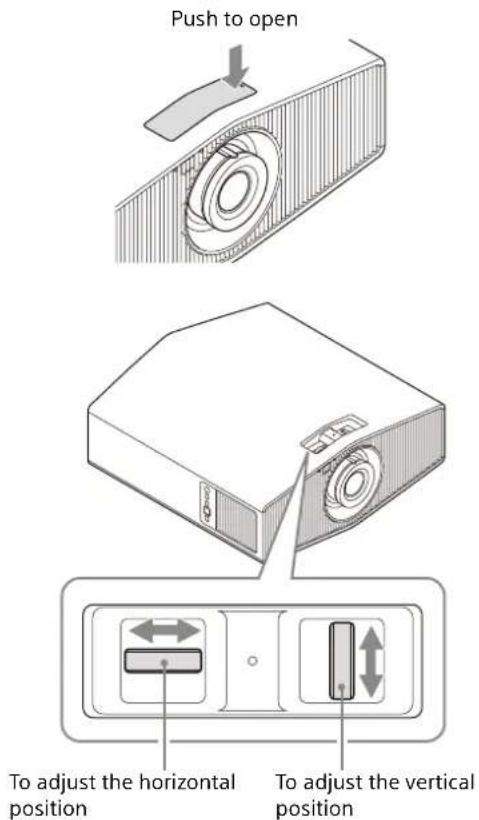

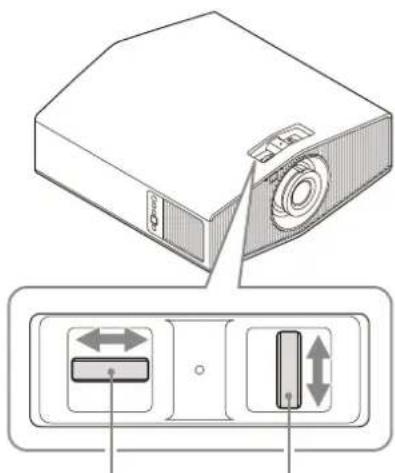

① Open the lid on the top of the unit, then move both lens shift dials to adjust the picture position.

Push to open To adjust the horizontal position To adjust the vertical position

Notes

• After adjusting the picture position, attach the lid to its original position.
- When installing the unit on the ceiling and opening the lid of the shift dial, the lid may fall. Be careful when opening and closing the lid, and operating the dial.

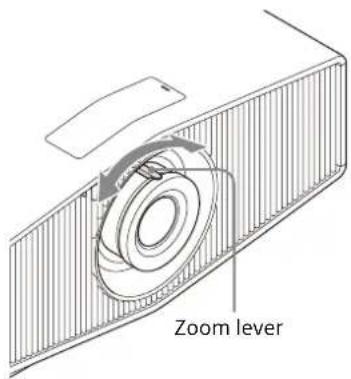

② Adjust the picture size using the zoom lever.

Zoom lever

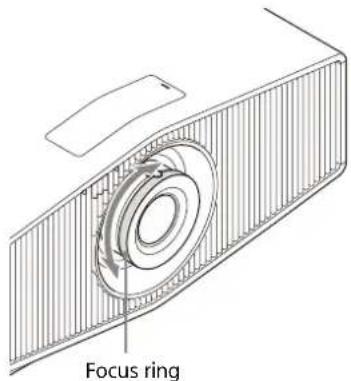

③ Adjust the focus using the focus ring.

Focus ring

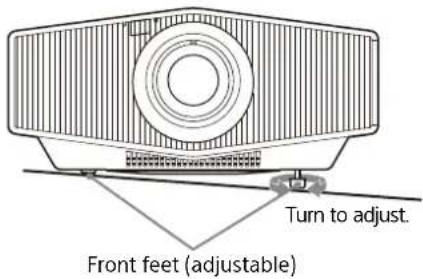

To adjust the tilt of the installation surface

If the unit is installed on an uneven surface, use the front feet (adjustable) to keep the unit level.

Turn to adjust. Front feet (adjustable)

Notes

• Note that if the unit is tilted up or down, the projected image will be distorted in a trapezoidal shape.
• Be careful not to pinch your fingers when rotating the front feet (adjustable).

Lens adjustment window (test pattern)

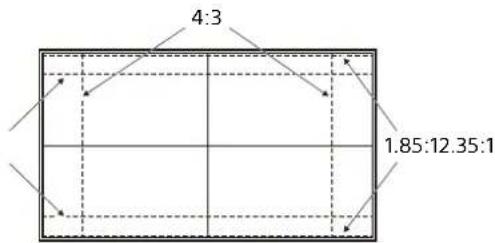

4:3 1.85:12.35:1

The dashed lines show the angle of view of each aspect ratio.

For more information, refer to "Installation and Connections" in the Help Guide.

Step 3

Connecting the Unit

When making connections, be sure to do the following:

• Turn off all devices before making any connections.
• Use the proper cables for each connection.
• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or cause a malfunction. When unplugging a cable, be sure to grip the plug, not the cable itself.
• For more information, refer also to the instruction manual of the device to be connected.

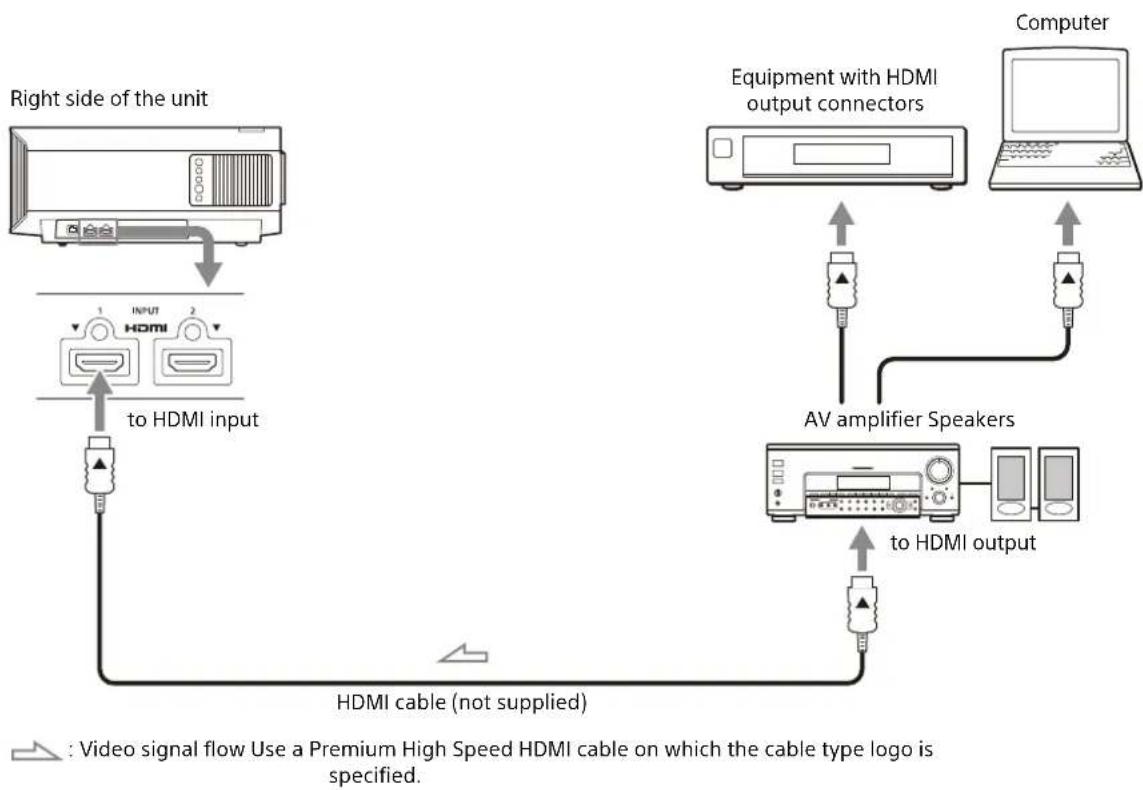


When you monitor and control the projector via the network, access the Setup page of the projector (refer to "Using Network Features" in the Help Guide) via a Web browser and enable the desired control protocol.

For more information, refer to "Installation and Connections" in the Help Guide.

Projecting the Picture

1 Turn on both the unit and the device connected to the unit.
2 Press INPUT to display the input palette on the screen.
3 Select the device from which you want to display images. Press INPUT repeatedly or press ↑/↓/⊕ (enter) to select the device from which to project.

Turning Off the Power

1 Press the I/⏻ (Power) button. The message "POWER OFF?" appears.
2 Press the I/⏻ (Power) button again before the message disappears. The POWER indicator flashes in green and the fan continues to run to reduce the internal heat.

The fan stops and the POWER indicator changes from flashing green to remaining red.

The power is turned off completely, and you can disconnect the AC power cord.

Note

Never disconnect the AC power cord while the indicator is flashing.

Tip

You can turn off the unit by holding the I/⏻ (Power) button for about 1 second, instead of performing the above steps.

Selecting the Picture Viewing Mode

Press one of the CALIBRATED PRESET buttons.

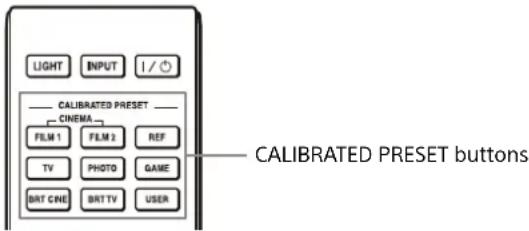

LIGHT INPUT I / CALIBRATED PRESET CINEMA FLM 1 FLM 2 REF TV PHOTO GAME BRT CNE BRT TV USER CALIBRATED PRESET buttons

Setting items Description
CINEMA FILM 1(Cinema Film 1)	Image quality suited for reproducing the wide dynamic and clear images typical of master positive film.
CINEMA FILM 2(Cinema Film 2)	Image quality suited for reproducing the rich tone and color typical of a movie theater, based on “Cinema Film 1.”
REF (Reference)	Image quality suited for reproducing the original image quality faithfully, or to enjoy the image quality without any adjustment.
TV (TV)	Image quality suited for watching TV programs, sports, concerts, and other video images.
PHOTO (Photo)	Image quality suited for viewing still images taken with a digital camera and other devices.
GAME (Game)	Image quality suited for gaming, with well-modulated colors and fast response.
BRT CINE(Bright Cinema)	Image quality suited for watching movies in a bright room.
BRT TV(Bright TV)	Image quality suited for watching TV programs, sports, concerts, and other video images in a bright room.
USER (User)	You can set and adjust the image quality to suit your taste, then you can save the setting. The default setting is the same as “Reference.”
IMAX Enhanced Image quality suited for watching IMAX Enhanced contents.Press the MENU button and select from “Calib. Preset” in the Picture menu.

For more information, refer to "Projecting" in the Help Guide.

About Indicators

The POWER or WARNING indicator lights up or flashes if there is any trouble with your projector. If there is any problem or an error message appears on the screen, refer to "Error Handling" in the Help Guide.

POWER WARNING POWER indicator WARNING indicator

Flashing/Lighting indicators The number of flashes	Cause and Remedy
	Three times The unit does not light properly due to an abnormality of the light source and light source power. Turn off, then turn on the power after a while.If the symptom persists, consult with qualified Sony personnel.
	Twice The internal temperature is unusually high. Check to ensure that nothing is blocking the ventilation holes and the unit is not being used at high altitudes.
	Three times The fan is broken. Consult with qualified Sony personnel.

Note

If the symptom persists even after carrying out the above methods, consult with qualified Sony personnel. If the indicator starts flashing in a way of other than the above, turn off, and then turn on the power with the I/⏻ (Power) button on the remote control or control panel of the unit. If the symptom is shown again, consult with qualified Sony personnel.

If there is any problem or an error message appears on the screen, refer to "Error Handling" in the Help Guide.

Dimensions

Front

Unit: mm (inches)

Center of the lens 460 (18 1/8) 108.5 (4 9/32) 111 (4 3/8) 200.2 (7 7/8) 5 (3/16)

Bottom

Unit: mm (inches)

Front of the cabinet Holes for ceiling mount (M5, Depth 8 (5/16)) 260 (10 1/4) 89.5 (3 17/32) 73.5 (2 29/32) 68 (2 11/16) 101.8 (4) 150.6 (5 15/16) 10.6 (13/32) 7.9 (5/16) 379.8 (14 15/16) 471.3 (18 9/16)

Note

Holes for the ceiling mount

Use the screws with a length of 6.4 mm ( 14 inches, minimum) to 8.0 mm ( 116 inches, maximum) for the ceiling mount. Recommended tightening torque (tension when turning a screw towards the direction of rotation): 1.4 ± 0.2 N-m

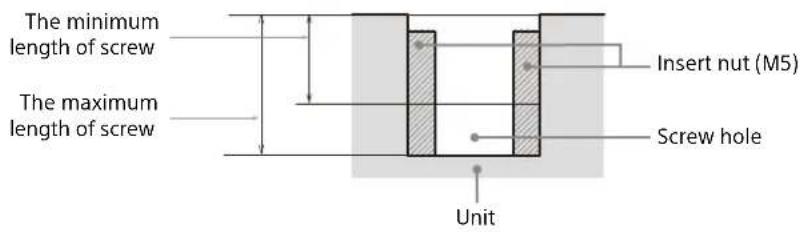

The minimum length of screw The maximum length of screw Insert nut (M5) Screw hole Unit

Zoom minimum : = 25,5^

Port d'émission laser α

Simple 3D diagram of a rectangular block with a gray side and a diagonal line, no text or symbols present.

Line drawing of a cluttered industrial or mechanical device with smoke rising (no text or symbols)

Illustration of a portable stove emitting smoke next to a computer with steam rising (no text or symbols)

Simple line drawing of a cleaning or dust removal process with a tray, bucket, and spray bottle (no text or symbols)

Simple line drawing of a toilet with a stopper and a bowl, no text or symbols present

Illustration of a hand using a cigarette to cut a block with smoke, no text or symbols present

Mechanical assembly diagram showing a lever mechanism with pivot point and adjustment (no text or symbols)

Line drawing of a computer monitor with an attached socket (no text or symbols)

Avant de l'appareil

S'allume en rouge.

Remarque

Simple 3D diagram of a rectangular block with a shaded side and a prohibition symbol above it (no text or labels)

Line drawing of a mechanical device emitting steam, no text or symbols present

Illustration of a fire extinguisher emitting smoke next to a portable air conditioner and a printer (no text or symbols)

Simple line drawing of a cleaning or dust removal process with a net, drain, and spray bottle (no text or symbols)

Simple line drawing of a toilet with a stop symbol and smoke, no text or labels present

Illustration of a hand using a cigarette to smoke or dust from a rolled paper or dough (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

Line drawing of a computer monitor with an attached socket and warning symbol (no text or labels)

Minimaler Zoom: = 25,5^

Simple 3D diagram of a rectangular block with a shaded side and a circular symbol above (no text or labels)

Line drawing of a cluttered mechanical device emitting steam, with no visible text or symbols

Illustration of a portable stove emitting steam next to a computer with a printer (no text or symbols)

Simple line drawing of a trash bin with a circular object and a bag, no text or symbols present

Simple line drawing of a toilet with a stopper and a cup, emitting steam (no text or symbols)

Illustration of a hand using a tool to lift a rolled paper or dough (no text or symbols present)

Line drawing of a computer monitor with an attached socket (no text or symbols)

Technical illustration of a mechanical component with a roller and fastener (no text or symbols)

Diagram of a computer monitor with two ports and an open lid, showing internal structure (no text or symbols)

Zoom min: = 25,5^

Simple line drawing of a rectangular block with a shaded side and a circular symbol above (no text or labels)

Line drawing of a cluttered cabinet with steam rising from top (no text or symbols)

Caldo e umido

Illustration of a portable stove emitting steam next to a computer with visible heat dissipation (no text or symbols)

Simple line drawing of a cleaning or dust removal process with a net, drain, and spray bottle (no text or symbols)

Simple line drawing of a toilet with a stopper and a bowl, no text or symbols present

Illustration of a hand using a cigarette to smoke or dust next to a rolled document (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with pivot point and adjustment arrow (no text or symbols)

Line drawing of a computer monitor with an attached plug and warning symbol (no text or labels)
