Please read and understand this instruction manual completely before attempting to assemble, operate, or install the product.

This manual contains important information about the assembly, operation, and maintenance of this patio heater. General safety information is presented on these initial pages and can also be found throughout the manual. Keep this manual for future reference and for informing new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when dealing with mechanical or electronically operated devices. These precautions are necessary during the use, storage, and maintenance of this item. When this device is used with the required respect and due caution, the possibility of personal or property damage is reduced.

Inspect the device for damage after removing the packaging. Do not operate the device if damage is suspected and consult a professional. The recyclable packaging material should be stored out of reach of small children and properly disposed of.

This device should only be used for the purpose for which it was expressly designed. Any other use is considered improper and therefore dangerous. The supplier is not liable for any possible personal and/or property damage resulting from improper or incorrect use.

Repairs to electrical devices should only be carried out by professionals. Improperly performed repairs and modifications to the devices can have dangerous consequences for the user, resulting in warranty claims being rejected.

This heater is not equipped with a room temperature control device. Do not use this heater in enclosed spaces.

WARNING: Accessible parts of this product can become very hot and cause burns. Special attention must be given to the presence of children and vulnerable individuals.

The following fundamental precautions must always be followed when dealing with the pellet heater:

• For outdoor use or in adequately ventilated areas only.
• Install the heating device outside or in a large open area and far away from obstacles such as branches. If the heating device is near objects that can be affected by heat, like furniture, curtains, or other flammable objects, maintain a minimum distance of 2 meters.
• Absolutely prohibited to block the exhaust vents of the device with screens or similar items, as this can result in serious malfunctions of the device.
• Absolutely prohibited to connect the end of the device to pipes or chimneys to redirect combustion products elsewhere.
• Supervise children to prevent them from playing with the device.
• Read ALL instructions before using this device.
• This heating device can become hot during use. To avoid burns, do NOT let exposed skin come into contact with hot surfaces. If available, use handles when moving this heating device.
• Never pour fuel into an open flame or into the burner container.
  • Always use oven gloves when handling the product.
• Have a suitable extinguishing agent ready.
• Avoid using excessive pellet fuel that spills over the edge.
• Do not place objects on the patio heater.
• Exercise extreme caution when a heater is used by or near children or disabled individuals, or when the heater is operational and left unattended.
• This heater is not intended for use near water. NEVER position the heating device in a way that it could fall into water.
• The device has been designed for operation under favorable climatic conditions; use is not recommended in particularly unfavorable conditions (strong wind, heavy rain, snow).
• Do not use the device in rainy conditions, as the glass protective devices can break upon sudden contact with water. Always turn off the device during rain.
• Do not spray liquids onto the glass while the device is in operation. The glass becomes extremely hot during operation, do not attempt to touch it, and keep children away from the device.
• Always ensure the device is in a stable position. If the device falls, the glass protective devices may break. Do not use the device if the glass is broken or damaged.
• Do not insert foreign objects into ventilation or exhaust openings, as this could damage the heating device.
• To prevent possible fires, do NOT block the air inlets and outlets in any way. Do NOT use on soft surfaces where openings can be blocked.
• Do NOT use in areas where gasoline, paint, explosive, and/or flammable liquids are used or stored. Keep the device away from heated surfaces and open flames.
• Do NOT attempt to repair or adjust electrical or mechanical functions of this device. Otherwise, your warranty will be void. The interior of the device does not contain user-serviceable parts. Qualified personnel must perform all maintenance work.
• KEEP THIS MANUAL FOR REFERENCE.

Shipping and Storage

- The device housing must always be moved in a vertical position. It is especially important to ensure that the glass and all sensitive parts are protected from mechanical impacts that could compromise their integrity and proper functioning.

- The device and all accessories such as steel, glass, or stone coverings must be stored in closed and moisture-free spaces. Do not stack the devices on top of each other. Handle the boxes containing the devices with care.

If the heating device will not be used for an extended period, store it in a cool, dry place when not in use. To avoid the accumulation of dust and dirt, use the original packaging to repack the device.

Purchase and Inspection

When purchasing, ensure that the device has no cracks or dents and that the model matches the information on the transportation document. Any damage, incomplete, or non-compliant deliveries must be reported immediately to the manufacturer or the dealer.

The relevant parameters and precautions are printed on the inside of the door.

Do not let children handle the packaging material as it can pose a hazard. The disposal of the packaging material is the responsibility of the user.

The installation and assembly of the device must be carried out with careful attention to the instructions and in full compliance with state and local reference standards. An installation that does not comply with regulations can result in damage to people, animals, or property. In this case, the manufacturer disclaims all responsibility. All information contained in this manual should not be considered a substitute for the European standards to which they refer. The seller is obligated to inform the user about the aforementioned regulations.

WARNING: Failure to follow the instructions contained in this brochure and/or improper installation and/or non-compliance with applicable regulations can lead to dangerous situations for both property and individuals.

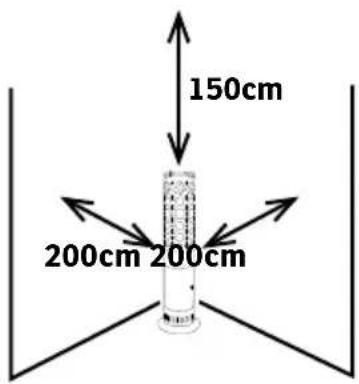

150cm 200cm 200cm

Before assembling the patio heater, ensure that all safety measures are in place and that no hazardous position has been chosen.

Installation clearances must be adhered to for safety and fire protection reasons. If the floor is made of combustible material (e.g., wood, carpet, rubber, plastic), the use of adequately sized floor plates (metal, glass) is mandatory. Placing flammable materials near the device is prohibited (example: bags of pellets, flammable liquids, etc.).

Part Description

Part Quantity Image
Combustion bucket handle	1
Ash tray	1
M6*15 Allen countersunk screw	3
M4 wrench	1
M6 wrench	1

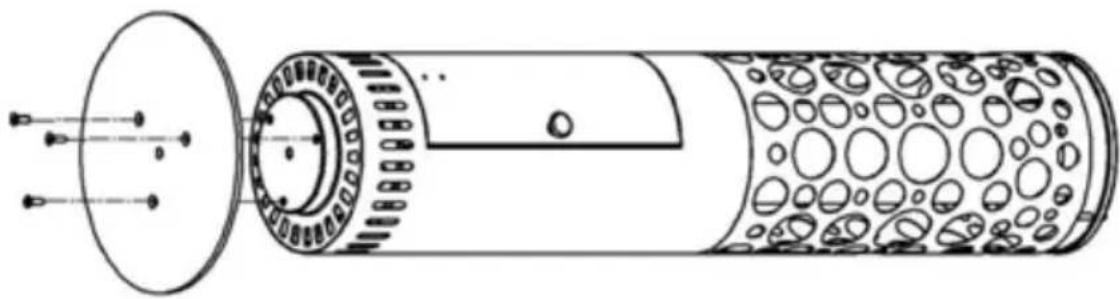

Step 1

Using 3 M6*15 countersunk screws, the chassis is locked on the main body with an Allen wrench.

Technical line drawing of a cylindrical device with internal components and mounting holes (no text or symbols)

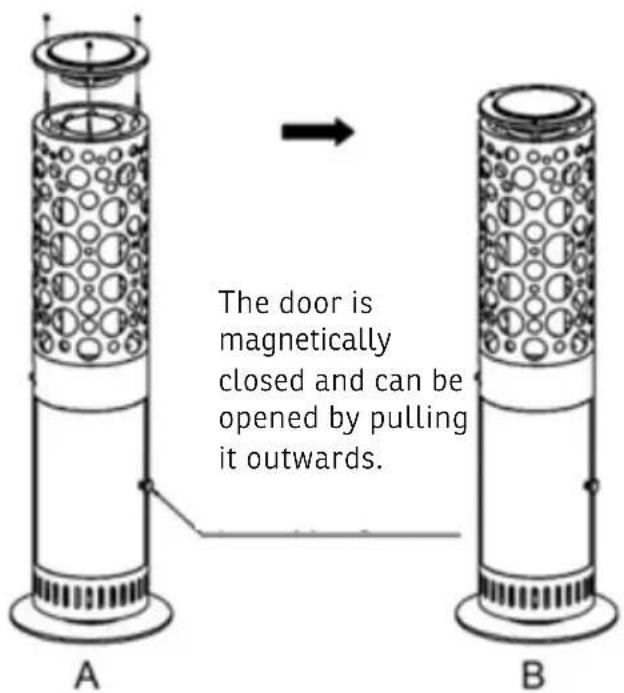

Step 2

As shown in Figure A, use an M4 Allen key to loosen the 3 nuts on the top cover. Then open the top cover to remove the protective pearl cotton film from the top and bottom ends of the glass tube, and reassemble as described above.

The door is magnetically closed and can be opened by pulling it outwards. A B

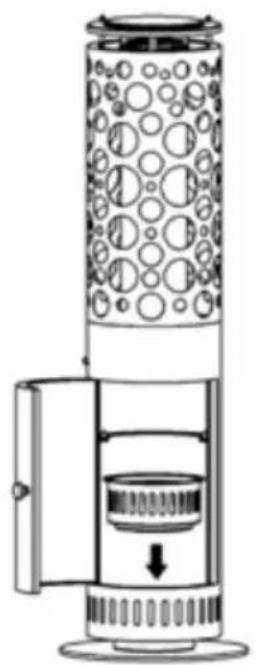

Step 3

Place the ashtray in the centre of the card slot inside the main casing.

Diagram of a cylindrical device with internal components and circular patterns, no text or symbols present

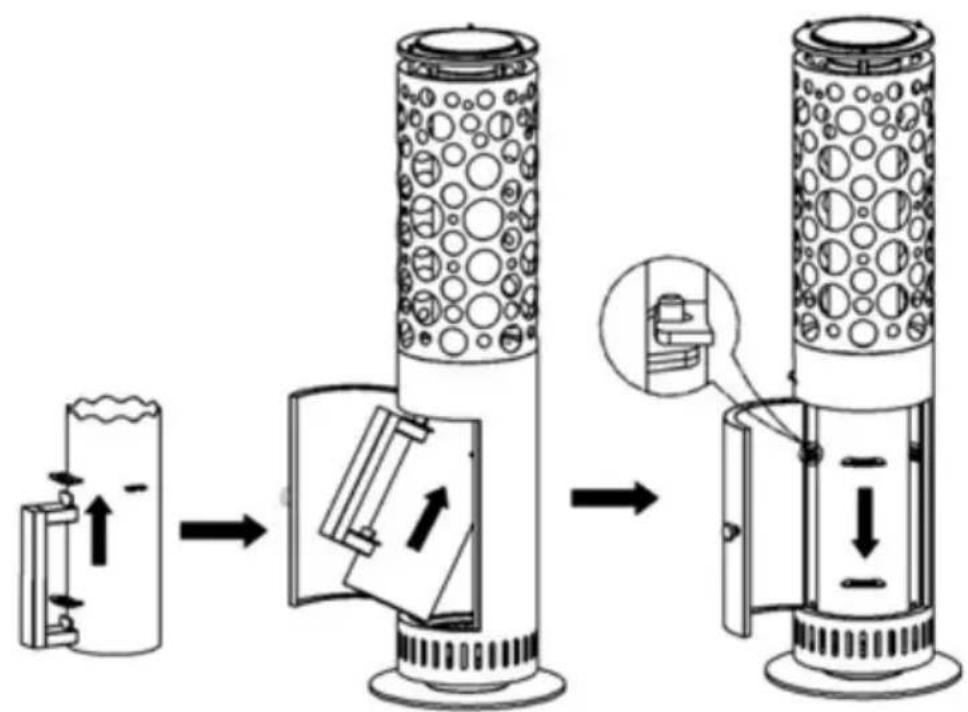

Step 4

First, insert the handle into the burn barrel and click it into place. Then tilt the burn barrel up into the main housing and lay it flat on the card position. Finally, remove the handle.

Diagram illustrating the step-by-step assembly of a cylindrical device with internal components and directional arrows indicating motion.

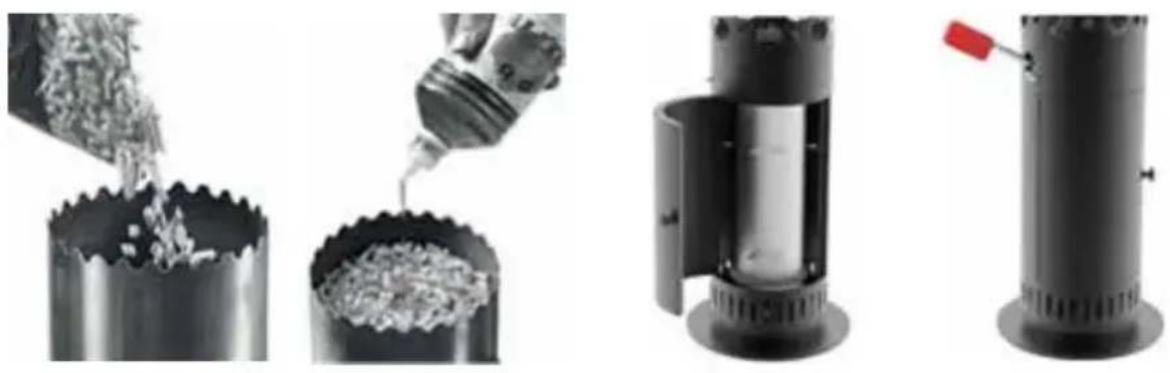

04 - CONTROLS

1. Open the door, remove the pellet container with the specialized handle, and clean the container and the firebox if necessary.

2. Pour pellets into the tank until they are level with the top edge. You can also use fewer pellets. Tap the walls of the tank to compact the pellets and let them fall up to 3 cm from the edge.

3. Sprinkle the top layer of pellets spirally with the plant-based fuel.

4. Follow Step 4 of the above installation steps to place the combustion barrel into the stove body as required.

5. Ensure the tank is properly positioned in its seat.

6. Open the ignition port cover on the side of the main body, ignite the flame using a long-neck gas lighter larger than 200 mm, and then close the ignition port cover.

7. Close the door.

8. Throughout the entire operating time, which lasts about 1 to 1.5 hours, no user interventions are required. The entire pellet load is initially burned through the pyrolysis process and then in the final phase through the gasification process (indicated by a blue flame).

9. At the end of the operating cycle, the flame will extinguish on its own without external intervention, and the device enters the cooling phase, which can last 30 to 60 minutes. At the end of the cooling phase, the burner can be refilled.

10. After turning on the device, the pellet load must be completely burned according to the manufacturer's specified cycle, and the process must not be interrupted.

Three-step industrial process showing material pouring into a granular container, pouring liquid into a smaller container, and finally adding a mechanical pressurizer to a final cylindrical device (no text or symbols visible)

NOTE: During the initial ignition, the device may emit a color odor for a few hours. While this odor is bothersome, it is not harmful. After each operating cycle, it is normal for a minimal amount of ash residue to remain in the tank, which needs to be removed before starting the next cycle.

05 - PELLET

The fuel used is called pellets, which are compressed wood sawdust granules. By exclusively using high-quality pellets, nearly neutral environmental impact in terms of CO2, high efficiency, and lower ash accumulation in the device are achieved. Below are the reference parameters for high-quality pellets.

• Raw Material: Only natural wood, free from chemicals or residues. If binders are present, they must be of natural origin and in minimal quantities.
  • Diameter = 6 / 6.5 mm
  • Length = 10/20 mm
  • Maximum Moisture Content: 8%
• Ash Residue: Less than 1.5%
  • Density: 650 kg/m ^3
  • Minimum Heating Value: 4.9 kWh/kg; approximately 18000 kJ/kg

WARNING: The manufacturer declares the warranty void if uncertified pellets are used. Additionally, the manufacturer is not responsible for poor device performance caused by inadequate pellet quality.

Using the device as a combustion system or in any way other than intended is prohibited.

Operating or igniting the device with fuels other than specified is prohibited.

Using pellets other than those indicated is prohibited. The use of fuels not meeting the above specifications not only immediately voids the device warranty but can also lead to hazardous situations.

As your device operates with pellets, it must be regularly inspected and cleaned. Regular maintenance ensures smooth operation and optimal performance. The user must clean the device regularly as described in this manual.

The following procedure is recommended for this purpose

• Do not use aggressive or abrasive products for external cleaning.
• Do not wash the device with water or other liquids, as they can damage the internal electrical components, posing a risk to the user.
• DO NOT use alcohol, gasoline, abrasive powders, furniture polish, or rough brushes to clean the heater. This can cause damage or deterioration to the surface of the heater.
• Never vacuum hot ash: the inserted exhaust could be damaged.
• All cleaning and maintenance operations must be carried out when the device is completely cool and the power bank is disconnected.

WARNING: If a vacuum cleaner is used for the ash, ensure that no embers are burning and that the ash is cold.

Before each refilling

• Remove the burner/pellet container and clean it using the provided brush.
• Check the openings at the bottom for any clogs due to combustion residues. If needed, remove the burner tube and clean it with a wire brush and, if possible, a vacuum cleaner.
• Clean the container housing the ash pan and the seat of the container inside the device, particularly near the insulation plate.
• After cleaning and with each refill, ensure the proper installation of the tank into its designated slot.
• The use of certified and therefore high-quality pellets allows for correct device operation at the specified performance level, and cleaning and maintenance become less demanding. The presence of silicon dioxide agglomerates at the bottom indicates poor fuel quality.

Weekly

• Vacuum the compartments inside the device and the underside of the metal main housing.
- Check the smoke exhaust ports and ensure they are clean and free from obstructions.
- Clean the glass, if deemed necessary, using a cotton cloth or kitchen paper and a specialized glass cleaner for stoves and fireplaces, which you can obtain from your dealer. Be cautious not to spray the cleaner onto the painted walls.

WARNING: If parts need to be replaced due to damage or wear, only the manufacturer's specified original replacement parts should be used.

WARNING: The generator must be cleaned according to the specifications mentioned above, and under no circumstances should flammable products be used. The use of flammable products can lead to hazardous situations. Inadequate or improper maintenance can affect the functionality of the device. Any issues resulting from poor cleaning or maintenance will immediately void the warranty.

End-of-Season Maintenance

• We also recommend thorough cleaning of the device to remove all combustion residues.
- Clean the ventilation unit once a year using a brush and a vacuum cleaner.

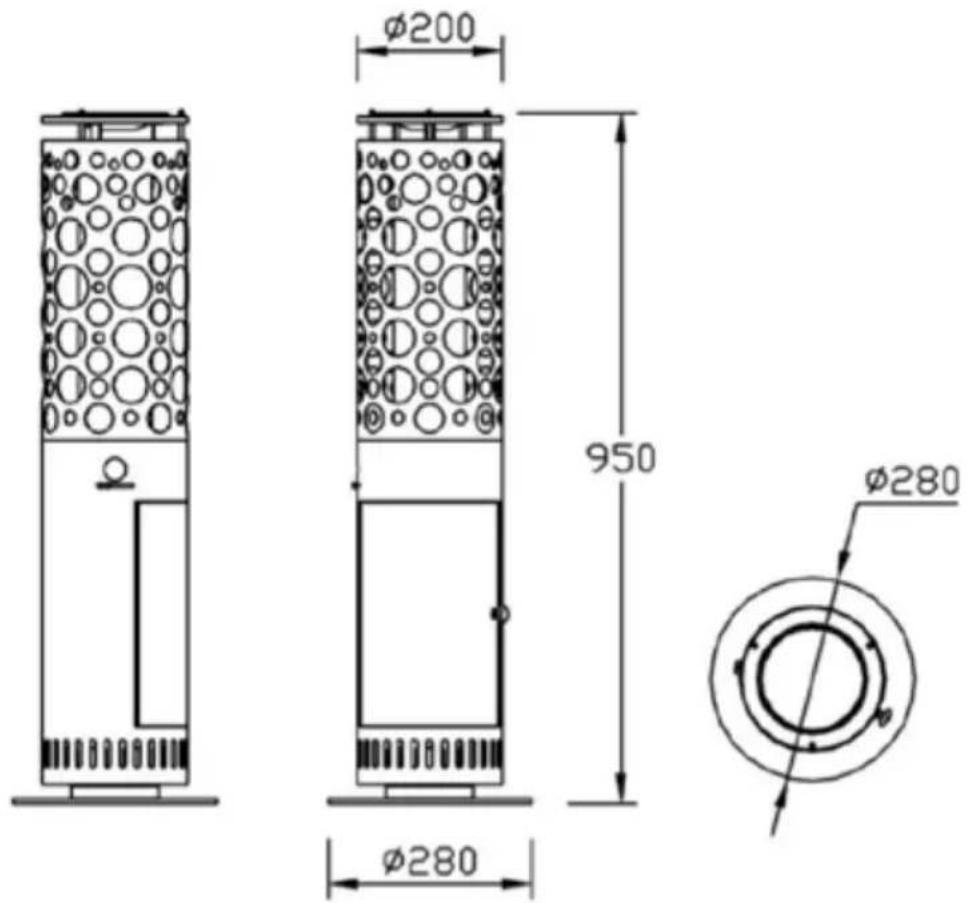

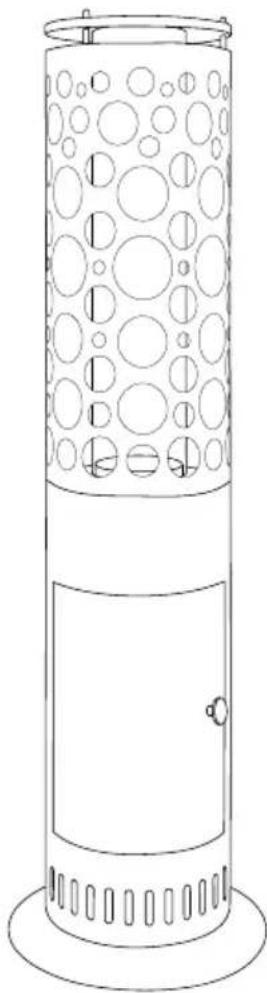

07 - TECHNICAL DETAILS

HEATING POWER ca. 4.9 kWh
VOLTAGE / FREQUENCY -
DIMENSIONS 20/28 x 95 cm
WEIGHT 11.5 kg

Ø200 950 Ø280 Ø280

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit.

Disposal

Please remove the heater properly. You can bring the product to any specialist dealer fort he removal.

Technical changes

Technical changes in technique and design are possible.

Conformity

This device complies with the following standards

RoHS 2015/863/EU

Any modifications or repairs to the device must be carried out by a qualified person.

Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.
