USER MANUAL Calion Sonnenkönig

Close-up of a portable heater with glowing orange insulation and control panel (no visible text or symbols)

INDEX

Pure architectural line drawing of a rectangular structure with grid patterns and vertical supports (no text or symbols)

Heizstrahler

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Three identical mechanical fasteners or fasteners arranged horizontally (no text or symbols visible)

Two identical hexagonal bolt head diagrams shown side by side (no text or symbols)

Bolzenschraube m6x16 (2x)

Three identical screwdrivers arranged horizontally (no text or symbols)

Two identical line drawings of a bent pipe fitting (no text or symbols)

Two identical L-shaped metal bars arranged vertically (no text or symbols)

Line drawing of a remote control tower with buttons and indicator lights (no text or symbols)

3. Installation

≥0.5m ≥0.5m ≥1.8m

Min 0.5M Min 0.5M Min 1.8M

DE

27 mm 40mm

Three identical cylindrical objects with circular ends, arranged in a triangular pattern (no text or symbols)

Simple diagram showing a gray panel with four circular holes next to a row of black screw-like fixtures (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and a pull arrow indicator (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Four illustrated diagrams showing no smoking rules: no smoking, no smoking can be used, no smoking can be allowed, and no smoking can be accepted.

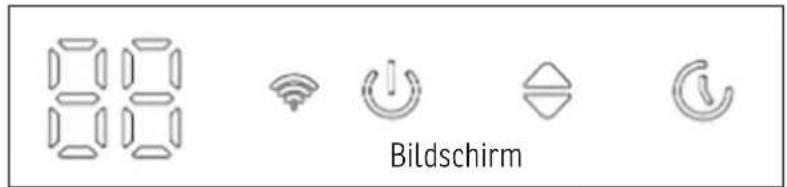

4. Bedienung

Hand inserting a button into a device panel (no text or symbols visible)

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Firma

Sonnenkönig of Switzerland

Industriering 9

D-86675 Buchdorf

Tel: [phone]

Festnetz 14 Cent/Minute

Exterior view of a portable heater with heat sink and grid lines (no text or symbols visible)

SOMMAIRE

Technical line drawing of a rectangular structure with internal grid pattern and side panel (no text or symbols)

Radiateur

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Accessoires Montage mural (1x)

Three identical mechanical fasteners or fasteners arranged horizontally (no text or symbols visible)

Two identical hexagonal bolt head diagrams shown side by side (no text or symbols)

Three identical screwdrivers arranged vertically (no text or symbols visible)

Vis st4x35 (3x)Chevilles (3x)

Two identical line drawings of a bent pipe fitting (no text or symbols)

Two identical L-shaped metal bars arranged vertically (no text or symbols)

Line drawing of a remote control tower with buttons and indicator lights (no text or symbols)

3. Montage

≥0.5m ≥0.5m ≥1.8m

Min 0.5M Min 0.5M Min 1.8M

FR

27 mm 40mm

Three identical cylindrical objects with circular ends, arranged in a triangular pattern (no text or symbols)

Simple diagram showing a gray panel with four circular holes next to a row of black screw-like fixtures (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and a pull arrow indicator (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and mounting bracket (no text or symbols)

Four illustrated diagrams showing no smoking rules: no smoking, no smoking can be used, no smoking can be allowed, and no smoking can be accepted.

FR

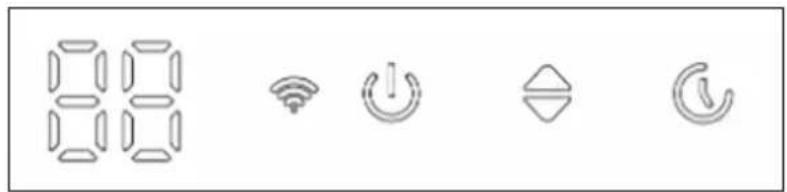

4. Opération

Illustration of a hand pressing a button on a device component (no text or symbols visible)

Image displaying six distinct icons: a battery, Wi-Fi, power, light bulb, and circular symbol.

CE-DÉCLARATION DE CONFORMITÉ

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Maison

Sonnenkönig of Switzerland

Industriering 9

D-86675 Buchdorf

Tel: [phone]

Close-up of a portable heater with heat source and control panel (no visible text or symbols)

INDICE

Technical line drawing of a rectangular structure with internal grid pattern and side panel (no text or symbols)

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Accessori Montaggio a parete (1x)

Three identical mechanical fasteners or fasteners arranged horizontally (no text or symbols visible)

Two identical L-shaped metal bars arranged vertically (no text or symbols)

Chiavi a brugola (2x)

Two identical hexagonal bolt head diagrams shown side by side (no text or symbols)

Viti a bullone m6x16 (2x)

Three identical screwdrivers arranged vertically (no text or symbols visible)

Viti st4x35 (3x)Tasselli (3x)

Two identical line drawings of a bent pipe fitting (no text or symbols)

Dadi ad alette m6 (2x)

Line drawing of a remote control tower with buttons and indicator lights (no text or symbols)

Telecomando

3. Montaggio

≥0.5m ≥0.5m ≥1.8m

Min 0.5M Min 0.5M Min 1.8M

27 mm 40mm

Three identical cylindrical objects with circular ends, arranged in a triangular pattern (no text or symbols)

Simple diagram showing a wall-mounted panel and a bracket with three bolts (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and a pull arrow (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and mounting bracket (no text or symbols)

Four illustrated diagrams showing no smoking rules: no smoking, no smoking can be used, no smoking can be allowed, and no smoking can be accepted.

IT

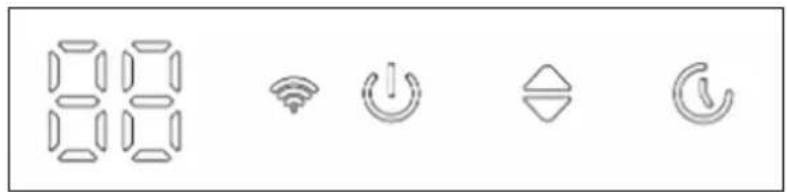

4. Funzionamento

IT

Illustration of a hand inserting a button into a device component (no text or symbols visible)

Image displaying six distinct icons: a battery, Wi-Fi, power, light bulb, and circular button.

Simple line drawing of a battery with three buttons and one terminal, no text or symbols present.

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Ditta

Sonnenkönig of Switzerland

Industriering 9

D-86675 Buchdorf

Tel: [phone]

Close-up of a portable heater with visible heat source and control panel (no text or symbols)

EN

INDEX

1. Safety instructions.... 36
2. Content of packing.... 38
3. Installation 38
4. Operation 41
5. Troubleshooting.... 42
6. Cleaning and maintenance 42
7. Warranty / Disposal / Technical change.... 43

1. Safety instructions

This product is only suitable for well insulated spaces or occasional use. Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected. Observing the following procedures will reduce the risk of fire, electric shock, injury to persons and keep installation time to a minimums. Save these instructions for future used.

1. Please read all instructions before using this device.
2. Do not leave this device unattended when using it.
3. This heater will get hot when in use. Do not touch hot surfaces.
4. Note: Some parts of this product may become very hot and cause burns. When children and vulnerable groups are present, special attention must be paid.
5. Do not move the device when using it. Before moving, please wait for the heater to cool completely, and check whether the heater has been unplugged from the power supply.
6. Place the device at least 1m away from highly flammable materials such as furniture, trees, leaves, hay and bushes.
7. The heater must be at least 1.8m above the ground and at least 0.5m above the building ceiling or hanging objects.
8. The heater must not face up, towards the ceiling. The heater element must face the area to be heated.
9. Warning: To avoid overheating, do not cover the heater. It's not for drying clothes.
10. Keep children and pets at a safe distance away from equipment.

11. Children aged 8 and above, as well as people with reduced physical, sensory or mental abilities or lack of experience and knowledge, can use this equipment, provided that they have received supervision or guidance on safe use of this equipment and know the dangers involved.

12. Children are not allowed to play with the equipment. Without supervision, children are not allowed to carry out cleaning and user maintenance.

13. If there are any signs of damage or malfunction, do not operate the heater.
14. Do not try to repair or adjust any electrical or mechanical functions on this device. The device does not contain any user-serviceable parts. Only qualified electricians can carry out maintenance or repair. Trying to repair the equipment yourself will void your warranty.
15. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similar qualified personnel to avoid danger.
16. Do not operate components with bare hands. If accidentally touched, use a soft cloth and methylated alcohol or alcohol to remove finger marks, otherwise these marks will burn into the components, resulting in premature failure of the heater.
17. Do not replace or attempt to replace the components in this product.
18. This product is suitable for indoor and outdoor use. Do not use this heater near the bathroom, shower or swimming pool.
19. This product must not be exposed outdoors for a long time.
20. Do not touch the plug with wet hands or wet hands.
21. Do not run the power cord under the carpet. Do not cover the power cord with carpet, slide or similar covering. Place the power cord away from pedestrians and where you won't trip.
22. Do not wrap the power cord around the equipment.
23. Do not insert or allow foreign objects into any ventilation or opening of the heater, as this may cause electric shock, fire or damage to the heater.
24. To prevent possible fire, don't block the vent.
25. There are heating and arc or spark parts inside the heater. Do not use it in areas where gasoline, paint, explosives and/or flammable liquids are used or stored. Keep the equipment away from heated surfaces and open flames.
26. Avoid using extension cords as much as possible, as this may overheat and cause a fire. However, if you have to use the extension cable, please make sure that it is suitable for the purpose, has been tested for outdoor use, and it is best to have RCD equipment installed or connected.
27. Always make sure that the heater is plugged into a suitable socket, which has been tested for outdoor use.
28. To disconnect the heater, turn off the controller and unplug it from the socket. Do not unplug the plug by pulling the power cord.
29. Before moving, cleaning or storing, always unplug the equipment to ensure that it is completely cooled.
30. This heater is for domestic use only and should not be used for commercial contract purposes. Any alternative use not recommended by the manufacturer may cause fire, electric shock or personal injury.
31. It is not recommended to use accessories on the heater.
32. Warning: This heater is not equipped with a device to control the room temperature. Unless there is continuous supervision, don't use this heater in a small room occupied by people who can't leave the room by themselves.
33. Before installing the heater, check the outer wall for damaged areas.
34. Always use on dry, properly firm, stable, flat and horizontal surfaces.
35. Check the communication, cable and pipeline of the external wall. If there are any service lines nearby, please don't install the heater and find another place to install this product.
36. Do not put it directly above or below the power outlet.
37. Do not remove any warning labels or signs from the product

2. Content of packing

Technical line drawing of a rectangular industrial or storage unit with internal grid structure (no text or symbols)

EN

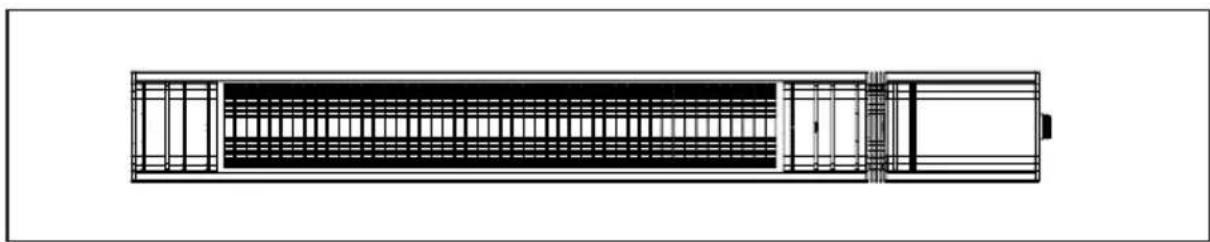

Heater

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Wall mounted bracket

Three identical mechanical fasteners or fasteners arranged in a row (no text or symbols visible)

anchors (3x)

Two identical hexagonal bolt head diagrams shown side by side (no text or symbols)

Hexagon head screws m6x16 (2x)

Three identical screwdrivers arranged vertically (no text or symbols visible)

Screws st4x35 (3x) Plastic expansion

Two identical line drawings of a bent pipe fitting (no text or symbols)

Wing nuts m6 (2x) Hex key (2x) Remote control

Two identical L-shaped metal bars arranged vertically (no text or symbols)

Line drawing of a remote control device with buttons and ports (no text or symbols)

3. Installation

Before the installation, these matters need to attention

1. Products should be put down gently
2. Acid and alkali environment installation is not recommended.
3. The product must be grounding
4. The products are required to check the product brand mark on the voltage and the local voltage whether conform.
5. Ensure the power rating should have sufficient current carrying capacity.

Ensure the production's installation site

For the safe use of the product, the product installation position should

guarantee the bottom minimum height of 1.8 m from the ground, ceiling, roof, or other coverings minimum distance is 0.5 m, minimum distance with both sides wall is 0.5 m

≥0.5m ≥0.5m ≥1.8m

Min 0.5M Min 0.5M Min 1.6M

Installation steps

According to the product

EN

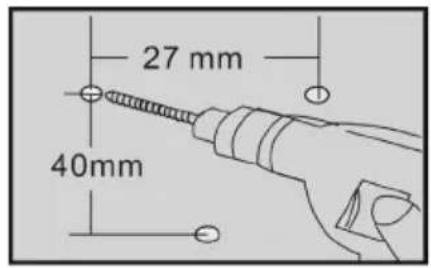

1. installation location, use percussion drilling to make three diameter 8 mm round holes.

2. Insert the three plastic wall anchors to the three holes.

3. Fixed the bracket by three ST4*35 screws and make sure the installation points fixed securely.

4. Before fixed the heater, make sure the rocker power switch on the right side and then fixed the bracket and heater by two M6*14 screws and butterfly nuts.

5. The inner agon nut on the holder can be used to adjust the angle of the product.

27 mm 40mm

Three identical cylindrical objects with circular ends, arranged in a triangular pattern (no text or symbols)

Simple diagram showing a wall-mounted panel and a bracket with three bolts (no text or symbols)

Technical line drawing of a metal bracket with mounting holes and a pull-up force indicator (no text or symbols)

Technical line drawing of a mechanical component with a circular feature and mounting bracket (no text or symbols)

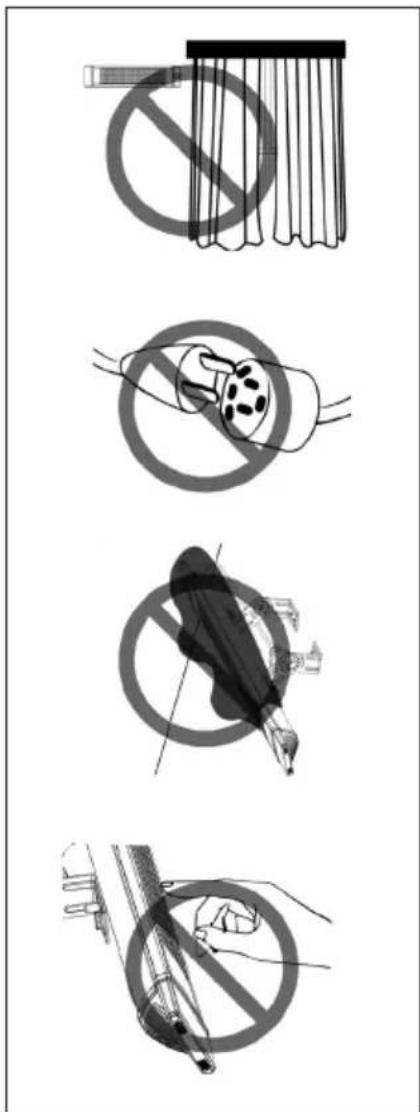

ATTENTION: Always keep curtains and combustible materials at least 0.9 m away from the heater.

CAUTION: Do not use adapters or cable extensions.

CAUTION: Do not cover with cloths or flammable materials.

CAUTION: Do not touch, very hot surface. Allow to cool for at least 5 min.

Four illustrated safety symbols with Chinese labels: no smoking, no smoking can, no smoking pen, and no smoking pencil.

EN

4. Operation

EN

1. PLUG the unit into a plug socket, make sure the power supply is the same as rated.
2. PRESS the power button on the right side of heater.
3. TURN ON the heater by remote control, or off the heater.
4. DOWN & UP BUTTON, setting the power level.

Hand holding a button on a device panel (no text or symbols visible)

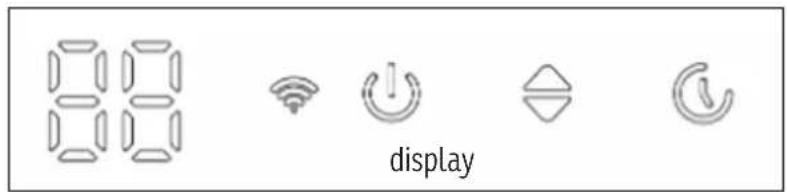

88 display

Basic operation: touch 🎨 can activate the host, the digital screen display P0, ⇌ light, touch ⇌ can adjust the gear, a total of P0-P9 file, the host work will light up, touch the digital screen 00 flashing, touch at this time can set the timing time 0-24 hours, √ flashing after the activation timing. Press long for 3 seconds to clear the timing.

When working, the touch can go directly into the standby machine.

- ⏻ + 1 ⏻ remote

Remote control operation: the basic operation method, remote control + - can be operation.

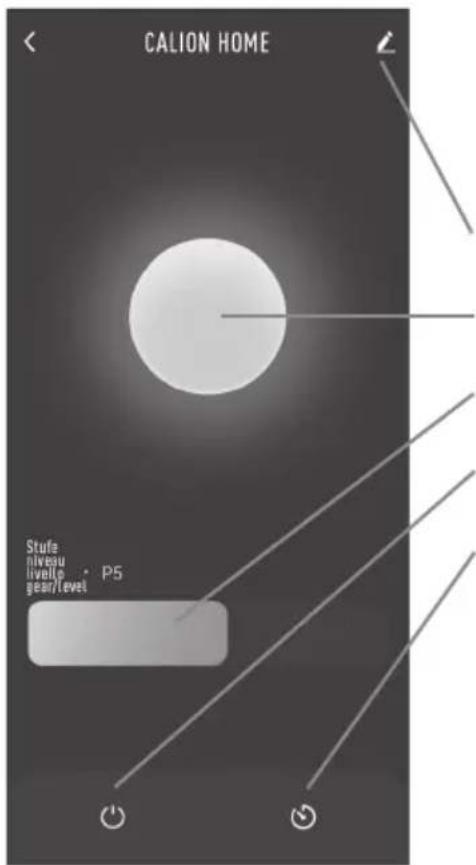

CALION HOME Stufa niveau livello gear/level PS

WiFi operation: the WiFi light will flash, indicating that the WiFi is not connected, to be connected. Connection method: enter REMOTE APP, enter the local WiFi account password, and search to add device. Bright light after the connection.

The name can be customized

Tap the circle key to adjust the gear position

The gear slider can drag to adjust the gear

Switch button on the left

Right timing button

Reset WiFi method: long button for 5 seconds.

5. Troubleshooting

1. If heater will not power cord is plugged into an electrical outlet, if not, plug in.
2. Check if electricity to the main fuse is working.
3. Check to see it the thermostat knob to the ON position.
4. Check the thermostat setting, The heater may be off because it has reached the desired temperature setting.
5. The error code is shown on the display

E1 Error on the display: Control unit overheated. Check the installation distances, cool down the heater after 1 hour and restart.
E2 Error on display: Tilt function, let heater cool down to less than 60° and restart.
L1, L2 is shown in the display, but no bulb is damaged. Get a replacement bulb from your local dealer.

6. Cleaning and maintenance

Attention! It is necessary to regularly and carefully maintain the infrared heater to realize the long-term and efficient operation of the equipment.

Check the cleanliness of reflector and infrared filament at least once a month. If necessary, apply cleaning and maintenance instructions.

Considering the amount of dust in the environment, the number of inspections can be increased.

When cleaning the equipment, visually inspect the deformation of mirrors, wires and frames. If there is any deformation, please consult a qualified technician.

When cleaning the equipment, visually check the power cord and plug. If there is any deformation, please consult a qualified technician.

It is recommended to replace the reflector every two years to improve the working efficiency.

clean

Attention! Regular cleaning will help your heater run longer and more efficiently.

Before cleaning the equipment, unplug the power cord to ensure safety.

Use a flat-blade screwdriver to take out the front grille line through the entrance on the frame.

For your safety, please make sure the power is turned off. The power plug must be unplugged.

The reflector and filament must be cleaned with a soft cloth, a smooth brush or cold or dry air. The cloth may be wet, but don't be too wet. The detergent should not contain any chemicals.

Avoid using cleaning materials that may damage the reflector (detergent, etc.).

7. Warranty / Disposal / Technical change

EN

WARRANTY

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

DISPOSAL

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

TECHNICAL CHANGES

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please save the packaging materials of the unit.

CE DECLARATION OF CONFORMITY

This device complies with the following standards

EMC EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

LVD EN60335-2-30:2009 + A11:2012+A1:2020 + A12:2020 + A2:2022+A13:2022

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021 + A16:2023

EN 62233:2008

AfPS GS 2019:01 PAK, EK1 309-06, EK1 527-12 Rev.2

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel. Nat. 0848870850

www.sonnenkoenig.ch

Company

Sonnenkönig of Switzerland

Industriering 9

D-86675 Buchdorf

Tel: [phone]
