USER MANUAL Max Power RY36BLB RYOBI

Close-up of a black cylindrical object against a textured gray background with diagonal stripes (no text or symbols visible)

Close-up of a RYOB1 robotic device with a handle and lever, against a striped background (no visible text or symbols on the device itself)

MAX POWER

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR EL

RY36BLB

Important!	It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E' importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operaarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminj, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montázou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımini yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.
Проσοχή!	Eïvai полú σημαντικό να διαβάσετε τις οδηγίες στο παρόν εγχειρίδιο πριν συναρμολογήσετε, συντηρήσετε ή λειτουργήσετε το προϊόν.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A műszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є об'єктом для технічних змін | Teknik değişikliğe tabidir | техvików тропотоїσεων.

EN ORIGINAL INSTRUCTIONS

Safety, performance, and dependability have been given top priority in the design of your cordless blower.

INTENDED USE

The cordless blower is intended only for outdoor use in dry and well-illuminated conditions.

The product is not intended to be used by children or persons with reduced physical, mental, or sensory capabilities.

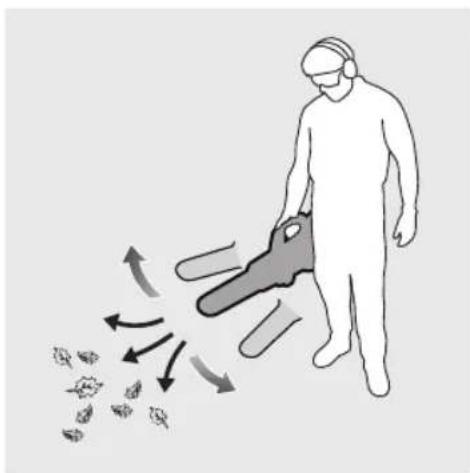

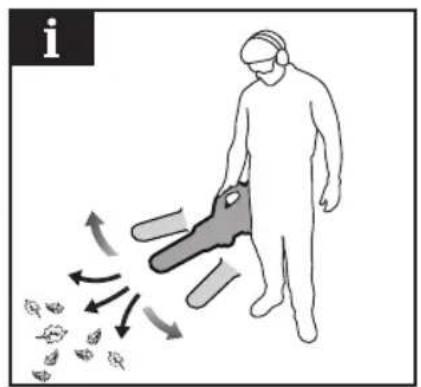

The product is designed for blowing light debris, such as leaves, grass, and other garden refuse.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

⚠ WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fi re, and/or serious injury. Save all warnings and instructions for future reference.

⚠ WARNING! Never allow children or people who are unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator.

TRAINING

• Read the instructions carefully. Be familiar with the controls and the correct use of the product.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
  ■ Do not use the product while tired, ill, or under the influence of drugs, alcohol, or medication.

PREPARATION

■ Some regions have regulations that restrict the use of the product to some operations. Check with your local authority for advice.
■ Wear hearing protection at all times while operating the product. The product

is noisy, and not strictly adhering to precautions to limit your exposure and to reduce noise may result to permanent hearing injury.

■ Wear full eye protection at all times while operating the product. Wear a full face mask or fully enclosed goggles. Normal spectacles or sunglasses are not adequate protection. Objects can be thrown at high speed by the powerful air jet at any time and may rebound from hard surfaces toward the operator.
■ While operating the product, always wear substantial footwear and long trousers. Do not operate the product when barefoot or wearing open sandals. Avoid wearing clothing with loose fitting or that has hanging cords or ties.
- Do not wear loose clothing or jewellery that can be drawn into the air inlet. Secure long hair so it is above shoulder level to prevent entanglement in moving parts.
■ Before each use, ensure that all controls and safety devices function correctly. Do not use the product if the off switch does not stop the product.
- Operate the product in the recommended position and only on a firm and level surface.
- Do not operate the product on a paved or gravel surface where ejected material could cause injury.
■ Before each use, always inspect the housing for damage. Ensure that guards and handles are in place and properly secured. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.
■ Never operate the product while people, especially children, or pets are nearby.
- Keep all cooling air inlets clear of debris.
■ Use rakes and brooms to loosen debris before blowing.
- Clear the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string that can be

blown a considerable distance by high velocity air.

■ Injuries may be caused or aggravated by prolonged use of a tool. When using any tool for prolonged periods, ensure you take regular breaks.

BATTERY TOOL USE AND CARE

■ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

■ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

■ When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause burns or a fire.

■ Under abusive conditions, liquid may be ejected from the battery pack; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery pack may cause irritation or burns.

■ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.

■ Do not expose a battery pack or tool to fire or excessive temperatures. Exposure to fire or excessive temperature above 130 °C may cause explosion.

■ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

OPERATION

■ Operate the product only at reasonable hours—not early in the morning or late at night when people might be disturbed.

■ Never operate the product in an explosive atmosphere.

■ Avoid using the product in bad weather conditions, especially when there is a risk of lightning.

- Keep bystanders, children, and pets 15 m away from the area of operation. Stop the product if anyone enters the area.

■ Do not operate the product in poor lighting. The operator requires a clear view of the work area to identify potential hazards.

■ Operating similar tools nearby increases both the risk of hearing injury and the potential for other persons to enter your working area.

■ Always be sure of your footing on slopes. Walk, never run.

- Keep proper footing and balance. Do not overreach. Overreaching can result in loss of balance.

■ Never use the product with defective guards or shields, or without safety devices in place.

■ To reduce the risk of injury associated with contacting rotating parts, always turn off the product and remove the battery pack. Make sure that all moving parts have come to a complete stop:

• before leaving the product unattended

• before clearing blockages

- before checking, cleaning, or working on the product

- before inspecting the product after striking a foreign object

- whenever the product starts to vibrate abnormally (inspect immediately)

■ Immediately turn off the product and remove the battery pack in the event of an accident or a breakdown. Do not operate the product again until it has been fully checked by an authorised service centre.

■ Do not modify the product in any way or use parts and accessories that are not recommended by the manufacturer.
If the product is dropped, suffers heavy impact, or begins to vibrate abnormally, immediately stop the product and inspect for damage or identify the cause of the vibration. Any damage should be properly repaired or replaced by an authorised service centre.

⚠ WARNING! The product may be supplied with a harness. Carefully adjust the harness to comfortably help you in supporting the weight of the product.

Identify the quick-release mechanism and practice using it before you start using the product. Its correct use may prevent serious injury in the case of an emergency. Never wear additional clothing over the harness or otherwise restrict access to the quick-release mechanism.

BLOWER SAFETY WARNINGS

■Wear a face filter mask in dusty conditions to reduce the risk of injury associated with the inhalation of dust.
■ Slightly dampen surfaces in dusty conditions.
■ Do not use the product near open windows.

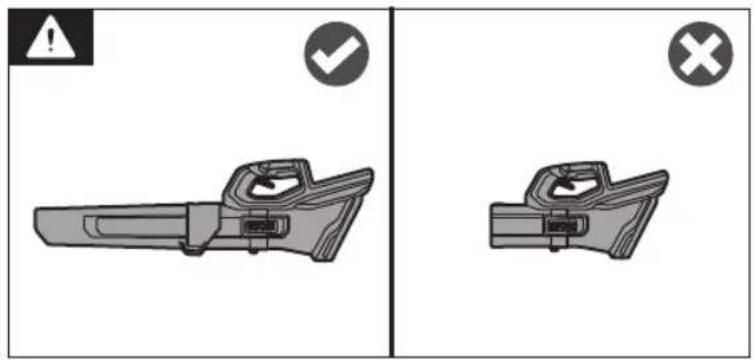

■ Use the full blower nozzle extension so that the air stream can work close to the ground and perform effectively.
■ Do not point the blower nozzle in the direction of people or pets.
■ Never place objects inside the blower tubes.
- Do not place the product on top of or near loose debris. Debris can be sucked into the intake vent, resulting in possible damage to the product.

ADDITIONAL BATTERY SAFETY WARNINGS

To reduce the risk of fi re, personal injury, and product damage due to a short circuit, never immerse the product, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.

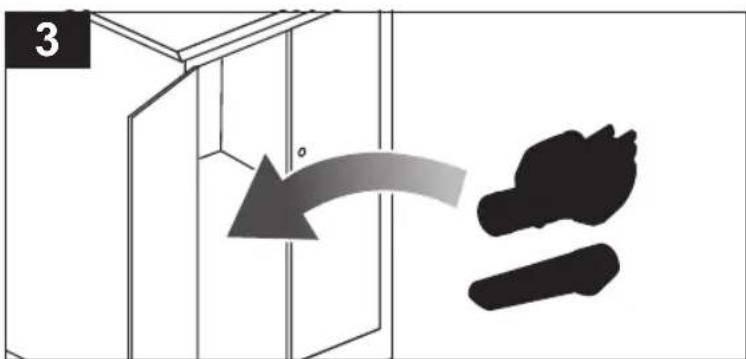

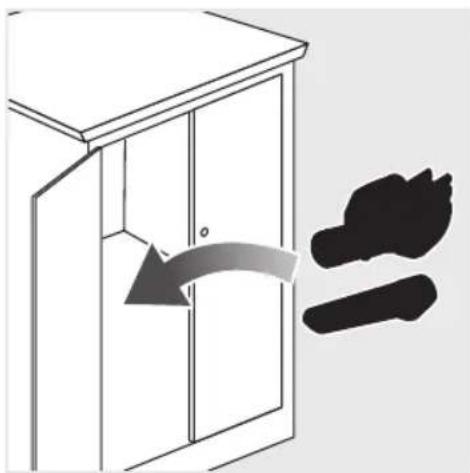

TRANSPORTATION AND STORAGE

■ Turn off the product, remove the battery pack, and allow it to cool down before storing or transporting.
■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents, such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in a vehicle, secure the product against movement or falling to prevent injury to persons or damage to the product.

TRANSPORTING LITHIUM BATTERIES

Transport the battery pack in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport battery packs that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
- Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition. Any

part that is damaged should be properly repaired or replaced by an authorised service centre.

■ Bring the product to an authorised service centre to replace damaged or unreadable labels.
■ You may make adjustments or repairs that are described in this manual. For other repairs, contact an authorised service centre.

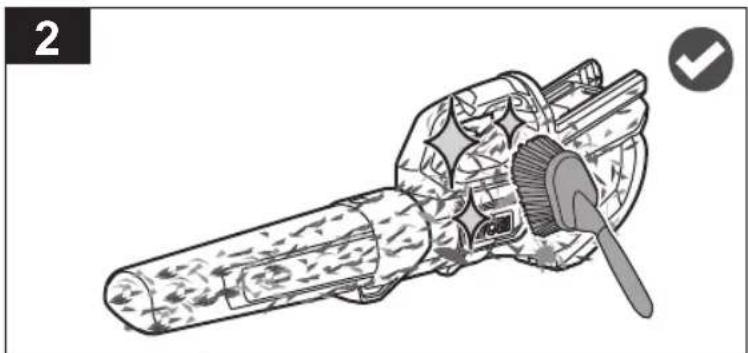

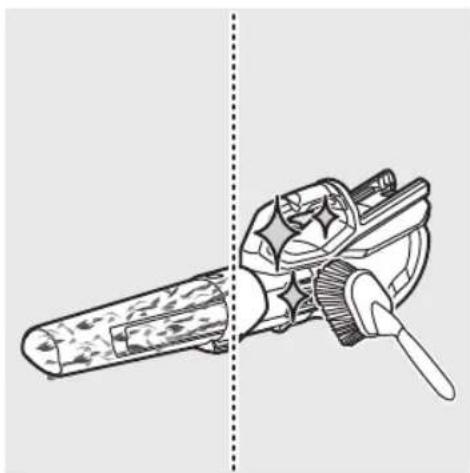

■ After each use, clean the product with a soft, dry cloth.

CLEARING A BLOCKAGE

■ To reduce the risk of injury associated with contacting moving parts, always turn off the product, remove the battery pack, and make sure that all moving parts have come to a complete stop.

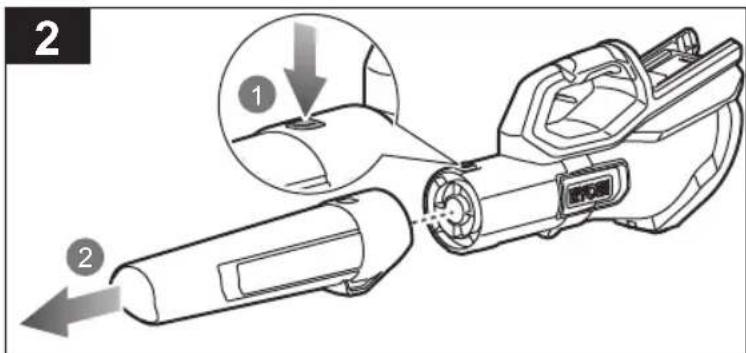

■ Remove the blower tubes to inspect for blockage. Clear the tubes if required.
■ Reinstall the blower tubes before starting the product.

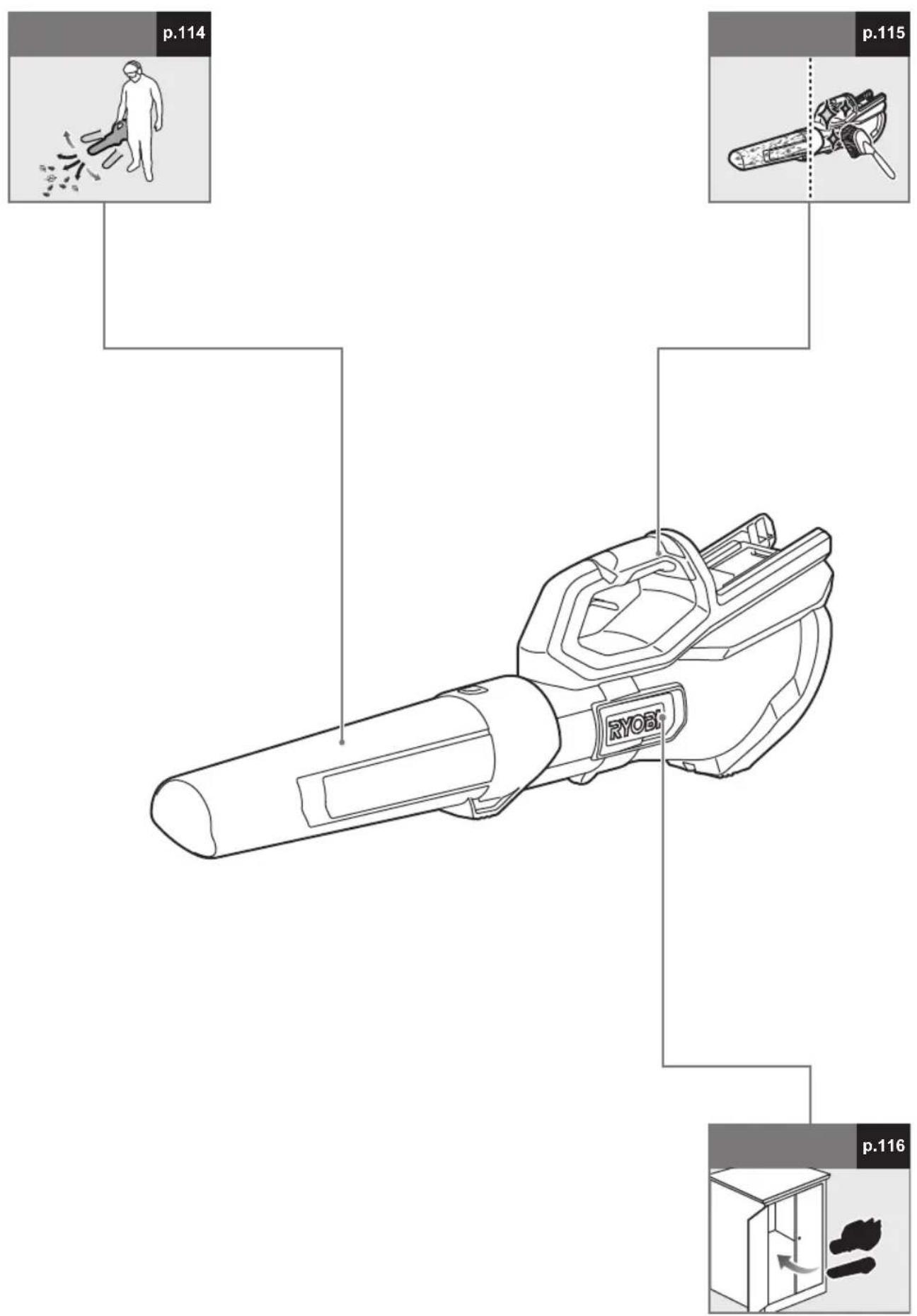

KNOW YOUR PRODUCT

See page 111.

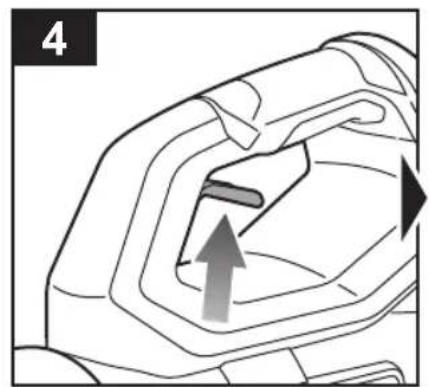

1. On/Off trigger
2. Handle
3. Battery port
4. Latch
5. Blower tube
6. Operator's manual
7. Battery pack
8. Charger

SYMBOLS

Safety alert

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear eye and ear protection.

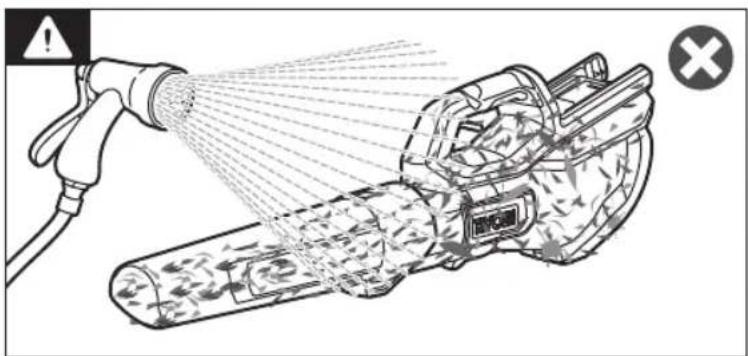

Do not expose the product to rain or damp conditions.

Rotating fans. Keep hands and feet out of openings while the product is running.

Keep all bystanders, especially children and pets, a safe distance away from the operating area.

Guaranteed sound power level

Do not dispose of waste batteries, waste electrical and electronic equipment as unsorted municipal waste. Waste batteries and waste electrical and electronic equipment must be collected separately. Waste batteries, waste accumulators, and light sources have to be removed from the equipment. Check with your local authority or retailer for recycling advice and collection point. According to local regulations, retailers may have an obligation to take back waste batteries and waste electrical and electronic equipment free of charge. Your contribution to the reuse and recycling of waste batteries and waste electrical and electronic equipment helps to reduce the demand of raw materials. Waste batteries, in particular containing lithium, and waste electrical and electronic equipment contain valuable and recyclable materials, which can adversely impact the environment and the human health if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

FR TRADUCTION DE LA NOTICE ORIGINALE

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 111.

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

EXTRA VEILIGHEIDSWAARSCHUWINGEN ACCU

TRANSPORT OCH FÖRVARING

KJENN PRODUKTET DITT

Se side 111.

SUSIPAŽINKITE SU JRENGINIU

Žr. 111 psl.

1. Ijungimo/išjungimo spragtukas
2. Rankena
3. Baterijos jungtis
4. Fiksatorius
5. Nupūtimo vamzdis
6. Naudojimo instrukcija
7. Baterija
8. Ikroviklis

ŽENKLAI

ETTEVALMISTUSTOIMINGUD

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 111.

Diagram showing two types of cleaning tools with warning symbols and check/cancel icons

3

4

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

i

p.114 p.115 RYOB® p.116

Illustration of a person in protective gear emitting a chainsaw with arrows indicating airflow (no text or symbols)

Diagram showing two types of hand tools with warning symbols: one with a checkmark and another with an 'X' symbol.

1

2 i

Technical illustration of a mechanical tool with a dashed alignment line (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating assembly or movement

Illustration of a mechanical device with a brush and handle, no text or symbols present

Diagram illustrating a spray gun spraying water onto a mechanical device with warning symbols

Diagram showing a door with a curved arrow indicating rotation, alongside two black silhouettes of a bag (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating movement or assembly steps

Diagram illustrating a device's internal components with numbered annotations and directional arrows indicating movement or assembly.

3

English Français Deutsch Español Italiano Nederlands Português

Product specifications	Caractéristiques produit	Produkt-Spezifikationen	Características del producto	Caratteristiche del prodotto	Productgegevens Características do aparelho
Cordless blower	Souffleur sans fil	Akku-Laubgebläse	Soplador inalámbrico	Soffiatore senza fili	Snoerloze bladblazer
Model	Modèle	Modell	Modelo	Modello	Modelo
Rated voltage	Tension nominale	Nennspannung	Tensión nominal	Voltaggio nominale	Toegekende spanning
Air velocity	Vitesse du flux d'air	Luftgeschwindigkeit	Velocidad del aire	Velocità aria	Luchtsnelheid
Air volume	Volume d'air	Luftvolumen	Volumen del aire	Volume aria	Luchtvolume
Blowing force	Puissance de soufflage	Blasleistung	Fuerza de soplado	Forza di soffiaggio	Blaaskracht
Weight	Poids	Gewicht	Peso	Peso	Gewicht
Without battery pack	sans batterie	ohne Akkupack	sin batería	senza pacco batteria	zonder accu
With heaviest battery pack	avec la batterie la plus grosse	mit größtem Akkupack	Con la batería más pesada	con le batterie più pesanti	met zwaarste batterij
Vibration level (in accordance with Annex BB of EN 50636-2-100:2014)	Niveau de vibration (selon l'Annexe BB de la norme EN 50636-2-100:2014)	Vibrationsgrad (gemäß Anhang BB von EN 50636-2-100:2014)	Nivel de vibración (de acuerdo con el Anexo BB de EN 50636-2-100:2014)	Livello vibrazioni (secondo quanto disposto dall'Allegato BB della Direttiva EN 50636-2-100:2014)	Trillingsniveau (in overeenstemming met bijlage BB van EN 50636-2-100:2014)
Vibration level a_h	Niveau de vibrations a_h	Vibrationsgrad a_h	Nivel de vibración a_h	Livello di vibrazioni a_h	Trillingsniveau a_h
Uncertainty of measurement K	Incertitude de la mesure K	Unsicherheit der Messung K	Incertidumbre de medición K	Incertezza delle misurazioni K	Onzekerheid bij meting K
Noise emission level (in accordance with Annex CC of EN 50636-2-100:2014)	Niveau d'émission sonore (selon l'Annexe CC de la norme EN 50636-2-100:2014)	Geräuschemission (gemäß Anhang CC von EN 50636-2-100:2014)	Nivel de emisión de ruido (de acuerdo con el Anexo CC de EN 50636-2-100:2014)	Livello di emissione rumore (secondo quanto disposto dall'Allegato CC della Direttiva EN 50636-2-100:2014)	Geluidsemissieniveau (in overeenstemming met bijlage CC van EN 50636-2-100:2014)
A-weighted sound pressure level at operator's position L_ A	Niveau de pression sonore pondéré A au niveau de l'opérateur L_ A	A-bewerteter Schalldruckpegel an der Position des Anwenders L_ A	Nivel de presión sonora ponderado A en la posición del operario L_ A	Livello di pressione sonora pesato A alla posizione dell'operatore L_ A	A-gewogen geluidsdrukniveau op de plaats van de bediener L_ A
Uncertainty of measurement K_ A	Incertitude de la mesure K_ A	Unsicherheit der Messung K_ A	Incertidumbre de medición K_ A	Incertezza delle misurazioni K_ A	Onzekerheid bij meting K_ A
A-weighted sound power level L_WA	Niveau de puissance sonore pondéré A L_WA	A-bewerteter Schalleistungspegel L_WA	Nivel de potencia acústica ponderada en A L_WA	Livello di potenza sonora pesato A L_WA	A-gewogen geluidsniveau L_WA
Uncertainty of measurement K_WA	Incertitude de la mesure K_WA	Unsicherheit der Messung K_WA	Incertidumbre de medición K_WA	Incertezza delle misurazioni K_WA	Onzekerheid bij meting K_WA
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de bateria compatibles	Gruppo batterie compatibili	Compatibele accupacks
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile	Compatibele oplader

Dansk Svenska Suomi Norsk Русский Polski

Produktspecifikationer	Produktspecifikationer	Tuotteen teknisettiedot	Produktspesifikasjoner	Характеристикиизделия	Parametry techniczne
Ledningsfri blæser	Sladdlös blåsmaskin	Langaton lehtipuhallin	Batteridrevet blåser	Беспроводнаявоздуходувка	Dmuchawabezprzewodowa
Model	Modell	Malli	Modell	Модель	Model	RY36BLB
Mærkespænding	Spänning	Nimellisjännite	Nominell spenning	Номинальноенапряжение	Napięcie znamionowe	36 V d.c.
Lufthastighed	Luftflöde	Ilman nopeus	Lufthastighet	Скорость воздушногопотока	Prędkość powietrza	193 km/h
Luftvolumen	Luftvolym	Ilmamäärä	Luftvolum	Объем воздуха	Objętość powietrza	15,73 m3/min (550 CFM)
Blæsekraft	Blåskraft	Puhallusteho	Blåseeffekt	Сила воздушногопотока	Siła nadmuchu	15 N
Vægt	Vikt	Paino	Vekt	Вес	Masa
uden batteri	utan batteripaket	ilman akkua	uten batteripakke	без аккумуляторногоблока	bez akumulatora	2,65 kg
med tungesle batteri	med tyngsta batteriet	painavimmalla akulla	med det kraftigstebatteriet	с самой тяжелойбатареей	z najcięższymakumulatorem	5,3 kg
Vibrationsniveau (iht.bilag BB til EN 50636-2-100:2014)	Vibrationsnivá (enligtAnnex BB i EN 50636-2-100:2014)	Tärinätaso (standardinEN 50636-2-100:2014liitteen BB mukaisesti)	Vibrasjonsnivá (iht.tillegg BB i EN 50636-2-100:2014)	Уровень вибрации(в соответствии сПриложением ВВстандарта EN 50636-2-100:2014)	Poziom wibracji(zgodnie z aneksemBB normy EN 50636-2-100:2014)
Vibrationsniveau a_n	Vibrationsnivá a_n	Tärinätaso a_n	Vibrasjonsnivá a_n	Уровень вибрации a_n	Poziom drgań a_n	2,8 m/s ^2
Målingsusikkerhed K	Osäkerhet för mätt K	Mittaustenepåtarkkuus K	Usikkerhet vedmåling K	Погрешностьизмерения K	Niepewnośćpomiaru K	1,5 m/s ^2
Støjemissionsniveau(iht. bilag CC til EN50636-2-100:2014)	Bullerutsläppsnivá(enligt Annex CC i EN50636-2-100:2014)	Melutaso (standardinEN 50636-2-100:2014liitteen CC mukaisesti)	Støyutslipsnivá (iht.tillegg CC i EN 50636-2-100:2014)	Уровень шума (всоответствии сПриложением ССстандарта EN 50636-2-100:2014)	Poziom emisji hałasu(zgodnie z aneksemCC normy EN 50636-2-100:2014)
A-vægtet lydtryksniveauved operatørensposition L_WA	A-viktad ljudtrycksnivávid operatörsplats L_WA	A-painotettukäyttäjään kohdistuvaäänenpainetaso L_WA	A-vektet lydtrykk vedoperatørposisjon L_WA	Амплитудновзвешенный уровеньзвукового давленияна рабочем местеоператора L_WA	Poziom ważonegociśnienia akustycznegow pozycji operatora L_WA	79,1 dB(A)
Målingsusikkerhed K_WA	Osäkerhet för mätt K_WA	Mittaustenepåtarkkuus K_WA	Usikkerhet vedmåling K_WA	Погрешностьизмерения K_WA	Niepewność pomiaru K_WA	3,0 dB
A-vægtetlydeffektniveau L_WA	A-vägd ljudeffektsnivá L_WA	A-painotettu äänenteho L_WA	A-vektet lydeffektnivá L_WA	Уровень A-взвешеннойзвуковой мощности L_WA	A-ważony poziom mocyakustycznej L_WA	94,4 dB(A)
Målingsusikkerhed K_WA	Osäkerhet för mätt K_WA	Mittaustenepåtarkkuus K_WA	Usikkerhet vedmåling K_WA	Погрешностьизмерения K_WA		1,4 dB
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	96 dB(A)
Kompatible batterier	Kompatibla batteripaket	Yhteensopivat akut	Kompatiblebatteripakker	Совместимаяаккумуляторнаябатарея	Pasujace akumulatory	BPL36..., RY36B..RY36BP3PA
Kompatibel oplader	Kompatibel laddare	Yhteensopiva laturi	Kompatibel lader	Совместимоезарядное устройство	Zgodna ładowarka	RY36C..

Čeština	Magyar	Română	Latviski	Lietuviškai	Eesti	Hrvatski
Technické údaje produktu	Termék můszaki adatai	Specificațiile produsului	Produkta specifikácijas	Gaminio techninės savybės	Toote tehnilised andmed	Specifikacije proizvoda
Akumulátorový fukar Akkumulátoros lombfúvó		Suflantă fără fir Akumulatoru pūtėjs Akumuliatorinis		pūstuvas	Juhtmeta puhur Akumulatorska puhalica
Model Tipus Model Modelis	Modelis	Model	Model
Jmenovité napětí	Névleges feszültség	Tensiunea nominală	Nominálais spriegums	Nominali įtampa	Nimipinge	Nazivni napon
Rychlost vzduchu	Levegő sebessége	Viteză aer	Gaisa pārvielošanās	Oro greitis	Õhu kiirus	Brzina zraka
Objem vzduchu	Levegötér fogat	Volum aer	Gaisa apjoms	Oro kiekis	Õhu vooluhulk	Količina zraka
Foukací sila	Fúvóerő	Fortă de suflare	Pūšanas spēks	Pūtimo galia	Puhumisjõud	Snaga puhanja
Hmotnost	Súly	Greutate	Svars	Svoris	Kaal	Težina
bez akumulátoru	akkumulátor nélkül	fără acumulator	bez akumulatoru bloka	be akumuliatoriaus	ilma akuta	bez baterijskog sklopa
s nejtěžší baterií	a legnehezebb akkuhsomaggal	cu cea mai grea baterie	ar smagāko bateriju	su sunkiausia baterija	kõige võimsama akuga	s najvećom baterijom
Úroveň vibrací (v souladu s přílohou BB normy EN 50636-2-100:2014)	Vibrációs szint (az EN 50636-2-100:2014 BB függeléke szerint)	Nivel de vibrație (în conformitate cu Anexa BB a EN 50636-2-100:2014)	Vibrácijas līmenis (saskaņa ar direktivas EN 50636-2-100:2014 BB pielikumu)	Vibracijos lygis (pagal EN 50636-2-100:2014 standarto BB priedą)	Vibratsioonitase (vastavalt standardi EN 50636-2-100:2014 lisale BB)	Razina vibracija (u skladu s Dodatkom BB EN 50636-2-100:2014)
Úroveň vibrací a_h	Vibrációszint a_h	Nivelul vibrațiilor a_h	Vibrácijas līmenis a_h	Vibracijos lygis a_h	Vibratsioonitase a_h	Razina vibracije a_h
Nejistota měření K	Mérés bizonytalansága K	Nesiguranța măsurătorii K	Mērījuma nenoteiktība K	Matavimo paklaida KM	Mõõtmismääramatus K	Neodređenost mjerenja K
Hladina emise hluku (v souladu s přílohou CC normy EN 50636-2-100:2014)	Hangkibocsátási szint (az EN 50636-2-100:2014 CC függeléke szerint)	Nivel emisie zgomot (în conformitate cu Anexa CC a EN 50636-2-100:2014)	Troksņu emisijas līmenis (saskaņa ar direktivas EN 50636-2-100:2014 CC pielikumu)	Skleidžiamo triukšmo lygis (pagal EN 50636-2-100:2014 standarto CC priedą)	Helivõimsuse tase (vastavalt standardi EN 50636-2-100:2014 lisale CC)	Razina emisija buke (u skladu s Dodatkom CC EN 50636-2-100:2014)
Hladina akustického tlaku vážená funkcí A v poloze obsluhy L_pA	A-súlyozott hangnyomásszint a kezelő helyén L_pA	Valoare A nivel presiune zgomot la poziția operatorului L_pA	A-novērtėjuma skanas spiediena līmenis operatora darba vietă L_pA	A dažninės charakteristikos garso slėgio lygis operatoriaus vietoje L_pA	A-kaalutud helirõhu tase operaatori töökohal L_pA	A-ponderirana razina zvučnog tlaka u položaju operatera L_pA
Nejistota měření K_pA	Mérės bizonytalansága K_pA	Nesiguranța măsurătorii K_pA	Mērījuma nenoteiktība K_pA	Matavimo paklaida K_pA	Mõõtmismääramatus K_pA	Neodređenost mjerenja K_pA
Hladina akustického výkonu vážená funkcí A L_WA	A-súlyozott hangteljesítményszint L_WA	Nivel de putere acustică ponderată A L_WA	A-llmeņa skanas jaudas līmenis L_WA	A-svertinis akustinis lygis L_WA	A-kaalutud helivõimsuse tase L_WA	Ponderirana razina zvučne snage L_WA
Nejistota měření K_WA	Mérės bizonytalansága K_WA	Nesiguranța măsurătorii K_WA	Mērījuma nenoteiktība K_WA	Matavimo paklaida K_WA	Mõõtmismääramatus K_WA	Neodređenost mjerenja K_WA
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_ WA + K_WA
Kompatibilní akumulátory	Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	Ühilduvad akupaketid	Kompatibilna pakiranja baterija
Kompatibilní nabiječka	Kompatibilis töltő	Încărcător compatibil	Saderlgs lădētăjs	Suderinamas jkroviklis	Ühilduv laadija	Kompatibilni punjači

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights arising from the purchase of a product and without prejudice on the statutory rights which apply independently and free of charge, all new RYOBI branded power tools and/or garden tools listed on our website, excluding tool accessories, tool storage systems, and spare parts, as further outlined under ("Product"), are covered by a voluntary guarantee issued by Techtronic Industries GmbH ("TTI") subject to the terms and conditions as stated below ("Guarantee").

The Guarantee is only applicable to purchaser(s) who purchase the products as end users in their capacity as consumers ("Consumer"). Retailers, rental companies, as well as professional end users are expressly excluded from these general terms and conditions of the Guarantee. For professional end users, a different type of voluntary guarantee may be applicable to certain product(s), if explicitly provided on the www.robitools.eu website. The invocation of this voluntary Guarantee does not limit the statutory legal rights of the Consumer in case of a defect.

1. The standard guarantee ("Standard Guarantee"), provided that the Product is purchased for private use only, has a term of 24 months ("Standard Guarantee Period") and commences on the date the product was purchased. This date must be documented by an invoice or other proof of purchase in order for the Standard Guarantee to be valid and enforceable. This Standard Guarantee also only applies to new Product(s).
2. Consumers in certain countries may be able to extend the Standard Guarantee for eligible Products beyond the period of the Standard Guarantee by registering on the www.ryobitools.eu website. The eligibility of Products for the extended guarantee ("Extended Guarantee") is specified on the packaging of a Product, on the website at www.ryobitools.eu, and/or is contained within the relevant Product documentation under https://www.ryobitools.eu/. In order to benefit from the Extended Guarantee, Consumers are required to register their Product(s) online within 30 calendar days from the date of purchase to benefit from this Extended Guarantee. All personal information of a Consumer will be processed in accordance with the privacy statement, which can be found here https://uk.ryobitools.eu/footer-links/privacy-policy/. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the Extended Guarantee.
3. The Standard Guarantee and the Extended Guarantee ("Guarantees") are limited to repair and/or replacement of the defective Product at the discretion of TTI provided that the defect in workmanship or material existed at the date of purchase. No further costs or losses can be claimed. In addition, the Guarantees do not apply to:

— any damage caused accidentally, wilfully, or negligently by the Consumer

— any damage to the Product that is the result of improper treatment or lack of maintenance
– any Product that has been altered or modified
– any Product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual

– Products, which are not subject to a CE/UKCA marking

• any Product that has been attempted to be repaired by a non-authorised service centre or without prior authorisation by TTI
  — any Product connected to improper power supply (amps, voltage, frequency)
  — any Product used with inappropriate fuel mixture (fuel, oil, ratio of oil)
• any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
• normal wear and tear of spare parts

– inappropriate use, overloading of the Product(s)

- use of non-approved accessories or parts

— power tool accessories provided with the tool or purchased separately. Such exclusions including but not limited to screw driver bits, drill bits, abrasive discs, sand paper and blades, lateral guide
- components (parts and accessories) which are subject to normal wear and tear, including but not limited to service and maintenance kits, carbon brushes, bearings, chuck, SDS drill bit attachment or reception, power cord, auxiliary handle, transport carry case, sanding plate, dust bag, dust exhaust tube, felt washers, impact wrench pins and springs, bump knobs, drive belts, clutch, blades of hedge trimmers or lawnmowers, harness, cable throttle, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For guarantee servicing, the Product(s) must be sent or presented without undue delay after occurrence or recognition of the defect in workmanship or material to an authorised RYOBI service partner listed on the following website https://www.ryobitools.eu/. Consumers can obtain the services under the Guarantees from a RYOBI service partner by

a. contacting the retailer where the purchase was made; or
b. registering via the service platform available on the RYOBI Commercial webpage https://www.ryobitools.eu/; the availability of the process might vary from country to country.

When sending a Product to an authorised RYOBI service partner, the Product shall be safely packaged without hazardous contents (for details, please see the safety instructions on the website at https://www.ryobitools.eu/), marked with sender's address and accompanied by a short description of the defect. Please note that in some countries delivery charges or postage will have to be paid by the sender according to local practice. Please consult your local authorised RYOBI service centre to confirm whether such charges apply.

1. Upon receipt of the Product claimed to be defective by the Consumer, it will be inspected. When the defect has been confirmed, the services under the Guarantees will be provided by repairing the defective parts of the products or replacing them by non-defective parts at TTI's discretion. If TTI refuses to repair the defect or if, at TTI's discretion, the repair has failed, an equivalent replacement will be supplied. The replaced Product(s) or part(s) will become the property of TTI. Any repair/replacement(s) under the Guarantees above are free of charge. The repair/replacement(s) conducted by TTI do not constitute an extension or a new start of the Guarantees. The replaced spare parts are subject to the Guarantees originally given and the period for the Guarantees will end with period for the Guarantee that was originally given for the entire product.
2. The RYOBI Guarantees are granted by Techtronic Industries GmbH, Max-Eyth-Str.10, 71364 Winnenden Germany, only to the Consumer that originally purchased the Product and may not be transferred or assigned.
3. The Guarantees are valid in the European Economical Areas (EEA), Switzerland, and the United Kingdom. Outside these areas, please contact the retailer where the purchase was made to find out if another voluntary guarantee applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR CONDITIONS D'APPLICATION DE LA GARANTIE RYOBI

EN EC DECLARATION OF CONFORMITY

Cordless blower

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product

mentioned below fulfills all the relevant provisions of the following European Directives,

European Regulations and harmonised standards ^4

Measured sound power level.... 94.4 dB(A)

Guaranteed sound power level.... 96 dB(A)

Conformity assessment method to Annex V Directive 2000/14/EC amended by 2005/88/EC.

Authorised to compile the technical file: ^5

FR DÉCLARATION CE DE CONFORMITÉ

Souffleur sans fil

Max-Eyth-Straße 10, 71364 Winnenden, Germany

^2 RY36BLB

^3 50407201000001 - 50407201999999

4 2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU, EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019

+A15:2021 EN 50636-2-100:2014 EN IEC 55014-1:2021

EN IEC 55014-2:2021. EN IEC 63000:2018

Todd Chipner

Senior Vice President, Quality – Asia

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless blower

Brand: RYOBI

Model number: RY36BLB

Serial number range: 50407201000001 - 50407201999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I. 2001/1701 (as amended) and that the following designated standards have been used:

BS EN 60335-1:2012+A15:2021, BS EN 50636-2-100:2014,

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021,

BS EN IEC 63000:2018, BS EN ISO 12100:2010

Measured sound power level: 94.4 dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to S.I. 2001/1701 Schedule 8 (as amended)

Todd Chipner

Senior Vice President, Quality – Asia

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Parkway

Marlow Bucks SL7 1YL

UK

961087665-01
