USER MANUAL Ascent BLX56 Napoleon

Ascent Linear™ Premium Series

(BLX46 with optional surround illustrated)

Modern dining room interior with a large black fire sale display, beige chairs, and ornate ceiling lighting (no visible text or symbols)

For indoor use only

SAFETY INFORMATION

WARNING

FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious injury, death, or property damage.

- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

•

- Installation and service must be performed by a qualified installer, service agency, or the supplier.

APPLY SERIAL NUMBER LABEL FROM CARTON Serial No. XXXXXX000000 MODEL NO.

WARNING

• This appliance is hot when operated and can cause severe burns if contacted.
• Any changes to this appliance or its control can be dangerous and are prohibited.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be sharp.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children, and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other fl ammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is off, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces. These screens and guards must be fastened to the floor.
• Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior to operating the appliance.
• The appliance is a vented gas-fi red appliance. Do not burn wood or other materials in the appliance.

• The appliance area must be kept clear and free from combustible materials, gasoline and other fl ammable vapors and liquids.

• Under no circumstances should this appliance be modified.

• This appliance must not be connected to a chimney fl ue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping through these openings can also cause the surrounding combustible materials to overheat and catch fire.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well as having a carbon monoxide detector installed in the same area to defend you and your family against carbon monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a T.V. or other electronic components.
• A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed.
• If the barrier becomes damaged, the barrier shall be replaced with the manufacturer's barrier for this appliance.
• Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean.

WARNING: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer, and chemicals including carbon dioxide, which are known to the State of California to cause birth defects or other reproduc-harm. For more information, go to www.P65Warnings.ca.gov.

1.0 getting to know your appliance 5

1.1 control access 6
1.2 rating plate information 6

2.0 operating your appliance 7

2.1 initializing the transmitter / battery holder for the first time 7
2.2 using your appliance 7

3.0 remote control layout 8

3.1 general transmitter layout 8
3.2 temperature display 8
3.3 flame height 9
3.4 blower speed 9
3.5 night light dimmer control 9
3.6 in the event of a power failure 9
3.7 continuous pilot / intermittent pilot (CPI/IPI) selection 9
3.8 eFIRE Controller application 10
3.9 low battery 10
3.10 battery holder / backup installation 10

4.0 operation 11
4.1 pilot-on-demand 12

5.0 clearances around fireplace 13

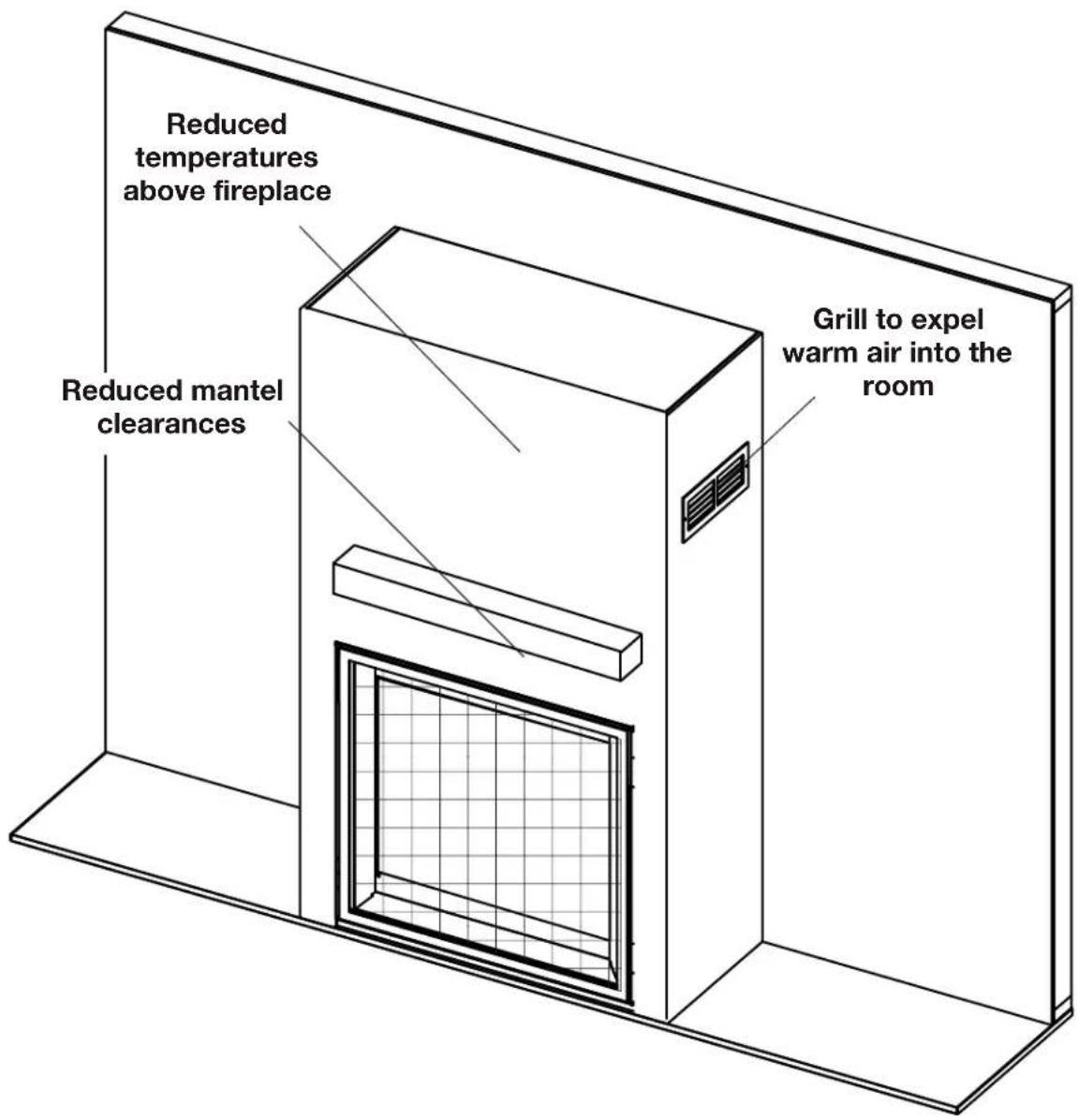

5.1 optional heat management system 14

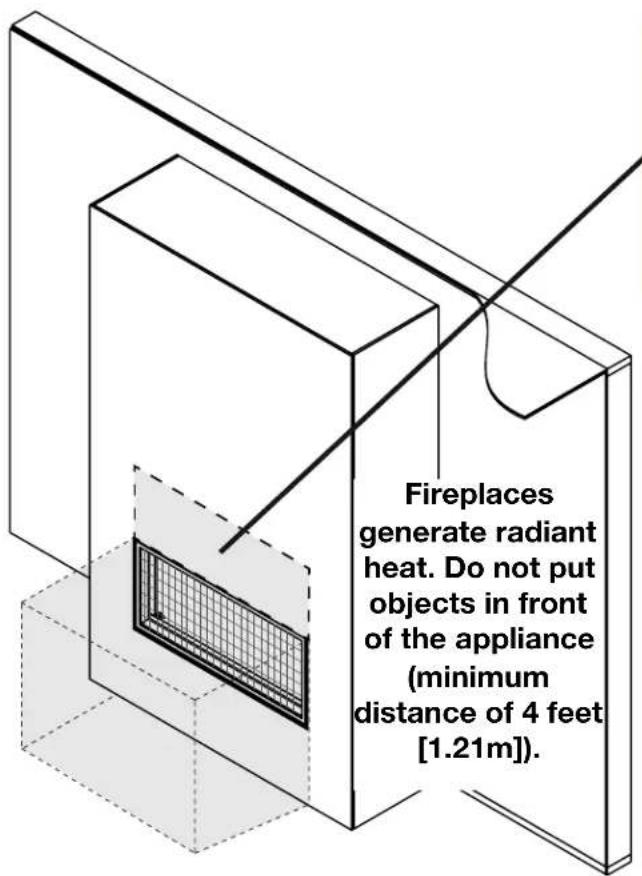

5.2 clearances around appliance (TV and valuable objects) 15

6.0 maintenance 17
6.1 care of glass 17
6.2 care of plated parts 18
6.3 safety barrier removal 18
6.4 door trim removal 19
6.5 firebox glass door removal 19

7.0 replacement parts 20

8.0 accessories 21

9.0 troubleshooting 22

10.0 warranty 23

This owner's manual is written for a complete series of fireplaces that have a variety of different features and specifications. Before reading this manual, be sure you know which model of fireplace that you have. This information will have been filled out by the installer on the following page and on the rating plate that is permanently attached to the fireplace (see “rating plate information” section).

This manual is for the:

• Ascent Linear Premium Series (BLX42, BLX46 and BLX56 models)

If required, more detailed technical information is included in the appliance installation manual.

The information throughout this manual is believed to be correct at the time of printing. Wolf Steel Ltd. reserves the right to change or modify any information within this manual at any time without notice. Changes, other than editorial are denoted by a vertical line in the margin.

Visit the Napoleon website for the most current version of your appliance's manual.

Changes, other than editorial, are denoted by a vertical line in the margin.

This appliance is suitable for use with the optional Universal Heat Management system. THIS MANUAL DOES NOT include detailed information relating the optional sytem. Framing and finishing are NOT the same. For further details, refer to UHM instructions provided with the kit before starting installation.

welcome

congratulations

Napoleon is proudly committed to your total home comfort. We are proud to say that our products continuously surpass industry standards and our inspiration is you! More than anything, we want you to feel confident in choosing Napoleon for your home. Our products are designed to provide that confidence and ensure that every Napoleon product is beyond compare.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance for your safety. This barrier must be installed.

Your Napoleon fireplace has been thoroughly inspected by a qualified technician before packaging to ensure that you, the customer, receives the quality product that you expect from Napoloen.

Dealer : Fill in your dealer information (or business card) and the appliance installation information below.

Dealer Information

Name of Dealer:

Dealer Location:

Dealer Phone: ____

Dealer E-mail:

Customer:

Customer Address:

Date of Installation:

Location of the appliance:

Installer:

Dealer: Business card location

Serial Number:

Model:

Natural Gas:

BLX42NTE

BLX46NTE

BLX56NTE

Propane:

BOX42PTE

BLX42PTE

BLX56PTE

Batteries must be disposed of according to the local laws and regulations. Some batteries may be recycled, and may be accepted for disposal at your local recycling center. Check with your municipality for recycling instructions.

1.0 getting to know your appliance

EN

The area above the fireplace opening including the safety barrier, barrier frame and the surface of the wall can get very hot during operation and should never be touched until the appliance is off and completely cooled.

! DANGER

Abstract graphic with flame and red circle elements, no text or symbols present

HOT GLASS WILL CAUSE BURNS.

DO NOT TOUCH GLASS UNTIL COOLED.

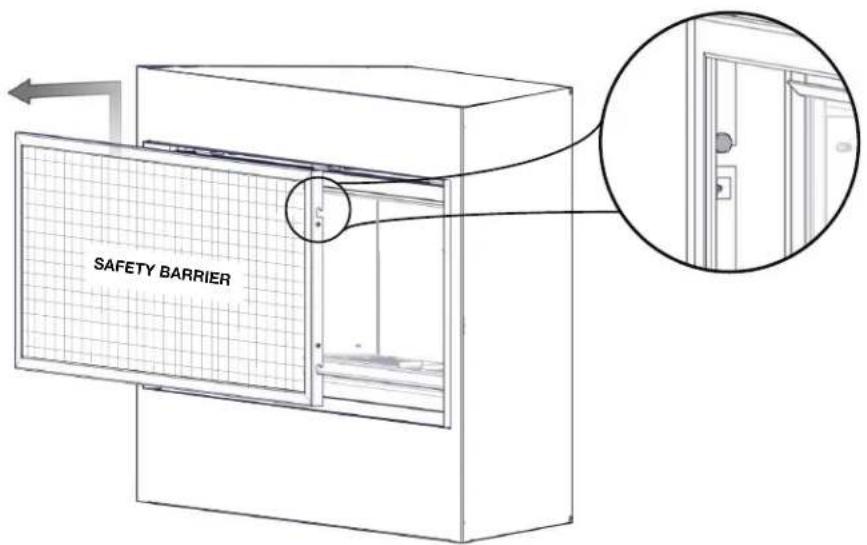

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals.

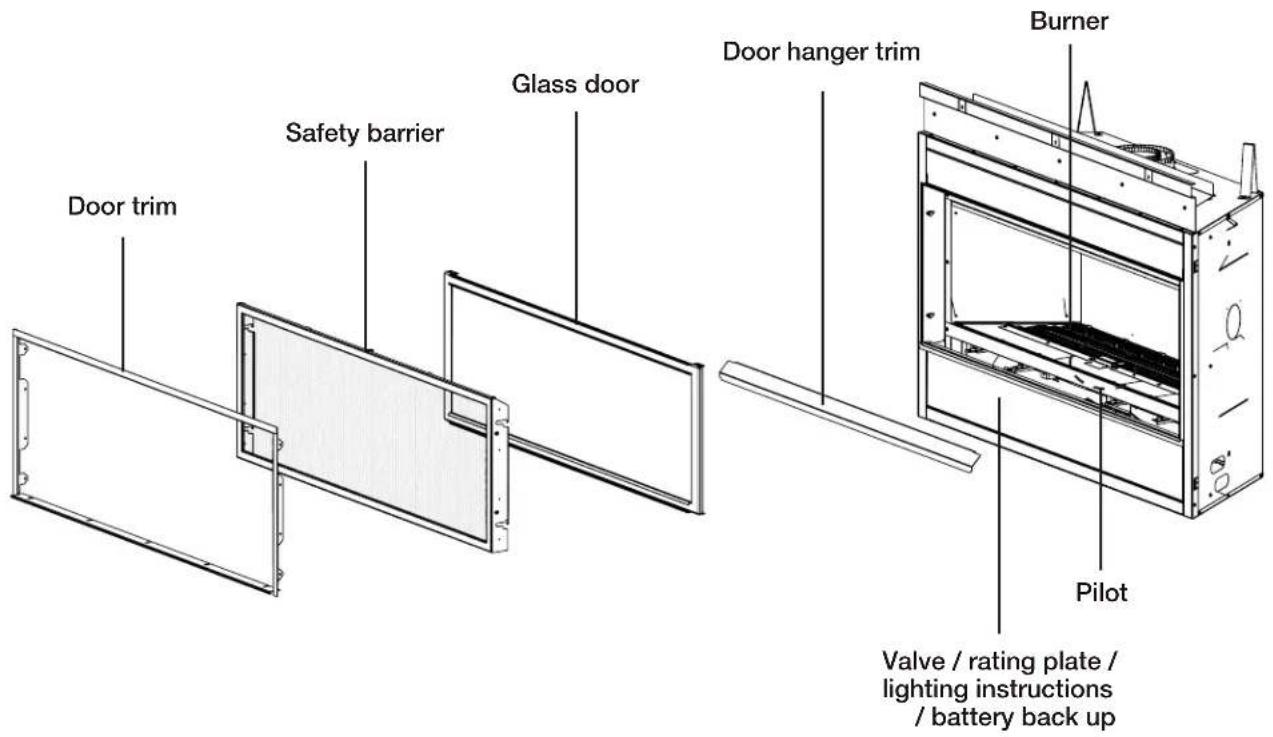

Door trim Safety barrier Glass door Door hanger trim Burner Pilot Valve / rating plate / lighting instructions / battery back up

note:

Some features and locations may vary depending on the model.

getting to know your appliance

1.1 control access

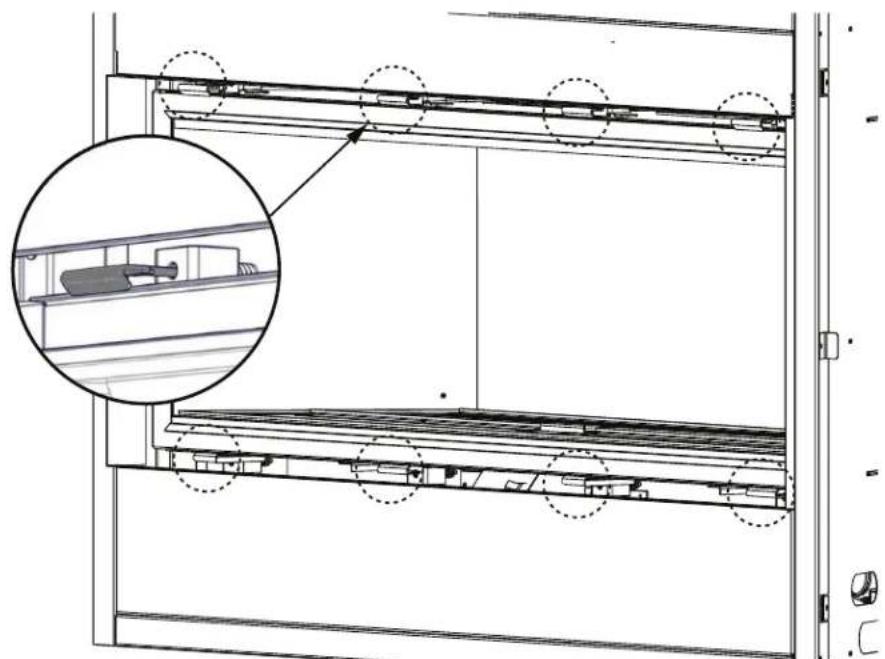

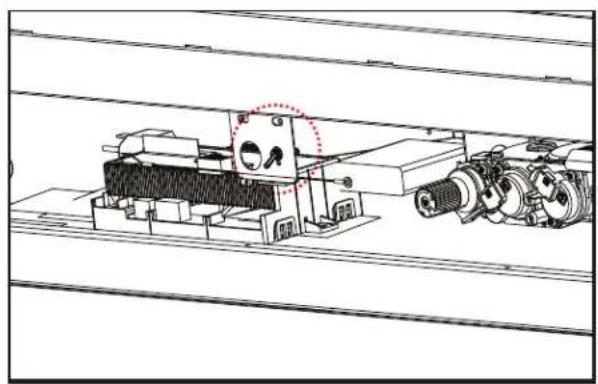

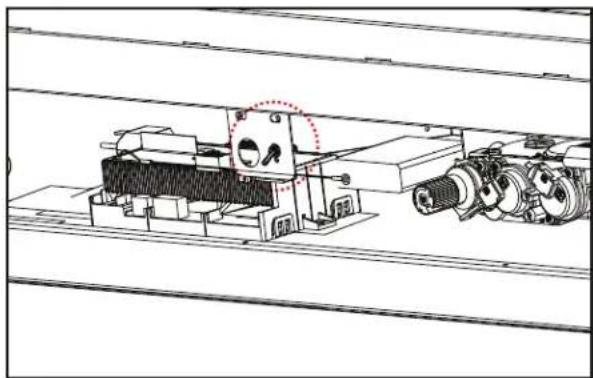

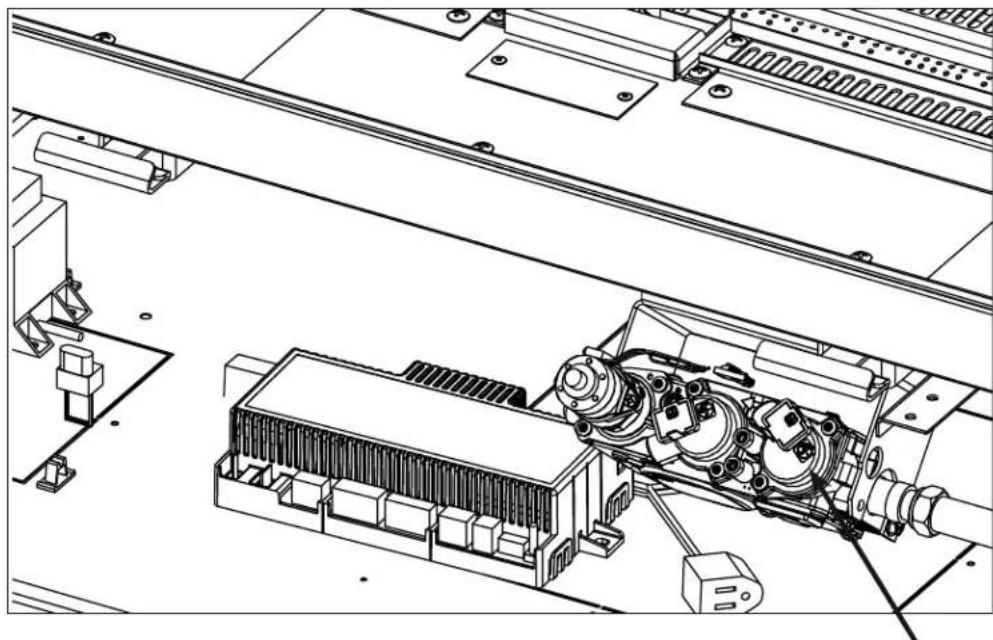

Access to the control can be done by removing the safety barrier, glass door, door trim and control cover (see "maintenance" section for instructions on how to remove these components).

Technical line drawing of an industrial machine assembly (no text or symbols visible)

VALVE

1.2 rating plate information

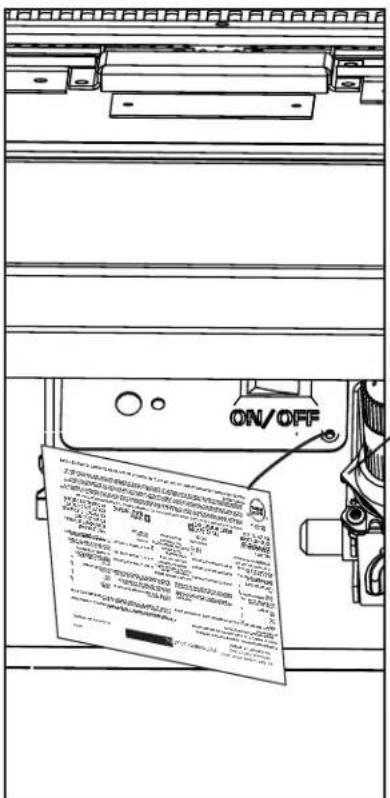

This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.

Certified to Canadian and American National Standards: CSA 2.22-XXXX/ ANSI Z21.50-XXXX for Vented Decorative Gas Appliances Gross section lines names: Nonconications of Amorphones; GSA 2.22-XXXX/ ANSI Z21.50-XXXX for Les Apparels à gaz décoratif à évacuation Step-by-step design instruction: Approves the requirements, therefore and be given for installation. Subtable in the material is required, if the requirements are not applied to the above. Exhibit No. 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2031, 2032, 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041, 2042, 2043, 2044, 2045, 2046, 2047, 2048, 2049, 2050, 2051, 2052, 2053, 2054, 2055, 2056, 2057, 2058, 2059, 2060, 2061, 2062, 2063, 2064, 2065, 2066, 2067, 2068, 2069, 2070, 2071, 2072, 2073, 2074, 2075, 2076, 2077, 2078, 2079, 2080, 2081, 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089, 2090, 2091, 2092, 2093, 2094, 2095, 2096, 2097, 2098, 2099, 2100, 2101, 2102, 2103, 2104, 2105, 2106, 2107, 2108, 2109, 2110, 2111, 2112, 2113, 2114, 2115, 2116, 2117, 2118, 2119, 2120, 2121, 2122, 2123, 2124, 2125, 2126, 2127, 2128, 2129, 2130, 2131, 2132, 2133, 2134, 2135, 2136, 2137, 2138, 2139, 2140, 2141, 2142, 2143, 2144, 2145, 2146, 2147, 2148, 2149, 2150, 2151, 2152, 2153, 2154, 2155, 2156, 2157, 2158, 2159, 2160, 2161, 2162, 2163, 2164, 2165, 2166, 2167, 2168, 2169, 2170, Source: Alimentation Centre Alimentation Centre Standard Pressure: (in dB) Minimum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supply Pressure: (in °C) Maximum Supercivity: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %) Minimum supply pressure: (in %.) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion d'Ammonization Mio. (in %) Proportion de minimisation des matteux contribuibles: Pour la force on the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part Deportements minimisation des matteux contribuibles: Pour la force on the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part of the main part Warning: The main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate Necession per unit. See installation the main part must be removed using the appropriate N�exion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the main part must be removed using the appropriate Nexion per unit. See installation the primary component used in this paper can be made by a large number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units in each paper can be made by a smaller number of units WOLF STEEL LTD., WORI-MARTIN FORD - CN., LIM DOR Genoa W38S-XXXX VENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF HEAT. NOT INTENDED FOR USE AS A HEATING APPLIANCE. NOT FOR USE WITH SOLID FUEL. APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N'EST PAS UNE SOURCE DE CHALEUR; N'EST PAS DESTINÉ À ÊTRE UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE CONVENT PAS AUX COMBUSTIBLES SOLIDES. FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY. POUR UTILISÉ UNIQUENEMENT AVEC LES PORTES EN VÊRRE CERTIFÉS AVEC L'APPAREIL. For included gas when equipped with No. XX dilas cents. for persons when not exposed with No. XX dilas cents. Decreased as a package could not be added to your existing system. Description all possible would not be added to your existing system. The large size does not be added to your existing system. Apparell do not have a face at riskable level of construction paper or equipment. Please note: • Note that our plan is required to provide an example with high capacity and low capacity for use in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way to be done in any way Serial Number / N° de Série : XXXXX W38S-XXXX

note:

The rating plate must remain with the appliance at all times. It must not be removed.

2.1 initializing the transmitter / battery holder for the first time

WARNING

• Ensure the gas and electrical power to the appliance is turned off.
• Appliance may be hot, do not service until the appliance has cooled.

A. Install the 4 AA batteries into the Proflame 2 battery holder, note the polarity of the batteries and insert as indicated on the cover (+/-).
B. Ensure the 3 position slider switch is switched to the "REMOTE" position (middle position).
C. Press the reset/programming button, use a small object such as a paper clip in order to reach the button marked PRG, as shown in the illustration below.
D. The battery holder will beep 3 times to indicate that it's ready to synchronize with the transmitter.
E. Install the 3 AAA batteries into the transmitter, as shown in the photograph below, then press the ON button. The battery holder will beep 4 times to indicate that the transmitter's command is accepted.

note:

The initializing process must be completed within 10 seconds of pressing the reset/programming button (PRG).

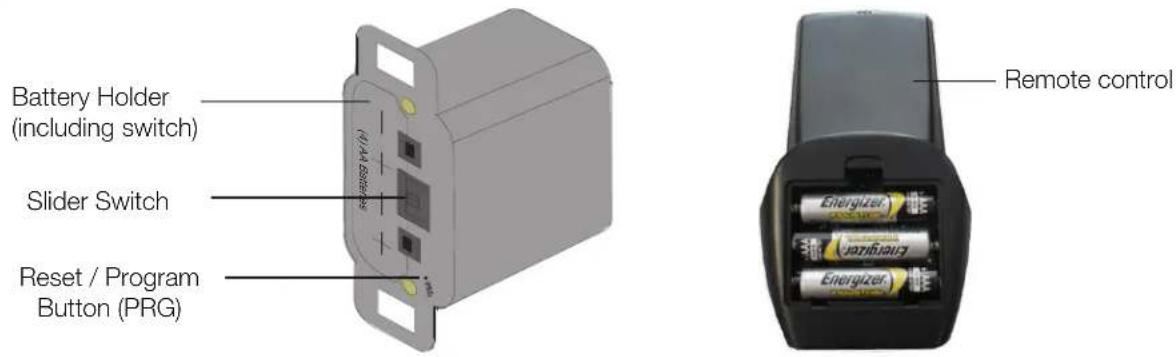

Battery Holder (including switch) Slider Switch Reset / Program Button (PRG) Remote control

2.2 using your appliance

When operating your appliance for the first time, there is a required burn-in process that cures materials used to manufacture the fireplace that may emit both vapors and an odor. These are normal when operating a new appliance for the first time. Ensure adequate air circulation is provided during burn-in process, if this was not completed by the installer during installation.

To turn the appliance on:

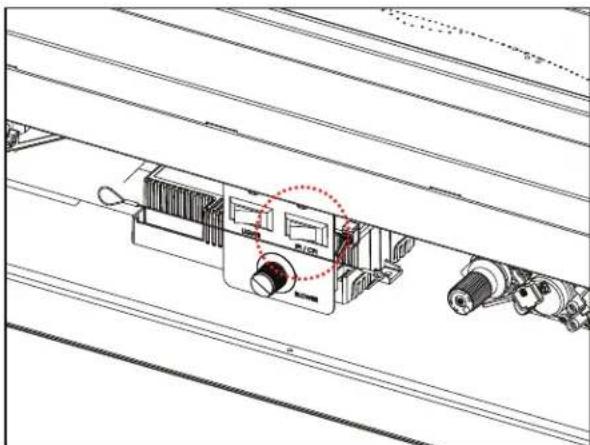

A Turn the on/off switch on.
B After 3-5 seconds, the control will start a spark at the pilot, light the pilot and then the burner. The spark period will last 60 seconds, or until the pilot has lit.
C When used for the first time, if the burn-in process was not completed by the installer; run appliance continuously for 4 hours (burn-in).
D Turn the appliance off. Wait until appliance is completely cool before moving to the next step.
E Remove the safety barrier and firebox glass door. Clean firebox glass door (see "maintenance" section). Replace firebox glass door and safety barrier.

For more detailed information, see your installation manual or contact your authorized dealer.

Gettinegtotknowtyolayappliance

3.1 general transmitter layout

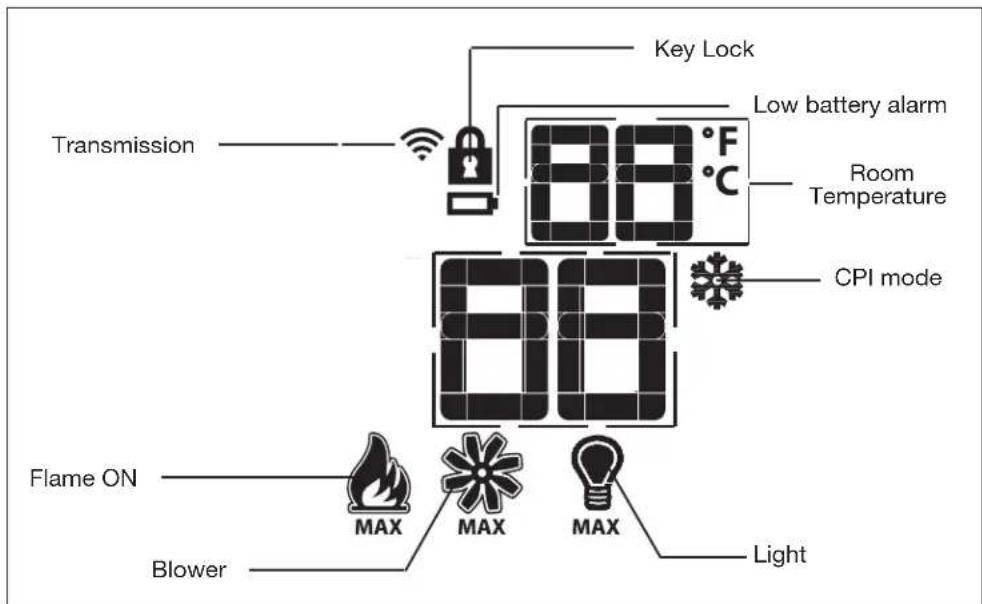

Key Lock Transmission Low battery alarm Room Temperature CPI mode 88 88 Flame ON Blower MAX MAX MAX Light

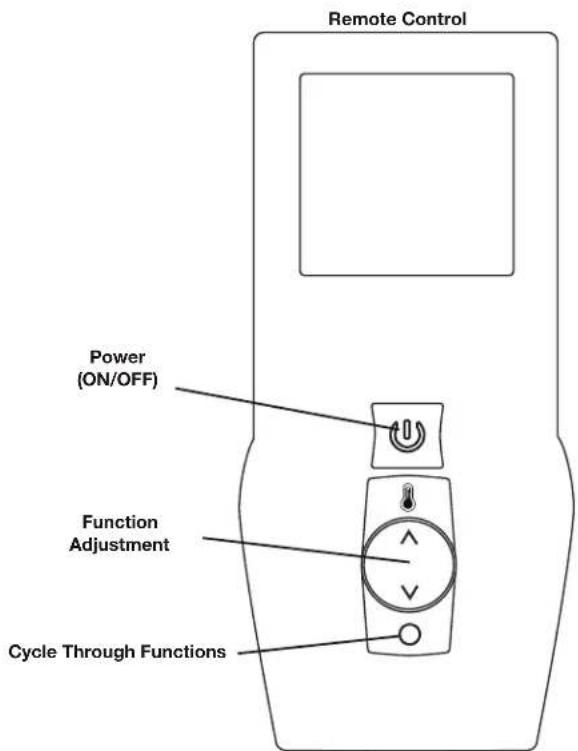

Remote Control Power (ON/OFF) Function Adjustment Cycle Through Functions

note:

Install the 3 'AAA' batteries into the remote control, as shown, then press the ON button. The battery holder will beep 4 times to indicate that the remote's command is accepted.

Black remote control device with four batteries, one labeled 'Energyzer' (no additional text or symbols visible)

3.2 temperature display

A. With the system in the off position, press the temperature key and the mode key at the same time to change from degrees °F to °C.
B. Look at the LCD screen on the transmitter to verify that a °C or °F is visible to the right of the room temperature display.

73°F 23 °C

3.3 flame height

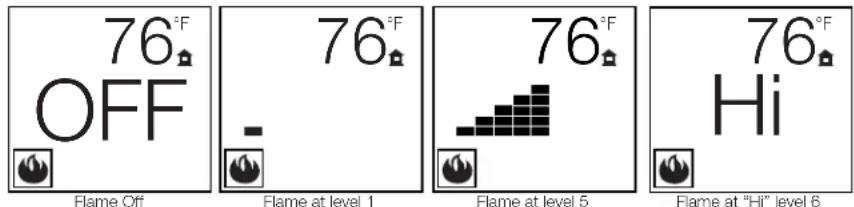

The remote control has six (6) flame levels. With the system on and the flame level at the maximum, press the down arrow key once and it will reduce the flame height by one step until the flame is turned off.

The up arrow key will increase the flame height each time it is pressed. If the up arrow key is pressed while the system is on but the flame is off, the flame will come on at the high position. A single “beep” will confirm reception of the command.

Flame Off
Flame at level 1
Flame at level 5
Flame at "Hi" level 6

3.4 blower speed

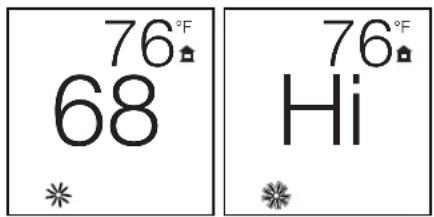

The speed of the fan can be controlled by the remote system. The fan speed can be adjusted through six (6) speeds.

• Use the mode key to guide you to the fan control icon.
- Use the up/down arrow keys to turn on/off or adjust the fan speed. A single "beep" will confirm reception of the command.

note:

When the desired blower speed is selected, the blower will automatically come on 5 minutes after the main burner has been turned on and remain on twelve minutes after it has been turned off.

3.5 night light dimmer control

If equipped, the auxiliary function controls the Night Light™ with dimmable control.

A. Use the mode key to guide you to the Night Light™ icon.
B. The intensity of the output can be adjusted through 6 levels.
Use the up/down arrow keys to adjust the output level. A single beep will confirm reception of the command.

3.6 in the event of a power failure

If the receiver is equipped with batteries they will enable flame height control oron/off function to control the appliance during a power failure. Blower and Night Light™ operation is not possible. Refer to “appliance operation” section when communications between receiver and transmitter have been lost. The receiver will emit a “beep” sound to confirm programming has been successful once power is restored. During a power failure, if the appliance was on, the flame height will stay at the setting prior to the failure. If off when the failure occurs and then turned on, the flame height will come on at “Hi”: The flame height can then be controlled by the remote.

3.7 continuous pilot / intermittent pilot (CPI/IPI) selection

• When the transmitter is in the off position, use the mode key to guide you to the CPI mode icon.
• Press the up/down to switch between IPI and CPI modes. A single beep will confirm reception of the command.

note:

If the appliance is equipped with a CPI/IPI* toggle switch, set the CPI/IPI to CPI position to enable remote CPI operation. If the switch is set to IPI then it will only work in IPI regardless of what is set on the remote control handset.

remote control layout

3.8 eFIRE Controller application

Napoleon's eFIRE application will revolutionize the way you use your fireplace! We have cracked the code and present to you the first fireplace to be controlled by Bluetooth™ technology, using an intuitive app on your mobile device.

When fully equipped (if applicable), the eFIRE application allows you to select from a multitude of colours to suit your mood or décor simply by scrolling through the colour wheel. Additionally, Napoleon's eFIRE application allows you to control many other functions of your fireplace, including on/off, flame height, light feature, blower, and a timer to create a schedule for your fireplace that works for you.

Using the instructions on the eFIRE Controller application website http://napoleon.com/efire, install the application and enjoy the features the eFIRE Controller application has to offer. *

* Visit the website or contact your authorized dealer for appliance-specific information and/or frequently asked questions regarding features and products available with the eFIRE Controller application.

note:

The remote control is considered the master control for the appliance and can always be used to turn the appliance off (ex. the eFIRE Controller application user, in control of the appliance, leaves the home).

3.9 low battery

The life span of the remote batteries depends on various factors: quality of the batteries, the number of ignitions, etc.

When the transmitter batteries are low, a battery icon will appear on the LCD display before all battery power is lost. When the batteries are replaced, this icon will disappear.

When the receiver batteries are low, no "beep" will be emitted from the receiver when it receives an on/off command. This in an alert for the receiver that there's low battery.

When the batteries are replaced the "beep" will be emitted from the receiver when the on/off key is pressed.

76°F

If the batteries of the receiver or transmitter are low, the appliance can be turned on manually by sliding the three position slider switch on the receiver to the on position. This will bypass the remote control feature and the appliance main burner will come on if the gas valve is in the on position.

3.10 battery holder / backup installation

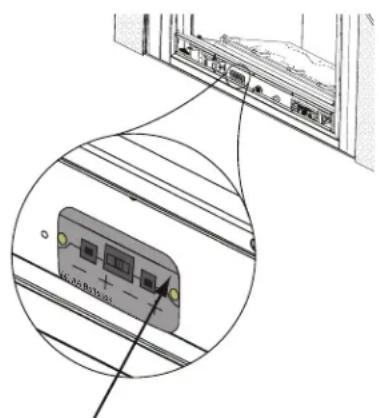

A. The battery holder is located in the valve compartment, accessible for programming the remote.
B. Install 4 AA batteries, Ensure that the positive and negative ends correspond with those identified in the battery holder.
C. In the case of a power outage, the 3 position slider switch needs to be in the "ON" position (left).

note:

Ensure the 3 positions slider switch is in the "REMOTE" position (middle).

Diagram showing a device with a labeled component inside a window, enclosed in an inset view (no text or symbols present)

RESET/PROGRAM BUTTON (PRG)

WARNING

• If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
• If applicable, always light the pilot whether for the first time or if the gas supply has run out with the glass door opened or removed.

Ensure that a continuous gas flow is at the burner before installing the door. When lit for the first time, the appliance will emit an odor for a few hours. This is a normal temporary condition caused by the “burn-in” of paints and lubricants used in the manufacturing process and will not occur again. After extended periods of non-operation, such as, following a vacation or warm weather season, the appliance may emit a slight odor for a few hours. This is caused by dust particules in the heat exchanger burning off. In both cases, open a window to sufficiently ventilate the room.

FOR YOUR SAFETY READ BEFORE LIGHTING

• Do not turn on if children or other at risk individuals are near the appliance.
• This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.
• Before operating, smell all around the appliance area for gas and next to the floor because some gas is heavier than air and will settle on the floor.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the appliance and replace any part of the control system and any gas control which has been underwater.

WHAT TO DO IF YOU SMELL GAS

• Turn off all gas to the appliance.
• Open windows.
• Do not try to light any appliance.

• Do not touch any electric switch; do not use any phone in your building

• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's instructions.

• If you cannot reach your gas supplier, call the fire department.

LIGHTING INSTRUCTIONS

note:

This appliance is equipped with an ignition device which automatically lights the pilot. Do not try to light the pilot by hand.

A. Stop! Read the above safety information on this label.
B. Remove batteries from the transmitter and set thermostat to lowest setting, if equipped.
C. Turn off all electrical power to the appliance.
D. Open the glass door, if equipped.
E. Turn the manual shut-off valve clockwise to the "OFF" position. (Shut-off valve is located on the fl ex connector).
F. Wait fi ve (5) minutes to clear out any gas. If you smell gas including near the floor, STOP! Follow the instructions above in the "WHAT TO DO IF YOU SMELL GAS" section. If you don't smell gas; close the glass door and go to the next step.
G. Turn the manual shut-off valve counter clockwise to the "ON" position.
H. Turn on all electrical power to the appliance and re-install the batteries into the transmitter. Set thermostat to desired setting, if equipped.
I. Turn on the remote wall switch to the appliance.
J. If the appliance will not operate, follow instructions "TO TURN OFF GAS" and call your service technician or gas supplier.

TO TURN OFF GAS

A. Set thermostat to lowest setting, if equipped.
B. Turn off the remote wall switch to the appliance.
C. Turn off all electric power to the appliance if service is to be performed.
D. Turn manual shutoff valve clockwise to the "OFF" positon. Do not force.

MANUAL SHUT-OFF (SHOHN IN OFF POSITION)

Technical line drawing of a mechanical assembly (no text or symbols visible)

remote control layout

4.1 pilot-on-demand

This appliance is equipped with an “On Demand” intermittent pilot ignition system (IPI) which also includes a continuous pilot ignition (CPI) mode with an integrated seven day timer. This system minimizes your appliance’s carbon footprint as well as reducing its annual fuel consumption and operating costs.

In IPI mode, the pilot will ignite prior to the main burner, when the appliance is turned on using a switch, remote or from a call for heat with the thermostat (if equipped). Once the appliance is turned off (or the call for heat is satisfied), the main burner and pilot flame will shut down.

The continuous (CPI) mode is intended to enhance the performance of the appliance during the startup phase in colder climates and extreme weather by keeping the system warm when the main burner is not in use. However, the timer feature provides the convenience that the appliance automatically switches off the pilot when the appliance has not been used for seven days to save unnecessary fuel consumption.

When the CPI function is turned on, the pilot will remain on after the main burner is turned off. A timer will then begin the countdown for approximately seven days before shutting off the pilot if the appliance is not used. This countdown will reset anytime the appliance main burner is used. Therefore, if the appliance is regularly used day to day, the pilot will remain on. However, this system does not require the user to remember to turn the pilot off as summer approaches and avoids unnecessary fuel consumption while still readily turned back on when the cold weather returns.

Your appliance may be equipped with an ACS or remote control device (Fig. 1) which enables you to select IPI or CPI modes.

If your appliance is equipped with an ACS switch, it has the option to change modes:

Fig. 2: Flipping the switch ON turns on the continuous pilot with timer and flipping the switch OFF turns on the intermittent pilot ignition.

Fig. 3: If installed with the blue wire facing up, flipping the switch UP turns on the continuous pilot with timer and flipping the switch DOWN turns on the intermittent pilot ignition. If installed with the white wire facing up, the opposite is true.

Black handheld electronic device with control buttons and a display screen (no visible text or symbols)

(Fig. 1)

If your appliance is equipped with a remote control device capable of selecting IPI / CPI modes, refer to remote operating instructions.

In order to start your pilot, turning the main burner on with the switch, remote or thermostat and then turning it off will reactivate the continuous pilot mode and reset the seven day timer.

For further information, refer to www.napoleon.com/pilotondemand

Technical line drawing of a mechanical device with no visible text or symbols

(Fig. 2) (Fig. 3)

Technical line drawing of a mechanical assembly with rollers and a central component (no text or symbols)

WARNING

- Your appliance, gas/electrical connections, venting and various key components are hidden behind the wall. It is critical that no screws penetrate these components. Failure to follow instructions may cause improper operation, damage, personal injury or fire. Always use a stud finder and only screw into studs.

Without making adequate provisions to account for the heat, the temperatures above the fireplace will be hot, making it unsuitable for mounting a TV or other objects sensitive to heat without risk of damage.

Installing a mantel between this appliance and electronics or other materials that may be sensitive to heat will reduce the effect of direct heat on them.

The size and material of the mantel will affect the allowable clearance above your fireplace and incorrect placement could become a fire hazard. Consult your installation manual and/or authorized dealer for more information before mounting a mantel, a shelf or any other object above your appliance.

Your fireplace, gas/electrical connections and vent are hidden directly behind the finished wall. Great care should be taken to avoid screwing or nailing into these components. Always use a stud finder to determine stud location and only screw into studs.

Do not screw into the area around the fireplace opening as some of your appliance may be hidden behind the finished wall. Refer to your installation manual and/or contact your local dealer for more information.

Fireplaces generate radiant heat. Do not put objects in front of the appliance (minimum distance of 4 feet [1.21m]).

WARNING

The area above a fireplace gets hot. Combustible objects or materials must never be placed in this area. For minimum clearances, refer to installation manual or your authorized dealer.

EN

clearances around fireplace

5.1 optional heat management system

The Universal Heat Management system is an optional gravity vent kit that allows you to manage the heat produced by the appliance at and around the fireplace.

We recommend installing the Universal Heat Management system kit during the installation of the appliance BEFORE the gas is installed.

For more information, contact your local authorized dealer.

Reduced temperatures above fireplace Reduced mantel clearances Grill to expel warm air into the room

5.2 clearances around appliance (TV and valuable objects)

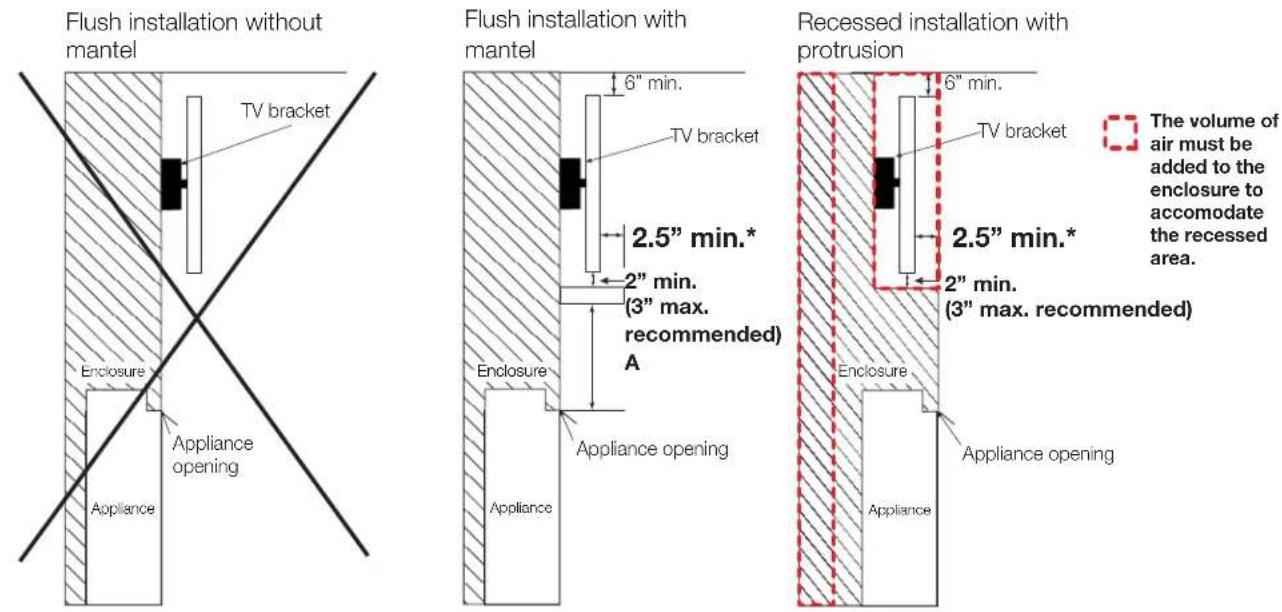

Flush installation with mantel

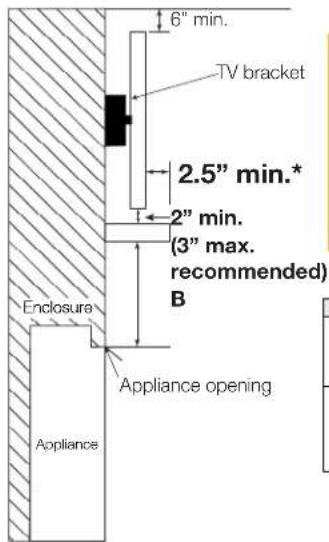

6" min. TV bracket 2.5" min.* 2" min. (3" max. recommended) B Enclosure Appliance opening Appliance

! WARNING

These applications are only acceptable when the Universal Heat Management kit is installed.

A	See “minimum clearance to mantle” section (installation manual).
B	Mantle clearances reduced from opening with the use of the universal heat management system.

Partially recessed installation with mantel

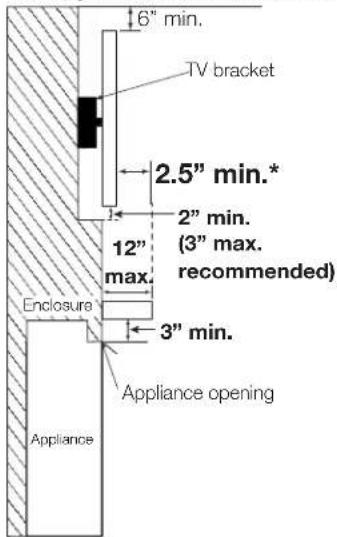

6" min. TV bracket 2.5" min.* 2" min. (3" max. recommended) 12" max. Enclosure 3" min. Appliance opening Appliance

* TV applications were tested with the minimum enclosure dimensions and the maximum recess permissible. This data is provided in good faith and is not a guarantee for every application and television. Care and consideration should be taken when planning these installations to ensure the temperatures around the TV meet all manufacturer's recommended operating temperatures. Increasing the height of the mantel and/or TV above the fireplace opening, the protrusion of mantel and the volume of the enclosure all have the effect of reducing the temperature above the fireplace. It is always recommended to use the optional heat management kit when considering mounting a television above the fireplace.

note:

- Electronic appliance temperatures must be validated at the time of installation as air flow characteristics within the room can vary and maximum acceptable operating temperatures can vary from appliance to appliance. Electronic appliances cannot be used where the electronic appliance temperature exceeds the manufacturer's maximum allowable operating temperatures (see electronic appliance manufacturer's specifications). Operating a television above the manufacturer's maximum allowable operating temperature will result in premature failure.

- Mantel height and depth must conform to mantel clearance requirements specified in this manual, see "minimum clearance to combustible mantel" section in installation manual.

- Electronic appliance temperatures may be further reduced by increasing the horizontal distance between the front of the electronic appliance and the front edge of the mantel or by increasing dimension "A" or "B". However, increasing the gap between the top of the mantel and the bottom of the electronic appliance beyond the maximum recommended figure, typically results in higher temperatures. Minimum clearance between the mantel and bottom of the electronic appliance should be maintained to allow air circulation below and behind the electronic appliance.

WARNING

• Turn off the gas and electrical power before servicing the appliance.
• Appliance may be hot. Do not service until appliance has cooled.
• Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
• This appliance and its venting system should be inspected before use and at least annually by a qualified service person.
• The flow of combustion and ventilation air must not be obstructed.

For qualified technicians only:

DOS

- Clean your safety barrier or regularly to prevent the build up of excessive lint/dust from carpeting, pet hair, etc. Simply vacuum using the brush attachment.

• Always use ammonia-free glass cleaners.

- Service your appliance annually and/or as required. Service must be conducted by a qualified technician.

- Keep your appliance area clear and free of combustible materials, gasoline, or other flammable vapors and liquids.

- Check to see that the burner ignites completely on all openings when turned on. A 5 to 10 second total light-up period is satisfactory. Service as required.

DON'TS

• Attempt to service the electrical or gas components. Contact a qualified technician.
• Use excessive force.
• Use abrasive cleaners on glass.
• Paint the pilot assembly.
• Place objects too close to the fireplace opening.

note:

For any questions and/or concerns regarding your appliance, maintenance and service, please contact your authorized dealer.

6.1 care of glass

WARNING

- Do not clean glass when hot! Do not use abrasive cleaners to clean glass.

Firebox Glass Door :

Do not use ammonia-based cleaners.

Buff lightly with a clean dry soft cloth to remove accumulated dust or fingerprints. Clean both sides of the glass after the first 4 hours of operation with an ammonia-free glass cleaner.

note:

Vinegar-based glass cleaners have demonstrated an ability to provide a clean, streak free glass surface.

Thereafter, clean as required. If the glass is not kept clean permanent discoloration and / or blemishes may result. Contact your local authorized dealer / distributor for complete cleaning instructions.

Razor blades, steel wool, or other metallic objects must not be used on both surfaces of the glass. Doing so can remove a thin layer of metal from the razor blades, steel wool, or other metallic objects that may then be deposited onto the coating. This can result in a discoloured stain or scratch-like mark. More importantly, this can scratch the glass surface, thereby reducing its strength.

Do not operate the appliance with broken glass, as leakage of fl ue gases may result.

Contact your local authorized dealer / distributor for complete cleaning instructions.

If the glass should ever crack or break while the fi re is burning, do not open the door until the fi re is out. Do not operate the appliance until the glass has been replaced. Contact you local authorized dealer / distributor for replacement parts. DO NOT SUBSTITUTE MATERIALS.

maintenance

Replacement glass/frame assembly shall be replaced as a complete unit as supplied by the appliance manufacturer.

This appliance is factory equipped with tempered glass. Use only replacement parts as supplied by the appliance manufacturer. DO NOT SUBSTITUTE MATERIALS.

6.2 care of plated parts

If the appliance is equipped with plated parts, you must clean f i ngerprints or other marks from the plated surfaces before operating the appliance for the fi rst time. Use an ammonia-free or vinegar-based cleaner and a towel to clean. If not cleaned properly before operating for the fi rst time, the marks can cause permanent blemishes on the plating. After the plating is cured, the f i ngerprints and oils will not affect the fi nish and little maintenance is required, just wipe clean as needed. Prolonged high temperature burning with the door ajar may cause discolouration on plated parts.

note:

The protective wrap on plated parts is best removed when the assembly is at room temperature but this can be improved if the assembly is warmed (i.e. using a hair dryer or similar heat source).

6.3 safety barrier removal

WARNING

• Glass may be hot. Do not touch glass until cooled.
- If equipped with door latches that are part of a safety system, they must be properly engaged. Do not operate the appliance with latches disengaged.
- Facing and/or fi nishing materials must not interfere with air flow through air openings, louvre openings, operation of louvres, or doors/access for service. Observe all clearances when applying combustible materials.
- Before door is removed, turn the appliance off and wait until appliance is cool to the touch. Doors are heavy and fragile so handle with care.

A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the appliance and must be installed.

Lift the safety barrier off the four shoulder screws and remove from the appliance. Reverse this step to install.

SAFETY BARRIER

6.4 door trim removal

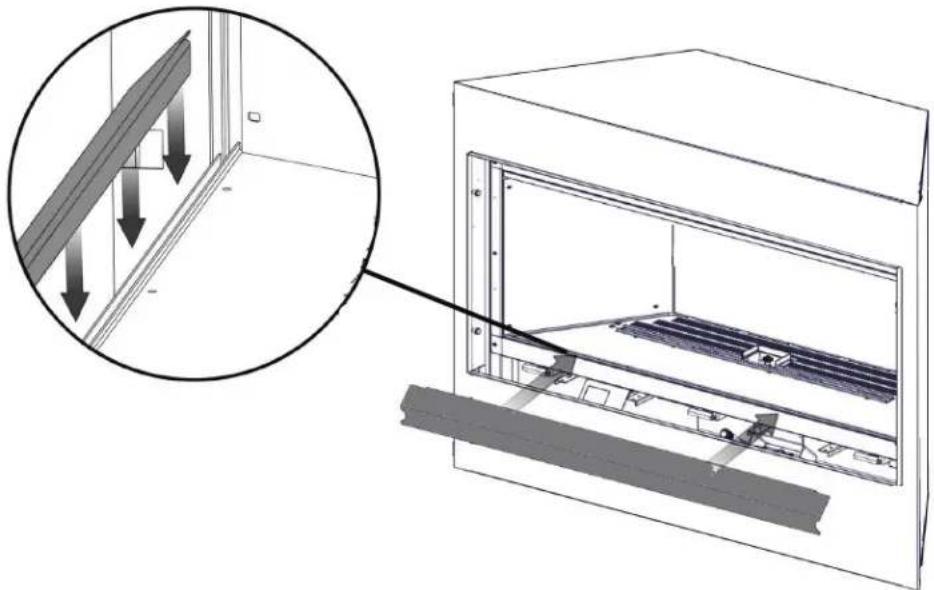

To remove, slide the back edge of the door trim up and out of the glass and the door frame. To install, slide the back edge of the door trim down between the glass and door frame. Insert downwards.

Technical diagram showing a structural assembly with an inset magnified view of a panel connection (no text or symbols present)

6.5 firebox glass door removal

Leave a hand on the glass door during entire door removal. The glass door is secured to the firebox with four (BLX42), six (BLX46) or eight (BLX56) spring latches. Pull the handles of the latches forward, then lift the latches out from the door frame to release the door. Next, lift the door up until the bottom edge clears the bottom shoulder screws of the appliance. Carefully grip the top and bottom of the door lifting it off the appliance.

note:

These spring latches make up the spring relief system for the appliance. Ensure the door opens freely and closes sealed.

note:

When mounting the door, ensure there is equal space on both the left and the right side. This allows for easy installation of the front.

Technical line drawing of a multi-level storage or rack system with an inset magnified view showing internal components (no text or symbols)

BLX56 illustrated

Reverse these steps to reinstall the door. Ensure safety screen is installed correctly.

WARNING

- Failure to position the parts in accordance with this manual or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.

Contact your dealer for questions concerning prices and policies on replacement parts. Normally, all parts can be ordered through your Authorized dealer / distributor.

For warranty replacement parts, a photocopy of the original invoice will be required to honour the claim.

When ordering replacement parts always give the following information:

• Model & Serial Number of appliance
  • Installation date of appliance
• Part number
  • Description of part
• Finish

Parts, part numbers, and availability are subject to change without notice.

Parts identified as stocked will be delivered within 2 to 5 business days for most delivery destinations.

Parts not identified as stocked will be delivered within a 2 to 4 week period, for most cases.

Parts identified as 'SO' are special order and can take up to 90 days for delivery.

For service parts, see your Installation manual.

Items may not appear exactly as shown.

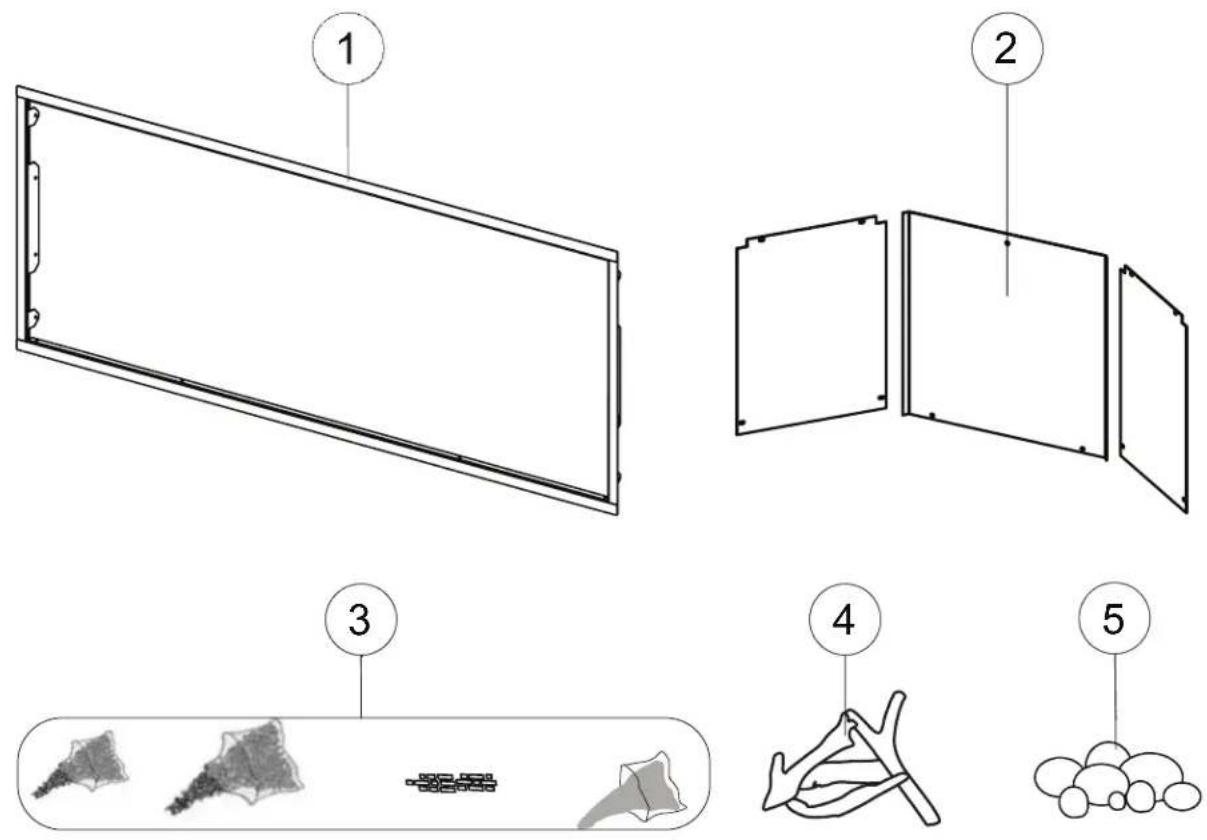

Ref.	Description	Part Number			Stocked
		BLX42 BLX46	BLX56
1	Trim Kit FTBLX42 FTBLX46	FTBLX56
2	Porcelain Panel Kit PRPL42 PRPL46	PRPL56
2	Decorative Brick Panel (Ledgestone) DBPL42LS	DBPL46LS	DBPL56LS
3	Shore Fire Kit SFKS SFKM Yes
4	Beach Fire Kit BFKS	BFKM Yes
5	Mineral Rock Kit	MRKM		MRKXL	Yes
6*	Crushed Glass	W300-0290			Yes

* Part not illustrated.

9.0 troubleshooting

symptom problem test solution

Flame is a blue, lazy, transparent flame	Blockage in vent.	-	Remove blockage. In really cold conditions, ice buildup may occur on the terminal and should be removed as required.
White / grey film forms on glass.	Sulphur from fuel is being deposited on glass, logs, or surfaces.	-	Clean the glass with a recommended gas fireplace glass cleaner.DO NOT CLEAN GLASS WHEN HOT.If sulphur deposits are not cleaned off regularly, the glass may become permanently marked.
Exhaust fumes smelled in room, headaches.	Appliance may be leaking exhaust fumes into the room.	-	Check firebox glass door was properly reinstalled after cleaningIf not rectified, turn off appliance. Contact a qualified technician.
Pilot will not light. Makes noise with no spark at pilot burner. (El only)	No signal from remote with no pilot ignition.	-	Reprogram receiver code.Replace battery holder (including switch), if applicable.
Pilot sparks but will not light.	Gas supply. - Contact a qualified technician.
	Out of propane gas. - Fill the tank.
	Remote control (if equipped).	-	Follow reprogramming instructions for specific remote installed with your appliance.Replace remote control.
Battery holder (including switch) is in "off" position; burner comes on.	Battery holder (including wall switch) mounted upside down.	-	Reverse.
	Battery holder (including switch) and/or wire is grounding.	-	Replace.Check for ground (short); repair ground or replace wire.
	Faulty wire - Replace.
Remote control and/or battery holder (including switch) is not functioning properly.	Remote control lights but no spark or flame. (Remote is locked out).	-	Reset by turning power source off then on.note:If back up batteries are installed, they must also be removed to re-program
	Battery holder (including switch) or remote has low battery.	-	Replace batteries.
	Error with synchronizing.	-	Reset battery holder (including switch) and remote control.
	Remote too far away from battery holder (including switch).	-	Refer to "wiring diagram" section in the Installation manual.
Flames are very aggressive.	Door is open.	-	Ensure door is secured properly. If not rectified, contact a qualified technician.
Appliance won't perform any functions.	No power to the system.	-	Check breaker to verify it's in the "on" position.
	Battery holder (including switch) in wrong position (if equipped).	-	Verify that the 3 position switch on the battery holder (including switch) is in the remote position (middle).
	Battery holder, battery holder (including switch) and/or remote control isn't operational.	-	Check battery power and battery orientation.
Appliance keeps shutting off.	High limit switch has tripped.	-	Your appliance (LV models equipped with DHC or LVX models) is fitted with a safety switch that shuts your appliance off in the event that your fireplace and/or enclosure are reaching unsafe operating temperatures. Contact a qualified technician.

Napoleon products are manufactured under the strict Standard of the world recognized ISO 9001:2015 Quality Management System.

Napoleon products are designed with superior components and materials assembled by trained craftsmen who take great pride in their work. The burner and valve assembly are leak and test-fired at a quality test station. The complete appliance is again thoroughly inspected by a qualified technician before packaging to ensure that you, the customer, receive the quality product that you expect from Napoleon.

Napoleon Gas Appliance President's Lifetime Limited Warranty

The following materials and workmanship in your new Napoleon gas appliance are warranted against defects for as long as you own the appliance. This covers: combustion chamber, heat exchanger, stainless / steel burner, Phazer™ logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.*

Electrical (110V and millivolt) components and wearable parts are covered and Napoleon will provide replacement parts free of charge during the first year of the limited warranty. This covers: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.*

Labour related to warranty repair is covered free of charge during the first year (labour warranty is not applicable for the Gas Log Sets). Repair work, however, requires the prior approval of an authorized company official. Labour costs to the account of Napoleon are based on a predetermined rate schedule and any repair work must be done through an authorized Napoleon dealer.

* Construction of models vary. Warranty applies only to components included with your specific appliance.

Conditions and Limitations

Napoleon warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is not necessary. Simply provide your proof of purchase along with the model and serial number to make a warranty claim. Napoleon reserves the right to have its representative inspect any product or part thereof prior to honouring any warranty claim. Provided that the purchase was made through an authorized Napoleon dealer your appliance is subject to the following conditions and limitations:

Warranty coverage begins on the date of original installation. This factory warranty is non-transferable and may not be extended whatsoever by any of our representatives. The gas appliance must be installed by a licensed, authorized service technician or contractor qualified and authorized installer, service agency or supplier. Installation must be done in accordance with the installation instructions included with the product and all local and national building and fire codes. This limited warranty does not cover damages caused by misuse, lack of maintenance, accident, alterations, abuse or neglect, and parts installed from other manufacturers will nullify this warranty. This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners nor chipping on porcelain enamel parts, mechanical breakage of Phazer™ logs and embers. This warranty extends to the repair or replacement of warranted parts which are defective in material or workmanship provided that the product has been operated in accordance with the operation instructions and under normal conditions. After the first year, with respect to this President's Lifetime Limited Warranty, Napoleon may, at its discretion, fully discharge all obligations with respect to this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defective part(s).

After the first year, Napoleon will not be responsible for installation, labour, or any other expenses related to the reinstallation of a warranted part and such expenses are not covered by this warranty. Notwithstanding any provisions contained in the President's Lifetime Limited Warranty, Napoleon's responsibility under this warranty is defined as above and it shall not in any event extend to any incidental, consequential or indirect damages. This warranty defines the obligations and liability of Napoleon with respect to the Napoleon gas appliance and any other warranties expressed or implied with respect to this product, its components or accessories are excluded. Napoleon neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this product. Napoleon will not be responsible for: over-firing, downdrafts, spillage caused by environmental conditions such as rooftops, buildings, nearby trees, hills, mountains, inadequate vents or ventilation, excessive venting configurations, insufficient makeup air, or negative air pressures which may or may not be caused by mechanical systems such as exhaust fans, furnaces, clothes dryers, etc. Any damages to the appliance, combustion chamber, heat exchanger, plated trim or other components due to water, weather damage, long periods of dampness, condensation, damaging chemicals or cleaners will not be the responsibility of Napoleon.

During the first 10 years Napoleon will replace or repair the defective parts covered by the lifetime warranty at our discretion free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price. The manufacturer may require that defective parts or products be returned or that digital pictures be provided to support the claim. Returned products are to be shipped prepaid to the manufacturer for investigation. If a product is found to be defective, the manufacturer will repair or replace such defect. Before shipping your appliance or defective components, your dealer must obtain an authorization number. Any merchandise shipped without authorization will be refused and returned to sender. Shipping costs are not covered under this warranty. Additional service fees may apply if you are seeking warranty service from a dealer. Warranty labour allowance is only for the replacement of the warranted part. Travel, diagnostic tests, shipping and other related charges are not covered by this warranty.

All specifications and designed are subject to change without prior notice due to on-going product improvements. Napoleon is a registered trademark of Wolf Steel Ltd.

NAPOLEON CELEBRATING OVER 40 YEARS OF HOME COMFORT PRODUCTS

Interior living room with a modern fire extinguisher on a beige wall, wooden paneling, and a sofa with a coffee table (no visible text or symbols)

Exterior view of a modern stainless steel grill with a dog-shaped heater, situated in front of residential houses and stone pavement (no signage or text visible)

Interior view of a modern kitchen with a large washing machine and a gray washing cabinet, no visible text or symbols.

7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0GB 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 De Riemsdijk 22, 4004 LC Tiel, The Netherlands

Phone: [phone] napoleon.com

NAPOLEON

MANUEL DU PROPRIÉTAIRE

Interior view of a modern dining room with a large fire sale display, beige chairs, and a chandelier (no visible text or symbols)

Technical line drawing of an industrial machine assembly (no text or symbols visible)

SOUPAPE

Centrofo de Canadaen and American National Standards: CSA 2.22-XXXX / ANSI Z21.00-XXXX for Vented Decorative Gas Appliances Cara 54 can be the nominal Canadian Canadure was at International's: CSA 2.22-XXXX / ANSI Z21.50-XXXX pour les Apparels à gaz décoratif à évacuation. Used in 1970, vers le l'exercice. Approved for bedroom, bedrooms and dining rooms, train room, etc. (see reference to have installed, fully and accordance with the current standard) (2001/2004). If you are going or making a business in Canada or India, I'll be able to use the 'R' and 'E' services. You can use your own equipment to ensure that you can use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment to use your own equipment 325. When this Standard is not applicable, let us the Standard for Re-Safety-Goods for Manufacture Home Furnishings, Sites and Communications, NASDAQ, FRA 501. This collection must be available as necessary as it is possible. Here, there is below the Current 4Q/2011 for all of the year. For use with barre WAXX-XXXX, these volumes are reduced. Use the product is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is not suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service. For example, it is also suitable for any other product or service.370 X630 (WSL) 4001838 (N°) 4001607 (NGZ) 412-639 (WUSA) MODEL / MODELE XXIX XXX XXX XXX XXX XXIX XXX XXX XXX Altitude Input Detached Input P4 Montinol Pressure Co., Inc. (P) Minimum Supply Pressure Co., Inc. (P) Maximum Supply Pressure Co., Inc. (P) Precision to Collecture (P) (P) Precision of Absorption Mix (P) (P) (P) Precision of Amplification Mix (P) (P) Minimum supply pressure to exceed 100% Minimum clearance to combustible materials This line is above 100% of the maximum clearance of the minimum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the maximum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the minimum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum Clearance Model / MODELE XXIX XXX XXX XXX XXIX XXX XXX XXX Altitude Input Detached Input P4 Montinol Pressure Co., Inc. (P) Minimum Supply Pressure Co., Inc. (P) Maximum Supply Pressure Co., Inc. (P) Precision to Collecture (P) (P) Precision of Absorption Mix (P) (P) (P) Precision of Amplification Mix (P) (P) Minimum supply pressure to exceed 100% Maximum clearance to combustible materials This line is above 100% of the maximum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the minimum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance of the maximum clearance Minimum allowance required by a commercial paper. This line is above 100% on top lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on medium lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on mid lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on top lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom lines and above 100% on middle lines and above 100% on bottom linesVENTED DECORATIVE GAS APPLIANCE: NOT A SOURCE OF HEAT, NOT INTENDED FOR USE AS A HEATING APPLIANCE, NOT FOR USE WITH SOLID FUEL. APPAREIL À GAZ DÉCORATIF À ÉVACUATION: N'EST PAS UNE SOURCE DE CHALEUR; N'EST PAS DESTINÉ À ÊTRE UTILISÉ COMME UN APPAREIL DE CHAUFFAGE; NE CONVENT ÀS AUX COMBUSTIBLES SOLIDES. FOR USE WITH GLASS DOORS CERTIFIED WITH THIS APPLIANCE ONLY. FOUR UTILISATION UNIQUEMENT AVEO LES PORTES EN VERRE CERTIFIÉES AVEC L'APPAREIL. For nature gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC& DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection, for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection,for purposes only one spot, with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection,for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection,for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection,for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injection,for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injected, for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injected, for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injected, for purposes only one spot,with DC & DC fuel still being carried out. Contact gas water used with DC & DC fuel injected, for purposes only one spot,with DC & DC fuel still being carried out. Contact gas power using a battery source (DC) - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - Electricity - WOLF STEEL LTD. By protection from State Grid CN L4X DBG Conso Serial Number / N° de Series XXXXX W856 XXXXX

note:

Close-up of a black remote control with two batteries, one labeled 'Energyz' and the other 'Electric', showing no visible text or symbols beyond product labels.

Diagram showing a close-up of a device panel with an inset view highlighting the internal structure (no text or symbols present)

BOUTON DE RÉINITIALISATION (PROGR.)

! AVERTISSEMENT

INSTRUCTIONS D'ALLUMAGE

note:

Technical line drawing of a mechanical assembly with no visible text or symbols

COUPEZ L'ALIMENTATION DE GAZ

Black handheld electronic device with a small screen and control buttons, labeled (Fig. 1) at the bottom (no visible text or symbols on the device itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with rollers and a central component (no text or symbols)

(Fig. 2) (Fig. 3) W415-10006418 / --0 / 03.11.25

Technical diagram showing a window frame with structural elements and directional arrows, no text or symbols present.

Technical line drawing of a multi-level storage or rack system with an inset magnified view showing internal components (no text or symbols)

BLX56 illustré

Modern living room interior featuring a dark gas stove with visible flames and a wooden backrest (no text or symbols)

Exterior view of a modern stainless steel grill with a dog-shaped heater, situated in front of residential houses and stone pavement (no signage or text visible)

Interior view of a modern kitchen with a large washing machine and a gray washing cabinet, no visible text or symbols.

7200, Route Transcanadienne, Montréal, Québec H4T 1A3 24 Napoleon Road, Barrie, Ontario, Canada L4M 0GB 214 Bayview Drive, Barrie, Ontario, Canada L4N 4Y8 103 Miller Drive, Crittenden, Kentucky, USA 41030 De Riemsdijk 22, 4004 LC Tiel, Pays-Bas

Téléphone : 1-866-820-8686 napoleon.com
