USER MANUAL BKM-220D SONY

SDI 4:2:2 Input Adaptor

取扱説明書 JP

Operating Instructions GB

Mode d'emploi FR

Before operating the unit, please read this manual thoroughly and retain it for future reference.

WARNING

For the customers in the USA

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

For the customers in Canada

This Class A digital apparatus complies with Canadian ICES-003.

For the customers in Europe

This product with the CE marking complies with both the EMC Directive issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European standards:

EN55103-1: Electromagnetic Interference (Emission)

EN55103-2: Electromagnetic Susceptibility (Immunity)

This product is intended for use in the following Electromagnetic Environment(s): E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio).

This equipment has been found to comply with limits for a Class B device pursuant to EN60601-1-2. However, if this equipment does cause harmful interference to other devices, which can be determined by turning this equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Increase the separation between the equipment and other devices.

Connect the equipment into an outlet on a circuit different from that to which other devices are connected.

Consult the dealer or an experienced radio/TV technician for help.

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan.

The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany.

Overview

The BKM-220D SDI 4:2:2 Input Adaptor is a video signal input adaptor for Sony professional monitors.

When installed in an input option slot on the main unit, it provides video input and output connectors for the main unit and a decoder for serial digital component signals.

Function

Decoder for serial digital component signals

The BKM-220D is equipped with a built-in decoder for serial digital component (525/625) signals.

Serial digital input and output signal connector

The BKM-220D is equipped with two input and one monitor output connectors for serial digital signals.

Using the Input and Output Connectors

For information about installing the BKM-220D in an input option slot on the main unit, see the operating instructions for the main unit.

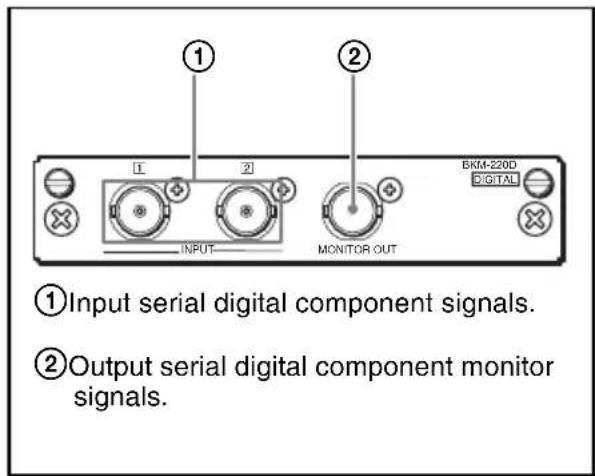

Configuration of Input/Output Connectors and Signals that may be Input

The configuration of the input and output connectors, and the signals that may be input are shown below.

① ① ② BKM-220D DIGITAL INPUT MONITOR OUT ①Input serial digital component signals. ②Output serial digital component monitor signals.

Input of serial digital component signals

You can input serial digital signals to connectors ① and output signals displayed on the screen of the main unit or the monitor from connector ②.

You need not attach the 75-ohm termination to connector ②.

Notes

- The MONITOR OUT signal is output only when the power of the main unit is ON. The MONITOR OUT signal is not output when the monitor is in standby mode.

- The MONITOR OUT signal does not comply with ON-LINE signal specifications.

Specifications

General

Voltage +5 V (supplied from the main unit)

Power consumption Approx. 1.5 W

Operating conditions

Temperature

$$ 0 ^ {\circ} \mathrm{C} \text { to } 3 5 ^ {\circ} \mathrm{C} (3 2 ^ {\circ} \mathrm{F} \text { to } 9 5 ^ {\circ} \mathrm{F}) $$

Optimum temperature

$$ 2 0 ^ {\circ} \mathrm{C} \text { to } 3 0 ^ {\circ} \mathrm{C} (6 8 ^ {\circ} \mathrm{F} \text { to } 8 6 ^ {\circ} \mathrm{F}) $$

Humidity 0% to 90% (no condensation)

Pressure 700hPa to 1060 hPa

Storage and transport conditions

Temperature -20^ to +60^ (-4^ to +140^)

Humidity 0% to 90%

Pressure 700 hPa to 1060 hPa

Maximum external dimensions (w/h/d)

$$ 1 0 0 \times 2 0 \times 1 6 2 \mathrm{mm} $$

$$ (4 \times {} ^ {1 3} / _ {1 6} \times 6 ^ {1} / _ {2} \text { inches }) $$

Mass Approx. 250 g (8.8 oz)

Input/output connectors

Digital input BNC × 2, with monitor output connector

For information about available signal formats, see the operating instructions for the main unit to which the adaptor is installed.

Signal characteristics

Digital component signals

Sampling frequency

$$ \mathrm{Y} / \mathrm{R} - \mathrm{Y} / \mathrm{B} - \mathrm{Y}: 1 3. 5 \mathrm{MHz} $$

Quantization

$$ 1 0 \text { bits / sample } $$

MONITOR OUT

Output signal amplitude:

$$ 800 \mathrm{mVp} - \mathrm{p} \pm 10 \% $$

Output impedance:

$$ 7 5 - o h m s \text { unbalanced } $$

Transmission distance

200 m (approx. 656 ft) max.

(When using 5C-2V coaxial

cables (Fujikura. Inc.) or

equivalent.)

Supplied accessories

Operating Instructions (1)

Design and specifications are subject to change without notice

Note

Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.
