USER MANUAL Root BAR 6 Cameo

Green LED display tube with circular white holes, no visible text or symbols

ROOT® BAR 6

16 X 12 W RGBAW + UV-LED BAR

CLROOTBAR6

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INFORMATION ON THIS USER MANUAL 6

INTENDED USE 6

EXPLANATIONS OF TERMS AND SYMBOLS 6

SAFETY INSTRUCTIONS 7

NOTES FOR PORTABLE INDOOR DEVICES 11

PACKAGING CONTENT 11

INTRODUCTION 11

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS 12

OPERATION 14

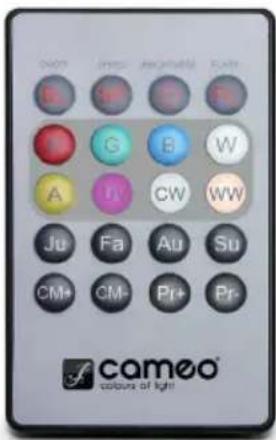

IR REMOTE CONTROL 22

SET-UP AND INSTALLATION 24

INSTALLING THE FROST FILTER 28

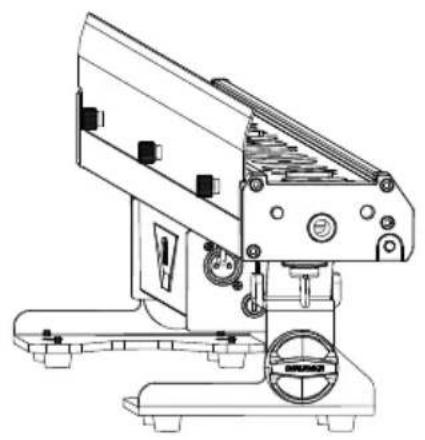

MOUNTING THE GLARE SHIELD 29

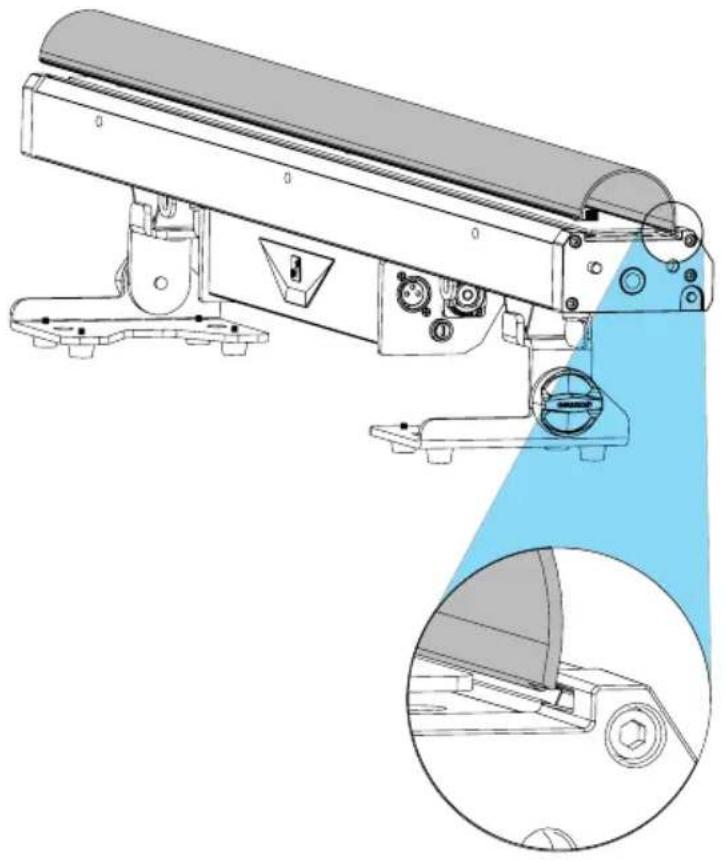

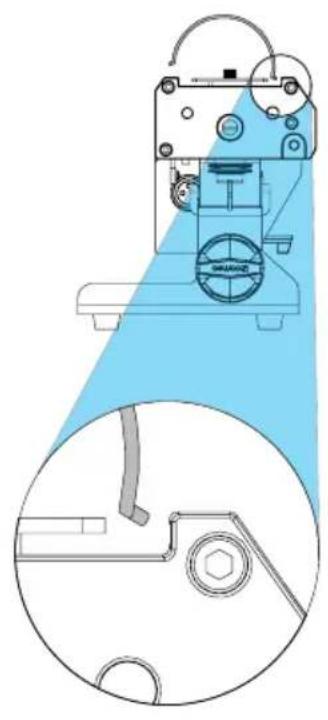

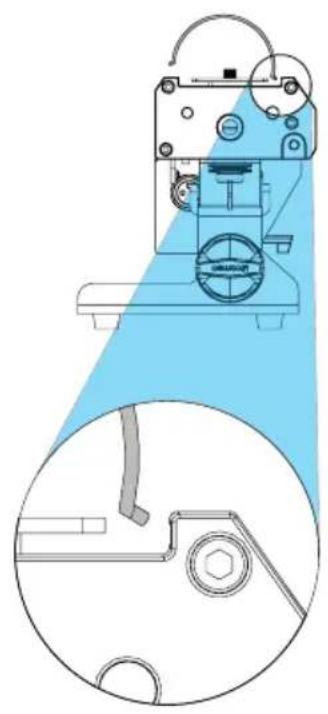

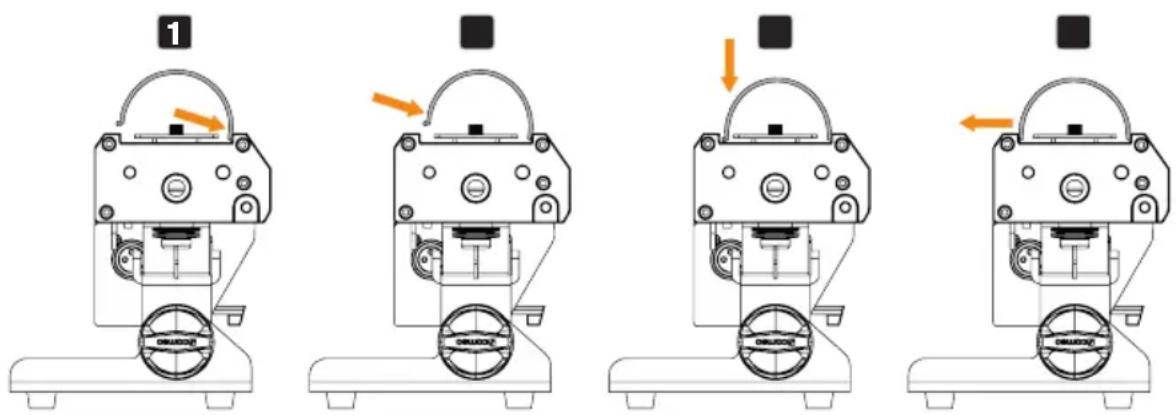

MOUNTING THE NEON TUBE FILTER 29

CARE, MAINTENANCE, AND REPAIR 30

OPTIONAL ACCESSORIES 31

TECHNICAL DATA 31

MINIMUM DISTANCE TO ILLUMINATED SURFACE 33

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS 33

DISPOSAL 33

MANUFACTURER'S DECLARATIONS 33

DEUTSCH

You have made the right choice!

This device has been developed and manufactured to the highest quality standards to ensure many years of trouble-free operation. Please read this user manual carefully to be able to quickly put your new Cameo Light product to optimum use. Further information about Cameo Light is available on our website: CAMEOLIGHT.COM

INFORMATION ON THIS USER MANUAL

• Carefully read the safety instructions and the entire manual before operating the device.
• Observe the warnings on the device and in the user manual.
  • Always keep the user manual within reach.
• If you sell or pass on the device, it is important that you also include this user manual, as it is an integral part of the product.

INTENDED USE

This product is a device for event technology!

This product has been developed for professional use in the field of event technology and is not suitable for use as domestic lighting!

Temporary operation! Event equipment is generally designed for temporary use only and not for continuous operation and fixed installation!

Furthermore, this product is only intended for qualified users with specialist knowledge of event technology!

Use of the product outside the specified technical data and operating conditions is considered improper use!

Liability is exempted when damage and third-party damage to persons and property is caused by inappropriate use!

The product is not suitable for:

• Persons (including children) with limited physical, sensory, or mental abilities or lack of experience and knowledge.
• Children (children must be instructed not to play with the device).

EXPLANATIONS OF TERMS AND SYMBOLS

1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately hazardous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially hazardous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, indicates situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, indicates situations or conditions that may lead to damage to property and/or the environment.

This symbol identifies hazards that can cause electric shock.

This symbol indicates hazardous areas or hazardous situations.

This symbol indicates hazards caused by hot surfaces.

This symbol indicates hazards caused by intense light sources.

This symbol indicates hazards due to suspended loads.

This symbol indicates a device in which there are no user-serviceable parts.

This symbol indicates additional information on the operation of the product.

This symbol indicates a device that may only be used in dry rooms.

SAFETY INSTRUCTIONS

HAZARD:

1. Do not open the device and do not perform any modifications.
2. If your device no longer functions properly, if liquids or objects get inside it, or if it has been damaged in any other way, switch it off immediately and disconnect it from the mains. The device may be repaired only by authorised repair technicians.
3. For devices of protection class 1, the protective conductor must be connected correctly. Never disconnect the protective conductor. Devices of protection class 2 do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.

WARNING:

1. The device may not be operated if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the mains cable of the device is damaged, do not operate the device.
4. Permanently connected mains cables may only be replaced by a qualified person.

ATTENTION:

1. Do not operate the device if it has been exposed to large temperature fluctuations (for example, after transport). Moisture and condensation may damage the device. Switch on the device only when it has reached ambient temperature.
2. Make sure that the voltage and frequency of the mains correspond to the values indicated on the device. If the device has a voltage selector switch, do not turn the device on until it has been set correctly. Use only suitable mains cables.
3. To disconnect the device from the mains at all poles, it is not sufficient to press the on/off switch on the unit.
4. Make sure that the fuse used corresponds to the type printed on the device.
5. Make sure that appropriate measures have been taken against overvoltage (for example, lightning strike).
6. Observe the specified maximum output current on devices with a Power Out connection. Ensure that the total current consumption of all connected devices does not exceed the specified value.
7. Replace plug-in mains cables only with original cables.
8. Connect the device only to compliant, tested, and undamaged power outlets.

DANGER:

1. Danger of suffocation/choking! Plastic bags and small parts must be kept out of reach of persons (including children) with reduced physical, sensory, or mental capabilities.
2. Danger caused by falling device! Make sure that the device is securely installed and cannot fall down. Only use suitable stands or mounts (particularly for fixed installations). Ensure that accessories are properly installed and secured. Ensure that all applicable safety regulations are observed.

WARNING:

1. Use the device only in the prescribed manner.
2. Operate the device only with the accessories recommended and intended by the manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the device, check all cable routes to avoid damage or accidents, for example, due to tripping hazards.
5. Always observe the specified minimum distance to normally flammable materials! Unless explicitly stated, the minimum distance is 0.3 m.

CAUTION:

1. Moving components such as mounting brackets or other movable components may become jammed.
2. Devices with motor-driven components may result in injury from the movement of the device. Sudden movement of the device can cause shock reactions.
3. The exterior surface of the device can become very hot during regular operation. Ensure that accidental touching of the housing is not possible. Always allow the device to cool sufficiently before removal, maintenance work, charging, or similar.

ATTENTION:

1. Do not install or operate the device near any radiators, heat registers, stoves, or other heat sources. Ensure that the device is always installed in such a way that it is sufficiently cooled and cannot overheat.
2. Do not place ignition sources such as burning candles near the device.
3. Ventilation openings must not be covered, and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or impact to the device.
6. Observe the IP protection class, as well as the ambient conditions such as temperature and humidity according to the specification.
7. Devices can be continuously further developed. In the event of deviating information on operating conditions, performance, or other device properties between the user manual and the device labelling, the information provided on the device always has priority.
8. The device is not suitable for tropical climates and for operation at heights of 2,000 m above sea level or higher.
9. Unless explicitly stated, the device is not suitable for operation in marine conditions.

PLEASE NOTE:

For conversion or retrofit sets or accessories provided by the manufacturer, it is essential to observe the included instructions.

CAUTION! IMPORTANT NOTES ON LIGHTING PRODUCTS!

1. This device is a risk group 1 device. Do not stare at the light source! Do not look directly into the lamp with optical instruments such as magnifying glasses or binoculars!
2. Stroboscopic effects may cause epileptic seizures in susceptible individuals!
3. Permanently installed lamps are built into these lighting units. These may not be replaced by the user. The lamps contained in this light source may only be replaced by the manufacturer, its service partner, or a similarly qualified person.

SIGNAL TRANSMISSION BY RADIO

(for example, W-DMX or wireless audio systems):

The quality and performance of wireless signal transmissions generally depends on the ambient conditions.

For example, the following factors can impact range and signal stability:

Shielding (for example, masonry, metal structures, water)

High volumes of radio traffic (for example, powerful wireless LAN networks)

Interference

Electromagnetic radiation (for example, LED video screens, dimmers)

All range specifications refer to free-field line-of-sight applications without interference!

The operation of radio transmission systems is subject to official regulations. These may vary from region to region and must be checked by the operator before use (for example, radio frequency and transmission power).

WARNING: Devices with wireless signal transmission are not suitable for use in sensitive areas in which radio operation can lead to potentially detrimental interactions. These include:

• Hospitals, health centres, or other healthcare facilities that provide patient treatments with skilled personnel and equipment.
  • Class I, II, and III hazardous areas
• Restricted areas
• Military facilities
• Aircraft or vehicles
• Areas where the use of mobile phones is prohibited

TRANSMISSION VIA W-DMX

WARNING: In general, wireless DMX transmission must not be used for applications involving safety-related factors that might result in personal injury or property damage in the event of a failure.

This applies in particular to moving scene or truss structures, DMX-controlled motors/lifts, or lifting devices for operating DMX-operated platform lifts, hydraulic systems, or comparable moving components.

Furthermore, wireless DMX transmission must not be used to control flame or pyrotechnic devices, explosion-driven effects, or gas or liquid effects. These include, for example, CO2 cannons, confetti shooters, water effects, or similar.

NOTES FOR PORTABLE INDOOR DEVICES

1. Temporary operation! Event equipment is generally only designed for temporary operation.
2. Continuous operation or permanent installation can impair the functionality of the device and cause premature ageing.

PACKAGING CONTENT

Remove the product from the packaging, and remove all packaging material.

Please check the completeness and integrity of the delivery, and notify your distribution partner immediately after purchase if the delivery is not complete or if it is damaged.

The packaging content for the product includes:

▶ 1 × ROOT BAR 6 RGBWA+UV
▶ 2 × Omega mounting bracket
▶ 2 × Adjustable stand
▶ 1 × Glare shield
▶ 1 × Diffuser
▶ 1 × Neon tube filter
▶ 1 × Mains cable

▶ Safety and compliance information (user manual as a download via QR code)

INTRODUCTION

LED ROOT BAR

CLROOTBAR6

CONTROL FUNCTIONS:

2-channel, 4-channel sound, 4-channel 2, 5-channel, 6-channel direct, 6-channel pattern, 8-channel, 11-channel sound, 11-channel pattern, 24-channel, 27-channel, D3-channel, D5-channel sound, D5-channel direct, D6-channel, D7-channel, D9-channel and D12-channel DMX control

DMX512

W-DMX via optionally available Cameo iDMX stick

Control via IR remote control (remote control optionally available)

Master/slave operation

Stand-alone functions

FEATURES:

16× 12 W RGBWA+UV LEDs. DMX512. Connection for optional iDMX stick for wireless control via W-DMX. IR remote control optionally available. 3-pin DMX connections. Multi-angle installation thanks to tool-free folding feet. Two Omega mounting brackets and two adjustable feet included. Glare shield, diffuser, and neon tube filter included.

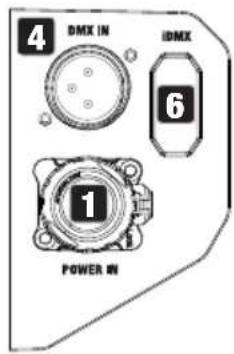

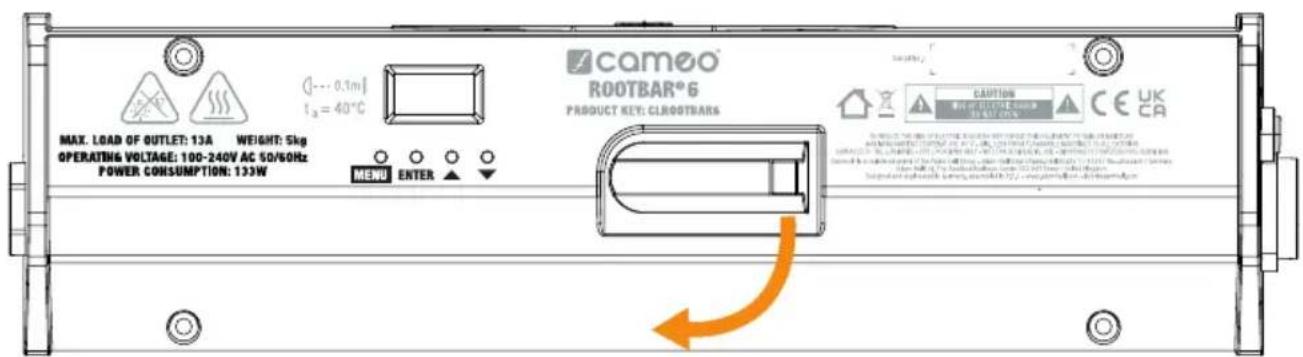

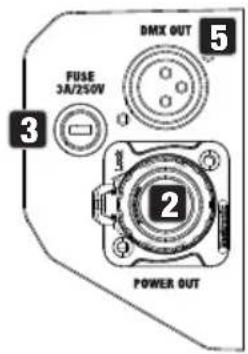

CONNECTIONS AND OPERATING/DISPLAY ELEMENTS

cameo ROOTBAR® 6 PRODUCT KEY: CLROOBTBARG MAX. LOAD OF OUTLET: 13A WEIGHT: 5kg OPERATING VOLTAGE: 100-240V AC 50/60Hz POWER CONSUMPTION: 133W 7 MENU ENTER 8 9 MBC CAUTION WE # DEUTIVE ORDER CE UK CA

4 DMX IN IDMX 6 1 POWER IN

DMX OUT FUSE 3A/250V POWER OUT

1 POWER IN

Power Twist mains input socket. Operating voltage 100–240 V AC / 50–60 Hz. Use the included mains cable.

2 POWER OUT

Power Twist mains output socket. Enables power supply to other CAMEO lights. Ensure that the total power consumption of all connected devices does not exceed the value specified on the device in amperes (A).

3 FUSE

Fuse holder for 5 × 20 mm fuses. IMPORTANT NOTE: Only replace the fuse with a fuse of the same type and value. In the event of repeated fuse failure, please contact an authorised service centre.

4 DMX IN

Male 3-pin XLR socket for connection to a DMX control device (for example, DMX console).

5 DMX OUT

Female 3-pin XLR socket for sending the DMX control signal.

6 IDMX

Connection for the optionally available iDMX stick for wireless DMX operation (insert the iDMX stick with the antenna facing the DMX IN socket).

7 OLED DISPLAY

The OLED display shows the currently active operating mode (main screen), the menu items, and the numerical value or operational status of certain menu items. If no input is made within approximately one minute, the display automatically returns to the main screen. Note on the main screen in operating modes with external control: in the event that the control signal is interrupted, the characters in the display begin flashing; once the control signal is present again, the flashing stops.

8 CONTROL BUTTONS

MENU – press MENU to access the main menu. Press again or repeatedly to return to the main screen. Pressing MENU without confirming a value or status change by pressing ENTER restores the previously confirmed value or status.

ENTER – press ENTER to access the menu levels, where you can make value changes and access the sub-menus with the ENTER button. ENTER is also used to confirm value or status changes.

▲ and ▼ – select menu items in the main menu (DMX address, DMX mode, etc.) and in the sub-menus. Allows you to change the value of a menu option, such as the DMX address (long press = quick value change).

9 MIC

Microphone for music control in the stand-alone operating modes Auto and Pattern and the DMX operating modes with sound channel.

INFRARED SENSOR

The infrared sensor for control via IR remote control is found on the front of the fixture.

OPERATION

NOTES

• As soon as the fixture is switched on, the following are displayed in succession: "Welcome to Cameo", the model name, and the software version. After this process, the fixture is ready for operation, and the previously activated operating mode is launched.
• To return directly from the sub-menus to the main display, press and hold MENU for around two seconds.
• The main display is activated automatically after approximately two minutes of no input. To navigate one level up in the sub-menus, briefly press MENU.
• To directly access the previously edited menu item, briefly press MENU and ENTER at the same time.
• Briefly pressing the ▲ button when in the main display rotates the display by 180°.
• To quickly change a value, such as the DMX start address, press and hold ▲ or ▼.

MAIN SCREEN IN DMX OPERATING MODE

In DMX operating mode, the main screen shows the currently set DMX start address (see illustration). When the DMX Delay feature is activated, the delay group and delay time are also displayed. Flashing characters in the display indicate that the fixture has no DMX signal.

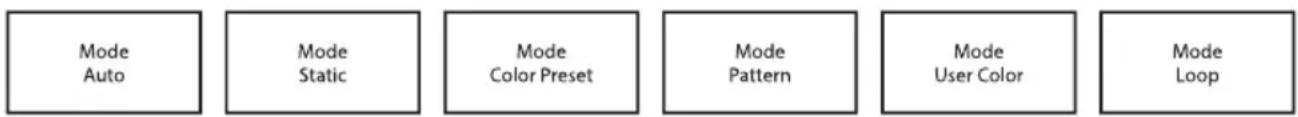

The display shows the currently activated stand-alone operating mode.


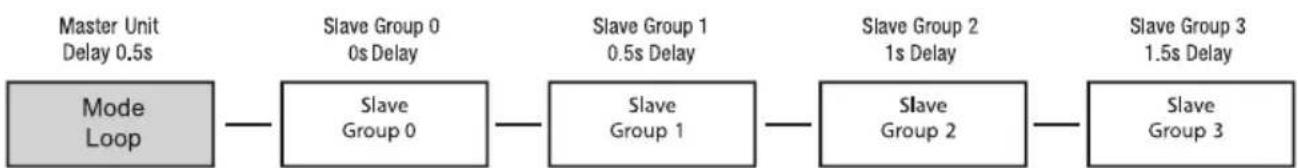

MAIN DISPLAY SLAVE MODE

The display shows Mode Slave. If the slave unit is assigned to a slave group, the slave group and the delay time set in the master unit under the stand-alone operating modes Auto and Loop are also displayed.

SETTING THE DMX START ADDRESS (DMX Address)

Starting from the main screen, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Address and confirm with ENTER. Use ▲ or ▼ to configure the desired

DMX start address and press ENTER to confirm (the highest possible value depends on the selected DMX operating mode).

---- Menu ---- ►DMX Address DMX Mode DMX Delay Stand Alone Slave Settings System Info

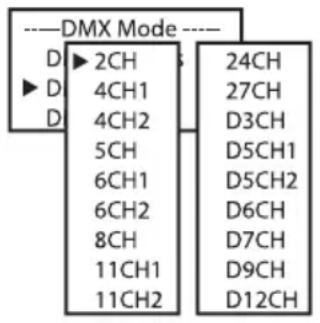

SETTING THE DMX OPERATING MODE (DMX Mode)

Starting from the main screen, press MENU to enter the main menu. Now use ▲ or ▼ to select the menu item DMX Mode and confirm with ENTER. Select the desired DMX operating mode using ▲ or ▼ and confirm with ENTER. Tables showing the channel assignment of the different DMX operating modes can be found in the DMX CONTROL section of this user manual.

---- Menu ---- DMX Address ► DMX Mode DMX Delay Stand Alone Slave Settings System Info

DMX Mode 2CH 4CH1 4CH2 5CH 6CH1 6CH2 8CH 11CH1 11CH2 24CH 27CH D3CH D5CH1 D5CH2 D6CH D7CH D9CH D12CH

DMX DELAY

The DMX Delay function is a simple way to create a running light effect with a large number of fixtures that are all the same model and that are all running the same software version. This is otherwise only achievable with a suitable DMX controller and time-consuming programming. All the fixtures used in this are set to the same DMX operating mode and controlled via the same DMX start address. All DMX modes with the delay channel are labelled with D.

Assign the fixtures to one of up to 47 groups (plus group 0) as desired (maximum group number depends on the activated DMX operating mode). Multiple fixtures may be assigned to a group. The group number is also the factor by which the set delay time is multiplied (see set-up example).

Starting from the main display, press MENU to access the main menu. Use the ▲ and ▼ buttons to select the menu item DMX Delay and confirm by pressing ENTER twice. Now use ▲ and ▼ to set the group as required and confirm the entry with ENTER.

---- Menu ---- DMX Address DMX Mode ►DMX Delay Stand Alone Slave Settings System Info

The delay time of the DMX signal is set by means of a DMX controller in the separate DMX delay channel of the corresponding DMX operating mode (0.0 s to 2.0 s in 0.1 s increments).

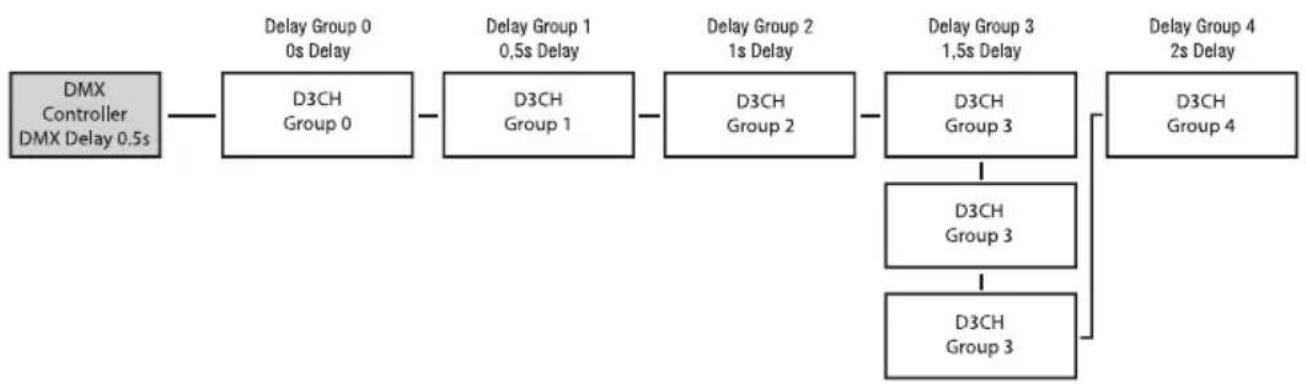

Set-up example:


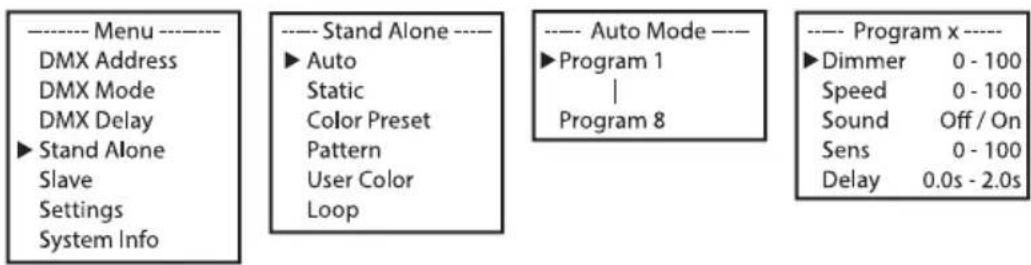

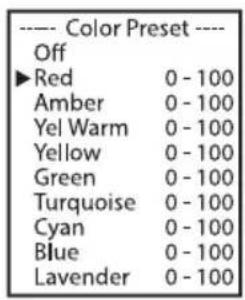

The eight available auto programs partly comprise non-editable colour-change sequences and partly random scenes. Brightness, running speed, music control, microphone sensitivity, and delay can be set separately for each program.

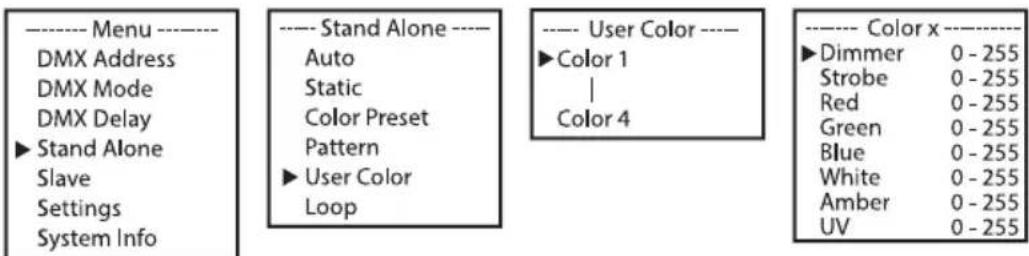

Starting from the main display, press MENU to access the main menu. Using the ▲ and ▼ buttons, select the menu item Stand Alone and confirm with ENTER. Again use ▲ and ▼ to select the stand-alone operating mode Auto and confirm with ENTER. Now use ▲ and ▼ to select the desired program (program 1 to program 8) and confirm again with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info ---- Stand Alone ---- ► Auto Static Color Preset Pattern User Color Loop ---- Auto Mode ---- ► Program 1 | Program 8 ---- Program x ---- ► Dimmer 0 - 100 Speed 0 - 100 Sound Off / On Sens 0 - 100 Delay 0.0s - 2.0s

This takes you to the sub-menu for setting the sub-menu items (see table, select with ▲ and ▼, confirm with ENTER, change value or status with ▲ and ▼, and confirm with ENTER). The settings for each program are made separately and are retained even after restarting the device.

AUTO STAND-ALONE OPERATING MODE (Program 1–Program 8)
Dimmer	Sets the brightness	0 - 100
Speed	Sets the running speed	0 - 100
Sound	Activates/deactivates music control	Off	Deactivates music control
		On	Activates music control
Sens	Sets microphone sensitivity	0 - 100
Delay	Delay time for slave groups	0.0s - 2.0s

The Static stand-alone operating mode allows the Dimmer, Strobe, and R, G, B, W, and A values to be set directly on the device with values in a similar way to a DMX controller. This allows you to

create a custom scene without an additional DMX controller.

Starting from the main display, press MENU to access the main menu. Using ▲ and ▼, select Stand Alone, confirm with ENTER, then select Static, and confirm once again with ENTER. Now select the menu item you want to edit, confirm the selection, set the desired value, and confirm the entry.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

---- Stand Alone ---- Auto ► Static Color Preset Pattern User Color Loop

---- Static Mode --- ►Dimmer 0 - 255 Strobe 0 - 255 Red 0 - 255 Green 0 - 255 Blue 0 - 255 White 0 - 255 Amber 0 - 255 UV 0 - 255

16 different color presets plus a jump and a fade preset with adjustable running speed are available.

Starting from the main display, press MENU to access the main menu. Using ▲ and ▼, select the menu item Stand Alone, confirm the selection, then select Color Preset, and confirm again with ENTER. The desired preset can now be selected. Confirm the selection, set the brightness from 0 to 100, and confirm again. The running speed (Speed) can also be set for the two presets Jump and Fade.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

Stand Alone Auto Static ► Color Preset Pattern User Color Loop

Color Preset Off ►Red 0 - 100 Amber 0 - 100 Yel Warm 0 - 100 Yellow 0 - 100 Green 0 - 100 Turquoise 0 - 100 Cyan 0 - 100 Blue 0 - 100 Lavender 0 - 100

Color Preset Mauve 0 - 100 Magenta 0 - 100 Pink 0 - 100 Warm White 0 - 100 White 0 - 100 Cold White 0 - 100 UV 0 - 100 Jump 0 - 100 Fade 0 - 100 Speed 0 - 100

The 12 available patterns each consist of pre-programmed four-segment patterns. Brightness, running speed, color preset, music control, microphone sensitivity, and delay can be set separately for all patterns.

Starting from the main display, press MENU to access the main menu. Using the ▲ and ▼ buttons, select the menu item Stand Alone and confirm with ENTER. Use ▲ and ▼ again to select the stand-alone operating mode Pattern and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

---- Stand Alone ---- Auto Static Color Preset ►Pattern User Color Loop

---- Pattern ---- ► Dimmer 0 - 255 Strobe 0 - 255 Color Red... Pattern 1 - 12 Speed 0 - 255 Sound Off / On Sens 0 - 100 Delay 0.0s - 2.0s

This takes you to the sub-menu for setting the sub-menu items (see table, select with ▲ and ▼, confirm with ENTER, change value or status with ▲ and ▼, and confirm with ENTER).

PATTERN STAND-ALONE OPERATING (Pattern 1-Pattern 12)
Dimmer	Sets brightness	0 - 100
Strobe	Multifunctional stroboscope (see, for example, DMX operating mode 6CH pattern, channel 2)	0 - 255
Colour	Selects the color presets	Red - CW /User 1 - 4
Pattern	Selects the pattern	1 - 12
Speed	Sets the running speed and running direction of the patterns (see, for example, DMX operating mode 6CH pattern, channel 5)	0 - 255
Sound	Activates/deactivates music control	Off	Deactivates music control
		On	Activates music control
Sens	Sets microphone sensitivity	0 - 100
Delay	Delay time for slave groups	0.0s - 2.0s

The four user presets available in the stand-alone operating mode User Color can be edited individually. Starting from the main display, press MENU to access the main menu. Using ▲ and ▼, select the menu item Stand Alone, confirm with ENTER, then select User Color, and confirm once again. Select the desired preset (Color 1–Color 4) and confirm the selection. Now select the menu item you want to edit, confirm the selection, set the desired value, and confirm the entry.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info ---- Stand Alone ---- Auto Static Color Preset Pattern ► User Color Loop ---- User Color ---- ► Color 1 | Color 4 ---- Color x ---- ► Dimmer 0 - 255 Strobe 0 - 255 Red 0 - 255 Green 0 - 255 Blue 0 - 255 White 0 - 255 Amber 0 - 255 UV 0 - 255

Brightness, step duration, and fade time can be set separately for all four loops. Starting from the main display, press MENU to access the main menu. Using UP and DOWN, select the menu item Stand Alone, confirm with ENTER, then select Loop, and confirm again. Now select the desired loop for playback and editing and confirm the selection.

---- Menu ---- DMX Address DMX Mode DMX Delay ► Stand Alone Slave Settings System Info

---- Stand Alone ---- Auto Static Color Preset Pattern User Color ► Loop

---- Loop x ---- ►Dimmer 0 - 100 Steptime 0.1s-10.0s Fadetime 0%-100% Delay 0.0s - 2.0s 1.Step Red... 2.Step Red... 3.Step Red... 4.Step Red...

This takes you to the sub-menu for setting the sub-menu items (see table). The settings for each loop are made independently and are retained even after restarting the device.

LOOP STAND-ALONE OPERATING MODE (Loop 1–Loop 4)
Dimmer	Sets the brightness	0 - 100
Steptime	Sets the step time	0.1s - 10.0s
Fadetime	Sets the fade time	0% - 100%
Delay	Delay time for slave groups	0.0s - 2.0s
1.Step	Select color preset or blackout for step 1	Red - UV / User 1 - 4 / Blackout
2.Step	Select color preset or blackout for step 2	Red - UV / User 1 - 4 / Blackout
3.Step	Select color preset or blackout or skip step (——) for step 3	Red - UV / User 1 - 4 / Blackout / _
4.Step	Select color preset or blackout or skip step (——) for step 4	Red - UV / User 1 - 4 / Blackout / _

SLAVE MODE

Standard slave operation: Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the Slave menu item, confirm with ENTER, then select slave group 0, and confirm again. Connect the slave and the master units (same model, same software version) using a DMX cable and activate one of the stand-alone modes on the master unit. The slave unit will now follow the master unit.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone ► Slave Settings System Info

Extended slave mode: If you want to control the slave units in master/slave mode using one of the stand-alone operating modes Auto, Pattern, or Loop, the control signal can be played back with a time delay of up to 11 steps. The delay time is set in the menu of the master unit's corresponding stand-alone operating mode; the delay factor in the slave menu of the correspond-

ding fixture (slave group). This is a simple way to create a running light effect with a large number of identical lights that are running the same software version, which would otherwise require a suitable DMX controller and extensive programming. Connect the slave and master units (same model, same software version) using a DMX cable.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone ► Slave Settings System Info

Assign the lights to one of up to 11 groups (plus Group 0) according to preference, whereby several lights can be assigned to one group. The group number is also the factor by which the delay time set in the master unit is multiplied.

Set-up example:

SYSTEM SETTINGS (Settings)

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the menu item Settings and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone Slave ► Settings System Info

---- Settings ---- ► Disp Rev No/Yes Disp Back On/Off | Edit Preset A - C Service PW

This takes you to the sub-menu to set sub-menu items (see table, select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, and confirm with ENTER).

Settings
Disp Rev	Display rotation	No	No display rotation
		Yes	Display is rotated by 180° (for example, for over-head installation)
Disp Back	Switching off the display lighting	Off	Deactivation of the display lighting after approx. 30 seconds of inactivity
		On	Display lighting permanently on
Sig Fail	Operational status on control signal interruption	Hold	Last command is retained
		Black	Instant blackout
		User 1	User Color 1 is activated
Mirror	Mirror LED segments	Off	Function deactivated
		On	LED segments are mirrored
IR Remote	Control via IR remote control	Off	Control via IR remote control deactivated
		On	Control via IR remote control activated
Sound	Control via sound	Last	The last value is retained until the next impulse
		Off	Pulse activates LEDs; blacks out after a short time until the next pulse
PWM	LED PWM frequency	650Hz	the LED PWM frequency
		1530Hz
		2150Hz
		4000Hz
Calibration	Colour calibration	Red	Individual colour calibration. Cross-mode brightness setting with values from 0–255
		Green
		Blue
		White
		Amber
		UV
Reset	Reset the device	Factory	Reset to factory settings
		Preset A	Reset to Preset A
		Preset B	Reset to Preset B
		Preset C	Reset to Preset C
Edit Preset	Store all system settings in three custom presets	Preset A	Store with ENTER
		Preset B	Store with ENTER
		Preset C	Store with ENTER
Service	For service purposes only	Password

SYSTEM INFORMATION (System Info)

Starting from the main screen, press MENU to enter the main menu. Use the ▲ or ▼ buttons to select the menu item System Info and confirm with ENTER.

---- Menu ---- DMX Address DMX Mode DMX Delay Stand Alone Slave Settings ►System Info

This takes you to the sub-menu to set sub-menu items (see table, select with ▲ or ▼, confirm with ENTER, change value or status with ▲ or ▼, and confirm with ENTER).

System Info
Firmware	Device's firmware version	Vx.xx
Temperature	Temperature of the LED unit in degrees Celsius or degrees Fahrenheit	LED	xx°C/°F
		Unit	°C
			°F
Op Hours	Displays operating time in hours and minutes	xx:xxh

IR REMOTE CONTROL (optionally available; product number CLPFLAT1REMOTE)

ONION B S D E G B W A U CW WW Ju Fa Au Su CM+ CM- Pr+ Pr- cameo® colours of light

Aim the infrared remote control directly at the infrared sensor on the front of the light. The maximum range is approximately 8 metres. In DMX and slave operating modes, the fixture's IR sensor is deactivated. The infrared remote control directly controls the internal stand-alone operating modes. Activate operation via IR remote control in the system settings (Settings -> IR Remote -> On) and start one of the stand-alone operating modes.

BL / ON/OFF (Blackout)

Press the BL button to switch off all LEDs (blackout), regardless of the operating mode enabled via remote control. Press the BL button again to reactivate the previously selected operating mode.

SP (Speed)

11-stage speed setting for the lighting sequence in stand-alone operating mode Auto (Au). Level 1 creates the fastest lighting sequence. Press the button again to activate level 2 for a slower colour-change sequence, and repeat for levels 3, 4, 5, etc., whereby level 11 provides the slowest lighting sequence speed.

(Brightness)

Sets the overall brightness in six levels. The different brightness levels can be accessed by repeatedly pressing this button (level 1 = blackout).

FL (Flash/Stroboscope)

Six-level speed setting for the strobe effect. Level 1 deactivates the strobe effect, level 2 produces a slow flash frequency, followed by levels 3 to 5. Level 6 generates the fastest flash frequency. The strobe effect can only be used in the colour blending mode RGBW.

R, G, B, W, A, and UV (CW and WW without function)

These six buttons can be used to create individual colours by mixing R, G, B, W, A, and UV. The six brightness levels can be accessed by repeatedly pressing the respective colour button, whereby the LEDs are switched off at Level 1.

Ju (colour change)

Colour changes jump (colour jumping) The speed at which the colours change is set with the SP (Speed) button.

Fa (colour fade)

Colours fade into each other (colour fading). The speed at which the colours change is set with the SP (Speed) button.

Au (Auto operating mode)

Press the Au button to start the Auto stand-alone operating mode. Use the Speed button to control the speed of the lighting sequence.

Su (music-controlled lighting sequence)

Six different sound presets can be accessed by repeatedly pressing the SU button (sound 1 to 6). The pre-selected color presets change with the bass pulses. The microphone used for this is found on the back of the fixture.

CM Press CM+ or CM- to start the Color Presets stand-alone operating mode. The various color presets are accessed by repeatedly pressing one of the two buttons.

Pr+ / Pr- (without function)

SET-UP AND INSTALLATION

DANGER: Overhead mounting requires extensive experience, including calculating the load limit values of the mounting hardware and regular safety inspection of all installation materials and lights. If you do not have these qualifications, do not attempt to perform installation yourself. Refer instead to a qualified professional. There is a risk that devices that are incorrectly installed and secured may come loose and fall down. This can cause serious injury or death.

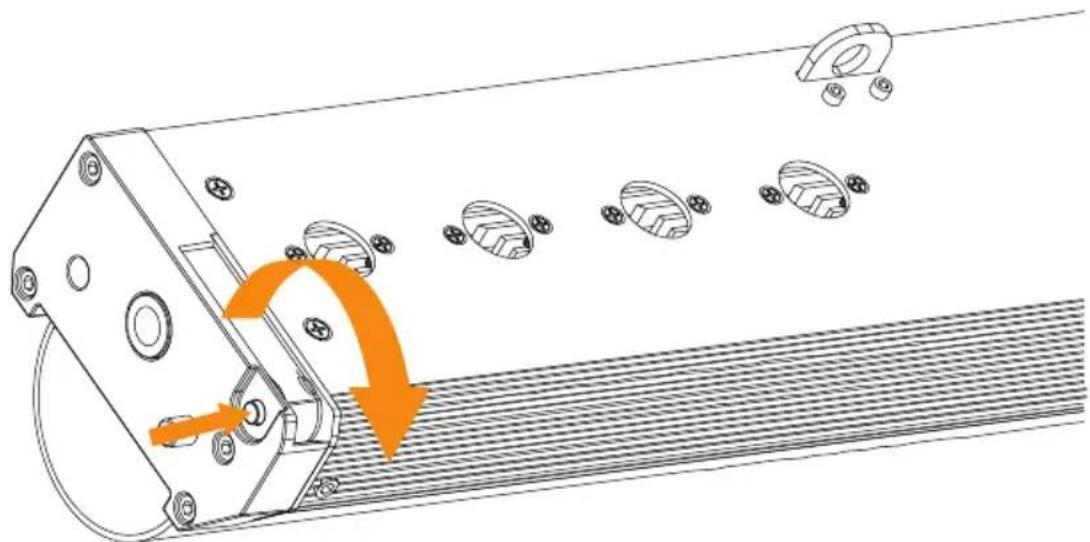

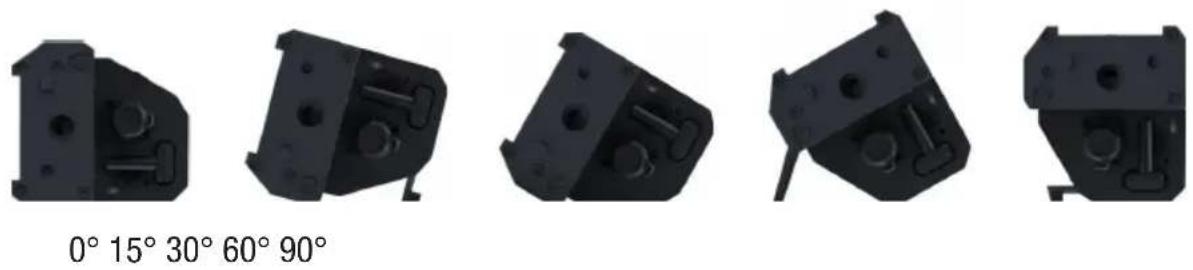

Integrated support feet

Thanks to the integrated support feet, which can be folded without tools, the fixture can be positioned in a suitable place on a flat surface at different installation angles.

Five black mechanical component views labeled 0°, 15°, 30°, 60°, and 90° (no additional text or symbols)

0^ : Lay the fixture flat on a surface.
15°: Fold out the centrally mounted foot and position the fixture on it.

MAX. LOAD OF OUTLET: 13A WEIGHT: 5kg OPERATING VOLTAGE: 100-240V AC 50/60Hz POWER CONSUMPTION: 133W CAMEO ROOTBAR® 6 PRODUCT KEY: CLROOTBARS MEU ENTER CAUTION OUTLET FOR OUTLET CE UK CA →

30°: Place the fixture on the angled side.
60°: Fold out both side-mounted feet and position the fixture on them (press the spring-loaded locking button and the foot will fold out automatically and the locking button will engage again).

Mechanical assembly diagram showing a conveyor belt with rotating components and an orange arrow indicating motion (no text or symbols)

90°: Fold out the centrally mounted foot and place the fixture on the back.

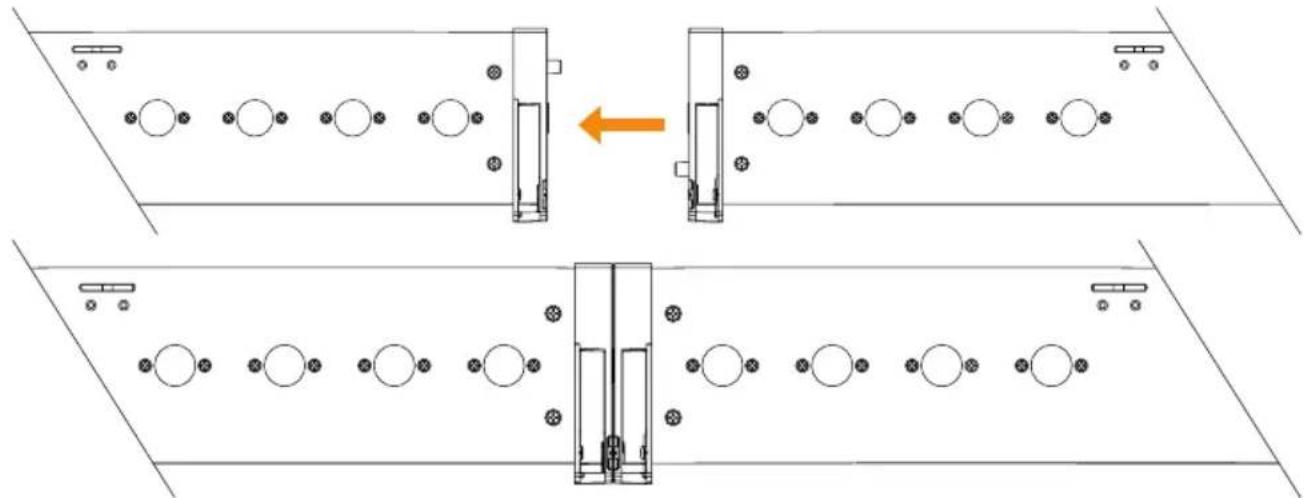

Connecting ROOTBARs with each other

The side sections are designed so that they interlock when two fixtures are connected. Strong magnets make it easier to connect them and ensure a tight connection.


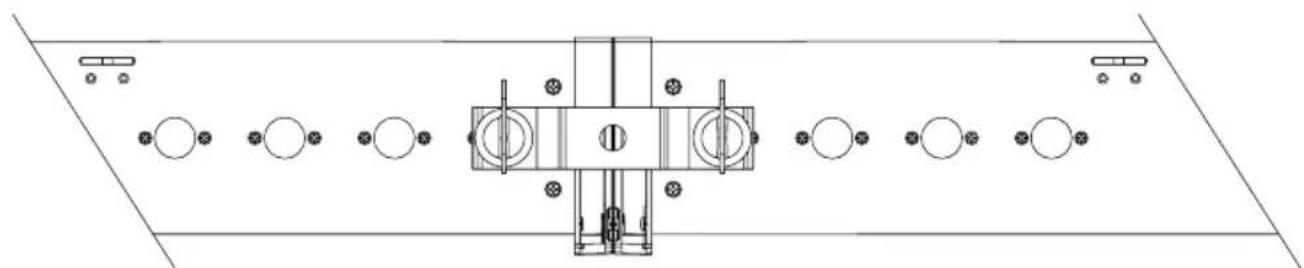

An additional Omega bracket can be used for a stable mechanical connection (two pieces included in the packaging content).

Top-down schematic of a mechanical or electrical component with circular elements and mounting points (no text or labels)

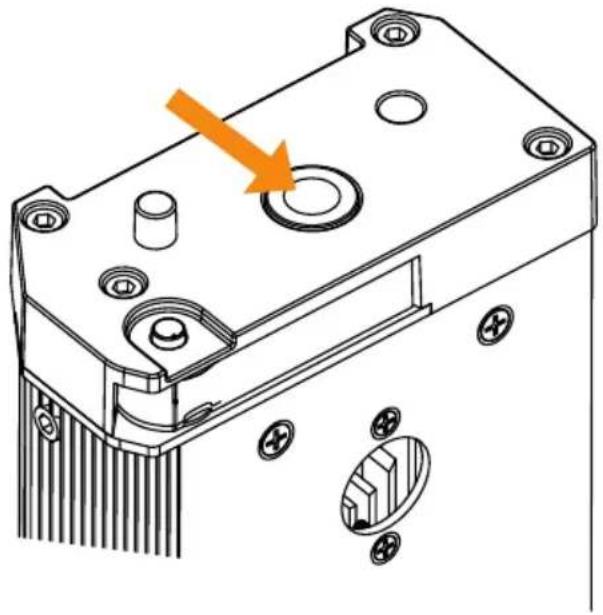

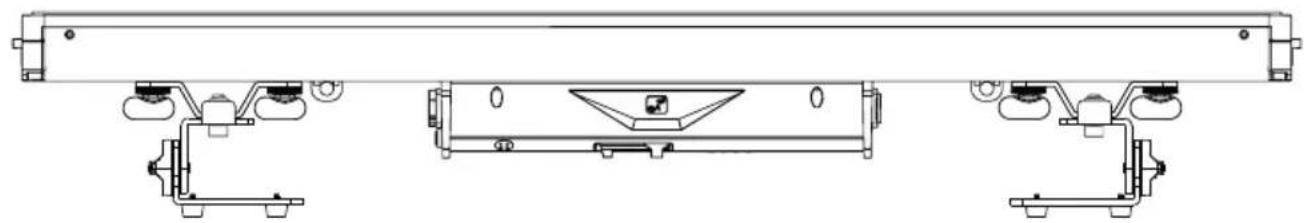

M10 thread

The side sections are outfitted with an M10 thread for attaching a clamp, allowing for vertical suspension on a truss (maximum 1 ROOTBAR, suitable clamp with M10 bolt, product no. SCP710BSET1, secure the fixture to the upper securing eyelet).

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

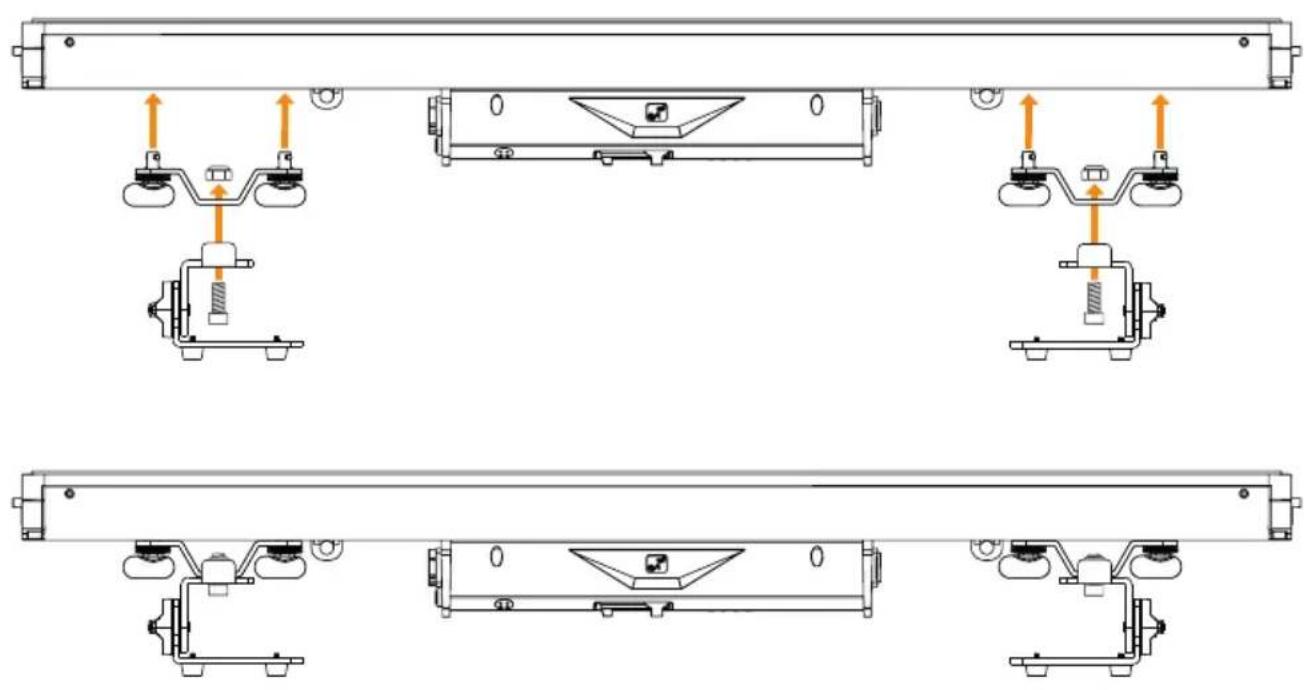

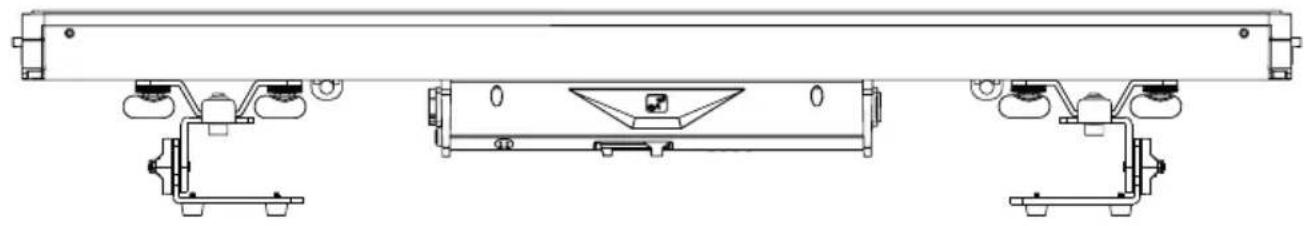

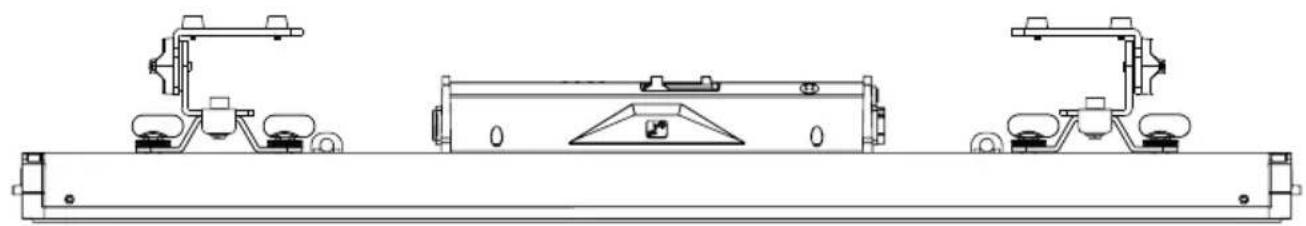

Assembling the feet

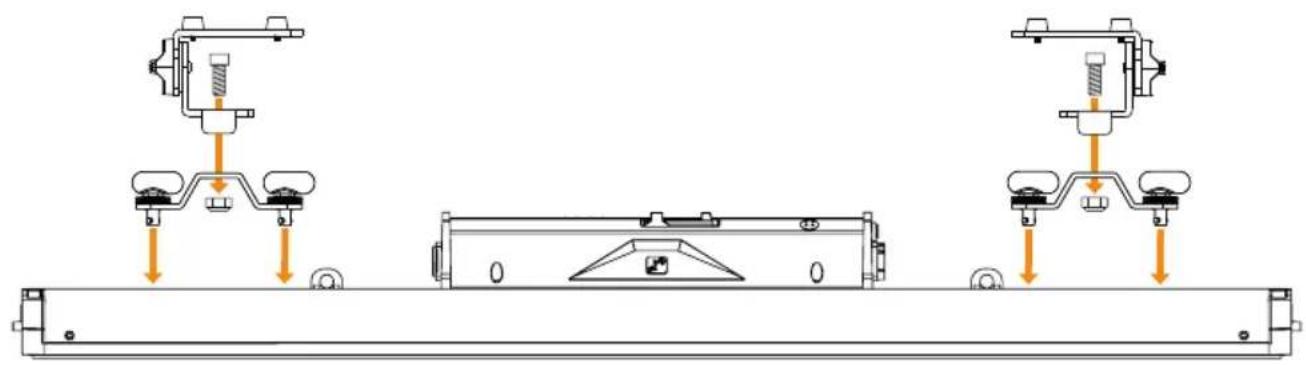

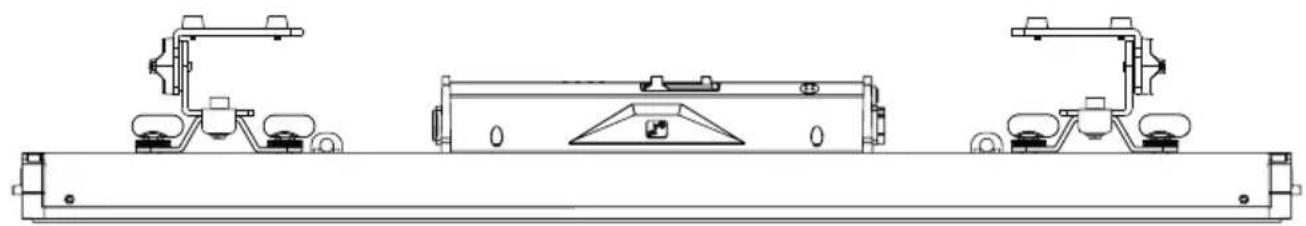

To use the two infinitely adjustable feet, screw one foot to each Omega bracket using an M10 Allen screw and an M10 lock nut. Then fit the Omega brackets to the fixture. The wing screws for adjusting the beam direction are located on the sides of the feet.

Technical line drawing of mechanical assembly components (no text or symbols)

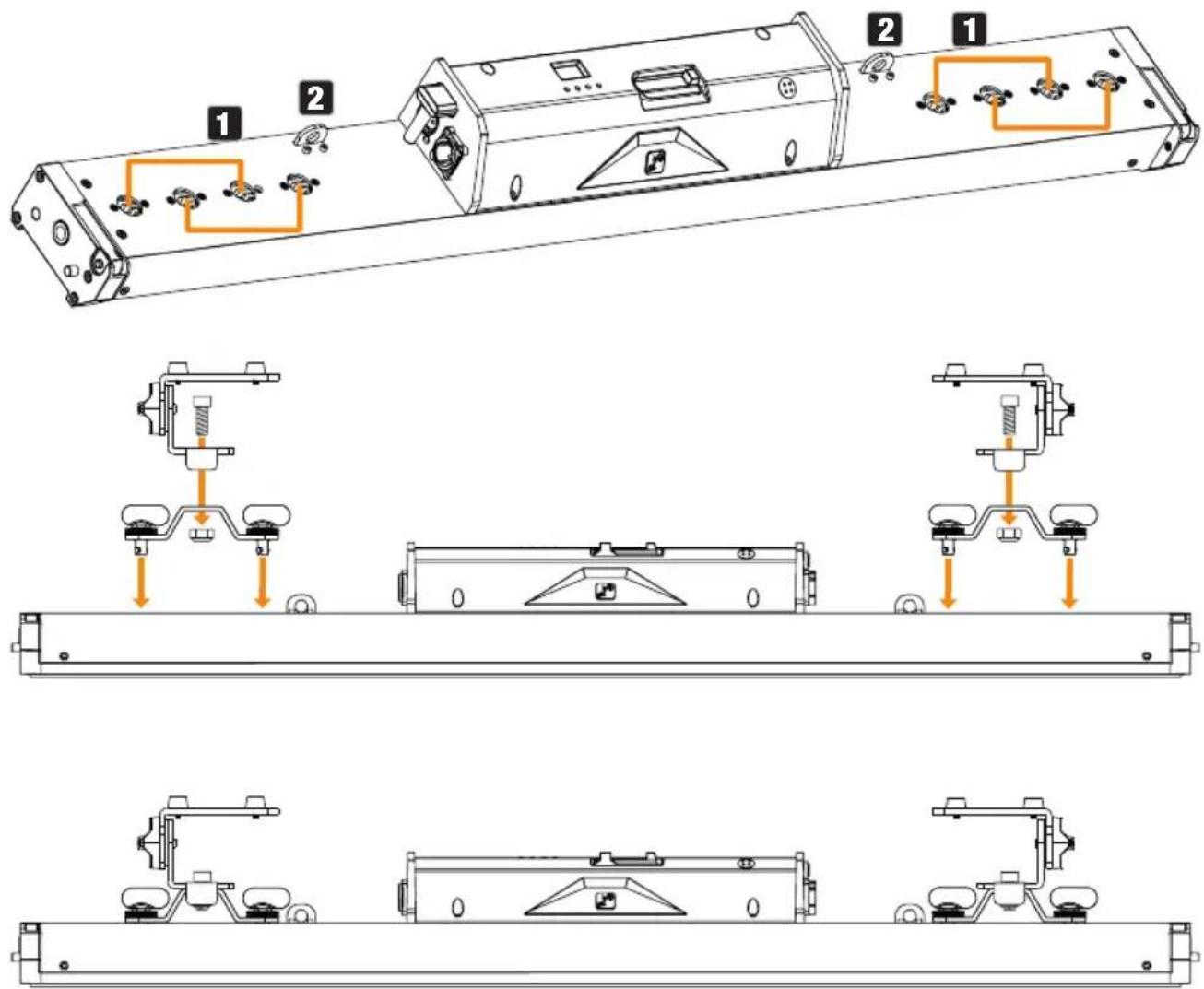

Truss installation

Truss installation can be carried out using two Omega brackets and two adjustable feet, which are attached to the back of the fixture (1, two positions per side are possible). Two Omega brackets and two adjustable feet are included in the packaging content. The truss clamps are attached to the feet. Suitable truss clamps are available as an option. Ensure firm connections and secure the fixture to one of the securing lugs (2) with a suitable safety cable.

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating motion or assembly.

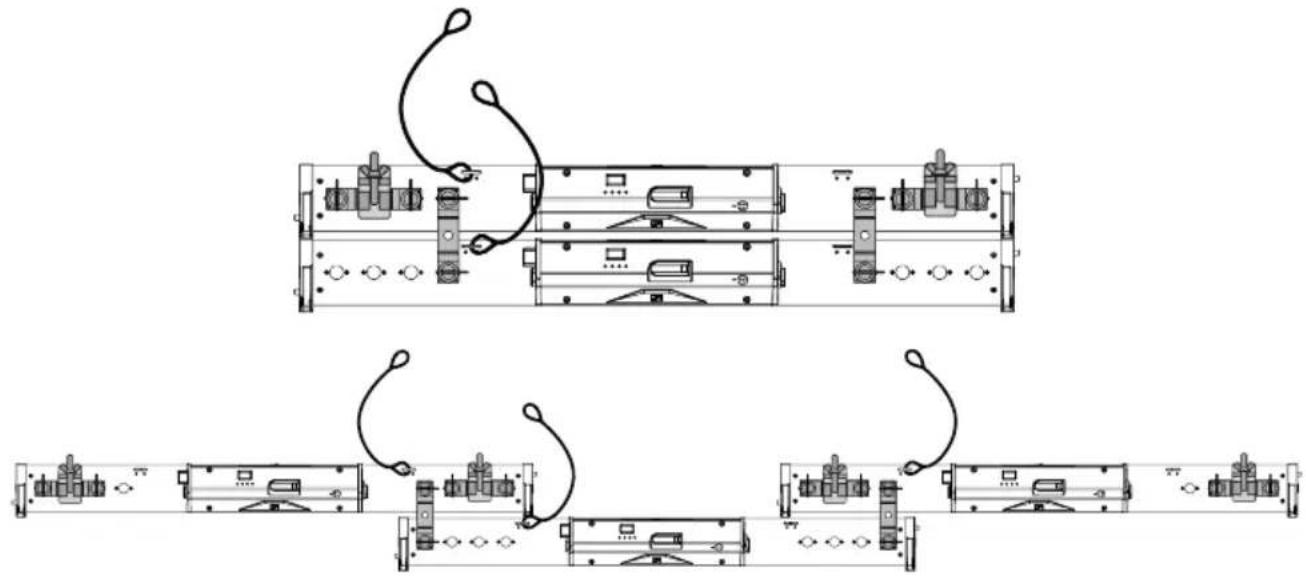

Clustering fixtures

The fixtures may only be connected directly to each other using Omega brackets in the following mounting options (maximum two fixtures, two Omega brackets per fixture included in the packaging content). Truss installation must be carried out with separate Omega brackets plus truss clamps; it must not be carried out on Omega brackets as a connecting link between two fixtures. Every fixture must be secured to the truss with a suitable safety rope!

Technical line drawing of a mechanical assembly with multiple components and wiring (no text or symbols)

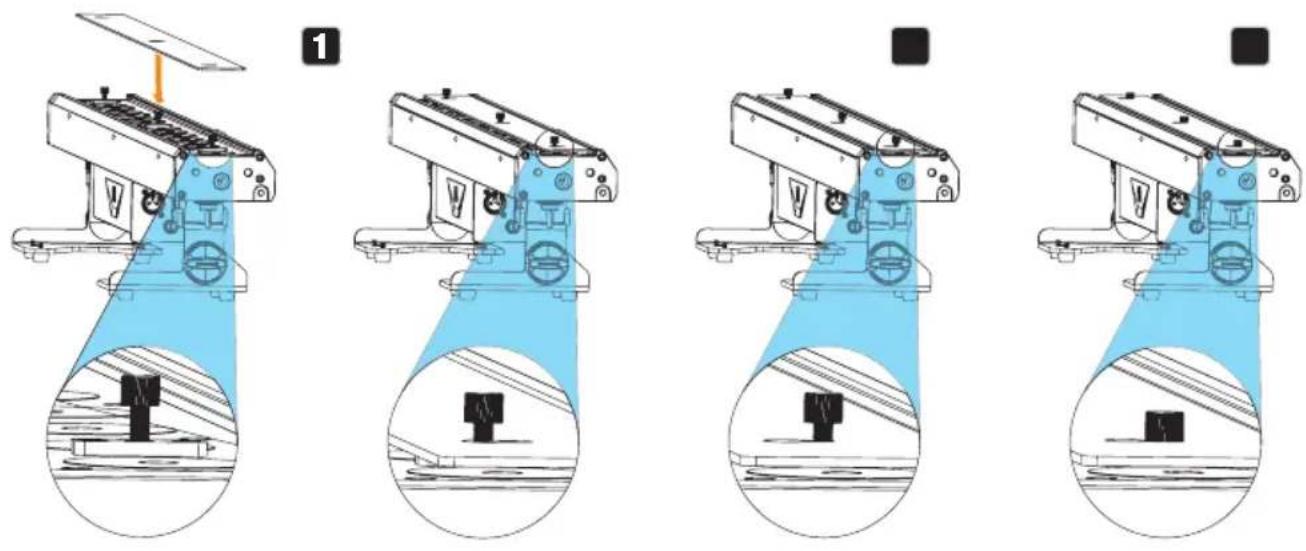

INSTALLING THE FROST FILTER

A frost filter is included in the packaging content of the ROOTBAR6. To attach the frost filter to the fixture, first loosen the three knurled screws on the front of the fixture, screw them out of the threads as far as possible, and place the frost filter on the fixture (place the large openings of the keyholes in the frost filter over the screw heads, see Fig. 1). Then slide the frost filter to the side as far as it will go (Fig. 2). Now re-tighten the three knurled screws (Fig. 3).

Diagram illustrating four stages of a sewing machine operation, showing tool positioning and projection views with Chinese labels.

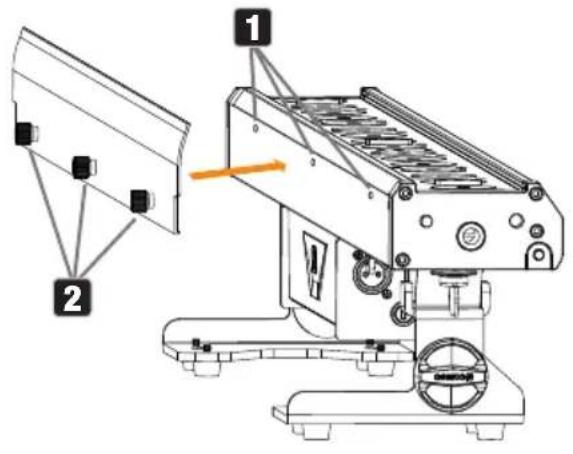

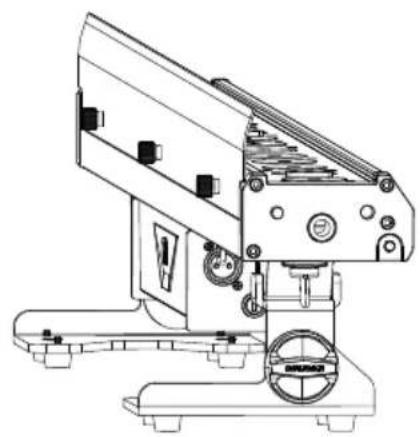

MOUNTING THE GLARE SHIELD

A glare shield is included in the packaging content of the ROOTBAR6. There are three threads (1) on the top edge of one side of the ROOTBAR housing. Use the three knurled screws on the glare shield (2) to attach it to the ROOTBAR's housing.

Technical diagram of a mechanical device with labeled parts and directional arrow indicating motion or force

Technical line drawing of a mechanical device with no visible text or symbols

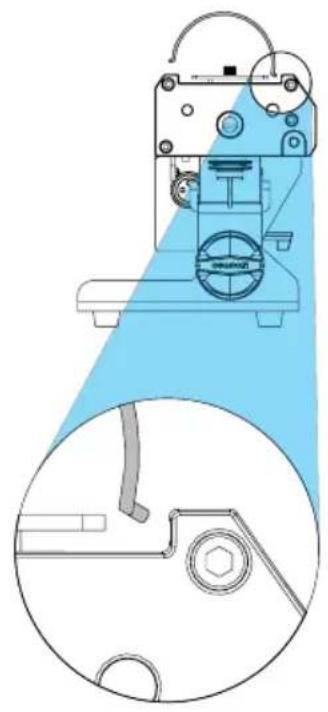

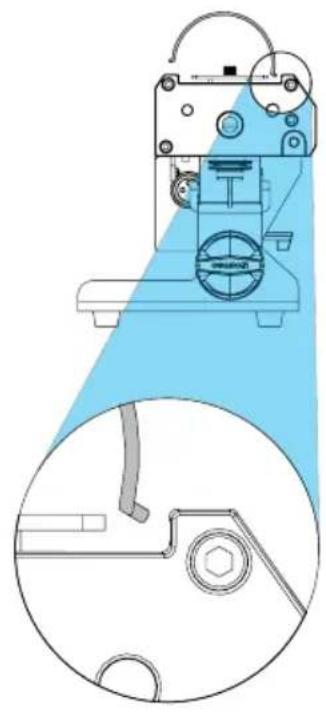

MOUNTING THE NEON TUBE FILTER

A neon tube filter for a neon tube effect is included in the packaging content of the ROOTBAR6. The neon tube filter is equipped with angled edges on both long sides which ensure a secure hold in the grooves provided on the inside of the fixture front. Neon tube filters and frost filters can be installed and used together.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with circular cross-section view (no text or symbols)

1. Insert an angled edge into a groove.
2. Now compress the neon tube filter slightly by pressing on the opposite side of the neon tube filter.
3. Lower this side to the front of the fixture.
4. Now release the pressure from the neon tube filter so that the second edge slides into the second groove in the front of the fixture.

Make sure that the edges of the neon tube filter are correctly positioned in the grooves so that the neon tube filter cannot fall out even when installed overhead!

1 2 3 4

CARE, MAINTENANCE, AND REPAIR

In order to ensure the long-term, proper functioning of the device, it must be regularly cleaned and, if necessary, serviced. The servicing requirement depends on the intensity of use and the environment in which it is used.

A visual inspection should be carried out before each commissioning. In particular, all safety-relevant components, such as connecting elements, safety points, electrical connections and cables, must be taken into account. Furthermore, we recommend carrying out all the applicable maintenance measures specified below once every 500 operating hours or, in the case of a lower intensity of use, at the latest after one year. Warranty claims may be limited should defects result from inadequate service and maintenance.

CARE (can be performed by the user)

WARNING! Before carrying out any care or maintenance, the power supply – and, if possible, all device connections – must be disconnected.

PLEASE NOTE! Improper care can lead to impairment or even destruction of the device.

1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can penetrate the device.

2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used, make sure that damage to the device is prevented (for example, fans must be blocked in this case).

3. Cables and connectors must be cleaned regularly, and dust and dirt must be removed.

4. In general, no cleaning agents or abrasive agents may be used; otherwise, the surface finish may be damaged.
5. Devices must be stored in a dry environment and protected from dust and dirt.

MAINTENANCE AND REPAIR (qualified personnel only)

DANGER! There are live components in the device. Even after disconnecting from the mains, there may still be residual voltage in the device, for example, due to charged capacitors.

PLEASE NOTE! There are no user-serviceable assemblies in the device.

PLEASE NOTE! Maintenance and repair work may only be carried out by qualified specialist personnel authorised by the manufacturer. If in doubt, consult the manufacturer.

PLEASE NOTE! Improperly performed maintenance work may affect warranty claims.

OPTIONAL ACCESSORIES

CLIDMXSTICKG2 CLPFLAT1REMOTE SCP710BSET1

W-DMX® receiver Infrared remote control Truss clamp with M10 bolt

TECHNICAL DATA

Item number CLROOTBAR6
Product cathegory Static LED Light
Type LED Bar
Light source RGBWAuV
LED-QTY 18 pcs RGBWAuV
Luminous Flux 4200 lm
Lense / optic Plastic lense
LED PWM	650 Hz; 1530 Hz; 2150 Hz; 4000 Hz
Dimmer resolution	8 / 16 bit
Dimmer curves	Linear, exponential, S-curve, logarithmic
Strobe	0 Hz - 20 Hz
Calibration	User
CRI	70
Beam angle / field angle	20° / 37°
Color mixing	RGBWAuV
Color control	RGBWAuV Static; Chase, Color Presets, Pattern, Sound, DMX-Delay (EZ-Chase)
Control protocols DMX; Stand-Alone; Master-Slave; i-DMX Stick
Data connections 3-Pin XLR in/out, i-DMX Stick
DMX modes	2CH, 4CH-Sound, 4CH-2, 5CH, 6CH Direct, 6CH Pattern, 8CH, 11CH Sound, 11CH Pattern, 24CH, 27CH, D3CH, D5CH-Sound, D5CH-Direct, D6CH, D7CH, D9CH, D12CH
DMX functions	RGBWAuV Static, Chase, Color Presets, Pattern, Sound, DMX-Delay (EZ-Chase)
Stand-Alone	RGBWAuV Static, Auto, Color Presets, Pattern, User color, Loop, Master/Slave, IR Control
System settings	Display Reverse, Display Backlight, Signal Fail, Sound, PWM, calibration, IR-remote, Reset (Factory, Preset A-C), Edit Preset (A-C), Service
User interface Display with 4 buttons
Display / indicators 2 row O-Led display
IP-Rating IP20
Ambient temperature rating 0°C - 40°C
Humidity rating Up to 80% (non condensing)
Cooling system Passive convection, fanless
Noise level Noise free (fanless)
Operation voltage 100 - 240 V; 50 / 60 Hz
Max. power consumption 133 W
Fuse 3 A / 250 V
Power connection Seetronic TR1 In + Out
Max load of outlet 13 A
Risk group	RG1
Minimum distance to the illuminated surface	0.1 m
Minimum distance to normally flammable materials	0.1 m
Housing	String cast aluminium, black powder coated. ABS-Back-back
Dimensions	1042 mm x 106 mm x 116 mm (without accessiores)
Weight	5 kg (without accessiores)
Accessiores included	Glare shield, filter, neon tube filter, 2 x omega bracket, 2 x adjustable stand, power cable
Accessiores optional	SCP710BSET1, CLPFLAT1REMOTE, CLIDMXSTICKG2

MINIMUM DISTANCE TO ILLUMINATED SURFACE

This symbol with the distance stated in metres (m) indicates the minimum distance of the light fixture to the illuminated surface. The value valid for this device can be found in the technical data in this manual and is printed on the device!

MINIMUM DISTANCE TO NORMALLY FLAMMABLE MATERIALS

This symbol with the distance stated in metres (m) indicates the minimum distance of the device to normally flammable materials. The value valid for this device can be found in the technical data in this manual!

DISPOSAL

PACKAGING:

1. Packaging can be recycled using the usual disposal methods.
2. Please separate the packaging in accordance with the disposal laws and recycling regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste Electrical and Electronic Equipment, as amended. WEEE Directive Waste Electrical and Electronic Equipment. Waste equipment does not belong in household waste. Waste equipment must be disposed of via an authorised waste disposal company or a municipal waste disposal facility. Please observe the applicable regulations in your country!
2. Observe all disposal laws applicable in your country.
3. As a private customer, you can obtain information on environmentally friendly disposal options from the seller of the product or the appropriate regional authorities.

MANUFACTURER'S DECLARATIONS

Manufacturer's warranty and limitation of liability

Adam Hall GmbH | Adam-Hall-Str.1 | 61267 Neu-Anspach | Germany

Email: [e-mail] / +49 (0)6081 / 9419-0

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

For service requests, please contact your distribution partner.

CE conformity

Adam Hall GmbH hereby confirms that this product meets the following guidelines

(if applicable):

Low-Voltage Directive (2014/35/EU)

EMC Directive (2014/30/EU)

RoHS Directive

Radio Equipment Directive

EC Declaration of Conformity

Declarations of conformity for the products subject to the Low-Voltage Directive, the EMC Directive, and the RoHS Directive can be requested at: [e-mail]

Declarations of conformity for products subject to RED can be downloaded from www.adamhall.com/compliance/

Subject to misprints and errors, as well as technical or other modifications!

DEUTSCH

COSAR AVOC AVOC/AVOC PLAN E E S E G E W A U CW WW Ju Fa Au Su CM+ CM- Pr+ Pr- cameo® colours of light

Mechanical assembly diagram showing a conveyor belt with rotating components and a highlighted orange arrow indicating motion (no text or symbols present)

Top-down schematic of a mechanical or electrical component with circular components and mounting holes (no text or labels)

M10 Gewinde

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Standfüße montieren

Technical diagram of a mechanical assembly with three views and directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with three views (top, front, side), no text or symbols present.

Traversenmontage

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram showing mechanical assembly with two identical components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and wiring (no text or symbols)

FROSTFILTER MONTIEREN

Technical diagram showing four stages of a machine tool with highlighted components and assembly views

BLEND SCHUTZ MONTIEREN

Technical diagram of a microwave oven with labeled components and directional arrows indicating assembly or inspection.

Technical line drawing of a mechanical device with no visible text or symbols

NEON-TUBE-FILTER MONTIEREN

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with circular cross-section view (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO DE EN ES FR.pdf

CAUSE SPRING MOUNTLESS PLUS E F G H I J K L M N O P Q R S T U V W A JX CW WW Ju Fa Au Su CM+ CM- Pr+ Pr- cameo® colours of light

FL (Flash/stroboscope)

Five black mechanical component views showing different angles (0°, 15°, 30°, 60°, 90°) with no visible text or symbols on the parts themselves.

Mechanical assembly diagram showing a conveyor belt with rotating components and an orange arrow indicating motion (no text or symbols)

Top-down schematic of a mechanical or electrical component assembly with circular components and mounting holes (no text or labels)

Filetages M10

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Montage des pieds

Technical line drawing of mechanical assembly components with no visible text or symbols

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram showing mechanical assembly with two identical components and directional arrows indicating motion (no text or labels)

Technical line drawing of a mechanical assembly with mounting brackets and a central component (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components and wiring (no text or symbols)

MONTAGE DU FILTRE FROST

Diagram illustrating four sequential steps of a sewing machine tool, showing progressive lighting and assembly process.

MONTAGE DU COUPE-FLUX

Technical diagram of a mechanical device with labeled parts and directional arrows indicating assembly or movement.

Technical line drawing of a mechanical device with no visible text or symbols

MONTAGE DU FILTRE TUBE NÉON

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular cross-section view showing internal components (no text or symbols)

Diagram showing four sequential steps of a mechanical device with labeled components and directional arrows indicating motion or movement.

ENTRETIEN, MAINTENANCE ET RÉPARATION

Directive CEM (2014/30/UE)

Directive RoHS

Five black mechanical component views shown from front to side, no text or symbols visible

0^ 15^ 30^ 60^ 90^

Mechanical assembly diagram showing a conveyor belt with rotating components and a highlighted orange arrow indicating motion (no text or symbols present)

Top-down schematic of a mechanical or electrical component layout with circular elements and mounting points (no text or labels)

Rosca hembra M10

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Technical line drawing of mechanical assembly components (no text or symbols)

Montaje en truss

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a dual-panel electronic device with connected ports and connectors (no text or symbols)

Technical diagram showing four stages of a machine tool with highlighted components and assembly views

MONTAJE DE LA PANTALLA ANTIRREFLEJOS

Technical diagram of a machine with labeled components and directional arrows indicating assembly or motion.

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with a circular cross-section view showing internal components (no text or labels)

Diagram showing four sequential steps of a mechanical device with labeled components and directional arrows indicating motion or movement.

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

TRANSMISJA SYGNAŁÓW W W-DMX

CAVOT S E G B W A J CW WW Ju Fa Au Su CM+ CM- Pr+ Pr- cameo® colours of light

Five black mechanical component views shown from different angles (front, top, side, front, side), no text or symbols visible.

0^ 15^ 30^ 60^ 90^

Technical illustration of a mechanical conveyor belt system with orange arrows indicating motion or flow (no text or symbols)

Top-down schematic of a mechanical or electrical component assembly with circular components and mounting holes (no text or labels)

Gwint M10

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Technical line drawing of mechanical assembly components with no visible text or symbols

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating motion.

Technical line drawing of a mechanical assembly with multiple components and wiring (no text or symbols)

MONTAŻ FILTRA FROST

Diagram illustrating four sequential steps of a machine tool operation, showing how to drive a component via a laser beam or reflector.

MONTAŻ OSŁONY PRZECIWODBLASKOWEJ

Technical diagram of a microwave oven with labeled components and directional arrows indicating assembly or inspection.

Technical line drawing of a mechanical device with no visible text or symbols

MONTAŻ FILTRA NEON-TUBE

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical device with circular cross-section view (no text or symbols)

https://cdn-shop.adamhall.com/media/pdf/Manufacturers-Declarations-CAMEO_DE_EN_ES_FR.pdf

CHORT MINT ANCHORAGE FLIGHT E S P D G B W A U CW WW Ju Fa Au Su CM+ CM- Pr+ Pr- cameo® carnets of light

Five black mechanical component views shown from front to side, no text or symbols visible

0^ 15^ 30^ 60^ 90^

cameo ROOTBAR® 6 PRODUCT KEY: CLROOTBARS MAX. LOAD OF OUTLET: 13A WEIGHT: 5kg OPERATING VOLTAGE: 100-240V AC 50/60Hz POWER CONSUMPTION: 133W MENU ENTER CAUTION 4KΩ ELECTRAL BANANA CE UK CA MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI

Technical diagram of a mechanical conveyor belt system with orange arrows indicating motion or flow (no text or symbols present)

Top-down schematic of a mechanical or electrical component layout with circular components and mounting points (no text or labels)

Filettatura M10

Technical line drawing of a mechanical component with mounting holes and a highlighted section (no text or symbols)

Technical diagram of a mechanical assembly with three vertical supports and a central component, no visible text or symbols.

Technical line drawing of a mechanical assembly with three views (top, front, side) showing no text or symbols

Technical diagram showing assembly steps of a mechanical device with labeled components and directional arrows indicating motion or assembly.

Technical line drawing of a dual-panel electronic device with connected ports and connectors (no text or symbols)

MONTAGGIO DEL FILTRO FROST

Technical diagram showing four stages of a sewing machine operation with zoomed-in views and labeled components

Technical diagram of a machine with labeled components and directional arrows indicating assembly or inspection steps

Technical line drawing of a mechanical device with no visible text or symbols

MONTAGGIO DEL FILTRO PER TUBI AL NEON

Technical line drawing of a mechanical device with a highlighted component and close-up insets (no text or symbols)

Technical line drawing of a mechanical device with a circular cross-section view showing internal components (no text or symbols)

Channel	Channel Function Values
1	1	Dimmer	000	255 0%	to 100%
	2 Strobe Functions	000	005 Open
		006	010 Closed
		011	022 Ramp up/down slow to fast
		023	033 Ramp up/down random slow to fast
		034	045 Ramp up slow to fast
		046	056 Ramp up random slow to fast
		057	068 Ramp down slow to fast
		069	079 Ramp down random slow to fast
		080	102 Random Strobe effect slow to fast
		103	127	Strobe Break effect 5s to 1s (Short burst with break)
		128	250 Strobe slow to fast (<1Hz to 20Hz)

	2 Strobe Functions 251 - 255 Open
2 3 Colour Presets		000 - 005 No function
		006 - 013 Red
		014 - 021 Amber
		022 - 029 Yellow warm
		030 - 037 Yellow
		038 - 045 Green
		046 - 053 Turquoise
		054 - 061 Cyan
		062 - 069 Blue
		070 - 077 Lavender
		078 - 085 Mauve
		086 - 093 Magenta
		094 - 101 Pink
		102 - 109 Warm White
		110 - 117 White
		118 - 125 Cold White
		126 - 127 Colour Jumping/Fading Stop
		128 - 164 Colour Jumping slow to fast
		165 - 201 Colour Fading slow to fast
		202 - 207 User Colour 1
		208 - 213 User Colour 2
		214 - 219 User Colour 3
		220 - 225 User Colour 4
		226 - 255 No function
	4	Sound (Triggers Strobe, Colour Jumping & Fading)	000 - 005 No function
			006 - 255	Sound Control On, mic sensitivity low to high
3 5 DMX Delay		000 - 005 Off (no Delay)
		006 - 255 0,1s to 2,0s

D7CH D9CH D12CH
Channel Channel Channel Function Values
	1 1 Dimmer 000 - 255						0% to 100%
		2	Dimmer fine	000 - 255
	2		Strobe	000 - 005 Open
				006 - 255			Strobe slow to fast (<1Hz to 20Hz)
		3 Strobe Functions		000 - 005 Open
				006 - 010 Closed
		3 Strobe Functions		011 - 022 Ramp up/down slow to fast
				023 - 033		Ramp up/down random slow to fast
				034 - 045 Ramp up slow to fast
				046 - 056		Ramp up random slow to fast
				057 - 068 Ramp down slow to fast
				069 - 079		Ramp down random slow to fast
				080 - 102		Random Strobe effect slow to fast
				103 - 127		Strobe Break effect 5s to 1s (short burst with break)
				128 - 250		Strobe slow to fast (<1Hz to 20Hz)
				251 - 255 Open
1 3 4 Red 000 - 255 0% to 100%
2 4 5 Green 000 - 255 0% to 100%
3 5 6 Blue 000 - 255 0% to 100%
4 6 7 White 000 - 255 0% to 100%
5 7 8 Amber	000 - 255 0% to 100%
6 8 9	UV	000 - 255 0% to 100%
		10	Colour Presets (override Colour Mixing)	000 - 005 No function
				006 - 013 Red
				014 - 021 Amber
				022 - 029 Yellow warm
				030 - 037 Yellow
				038 - 045 Green
				046 - 053 Turquoise
				054 - 061 Cyan
				062 - 069 Blue
				070 - 077 Lavender
				078 - 085 Mauve
				086 - 093 Magenta
				094 - 101 Pink
				102 - 109 Warm White
				110 - 117 White
				118 - 125 Cold White
				126 - 127		Colour Jumping/Fading Stop
		10	Colour Presets (override Colour Mixing)	128	164	Colour Jumping slow to fast
				165	201 Colour Fading slow to fast
				202	207 User Colour 1
				208	213 User Colour 2
				214	219 User Colour 3
				220	225 User Colour 4
				226	255 No function
		11	Sound (Triggers Strobe, Colour Jumping & Fading)	000	005 No function
				006	255 Sound Control On, mic sensitivity low to high
7 9 12	DMX Delay			000	005 Off (no Delay)
				006	255 0,1s to 2,0s

D6CH
Channel Function Values
1 Dimmer 000 - 255 0%	to 100%
2 Strobe	000	005 Open
	006	255 Strobe slow to fast (<1Hz to 20Hz)
3 Chase	000	005 No function
	006	026 Jump 10s to 4s
	027	127 Jump 4s to 0.1s
	128	148 Fade 10s to 4s
	149	255 Fade 4s to 0.1s
4 Colour Presets 1	000	005 No function
	006	013 Red
	014	021 Amber
	022	029 Yellow warm
	030	037 Yellow
	038	045 Green
	046	053 Turquoise
	054	061 Cyan
	062	069 Blue
	070	077 Lavender
	078	085 Mauve
	086	093 Magenta
	094	101 Pink
	102	109 Warm White
	110	117 White

4 Colour Presets 1		118 - 125 Cold White
		126 - 127 Colour Jumping/Fading Stop
		128 - 164 Colour Jumping slow to fast
		165 - 201 Colour Fading slow to fast
		202 - 207 User Colour 1
		208 - 213 User Colour 2
		214 - 219 User Colour 3
		220 - 225 User Colour 4
		226 - 255 No function
5 Colour Presets 2		000 - 005 No function
		006 - 013 Red
		014 - 021 Amber
		022 - 029 Yellow warm
		030 - 037 Yellow
		038 - 045 Green
		046 - 053 Turquoise
		054 - 061 Cyan
		062 - 069 Blue
		070 - 077 Lavender
		078 - 085 Mauve
		086 - 093 Magenta
		094 - 101 Pink
		102 - 109 Warm White
		110 - 117 White
		118 - 125 Cold White
		126 - 127 Colour Jumping/Fading Stop
		128 - 164 Colour Jumping slow to fast
		165 - 201 Colour Fading slow to fast
		202 - 207 User Colour 1
		208 - 213 User colour 2
		214 - 219 User Colour 3
		220 - 225 User Colour 4
		226 - 255 No function
6 DMX Delay		000 - 005 Off (no Delay)
		006 - 255 0,1s to 2,0s
