USER MANUAL Saberu 600 ATB-600 AIWA

Line drawing of a blender with handle and control knob (no text or symbols)

SABERU 600 ATB-600 500W | 220-240V\~ | 50-60Hz

(EN) Personal Blender - Instruction Manual

(ES) Batidora Personal - Manual de instrucciones

Diagram showing five different packaging or packaging designs with icons and labels, including a box with an arrow and a magnified view of a bag.

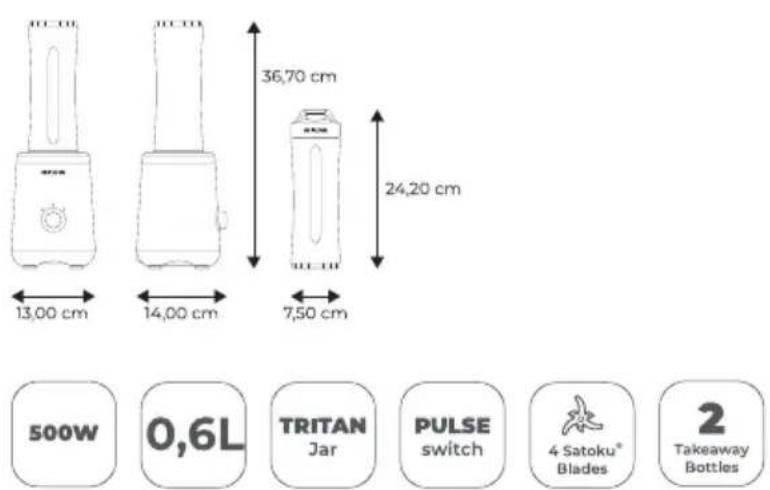

MESURES

Measurements, Medidas, Misure, Mesures, Maße, Medidas, Afmetingen, Merki, Metrήσεις, Wymiary, Merania, Măsurători, Méretek, Mepe, Ölçümler, Измерения

500W 0,6L TRITAN Jar PULSE switch 4 Satoku® Blades 2 Takeaway Bottles

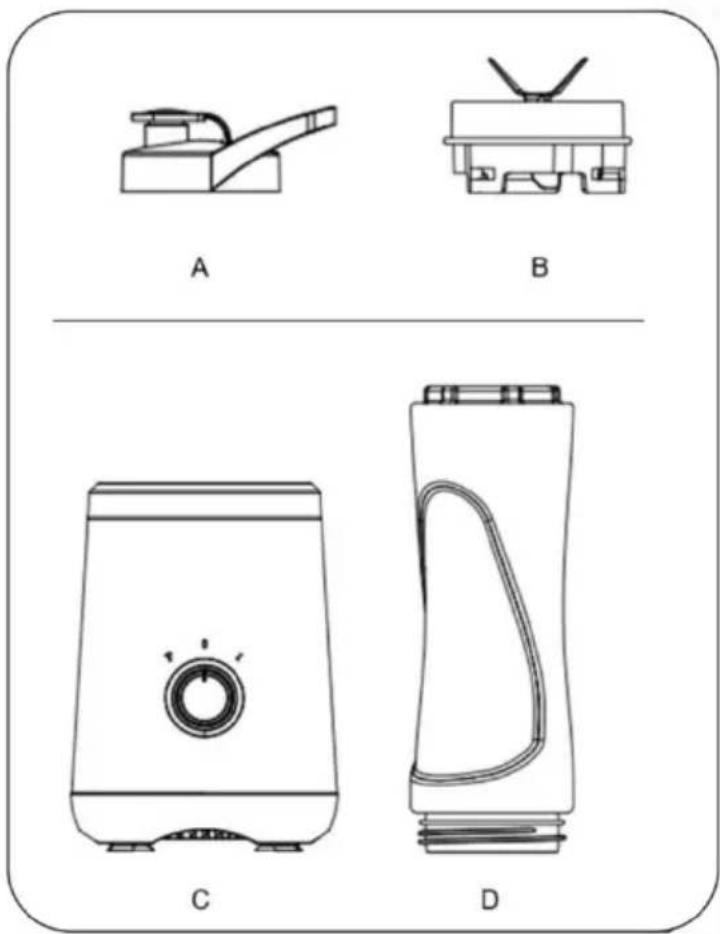

GETTING TO KNOW YOUR PERSONAL BLENDER

A B C D

PARTS

(EN) GETTING TO KNOW YOUR PERSONAL BLENDER. PARTS. A Slip and seal lid B Juicing blade Assembly C Motor Base D 600 ml plastic bottle

Fig 4 Fig 5

NOTE: The attached accessories are interchangeable.

The blender is a high powered innovative tool with a compact design and outstanding performance. It is perfect for ice crushing, chopping, blending, and nutrient and vitamin extraction. Blend and go with the convenient Sip&Seal lids, create delicious drinks to get you out the door quickly! Best results are achieved when you Pulse.

BEFORE FIRST USE

Before you use the appliance and accessories for the first time, make sure that all packaging has been removed, and thoroughly clean the parts that come into contact with food.

CAUTION: Blades are sharp! Use extreme caution when handling the blade assemblies. Always hold them by the base of the blade assembly.

IMPORTANT: Never run the appliance empty.

CAUTION: Never attempt to remove the jar while the appliance is still running.

WARNING: Never leave the appliance unattended while in use.

1. Remove all packaging material and labels from the appliance.
2. Wash the lids, jars and attachments in warm, soapy water with a soft cloth. Use caution when washing the blade assemblies as the blades are very sharp.
3. Rinse and dry thoroughly
4. Jars, lids and attachments are all dishwasher safe. It is recommended that the lids and attachments be placed on the top rack. Ensure that the attachments are removed from the jars before placing in the dishwasher.
5. Wipe the motor base clean with a damp cloth.

USING YOUR APPLIANCE

IMPORTANT: Make sure that the motor base is plugged in for use.

1. Place the motor base on a clean, dry, level surface such as a counter or table top.
2. Make sure the unit is unplugged.
3. Add ingredients to the jar.
4. Place the blade onto the jar and twist it on tightly until you have a good seal.(Fig. 1)
5. Turn the jar upside down and place it onto the motor base, aligning the tabs on the jar with the motor base, aligning the tabs on the jar with the motor base. Turn it clockwise, the unit is ready for use.
6. When you have reached your desired consistency, stop the appliance by turning the jar counterclockwise(Fig. 4) and pull straight up to remove.(Fig. 5)
   NOTE: Do not overfill! To avoid spilling, do not add ingredients past the "Max" fill line.
7. Turn the jar upright and remove the Blade Assembly by twisting the blade assembly counterclockwise. Be sure to store the Blade Assembly attached to an empty jar when not in use.
8. Place the Sip & Seal lid onto the jar, twist to seal and enjoy!
9. Make sure that the motor base is unplugged when not in use.

CARE & MAINTENANCE

HOW TO CLEAN

CAUTION: Make Sure that the motor base is unplugged from the power source before inserting or removing any attachment and before cleaning.

NOTICE: Wait until the blender has cooled down sufficiently before cleaning it.

⚠️CAUTION: DO NOT immerse the motor base into water or any liquid, or place into a dishwasher.

1. Separate/remove all parts from each other.
2. Clean the motor base with a slightly damp cloth and wipe dry
3. Place jars in the dishwasher. Place the lids and attachments on the top rack. Use caution when handling the blade assemblies as the blades are very sharp.
4. Whenever possible, rinse parts immediately after processing to make cleanup easier.
5. Store the product in a cool, dry place.

NOTE: You may also wash the jars by filling the jar to the Max fill line with warm water and drop of dish washing detergent, placing the blade assembly on the jar and pulsing a few times. Do not fill the jar more than Max fill line with water because it will overflow. Once clean, remove the jar from the motor base. Rinse the jar, attachment and lid under running water. Allow all the parts to dry before storing.

Do not use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol, alcohol or acetone to clean the appliance

All detachable accessories can be cleaned in dishwasher.

TIPS: Use a small brush(not included) to remove particles of food lodged underneath the blades.

If some leftover particles dry onto the inside of the jar, fill the cup about 2/3 full with warm water and attach the blade subassembly. Place the jar and blade subassembly onto the motor base and operate the appliance for about 20-30 seconds to help loosen the stuck ingredients. Repeat the above step but use clean tap water. Empty blender and dry thoroughly.

⚠️CAUTION: Do not try attempt to remove blades from the Blade subassembly for cleaning.

HOW TO STORE

1. Store the appliance upright. Do not place anything on top. Store the jars and the rest of the attachments along side the appliance where they will not be damaged and won't cause a hazard.
2. Remove and empty the jar and ensure that no food is jamming the cutting blades.
3. Allow the appliance to cool for approximately 30 minutes.
4. Re-install the jar onto the base and re-plug the appliance into the electric outlet.
5. Proceed to use the appliance as before while making sure not to exceed the recommended maximum jar capacities.

! BUILT-IN SAFETY LOCK

The blender has a built-in safety lock feature, this ensures that you can only switch on the appliance while the cup and the blade subassembly are assembled on the motor base securely. If the appliance is correctly assembled, the built-in safety lock will be unlocked.

IMPORTANT: In the base of each blade's collar, there is a silicone gasket seal that creates an airtight fit with the jars. After dishwashing and before each use, always check to make sure the gasket is properly in place, as the heat from some dishwashers may cause the gasket to become loose.

WARNING: Do not operate the motor continuously for more than 60 seconds at a time. Allow the motor to rest for 180 seconds before continuing.

NOTICE: If the blade is not running smoothly, stop the product and add some liquid, or reduce the ingredients in the cup.

NOTE: To prevent product overheating, dry ingredients must not be processed for more than 30 seconds at a time.

GENERAL: For better results: please make sure that the quantity of ingredients fully covers the blade while chopping solid food.

CAUTION: DO NOT OPERATE THE UNIT WHEN EMPTY.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

TROUBLESHOOTING GUIDE

PROBLEMS	POSSIBLE REASONS & SOLUTIONS
Motor doesn’t start or attachment doesn’t rotate.	For the jars, make sure that the tabs are seated in the slots and turned clockwise
Food is unevenly chopped.	Either you are chopping too much food at once, or you are not pulsing properly. Reduce the amount of food in the jar.
Food is too finely chopped or too watery	The food has been over processed. Use short operating for best results.
You can not achieve snow from ice cubes.	For best result use ice straight from the freezer. Try using short operating instead of long one.Make sure the jar is completely dry before adding ice.
Jar is leaking	Make sure that your lid or blade assembly is properly assembled to the jar. Leaking may occur if it is misaligned when twisted onto the jar. Turn the lid tightly clockwise.
Unit doesn’t turn on	Make sure the unit is plugged in.Make sure the blade assembly is properly assembled to the jar and that is not misaligned
Unit doesn’t turn off	Unplug the power cord from the electrical outlet and call customer service for support
Doesn’t mix well	Pulse ingredients for best results. Press down on the jar in short intervals for even blending and chopping. For frozen ingredients, pulse in short intervals of 2-5 seconds and repeat.
Lid/blade assembly will not properly align to the jar	Set the jar on a level surface. Place the lid or blade assembly on top of the jar and align the threads so that the lid/blades sit flat on the jar. Twist clockwise so that the lid/blades evenly align to the jar until you have a tight seal.

GUARANTEE AND SERVICES

If you require services or repairing, or have any doubt, you can communicate with the local Customer Center.

If there is no Customer Center near your location, you can communicate with your local dealer. This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorized waste agent for the selective collection of waste electrical and electronic equipment (WEEE) This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65 EU on the restrictions

of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products.

ESPAÑOL

GIDS VOOR PROBLEEMOPLOSSING

www.aiwa-industries.com

All Pictures shown are for illustration purpose only.

All Rights Reserved. All other trademarks are property of their respective owners.

All specifications are subject to change without prior notice.

Aiwa Europe S.L., Av. Siglo XXI, 34, ES-08840.

REV. 30/04/2024 VI
