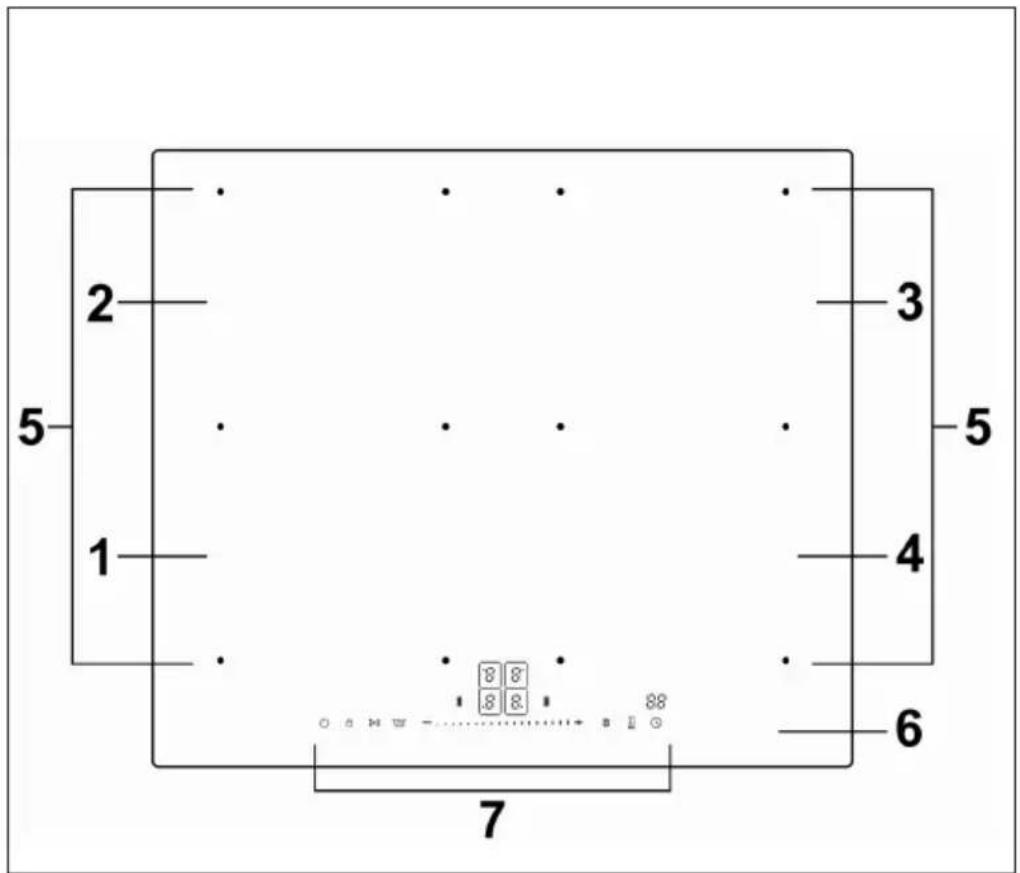

GERÄTEÜBERSICHT

2 5 1 7 3 5 4 6 8 8 8 8 8 88

Diagram showing two hand positions with check and cross symbols, likely indicating correct and incorrect states.

Three identical cooking pots with crossed X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed X marks, no text or symbols present

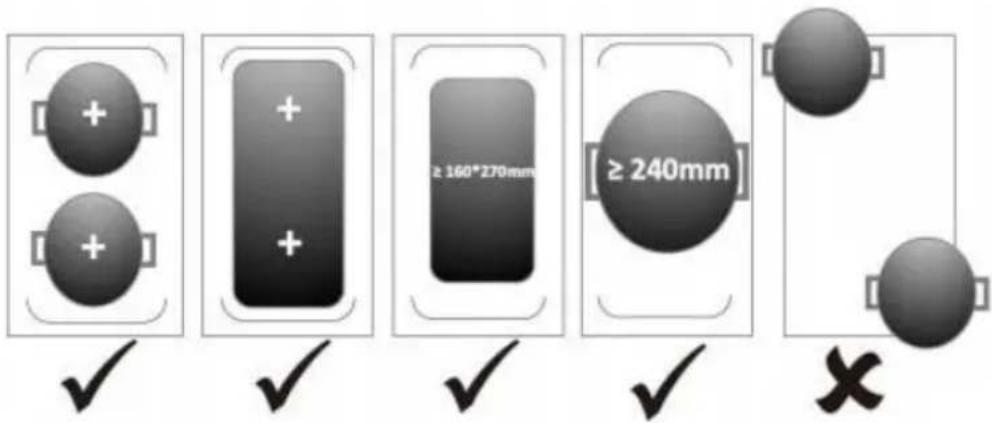

+ + + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓ X

Als eine große Zone

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Großbritannien

Dear customer,

Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety InstructionsRisk of electric shock 36

Notes on operation and maintenance 37

Installing the hob 41

Device Overview 45

Control panel 46

A Word on Induction Cooking 47

Operation 47

Choosing the right cookware 48

Operation 49

Using the boost 50

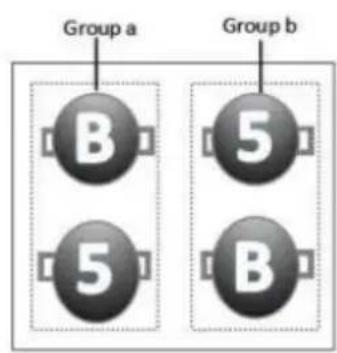

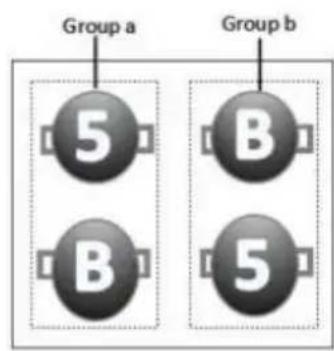

Zone Restrictions 50

Flexizone 50

Extended Functions 52

Cooking tips 56

Set the heating power 57

Cleaning and Care 58

Troubleshooting 60

Disposal Considerations 63

Manufacturer & Importer (UK) 63

TECHNICAL INFORMATION

Article number 10046695
Power supply 220-240 V ~ 50-60 Hz
Max. power 6600-7400 W
Cooking zones 4 zones
Product size L×H×W 590X520X60 mm

SAFETY INSTRUCTIONS Risk of electric shock

• Unplug the device from the power outlet before servicing or repairing the device.
• Connection to a grounded electrical outlet is required and mandatory.
• Changes to the power connection may only be carried out by a qualified electrician.
• Failure to follow the instructions may result in telectric shock or death.

CAUTION

Risk of injury! The edges of the hotplate are sharp. Take care, otherwise you could injure yourself with cuts.

General Safety Instructions

• Read these operating instructions carefully before installing and/or using the unit.
• Never place easily combustible materials or products on the hob.
• Please provide this information to the person who installs the unit, as this may save installation costs.
• This appliance must be installed in accordance with these operating instructions to prevent damage to property and personal injury.
• This appliance must be installed and earthed by a qualified person.
• This unit should be connected to a circuit that has a circuit breaker that allows complete disconnection from the power supply.
• Incorrect installation of the unit may invalidate all guarantee and warranty claims.
• Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks.
• The appliance is not a toy. Cleaning and maintenance of the hob should never be carried out by children alone.

• If the mains cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to avoid damage to property and/or personal injury.

• To reduce the risk of electric shock, switch off the appliance immediately if the surface (hob surface made of glass ceramic or similar material that protects live parts) is cracked.

• Do not place metal objects such as knives, forks, spoons and pot lids on the hob as they could become very hot there.
• Do not use a steam cleaner to clean the hob.
• The unit must not be used in connection with an external timer or a separate remote control system.
• The cooking process must be supervised. A short cooking process must be permanently supervised.
• Never leave the appliance unattended while cooking, as cooking with oil or fat in particular can be dangerous and cause a fire to break out. Never try to extinguish a grease fire with water! Instead, turn off the appliance and cover the flame with a fire blanket or pot lid.

WARNING

Risk of fire! Do not place any objects other than pots and pans on the induction hobs.

Risk of electric shock

• Never cook on a broken or cracked cooking surface. If the cooking surface breaks or cracks, switch off the appliance immediately, disconnect the mains plug from the socket and contact a qualified technician.
• Switch off and unplug the induction hob before cleaning and maintenance.
• Failure to follow the instructions may result in electric shock or death.

Health risks

• This unit complies with electromagnetic safety standards.
• People with pacemakers or other electrical implants (such as insulin pumps) must contact their doctor or implant manufacturer before using the appliance to ensure that their implants are not affected by the electromagnetic field of the hotplate.
• Failure to follow the instructions may result in death.

CAUTION

Risk of burns! During use, the parts of the appliance accessible to the user become so hot that they can cause burns. Make sure that your body, clothing and any materials other than cooking utensils do not touch the hotplate until it has cooled down completely.

• Keep children away from the induction hob.
• Pot handles can become so hot during use that you should not touch them. Make sure that the pot handles are not directly above hobs that are switched on. Make sure that the pot handles are out of reach of children.
• Failure to follow the instructions may result in burns and scalds.

WARNING

Risk of injury! The razor-sharp blade of a hob scraper is exposed as soon as you remove the safety cover. Exercise extreme caution when using. Always store the hob scraper with the safety cover on, out of the reach of children. Failure to follow the instructions may result in injuries and cuts.

General Safety Instructions

• Never leave the device unattended while in use. Overcooking can cause smoke to develop and splashes of fat could ignite.
• Do not store any objects on the device.
• Never leave objects or other utensils on the unit.
• Do not place any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the unit as they could be affected by the electromagnetic field.
• Never use the appliance to warm up or to heat the room.
• Switch off the hobs and the cooking surface after use as described in these operating instructions (e.g. by using the touch control). Do not rely on the pot detection function to switch off the device when you remove the pots.
• Do not allow children to play with, sit on, stand on or climb on the device.

• In the interest of children, do not store anything in the cupboards above the device. Children who secretly climb onto the unit could be seriously injured by falling objects.

• Children or persons with reduced mental capacity should be instructed in the use of the appliance by a person responsible for them to ensure that they can use the appliance without endangering themselves or others.

• Do not repair or replace any parts of the appliance unless this is explicitly recommended in the operating instructions. All other repair and maintenance work should be carried out by a qualified electrician.
• Do not drop or place heavy objects on the cooking surface.
• Do not stand on the cooking surface.
• Do not use pots with sharp edges and do not drag them over the glass surface as this could scratch it.
• Do not use metal brushes or other aggressive cleaning agents to clean the surface, as this could scratch it.
• This appliance is intended for use in households and similar environments only, such as staff kitchens in shops, offices and other work environments, in farmhouses, by guests in hotels, motels and bed & breakfasts.
• Never touch the hobs with your bare hands during use.
• Children under the age of 8 should not be able to get near the appliance.

Before installation

Make sure that:

• the work surface is level and that no components interfere with the space requirements of the unit.
• the work surface is made of heat-resistant and insulating material.
• that an oven, if the appliance is installed above it, has a built-in cooling fan.
• a suitable circuit breaker, which allows complete disconnection from the supply mains, has been integrated and mounted in the standing wiring in accordance with the local wiring regulations.
• the circuit breaker is of the approved type and has a contact opening of 3 mm between all poles (or in all active (phase) conductors if local regulations permit).
• the circuit breaker is easily accessible to the user of the induction hob.
• Contact the local building authorities if you have any doubts about the installation.
• Apply heat-resistant and easy-to-clean materials (such as ceramic tiles) to the walls surrounding the induction hob.

After installation

Make sure that:

• the mains cable is not accessible through cupboard doors or drawers.
• fresh air access to the underside of the unit is ensured so that air exchange can take place.
• a heat shield is fitted underneath the appliance when the appliance is installed above drawers or cupboards.
• the circuit breaker is easily accessible to the user of the induction hob.

Precautions

WARNING

Risk of injury! The induction hob must be installed by qualified professionals or technicians. Never attempt to install the unit yourself.

• The appliance must not be installed directly above dishwashers, refrigerators, freezers, washing machines or dryers, as the moisture could damage the appliance's electronics.
• The unit should be installed so that the heat can radiate, which can improve the reliability of the unit.
• The walls and surfaces surrounding the appliance must be heat-resistant.
• To avoid damage, the adhesive layer must be heat resistant.
• Do not use a steam cleaner to clean the appliance.

INSTALLING THE HOB

Preparation of the work surface

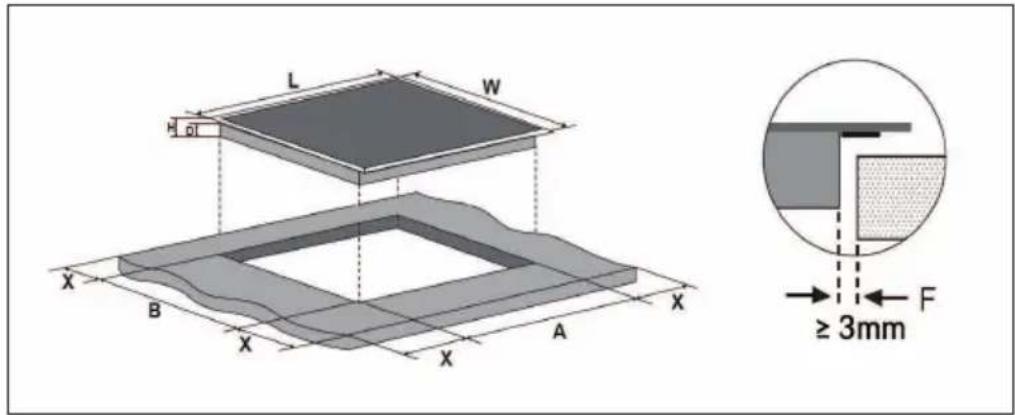

Cut out the work surface according to the dimensions in the drawing. For installation purposes, keep at least 5 cm of worktop around the hole. Make sure that the thickness of the worktop is at least 30 mm. Select a heat-resistant and insulating worktop material. Wood and similar fibre-rich or moisture-binding material should only be chosen as a work surface if it has been impregnated to avoid the risk of electric shock and deformation due to heat.

Note: The safety distance between the sides of the hob and the inside of the worktop should be at least 5 mm.

L W H B X A X X ≥ 3mm F

Measurements in mm

Article L W H	D A B X F
10046695 590	520 60	56 560 490 min	50 min 3

In all circumstances, ensure that the unit is adequately ventilated and that the air inlet and outlet openings are not blocked. Make sure the unit is in good condition before installing it.

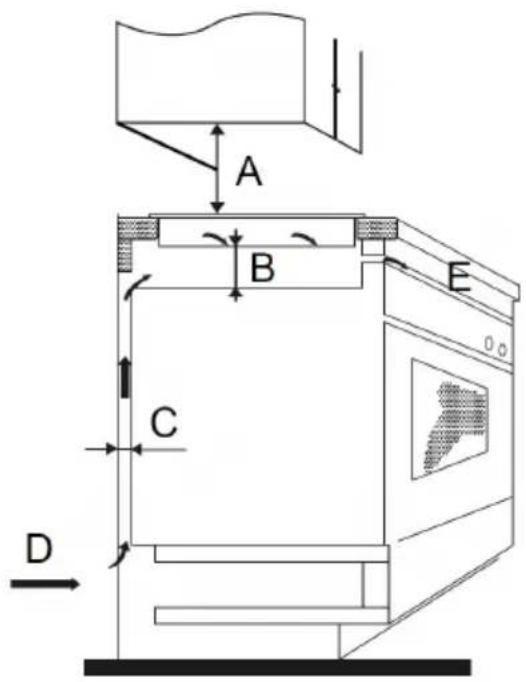

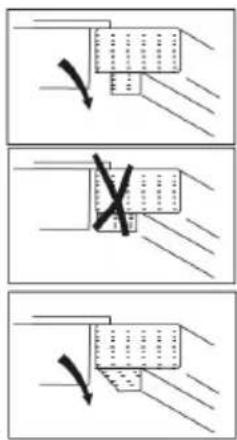

Note: The safety distance between the cooking surface and the wall cabinet above the cooking surface should be at least 760 mm.

A B C D E

Diagram illustrating three different mechanical or structural states with checkmark indicators and a cross symbol indicating failure or failure.

Note: The dimensions shown in the table are in mm.

A B C D	E
760 min.	50 min. 20 Air inlet opening	Air outlet 5 mm

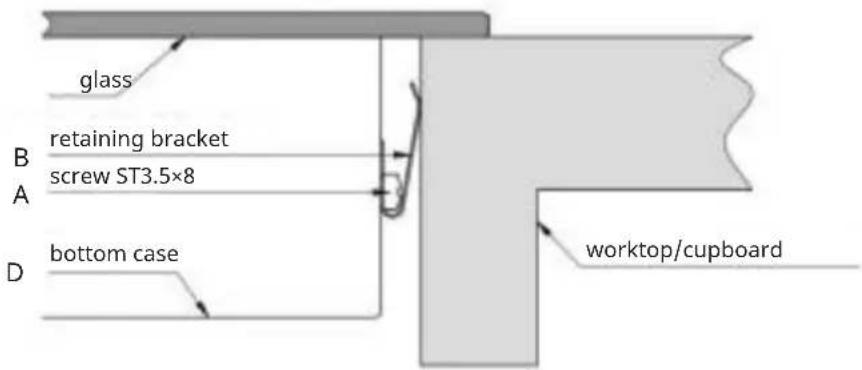

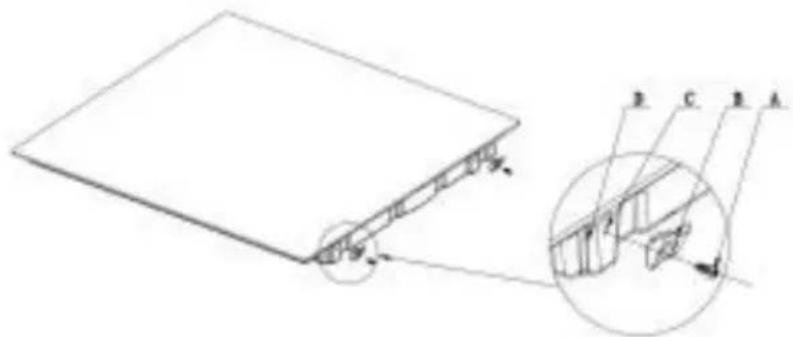

Before locating the fixing brackets

Fix the hob on the work surface by screw 4 brackets on the bottom case of hob (see picture) after installation.

Technical line drawing of a structural frame with an inset showing cross-section details (no text or symbols)

A B C D
Screw Bracket	Screw hole	Bottom case

glass retaining bracket screw ST3.5×8 A bottom case worktop/cupboard

Cautions

• The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
• The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
• The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
• The wall and induced heating zone above the table surface shall withstand heat
  • To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connection to the mains

WARNING

Risk of injury! This appliance may only be connected to the mains by qualified personnel or an electrician.

Before connecting to the mains, check that:

• the cable system in your home is suitable for the power required by the unit.
• the mains voltage corresponds to the voltage indicated on the unit label.
• the power supply cables can withstand the load shown on the unit label.

Do not use adapters, reducers or multiple sockets to connect the appliance to the power supply as they may cause overheating and fire. The mains power cable must not touch any hot parts of the appliance and must be placed so that it does not get hotter than 75 °C at any time.

Note: Consult your electrician to ensure that the mains supply in your home is suitable for the appliance. If changes have to be made to the power supply, these may only be carried out by a qualified electrician.

• If the mains power cable is damaged and needs to be replaced, contact the manufacturer or customer service to avoid damage to property and/or personal injury.
• If the unit is connected directly to the mains socket, an omnipolar circuit breaker, with a contact opening of at least 3 mm between all contacts, must be installed.
• The installer must check the safety of the electrical connection and ensure that it complies with all standards.
  • The mains power cable must not be bent or crushed.
• The mains power cable must be checked regularly for damage.

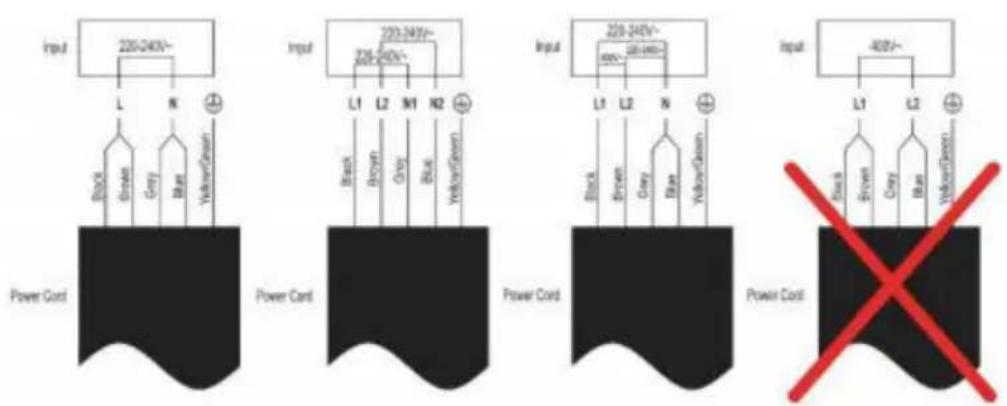

Input 220-240V~ L N Black Brown Grey Blue Yellow/Green Input 220-240V~ L1 L2 M1 N2 Black Brown Grey Blue Yellow/Green Input 220-240V~ L1 L2 N Black Brown Grey Blue Yellow/Green Input 400V~ L1 L2 Black Brown Grey Blue Yellow/Green Power Cord Power Cord Power Cord Power Cord

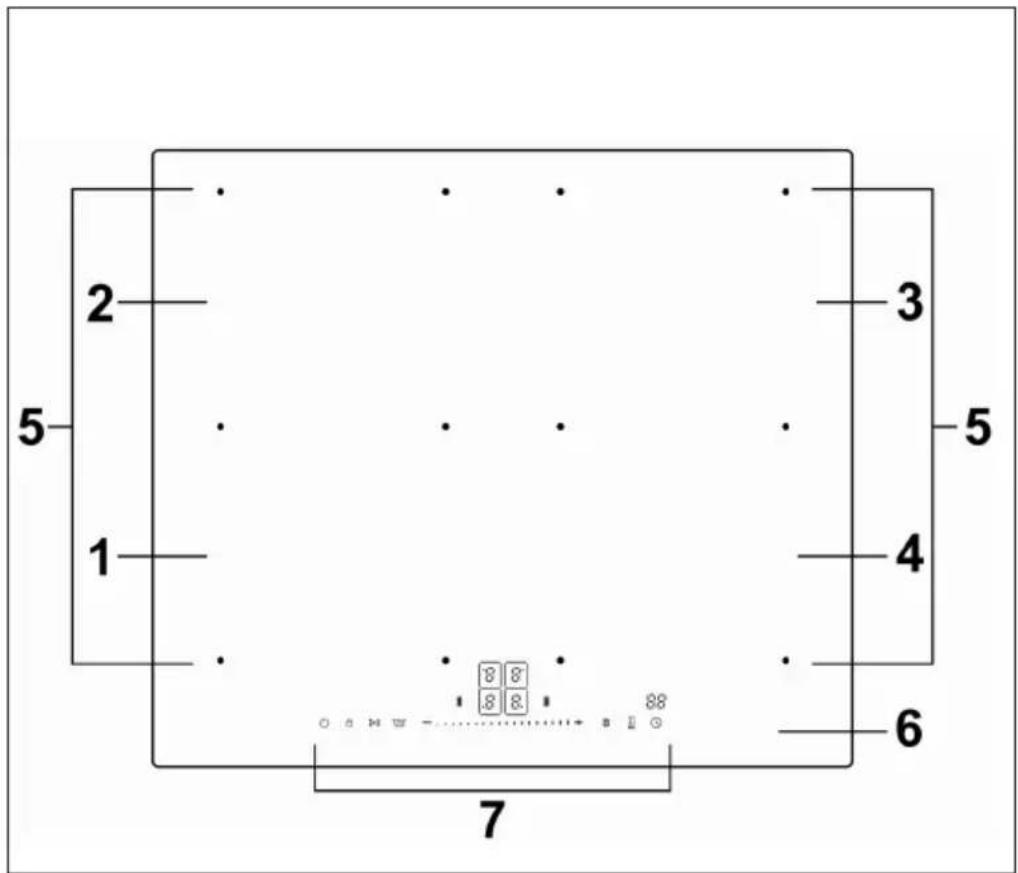

DEVICE OVERVIEW

2 5 1 7 3 5 4 6 8 8 8 8 8 8

1 2000 W zone, boost to 2600 W

2 1500 W zone, boost to 2000 W

3 2000 W zone, boost to 2600 W

4 1500 W zone, boost to 2000W

5 FlexiZone 2800 W boost 3500 W

6 Glass plate

7 Control panel

Minimum diameter and maximum diameter

• Zone 1 & Zone 2: 140 mm (min.) to 190 mm (max.)

CONTROL PANEL

Control panel

7 1 7

5 4 8 10 3 6 9 2

1 Heating zone selecting control

2 Timer control

3 Power/Timer regulating key

4 Keylock control

5 ON/OFF control

6 Boost function control

7 Flexizone control

8 Stop and go function control

9 BBQ function control

10 Keep warm function control

A WORD ON INDUCTION COOKING

Induction cooking is an advanced, efficient and affordable cooking technology. It works with the help of electromagnetic vibrations and transfers the heat directly to the pot instead of heating it indirectly via the glass surface. The glass only gets hot because the pot heats it up.

Cooking pot Magnetic circuit Glass ceramic plate Induction coil Induction current

OPERATION

Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is retgistered.
• Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions with check and cross symbols, likely indicating correct and incorrect states.

CHOOSING THE RIGHT COOKWARE

Note: Only use cookware suitable for induction. Look for the induction symbol on the packaging or on the bottom of the pot. Always lift the pot off the induction hob. Do not pull the pot as this could scratch the glass.

Three identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

Cookware made of the following materials is not suitable: pure stainless steel, aluminium or copper without magnetic underside, glass, wood, porcelain, ceramics and pottery. Do not use cookware that has sharp edges or a rounded bottom.

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

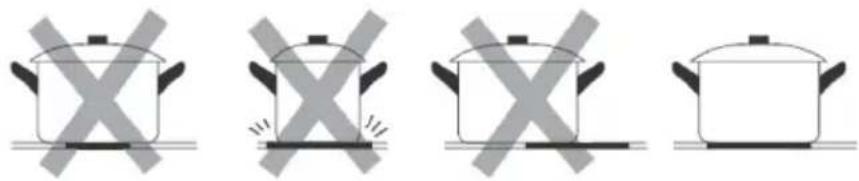

Make sure the bottom of your pot is level, sits flat on the glass surface and is the same size as the hob. Only use pots whose diameter is as large as the marking on the hob. If you use a slightly larger pot, the energy is consumed at the highest efficiency level. If you use a smaller pot, the efficiency might be lower than expected. Pots with a diameter of less than 140 mm might not be detected by the induction hob. Always place the pot in the middle of the hob.

You can perform a magnet test to check the usability. Move a magnet in the direction of the bottom of the pot. If the magnet is attracted to it, the pot is suitable for induction.

OPERATION

1. Touch the ON/OFF control. After power on, the buzzer beeps once, all displays show " - " or " -- ", indicating that the induction hob has entered the state of standby mode. Then the invisible control board will light up.
2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. Touching the heating zone selection control, the indicator will flash.
4. Set a power level by sliding along the control.

a. If you don't set the power within 1 minute, the induction hob will automatically switch off. You will need to start again at step 1.
b. You can modify the heat setting at any time during cooking.
c. If you slide along the power slider, it will vary from stage 0 to stage 9.

If the display flashes aternately with the heat setting, this means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touch the heating zone selection control that you wish to switch off.
2. Turn the cooking zone off by slide along the " " to the left point. Make sure the power display shows "0", then shows "H".
3. Turn the whole cooktop off by touching the ON/OFF control.
4. Beware of hot surfaces
   ' H' will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

USING THE BOOST

Boost is the function that one zone rising to a larger power in one second and lasting for 5 minutes. Thus you can get a more powerful and faster cooking.

Using the Boost to get larger power

1. Touch the heating zone selection button that you wish to boost, the indicator will flash.
2. Touch the Boost button, the heating zone will begin to work at Boost mode. The power display will show "P" to indicate that the zone is boosting.
3. The Boost power will last for 5 minutes and then the zone will go back to the power stage set before boost function.
4. If you want to cancel the Boost during this 5 minutes, touch the heating zone selection button, an indicator next to the key will flash. And then touch the Boost button or any point of the slider. The heating zone will go back to the power stage. Which was set before boost or the power level that you choose.

ZONE RESTRICTIONS

The four zones were divided into two groups. In one group, if use boost on one zone, first make sure that the other zone is working on/below power level 5.

Group a B 5 5 B Group b

Group a 5 B B 5 Group b

FLEXIZONE

This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.

Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, a cookware is moved from one zone to

the other one within the flexible area keeping the same power level of the zone where the cookware originally was placed, and the part that is not covered by cookware will not heat.

Important: Make sure to place the cookwares centered on the single cooking zone. In case of big pot, oval, rectangular and elongated pans make sure to place the pans centered on the cooking zone covering both cross.

Examples for good and bad pot placements

+ + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓ X

As big zone

To activate the flexible area as a single big zone, simply press the dedicated key. The power setting works as any other normal area.

As two independent zones

To use the flexible area as two different zones with different power settings, press the dedicated key again and the zones will return into their old settings.

Use the flexizones

1. Select one zone that need to use the flex function and set the power level. Then touch the flex button. The 2 zone in the flex group will be the same level as the selected zone. Then select the power stage, these two will change at the same time.
2. To turn off the flex function, choose one zone of the flex group, then touch the flex zone button, then flex function will turn off. The heating zone will go back to "0" power stage.

EXTENDED FUNCTIONS

Using the Barbecue function

BBQ is the function that used at the flexizone mode which will allow the pan surface temperature stay at a reasonable level and suitable to grill.

1. Touch the heating zone selection button that you wish to use BBQ, and indicator next to the key will flash, and then touch the BBQ button to active the BBQ function. Then 'b' and 'q' will be displayed.
2. To turn off the BBQ function, select the cooking zone first, then press the BBQ button, the BBQ function will turn off. The heating zone will go back to "0" power stage.

Using the Keep-warm Function

Keep warm function is suitable for keeping food warm.

Using the Keep warm to get stable temperature

1. Touch the heating zone selection button that you wish to use keep warm, the indicator will flash.
2. Touch the button, the cooking zone indicator will display "A".
3. If you want to cancel the keep warm, touch the heating zone selection button, and then touch the button. The heating zone will go back to "0" power stage.

Using the Pause function- STOP+GO

Pause function can be used at any time during cooking. It allows to stop the induction cooktop and come back to it.

1. Make sure the cook zone is working.
2. Touch the button STOP+GO, the cooking zone indicator will show "II". And then the operation of the induction cooktop will be deactivated within the cope of all cooking zones, except the STOP+GO, on/off and lock keys.

To cancel the pause status, touch the button STOP+GO, then the cooking zone will go back to the power stage which you set before.

Locking the controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls:

Touch the keylock control. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except the ON/OFF, you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the next operation.

Over-Temperature Protection

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

Detection of Small Articles

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

Auto Shutdown Protection

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

Power level 1 2	3 4 5 6	7 8 9	A II
Default working timer (hours)	8 8 8	4 4 4	2 2 2 2	2

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minutes.

Using the timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one cooking zone off after the set time is up.
• You can set the timer up to 99 minutes.

Using the timer as a minute minder

1. Make sure the cooktop is turned on. Note: you can use the minute minder even if you're not selecting any cooking zone.
2. Touch the timer control, the minder indicator will start flashing and "00" will show in the timer display and the "0" flashes.
3. Set the time by sliding along the " control.
4. Touch the timer control again, the "0" will flash.
5. Set the time by sliding along the sliding control. Now the timer you set is 65 minutes.
6. Buzzer will bips for 30 seconds and the timer indicator shows “- - ” when the setting time finished.

Setting the timer to turn one cooking zone off

1. Touch the heating zone selection control that you want to set the timer for. (e.g. zone 2).
2. Touch the timer control, the minder indicator will start flashing and "00" will show in the timer display and the "0" flashes.
3. Set the timer by sliding along the slider control.
4. Touch the timer control again, the "0" will flash.
5. Set the time by sliding along the slider control. Now the timer you set is 65 minutes.
6. When the time is set, it will begin to cound down immediately.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be automatically switch off and show "H".

Other cooking zone will keep operating if they are turned on previously.

Setting the timer to turn more than one cooking zone off

1. If use this function to more than one heating zone, the timer indicator will show the shortest time (e.g. zone 1# setting time of 3 minutes, zone 2# setting time of 6 minutes, the timer indicator shows "3".).

NOTE: The flashing red dot next to power level indicator means the timer indicator is showing time of the heating zone. If you want to check the set time of other heating zone, touch the heating zone one time. The timer will indicate its set time.

1. When cooking timer expires, the corresponding heating zone will be automatically switch off and show "H".

NOTE: If you want to change the time after the timer is set, you have to start from step 1.

COOKING TIPS

WARNING

Risk of fire! Take special care when deep-frying as the oil and fat heat up very quickly. At very high temperatures, oil and grease can ignite spontaneously and they therefore pose an enormous fire risk.

Tips for cooking

• Reduce the heat when the food starts to cook.
• Using a pot lid reduces the preparation time and saves energy by retaining the heat.
• Minimise the amount of water or fat to reduce preparation time.
• Start the cooking process with a high heat setting and reduce the heat as soon as the food has heated up completely.

Simmering, cooking rice

• When simmering, the contents of the pot are cooked below the boiling point at about 85^ . Bubbles occasionally rise to the surface of the cooking liquid. Simmering is the key to delicious soups and delicate stews, as it allows the flavour to develop without overcooking the food. You should also prepare egg-based and flour-thickened sauces below the boiling point.
• Preparing rice using the absorption method may require a higher power setting to ensure that the rice cooks in the recommended time.

Searing steak

1. Let the meat rest at room temperature for about 20 minutes.
2. Heat a frying pan.
3. Rub both sides of the steak with oil. Drizzle some of the oil into the hot pan and then place the steak in it.
4. Turn the steak over only once during searing. The length of searing depends on the thickness of the steak and how well done you want it to be in the end. The time can vary from 2-8 minutes per side. Press on the steak (for example with a fork or cooking spoon) to check how cooked through it is. The firmer it feels, the more cooked through it is.
5. Then place the steak on a warm plate for a few minutes to rest and tenderise.

Stir-frying food

1. Select an induction-compatible shallow wok or large pan.
2. Have all the ingredients and accessories ready. Stir-frying should be quick. If you have large quantities of food, fry them in portions and not all at once.
3. Preheat the pan briefly and add two teaspoons of oil.
4. Fry the meat first and take it out and keep it warm.
5. Fry the vegetables while stirring. When the vegetables are hot but still firm to the bite, reduce the heat setting of the hob, place the meat in the pan and add your sauce.
6. Gently stir the ingredients together to ensure that everything is warmed up.
7. Serve the food immediately.

Note: If a non-magnetic pot (e.g. made of aluminium), a pot of the wrong size or small objects (e.g. knives, forks, keys) are placed on the induction hob, the appliance automatically switches to standby mode after one minute. The fan cools down the unit for another minute.

SET THE HEATING POWER

Power level Suitable for
1-2	Warming up small amounts of foodMelting chocolate, butter, and foods that burn quicklySimmeringSlow heating
3-4	Warming upRapid simmeringCooking rice
5-6 • Pancakes
7-8	Brief fryingCooking pasta
9	Deep frying and searingBringing soup to a boilBringing water to a boil

CLEANING AND CARE

Note: Before cleaning, always pull the plug out of the socket and allow the device to cool down.

What How Important!
Daily contamination on the glass (fingerprints, marks and stains caused by overflowing, non-sugary food and liquids)	1. Turn the hotplate off.2. Spray on a hotplate cleaner while the plate is still warm but no longer hot.3. Wipe with a damp cloth and dry the plate with a towel.4. Turn the hotplate back on.	·When the hotplate is switched off, the "Hot surface" indicator goes out even though the hotplate is still hot.Be careful not to burn yourself!·Do not use scouring pads or abrasives as they may damage the finish.Check the package to see if your cleaning agent is suitable for ceramic hotplates.·Do not leave any cleaner residue on the plate, otherwise the glass could tarnish.
Spilled food or liquids on the function keys.	1. Turn the hotplate off.2. Soak the residues.3. Wipe the keys with a damp cloth, soft sponge or kitchen towel.4. Follow steps 2-4 under "Daily contamination".	·The hotplate may beep, switch itself off and the buttons may stop working while there is liquid on them. Make sure that the buttons are clean and dry before switching the plates back on.
Overcooked, melted or hot, sugary residues and splashes on the glass.	Remove the dirt with a carpet knife, a razor blade or a scraper for ceramic hotplates, but be careful not to burn yourself on the hot hotplate.1 Turn the hotplate off.2 Hold the scraper at a 30° angle and scrape the dirt into a cold corner of the hotplate.3 Remove the dirt with a cloth or kitchen towel.4 Follow steps 2-4 under "Daily contamination".	Remove the stains and splashes immediately, as they are more difficult to remove once they have become cold.Attention: risk of injury!As soon as the safety cover is removed from the carpet knife, the sharp knife will stick out. Handle it carefully so that you do not injure yourself.

TROUBLESHOOTING

Problem Possible cause Potential solution
The hotplate cannot be switched on.	No power. Make sure that the hotplate is connected to the mains and switched on. Check if a fuse is possibly flipped or broken. If the problem persists, contact a qualified technician.
The function keys do not respond.	The keys are blocked. Deactivate the key lock.
The keys are difficult to operate.	There is a thin film of water on the keys or you are using the tip of your finger instead of the ball of your finger.	Make sure the keys are dry and use the ball of your finger.
The glass is scratched.	Cookware with sharp edges or an abrasive sponge or scouring agent was used for cleaning.	Only use cookware with flat, clean bottoms. Do not use any scouring pads or scouring agents for cleaning.
Some pans make cracking or clicking noises.	Due to their construction, such noises can occur with certain cookware, as the bases are often made of different materials that expand differently when heated.	This is not a fault, such noises are normal.
The appliance makes a low humming noise when used with a high heat setting.	This is caused by induction cooking technology.	This is normal. However, the noise should become quieter or disappear completely when you reduce the heat setting.
The unit emits fan sounds.	The fan built into the unit has switched on to prevent the electronics from overheating. It may happen that the fan continues to run for some time after you have switched off the unit.	This is normal and does not require any action. Do not disconnect the device from the power supply while the device's fan is still running.
The pots do not heat up.	1. The appliance cannot detect the pot because it is not suitable for induction.2. The appliance cannot detect the pot because the pot is either too small for the hob or is not in the centre of the hob.	Place the pot in the centre of the hob and make sure that the dimensions of the bottom are suitable for the hob.
The appliance or hob has unexpectedly switched itself off, a sound is heard and an error code is displayed.	Technical error. Please write down the error code, unplug the device and contact customer service.

Failure display and inspection

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Error code Possible causes Action
F3/F4 Temperature	sensor of the induction coil failure.	Please contact the supplier.
F9/FA Temperature	sensor of the IGBT failure.	Please contact the supplier.
E1/E2 Abnormal supply voltage. Please inspect whether power supply is normal. Power on after the power supply is normal.
E3 High temperature	ure of the induction coil temperature sensor	Please contact the supplier.
E5 High temperature	ure of the IGBT temperature sensor	Please restart after the hob cools down.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or labels present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

L W H B X A X X ≥ 3mm F

Dimensions

Article L W H	D A B X F
10046695 590	520 60	56 560 490 min.	50 min.	3

Diagram illustrating three different mechanical or structural states with checkmark indicators and a cross symbol indicating failure or failure.

Technical line drawing of a structural frame with an inset showing cross-section details (no text or symbols)

Diagram showing two hand positions with check and cross symbols, likely indicating correct and incorrect states.

CHOIX DU BON USTENSILE DE CUISSON

Three identical cooking pots with crossed-out X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

+ + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓ X

Grande zone

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

Boîte postale 42

272 Kensington High Street

Londres, W8 6ND

Royaume-Uni

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

L W H B X A X X ≥ 3mm F

Dimensioni in mm

Articolo L W	H D A B	X F
10046695 590	520 60	56 560	490 min.	50 min.	3

Diagram illustrating three steps of a mechanical or electrical process with arrows indicating direction and a cross symbol highlighting a specific section.

Technical line drawing of a structural frame with an inset showing cross-section details (no text or symbols)

Diagram showing two hand positions with check and cross symbols, likely indicating correct and incorrect states.

SCEGLIERE LE PENTOLE GIUSTE

Three identical cooking pots with crossed X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

+ + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓ X

Come zona grande

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

L W H B X A X X ≥ 3mm F

Dimensiones en mm

Diagram illustrating three steps of a mechanical or electrical process with arrows indicating direction and a cross symbol highlighting a specific section.

Technical line drawing of a structural frame with an inset showing cross-section details (no text or symbols)

A B C D
Tornillo Soporte Orificio paratornillo		Caja inferior

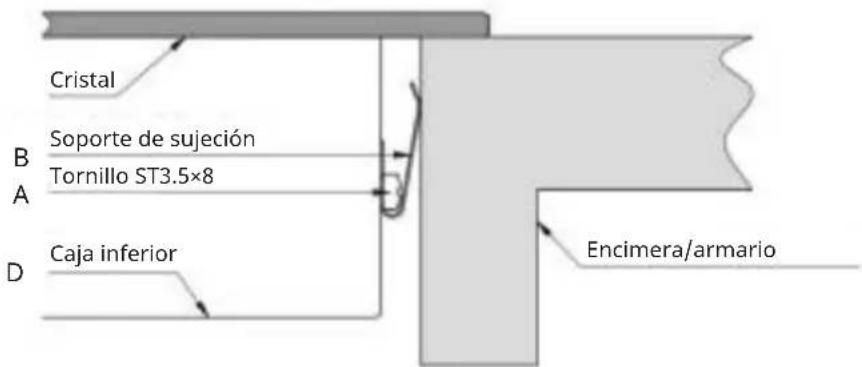

Cristal Soporte de sujeción Tornillo ST3.5×8 Caja inferior Encimera/armario

Atención

Diagram showing two hand-drawn checkmark and cross symbols on a line, likely indicating correct or incorrect conditions.

ELIJA LA BATERÍA DE COCINA ADECUADA.

Three identical cooking pots with crossed-out X marks, placed on a flat surface (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in different orientations (no text or symbols)

+ + ≥ 160*270mm ≥ 240mm ✓ ✓ ✓ ✓ ✓ X

Como zona grande

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

272 Kensington High Street

Londres, W8 6ND

Reino Unido

KLARSTEIN
